Review

Research Progress of Co-Catalysts in Photocatalytic CO2 Reduction: A Review of Developments, Opportunities, and Directions

by
Cheng Zuo
,
Qian Su
* and
Xueyuan Yan
*
College of Chemical Engineering and Environmental Engineering, Weifang University, Weifang 261061, China
*
Authors to whom correspondence should be addressed.
Processes 2023, 11(3), 867; https://doi.org/10.3390/pr11030867
Submission received: 13 February 2023 / Revised: 8 March 2023 / Accepted: 12 March 2023 / Published: 14 March 2023
(This article belongs to the Special Issue Process Systems Engineering for Chemical Process Safety and Environmental Protection)
Browse Figures
Review Reports Versions Notes

Abstract

:
With the development of the global economy, large amounts of fossil fuels are being burned, causing a severe energy crisis and climate change. Photocatalytic CO2 reduction is a clean and environmentally friendly method to convert CO2 into hydrocarbon fuel, providing a feasible solution to the global energy crisis and climate problems. Photocatalytic CO2 reduction has three key steps: solar energy absorption, electron transfer, and CO2 catalytic reduction. The previous literature has obtained many significant results around the first two steps, while in the third step, there are few results due to the need to add a co-catalyst. In general, the co-catalysts have three essential roles: (1) promoting the separation of photoexcited electron–hole pairs, (2) inhibiting side reactions, and (3) improving the selectivity of target products. This paper summarizes different types of photocatalysts for photocatalytic CO2 reduction, the reaction mechanisms are illustrated, and the application prospects are prospected.

1. Introduction

With the rapid economic development of the world, large amounts of fossil fuels are consumed. As a result, a large amount of CO2 is discharged into the air, causing the greenhouse effect, thus breaking the ecological balance in the world. Fossil fuels are non-renewable energy [1,2]. In contrast, solar energy is inexhaustible, providing the earth with about 120,000 TW of energy annually [3,4]. How to improve the conversion and utilization of solar energy has always been the focus of researchers. In the photocatalytic process (Figure 1), semiconductor (SC) photocatalysts could be stimulated by the absorbed photons to produce e−–h+ pairs, and after absorbing the photon energy, the internal electrons will be transferred from the valence band (VB) to the conduction band (CB) inside the semiconductor [5,6,7]. Negatively charged electrons are produced at the CB, and positively charged holes are produced at the VB. Subsequently, the light-induced e− and h+ will separate and migrate to the photocatalyst surface. The reactants adsorbed on the inner surface of the semiconductor undergo a redox reaction for energy conversion [8,9,10].
Fujishima et al. [11]’s preliminary research on photocatalysts shows that TiO2 electrodes could make CO2 conversion to small amounts of methanol under sunlight, which makes scholars focus on photocatalysis technology. Common semiconductors like metal oxides (e.g., TiO2 and Ga2O3) and metal sulfides (e.g., CdS and MoS2) have been found [1,3,6]. In general, photocatalytic CO2 conversion can be roughly divided into three processes [9,10]. At present, much research has been completed on the two processes (i and ii), and process (iii) could improve catalytic efficiency by adding co-catalysts. Meanwhile, it improves the selectivity of CO2 reduction products and inhibits side reactions. Up until now, research on co-catalyst photocatalytic CO2 has been rare.
Up to now, CO2 reduction catalysts could be divided into two categories: precious metal-based catalysts and precious metal-free catalysts. The precious metal-based catalysts showed excellent stability and redox properties in photocatalytic CO2 reduction, such as Pt [12,13,14,15,16,17,18,19,20], Ag [21,22,23,24,25,26,27,28,29,30,31], Pd [32,33,34,35,36], Ru [37,38,39], Rh [40,41], Au [42,43], and alloys [44,45,46,47]. These catalysts have been widely applied to improve the selectivity of photocatalytic CO2 reduction products. In addition, the exposed crystal surface, particle size, and particle distribution greatly affect the activity and selectivity of photocatalytic CO2 reduction [48].
While the high cost of precious metal catalysts has limited their development for industrial applications, the search for low-cost, high-activity catalysts has become the focus of current research. The precious metal-free catalysts include Cu/Cu2O/CuO [49,50,51,52,53,54,55,56,57,58,59,60], Fe/Fe2O3 [61], Ni/NiO [62,63,64,65,66,67], co-incorporated metal-organic framework (MOF), and carbon nanomaterials. Cu/Cu2O/CuO was recognized as an excellent catalyst with high activity. Zhang et al. [68] added unsaturated monatomic Co to the MOF system to improve photocatalytic CO2 reduction efficiency.
Although researchers have made many contributions to the photocatalytic reduction of CO2, comprehensive reviews are still necessary to provide direction for future research. In this paper, we will focus on the mechanism and role of co-catalysts in CO2 photocatalytic reduction reactions.

2. Application of Co-Catalysts in CO2 Photocatalytic Reduction

2.1. Catalytic Reduction of CO2 Reaction Mechanism

Due to the linear structure of CO2, the energy required to cleave the C–O bond was much higher than that required to cleave the C–C, C–O, and C–H bonds [69]. In addition, the relatively wide energy gap and electron affinity of CO2 leads to a negative single-electron transfer redox potential. Therefore, different reaction pathways have been developed to reduce CO2 at lower energies. In general, the photocatalytic CO2 reduction process must follow the following four steps [70,71]: (1) the electrons on the photocatalyst VB are stimulated and transferred to its CB to generate a photogenerated charge, and the photogenerated charge could either be transferred separately to the photocatalyst surface for photocatalytic reaction or recombined to release photons or heat; (2) the catalyst surface for CO2 absorption; (3) photogenerated electrons on the photocatalyst surface to convert CO2 into fuel; and (4) desorption of photocatalyst products. A conductive potential that is more negative than the required standard potential and effective electron transfer to the CO2-adsorbed semiconductor surface determine the efficiency of CO2 reduction (Table 1).
The products obtained change with the change of reaction conditions and catalytic materials during the reduction process. The photon energy required for photoexcitation depends on the band gap of the photocatalyst. The edge position of the photocatalyst’s energy band should match the relevant reaction’s redox potential. The different reduction products and corresponding electrode potentials obtained from the photocatalytic reduction reaction of CO2 in an aqueous solution are shown in Table 1. The ideal CO2 photocatalytic reduction reaction must meet the requirement that the CB potential of photogenerated electrons is more negative than the potential of the reduction products/CO2 (CH4/CO2, CH3OH/CO2, HCHO/CO2, HCOOH/CO2, or CO/CO2), and the VB that generates holes is corrected than the potential of the oxidation reaction (O2/H2O) of H2O. To sum up, photocatalytic reduction of CO2 must meet two conditions: (i) photon energy is greater than or equal to band gap energy and (ii) the CB potential is more negative than the surface electron acceptor potential, and the VB potential is corrected than the surface electron donor potential. In this way, the reaction process of photocatalytic reduction of CO2 can be realized [72].

Mechanistic Role of Co-Catalysts in CO2 Photocatalytic Reduction

In the process of photocatalytic CO2 reduction, the co-catalyst plays three critical roles in participating in the reaction as follows: (i) co-catalysts could reduce the activation energy or the reaction barrier on the semiconductor surface, (ii) co-catalysts could rapidly separate and migrate holes and electron pairs on semiconductor surfaces, and (iii) the co-catalyst could inhibit the side reactions in the photocatalytic reduction of CO2 and improve the selectivity of the target product.
Photoexcited electrons could migrate through the photocatalyst conduction band to the co-catalyst surface to reduce CO2 to CO, HCOOH, HCHO, CH3OH, and CH4 (from Figure 2). The excellent heterojunction structure between the co-catalyst and the semiconductor is vital for enhancing the migration of photogenerated carriers from the semiconductor to the co-catalyst.
In the process of photocatalytic CO2 reduction, many factors affect the activity of the co-catalyst. For instance, elemental composition, crystal structure, exposed crystalline surface, and particle size. Excessive co-catalysts could have the following three problems: (i) Excess co-catalyst could cover the active sites on the semiconductor surface and hinder the reduction of CO2. (ii) Excess co-catalysts block sunlight and reduce light absorption, thus reducing the number of hole–electron pairs. (iii) Excessive amount of co-catalyst could cover the semiconductor surface unevenly, resulting in a larger catalyst size and thus lower catalytic activity. Therefore, finding the optimal amount of co-catalyst addition is necessary to maximize the photocatalyst activity.

3. Noble Metal-Based Co-Catalysts

Precious metal-based co-catalysts, such as Pt, Ag, Pd, Rh, Au, and alloys, have successfully improved the activity and selectivity of target products for photocatalytic CO2 reduction in a range of photocatalyst systems. Noble metal co-catalysts improve the photocatalytic efficiency and enhance the selectivity of target products in the photocatalytic reduction of CO2. However, the high cost of the precious metal itself limits its industrial development process.

3.1. Pt-Based Co-Catalysts

Generally, there are two main categories of Pt distribution on the photocatalyst surface. One is the in situ loading of Pt during the synthesis of TiO2 photocatalysts, and the other is the effect of Pt on the synthesis of TiO2 photocatalysts. The researchers [12] synthesized TiO2 nanofibers (NFs) using Au and Pt NP coatings by a simple electron spin method. The precursors containing Ti, Au, and Pt were mixed, respectively. The Au and Pt NPs were found to bind precisely to TiO2 in situ during the electron spin. The Au- and Pt-loaded TiO2 NFs exhibited higher CO2 reduction activity under the action of H2O vapor than pure TiO2.
In the preparation of TiO2, in addition to the above two methods, impregnation–calcination and microwave-assisted solvent-heat treatment methods were used. The mesoporous TiO2 loaded with Pt, Au, and Ag exhibited photocatalytic activity for reducing CO2 to gas-phase CH4 under visible light irradiation. The mesoporous TiO2 loaded with 0.2% Pt by mass fraction produced the highest CH4 content of 5.7 µmol g−1 after visible light irradiation for 2 h. The reason is that the noble metal Pt has the highest work function (5.65 eV) and the lowest Fermi energy level among many co-catalysts. It has the most potent electron extraction ability, making it an ideal choice for photocatalytic CO2 reduction co-catalyst. Therefore, adding co-catalyst Pt on the semiconductor surface could increase electron mobility and maximize the separation of electrons and holes [73]. Among them, the loading of Pt into TiO2 was the most widely studied. Pt, Au, and Ag were loaded onto the mesoporous TiO2 surface. The results showed that when the mass fraction of Pt was 0.2%, the highest yield of CH4 was 5.7 μmol g−1 after 2 h of light exposure. The possible reason is that the value of the work function of Pt is higher than that of Au (5.1 eV) and Ag (4.26 eV). Therefore, photogenerated electrons could migrate from TiO2 to Pt. Furthermore, Xie et al. [15] reported various noble metals loaded on TiO2. The results showed that the noble metals are active in the order of Ag < Rh < Au < Pd < Pt through the yield of CH4. This trend is consistent with the respective functionalities of the metals. Although the addition of noble metal catalysts improved the selectivity of CH4, the selectivity of CO (e.g., noble metal Rh) decreased instead. It also accelerates the trend of H2O reduction to H2. The results show that the selectivity of CO2 reduction decreases from 56% for TiO2 to 39–45% for the loaded noble metal in TiO2. Therefore, the focus of current research is the study of how to improve activity.
The impregnation roasting technique was also widely used for Pt-loaded TiO2. For example, using impregnation and calcination methods, Anpo et al. [17] loaded a mass fraction of 1.0% Pt onto synthesized TiO2-anchored Y zeolites. The addition of Pt increased the CH4 yield and decreased in CH3OH yield. Furthermore, a microwave-assisted solvothermal rapid loading of Pt on TiO2 was developed [18]. For example, the highest photocatalytic activity for CO and CH4 was achieved when the mass fraction of Pt was 0.6%. At the same time, undoped TiO2 was 0.20% and 0.34%. The excess Pt loading reduced the dispersion of Pt NPs and increased the size of Pt NPs. It was easier to remove from the TiO2 NTAs higher than other polyols. Under visible light irradiation, the Pt-loaded TiO2 NTAs exhibit a CH4 content of about 25 ± 4 ppm in CO2 and H2O vapor, while the unloaded TiO2 NTAs produce only about 3 ppm of CH4. The Pt NPs were uniformly dispersed on the surface of TiO2 NTAs, providing many active sites and enhancing the photocatalytic activity of TiO2 NTAs.
Due to quantum confinement, the deposition time may lead to tiny Pt NPs high energy band separation, thus limiting the electron transfer from TiO2 to Pt (Figure 3) [74]. On the contrary, the larger the Pt NPs have similar energy band positions as the bulk Pt. In this case, the light-induced migration of electrons and holes to Pt leads to their recombination. The Pt NPs with optimal size and energy band between −4.4 and −5.65 eV can promote efficient photoinduced electron transfer from TiO2 only when the appropriate deposition time is used (Figure 3).
Yuan et al. [75] loaded 0.5% Pt by mass fraction onto P/g-C3N4 composites and exhibited excellent activity. Cao et al. [76] loaded Pt co-catalysts onto In2O3 nanocrystal-deposited g-C3N4 NSs hybrid photocatalysts. After 4 h of visible light irradiation, the yield of CH4 reached 159.2 ppm. Whereas the catalyst not loaded with In2O3/g-C3N4 was only 76.7 ppm. Pt could act as an electron receiver and facilitate charge transfer and migration. Li et al. [77] used H2O vapor to photocatalysis the reduction of CO2 to CH4 by photodeposition with Pt loaded on SiO2 columnar HNb3O8. The highest photocatalytic activity for CH4 was achieved when the mass fraction of Pt was 0.4%. The results showed that at 0.4 wt% Pt/SiO2-HNb3O8 in the presence of H2O vapor and N2, there was no CO2 in the product, indicating that part of the CH4 may come from carbon accumulation on the photocatalyst. In comparison, the rate of CH4 generation from carbon accumulation is much lower than the rate of CH4 generation.
Although Pt is a more applied co-catalyst in the photocatalytic reduction of CO2 for hydrogen production, it was not the best. This was because it permanently traps photogenerated electrons while promoting H2 production, which will reduce the efficiency of photocatalytic CO2 reduction [18,72]. In addition, Pt could increase the activity of CO2 conversion to CH4 more than CO because the generated CO cannot be desorbed from Pt. It leads to catalyst deactivation [78].
In addition, it was also found that when an excessive amount of Pt was loaded onto TiO2, Pt would be loudly agglomerated on the semiconductor surface. The electron-rich density of Pt will hinder the formation of Schottky barriers between TiO2 and Pt, which may increase the electron–hole complex probability and ultimately reduce the CO2 conversion efficiency [78].

3.2. Ag-Based Co-Catalysts

The binding energy of Ag to CO is much lower than that of Pt to CO, and CO is more easily desorbed from the Ag surface for CO2 reduction conversion. Therefore, Ag was widely used as a co-catalyst for CO2 photocatalytic reduction, especially in improving the selectivity of CO. The researchers loaded the co-catalyst Ag onto TiO2. Reduction products were mainly CH4 and CH3OH. Experimental results showed that when the mass fraction of Ag exceeded 5%, Ag clusters would be formed on the semiconductor surface, strengthening the formation of Schottky barriers. It causes the separation of electron–hole pairs and prolongs the lifetime of electron–hole pairs, thus improving the catalyst activity [79].
Researchers [80] added a series of co-catalysts to the synthesized BaLa4Ti4O15, respectively. After experiments, it was found that NiO, Ru, and Au could improve the activity of photocatalytic synthesis of H2 and did not achieve CO2 reduction because these three precious metals mainly act in the photocatalytic decomposition of H2O to H2. In contrast, Ag is the most effective co-catalyst for promoting CO2 reduction on BaLa4Ti4O15 (Figure 4).
There are four methods for loading Ag onto BaLa4Ti4O15: impregnation, photolytic deposition, H2 reduction, and liquid-phase reduction. Among them, the liquid-phase reduction method is the most efficient yield for the reduction of CO2 to CO compared to H2 production. It is due to the small size and high dispersion of the deposited co-catalyst Ag, as shown in Figure 4. CO2 could fully react with Ag and improve the activity of the co-catalyst.
The co-catalyst Ag differs from Pt because Pt tends to agglomerate on the semiconductor surface. On the one hand, it covers the active sites on the semiconductor surface, and on the other hand, it reduces the light intensity and the CO2 reduction activity. Metal Ag could form small clusters on a nanometer scale, and the smaller the size of the clusters, the stronger the interaction with the carrier and the easier to receive electrons on the d orbitals.

3.3. Pd-Based Co-Catalysts

Unlike the first two noble metal co-catalysts, the crystalline surface of Pd has a more significant effect on CO2 reduction. The researchers loaded Pd on TiO2 by the photodeposition method and then covered a Nafion layer on Pd-TiO2. The Pd-TiO2 photocatalyst with the Nafion layer overlay has vigorous photocatalytic activity and can reduce CO2 to CH4 [33].
Researchers [81] investigated the crystallographic selectivity of Pd co-catalysts using 2D g-C3N4 with low layer thickness. Single-crystal Pd NCs and Pd NTs surrounded by {100} and {111} crystal planes were loaded onto g-C3N4 using the solution-phase in situ growth method. The density functional theory (DFT) simulation results show that g-C3N4 has the function of enhanced charge separation efficiency. While the experimental results also revealed that the selectivity of g-C3N4 loaded with Pd NTs (80%) was significantly higher than that of g-C3N4 loaded with Pd NCs (20%).

3.4. Ru-Based Co-Catalysts

It was demonstrated that the metal Ru co-catalyst could reduce CO2. Baran et al. [38] loaded metal Ru with a mass fraction of 1.0 onto the nanocrystalline ZnS surface by impregnation. The promoting effect of Ru-loaded co-catalysts may come from the following two aspects: (1) the adsorption of photoexcited electrons by Ru improves the charge separation efficiency and (2) Ru-loaded ZnS enhances the adsorption of CO2.

3.5. Alloy Co-Catalysts

The alloy co-catalysts Au/Cu [44] and Cu/Pt alloys [45] showed synergistic effects in promoting photocatalytic CO2 reduction. For example, Au/Cu alloy NPs were loaded onto TiO2. In particular, the Au/Cu alloy with a mass fraction of 1.5% (1:2 atomic ratio of Au to Cu) loaded onto TiO2 has high photocatalytic activity. The selectivity of CH4 was as high as 97%. It was shown that introducing Cu in Au/Cu-TiO2 could facilitate the transfer of CB electrons from TiO2 to CO2.
The photo deposition of Cu/Pt bimetallic shells on periodically modulated double-walled titanium dioxide nanotubes to reduce of CO2 to low-carbon hydrocarbons. Under simulated solar irradiation conditions, the optimized PMTiNT had an overall maximum hydrocarbon production rate [45].

4. Precious Metal-Free Co-Catalysts

Precious metal-free co-catalysts, especially Cu- [49,50,51,52,53,54,55,56,57,58,59,60] and Ni-based co-catalysts [62,63,64,65,66,67], have been widely used for photocatalytic CO2 reduction reactions. The non-precious metal co-catalysts do not exhibit as high photocatalytic efficiency as those of precious metals in the photocatalytic reduction of CO2. However, they could reduce the probability of electron–hole complexation. Excellent photocatalytic activity was exhibited. Most importantly, the low cost of the non-precious metal makes industrialization possible.

4.1. Cu-Based Co-Catalysts

Currently, Cu-based co-catalysts are widely used for loading various catalysts. For example, TiO2, ZnO, ZrO2, and CdS et al. were used to enhance catalyst activity. It is shown that Cu was loaded onto TiO2 by the thermal hydrolysis method. The TiO2 surface was in the form of clusters of Cu2O. Clusters of Cu2O have the effect of having electron traps, which inhibit the carrier complex. Tseng et al. [82] employed a sol-gel method to load Cu onto TiO2, and the analytical results showed that the presence of Cu was mainly in the form of Cu2O. The 2.0 wt% Cu-modified TiO2 showed more excellent efficiency for the reduction of CO2 than unloaded TiO2. The loaded Cu on TiO2 could trap photogenerated electrons, thus improving the electron–hole separation efficiency. The researchers reported that CuOx-modified TiO2 exhibited more excellent activity than AgOx-modified TiO2 in reducing CO2 to CH3OH. In both cases, both CuOx and AgOx trapped photogenerated electrons and served as active catalytic sites, and thus the activity was higher than that of pure TiO2 [83].
Tseng and Wu [84] showed experimentally that the chemical state and distribution of Cu species on TiO2 greatly influence the photocatalytic CO2 reduction activity. The results showed that the isolated Cu(I) species obtained was the main active site. TiO2 modified by Cu has a higher activity than TiO2 modified by Ag. Xie et al. [85] synthesized Cu-loaded TiO2 by sol-gel method to photocatalysis reduce CO2 to CH3OH. XAS and XPS spectra showed that the higher the dispersion of Cu2O on the TiO2 surface, the better the photocatalytic performance. Cu/TiO2 catalysts treated with H2 reduction after the reaction were found to have altered dispersion and oxidation state of Cu on TiO2 with reduced activity. It is because Cu+ electron capture was stronger than Cu2+ due to the higher reduction potential of Cu2+. In addition, stability tests were done, and the used CuO/TiO2 could be regenerated after exposure to air due to the desorption of its surface gas products. The catalyst has excellent stability.
In addition to the methods above for loading Cu-based co-catalysts during the preparation of TiO2, the impregnation–calcination method [51,58], the impregnation–calcination method followed by pretreatment [86,87], stirred sonication [88], and microwave-assisted reduction were used to disperse Cu-based co-catalysts on the treated TiO2. Adachi et al. loaded a 5% mass fraction of Cu onto the TiO2 surface by impregnating and calcining in an H2 atmosphere [89]. The synthesized Cu/TiO2 was active in the photocatalytic reduction of CO2 to CH4, C2H4, and C2H6. The catalyst did not produce methanol or formaldehyde.

4.2. Ni-Based Co-Catalysts

Ni and NiO have also been used for photocatalytic CO2 reduction. Wang et al. [90] used a sol-gel method to load NiO with InTaO4 composites. The NiO co-catalyst was used in conjunction with InTaO4, and the photocatalytic activity of CO2 reduction to CH3OH was significantly enhanced under visible light irradiation. NiO extracts the photogenerated electrons from InTaO4 to reduce the CO2. Tsai et al. [91] reported loading Ni@NiO co-catalysts with the core-shell structure to InTaO4 for photocatalytic CO2 reduction to CH3OH. Ni@NiO NPs induce the transfer of photogenerated electrons from InTaO4 to Ni@NiO and improve the photocatalyst activity.

4.3. Graphene Co-Catalysts

Carbon materials were the most widespread and infinitely promising materials on earth, ranging from amorphous carbon black to crystalline structured natural layered graphite and from fullerenes with zero-dimensional nanostructures to graphene with two-dimensional structures. Carbon nanomaterials have been attracting significant attention in recent decades. The discovery of graphene self-assembled hydrogels with three-dimensional mesh structures has dramatically enriched the family of carbon materials and provided a new growth point in the field of new materials. It has also shown great scientific significance and experimental results due to its unique nanostructure and properties. Thus, it provides a new goal and direction for researching carbon-based materials.
Photocatalysis could convert light energy into chemical energy for air purification and degradation of organic pollutants in wastewater. It was shown that graphene was compounded with semiconductor photocatalysts, and the regular two-dimensional planar structure of graphene was used as the carrier of photocatalysts. On the one hand, it could improve the dispersion of the catalyst. On the other hand, it could accelerate the photogenerated charge migration rate and improve the composite’s photocatalytic activity.
Currently, there are three main methods to improve the photocatalytic efficiency of graphene: mixed method, encapsulation method, and a method with graphene itself involved in a photocatalytic reaction, which are described below.

4.3.1. Composite Method

Graphene oxide (RGO) is known for its two-dimensional and planar conjugate structure, which gives it excellent electron conductivity. The compounding of graphene with photocatalytic materials was a common method to improve photocatalytic efficiency [92]. Sim et al. deposited Pt nanoparticles (Pt NPs) and RGO on the surface of TiO2 nanotube arrays (TNTs), considering the electron capture function of graphene [93]. Initially, the electron–hole pair recombination time (10−9 s) was faster than the adsorption kinetics of CO2 molecules on TiO2. After depositing RGO sheets on the surface of Pt-TNT, RGO acts as an electron reservoir by trapping photogenerated electrons to inhibit electron–hole pair recombination, while the LSPR effect of Pt-NP enables the composite to have visible light-capturing properties. The quenching of PL spectra, transient photocurrent response, and EIS test reflect the excellent electron–hole pair separation in the photocatalyst due to the coexistence of RGO and Pt-NP. The total methane yield obtained by RGO/Pt-TNTs reached 10.96 μmol·m−2.
In addition, graphene is also usually combined with non-noble metals as a co-catalyst. Shown et al. synthesized a series of copper nanoparticles (NPs) modified graphene oxide photocatalysts by a simple microwave process, which significantly improved the yield of photocatalytic solar fuel [94]. The results show that with the increase of Cu load, the electrons spontaneously transfer from GO to Cu NP, resulting in the Fermi energy level moving to a more negative potential. Since the Fermi energy level of Cu NP is lower than that of the CB of GO, the photoexcited electrons can be easily transferred from GO to Cu NP while the photogenerated holes remain in the VB of GO. The electrons accumulated on Cu NPs participate in the CO2 reduction reaction, while the holes in GO participate in the oxidation reaction. This charge transfer mechanism accelerates the charge separation at the interface between GO and Cu NPs, thus inhibiting the recombination of carriers and enhancing the reduction performance of photocatalysts. When the load of Cu NPs is 10 wt%, the solar fuel production rate under visible light reaches the highest value of 6.84 μmol g-cat−1 h−1, more than 60 times the original GO and 240 times the P-25.
Similarly, when compounded with other materials, such as TaON, the band gap width was reduced to a certain extent. There may be strong interactions between graphene and other semiconductor materials, which will increase the Fermi level of graphene. The energy barrier for supplying electrons from graphene to the adsorbed CO2 is reduced, thus weakening the C=O bond of CO2 and causing the bond to break.

4.3.2. Wrapping Method

The wrapping method solves the problem of additives causing an increase in the concentration of defects in the catalyst crystal itself. This is because the catalytic efficiency of the photocatalyst is influenced by the thickness of the cladding layer, which is mainly used to adjust the catalyst’s light absorption effect by adjusting the cladding layer’s thickness [95]. The wrapping method does not change the band gap width of the photocatalyst, so the problem of increasing defect concentration during the crystallization of the catalyst can be adjusted by the wrapping method. The thickness of the catalyst cladding layer should be controlled reasonably during the preparation of the catalyst. The probability of electron–hole complexation can be reduced, which improves photocatalytic activity [96].

4.3.3. Participation of Graphene Itself in Photocatalytic Reactions

The previous two methods introduced different active components, both of which have some degree of influence on the defect concentration in the crystal. Graphene itself has the advantage of fast carrier transport and low charge recombination rate of the photocatalyst. In addition, GO has a wide band gap energy and great potential as a photocatalyst to reduce carbon dioxide to valuable products such as methane, methanol, and formic acid. Therefore, researchers began considering using pure graphene as a catalyst to participate in the photocatalytic reaction.
Kuang et al. prepared two radiation catalysts (GOSS and GOUV) by simulating sunlight (SS) and ultraviolet light (UV) irradiating graphene (GO) [97]. Research shows that radiation has two effects on graphene. On the one hand, radiation eliminated CO released by photolysis in the photocatalytic reaction. On the other hand, radiation activates graphene oxide. Specifically, the radiation caused the generation of defects in GO and restored the large π–conjugation network, making the GO obtain photolytic saturation and sufficient activity to reduce CO2. Irradiated graphene oxide significantly improves the efficiency of photocatalytic reduction of CO2, especially the CO yield of GOSS irradiated under simulated sunlight, which is nearly three times that of original graphene oxide. Although graphene has made some achievements in reducing CO2 as a photocatalyst, there are few relevant studies and many problems to be solved.
The following table summarizes a comparison of the photocatalyst performance of different co-catalysts (Table 2).

4.4. Single-Atom Co-Catalysts

The high cost and environmental pollution of photocatalysts limit their application in industrial processes. Nevertheless, using single-atom co-catalysts is an interesting approach to solving this series of problems. Jiang et al. [98] loaded atomically dispersed Cu onto ultrathin TiO2 nanosheets (Figure 5), which could reduce CO2 to CO. The catalyst also has excellent stability, can be recycled, and is non-polluting to the environment (Figure 6). This technology provides support for green conversion technologies for solar energy.
Table 3 shows the abbreviations of terms in the manuscript.
A number of specialized words appear in the manuscript, and the following table shows the abbreviations of the professional terms (Table 3).

5. Challenges and Perspectives

In conclusion, selecting a high activity, selectivity, and stability is necessary to improve CO2 reduction activity. The co-catalysts have several properties: (1) promoting the separation of photoexcited electron–hole pairs, (2) inhibiting side reactions, and (3) improving the selectivity of target products.
Currently, about half of the literature reports the use of noble metal-based co-catalysts (e.g., Pt-, Au-, and Ag-) and alloys (i.e., Au/Cu and Pt/Cu) for facilitating photocatalytic CO2 reduction reactions. Recently, researchers have also developed many noble metal-free co-catalysts to aid in the photocatalytic reduction of CO2, such as Cu-, Ni-, and graphene. Among them, Cu-based co-catalysts are the most commonly used catalysts for the photocatalytic reduction of CO2. Loading a co-catalyst on the surface of the semiconductor is a technology to improve the synergistic effect of CO2 reduction. However, many results on high activity, stability, and selectivity of catalysts for CO2 reduction have been reported in the literature. However, it is still in the initial stage of exploration, and there is still much room for development in the future. Several issues are cited below. The activity, stability, and selectivity of co-catalyst-loaded semiconductor catalysts have been studied more in the literature. However, the physicochemical properties, catalytic activity, and coupling of multi-electron and multi-metal reaction mechanisms of co-catalysts have been less studied. In addition, theoretical calculations (e.g., density functional theory) are needed to study the process of CO2 reduction to provide theoretical knowledge for photocatalytic CO2 reduction. Unlike other literature, this paper is optimistic about the application prospect of graphene photocatalytic CO2 reduction for the following two reasons: (1) Graphene has excellent electrical conductivity and large specific surface, so it could improve the available semiconductor materials with low visible light utilization and high excitation electron–hole complex probability. (2) Graphene is a good co-catalyst for the environment and causes no pollution to the environment before and after the reaction. In future research, we should focus on the direction of graphene photocatalytic CO2 reduction.

6. Conclusions

  • The activity of CO2 reduction could be improved by controlling the preparation of the catalyst. Currently, monometallic and bimetallic co-catalysts are the most studied in the literature, but there are few studies on three or more polymetallic co-catalysts. In future research, we should focus on developing multi-metal and multi-functional co-catalysts. Finally, it must be noted that co-catalysts that require environmental friendliness, energy efficiency, and other advantages are essential to achieve the scale of industrial application of photocatalysts.
  • We aimed to explore high selectivity, high activity, and low-cost co-catalysts. According to previous studies, catalysts like Cu/Pt and Cu/Au are more effective for CO2 reduction. Given this, it could be tried to find new and more efficient photocatalysts, such as three metals or metal oxides of more than three metals, metal nitride, metal phosphide, bentonite, spinel, and chalcocite. Multi-component active ingredients with synergistic effects could enhance photocatalytic CO2 activity. In addition, the stability of semiconductor photocatalysts is also a significant challenge. Finding effective techniques to stop the chemical or photocorrosion of co-catalysts will be a crucial direction for future research.

Author Contributions

Methodology, Q.S.; Project Administration, X.Y.; Writing—Original Draft Preparation, C.Z.; Writing—Review and Editing, C.Z. and Q.S.; Validation, C.Z., Q.S., and X.Y. All authors have read and agreed to the published version of the manuscript.

Funding

Support for carrying out this work was provided by Natural Science of Shandong Province, China (ZR2021QB214) and the Doctoral Research Foundation of Weifang University, China (2022BS13 and 2021BS48).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Habisreutinger, S.N.; Schmidt-Mende, L.; Stolarczyk, J.K. Photocatalytic Reduction of CO2 on TiO2 and Other Semiconductors. Angew. Chem. Int. Ed. 2013, 52, 7372–7408. [Google Scholar] [CrossRef] [PubMed]
  2. Karamian, E.; Sharifnia, S. On the general mechanism of photocatalytic reduction of CO2. J. CO2 Util. 2016, 16, 194–203. [Google Scholar] [CrossRef]
  3. Mao, J.; Li, K.; Peng, T. Recent advances in the photocatalytic CO2 reduction over semiconductors. Catal. Sci. Technol. 2013, 3, 2481–2498. [Google Scholar] [CrossRef]
  4. Cook, J.; Oreskes, N.; Doran, P.T.; Anderegg, W.R.L.; Verheggen, B.; Maibach, E.W.; Carlton, J.S.; Lewandowsky, S.; Skuce, A.G.; Green, S.A.; et al. Consensus on consensus: A synthesis of consensus estimates on human-caused global warming. Environ. Res. Lett. 2016, 11, 048002. [Google Scholar] [CrossRef]
  5. Feng, Y.; Wang, C.; Cui, P. Ultrahigh Photocatalytic CO2 Reduction Efficiency and Selectivity Manipulation by Single-Tungsten-Atom Oxide at the Atomic Step of TiO2. Adv. Mater. 2022, 34, 2109074. [Google Scholar] [CrossRef] [PubMed]
  6. Choi, K.M.; Kim, D.; Rungtaweevoranit, B.; Trickett, C.A.; Barmanbek, J.T.; Alshammari, A.S.; Yang, P.; Yaghi, O.M. Plasmon-enhanced photocatalytic CO2 conversion within metal-organic frameworks under visible light. J. Am. Chem. Soc. 2017, 139, 356–362. [Google Scholar] [CrossRef] [PubMed]
  7. Gondal, M.A.; Dastageer, M.A.; Oloore, L.E.; Baig, U. Laser induced selective photo-catalytic reduction of CO2 into methanol using In2O3-WO3 nano-composite. J. Photochem. Photobiol. A 2017, 343, 40–50. [Google Scholar] [CrossRef]
  8. Liu, J.; Liu, M.; Yang, X.L.; Chen, H.; Liu, S.Z.F.; Yan, J.Q. Photo-Redeposition Synthesis of Bimetal Pt−Cu Co-catalysts for TiO2 Photocatalytic Solar-Fuel Production. ACS Sustain. Chem. Eng. 2019, 6, 1900289. [Google Scholar] [CrossRef]
  9. Yu, J.; Low, J.; Xiao, W.; Zhou, P.; Jaroniec, M. Enhanced photocatalytic CO2 reduction activity of anatase TiO2 by coexposed {001} and {101} facets. J. Am. Chem. Soc. 2014, 136, 8839–8842. [Google Scholar] [CrossRef]
  10. Pu, Y.; Luo, Y.; Wei, X.; Sun, J.; Li, L.; Zou, W.; Dong, L. Synergistic effects of Cu2O-decorated CeO2 on photocatalytic CO2 reduction: Surface Lewis acid/base and oxygen defect. Appl. Catal. B 2019, 254, 580–586. [Google Scholar] [CrossRef]
  11. Nguyen, N.H.; Wu, H.Y.; Bai, H. Photocatalytic reduction of NO2 and CO2 using molybdenum-doped titania nanotubes. Chem. Eng. J. 2015, 269, 60–66. [Google Scholar] [CrossRef]
  12. Zhang, Z.; Wang, Z.; Cao, S.-W.; Xue, C. Au/Pt Nanoparticle-Decorated TiO2 Nanofibers with Plasmon-Enhanced Photocatalytic Activities for Solar-to-Fuel Conversion. J. Phys. Chem. C 2013, 117, 25939–25947. [Google Scholar] [CrossRef]
  13. Uner, D.; Oymak, M.M. On the mechanism of photocatalytic CO2 reduction with water in the gas phase. Catal. Today 2012, 181, 82–88. [Google Scholar] [CrossRef]
  14. Xiong, Z.; Wang, H.; Xu, N.; Li, H.; Fang, B.; Zhao, Y.; Zhang, J.; Zheng, C. Photocatalytic reduction of CO2 on Pt2+-Pt0/TiO2 nanoparticles under UV/Vis light irradiation: A combination of Pt2+ doping and Pt nanoparticles deposition. Int. J. Hydrogen Energy 2015, 40, 10049–10062. [Google Scholar] [CrossRef]
  15. Xie, S.; Wang, Y.; Zhang, Q.; Deng, W.; Wang, Y. MgO- and Pt-Promoted TiO2 as an Efficient Photocatalyst for the Preferential Reduction of Carbon Dioxide in the Presence of Water. ACS Catal. 2014, 4, 3644–3653. [Google Scholar] [CrossRef]
  16. Dukovic, G.; Merkle, M.G.; Nelson, J.H.; Hughes, S.M.; Alivisatos, A.P. Photodeposition of Pt on Colloidal CdS and CdSe/CdS Semiconductor Nanostructures. Adv. Mater. 2008, 20, 4306–4311. [Google Scholar] [CrossRef] [Green Version]
  17. Maimaitizi, H.; Abulizi, A.; Kadeer, K.; Talifu, D.; Tursun, Y. In situ synthesis of Pt and N co-doped hollow hierarchical BiOCl microsphere as an efficient photocatalyst for organic pollutant degradation and photocatalytic CO2 reduction. Appl. Surf. Sci. 2020, 502, 144083. [Google Scholar] [CrossRef]
  18. Fang, B.; Bonakdarpour, A.; Reilly, K.; Xing, Y.; Taghipour, F.; Wilkinson, D.P. Large-scale synthesis of TiO2 microspheres with hierarchical nanostructure for highly efficient photodriven reduction of CO2 to CH4. ACS Appl. Mater. Interfaces 2014, 6, 15488–15498. [Google Scholar] [CrossRef] [PubMed]
  19. Zhao, Y.; Wei, Y.; Wu, X.; Zheng, H.; Zhao, Z.; Liu, J.; Li, J. Graphene-wrapped Pt/TiO2 Photocatalysts with Enhanced Photogenerated Charges Separation and Reactant Adsorption for High Selective Photoreduction of CO2 to CH4. Appl. Catal. B 2018, 226, 360–372. [Google Scholar] [CrossRef]
  20. Feng, X.; Sloppy, J.D.; LaTempa, T.J.; Paulose, M.; Komarneni, S.; Bao, N.; Grimes, C.A. Synthesis and deposition of ultrafine Pt nanoparticles within high aspect ratio TiO2 nanotube arrays: Application to the photocatalytic reduction of carbon dioxide. J. Mater. Chem. 2011, 21, 13429–13433. [Google Scholar] [CrossRef]
  21. Li, K.; Peng, T.; Ying, Z.; Song, S.; Zhang, J. Ag-loading on brookite TiO2 quasi nanocubes with exposed {210} and {001} facets: Activity and selectivity of CO2 photoreduction to CO/CH4. Appl. Catal. B 2016, 180, 130–138. [Google Scholar] [CrossRef]
  22. Takayama, T.; Tanabe, K.; Saito, K.; Iwase, A.; Kudo, A. The KCaSrTa5O15 photocatalyst with tungsten bronze structure for water splitting and CO2 reduction. Phys. Chem. Chem. Phys. 2014, 16, 24417–24422. [Google Scholar] [CrossRef]
  23. Wang, Z.; Teramura, K.; Huang, Z.; Hosokawa, S.; Sakatad, Y.; Tanaka, T. Tuning the selectivity toward CO evolution in the photocatalytic conversion of CO2 by H2O through the modification of Ag-loaded Ga2O3 with a ZnGa2O4 layer. Catal. Sci. Technol. 2016, 6, 1025–1032. [Google Scholar] [CrossRef]
  24. Wang, Z.; Teramura, K.; Hosokawa, S.; Tanaka, T. Highly efficient photocatalytic conversion of CO2 into solid CO using H2O as a reductant over Ag-modified ZnGa2O4. J. Mater. Chem. A 2015, 3, 11313–11319. [Google Scholar] [CrossRef] [Green Version]
  25. Yamamoto, M.; Yoshida, T.; Yamamoto, N.; Nomoto, T.; Yamamoto, Y.; Yagi, S.; Yoshida, H. Photocatalytic reduction of CO2 with water promoted by Ag clusters in Ag/Ga2O3 photocatalysts. J. Mater. Chem. A 2015, 3, 16810–16816. [Google Scholar] [CrossRef]
  26. Ohno, T.; Higo, T.; Murakami, N.; Saito, H.; Zhang, Q.; Yang, Y.; Tsubota, T. Photocatalytic reduction of CO2 over exposed-crystal-face-controlled TiO2 nanorod having a brookite phase with co-catalyst loading. Appl. Catal. B 2014, 152–153, 309–316. [Google Scholar] [CrossRef] [Green Version]
  27. Zhao, C.; Krall, A.; Zhao, H.; Zhang, Q.; Li, Y. Ultrasonic spray pyrolysis synthesis of Ag/TiO2 nanocomposite photocatalysts for simultaneous H2 production and CO2 reduction. Int. J. Hydrogen Energy 2012, 37, 9967–9976. [Google Scholar] [CrossRef]
  28. Wang, Z.; Teramura, K.; Hosokawa, S.; Tanaka, T. Photocatalytic conversion of CO2 in water over Ag-modified La2Ti2O7. Appl. Catal. B 2015, 163, 241–247. [Google Scholar] [CrossRef] [Green Version]
  29. Sui, D.; Yin, X.; Dong, H.; Qin, S.; Chen, J.; Jiang, W. Photocatalytically Reducing CO2 to Methyl Formate in Methanol over Ag Loaded SrTiO3 Nanocrystal Catalysts. Catal. Lett. 2012, 142, 1202–1210. [Google Scholar] [CrossRef]
  30. Zhang, Y.; Wang, X.; Dong, P.; Huang, Z.; Nie, X.; Zhang, X. TiO2 Surfaces Self-Doped with Ag Nanoparticles Exhibit Efficient CO2 Photoreduction under Visible Light. RSC Adv. 2018, 8, 15991–15998. [Google Scholar] [CrossRef] [Green Version]
  31. Liu, L.; Pitts, D.T.; Zhao, H.; Zhao, C.; Li, Y. Silver-incorporated bicrystalline (anatase/brookite) TiO2 microspheres for CO2 photoreduction with water in the presence of methanol. Appl. Catal. A 2013, 467, 474–482. [Google Scholar] [CrossRef]
  32. Yui, T.; Kan, A.; Saitoh, C.; Koike, K.; Ibusuki, T.; Ishitani, O. Photochemical Reduction of CO2 Using TiO2: Effects of Organic Adsorbates on TiO2 and Deposition of Pd onto TiO2. ACS Appl. Mater. Interfaces 2011, 3, 2594–2600. [Google Scholar] [CrossRef]
  33. Kim, W.; Seok, T.; Choi, W. Nafion layer-enhanced photosynthetic conversion of CO2 into hydrocarbons on TiO2 nanoparticles. Energy Environ. Sci. 2012, 5, 6066–6070. [Google Scholar] [CrossRef] [Green Version]
  34. Koci, K.; Matejova, L.; Reli, M.; Capek, L.; Matejka, V.; Lacny, Z.; Kustrowski, P.; Obalbv, L. Sol-Gel Derived Pd Supported TiO2ZrO, and TiO, Photocatalysts; Their Examination in PhotocatalyticReduction of Carbon Dioxide. Catal. Today. 2014, 230, 20–26. [Google Scholar] [CrossRef]
  35. Hong, J.; Zhang, W.; Wang, Y.; Zhou, T.; Xu, R. Photocatalytic Reduction of Carbon Dioxide over Self-Assembled Carbon Nitride and Layered Double Hydroxide: The Role of Carbon Dioxide Enrichment. ChemCatChem 2014, 6, 2315–2321. [Google Scholar] [CrossRef]
  36. Kuai, L.; Chen, Z.; Liu, S.; Kan, E.; Yu, N.; Ren, Y.; Fang, C.; Li, X.; Li, Y.; Geng, B. Titania Supported Synergistic Palladium Single Atoms and Nanoparticles for Room Temperature Ketone and Aldehydes Hydrogenation. Nat. Commun. 2020, 11, 48. [Google Scholar] [CrossRef] [Green Version]
  37. Sasirekha, N.; Basha, S.J.S.; Shanthi, K. Photocatalytic performance of Ru doped anatase mounted on silica for reduction of carbon dioxide. Appl. Catal. B 2006, 62, 169–180. [Google Scholar] [CrossRef]
  38. Zhang, R.; Wang, H.; Tang, S.; Liu, C.; Dong, F.; Yue, H.; Liang, B. Photocatalytic Oxidative Dehydrogenation of Ethane Using CO2 as a Soft Oxidant over Pd/TiO2 Catalysts to C2H4 and Syngas. ACS Catal. 2018, 8, 9280–9286. [Google Scholar] [CrossRef]
  39. Yan, S.C.; Ouyang, S.X.; Gao, J.; Yang, M.; Feng, J.Y.; Fan, X.X.; Wan, L.J.; Li, Z.S.; Ye, J.H.; Zhou, Y.; et al. A Room-Temperature Reactive-Template Route to Mesoporous ZnGa2O4 with Improved Photocatalytic Activity in Reduction of CO2. Angew. Chem. Int. Ed. 2010, 49, 6544–6548. [Google Scholar] [CrossRef]
  40. Yoshino, S.; Sato, K.; Yamaguchi, Y.; Iwase, A.; Kudo, A. Z-schematic CO2 reduction to CO through interparticle electron transfer between SrTiO3: Rh of a reducing photocatalyst and BiVO4 of a water oxidation photocatalyst under visible light. ACS Appl. Energy Mater. 2020, 3, 10001–10007. [Google Scholar] [CrossRef]
  41. Baran, T.; Wojtyła, S.; Dibenedetto, A.; Aresta, M.; Macyk, W. Zinc sulfide functionalized with ruthenium nanoparticles for photocatalytic reduction of CO2. Appl. Catal. B 2015, 178, 170–176. [Google Scholar] [CrossRef]
  42. Cao, L.; Sahu, S.; Anilkumar, P.; Bunker, C.E.; Xu, J.; Fernando, K.A.S.; Wang, P.; Guliants, E.A., II; Tackett, K.N.; Sun, Y.-P. Carbon Nanoparticles as Visible-Light Photocatalysts for Efficient CO2 Conversion and Beyond. J. Am. Chem.Soc. 2011, 133, 4754–4757. [Google Scholar] [CrossRef]
  43. Rossetti, I.; Villa, A.; Compagnoni, M.; Prati, L.; Ramis, G.; Pirola, C.; Bianchi, C.L.; Wang, W.; Wang, D. CO2 photoconversion to fuels under high pressure: Effect of TiO2 phase and of unconventional reaction conditions. Catal. Sci. Technol. 2015, 5, 4481–4487. [Google Scholar] [CrossRef]
  44. Wang, J.; Li, G.; Li, Z.; Tang, C.; Feng, Z.; An, H.; Liu, H.; Liu, T.; Li, C. A Highly Selective and Stable ZnO-ZrO2 Solid Solution Catalyst for CO2 Hydrogenation to Methanol. Sci. Adv. 2017, 3, e1701290. [Google Scholar] [CrossRef] [Green Version]
  45. Zhang, X.; Han, F.; Shi, B.; Farsinezhad, S.; Dechaine, G.P.; Shankar, K. Photocatalytic Conversion of Diluted CO2 into Light Hydrocarbons Using Periodically Modulated Multiwalled Nanotube Arrays. Angew. Chem. Int. Ed. 2012, 51, 12732–12735. [Google Scholar] [CrossRef]
  46. Baldoví, H.G.; Neatu, S.; Khan, A.; Asiri, A.M.; Kosa, S.A.; Garcia, H. Understanding the Origin of the Photocatalytic CO2 Reduction by Au- and Cu-Loaded TiO2: A Microsecond Transient Absorption Spectroscopy Study. J. Phys. Chem. C 2015, 119, 6819–6827. [Google Scholar] [CrossRef]
  47. Qin, L.; Si, G.; Li, X.; Kang, S.-Z. Synergetic effect of Cu−Pt bimetallic cocatalyst on SrTiO3 for efficient photocatalytic hydrogen production from water. RSC Adv. 2015, 5, 102593–102598. [Google Scholar] [CrossRef]
  48. Kang, Q.; Wang, T.; Li, P.; Liu, L.; Chang, K.; Li, M.; Ye, J. Photocatalytic Reduction of Carbon Dioxide by Hydrous Hydrazine over Au-Cu Alloy Nanoparticles Supported on SrTiO3/TiO2 Coaxial Nanotube Arrays. Angew. Chem. Int. Ed. 2015, 54, 841–845. [Google Scholar] [CrossRef]
  49. Fang, B.; Xing, Y.; Bonakdarpour, A.; Zhang, S.; Wilkinson, D.P. Hierarchical CuO-TiO2 Hollow Microspheres for Highly Efficient Photodriven Reduction of CO2 to CH4. ACS Sustain. Chem. Eng. 2015, 3, 2381–2388. [Google Scholar] [CrossRef]
  50. Ovcharov, M.L.; Mishura, A.M.; Shcherban, N.D.; Filonenko, S.M.; Granchak, V.M. Photocatalytic Reduction of CO2 usingNanostructured Cu2O with Foam-Like Structure. Sol. Energy 2016, 139, 452–457. [Google Scholar] [CrossRef]
  51. Zhang, Q.; Gao, T.; Andino, J.M.; Li, Y. Copper and iodine co-modified TiO2 nanoparticles for improved activity of CO2 photoreduction with water vapor. Appl. Catal. B 2012, 123–124, 257. [Google Scholar] [CrossRef]
  52. Li, Y.; Wang, W.-N.; Zhan, Z.; Woo, M.-H.; Wu, C.-Y.; Biswas, P. Photocatalytic reduction of CO2 with H2O on mesoporous silica supported Cu/TiO2 catalysts. Appl. Catal. B 2010, 100, 386. [Google Scholar] [CrossRef]
  53. Liu, L.; Gao, F.; Zhao, H.; Li, Y. Tailoring Cu valence and oxygen vacancy in Cu/TiO2 catalysts for enhanced CO2 photoreduction efficiency. Appl. Catal. B 2013, 134–135, 349–358. [Google Scholar] [CrossRef]
  54. Liu, D.; Fernández, Y.; Ola, O.; Mackintosh, S.; Maroto-Valer, M.; Parlett, C.M.A.; Lee, A.F.; Wu, J.C.S. On the impact of Cu dispersion on CO2 photoreduction over Cu/TiO2. Catal. Commun. 2012, 25, 78. [Google Scholar] [CrossRef] [Green Version]
  55. Yang, H.-C.; Lin, H.-Y.; Chien, Y.-S.; Wu, J.C.-S.; Wu, H.-H. Mesoporous TiO2/SBA-15, and Cu/TiO2/SBA-15 Composite Photocatalysts for Photoreduction of CO2 to Methanol. Catal. Lett. 2009, 131, 381. [Google Scholar] [CrossRef]
  56. Wang, W.-N.; Park, J.; Biswas, P. Rapid synthesis of nanostructured Cu-TiO2-SiO2 composites for CO2 photoreduction by evaporation driven self-assembly. Catal. Sci. Technol. 2011, 1, 593. [Google Scholar] [CrossRef]
  57. Liu, E.; Qi, L.; Bian, J.; Chen, Y.; Hu, X.; Fan, J.; Liu, H.; Zhu, C.; Wang, Q. A facile strategy to fabricate plasmonic Cu modified TiO2 nano-flower films for photocatalytic reduction of CO2 to methanol. Mater. Res. Bull. 2015, 68, 203. [Google Scholar] [CrossRef]
  58. Huang, L.; Duan, Z.; Song, Y.; Li, Q.; Chen, L. BiVO4 microplates with oxygen vacancies decorated with metallic Cu and Bi nanoparticles for CO2 photoreduction. ACS Appl. Nano Mater. 2021, 4, 3576–3585. [Google Scholar] [CrossRef]
  59. Bharad, P.A.; Nikam, A.V.; Thomas, F.; Gopinath, C.S. CuOx-TiO2 composites: Electronically integrated nanocomposites for solar hydrogen generation. Chemistryselect 2018, 3, 12022–12030. [Google Scholar] [CrossRef]
  60. Srinivas, B.; Shubhamangala, B.; Lalitha, K.; Reddy, P.A.K.; Kumari, V.D.; Subrahmanyam, M. Photocatalytic reduction of CO2 over Cu-TiO2/molecular sieve 5A composite. Photochem. Photobiol. 2011, 87, 995. [Google Scholar] [CrossRef]
  61. Kumar, A.; Sharma, G.; Naushad, M.; Ahamad, T.; Veses, R.C.; Stadler, F.J. Highly visible active Ag2CrO4/Ag/BiFeO3@RGO nano-junction for photoreduction of CO2 and photocatalytic removal of ciprofloxacin and bromate ions: The triggering effect of Ag and RGO. Chem. Eng. J. 2019, 370, 148–165. [Google Scholar] [CrossRef]
  62. Jeyalakshmi, V.; Mahalakshmy, R.; Krishnamurthy, K.R.; Viswanathan, B. Photocatalytic Reduction of Carbon Dioxide by Water: A Step towards Sustainable Fuels and Chemicals. Catal. Today 2016, 266, 160. [Google Scholar] [CrossRef]
  63. Wang, J.; Li, B.; Chen, J.; Li, N.; Zheng, J.; Zhao, J.; Zhu, Z. Enhanced photocatalytic H2 production activity of CdxZn1-xS nanocrystals by surface loading MS (M = Ni, Co, Cu) species. Appl. Surf. Sci. 2012, 259, 118–123. [Google Scholar] [CrossRef]
  64. Ruan, C.; Huang, Z.-Q.; Lin, J.; Li, L.; Liu, X.; Tian, M.; Huang, C.; Chang, C.-R.; Li, J.; Wang, X. Synergy of the catalytic activation on Ni and the CeO2−TiO2/Ce2Ti2O7 stoichiometric redox cycle for dramatically enhanced solar fuel production. Energy Environ. Sci. 2019, 12, 767–779. [Google Scholar] [CrossRef] [Green Version]
  65. Liou, P.Y.; Chen, S.C.; Wu, J.C.S.; Liu, D.; Mackintosh, S.; Maroto-Valerb, M.; Linforth, R. Photocatalytic CO2 reduction using an internally illuminated monolith photoreactor. Energy Environ. Sci. 2011, 4, 1487. [Google Scholar] [CrossRef]
  66. Miao, Y.F.; Guo, R.T.; Gu, J.W.; Liu, Y.Z.; Wu, G.L.; Duan, C.P.; Pan, W.G. Z-scheme Bi/Bi2O2CO3/Layered double-hydroxide nanosheet heterojunctions for photocatalytic CO2 reduction under visible light. ACS Appl. Nano Mater. 2021, 4, 4902–4911. [Google Scholar] [CrossRef]
  67. Yu, L.; Zhang, X.; Li, G.; Cao, Y.; Shao, Y.; Li, D. Highly efficient Bi2O2CO3/BiOCl photocatalyst based on heterojunction with enhanced dye-sensitization under visible light. Appl. Catal. B 2016, 187, 301–309. [Google Scholar] [CrossRef]
  68. Zhang, H.; Wei, J.; Dong, J.; Liu, G.; Shi, L.; An, P.; Zhao, G.; Kong, J.; Wang, X.; Meng, X.; et al. Efficient Visible-Light-Driven Carbon Dioxide Reduction by a Single-Atom Implanted Metal-Organic Framework. Angew. Chem. Int. Ed. 2016, 55, 14310. [Google Scholar] [CrossRef]
  69. Wei, L.; Yu, C.; Zhang, Q.; Liu, H.; Wang, Y. TiO2-Based Heterojunction Photocatalysts for Photocatalytic Reduction of CO2 into Solar Fuels. J. Mater. Chem. A 2018, 6, 22411–22436. [Google Scholar] [CrossRef]
  70. Nie, N.; Zhang, L.; Fu, J.; Cheng, B.; Yu, J. Self-assembled hierarchical direct Zscheme g-C3N4/ZnO microspheres with enhanced photocatalytic CO2 reduction performance. Appl. Surf. Sci. 2018, 441, 12–22. [Google Scholar] [CrossRef]
  71. Zhou, L.; Kamyab, H.; Surendar, A.; Maseleno, A.; Ibatova, A.Z.; Chelliapan, S.; Karachi, N.; Parsaee, Z. Novel Z-scheme composite Ag2CrO4/NG/polyimide as high performance nano catalyst for photoreduction of CO2: Design, fabrication, characterization and mechanism. J. Photochem. Photobiol. A 2019, 368, 30–40. [Google Scholar] [CrossRef]
  72. Xu, Q.L.; Xia, Z.H.; Zhang, J.M.; Wei, Z.Y.; Guo, Q.; Jin, H.L.; Tang, H.; Li, S.Z.; Pan, X.C.; Su, Z.; et al. Recent advances in solar-driven CO2 reduction over g-C3N4-based photocatalysts. Carbon Energy 2022. [Google Scholar] [CrossRef]
  73. Li, X.; Zhuang, Z.; Li, W.; Pan, H. Photocatalytic reduction of CO2 over noble metal-loaded and nitrogen-doped mesoporous TiO2. Appl. Catal. A 2012, 429–430, 31–38. [Google Scholar] [CrossRef]
  74. Kočí, K.; Matějů, K.; Obalová, L.; Krejčíková, S.; Lacný, Z.; Plachá, D.; Čapek, L.; Hospodková, A.; Šolcová, O. Effect of silver doping on the TiO2 for photocatalytic reduction of CO2. Appl. Catal. B-Environ. 2013, 96, 239–244. [Google Scholar] [CrossRef]
  75. Yuan, Y.-P.; Cao, S.-W.; Liao, Y.-S.; Yin, L.-S.; Xue, C. Red phosphor/g-C3N4 heterojunction with enhanced photocatalytic activities for solar fuels production. Appl. Catal. B 2013, 140–141, 164–168. [Google Scholar] [CrossRef]
  76. Gao, G.; Jiao, Y.; Waclawik, E.R.; Du, A. Single atom (Pd/Pt) supported on graphitic carbon nitride as efficient photocatalyst for visible-light reduction of carbon dioxide. J. Am. Chem. Soc. 2016, 138, 6292. [Google Scholar] [CrossRef] [Green Version]
  77. Li, X.; Li, W.; Zhuang, Z.; Zhong, Y.; Li, Q.; Wang, L. Photocatalytic Reduction of Carbon Dioxide to Methane over SiO2-Pillared HNb3O8. J. Phys. Chem. C 2012, 116, 16047. [Google Scholar] [CrossRef]
  78. Yu, X.; Wang, Y.; Kim, A.; Kim, Y.K. Observation of Temperature-Dependent Kinetics for Catalytic CO Oxidation over TiO2-Supported Pt Catalysts. Chem. Phys. Lett. 2017, 685, 282–287. [Google Scholar] [CrossRef]
  79. Asi, M.A.; Zhu, L.; He, C.; Sharma, V.K.; Shu, D.; Li, S.; Yang, J.; Xiong, Y. Visible-Light-Harvesting Reduction of CO2 to Chemical Fuels with Plasmonic Ag@AgBr/CNT Nanocomposites. Catal. Today 2013, 216, 268–275. [Google Scholar] [CrossRef]
  80. Iizuka, K.; Wato, T.; Miseki, Y.; Saito, K.; Kudo, A. Photocatalytic Reduction of Carbon Dioxide over Ag Cocatalyst-Loaded ALa4Ti4O15(A=Ca, Sr, and Ba) Using Water as a Reducing Reagent. J. Am. Chem. Soc. 2011, 133, 20863. [Google Scholar] [CrossRef]
  81. Bai, S.; Wang, X.; Hu, C.; Xie, M.; Jiang, J.; Xiong, Y. Two-dimensional g-C3N4: An ideal platform for examining facet selectivity of metal co-catalysts in photocatalysis. Chem. Commun. 2014, 50, 6094. [Google Scholar] [CrossRef] [PubMed]
  82. Tseng, I.-H.; Wu, J.C.-S. Photoreduction of CO2 using sol-gel derived titania and titania-supported copper catalysts. Appl. Catal. B 2002, 37, 37–48. [Google Scholar] [CrossRef]
  83. Wu, J.C.S.; Wu, T.H.; Chu, T.; Huang, H.; Tsai, D. Application of Optical-fiber Photoreactor for CO2 Photocatalytic Reduction. Top. Catal. 2008, 47, 131–136. [Google Scholar] [CrossRef]
  84. Tseng, I.-H.; Wu, J.C.-S. Effects of sol-gel procedures on the photocatalysis of Cu/TiO2 in CO2 photoreduction. J. Catal. 2004, 221, 432–440. [Google Scholar] [CrossRef]
  85. Xie, S.; Ma, W.; Wu, X.; Zhang, H.; Zhang, Q.; Wang, Y.; Wang, Y. Photocatalytic and Electrocatalytic Transformations of C1Molecules Involving C-C Coupling. Energy Environ. Sci. 2021, 14, 37–89. [Google Scholar] [CrossRef]
  86. Ajmal, S.; Yang, Y.; Tahir, M.; Li, K.A.; Bacha, A.-U.-R.; Nabi, I.; Liu, Y.; Wang, T.; Zhang, L. Boosting C2 Products in Electrochemical CO2 Reduction over Highly Dense Copper Nanoplates. Catal. Sci. Technol. 2020, 10, 4562–4570. [Google Scholar] [CrossRef]
  87. Slamet; Nasution, H.W.; Purnama, E.; Kosela, S.; Gunlazuardi, J. Photocatalytic reduction of CO2 on copper-doped Titania catalysts prepared by improved-impregnation method. Catal. Commun. 2005, 6, 313. [Google Scholar] [CrossRef]
  88. Zhao, H.; Duan, J.; Zhang, Z.; Wang, W. Bi-Ti-In trimetallic sites in the Indiumdoped Bi4Ti3O12-CuIn5S8 S-scheme heterojunction for controlling the selectivity of CO2 photoreduction. Fuel 2022, 325, 124993. [Google Scholar] [CrossRef]
  89. Adachi, K.; Ohta, K.; Mizuno, T. Photocatalytic reduction of carbon dioxide to hydrocarbon using copper-loaded titanium dioxide. Sol. Energy 1994, 53, 187. [Google Scholar] [CrossRef]
  90. Wang, Z.-Y.; Chou, H.-C.; Wu, J.C.; Tsai, D.P.; Mul, G. CO2 photoreduction using NiO/InTaO4 in optical-fiber reactor for renewable energy. Mul. Appl. Catal. A 2010, 380, 172. [Google Scholar] [CrossRef]
  91. Tsai, C.-W.; Chen, H.M.; Liu, R.-S.; Asakura, K.; Chan, T.-S. Ni@NiO Core-Shell Structure-Modified Nitrogen-Doped InTaO4 for Solar-Driven Highly Efficient CO2 Reduction to Methanol. J. Phys. Chem. C 2011, 115, 10180. [Google Scholar] [CrossRef]
  92. Li, N.; Jiang, R.; Li, Y.; Zhou, J.; Ma, Q.; Shen, S.; Liu, M. Plasma-Assisted Photocatalysis of CH4 and CO2 into Ethylene. ACS Sustain. Chem. Eng. 2019, 7, 11455–11463. [Google Scholar] [CrossRef]
  93. Sim, L.C.; Leong, K.H.; Saravanan, P.; Ibrahim, S. Rapid thermal reduced graphene oxide/Pt-TiO2 nanotube arrays for enhanced visible-light-driven photocatalytic reduction of CO2. Appl. Surf. Sci. 2015, 358, 122–129. [Google Scholar] [CrossRef]
  94. Shown, I.; Hsu, H.-C.; Chang, Y.-C.; Lin, C.-H.; Roy, P.K.; Ganguly, A.; Wang, C.-H.; Chang, J.-K.; Wu, C.-I.; Chen, L.-C.; et al. Highly Efficient Visible Light Photocatalytic Reduction of CO2 to Hydrocarbon Fuels by Cu-Nanoparticle Decorated Graphene Oxide. Nano Lett. 2014, 14, 6097. [Google Scholar] [CrossRef] [PubMed]
  95. Yu, J.; Jin, J.; Cheng, B.; Jaroniec, M. A noble metal-free reduced graphene oxide-CdS nanorod composite for the enhanced visible-light photocatalytic reduction of CO2 to solar fuel. J. Mater. Chem. A 2014, 2, 3407. [Google Scholar] [CrossRef]
  96. Gui, M.M.; Chai, S.-P.; Xu, B.-Q.; Mohamed, A.R. Enhanced visible light responsive MWCNT/TiO2 core-shell nanocomposites as the potential photocatalyst for reduction of CO2 into methane. Sol. Energy Mater. Sol. Cells 2014, 122, 183. [Google Scholar] [CrossRef]
  97. Kuang, Y.; Shang, J.; Zhu, T. Photo-Activated Graphene Oxide to Enhance Photocatalytic Reduction of CO2. ACS Appl. Mater. Interfaces 2020, 12, 3580–3591. [Google Scholar] [CrossRef] [PubMed]
  98. Jiang, Z.; Sun, W.; Miao, W.; Yuan, Z. Living Atomically Dispersed Cu Ultrathin TiO2 Nanosheet CO2 Reduction Photocatalyst. Adv. Sci. 2019, 6, 1900289. [Google Scholar] [CrossRef] [Green Version]
Processes 11 00867 g001 550
Figure 1. The mechanism of the photocatalytic process.
Figure 1. The mechanism of the photocatalytic process.
Processes 11 00867 g001
Processes 11 00867 g002 550

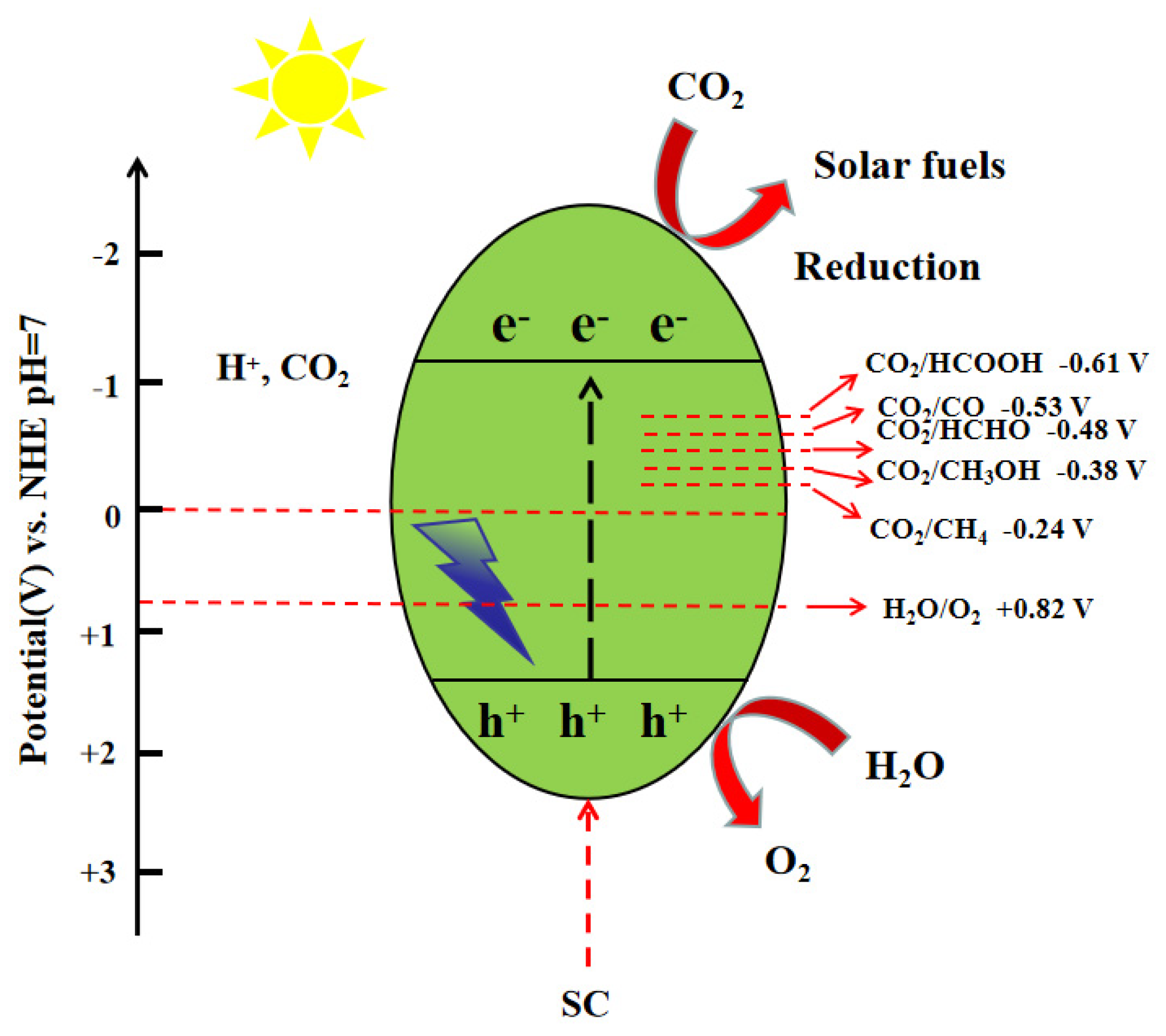

Figure 2. Mechanism of photocatalytic CO2 reduction.
Figure 2. Mechanism of photocatalytic CO2 reduction.
Processes 11 00867 g002
Processes 11 00867 g003 550

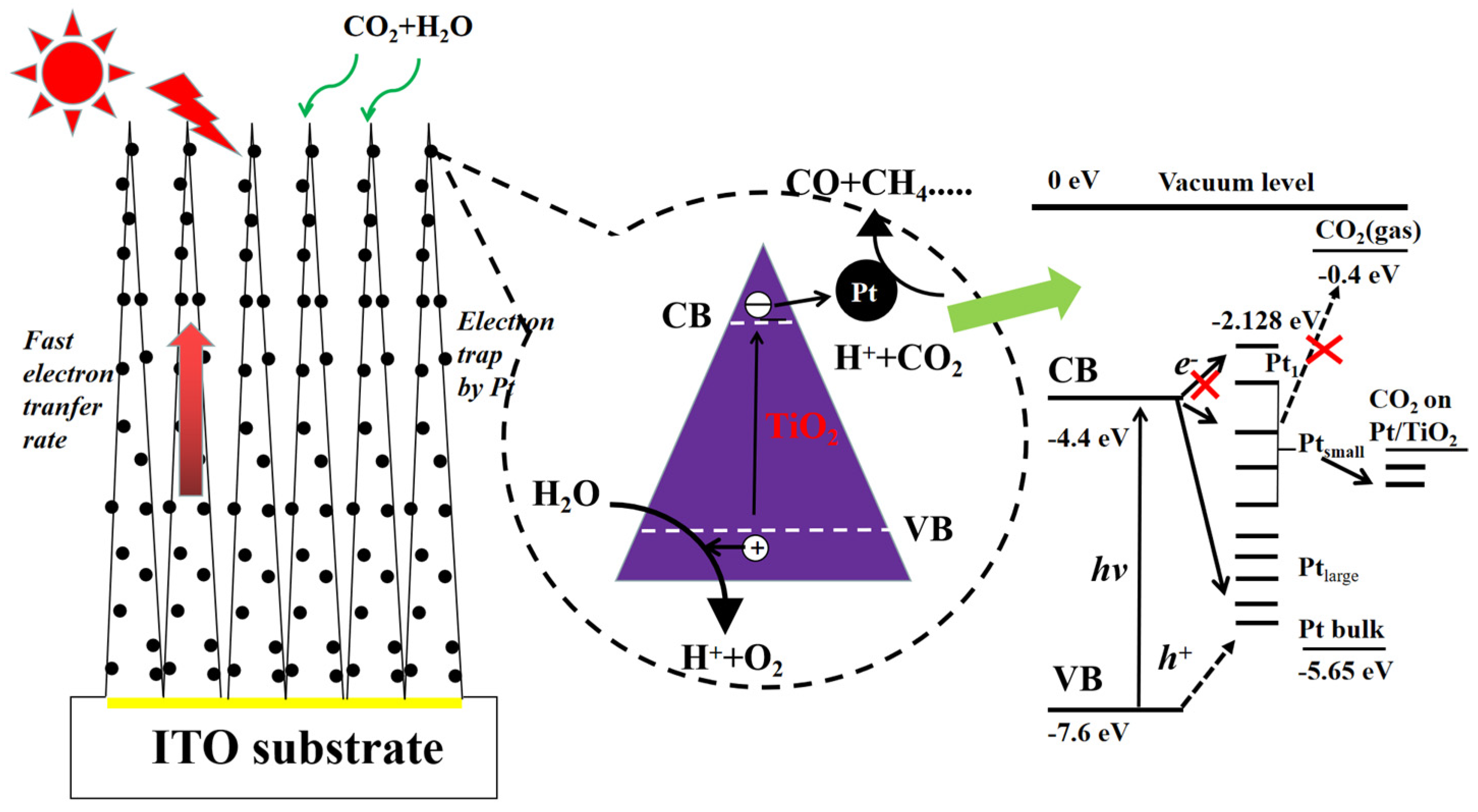

Figure 3. Mechanism diagram of CO2 reduction by Pt-TiO2 photocatalyst [74].
Figure 3. Mechanism diagram of CO2 reduction by Pt-TiO2 photocatalyst [74].
Processes 11 00867 g003
Processes 11 00867 g004 550
Figure 4. Mechanism of photocatalytic reduction of CO2 by Ag-loaded BaLa4Ti4O15 [80].
Figure 4. Mechanism of photocatalytic reduction of CO2 by Ag-loaded BaLa4Ti4O15 [80].
Processes 11 00867 g004
Processes 11 00867 g005 550

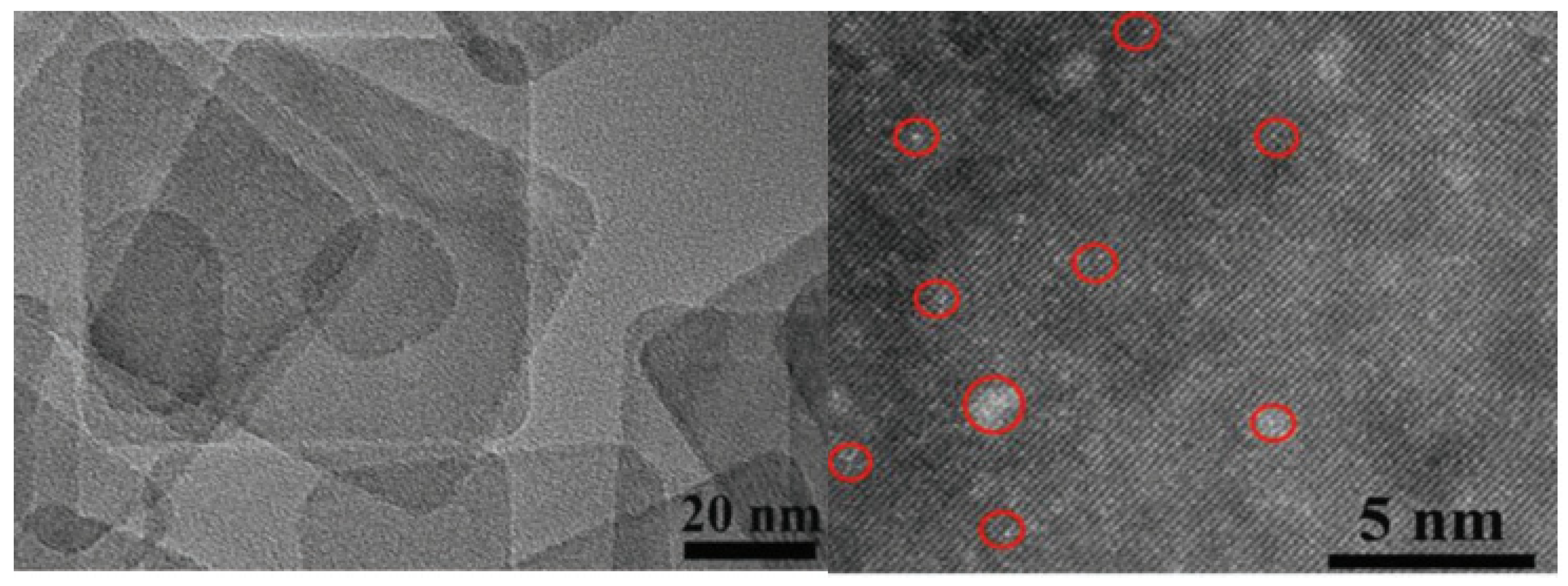

Figure 5. TEM image of Cu-TiO2 photocatalyst [96]. The red circles in the diagram indicate the atomically dispersed Cu.
Figure 5. TEM image of Cu-TiO2 photocatalyst [96]. The red circles in the diagram indicate the atomically dispersed Cu.
Processes 11 00867 g005
Processes 11 00867 g006 550
Figure 6. Mechanism of CO2 reduction by Cu dispersed on TiO2 nanoflakes [96].
Figure 6. Mechanism of CO2 reduction by Cu dispersed on TiO2 nanoflakes [96].
Processes 11 00867 g006
Table
Table 1. Different reduction products obtained from the photocatalytic reduction of CO2 in an aqueous solution and the corresponding electrode potentials (vs. standard hydrogen electrode, 25 °C, pH = 7).
Table 1. Different reduction products obtained from the photocatalytic reduction of CO2 in an aqueous solution and the corresponding electrode potentials (vs. standard hydrogen electrode, 25 °C, pH = 7).
ReactionE0redox (vs. NHE)/V
CO2 + 2H+ + 2e−→HCOOH−0.61
CO2 + 2H+ + 2e−→CO + H2O−0.53
CO2 + 4H+ + 4e−→HCHO + H2O−0.48
CO2 + 4H+ + 4e−→C + 2H2O−0.20
CO2 + 6H+ + 6e−→CH3OH + H2O−0.38
CO2 + 8H+ + 8e−→CH4 + 2H2O−0.24
2CO2 + 12H+ + 12e−→C2H4 + 4H2O−0.34
2CO2 + 12H+ + 12e−→C2H5OH + 3H2O−0.33
2CO2 + 14H+ + 14e−→HCOOH + C2H6−0.27
2H+ + 2e−→H2−0.42
Table
Table 2. Co-catalysts for photocatalytic CO2 reduction of metals and non-metals.
Table 2. Co-catalysts for photocatalytic CO2 reduction of metals and non-metals.
Co-Catalysts Representational Preparation MethodNitrogen SourceMajor CO2
Reduction Products		Reaction
Medium		References
Pt-basedSitu photodeposition, impregnation–calcination and microwave-assisted solvent-heat methodsN2CH4
CO		H2O [15,19]
Ag-basedSol-gelN2CH4H2O [79]
AlloyPhotodepositionN2C2H4
C2H6		H2O [44,45]
Pd-basedPhotodepositionN2CH4
C2H6		H2O [33]
Cu-basedThermal hydrolysisN2CH3OH
CO		H2O [83,84]
Ni-basedIncipient wetness impregnationN2CH3OHH2O [90,91]
GrapheneHydrothermal methodN2CH4H2O [92,93]
Table
Table 3. Abbreviations of professional terms.
Table 3. Abbreviations of professional terms.
NamesAbbreviations
Density functional theoryDFT
Ultraviolet photoelectron spectroscopyUPS
Nanotube arraysNTAs
NanotetrahydrogenNT
Energy dispersive X-rayEDX
Periodically modulated double-walled titanium dioxide nanotubesPMTiNT
Reduced graphene oxideRGO
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zuo, C.; Su, Q.; Yan, X. Research Progress of Co-Catalysts in Photocatalytic CO2 Reduction: A Review of Developments, Opportunities, and Directions. Processes 2023, 11, 867. https://doi.org/10.3390/pr11030867

AMA Style

Zuo C, Su Q, Yan X. Research Progress of Co-Catalysts in Photocatalytic CO2 Reduction: A Review of Developments, Opportunities, and Directions. Processes. 2023; 11(3):867. https://doi.org/10.3390/pr11030867

Chicago/Turabian Style

Zuo, Cheng, Qian Su, and Xueyuan Yan. 2023. "Research Progress of Co-Catalysts in Photocatalytic CO2 Reduction: A Review of Developments, Opportunities, and Directions" Processes 11, no. 3: 867. https://doi.org/10.3390/pr11030867

APA Style

Zuo, C., Su, Q., & Yan, X. (2023). Research Progress of Co-Catalysts in Photocatalytic CO2 Reduction: A Review of Developments, Opportunities, and Directions. Processes, 11(3), 867. https://doi.org/10.3390/pr11030867

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
