Using ANN and Combined Capacitive Sensors to Predict the Void Fraction for a Two-Phase Homogeneous Fluid Independent of the Liquid Phase Type
Abstract
:1. Introduction
2. Validation and Simulations

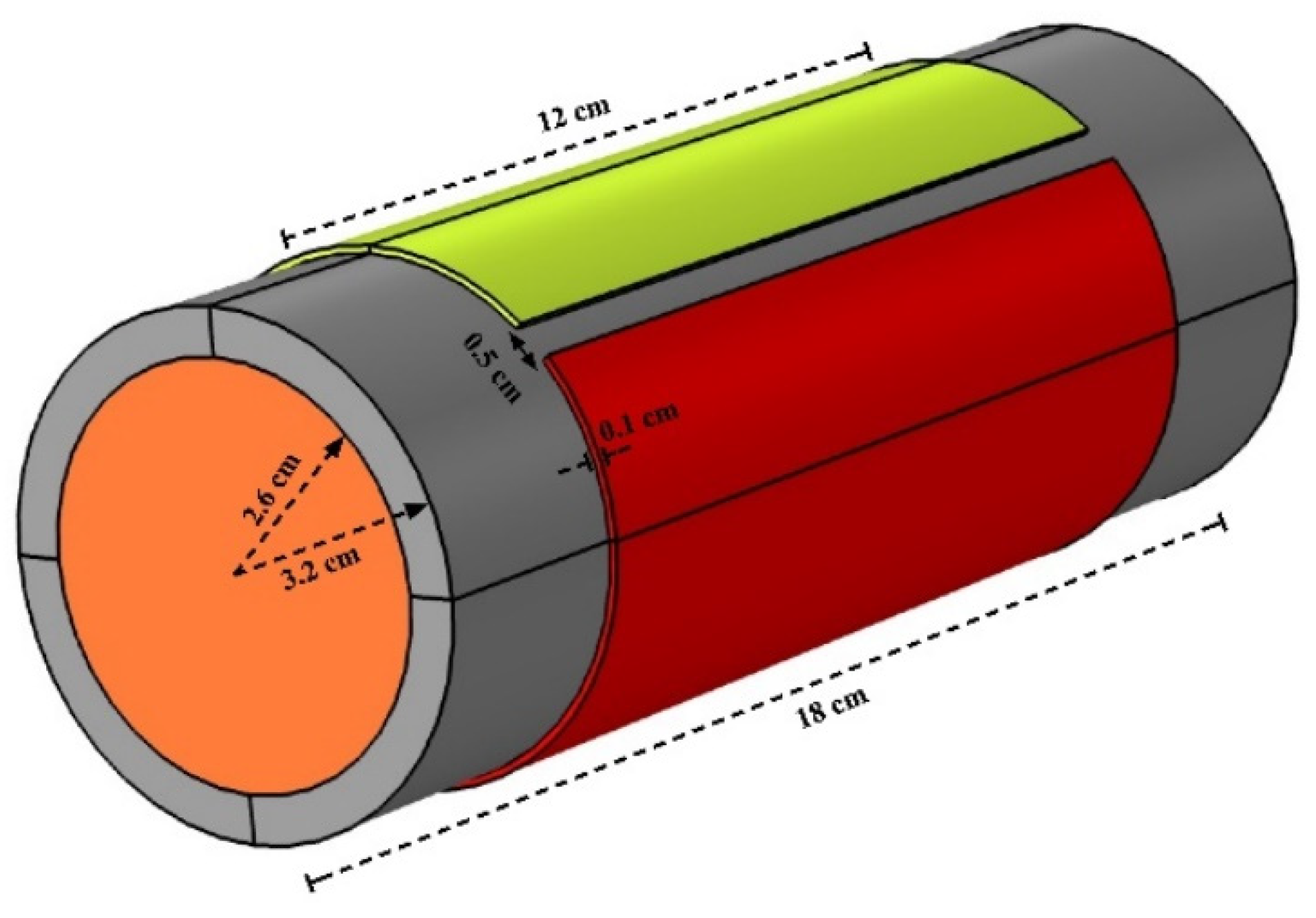

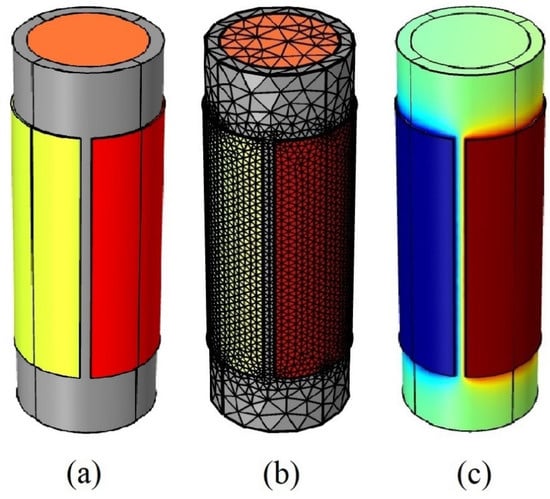

2.1. Designing and Simulation of a Concave Sensor in COMSOL Multiphysics

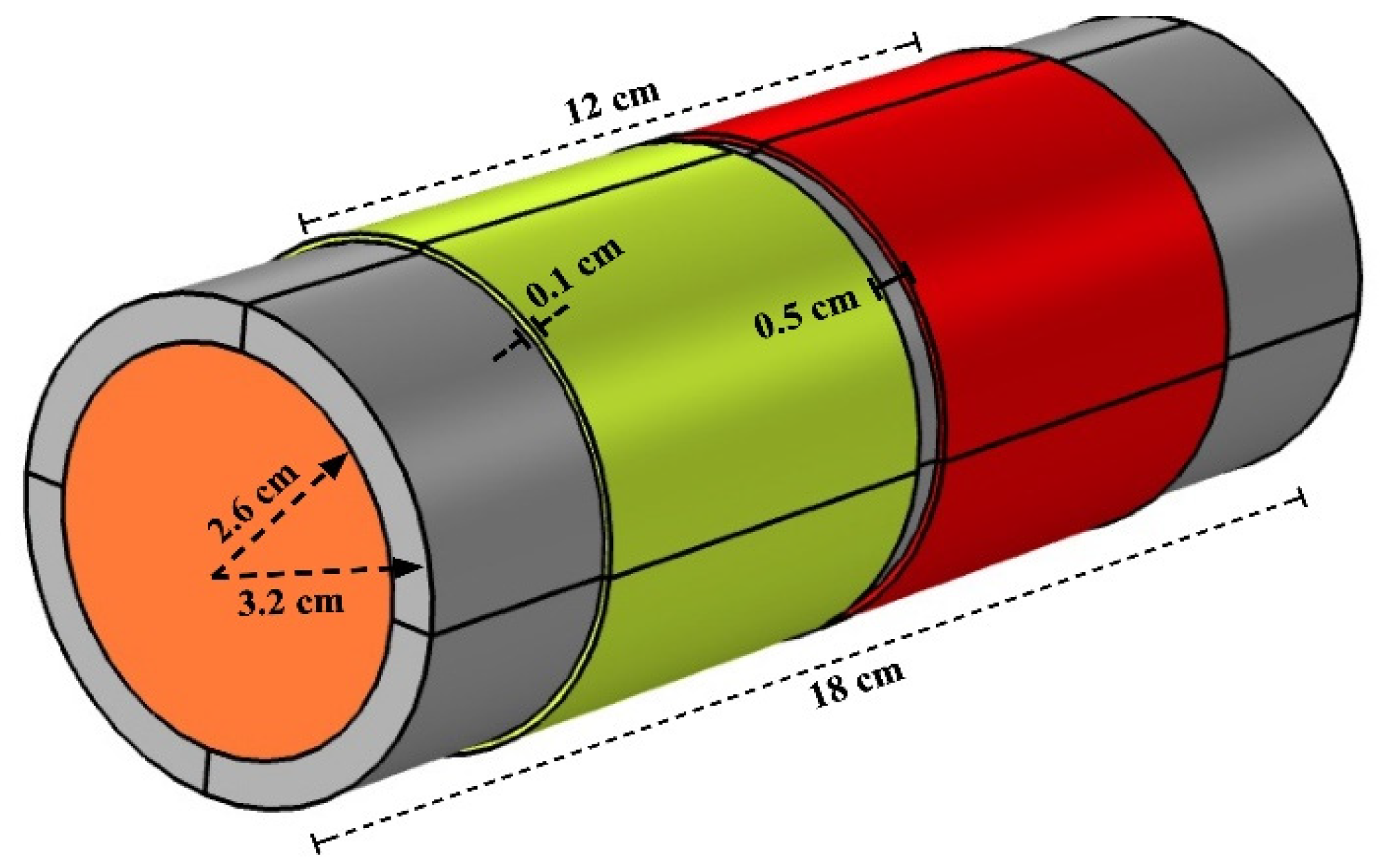

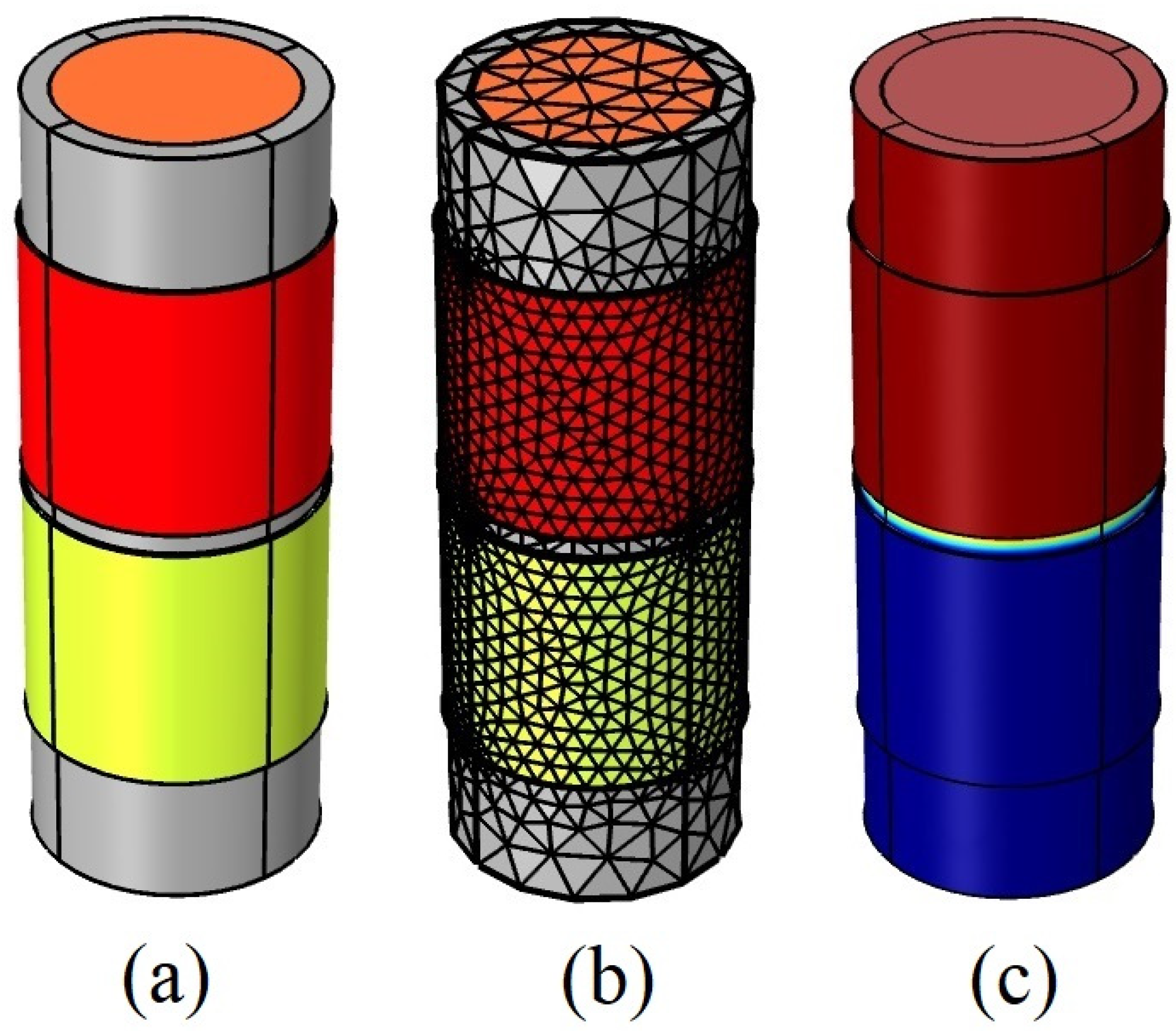

2.2. Designing and Simulation of a Ring Sensor in COMSOL Multiphysics
3. Artificial Neural Network
4. Results and Discussion
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Karimi, H.; Boostani, M. Heat transfer measurements for oil–water flow of different flow patterns in a horizontal pipe. Exp. Therm. Fluid Sci. 2016, 75, 35–42. [Google Scholar] [CrossRef]
- Nazemi, E.; Roshani, G.H.; Feghhi, S.A.H.; Setayeshi, S.; Zadeh, E.E.; Fatehi, A. Optimization of a method for identifying the flow regime and measuring void fraction in a broad beam gamma-ray attenuation technique. Int. J. Hydrogen Energy 2016, 41, 7438–7444. [Google Scholar] [CrossRef]
- Steven, R.N. Wet gas metering with a horizontally mounted Venturi meter. Flow Meas. Instrum. 2002, 12, 361–372. [Google Scholar] [CrossRef]
- Wang, D.; Liang, F.; Peng, Z.; Wang, Y.; Lin, Z. Gas–liquid two-phase flow measurements by full stream batch sampling. Int. J. Multiph. Flow 2012, 40, 113–125. [Google Scholar] [CrossRef]
- Banowski, M.; Beyer, M.; Szalinski, L.; Lucas, D.; Hampel, W. Comparative study of ultrafast X-ray tomography and wire-mesh sensors for vertical gas-liquid pipe flows. Flow Meas. Instrum. 2017, 53, 95–106. [Google Scholar] [CrossRef]
- Salgado, C.M.; Dam, R.S.; Puertas, E.J.; Salgado, W.L. Calculation of volume fractions regardless scale deposition in the oil industry pipelines using feed-forward multilayer perceptron artificial neural network and MCNP6 code. Appl. Radiat. Isot. 2022, 185, 110215. [Google Scholar] [CrossRef] [PubMed]
- Iliyasu, A.M.; Bagaudinovna, D.K.; Salama, A.S.; Roshani, G.H.; Hirota, K. A Methodology for Analysis and Prediction of Volume Fraction of Two-Phase Flow Using Particle Swarm Optimization and Group Method of Data Handling Neural Network. Mathematics 2023, 11, 916. [Google Scholar] [CrossRef]
- Al-Lababidi, S.; Addali, A.; Yeung, H.; Mba, D.; Khan, F. Gas void fraction measurement in two-phase gas/liquid slug flow using acoustic emission technology. J. Vib. Acoust. 2009, 131, 501–507. [Google Scholar] [CrossRef]
- Xie, C.G.; Stott, A.L.; Plaskowski, A.; Beck, M.S. Design of capacitance electrodes for concentration measurement of two-phase flow. Meas. Sci. Technol. 1990, 1, 65–78. [Google Scholar] [CrossRef]
- Abdulkadir, M.; Hernandez-Perez, V.; Lowndes, I.S.; Azzopardi, B.J.; Brantson, E.T. Detailed analysis of phase distributions in a vertical riser using a wire mesh sensor (WMS). Exp. Therm. Fluid Sci. 2014, 59, 32–42. [Google Scholar] [CrossRef]
- Koyama, S.; Lee, J.; Yonemoto, R. An investigation on void fraction of vapor–liquid two-phase flow for smooth and microfine tubes with R134a at adiabatic condition. Int. J. Multiph. Flow 2004, 30, 291–310. [Google Scholar] [CrossRef]
- Demori, M.; Ferrari, V.; Strazza, D.; Poesio, P. A capacitive sensor system for the analysis of two-phase flows of oil and conductive water. Sens. Actuators A Phys. 2010, 163, 172–179. [Google Scholar] [CrossRef]
- Strazza, D.; Demori, M.; Ferrari, V.; Poesio, P. Capacitance sensor for hold-up measurement in high-viscous-oil/conductive-water core-annular flows. Flow Meas. Instrum. 2011, 22, 360–369. [Google Scholar] [CrossRef]
- An, Z.; Ningde, J.; Lusheng, Z.; Zhongke, G. Liquid holdup measurement in horizontal oil–water two-phase flow by using concave capacitance sensor. Measurement 2014, 49, 153–163. [Google Scholar] [CrossRef]
- Ortiz, J.; Masek, V. Cyclonic capacitive sensor for multiphase composition measurement. Sens. Transducers 2015, 191, 1–11. [Google Scholar]
- Zhai, L.S.; Jin, N.D.; Gao, Z.K.; Zhao, A.; Zhu, L. Cross-correlation velocity measurement of horizontal oil–water two-phase flow by using parallel–wire capacitance probe. Exp. Therm. Fluid Sci. 2014, 53, 277–289. [Google Scholar] [CrossRef]
- Zhai, L.; Jin, N.; Gao, Z.; Wang, Z. Liquid holdup measurement with double helix capacitance sensor in horizontal oil–water two-phase flow pipes. Chin. J. Chem. Eng. 2015, 23, 268–275. [Google Scholar] [CrossRef]
- Li, J.; Kong, M.; Xu, C.; Wang, S.; Fan, Y. An integrated instrumentation system for velocity, concentration and mass flow rate measurement of solid particles based on electrostatic and capacitance sensors. Sensors 2015, 15, 31023–31035. [Google Scholar] [CrossRef] [Green Version]
- Elkow, K.J.; Rezkallah, K.S. Void fraction measurements in gas-liquid flows under 1-g and μ-g conditions using capacitance sensors. Int. J. Multiph. Flow 1997, 23, 815–829. [Google Scholar] [CrossRef]
- Li, H.; Yang, D.; Cheng, M.X. Sensitivity analysis of capacitance sensor with helical shaped surface plates. CIESC J. 2011, 62, 2292–2297. [Google Scholar]
- Tollefsen, J.; Hammer, E.A. Capacitance sensor design for reducing errors in phase concentration measurements. Flow Meas. Instrum. 1998, 9, 25–32. [Google Scholar] [CrossRef]
- Jaworek, A.; Krupa, A. Gas/liquid ratio measurements by rf resonance capacitance sensor. Sens. Actuators A Phys. 2004, 113, 133–139. [Google Scholar] [CrossRef]
- Dos Reis, E.; da Silva Cunha, D. Experimental study on different configurations of capacitive sensors for measuring the volumetric concentration in two-phase flows. Flow Meas. Instrum. 2014, 37, 127–134. [Google Scholar] [CrossRef]
- Kendoush, A.A.; Sarkis, Z.A. Improving the accuracy of the capacitance method for void fraction measurement. Exp. Therm. Fluid Sci. 1995, 11, 321–326. [Google Scholar] [CrossRef]
- Abouelwafa, M.S.; Kendall, E.J. The use of capacitance sensors for phase percentage determination in multiphase pipelines. IEEE Trans. Instrum. Meas. 1980, 29, 24–27. [Google Scholar] [CrossRef]
- Ahmed, H. Capacitance sensors for void-fraction measurements and flow-pattern identification in air–oil two-phase flow. IEEE Sens. J. 2006, 6, 1153–1163. [Google Scholar] [CrossRef]
- Roshani, M.; Phan, G.T.; Nazemi, E.; Eftekhari-Zadeh, E.; Phan, N.H.; Corniani, E.; Tran, H.N.; Duong, V.H.; Roshani, G.H. Performance comparison of capacitance-based flowmeter with gamma-ray attenuation-based two-phase flowmeter for determining volume fractions in an annular flow regime’s component. Eur. Phys. J. Plus 2021, 136, 24–27. [Google Scholar] [CrossRef]
- Wang, X.; Chen, Y.; Wang, B.; Tang, K.; Hu, H. Sectional void fraction measurement of gas-water two-phase flow by using a capacitive array sensor. Flow Meas. Instrum. 2020, 74, 101788. [Google Scholar] [CrossRef]
- Krupa, A.; Lackowski, M.; Jaworek, A. Capacitance sensor for measuring void fraction in small channels. Measurement 2021, 175, 109046. [Google Scholar] [CrossRef]
- He, D.; Chen, S.; Bai, B. Void fraction measurement of stratified gas-liquid flow based on multi-wire capacitance probe. Exp. Therm. Fluid Sci. 2019, 102, 61–73. [Google Scholar] [CrossRef]
- Shahsavari, M.H.; Veisi, A.; Roshani, G.H.; Eftekhari-Zadeh, E.; Nazemi, E. An Experimental and Simulation Study for Comparison of the Sensitivity of Different Non-Destructive Capacitive Sensors in a Stratified Two-Phase Flow Regime. Electronics 2023, 12, 1284. [Google Scholar] [CrossRef]
- Zych, M.; Petryka, L.; Kępiński, J.; Hanus, R.; Bujak, T.; Puskarczyk, E. Radioisotope investigations of compound two-phase flows in an open channel. Flow Meas. Instrum. 2014, 35, 11–15. [Google Scholar] [CrossRef]
- Chen, X.; Zheng, J.; Jiang, J.; Peng, H.; Luo, Y.; Zhang, L. Numerical Simulation and Experimental Study of a Multistage Multiphase Separation System. Separations 2022, 9, 405. [Google Scholar] [CrossRef]
- Rushd, S.; Gazder, U.; Qureshi, H.J.; Arifuzzaman, M. Advanced Machine Learning Applications to Viscous Oil-Water Multi-Phase Flow. Appl. Sci. 2022, 12, 4871. [Google Scholar] [CrossRef]
- Veisi, A.; Shahsavari, M.H.; Roshani, G.H.; Eftekhari-Zadeh, E.; Nazemi, E. Experimental Study of Void Fraction Measurement Using a Capacitance-Based Sensor and ANN in Two-Phase Annular Regimes for Different Fluids. Axioms 2023, 12, 66. [Google Scholar] [CrossRef]
- Ssebadduka, R.; Le, N.N.; Nguele, R.; Alade, O.; Sugai, Y. Artificial Neural Network Model Prediction of Bitumen/Light Oil Mixture Viscosity under Reservoir Temperature and Pressure Conditions as a Superior Alternative to Empirical Models. Energies 2021, 14, 8520. [Google Scholar] [CrossRef]
- Mayet, A.M.; Nurgalieva, K.S.; Al-Qahtani, A.A.; Narozhnyy, I.M.; Alhashim, H.H.; Nazemi, E.; Indrupskiy, I.M. Proposing a high-precision petroleum pipeline monitoring system for identifying the type and amount of oil products using extraction of frequency characteristics and a MLP neural network. Mathematics 2022, 10, 2916. [Google Scholar] [CrossRef]
- Artyukhov, A.V.; Isaev, A.A.; Drozdov, A.N.; Gorbyleva, Y.A.; Nurgalieva, K.S. The rod string loads variation during short-term annular gas extraction. Energies 2022, 15, 5045. [Google Scholar] [CrossRef]
- Isaev, A.A.; Aliev, M.M.O.; Drozdov, A.N.; Gorbyleva, Y.A.; Nurgalieva, K.S. Improving the efficiency of curved wells’ operation by means of progressive cavity pumps. Energies 2022, 15, 4259. [Google Scholar] [CrossRef]
- Mayet, A.M.; Alizadeh, S.M.; Nurgalieva, K.S.; Hanus, R.; Nazemi, E.; Narozhnyy, I.M. Extraction of time-domain characteristics and selection of effective features using correlation analysis to increase the accuracy of petroleum fluid monitoring systems. Energies 2022, 15, 1986. [Google Scholar] [CrossRef]
- Alanazi, A.K.; Alizadeh, S.M.; Nurgalieva, K.S.; Nesic, S.; Guerrero, J.W.G.; Abo-Dief, H.M.; Eftekhari-Zadeh, E.; Nazemi, E.; Narozhnyy, I.M. Application of neural network and time-domain feature extraction techniques for determining volumetric percentages and the type of two-phase flow regimes independent of scale layer thickness. Appl. Sci. 2022, 12, 1336. [Google Scholar] [CrossRef]
- Roshani, M.; Phan, G.; Faraj, R.H.; Phan, N.H.; Roshani, G.H.; Nazemi, B.; Corniani, E.; Nazemi, E. Proposing a gamma radiation based intelligent system for simultaneous analyzing and detecting type and amount of petroleum by-products. Nucl. Eng. Technol. 2021, 53, 1277–1283. [Google Scholar] [CrossRef]
- Roshani, G.H.; Hanus, R.; Khazaei, A.; Zych, M.; Nazemi, E.; Mosorov, V. Density and velocity determination for single-phase flow based on radiotracer technique and neural networks. Flow Meas. Instrum. 2018, 61, 9–14. [Google Scholar] [CrossRef]
- Roshani, G.H.; Nazemi, E.; Roshani, M.M. Intelligent recognition of gas-oil-water three-phase flow regime and determination of volume fraction using radial basis function. Flow Meas. Instrum. 2017, 54, 39–45. [Google Scholar] [CrossRef]
- Roshani, G.H.; Roshani, S.; Nazemi, E.; Roshani, S. Online measuring density of oil products in annular regime of gas-liquid two-phase flows. Measurement 2018, 296–301. [Google Scholar] [CrossRef]
- Iliyasu, A.M.; Fouladinia, F.; Salama, S.A.; Roshani, G.H.; Hirota, K. Intelligent Measurement of Void Fractions in Homogeneous Regime of Two-Phase Flows Independent of the Liquid Phase Density Changes. Fractal Fract. 2023, 7, 179. [Google Scholar] [CrossRef]
- Esteva, A.; Robicquet, A.; Ramsundar, B.; Kuleshov, V.; DePristo, M.; Chou, K.; Cui, C.; Corrado, G.; Thrun, S.; Dean, J. A guide to deep learning in healthcare. Nat. Med. 2019, 25, 24–29. [Google Scholar] [CrossRef]
- Li, J.; Yang, Z.; Li, W.; Li, Y. A survey on deep learning in finance. Neural Comput. Appl. 2020, 3385–3407. [Google Scholar]
- Rahimi, E.; Nguyen, T. Retail analytics: A review and future research directions. J. Retail. Consum. Serv. 2018, 170–181. [Google Scholar]
- Zhang, Z.; Liu, J.; Shen, Z.; Huang, J. A survey on deep learning for traffic prediction. IEEE Trans. Intell. Transp. Syst. 2019, 99, 3536–3553. [Google Scholar]
- Kovanovic, V.; Joksimovic, S.; Gaševic, D.; Siemens, G.; Hatala, M. Applications of machine learning in education. J. Educ. Technol. Soc. 2018, 33–47. [Google Scholar]
- Rezvan, S.; Moradi, M.J.; Dabiri, H.; Daneshvar, K.; Karakouzian, M.; Farhangi, V. Application of Machine Learning to Predict the Mechanical Characteristics of Concrete Containing Recycled Plastic-Based Materials. Appl. Sci. 2023, 13, 2033. [Google Scholar] [CrossRef]
- Roshani, G.; Feghhi, S.; Mahmoudi-Aznaveh, A.; Nazemi, E.; Adineh-Vand, A. Precise volume fraction prediction in oil–water–gas multiphase flows by means of gamma-ray attenuation and artificial neural networks using one detector. Measurement 2014, 51, 34–41. [Google Scholar] [CrossRef]
- Gallant, A.R.; White, H. On learning the derivatives of an unknown mapping with multilayer feedforward networks. Neural Netw. 1992, 5, 129–138. [Google Scholar] [CrossRef] [Green Version]
- Salgado, C.M.; Brandão, L.E.; Schirru, R.; Pereira, C.M.; da Silva, A.X.; Ramos, R. Prediction of volume fractions in three-phase flows using nuclear technique and artificial neural network. Appl. Radiat. Isot. 2009, 67, 1812–1818. [Google Scholar] [CrossRef]
- Levenberg, K. A method for the solution of certain non-linear problems in least squares. Q. Appl. Math. 1944, 2, 164–168. [Google Scholar] [CrossRef] [Green Version]
- Marquardt, D.W. An algorithm for least-squares estimation of nonlinear parameters. J. Soc. Ind. Appl. Math. 1963, 11, 431–441. [Google Scholar] [CrossRef]
Characteristics | Amount |
---|---|
The maximum element size | 0.7 cm |
The minimum element size | 0.03 cm |
The maximum element growth rate | 1.35 |
The curvature factor | 0.3 |
The resolution of narrow areas | 0.85 |
Liquid Phase Name | Void Fraction | εr | The Simulated Results of the Concave Sensor (pF) | The Simulated Results of the Ring Sensor (pF) |
---|---|---|---|---|
Crude oil | 0.00 | 1.000 | 9.337 | 5.979 |
Crude oil | 0.05 | 1.050 | 9.421 | 6.006 |
Crude oil | 0.10 | 1.100 | 9.504 | 6.033 |
Crude oil | 0.15 | 1.150 | 9.587 | 6.060 |
Crude oil | 0.20 | 1.200 | 9.669 | 6.086 |
Crude oil | 0.25 | 1.250 | 9.750 | 6.113 |
Crude oil | 0.30 | 1.300 | 9.830 | 6.139 |
Crude oil | 0.35 | 1.350 | 9.910 | 6.165 |
Crude oil | 0.40 | 1.400 | 9.989 | 6.191 |
Crude oil | 0.45 | 1.450 | 10.068 | 6.217 |
Crude oil | 0.50 | 1.500 | 10.145 | 6.243 |
Crude oil | 0.55 | 1.550 | 10.222 | 6.269 |
Crude oil | 0.60 | 1.600 | 10.299 | 6.294 |
Crude oil | 0.65 | 1.650 | 10.374 | 6.320 |
Crude oil | 0.70 | 1.700 | 10.450 | 6.345 |
Crude oil | 0.75 | 1.750 | 10.524 | 6.370 |
Crude oil | 0.80 | 1.800 | 10.598 | 6.395 |
Crude oil | 0.85 | 1.850 | 10.671 | 6.420 |
Crude oil | 0.90 | 1.900 | 10.744 | 6.445 |
Crude oil | 0.95 | 1.950 | 10.816 | 6.469 |
Crude oil | 1.00 | 2.000 | 10.888 | 6.494 |
Oil | 0.00 | 1.000 | 9.337 | 5.979 |
Oil | 0.05 | 1.060 | 9.438 | 6.011 |
Oil | 0.10 | 1.120 | 9.538 | 6.044 |
Oil | 0.15 | 1.180 | 9.636 | 6.076 |
Oil | 0.20 | 1.240 | 9.764 | 6.108 |
Oil | 0.25 | 1.300 | 9.830 | 6.139 |
Oil | 0.30 | 1.360 | 9.926 | 6.171 |
Oil | 0.35 | 1.420 | 10.021 | 6.202 |
Oil | 0.40 | 1.480 | 10.114 | 6.233 |
Oil | 0.45 | 1.540 | 10.207 | 6.264 |
Oil | 0.50 | 1.600 | 10.299 | 6.267 |
Oil | 0.55 | 1.660 | 10.390 | 6.325 |
Oil | 0.60 | 1.720 | 10.479 | 6.355 |
Oil | 0.65 | 1.780 | 10.569 | 6.385 |
Oil | 0.70 | 1.840 | 10.657 | 6.415 |
Oil | 0.75 | 1.900 | 10.744 | 6.445 |
Oil | 0.80 | 1.960 | 10.831 | 6.474 |
Oil | 0.85 | 2.020 | 10.916 | 6.503 |
Oil | 0.90 | 2.080 | 11.001 | 6.533 |
Oil | 0.95 | 2.140 | 11.086 | 6.562 |
Oil | 1.00 | 2.200 | 11.169 | 6.590 |
Gasoil | 0.00 | 1.000 | 9.337 | 5.979 |
Gasoil | 0.05 | 1.070 | 9.455 | 6.017 |
Gasoil | 0.10 | 1.140 | 9.570 | 6.054 |
Gasoil | 0.15 | 1.210 | 9.685 | 6.092 |
Gasoil | 0.20 | 1.280 | 9.798 | 6.129 |
Gasoil | 0.25 | 1.350 | 9.910 | 6.165 |
Gasoil | 0.30 | 1.420 | 10.021 | 6.202 |
Gasoil | 0.35 | 1.490 | 10.130 | 6.238 |
Gasoil | 0.40 | 1.560 | 10.238 | 6.274 |
Gasoil | 0.45 | 1.630 | 10.344 | 6.310 |
Gasoil | 0.50 | 1.700 | 10.450 | 6.345 |
Gasoil | 0.55 | 1.770 | 10.554 | 6.380 |
Gasoil | 0.60 | 1.840 | 10.657 | 6.415 |
Gasoil | 0.65 | 1.910 | 10.759 | 6.450 |
Gasoil | 0.70 | 1.980 | 10.859 | 6.484 |
Gasoil | 0.75 | 2.050 | 10.959 | 6.518 |
Gasoil | 0.80 | 2.120 | 11.058 | 6.552 |
Gasoil | 0.85 | 2.190 | 11.155 | 6.586 |
Gasoil | 0.90 | 2.260 | 11.252 | 6.619 |
Gasoil | 0.95 | 2.360 | 11.347 | 6.652 |
Gasoil | 1.00 | 2.400 | 11.441 | 6.685 |
Gasoline | 0.00 | 1.000 | 9.337 | 5.979 |
Gasoline | 0.05 | 1.085 | 9.480 | 6.025 |
Gasoline | 0.10 | 1.170 | 9.620 | 6.070 |
Gasoline | 0.15 | 1.255 | 9.758 | 6.115 |
Gasoline | 0.20 | 1.340 | 9.894 | 6.160 |
Gasoline | 0.25 | 1.425 | 10.029 | 6.204 |
Gasoline | 0.30 | 1.510 | 10.161 | 6.248 |
Gasoline | 0.35 | 1.595 | 10.291 | 6.292 |
Gasoline | 0.40 | 1.680 | 10.420 | 6.335 |
Gasoline | 0.45 | 1.765 | 10.546 | 6.378 |
Gasoline | 0.50 | 1.850 | 10.671 | 6.420 |
Gasoline | 0.55 | 1.935 | 10.795 | 6.462 |
Gasoline | 0.60 | 2.020 | 10.916 | 6.503 |
Gasoline | 0.65 | 2.105 | 11.037 | 6.545 |
Gasoline | 0.70 | 2.190 | 11.155 | 6.586 |
Gasoline | 0.75 | 2.275 | 11.272 | 6.626 |
Gasoline | 0.80 | 2.360 | 11.388 | 6.666 |
Gasoline | 0.85 | 2.445 | 11.502 | 6.706 |
Gasoline | 0.90 | 2.530 | 11.614 | 6.746 |
Gasoline | 0.95 | 2.615 | 11.726 | 6.785 |
Gasoline | 1.00 | 2.700 | 11.835 | 6.824 |
Water | 0.00 | 1.000 | 9.337 | 5.979 |
Water | 0.05 | 5.000 | 14.381 | 7.786 |
Water | 0.10 | 9.000 | 17.492 | 9.162 |
Water | 0.15 | 13.000 | 19.643 | 10.308 |
Water | 0.20 | 17.000 | 21.226 | 11.300 |
Water | 0.25 | 21.000 | 22.444 | 12.181 |
Water | 0.30 | 25.000 | 23.411 | 12.973 |
Water | 0.35 | 29.000 | 24.197 | 13.694 |
Water | 0.40 | 33.000 | 24.849 | 14.355 |
Water | 0.45 | 37.000 | 25.399 | 14.964 |
Water | 0.50 | 41.000 | 25.869 | 15.529 |
Water | 0.55 | 45.000 | 26.276 | 16.054 |
Water | 0.60 | 49.000 | 26.631 | 16.544 |
Water | 0.65 | 53.000 | 26.943 | 17.002 |
Water | 0.70 | 57.000 | 27.221 | 17.433 |
Water | 0.75 | 61.000 | 27.469 | 17.837 |
Water | 0.80 | 65.000 | 27.692 | 18.219 |
Water | 0.85 | 69.000 | 27.893 | 18.580 |
Water | 0.90 | 73.000 | 28.077 | 18.921 |
Water | 0.95 | 77.000 | 28.244 | 19.244 |
Water | 1.00 | 81.000 | 28.397 | 19.551 |
Neural Network | MLP |
---|---|
Neurons in the input layer | 2 |
Neurons in the hidden layer | 6 |
Neurons in the output layer | 1 |
Number of epochs | 400 |
Activation function of neurons in hidden layers | Tansig |
Activation function of neurons in input and output layers | Purelin |
Method of training | Levenberg–Marquardt [56,57] |
