Steam Explosion of Eucalyptus grandis Sawdust for Ethanol Production within a Biorefinery Approach

Abstract

In this work, Eucalyptus grandis sawdust was subjected to steam explosion as the first step in cellulosic ethanol production within a biorefinery approach. The effect of the moisture content in the eucalypt sawdust (8 and 50%) and pretreatment process variables, such as temperature and residence time, were evaluated along with the influence of the water washing of steam-exploded solids on enzymatic hydrolysis and C6 fermentation yields. All other process streams were characterized to evaluate the recovery yield of valuable co-products. A recovery of nearly 100% glucans in the solid fraction and 60% xylans in the liquid fraction, mainly as partially acetylated oligomers, was obtained. The best enzymatic hydrolysis efficiencies (66–67%) were achieved after pretreatment at 205 °C for 10 min. The washing of pretreated sawdust with water improved the hydrolysis efficiencies and ethanol production yields by 10% compared to the unwashed pretreated solids under the same experimental condition. The highest ethanol yields were achieved after pretreatment of the sawdust with an 8% moisture content at 205 °C for 10 min, enzymatic hydrolysis at 13 wt% total solids with 25 FPU/g glucans, and fermentation with S. cerevisiae PE-2. In this case, 227 L ethanol and 40 kg total xylose (including xylo-oligomers) were obtained per ton of dry eucalypt sawdust.

1. Introduction

Food security, energy supply, and climate change are among the biggest global challenges for the near future. For this reason, bioeconomy represents a major pillar of sustainable global development. The emerging bioeconomy basically involves the use of advanced biobased technologies to develop new sustainable processes and products from renewable materials [1,2,3]. The conversion of lignocellulosic materials to fuel ethanol and other sustainable biofuels for the transport sector has a key role in facilitating the energy transition towards net zero carbon emissions into the atmosphere. In addition, by integrating the production of valuable biobased materials with biofuels and bioenergy, the overall profitability and productivity of biomass conversion processes can potentially be improved [4].

Uruguay has a large amount of eucalypt sawdust as lignocellulosic agro-industrial residue, with the potential to produce cellulosic ethanol and other products within a forest biorefinery approach. Eucalyptus spp. are fast-growing species that can achieve high levels of biomass production. E. grandis, E. dunnii, and E. globulus are the most widely used species in Uruguayan pulp mills. Large-scale plantations of great economic importance are available for these species and their hybrids, and large quantities of wood residues are generated in pulp mills during their processing [5].

The conversion of lignocellulosic biomass to ethanol requires a pretreatment step, the enzymatic hydrolysis of plant polysaccharides (mostly glucans), and the conversion of fermentable sugars to fuel ethanol. The purpose of pretreatment is to increase the accessibility of enzymes to structural polysaccharides such as cellulose, preserving the hemicellulose and lignin components for their subsequent recovery as co-products while minimizing yield losses to side reactions such as dehydration.

A wide variety of pretreatments have been used so far to breakdown the complex structure of the plant cell wall [6,7,8,9,10,11]. Steam explosion is known as an efficient, environmentally friendly, and generally chemically free and industrially scalable pretreatment with which the biomass structure is altered using high-pressure steaming followed by an explosive decompression [11,12,13]. During pretreatment, furan compounds (furfural, HMF, and their derivatives), aliphatic organic acids (acetic, formic, and levulinic acids), phenolic acids (p-hydroxybenzoic, syringic, ferulic, and p-coumaric acids), and xylooligomers can be formed by dehydration, hydrolysis, and oxidation, and these may act synergistically as potential inhibitors for enzymatic hydrolysis and fermentation [14,15,16]. To avoid such inhibitory effects, water-soluble sugars and degradation products can be separated by centrifugation and water washing of pretreatment solids. However, these operations increase the production time and both electricity and water consumption in the process.

Working at high total solids (TS > 15 wt%) increases the concentration of fermentable sugars and improves the ethanol production, thereby reducing the energy costs of ethanol recovery by distillation [11,17,18]. By contrast, working at low solids facilitates the mass transfer of enzymes and products and reduces the inhibition in both hydrolysis and fermentation stages.

The use of high TS causes various difficulties in the handling and mixing of pretreated materials because of their high initial viscosity, which requires a powerful impeller system [19,20]. High enzyme dosages and the use of auxiliary enzymes such as xylanases are often necessary to improve the enzymatic hydrolysis by decreasing the material’s viscosity and improving the flow properties. The use of additives, such as noncatalytic proteins (BSA) or non-ionic surfactants (polyvinylpyrrolidone, polyethylene glycol, and Tween) have also been used to increase the accessibility to enzymes and their catalytic activity, consequently increasing enzymatic hydrolysis yields without increasing the enzyme dosage [11,21,22,23]. An alternative approach to reduce problems related to a high substrate concentration is the gradual addition of substrate during enzyme hydrolysis (fed-batch enzyme hydrolysis) [24]. This approach significantly reduces the processing time and effect of the inhibition (products of the enzyme hydrolysis of sugars and lignocellulose-derived inhibitors) [25,26].

The high concentration of inhibitors in pretreated lignocellulosic materials, when working at high TS, is one of the limiting factors for achieving high yields of enzymatic hydrolysis and ethanol production. To this end, water washing represents an important process step, since adding a detoxification stage can imply a substantial increase in the process costs [27,28,29]. Additionally, the development of strains with enhanced tolerance to lignocellulose inhibitors and the implementation of methods to improve microorganism resistance to these inhibitors, such as adaptative evolution, are strategies that are being employed towards cost-effective cellulosic bioethanol production [30,31].

In this work, eucalypt sawdust was steam exploded for cellulosic ethanol production within the biorefinery concept, aimed at maximizing the process yields while minimizing the release of inhibitory compounds. The effect of washing the pretreated lignocellulosic biomass on enzymatic hydrolysis and fermentation yields using a relatively high concentration of pretreated solids was investigated. A pre-saccharification and simultaneous fermentation strategy (PSSF) was used to reduce the medium viscosity during pre-hydrolysis, allowing for better mixing in the subsequent simultaneous saccharification and fermentation (SSF) stage. The effect of the moisture content in the lignocellulosic biomass subjected to pretreatment and other process variables, such as reaction temperature and residence time in the steam reactor, on the final glucose concentration after enzymatic hydrolysis were also evaluated. All other process streams were characterized to evaluate the recovery yield of valuable co-products.

2. Materials and Methods

2.1. Raw Material

Eucalyptus grandis sawdust was obtained from a local pulp mill (UPM, Fray Bentos, Uruguay). The biomass was dried at 40 °C until an 8% moisture content and stored at room temperature. Material with a particle size below 0.5 mm was discarded. The sieved sawdust’s chemical composition included 43.4 ± 1.2% glucans (mostly cellulose), 13.9 ± 0.4% hemicelluloses (mostly xylan) containing 0.3 ± 0.1% arabinosyl and 3.6 ± 0.1% acetyl groups, 26.1 ± 1.2% total lignin, 4.6 ± 0.1% total extractives, and 0.8 ± 0.1% ash.

2.2. Sawdust Pretreatment

Steam explosions were carried out in a high-pressure batch steam reactor with a nominal volume of 10 L and provided with automatic sensors to control the pressure, temperature, and reaction time [32,33]. Nearly 735 g of dry sawdust was used per condition tested. A 2³ factorial design was performed with three replicates at the central point using the following process variables: temperature (T) (185 and 205 °C), reaction time (t) (5 and 10 min), and sawdust moisture content (MC) (8 and 50%). A moisture content of 50% corresponds to the usual level of moisture found in fresh wood, while 8% represents the equilibrium value achieved under ambient Uruguayan conditions. Two additional points were carried out in duplicate (cube face centers for moisture content, which were identified as assays EV10A, EV10B, EV11A, and EV11B) to validate the model. Table 1 shows the conditions tested in the 2³ factorial design.

Moisture contents of 29 and 50% were achieved by soaking air-dried sawdust in distilled water and keeping the moisturized material in a closed plastic bag overnight at room temperature. The pretreatment was carried out after preheating the reactor vessel to the desired temperature and eliminating any steam condensate. The samples were loaded into the reactor vessel, the reactor was closed, and the temperature was raised up to the setpoint by injection of saturated steam. Once the stipulated residence time at the desired temperature was reached, the reactor was rapidly depressurized to atmospheric pressure. The exploded material was collected in a cyclone equipped with a stainless-steel sample collector. After this first decompression, a second explosion was performed to recover any residual material that may have been retained inside the reactor. The solid fraction was separated by centrifugation at 1000 rpm, followed by filtration through a nylon tissue in a Büchner funnel to remove most of the pretreatment liquor. The recovered solids were washed by immersion in distilled water (10 wt% TS) for 30 min at ambient temperature and filtered using a Büchner funnel once again; water washing was repeated four times until pH 5 in the wash waters.

The raw material, pretreatment liquor, and recovered solids were characterized following National Renewable Energy Laboratory (NREL) protocols [34,35,36]. Xylo-oligosaccharides (XOS) were determined as the difference between the xylose content before and after diluted sulfuric acid hydrolysis. The sugars, furfural, 5-hydroxymethylfurfural, levulinic, acetic and formic acids, ethanol, and glycerol concentrations were determined with HPLC, as previously reported [7].

Table 1. Experimental design conditions for the steam explosion of eucalypt sawdust and the characterization of liquid and solid streams.

Experimental Condition	EV1A	EV2A	EV3A	EV4A	EV5A	EV5B	EV5C	EV6A	EV7A	EV8A	EV9A	EV10A 2	EV10B 2	EV11A 2	EV11B 2
Temperature (°C)	185	185	185	185	195	195	195	205	205	205	205	195	195	195	195
Time (min)	5	10	5	10	7.5	7.5	7.5	5	10	5	10	7.5	7.5	7.5	7.5
Moisture content (%)	8	8	50	50	29	29	29	8	8	50	50	8	8	50	50
S0	3.20	3.50	3.20	3.50	3.67	3.67	3.67	3.79	4.09	3.79	4.09	3.67	3.67	3.67	3.67
pH	3.5 ± 0.1 a	3.4 ± 0.1 a,b	3.6 ± 0.1 a	3.5 ± 0.1 a	3.3 ± 0.1 b	3.3 ± 0.1 b	3.3 ± 0.1 b	3.2 ± 0.1 b	3.1 ± 0.1 b	3.4 ± 0.1 a,b	3.4 ± 0.1 a,b	3.3 ± 0.1 b	3.3 ± 0.1 b	3.5 ± 0.1 a	3.5 ± 0.1 a
Total solids recovery (%)	83.1 ± 1.8 a,b	82.7 ± 0.1 a	85.6 ± 1.8 a,b	82.6 ± 0.1 a	79.1 ± 0.9 c–f	80.3 ± 0.9 e	79.2 ± 0.9 c,e,f	77.8 ± 0.8 f,g	75.2 ± 2.0 g	76.7 ± 0.8 g	78.0 ± 2.0 d–g	86.0 ± 5.0 a,b,e	76.1 ± 5.0 c–g	78.3 ± 0.6 c,f	79.2 ± 0.6 c,d,e
Liquid Fraction Components in Dry Base (g/100 g Dry Sawdust)
Gluco-oligomers 1	0.2 ± 0.1 a	0.4 ± 0.2 a,c,e	0.3 ± 0.1 a,e	ND	1.8 ± 0.1 b	0.4 ± 0.3 a,c,d,e	0.5 ± 0.1 c,e	0.4 ± 0.2 a,c,e	1.8 ± 0.1 b	0.7 ± 0.1 d	0.7 ± 0.2 c,d,e	0.4 ± 0.1 e	0.6 ± 0.2 c,d,e	0.6 ± 0.2 c,d,e	0.6 ± 0.1 c,d
Xylo-oligomers 1	2.8 ± 0.1 a	9.1 ± 0.9 b,g	2.7 ± 0.1 a	9.1 ± 0.6 b,g	8.7 ± 0.6 b	8.4 ± 1.0 b	6.4 ± 0.8 c,d,e	2.9 ± 0.7 a,f	7.2 ± 0.1 c	8.0 ± 0.6 b	6.3 ± 0.1 d	5.3 ± 0.5 e	3.2 ± 0.1 f	9.4 ± 0.1 g	2.7 ± 0.4 a
Acetyl in oligomers 1	3.5 ± 0.1 a	2.8 ± 0.1 b	3.5 ± 0.1 a	2.6 ± 0.1 c	3.2 ± 0.1 d	3.1 ± 0.9 a–e	2.8 ± 0.1 b	2.8 ± 0.1 b	3.2 ± 0.1 d	3.3 ± 0.3 a,d,e	2.8 ± 0.5 a–e	2.5 ± 0.2 c,d	3.0 ± 0.2 b,e	3.0 ± 0.1 e	2.5 ± 0.7 c,b,d,e
Glucose	ND	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a
Xylose	0.1 ± 0.1 a	0.3 ± 0.1 b	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.2 ± 0.1 a,b	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a
Acetic acid	0.1 ± 0.1 a	0.2 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a	0.4 ± 0.1 b	0.2 ± 0.1 a	0.4 ± 0.1 b	0.1 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a
Formic acid	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a
Levulinic acid	ND	0.2 ± 0.1 a,b	ND	0.2 ± 0.1 a,b	0.3 ± 0.1 a,c	0.2 ± 0.1 a,b	0.1 ± 0.1 b	0.3 ± 0.1 a,c	0.3 ± 0.1 a,c	0.3 ± 0.1 a,c	0.4 ± 0.1 c	0.1 ± 0.1 b	0.2 ± 0.1 a,b	0.3 ± 0.1 a,c	0.2 ± 0.1 a,b
Furfural	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a
HMF	ND	ND	ND	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	ND	ND
Solid Fraction Components in Dry Base (g/100 g Dry Sawdust)
Glucan	42.9 ± 0.1 a	43.2 ± 0.2 b	43.0 ± 0.6 a,b	43.4 ± 0.5 a,b	40.9 ± 2.8 a–e	42.1 ± 0.3 c	42.4 ± 1.2 a,b,c,e	38.9 ± 1.2 d	40.9 ± 0.4 e	42.0 ± 0.7 c	42.7 ± 1.1 a,b,c	43.4 ± 0.7 a,b	40.6 ± 1.7 c,d,e	42.3 ± 1.3 a,b,c,e	42.8 ± 0.9 a,b,c
Xylan	6.9 ± 0.2 a	4.3 ± 0.1 b	6.2 ± 1.2 a,h	5.9 ± 0.9 a,h	3.3 ± 0.6 c,g	3.7 ± 0.1 d	2.9 ± 0.2 c	2.6 ± 0.1 e	1.6 ± 0.3 f	3.4 ± 0.1 g	2.9 ± 0.1 c	3.5 ± 0.4 d,g	4.6 ± 0.3 b	5.1 ± 0.1 h	3.8 ± 0.1 d,g
Insoluble lignin	26.1 ± 0.1 a	27.9 ± 0.1 b	25.7 ± 0.1 c	26.8 ± 0.1 d	26.6 ± 0.1 e	28.0 ± 0.1 b	32.0 ± 0.1 f	28.8 ± 0.1 g	29.3 ± 0.1 h	25.3 ± 0.1 i	26.8 ± 0.1 d	30.1 ± 0.1 j	26.8 ± 0.1 d	25.7 ± 0.1 c	26.3 ± 0.1 k
Soluble lignin	2.5 ± 0.1 a	2.6 ± 0.1 a	2.6 ± 0.1 a	2.6 ± 0.1 a	1.7 ± 0.1 b,d	1.6 ± 0.1 b	2.6 ± 0.1 a	2.2 ± 0.1 c	2.5 ± 0.1 a	1.7 ± 0.1 b,d	1.6 ± 0.1 b	2.5 ± 0.1 a	2.6 ± 0.1 a	1.8 ± 0.1 d	2.1 ± 0.1 c
Acetyl groups	0.1 ± 0.1 a	0.6 ± 0.1 b	0.1 ± 0.1 a	0.9 ± 0.1 c	0.2 ± 0.1 a,e	0.1 ± 0.1 a	0.6 ± 0.1 b	0.2 ± 0.1 a,e	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	1.0 ± 0.1 c	0.4 ± 0.1 d,e	0.3 ± 0.1 e	0.9 ± 0.1 c

ND: not detected. ¹ Oligomers expressed as their monomers. ² Assays that do not belong to the experimental design. S₀: severity factor [37]; EV5: center point of the experimental design. Mean values with the same letter are not statistically different (p > 0.05).

Table 1. Experimental design conditions for the steam explosion of eucalypt sawdust and the characterization of liquid and solid streams.

Experimental Condition	EV1A	EV2A	EV3A	EV4A	EV5A	EV5B	EV5C	EV6A	EV7A	EV8A	EV9A	EV10A 2	EV10B 2	EV11A 2	EV11B 2
Temperature (°C)	185	185	185	185	195	195	195	205	205	205	205	195	195	195	195
Time (min)	5	10	5	10	7.5	7.5	7.5	5	10	5	10	7.5	7.5	7.5	7.5
Moisture content (%)	8	8	50	50	29	29	29	8	8	50	50	8	8	50	50
S0	3.20	3.50	3.20	3.50	3.67	3.67	3.67	3.79	4.09	3.79	4.09	3.67	3.67	3.67	3.67
pH	3.5 ± 0.1 a	3.4 ± 0.1 a,b	3.6 ± 0.1 a	3.5 ± 0.1 a	3.3 ± 0.1 b	3.3 ± 0.1 b	3.3 ± 0.1 b	3.2 ± 0.1 b	3.1 ± 0.1 b	3.4 ± 0.1 a,b	3.4 ± 0.1 a,b	3.3 ± 0.1 b	3.3 ± 0.1 b	3.5 ± 0.1 a	3.5 ± 0.1 a
Total solids recovery (%)	83.1 ± 1.8 a,b	82.7 ± 0.1 a	85.6 ± 1.8 a,b	82.6 ± 0.1 a	79.1 ± 0.9 c–f	80.3 ± 0.9 e	79.2 ± 0.9 c,e,f	77.8 ± 0.8 f,g	75.2 ± 2.0 g	76.7 ± 0.8 g	78.0 ± 2.0 d–g	86.0 ± 5.0 a,b,e	76.1 ± 5.0 c–g	78.3 ± 0.6 c,f	79.2 ± 0.6 c,d,e
Liquid Fraction Components in Dry Base (g/100 g Dry Sawdust)
Gluco-oligomers 1	0.2 ± 0.1 a	0.4 ± 0.2 a,c,e	0.3 ± 0.1 a,e	ND	1.8 ± 0.1 b	0.4 ± 0.3 a,c,d,e	0.5 ± 0.1 c,e	0.4 ± 0.2 a,c,e	1.8 ± 0.1 b	0.7 ± 0.1 d	0.7 ± 0.2 c,d,e	0.4 ± 0.1 e	0.6 ± 0.2 c,d,e	0.6 ± 0.2 c,d,e	0.6 ± 0.1 c,d
Xylo-oligomers 1	2.8 ± 0.1 a	9.1 ± 0.9 b,g	2.7 ± 0.1 a	9.1 ± 0.6 b,g	8.7 ± 0.6 b	8.4 ± 1.0 b	6.4 ± 0.8 c,d,e	2.9 ± 0.7 a,f	7.2 ± 0.1 c	8.0 ± 0.6 b	6.3 ± 0.1 d	5.3 ± 0.5 e	3.2 ± 0.1 f	9.4 ± 0.1 g	2.7 ± 0.4 a
Acetyl in oligomers 1	3.5 ± 0.1 a	2.8 ± 0.1 b	3.5 ± 0.1 a	2.6 ± 0.1 c	3.2 ± 0.1 d	3.1 ± 0.9 a–e	2.8 ± 0.1 b	2.8 ± 0.1 b	3.2 ± 0.1 d	3.3 ± 0.3 a,d,e	2.8 ± 0.5 a–e	2.5 ± 0.2 c,d	3.0 ± 0.2 b,e	3.0 ± 0.1 e	2.5 ± 0.7 c,b,d,e
Glucose	ND	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a
Xylose	0.1 ± 0.1 a	0.3 ± 0.1 b	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.2 ± 0.1 a,b	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a
Acetic acid	0.1 ± 0.1 a	0.2 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a	0.4 ± 0.1 b	0.2 ± 0.1 a	0.4 ± 0.1 b	0.1 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a	0.2 ± 0.1 a
Formic acid	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a
Levulinic acid	ND	0.2 ± 0.1 a,b	ND	0.2 ± 0.1 a,b	0.3 ± 0.1 a,c	0.2 ± 0.1 a,b	0.1 ± 0.1 b	0.3 ± 0.1 a,c	0.3 ± 0.1 a,c	0.3 ± 0.1 a,c	0.4 ± 0.1 c	0.1 ± 0.1 b	0.2 ± 0.1 a,b	0.3 ± 0.1 a,c	0.2 ± 0.1 a,b
Furfural	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a
HMF	ND	ND	ND	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	ND	0.1 ± 0.1 a	ND	ND
Solid Fraction Components in Dry Base (g/100 g Dry Sawdust)
Glucan	42.9 ± 0.1 a	43.2 ± 0.2 b	43.0 ± 0.6 a,b	43.4 ± 0.5 a,b	40.9 ± 2.8 a–e	42.1 ± 0.3 c	42.4 ± 1.2 a,b,c,e	38.9 ± 1.2 d	40.9 ± 0.4 e	42.0 ± 0.7 c	42.7 ± 1.1 a,b,c	43.4 ± 0.7 a,b	40.6 ± 1.7 c,d,e	42.3 ± 1.3 a,b,c,e	42.8 ± 0.9 a,b,c
Xylan	6.9 ± 0.2 a	4.3 ± 0.1 b	6.2 ± 1.2 a,h	5.9 ± 0.9 a,h	3.3 ± 0.6 c,g	3.7 ± 0.1 d	2.9 ± 0.2 c	2.6 ± 0.1 e	1.6 ± 0.3 f	3.4 ± 0.1 g	2.9 ± 0.1 c	3.5 ± 0.4 d,g	4.6 ± 0.3 b	5.1 ± 0.1 h	3.8 ± 0.1 d,g
Insoluble lignin	26.1 ± 0.1 a	27.9 ± 0.1 b	25.7 ± 0.1 c	26.8 ± 0.1 d	26.6 ± 0.1 e	28.0 ± 0.1 b	32.0 ± 0.1 f	28.8 ± 0.1 g	29.3 ± 0.1 h	25.3 ± 0.1 i	26.8 ± 0.1 d	30.1 ± 0.1 j	26.8 ± 0.1 d	25.7 ± 0.1 c	26.3 ± 0.1 k
Soluble lignin	2.5 ± 0.1 a	2.6 ± 0.1 a	2.6 ± 0.1 a	2.6 ± 0.1 a	1.7 ± 0.1 b,d	1.6 ± 0.1 b	2.6 ± 0.1 a	2.2 ± 0.1 c	2.5 ± 0.1 a	1.7 ± 0.1 b,d	1.6 ± 0.1 b	2.5 ± 0.1 a	2.6 ± 0.1 a	1.8 ± 0.1 d	2.1 ± 0.1 c
Acetyl groups	0.1 ± 0.1 a	0.6 ± 0.1 b	0.1 ± 0.1 a	0.9 ± 0.1 c	0.2 ± 0.1 a,e	0.1 ± 0.1 a	0.6 ± 0.1 b	0.2 ± 0.1 a,e	0.1 ± 0.1 a	0.1 ± 0.1 a	0.1 ± 0.1 a	1.0 ± 0.1 c	0.4 ± 0.1 d,e	0.3 ± 0.1 e	0.9 ± 0.1 c

ND: not detected. ¹ Oligomers expressed as their monomers. ² Assays that do not belong to the experimental design. S₀: severity factor [37]; EV5: center point of the experimental design. Mean values with the same letter are not statistically different (p > 0.05).

2.3. Enzymatic Hydrolysis

The effect of the pretreatment on the enzymatic hydrolysis was evaluated with tests performed at 4 wt% TS using low enzyme loadings. These conditions were used to avoid compensating for an inefficient pretreatment by applying high enzyme loadings or masking an efficient pretreatment by diffusional restrictions attributable to high substrate concentrations. The pretreated solids were hydrolyzed in duplicate for 96 h at 48 °C and 150 rpm using 100 mmol/L acetate buffer (pH 4.8), 0.1% (w/v) sodium azide and 9 FPU/g glucan of Cellic CTec2 from Novozymes (Bagsværd, Denmark). Hydrolysis was carried out in 250 mL Erlenmeyer flasks containing 100 mL of suspended solids. Aliquots (1 mL) were withdrawn at different reaction times, heated for 5 min in a boiling water bath for enzyme denaturation, and centrifuged at 13,000 rpm for 10 min. The supernatants were analyzed with HPLC according to the previously mentioned NREL protocol [34].

2.4. Saccharification and Fermentation

After selecting the best pretreatment condition, enzymatic hydrolysis and fermentation were carried out using washed and unwashed exploded solids (solids obtained after filtration of the whole slurry) at two solids loading: 13 and 27 wt% TS. The glucose concentration for the unwashed and washed exploded solids at 13 wt% TS was fitted by fractal kinetic modeling using Equation (1):

$$\mathrm{G}\left(\mathrm{t}\right)=G_0\left(1-e^{-k{t}^{\left(1-h\right)}}\right)$$

(1)

where G(t) is the final glucose concentration (g/L), G₀ is the initial glucan concentration (expressed as glucose in g/L), t is the reaction time (h), k is the time-dependent rate coefficient, and h is the fractal exponent. The parameters of the fractal kinetic model were calculated using nonlinear regression analysis [38].

Fermentations were carried out in duplicate using a PSSF strategy in 250 mL Erlenmeyer flasks containing 100 mL media. Pre-saccharification was performed at 48 °C, 150 rpm for 24 h in citrate buffer 0.05 mol/L pH 4.8 containing 25 FPU/g glucan of CellicCTec2 and 20 mg/L chloramphenicol, while SSF was realized at 35 °C, 100 rpm for 48 h, using S. cerevisiae PE-2 at an initial yeast concentration of 1 × 10⁸ cells/mL [7].

2.5. Statistical Analysis and Calculations

The errors for each variable were estimated as standard deviations of replicated assays. Analysis of variance (ANOVA), regression equations, and optimization with the desirability function was conducted with a 95% confidence level (α = 0.05) using Statistica 8.0 software (Statsoft, Tulsa, OK, E.U.A.). The hydrolysis efficiency, glucan conversion, XS recovery, glucan conversion efficiency, and ethanol production parameters were calculated using equations previously reported [7,9].

3. Results and Discussion

3.1. Pretreatment of Eucalypt Sawdust

Table 1 shows the results of the pH and solids recovery after pretreatment at different experimental conditions (t, T, and MC), along with a compositional analysis of the pretreatment liquors and water-washed solids, always expressed per 100 g sawdust (dry basis). The solids recovery ranged from 75 to 86%. As expected, these values decreased with an increase in the pretreatment severity factor (S₀). This decrease occurs because of a greater solubilization of materials, mainly from the hemicellulosic fraction and easily degradable lignin. Additionally, mass losses may also be partially attributed to secondary by-products that were not quantified (including volatiles) and to residual materials that could not be recovered from the reactor vessel. Hemicellulose sugars were partially recovered in the pretreatment liquor mostly in the oligomeric form. The recovery of water-soluble xylosaccharides (XS, xylose plus xylo-oligosaccharides expressed as xylose) was in the range of 24 to 55% (Table 1).

Martin-Sampedro et al. [15] achieved a maximum XS recovery of 19% using eucalypt under similar pretreatment severities, while Park et al. [39] reached 33% using eucalyptus and NaOH-catalyzed steam explosion. On the other hand, Rochón et al. [9] achieved an XS recovery of 82% (mainly as xylose), working at 180 °C for 10 min in a semicontinuous steam explosion reactor. In our work, XS recovery in the liquid fraction was influenced significantly by the pretreatment time and the T-t interaction at a 95% confidence level (p < 0.05). By increasing the time and decreasing the T-t interaction, an increase in the xylose recovery was observed in the liquid stream (Figure S1 in the Supplementary Materials). The highest average recovery values were reached for EV2A and EV4A in which the pretreatment was carried out at 185 °C for 10 min with a sawdust moisture content of 8 and 50%, respectively.

Acetyl groups were recovered in high yields (between 71 and 97%) in the liquid stream. The highest value (97%) was obtained for the mildest pretreatment condition (185 °C, 5 min), mainly linked to xylo-oligosaccharides (XOS), with a concentration of 20 g/L in the pretreatment liquor. Also, part of the acetyl groups was released as acetic acid from the xylan backbone by direct acid hydrolysis [30]. In general, if isolated from pretreatment liquors in high yields, XOS are compounds with high added value mainly because of their application as prebiotics in the food and pharmaceutical industries [40,41].

Other compounds, such as HMF, furfural, formic acid, and levulinic acids, were obtained in small quantities in the pretreatment liquor at concentrations of 0.1 g/L, 0.1 to 0.5 g/L, 0.1 to 2.8, and 0.1 to 1.5 g/L, respectively. These values are higher than those obtained by the steam explosion of olive pruning [42], E. globulus chips [15], and sugarcane bagasse [43].

None of the variables studied (T, t, and MC) were statistically significant for the recovery of acetyl groups, furfural, or HMF in the pretreatment liquor at a 95% confidence level (p < 0.05). Therefore, a model could not be established for these response functions in the present study. In addition, the concentration of furfural and HMF in liquid streams was either constant or undetectable for all of the conditions tested in the experimental design. Levulinic acid was the main by-product obtained from acid catalyzed hexose dehydration, ranging between 0.1 and 0.4 g per 100 g of sawdust, except for the pretreatment at the lowest severity (185 °C for 5 min), where its production was not detected. The production of this acid increased positively with temperature, which was to be expected, because more extreme pretreatment conditions (or higher pretreatment severities) favor side reactions involved in sugar dehydration.

Glucans were the main component of the pretreatment solids, with percentages above 50% in all cases. Such glucan contents were aligned with those reported by other authors [15,44], which ranged from 50.3 to 54.8%. Glucan recovery in the pretreatment solids was between 90 and 100%, with an average of 97%, while xylan recovery was between 11 and 50%, with an average of 29% (Figure 1). Cebreiros et al. [45] reported a glucan recovery between 78 and 89% working with E. grandis sawdust at S₀ values ranging from 3.36 to 3.94, while Romaní et al. [44] observed that glucan losses increased significantly for S₀ > 4.80.

The xylan content in the pretreated solids was statistically affected only by temperature, while xylose release in the pretreatment liquor depended on the extent of xylan hydrolysis. Hence, based on the statistical data, temperature governed the xylan hydrolysis, whereas time determined the amount of xylose remaining in the solution. The xylan content in the pretreated solids was between 8.4 and 2.1% for S₀ values from 3.20 to 4.09, while glucan represented 51.6 to 54.4%, and the total lignin varied from 36.8 to 42.3%, respectively.

Xylan removal from the pretreated solids increased with the pretreatment severity, but this was not accompanied by an increase in the xylan components (both monomeric and oligomeric) in the pretreatment liquor, indicating mass losses normally due to dehydration. However, the quantification of furfural in this liquid stream did not explain the low xylan recovery values since, at most, only 1% of the potential furfural was recovered with respect to the original sawdust xylan composition. However, it is known that furans are partially lost as pretreatment volatiles or undergo condensation reactions forming acid-insoluble humins and/or pseudolignin [46,47].

Temperature, time, and sawdust moisture content had no significant impact (p < 0.05) on both the lignin and glucan contents of the pretreated solids. The lignin content in pretreated solids varied from 33.0 to 43.7%, which corresponds to lignin recoveries higher than 100% (surplus between 2 and 25% depending on the pretreatment condition). This apparent lignin overestimation is due to the accumulation of humins and/or pseudolignin that form at high pretreatment severities and subsequently quantified as acid-insoluble lignin [6,45], a feature that NREL protocols are not able to distinguish.

Although changes in the sawdust moisture content (8 to 50%) had no statistically relevant impact on the analyzed response functions, excessive humidity may decrease the pretreatment severity by slowing the heating rate inside the reaction chamber and eventually consuming more steam to reach the desired reaction temperature [48]. This may have been the reason why air-dried sawdust (EV7A) resulted in ~4% more XS in the pretreatment liquor compared to the use of sawdust with a moisture content of 50% (EV9A).

3.2. Enzymatic Hydrolysis of Pretreated Eucalypt

Table 2. Enzymatic hydrolysis of drained (never washed) steam-exploded E. grandis sawdust for 72 h using 4 wt% TS and 9 FPU/g glucan of Cellic CTec2 (Novozymes).

Assays	T (°C)	t (min)	Sawdust MC (%)	Glucose (g/L)	Hydrolysis Efficiency 1 (%)	Glucan Conversion 2 (%)
EV1A	185 (−1)	5 (−1)	8 (−1)	3.4 ± 0.1 a	16.4 ± 0.5 a	17.2 ± 0.3 a
EV2A	185 (−1)	10 (1)	8 (−1)	6.4 ± 0.9 b,i	29.5 ± 2.8 b	30.3 ± 2.9 b
EV3A	185 (−1)	5 (−1)	50 (1)	5.5 ± 0.1 b	30.3 ± 0.6 b	30.2 ± 0.6 b
EV4A	185 (−1)	10 (1)	50 (1)	5.7 ± 0.6 b	28.4 ± 2.8 b	29.9 ± 2.9 b
EV5A	195 (0)	7.5 (0)	29 (0)	9.5 ± 0.1 c	47.3 ± 0.4 c	44.0 ± 0.3 c
EV5B	195 (0)	7.5 (0)	29 (0)	10.3 ± 1.6 c,e,g,h	46.9 ± 2.8 c,h	46.7 ± 2.7 c,h
EV5C	195 (0)	7.5 (0)	29 (0)	9.9 ± 1.9 c,e,f,g,h	47.1 ± 2.6 c	45.1 ± 2.5 c,f,h
EV6A	205 (1)	5 (−1)	8 (−1)	10.5 ± 1.9 c,e,g,h	45.7 ± 2.8 c,g,h	42.2 ± 2.9 c,f,g,h
EV7A	205 (1)	10 (1)	8 (−1)	14.7 ± 0.7 d	67.9 ± 2.6 d	65.5 ± 1.7 d
EV8A	205 (1)	5 (−1)	50 (1)	12.0 ± 1.9 e,h	58.6 ± 2.8 e	57.9 ± 2.5 e
EV9A	205 (1)	10 (1)	50 (1)	12.9 ± 1.9 e	66.8 ± 2.6 d	67.1 ± 2.7 d
EV10A	195 (0)	7.5 (0)	8 (−1)	7.9 ± 0.3 f	39.8 ± 1.3 f	40.6 ± 2.4 f,g
EV10B	195 (0)	7.5 (0)	8 (−1)	8.3 ± 1.0 c,f,g,h	40.5 ± 2.8 f,g	37.9 ± 2.9 g
EV11A	195 (0)	7.5 (0)	50 (1)	9.5 ± 0.9 h	47.1 ± 2.8 c,h	47.3 ± 2.9 h
EV11B	195 (0)	7.5 (0)	50 (1)	8.9 ± 1.9 c,f,h,i	42.0 ± 2.5 f,g,h	42.6 ± 2.7 f,g,h

T: reaction temperature; t: reaction time; A, B, and C: replicas of the same experimental conditions in the different steam explosion batches. ¹ Hydrolysis efficiency based on the chemical composition of the pretreated solids. ² Glucan conversion based on the sawdust composition. Mean values with the same letter are not statistically different (p > 0.05).

shows the final glucose concentration, enzymatic hydrolysis efficiency, and glucan conversion of unwashed exploded solids after incubation with a low enzyme loading of Cellic CTec2 for 72 h. Some glucan conversion efficiencies were higher than the corresponding hydrolysis efficiencies because the glucose present in the unwashed solids (therefore, in the retained pretreatment liquor) was considered in the former but not in the latter calculations. Enzymatic hydrolysis using only 9 FPU/g glucan released 3 to 13 g/L glucose in the substrate hydrolysate, while the glucan conversion varied from 17 to 67% with maximum values achieved for the pretreatments carried out at 205 °C and 10 min (EV7A and EV9A), values similar to those obtained by Martín-Sampedro et al. [15] and Chiarello et al. [49] for eucalyptus working at low concentrations of solids (4 and 9%). An improvement in the hydrolysis efficiency could be observed by increasing both pretreatment temperature and retention time of the eucalypt sawdust inside the reactor vessel.

All pretreatment variables (temperature, time, and sawdust moisture content) had a positive influence on both the enzymatic hydrolysis efficiency and glucan conversion (

Table 3. Results of the effects of the experiment design for steam explosion treatments and the statistical analysis.

Parameter	Liquid Fraction		Solid Fraction
	XS Recovery (XR) 1		Hydrolysis Efficiency (EH) 2		Glucan Conversion (EGC) 3
	Effect	p-Value	Effect	p-Value	Effect	p-Value
Media	38.775	0.0011	42.950	<0.0001	42.537	0.0001
Curvature	24.403	0.0440	8.300	0.0010	5.458	0.0972
T	3.945	0.2753	33.600	<0.0001	31.275	0.0009
t	25.735	0.0105	10.400	0.0001	11.325	0.0071
MC	6.805	0.1242	6.150	0.0005	7.475	0.0161
T.t	−13.960	0.0343	4.800	0.0009	4.925	0.0359
T.H	7.500	0.1056	−0.250	0.2193	1.175	0.3456
H.t	−9.180	0.0743	−7.250	0.0004	−6.875	0.0189

Statistical significance was evaluated for p < 0.05. ¹ XS, xylosaccharides (xylose + xylo-oligomers expressed as xylose) recovery based on the exploited solids composition. ² Hydrolysis efficiency based on the exploited solids composition. ³ Glucan conversion efficiency based on the sawdust composition.

; see also Figure S2 in the Supplementary Materials). Temperature had the strongest effect on both response functions, followed by the pretreatment residence time and sawdust moisture content. Also, when the sawdust moisture content was high, the glucan conversion was more sensitive to changes in the pretreatment temperature (see Supplementary Materials).

Hemicellulose removal by autohydrolysis improved both the enzymatic hydrolysis efficiency and glucan conversion (glucose production from 100 g sawdust) (see Figure S3 in the Supplementary Materials). The EV1A assay, which resulted in the lowest hydrolysis efficiency (17%), had the highest xylan concentration in the exploded solids (8.4%). However, other factors may have also been highly influential, such as changes in the distributions and in the physical and chemical properties of lignin.

For the same sawdust moisture content, a higher removal of hemicelluloses was achieved at a lower pH of the liquid fraction, resulting in an increase in the enzymatic hydrolysis efficiency. For the same pH, a higher hydrolysis efficiency was obtained when the eucalypt sawdust had a higher moisture content (see Figure S4 in the Supplementary Materials).

As expected, the hydrolysis efficiency increased when the enzyme dosage increased from 9 to 25 FPU/g glucan. Improvements in the enzymatic hydrolysis by adding more enzymes to the pretreated solids may not be economically viable, but it ensures more enzymes in the medium to bind to cellulose chains. Working with an enzyme loading of 25 FPU/g glucan and 13 wt% TS raised the hydrolysis efficiency with respect to the results achieved using 9 FPU/g glucan and 4 wt% TS. For example, after 24 h enzymatic hydrolysis of EV7A and EV9A unwashed pretreated substrates, the hydrolysis efficiency increased from 25 to 62% and from 44 to 57%, respectively. Also, changes in S₀, which combines both temperature and time in a single reaction ordinate, had a linear correlation with the mass recovery of pretreated solids and the parameters related to their enzymatic digestibility (final glucose concentration, hydrolysis efficiency, and glucan conversion) (see Figure S5 in the Supplementary Materials).

A mathematical model was designed to reveal the effect of pretreatment variables on the following response functions: solids recovery, final glucose concentration, enzymatic hydrolysis efficiency, and glucan conversion (see Table S1 in the Supplementary Materials). For hydrolysis efficiency and glucan conversion, both the T.t and MC.t binary interactions were significant in the proposed model (Table 3 and Figure S6 in the Supplementary Materials). In the case of glucan conversion, a linear model was obtained with an excellent goodness-of-fit (R² of 0.999 and nonsignificant lack of fit). Likewise, a linear correlation was observed between experimental and theoretical values for glucan conversion (see Figure S7 in the Supplementary Materials).

For the glucan conversion efficiency (EGC), Equation (2) was developed with coded values considering only the statistically significant regression coefficients:

$$\mathrm{E}\mathrm{GC}=42.5+15.6T+5.7t+3.8MC+2.5Tt-3.4MCt$$

(2)

The highest glucan recovery from E. grandis sawdust was obtained at the highest pretreatment severity (205 °C, 10 min), regardless of the sawdust original moisture content (66 and 67% in experiments EV7A and EV9A, respectively). Hence, the enzymatic hydrolysis performance of the EV7A and EV9A unwashed substrates was investigated at 4, 13, and 27 wt% TS. The hydrolysis efficiency and glucan conversion remained almost unchanged (62.3 and 61.8%, respectively) for the EV7A pretreated solids when experiments were carried out at 4 to 13 wt% TS, probably because any inhibitory effect, if existing, was resolved by increasing the enzyme dosage from 9 to 25 FPU/g. However, this behavior was different for assays carried out with EV9A or with EV7A at 27 wt% TS.

Enzyme inhibition caused a descensus in both efficiency parameters, perhaps due to the presence of organic acids and/or phenolic compounds since, as mentioned above, the solids were not previously washed with water. At 27 wt% TS, both hydrolysis efficiency and glucan conversion decreased by more than half for both substrates (EV7A and EV9A) compared to the experiments at 4 wt% TS. On the other hand, hydrolysis at 13 wt% TS ended at 48 h, reaching 85% glucose in 24 h. Other authors achieved more than 75% total glucose release within the first 24 h of hydrolysis, with yields continuing to increase with reaction time [43,50].

Fockink et al. [43] obtained similar glucan conversions at 24 h of hydrolysis (close to 60%) for steam-exploded sugarcane bagasse (S₀ of 3.67) using 15 wt% TS and 23.1 FPU/g glucan. However, their best result derived from hydrolysis at 20 wt% TS with 38.6 FPU/g glucan in which a 99% glucan conversion was reached in 72 h [43]. Regarding the hydrolysis efficiency and glucan conversion of the unwashed solids, the best results were obtained at 4 wt% TS with both EV7A and EV9A (65.5% and 67.1%, respectively).

The effect of water washing the pretreated solids was also analyzed. To this end, enzymatic hydrolysis was performed at high total solids (13 and 27 wt%) using EV7A and EV9A after a washing step. Water washing improved the hydrolysis efficiency and glucan recovery because of the removal of enzyme inhibitors (

Table 4. Enzymatic hydrolysis and ethanol production parameters for the EV7A and EV9A solids (205 °C and 10 min) at 13 and 27% TS using unwashed and water-washed pretreated materials.

Parameter	EV7A			EV9A
Solids loading (wt%)	13	13	27	13	13	27
Water washing	Yes	No	No	Yes	No	No
Enzymatic hydrolysis parameters at 12 h
Final glucose (g/L)	42.6 ± 0.5 a	44.0 ± 1.1 a,b	45.0 ± 0.1 b	42.7 ± 1.0 a	38.0 ± 1.1 c	27.2 ± 1.1 d
Hydrolysis efficiency (%)	50.9 ± 2.2 a	53.5 ± 2.0 a	27.7 ± 0.1 b	53.7 ± 1.5 a	42.3 ± 1.0 c	16.5 ± 0.5 d
Glucan conversion efficiency (%)	52.1 ± 0.6 a	53.4 ± 1.5 a	26.1 ± 0.1 b	52.5 ± 1.1 a	42.6 ± 1.3 c	16.3 ± 0.6 d
Enzymatic hydrolysis parameters at 24 h
Final glucose (g/L)	55.4 ± 0.7 a	50.4 ± 2.1 b	49.6 ± 1.2 b	51.0 ± 1.8 b	51.1 ± 1.8 b	35.5 ± 1.8 c
Hydrolysis efficiency (%)	67.1 ± 1.9 a	61.8 ± 2.4 b	30.0 ± 0.8 c	64.3 ± 1.9 a,b	57.3 ± 1.9 d	21.5 ± 0.9 e
Glucan conversion efficiency (%)	67.7 ± 0.9 a	61.3 ± 1.9 b	28.3 ± 0.8 c	62.6 ± 2.2 b	57.3 ± 2.1 d	21.3 ± 1.1 e
Ethanol production parameters at 42 h (including pre-saccharification time)
Ethanol (g/L)	30.7 ± 1.9 a	27.7 ± 0.9 b	27.0 ± 0.8 b,c	25.2 ± 1.3 c	21.0 ± 1.8 d	21.0 ± 1.7 d
Ethanol productivity (g/Lh)	0.73 ± 0.05 a	0.66 ± 0.02 b	0.64 ± 0.01 b,c	0.60 ± 0.04 c	0.50 ± 0.05 d	0.50 ± 0.04 d
Ethanol yield (L/t)	227 ± 15 a	206 ± 13 b	96 ± 0 c	189 ± 10 b	154 ± 13 d	77 ± 6 e
EC (%) 1	76.2 ± 2.2 a	69.5 ± 2.2 b	32.6 ± 0.2 c	62.6 ± 2.2 d	49.9 ± 2.5 e	25.0 ± 2.1 f
EG (%) 2	73.6 ± 2.5 a	65.9 ± 2.3 b	30.7 ± 0.2 c	60.5 ± 2.3 d	49.2 ± 2.5 e	24.6 ± 2.1 f

¹ E_C, ethanol production efficiency based on the composition of pretreatment solids. ² E_G, ethanol production efficiency based on the composition of the untreated sawdust. The enzyme dose was 25 FPU/g glucan. Mean values with the same letter are not statistically different (p > 0.05).

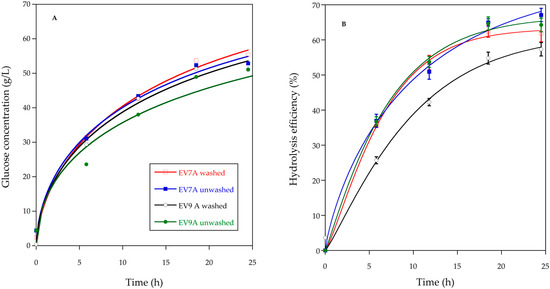

). For the EV7A assay, the glucose concentration, enzymatic hydrolysis efficiency, and glucan conversion at 24 h increased by 15 and 10%, respectively, with respect to the drained material without water washing. However, at 12 h of hydrolysis, there were no significant differences between the unwashed and water-washed pretreated materials. In the case of the EV7A pretreated solids without water washing, the glucose concentration had an increase of 11% between 12 and 24 h of hydrolysis, while a 30% increase was observed for the water-washed solids in the same hydrolysis timeframe.

Table 5. Fractal kinetic parameters from the enzymatic hydrolysis profiles for the EV7A and EV9A washed and unwashed exploded solids at 13% solids content.

Assay	Water Washing	G0 (g/L)	k (h−1)	h	R2
EV7A	No	81.37	0.185	0.437	0.991
	Yes	81.42	0.166	0.383	0.997
EV9A	No	80.15	0.176	0.476	0.985
	Yes	79.41	0.177	0.423	0.995

The fractal model used was $\mathrm{G}\left(\mathrm{t}\right)=G_0\left(1-e^{-k{t}^{\left(1-h\right)}}\right)$, where G(t) is the final glucose concentration (g/L), G₀ is the initial glucan concentration (expressed as glucose in g/L), t is the reaction time (h), k is the time-dependent rate coefficient (h⁻¹), and h is the fractal exponent.

contains the fractal kinetic parameters for the 24 h enzymatic hydrolysis of both the unwashed and water-washed pretreated solids that were derived from experiments EV7A and EV9A (see Equation (1) for details), while Figure 2 shows the corresponding enzymatic hydrolysis profiles. Similar hydrolysis profiles and comparable k values were obtained for the unwashed and water-washed EV9A pretreated solids. However, the EV9A unwashed solids had the highest h parameter, which corresponds to the worst enzymatic hydrolysis performance. The unwashed solids presented higher h parameters due to the presence of hydrolysis and/or fermentation inhibitors, leading to poor ethanol production parameters (Table 5). For the EV7A solids, there was only a 10% difference in the glucan conversion for the washed and unwashed solids. Hence, for this pretreatment condition, the advantages of water-washing pretreated solids may be compensated by savings in capital costs, processing time, water requirements, and energy consumption.

3.3. Saccharification and Fermentation

In the PSSF assays, the hydrolysis of washed or unwashed pretreated solids was initially carried out for 24 h, when S. cerevisiae PE-2 was added as inoculum to initiate ethanol production. Afterward, hydrolysis and fermentation were performed for another 52 h, resulting in a total processing time of 72 h for both steps. High TS (13 and 27 wt%) were used to achieve high ethanol concentrations. Enzymatic hydrolysis was performed for 24 h with an enzyme loading of 25 FPU/g glucan to ensure that enzymatic hydrolysis did not become limiting. After SSF for 12 to 18 h, ethanol concentration remained constant. The best results were obtained with 13 wt% TS, whereby 154 to 227 L of ethanol were produced per ton of sawdust (dry basis), depending on the condition and whether the pretreated material was water-washed or not. Increasing the substrate TS from 13 to 27 wt% did not produce an increase in the final ethanol concentration for both EV7A and EV9A pretreated solids, and ethanol productivities were also very similar (Table 4). However, there was a decrease in the ethanol yield in L per ton of sawdust. For 27 wt% TS, the hydrolysis was partially inhibited resulting in less available glucose to ferment. Also, the hydrolysis rate decreased by decreasing the reaction temperature from 48 to 35 °C during PSSF fermentation, while the inhibitory effects may have possibly been enhanced. The hydrolysis efficiency dropped by a factor of two when the solids concentration increased from 13 and 27 wt%, with the same effect being observed in the associated ethanol production. This suggests that the PE-2 yeast strain did not decrease the productivity due to the presence of possible inhibitors but just because there was less glucose available in the medium for fermentation.

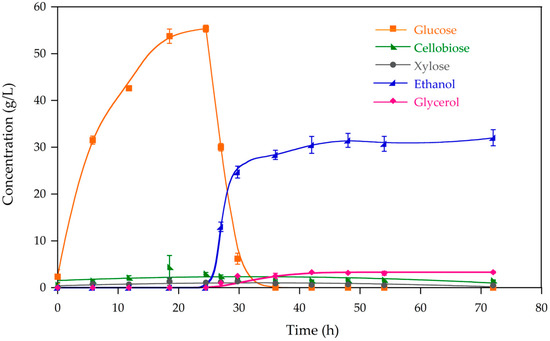

Figure 3 shows the concentration profiles of the sugars, ethanol, and glycerol during the PSSF of the water-washed EV7A pretreated solids. The glycerol and cellobiose concentrations were always below 4 g/L, allowing the enzymes and yeast to perform well. Fermentation occurred rapidly, reaching the maximum ethanol concentration 12 h after inoculation. At this point, all of the available glucose had already been consumed, and both the microbial growth and ethanol concentration remained constant until the end. Therefore, there was no need to extend the hydrolysis and fermentation beyond 12 h. With this, the total processing time for the optimal PSSF performance was reduced to only 36 h.

The ethanol yields and productivity increased with a decrease in the initial sawdust moisture content. The unwashed steam-exploded solids from the air-dried sawdust (EV7A) hydrolyzed faster in the first 12 h, reaching a final glucose concentration 16% higher than the unwashed solids derived from the sawdust with a 50% moisture content (EV9A). However, the water-washed solids displayed a different behavior. This indicates that the pretreatment was more severe for the sawdust with a low moisture content, leading to a more extensive hydrolysis of water-soluble XOS that are highly detrimental to enzymatic hydrolysis. However, this rise in S_o was not strong enough to release fermentation inhibitors up to a critical level. For experiments carried out with high moisture content sawdust, inhibitory effects could be easily removed by water washing of the pretreated solids.

Romaní et al. [44] used SSF to produce high glucan conversions (91%) and ethanol concentrations (51 g/L) from E. globulus wood chips that were pretreated by steam explosion at 210 °C for 10 min (S_o = 4.39) (Table 6). Fermentation efficiencies between 50 and 76% were obtained using PSSF, which corresponds to an ethanol production of 154 to 227 L per ton of dry sawdust, respectively.

Neves et al. [50] worked with steam-exploded sugarcane bagasse in three fermentation modalities and obtained the highest ethanol production yield (86%) by separate hydrolysis and fermentation (SHF), followed by 67% for SSF and 54% for PSSF. However, as in the present study, the best volumetric productivity was for PSSF (0.58 g/Lh). López-Linares et al. [51] and Martín-Davison et al. [52] obtained ethanol conversion efficiencies of 70 and 78% by SSF after pretreatment of rapeseed straw and poplar hybrid at 215 and 220 °C, respectively (Table 6). Chiarello et al. [6,49] achieved 83 and 88% ethanol conversion efficiencies from steam-exploded E. urograndis wood chips that were pretreated at 210 °C for 5 and 10 min, respectively, using the same equipment applied in this work. Despite using different saccharification and fermentation strategies, all of these values are close to what was achieved from the water-washed E. grandis sawdust (76%). Also, McIntosh et al. [28] used dilute sulfuric acid hydrolysis followed by steam explosion of E. grandis wood chips to achieve similar ethanol yields in L per ton of dry matter. A higher ethanol yield of 304 L/ton was obtained by Castro et al. [53] from phosphoric acid impregnated, steam-treated E. benthamii wood chips, but in their studies fermentation was carried out with a microorganism that was capable of fermenting both glucose and xylose to ethanol.

Table 6. Ethanol production parameters from different lignocellulosic biomass pretreated with steam explosion (SE).

Material	Operation Condition	Ethanol (g/L)	Productivity (g/L·h)	EC 1 (%)	Ethanol Yield (L/t)	Reference
E. urograndis chips	SE (210 °C, 5 min), fermentation (4 wt% TS, 7–44 FPU/g TS, SHF)	21	0.3	83–84	NR	[49]
E. grandis chips (whole tree)	Acid pretreatment (170–186 °C, 15 min, H2SO4 0.75–2.4%, drained solid), SE (185 °C, 5 min), and fermentation (15 wt% TS, 20 FPU/g glucan, PSSF)	10–18	0.1–0.3 2	23–42	105–166 2	[28]
E. urograndis chips	SE (210 °C, 10 min), fermentation (20 wt% TS, 13 FPU/g TS, SHF)	27	1.4	88	219	[6]
E. benthamii, E. grandis chips	7.9 mm, acid impregnation (0.5–0.8% H3PO4, 4 h), SE (200 °C, 5–10 min), and fermentation (10 wt% TS, cellulase 14.7 FPU/g TS, SHCF)	21–24	0.2–0.3 2	NR	304	[53]
E. globulus chips	8 mm, SE (180–210 °C, 10–30 min), fermentation (5–14 wt% TS, 10–20 FPU/g TS, β-glucosidase/cellulase, SSF)	5.4–50.9	1.0–2.7	31–91	NR	[44]
Poplar hybrids (H-29, H-34)	10 mm, SE (200–220 °C, 3–5 min) and fermentation (10 wt% TS, 15 FPU/g TS, SSF)	9–21	0.1–0.3 2	32–70	NR	[52]
Sugarcane bagasse	50% moisture, with and without extraction (95% ethanol, 7 h), SE (195 °C, 7.5 min, with and without H3PO4 or H2SO4, 9.5 mg acid/TS), hydrolysis (7.3 wt% TS, 8.4 FPU/g TS, 96 h), and fermentation (12 wt% TS, SHF, SSF, and PSSF)	23–27 (SHF) 15–19 (SSF) 15 (PSSF)	0.3 (SHF) 0.3–0.4 (SSF) 0.6 (PSSF)	84–92 (SHF) 57–75 (SSF) 50–54 (PSSF)	NR	[50]
Rapeseed straw	SE (215 °C, 7.5 min) and fermentation (20–30 wt% TS, 20–40 FPU/g TS, SSF, and PSSF 30 wt% TS)	43–50 (SSF) 53–56 (PSSF)	0.6–0.7 2 (SSF) 0.5–0.7 2 (PSSF)	61–78 (SSF) 63–67 (PSSF)	122–157 (SSF) 125–136 (PSSF)	[51]
E. grandis sawdust	SE (205 °C, 10 min, 8% moisture), drained, hydrolysis and fermentation (27 wt% TS, 25 FPU/g glucan, PSSF)	27.0	0.64	32.6	96	This work
E. grandis sawdust	SE (205 °C, 10 min, 8% moisture), hydrolysis and fermentation (13 wt% TS, 25 FPU/g glucan, PSSF)	30.7	0.85	76.2	227	This work

NR: not reported. ¹ E_C, ethanol production efficiency based on the substrate composition. ² Calculated from the data reported by the authors.

Table 6. Ethanol production parameters from different lignocellulosic biomass pretreated with steam explosion (SE).

Material	Operation Condition	Ethanol (g/L)	Productivity (g/L·h)	EC 1 (%)	Ethanol Yield (L/t)	Reference
E. urograndis chips	SE (210 °C, 5 min), fermentation (4 wt% TS, 7–44 FPU/g TS, SHF)	21	0.3	83–84	NR	[49]
E. grandis chips (whole tree)	Acid pretreatment (170–186 °C, 15 min, H2SO4 0.75–2.4%, drained solid), SE (185 °C, 5 min), and fermentation (15 wt% TS, 20 FPU/g glucan, PSSF)	10–18	0.1–0.3 2	23–42	105–166 2	[28]
E. urograndis chips	SE (210 °C, 10 min), fermentation (20 wt% TS, 13 FPU/g TS, SHF)	27	1.4	88	219	[6]
E. benthamii, E. grandis chips	7.9 mm, acid impregnation (0.5–0.8% H3PO4, 4 h), SE (200 °C, 5–10 min), and fermentation (10 wt% TS, cellulase 14.7 FPU/g TS, SHCF)	21–24	0.2–0.3 2	NR	304	[53]
E. globulus chips	8 mm, SE (180–210 °C, 10–30 min), fermentation (5–14 wt% TS, 10–20 FPU/g TS, β-glucosidase/cellulase, SSF)	5.4–50.9	1.0–2.7	31–91	NR	[44]
Poplar hybrids (H-29, H-34)	10 mm, SE (200–220 °C, 3–5 min) and fermentation (10 wt% TS, 15 FPU/g TS, SSF)	9–21	0.1–0.3 2	32–70	NR	[52]
Sugarcane bagasse	50% moisture, with and without extraction (95% ethanol, 7 h), SE (195 °C, 7.5 min, with and without H3PO4 or H2SO4, 9.5 mg acid/TS), hydrolysis (7.3 wt% TS, 8.4 FPU/g TS, 96 h), and fermentation (12 wt% TS, SHF, SSF, and PSSF)	23–27 (SHF) 15–19 (SSF) 15 (PSSF)	0.3 (SHF) 0.3–0.4 (SSF) 0.6 (PSSF)	84–92 (SHF) 57–75 (SSF) 50–54 (PSSF)	NR	[50]
Rapeseed straw	SE (215 °C, 7.5 min) and fermentation (20–30 wt% TS, 20–40 FPU/g TS, SSF, and PSSF 30 wt% TS)	43–50 (SSF) 53–56 (PSSF)	0.6–0.7 2 (SSF) 0.5–0.7 2 (PSSF)	61–78 (SSF) 63–67 (PSSF)	122–157 (SSF) 125–136 (PSSF)	[51]
E. grandis sawdust	SE (205 °C, 10 min, 8% moisture), drained, hydrolysis and fermentation (27 wt% TS, 25 FPU/g glucan, PSSF)	27.0	0.64	32.6	96	This work
E. grandis sawdust	SE (205 °C, 10 min, 8% moisture), hydrolysis and fermentation (13 wt% TS, 25 FPU/g glucan, PSSF)	30.7	0.85	76.2	227	This work

NR: not reported. ¹ E_C, ethanol production efficiency based on the substrate composition. ² Calculated from the data reported by the authors.

Glycerol is formed from an intermediate of glycolysis in response to high osmotic pressure due to the high sugar concentration in the fermentation broth [54]. This is why its production increases at the beginning of fermentation and levels off over longer reaction times during the SSF experiments (Figure 3).

3.4. Mass Balance

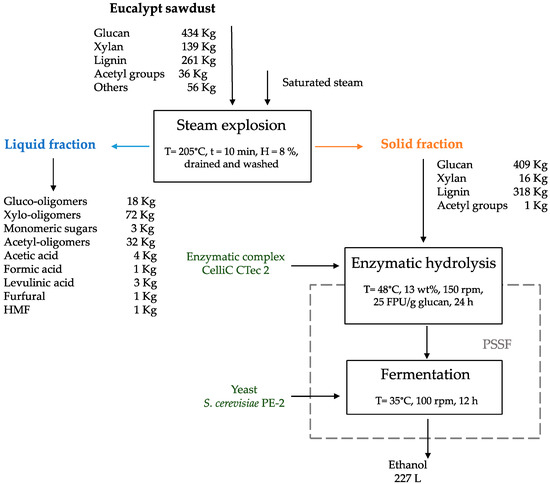

The steam explosion of air-dried E. grandis sawdust (8% moisture content, 205 °C, 10 min) followed by PSSF fermentation produced 227 L ethanol, 73 kg XS (xylose plus XOS), 36 kg acetic acid, 7 kg glycerol, 1 kg 5-HMF plus furfural, and 3 kg levulinic acid per ton of dry biomass (Figure 4). The XS recovery was similar to those obtained by Cebreiros et al. [55] and Romaní et al. [56] using eucalypt and steam explosion; however, XOS in our work were obtained in higher yields. These XOS have great potential for use as prebiotics in food and feed applications [40,41]. High ethanol productions per dry ton of eucalypt sawdust were obtained. Similar values were reported by Chiarello et al. [6] working with E. urograndis wood chips and steam explosion.

Steam explosion allows for the selective fractionation of E. grandis sawdust with respect to plant cell wall polysaccharides. Lignin remains mostly with the enzymatic sludge, from where it may be recovered for its subsequent valorization. Some reports indicate that this type of lignin is more reactive than other sources of technical lignins, being useful for a wider range of value-added applications [57].

4. Conclusions

Steam explosion of eucalypt sawdust was an effective pretreatment technique for biomass fractionation. The sawdust moisture content had little impact on the pretreatment yields, and the residence time in the steam reactor was the main variable that improved the recovery of xylosaccharides. The enzyme accessibility of plant cell wall polysaccharides (mostly cellulose) was increased after steam explosion, resulting in reasonably high glucose yields (61%) at 24 h of hydrolysis using low enzyme loadings. The temperature had the greatest impact on the enzymatic hydrolysis performance, and water washing of the exploded solids increased the overall glucan conversion efficiency. The PSSF strategy at high total solids using water-washed steam-exploded solids improved the ethanol yields. The best pretreatment condition allows for the potential obtainment of 227 L ethanol and 73 kg xylosaccharides from one ton of dry sawdust.
