A Novel Hybrid Optimization Approach for Fault Detection in Photovoltaic Arrays and Inverters Using AI and Statistical Learning Techniques: A Focus on Sustainable Environment

Abstract

Fault detection in PV arrays and inverters is critical for ensuring maximum efficiency and performance. Artificial intelligence (AI) learning can be used to quickly identify issues, resulting in a sustainable environment with reduced downtime and maintenance costs. As the use of solar energy systems continues to grow, the need for reliable and efficient fault detection and diagnosis techniques becomes more critical. This paper presents a novel approach for fault detection in photovoltaic (PV) arrays and inverters, combining AI techniques. It integrates Elman neural network (ENN), boosted tree algorithms (BTA), multi-layer perceptron (MLP), and Gaussian processes regression (GPR) for enhanced accuracy and reliability in fault diagnosis. It leverages its strengths for the accuracy and reliability of fault diagnosis. Feature engineering-based sensitivity analysis was utilized for feature extraction. The fault detection and diagnosis were assessed using several statistical criteria including PBAIS, MAE, NSE, RMSE, and MAPE. Two intelligent learning scenarios are carried out. The first scenario is conducted for PV array fault detection with DC power (DCP) as output. The second scenario is conducted for inverter fault detection with AC power (ACP) as the output. The proposed technique is capable of detecting faults in PV arrays and inverters, providing a reliable solution for enhancing the performance and reliability of solar energy systems. A real-world solar energy dataset is used to evaluate the proposed technique with results compared to existing detection techniques and obtained results showing that it outperforms existing fault detection techniques, achieving higher accuracy and better performance. The GPR-M4 optimization justified its reliably among all the models with MAPE = 0.0393 and MAE = 0.002 for inverter fault detection, and MAPE = 0.091 and MAE = 0.000 for PV array fault detection.

1. Introduction

Advancement in renewable energy technology has been on a rapid ascending trend in recent years. This has encouraged wide acceptance of the technology and, thus, the subsequent boom in the installation of renewable energy-based power plants around the world (especially in China, India, Europe, and America). Solar photovoltaic (PV) is one of the leading renewable energy technologies on an exponential rise. Due in part to the growing concern over oil depletion, environmental issues, fuel price dependence, and operational complexity associated with the production of fossil fuels, an increasing number of residential, commercial, and industrial consumers have adopted and are adopting solar PV as their source of power generation [1]. The National Renewable Energy Lab (NREL) reported that the PV capacity installed globally in 2021 was 172GW_dc, bringing the global cumulative capacity to 939GW_dc [2]. The NREL further stated that China, India, and Germany significantly increased their PV installations by 106%, 51%, and 22%, respectively, in the first 9 months of 2022 [3]. This remarkable rise in the significance of solar PV in the global energy sector is also reflected in [2], where it is reported that increased annual global PV installations, especially in the aforementioned countries, are projected by analysts.

However, there is a downside to the technology. Solar PV systems require ongoing maintenance in order to function efficiently over time because they have been known to lose efficiency and productivity if not properly and appropriately managed and maintained [1]. The financial aspect of running solar PV systems without adequate maintenance is also drastically affected, as reflected in [4], where the economic consequences of the reduced real lifetime of PV panels were discussed. That is to say, in order for solar PV systems to operate properly over time, they need to undergo routine maintenance, which calls for the adoption of mechanisms to efficiently monitor and control these systems. Several operation and maintenance conventional methods, which have helped to sustain the efficient operation of PV systems, have been introduced over the years. These methods, however, have not been able to totally prevent system failure and operation downtime, which begs the need for more intelligent methods of fault detection and the subsequent adoption of AI-based methods. These techniques make use of machine learning to develop models that can quickly find various issues, track the overall health of PV systems, and assist maintenance engineers in hastening system recovery [5].

There are so many available pieces of literature that have carried out experiments and research on the use of AI in fault detection and diagnosis for PV systems. In [6], a straightforward and efficient monitoring technique for PV systems is given. It is based on parametric models and the double exponential smoothing scheme. In order to find minor deviations, the simplicity and adaptability of empirical models are combined with the sensitivity of a double exponential smoothing method. By analyzing the resulting residuals, the double exponential smoothing approach detects flaws and its sensitivity is increased by creating a nonparametric detection threshold using kernel density estimation. Partial shading, inverter disconnections, PV string faults, soiling on PV arrays, and short circuits in PV modules are just a few of the defects that can be found utilizing the suggested method. The research’s findings demonstrated that the suggested method can be used to monitor PV system operating parameters in real time but may not be suitable for spotting abnormalities at various scales because it was designed for one scale, namely the time scale. By implementing grid partition (GP) and subtractive clustering (SC) algorithms utilizing research data, the approach suggested in [7] trains the adaptive neuro-fuzzy inference system (ANFIS) model for a reliable PV defect detection and classification system. Afterward, in order to identify PV system problems, the trained models ANFIS GP and ANFIS SC were used. The resulting data were compared using statistical analysis. It was discovered that in terms of precisely identifying fault states, the ANFIS SC technique outperformed the ANFIS GP technique. The proposed method may not be appropriate for the identification of faults in various PV systems where the environmental factors are beyond the specified model range, according to the authors who also emphasized that the method solely considers electrical defects. Using thermographic pictures, a fault detection technique is provided in [8] that categorizes various PV module anomalies. A multi-scale convolutional neural network (CNN) with three branches is used in the technique, which is based on the transfer learning approach. The transferred network’s pre-trained information is used in the convolutional branches, which also have multi-scale kernels with levels of visual perception to enhance the network’s capacity for representation. By combining an oversampling strategy with an offline augmentation method, the study was able to improve network performance while overcoming the unbalanced class distribution of the raw data.

The suggested method was used in the experiment to identify a variety of fault kinds, and the study came to the conclusion that it performs better than other deep learning methods and studies now available and provides higher classification accuracy and robustness in PV panel defects. Thermographic images are used in yet another technique described in [9] to identify flaws in PV systems. Here, deep convolutional neural networks (DCNNs) and infrared thermographic images are used together to detect and diagnose faults. The method involves first creating a binary classifier to identify faults in PV modules, then creating a multiclass classifier to determine what kind of flaws are there. The study takes into account four typical PV module faults: short circuiting, partial shading effects, dust deposition on PV module surfaces, and bypass diode failure. The proposed DCNN-based classifiers have been first optimized, then embedded into a low-cost microprocessor (Rasberry Pi 4), and the models are compared with three main TF-Lite optimization strategies, including simple conversion, dynamic range quantization, and float 16 quantization. The study came to the conclusion that the proposed technique can operate in real time and can diagnose and detect anomalies with a level of accuracy that is acceptable based on the experimental findings that were obtained. Additionally, the technique is set up to send emails and SMS using a GSM module to operators informing them of the status of the PV array. The authors of study [10], which also presents a thermographic image-based method, noted that it is crucial to quickly and affordably maintain the proper functioning of PV systems without interrupting regular operations by identifying PV module overheating through thermographic non-destructive testing. The paper then suggested a technique for convolutional neural networks that was created using open-source libraries to automatically classify thermographic images. To lower image noise, a number of preprocessing techniques were tested, including grey-scaling, thresholding discrete wavelet transform, normalizing and homogenizing pixels, and Sobel Feldman and box blur filtering. Without following any set protocols, these techniques enable the classification of thermographic images of varying qualities that are taken using various pieces of equipment. The performance of neural networks was evaluated using the suggested method through a number of experiments using various parameters and overfitting mitigation techniques. In order to assess network performance and the amount of time needed to complete the thermographic inspection, images obtained by unmanned aerial vehicles and ground-based operators were compared. The foundation of the proposed method is a tool built on convolutional neural networks that enables rapid and accurate failure detection in PV panels.

According to the authors, the proposed methodology provides an alternative and reliable tool that enhances the resolution of picture classification for issues involving remote failure detection and can be applied in any field of science. Study [11] provides a summary of IoT and AI applications for PV systems. The most cutting-edge algorithms, including machine and deep learning, are also discussed in the paper, along with their implementation costs, accuracy, complexity, software appropriateness, and viability for real-time applications. For PV facilities located in remote locations with expensive and difficult accessibility for maintenance, the integration of AI and IoT approaches for defect detection and diagnosis into basic hardware, such as inexpensive chips, may be economically and technically possible. These strategies were also provided together with challenging problems, advice, and trends. In [12], a study examining the use of ANN in various areas of partially shaded PV systems is provided. It provided an overview of and covered the use of ANNs in MPPT, fault detection, fault mitigation, system modeling, and performance enhancement of solar PV systems exposed to partial shading. The study did not just examine the literature, it also showed how the approaches may be enhanced and applied in real-world settings. The study described in [13] assesses various ML and ensemble learning (EL) algorithms for fault diagnosis of PV arrays, including previously untested methods for faults with numerous faults and faults with comparable I-V curves. The study created a novel method to accurately identify and classify defects based on this evaluation. According to the authors’ findings, the results are positive. The study went further to demonstrate when ML and EL methods ought to be applied in practice and provided some recommendations, difficulties, and potential future directions in this area. By suggesting an early degradation detection that affects glass, EVA, wiring, etc., the work described in [14] aims to lower the operation costs of PV modules. In the suggested approach, automated self-evaluation of PV panels is created, and degradation models are integrated as software into a microcontroller that uses instantly measured parameters. The study also discussed the deterioration phenomena of each PV module’s component. Modeling each recognized degradation using P-V characteristics is the basis for the Observing Degradation System (ODS) program, which is then presented. A checklist is then created for successful testing. Study [15] presents an ensemble-based deep neural network (DNN) model for the autonomous detection of visual faults on various PV modules, including glass breakage, burn marks, snail trails, discoloration, and delamination. This method for detecting degradation faults is similar to the one described earlier. An RGB camera placed on an unmanned aerial vehicle is used in the procedure to capture the image dataset (UAV). Images are preprocessed by removing spatial and frequency domain characteristics from them, such as discrete wavelet transform, the texture grey level co-occurrence matrix, rapid Fourier transform, and different grey level approaches. Following that, the edited photos are input. To identify any visual defects in the PV modules, the proposed ensemble-based DNN model uses DNN. In order to assess the performance of the suggested model, the classification accuracy, receiver operating characteristic curve, and confusion matrix are utilized. The results revealed that the proposed model, coupled with a random forest classifier, achieved a high classification accuracy.

Similarly, in [16], the authors described a fuzzy diagnostic algorithm that relies on the classification of electrical characteristics, the values of which are taken from experimental measurements of the crystalline modules’ I-V curves. By using the suggested method, flaws like uniform dust, partial shading, and potential-induced degradation can be found. Also, a brand-new approach is suggested for the detection of aberrations in the measured I-V curve brought about by bypasses that are activated as a result of partial shading. This is based on quadratic and cubic polynomial regression whose concavities are very sensitive to noisy data. An approach for identifying, diagnosing, and categorizing short-circuit and open-circuit string errors that are based on deep learning is provided in [17]. There are four steps in the suggested technique. First, a PSIM-based simulation that seeks to accurately represent the functioning PV system using a heuristic optimization approach, based on the Coyote Optimization Algorithm (COA), is used to input five unknown electrical characteristics of one diode model. The second phase involves creating a database with information on current, voltage, power at MMP, module temperature, and solar irradiation for the PV system under both ideal and unsatisfactory working circumstances. In the third stage, new features from the old database are extracted using the unsupervised learning capabilities of the auto-encoder. In the final step, PV defect detection and classification are accomplished using supervised learning on the new database based on ANN construction. The obtained results show how well the suggested strategy works with the aforementioned fault kinds. Study [18] investigates the effects of various physical faults and cyberattacks in order to develop an intelligent fault/attack detection and diagnosis system. They found that by being able to quickly identify and diagnose faults/attacks, local controllers and energy management systems can accommodate or lessen the negative effects of physical faults and cyberattacks in microgrids. The study then presented an intelligent hybrid diagnosis method for data online monitoring and diagnosing to reflect the real-time state of the PV system running at the microgrid level. The proposed method is based on a fuzzy inference system, a power spectrum estimator, and an adaptive neuro-fuzzy inference system. A realistic microgrid benchmark model with a range of operating conditions and dynamic electrical loads in the presence of potential microgrid disturbances is used to show the high level of efficiency of the proposed method under various types of fault/attack scenarios. In [19], a fault detection and diagnosis (FDD) scheme design is presented that employs a Wasserstein generative adversarial network (WGAN) and convolutional neural network for automatic fault feature extraction from raw electrical data of the PV array, resulting in the creation of an effective FDD model with little data. A classifier, a generator, and a discriminator make up the three modules that make up the FDD model. In order to enhance the effectiveness of the CNN-based classifier, the discriminator and generator analyze sequential PV data in a two-dimensional manner to learn the distribution of PV data under different PV system operations. Then, they are utilized to generate additional labeled data samples. According to the paper, the suggested FDD model could be trained with only a little amount of labeled data, and the effectiveness of the model was assessed using a lab grid-connected PV setup.

A diagnosis of line–line and open-circuit faults using the suggested method was demonstrated by the results. The implementation of a fault detection strategy based on the identification of PV systems’ neuro-fuzzy models is presented in [20]. The modeling and identification of systems and the detection of operational states are the two stages of the technique. The derived neuro-fuzzy model approximates, with only a few minor differences, the properties and behavior of a genuine system. The suggested model has a very high level of accuracy and can identify errors very quickly. Three shortcomings in machine learning-based defect detection techniques were listed in the study [21], which is what it seeks to fix. The inability of shallow network structures to effectively learn nonlinear characteristics of I-V curves is one of them. The others are that feature extraction relies on expert experience and lacks automation; artificial feature extraction readily ignores some potentially useful features and feature extraction is not automated. As a result, the study suggested a methodology based on a layered automated encoder and clustering algorithm that can automatically extract features and employ a limited amount of labeled data samples to mine data sample characteristics for defect diagnosis. Three steps make up the technique’s execution. To enhance the effectiveness of the clustering approach, the effective features are first automatically retrieved from the I-V curves by the stacking encoder, and then the dimension of the features is decreased and visualized by the t-distributed stochastic neighbor embedding. Eventually, the clustering method produces clustering centers and clusters, and the membership function is utilized to diagnose faults. To address the issue of fault detection of PV modules using thermographic images, a convolutional neural network (CNN) model and a fine-tuned model based on the Visual Geometry Group (VGG-16) have been investigated in [22]. Binary classification and multiclass classification were employed to determine the type of fault in order to detect it. The database utilized in the study was made up of an unbalanced class distribution of thermographic images taken by infrared cameras of PV modules both in good and bad condition (such as bypass diode failure, partially covered PV module, shading effect, and short-circuit and dust deposit on the PV surface). The fine-tuned model performs very well in experimental tests, but the small deep convolutional neural network (small-DCNN) model performs somewhat less well.

This study presents a novel method of fault detection in PV arrays and inverter faults by utilizing Elman neural network (ENN), boosted tree algorithms (BTA), multi-layer perceptron (MLP), and Gaussian processes regression (GPR) models to estimate the DC Power (DCP) and AC power (ACP) of a PV system setup. Different models have different strengths and weaknesses, and what works well for one problem may not work as well for another. Therefore, it is important to experiment with different models and choose the one that is best suited for the particular task at hand [23]. As such, we develop several model combinations based on the influencing factors and existing claims of dominancy in the literature [24,25,26,27]. Furthermore, it is important to evaluate the performance of the chosen model carefully, using appropriate metrics and validation techniques, to ensure that it is indeed performing well on the given problem. As such, the study employs several performance criteria to assess the accuracy of the models. Prior to model development, data pre-processing including normalization, model validation, and stationarity analysis is carried out. Also, both standalone and hybrid models will be compared using Nash–Sutcliffe efficiency (NSE), Pearson correlation coefficient (PCC), mean absolute percentage error (MAPE), mean absolute error (MAE), root mean square error (RMSE), and Percent bias (PBAIS) to understand the strength of each model combination.

Ultimately, the fundamental contribution of this research is the development of a novel hybrid fault detection approach that combines various AI techniques, careful model selection, thorough performance evaluation, and application to actual solar energy systems. Through efficient fault detection, the study seeks to improve the functionality, effectiveness, and dependability of solar energy systems, ultimately resulting in lower maintenance costs and downtime while helping to create a more sustainable environment.

2. Components Methodology

2.1. DC Power

Solar panels use PV technology to turn sunlight into DCP. It is a kind of electricity that only goes in one direction. Only batteries and DC loads are powered by DCP. To power AC loads, DCP must first be converted to ACP using an inverter. The majority of electrical appliances and equipment in houses and buildings operate on ACP.

2.2. AC Power

In order to power appliances, lighting, and other electrical loads in homes and businesses, AC electricity is typically employed. ACP is a type of electrical current that has a sinusoidal waveform and goes back and forth. Inverters are used to convert DC electricity produced by solar panels into ACP, which may subsequently be utilized to power AC loads.

2.3. Daily Yield

The amount of electricity produced by a solar panel system in a single day is referred to as daily yield. It is commonly expressed in kilowatt-hours (kWh) and is influenced by things like the size of the solar panel system, how effective the panels are, and how much sunlight is available during the day. A solar panel system’s daily yield can be used to predict how much energy it will produce over time and to assess its financial return on investment.

2.4. Ambient Temperature

The term “ambient temperature” describes the temperature of the environment or the air around you. When it comes to solar energy, the ambient temperature can have an impact on how well solar panels work because hotter temperatures can reduce panel output and efficiency. When building and installing solar panel systems, it is crucial to take the ambient temperature into account as solar panels perform better at lower temperatures.

2.5. Module Temperature

The temperature of the solar panels itself is referred to as the module temperature. Solar panels may get fairly hot as they collect sunlight, which may have an impact on how well they work. The output and efficiency of panels may decline as module temperatures rise. Solar panels are frequently mounted with a space between the panel and the mounting surface to allow for air circulation in order to minimize overheating.

2.6. Solar Radiation

The energy that the sun emits and that reaches the Earth is referred to as solar radiation. It consists of infrared (IR), ultraviolet (UV), and visible light (light). Solar panels use sun radiation as their energy source in order to produce electricity. Solar radiation received by solar modules varies based on its location, the time of day, the season, and the weather. The energy output of a solar panel system is calculated using the intensity of solar radiation, which is commonly expressed in terms of watts per square meter (W/m²).

3. Proposed Intelligent Methods

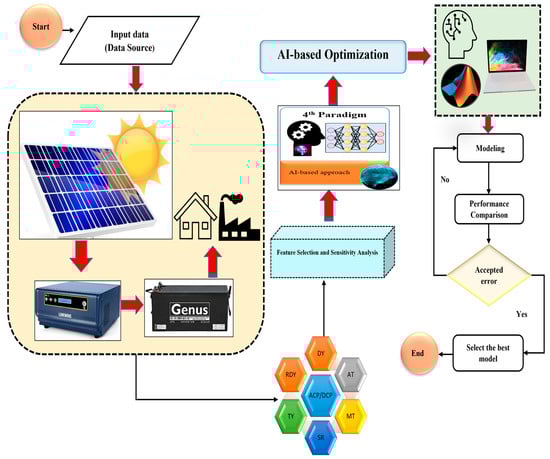

According to the “no free lunch” theorem, there is no single model that is universally better than all other models for every type of problem. In other words, there is no one-size-fits-all model that can provide optimal results across all possible scenarios [28]. In this work, we proposed several AI learning based on three different scenarios (cropland, pasture, and cropland and pasture) to estimate the DCP and ACP based on solar panels and inverters, respectively. For this purpose, ENN, BTA, MLP, and GPR models are utilized. The proposed modeling schematics are presented in Figure 1. It is essential to consider the specific characteristics of the problem at hand, such as the nature of the data, the size of the dataset, and the goals of the analysis. Different models have different strengths and weaknesses, and what works well for one problem may not work as well for another. Therefore, it is important to experiment with different models and choose the one that is best suited for the particular task at hand [23]. As such, we developed several model combinations based on the influencing factors (see Figure 2) and existing claims of dominancy in the literature [24,25,26,27] as follows:

$$Solar Panel (DCP)=\left\{\begin{array}{c}{M}_1=\Phi \left(DY+AT+MT\right)\\ M_2=\Phi \left(DY+AT+MT+SR+TY\right)\end{array}\right.$$

(1)

$$Inverter (ACP)=\left\{\begin{array}{c}{M}_1=\Phi \left(DCP\right)\\ \begin{array}{c}{M}_2=\Phi \left(DY+AT+MT\right)\\ M_3=\Phi \left(DY+AT+MT+SR+TY\right)\\ M_4=\Phi \left(DY+AT+MT+SR+TY+DCP\right)\end{array}\end{array}\right.$$

(2)

where DCP is DC power, ACP is AC power, DY is daily yield, AT is ambient temperature, MT is module temperature, and SR is solar radiation.

Furthermore, it is important to evaluate the performance of the chosen model carefully, using appropriate metrics and validation techniques, to ensure that it is indeed performing well on the given problem. As such, this study employed several performance criteria to assess the accuracy of the models. Prior to model development, several pre-processing systems, including normalization (Equation (3), model validation, and stationarity analysis, were carried out. In this study, both the standalone and hybrid models were compared using NSE (Nash–Sutcliffe efficiency), PCC (Pearson correlation coefficient), MAPE (mean absolute percentage error), MAE (mean absolute error), RMSE (root mean square error), and PBAIS to understand the strength of each model combination.

$$y=0.05+\left(0.95\left(\frac{x-\overline{x}}{x_{max}+x_{min}}\right)\right)$$

(3)

where y denotes normalized data, x is the actual data, $\overline{x}$ is the mean of the measured data, x_max denotes the maximum value of the measured data, and x_min denotes the minimum value.

$$NSE=1-\frac{\sum _{\mathit{i}=1}^{\mathit{N}}{({\mathit{Y}}_{\left(\mathit{p}\right)}-{\mathit{Y}}_{\left(\mathit{o}\right)})}^2}{\sum _{\mathit{i}=1}^{\mathit{N}}{({\mathit{Y}}_{\left(\mathit{p}\right)}-{\mathit{Y}}_{\left(\mathit{o}\right)})}^2}$$

(4)

$$PCC=\frac{\sum _{\mathit{i}=1}^{\mathit{N}}\left[{\mathit{Y}}_{\left(\mathit{o}\right),\mathit{i}}-\overline{{\mathit{Y}}_{\left(\mathit{p}\right)}}\right]\left[{\widehat{\mathit{Y}}}_{\left(\mathit{o}\right),\mathit{i}}-{\tilde{\mathit{Y}}}_{\left(\mathit{p}\right)}\right]}{\sqrt{\sum _{\mathit{i}=1}^{\mathit{N}}{\left[{\mathit{Q}\mathit{Y}}_{\left(\mathit{o}\right),\mathit{i}}-{\mathit{Y}}_{\left(\mathit{p}\right)}\right]}^2{\left[{\widehat{\mathit{Y}}}_{\left(\mathit{o}\right),\mathit{i}}-{\tilde{\mathit{Y}}}_{\left(\mathit{p}\right)}\right]}^2}}$$

(5)

$$RMSE=\sqrt{\frac{1}{\mathit{N}}{\sum }_{\mathit{i}=1}^{\mathit{N}}{({\mathit{Y}}_{\left(\mathit{p}\right)}-{\mathit{Y}}_{\left(\mathit{o}\right)})}^2}$$

(6)

$$MAE=\frac{\sum _{\mathit{i}=1}^{\mathit{N}}\left|{\mathit{Y}}_{\left(\mathit{p}\right)}-{\mathit{Y}}_{\left(\mathit{o}\right)}\right|}{\mathit{N}}$$

(7)

$$MAPE=\frac{100}{\mathit{n}}{\sum }_{\mathit{i}=1}^{\mathit{N}}\left|\frac{{\mathit{Y}}_{\left(\mathit{o}\right)}-{\mathit{Y}}_{\left(\mathit{p}\right)}}{{\mathit{Y}}_{\left(\mathit{o}\right)}}\right|$$

(8)

$$PBIAS=\frac{\sum _{\mathit{i}=1}^{\mathit{N}}({\mathit{Y}}_{\left(\mathit{o}\right)}-{\mathit{Y}}_{\left(\mathit{p}\right)})}{\sum _{\mathit{i}=1}^{\mathit{N}}{\mathit{Y}}_{\left(\mathit{p}\right)}}$$

(9)

where $Y_{\left(p\right)}$, $Y_{\left(o\right)},\mathrm{a}\mathrm{n}\mathrm{d} \overline{Y_o}$ are considered as the TP loss rate predicted and $Y_{\left(o\right)}$ observed and $\overline{Y_o}$ are the average values, respectively.

Comparing different AI methods and performance criteria is crucial to identify the most suitable approach for a given task. The computational approach, such as the AI-based model, is a diverse field with numerous algorithms, each having strengths and weaknesses. By comparing these methods, we can determine which one aligns best with the specific problem’s requirements and dataset characteristics. This study used several indicators, such as MAPE and NSE, to compare the results of the proposed methods with those in the existing literature. Comparing AI-based methods and performance criteria enhances decision-making, promotes innovation, and ensures the development of efficient, accurate, and contextually appropriate soft computing solutions. They aid in understanding trade-offs between aspects like model complexity and predictive power. A method that excels in one criterion might underperform in another, necessitating a comprehensive assessment.

3.1. Elman Neural Network (ENN)

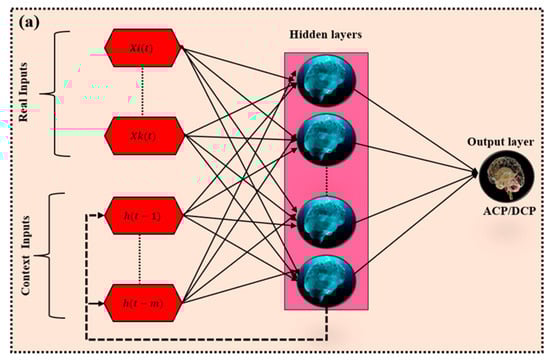

As recurrent computational learning, ENN is a type of machine learning technique that uses feedback connections to retain information about previous inputs. It comprises different three layers (as presented in Figure 2a) similar to traditional neural networks with the hidden layer having additional connections to itself from the previous time step [29]. This allows the network to capture sequential information and make predictions based on past inputs. The network is trained using backpropagation through time, where the error is propagated through the network and the weights are updated accordingly [30]. The ENN has been used for numerous purposes, both in science and engineering problems [31,32].

3.2. Boosted Tree Algorithms (BTA)

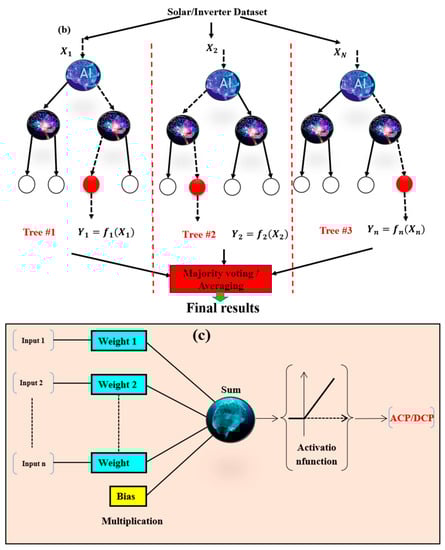

BTA are machine learning techniques that combine multiple decision trees to create a powerful predictive model (Figure 2b). The term “boosting” refers to the process of iteratively improving the performance of the model by focusing on the misclassified instances in each iteration. Boosted trees can be applied to both supervised and unsupervised learning problems [33]. The most popular boosted tree algorithms are Gradient Boosted Trees (GBTs) and Extreme Gradient Boosting (XGBoost). These algorithms work by sequentially adding trees to the model, with each subsequent tree trying to correct the errors made by the previous ones. The projection is obtained by aggregating the predictions of all the trees [34]. GBTs and XGBoost have several hyperparameters that can be tuned to optimize performance, including the learning rate, number of trees, tree depth, and regularization. These algorithms have been successfully applied in various domains, including finance, e-commerce, and healthcare. They are known for their high accuracy and interpretability as they provide information on the importance of each feature in the prediction [33,35].

3.3. Multi-Layer Perceptron (MLP)

As another version of ANN, the MLP model consists of multiple layers of interconnected perceptron units. MLP plays the role of FFNN in terms of information processing through the three layers (input, hidden, and outputs) [36] (Figure 2c). Each layer contains one or more nodes (perceptrons) that receive input from the previous layer and produce an output that is transmitted to the next layer [37]. The perceptrons in the hidden layers use activation functions to transform the inputs, allowing the network to learn complex mapping in the data. The MLP is trained using a supervised learning approach called backpropagation, hence works based on the principle of reducing the error between the estimated and observed data [38].

3.4. Gaussian Processes Regression (GPR)

The GPR model has been used to solve different problems related to regression analysis in both science and engineering [39]. It uses Bayesian inference to make predictions and estimates uncertainties in the predictions. In contrast to other regression models, GPs do not make assumptions about the underlying function that generates the data, making them more flexible and suitable for modeling complex, nonlinear relationships. The core idea behind GPR is to assume that the function values at any set of input points are jointly Gaussian distributed [40]. A GP is defined by a mean function and a covariance function, also called the kernel function. The mean function specifies the expected value of the function at any input point, while the kernel function captures the similarity between different input points [41,42].

4. Application of Results and Discussion

In this section, the modeling results for two different scenarios were discussed based on solar panel (DCP) and inverter (ACP) modeling. It is worth noting that the use of AI models to simulate and optimize the performance of solar photovoltaic power plants is a novel approach that allows for better prediction and control of energy production, leading to increased efficiency and cost-effectiveness.

4.1. Preliminary Results

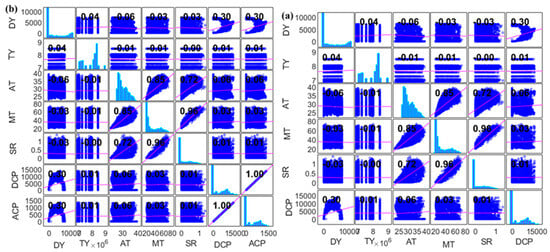

According to [43], to understand the model performance or, on the other hand, the model to perform at its best, it is essential to include all factors associated with the removal process of HMs in the input data optimization. This step will enhance the output and ensure that the model’s results align as closely as possible with the experimental data. Descriptive statistics and raw data analysis are crucial in modeling because they provide a comprehensive understanding of the data’s characteristics and patterns.

Table 1. Descriptive statistics for input-output variables.

Parameters	Mean	SD	Kurtosis	Skewness	Minimum	Maximum
DY	2401.47	2667.09	−1.20	0.64	0.00	7190.00
TY	7,620,392.92	451,795.89	−1.05	−0.45	6,870,716.67	8,460,553.49
AT	28.42	3.75	−0.54	0.67	22.67	39.17
MT	34.65	13.71	−0.65	0.85	20.16	72.83
SR	0.26	0.34	−0.21	1.05	0.00	1.36
DCP	3775.04	4045.64	−1.20	0.52	0.00	13,687.94
ACP	369.50	395.76	−1.21	0.52	0.00	1334.94

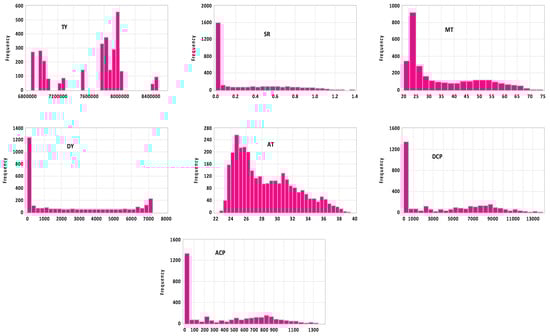

shows the input-output descriptive analysis. This information can guide the selection of appropriate modeling techniques, the validation of model assumptions, and the interpretation of model results, leading to more accurate and reliable predictions. The time series data used in this study can be visualized in Figure 3.

The table presents descriptive statistics for six parameters: DY, TY, AT, MT, SR, DCP, and ACP. The Kurtosis column represents the peak of the distribution, with a negative value indicating a flatter distribution than a normal distribution and a positive value indicating a more peaked distribution. The Skewness column shows the degree of asymmetry in the distribution, with a negative value indicating a left-skewed distribution and a positive value indicating a right-skewed distribution. The parameter TY has a Mean of 7,620,392.92 and an SD of 451,795.89, indicating that the data has a relatively high degree of variability. The Kurtosis value of −1.05 suggests that the distribution is relatively flat compared to a normal distribution. The Skewness value of −0.45 suggests that the data is slightly left-skewed. Finally, the Minimum and Maximum values of 6,870,716.67 and 8,460,553.49, respectively, show the range of observed values for the parameter. Similarly, the parameter with the lowest Kurtosis value is ACP with −1.21, while the parameter with the highest Kurtosis value is SR with −0.21. The parameter with the highest range of values is DCP with a range of 13,687.94, while the parameter with the lowest range of values is SR with a range of 1.36. According to [44,45,46,47,48], the lowest skewness towards negative values indicated the feasibility of AI-based learning in modeling the data accurately. The corroplot (as displayed in Figure 4) was used for the input combination in this study. It can be seen that the system is a highly stochastic approach based on the magnitude in Figure 4.

4.2. Results of Intelligent Leaning Scenario I

In this section, the modeling of solar panels as scenario I was discussed based on the DCP (kW) parameter as the output of the simulation.

Table 2. The predicted results for solar panel modeling.

			Calibration Phase
	NSE	PCC	RMSE	MAPE	MAE	PBIAS
BTA-M1	0.914	0.967	0.072	35.267	0.043	0.044
BTA-M2	0.921	0.970	0.070	33.745	0.041	0.044
ENN-M1	0.973	0.990	0.045	22.100	0.019	−58.588
ENN-M2	0.971	0.989	0.047	22.528	0.021	−69.997
GPR-M1	1.000	1.000	0.000	29.597	0.000	0.000
GPR-M2	1.000	1.000	0.002	29.711	0.001	0.000
			Verification Phase
	NSE	PCC	RMSE	MAPE	MAE	PBIAS
BTA-M1	0.969	0.989	0.049	6.876	0.031	17,460.222
BTA-M2	0.969	0.989	0.048	6.866	0.031	17,140.021
ENN-M1	0.968	0.985	0.051	22.150	0.039	−58.638
ENN-M2	0.966	0.984	0.053	22.578	0.041	−70.047
GPR-M1	1.000	1.000	0.000	0.083	0.000	0.000
GPR-M2	1.000	1.000	0.000	0.091	0.000	0.000

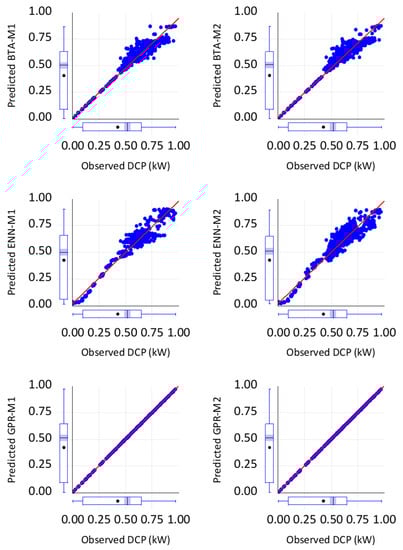

represents the performance metrics of different models during the calibration phase. The models are evaluated using various metrics such as NSE, PCC, RMSE, MAPE, MAE, and PBIAS for both calibration and verification. From the results, it can be observed that BTA-M1 and BTA-M2 show relatively good performance with NSE values of 0.914 and 0.921, respectively. They also have high PCC values of 0.967 and 0.97, indicating a strong linear relationship between the observed and predicted values. However, they have relatively high MAPE values of 35.267 and 33.745, indicating a higher average percentage difference between the predicted and observed values. Similarly, the new recurrent approach, i.e., ENN-M1 and ENN-M2, exhibit even better performance with NSE values of 0.973 and 0.971, respectively, indicating a high degree of agreement between the observed and predicted values. They also have high PCC values of 0.99 and 0.989, indicating a strong linear relationship between the observed and predicted values. Additionally, ENN-M1 and ENN-M2 have low RMSE values of 0.045 and 0.047, respectively, indicating a lower overall error compared to the other models.

However, they have a negative PBIAS value, indicating a tendency to underpredict the observed values. GPR-M1 and GPR-M2 show perfect correlation (PCC value of 1) and no error (RMSE value of 0), making them the best-performing models. However, GPR-M2 has a slightly higher MAE value of 0.001 compared to GPR-M1, which has an MAE value of 0. Overall, the table provides a good summary of the performance of different models during the calibration phase. It helps in evaluating the accuracy of predictive models and selecting the best model based on the evaluation metrics. Figure 5 shows the embedded scatter-based goodness of fit in the verification phase. The results of this study were compared with the existing state-of-the-art approach in order to balance the literature as such. The authors of [49] reported an accuracy of 95.27% and 98.8% before and after considering a fuzzy logic system for fault detection algorithm based on the analysis of the theoretical curves, which describe the behavior of an existing grid connected to PV and fuzzy logic system. The accuracy of our results, using the GPR model, is 100% which is peak and superior to their results. Another research was conducted by [50] to investigate their effectiveness in the diagnosis of various PV array issues. With the implementation of LGBM, CatBoost, and XGBoost, respectively, average detection and classification accuracy of 99.996% and 99.745% have been observed, showing that these algorithms have produced promising results. These results were almost very close to our accuracy and justify our 100% results feasibility.

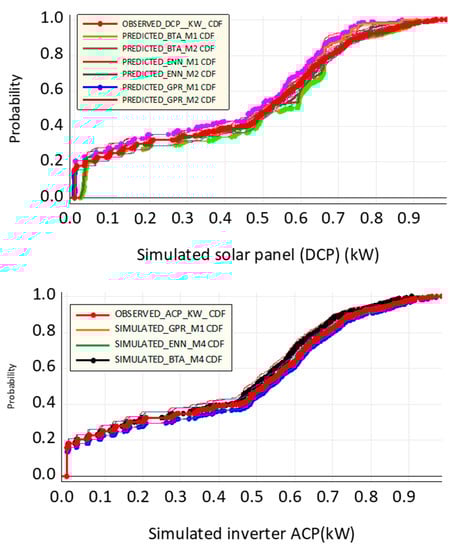

The verification result of DCP, as displayed in Table 2, also indicated that BTA-M1 and BTA-M2 exhibit excellent performance during the verification phase, with NSE values of 0.969 for both models, indicating a high degree of agreement between the observed and predicted values. They also have high PCC values of 0.989 for both models, indicating a strong linear relationship between the observed and predicted values. Furthermore, BTA-M1 and BTA-M2 have low RMSE values of 0.049 and 0.048, respectively, indicating a lower overall error compared to other models. Moreover, they have the lowest MAPE and MAE values, indicating a smaller percentage and average difference between the predicted and observed values. The ENN-M1 and ENN-M2 exhibit relatively good performance, with NSE values of 0.968 and 0.966, respectively, indicating a good agreement between the observed and predicted values. They also have high PCC values of 0.985 and 0.984, indicating a strong linear relationship between the observed and predicted values. However, they have relatively high RMSE values of 0.051 and 0.053, respectively, indicating a higher overall error compared to BTA-M1 and BTA-M2. In addition, they have a negative PBIAS value, indicating a tendency to underpredict the observed values. This conclusion was in line with the work conducted in [51], which suggests a method based on Decision Trees with a Light Gradient Boosting algorithm (DT-LGB) to analyze power data and predict faults for the maintenance of solar power plants. The results of this work showed that the suggested model obtained MSE = 8.74, RMSE = 2, and R2 values of 0.9939, which is 12.8%, 6.8%, and 11.08% improved than the existing method, respectively.

4.3. Results of Intelligent Leaning Scenario II

This section analyses the second scenario II based on inverter modeling ACP (kW) using several soft computing approaches. Going with the results in

Table 3. The predicted results for inverter modeling.

			Calibration Phase
	NSE	PCC	RMSE	MAPE	MAE	PBIAS
BTA-M1	0.997	1.000	0.014	27.247	0.008	0.040
BTA-M2	0.915	0.966	0.073	35.294	0.043	0.040
BTA-M3	0.921	0.969	0.070	34.136	0.041	0.040
BTA-M4	0.997	1.000	0.014	27.247	0.008	0.040
ENN-M1	0.970	0.988	0.046	43.989	0.043	−0.066
ENN-M2	0.860	0.939	0.094	43.518	0.063	−0.021
ENN-M3	0.880	0.945	0.090	36.625	0.059	−0.012
ENN-M4	1.000	1.000	0.001	28.886	0.001	−0.004
GPR-M1	1.000	1.000	0.001	29.721	0.001	−0.004
GPR-M2	1.000	1.000	0.001	29.731	0.001	−0.004
GPR-M3	1.000	1.000	0.002	29.820	0.001	−0.004
GPR-M4	1.000	1.000	0.001	29.733	0.001	−0.004
			Verification Phase
	NSE	PCC	RMSE	MAPE	MAE	PBIAS
BTA-M1	0.947	0.973	0.061	10.091	0.095	101.107
BTA-M2	0.995	0.997	0.088	6.069	0.018	801.107
BTA-M3	0.995	0.997	0.088	5.085	0.017	60.107
BTA-M4	0.997	0.998	0.020	4.291	0.013	30.107
ENN-M1	0.999	1.000	0.008	6.424	0.006	−57.560
ENN-M2	1.000	1.000	0.003	1.397	0.003	−49.126
ENN-M3	1.000	1.000	0.002	1.205	0.002	−42.401
ENN-M4	1.000	1.000	0.002	0.506	0.002	−42.302
GPR-M1	1.000	1.000	0.002	0.363	0.002	−2.542
GPR-M2	1.000	1.000	0.003	1.006	0.002	−173.542
GPR-M3	0.988	0.994	68.185	1.006	2.281	87.330
GPR-M4	1.000	1.000	0.002	0.393	0.002	−23.542

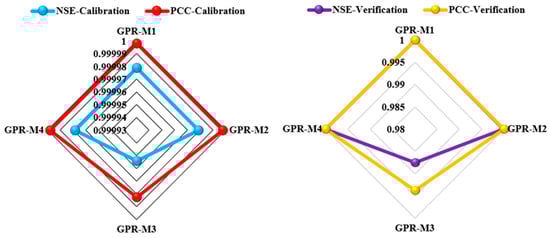

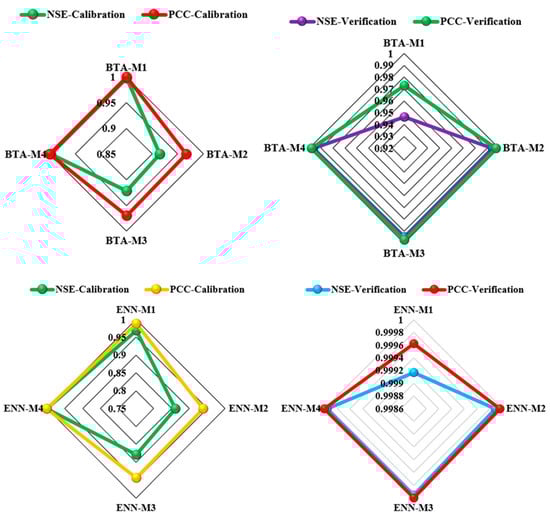

, the BTA-M1, BTA-M2, BTA-M3, BTA-M4, GPR-M1, GPR-M2, GPR-M3, and GPR-M4 models have high NSE values (above 0.9), indicating that they perform well in capturing the variation in the data. On the other hand, the ENN-M1, ENN-M2, and ENN-M3 models have lower NSE values, indicating that they do not capture the data variation as well as the other models. The PCC values for most of the models are high (above 0.9), indicating that they have a strong linear relationship with the observed data. However, the ENN-M2 model has a relatively low PCC value of 0.939, indicating that its relationship with the observed data is not as strong as the other models (see Figure 6). Similarly, the RMSE values for most of the models are relatively low, indicating that the models have low prediction errors.

However, the ENN-M2 model has a higher RMSE value of 0.094, indicating that it has higher prediction errors than the other models. The MAPE values for the BTA-M1, BTA-M2, and BTA-M3 models are high (above 30%), indicating that they have relatively high prediction errors. The ENN-M1 and ENN-M2 models also have high MAPE values (above 40%). The MAE values for most of the models are relatively low, indicating that they have low absolute prediction errors. However, the ENN-M1 and ENN-M2 models have higher MAE values than the other models. The PBIAS values for most of the models are close to zero, indicating that they have no significant bias in their predictions. However, the ENN-M1 and ENN-M2 models have negative PBIAS values, indicating that they tend to underpredict the observed data. Generally, the BTA-M1, BTA-M2, BTA-M3, BTA-M4, GPR-M1, GPR-M2, GPR-M3, and GPR-M4 models perform well in the calibration phase, while the ENN-M1, ENN-M2, and ENN-M3 models have relatively lower performance measures. These results are in line with the ones reported by [52] to predict PV panel behaviors under realistic weather conditions. The R2, MSE, and MAPE values for the optimal ANN model of the proposed method were 0.971, 0.002, and 0.107, respectively. A comparative study among ANN and analytical models was also carried out. Among the analytical models, the five-parameter model, with MAPE = 0.112, MSE = 0.0026, and R2 = 0.919, gave better prediction than the four-parameter model (with MAPE = 0.152, MSE = 0.0052, and R2 = 0.905).

Similarly, the table provides a quick way to compare and evaluate the performance of different models in the verification phase, but it is important to consider the context and purpose of the models before drawing conclusions based solely on the metrics presented. The numerical comparison of the models based on these metrics indicated that the models with the highest NSE are ENN-M2, ENN-M3, ENN-M4, GPR-M1, GPR-M2, and GPR-M4, all with a perfect score of 1. The model with the lowest NSE is GPR-M3 with a score of 0.988. While the models with the highest PCC are ENN-M2, ENN-M3, ENN-M4, GPR-M1, GPR-M2, and GPR-M4, all with a perfect score of 1. The model with the lowest PCC is BTA-M1 with a score of 0.973. The model with the lowest RMSE is BTA-M4 with a score of 0.02. The model with the highest RMSE is GPR-M3 with a score of 68.185. According to [53,54,55], MAPE values are good when they are below or equal to 10%. The model with the lowest MAPE is ENN-M4 with a score of 0.506%. The model with the highest MAPE is BTA-M1 with a score of 10.091%. Similarly, the model with the lowest MAE is BTA-M4 with a score of 0.013. The model with the highest MAE is BTA-M1 with a score of 0.095. To compare the accuracy again with recent literature, Ref. [56] reported the use of ML to process big data by monitoring the behavior of PV. The monitoring system was reported to have the capability of detecting PV system failure with an RMSE of 0.66. The accuracy of the proposed model with respect to real-time data for clear days has an RMSE error of 73.71 and the R-squared is calculated at 0.95. This accuracy is also in line with the current study outcomes.

The numerical comparison was also discussed using PBAIS both in the training and testing phase. The models with the lowest PBIAS are GPR-M1 and GPR-M4 with a score of −2.542 and −23.542, respectively. The model with the highest PBIAS is BTA-M2 with a score of 801.107. Based on these metrics, ENN-M4 appears to be the best-performing model with perfect scores in NSE, PCC, and relatively low scores in RMSE, MAPE, MAE, and PBIAS. BTA-M1, on the other hand, has relatively high scores in RMSE, MAPE, MAE, and PBIAS, indicating lower performance than other models. It is important to note that these metrics alone may not be sufficient to determine the best model for a specific task and other factors, such as computational efficiency and interpretability, should also be considered [57,58,59]. Similarly, Ref. [7] presents an intelligent photovoltaic (PV) fault detection system using adaptive neuro-fuzzy inference system (ANFIS) methodology. To accomplish this objective, it is necessary to train the ANFIS model for an effective PV fault detection and classification system by deploying grid partition (GP) and subtractive clustering (SC) strategies using some research data. The values obtained from statistical analysis, such as coefficient correlation R, root mean squared error (RMSE), and coefficient of determination R2, were 0.9989, 0.0383, and 0.9978. These obtained results show that the ANFIS SC framework, with a cluster radius of 0.6, can remarkably diagnose the PV system faults with high accuracy. The overall accuracy of both scenarios is presented in Figure 7 using the probability distribution function graph.

5. Conclusions

In conclusion, this paper proposes a novel approach to fault detection and diagnosis in PV arrays and inverters using a combination of AI techniques, including the Elman neural network, boosted tree algorithms, multi-layer Perceptron, and Gaussian processes regression. The proposed approach integrates the strengths of each algorithm for enhanced accuracy and reliability in fault diagnosis, with ENN utilized for feature extraction, and BTA, MLP, and GPR integrated for fault detection and diagnosis. Two intelligent learning scenarios are carried out, one for the PV array fault detection with DC power as output and the other for inverter fault detection with AC power as output. The proposed technique demonstrates superior accuracy and reliability compared to existing fault detection techniques. It is capable of detecting various types of faults in PV arrays and inverters, providing a reliable solution for enhancing the performance and reliability of solar energy systems.

The results of the evaluation on a real-world solar energy dataset demonstrate that the proposed approach outperforms existing fault detection techniques, achieving higher accuracy and better performance. Moreover, the proposed technique can be extended to other renewable energy systems, providing a basis for developing comprehensive fault detection and diagnosis frameworks. This research represents a significant contribution to the field of solar energy systems and fault detection and diagnosis. The proposed technique offers a promising solution for increasing the reliability and efficiency of renewable energy systems, which are becoming increasingly important as the demand for clean energy continues to grow. The proposed approach can help to reduce the cost of maintenance and increase the lifespan of solar energy systems, leading to more efficient and sustainable uses of renewable energy resources. The research opens the door for further advancements in the field of fault detection and diagnosis in solar energy systems, with the potential for significant impact in the development of more efficient and reliable renewable energy systems.
