Numerical Investigation into Acoustics Characteristics towards Pressure Reducing Valve with High Ratio of Reduced Pressure

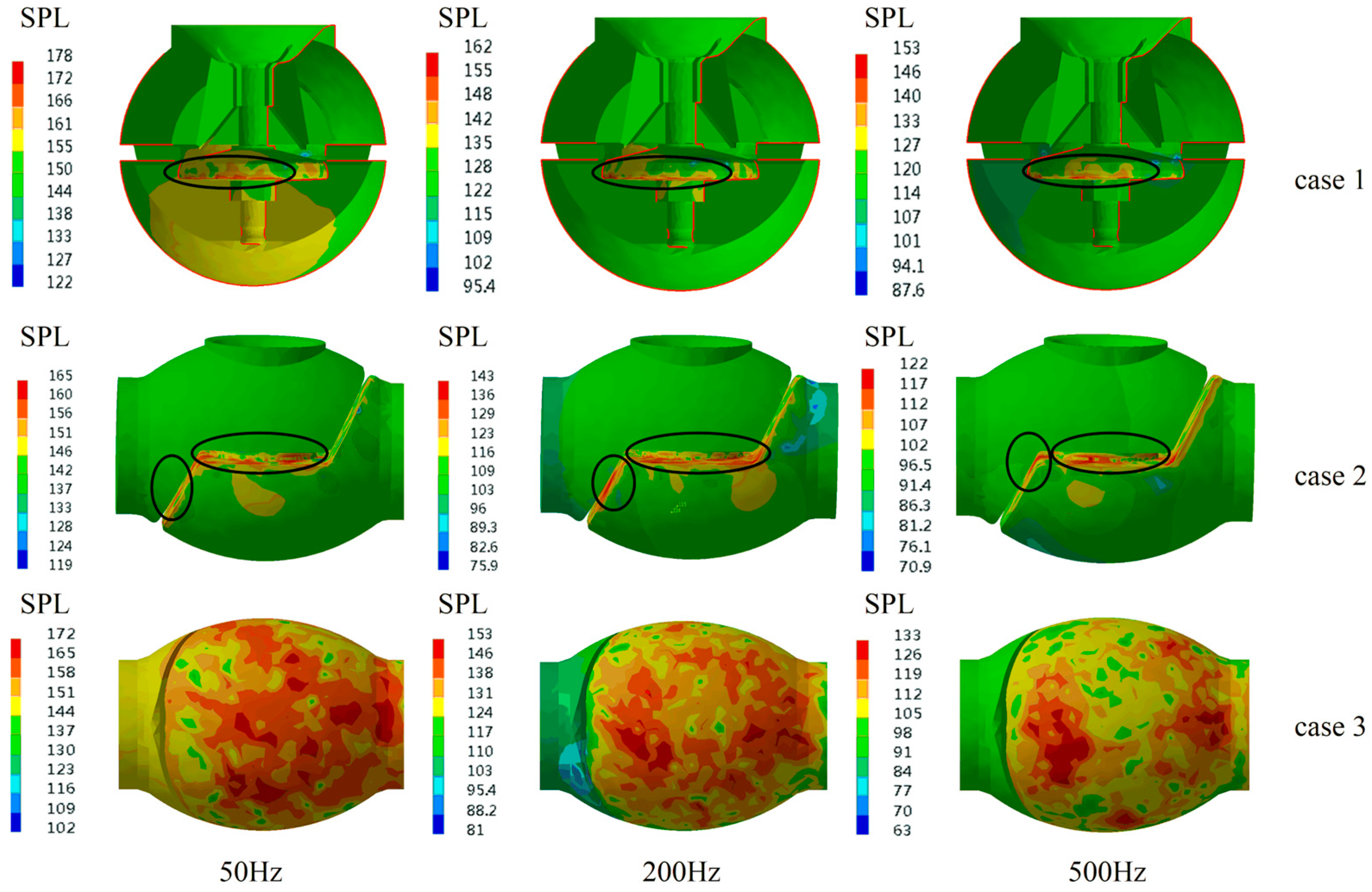

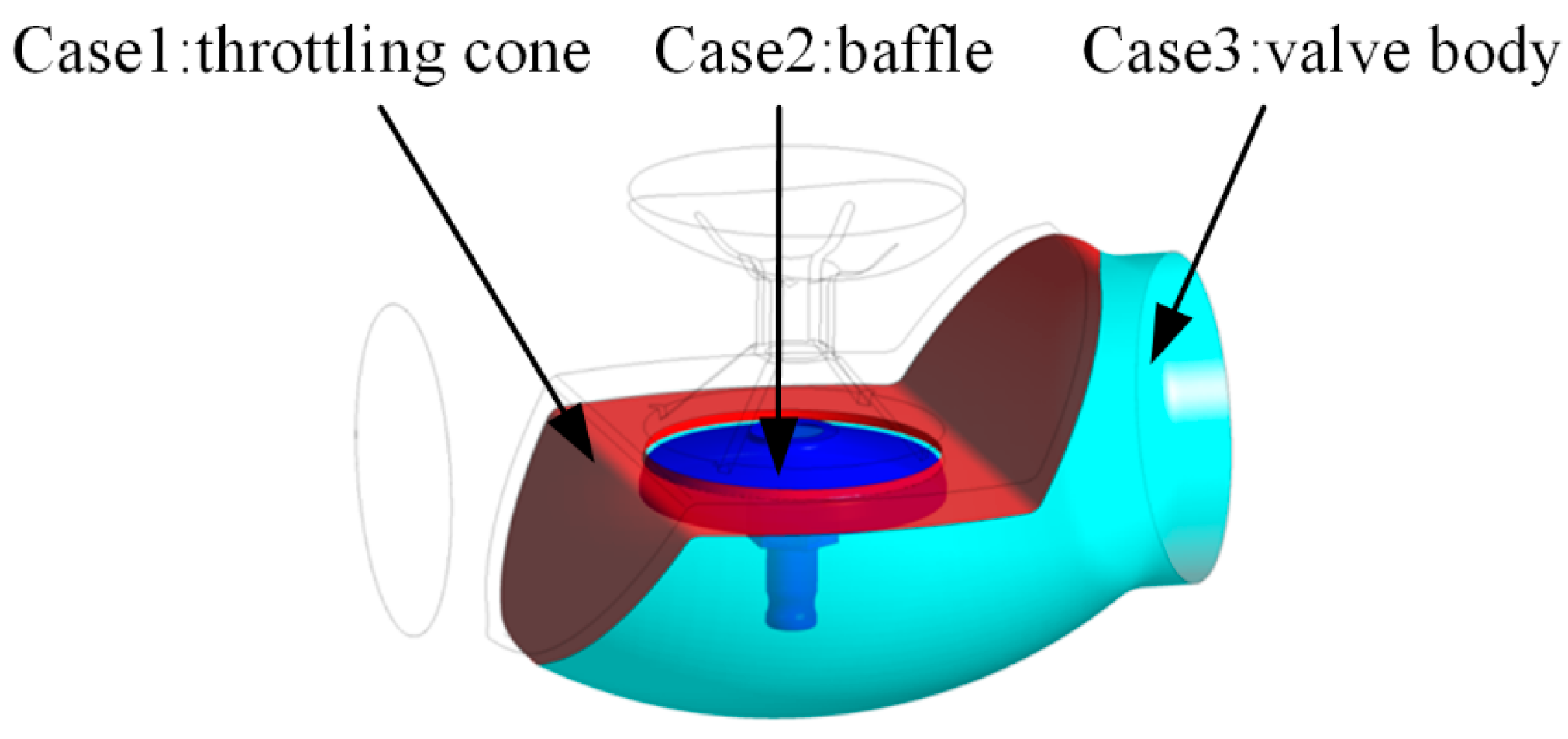

The primary objective of this paper is to identify the critical components of the acoustic field for a piston-type pressure reducing valve (PRV) with a high pressure reduction ratio, as well as to predict unfavorable noise both experimentally and numerically. The numerical calculations were conducted using a hybrid approach that combines computational fluid dynamics (CFD) and computational aeroacoustics (CAA). Flow-induced pressure fluctuation from unsteady turbulent flow extracted by the throttling cone, the valve body and the baffle in the low-pressure chamber were considered as individual dipole acoustic sources during calculation of the internal acoustic field. The results indicated that the selected three dipole acoustic sources always played a vital role in the response of the acoustic field, and none of them could be ignored. In comparison, the throttling cone had the most salient contribution to acoustic field distribution, the valve body took second place, and the baffle had the least salient contribution. The radiated noise of interest was predicted using the indirect boundary element method (IBEM), incorporating all three components as dipole acoustic sources simultaneously; the numerical noise values showed strong validation against the experimental data. Furthermore, the distribution of sound pressure levels, as well as directional and planar field points, is also presented. This paper provides new insights into the role of each component in flow-induced noise, and offers technical support for noise reduction design and optimization of pressure reducing valves.
