Systematic Exploration of the Interactions between Pyrite and Coal from the View of Density Functional Theory

Abstract

Coal is often adhered to by pyrite during slime flotation, causing an increase in the sulfur content of clean coal. In order to study the mechanism of pyrite adhesion to coal surfaces, different coal structural units were built and optimized, and the most stable adsorption model of them on pyrite surfaces was determined. The mechanism of pyrite particles adhering to the surface of coal slurries was explored with the method of DFT. The results showed that the interaction mechanism between pyrite surface and Ph-OH and Ph-O-CH₃ was the result of a weak interaction between the H atom of Ph-OH and Ph-O-CH₃ and the S atom of the pyrite surface. The interaction mechanism between the pyrite surface and Ph-COOH and Ph-CO-CH₃ was both as a result of H-S interactions and weak Fe-O interactions. On the whole, there were weak interactions between pyrite particles and the coal slurry, and the pyrite particles can spontaneously adsorb on the surface of the coal slurry.

1. Introduction

Sulfur causes great harm to the ecological environment; human health; and the quality of coke, steel, and other industrial products during the utilization of coal. Therefore, it is of great practical significance to efficiently remove sulfur from coal [1]. With the widespread application of mechanized coal mining and the continuous deterioration of coal’s geological conditions, a large amount of high-sulfur coal slime, most of which is pyrite sulfur, is produced. The pyrite with a fine particle size that is embedded in high-sulfur coal slime is generally removed by economic and effective flotation methods [2].

Many coal flotation practices of high-sulfur slime have found that there is a large amount of undissolved pyrite in clean coal subjected to conventional flotation [3]. Due to inadequate dissociation, the pyrite floats up with symbiotic coal, turning into clean coal. The combined desulfurization process of grinding and flotation lead to the discovery that the surface of the fresh pyrite itself is hydrophilic, but a large amount of obviously dissociated pyrites enter the foam layer. A large number of studies believe that the coal–pyrite particles undergo electrochemical oxidation on the surface to generate hydrophobic substances during coal mining, transportation, and washing, and then directly attach to the bubbles. Through experimental methods, Zhu [4] and R.H. Yoon [5] found that the sulfide FeS_x and sulfur-rich layer formed on the pyrite surface caused the surface to be hydrophobic. Niu [6] found that at low pH, the oxidation product of pyrite—sulfur—accounted for a large proportion, with greater hydrophobicity and floatability. Using the first-principles method of DFT, the previous study [7] found that a weak Fe-S-O bond was formed between the iron atom, the oxidized sulfur, and water molecules instead of the strong Fe-O bond formed on ideal surfaces. Some studies thought that the symbiotic coal or the carbon defect existing in the lattice had an important effect on the hydrophobicity of pyrite. Z. Çetinkaya [8] combined bioleaching and chemical experiments to eliminate sulfur from Sivas Kangal lignite coal, and obtained clean coal with 2.89% total sulfur content. F. H. Channa [9] obtained a desulfurization rate of about 77.01% utilizing Hardgrove grinding and taking advantage of the large differences in hardness and grindability. There was still some dissociated pyrite that entered the clean coal because of the symbiotic coal. Cao [3] found that it was difficult to observe the monomer-dissociated pyrite in the flotation concentrate; pyrites only float when they coexist with coal. Previous studies [10,11,12,13] have found that the symbiotic coal transformed coal pyrite to hydrophobic from hydrophilic, and the carbon defect enhanced its hydrophobicity according to DFT calculations. Other studies have reported that coal–pyrites were mainly entrained into the foam product by water. S. K. Kawatra found [14,15] that the fresh monomer-dissociated coal–pyrite mainly entered into the flotation concentrate due to water entrainment and mechanical entrainment, and its internal surface hydrophobicity was not the main reason. The above studies explored the mechanism of coal–pyrite entering flotation concentrate from four perspectives—the hydrophobicity of the coal–pyrite surface, symbiosis with coal, entrainment, and surface oxidation. However, it has not been reported how the completely dissociated fine-grained coal–pyrite captures hydrophobic coal particles in a manner that is as non-selective as fine-grained clay minerals; that is, the interaction mechanism between fine-grained pyrite particles and coal particles has not been reported.

With the development of modern physical technology, advanced modern analytical techniques have greatly facilitated the study of the interaction between minerals, but the microscopic mechanism of the interaction between minerals has not been explored at the molecular/atomic level. The first-principles calculation method based on density functional theory has been widely used in mineral processing, and can reveal the interaction mechanism between small molecules and minerals at the atomic and molecular level. Using DFT-D+U, Mkhonto [16,17] found that the covalent bonding was formed by the reaction between the trithiocarbonate benzothiazole/benzoxazole/benzimidazole S atoms and the Fe atoms of the pyrite surface. Liu [18,19] confirmed that H₂O molecules tend to adsorb on the Fe atoms more than on the Cu atoms of the chalcopyrite surface, and found that the chemical adsorption of sodium di(isobutyl) dithiophosphinate (3418A) on the chalcopyrite surface is stronger than that of dibutyl dithiophosphate (DTP), according to DFT calculations. Zhang [20] found that the newly developed parameter set achieved a good balance between computational accuracy and efficiency between typical lead minerals and flotation reagents according to self-consistent-charge density functional tight-binding (SCC-DFTB) theory. Feng [21] calculated the synergistic adsorption of ethyl xanthate and butyl xanthate on pyrite surfaces using DFT and found that the interaction between them had a stronger effect than that of a single reagent. Chen [22] calculated the adsorption of quaternary phosphorus salts on the kaolinite (001) surface and found that quaternary phosphorus salts formed C-H…O hydrogen bonds.

Therefore, this paper intends to study the agglomeration behavior of fine-grained pyrite and coal particles from the perspective of the fine-grained pyrite cover in the slime flotation process leading to an increase in the sulfur content of the concentrate. Different coal structural units were built and optimized, and the adsorption configuration of coal structural units on pyrite surfaces was calculated, including the frontier orbital, adsorption energy, bonding analysis, charge transfer, Density of States (DOS), and band structure, using the method of DFT simulation.

2. Calculation Methods and Model

2.1. The Frontier Orbital Calculation

To determine the frontier orbital characteristics of refined models of pyrite (100) surface and coal structural units, the Dmol³ module was employed, involving energy optimization. The Brillouin zone’s k-point sampling utilized the gamma point method. The calculation of exchange–correlation energy relied on the GGA-PW91 functional, while core electrons were treated with Effective Core Potentials, and a DNP basis set was employed. The calculations were performed with high precision, and the self-consistent field convergence criterion was set to 1.0 × 10⁻⁶ eV/atom.

2.2. DFT Calculation

An in-depth exploration into the adsorption behavior of coal structural units onto pristine pyrite (100) surfaces was conducted employing density functional theory (DFT) methodology. This comprehensive analysis leveraged the advanced CASTEP program, integrated within Materials Studio 2018 software, to ensure precise and accurate calculations throughout the entire study.

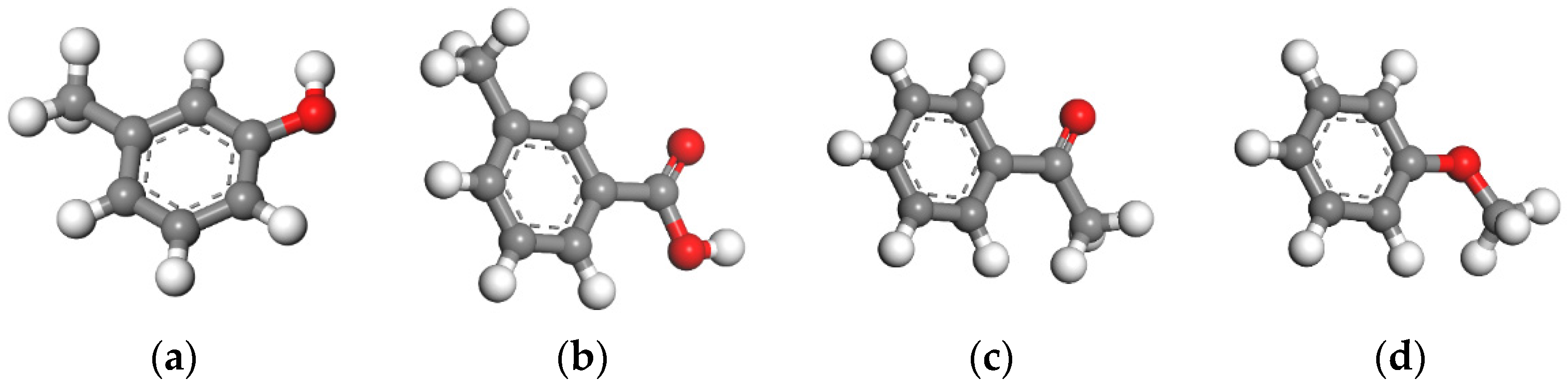

The exchange–correlation interactions among electrons were modeled using the Generalized Gradient Approximation—Perdew Wang 91 (GGA-PW91) [23,24]. The calculation focused on valence electrons (Fe 3d⁶4s² and S 3s²3p⁴) through the use of ultra-soft pseudopotentials [25]. A plane wave cut-off energy of 350 eV [26] was employed, and a Monkhorst–Pack [27,28] k-point grid of 4 × 4 × 4 was utilized. Convergence for the self-consistent field (SCF) was achieved with a precision of 2.0 × 10⁻⁶ eV per atom. Spin polarization was included in the simulation. Additionally, the structural units of coal were optimized within a cubic cell of 20 × 20 × 20 Å, with Brillouin zone sampling limited to the gamma point, as depicted in Figure 1. All other parameters matched those used for the optimization of the primitive unit cell.

The adsorption energy, which measures the interaction between the coal structural units (adsorbate) and the pyrite surface, can be assessed as follows:

E_ads = E_X/slab − E_X − E_slab

(1)

In the given context, E_ads represents the adsorption energy, and X denotes the coal structural unit. The term E_X/slab refers to the energy of the pyrite surface with the adsorbed coal structural units. E_slab and E_X are the energies of the pyrite surface and the coal structural units, respectively. A negative value for E_ads indicates an exothermic process, with a larger magnitude of |E_ads| signifying the increased stability of the adsorbed structure [29,30,31].

3. Results and Discussion

3.1. Frontier Orbital Analysis

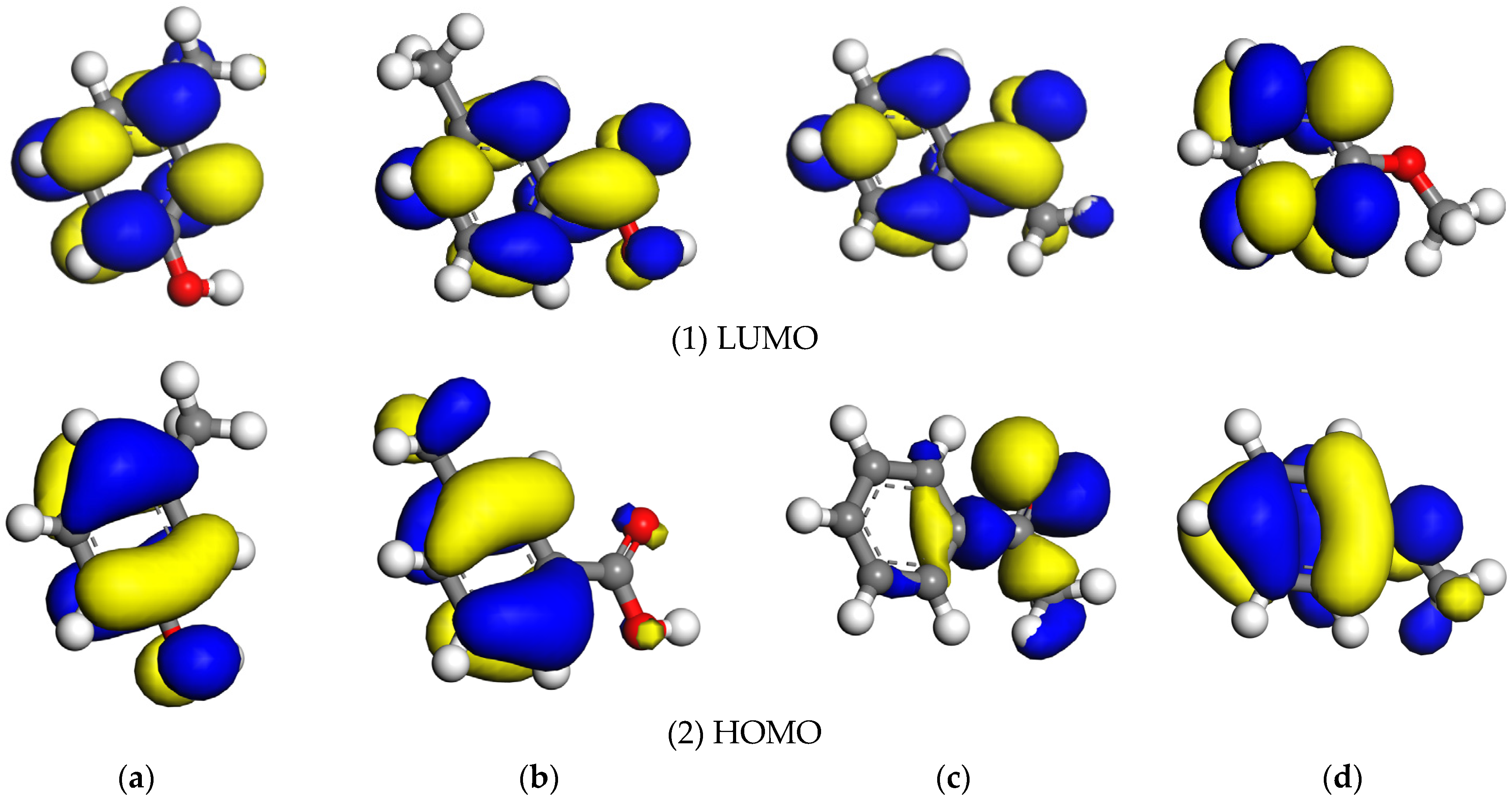

The local position activity was analyzed using frontier orbitals (HOMO and LUMO). The regions with the highest HOMO distribution were prone to protonation reactions, while those with the largest LUMO distribution were more likely to undergo deprotonation. As an example, the formation of the pyrite surface was examined [10,11,12,13]. To explore the interaction between coal and pyrite, we calculated the frontier orbital energies for the structural units of both coal and pyrite, as well as their energy differences. The results are presented in

Table 1. The frontier orbital energies of coal structural units and pyrite.

Model		Frontier Orbital Energy/eV		Frontier Orbital Energy Difference/eV
		HOMO	LUMO	ΔE1	ΔE2
Coal structural units	Ph-OH	−5.692	−2.656	3.023	1.232
	Ph-COOH	−5.371	−1.030	4.649	0.911
	Ph-C=O	−5.390	−1.027	4.652	0.930
	Ph-O-	−6.361	−2.388	3.291	1.901
Pyrite		−5.679	−4.460

Note: $∆E_1=\left|E_{HOMO}^{surface}-E_{LUMO}^{adsorbate}\right|$, $∆E_2=\left|E_{HOMO}^{adsorbate}-E_{LUMO}^{surface}\right|$, where $E_{HOMO}^{surface}$ and $E_{LUMO}^{surface}$ are the HOMO and LUMO energies of the surface, respectively; $E_{HOMO}^{adsorbate}$ and $E_{LUMO}^{adsorbate}$ are the HOMO and LUMO energies of different oxygen structural units, respectively.

.

Based on the differences in the frontier orbital energies between various coal structural units and the pyrite surface listed in Table 1, it was observed that the frontier orbital energy difference ΔE₂ for all coal structural units relative to pyrite was consistently smaller than ΔE1. This suggests that the LUMO orbitals of the coal structural units are more likely to interact with the HOMO orbitals of pyrite. Additionally, the values of ΔE₂ for different coal structural units showed an increasing trend, whereby Ph-COOH < Ph-C=O < Ph-OH < Ph-O-. This trend implies a progressive decrease in the reactivity of the HOMO orbitals of the coal structural units (Figure 2).

3.2. DFT Calculation

To explore how coal interacts with pyrite during the slime flotation process, density functional theory (DFT) calculations were employed to study the adsorption of various oxygen-containing structural units on pyrite surfaces. This involved determining the equilibrium adsorption configurations, calculating adsorption energies, and analyzing charge transfer and Mulliken charge populations to better understand the interaction mechanism between pyrite and coal.

3.2.1. Adsorption Configurations and Adsorption Energy

The equilibrium adsorption configurations and adsorption energies of various coal structural units on different sites of the pyrite (100) surface were analyzed.

Table 2. The adsorption energy, E_ads, for coal structural units on the pyrite surface.

Coal Structural Units	Eads/kJ·mol−1	Adsorption Configuration of Coal Structural Units
Ph-OH/FeS2	24.90	F
	24.82	P
	2.84	LPS
	1.85	HPS
Ph-COOH/FeS2	−23.57	F
	14.46	P
	−62.19	LPS
	−1.99	HPS
Ph-CO-CH3/FeS2	−25.39	F
	7.40	P
	−10.77	LPS
	7.92	HPS
Ph-O-CH3/FeS2	42.49	F
	42.55	P
	25.82	LPS
	1.9	HPS

Note: For ease of reference, the following symbols denote different configurations for the initial adsorption sites of coal structural units: “F” signifies a position above the Fe atom, “P” indicates that the plane of the benzene ring is perpendicular to the pyrite surface, “HPS” denotes a site above the high-position S atom, and “LPS” represents a site above the low-position S atom.

displays the adsorption energies (Eads) for these coal structural units on the pyrite surface, while Figure 3 illustrates the most stable equilibrium adsorption configurations. In the figure, the numbers indicate the distances between the bonding atoms, measured in angstroms (Å).

For Ph-OH, the E_ads on the HPS sites of the pyrite surface was 1.85 kJ/mol, smaller than F, P, and LPS, which demonstrated that the former adsorption configuration was most stable. The E_ads values of Ph-COOH on different sites of the pyrite surface were −23.57, 14.46, −62.19, and −1.99 kJ/mol. The E_ads values on LPS sites were the smallest, and their adsorption configuration was the most stable, as shown in Figure 3b. The smallest E_ads value of Ph-CO-CH₃ on different sites of the pyrite surface was −25.39 kJ/mol, whose adsorption configuration is shown in Figure 3c. The smallest E_ads value of Ph-O-CH₃ on different sites of the pyrite surface was −1.90 kJ/mol, which was very close to the results of Ph-OH. It demonstrated that the adsorption of Ph-O-CH₃ was as stable as that of Ph-OH. The physical adsorption strength of different coal structural units on the pyrite surface decreased from Ph-COOH, Ph-CO-CH₃, and Ph-OH to Ph-O-CH₃, whose results were the same as the frontier orbital energies of coal structural units and pyrite. From the macroscopic view, although the pyrite surface was hydrophobic and difficult to float itself during the slime flotation, the fine pyrite particles can adhere to the surface of coal particles and float upwards.

3.2.2. Analysis of Bonding

Furthermore, taking the most stable adsorption configurations as the objects of study, we further calculated the Mulliken population [32] and length between different coal structural units and the pyrite (100) surface, as shown in

Table 3. Mulliken population and length of different coal structural units.

Adsorption Model	Interaction	Population	Length/Å
Ph-OH/FeS2	H-S	0.00	2.990
Ph-COOH/FeS2	H-S	0.05	2.475
	Fe-O	0.13	2.797
Ph-CO-CH3/FeS2	Fe-O	0.13	2.820
	H-S	0.00	2.895
Ph-O-CH3/FeS2	H-S	−0.01	2.597
	H-S	0.00	2.595

.

For Ph-OH and Ph-O-CH₃, the Mulliken population between both the S atom of the pyrite (100) surface and the H atom of the hydroxyl group or ether bond on the benzene ring was 0.00, and the bond lengths were long. There was no bond and even no interaction formed between the H atom and the S atom. It illustrated that there was almost no interaction between Ph-OH, Ph-O-CH₃, and the pyrite (100) surface, and even the interaction was repulsive. The adsorption of Ph-OH and Ph-O-CH₃ on the pyrite (100) surface will not occur during the process of coal flotation desulfurization.

For Ph-COOH and Ph-CO-CH₃, the Mulliken population between both the Fe atom of the pyrite surface and the O atom of the carboxyl or carbonyl group on the benzene ring was 0.13, and a weak interaction between the Fe atom and the O atom was formed. In addition, the S of the pyrite surface also interacted with the H of the hydroxyl group or carbonyl on the benzene ring, and a weaker H-S interaction was formed. However, the population between the S atom and the H atom of Ph-COOH was 0.05, which was bigger than that of Ph-CO-CH₃. This illustrated that there was a weak interaction between Ph-COOH, Ph-CO-CH₃, and the pyrite surface. The adsorption of Ph-COOH and Ph-CO-CH₃ on the pyrite (100) surface will occur during the process of coal flotation desulfurization, and the adsorption of Ph-COOH on the pyrite (100) surface was more stable. This may be due to a physical adsorption between the adsorbate and the adsorbent.

As such, this demonstrated that the coal units can adsorb on the pyrite surface and the coal–pyrite interactions are a physical adsorption. It was more difficult for Ph-OH and Ph-O-CH₃ than Ph-COOH and Ph-CO-CH₃ to adsorb on the pyrite (100) surface, which is consistent with the adsorption energy results. The fresh monomer-dissociated coal–pyrite will enter into the flotation concentrate during the process of coal flotation desulfurization due to the interaction between coal and pyrite.

3.2.3. Charge Transfer

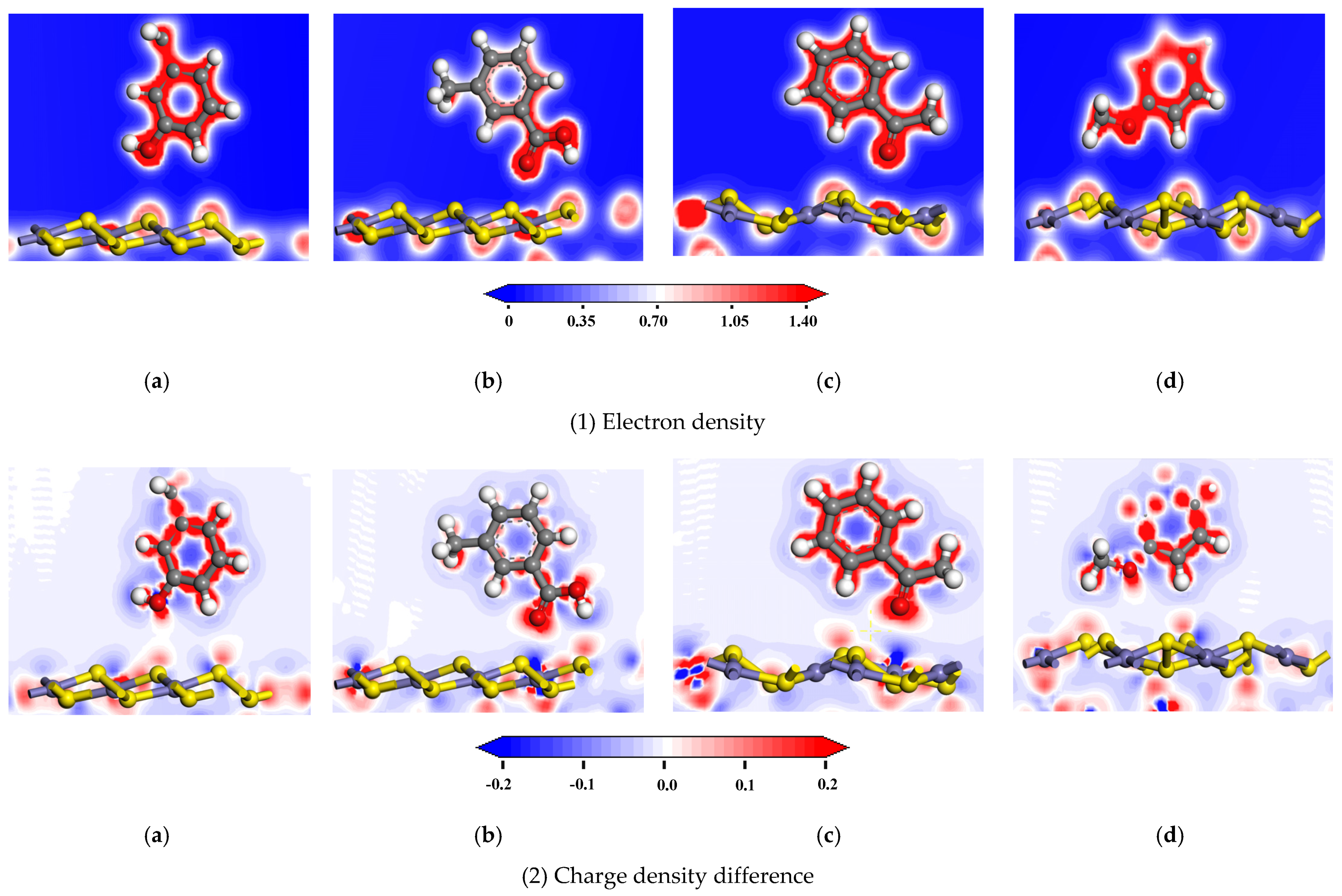

The Mulliken charge population (MCP) [33] refers to the loss and transfer of electrons between the atoms interacting with each other. The MCP results before (B) and after (A) adsorption of different coal structural units on the pyrite (100) surface are shown in

Table 4. MCP of the bonding atoms between different coal structural units and the pyrite (100) surface.

Adsorption Model	Atomic Label	Adsorption Status	s	p	d	Total	Charge/e
Ph-OH/FeS2	H	B	0.46	0.00	0.00	0.46	0.54
		A	0.48	0.00	0.00	0.48	0.52
	S	B	1.86	4.26	0.00	6.12	−0.11
		A	1.86	4.26	0.00	6.12	−0.11
Ph-COOH/FeS2	H	B	0.44	0.00	0.00	0.44	0.55
		A	0.52	0.00	0.00	0.52	0.48
	S	B	1.84	4.26	0.00	6.12	−0.12
		A	1.82	4.19	0.00	6.01	−0.01
	Fe	B	0.35	0.44	7.14	7.93	0.07
		A	0.34	0.44	7.12	7.90	0.10
	O	B	1.82	4.74	0.00	6.56	−0.57
		A	1.82	4.72	0.00	6.54	−0.54
Ph-CO-CH3/FeS2	H	B	0.66	0.00	0.00	0.66	0.33
		A	0.72	0.00	0.00	0.72	0.27
	S	B	1.86	4.26	0.00	6.12	−0.11
		A	1.86	4.24	0.00	6.08	−0.09
	Fe	B	0.35	0.44	7.14	7.93	0.07
		A	0.34	0.44	7.12	7.90	0.10
	O	B	1.82	4.70	0.00	6.52	−0.52
		A	1.82	4.68	0.00	6.50	−0.49
Ph-O-CH3/FeS2	H	B	0.68	0.00	0.00	0.68	0.31
		A	0.78	0.00	0.00	0.78	0.23
	S	B	1.86	4.26	0.00	6.12	−0.11
		A	1.86	4.26	0.00	6.12	−0.11

.

For Ph-OH and Ph-O-CH₃, the H 1s orbit of the former obtained 0.02 e, and the latter obtained 0.10 e. The S 3p orbit of the pyrite surface had no change. A weak H-S bond was formed after adsorption on the pyrite surface. After Ph-COOH and Ph-CO-CH₃ adsorbed on the pyrite surface, the O 2p orbit of them lost 0.02 e and the Fe 3d of the pyrite surface lost 0.03 e, with a strong Fe-O bond being formed. Meanwhile, the H 1s orbit of Ph-COOH and Ph-CO-CH₃ obtained 0.08 e and 0.06 e, respectively. The S 3p orbit of the pyrite surface each lost 0.11 e and 0.04 e; a weak H-S bond was also formed after adsorption (Figure 4).

3.2.4. Density of States (DOS) and Band Structure

For Ph-OH and Ph-O-CH₃, the interaction between the coal units and the pyrite surface primarily involved the H atom of the coal units and the S atom of the pyrite. Consequently, the Partial Density of States (PDOS) for the H and S atoms was plotted before and after adsorption, as shown in Figure 5a,d. In contrast, for Ph-COOH and Ph-CO-CH₃, the interaction was mainly between the O atoms of the coal units and the Fe atoms of the pyrite surface, as illustrated in Figure 5b,c. Thus, the Density of States (DOS) for the O and Fe atoms was analyzed before and after adsorption, with the Fermi level (Ef) set at 0 eV. For Ph-OH and Ph-O-CH₃, there was minimal change in the DOS of H 1s and S 2p, indicating a weak interaction between these units and the pyrite surface. However, Ph-COOH and Ph-CO-CH₃ showed slight changes in the DOS of O 2s and S 3p, with interaction energy between O and Fe ranging from 5 eV to 15 eV. These findings are consistent with the charge transfer and Mulliken population results.

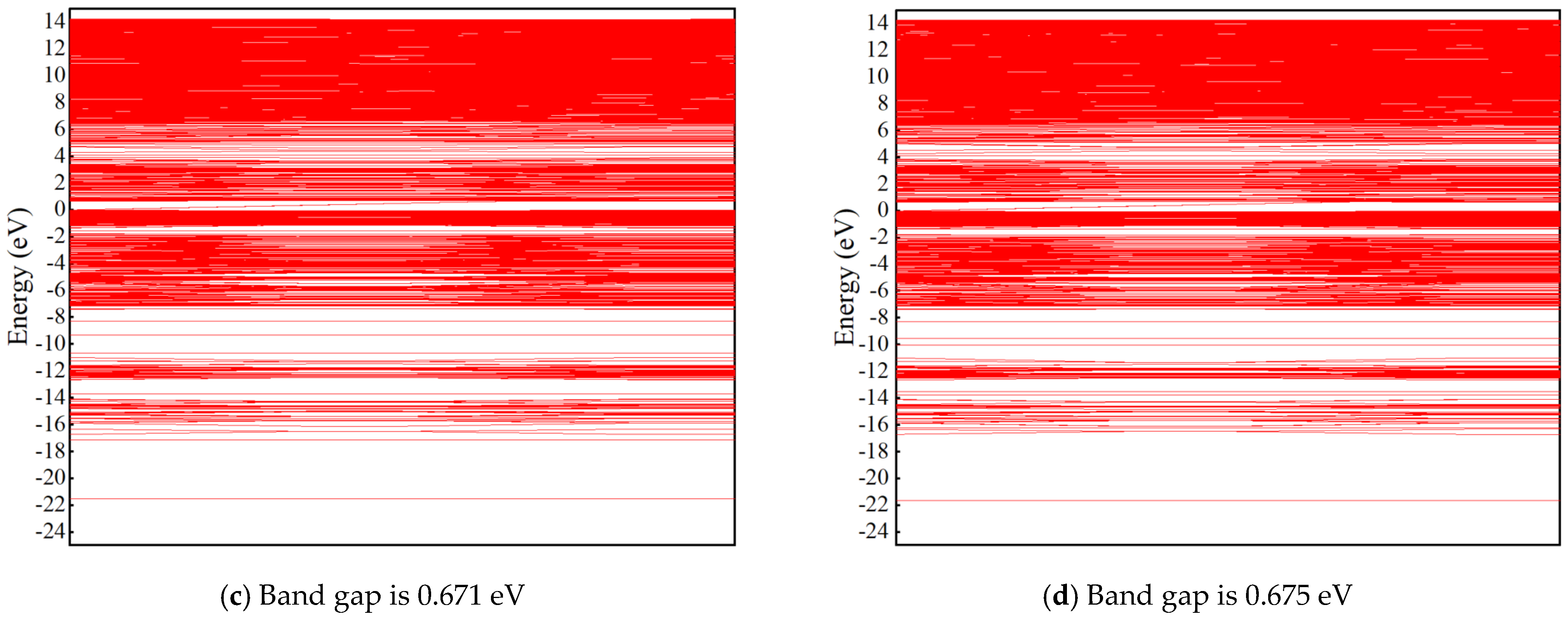

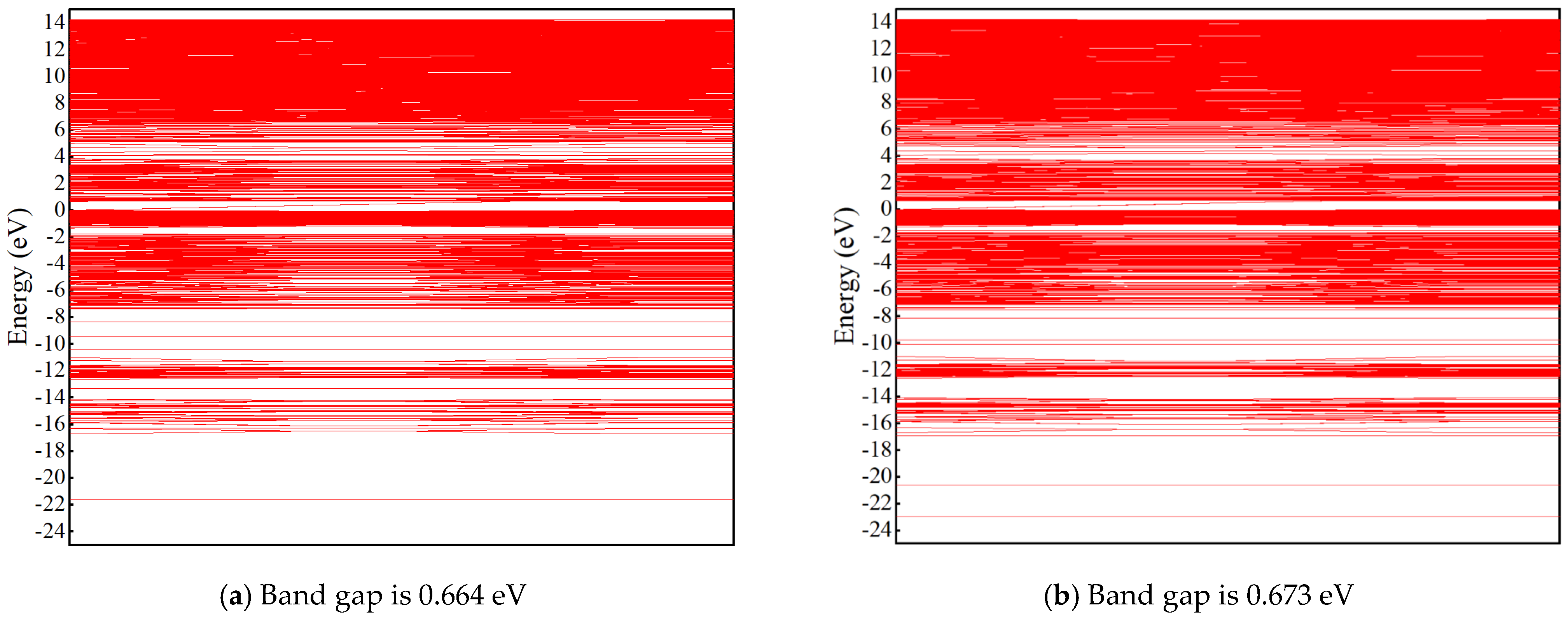

From the band structure after different coal structural units adsorption on the pyrite (100) surface in Figure 6, for Ph-OH, Ph-O-CH₃, Ph-COOH, and Ph-CO-CH₃, the band gaps were very close, at around 0.670 eV, from 0.664 eV, 0.675 eV, and 0.673 eV to 0.671 eV. The band structure showed an extremely large energy range, in which all bands looked pretty flat. These findings were consistent with the DOS results (Figure 5).

4. Conclusions

The entrainment mechanism of fine pyrite into clean coal was studied from the view of quantum chemistry by simulating the adsorption process of the coal structural units on the pyrite surface.

(1) After the coal structural units were adsorbed on the pyrite surface, the E_ads value of Ph-OH and Ph-O-CH₃ was positive and the E_ads value of Ph-COOH and Ph-CO-CH₃ was negative, which implied an endothermic reaction and an exothermic reaction. The adsorption energy of different coal structural units on the pyrite surface decreased from Ph-COOH, Ph-CO-CH₃, and Ph-OH to Ph-O-CH₃. The physical adsorption stability of different coal structural units on the pyrite surface decreased.

(2) The interaction between the Ph-OH and Ph-O-CH₃ molecule and the pyrite surface is extremely weak and the interaction between the Ph-COOH and Ph-CO-CH₃ molecule and the pyrite surface is slightly stronger. Such a weak interaction between them cannot be a chemical bond. The coal–pyrite interactions are a physical adsorption.

(3) On the whole, the charge transferred from the pyrite surface to coal structural units. For Ph-OH and Ph-O-CH₃, the electrons were mainly gathered around the S atoms of the pyrite surface. After Ph-COOH and Ph-CO-CH₃ were adsorbed on the pyrite surface, the electrons were mainly gathered around the Fe atoms of the pyrite surface and the O atoms of coal structural units. The occurrence of electron accumulation made it possible for coal structural units to adsorb on the pyrite surface.

(4) The fresh monomer-dissociated coal–pyrite entered into the flotation concentrate partially due to the interactions between the coal particles and the fine pyrite particles. Therefore, mixing measures and the action of adding the efficient dispersants and inhibitors can be taken to avoid natural adsorption to improve the subsequent desulfurization rate and the selectivity of mineral flotation. Then, the concentrate grade can be improved and it will bring greater economic benefits.
