Efficient, Facile, and Green Synthesis of Ruthenium Carboxylate Complexes by Manual Grinding

by
Eleonora Aneggi
1,*,
Daniele Zuccaccia
1,
Andrea Porcheddu
2 and
Walter Baratta
1
1
Dipartimento di Scienze AgroAlimentari, Ambientali e Animali, Sezione di Chimica, Università di Udine, Unità di Ricerca INSTM Udine, 33100 Udine, Italy
2
Dipartimento di Scienze Chimiche e Geologiche, Università degli Studi di Cagliari, Cittadella Universitaria, Monserrato, 09042 Cagliari, Italy
*
Author to whom correspondence should be addressed.
Processes 2024, 12(7), 1413; https://doi.org/10.3390/pr12071413
Submission received: 5 June 2024 / Revised: 1 July 2024 / Accepted: 4 July 2024 / Published: 6 July 2024
(This article belongs to the Special Issue Metal-Based Formulations for Eco-Sustainable Processes in Homogeneous and Heterogeneous Catalysis)
Browse Figures
Versions Notes

Abstract

:
Recently, scientists have been developing sustainable processes, and in this context, mechanochemistry is commonly associated with green chemistry for its ability to reduce waste generation from chemical reactions. The well-known acetate complex, diacetate bis(triphenylphosphine) ruthenium(II) [Ru(OAc)2(PPh3)2], is a versatile precursor for preparing active complexes for several catalytic reactions. This report presents an efficient and straightforward manual grinding protocol for the sustainable synthesis of ruthenium carboxylate complexes starting from the commercially available [RuCl2(PPh3)3] and metal carboxylates. This work represents a novel and preliminary investigation into carboxylate precursors’ alternative solventless synthesis route based on manual grinding. To our knowledge, this is the first time [Ru(OAc)2(PPh3)2] has been prepared via a mechanochemical procedure. The synthesis method has also been investigated for other alkali metal carboxylates and yields ranging from 30 to 80% were obtained. A comparison of sustainability and environmental impact between conventional solution synthesis and the grinding route has been carried out using the E-factor and Mass Productivity. While for the acetate complex E-factor and MP were only slightly better compared with the solvent method (3 vs. 4 for E-factor and ~6 vs. 5 for MP), for benzoate higher results were found (1 vs. ~4 for E-factor and 10 vs. 5 for MP).

Graphical Abstract

1. Introduction

In recent decades, the development of sustainable processes has received much attention. A key aspect of the assimilation and implementation of these processes is that this new concept came along with a series of guidelines according to the Twelve Principles of Green Chemistry, which provided the parameters to extend the idea of sustainability to a higher level, resulting in the design of new reactions and products and to the development of new processes and concepts [1]. In this context, mechanochemistry has stimulated the scientific community’s interest, providing physicochemical transformations promoted by mechanical energy originating from compression, shear, impact, extension, etc. [2,3,4,5,6]. Mechanochemistry is commonly associated with green chemistry for its ability to reduce waste production in chemical synthesis and reactions. In addition to their efficiency and practicality, mechanochemical reactions are also recognized for their sustainability, due to the solvent-free nature of most mechanochemical protocols. Several works demonstrate the potential of mechanochemistry as an alternative route that could reduce the costs and environmental footprint of fine chemical production [7,8,9,10,11].
Phosphine ligands have proven very attractive due to their crucial role as ancillary ligands in organometallic complexes which have been widely investigated and applied in homogeneous catalytic reactions [12,13,14,15]. Grubbs [16,17,18] for the olefin metathesis and Noyori [19,20,21,22,23] for the asymmetric hydrogenation of the C=X (X = C, N, O) bonds have obtained ground-breaking results (Figure 1).
On the other hand, carboxylate complexes display attractive catalytic properties, and a large number of ruthenium complexes have been synthesized [12,13,24,25,26]. Specifically, ruthenium diphosphine complexes with carboxylate ligands have been investigated for their valuable activity in catalytic hydrogenation reactions [12,27,28,29,30,31,32,33].
The well-known bis(triphenylphosphine) diacetate ruthenium(II) ([Ru(OAc)2(PPh3)2]), is a versatile precursor for the preparation of active complexes for several catalytic reactions [27,34,35]. Carboxylate ruthenium complexes are prepared from the commercially available precursor RuCl2(PPh3)3 by exchange of the chloride with the correspondence carboxylate and, eventually, modification of the phosphine ligand. In Scheme 1 is displayed the preparation of [Ru(OAc)2(PPh3)2] which is a key intermediate of this chemistry, via the classical route in solution with t-BuOH at reflux and via the new mechanochemical process at RT.
Carboxylate complexes have been widely used for several applications. The Noyori’s catalysts BINAP-Ru(O2CR)2 [36,37,38,39] have shown to be highly active in the enantioselective hydrogenation of a wide range of prochiral functionalized olefins such as terpenes, amino acids, and isoquinoline alkaloids [40], some α,β-unsaturated carboxylic acids [41], and ketoesters [19], while ampy, cycloemetalated, and pincer complexes have been found to be active in the hydrogenation and transfer hydrogenation of carbonyl compounds [24,26,27,28,42].
Thus, on account of the wide applications of carboxylate ruthenium complexes, we investigated the synthesis of the carboxylate PPh3 ruthenium precursors via an alternative solventless synthesis route based on the manual grinding of the reagents.
Milling reactions provide several advantages over solution chemistry, such as working at room temperature and shorter reaction times [4,43]. It also offers a platform for reagents with poor or no solubility and hence low performance in organic solvents [44], overcoming the need to use biphasic solvent systems to achieve high reactivity. This preliminary work investigates the applicability of new sustainable procedures for the preparation of homogenous catalysts. The conventional method is relatively simple, but the possibility of a solvent-free synthesis route is increasingly attractive due to the need to convert conventional solution-based transformations into more environmentally friendly processes, improve sustainability, and provide feasible solutions to realize the concepts of Green Chemistry and the United Nations Sustainable Development Goals (UN SDGs). Thus, this work aims to investigate a new facile route for synthesizing ruthenium(II) carboxylate complexes via manual grinding.
To the best of our knowledge, this is the first preparation of [Ru(OAc)2(PPh3)2] via a mechanochemical route from [RuCl2(PPh3)3] and sodium acetate. The process has also been investigated for other alkali metal carboxylates.
The E-factor has been used to compare the sustainability and environmental impact of conventional solution synthesis and the grinding route.
The E-factor is a green metric developed by Roger Sheldon in 1992 [45,46], focused on the quantity of waste produced for a given mass of product. The assessment of the E-factor evidenced the resource efficiency and the environmental footprint of the process. In addition, mass productivity (MP) was also calculated. In this case, all the materials used in the process are considered (reagents, solvents, catalysts, etc.) [47,48].

2. Materials and Methods

Ru carboxylate complexes have been prepared by grinding a defined amount of alkali metal carboxylate and dichlorotris(triphenylphosphine)ruthenium(II) ([RuCl2(PPh3)3]) in an agate mortar for a specific time (Scheme 1). After grinding, the obtained powder was collected with a spatula. The carboxylates are listed in Scheme 2.
Although [RuCl2(PPh3)3] can be easily synthesized [49], in this study we used a commercial product loaned from Johnson Matthey Inc. (Royston, UK) Metal carboxylates (reagent-grade chemicals) were used as purchased. Lithium acetate (>99%), sodium benzoate (99%), and sodium phenylglyoxylate (95%) were purchased from Sigma Aldrich (Saint Louis, MO, USA), potassium acetate (98%) and sodium acetate anhydrous (99%) were purchased from Riedel-de Haen (Charlotte, NC, USA), sodium pyruvate (>99%) from Calbiochem (San Diego CA, USA). Dichloromethane d2 and methanol d4, for NMR analysis, were purchased from Sigma Aldrich (Saint Louis, MO, USA).
Three different molar ratios of [RuCl2(PPh3)3] and sodium acetate (1:10, 1:5, and 1:3) have been used for the preparation of the acetate complex, while 1:5 has been adopted for all other carboxylate complexes; we chose a 1:5 ratio because it is a good compromise between saving reagents in line with an environmentally friendly process and a good yield. The manual grinding has been carried out for 10, 20, and 30 min.
The progress of the reaction and the purity of the final product were checked by 1H and 31P NMR using a Avance III HD 400 MHz spectrometer (Bruker, MA, USA) at 298 K. The deuterated solvent, CD2Cl2, was used without any further purification. Notably, 10 mg of the reaction mixture was dissolved in 500 μL of CD2Cl2 or CD3OD. 31P NMR spectra have been integrated by the ERETIC (Electronic REference To access In vivo Concentrations) method [50] with the software TopSpin 4.1.4. The ERETIC method provides a reference signal synthesized by an electronic device that can be calibrated against absolute concentrations. Once the ERETIC peak has been calibrated, the concentration of the compound can be easily obtained. The reported conversions are an average of three runs.
Work-up of [Ru(OAc)2(PPh3)2]: after the grinding of [RuCl2(PPh3)3] and NaOAc in a ratio of 1:10 for 30 min, the resulting mixture was collected and kept under reduced pressure overnight; then it was transferred to a filter. The washing procedure was performed under an argon atmosphere. The solid was washed with 15 mL of H2O (3 × 5 mL), 15 mL of CH3OH (3 × 5 mL), and 15 mL of Et2O (3 × 5 mL). The powder was then dried under reduced pressure.
The sustainability of the proposed reaction has been assessed using the E-factor and MP. The green metric factors were calculated after the work-up procedure to also consider the solvent used for product isolation. The E-factor has been calculated for grinding procedures and conventional solution synthesis of diacetate bis(triphenyl phosphine) ruthenium(II) and dibenzoate bis(triphenyl phosphine) ruthenium(II) using Equation (1):
E - factor = mass   waste mass   of   desired   product
MP is the percentage ratio between the mass of the desired product and the total mass of the materials used (Equation (2)):
MP   ( % ) = mass   of   desired   product   ×   100 total   mass   of   used   materials

3. Results

All reactions were carried out by grinding 50 mg of RuCl2(PPh3)3 and the corresponding amount of alkali metal carboxylate (Scheme 2) in an agate mortar with an internal diameter of 70 mm.

3.1. Alkali Metal Acetates

Manual grinding of [RuCl2(PPh3)3] with sodium acetate (NaOAc), in a molar ratio of 1:10, for 30 min leads to the formation of the corresponding complex [Ru(OAc)2(PPh3)2] in 80% yield (yield from 31P NMR analysis). A color change from black to brown-red was observed during milling (Figure S1). The 1:10 molar ratio was chosen for the comparison with the conventional solution synthesis [51]. The molar ratio between [RuCl2(PPh3)3] and NaOAc, was progressively reduced to 1:5 and 1:3 to investigate the possibility of carrying out the synthesis with a smaller amount of reagents in light of a more sustainable procedure (Figure 2).
As the excess acetate decreases, the yield of the final product decreases. However, the 1:5 ratio can be considered a good compromise between saving reagents and maintaining acceptable yield; thus, this ratio was chosen for subsequent studies. The time dependence of the reaction was then investigated by grinding the reagent for 10 and 20 min (Figure 2); the yield of the reaction progressively increased as the grinding time increased.
These results show that the mechanochemical synthesis of [Ru(OAc)2(PPh3)2] is a facile alternative synthesis route to conventional solution procedure. Indeed, similar yields are obtained, but the reaction is faster and solvent-free. In addition, the alkali metal cation has been varied, and lithium and potassium acetate have been exploited (Figure 3).
Again, the final products were obtained with good yields in a short grinding time. When lithium or potassium acetate has been used, the dependence of the reaction yield on grinding time is more evident. Considering the reaction after 30 min, a better result is obtained with sodium acetate than with the other alkali metal precursors; with sodium acetate, 60% of the product was obtained against 40% (LiOAc) and 46% (KOAc).
The reaction between RuCl2(PPh3)3 and metal acetate formed Ru(OAc)2(PPh3)2 and MCl. Calculating the difference in the standard molar enthalpy of formation, ΔHf0 (Table 1) between the product (MCl) and the reactant (MOAc), it is observed that the reaction with potassium is thermodynamically favored, but the yield is higher for sodium acetate. From thermodynamic data, the conversion does not follow the ΔH0reaction, but it is correlated to the ΔfH0 of the acetate, suggesting, to a first approximation, that the grinding reaction of metal acetates in the presence of RuCl2(PPh3)3 may be governed by a kinetic factor.
Indeed, the yield of conversion is in the order NaOAc > KOAc > LiOAc and follows the ΔHf0 of the respective acetates, and can be related to the fact that the Na-OAc bond is easier to break, compared to the other M-OAc (M = Li, K) bonds (Table 1).
After a work-up starting from 150 mg of RuCl2(PPh3)3, the acetate product [Ru(OAc)2(PPh3)2] was isolated in a 69% yield which is mostly the same as that obtained through the classical synthesis in solution [51], confirming that mechanosynthesis is an efficient route for the preparation of ruthenium carboxylate complexes.

3.2. Sodium Carboxylates

To further highlight the versatility of the method, other ruthenium complexes were prepared by mechanosynthesis, starting from sodium benzoate, sodium pyruvate, and sodium phenylglyoxylate (Scheme 2). Manual grinding for 30 min of [RuCl2(PPh3)3] with sodium carboxylate (RCO2Na) in a molar ratio of 1:5 leads to the formation of the corresponding complexes [Ru(O2CR)2(PPh3)2] in good to excellent yields (Figure 4). Reactions have also been carried out with shorter grinding times (10 and 20 min).
By reacting [RuCl2(PPh3)3] with sodium benzoate, the formation of the product is strongly influenced by grinding time. After 10 min, 63% of the benzoate derivative is obtained; then, the yield progressively increases to 76 and 85% after 20 and 30 min, respectively. Thus, the synthesis of the benzoate complex obtained by grinding is very fast, with a yield comparable to that obtained by the conventional solution procedure, using a lower excess of sodium carboxylate without solvent [53].
When [RuCl2(PPh3)3] was ground with sodium phenylglyoxylate, only 47% of the corresponding carboxylate complex was obtained. The grinding time only slightly affects product formation, as 45% yield was already achieved after 10 min. The additional time does not significantly improve the yield. By contrast, poor conversion is achieved for sodium pyruvate, with a 24% yield after 30 min.
It is worth noting that under these conditions a dicarboxylate species [Ru(OCOR)2(PPh3)2] is formed, as inferred from 31P NMR measurements showing a singlet in the range of 55–63 ppm (Figures S2–S6). Conversely, the monocarboxylate derivative [Ru(OCOR)Cl(PPh3)3] displaying three non-equivalent P signals has not been detected.
It is interesting to evaluate the difference between the carboxylate salts (sodium acetate and benzoate, blue bars) and the corresponding sodium salt of alpha-keto acids (sodium pyruvate and phenyl glyoxylate, green bars); indeed, when sodium carboxylates are used, higher yields are obtained compared to salts of alpha-keto acids, respectively, 60 and 85% vs. 24 and 47% (Figure 5). This effect could be related to the different acidity of the carboxylic acids and alpha-keto acids. In contrast, pyruvic and phenylglyoxylic acids are moderately acidic with a pKa in the range of 2.39–2.15; acetic and benzoic acids have a higher pKa (4.75–4.21). The higher the acidity, the lower the donor ability of the carboxylate anions to coordinate with ruthenium metal and form the metal complex [54]. This observation is consistent with the trend found in a previous study between the stability constant of some metal carboxylate complexes and the basicity of the anions [55].
For carboxylates and the salts of alpha-keto acids, the variation of the substituent, CH3- or C6H5-, induces a significant effect on the product yield. CH3- is inductively electron-donating. In this case, the inductive effect pushes electron density onto the carboxylate anion, producing a destabilizing effect, while C6H5- is electron-withdrawing and draws electron density away from the carboxylate anion, dispersing the charge and creating a stabilizing effect that enhances the formation of the ruthenium carboxylate complex.
In summary, the ability of the carboxylate anion to react with the metal complex is primarily related to the basicity of the anion. Still, when the basicity is similar, the conjugate effect of the substituent can influence the electron cloud density of the carboxylate salt modifying its ability to react with the ruthenium metal center [54].

3.3. Comparison of Green Chemistry Metrics

An evaluation of green chemistry factors for two selected ruthenium carboxylate complexes, [Ru(OAc)2(PPh3)2] and [Ru(O2CPh)2(PPh3)2], has been carried out to assess the green efficiency of the grinding procedure. The green metrics have been calculated for the ruthenium complexes obtained after the work-up procedures. For a better understanding of the sustainability of the process, two green chemistry metrics, the E-factor and the MP (mass productivity), have been calculated for both the ruthenium complexes isolated by grinding and by the classical solution procedure (Figure 6). When the grinding route is used, moderately better results in green chemistry metrics are achieved, with a lower E-factor and higher MP, thus demonstrating the sustainability and the low environmental impact of the mechanosynthesis of these ruthenium complexes. While the E-factor and MP for the OAc complex were slightly better compared with the established solvent method (3 vs. 4 for E-factor and ~6 vs. 5 for MP), higher results were found for O2CPh (1 vs. ~4 for E-factor and 10 vs. 5 for MP).
This confirms that mechanochemistry can be useful for the sustainable synthesis of ruthenium complexes.

4. Conclusions

Here, a general and straightforward mechanochemical synthetic approach for synthesizing valuable ruthenium carboxylate complexes by manual grinding (mortar and pestle) has been developed. This procedure is an efficient method for synthesizing these complexes, with good yields in very short reaction times. This procedure was carried out in a mortar at room temperature and was compared to the traditional synthesis conducted in t-BuOH under N2 reflux. This preliminary study should open a new perspective for solventless strategies by the mechanosynthesis route of ruthenium complexes. The yield of the final product is strongly influenced by the molar ratio of [RuCl2(PPh3)3] to metal carboxylate, the grinding time, and the alkali metal cation.
In particular, more considerably, a larger excess of metal acetate and longer grinding times result in higher yields. Higher yields were obtained when sodium acetate was used as the precursor due to its better tendency to react to form ruthenium complexes than lithium and potassium salts. The different acidity of the carboxylate salts and the corresponding sodium salt of alpha-keto acids can affect the ability to react with the ruthenium metal center; the higher the acidity, the lower the yield of the product. Furthermore, an electron-withdrawing substituent can enhance the formation of Ru-carboxylate complexes. A comparison of green chemistry metrics between the conventional synthesis in solution and the grinding route indicates the low environmental impact of the mechanosynthesis procedures, thus opening new perspectives for the development of new ruthenium complexes by milling.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/pr12071413/s1, Figure S1: [RuCl2(PPh3)3] + NaOAc before (left) and after (right) the milling process. Figure S2–S6: 31P NMR Spectra of [Ru(OAc)2(PPh3)2], [Ru(OAc)2(PPh3)2] after work-up and [Ru(OCOR)2(PPh3)2].

Author Contributions

Conceptualization, E.A.; methodology, E.A.; investigation, E.A.; data curation, E.A.; writing—original draft preparation, E.A.; writing—review and editing, E.A., W.B., A.P. and D.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Università di Udine: finanziamento di progetti di ricerca collaborativa con altri atenei e/o enti pubblici di ricerca, in attuazione del DM 737 del 25/06/2021.

Data Availability Statement

Data are contained within the article.

Acknowledgments

E.A. thanks DI4A—University of Udine for the financial support through the “new hire contribution”.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Anastas, P.T.; Warner, J.C. Green Chemistry: Theory and Practice; Oxford University Press: Oxford, UK, 2000. [Google Scholar]
  2. Porcheddu, A.; Colacino, E.; De Luca, L.; Delogu, F. Metal-Mediated and Metal-Catalyzed Reactions Under Mechanochemical Conditions. ACS Catal. 2020, 10, 8344–8394. [Google Scholar] [CrossRef]
  3. Ennas, G.; Scano, A.; Porcheddu, A.; Halasz, I.; Colacino, E. 1 Mechanochemistry: An Overview and a Historical Account. In Mechanochemistry; Evelina, C., Guido, E., Ivan, H., Andrea, P., Alessandra, S., Eds.; De Gruyter: Berlin, Germany; Boston, MA, USA, 2021; pp. 1–8. [Google Scholar] [CrossRef]
  4. James, S.L.; Adams, C.J.; Bolm, C.; Braga, D.; Collier, P.; Friščić, T.; Grepioni, F.; Harris, K.D.M.; Hyett, G.; Jones, W.; et al. Mechanochemistry: Opportunities for new and cleaner synthesis. Chem. Soc. Rev. 2012, 41, 413–447. [Google Scholar] [CrossRef]
  5. Do, J.-L.; Friščić, T. Mechanochemistry: A Force of Synthesis. ACS Cent. Sci. 2017, 3, 13–19. [Google Scholar] [CrossRef] [PubMed]
  6. Friščić, T.; Mottillo, C.; Titi, H.M. Mechanochemistry for Synthesis. Angew. Chem. Int. Ed. 2020, 59, 1018–1029. [Google Scholar] [CrossRef]
  7. Bolm, C.; Hernández, J.G. Mechanochemistry of Gaseous Reactants. Angew. Chem. Int. Ed. 2019, 58, 3285–3299. [Google Scholar] [CrossRef] [PubMed]
  8. Fantozzi, N.; Volle, J.-N.; Porcheddu, A.; Virieux, D.; García, F.; Colacino, E. Green metrics in mechanochemistry. Chem. Soc. Rev. 2023, 52, 6680–6714. [Google Scholar] [CrossRef] [PubMed]
  9. Cuccu, F.; De Luca, L.; Delogu, F.; Colacino, E.; Solin, N.; Mocci, R.; Porcheddu, A. Mechanochemistry: New Tools to Navigate the Uncharted Territory of “Impossible” Reactions. ChemSusChem 2022, 15, e202200362. [Google Scholar] [CrossRef] [PubMed]
  10. Beillard, A.; Bantreil, X.; Métro, T.-X.; Martinez, J.; Lamaty, F. Alternative Technologies That Facilitate Access to Discrete Metal Complexes. Chem. Rev. 2019, 119, 7529–7609. [Google Scholar] [CrossRef]
  11. Hernández, J.G.; Bolm, C. Altering Product Selectivity by Mechanochemistry. J. Org. Chem. 2017, 82, 4007–4019. [Google Scholar] [CrossRef]
  12. Ballico, M.; Zuccaccia, D.; Figliolia, R.; Baratta, W. Bulky Diphosphine Acetate Ruthenium Complexes: Synthesis and Catalytic Activity in Ketone Transfer Hydrogenation and Alkyne Dimerization. Organometallics 2020, 39, 3180–3193. [Google Scholar] [CrossRef]
  13. Jia, G.; Rheingold, A.L.; Haggerty, B.S.; Meek, D.W. Synthesis and characterization of ruthenium acetate complexes containing triphosphines. Inorg. Chem. 1992, 31, 900–904. [Google Scholar] [CrossRef]
  14. Nicholls, L.D.M.; Alcarazo, M. Applications of α-Cationic Phosphines as Ancillary Ligands in Homogeneous Catalysis. Chem. Lett. 2018, 48, 1–13. [Google Scholar] [CrossRef]
  15. Scherpf, T.; Schwarz, C.; Scharf, L.T.; Zur, J.-A.; Helbig, A.; Gessner, V.H. Ylide-Functionalized Phosphines: Strong Donor Ligands for Homogeneous Catalysis. Angew. Chem. Int. Ed. 2018, 57, 12859–12864. [Google Scholar] [CrossRef]
  16. Scholl, M.; Ding, S.; Lee, C.W.; Grubbs, R.H. Synthesis and Activity of a New Generation of Ruthenium-Based Olefin Metathesis Catalysts Coordinated with 1,3-Dimesityl-4,5-dihydroimidazol-2-ylidene Ligands. Org. Lett. 1999, 1, 953–956. [Google Scholar] [CrossRef]
  17. Bano, T.; Zahoor, A.F.; Rasool, N.; Irfan, M.; Mansha, A. Recent trends in Grubbs catalysis toward the synthesis of natural products: A review. J. Iran. Chem. Soc. 2022, 19, 2131–2170. [Google Scholar] [CrossRef]
  18. Montgomery, T.P.; Johns, A.M.; Grubbs, R.H. Recent Advancements in Stereoselective Olefin Metathesis Using Ruthenium Catalysts. Catalysts. 2017, 7, 87. [Google Scholar] [CrossRef]
  19. Xie, X.; Lu, B.; Li, W.; Zhang, Z. Coordination determined chemo- and enantioselectivities in asymmetric hydrogenation of multi-functionalized ketones. Coord. Chem. Rev. 2018, 355, 39–53. [Google Scholar] [CrossRef]
  20. Noyori, R.; Ohkuma, T. Asymmetric catalysis by architectural and functional molecular engineering: Practical chemo and stereoselective hydrogenation of ketones. Angew. Chem. Int. Ed. 2001, 40, 40–73. [Google Scholar] [CrossRef]
  21. Noyori, R. Asymmetric Catalysis: Science and Opportunities (Nobel Lecture). Angew. Chem. Int. Ed. 2002, 41, 2008–2022. [Google Scholar] [CrossRef]
  22. Sandoval, C.A.; Ohkuma, T.; Muñiz, K.; Noyori, R. Mechanism of Asymmetric Hydrogenation of Ketones Catalyzed by BINAP/1,2-Diamine−Ruthenium(II) Complexes. J. Am. Chem. Soc. 2003, 125, 13490–13503. [Google Scholar] [CrossRef]
  23. Noyori, R.; Yamakawa, M.; Hashiguchi, S. Metal−Ligand Bifunctional Catalysis:  A Nonclassical Mechanism for Asymmetric Hydrogen Transfer between Alcohols and Carbonyl Compounds. J. Org. Chem. 2001, 66, 7931–7944. [Google Scholar] [CrossRef] [PubMed]
  24. Baldino, S.; Giboulot, S.; Lovison, D.; Nedden, H.G.; Pöthig, A.; Zanotti-Gerosa, A.; Zuccaccia, D.; Ballico, M.; Baratta, W. Preparation of Neutral trans—Cis [Ru(O2CR)2P2(NN)], Cationic [Ru(O2CR)P2(NN)](O2CR) and Pincer [Ru(O2CR)(CNN)P2] (P = PPh3, P2= diphosphine) Carboxylate Complexes and their Application in the Catalytic Carbonyl Compounds Reduction. Organometallics 2021, 40, 1086–1103. [Google Scholar] [CrossRef]
  25. Lovison, D.; Berghausen, T.; Thomas, S.R.; Robson, J.; Drees, M.; Jandl, C.; Pöthig, A.; Mollik, P.; Halter, D.P.; Baratta, W.; et al. Beyond Metal-Arenes: Monocarbonyl Ruthenium(II) Catalysts for Transfer Hydrogenation Reactions in Water and in Cells. ACS Catal. 2023, 13, 10798–10823. [Google Scholar] [CrossRef]
  26. Alessi, D.; Del Mestre, P.; Aneggi, E.; Ballico, M.; Beltrami, A.P.; Busato, M.; Cesselli, D.; Heidecker, A.A.; Zuccaccia, D.; Baratta, W. Cyclometalated C^N diphosphine ruthenium catalysts for Oppenauer-type oxidation/transfer hydrogenation reactions and cytotoxic activity. Catal. Sci. Technol. 2023, 13, 5267–5279. [Google Scholar] [CrossRef]
  27. Hey, D.A.; Sauer, M.J.; Fischer, P.J.; Esslinger, E.-M.H.J.; Kühn, F.E.; Baratta, W. Acetate Acetylacetonate Ampy Ruthenium(II) Complexes as Efficient Catalysts for Ketone Transfer Hydrogenation. ChemCatChem 2020, 12, 3537–3544. [Google Scholar] [CrossRef]
  28. Hey, D.A.; Fischer, P.J.; Baratta, W.; Kühn, F.E. Ru(O2CCF3)2(PPh3)2 and ruthenium phosphine complexes bearing fluoroacetate ligands: Synthesis, characterization and catalytic activity. Dalton Trans. 2019, 48, 4625–4635. [Google Scholar] [CrossRef]
  29. Dupau, P.; Bonomo, L.; Kermorvan, L. Unexpected Role of Anionic Ligands in the Ruthenium-Catalyzed Base-Free Selective Hydrogenation of Aldehydes. Angew. Chem. Int. Ed. 2013, 52, 11347–11350. [Google Scholar] [CrossRef]
  30. Bennett, M.A.; Byrnes, M.J.; Chung, G.; Edwards, A.J.; Willis, A.C. Bis(acetylacetonato)ruthenium(II) complexes containing bulky tertiary phosphines. Formation and redox behaviour of Ru(acac)2 (PR3) (R=iPr, Cy) complexes with ethene, carbon monoxide, and bridging dinitrogen. Inorg. Chim. Acta 2005, 358, 1692–1708. [Google Scholar] [CrossRef]
  31. Manimaran, T.; Wu, T.C.; Klobucar, W.D.; Kolich, C.H.; Stahly, G.P.; Fronczek, F.R.; Watkins, S.E. In situ generation of ruthenium-chiral phosphine complexes and their use in asymmetric hydrogenation. Organometallics 1993, 12, 1467–1470. [Google Scholar] [CrossRef]
  32. Cabrero-Antonino, J.R.; Alberico, E.; Junge, K.; Junge, H.; Beller, M. Towards a general ruthenium-catalyzed hydrogenation of secondary and tertiary amides to amines. Chem. Sci. 2016, 7, 3432–3442. [Google Scholar] [CrossRef]
  33. van Buijtenen, J.; Meuldijk, J.; Vekemans, J.A.J.M.; Hulshof, L.A.; Kooijman, H.; Spek, A.L. Dinuclear Ruthenium Complexes Bearing Dicarboxylate and Phosphine Ligands. Acceptorless Catalytic Dehydrogenation of 1-Phenylethanol. Organometallics 2006, 25, 873–881. [Google Scholar] [CrossRef]
  34. Lynam, J.M.; Welby, C.E.; Whitwood, A.C. Exploitation of a Chemically Non-innocent Acetate Ligand in the Synthesis and Reactivity of Ruthenium Vinylidene Complexes. Organometallics 2009, 28, 1320–1328. [Google Scholar] [CrossRef]
  35. Welby, C.E.; Eschemann, T.O.; Unsworth, C.A.; Smith, E.J.; Thatcher, R.J.; Whitwood, A.C.; Lynam, J.M. Ruthenium Acetate Complexes as Versatile Probes of Metal–Ligand Interactions: Insight into the Ligand Effects of Vinylidene, Carbene, Carbonyl, Nitrosyl and Isocyanide. Eur. J. Inorg. Chem. 2012, 2012, 1493–1506. [Google Scholar] [CrossRef]
  36. Noyori, R.; Takaya, H. BINAP: An efficient chiral element for asymmetric catalysis. Acc. Chem. Res. 1990, 23, 345–350. [Google Scholar] [CrossRef]
  37. Tang, W.; Zhang, X. New Chiral Phosphorus Ligands for Enantioselective Hydrogenation. Chem. Rev. 2003, 103, 3029–3070. [Google Scholar] [CrossRef] [PubMed]
  38. Uemura, T.; Zhang, X.; Matsumura, K.; Sayo, N.; Kumobayashi, H.; Ohta, T.; Nozaki, K.; Takaya, H. Highly Efficient Enantioselective Synthesis of Optically Active Carboxylic Acids by Ru(OCOCH3)2[(S)-H8-BINAP]. J. Org. Chem. 1996, 61, 5510–5516. [Google Scholar] [CrossRef]
  39. Ohta, T.; Takaya, H.; Noyori, R. (BINAP)-ruthenium (II) dicarboxylate complexes: New, highly efficient catalysts for asymmetric hydrogenations. Inorg. Chem. 1988, 27, 566–569. [Google Scholar] [CrossRef]
  40. Kitamura, M.; Tokunaga, M.; Noyori, R. Practical synthesis of BINAP-ruthenium(II) dicarboxylate complexes. J. Org. Chem. 1992, 57, 4053–4054. [Google Scholar] [CrossRef]
  41. Ohta, T.; Takaya, H.; Kitamura, M.; Nagai, K.; Noyori, R. Asymmetric hydrogenation of unsaturated carboxylic acids catalyzed by BINAP-ruthenium(II) complexes. J. Org. Chem. 1987, 52, 3174–3176. [Google Scholar] [CrossRef]
  42. Baratta, W.; Ballico, M.; Del Zotto, A.; Herdtweck, E.; Magnolia, S.; Peloso, R.; Siega, K.; Toniutti, M.; Zangrando, E.; Rigo, P. Pincer CNN Ruthenium(II) Complexes with Oxygen-Containing Ligands (O2CR, OAr, OR, OSiR3, O3SCF3): Synthesis, Structure, and Catalytic Activity in Fast Transfer Hydrogenation. Organometallics 2009, 28, 4421–4430. [Google Scholar] [CrossRef]
  43. Pagola, S. Outstanding Advantages, Current Drawbacks, and Significant Recent Developments in Mechanochemistry: A Perspective View. Crystals 2023, 13, 124. [Google Scholar] [CrossRef]
  44. Hernández, J.G.; Friščić, T. Metal-catalyzed organic reactions using mechanochemistry. Tetrahedron Lett. 2015, 56, 4253–4265. [Google Scholar] [CrossRef]
  45. Sheldon, R.A. Organic synthesis–Past, present and future. Chem. Ind. 1992, 23, 903–906. [Google Scholar]
  46. Sheldon, R.A. The E factor 25 years on: The rise of green chemistry and sustainability. Green Chem. 2017, 19, 18–43. [Google Scholar] [CrossRef]
  47. Constable, D.J.C.; Curzons, A.D.; Cunningham, V.L. Metrics to ‘green’ chemistry—Which are the best? Green Chem. 2002, 4, 521–527. [Google Scholar] [CrossRef]
  48. Mulvihill, M.J.; Beach, E.S.; Zimmerman, J.B.; Anastas, P.T. Green Chemistry and Green Engineering: A Framework for Sustainable Technology Development. Annu. Rev. Environ. Resour. 2011, 36, 271–293. [Google Scholar] [CrossRef]
  49. Hallman, P.S.; Stephenson, T.A.; Wilkinson, G. Tetrakis(triphenylphosphine)dichlororuthenium(II) and Tris(triphenylphosphine)dichlororuthenium(II). In Inorganic Syntheses; John Wiley & Sons: Hoboken, NJ, USA, 1970; pp. 237–240. [Google Scholar] [CrossRef]
  50. Akoka, S.; Barantin, L.; Trierweiler, M. Concentration Measurement by Proton NMR Using the ERETIC Method. Anal. Chem. 1999, 71, 2554–2557. [Google Scholar] [CrossRef] [PubMed]
  51. Mitchell, R.W.; Spencer, A.; Wilkinson, G. Carboxylato-triphenylphosphine complexes of ruthenium, cationic triphenylphosphine complexes derived from them, and their behaviour as homogeneous hydrogenation catalysts for alkenes. J. Chem. Soc. Dalton Trans. 1973, 8, 846–854. [Google Scholar] [CrossRef]
  52. Lide, D.R. CRC Handbook of Chemistry and Physics; CRC Press: Boca Raton, FL, USA, 2004; Volume 85. [Google Scholar]
  53. Hiett, N.P.; Lynam, J.M.; Welby, C.E.; Whitwood, A.C. Ruthenium carboxylate complexes as easily prepared and efficient catalysts for the synthesis of β-oxopropyl esters. J. Organomet. Chem. 2011, 696, 378–387. [Google Scholar] [CrossRef]
  54. Yan, Z.; Ma, Z.; Deng, J.; Luo, G. Mechanism and kinetics of epoxide ring-opening with carboxylic acids catalyzed by the corresponding carboxylates. Chem. Eng. Sci. 2021, 242, 116746. [Google Scholar] [CrossRef]
  55. Bunting, J.W.; Thong, K.M. Stability constants for some 1:1 metal–carboxylate complexes. Can. J. Chem. 1970, 48, 1654–1656. [Google Scholar] [CrossRef]
Processes 12 01413 g001

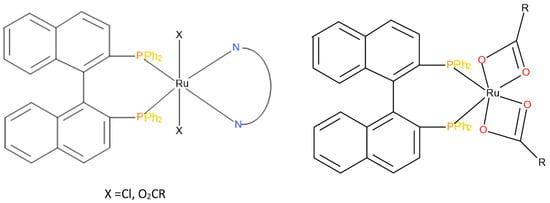

Figure 1. Noyori’s catalysts [16,20,21].
Figure 1. Noyori’s catalysts [16,20,21].
Processes 12 01413 g001
Processes 12 01413 sch001

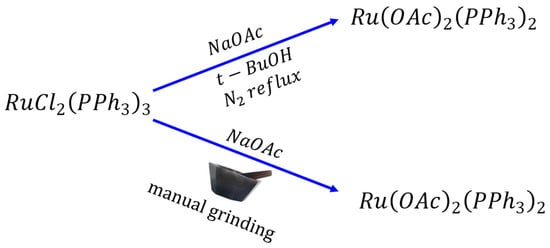

Scheme 1. Traditional procedure (top) and manual grinding route (bottom) to obtain [Ru(OAc)2(PPh3)2] from [RuCl2(PPh3)3].
Scheme 1. Traditional procedure (top) and manual grinding route (bottom) to obtain [Ru(OAc)2(PPh3)2] from [RuCl2(PPh3)3].
Processes 12 01413 sch001
Processes 12 01413 sch002

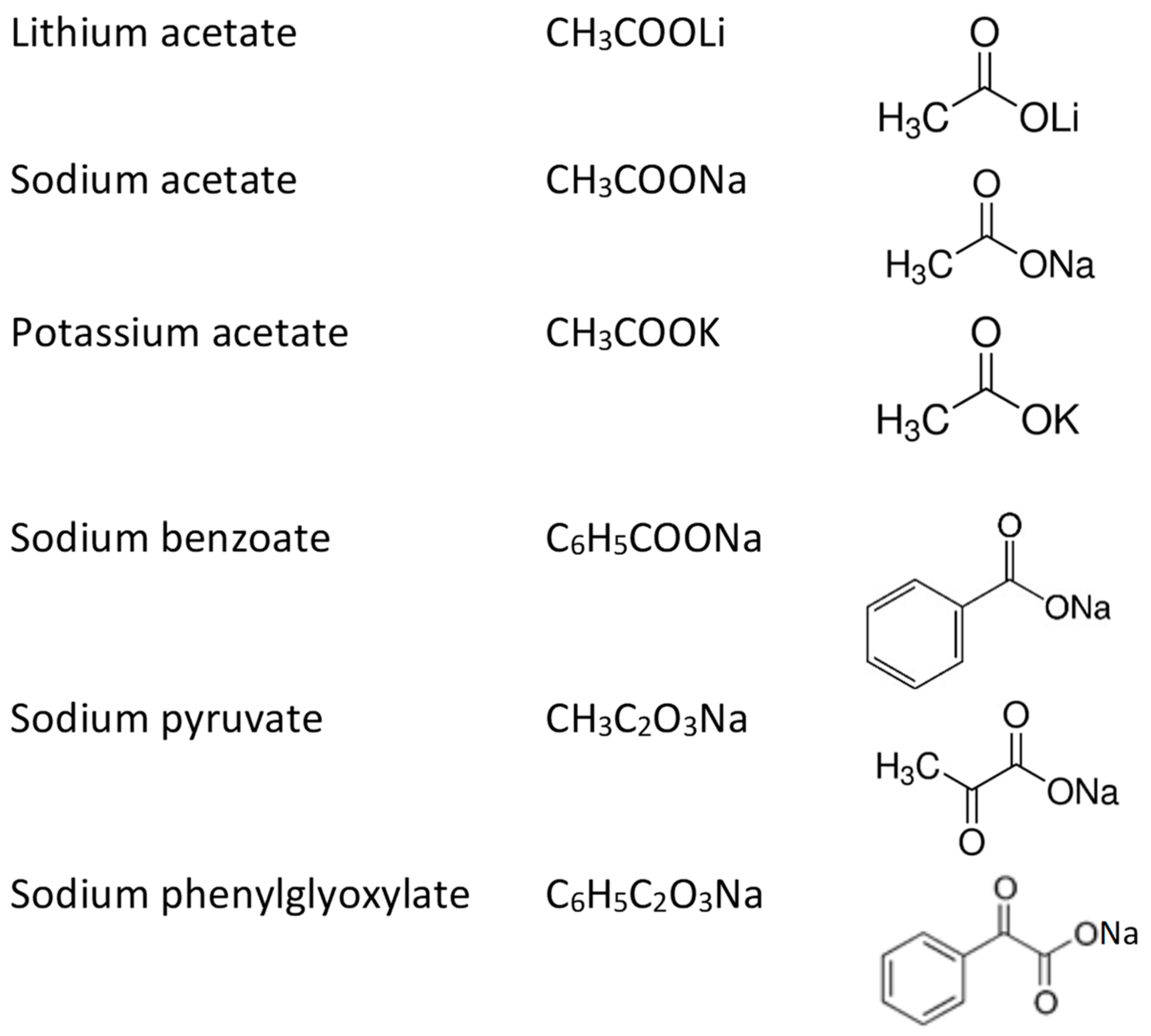

Scheme 2. Alkali metal carboxylates used in this study.
Scheme 2. Alkali metal carboxylates used in this study.
Processes 12 01413 sch002
Processes 12 01413 g002

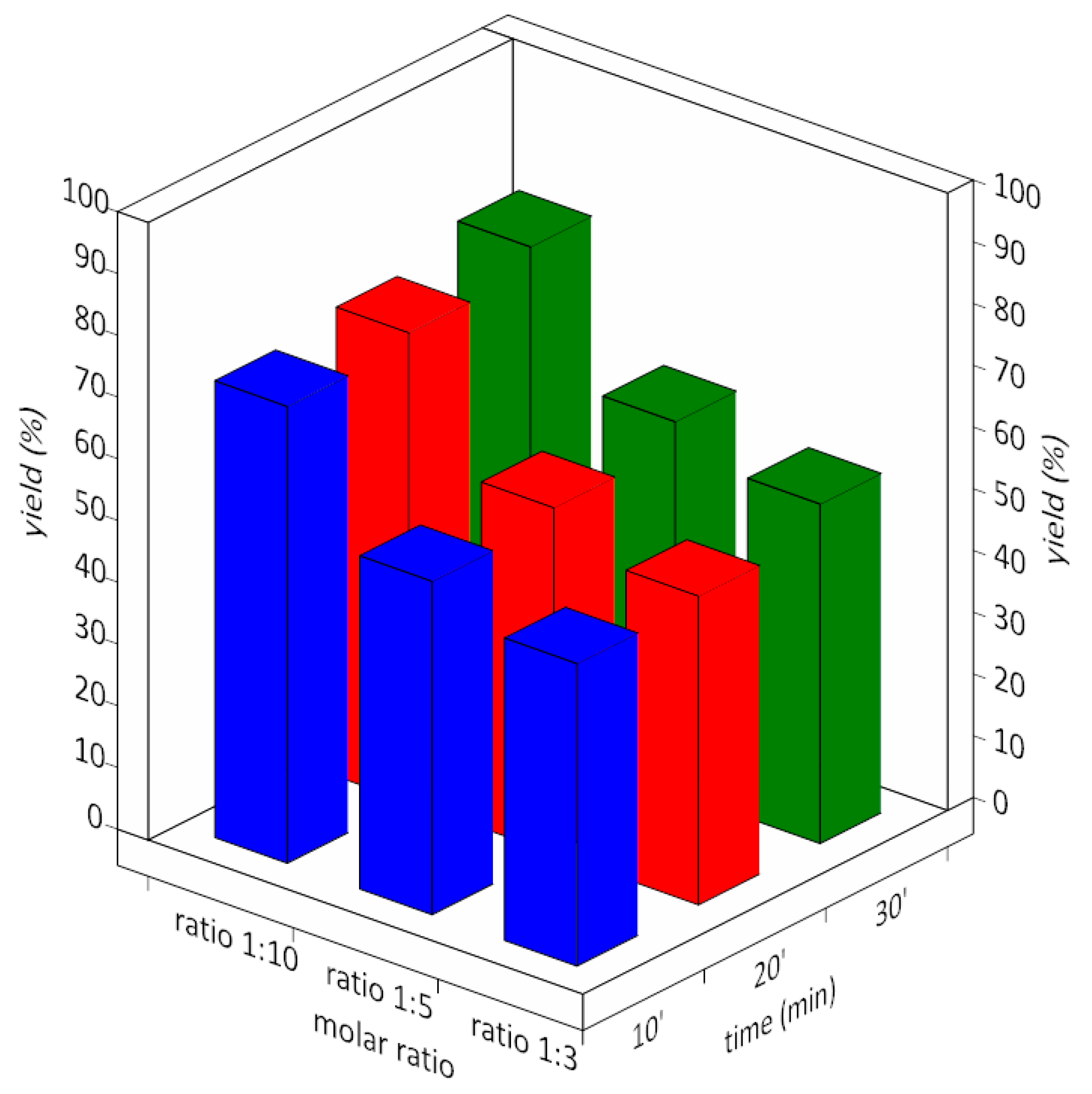

Figure 2. Dependence of the reaction between [RuCl2(PPh3)3] and NaOAc on reagents molar ratio and grinding time (10’, blue; 20’ red; 30’ green).
Figure 2. Dependence of the reaction between [RuCl2(PPh3)3] and NaOAc on reagents molar ratio and grinding time (10’, blue; 20’ red; 30’ green).
Processes 12 01413 g002
Processes 12 01413 g003

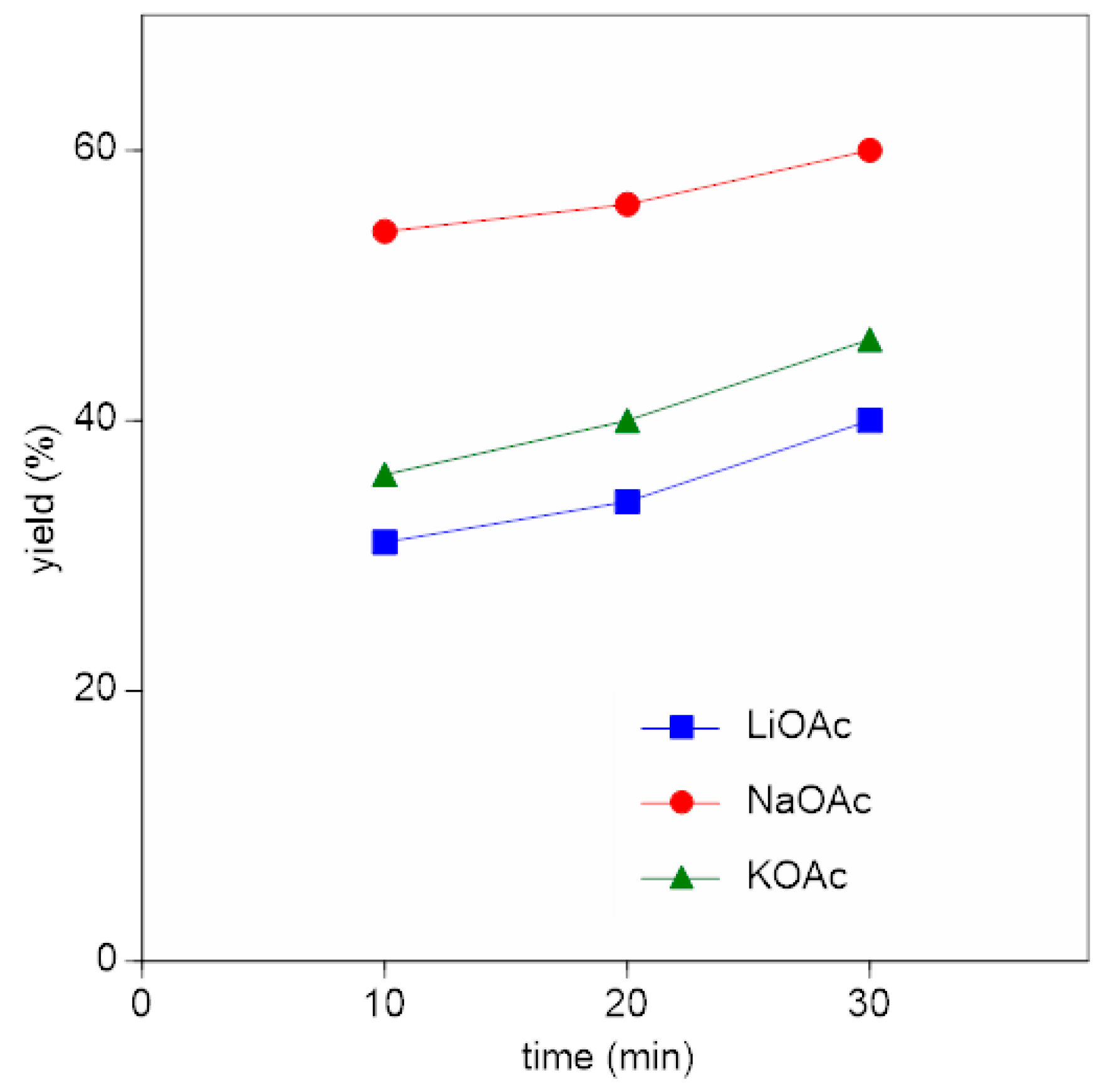

Figure 3. Yield of the reaction between [RuCl2(PPh3)3] and MOAc as a function of the nature of the alkali metal ion (M+ = Li+, Na+ and K+) and grinding time (1:5 molar ratio).
Figure 3. Yield of the reaction between [RuCl2(PPh3)3] and MOAc as a function of the nature of the alkali metal ion (M+ = Li+, Na+ and K+) and grinding time (1:5 molar ratio).
Processes 12 01413 g003
Processes 12 01413 g004

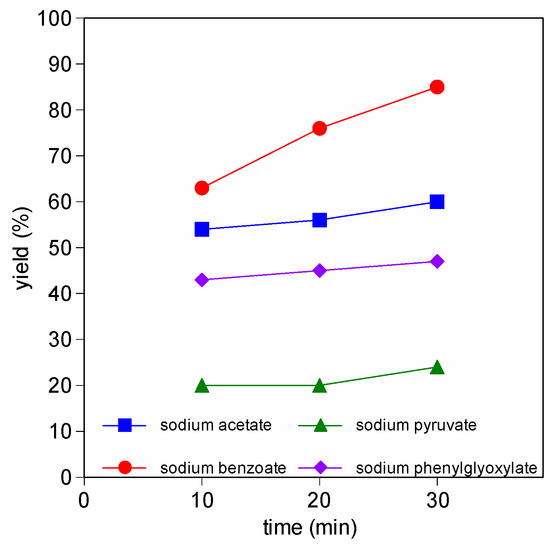

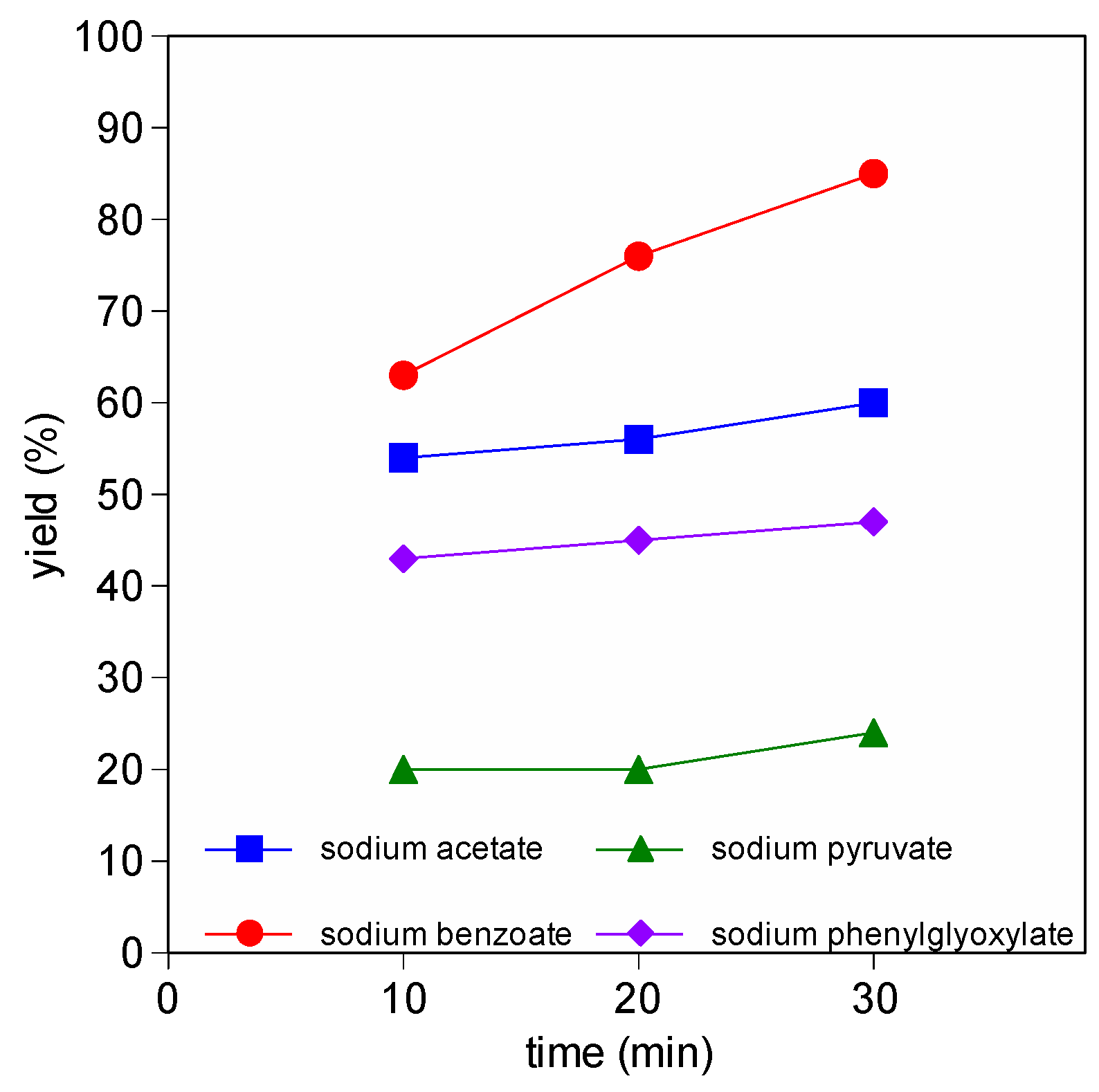

Figure 4. Dependence of the reaction between [RuCl2(PPh3)3] and sodium carboxylate on grinding time (1:5 molar ratio).
Figure 4. Dependence of the reaction between [RuCl2(PPh3)3] and sodium carboxylate on grinding time (1:5 molar ratio).
Processes 12 01413 g004
Processes 12 01413 g005

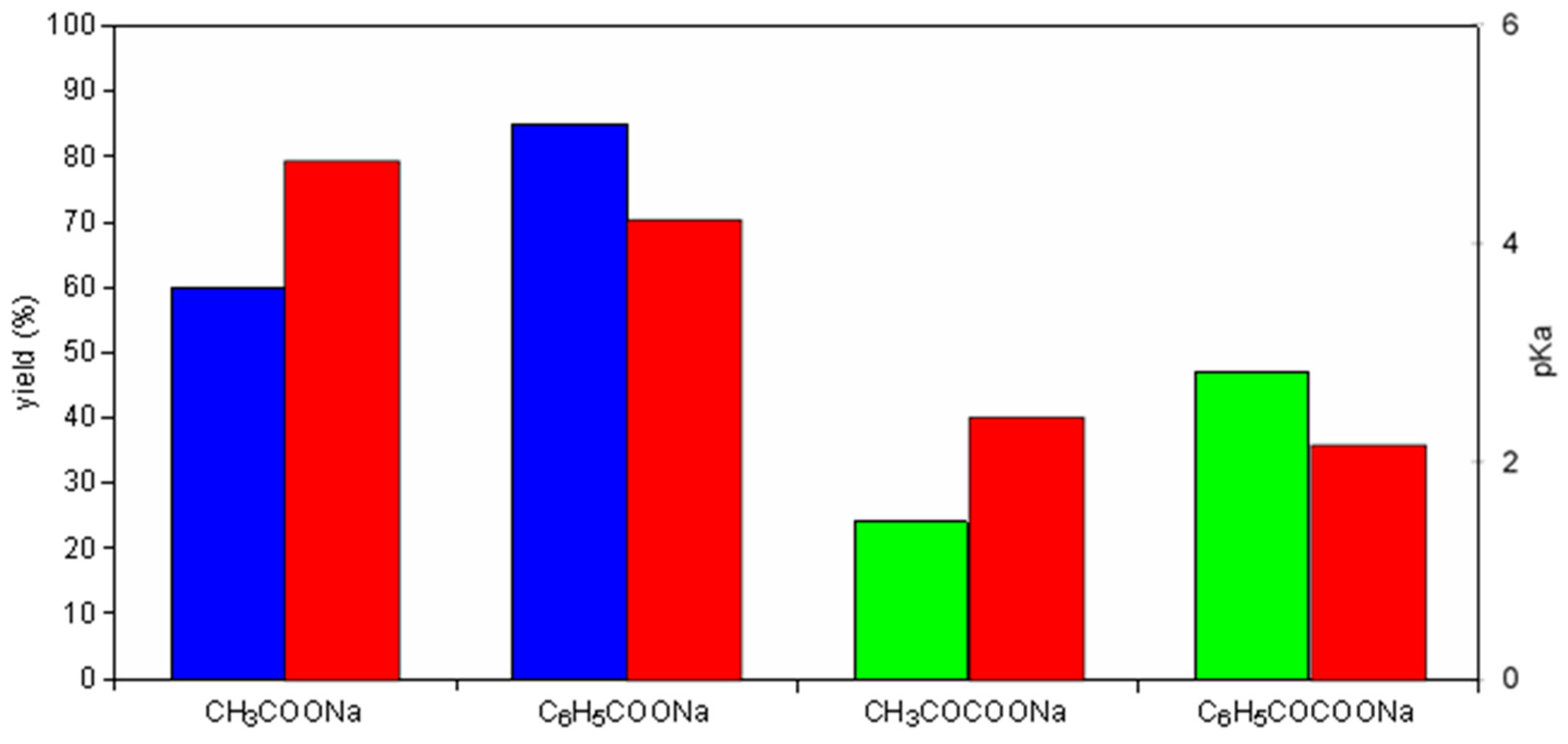

Figure 5. Product yield for carboxylates (blue bars) and alpha-keto acids (green bars), sodium salts (reaction conditions: 1:5 molar ratio and 30 min of grinding), and pKa of the correspondent carboxylic acids (red bars).
Figure 5. Product yield for carboxylates (blue bars) and alpha-keto acids (green bars), sodium salts (reaction conditions: 1:5 molar ratio and 30 min of grinding), and pKa of the correspondent carboxylic acids (red bars).
Processes 12 01413 g005
Processes 12 01413 g006

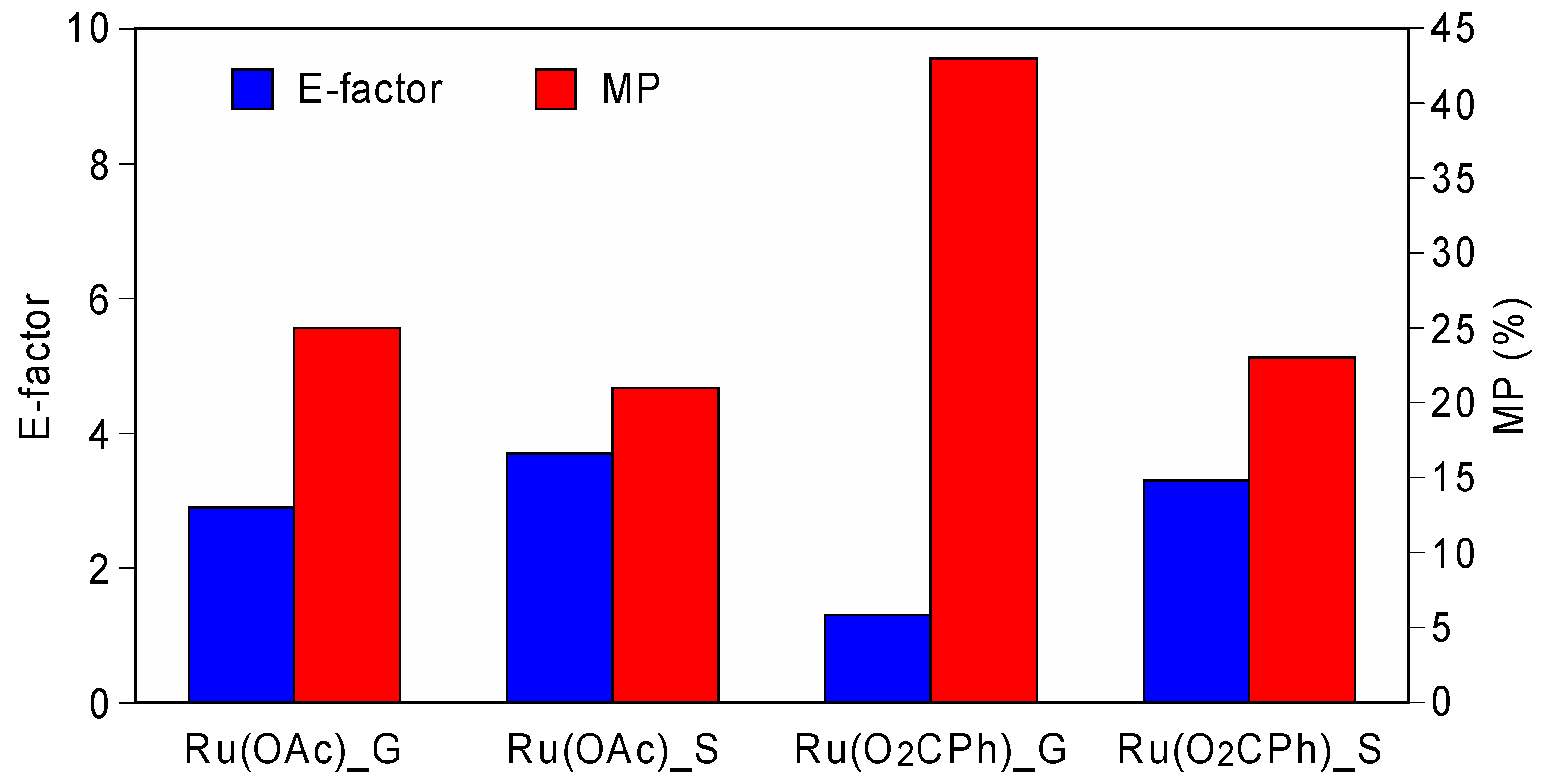

Figure 6. Comparison of E-factor and mass productivity (MP) for ruthenium acetate ([Ru(OAc)2(PPh3)2]: Ru(OAc)) and ruthenium benzoate ([Ru(O2CPh)2(PPh3)2]: Ru(O2CPh)) complexes prepared by grinding (G) route (ratio 1:10, 30 min) and by classical solution (S) procedures.
Figure 6. Comparison of E-factor and mass productivity (MP) for ruthenium acetate ([Ru(OAc)2(PPh3)2]: Ru(OAc)) and ruthenium benzoate ([Ru(O2CPh)2(PPh3)2]: Ru(O2CPh)) complexes prepared by grinding (G) route (ratio 1:10, 30 min) and by classical solution (S) procedures.
Processes 12 01413 g006
Table 1. ΔHf0 (from [52]) and product yields for alkali metal acetates.
Table 1. ΔHf0 (from [52]) and product yields for alkali metal acetates.
Alkali Metal AcetateΔfH0 MOAc
(kJ/mol)		ΔfH0 MCl
(kJ/mol)		Product Yield (%)
LiOAc−741−40940
NaOAc−709−41160
KOAc−723−43646
