Modeling Study on Heat Capacity, Viscosity, and Density of Ionic Liquid–Organic Solvent–Organic Solvent Ternary Mixtures via Machine Learning

by
You Shu
1,
Lei Du
1,
Yang Lei
1,*,
Shaobin Hu
2,
Yongchao Kuang
2,
Hongming Fang
1,
Xinyan Liu
1 and
Yuqiu Chen
3,*
1
Hubei Key Laboratory of Coal Conversion and New Carbon Materials, School of Chemistry and Chemical Engineering, Wuhan University of Science and Technology, Wuhan 430081, China
2
Hubei Energy Group Jiangling Power Generation Co., Ltd., Jiangling 434100, China
3
Department of Chemical and Biomolecular Engineering, University of Delaware, 150 Academy Street, Newark, DE 19716, USA
*
Authors to whom correspondence should be addressed.
Processes 2024, 12(7), 1420; https://doi.org/10.3390/pr12071420
Submission received: 17 May 2024 / Revised: 12 June 2024 / Accepted: 14 June 2024 / Published: 7 July 2024
(This article belongs to the Special Issue Ionic Liquids: Modeling, Design and Applications)
Browse Figures
Versions Notes

Abstract

:
Physicochemical properties of ionic liquids (ILs) are essential in solvent screening and process design. However, due to their vast diversity, acquiring IL properties through experimentation alone is both time-consuming and costly. For this reason, the creation of prediction models that can accurately forecast the characteristics of IL and its mixtures is crucial to their application. This study proposes a model for predicting the three important parameters of the IL-organic solvent–organic solvent ternary system: density, viscosity, and heat capacity. The model incorporates group contribution (GC) and machine learning (ML) methods. A link between variables such as temperature, pressure, and molecular structure is established by the model. We gathered 2775 viscosity, 6515 density, and 1057 heat capacity data points to compare the prediction accuracy of three machine learning methods, namely, artificial neural networks (ANNs), extreme gradient boosting (XGBoost), and light gradient boosting machine (LightGBM). As can be observed from the findings, the ANN model produced the best results out of the three GC-based ML methods, even though all three produced dependable predictions. For heat capacity, the mean absolute error (MAE) of the ANN model is 1.7320 and the squared correlation coefficient (R2) is 0.9929. Regarding viscosity, the MAE of the ANN model is 0.0225 and the R2 is 0.9973. For density, the MAE of the ANN model is 7.3760 and the R2 is 0.9943. The Shapley additive explanatory (SHAP) approach was applied to the study to comprehend the significance of each feature in the prediction findings. The analysis results indicated that the R-CH3 group of the ILs, followed by the imidazolium (Im) group, had the highest impact on the heat capacity property of the ternary system. On the other hand, the Im group and the R-H group of ILs had the most effects on viscosity. In terms of density, the Im group of the ILs had the greatest effect on the ternary system, followed by the molar fraction of the organic solvent.

1. Introduction

Ionic liquids (ILs) are salts composed only of ions that remain in a liquid state at room temperature or low temperatures [1]. Many ILs have demonstrated significant potential as environmentally friendly solvents in different applications [2]. Compared to traditional organic solvents and electrolytes, ILs offer a range of unique properties, garnering considerable attention. These properties, including low vapor pressure, high solubility, recyclability, and environmental friendliness [3,4,5], enable ILs to be employed in a variety of processes, including absorption [6], distillation [7], and extraction [8]. Notably, ILs occupy a vital part in chemical industry applications due to their outstanding physical and chemical characteristics [9,10]. Therefore, understanding the properties of ILs and their combinations is crucial for their effective utilization.
One of the most important thermodynamic characteristics in the construction of chemical reactors and heat exchangers is heat capacity. This parameter is crucial for the design of chemical processes, commonly utilized in thermodynamic calculations, and necessary for evaluating the heat transfer efficiency of many important chemical equipment pieces (like heat exchangers and reactors) [11,12]. Viscosity, on the other hand, reflects the internal friction that occurs when a fluid is subjected to external forces or shear stresses [13]. This property appears essential in several fields, including engineering, medicine, and petroleum [14,15,16]. Additionally, density is another important IL physical characteristic, which serves as the foundation for determining other thermodynamic parameters like viscosity and heat capacity. It is essential for energy accounting, equipment selection, and other process steps [17,18].
Even though they are steadily growing, the available experimental data on the physical and chemical characteristics of ILs are still insufficient and typically pertain to only a limited number of extensively studied ILs. Additionally, there are instances where experimental results from different sources contradict one another, leading to inconsistencies in the available data. Given the vast variety of ILs, it would not be practical to determine all their physical and chemical properties experimentally. Therefore, obtaining data on the desired properties through theoretical or empirical methods is promising. Empirical or theoretical models that can reliably predict the nature of ILs are essential for their application. To address this need, some researchers have presented predictive models, including random forest (RF) models [19], group contribution (GC)-based models [20], molecular connectivity index (MCI) models [21], and support vector regression (SVR) models [22]. The best design of a molecule may frequently be achieved by manipulating its molecular characteristics, and this is the key to making significant scientific advancements and enhancing the efficiency of process systems [23]. GC models have gained wide application due to their ease of use and their ability to incorporate computer-aided molecular design (CAMD) techniques into the prediction process [24].
To date, most modeling studies on heat capacity [25,26,27], viscosity [28,29,30], density [31,32,33,34], and conductivity [35] have concentrated on IL in its pure form, whereas only a few studies have considered binary mixtures of IL [36,37,38,39]. Predictive models for IL ternary mixtures are even fewer [40], especially for the IL-organic solvent–organic solvent ternary hybrid system, which is ductile, tunable, thermally stable, and reusable, and can be widely used in energy, biomedicine, separation, and synthesis. The wide range of applications makes this mixture a very important solvent system with great application potential. Therefore, to predict the properties of these ternary IL combinations, it has become imperative to develop trustworthy models. Most attribute models created with the GC model utilize a linear regression algorithm to associate with group numbers [41]. However, linear model formulations are not sufficient to characterize hybrid systems. The nonlinear GC model could be a wise option in this respect. The application of machine learning (ML) and artificial intelligence (AI) [42] as computer-assisted techniques for building intricate nonlinear GC models to forecast various IL characteristics has been widespread. Nowadays, ML-based algorithms like artificial neural networks (ANNs) [43,44], extreme gradient boosting (XGboost) [45,46], and light gradient boosting machines (LightGBMs) [47,48] have become popular for predicting the viscosity, density, and heat capacity of ILs in industrial processes.
Inspired by previous studies, the goal of this study is to construct a model for predicting the density, viscosity, and heat capacity of the ternary system composed of IL-organic solvent–organic solvent by combining ML with GC. The GC method is utilized with three effective ML algorithms, ANN, XGboost, and LightGBM, to create nonlinear models that forecast the heat capacity, viscosity, and density of IL-organic solvent–organic solvent combinations. All three ML-GC models’ prediction efficacy is assessed and compared. Furthermore, the Shapley additive interpretation (SHAP) [49,50] approach was applied to clarify the characteristics of the model and comprehend the impact of these features on the heat capacity, viscosity, and density of the IL ternary system mixes.

2. Investigated Data

In this work, a total of 1057 heat capacity data points covering 8 IL-organic solvent–organic solvent blend systems and 2775 viscosity data points covering 34 IL-organic solvent–organic solvent blend systems with varying temperatures, pressures, and mole fractions were collected. Additionally, density data comprising 6515 data points covering 54 IL-organic solvent–organic solvent blend systems were collected. For heat capacity, the data points were randomly divided into 741 for training, 159 for validation, and 159 for testing. Likewise, viscosity data points were divided into 1949 for training, 414 for validation, and 414 for testing. Similarly, density data points were divided into 4555 for training, 981 for validation, and 981 for testing. Primary information about the collected heat capacity data is provided in Table 1, the collected viscosity data in Table 2, and the collected density data in Table 3. For details on heat capacity, viscosity, and density data points, please refer to Table S1.

3. Method

3.1. GC Method

For GC-based modeling studies, IL molecules are divided into three types of functional groups: cationic backbone, anionic, and side substituents on the cationic backbone. Using this decomposition method, a total of one cationic backbone, one anion, and four substituents were identified from the ILs associated with the heat capacity data. Organic solvents, on the other hand, are split into five functional groups. Similarly, one cationic backbone, nine anions, and four substituents were obtained from the ILs associated with the viscosity data. The organic solvent is divided into 22 functional groups. From the ILs associated with the density data, 3 cationic backbones, 12 anions, and 5 substituents are obtained. Likewise, we categorize organic solvents into 28 functional groups. It is worth noting that some of the groups split from ILs and organics in the IL-OS-OS ternary system are the same; however, they belong to different feature dimensions in the model input. More detailed information can be found in Table 4, Table 5 and Table 6.

3.2. ANN Algorithm

Artificial neural networks (ANNs) are networks created to resemble the biological nervous system of the animal brain. This network mimics the functioning of brain neurons using nodes known as artificial neurons. As shown in Figure 1, it stands out due to its multi-layered structure, which typically consists of several nodes in each of the input, output, and hidden layers. The operation of ANN is mainly based on mathematical calculations between neurons, starting from the input layer and eventually passing to the output layer.

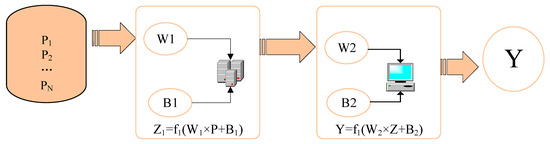

The data to be processed are received via the input layer, including temperature, pressure, and divided groups of organic solvents and IL. The hidden layer is denoted by W1 and the output layer by W2. B1 and B2 represent the bias parameters of the output layer and hidden layer, respectively. The input data are analyzed from the hidden layer and sent to the output layer after the weights and biases have been modified to fit the data. Improved predictions can be obtained by altering the neuron count of the hidden layer. Increasing the number of ANN neurons may result in overfitting, insufficient training data, neurons interfering with each other, and unreasonable structure. Therefore, when increasing the number of ANN neurons, it is necessary to consider the characteristics of the data, the complexity of the model, the amount of training data, and a reasonable structural setup to obtain the best performance and results. Equations (1) and (2) determine the output of Y and Z1.
Z 1 = f 1 W 1 P + B 1
  Y = f 2 W 2 Z 1 + B 2
In the ANN framework, P denotes the vector representation of each substance. The data are converted into P-vectors by the input layer, and these are further processed employing Equations (1) and (2) to propagate the outcomes via the output and hidden layers, respectively. The ANN estimates the difference between the predicted and actual outputs during training, dynamically adjusting the weights (W1, W2) and biases (B1, B2) of the neurons in the hidden and output layers.
In the hidden layer, every neuron has a corresponding activation function. The expectation value is calculated by optimizing the activation function and sent to later neurons for additional processing. In this study, the hidden layer utilizes the hyperbolic tangent function (tansig, Equation (3)) as the activation function, while the output layer employs the purelin transfer function (Equation (4)).
f 1 x = 2 1 + e − 2 x
f 2 x = x

3.3. XGBoost

XGBoost is a machine learning technique particularly adept at handling regression and classification tasks. It has become one of the most popular and powerful algorithms in the field of machine learning, progressively improving prediction performance by iteratively training a sequence of decision trees within a gradient-boosting framework. The objective of XGBoost is to minimize the error between anticipated and actual values by optimizing the loss function.
XGBoost combines multiple weak learners, typically decision trees, to create stronger predictive models. It achieves more accurate forecasts by weighting the predictions of each decision tree. The objective function of XGBoost comprises a regularization term and a loss function. As an additive model, the predicted value of the model for the T tree and the i sample is represented in Equation (5).
Y ^ i T = ∑ k = 1 T f k x i = y ^ T − 1 + f T x i
where y ^ i ( t ) is the prediction for sample i after the t iteration; y ^ i ( t − 1 ) is the prediction for the T − 1 tree; and f t x i is the model prediction for the T tree. For the i sample, the final predicted value is represented in Equation (6).
y ^ i ( T ) = ∑ j = 1 T f t x i
In step, the original objective function is obtained as follows.
O b j = ∑ n = 1 n l y i , y ^ i + ∑ j = 1 t Ω f j
In summary, XGBoost employs a similar approach to CART regression trees, utilizing a greedy algorithm that evaluates all possible feature splits at each node. However, it differs in its objective function. Instead of solely maximizing the gain of the objective function for each split, XGBoost considers the relative improvement in the objective function value compared to the gain of the singleton leaf child node. Additionally, to prevent overfitting and limit tree depth, a threshold is introduced, ensuring that splitting occurs only when the gain exceeds this threshold. The process iterates, forming a tree by recursively selecting optimal splits until a stopping criterion is met, thus optimizing the predictive performance of the model.
In this paper, parameter optimization is performed on the XGBoost model. A combination of classes and functions from the XGBoost and scikit-learn libraries were used for grid search and hyper-parameter tuning to tune the parameters and improve the fit for the three properties.

3.4. LightGBM

Combining decision trees and gradient boosting, the gradient boosting decision tree (GBDT) is an integrated classification algorithm known for its strong generalization capabilities and ease of visualization. However, it faces challenges of low efficiency and poor scalability when dealing with large datasets or high-dimensional features. In 2017, Microsoft proposed LightGBM as an approach to enhance the processing speed of GBDT for complex data. LightGBM represents an evolutionary iteration of GBDT, building upon its classic version. Notably, it incorporates optimization techniques such as the feature bundling algorithm (EFB), gradient-based, single-sided sampling method (GOSS), and growth strategy for tree building based on the leaf-wise algorithm.
By adopting the leaf-wise algorithm for tree growth strategy, unnecessary computations are avoided and errors minimized. The GOSS algorithm initially sorts the data based on the absolute value of the data gradient, preserving samples with significant gradients that contribute more to information gain, while randomly sampling the remaining less influential samples. This reduction in data volume maintains the original data distribution, ensuring accurate evaluation of information gain and enhancing model classification speed effectively. Through the combination of mutually exclusive features using the EFB algorithm, new features are generated, leading to reduced data feature dimensionality and improved operational efficiency of the model. The mathematical definition of LightGBM is represented in Equation (8), where f t x represents the regression tree.
Y t = ∑ h = 1 T f t x
The parameters of LightGBM model are also optimized in this paper. We use classes and functions from LightGBM and scikit-learn libraries for grid search and hyperparameter tuning to optimize parameters and enhance model fitting.

3.5. Model Evaluation Methods

Selecting the appropriate evaluation method is crucial for confirming the accuracy of the model. Evaluation techniques such as mean absolute error (MAE) and coefficient of determination (R2) are commonly used to precisely assess the accuracy and stability of regression models. In addition, the relative errors (REs) between the experimental values and the predicted values are calculated in the article and a comparison chart is made to compare the accuracy of the model more intuitively.
The MAE is determined by calculating the absolute deviation of all predicted values, providing an accurate reflection of the actual prediction error. The calculation process of MAE is shown in Equation (9):
M A E = 1 N ∑ I = 1 N σ I = 1 e x p − σ I = 1 c a l
where σ I = 1 e x p is the experimental value and σ I = 1 c a l is the predicted value.
R2 assesses how well the model explains changes in dependent variables based on changes in independent variables. It is calculated using Equation (10):
R 2 = 1 − ∑ I = 1 N σ I = 1 e x p − σ I = 1 c a l 2 ∑ I = 1 N σ I = 1 e x p − σ ¯ 2
where σ I = 1 e x p is the experimental value, σ I = 1 c a l is the predicted value, σ ¯ is the mean of the experimental value, ∑ I = 1 N σ I = 1 e x p − σ I = 1 c a l 2 is the error generated by the prediction, and ∑ I = 1 N σ I = 1 e x p − σ ¯ 2 is the error generated by the mean.
RE is the value of the error obtained by dividing the difference between the measured and exact values by the exact value, usually expressed as a percentage. It can be calculated using Equation (11).
R E = σ I = 1 e x p − σ I = 1 c a l σ I = 1 e x p
where σ I = 1 e x p is the experimental value and σ I = 1 c a l is the predicted value.

3.6. SHAP Interpretation

Using SHAP, a method for understanding model output that considers feature interactions and calculates each feature variable’s contribution to the overall projected outcome, enhances the interpretability of a machine learning model. By analyzing the SHAP value of each feature in each sample, we can determine the degree of contribution of each feature to the anticipated result. This is based on the understanding that the predicted value of the model results from the collaboration of input features. Equation (11) is utilized to compute the Shapley value.
∅ j ^ = 1 K ∑ K = 1 K g ^ x + j m − g ^ x − j m

4. Results and Discussions

The collected data were divided into training, validation, and test sets at 75%, 15%, and 15%, respectively, before commencing the modeling study, and the three sets of data were subsequently normalized to mitigate any negative effects of certain data. Through this training process, a set of predicted data is generated, and their relative error values are calculated by comparing them with the experimental data. Data points with significant errors are eliminated to enhance the reliability of the dataset. Further details are provided in the subsequent subsections. In the present study, one method to optimize the ANN model involves increasing the number of neurons in the hidden layer from 1 to 20. Model performance is assessed using metrics such as MAE and R2, where a higher R2 and lower MAE indicate superior model performance.

4.1. Heat Capacity

Table 7 demonstrates the predictive performance of the GC model for heat capacity in IL ternary mixtures using three different methods. Table 8 represents the comparison of prediction performance before and after XGBoost and lightGBM tuning parameters. All three models achieve R2 values of at least 0.9, indicating their ability to provide accurate predictions, as depicted in the table. From Table 8, it can be seen that the prediction accuracy of XGBoost and LightGBM has been improved after parameter tuning. Notably, ANN exhibits the highest accuracy in prediction both in comparison with XGBoost and LightGBM pre-tuning and post-tuning. Notably, the ANN exhibits the highest accuracy in forecasting, while XGBoost and LightGBM show slightly inferior performance. Further details on the computational time required for each algorithm are provided in Table 7. XGBoost requires the least amount of time, whereas ANN necessitates the most processing time. In addition, we compare the fit of the training set of the three ML methods with that calculated using the GC method of the linear model. The MAE and R2 calculated using the GC method with the linear model are 2.0908 and 0.9942. All three ML methods can be seen to be superior to the GC method calculations using a linear model.

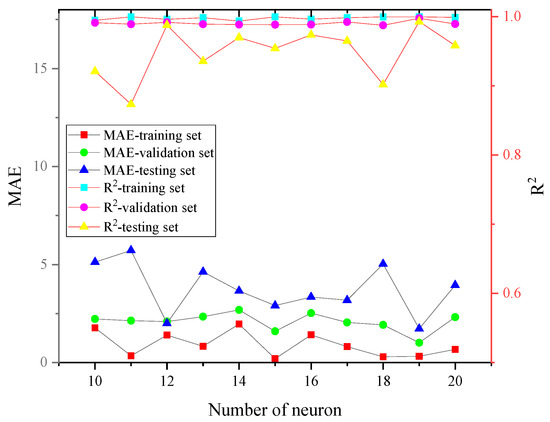

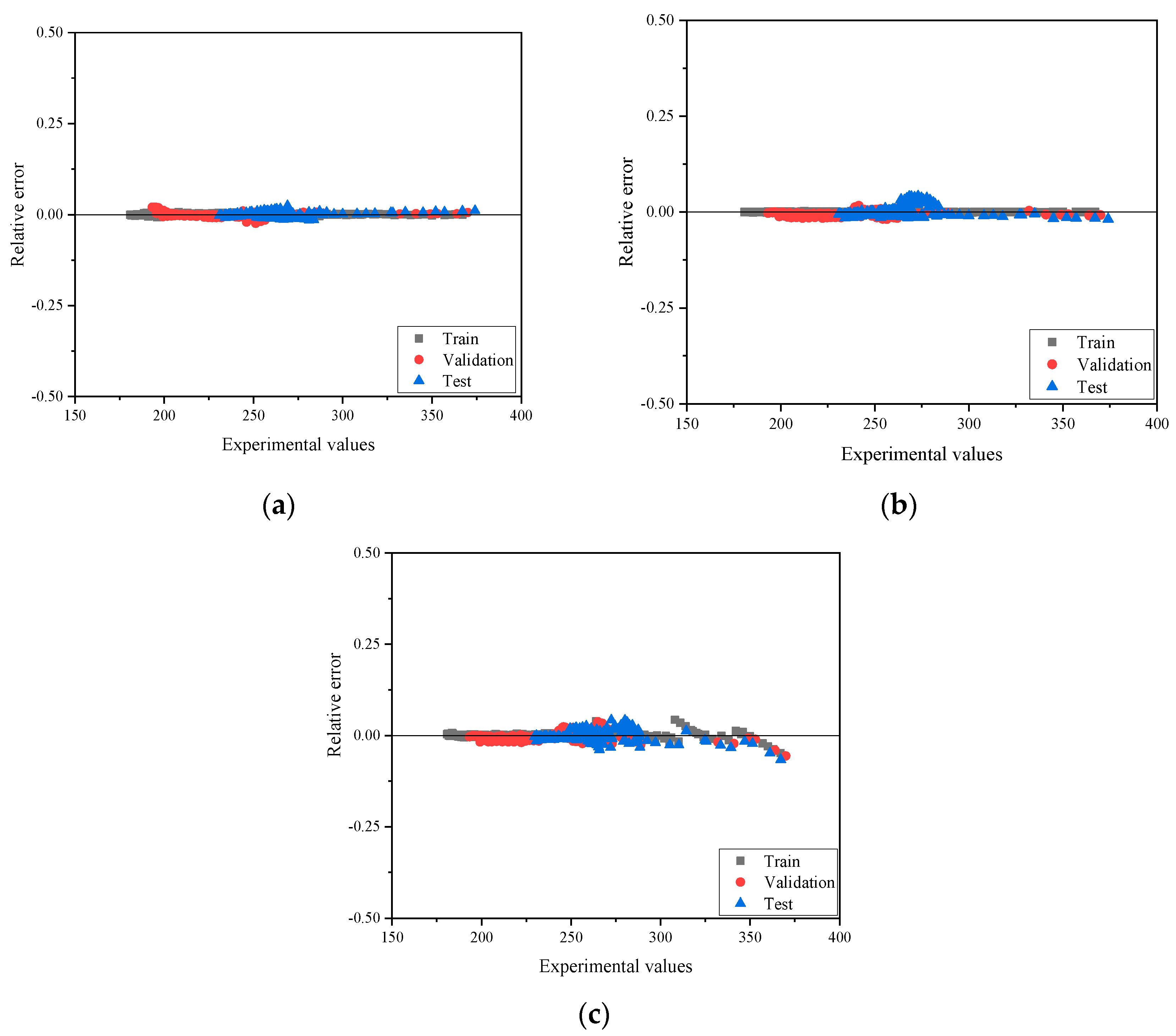

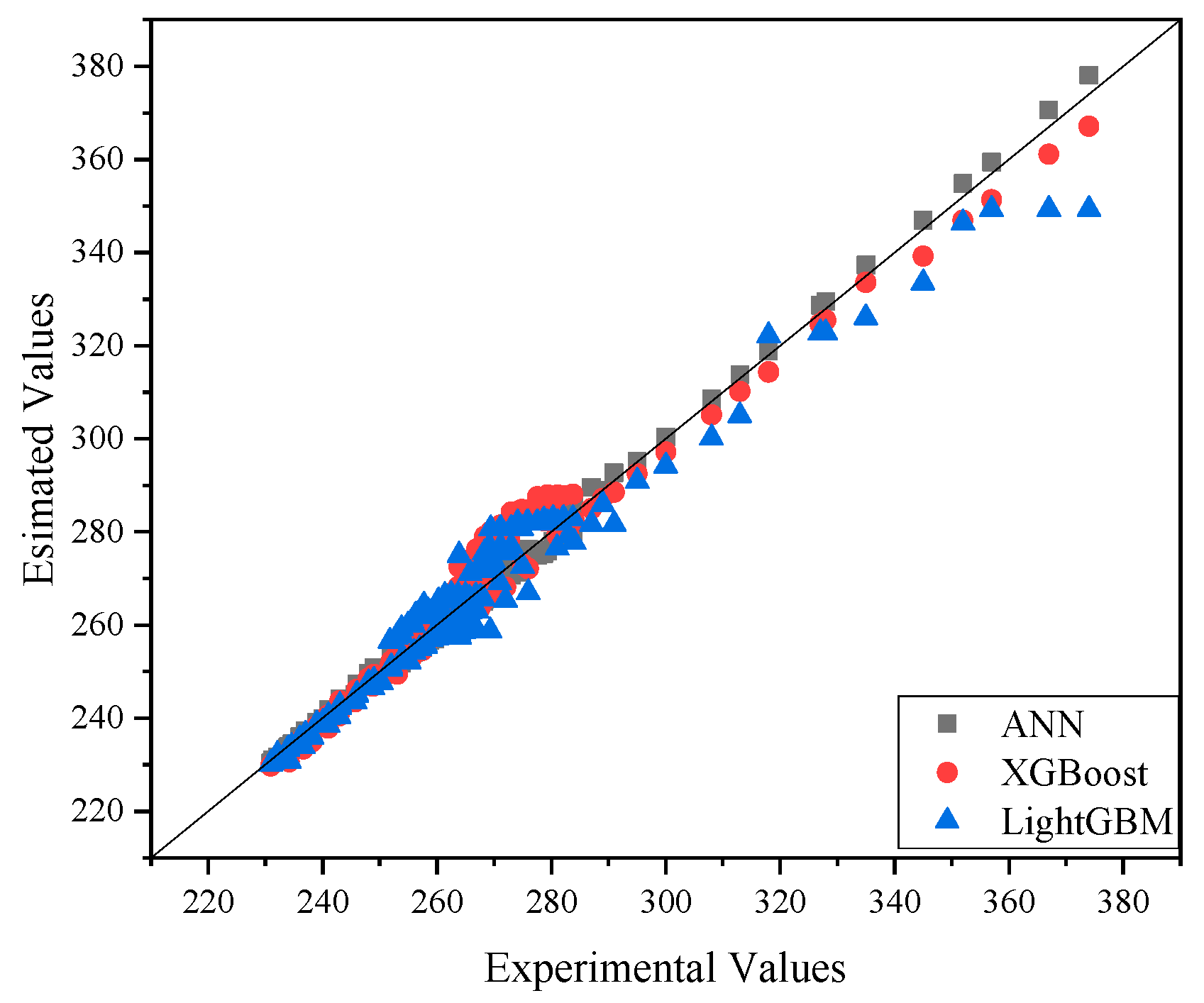

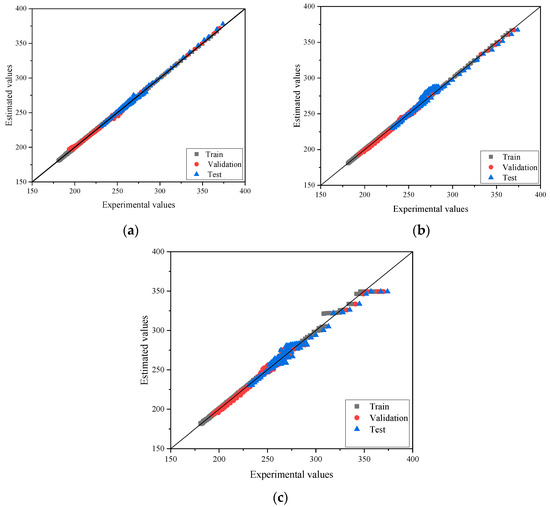

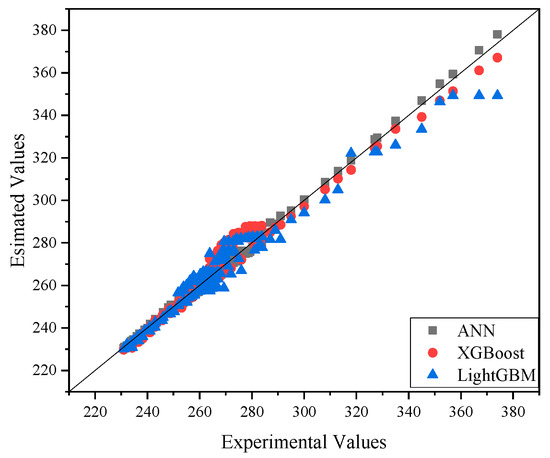

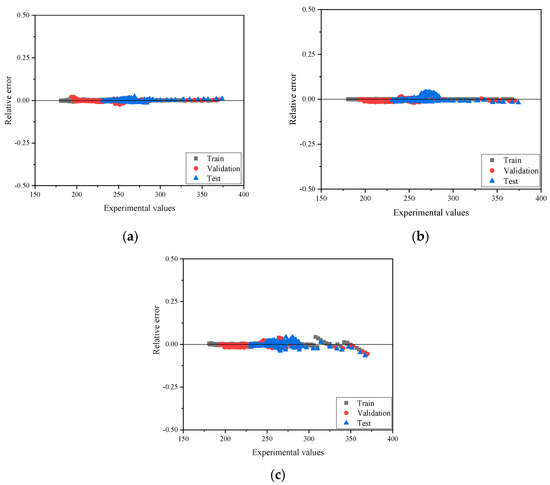

When utilizing 19 neurons in the hidden layer, as illustrated in Figure 2, the ANN-based GC model provides the most accurate estimation of heat capacity. Figure 3a–c and Figure 4 provide a comprehensive overview of the predictions generated by the different algorithms, comparing the predicted and experimental values of the GC models using three distinct techniques. The data distribution reveals that most data points tend to cluster along a diagonal line, indicating the high accuracy of these nonlinear algorithms in predicting the heat capacity of IL ternary mixtures. In Figure 5a–c, the relative error between the experimental and predicted values of the GC model using the three approaches is depicted. For the majority of data points, particularly in the model employing the ANN algorithm, the relative errors are minimal. This underscores the effectiveness of ANN in predicting the heat capacity of ternary systems composed of IL-organic solvent–organic solvent.

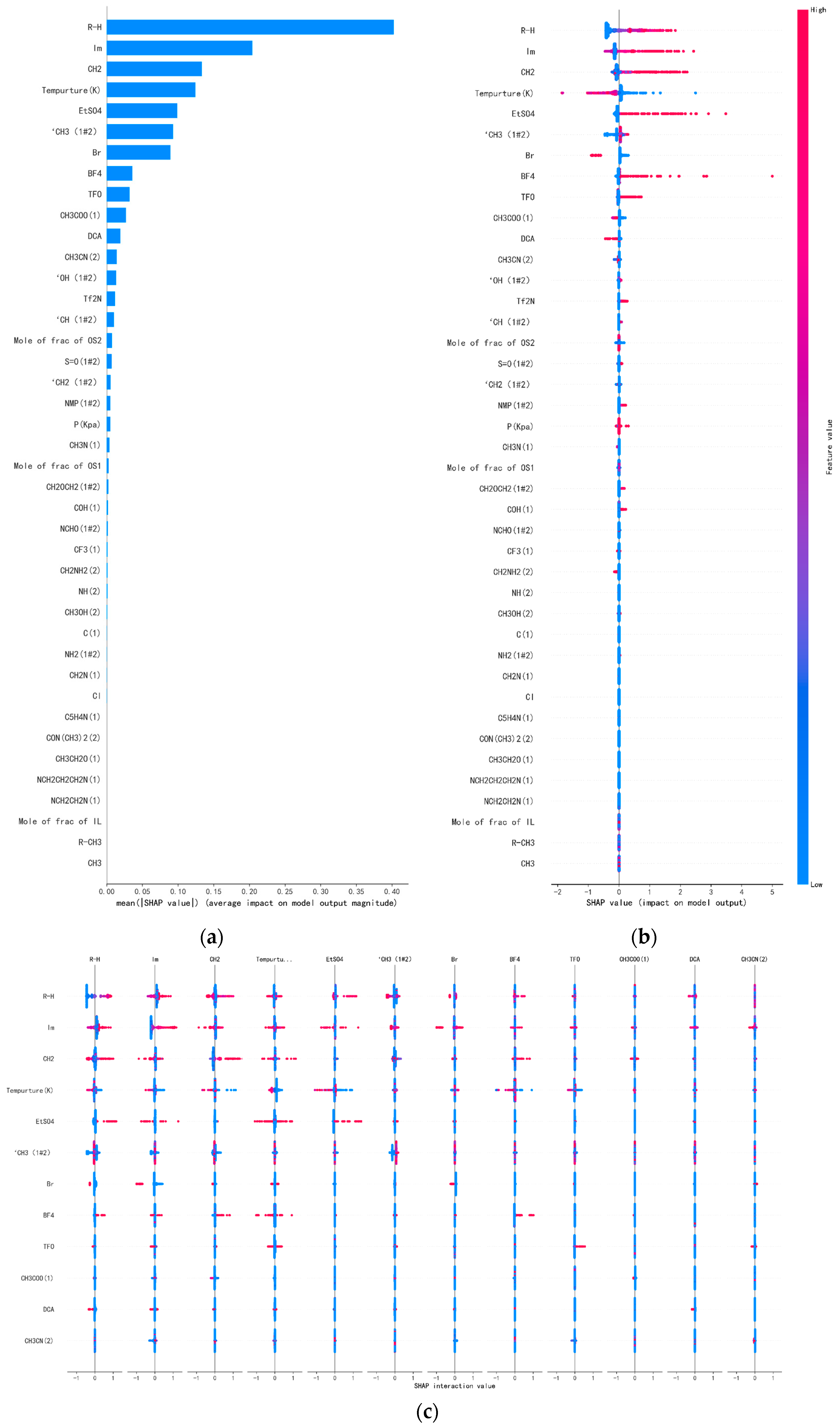

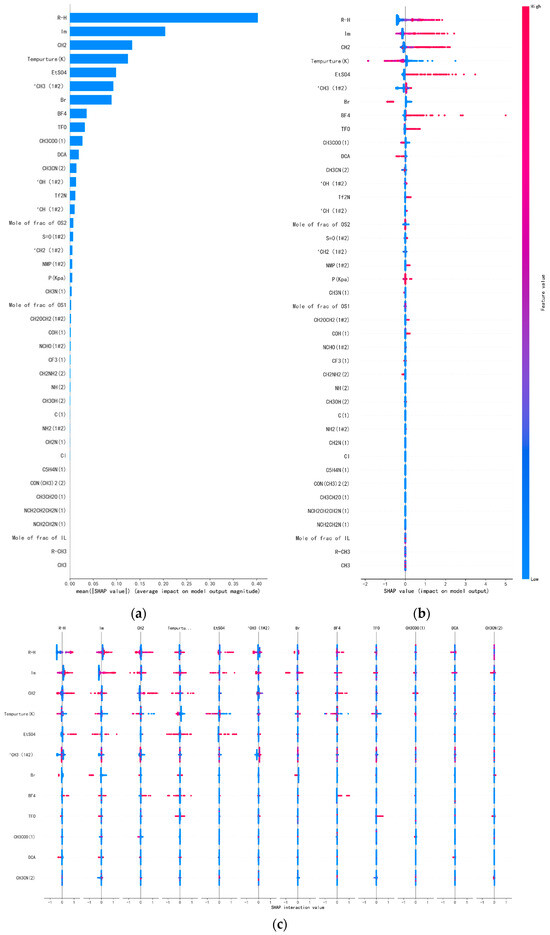

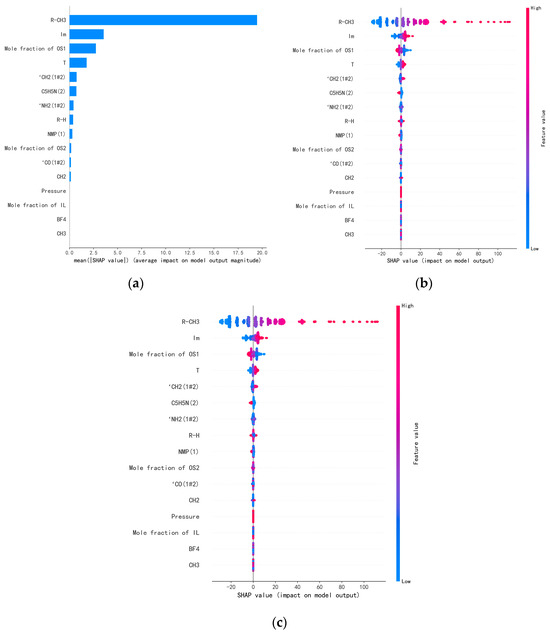

A SHAP analysis was conducted for each feature to explore its effect on the heat capacity of the IL ternary mixture. The results of the SHAP analysis for heat capacity prediction are depicted in Figure 6a,b, while Figure 6c illustrates the degree of interaction between the influencing elements. According to the findings, the CH3 group has minimal impact on the heat capacity of these ternary mixtures, whereas the R-CH3 group of the ILs exerts the most significant influence. This underscores the importance of distinguishing between the CH3 and R-CH3 groups during group division. Additionally, the imidazolium (Im) group of Ils exhibits the second-largest effect after the R-CH3 group of Ils. These results suggest that the presence of Ils has a more pronounced impact on the total heat capacity in mixed systems, as Ils generally possess higher heat capacities than organic solvents.
These findings demonstrate the effectiveness of the GC approach in describing ILs and their heat capacity characteristics. The SHAP interaction value plot reveals the influence of combining two pairs of components on the prediction, with off-diagonal locations indicating this impact. Specifically, the presence of the R-CH3 and Im groups of the Ils had the most significant impact on the predictions, as indicated by the charts. Overall, the SHAP studies provide valuable insights into the independent and combined effects of various parameters on the heat capacity of IL-ternary mixtures.

4.2. Viscosity

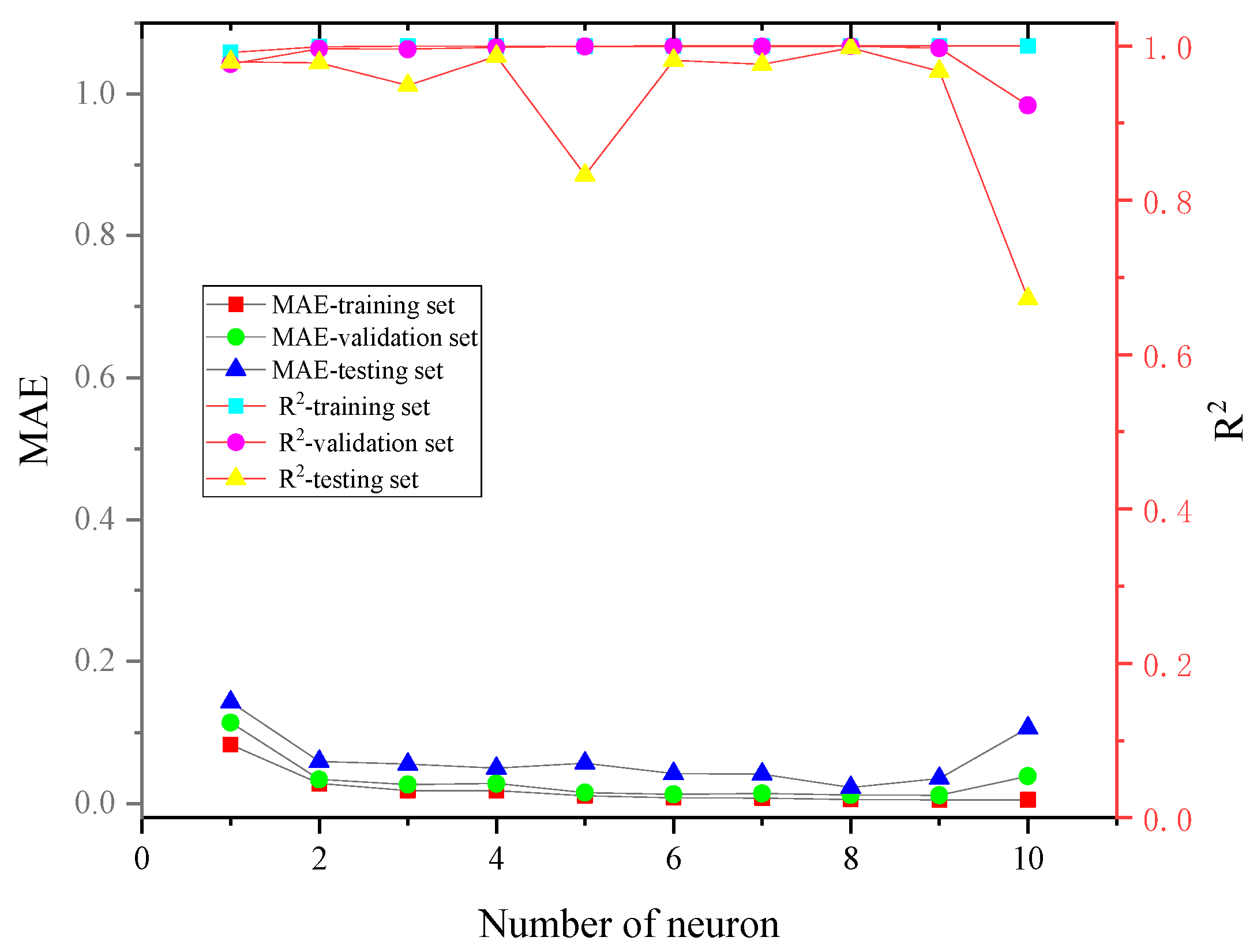

During the iterations of the ANN hidden layer, the ANN achieves the most accurate viscosity prediction with eight neurons, as illustrated in Figure 7. Similar to heat capacity prediction, the ANN-based GC model outperforms XGBoost and LightGBM in viscosity prediction. Table 9 demonstrates the effectiveness of the GC model in predicting heat capacity for IL ternary mixtures using three different methods, confirming the accuracy of GC models in estimating viscosity for ternary mixtures. It is worth noting that ANN requires more computing time compared to the other two methods, despite its superior prediction performance. Table 10 shows the comparison results before and after the parameter tuning of the XGBoost and LightGBM models in viscosity prediction. It can be seen that after tuning, although the fit is improved, it is still not as good as the prediction accuracy of ANN. This further illustrates the superiority of ANN in predicting the viscosity properties of the IL-organic solvent–organic solvent ternary system. Additionally, the linear model-based GC method for predicting viscosity properties yields an MAE of 0.1180 and an R² of 0.8874. One can see that the prediction accuracy is much lower than that of the three ML-based models.

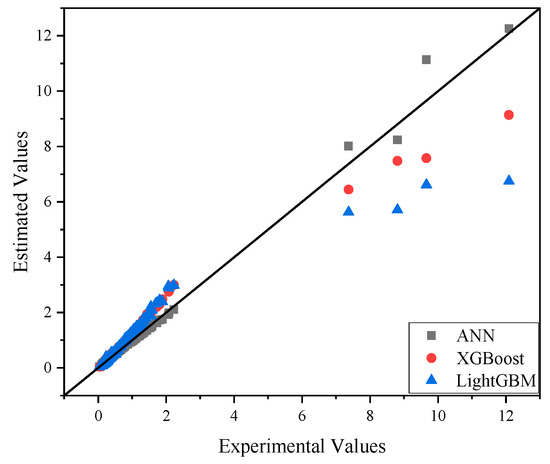

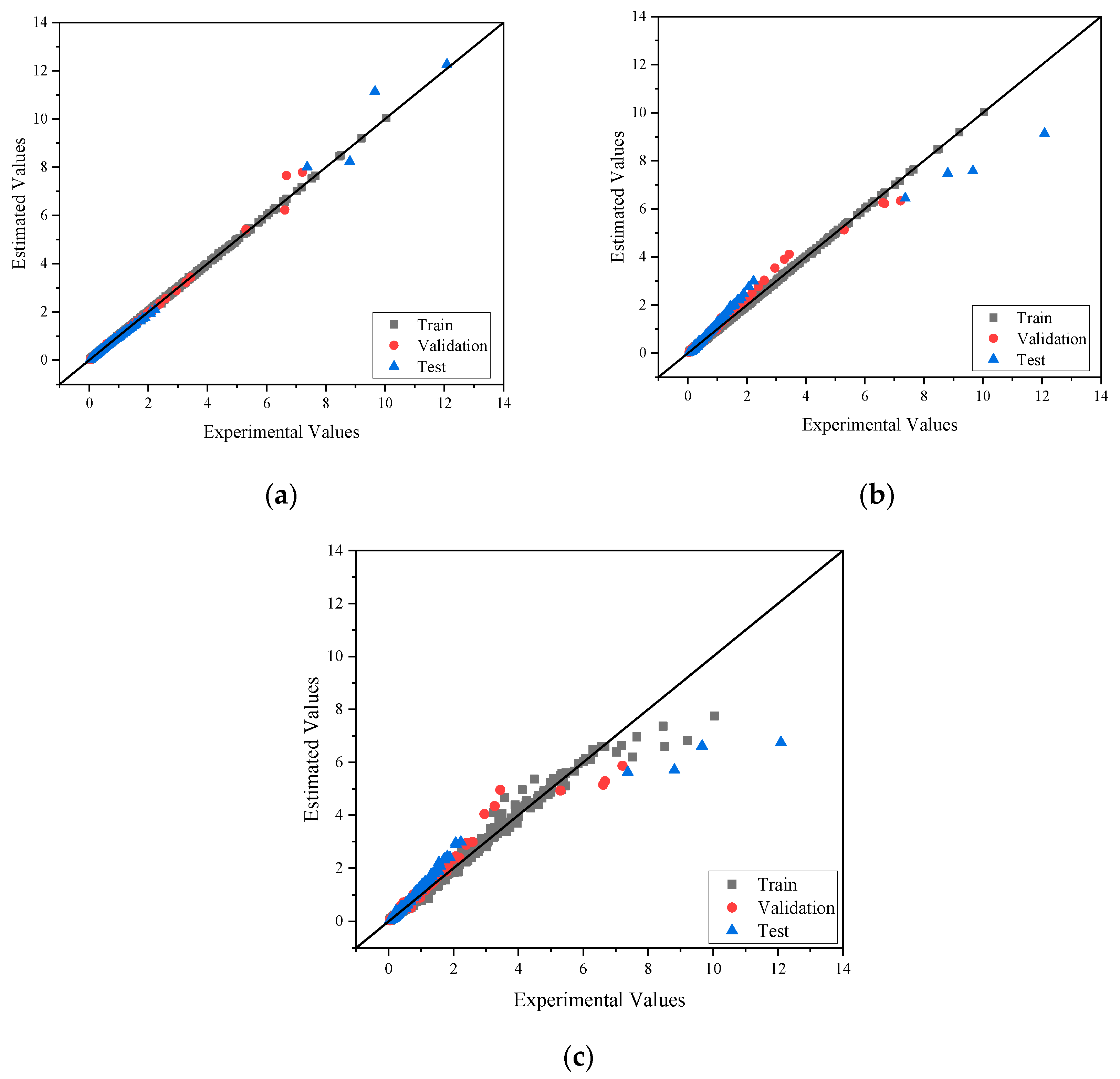

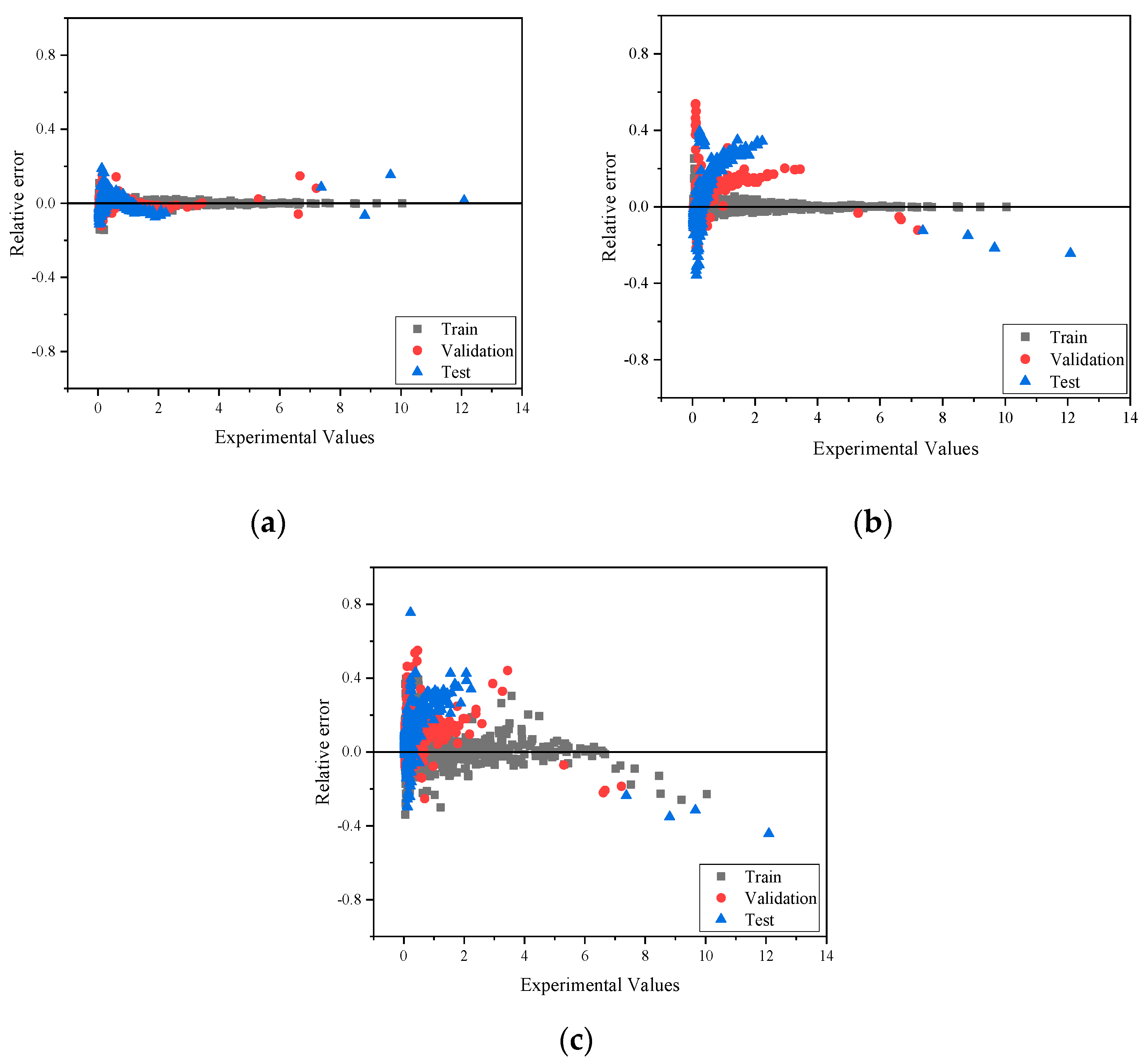

The projected values generated by the ANN, XGBoost, and LightGBM algorithms are compared with the experimental values in Figure 8a–c to illustrate the prediction outcomes of the models. Additionally, Figure 9 presents the comparison between the predicted and experimental results for each of the three algorithm test sets. In Figure 8a–c, the data points are mostly concentrated near the diagonal line, indicating a strong fit with these prediction algorithms. However, LightGBM shows slightly more dispersion. This suggests a high level of agreement between the predictions and observations, further validating the reliability of these prediction algorithms. Furthermore, Figure 10 clearly demonstrates that compared to the other two methods, the ANN approach yields the lowest error, indicating its capability to accurately predict the viscosity of the ternary mixing system. According to the viscosity SHAP plot in Figure 11, it is evident that the Im and R-H groups are the main factors influencing viscosity, with viscosity increasing with higher levels of the Im and R-H groups.

4.3. Density

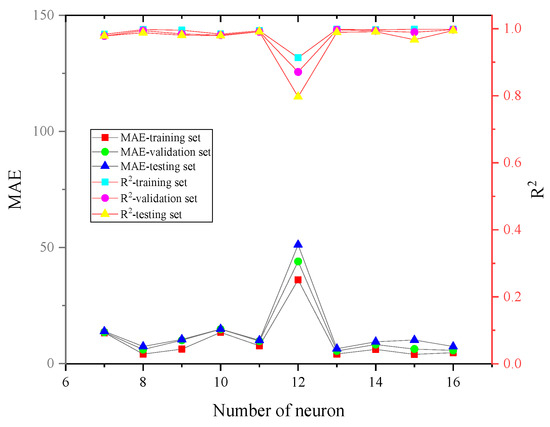

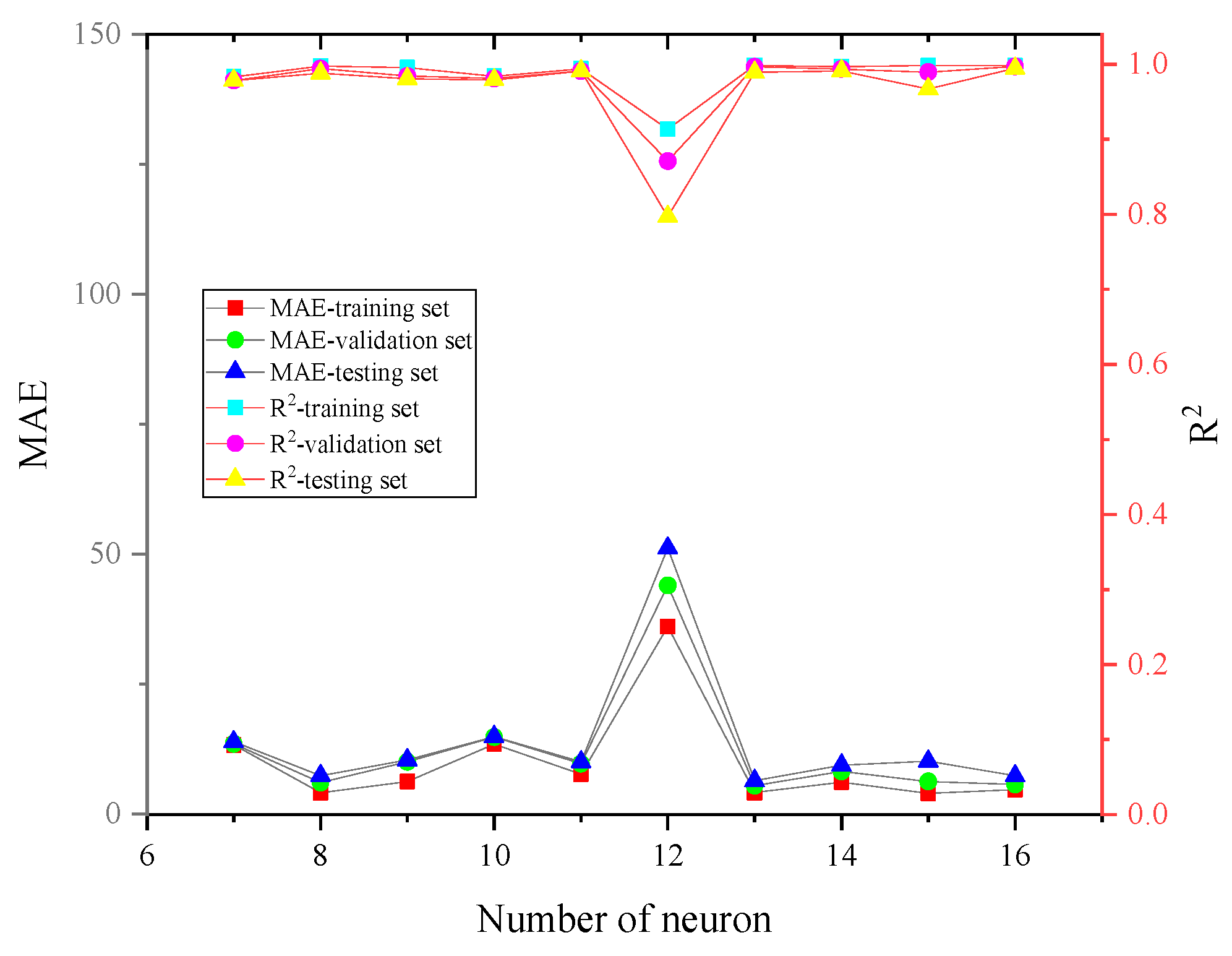

The most accurate density predictions were achieved with the 16th neuron in the hidden layer, as demonstrated by iterative training in Figure 12. Table 11 provides a comparative analysis of prediction performance and computation time for each model. The table illustrates that the ANN model excels, surpassing the other two techniques with R2 values exceeding 0.99 for every dataset. The comparative results before and after parameter optimization in density prediction for the XGBoost and LightGBM models are shown in Table 12. After tuning, both XGBoost and LightGBM achieve R² values above 0.99 on each dataset, and LightGBM’s prediction accuracy slightly exceeds that of ANN, indicating their predictive potential. However, tuning XGBoost and LightGBM takes longer due to the larger density dataset. Therefore, the selection of algorithms should be based on specific requirements in real production scenarios. Meanwhile, the MAE and R² values of the linear model-based GC method for predicting the density properties are 27.9713 and 0.9109, respectively, and the prediction accuracies are likewise much lower than those of the three ML-based models.

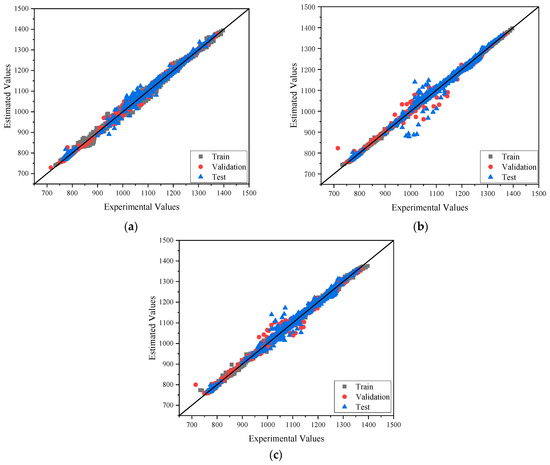

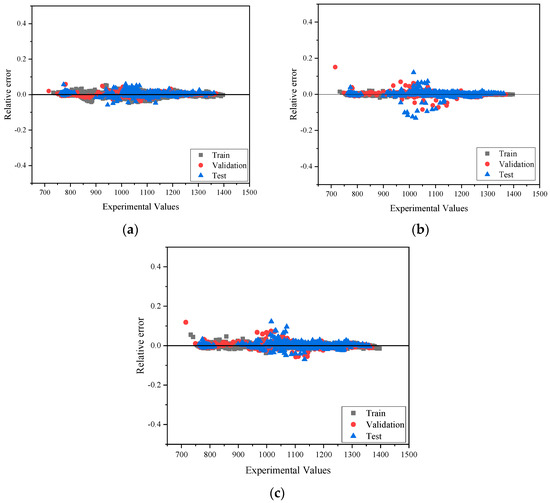

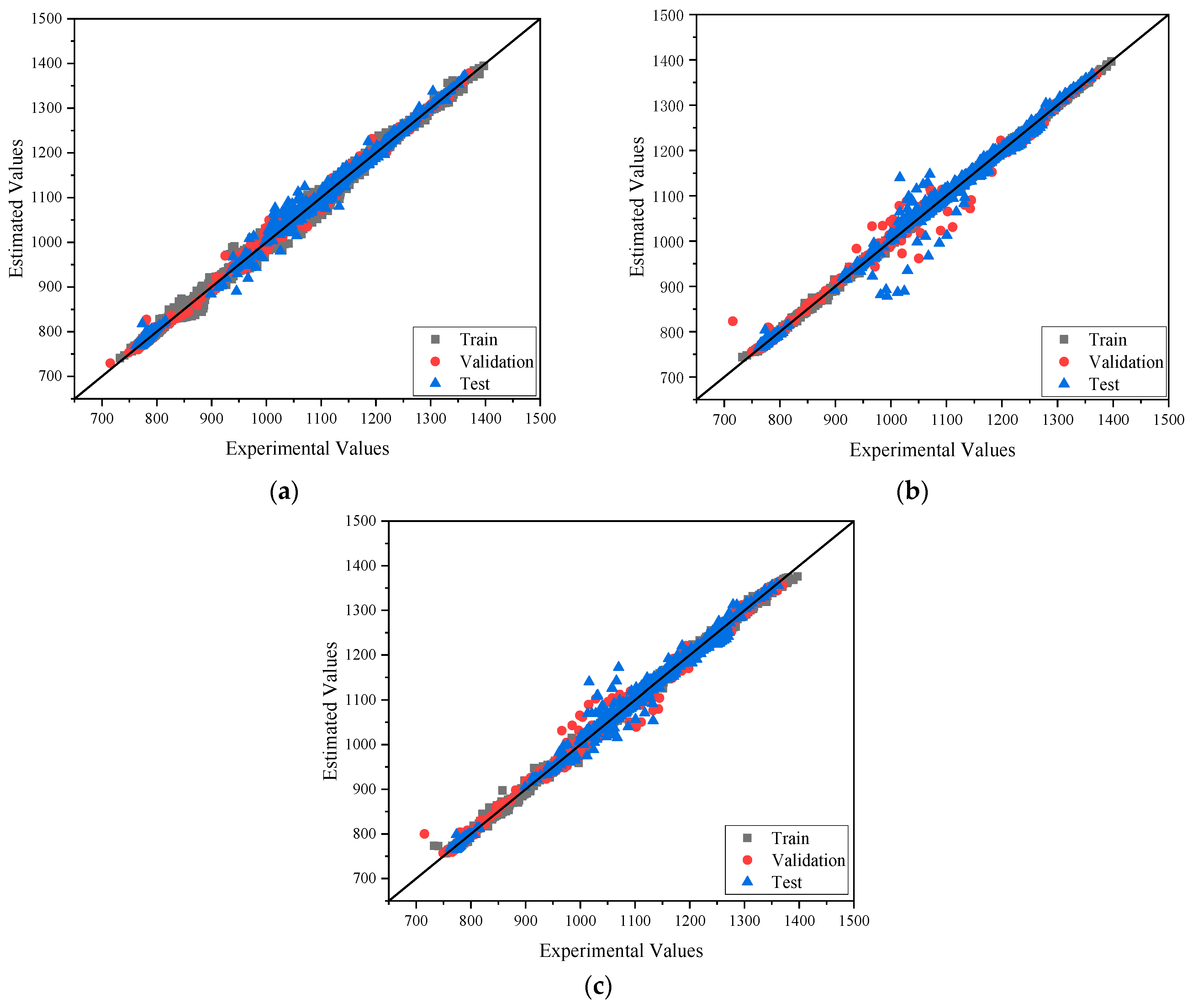

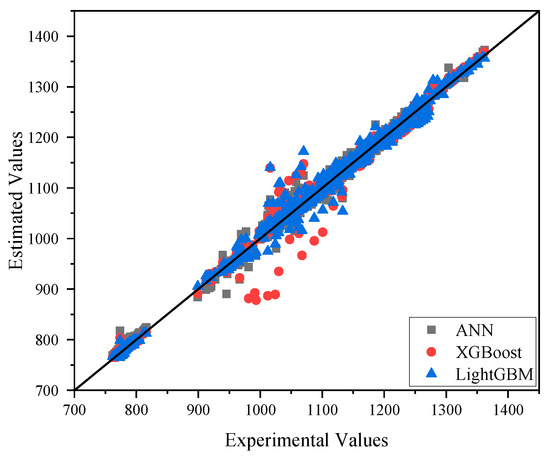

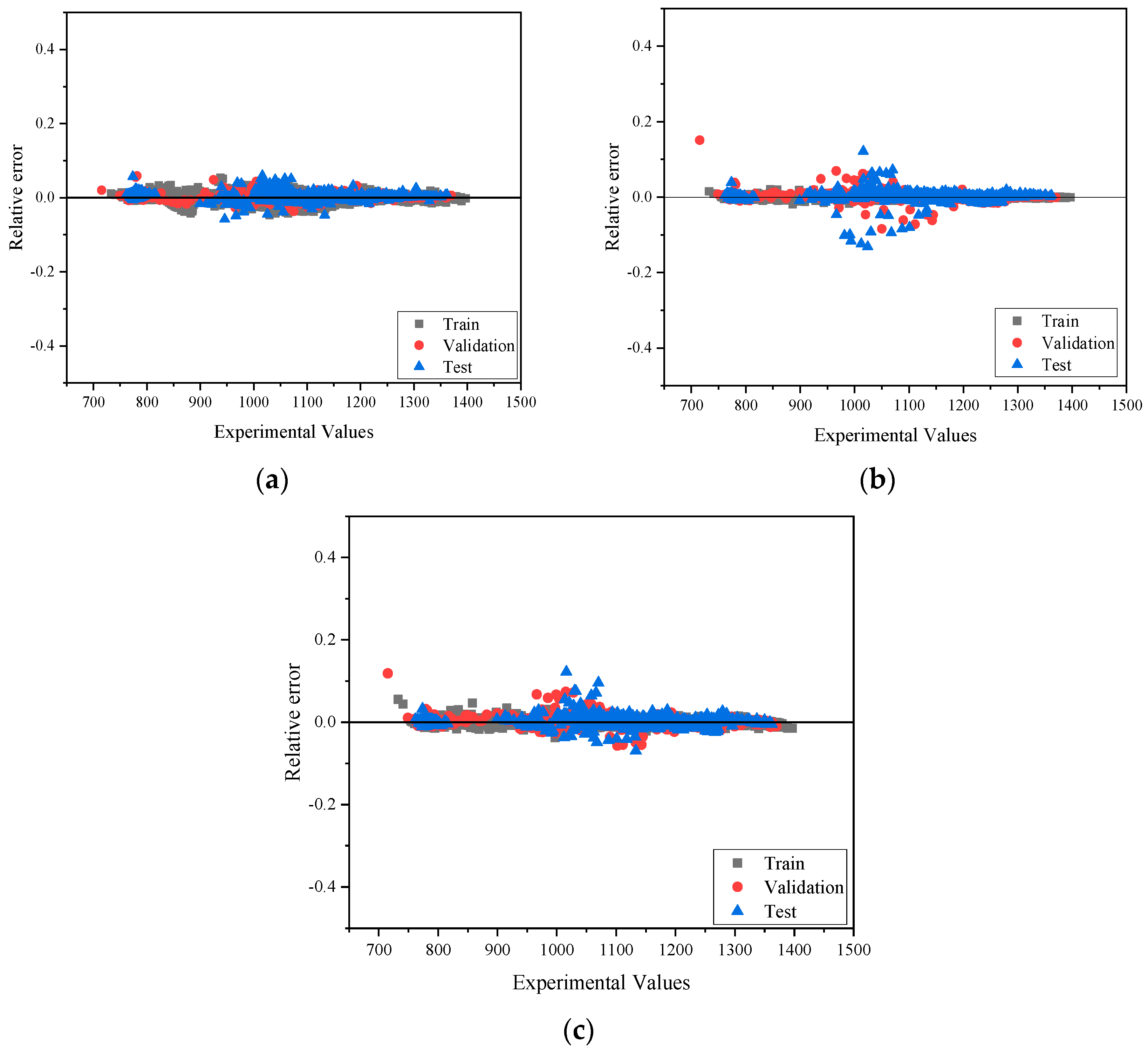

Figure 13 and Figure 14 illustrate a comparison of the three algorithms in terms of their goodness of fit and prediction capabilities. Clearly, ANN provides a better prediction performance compared to the other algorithms. Figure 15 displays the relative error between the experimental and predicted values, revealing that most errors are within 10%, with only a few data points having errors beyond 10%. These figures demonstrate that the most accurate prediction outcomes are obtained from the ANN algorithm. Furthermore, Figure 16 presents the density SHAP diagram, revealing that the Im group within IL has the greatest influence on density. Moreover, it indicates that a higher concentration of Im leads to higher density, followed by the mole fraction of organic solvent, where a higher concentration results in lower density.

5. Conclusions

In this study, the GC approach is integrated with three machine learning methods (ANN, XGBoost, and LightGBM) to construct prediction models for density, viscosity, and the heat capacity of ternary IL-organic solvent–organic solvent mixtures. The modeling outcomes affirm the reliability and accuracy of the GC model, which leverages all three machine learning algorithms employed in this research. Particularly, the ANN-based GC model with optimized hidden layer neurons exhibits the best performance, achieving a density fit of 0.9998, a viscosity fit of 0.9999, and a heat capacity fit of 0.9989. These findings underscore the efficacy of ANN in predictive modeling of IL-organic solvent–organic solvent ternary mixture properties. Furthermore, SHAP analyses reveal that the functional groups R-CH3 and Im in IL exert the greatest influence on heat capacity, while viscosity is predominantly affected by the R-H and Im groups. Density, on the other hand, is most influenced by the Im groups and the molar fraction of the second organic solvent. These SHAP insights offer valuable guidance for understanding the key factors shaping the properties of IL-organic solvent mixtures. The machine learning-based GC models developed in this study hold promise for enhancing process calculations and equipment design accuracy in systems containing such mixtures. Additionally, the SHAP analysis results provide valuable insights for designing IL-organic solvent–organic solvent blends, which could find wide-ranging applications across various industries. In conclusion, this research contributes to advancing the understanding and optimization of IL-based processes and their diverse applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pr12071420/s1, Table S1 presents the heat capacity, viscosity, and density data set for IL-organic solvent–organic solvent systems. Table S2 summarizes the abbreviations and names of all the ILs involved. Table S3 concludes the experimental data for the heat capacity of all IL-organic solvent–organic solvent mixtures. Table S4 shows the experimental data for the viscosity of all IL-organic solvent–organic solvent mixtures. Table S5 summarizes the experimental data for the density of all IL-organic solvent–organic solvent mixtures. Table S6 provides the dataset used for the ML-GC model of all IL-organic solvent–organic solvent mixtures in heat capacity. Table S7 summarizes the dataset used for the ML-GC model of all IL-organic solvent–organic solvent mixtures in viscosity. Table S8 concludes the dataset used for the ML-GC model of all IL-organic solvent–organic solvent mixtures in density. Table S9 summarizes the optimized parameters for the ANN-GC model in heat capacity prediction. Table S10 concludes the optimized parameters for the ANN-GC model in viscosity prediction. Table S11 provides the optimized parameters for the ANN-GC model in density prediction.

Author Contributions

Conceptualization, Y.C.; Methodology, Y.L. and Y.C.; Validation, L.D.; Formal analysis, Y.K.; Investigation, Y.L. and S.H.; Resources, H.F.; Data curation, X.L.; Writing—original draft, Y.S.; Writing—review & editing, Y.C.; Supervision, Y.L. and Y.C.; Funding acquisition, Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

The authors gratefully acknowledge the financial support from Science and Technology Major Project of Wuhan (2023020302020572) and the National Natural Science Foundation of China (21706198).

Data Availability Statement

The data used in this work are mainly obtained from the NIST standard reference database. The data supporting reported results can be found in Tables S6–S8.

Conflicts of Interest

Authors Shaobin Hu and Yongchao Kuang were employed by the company Hubei Energy Group Jiangling Power Generation Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
