Helium Geochemical Characteristics and Favorable Zones in the Tarim Basin: Implications for Helium Exploration

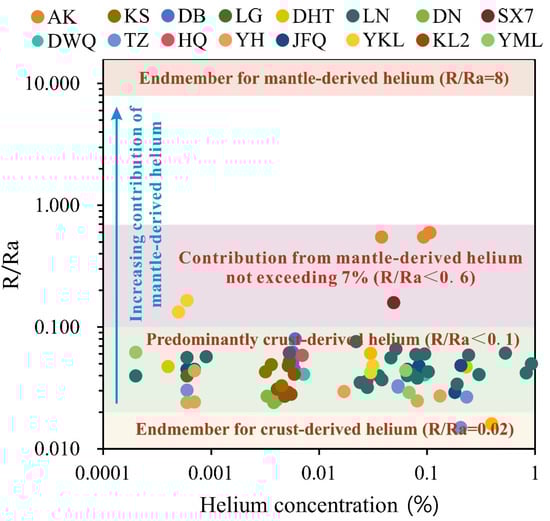

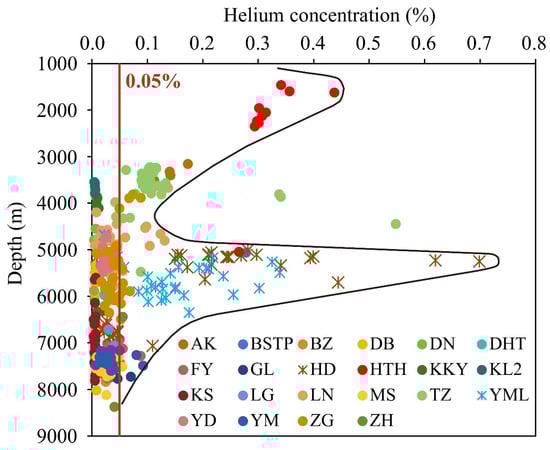

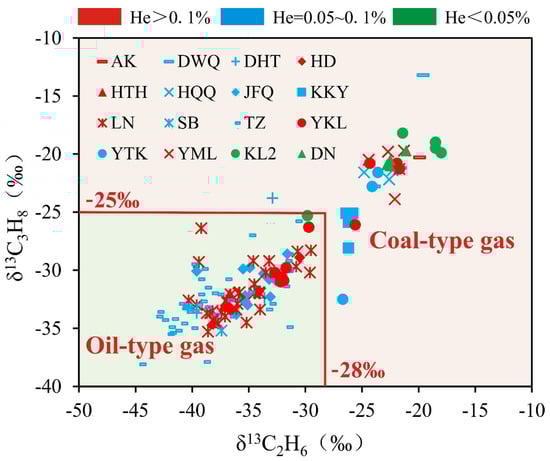

Helium is an irreplaceable ore resource for many applications, such as nuclear magnetic resonance, aviation, semiconductors, and nuclear energy. Extracting helium in a free state from natural gas is currently the only economical approach at the industrial level. In this study, we compiled geochemical data of 719 natural gas samples from 36 oil and gas fields in the Tarim basin that include experimental results and previously reported data. Helium is of primarily crustal origin in the Tarim Basin according to helium isotope characteristics (not exceeding 0.1 Ra), except in the Ake gas field that has not more than 7% of mantle helium. Helium concentrations in diverse tectonic units vary considerably. Oil-type gas, on the whole, has a higher helium concentration relative to coal-type gas. Abundant helium flux, a favorable fault system between the source-reservoir system, no strong charging of gaseous hydrocarbons, and the good sealing capacity are important factors that control the formation of helium-rich gas fields. Considering both the helium concentration and natural gas reserves, helium-rich gas fields located in the Southwest Depression and Tabei Uplift can be regarded as the major favorable zones of further deployment for helium extraction.
