The Evolution Law of Wettability Degree After Energy Replenishment in Tight Type-II Reservoirs with Different Pore Structures

by
Chunguang Li
and
Daiyin Yin
*
School of Petroleum Engineering, Northeast Petroleum University, Daqing 163000, China
*
Author to whom correspondence should be addressed.
Processes 2025, 13(9), 2797; https://doi.org/10.3390/pr13092797
Submission received: 3 June 2025 / Revised: 19 June 2025 / Accepted: 25 June 2025 / Published: 1 September 2025
(This article belongs to the Special Issue Structure Optimization and Transport Characteristics of Porous Media)
Browse Figures
Versions Notes

Abstract

Tight oil is an important resource replacement in the petroleum industry, with the reserves of Type-II energy accounting for over 40%. However, these reservoirs have small pore throats and complex structures, and their wettability directly affects the EOR by affecting the occurrence of crude oil and multiphase flow mechanisms. In response to an unclear understanding of the evolution mechanism of wettability after energy replenishment in tight reservoirs with different reservoir formation conditions, the evolution law of wettability in different energy replenishment media for tight type-II reservoirs is evaluated by performing wettability experiments and nuclear magnetic resonance experiments, and the mechanism of differential changes in wettability after energy replenishment in different media is elucidated. The results show that the block with well-developed pores and good connectivity (Block: Z401) had the smallest in situ wetting angle, ranging from 27.1° to 30.4°, and that the interface effect had a small impact, resulting in a small change in the wetting angle after energy replenishment. The wetting angle of the developmental intersection block (Block: G93) is the highest, ranging from 36.6° to 46.4°. The connected pore and throats fully interact with the medium at the interface, resulting in a significant change in the wetting angle. In addition, after natural gas energy supplementation, the principle of similar solubility causes a significant change in the wetting angle of the pore throat interface after adsorption, with a maximum angle of 19.6°. The change in the wetting angle change of the CO2 mixed-phase principle is in the middle, at about 13.6°, while the change in the wetting angle is minimal after N2 replenishment, around 10°. The research results improve our understanding of the basic theory of tight oil supplementary energy development and have important practical significance.

1. Introduction

Tight oil usually refers to reservoirs with a permeability of less than 0.1 × 10−3 μm2. The importance of wettability in tight reservoirs mainly lies in its direct impact on the occurrence, flow patterns, and development effects of oil and gas. Firstly, it controls the formation and occurrence of oil reservoirs; second, wettability determines the efficiency of oil displacement through infiltration and absorption, directly affecting the EOR.
Generally speaking, the smaller the wetting angle, the stronger the hydrophilicity, and the capillary force of two-phase flow acts as a resistance to affect oil production. Elucidating the impact mechanism of different energy replenishment media on reservoir wettability is helpful for the efficient development of tight oil. In the past decade, research on the wettability of tight oil has mainly focused on the impact of wettability on the definition, measurement methods and influencing factors of tight oil extraction. Austad et al., Iglauer et al., and Armstrong et al. extensively studied the wetting behavior and scale of rocks in the context of improving oil recovery (EOR) and CO2 geological storage [1,2,3]. To evaluate the wettability of the surface, different methods can be used, including contact angle measurement [4], molecular dynamics prediction [5,6], the Amott test, the Amott–Harvey index, and USBM (using the ratio of positive and negative work in capillary pressure curves to quickly determine the wetting preference). The measurement of the contact angle is considered a reliable method for wetting characterization [7,8], which can directly measure surface wettability and has wide applicability in evaluating the wettability of conventional reservoirs, but may produce results that are different from those of shale reservoirs [9]. Siddiqui et al. found that water does not contain surfactants based on contact angle measurements [10]. Rücker et al. proposed a wettability upscaling method based on it, which considers the changes in wettability from the nanoscale to the core scale [11]. Due to issues such as surface contamination, uneven surface roughness, and compositional heterogeneity, the contact angle method has rarely been used to evaluate shale wettability. Spontaneous water absorption (SI) has been considered as an alternative method for evaluating shale wettability. Spontaneous imbibition is a phenomenon in which porous medium rocks spontaneously absorb wetting liquids under the action of capillary forces when in contact with them. In its initial stage, the capillary pressure is at its maximum, and the wetting phase fluid is rapidly absorbed into the pore network. As the intake of wetting phase fluid increases, the capillary force gradually decreases [12,13,14,15,16]. Wang et al. conducted nuclear magnetic resonance (NMR) imaging to measure the wettability of porous rocks [17]. Wang and Xin et al. used NMR combined with contact angle measurements and found that the wettability of the shale interior and surfaces gradually changes from water wetting to oil wetting when vitrinite reflectivity (Ro) > ~1.20% and that the degree of oil wetting continues to increase as maturity increases [18]. Rosneft compared the results of NMR relaxation measurements with data obtained from the direct measurement of wetting edge angles and indirect centrifugation using the Tulbovich method, demonstrating good qualitative and quantitative convergence between NMR relaxation measurements and direct studies of contact angles [19]. Amott and USBM testing are the most used methods for quantifying reservoir wettability, but USBM methods cannot strongly identify water or oil wet systems, while Amott methods cannot distinguish the importance of strong water and oil wet systems. Sheshdeh used the Amott USBM method [20] and considered saturation changes under zero capillary pressure to make the results more accurate. On this basis, Ghedan adopted the RIC method [21] to measure the wettability of the contact angle relatively quickly and accurately without using complex equipment. The microscopic oil recovery efficiency is greatly influenced by capillary forces, which depend on the type of rock wettability and can be explained by the critical separation pressure, which largely determines the success or failure of the oil recovery process [22,23,24]. The theories that explain the mechanisms behind changes in rock wettability include electrostatic interactions, surface adsorption, acid–base interactions, and ionic bonds [25], so many scholars use surfactants to alter rock wettability. Pinto et al. successfully enhanced the hydrophilicity of carbonate rocks and improved recovery rates without significantly reducing IFT [26]. Compared with traditional saltwater, smart water counteracts preferential water flow through cracks by optimizing the ion composition of water, thereby changing its wettability, making the oil phase more fluid, enhancing its distribution within the reservoir, and promoting deeper penetration into the rock matrix [27]. Optimizing salinity can lead to the required changes in wettability [28], and reducing the salinity of injected water decreases the wettability of oil [29]. Mahani et al. and Chen et al. evaluated the effect of sulfate ions and determined that sulfate ions have a significant impact on reducing the wettability of oil. Intelligent water flooding has established screening criteria for the optimal salinity and ion range [30]. Iglauer et al. and Hashemi et al. demonstrated that sandstone exhibits a transition from strong to moderate moisture during hydrogen storage, while sulfate-reducing bacteria can cause a significant increase in contact angle measurements, resulting in a shift in wettability from water wet to moderate wet [31,32,33,34,35]. 3-Pentone has been identified as a promising wetting modifier for EOR in tight reservoirs, and its ions can alter surface wetting behavior, providing a simple, environmentally friendly, and cost-effective EOR method in low-permeability formations [36,37,38]. In addition, Zeta potential is another important indicator of wettability. By determining the charge at the solid–liquid interface of the shear plane, we can gain a deeper understanding of the stability of surfactants. Several studies have investigated the Zeta potential of shale treated with surfactants and found that wettability is related to surface chemical functional groups [39,40,41,42,43,44,45]. In addition to the above methods, many scholars also use combination methods. Alzaabi used contact angle measurements and Zeta potential analysis to investigate the effect of wettability changes [46]. Gao et al. qualitatively studied the wettability of shale samples through contact angle measurements and a comparison of directional self-priming behavior, as well as nuclear magnetic resonance methods [13]. Zhang et al. used spontaneous water absorption and nuclear magnetic resonance experiments to study the wettability characteristics of shale before and after extraction, and found that macropores have a significant impact on water wettability, while micropores and mesopores have a significant impact on oil wettability [47]. The advantages and disadvantages of existing wetting research methods are analyzed, which are reflected in Table 1.
The existing research often focuses on the static characteristics of undeveloped oil reservoirs, especially in the initial stage through the core testing of static wetting angles, ignoring the differences between different rock types and the potential changes in wettability after injecting a supplementary medium. Therefore, this paper conducts research on the evolution law of the wettability of tight oil reservoirs with different rock types after injecting an energy supplement medium. The research sequence is as follows: firstly, we quantitatively characterize the pore structure characteristics of different rock types through CT scanning and mercury intrusion experiments, and analyze the differences. We then conduct experiments on the flowability of different energy replenishment media to evaluate the changes in wettability after energy replenishment. Finally, based on the nuclear magnetic resonance relaxation time spectrum, we elucidate the differential reasons for the changes in wettability. The research results of the paper improve the basic theory of tight oil reservoir development.

2. Differences in Wettability Evolution Characteristics

Wettability is usually characterized by the contact angle. To analyze the changes in core wettability caused by different energy replenishment media and their effects on permeability and absorption, this paper evaluates the characteristics of wettability changes before and after energy replenishment based on comprehensive industry-standard reservoir wettability experiments, and quantifies the changes in wettability angle.

2.1. Experimental Materials

By using laboratory dynamic and static contact angle measuring instruments to measure the contact angle, and comparing the changes in contact angle before and after saturation with different pressurized energy supplement media, the influence of different pressurized energy supplement media on the comprehensive wettability of the reservoir is analyzed. Simultaneously, utilizing the fact that the self-priming capacity of the rock water phase in wet reservoirs is greater than that of the oil phase, the spontaneous imbibition of rocks in the oil phase is greater than that in the water phase in lipophilicity reservoirs. We analyzed the changes in the imbibition of rock cores in saline and kerosene, and compared the effects of saturated different pressurized energy supplement media on imbibition before and after saturation. Finally, we used nuclear magnetic resonance technology to describe the wetting situation in micropores and determine the overall wettability of the rock and different sizes of pore throats based on imbibition curves and nuclear magnetic resonance T2 spectra.
The experiment selected natural rock cores with the same or similar permeability and porosity in each block, and sliced them according to the requirements of the industry standard “SY/T 5153-2017—Determination Method for Wettability of Reservoir Rocks” [48], with a specification of 25 mm × 2 mm, as shown in Figure 1.

2.2. Wettability Experiment

2.2.1. Experimental Methods

Based on the wettability experiments, the changes in the wetting angle of different types of Type-II tight reservoirs after saturation with different energy replenishment media are evaluated. The experimental procedure is as follows:
(1)
Core slice. The size is 25 mm × 50 mm;
(2)
Sample drying. Place the sliced rock cores into a constant-temperature oven (80 °C) for 12 h to dry;
(3)
Liquid squeezing. Place the core slice on the operating table and squeeze 10 μL of liquid;
(4)
Measure the wetting angle and take photos. Rotate the worktable lifting handwheel to make the surface of the sample contact the droplet and ensure that the droplet is displayed in the window. The software will automatically capture images according to the set data until completion.
(5)
After saturating the rock sample with CO2 and N2, repeat steps (1) to (4) to evaluate the changes in the wetting angle after different media are energized.

2.2.2. Results and Discussion

The wetting angle test results before and after energy replenishment for typical blocks of tight Type-II reservoirs are provided. Two experiments for each scheme were conducted in this study, and the average value was used as the wetting angle test result to provide an experimental basis for subsequent evaluation. The results are shown in Table 2.
From the experimental results before the saturation of the medium, the average contact angle range of the cores wettability tests was 27~40.4°. According to the wettability judgment criteria, this clearly indicates that the cores have the characteristic of hydrophilicity and belong to the strong hydrophilicity category. At the same time, the average contact angle of the rock samples in Block G93 is the smallest, at 27°. Due to its poor pore development and the reservoir characteristics, it exhibits the strongest hydrophilicity in terms of wettability. Relatively speaking, the average contact angles of the rock samples in the other three blocks are basically similar, at 38.2°, 37.6°, and 40.4°, respectively, with similar hydrophilicity and no significant difference.
From the analysis of the contact angle results before and after saturation with different media in each block, it can be concluded that all the wettability is hydrophilic. However, due to the differences in pore throat structures in each block, the change in contact angle after injecting the energy replenishment medium causes changes in the hydrophilicity of some blocks. The maximum change in contact angle before and after the saturation of natural gas in the M2 block rock sample is observed, with an average increase of 19.18° from 47.29° to 66.47°. Due to the well-developed micro pore system and better pore sorting, the wettability of the rock sample changes from strong hydrophilicity to weak hydrophilicity. The change in the contact angle of the rock sample in Block Z401 before and after saturation with CO2 is the largest, with an average increase of 10.28° from 27.05° to 37.33°. The pore and throat volumes are the largest, and the wettability of the block before and after saturation with the three media still belongs to strong hydrophilicity, with no significant change in wettability. The S123 block is mainly characterized by the development of small and medium-sized pores, with poor pore connectivity but good throat connectivity. The contact angle changes before and after saturation with three different media are relatively small. The average contact angle before and after saturation with CO2 and N2 increased by 4.92° and 4.82°, respectively, while the average contact angle before and after saturation with natural gas increased by 7.10°. The overall wettability shows non-significant changes. The contact angle of the rock samples in Block G93 changes significantly before and after saturation with N2 and natural gas. The average contact angle before and after saturation with N2 decreased by 8.80°, while the average contact angle before and after saturation with natural gas increased by 15.30°. The average contact angle before and after saturation with CO2 changes relatively little, with an average decrease of 8.62°. Due to the development of small and medium-sized pores, the average throat length and volume are the smallest, and the connectivity between pores is poor, the wettability of the block before and after saturation with the three media still belong to strong hydrophilicity, and there is no significant change in wettability.

2.3. Nuclear Magnetic Resonance Analysis

The difference in wettability between different energy replenishment media is caused by fluid solid reactions, the fluid distribution, and coverage range, mainly in the affected areas of different media. Therefore, this study conducted nuclear magnetic resonance experiments before and after energy replenishment to clarify the mechanism of wettability changes.
The results of the spontaneous imbibition and T2 peak area growth rate of rock cores before and after energy supplementation in different blocks are presented in Table 3, and the reasons for the differences in wettability are analyzed.
Based on a comparison and analysis of the infiltration and absorption results of different saturated media and the changes in the T2 spectral peak area in the four blocks mentioned above, it can be concluded that after injecting CO2 as a supplementary medium into the core of Block M2, the increase in saturated formation water is 6.02%, and the changes in wettability are mainly due to medium to large pores. After injecting natural gas as a supplementary energy medium, the increase in saturated formation water is 21.44%, and the change in wettability is mainly due to large, medium, and small pores. Injecting different energy supplement media into the core of Block Z401, the change in wettability is mainly due to macropores, while CO2 causes a more significant change in the wettability of mesopores corresponding to the peak. The injection of different energy replenishment media into the core of block S123 resulted in changes in wettability mainly due to macropores, with CO2 and natural gas causing a decrease in macropore hydrophilicity. The injection of CO2 energy supplement media into the core of the G93 block results in the largest increase in the wettability of small and medium-sized pore water corresponding to the peak value, followed by natural gas.
Taking the M2 block and G93 block as examples, the water absorption nuclear magnetic resonance results before and after soaking in different media are plotted. The results show that overall, there was a small change in the pore water absorption before and after the saturation of the medium in the four blocks with around 140, but that it did not fundamentally change the water wet properties of the pores. The micropores in the four blocks still have water wet properties, indicating that the three types of pressurized energy supplement media will not change the wettability of the micropores in tight oil, as shown in Figure 2.

3. Analysis of Factors Influencing Wettability Evolution

The experimental results and an in-depth analysis of the differences between pore throat structures and the reasons for the differences in the evolution of wettability degree after energy replenishment medium are provided.

3.1. Pore Throat Structure

The changes in the wetting angle before and after energy supplementation with different media in each block are compared, as shown in Figure 3. The results indicate that when considering the injection of the same medium with different rock types, the changes in the M2 block and G93 block are the most significant. When CO2 was injected simultaneously, the average contact angles of blocks M2, Z401, S123, and G93 changed by 11.29°, 10.28°, 4.92°, and −8.62°, respectively. M2 had the largest change in contact angle, while S123 has the smallest, but there was no significant change in wettability. When N2 was injected simultaneously, the average contact angles of blocks M2, Z401, S123, and G93 changed by 11.05°, −0.18°, 4.82°, and −8.80°, respectively. Among them, M2 had the largest change in contact angle, Z401 had the smallest, and there was no significant change in wettability. When natural gas was injected simultaneously, the average contact angles of blocks M2, Z401, S123, and G93 changed by 19.18°, −5.50°, 7.10°, and 15.30°, respectively, and almost increased to a certain extent. M2 had the largest change in contact angle, while Z401 had the smallest. However, the rock reservoir remained hydrophilic. When CO2 was selected, the changes in the M2 block and Z401 block were the most significant. The M2 block had relatively more developed macropores, better pore sorting, and a better average pore radius and throat radius than other blocks. Therefore, injecting the medium had a more significant impact on it. The Z401 block has well-developed macropores and small pores, with the best pore connectivity, resulting in a better CO2 injection effect. Overall, it can be concluded that the reservoir where the rock samples in the four blocks are located is a water wet reservoir. After saturating with three types of pressurized energy supplement media, it has a certain impact on the contact angle of the rock samples.
We analyzed the mechanism of wettability improvement in tight reservoirs with different pore structures after injecting energy supplement media. ① Mineral dissolution and surface cleaning effects were observed. After the surface was dissolved by carbonic acid, carbonate minerals such as calcite and dolomite, as well as clay minerals such as kaolinite, were exposed; ② There was an improvement in interface properties and a reduction in the interfacial tension between natural gas and CO2; ③ The pore structure was optimized, surface substances were dissolved by carbonic acid, small pore throats were enlarged, and there was a reduction in the pore throat ratio.
Overall, the M2 and G93 blocks have the greatest impact, the rocks still exhibit hydrophilicity, and the properties of the reservoirs in each block have not changed.

3.2. Energy Supplement Medium

The impact of different energy supplements media on the changes in the wettability of various reservoirs is compared, as shown in Figure 4. The results indicate that when considering the injection of different media with the same lithology, CO2 and natural gas have a significant effect on increasing the wetting angle of the four blocks, with natural gas having a more significant impact on M2 and G93. Natural gas has high fluidity, low viscosity, and good injectability. Although the affected volume is limited by its low viscosity and high fluidity, the overall effect is good. The contact angle of the rock samples in Block M2 changed the most before and after saturation with natural gas, and the wettability of the rock samples changed from strong hydrophilicity to weak hydrophilicity. When the rock sample is saturated with CO2, the increment is also significant, with a 27% increase in the wetting angle. Due to the low viscosity and high fluidity and solubility of CO2, the injection affects a larger volume, resulting in more obvious changes. Compared to the change in contact angle caused by CO2, N2 has a smaller effect on the contact angle of rock samples because N2 has a smaller molecular weight, better flowability and injectability, but a relatively lower swept volume, resulting in lower effectiveness than CO2. The pore connectivity of G93 is the worst and the densest due to its high capillary force, poor oil displacement effect, the lower miscibility of CO2 and oil, and small change in wetting before and after. Therefore, when the rock sample is saturated with CO2, the average change in the contact angle is relatively small. Despite this, the rock samples in this block still maintain strong hydrophilic properties after being saturated with these three media, without significant changes in wettability. Overall, the contact angle and wettability of the same rock type exhibit different characteristics when saturated with different media. CO2 and natural gas have a greater effect on increasing the wetting angle of the four blocks, with natural gas having a more significant effect, but overall maintaining its hydrophilic characteristics.
Emphasis is placed on analyzing the anomalous phenomenon of wetting angle, namely the negative increase in the peak area after CO2 injection. One reason for this is that CO2 dissolves in formation water to form carbonic acid (H2CO3), which dissolves carbonate minerals (such as calcite) or clay minerals, leading to the expansion of some micropores (increased porosity). Excessive dissolution may damage the pore skeleton, which causes local collapse or particle migration; then, the throat blocked and the effective connectivity of the pore space decreased, leading to a decrease in the NMR signal intensity.
A comprehensive analysis showed that the reservoirs in which the rock samples of the four blocks are located generally exhibit water wet characteristics. When these rock samples were saturated with three different pressurized energy supplement media, although these media had a certain degree of influence on the contact angle and pore water absorption of the rock samples, these effects did not change the inherent hydrophilicity of the rock samples. In other words, even after being disturbed by these external media, the rock samples in each block still maintained their original water wet reservoir properties and did not undergo fundamental changes. This indicates that in terms of the wettability of tight reservoirs, whether it is changing the lithology or the medium, the characteristics of water wettability have relative stability and persistence, and are not easily significantly changed by external conditions.

4. Conclusions

The proportion of Type-II tight oil reserves in the periphery of Daqing is 42.7%, which is an important replacement resource. Due to its unique small pore throat structure, the development of fracturing is the main reservoir modification method. During the fracturing and flowback period, single oil recovery, the fracturing fluid, formation water, and oil flow in multiple phases, and the wettability of the reservoir directly affects the development effect; and the influence of the replenishment medium on the wetting angle is the basis for EOR at the stage of secondary oil recovery.
(1)
The typical pore throat structure characteristics of tight Type-II reservoirs have been clarified, with matrix minerals (quartz + feldspar) accounting for over 90% and good initial hydrophilicity. However, the Z401 block has the most developed pores, relatively good pore connectivity, and the greatest contribution to permeability. The M2 block has relatively developed large pores, with a better average pore radius and throat radius than other blocks, and better pore sorting. The pore development in blocks S123 and G93 is poor, with a small average pore volume and poor connectivity between pores.
(2)
The influence of the pore throat structure on wettability is as follows: the reservoir where the rock samples in the four blocks is located is a hydrophilic reservoir, with a minimum in situ wetting angle of about 27° in the ancient G93 block, while the other blocks have a wetting angle of 37–40°. After energy supplementation, the changes in the M2 and G93 blocks are the greatest, but they still belong to a hydrophilic reservoir.
(3)
The results of the influence of different energy replenishment media are as follows: natural gas has the greatest impact on wettability, which is due to its similar solubility to the oil phase. After adsorption, the interface characteristics are changed, and the changes are most significant; CO2 is the second largest and N2 has the smallest change amplitude, which is due to the mixing mechanism between CO2 and crude oil causing a significant change in wettability. Natural gas is mainly adsorbed on the surface of rocks, and the change in surface properties combined with the theory of similar solubility increases the wetting angle; CO2 is mainly used for interface cleaning, improving the pore throat structure and altering wettability. Therefore, considering the injection cost, we recommended prioritizing the use of CO2 to supplement the formation energy.
(4)
Presently, the mainstream method for studying wettability is to use industry standards, but the differences in reservoir formation and the pore throat structure between tight oil and conventional oil reservoirs are huge. Therefore, using industry testing standards under micro nanopore throat conditions may have certain limitations. In addition, experiments on the core slice are destructive, and parallel experiments still need further exploration.

Author Contributions

Conceptualization, D.Y.; methodology, C.L.; software, C.L.; validation, C.L.; formal analysis, D.Y.; investigation, C.L.; resources, D.Y.; data curation, D.Y.; writing—original draft preparation, C.L.; writing—review and editing, C.L.; visualization, C.L.; project administration, D.Y.; funding acquisition, D.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work is funded by the ministry of science and technology of the people’s Republic of China, and the name of the project is “Demonstration Project for Development of Dense Oil in Jiyang Depression, Bohai Bay Basin (2017ZX05072)” of national science and technology major special project and the National Natural Science Foundation of China (No. 12272350).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Austad, T.; Shariatpanahi, S.F.; Strand, S.; Aksulu, H.; Puntervold, T. Low Salinity EOR Effects in Limestone Reservoir Cores Containing Anhydrite: A Discussion of the Chemical Mechanism. Energy Fuels 2015, 29, 6903–6911. [Google Scholar] [CrossRef]
  2. Iglauer, S.; Pentland, C.H.; Busch, A. CO2 Wettability of Seal and Reservoir Rocks and the Implications for Carbon Geo-Sequestration. Water Resour. Res. 2015, 51, 729–774. [Google Scholar] [CrossRef]
  3. Armstrong, R.T.; Sun, C.; Mostaghimi, P.; Berg, S.; Rücker, M.; Luckham, P.; Georgiadis, A.; McClure, J.E. Multiscale Characterization of Wettability in Porous Media. Transp. Porous Media 2021, 140, 215–240. [Google Scholar] [CrossRef]
  4. Isah, A.; Arif, M.; Hassan, A.; Mahmoud, M.; Iglauer, S. Fluid–rock interactions and its implications on EOR: Critical analysis, experimental techniques and knowledge gaps. Energy Rep. 2022, 8, 6355–6395. [Google Scholar] [CrossRef]
  5. Iglauer, S.; Mathew, M.; Bresme, F. Molecular dynamics computations of brine–CO2 interfacial tensions and brine–CO2–quartz contact angles and their effects on structural and residual trapping mechanisms in carbon geo-sequestration. J. Colloid Interface Sci. 2012, 386, 405–414. [Google Scholar] [CrossRef]
  6. Chen, C.; Zhang, N.; Li, W.; Song, Y. Water Contact Angle Dependence with Hydroxyl Functional Groups on Silica Surfaces under CO2 Sequestration Conditions. Environ. Sci. Technol. 2015, 49, 14680–14687. [Google Scholar] [CrossRef]
  7. Arif, M.; Abu-Khamsin, S.; Iglauer, S. Wettability of rock/CO2/brine and rock/oil/CO2-enriched-brine systems: Critical parametric analysis and future outlook. Adv. Colloid Interface Sci. 2019, 268, 91–113. [Google Scholar] [CrossRef]
  8. Marmur, A.; Della Volpe, C.; Siboni, S.; Amirfazli, A.; Drelich, J.W. Contact Angles and Wettability: Towards Common and Accurate Terminology. Surf. Innov. 2017, 5, 3–8. [Google Scholar] [CrossRef]
  9. Gao, Z.; Fan, Y.; Hu, Q.; Jiang, Z.; Cheng, Y.; Xuan, Q. A review of shale wettability characterization using spontaneous imbibition experiments. Mar. Pet. Geol. 2019, 109, 330–338. [Google Scholar] [CrossRef]
  10. Siddiqui, M.A.Q.; Ali, S.; Fei, H.; Roshan, H. Current understanding of shale wettability: A review on contact angle measurements. Earth Sci. Rev. 2018, 181, 1–11. [Google Scholar] [CrossRef]
  11. Rücker, M.; Bartels, W.B.; Bultreys, T.; Boone, M.; Singh, K.; Garfi, G.; Scanziani, A.; Spurin, C.; Yesufu-Rufai, S.; Krevor, S.; et al. Workflow for Upscaling Wettability from the Nanoscale to Core Scale. Petrophys 2020, 61, 189–205. [Google Scholar]
  12. Gao, Z.; Hu, Q. Initial water saturation and imbibition fluid affect spontaneous imbibition into Barnett shale samples. J. Nat. Gas Sci. Eng. 2016, 34, 541–551. [Google Scholar] [CrossRef]
  13. Gao, Z.; Yang, S.; Jiang, Z.; Zhang, K.; Chen, L. Investigating the spontaneous imbibition characteristics of continental Jurassic Ziliujing Formation shale from the northeastern Sichuan Basin and correlations to pore structure and composition. Mar. Pet. Geol. 2018, 98, 697–705. [Google Scholar] [CrossRef]
  14. Wang, X.; Peng, X.; Zhang, S.; Du, Z.; Zeng, F. Characteristics of oil distributions in forced and spontaneous imbibition of tight oil reservoir. Fuel 2018, 224, 280–288. [Google Scholar] [CrossRef]
  15. Wu, J.; Yu, J.; Wang, Z.; Fu, X.; Su, W. Experimental investigation on spontaneous imbibition of water in coal: Implications for methane desorption and diffusion. Fuel 2018, 231, 427–437. [Google Scholar] [CrossRef]
  16. Xue, H.; Ding, G.; Dong, Z.; Zhao, R.; An, C.; Li, B.; Zhou, Y.; Yan, P.; Yan, J.; Li, C.; et al. Study on the wettability and spontaneous imbibition characteristics of lacustrine shale. Geofluids 2022, 2022, 1468–8115. [Google Scholar] [CrossRef]
  17. Wang, X.; Wang, M.; Li, Y.; Zhang, J.; Li, M.; Li, Z.; Guo, Z.; Li, J. Shale pore connectivity and influencing factors based on spontaneous imbibition combined with a nuclear magnetic resonance experiment. Mar. Pet. Geol. 2021, 132, 105239. [Google Scholar] [CrossRef]
  18. Wang, X.; Wang, M.; Li, J.; Shao, H.; Deng, Z.; Wu, Y. Thermal maturity: The controlling factor of wettability, pore structure, and oil content in the lacustrine Qingshankou shale, Songliao Basin. J. Pet. Sci. Eng. 2022, 215, 110618. [Google Scholar] [CrossRef]
  19. Rogozin, A.; Ignateva, T.; Churkov, A. Assessment of the wettability of reservoir rocks by nuclear magnetic resonance method (Russian). OIJ 2023, 2023, 94–97. [Google Scholar] [CrossRef]
  20. Sheshdeh, M.J. A review study of wettability alteration methods with regard to nano-materials application. In Proceedings of the SPE Norway Subsurface Conference, Bergen, Norway, 22 April 2015; SPE: Washington, DC, USA, 2015. [Google Scholar]
  21. Ghedan, S.G.; Canbaz, C.H.; Boyd, D.A.; Corelab, G.M.; Haggag, M.K. Wettability Profile of a Thick Carbonate Reservoir by the New Rise in Core Wettability Characterization Method. In Proceedings of the Abu Dhabi International Petroleum Exhibition and Conference, Abu Dhabi, UAE, 1–4 November 2010. [Google Scholar]
  22. Ayirala, S.C.; Abdullah, B.; Amani, A.; AlSofi, A. Dilute Surfactants for Wettability Alteration and Enhanced Oil Recovery in Carbonates. J. Mol. Liq. 2019, 285, 707–715. [Google Scholar] [CrossRef]
  23. Kumar, S.; Mandal, A. Studies on Interfacial Behavior and Wettability Change Phenomena by Ionic and Nonionic Surfactants in Presence of Alkalis and Salt for Enhanced Oil Recovery. Appl. Surf. Sci. 2016, 372, 42–51. [Google Scholar] [CrossRef]
  24. Sun, X.; Zhang, Y.; Chen, G.; Gai, Z. Application of Nanoparticles in Enhanced Oil Recovery: A Critical Review of Recent Progress. Energies 2017, 10, 345. [Google Scholar] [CrossRef]
  25. Mahani, H.; Keya, A.L.; Berg, S.; Bartels, W.-B.; Nasralla, R.; Rossen, W.R. Insights into the Mechanism of Wettability Alteration by Low-Salinity Flooding (LSF) in Carbonates. Energy Fuels 2015, 29, 1352–1367. [Google Scholar] [CrossRef]
  26. Pinto, M.F.; Nele, M. Carbonate Wettability Alteration: Core Flooding Test Under Reservoir Conditions with Carbonate Rock and Oil Samples from the Brazilian Pre-Salt. In Proceedings of the SPE Improved Oil Recovery Conference, Tulsa, OK, USA, 22–25 April 2024. [Google Scholar]
  27. Darvish Sarvestani, A.; Ayatollahi, S.; Bahari Moghaddam, M. Smart water flooding performance in carbonate reservoirs: An experimental approach for tertiary oil recovery. J. Pet. Explor. Prod. Technol. 2019, 9, 2643–2657. [Google Scholar] [CrossRef]
  28. Yao, Y.; Qiu, Y.; Cui, Y.; Wei, M.; Bai, B. Insights to surfactant huff-puff design in carbonate reservoirs based on machine learning modeling. Chem. Eng. J. 2023, 451, 138022. [Google Scholar] [CrossRef]
  29. Zhang, L.; Zhang, J.; Wang, Y.; Yang, R.; Zhang, Y.; Gu, J.; Zhang, M.; Ren, S. Experimental Investigation of Low-Salinity Water Flooding in a Low-Permeability Oil Reservoir. Energy Fuels 2018, 32, 3108–3118. [Google Scholar] [CrossRef]
  30. Chen, Y.; Xie, Q.; Yang, Y.; Mahani, H.; Niasar, V. Nano structure of CO2-Brine-Kaolinite Interface: Implications for CO2 Geological Sequestration. Appl. Clay Sci. 2024, 254, 107391. [Google Scholar] [CrossRef]
  31. Iglauer, S.; Ali, M.; Keshavarz, A. Hydrogen Wettability of Sandstone Reservoirs: Implications for Hydrogen Geo-Storage. Geophys. Res. Lett. 2021, 48, e2020GL090814. [Google Scholar] [CrossRef]
  32. Hashemi, L.; Boon, M.; Glerum, W.; Farajzadeh, R.; Hajibeygi, H. A comparative study for H2-CH4 mixture wettability in sandstone porous rocks relevant to underground hydrogen storage. Adv. Water Resour. 2022, 163, 104165. [Google Scholar] [CrossRef]
  33. Higgs, S.; Wang, Y.D.; Sun, C.; Ennis-King, J.; Jackson, S.J.; Armstrong, R.T.; Mostaghimi, P. In-situ hydrogen wettability characterisation for Underground Hydrogen Storage. Int. J. Hydrogen Energy 2022, 47, 13062–13075. [Google Scholar] [CrossRef]
  34. Aftab, A.; Al-Yaseri, A.; Nzila, A.; Al Hamad, J.; Amao, A.O.; Sarmadivaleh, M. Quartz-H2-Brine Bacterium Wettability under Realistic Geo-Conditions: Towards Geological Hydrogen Storage. Energy Fuels 2023, 37, 5623–5631. [Google Scholar] [CrossRef]
  35. Ali, M.; Arif, M.; Sedev, R.; Sánchez-Román, M.; Keshavarz, A.; Iglauer, S. Underground hydrogen storage: The microbiotic influence on rock wettability. J. Energy Storage 2023, 72, 108405. [Google Scholar] [CrossRef]
  36. Argüelles-Vivas, F.J.; Abeykoon, G.A.; Okuno, R. 2022. Wettability Modifiers for Enhanced Oil Recovery from Tight and Shale Reservoirs. In Unconventional Shale Gas Development Lessons Learned; Gulf Professional Publishing: Waltham, MA, USA; Elsevier: Amsterdam, The Netherlands; pp. 345–391.
  37. Mogensen, K.; Masalmeh, S. A Review of EOR Techniques for Carbonate Reservoirs in Challenging Geological Settings. J. Pet. Sci. Eng. 2020, 195, 107889. [Google Scholar] [CrossRef]
  38. Siddique, A.K.; Uzun, O.; Alghunaim, E.S.; Zerpa, L.E.; Kazemi, H. Evaluation of a Wettability Modifier on Improving Oil Recovery in Fractured Reservoirs. In Proceedings of the SPE Improved Oil Recovery Conference, Tulsa, OK, USA, 22–25 April 2024. [Google Scholar]
  39. Abubakar, I.; Mohamed, M.; Muhammad Shahzad, K.; Muhammad, A.; Al Jawad, M. Multiscale Wettability Characterization of Anhydrite-Rich Carbonate Rocks: Insights into Zeta Potential, Flotation, and Contact Angle Measurements. SPE Res. Eval. Eng. 2023, 26, 592–610. [Google Scholar]
  40. Alvarez, J.O.; Saputra, I.W.R.; Schechter, D.S. The Impact of Surfactant Imbibition and Adsorption for Improving Oil Recovery in the Wolfcamp and Eagle Ford Reservoirs. SPE J. 2018, 23, 2103–2117. [Google Scholar] [CrossRef]
  41. Al-Busaidi, I.K.; Al-Maamari, R.S.; Karimi, M.; Naser, J. Effect of different polar organic compounds on wettability of calcite surfaces. J. Pet. Sci. Eng. 2019, 180, 569–583. [Google Scholar] [CrossRef]
  42. Xu, L.; He, K.; Nguyen, C. Insights into Surfactant Containing Fracturing Fluids Inducing Microcracks and Spontaneously Imbibing in Shale Rocks. In Proceedings of the SPE/CSUR Unconventional Resources Conference, Calgary, AB, Canada, 20–25 October 2015. Paper SPE-175959-MS. [Google Scholar]
  43. Alvarez, J.O.; Schechter, D.S. Wettability Alteration and Spontaneous Imbibition in Unconventional Liquid Reservoirs by Surfactant Additives. SPE Reserv. Eval. Eng. 2017, 20, 107–117. [Google Scholar] [CrossRef]
  44. Saputra, I.W.R.; Park, K.H.; Zhang, F.; Adel, I.A.; Schechter, D.S. Surfactant-Assisted Spontaneous Imbibition to Improve Oil Recovery on the Eagle Ford and Wolfcamp Shale Oil Reservoir: Laboratory to Field Analysis. Energy Fuels 2019, 33, 6904–6920. [Google Scholar] [CrossRef]
  45. Abdulelah, H.; Negash, B.M.; Al-Shami, T.M.; Abdulkareem, F.A.; Padmanabhan, E.; Al-Yaseri, A. Mechanism of CH4 Sorption onto a Shale Surface in the Presence of Cationic Surfactant. Energy Fuels 2021, 35, 7943–7955. [Google Scholar] [CrossRef]
  46. Alzaabi, A.; Adila, A.S.; Rahman, M.; Ali, M.; Keshavarz, A.; Iglauer, S.; Arif, M. Investigation of Shale Wettability Alteration upon Exposure to Surfactants. In Proceedings of the Gas & Oil Technology Showcase and Conference, Dubai, UAE, 13–15 March 2023. [Google Scholar]
  47. Zhang, W.; Yang, R.; He, Z.; Bao, H.; Yu, H.; Xiong, S.; Han, Y.; Hu, Q.; He, S. Influence of extractable organic components on shale wettability: Dongyuemiao member of Jurassic Ziliujing formation in the Fuxing area, Eastern Sichuan Basin. Mar. Pet. Geol. 2023, 158, 106571. [Google Scholar] [CrossRef]
  48. SY/T 5153-2017; Determination Method for Wettability of Reservoir Rocks. Petroleum Industry Press: Beijing, China, 2017.
Processes 13 02797 g001

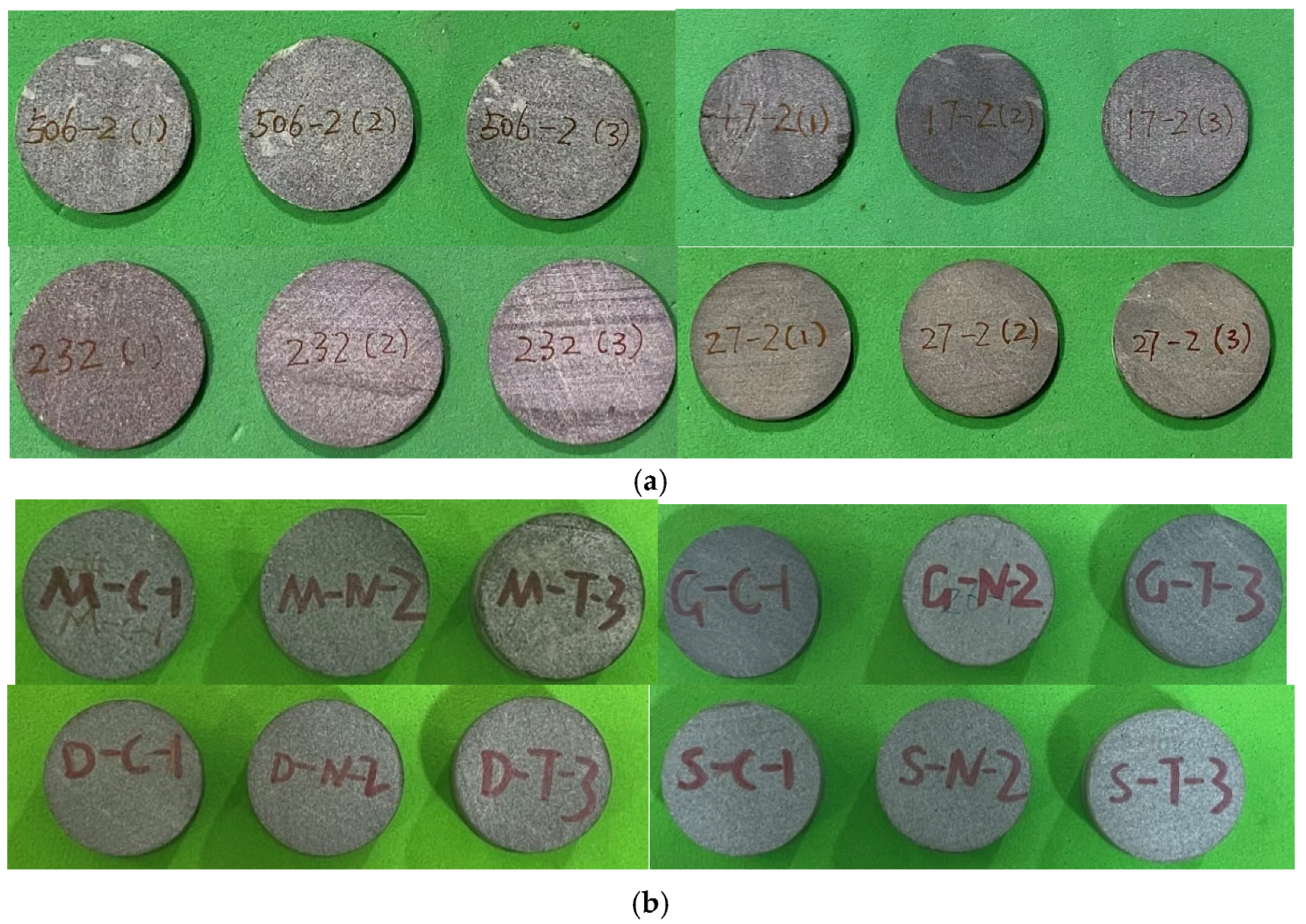

Figure 1. Experimental core material. (a) Comprehensive wettability evaluation of reservoir rock samples; (b) Spontaneous imbibition experiment core.
Figure 1. Experimental core material. (a) Comprehensive wettability evaluation of reservoir rock samples; (b) Spontaneous imbibition experiment core.
Processes 13 02797 g001
Processes 13 02797 g002

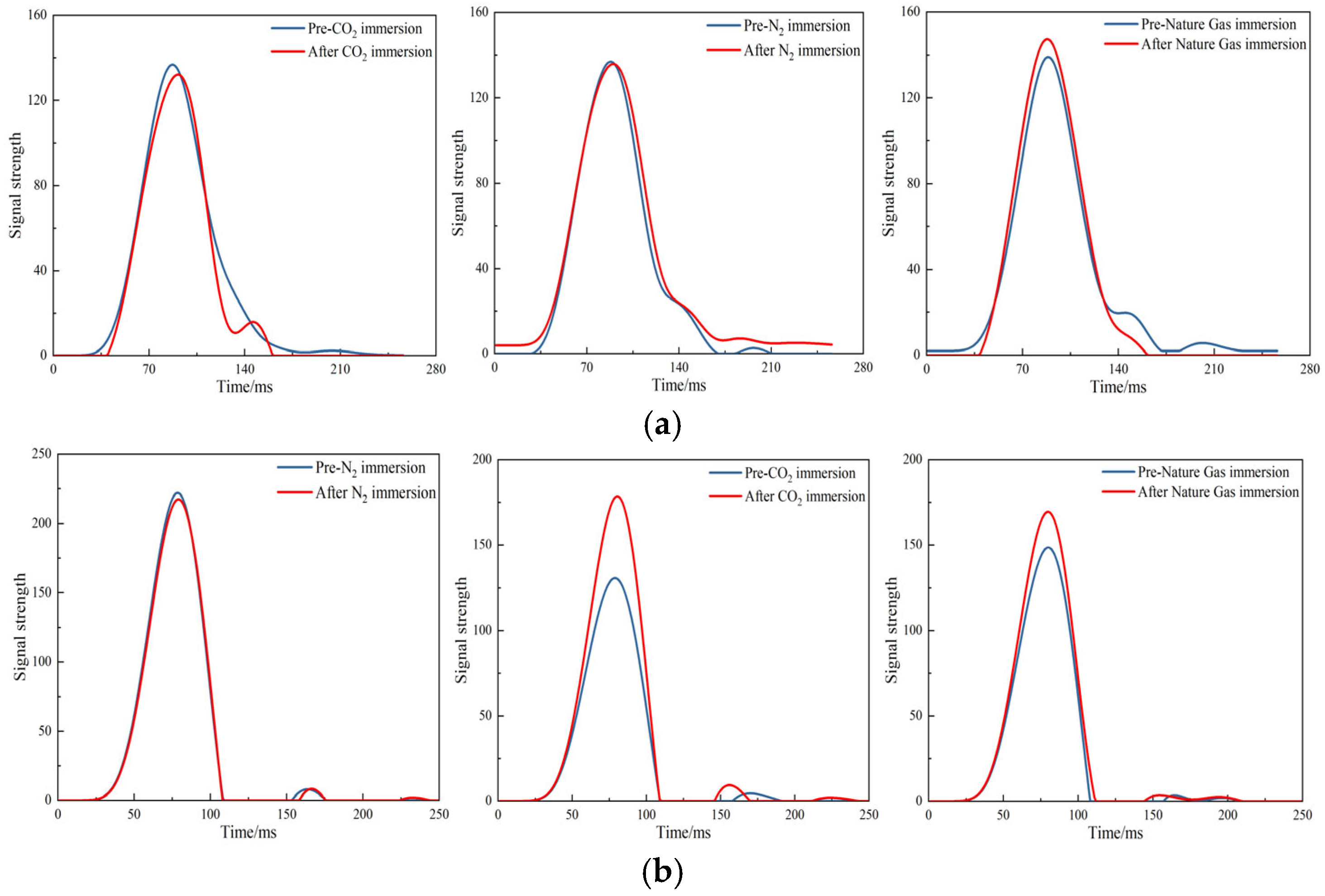

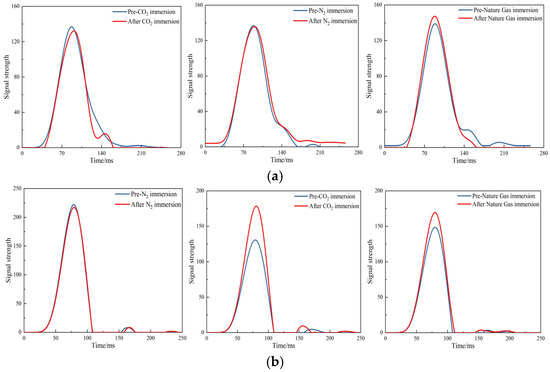

Figure 2. Comparisons of NMR spectra before and after energy supplementation with natural gas, CO2 and N2 in M2 block (a) and G93 block (b).
Figure 2. Comparisons of NMR spectra before and after energy supplementation with natural gas, CO2 and N2 in M2 block (a) and G93 block (b).
Processes 13 02797 g002
Processes 13 02797 g003aProcesses 13 02797 g003b

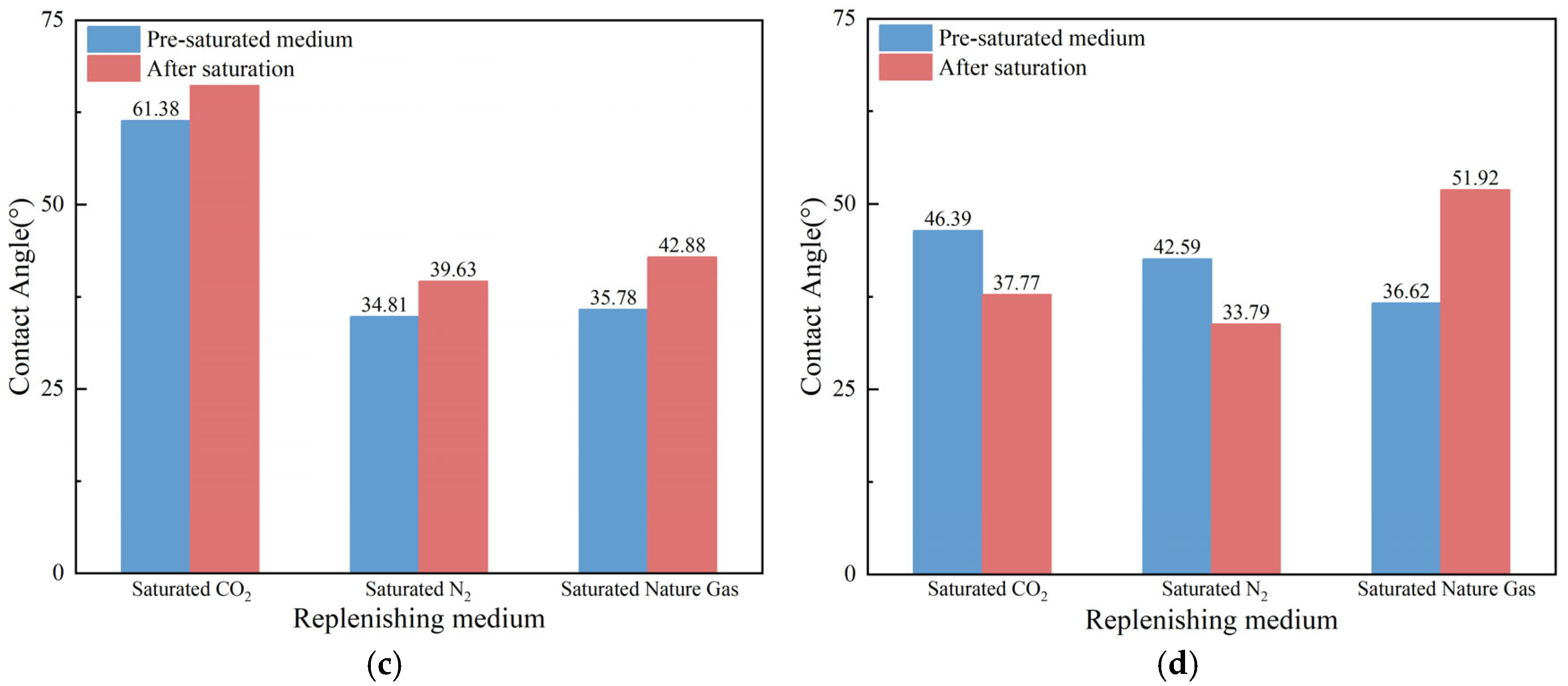

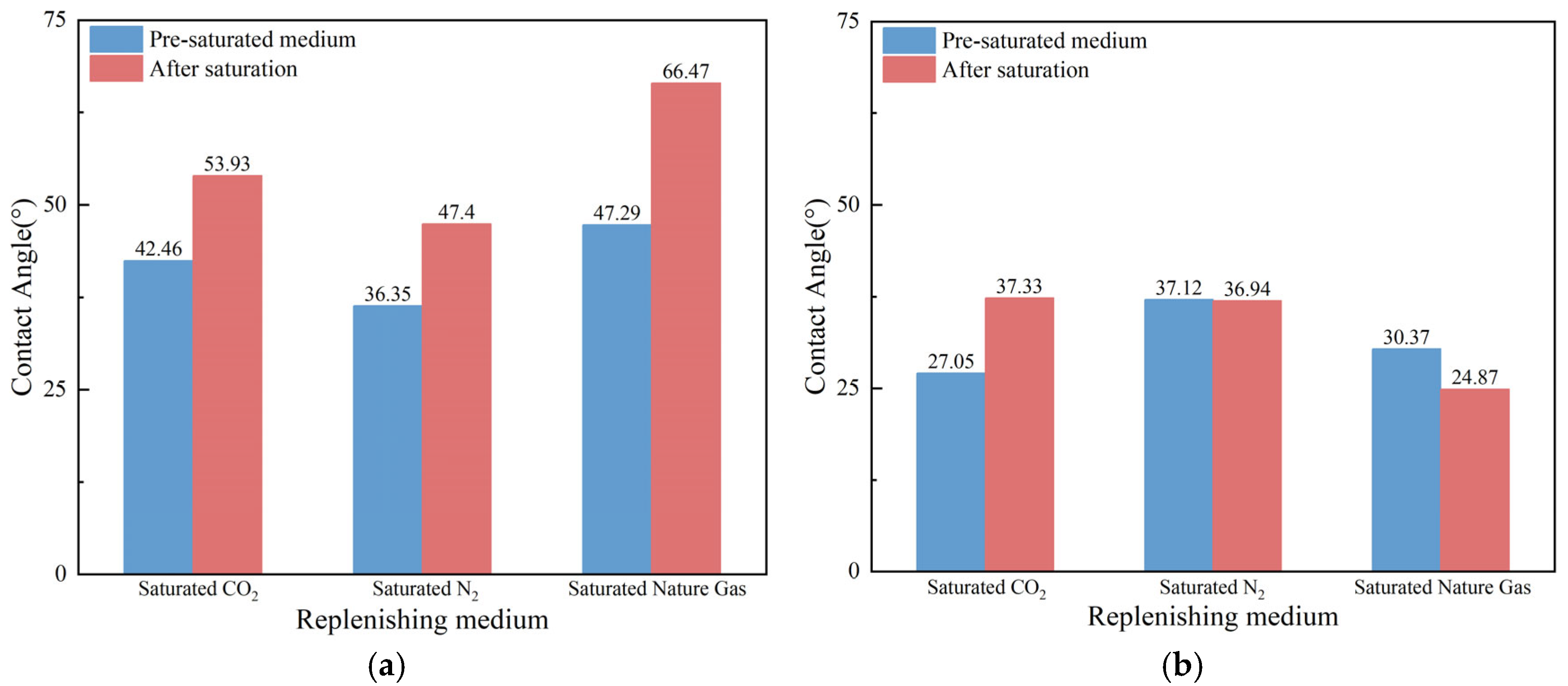

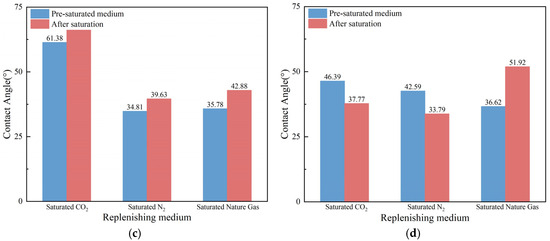

Figure 3. Changes in contact angle before and after saturation of the medium in each block. (a) M2; (b) Z401; (c) S123; (d) G93.
Figure 3. Changes in contact angle before and after saturation of the medium in each block. (a) M2; (b) Z401; (c) S123; (d) G93.
Processes 13 02797 g003aProcesses 13 02797 g003b
Processes 13 02797 g004

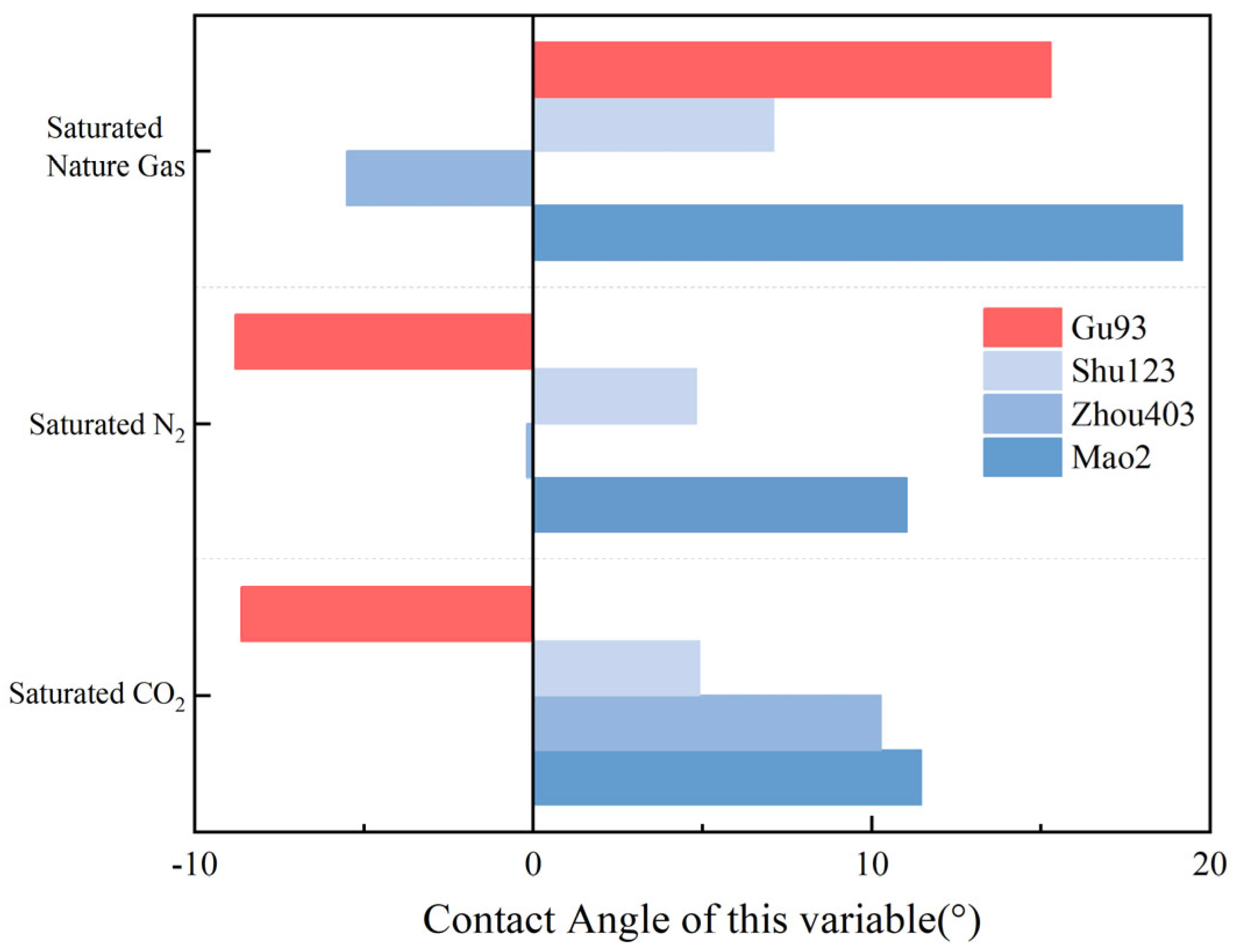

Figure 4. The change in contact angle caused by different media.
Figure 4. The change in contact angle caused by different media.
Processes 13 02797 g004
Table 1. Research methods and applicability of wettability by different researchers.
Table 1. Research methods and applicability of wettability by different researchers.
ResearchersResearch objectMethodsAdvantageDisadvantage
Gao, Zhiye, et al. [9]ShaleCAIntuitive and simpleDestructive experiment, slicing requires smoothness
Iglauer [5]QuartzMSAccurate simulationUnclassified non-uniformity
Ghedan [21]Carbonate rocksRICSimulate the process of reservoir formationPoor quantitation
Pinto [26]Carbonate rocksSurfactantDynamic testDestructive experiment, slicing requires smoothness
Sheshdeh [20]-Amott-USBMHigh precisionLong testing time and large model error
Zhang, Weihang, et al. [47]ZLJformation Dongyueyu
section shale		SI, NMRConsider the fluid characteristicsComplex data processing with model errors
Alzaabi [46]ShaleZeta potentialStrong continuityMultiple solutions
Table 2. Contact angle results before and after saturation of different media in each block.
Table 2. Contact angle results before and after saturation of different media in each block.
BlockCore No.Before Replenishing EnergyAfter Replenishing EnergyWettabilityPermeability (mD)Porosity (%)
Contact Angle (°)Avg (°)VisualizationMediumContact Angle (°)Avg (°)Visualization
M2506-2-141.2042.46Processes 13 02797 i001CO252.1653.93Processes 13 02797 i002hydrophilic0.02848.79
44.0855.70
506-2-231.5436.35Processes 13 02797 i003N235.4947.40Processes 13 02797 i004hydrophilic
41.1659.31
506-2-348.7847.29Processes 13 02797 i005Natural gas62.5966.47Processes 13 02797 i006Hydrophilic (weak)
45.7970.35
Z40117-2-123.9727.05Processes 13 02797 i007CO238.4237.33Processes 13 02797 i008hydrophilic0.06498.35
30.1336.24
17-2-223.7937.12Processes 13 02797 i009N243.5836.94Processes 13 02797 i010hydrophilic
50.4530.30
17-2-327.2030.37Processes 13 02797 i011Natural gas28.1424.87Processes 13 02797 i012hydrophilic
33.5421.60
S123232-149.9461.38Processes 13 02797 i013CO263.7466.30Processes 13 02797 i014Hydrophilic
(weak)		0.040510.55
72.8168.85
232-236.2934.81Processes 13 02797 i015N249.0439.63Processes 13 02797 i016hydrophilic
33.3230.21
232-339.4635.78Processes 13 02797 i017Natural gas54.9442.88Processes 13 02797 i018hydrophilic
32.1030.82
G9327-2-143.9046.39Processes 13 02797 i019CO229.5237.77Processes 13 02797 i020hydrophilic0.026410.36
48.8746.02
27-2-233.6842.59Processes 13 02797 i021N243.5833.79Processes 13 02797 i022hydrophilic
51.4923.99
27-2-335.4436.62Processes 13 02797 i023Natural gas53.8851.92Processes 13 02797 i024hydrophilic
37.7949.96
Table 3. T2 peak area growth rate of different saturated media infiltration results in each block.
Table 3. T2 peak area growth rate of different saturated media infiltration results in each block.
BlockCore No.Dry Weight/gWet Weight/gWater Absorption/gDry Weight/gMediumWet Weight After Supplement/gWater Absorption/gPeak Area of T2 Spectrum Before Saturation MediumPeak Area of T2 Spectrum After Saturation MediumPeak Area Growth Rate/%
M2M-C-111.76011.8480.08811.769CO211.8410.0727841.038312.866.02
M-N-211.63111.7160.08511.641N211.7110.0708246.828148.99−1.19
M-T-311.79011.8790.08911.797natural gas11.8960.0997565.239187.1321.43
Z401D-C-111.70511.8240.11911.641CO211.8090.1686071.165679.95−6.44
D-N-211.61811.7360.11811.544N211.7520.2086473.217028.688.58
D-T-311.17311.3050.13211.112natural gas11.3170.2056732.286719.89−0.18
S123S-C-111.52611.6990.17311.529CO211.7410.2126898.807871.6014.10
S-N-211.52511.7060.18111.510N211.7540.2447034.268579.4521.96
S-T-311.64511.8530.20811.626natural gas11.8960.270886.038853.4712.26
G93G-C-111.88511.9950.11012.003CO212.0330.0305544.427329.3832.19
G-N-212.14912.3190.17012.160N212.3170.1578992.978843.20−1.66
G-T-311.32711.4380.11111.280natural gas11.4670.1876159.287090.0815.11
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, C.; Yin, D. The Evolution Law of Wettability Degree After Energy Replenishment in Tight Type-II Reservoirs with Different Pore Structures. Processes 2025, 13, 2797. https://doi.org/10.3390/pr13092797

AMA Style

Li C, Yin D. The Evolution Law of Wettability Degree After Energy Replenishment in Tight Type-II Reservoirs with Different Pore Structures. Processes. 2025; 13(9):2797. https://doi.org/10.3390/pr13092797

Chicago/Turabian Style

Li, Chunguang, and Daiyin Yin. 2025. "The Evolution Law of Wettability Degree After Energy Replenishment in Tight Type-II Reservoirs with Different Pore Structures" Processes 13, no. 9: 2797. https://doi.org/10.3390/pr13092797

APA Style

Li, C., & Yin, D. (2025). The Evolution Law of Wettability Degree After Energy Replenishment in Tight Type-II Reservoirs with Different Pore Structures. Processes, 13(9), 2797. https://doi.org/10.3390/pr13092797

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
