Accelerated Solvent Extraction as a Green Tool for the Recovery of Polyphenols and Pigments from Wild Nettle Leaves

by
Maja Repajić
1,*,
Ena Cegledi
1,
Valentina Kruk
1,
Sandra Pedisić
1,
Fırat Çınar
2,
Danijela Bursać Kovačević
1,
Ivanka Žutić
3 and
Verica Dragović-Uzelac
1
1
Faculty of Food Technology and Biotechnology, University of Zagreb, Pierottijeva 6, 10000 Zagreb, Croatia
2
Faculty of Engineering, University of Mersin, Çiftlikköy Kampüsü, 33343 Yenişehir, Mersin, Turkey
3
Faculty of Agriculture, University of Zagreb, Svetošimunska cesta 25, 10000 Zagreb, Croatia
*
Author to whom correspondence should be addressed.
Processes 2020, 8(7), 803; https://doi.org/10.3390/pr8070803
Submission received: 22 June 2020 / Revised: 6 July 2020 / Accepted: 7 July 2020 / Published: 9 July 2020
(This article belongs to the Special Issue Processing Foods: Process Optimization and Quality Assessment)
Browse Figure
Versions Notes

Abstract

:
This study aimed to investigate the performance of accelerated solvent extraction (ASE) as a green approach for the recovery of polyphenols and pigments from wild nettle leaves (NL). ASE was operated at different temperatures (20, 50, 80 and 110 °C), static times (5 and 10 min) and cycle numbers (1–4) using ethanol (96%) as an extraction solvent. In order to compare the efficiency of ASE, ultrasound assisted extraction (UAE) at 80 °C for 30 min was performed as a referent. Polyphenol and pigment analyses were carried out by HPLC and antioxidant capacity was assessed by ORAC. Seven polyphenols from subclasses of hydroxycinnamic acids and flavonoids, along with chlorophylls a and b and their derivatives and six carotenoids and their derivatives were identified and quantified. Chlorogenic acid was the most abundant polyphenol and chlorophyll a represented the dominant pigment. ASE conditions at 110 °C/10 min/3 or 4 cycles proved to be the optimal for achieving the highest yields of analyzed compounds. In comparison with UAE, ASE showed better performance in terms of yields and antioxidants recovery, hence delivering extract with 60% higher antioxidant capacity. Finally, the potential of NL as a functional ingredient from natural sources can be successfully accessed by ASE.

1. Introduction

Nettle (Urtica dioica L.) is a herbaceous and perennial wild plant for which numerous studies show that almost every part of it (stem, flowers, leaves, roots and seeds) has a significant content of various bioactive compounds with corresponding antioxidant capacity (polyphenols, carotenoids, chlorophyll, phytosterols, etc.) [1,2,3]. Therefore, different parts of this plant may have different applications for functional food production due to its valuable nutritional and biological composition [4,5,6,7]. In particular, aerial parts of the nettle are good sources of polyphenols [8,9,10] and pigments [11,12] with different pharmacological and medicinal properties [13,14,15]. Dried nettle extract has already been used as commercially formulated food supplement that may have positive effects on reducing osteoarthritis symptoms [16]. Consumer preferences are driving rapidly towards the natural products, hence, the interest of the industry in the production and application of natural extracts is constantly growing as they show multiple benefits and could represent a valuable ingredient of functional foods, foods supplements and nutraceuticals [17,18].
Nettle extracts are the most common form of its application in the industry, where for each individual species, as well as its part, optimal extraction conditions should be determined with an emphasis on maximum process efficiency and selective isolation of target compounds [19]. Conventional extraction techniques, such as maceration and solvent extraction, use large amounts of solvent, are long-lasting and ultimately do not result in extracts of adequate quality and yield. Therefore, currently priority is given to green extraction techniques that enable fast and environmentally friendly efficient extraction with less energy and solvent consumption [20]. Among these techniques, Accelerated Solvent Extraction (ASE) is highly appreciated for its effectiveness, easy use and fully automated process [21]. The ASE is carried out with a liquid solvent in a combination of elevated temperature and elevated pressure. The method is suitable for the extraction of bioactive compounds sensitive to oxygen and heat [22]. The great advantage of this technique is the ability to work with a larger number of extraction cycles, which significantly contributes to a higher extraction yield [23]. Other benefits of ASE include better diffusion of solvent into the sample due to cell-wall disruption upon high pressure, reduced viscosity of the solvent at elevated pressure and temperature resulting in better solubility, advanced mass transfer, and reduced extraction time [24]. However, ASE may be incomplete due to the limited volume of the solvent and also lower extraction yields of thermolabile components can be reached due to elevated temperatures [24]. Nevertheless, as each extraction parameter can have a significant effect on the extraction efficiency of target compounds, ASE should be optimized in order to maximize its potential [25].
Novel green solvent extraction approaches follow the requirements of being free of toxic solvents. Also, to be performed in miniaturized [26] and automated [27] fashion, are other features of greenness of analytical chemistry. Although the ASE system has been successfully used for isolation of bioactive compounds from various plant material, studies investigating the application of ASE for the isolation of bioactive compounds from nettle are very scarce. Only one research was conducted with aim to investigate ASE extracts of nettle roots, stems, leaves and flowers with respect to anti-inflammatory activity [28]. The extraction methodology was taken from the publication of Johnson et al. [29] and included temperature (22–27 °C and 100 °C), static time 5 min, flushing volume 50%, nitrogen purge time 100 s, and number of cycles 3. Nevertheless, the aim of this work was to investigate the anti-inflammatory and cytotoxic effects of obtained nettle extracts, therefore, did not give a conclusion about the efficiency of ASE in terms of the influence of its process parameters on bioactives recovery. In conclusion, authors stated that further chemical investigation of ASE extracts of nettle is required to identify the individual bioactive compounds responsible for their observed therapeutic potential [28].
Therefore, the aim of this study was to investigate the potential of ASE as a green strategy for the recovery of hydrophilic and lipophilic antioxidants such as polyphenols and pigments (chlorophylls and carotenoids) from wild nettle (Urtica dioica L.). As a referent extraction technique for the comparison with ASE efficiency, ultrasound assisted extraction (UAE) was also performed. Moreover, ASE parameters such as extraction temperature, static time and cycle number were optimized with respect to the highest recovery of target bioactive compounds and antioxidant capacity.

2. Materials and Methods

2.1. Chemicals

HPLC grade acetonitrile was purchased from J.T. Baker Chemicals (Deventer, Netherlands). Water was purified in a ableMilli-Q water purification system (Millipore, Burlington, MA, USA). Ethanol (96%) was obtained from Gram–mol d.o.o. (Zagreb, Croatia) and formic acid (98–100%) from T.T.T. d.o.o. (Sveta, Nedelja, Croatia). Chlorogenic acid (≥95%), p-coumaric acid (≥98%), ferulic acid (≥99%), quercetin-3-glucoside (≥99%), (−)-β-carotene, ɑ-carotene, chlorophyll a (from Anacystis nidulans algae), chlorophyll b (from spinach) and 2,2′-Azobis (2-amidinopropane) dihydrochloride were obtained from Sigma-Aldrich (St. Louis, MO, USA). Fluorescein sodium salt was purchased from Honeywell Fluka™ (Seelze, Germany) and Trolox (6-hydroxy-2,5,7,8-tetramethylchroman-2-carboxylic acid) from Acros Organics (Geel, Belgium).

2.2. Plant Material

Wild nettle (Urtica dioica L.) was collected in April 2019 in Sela Žakanjska, Croatia (altitude 244 m, latitude 45°36′27.8” N, longitude 15°20′38.2” E). Immediately after harvesting, nettle leaves (NL) were separated from stalks and freeze-dried (Alpha 1-4 LSCPlus, Martin Christ Gefriertrocknungsanlagen GmbH, Osterode am Harz, Germany). Afterwards, dry leaves were grinded using a mortar and obtained powder was instantly used for the extraction. Dry matter content of nettle powders was determined by drying at 103 ± 2 °C to constant mass [30].

2.3. Extraction Procedures

2.3.1. Accelerated Solvent Extraction

Polyphenols and pigments of NL were isolated using Accelerated Solvent Extraction (ASE) (Dionex™ ASE™ 350 Accelerated Solvent Extractor, Thermo Fisher Scientific Inc., Sunnyvale, CA, USA). Extractions were performed in 34 mL stainless steel cells fitted with two cellulose filters (Dionex™ 350/150 Extraction Cell Filters, Thermo Fisher Scientific Inc., Sunnyvale, CA, USA) containing 1 g of the sample mixed with 2 g of diatomaceous earth. In order to establish the highest extraction efficiency, extractions were performed under different extraction conditions as follows: extraction temperatures (20, 50, 80 and 110 °C), static extraction times (5 and 10 min) and extraction cycles (1, 2, 3 and 4), while all other parameters remained constant: 10.34 MPa, 30 s of purge with nitrogen and 50% volume flush. Ethanol (96%) was used as the extraction solvent and obtained extracts were collected in 250 mL glass vial with Teflon septa, transferred into 50 mL volume flask and made up to volume with the extraction solvent.

2.3.2. Ultrasound Assisted Extraction

In order to compare ASE efficiency, an ultrasound assisted extraction (UAE) of NL polyphenols and pigments was simultaneously conducted at previously optimized conditions. Briefly, sample (0.5 g) was put into a sealed test tube (50 mL) and 25 mL of ethanol (96%) was added and homogenized on the Vortex ZX3 (Velp Scientifica Srl, Usmate (MB), Italy). The test tube was placed in an ultrasound bath with frequency of 40 kHz (Bandelin electronic GmbH & Co., Berlin, Germany) at 80 °C for 30 min. Afterwards, the suspension was centrifuged (Z 206 A, Hermle Labortechnik GmbH, Wehingen, Germany) at 6000 rpm for 15 min. The supernatant was filtered using Whatman No. 4 filter into 25 mL volumetric flasks, and made up to volume with the extraction solvent.
Experiental setup is shown in Figure 1. All extracts were prepared in duplicate. Extracts were stored at −18 °C in inert gas atmosphere and filtered through a 0.45 μm membrane filter (Macherey-Nagel GmbH, Düren, Germany) prior to HPLC analysis.

2.4. HPLC Analysis

Separation and quantification of polyphenols and pigments were performed using HPLC analysis with Agilent 1260 Infinity quaternary LC system (Agilent Technologies, Santa Clara, CA, USA) equipped with photodiode array detector (PDA), an automatic injector and ChemStation software. The separation of phenolic compounds was performed on a Nucleosil 100-5C18, 5 mm (250 mm × 4.6 mm i.d.) column (Macherey-Nagel, GmbH, Düren, Germany). The composition of solvents and gradient elution conditions were previously described by [31]. For gradient elution, mobile phase A contained 3% of formic acid in water (v/v), while mobile phase B contained 3% of formic acid in 100% acetonitrile (v/v). The used elution program commenced with 10% A in B, raising to 40% A after 25 min, then to 70% A after 30 min and then to 10% A after 35 min. Operating conditions were as follows: column temperature 20 °C, injection volume 20 µL and the flow rate was 0.9 mL min−1. Detection was performed with UV/VIS–PDA detector by scanning from 220 to 360 nm. Identification was assessed by comparing retention times and spectral data with those of authentic standards (phenolic acids were identified at 280 nm and flavonol glycosides at 360 nm) and previous literature reports [1,32,33,34]. Quantitative determinations were carried out using external standard method.
For HPLC analysis of carotenoids and chlorophylls, Phenomenex Develosil RP-Aqueus C 30, 3 µm, (250 × 4.6 mm i.d.) (Phenomenex, Torrance, CA, USA) column was used. The solvent composition and the used gradient conditions were described previously by Castro-Puyana et al. [35]. The mobile phase consisted of a mixture of MeOH: Methyl tert-butyl ether (MTBE): water (90:7:3, v/v/v) as mobile phase A and MeOH: MTBE (10:90, v/v), as mobile phase B. The flow rate was 0.8 mL min−1 and the injection volume 10 µL. The chromatogram was monitored by scanning from 240 to 770 nm and the signal intensities detected at 450 nm and 660 nm were used for carotenoid and chlorophyll quantitation. Identification was carried out by comparing retention times and spectral data with those of the authentic standards (α- and β-carotene, chlorophyll a and b) or in case of unavailability of standards by comparing the absorption spectra reported in the literature [36,37]. Quantifications were made by the external standard calculation, using calibration curves of the standards β-carotene, ɑ-carotene, chlorophyll a and chlorophyll b. The quantification of individual carotenoid compounds (neoxantine, violaxantine, lutein and its derivatives, derivative of zeaxantine and lycopene) was calculated as β-carotene equivalents and derivatives of chlorophylls as chlorophyll a and b equivalents using the equation based on the calibration curves, respectively. The concentrations of analyzed compounds were expressed as mg 100 g−1 of dry matter, as mean values ± SD (N = 4).

2.5. Antioxidant Capacity

The antioxidant capacity of the extracts was assessed by the oxygen radical absorbance capacity (ORAC) assay according to the study of Prior et al. [38] and Bender et al. [39] with minor modifications. The ORAC procedure used an automated plate reader (BMG LABTECH, Offenburg, Germany) with 96-well plates and data were analyzed by MARS 2.0 software. The 2,2′-Azobis radical (2-amidinopropane) dihydrochloride (AAPH), fluorescein solution, different dilutions of 6-hydroxy-2,5,7,8-tetramethylchroman-2-carboxylic acid (Trolox) and samples were prepared in 75 µM phosphate buffer (pH 7.4). Briefly, 25 mL of appropriate diluted samples were added in a 96-well black plate containing 150 µL of fluorescein solution (70.3 nM). The plate was incubated for 30 min at 37 °C and after the first three cycles (representing the baseline signal), AAPH (240 mM) was injected into each well to initiate the peroxyl radical generation. On each plate, different dilutions of Trolox (3.37–107.88 µM) were used as a reference standard. Fluorescence intensity (excitation at 485 nm and emission at 528 nm) was monitored every 90 s over a total measurement period of 120 min. The measurements were performed in duplicates and results are expressed as mmol of Trolox equivalents (TE) 100 g−1 of dry matter, as mean values ± SD (N = 4).

2.6. Statistical Analysis

Statistical analysis was carried out using Statistica ver. 10.0 software (Statsoft Inc., Tulsa, OK, USA). Experimental part was designed as full factorial randomized design and descriptive statistic was assessed for the basic evaluation of the data. Multivariate analysis of variance (MANOVA) was used for the analysis of continuous variables (polyphenols, pigments and antioxidant capacity) and marginal mean values were compared with Tukey’s HSD test. Obtained results are expressed as mean ± SE. Relationships between antioxidant capacity and determined compounds were tested by calculation of Pearson’s correlation coefficient. All tests were carried out at the significance level p ≤ 0.05.

3. Results and Discussion

3.1. Influence of Accelerated Solvent Extraction on Polyphenols Recovery

ASE of NL was performed using 96% ethanol as solvent. The reason for choosing this solvent is that ethanol has a GRAS status (“Generally Recognized as Safe”), so it meets one of the criteria of green chemistry, i.e., green extraction [40] that coupled with ASE might be an efficient green tool for bioactives recovery. Therefore, in order to achieve the maximum efficiency of the extraction process and to provide a high extraction yield of target compounds, the extraction operating parameters need to be optimized [41]. Therefore, present study involved the optimization of the ASE operating conditions in terms of temperature (20, 50, 80 and 110 °C), static time (5 and 10 min) and number of extraction cycles (1–4) for NL polyphenols and pigments extraction. In obtained extracts various polyphenols have been identified and quantified by HPLC analysis: chlorogenic acid (ChA), p-coumaric acid (p-CA), ferulic acid (FA) and chicoric acid (CA) belonging to the group of hydroxycinnamic acids (HCA) and flavonoids (F) quercetin-3-glucoside (Q-3-G), kaempferol-3-rutinoside (K-3-R) and luteolin (LTL) (Table 1). As it can be observed, the most abundant polyphenol was ChA with the highest content of 278.14 mg 100 g−1 dm at 110 °C/10 min/2 cycles. CA was the least represented compound, detected only at 110 °C/10 min/2–4 cycles. Similar polyphenols profile in NL was found by other authors [2,9,10,34,42,43]. Carvalho et al. [10] studied the polyphenols composition in leaves of three nettle species (Urtica dioica L., Urtica membranacea Poir and Urtica urens L.), where Urtica dioica L. had the highest concentration of polyphenols and HCA were the most dominant, especially derivatives of caffeic and p-CA. In accordance, Vajić et al. [42] identified two groups of polyphenols in NL, HCA and F, among which the most dominant were 2-O-caffeoyl malic acid, ChA and rutin. Orčić et al. [9] reported that neochlorogenic acid was the most abundant compound in overground parts of nettle, consisting up to 3.6% of the extract by weight. The following most represented components were quercetin-3-O-rhamnosylglucoside and Q-3-G. Slight differences in composition of polyphenols could be due to the type and various extraction conditions, as well as the pre-harvest and post-harvest conditions [1,2,44,45]. In study of Pinelli et al. [34] ChA and 2-O-caffeoylmalic acids represented 71.5 and 76.5 % of total polyphenols (TP) in cultivated and wild NL, respectively. However, CA was not reported in previous research, while in our study it was identified only at the highest applied conditions (110 °C/10 min/2–4 cycles), pointing ASE as very efficient for the isolation of bioactive polyphenolic compounds.
The influence of ASE parameters (temperature, static time and cycle number) on yield of NL polyphenols are presented in Table 2. The sum of TP includes determined total HCA (THCA) and total F (TF). As it can be seen, the effect of temperature, static time and cycle number had a significant influence (p < 0.01) on all polyphenols groups as well as on TP, except THCA were not significantly affected by the cycle number (p = 0.19). The increase of temperature from 20 to 110 °C resulted with significantly higher THCA, ranging from 16.87 to 255.51 mg 100 g−1 dm, TF (from 3.67 to 80.16 mg 100 g−1 dm) and TP (from 20.54 to 335.67 mg 100 g−1 dm). These results are in accordance with the findings of Zgórka (2009) [46] who reported that the concentration of isoflavone from clover increased with temperature increase (75–125 °C) during ASE and there was no degradation of the analyzed compounds. Increase of the temperature during ASE increases the solubility of the compounds, diffusion rate and mass transfer, enhances the penetration of the solvents into the matrix and thus affects the extraction efficiency [47]. However, Erdogan and Erdemoglu [48] reported that optimum temperature for ASE of polyphenols from apricots was 60 °C, above which the amount of polyphenols decreased due to the possible degradation, which accents the need for the adjustment of proper temperature depending on the used matrix. Considering static time, all polyphenol groups showed the highest content at static time of 10 min (THCA = 164.31 mg 100 g−1 dm, TF = 50.47 mg 100 g−1 dm, TP = 214.78 mg 100 g−1 dm) (Table 2). It is evident that longer static time (10 vs. 5 min) promoted almost double yields of all compound groups. Regarding the cycle number, results revealed that the highest yields of polyphenols were achieved during the third cycle, with an increase of 42–58% when compared to the initial cycle number (1). The same trend was observed by Gomes et al. [49] where the maximum of studied ASE conditions (80 °C/10 min/5 cycles) resulted in highest polyphenols yields. Moreover, Mottaleb and Sarker [21] confirmed the significance of the combined effects of static time and number of cycles in the recovery of natural products.
The purpose of the extraction cycles is to introduce a fresh solvent during the extraction with the aim to maintain a favorable extraction balance. This could be useful for samples with a high concentration of analytes or for samples where it is difficult for solvent to penetrate in the pores of matrix. However, extraction cycles need to be adequately combined with static extraction time for the most efficient extraction [21].
Currently, UAE performed by using an ultrasound bath operating at a frequency between 37 and 45 kHz represents an easy and low-cost extraction process used to obtain high valuable compounds from natural products [50]. In line with this, ASE (80 °C/10 min/3 cycles) was compared with UAE under previously optimized conditions (80 °C/30 min). The polyphenols concentrations obtained at UAE optimal conditions are shown in Table 3. Comparing the yields of both techniques obtained at similar setups, ASE outputs are generally three-fold higher for most of the analyzed polyphenols. Zengin et al. [51] reported that ASE accomplished the highest yields of TP content (65.05 mg GAE g−1) of Tanacetum parthenium extracts in comparison with other four different extraction techniques, among which UAE was also studied.
In their study, UAE yielded 30% less of polyphenols in comparison with ASE, showing its lower efficiency, which is similarly to our results. ASE also showed the best performance for polyphenols extraction in other studies [47,51,52]. Summarizing the obtained results, ASE proved to be effective green technique for recovery of NL polyphenols, whereas conditions 110 °C/10 min/3 cycles showed the highest polyphenols yield. It was shown that temperature presents one of the most important factors among the examined conditions, where generally, application of higher temperature results in higher yields of polyphenols.

3.2. Influence of Accelerated Solvent Extraction on Chlorophylls and Carotenoids Recovery

Chlorophylls and carotenoids are pigments responsible for plant color [53], but they also possess antioxidant properties [54,55], therefore promoting health effects [56]. Along with phenols, NL extracts were also analyzed for the pigment content and the obtained results are given in Table 4 and Table 5. HPLC analysis revealed eight chlorophylls including chlorophyll a (CHL a), chlorophyll b (CHL b) and their derivatives (Table 4). CHL a was the most abundant component ranging between 167.41 and 871.33 mg 100 g−1 dm, where the highest level was obtained at 80 °C/10 min/2 cycles. The following component was CHL b in a ratio of 1:3 when compared to the amount of CHL a, which had been previously confirmed in other studies [12,44]. The component with the lowest concentration was CHL a derivative 2 in the range of 1.06–3.70 mg 100 g−1 dm obtained only at 50 and 80 °C. Concentrations of other identified chlorophylls were much lower. Identified carotenoids were as follows: violaxanthin derivative (VIOLAX der), neoxanthin (NEOX), violaxanthin (VIOLAX), 13′-cis-lutein (13′-cis-LUT), lutein 5,6-epoxide (LUT 5,6-ep), neoxanthin derivative (NEOX der), lutein (LUT), zeaxanthin (ZEAX), 9′-cis-lutein (9′-cis-LUT), α-carotene (α-CAR), β-carotene (β-CAR) and lycopene derivative 10 (LYC der 10) (Table 5). The most dominant carotenoid was LUT ranging from 5.52 to 30.16 mg 100 g−1 dm with the highest yield achieved at 110 °C/10 min/2 cycles. β-CAR was the following carotenoid with a maximum value of 19.02 mg 100 g−1 dm, while the least present carotenoid was LYC der 10 (0.32–0.85 mg 100 g−1 dm) and it was detected only at higher temperatures (80 and 110 °C). With respect to carotenoids composition, our results are in agreement with the findings from the study of Guil-Guerrero et al. [11] where total of nine carotenoids were identified in NL extracts being LUT, β-CAR and their isomers 60% of total carotenoids (TCAR). However, carotenoids in our study were found in higher concentrations, probably due to the application of different extraction technique and conditions. When supercritical and liquid CO2 extraction were used to characterize NL chlorophylls and carotenoids, it was revealed that chlorophylls content was lower (CHL a 73 mg 100 g−1 dm, CHL b 100 100 g−1 dm), while LUT and β-CAR contents were higher (LUT 39 mg 100 g−1 dm, β-CAR 24 mg 100 g−1 dm) in comparison with our results [57]. Moreover, it can be observed that the chlorophylls levels are much higher compared to the levels of carotenoids (Table 4 and Table 5), which is in accordance with previous studies, where NL extracts had four-fold higher concentrations of chlorophylls in comparison with carotenoids [2,44].
Table 2 provides the results of ASE conditions’ impact on the yield of NL pigments. The sum of total pigments (TPG) includes total chlorophylls (TCH) and TCAR. The results showed that the temperature, static time and number of cycles significantly affected (p < 0.01) content of all analyzed pigments. TCH and TCAR increased two-fold with an increase in temperature (TCH 464.37 vs. 1075.25 mg 100 g−1 dm, TCAR 31.48 vs. 65.81 mg 100 g−1 dm). Nevertheless, it can be observed that several chlorophylls and carotenoids achieved maximum yield at 80 °C, while at 110 °C a decrease in yield was recorded (Table 4 and Table 5). Considering static time, all pigments showed higher content at static time of 10 min and as for cycle number, it can be observed that the highest yields of pigments were achieved at the maximum cycle number (Table 2). Finally, the highest TPG was obtained at 110 °C (1141.06 mg 100 g−1 dm), at the static time of 10 min (992.77 mg 100 g−1 dm) and at the fourth cycle of extraction (928.82 mg 100 g−1 dm) with temperature being dominant for influencing the extraction yield. Temperature increase affects the viscosity and solubility of the solvent, but degradation of the components can also occur if the applied temperature is too high [58]. Optimization of ASE parameters for carotenoids extraction (LUT and β-CAR) from carrot was also conducted by Saha et al. [58] by variation of temperature (40, 50 and 60 °C) and static time (5, 10 and 15 min). An increase in extraction yield for 4–8% was recorded by increasing the time for 5 min at 60 °C, but extraction efficiency was not observed when more than three cycles were carried out, giving 60 °C/15 min/3 cycles as optimal conditions. Furthermore, Cha et al. [59] investigated the effect of temperature (50, 105 and 160 °C) and static time (8, 19 and 30 min) on content of chlorophylls and carotenoids from algae Chlorella vulgaris and also concluded that temperature had the strongest influence on pigment extraction. They reported maximum yields of CHL a and b at the highest temperatures (150–160 °C), while β-CAR showed temperature sensitivity since its yield decreased at temperatures between 120 and 160 °C. Kim et al. [60] characterized twelve carotenoids from different varieties of paprika isolated using ASE at optimal conditions of 100 °C/5 min/3 cycles, and Mustafa et al. [56] reported 60 °C/2 min/5 cycles as the highest efficiency ASE conditions for carotenoids extraction from carrot by-products. They recorded a decrease of α- and β-CAR at temperatures above 120 °C, which is explainable by the thermo-sensitivity of carotenoids. They also proposed the use of several cycles, since some carotenoids are beginning to release during longer extraction time. Hojnik et al. [12] believe that for the extraction of chlorophylls it is necessary to conduct at least 2 extraction cycles in order to obtain a high yield, while Rafajlovska et al. [61] showed that multiple cycle extraction is better technique than one long cycle extraction. Although they applied different technique (supercritical CO2 extraction), the levels of CHL a + b and β-CAR in NL significantly raised with the application of several steps of extraction. Further, chlorophylls dissolved better at higher pressure and temperature (210 bar, 50 °C) compared to the carotenoids (140 bar, 40 °C).
Comparing the pigment yields between ASE and UAE (Table 3, Table 4 and Table 5), it is evident that ASE yielded higher amounts of almost all pigments, especially the dominant ones. Research of Plaza et al. [62] also compared ASE and UAE for the extraction of chlorophylls and carotenoids from the algae Chlorella. It was concluded that ASE accomplished higher yields of pigments along with being a faster and more controlled technique. Moreover, Koo et al. [63] achieved a seven-fold higher amount of zeaxanthin from Chlorella in ASE extract compared to the extracts obtained with UAE. Based on the above results, ASE is a technique that executes higher yields of targeted compounds and protects sensitive compounds from light and oxygen under controlled conditions of temperature, pressure and extraction time [64].

3.3. Influence of Accelerated Solvent Extraction on Antioxidant Capacity

As already mentioned, it is well established that antioxidants prevent the oxidation of other substances and, in biological systems, they neutralize reactive free radicals, thus protect the body from various diseases. Since NL extracts already proved to be a very rich source of natural antioxidants, antioxidant capacity (AC) in obtained extracts was documented by the ORAC method (Table 1). ORAC values ranged from 2.42 to 22.07 mmol TE 100 g−1 dm. The highest value was determined in extract obtained at 80 °C/10 min/3 cycles, after which a decline was recorded. Similar ORAC levels were recorded by Moldovan et al. [8]. High AC of nettle was also confirmed in Skapska et al. [65] and Tian et al. [66] research.
Considering ASE conditions, temperature, static time and cycle number had a significant influence (p < 0.01) on the AC. The most suitable combination of ASE parameters for achieving the extract with the highest ORAC value was 80 °C/10 min/4 cycles, as presented in Table 2. Regarding temperature, AC of the extracts was three-fold higher at 80 °C (16.70 mmol TE 100 g−1 dm) compared to the value at the initial temperature (5.52 mmol TE 100 g−1 dm) and afterwards it slightly decreased. This points that analyzed compounds of NL extracts were stable at 80 °C. This is in accordance with previously discussed results since the increase of AC derives from the abundant presence of bioactive molecules at higher temperatures as a consequence of the cell-wall disruption and increased mass transfer from the sample to the pressurized solvent. Accordingly, Howard et al. [67] reported an increase of spinach extracts AC combined with elevated temperature as well as Benchikh and Louailèche [68] in study of carob pulp polyphenols.
Calculated correlation coefficients showed a very strong correlation (r = 0.86–0.94) between the analyzed compounds and ORAC levels (Table 6), showing that NL THCA and TF as well as pigments significantly contribute to its antioxidant potential. Previous research showed that phenolic acids and flavonoids are significant antioxidants [69,70,71] as well as chlorophylls [54] and carotenoids [72,73,74,75].
When comparing AC between ASE and UAE extracts, the higher ORAC values were observed in ASE comparted to UAE extracts (22.07 vs. 13.26 mmol TE 100 g−1 dm) (Table 1 and Table 3), confirming that ASE is more efficient for achieving high valuable extracts. Similarly, Hossain et al. [47] reported 77.52% higher AC in rosemary ASE extract in comparison with conventional extract, as a result of more efficient ASE of antioxidant phenolic compounds. Other authors also reported similar findings [51].
From all of the above, NL certainly represents a great source of various antioxidants (hydrophilic and lipophilic), where generally all analyzed compounds strongly contribute to AC. Moreover, ASE provides higher extraction yields of bioactive antioxidants in comparison with UAE; thus, it could be considered as an efficient green tool for the production of highly valuable nettle extracts for further industrial use.

4. Conclusions

Due to the increased interest in the industry for application of natural extracts in functional food production, the obtained results clearly demonstrate that ASE nettle extracts could be considered as green extracts for potential further use. Wild NL extracts were shown as a valuable natural source of structurally diverse bioactive compounds, polyphenols and pigments. Moreover, high efficiency for obtaining valuable NL extracts has been successfully obtained by ASE at optimized conditions of 110 °C, 10 min of static time and three or four cycles. Among the bioactive components that contribute to the biological value of NL, seven polyphenols belonging to the groups of hydroxycinnamic acids and flavonoids, chlorophylls a and b along with six of their derivatives and twelve carotenoids were present. Quantitatively, ChA was the most abundant polyphenol and CHL a represented the dominant pigment, followed by CHL b, LUT and β-CAR. Furthermore, ASE showed better performance in comparison with UAE, obtaining higher yields of antioxidant compounds and 60% higher antioxidant capacity. Results of this study are fundamental for future research involving spray-drying of NL extracts and further implementation of the obtained NL powder into various food products.

Author Contributions

Conceptualization, M.R. and D.B.K.; Data curation, M.R., E.C., S.P. and F.Ç.; Formal analysis, V.K., S.P. and F.Ç.; Methodology, M.R., S.P. and D.B.K.; Project administration, V.D.-U.; Resources, I.Ž.; Supervision, V.D.-U.; Writing—original draft, M.R., E.C. and D.B.K.; Writing—review & editing, V.D.-U. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Croatian Science Foundation project (grant number IP-01-2018-4924).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Otles, S.; Yalcin, B. Phenolic compounds analysis of root, stalk, and leaves of nettle. Sci. World J. 2012, 2012, 1–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Đurović, S.; Pavlić, B.; Šorgić, S.; Popov, S.; Savić, S.; Petronijević, M.; Radojković, M.; Cvetanović, A.; Zeković, Z. Chemical composition of stinging nettle leaves obtained by different analytical approaches. J. Funct. Foods 2017, 32, 18–26. [Google Scholar] [CrossRef]
  3. Grauso, L.; de Falco, B.; Lanzotti, V.; Motti, R. Stinging nettle, Urtica dioica L.: Botanical, phytochemical and pharmacological overview. Phytochem. Rev. 2020. [Google Scholar] [CrossRef]
  4. Đurović, S.; Vujanović, M.; Radojković, M.; Filipović, J.; Filipović, V.; Gašić, U.; Tešić, Ž.; Mašković, P.; Zeković, Z. The functional food production: Application of stinging nettle leaves and its extracts in the baking of a bread. Food Chem. 2020, 312. [Google Scholar] [CrossRef] [PubMed]
  5. Tomczyk, M.; Zaguła, G.; Dżugan, M. A simple method of enrichment of honey powder with phytochemicals and its potential application in isotonic drink industry. Lwt 2020, 125. [Google Scholar] [CrossRef]
  6. Hayward, L.; Wedel, A.; McSweeney, M.B. Acceptability of beer produced with dandelion, nettle, and sage. Int. J. Gastron. Food Sci. 2019, 18. [Google Scholar] [CrossRef]
  7. Marchetti, N.; Bonetti, G.; Brandolini, V.; Cavazzini, A.; Maietti, A.; Meca, G.; Mañes, J. Stinging nettle (Urtica dioica L.) as a functional food additive in egg pasta: Enrichment and bioaccessibility of Lutein and β-carotene. J. Funct. Foods 2018, 47, 547–553. [Google Scholar] [CrossRef]
  8. Moldovan, L.; Gaspar, A.; Toma, L.I.A.N.A.; Craciunescu, O.A.N.A.; Saviuc, C.R.I.N.A. Comparison of polyphenolic content and antioxidant capacity of five Romanian traditional medicinal plants. Revista de Chimie -Buchar. 2011, 62, 299–303. [Google Scholar]
  9. Orčić, D.; Francišković, M.; Bekvalac, K.; Svirčev, E.; Beara, I.; Lesjak, M.; Mimica-Dukić, N. Quantitative determination of plant phenolics in Urtica dioica extracts by high-performance liquid chromatography coupled with tandem mass spectrometric detection. Food Chem. 2014, 143, 48–53. [Google Scholar] [CrossRef]
  10. Carvalho, A.R.; Costa, G.; Figueirinha, A.; Liberal, J.; Prior, J.A.V.; Lopes, M.C.; Cruz, M.T.; Batista, M.T. Urtica spp.: Phenolic composition, safety, antioxidant and anti-inflammatory activities. Food Res. Int. 2017, 99, 485–494. [Google Scholar] [CrossRef]
  11. Guil-Guerrero, J.L.; Rebolloso-Fuentes, M.M.; Torija Isasa, M.E. Fatty acids and carotenoids from Stinging Nettle (Urtica dioica L.). J. Food Compos. Anal. 2003, 16, 111–119. [Google Scholar] [CrossRef]
  12. Hojnik, M.; Škerget, M.; Knez, Ž. Isolation of chlorophylls from stinging nettle (Urtica dioica L.). Sep. Purif. Technol. 2007, 57, 37–46. [Google Scholar] [CrossRef]
  13. Ibrahim, M.; Rehman, K.; Razzaq, A.; Hussain, I.; Farooq, T.; Hussain, A.; Akash, M.S.H. Investigations of phytochemical constituents and their pharmacological properties isolated from the genus urtica: Critical review and analysis. Crit. Rev. Eukaryotic Gene Expr. 2018, 28, 25–66. [Google Scholar] [CrossRef]
  14. Martínez-Aledo, N.; Navas-Carrillo, D.; Orenes-Piñero, E. Medicinal plants: Active compounds, properties and antiproliferative effects in colorectal cancer. Phytochem. Rev. 2020, 19, 123–137. [Google Scholar] [CrossRef]
  15. Ziaei, R.; Foshati, S.; Hadi, A.; Kermani, M.A.H.; Ghavami, A.; Clark, C.C.T.; Tarrahi, M.J. The effect of nettle (Urtica dioica) supplementation on the glycemic control of patients with type 2 diabetes mellitus: A systematic review and meta-analysis. Phytother. Res. 2019, 34, 282–294. [Google Scholar] [CrossRef]
  16. Jacquet, A.; Girodet, P.-O.; Pariente, A.; Forest, K.; Mallet, L.; Moore, N. Phytalgic®, a food supplement, vs placebo in patients with osteoarthritis of the knee or hip: A randomised double-blind placebo-controlled clinical trial. Arthritis Res. Ther. 2009, 11. [Google Scholar] [CrossRef] [Green Version]
  17. Cencic, A.; Chingwaru, W. The role of functional foods, nutraceuticals, and food supplements in intestinal health. Nutrients 2010, 2, 611–625. [Google Scholar] [CrossRef]
  18. Granato, D.; Barba, F.J.; Bursać Kovačević, D.; Lorenzo, J.M.; Cruz, A.G.; Putnik, P. Functional foods: Product development, technological trends, efficacy testing, and safety. Annu. Rev. Food Sci. Technol. 2020, 11, 93–118. [Google Scholar] [CrossRef] [Green Version]
  19. Stanojević, L.P.; Stanković, M.Z.; Cvetković, D.J.; Cakić, M.D.; Ilić, D.P.; Nikolić, V.D.; Stanojević, J.S. The effect of extraction techniques on yield, extraction kinetics, and antioxidant activity of aqueous-methanolic extracts from nettle (Urtica dioica L.) leaves. Sep. Sci. Technol. 2016, 51, 1817–1829. [Google Scholar] [CrossRef]
  20. Chemat, F.; Vian, M.A.; Cravotto, G. Green extraction of natural products: Concept and principles. Int. J. Mol. Sci. 2012, 13, 8615–8627. [Google Scholar] [CrossRef] [Green Version]
  21. Mottaleb, M.A.; Sarker, S.D. Accelerated Solvent Extraction for Natural Products Isolation. In Natural Products Isolation, 3rd ed.; Sarker, S.D., Nahar, L., Eds.; Springer: New York, NY, USA, 2012; pp. 75–88. [Google Scholar] [CrossRef]
  22. Putnik, P.; Barba, F.J.; Španić, I.; Zorić, Z.; Dragović-Uzelac, V.; Bursać Kovačević, D. Green extraction approach for the recovery of polyphenols from Croatian olive leaves (Olea europea). Food Bioprod. Process 2017, 106, 19–28. [Google Scholar] [CrossRef]
  23. Bursać Kovačević, D.; Barba, F.J.; Granato, D.; Galanakis, C.M.; Herceg, Z.; Dragović-Uzelac, V.; Putnik, P. Pressurized Hot Water Extraction (PHWE) for the green recovery of bioactive compounds and steviol glycosides from Stevia rebaudiana Bertoni Leaves. Food Chem. 2018. [Google Scholar] [CrossRef]
  24. Ameer, K.; Shahbaz, H.M.; Kwon, J.-H. Green extraction methods for polyphenols from plant matrices and their byproducts: A Review. Compr. Rev. Food Sci. F 2017, 16, 295–315. [Google Scholar] [CrossRef] [Green Version]
  25. Jentzer, J.-B.; Alignan, M.; Vaca-Garcia, C.; Rigal, L.; Vilarem, G. Response surface methodology to optimise accelerated solvent extraction of steviol glycosides from Stevia rebaudiana Bertoni leaves. Food Chem. 2015, 166, 561–567. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Pena-Pereira, F.; Lavilla, I.; Bendicho, C. Miniaturized preconcentration methods based on liquid–liquid extraction and their application in inorganic ultratrace analysis and speciation: A review. Spectrochim. Acta Part B 2009, 64, 1–15. [Google Scholar] [CrossRef]
  27. Alexovič, M.; Dotsikas, Y.; Bober, P.; Sabo, J. Achievements in robotic automation of solvent extraction and related approaches for bioanalysis of pharmaceuticals. J. Chromatogr. B 2018, 1092, 402–421. [Google Scholar] [CrossRef] [PubMed]
  28. Johnson, T.A.; Sohn, J.; Inman, W.D.; Bjeldanes, L.F.; Rayburn, K. Lipophilic stinging nettle extracts possess potent anti-inflammatory activity, are not cytotoxic and may be superior to traditional tinctures for treating inflammatory disorders. Phytomedicine 2013, 20, 143–147. [Google Scholar] [CrossRef] [Green Version]
  29. Johnson, T.A.; Morgan, M.V.C.; Aratow, N.A.; Estee, S.A.; Sashidhara, K.V.; Loveridge, S.T.; Segraves, N.L.; Crews, P. Assessing Pressurized Liquid Extraction for the high-throughput extraction of marine-sponge-derived natural products⊥. J. Nat. Prod. 2010, 73, 359–364. [Google Scholar] [CrossRef] [Green Version]
  30. AOAC. Official Methods of Analysis: Changes in Official Methods of Analysis Made at the Annual Meeting, 15th ed.; Association of Official Analytical Chemists: Rockville, Maryland, 1990; Volume I, pp. 40–64. [Google Scholar]
  31. Dent, M.; Dragović-Uzelac, V.; Penić, M.; Brnčić, M.; Bosiljkov, T.; Levaj, B. The effect of extraction solvents, temperature and time on the composition and mass fraction of polyphenols in dalmatian wild sage (Salvia officinalis L.) extracts. Food Technol. Biotech. 2013, 51, 84–91. [Google Scholar]
  32. Akbay, P.; Basaran, A.A.; Undeger, U.; Basaran, N. In vitro immunomodulatory activity of flavonoid glycosides from Urtica dioica L. Phytother. Res. 2003, 17, 34–37. [Google Scholar] [CrossRef] [PubMed]
  33. Farag, M.A.; Weigend, M.; Luebert, F.; Brokamp, G.; Wessjohann, L.A. Phytochemical, phylogenetic, and anti-inflammatory evaluation of 43 Urtica accessions (stinging nettle) based on UPLC–Q-TOF-MS metabolomic profiles. Phytochemistry 2013, 96, 170–183. [Google Scholar] [CrossRef] [PubMed]
  34. Pinelli, P.; Ieri, F.; Vignolini, P.; Bacci, L.; Baronti, S.; Romani, A. Extraction and HPLC analysis of phenolic compounds in leaves, stalks, and textile fibers of Urtica dioica L. J. Agric. Food Chem. 2008, 56, 9127–9132. [Google Scholar] [CrossRef]
  35. Castro-Puyana, M.; Pérez-Sánchez, A.; Valdés, A.; Ibrahim, O.H.M.; Suarez-Álvarez, S.; Ferragut, J.A.; Micol, V.; Cifuentes, A.; Ibáñez, E.; García-Cañas, V. Pressurized liquid extraction of Neochloris oleoabundans for the recovery of bioactive carotenoids with anti-proliferative activity against human colon cancer cells. Food Res. Int. 2017, 99, 1048–1055. [Google Scholar] [CrossRef] [Green Version]
  36. Gupta, P.; Sreelakshmi, Y.; Sharma, R. A rapid and sensitive method for determination of carotenoids in plant tissues by high performance liquid chromatography. Plant. Methods 2015, 11, s13007–s13015. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Sözgen Başkan, K.; Tütem, E.; Özer, N.; Apak, R. Spectrophotometric and chromatographic assessment of contributions of carotenoids and chlorophylls to the total antioxidant capacities of plant foods. J. Agric. Food Chem. 2013, 61, 11371–11381. [Google Scholar] [CrossRef] [PubMed]
  38. Prior, R.L.; Wu, X.L.; Schaich, K. Standardized methods for the determination of antioxidant capacity and phenolics in foods and dietary supplements. J. Agric. Food Chem. 2005, 53, 4290–4302. [Google Scholar] [CrossRef]
  39. Bender, C.; Graziano, S.; Zimmerman, B.F.; Weidlich, H.H. Antioxidant potential of aqueous plant extracts assessed by the cellular antioxidant activity assay. Am. J. Biol. Life Sci. 2014, 2, 72–79. [Google Scholar]
  40. Rodríguez-Rojo, S.; Visentin, A.; Maestri, D.; Cocero, M.J. Assisted extraction of rosemary antioxidants with green solvents. J. Food Eng. 2012, 109, 98–103. [Google Scholar] [CrossRef] [Green Version]
  41. Carabias-Martínez, R.; Rodríguez-Gonzalo, E.; Revilla-Ruiz, P.; Hernández-Méndez, J. Pressurized liquid extraction in the analysis of food and biological samples. J. Chromatogr. A 2005, 1089, 1–17. [Google Scholar] [CrossRef]
  42. Vajić, U.-J.; Grujić-Milanović, J.; Živković, J.; Šavikin, K.; Gođevac, D.; Miloradović, Z.; Bugarski, B.; Mihailović-Stanojević, N. Optimization of extraction of stinging nettle leaf phenolic compounds using response surface methodology. Ind. Crops Prod. 2015, 74, 912–917. [Google Scholar] [CrossRef]
  43. Moreira, S.A.; Silva, S.; Costa, E.M.; Saraiva, J.A.; Pintado, M. Effect of high hydrostatic pressure extraction on biological activities of stinging nettle extracts. Food Funct. 2020, 11, 921–931. [Google Scholar] [CrossRef] [PubMed]
  44. Zeipiņa, S.; Alsiņa, I.; Lepse, L. Stinging nettle–the source of biologically active compounds as sustainable daily diet supplement. Res. Rural. Dev. 2014, 20, 34–38. [Google Scholar]
  45. Ciulu, M.; Quirantes-Piné, R.; Spano, N.; Sanna, G.; Borrás-Linares, I.; Segura-Carretero, A. Evaluation of new extraction approaches to obtain phenolic compound-rich extracts from Stevia rebaudiana Bertoni leaves. Ind. Crops Prod. 2017, 108, 106–112. [Google Scholar] [CrossRef]
  46. Zgórka, G. Pressurized liquid extraction versus other extraction techniques in micropreparative isolation of pharmacologically active isoflavones from Trifolium L. species. Talanta 2009, 79, 46–53. [Google Scholar] [CrossRef] [PubMed]
  47. Hossain, M.B.; Barry-Ryan, C.; Martin-Diana, A.B.; Brunton, N.P. Optimisation of accelerated solvent extraction of antioxidant compounds from rosemary (Rosmarinus officinalis L.), marjoram (Origanum majorana L.) and oregano (Origanum vulgare L.) using response surface methodology. Food Chem. 2011, 126, 339–346. [Google Scholar] [CrossRef] [Green Version]
  48. Erdoğan, S.; Erdemoğlu, S. Evaluation of polyphenol contents in differently processed apricots using accelerated solvent extraction followed by high-performance liquid chromatography–diode array detector. Int. J. Food Sci. Nutr. 2011, 62, 729–739. [Google Scholar] [CrossRef]
  49. Gomes, S.V.F.; Portugal, L.A.; dos Anjos, J.P.; de Jesus, O.N.; de Oliveira, E.J.; David, J.P.; David, J.M. Accelerated solvent extraction of phenolic compounds exploiting a Box-Behnken design and quantification of five flavonoids by HPLC-DAD in Passiflora species. Microchem. J. 2017, 132, 28–35. [Google Scholar] [CrossRef]
  50. Esclapez, M.D.; García-Pérez, J.V.; Mulet, A.; Cárcel, J.A. Ultrasound-Assisted Extraction of natural products. Food Eng. Rev. 2011, 3, 108–120. [Google Scholar] [CrossRef]
  51. Zengin, G.; Cvetanović, A.; Gašić, U.; Stupar, A.; Bulut, G.; Şenkardes, I.; Dogan, A.; Ibrahime Sinan, K.; Uysal, S.; Aumeeruddy-Elalfi, Z.; et al. Modern and traditional extraction techniques affect chemical composition and bioactivity of Tanacetum parthenium (L.) Sch.Bip. Ind. Crops Prod. 2020, 146. [Google Scholar] [CrossRef]
  52. Barros, F.; Dykes, L.; Awika, J.M.; Rooney, L.W. Accelerated solvent extraction of phenolic compounds from sorghum brans. J. Cereal Sci. 2013, 58, 305–312. [Google Scholar] [CrossRef]
  53. Alkema, J.; Seager, S.L. The chemical pigments of plants. J. Chem. Educ. 1982, 59. [Google Scholar] [CrossRef]
  54. Ferruzzi, M.G.; Bohm, V.; Courtney, P.D.; Schwartz, S.J. Antioxidant and antimutagenic activity of dietary chlorophyll derivatives determined by radical scavenging and bacterial reverse mutagenesis assays. J. Food Sci. 2002, 67, 2589–2595. [Google Scholar] [CrossRef]
  55. Jaime, L.; Rodríguez-Meizoso, I.; Cifuentes, A.; Santoyo, S.; Suarez, S.; Ibáñez, E.; Señorans, F.J. Pressurized liquids as an alternative process to antioxidant carotenoids’ extraction from Haematococcus pluvialis microalgae. Lwt Food Sci. Technol. 2010, 43, 105–112. [Google Scholar] [CrossRef] [Green Version]
  56. Mustafa, A.; Trevino, L.M.; Turner, C. Pressurized hot ethanol extraction of carotenoids from carrot by-products. Molecules 2012, 17, 1809–1818. [Google Scholar] [CrossRef] [Green Version]
  57. Sovová, H.; Sajfrtová, M.; Bártlová, M.; Opletal, L. Near-critical extraction of pigments and oleoresin from stinging nettle leaves. J. Supercrit. Fluids 2004, 30, 213–224. [Google Scholar] [CrossRef]
  58. Saha, S.; Walia, S.; Kundu, A.; Sharma, K.; Paul, R.K. Optimal extraction and fingerprinting of carotenoids by accelerated solvent extraction and liquid chromatography with tandem mass spectrometry. Food Chem. 2015, 177, 369–375. [Google Scholar] [CrossRef]
  59. Cha, K.H.; Lee, H.J.; Koo, S.Y.; Song, D.-G.; Lee, D.-U.; Pan, C.-H. Optimization of Pressurized Liquid Extraction of carotenoids and chlorophylls from Chlorella vulgaris. J. Agric. Food Chem. 2010, 58, 793–797. [Google Scholar] [CrossRef]
  60. Kim, J.-S.; An, C.G.; Park, J.-S.; Lim, Y.P.; Kim, S. Carotenoid profiling from 27 types of paprika (Capsicum annuum L.) with different colors, shapes, and cultivation methods. Food Chem. 2016, 201, 64–71. [Google Scholar] [CrossRef]
  61. Rafajlovska, V.; Djarmati, Z.; Najdenova, V.; Cvetkov, L. Extraction of stinging nettle (Urtica dioica L.) with supercritical carbondioxide. Balıkesir Üniversitesi Fen Bilimleri Enstitüsü Dergisi 2016, 4, 49–52. [Google Scholar]
  62. Plaza, M.; Santoyo, S.; Jaime, L.; Avalo, B.; Cifuentes, A.; Reglero, G.; García-Blairsy Reina, G.; Señoráns, F.J.; Ibáñez, E. Comprehensive characterization of the functional activities of pressurized liquid and ultrasound-assisted extracts from Chlorella vulgaris. Lwt-Food Sci. Technol. 2012, 46, 245–253. [Google Scholar] [CrossRef]
  63. Koo, S.Y.; Cha, K.H.; Song, D.-G.; Chung, D.; Pan, C.-H. Optimization of pressurized liquid extraction of zeaxanthin from Chlorella ellipsoidea. J. Appl. Phycol. 2011, 24, 725–730. [Google Scholar] [CrossRef]
  64. Cheng, S.H.; Khoo, H.E.; Kong, K.W.; Prasad, K.N.; Galanakis, C.M. Extraction of carotenoids and applications. In Carotenoids: Properties, Processing and Applications; Galanakis, C.M., Ed.; Academic Press: New York, NY, USA, 2020; pp. 259–288. [Google Scholar] [CrossRef]
  65. Skąpska, S.; Marszałek, K.; Woźniak, Ł.; Zawada, K.; Wawer, I. Aronia dietary drinks fortified with selected herbal extracts preserved by thermal pasteurization and high pressure carbon dioxide. Lwt-Food Sci. Technol. 2017, 85, 423–426. [Google Scholar] [CrossRef]
  66. Tian, Y.; Puganen, A.; Alakomi, H.-L.; Uusitupa, A.; Saarela, M.; Yang, B. Antioxidative and antibacterial activities of aqueous ethanol extracts of berries, leaves, and branches of berry plants. Food Res. Int. 2018, 106, 291–303. [Google Scholar] [CrossRef]
  67. Howard, L.; Pandjaitan, N. Pressurized Liquid Extraction of flavonoids from spinach. J. Food Sci. 2008, 73, C151–C157. [Google Scholar] [CrossRef]
  68. Benchikh, Y.; Louailèche, H. Effects of extraction conditions on the recovery of phenolic compounds andin vitroantioxidant activity of carob (Ceratonia siliqua L.) pulp. Acta Botanica Gallica 2014, 161, 175–181. [Google Scholar] [CrossRef]
  69. Ćetković, G.; Čanadanović-Brunet, J.; Djilas, S.; Tumbas, V.; Markov, S.; Cvetković, D. Antioxidant potential, lipid peroxidation inhibition and antimicrobial activities of Satureja montana L. subsp. kitaibelii extracts. Int. J. Mol. Sci. 2007, 8, 1013–1027. [Google Scholar] [CrossRef] [Green Version]
  70. Miguel, M.G. Antioxidant activity of medicinal and aromatic plants. A review. Flavour Fragr. J. 2010, 25, 291–312. [Google Scholar] [CrossRef]
  71. Zenão, S.; Aires, A.; Dias, C.; Saavedra, M.J.; Fernandes, C. Antibacterial potential of Urtica dioica and Lavandula angustifolia extracts against methicillin resistant Staphylococcus aureus isolated from diabetic foot ulcers. J. Herbal Med. 2017, 10, 53–58. [Google Scholar] [CrossRef]
  72. Böhm, V.; Puspitasari-Nienaber, N.L.; Ferruzzi, M.G.; Schwartz, S.J. Trolox equivalent antioxidant capacity of different geometrical isomers of α-carotene, β-carotene, lycopene, and zeaxanthin. J. Agric. Food Chem. 2002, 50, 221–226. [Google Scholar] [CrossRef]
  73. Ben-dor, A.; Steiner, M.; Gheber, L.; Danilenko, M.; Dubi, N.; Linnewiel, K.; Zick, A.; Sharoni, Y.; Levy, J. Carotenoids activate the antioxidant response element transcriptionsystem Carotenoids activate the antioxidant response element transcriptionsystem. Mol. Cancer Ther. 2005, 4, 177–186. [Google Scholar] [PubMed]
  74. Dewick, P.M. Medicinal Natural Products: A Biosynthetic Approach; John Wiley & Sons Ltd.: Chichester, UK, 2009. [Google Scholar]
  75. Yunbo, L. Carotenoids. In Antioxidants in Biology and Medicine: Essentials, Advances, and Clinical Applications; Tsisana Shartava, M.D., Tbilisi, G., Eds.; Nova Science Publishers Inc.: New York, NY, USA, 2011. [Google Scholar]
Processes 08 00803 g001 550

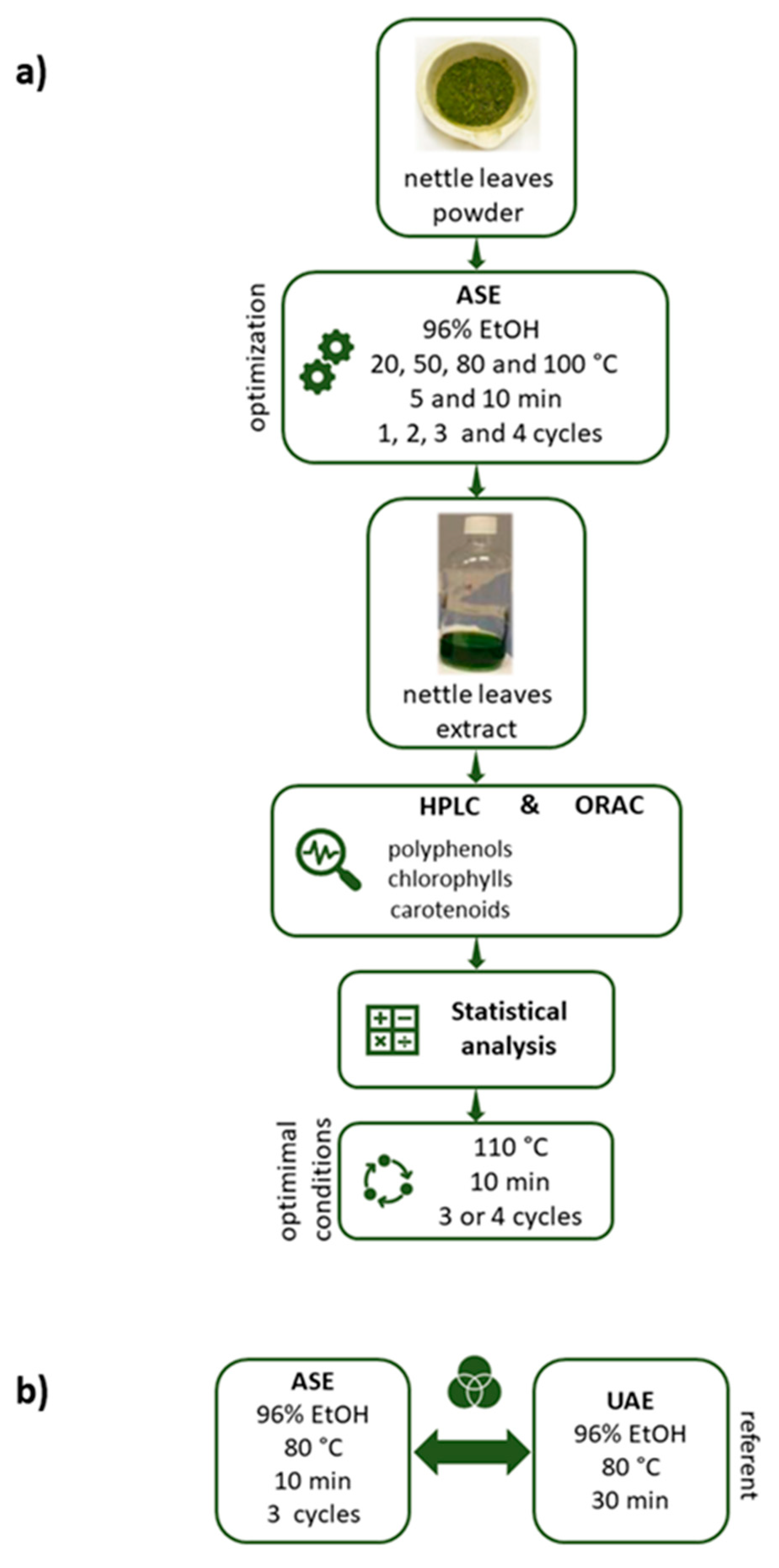

Figure 1. Experimental setup: (a) optimization of ASE conditions, (b) comparison of ASE and UAE efficiency. (ASE = accelerated solvent extraction, UAE = ultrasound assisted extraction).
Figure 1. Experimental setup: (a) optimization of ASE conditions, (b) comparison of ASE and UAE efficiency. (ASE = accelerated solvent extraction, UAE = ultrasound assisted extraction).
Processes 08 00803 g001
Table
Table 1. Nettle leaves polyphenols (mg 100 g−1 dm) and ORAC values (mmol TE 100 g−1 dm) in extracts obtained at ASE different conditions.
Table 1. Nettle leaves polyphenols (mg 100 g−1 dm) and ORAC values (mmol TE 100 g−1 dm) in extracts obtained at ASE different conditions.
Temperature (°C)Static Time (min)Cycle NumberChAp-CAFACAQ-3-GK-3-RLTLORAC
20516.69 ± 0.051.33 ± 0.02ndndndndnd2.66 ± 0.01
28.63 ± 0.311.73 ± 0.04ndndndndnd3.08 ± 0.03
39.03 ± 0.341.51 ± 0.20ndndndndnd2.42 ± 0.04
410.53 ± 0.171.76 ± 0.08ndndndndnd2.96 ± 0.14
10110.14 ± 6.631.75 ± 1.10ndnd5.41 ± 0.04ndnd5.37 ± 0.07
219.74 ± 0.802.82 ± 0.57ndnd7.32 ± 0.52ndnd7.54 ± 0.06
324.09 ± 1.013.61 ± 0.33ndnd8.27 ± 0.67ndnd10.22 ± 0.02
427.65 ± 1.003.95 ± 0.12ndnd8.32 ± 0.42ndnd9.91 ± 0.05
505110.08 ± 0.251.82 ± 0.23ndnd6.57 ± 0.27ndnd4.61 ± 0.02
213.00 ± 0.241.63 ± 0.22ndnd3.84 ± 0.16ndnd4.77 ± 0.04
313.70 ± 0.721.55 ± 0.32ndnd4.69 ± 0.40ndnd3.53 ± 0.04
415.56 ± 0.531.55 ± 0.37ndnd4.80 ± 0.20ndnd3.43 ± 0.06
10123.36 ± 0.944.01 ± 0.73ndnd5.63 ± 0.55ndnd7.50 ± 0.04
231.13 ± 1.47 4.89 ± 0.79ndnd7.17 ± 0.98ndnd10.08 ± 0.01
337.35 ± 1.706.14 ± 1.01ndnd8.67 ± 1.16ndnd10.74 ± 0.06
451.01 ± 0.547.14 ± 0.87ndnd11.71 ± 1.932.62 ± 3.70nd12.53 ± 0.05
805174.73 ± 2.5645.79 ± 1.78ndnd29.48 ± 4.9910.13 ± 1.051.61 ± 0.3614.13 ± 0.03
272.28 ± 1.7626.68 ± 10.49ndnd39.24 ± 10.9610.66 ± 1.112.06 ± 0.7213.43 ± 0.02
3150.77 ± 41.2430.19 ± 7.081.81 ± 0.00nd30.93 ± 9.279.14 ± 0.801.28 ± 0.3913.24 ± 0.07
4109.74 ± 31.0417.70 ± 2.301.55 ± 0.03nd34.49 ± 10.319.57 ± 0.851.37 ± 0.3413.67 ± 0.03
101154.35 ± 19.1754.71 ± 20.502.07 ± 0.05nd50.73 ± 11.0613.02 ± 0.211.86 ± 0.2114.26 ± 0.06
2188.32 ± 6.66104.22 ± 3.842.60 ± 0.09nd73.60 ± 10.5317.88 ± 1.052.75 ± 0.2121.11 ± 0.03
3231.86 ± 37.6468.26 ± 16.062.49 ± 0.04nd68.51 ± 8.6117.12 ± 0.702.45 ± 0.2222.07 ± 0.03
4173.65 ± 7.5647.85 ± 8.913.18 ± 0.02nd64.14 ± 9.8015.82 ± 0.872.21 ± 0.1821.71 ± 0.02
1105183.78 ± 13.8729.49 ± 6.891.31 ± 0.10nd31.04 ± 3.179.81 ± 0.400.89 ± 0.0514.51 ± 0.05
2134.55 ± 23.0139.40 ± 9.571.89 ± 0.06nd40.48 ± 10.8612.76 ± 0.271.31 ± 0.0614.52 ± 0.02
3163.61 ± 23.9552.84 ± 3.212.41 ± 0.05nd48.66 ± 7.5914.86 ± 0.191.14 ± 0.0514.05 ± 0.02
4143.13 ± 6.7352.59 ± 1.182.35 ± 0.10nd51.42 ± 8.0614.85 ± 0.501.84 ± 0.7014.52 ± 0.02
101174.46 ± 2.0957.49 ± 22.231.94 ± 0.00nd55.63 ± 13.1516.81 ± 0.751.14 ± 0.2414.34 ± 0.03
2278.14 ± 55.9676.83 ± 19.234.26 ± 0.054.34 ± 0.0371.22 ± 16.8121.87 ± 0.813.20 ± 2.3016.71 ± 0.04
3251.58 ± 38.79104.56 ± 16.765.91 ± 0.006.07 ± 0.0494.67 ± 0.8724.22 ± 0.986.76 ± 4.8917.78 ± 0.04
4248.49 ± 38.24105.96 ± 3.428.22 ± 0.038.47 ± 0.0887.14 ± 4.8423.34 ± 0.906.25 ± 4.6317.50 ± 0.05
ASE = accelerated solvent extraction, ChA = chlorogenic acid, p-CA = p-coumaric acid, FA = ferulic acid, CA = chicoric acid, Q-3-G = quercetin-3-glucoside, K-3-R = kaempferol-3-rutinoside, LTL = luteolin. nd = not detected. Results are expressed as mean ± SD.
Table
Table 2. The influence of ASE conditions on yield of nettle leaves polyphenols (mg 100 g−1 dm), pigments (mg 100 g−1 dm) and ORAC values (mmol TE 100 g−1 dm).
Table 2. The influence of ASE conditions on yield of nettle leaves polyphenols (mg 100 g−1 dm), pigments (mg 100 g−1 dm) and ORAC values (mmol TE 100 g−1 dm).
Source of VariationTHCATFTPTCHTCARTPGORAC
Temperature (°C)p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *
2016.87 ± 3.72a3.67 ± 1.70a20.54 ± 4.23a464.37 ± 2.25a31.48 ± 0.01a495.85 ± 2.25a5.52 ± 0.01a
5027.99 ± 3.72a6.96 ± 1.70a34.95 ± 4.23a678.60 ± 2.25b44.07 ± 0.01b722.67 ± 2.25b7.15 ± 0.01b
80195.60 ± 3.72b63.76 ± 1.70b259.35 ± 4.23b1070.63 ± 2.25c64.74 ± 0.01c1135.38 ± 2.25c16.70 ± 0.01d
110255.51 ± 3.72c80.16 ± 1.70c335.67 ± 4.23c1075.25 ± 2.25c65.81 ± 0.01d1141.06 ± 2.25c15.49 ± 0.01c
Static time (min)p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *
583.67 ± 2.63a26.81 ± 1.21a110.48 ± 2.99a709.20 ± 1.59a45.52 ± 0.00a754.71 ± 1.59a8.72 ± 0.01a
10164.31 ± 2.63b50.47 ± 1.21b214.78 ± 2.99b935.23 ± 1.59b57.54 ± 0.00b992.77 ± 1.59b13.71 ± 0.01b
Cycle numberp < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *p < 0.01 *
192.41 ± 3.72a29.97 ± 1.70a122.38 ± 4.23a746.06 ± 2.25a47.31 ± 0.01a793.37 ± 2.25a9.67 ± 0.01a
2127.13 ± 3.72b39.42 ± 1.70b166.55 ± 4.23b829.68 ± 2.25b52.60 ± 0.01c882.28 ± 2.25b11.41 ± 0.01b
3146.17 ± 3.72c42.67 ± 1.70b188.84 ± 4.23c838.54 ± 2.25c51.94 ± 0.01b890.48 ± 2.25b11.76 ± 0.01c
4130.25 ± 3.72b42.49 ± 1.70b172.74 ± 4.23b874.57 ± 2.25d54.26 ± 0.01d928.82 ± 2.25c12.03 ± 0.01d
Grand mean123.9938.64162.63822.2151.53873.7411.22
ASE = accelerated solvent extraction, THCA = total hydroxycinnamic acids, TF = total flavonoids, TP = total phenols, TCH = total chlorophylls, TCAR = total carotenoids, TPG = total pigments. * Statistically significant variable at p ≤ 0.05. Results are expressed as mean ± SE. Values with different letters within column are statistically different at p ≤ 0.05.
Table
Table 3. Nettle leaves polyphenols (mg 100 g−1 dm), pigments (mg 100 g−1 dm) and ORAC values (mmol TE 100 g−1 dm) in UAE extracts obtained at optimal extraction conditions (80 °C/30 min).
Table 3. Nettle leaves polyphenols (mg 100 g−1 dm), pigments (mg 100 g−1 dm) and ORAC values (mmol TE 100 g−1 dm) in UAE extracts obtained at optimal extraction conditions (80 °C/30 min).
CompoundsConcentration
PolyphenolsChA76.84 ± 3.32
p-CA53.23 ± 1.07
Q-3-G19.02 ± 2.77
K-3-R5.18 ± 0.45
ChlorophyllsCHL b der 18.42 ± 0.06
CHL a der 136.65 ± 2.10
CHL a der 238.62 ± 2.44
CHL b230.46 ± 15.17
CHL a589.04 ± 22.36
CHL a der 55.07 ± 0.02
CarotenoidsVIOLAX der1.17 ± 0.10
NEOX2.38 ± 0.15
VIOLAX1.10 ± 0.08
13′-cis-LUT2.38 ± 0.06
LUT 5,6-ep1.10 ± 0.09
NEOX der0.67 ± 0.02
LUT21.25 ± 1.04
ZEAX der1.02 ± 0.03
9′-cis-LUT1.78 ± 0.11
α-CAR6.12 ± 0.41
β-CAR14.14 ± 1.03
LYC der 100.32 ± 0.01
Antioxidant capacity
ORAC13.26 ± 0.05
UAE = ultrasound assisted extraction, ChA = chlorogenic acid, p-CA = p-coumaric acid, Q-3-G = quercetin-3-glucoside, K-3-R = kaempferol-3-rutinoside, CHL b der 1 = chlorophyll b derivative 1, CHL a der 1 = chlorophyll a derivative 1, CHL a der 2 = chlorophyll a derivative 2, CHL b = chlorophyll b, CHL a = chlorophyll a, CHL a der 5 = chlorophyll a derivative 5, VIOLAX der = violaxanthin derivative, NEOX = neoxanthin, VIOLAX = violaxanthin, 13′-cis-LUT = 13′-cis-lutein, LUT 5,6-ep = lutein 5,6-epoxide, NEOX der = neoxanthin derivative, LUT = lutein, ZEAX der = zeaxanthin derivative, 9′-cis-LUT = 9′-cis-lutein, α-CAR = α-carotene, β-CAR = β-carotene, LYC der 10 = lycopene derivative 10. Results are expressed as mean ± SD.
Table
Table 4. Nettle leaves chlorophylls (mg100 g−1 dm) in extracts obtained at ASE different conditions.
Table 4. Nettle leaves chlorophylls (mg100 g−1 dm) in extracts obtained at ASE different conditions.
Temperature (°C)Static Time (min)Cycle NumberCHL b der 1CHL a der 1CHL a der 2CHL bCHL a der 3CHL a der 4CHL aCHL a der 5
2051ndndnd50.13 ± 3.212.32 ± 0.14nd167.41 ± 10.10nd
2ndndnd52.20 ± 1.962.80 ± 0.09nd201.34 ± 1.36nd
3ndndnd64.08 ± 5.472.98 ± 0.251.81 ± 0.11218.83 ± 19.03nd
4ndndnd76.86 ± 4.494.06 ± 0.312.53 ± 0.14266.62 ± 22.25nd
101ndndnd149.34 ± 11.545.77 ± 0.116.27 ± 0.02486.82 ± 30.119.71 ± 0.66
2ndndnd124.02 ± 9.654.23 ± 0.324.75 ± 0.33420.08 ± 3.565.63 ± 0.41
3ndndnd144.32 ± 3.635.42 ± 0.255.31 ± 0.25493.82 ± 14.797.12 ± 0.22
4ndndnd164.12 ± 12.096.08 ± 0.045.97 ± 0.19546.09 ± 21.456.14 ± 0.31
5051ndndnd128.14 ± 2.555.28 ± 0.062.79 ± 0.08410.82 ± 9.962.15 ± 0.06
2ndndnd118.76 ± 4.585.96 ± 0.143.81 ± 0.20405.97 ± 37.051.84 ± 0.25
3ndndnd118.89 ± 8.855.29 ± 0.243.79 ± 0.27399.27 ± 16.162.15 ± 1.04
4ndndnd127.24 ± 4.307.26 ± 0.575.12 ± 0.15444.73 ± 7.861.86 ± 0.77
101ndndnd149.14 ± 6.986.13 ± 0.485.75 ± 0.43480.65 ± 25.524.90 ± 0.13
2nd2.07 ± 0.031.86 ± 0.07186.43 ± 14.749.64 ± 0.086.35 ± 0.23576.32 ± 5.936.71 ± 0.52
3nd1.90 ± 0.162.34 ± 0.11199.60 ± 8.5510.89 ± 0.877.97 ± 0.50618.59 ± 50.388.20 ± 0.74
4nd2.61 ± 0.233.70 ± 0.18220.30 ± 18.1811.09 ± 0.666.55 ± 0.42691.27 ± 7.456.74 ± 0.30
8051nd4.60 ± 0.331.06 ± 0.05223.73 ± 15.028.95 ± 0.733.06 ± 0.27672.71 ± 49.128.13 ± 0.18
2nd4.97 ± 0.123.59 ± 0.09250.17 ± 21.378.70 ± 0.552.96 ± 0.02722.10 ± 60.1712.55 ± 1.09
3nd4.52 ± 0.062.87 ± 0.14253.59 ± 7.589.23 ± 0.322.84 ± 0.03721.07 ± 58.7721.77 ± 1.11
4nd5.03 ± 0.11nd253.75 ± 8.6411.06 ± 0.863.11 ± 0.18736.72 ± 8.7221.21 ± 2.04
101nd5.03 ± 0.07nd253.75 ± 10.5411.06 ± 0.743.11 ± 0.08736.72 ± 3.6621.21 ± 1.45
2nd7.47 ± 0.37nd301.80 ± 26.4410.89 ± 0.712.94 ± 0.22871.33 ± 52.3013.63 ± 0.99
3nd7.60 ± 0.22nd280.77 ± 14.738.81 ± 0.423.20 ± 0.17850.56 ± 30.4715.20 ± 0.56
411.91 ± 0.428.92 ± 0.44nd239.99 ± 20.1913.05 ± 0.244.39 ± 0.36860.70 ± 13.9610.98 ± 0.87
11051nd4.23 ± 0.06nd217.77 ± 5.667.33 ± 0.092.55 ± 0.14660.54 ± 28.877.48 ± 0.63
2nd4.82 ± 0.01nd259.70 ± 17.059.86 ± 0.053.40 ± 0.11739.60 ± 15.4711.11 ± 1.04
3nd4.70 ± 0.10nd280.66 ± 23.5611.64 ± 0.604.13 ± 0.35714.51 ± 41.4122.89 ± 1.52
47.20 ± 0.154.36 ± 0.08nd271.95 ± 3.7212.57 ± 1.034.43 ± 0.40768.41 ± 1.2222.19 ± 2.07
1017.45 ± 0.024.16 ± 0.28nd233.27 ± 5.2710.29 ± 0.083.89 ± 0.23756.26 ± 31.2826.66 ± 1.95
2nd2.42 ± 0.02nd308.74 ± 19.5411.05 ± 1.074.89 ± 0.13775.16 ± 26.55152.85 ± 12.12
3nd5.05 ± 0.09nd255.42 ± 7.468.36 ± 0.543.06 ± 0.21821.35 ± 3.3335.94 ± 3.02
4nd4.68 ± 0.15nd271.74 ± 22.478.31 ± 0.112.97 ± 0.05793.09 ± 54.0636.89 ± 0.98
ASE = accelerated solvent extraction, CHL b der 1 = chlorophyll b derivative 1, CHL a der 1 = chlorophyll a derivative 1, CHL a der 2 = chlorophyll a derivative 2, CHL b = chlorophyll b, CHL a der 3 = chlorophyll a derivative 3, CHL a der 4 = chlorophyll a derivative 4, CHL a = chlorophyll a, CHL a der 5 = chlorophyll a derivative 5. nd = not detected. Results are expressed as mean ± SD.
Table
Table 5. Nettle leaves carotenoids (mg 100 g−1 dm) in extracts obtained at ASE different conditions.
Table 5. Nettle leaves carotenoids (mg 100 g−1 dm) in extracts obtained at ASE different conditions.
Temperature (°C)Static Time (min)Cycle NumberVIOLAX der NEOXVIOLAX13′-cis-LUTLUT
5,6-ep		NEOX derLUTZEAX9′-cis-LUTα-CARβ-CARLYC
der 10
20510.60 ± 0.020.70 ± 0.052.14 ± 0.14ndnd0.30 ± 0.015.52 ± 0.21nd0.54 ± 0.031.45 ± 0.074.23 ± 0.22nd
20.63 ± 0.010.83 ± 0.012.48 ± 0.21nd0.33 ± 0.010.35 ± 0.006.39 ± 0.450.28 ± 0.000.57 ± 0.001.80 ± 0.115.11 ± 0.01nd
30.65 ± 0.020.90 ± 0.032.65 ± 0.230.21 ± 0.010.35 ± 0.010.35 ± 0.016.91 ± 0.440.30 ± 0.020.58 ± 0.012.01 ± 0.165.66 ± 0.51nd
40.81 ± 0.051.06 ± 0.053.11 ± 0.170.30 ± 0.010.41 ± 0.020.44 ± 0.038.28 ± 0.660.37 ± 0.010.74 ± 0.022.28 ± 0.036.75 ± 0.55nd
1011.01 ± 0.071.90 ± 0.123.65 ± 0.301.55 ± 0.100.30 ± 0.000.52 ± 0.0115.71 ± 1.020.54 ± 0.031.72 ± 0.013.71 ± 0.2512.40 ± 1.02nd
20.84 ± 0.061.76 ± 0.123.45 ± 0.321.02 ± 0.030.10 ± 0.001.06 ± 0.0113.16 ± 1.100.45 ± 0.031.52 ± 0.053.18 ± 0.2410.82 ± 0.87nd
31.11 ± 0.101.92 ± 0.013.24 ± 0.261.54 ± 0.060.00 ± 0.000.66 ± 0.0415.27 ± 0.960.53 ± 0.011.98 ± 0.073.61 ± 0.1612.59 ± 0.99nd
41.16 ± 0.082.29 ± 0.174.81 ± 0.411.30 ± 0.090.13 ± 0.001.53 ± 0.0917.51 ± 1.200.67 ± 0.041.12 ± 0.065.29 ± 0.4113.87 ± 1.05nd
50511.09 ± 0.081.89 ± 0.104.40 ± 0.390.58 ± 0.010.62 ± 0.020.51 ± 0.0112.71 ± 1.050.59 ± 0.010.91 ± 0.023.82 ± 0.129.22 ± 0.04nd
20.92 ± 0.032.01 ± 0.154.66 ± 0.440.45 ± 0.010.63 ± 0.030.42 ± 0.0312.95 ± 0.960.19 ± 0.000.79 ± 0.033.87 ± 0.129.38 ± 0.23nd
30.95 ± 0.071.85 ± 0.124.18 ± 0.320.60 ± 0.030.60 ± 0.020.43 ± 0.0212.49 ± 0.870.20 ± 0.010.80 ± 0.033.88 ± 0.059.38 ± 0.00nd
41.14 ± 0.052.17 ± 0.205.00 ± 0.470.60 ± 0.050.70 ± 0.050.52 ± 0.0214.30 ± 0.560.65 ± 0.051.02 ± 0.084.34 ± 0.3310.44 ± 0.21nd
1011.05 ± 0.061.89 ± 0.133.29 ± 0.151.34 ± 0.110.65 ± 0.050.40 ± 0.0114.76 ± 1.110.26 ± 0.011.03 ± 0.074.76 ± 0.4511.83 ± 0.66nd
21.23 ± 0.012.20 ± 0.173.73 ± 0-291.67 ± 0.100.77 ± 0.040.46 ± 0.0217.67 ± 0.850.84 ± 0.061.24 ± 0.095.74 ± 0.5514.10 ± 0.36nd
31.36 ± 0.102.21 ± 0.073.76 ± 0.211.93 ± 0.150.89 ± 0.010.69 ± 0.0418.49 ± 0.840.89 ± 0.071.59 ± 0.105.88 ± 0.2114.56 ± 0.74nd
41.80 ± 0.132.67 ± 0.095.38 ± 0.111.87 ± 0.061.13 ± 0.090.92 ± 0.0821.88 ± 1.571.05 ± 0.091.76 ± 0.096.30 ± 0.1115.84 ± 0.77nd
80512.07 ± 0.142.39 ± 0.136.10 ± 0.501.48 ± 0.031.08 ± 0.081.20 ± 0.1020.38 ± 1.660.72 ± 0.051.99 ± 0.115.13 ± 0.2614.83 ± 0.91nd
21.99 ± 0.152.71 ± 0.225.82 ± 0.332.00 ± 0.171.13 ± 0.091.13 ± 0.0821.93 ± 2.000.82 ± 0.043.99 ± 0.125.62 ± 0.0915.54 ± 1.210.36 ± 0.01
32.01 ± 0.162.78 ± 0.265.57 ± 0.451.93 ± 0.180.14 ± 0.011.03 ± 0.0721.25 ± 1.520.29 ± 0.013.93 ± 0.065.42 ± 0.4915.64 ± 1.200.34 ± 0.00
41.70 ± 0.093.12 ± 0.245.11 ± 0.282.25 ± 0.081.08 ± 0.080.85 ± 0.0722.29 ± 0.980.82 ± 0.053.82 ± 0.145.90 ± 0.2715.35 ± 0.590.35 ± 0.01
1011.70 ± 0.093.12 ± 0.125.11 ± 0.242.25 ± 0.101.08 ± 0.070.85 ± 0.0622.29 ± 0.580.82 ± 0.053.82 ± 0.205.90 ± 0.3515.35 ± 0.850.35 ± 0.02
22.19 ± 0.0113.47 ± 0.216.67 ± 0.522.38 ± 0.071.32 ± 0.071.17 ± 0.1125.40 ± 2.210.88 ± 0.064.50 ± 0.236.59 ± 0.2417.55 ± 0.080.41 ± 0.01
32.12 ± 0.183.28 ± 0.255.86 ± 0.232.49 ± 0.221.24 ± 0.101.10 ± 0.0524.30 ± 0.330.87 ± 0.044.57 ± 0.176.37 ± 0.2417.00 ± 1.050.44 ± 0.02
42.45 ± 0.213.09 ± 0.116.03 ± 0.362.17 ± 0.141.26 ± 0.121.13 ± 0.0924.40 ± 2.080.82 ± 0.034.48 ± 0.316.35 ± 0.5216.56 ± 0.74nd
110511.69 ± 0.0122.87 ± 0.065.91 ± 0.351.79 ± 0.171.00 ± 0.050.67 ± 0.0220.89 ± 0.780.65 ± 0.032.90 ± 0.185.51 ± 0.3114.72 ± 0.47nd
21.72 ± 0.143.50 ± 0.0146.16 ± 0.412.18 ± 0.201.18 ± 0.090.82 ± 0.0223.52 ± 0.320.92 ± 0.073.25 ± 0.226.21 ± 0.2016.00 ± 1.250.32 ± 0.00
31.77 ± 0.133.62 ± 0.225.94 ± 0.352.44 ± 0.190.98 ± 0.070.81 ± 0.0524.20 ± 1.470.87 ± 0.063.57 ± 0.096.12 ± 0.5416.41 ± 1.260.34 ± 0.01
41.74 ± 0.143.43 ± 0.305.26 ± 0.472.50 ± 0.231.09 ± 0.060.74 ± 0.0323.23 ± 0.880.76 ± 0.063.63 ± 0.165.77 ± 0.2015.71 ± 0.930.36 ± 0.01
1011.93 ± 0.153.40 ± 0.244.68 ± 0.432.65 ± 0.241.08 ± 0.060.73 ± 0.0422.98 ± 1.260.81 ± 0.023.70 ± 0.085.83 ± 0.1715.53 ± 0.880.43 ± 0.03
22.04 ± 0.114.33 ± 0.362.50 ± 0.214.35 ± 0.370.95 ± 0.070.59 ± 0.0330.16 ± 2.111.07 ± 0.014.54 ± 0.257.03 ± 0.6619.02 ± 1.520.85 ± 0.04
31.97 ± 0.053.45 ± 0.154.71 ± 0.123.00 ± 0.281.13 ± 0.030.80 ± 0.0724.18 ± 1.450.90 ± 0.073.72 ± 0.156.19 ± 0.6216.29 ± 0.040.55 ± 0.03
41.77 ± 0.073.17 ± 0.273.93 ± 0.332.72 ± 0180.97 ± 0.020.71 ± 0.0623.07 ± 0.630.74 ± 0.063.74 ± 0.105.59 ± 0.4715.80 ± 0.140.58 ± 0.04
ASE = accelerated solvent extraction, VIOLAX der = violaxanthin derivative, NEOX = neoxanthin, VIOLAX = violaxanthin, 13′-cis-LUT = 13′-cis-lutein, LUT 5,6-ep = lutein 5,6-epoxide, NEOX der = neoxanthin derivative, LUT = lutein, ZEAX = zeaxanthin, 9′-cis-LUT = 9′-cis-lutein, α-CAR = α-carotene, β-CAR = β-carotene, LYC der 10 = lycopene derivative 10. nd = not detected. Results are expressed as mean ± SD.
Table
Table 6. Pearson’s correlations between nettle leaves polyphenols (mg 100 g−1 dm), pigments (mg 100 g−1 dm) and ORAC values (mmol TE 100 g−1 dm) in ASE extracts.
Table 6. Pearson’s correlations between nettle leaves polyphenols (mg 100 g−1 dm), pigments (mg 100 g−1 dm) and ORAC values (mmol TE 100 g−1 dm) in ASE extracts.
ParameterORAC
THCA0.86 *
TF0.87 *
TP0.87 *
TCH0.94 *
TCAR0.92 *
TPG0.92 *
ASE = accelerated solvent extraction, THCA = total hydroxycinnamic acids, TF = total flavonoids, TP = total phenols, TCH = total chlorophylls, TCAR = total carotenoids, TPG = total pigments. * p ≤ 0.05.

Share and Cite

MDPI and ACS Style

Repajić, M.; Cegledi, E.; Kruk, V.; Pedisić, S.; Çınar, F.; Bursać Kovačević, D.; Žutić, I.; Dragović-Uzelac, V. Accelerated Solvent Extraction as a Green Tool for the Recovery of Polyphenols and Pigments from Wild Nettle Leaves. Processes 2020, 8, 803. https://doi.org/10.3390/pr8070803

AMA Style

Repajić M, Cegledi E, Kruk V, Pedisić S, Çınar F, Bursać Kovačević D, Žutić I, Dragović-Uzelac V. Accelerated Solvent Extraction as a Green Tool for the Recovery of Polyphenols and Pigments from Wild Nettle Leaves. Processes. 2020; 8(7):803. https://doi.org/10.3390/pr8070803

Chicago/Turabian Style

Repajić, Maja, Ena Cegledi, Valentina Kruk, Sandra Pedisić, Fırat Çınar, Danijela Bursać Kovačević, Ivanka Žutić, and Verica Dragović-Uzelac. 2020. "Accelerated Solvent Extraction as a Green Tool for the Recovery of Polyphenols and Pigments from Wild Nettle Leaves" Processes 8, no. 7: 803. https://doi.org/10.3390/pr8070803

APA Style

Repajić, M., Cegledi, E., Kruk, V., Pedisić, S., Çınar, F., Bursać Kovačević, D., Žutić, I., & Dragović-Uzelac, V. (2020). Accelerated Solvent Extraction as a Green Tool for the Recovery of Polyphenols and Pigments from Wild Nettle Leaves. Processes, 8(7), 803. https://doi.org/10.3390/pr8070803

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
