Short-Chain Polyglycerol Production via Microwave-Assisted Solventless Glycerol Polymerization Process Over Lioh-Modified Aluminium Pillared Clay Catalyst: Parametric Study

Abstract

In the current study, microwave-assisted glycerol polymerization for short-chain polyglycerol production was conducted unprecedentedly over low-cost catalyst, lithium-modified aluminium pillared clay (Li/AlPC) catalysts without the solvent. The influences of disparate reaction parameters such as the effects of Li loadings (10, 20, 30 wt.%), catalyst loadings (2, 3, 4 wt.%), operating temperatures (200, 220, 240 °C) and operating times (1–4 h) on the glycerol conversions, and polyglycerol yield (particularly for diglycerol and triglycerol), were elucidated. The fresh catalysts were subjected to physicochemical properties evaluation via characterization techniques, viz. N₂ physisorption, XRD, SEM, NH₃-TPD and CO₂-TPD. In comparison, 20 wt.% Li/AlPC demonstrated the best performance under non-conventional heating, credited to its outstanding textural properties (an increase of basal spacing to 21 Ȧ, high surface area of 95.48 m²/g, total basicity of 34.48 mmol/g and average pore diameter of 19.21 nm). Within the studied ranges, the highest glycerol conversion (98.85%) and polyglycerol yield (90.46%) were achieved when catalyst loading of 3 wt.%, reaction temperature of 220 °C and reaction time of 3 h were adopted. The results obtained also anticipated the higher energy efficiency of microwave-assisted polymerization than conventional technique (>8 h), as the reaction time for the former technology was shorter to attain the highest product yield. The study performed could potentially conduce the wise utilization of surplus glycerol generated from the biodiesel industry.

1. Introduction

Petroleum reserves have been stumbling, but the demand for the fuel is growing with time. Therefore, utilization of biomass, which is known as a renewable and sustainable substitute resource, has begun gaining consciousness in the past few decades for biodiesel production to substitute the fossil-fuel-derived diesel. However, biodiesel production was ineluctably accompanied by 10 wt.% of glycerol generation as a side product during the transesterification reaction [1]. Glycerol has been an astonishing source to be used as a cheap feedstock in different products’ production such as tobacco, detergents, explosives, cellophanes, alkyd resins, etc. [2]. Nevertheless, the traditional exploitation and direct usage of glycerol were unable to cope with its superfluous production, which was then devoted to the indirect conversion of surplus glycerol into price-worthy outputs via polymerization, acetalization, esterification, hydrogenolysis, dehydration, pyrolysis etc. [3,4,5,6,7]. The maximal utilization of the gluts of waste glycerol necessitates a new pathway for better sustainability of biodiesel industry development.

Among them, glycerol polymerization has advantages in its reaction mechanisms for synthesizing oxygenated components, which can be directly used as fuel additives such as polyglycerols and polyglycerol ethers [8] with the presence or absence of solvents. Furthermore, the glycerol polymerization process is uncomplicated and economically feasible, thus making the overall process lucrative. The polyglycerol, also known as glycerol ether mainly made up of di- and tri-glycerol isomers, is worthwhile due to its broad applications in the cosmetics, food, and pharmaceutical industries [9]. To date, glycerol polymerization into polyglycerol has been widely performed under conventional heating with the aid of traditionally used catalysts such as hydrotalcite, mixed oxides, alkaline earth metal oxides, zeolite, and mesoporous material (MCM-41) [10]. The ordered mesoporous catalysts rich in silica or specific microporous crystalline structured catalysts were considered more applicable for the optimized glycerol conversion as compared to the homogeneous catalyst [11]. Regrettably, the use of conventional heterogeneous catalysts, especially zeolites and metal-loaded zeolites, has limitations in terms of selective conversion and activities, especially when large molecules were involved due to the mass transfer restrictions within the microporous solids [12,13]. Additionally, a longer reaction time (>8 h) and higher energy consumption are needed under conventional heating and even resulted in leaching of the active metals [14].

Owing to the lack of stability, high cost, shrinking, and swelling of the conventional catalysts, the synthesis of the low-cost potential catalytic route remains challenging. With regards to this matter, a vast variety of cheap wastes have been utilized for glycerol polymerization such as waste duck bones, waste coffee grounds, polyethylene terephthalate (PET), and montmorillonite (AlPC) [15,16,17]. AlPC was preferred as the modified form of AlPC is low-cost, easy and safe to handle and recyclable. In our published work [18,19], the LiOHmodified AlPC catalyst was utilized for glycerol polymerization without solvent under conventional heating and achieved up to 56% diglycerol selectivity and 98% glycerol conversion at 240 °C after 12 h reaction. It was found that the excellent catalytic performance by AlPC support as a solid base catalyst was owing to the enhanced glycerol oligomerization by its favourable physicochemical properties (increased basic strength and pore size). However, the relatively long reaction time and higher energy consumption of the conventional process urged seeking for an alternative heating method during the reaction.

Microwave polymerization emerged as a newly touted technique that applies microwave as the heat source to minimize the heating time and energy consumption. Previously, Estevez et al. [20] attempted the first-ever microwave-assisted glycerol polymerization with tert-butyl alcohol (solvent), and surprisingly, highest high ethers yield was achieved at 21% within 15 min of reaction time only at 85 °C. When using microwave heating, the heat transfer is more efficient as the heat is generated within the core of material by the interaction of microwave with the reactant. As electromagnetic radiation, microwave radiation consists of electric and magnetic fields that are perpendicular to each other. In the electromagnetic spectrum, microwave represents an electromagnetic wave that lies in between the infrared (IR) and the radio-wave regions, with a wavelength range of 0.001–1 m (refers to 300 MHz–300 GHz frequency range).

To cope with the surplus of glycerol and to derive the worthwhile compound, innovative, cost-effective and eco-friendly catalytic processes were attempted in this current study. The influences of reaction parameters of lithium-modified aluminium pillared clay (Li/AlPC) catalysts, e.g., Li loadings (10, 20, 30 wt.%), catalyst loading (2, 3, 4 wt.%), operating temperature (200, 220, 240 °C) and operating time (1–4 h) over microwave-assisted solvent-free glycerol polymerization, were elucidated. The Li/AlPC catalyst possesses a unique pillared-layered structure, tunable interlayer spacing and high thermal stability that enhanced the overall desired products yield in a shorter time-on-stream for the current study.

2. Materials and Method

2.1. Materials

Pure glycerol with the highest purity (>99%) was purchased from Merck Sdn Bhd, Malaysia. Montmorillonite K-10 clay, lithium hydroxide (LiOH, 99.99%), diglycerol (>80%) and triglycerol (>70%, HPLC grade) were purchased from Sigma-Aldrich Sdn Bhd, Malaysia. Diglycerol and triglycerol were used as high-performance liquid chromatography (HPLC) standards. No further treatment was performed on these chemicals before their usage.

2.2. Preparation of Li/AlPC Catalyst

The pillared AlPC formation in interlamellar space was synthesized by following the methodology proposed by Gil et al. [21]. Firstly, a 250 mL round-bottom flask furbished with a reflux condenser was loaded with 10, 20, and 30 wt.% LiOH and 10 g of Montmorillonite K-10 clay, followed by 100 mL of deionized water addition. This mixture was heated to 50 °C and stirred vigorously for 12 h to achieve maximum cations intercalation in the clay. The slurry was then left for cooling to ambient temperature, and then the solid was isolated out by filtration and centrifugation and rinsed with deionized water. These procedures were performed > 2 times to eliminate all the possible soluble species from the solid. The alkali modified clay obtained was then air-dried at 110 °C for 12 h and calcined at 600 °C (ramping rate, 5 °C/min) for 4 h to obtain the final catalysts. These catalysts were designated as x wt.%Li/AlPC, where x stands for the Li loadings. The physicochemical attributes of the as-synthesized fresh catalysts were investigated via N₂ adsorption-desorption analysis, XRD, SEM, NH₃-TPD and CO₂-TPD.

2.3. Catalyst Characterization

N₂ adsorption-desorption analysis was conducted in a Micromeritics ASAP 2020 (Centre of Analatical Lab, university Teknologi, PETRONAS, Malaysia)instrument to ascertain the surface area, pore volume and pore size of the catalysts. Before the analysis, 0.1 g of the samples were degassed under inert N₂ flow at 300 °C to remove moisture and other adsorbed impurities. Subsequently, N₂ physisorption analyses were conducted at –196 °C by using N₂ as the adsorbate. The surface area was computed according to the standardized Brunauer–Emmett–Teller (BET) method, while the pore diameter distributions and volume were estimated based on the desorption isotherms by using the Barrett–Joyner–Halenda (BJH) method.

X-ray diffraction (XRD) analysis was performed in a Philips X’pert MPD (Centre of Analatical Lab, university Teknologi, PETRONAS, Malaysia)diffractometer to investigate the crystallographic structure of the catalysts. The analyses were performed at room temperature using Cu Kα radiation (λ = 1.5405 Å) at 40 kV and 30 mA. The XRD pattern was recorded in the scanning range 2θ = 1°–85°, step size = 0.01°. The crystallite phases present over the catalysts were matched with the Joint Committee on Powder Diffraction Standards (JCPDS) files.

The acidity and basicity nature of the prepared catalysts were characterized by NH₃-TPD and CO₂-TPD, respectively, by using Thermo Scientific TPDRO 1100 equipment(Centre of Analatical Lab, university Teknologi, PETRONAS, Malaysia). Firstly, 0.5 g of the catalysts was heated under 25 mL/min Helium gas flows in a micro-quartz U-tube at 100 °C for 2 h. After that, the samples were cooled down until 40 °C and then purged with the gas containing 7 vol.% of NH_3, CO₂/He gas (25 mL/min) for 1 h at 100 °C for adsorption process. The desorption process was carried out by purging He flow for 30 min. The catalysts were then heated from 100 to 800 °C (ramping rate: 10 °C/min). Eventually, the desorption signals within 100 and 900 °C were analyzed by a TCD detector(Centre of Analatical Lab, university Teknologi, PETRONAS, Malaysia). SEM analyses were performed using Zeiss Supra 35 VP instrument (Centre of Analatical Lab, university Teknologi, PETRONAS, Malaysia )operated at 3 kV to observe the morphology changes of the catalysts upon modified by LiOH. The samples were immobilized on black carbon conductive tape and then sputter-coated with platinum before the observation.

Thermal gravimetric analysis (TGA) was performed on spent catalysts to compare their fraction of volatile components by monitoring the weight change using TGA Q500 unit, TA Instruments(Centre of Biomass and Biofuel (CBBR), Universiti Teknologi, PETRONAS, Malaysia). Approximately 0.1 g of the spent catalysts were evacuated under inert N₂ flow to remove the possible adsorbed impurities. The samples were then heated from 25 to 900 °C (ramping rate: 10 °C/min) under 100 mL/min airflow (20% O₂/80% N₂).

2.4. Glycerol Polymerization Reaction

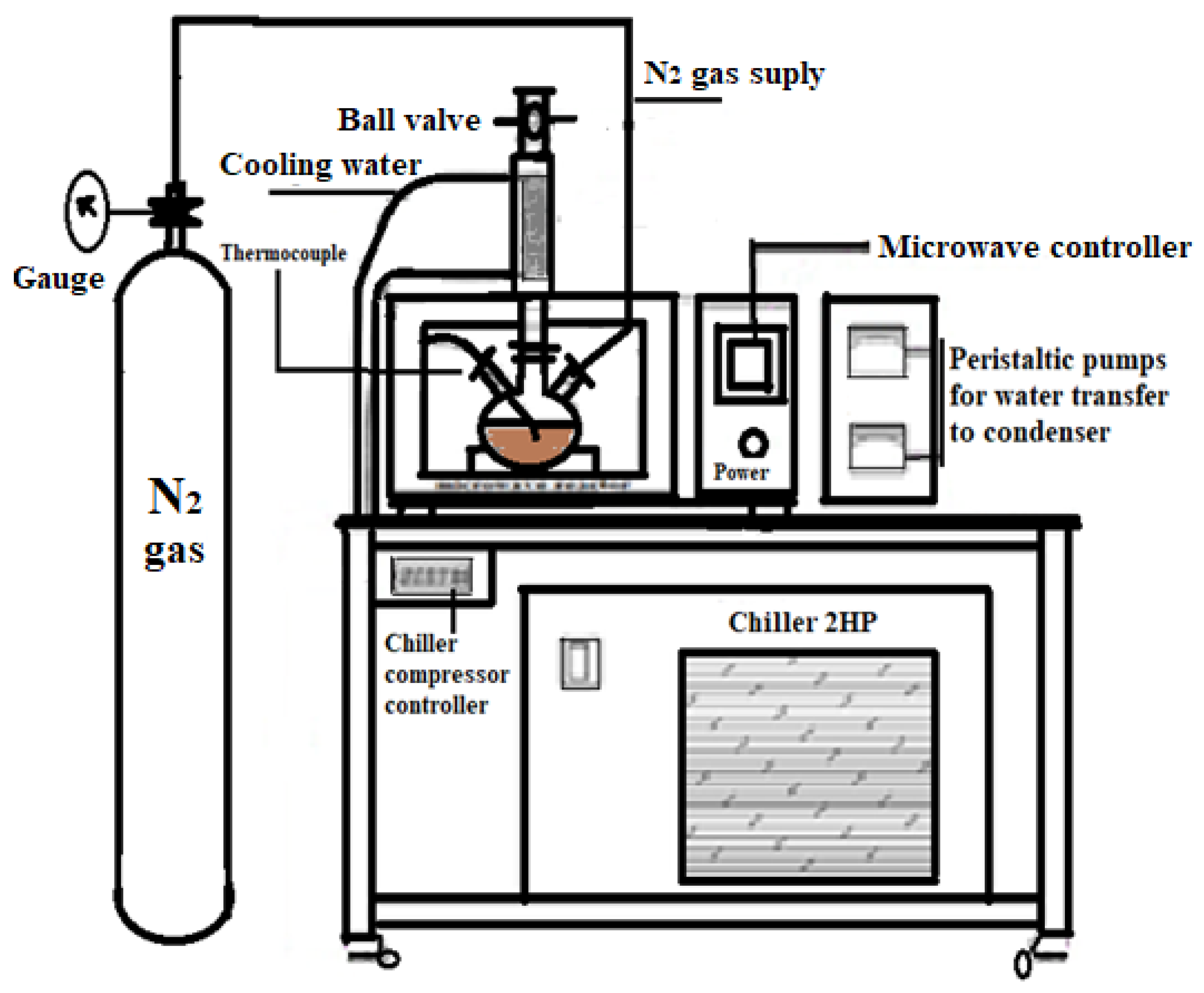

The glycerol polymerization reaction was executed in a closed-batch system (pressure-controlled) under continuous stirring, where 250 mL three-necked round bottom flask reactor was used and heated by microwave irradiation (Dixson, model DX10116, Centre of Biomass and Biofuel (CBBR), Universiti Teknologi, PETRONAS, Malaysia). As illustrated in Figure 1, the three-necked round bottom flask was placed inside a modified version microwave oven and connected to a reflux condenser, proportional integral derivative (PID) temperature controller and N₂ gas supply. The reaction mixture was irradiated until the desired temperature, which was manipulated by the power-controlled oven. The reaction was performed under ambient pressure with the absence of solvents. During the reaction, finite amounts of Li/AlPC catalysts were added into 50 g of glycerol and inert N₂ gas was supplied continuously under ambient pressure to avoid air stagnation that can result in glycerol oxidization and carbonization [22]. The four parameters studied were Li loadings on AlPC (10, 20 and 30 wt.%), reaction temperature (200, 220 and 240 °C), catalyst loadings (2, 3 and 4 wt.%), and reaction time (1, 2, 3 and 4 h). The reaction temperature range was chosen as the selected temperatures were verified to be able to transform glycerol into polyglycerol sufficiently and suppress the formation of undesired products [18].

Samples were taken out every 1 h of the reaction and subsequently analyzed. The polymerization product yield (polyglycerol, diglycerol, triglycerol) along the reaction time were analyzed using Shimadzu HPLC (Centre of Biomass and Biofuel (CBBR), Universiti Teknologi, PETRONAS, Malaysia) equipped with a 250 × 4.6 mm, 5 µm Hypersil Gold Amino HPLC column and Shimadzu RID 10-A detector (Centre of Biomass and Biofuel (CBBR), Universiti Teknologi, PETRONAS, Malaysia). The analysis program was heating from 60 to 240 °C (ramping rate: 20 °C/min) with an analysis time of 25 min. The glycerol conversion and products yields were computed by the following equations:

$$\mathrm{Glycerol} \mathrm{conversion} (\%) = \frac{\mathrm{moles} \mathrm{of} \mathrm{glycerol} \mathrm{reacted} }{\mathrm{moles} \mathrm{of} \mathrm{glycerol} \mathrm{taken} }\times 100\%$$

(1)

$$\mathrm{Polyglycerol} \mathrm{yield} (\%) = \frac{moles of polyglycerol produced }{moles of glycerol taken }\times 100\%$$

(2)

$$\mathrm{Diglycerol} \mathrm{yield} (\%) = \frac{\mathrm{moles} \mathrm{of} \mathrm{diglycerol} \mathrm{produced} }{\mathrm{moles} \mathrm{of} \mathrm{glycerol} \mathrm{taken} }\times 100\%$$

(3)

$$\mathrm{Triglycerol} \mathrm{yield} (\%) = \frac{\mathrm{moles} \mathrm{of} \mathrm{triglycerol} \mathrm{produced} }{\mathrm{moles} \mathrm{of} \mathrm{glycerol} \mathrm{taken} }\times 100\%$$

(4)

Long-chain polyglycerol yield (%) = Polyglycerol yield − diglycerol yield − triglycerol yield

(5)

3. Results and Discussion

3.1. Fresh Catalyst Characterisation

3.1.1. BET Analysis

The physical properties (i.e., surface area, pore diameter and pore volume) of the prepared catalysts are shown in

Table 1. Textural properties of the synthesis catalyst.

Sample	Surface Area (m2/g)	Pore Diameter (nm)	Pore Volume (cm3/g)
AlPC	230	4.106	0.236
10 wt.%Li/AlPC	163.85	16.32	0.295
20 wt.%Li/AlPC	95.48	19.21	0.309
30 wt.%Li/AlPC	11.33	35.14	0.108

. The unmodified and modified AlPC catalysts showed considerable differences in terms of their physical attributes, indicating the structural alternation by dealumination upon potent alkali treatment by LiOH [23]. Unmodified AlPC possesses the highest BET surface area of 230 m²/g, attributed to the presence of pillared structure as well as hydrated exchangeable cations [18]. Indeed, the surface area of AlPC not only contributed by the porosity over the surface of pillared clay but also within the pillared clay. However, the BET surface area was significantly decreased with the increase in Li loadings from 10 wt.% to 30 wt.%, and the smallest surface area was shown by 30 wt.%Li/AlPC (11.33 m²/g). The significant decrease in the surface area of the LiOH-modified AlPC indicated the successful metal dispersion that fills the active pores in the parent AlPC [24]. After the LiOH intercalation modification, there was probably a certain extent of pores collapse and blockage over the layered structure of AlPC [25]. The smallest surface area demonstrated by 30 wt.%Li/AlPC can be explained by the excessive Li doping on AlPC, which agglomerated and covered the pores to a great extent [26]. Meanwhile, the pore diameter of these modified clay showed an opposite trend, suggesting the pores’ expansion, AlPC’s wall contraction and changes in basal spacing after the introduction of Li. Intriguingly, the pore volume of 20 wt.%Li/AlPC was the highest compared to other catalysts at 0.309 cm³/g, suggesting the optimal Li loading to increase the pore volume of parent AlPC. Severe metal agglomeration was confirmed for 30 wt.%Li/AlPC, when it demonstrated the least pore volume, which was even less than that of unmodified AlPC.

3.1.2. N₂ Adsorption–Desorption Analysis

Figure 2A demonstrates the N₂ physisorption patterns for parent AlPC and Li-based AlPC catalysts. As illustrated, all the catalysts exhibited the same type IV isotherm, corresponding to the mesoporous material with pore condensation together with hysteresis behaviour between the adsorption and the desorption branches according to International Union of Pure and Applied Chemistry (IUPAC) classification [24,25,26,27]. The loops are also related to the capillary condensation after monolayer–multilayer adsorption, where the plateau at high relative pressure expresses complete pore filling [28]. However, the bare AlPC catalyst (H4 hysteresis) showed a different hysteresis loop as compared to other modified AlPC (H3 hysteresis). The finding indicated the microporosity of the bare AlPC material, whilst the presence of slit-shaped pores of the Li/AlPC arose from the agglomeration of plate-like particles [24,25,26,27]. As stated by Krupskaya et al. [29], a decrease in the steepness of the loop can be explained by a decrease in the pore volume of the sample and the appearance of macro-porosity. The steepnesses of the hysteresis loops were increased with the trend of 30 wt.% Li < AlPC < 20 wt.% Li < 10 wt.% Li, where the 30 wt.%Li/AlPC demonstrated the least pore volume, and the result was in line with the BET result (Table 1). Moreover, the H4-type hysteresis loop for 30 wt.%Li/AlPC catalyst was comparably small, suggesting the partially structural disruption of AlPC at highest Li loadings by metal agglomeration over the AlPC [26].

Figure 2B shows the BJH adsorption pore size distribution curves of the catalysts. As illustrated, AlPC demonstrated a broad multimodal pattern scattered from 0.5 to 6 nm, which was mainly at microporous pore size region (≤2 nm). After loaded with 10 wt.% Li, the pore size gradually shifted to larger pore size, with the majority of pores being between 2 and 4 nm. As the Li loadings increased, the volume of the pore at the microporous region was lower due to the successful incorporation of Li into the AlPC catalytic supports.

3.1.3. XRD Analysis

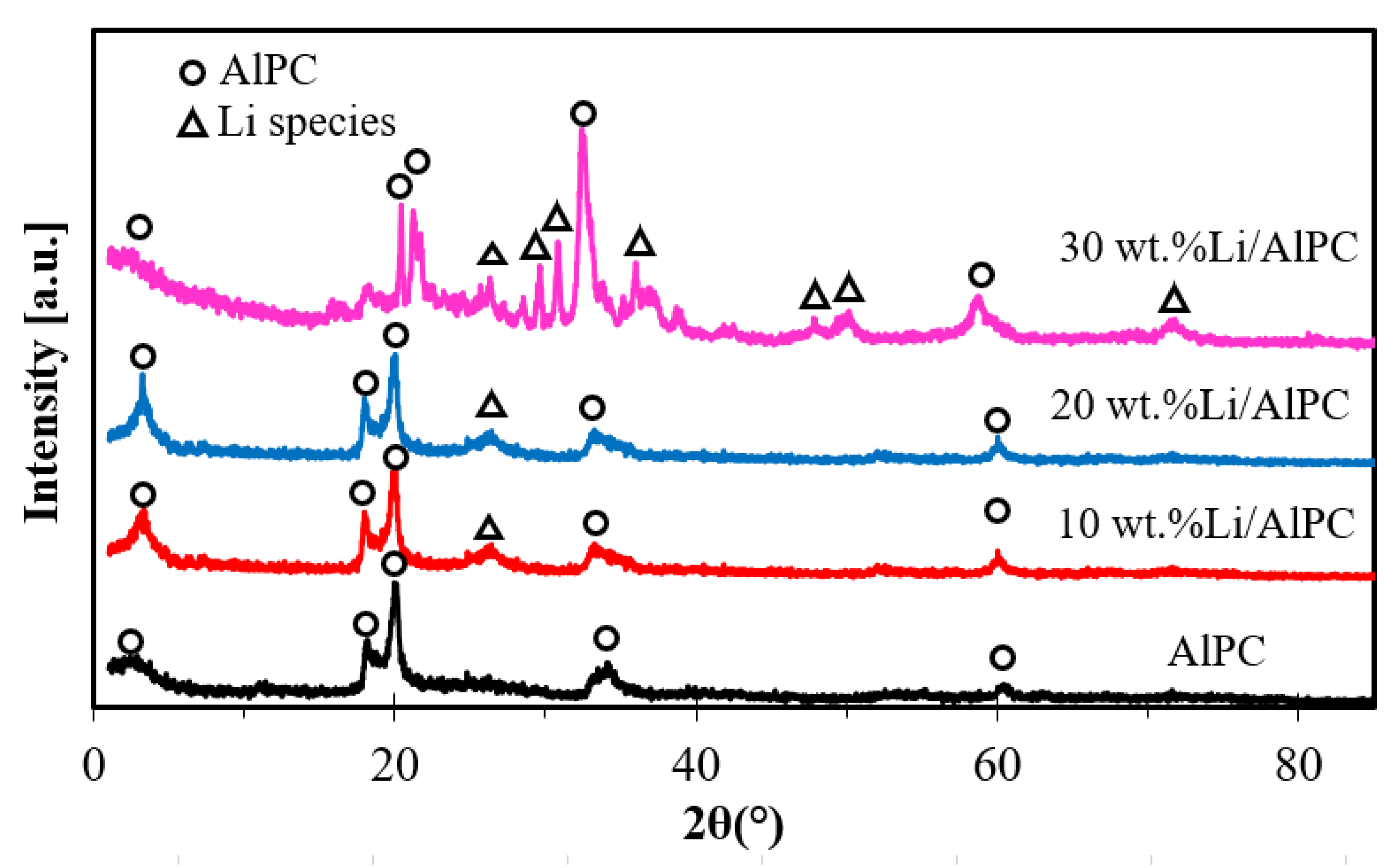

XRD spectra of the parent AlPC and x wt.%Li/AlPC (x = 10, 20 and 30 wt.%) catalysts are illustrated in Figure 3. The d (001) reflection of parent AlPC appeared at 2θ = 1.5° and corresponds to the d spacing value of 18 Ȧ, and it also depicted the successful pillaring process and microporosity formation of the catalyst. This peak had shifted to 2θ = 2° for 10 and 20 wt.% LiOH modified AlPC catalysts, correspond to the interlayer spacing of 21 Ȧ spacing. However, the peak was shifted right to 2θ = 1.25° for 30 wt.%Li/AlPC, represented the decrement of decrease of d (001) spacing to 14 Ȧ as a result of the pillared structure destruction by the high intercalated Li loading [30]. This remarkable increase of d spacing values for both 10 and 20 wt.% Li/AlPC catalysts were attributed to their better dispersion of the highly alkaline Li metal and better swelling ability of the AlPC clay due to its cation exchange capacity. Additionally, AlPC consists predominantly of montmorillonite 2θ = 20°, 22°, 34°, 61° [31], and the sharp peaks at 2θ = 18° showed the resemblance of smectite [32]. Ten and 20 wt.%Li/AlPC catalysts retained their pristine pillared structure with well-preserved sharp diffraction peak even after Li impregnation, suggesting the non-altered crystallinity of the parent AlPC. There are some new peaks (∆) detected in the XRD pattern of the fresh 30wt.%Li/AlPC, which are ascribed to Li species as stated by previous literature. The absence of the Li species detected for 10 and 20 wt.%Li/AlPC implied the successful embedment of Li into the parent AlPC material through the impregnation method.

3.1.4. SEM Analysis

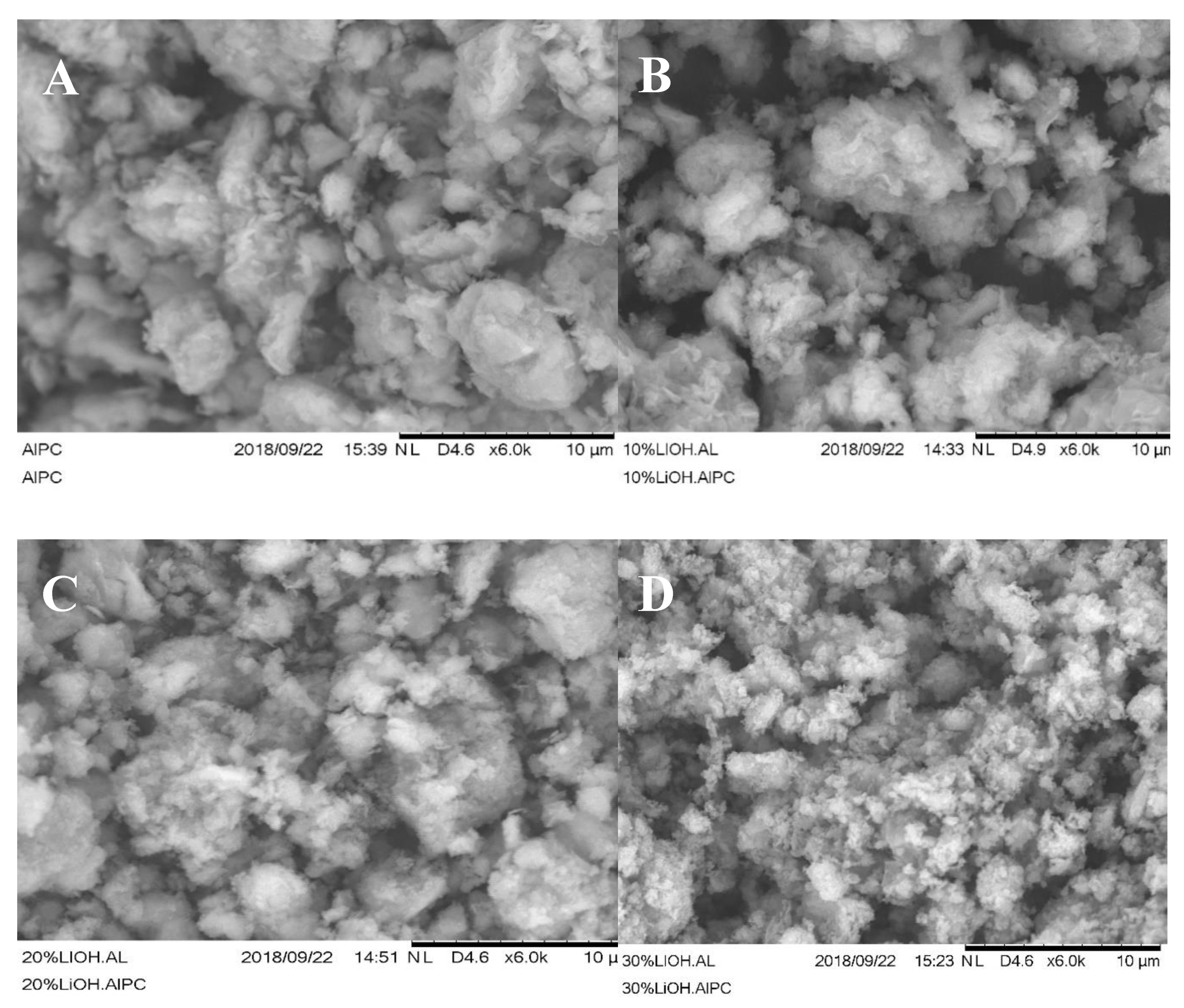

SEM images of AlPC with various metal loadings are illustrated in Figure 4. As shown in Figure 4A, unmodified AlPC was observed in the form of lamellar morphology with corn-flake-like crystals, with a composition similar to the 2:1 phyllosilicate, which corresponds to mica phase. As shown in Figure 4B–D, even though the pristine morphologies were not altered, the surface textures of LiOH-modified AlPC catalysts were rougher with aggregative appearance. Besides, the modified AlPC indeed appeared in the form of fluffy type material after intercalated with Li. The massive fluffy material observed for 30 wt.% Li/AlPC can be explained by structure transformation into flocked by the excessive metal loading.

3.1.5. NH₃-TPD Analysis

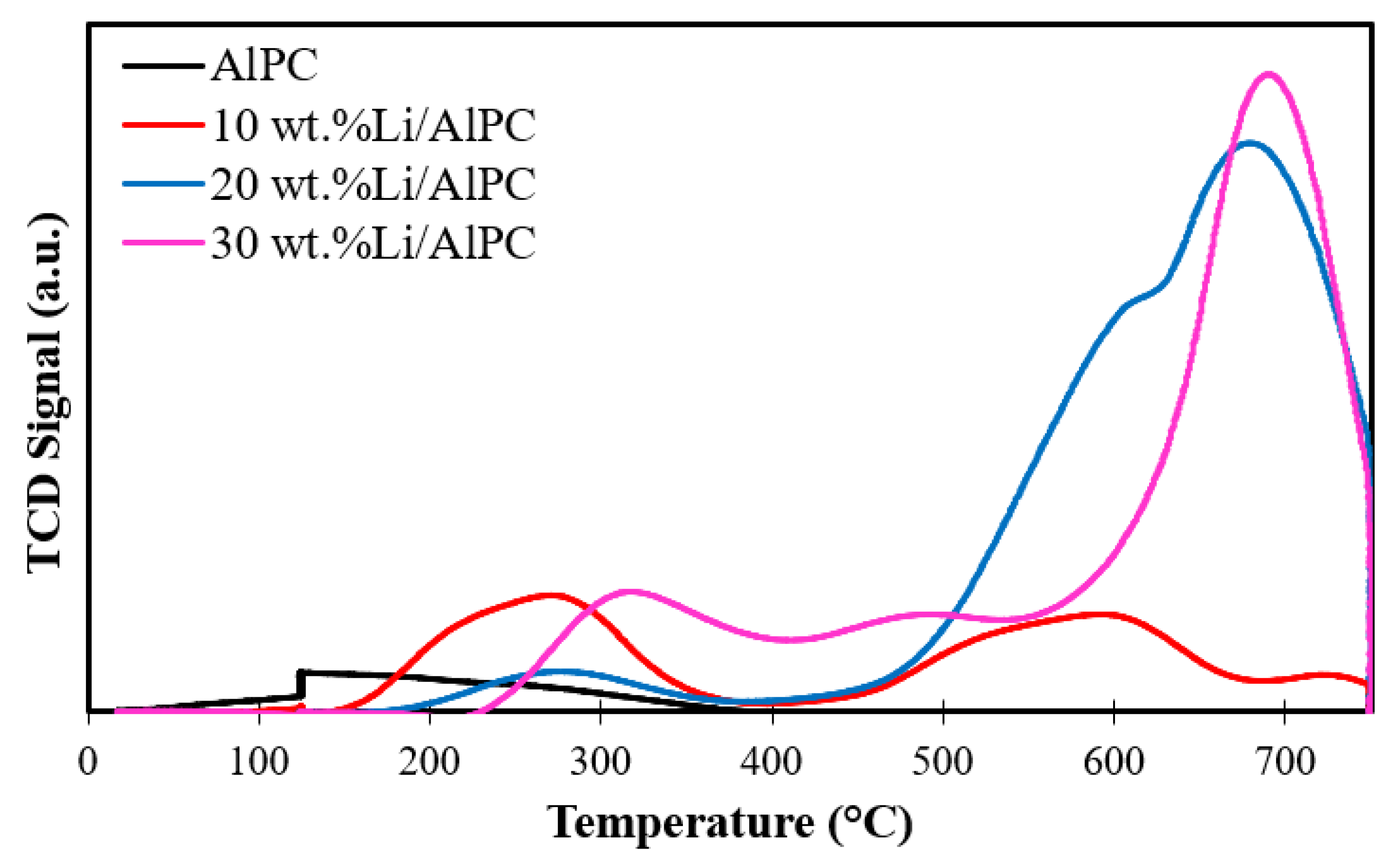

NH₃-TPD was used to evaluate the acidic properties of the prepared catalysts. A series of NH₃-TPD curves for unmodified and modified AlPC catalysts with different Li loadings are presented in Figure 5. The unmodified AlPC did not show any obvious curve, but two notable desorption peaks with different intensities can be observed after it was modified by LiOH. The results obtained indicate the ion exchange within AlPC after LiOH addition induced significant changes in the acidic character of the catalysts. The first desorption peaks detected at around 200–350 °C indicate the catalyst possesses weak-strength acid sites (unsaturation of Al³⁺ and Mg²⁺) as a result from the interlayer water (H₃O⁺), Si-OH and Al-OH-H. The medium-strength acid sites were marked at the 350–550 °C region, generated by unsaturated Al³⁺ ions in the octahedral sheets (represented as Al_L) and interlayer water. Desorption peaks detected at temperature >550 °C were referred to the strong-strength acid sites [33]. The interlayer polarised water primely generates the montmorillonite clay acidity, Si-OH, H₃O⁺ adsorbed by negatively charged tetrahedral AlO₄ (Bronsted acid sites) as well as unsaturated Al³⁺ ions that belong to Lewis acid sites [30]. For the case of 10 wt.%/AlPC, a relatively higher peak appeared at around 260 °C, and a lower peak was detected at medium-strength and strong acid sites. This finding can be explained by the decrement in the interlayer water and transformation of Al-OH-H to the Al_L due to dehydration after 10 wt.% Li loading. As the Li loadings increased from 10 wt.% to 30 wt.%, the desorption peaks at lower acid sites gradually shifted towards moderate and strong-strength acid sites. The desorption peaks at the weak acid site were the least obvious for 20 wt.% Li but most intense for its moderate and strong acid sites peak. This result demonstrated the highest tendency of 20 wt.% Li loading in enhancing the strong acid sites of AlPC. The total acidities of the catalysts were also computed based on the total area under the curves as shown in

Table 2. The total concentration of acidity and basicity in calcined Li/AlPC sample.

Sample	Acidity (mmol/g)	Basicity (mmol/g)
AlPC	0.059	0.005
10% Li/AlPC	0.48	12.67
20% Li/AlPC	2.35	34.48
30% Li/AlPC	2.17	45.48

, where the lowest and highest acidity were marked by unmodified AlPC (0.059 mmol/g) and 20 wt.% Li/AlPC (2.35 mmol/g), respectively. However, the overall acidity for all the catalysts were considered low as LiOH used is a strong alkali.

3.1.6. CO₂-TPD Analysis

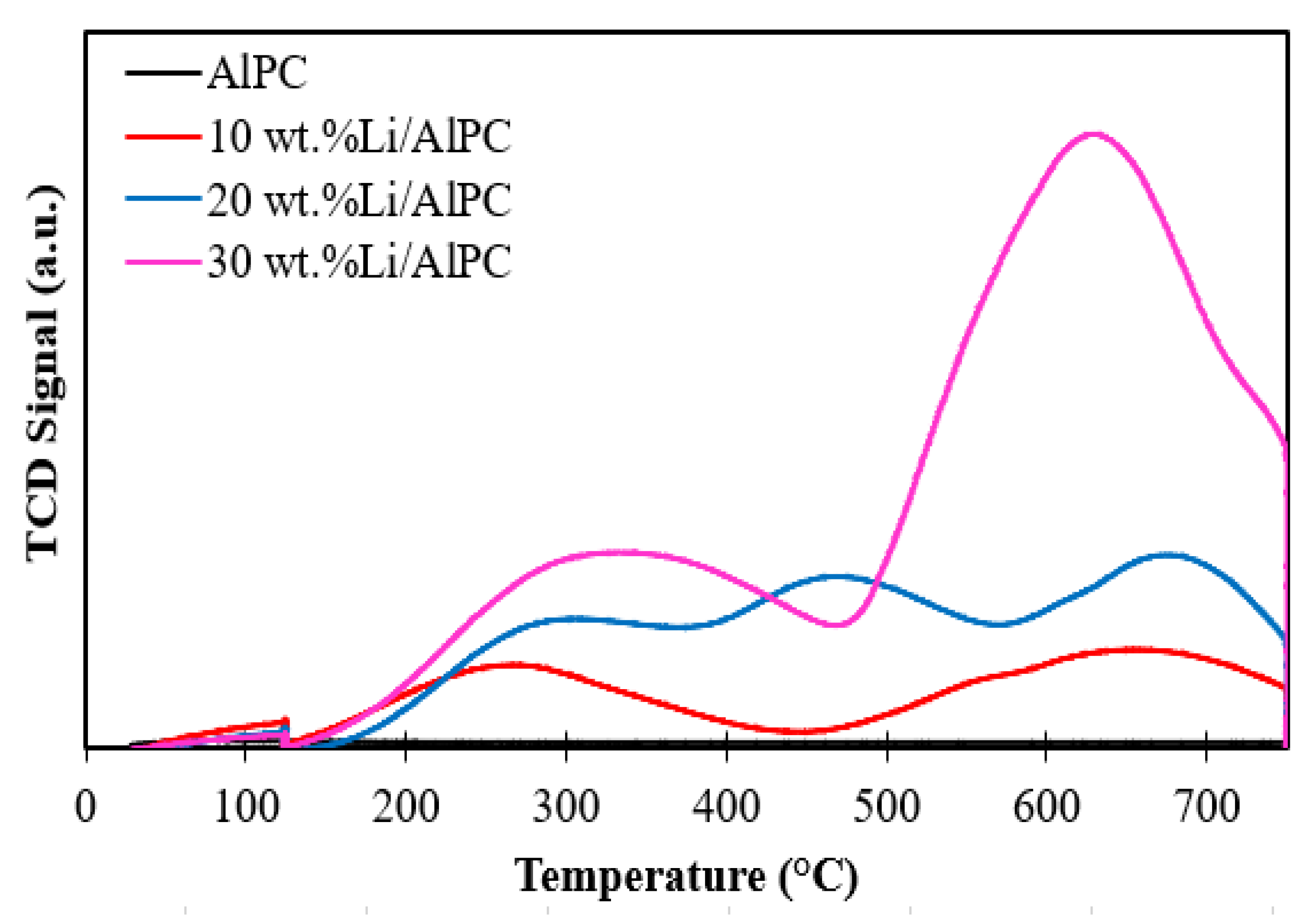

The basicity evaluation by CO₂-TPD of the bare AlPC and AlPC loaded with various Li loadings (10-30 wt.%) are shown in Figure 6. The basicity follows the inverse trend to the acidity. The desorption peaks detected at the regions 100–350 °C, 350–550 °C and 550–750 °C were assigned to weak, moderate and strong basic sites, respectively. For bare AlPC, no peak was detected along with the temperature range, evidencing the non-basic nature of parent AlPC. After Li introduction, several peaks were detected in the different region regardless of the Li loadings, suggesting the vital role of LiOH in improving the basicity of AlPC. As illustrated in Figure 6, the first intense peak was centred at 240 °C, while the second one was centred at 650 °C for 10 wt.% Li, expressing the emergence of weak and strong basic sites. Apart from weak and strong basic sites, an extra peak which designated for the moderate basic site was observed at around 480 °C for 20 wt.% Li loading. For 30 wt.% Li/AlPC, the CO₂ desorption peaks detected were of far higher intensities than other catalysts, indicating its highest basicity. From Table 2, it was noted that the overall rate of CO₂ desorption was higher than NH₃, proving the stronger propensity of Li metal in improving basicity than acidity for AlPC as LiOH is a strong alkali. The highest basicity was marked by 30 wt.% Li/AlPC with 45.48 mmol of CO₂ desorbed/g AlPC, followed by 20 wt.% Li/AlPC (34.38 mmol/g) and 10 wt.% Li/AlPC (12.67 mmol/g). The non-basic nature of bare AlPC was also proven when only 0.005 mmol of CO₂ desorbed/g AlPC was detected and can be neglected.

AlPC clay is indeed a Brønsted acidic material, but it was modified to become basic alkali treatment by using an alkali cation-containing solution, LiOH in this study. The acidic strength also depends on the size and charge of the metal cations. The basicity of the AlPC surface is assumed to be the oxygen atoms’ surface that interacts with a proton. It is expected that the surrounding framework of oxygen is known as Lewis basicity due to an adverse change of oxygen atoms in adjacent exchangeable cations. Hence, the primary step behind the heterogeneous catalytic reaction is to transfer the proton or the generation of the heteropolar donor–acceptor pair, as well as the catalyst efficiency based on acidic and basic properties of the heterogeneous catalyst surface. It can be concluded from these results that acidity and basicity of AlPC varied according to the Li loading. Secondly, acidity was found to be inversely proportional to the basicity.

3.2. Microwave-Assisted Glycerol Polymerization

The polyglycerol is primarily di-, tri- and tetraglycerol and some longer-chain heptaglycerol. The glycerol polymerization reaction to convert the glycerol to polyglycerol involves the removal of water molecules. The diglycerol and triglycerol (low-molecular-weight oligomers) were the two predominant components discussed in this study, owing to their extensive applications as fuel additives, emulsifiers, solvents, etc. Furthermore, no solvent was involved to minimize the complicity in separating catalyst when organic solvent and homogeneous catalysts were used, which affected the process economy and product purity. Four parameters involved in catalytic evaluation via microwave-assisted glycerol polymerization were Li loadings on AlPC (10, 20, 30 wt.%), catalyst loadings (2, 3, 4 wt.%), reaction temperature (200, 220, 240 °C) and reaction time (1–4 h). All the data points collected were taken in quadruplicates, and the average values were taken.

3.2.1. Effect of Li Loadings on AIPC

The effect of Li loadings (10, 20 and 30 wt.%) on AlPC catalysts over the glycerol conversion, polyglycerol (particularly diglycerol and triglycerol) yields via microwave-assisted glycerol polymerization reaction at 200 °C within 4 h time-on-stream (TOS) are presented in Figure 7. The unmodified AlPC was inactive with less than 10% of glycerol conversion, and polyglycerol yield can be observed within 4 h TOS (not shown). After AlPC was loaded with Li, significant improvements were demonstrated where the catalytic activities of Li/AlPC catalysts increased with increase in time-on-stream. This phenomenon manifested the crucial role played by LiOH in serving as an active metal, physicochemical properties modifier and basic sites increaser. The overall catalytic performance was observed in the following order under microwave irradiation as a heating source: 20 wt.%Li/AlPC > 30 wt.%Li/AlPC > 10 wt.%Li/AlPC > AlPC. The maximum glycerol conversion of 70% was attained after 4 h of polymerization reaction with 63.9% polyglycerol yield of 58% at 200 °C in the presence of 10 wt.%Li/AlPC catalyst. As metal loading increased to 20 wt.% on pillared clay, the glycerol conversion reached up to 85.3% with polyglycerol yield of 78.5%. However, a further increase in Li loading to 30 wt.% resulted in a negative outcome, where there was a significant decrease in the short-chain polyglycerol yield after 2.5 h TOS (from 75% to 58.5%) even though the glycerol conversion was as high as 89% at 4 h. These results imply the occurrence of further polymerization of the short-chain polyglycerol into longer-chain polyglycerol.

From Figure 7B, the diglycerol was observed to increase within 4 h TOS for 10 wt.%Li/AlPC, and the triglycerol yield increased at the first 2.5 h TOS until its highest point (16.27%) but decreased to 7.2%. For the case of 20 wt.%Li/AlPC, both the diglycerol and triglycerol yield increased gradually with TOS to achieve 47.26% and 30.71%, respectively. However, the maximum 39.25% diglycerol yield was obtained at 1.5 h TOS for 30 wt.%Li/AlPC, then gradually decreased to 14% at 4 h TOS. The same goes for triglycerol yield, which also decreased after 3.5 h TOS. From

Table 3. Long-chain polyglycerol yields for different reaction conditions.

Time (h)	Li Loadings (wt.%) a			Metal Loadings (wt.%) b			Temperature (°C) c
	10	20	30	2	3	4	200	220	240
0	0	0	0	0	0	0	0	0	0
0.5	0.32	4.52	0	4.52	2.66	2.62	2.66	1.50	3.10
1.0	0.36	2.04	2.45	2.04	3.00	4.71	3.00	3.00	10.71
1.5	1.65	2.78	3.97	2.78	1.00	7.62	1.00	5.00	19.94
2.0	0.1	5.25	9.55	5.25	0.25	11.56	0.25	2.25	23.76
2.5	4.00	6.85	11.52	6.85	3.73	17.39	3.73	4.73	23.55
3.0	8.00	5.61	16.72	5.61	2.61	17.36	2.61	5.61	22.27
3.5	13.69	1.45	16.34	1.45	1.45	14.73	1.45	3.45	18.47
4.0	16.054	0.57	24.02	0.57	0.57	22.46	0.57	0.57	17.20

^a Catalyst loading = 2 wt.%, reaction temperature = 200 °C. ^b Li loading = 20 wt.%, reaction temperature = 200 °C. ^c Li loading = 20 wt.%, catalyst loading = 3 wt.%.

, the longer-chain polyglycerol was formed at 16% and 24% for 10 wt.%Li/AlPC and 30 wt.%Li/AlPC, respectively, at 4 h TOS, which explains the drop in diglycerol and triglycerol yields as they have been further polymerized into longer-chain polyglycerol. Among them, the least long-chain polyglycerol was shown by 20 wt.%Li/AlPC catalyst, evidencing its high selectivity to form the desired product, short-chain polyglycerol.

These findings evidenced that the glycerol polymerization is a base-catalyzed process in the current study. In general, the reaction can be divided into acid- or base-catalyzed reactions, but the former one is not preferred as it promotes a higher degree of oligomerization to yield polyglycerol with secondary products and thereby results in a decrease in the product quality [34]. The -OH groups of the glycerol molecule are Lewis base (electron donor groups), where these groups react rapidly with the -OH ions of the AlPC catalyst and then protonate it. For the next step, the alkoxy anion formed attacks the -OH group of another glycerol molecule to remove ann H₂O molecule and form a polyglycerol product [35]. Glycerol conversion was augmented with the increase in the polarizing ability of the cations. It is hard to elucidate the mechanism without the participation of the Lewis and Bronsted acid sites, which has a significant role in glycerol polymerization. The role of metals ions and edges or defects have been tentatively hypothesized, which enable the -OH-leaving process in catalyzed glycerol polymerization into polyglycerol.

The poorest performance by the parent AlPC can be explained by the fact that unmodified AlPC is indeed a layered clay with basal spacing larger than the glycerol molecule. However, the LiOH-modified AlPC catalysts were able to tune their basal spacing for products yield and sustained their layer structure. In this case, the formation of a longer-chain molecule was restricted due to basal spacing limitation. The superiority of 20 wt.% Li/AlPC as compared to other catalysts can be attributed to its pore size and basal spacing, with the proper equilibrium of Lewis acidity and basicity [34], that favoured the yield of desired products. This catalyst not only exhibited moderate basicity (34.48 mmol/g) but also formed suitable basal spacing (21 Ȧ) for efficient diglycerol and triglycerol yields as a result of the promising LiOH loadings. The poor products yield by 30 wt.% Li/AlPC was due to its unfavourable properties; its excessive basicity (45.48 mmol/g) resulted in porosity deterioration and active alkaline cations leaching in the hot glycerol under heating [36]. The exposure to a higher basic solution concentration (30 wt.%) could probably weaken the AlPC layered structure as well. The porosity and structural deterioration as a result of metal agglomeration also resulted in poor glycerol accessibility to the active sites of 30 wt.%Li/AlPC. The condition worsened when the glycerol diffusion was blocked by the bigger-sized product molecules (mono-, di-, tri- tert-, butyl glycerol ethers) to diffuse out of the aperture of catalyst. The optimal Li loading for AlPC was 20 wt.% for the preliminary screening test; therefore, this catalyst has further proceeded for subsequent testing.

3.2.2. Effect of Catalyst Loading

The glycerol conversion and products yield with respect to reaction time at 200 °C over 20 wt.%Li/AlPC catalyst at various catalyst loadings (2, 3 and 4 wt.%) are shown in Figure 8. The catalyst loading was computed with respect to the weight of the limiting reactant, glycerol. As observed in Figure 8A,B, the reaction profiles were different when varying catalyst loading. The glycerol conversion (85.3%) and polyglycerol yield (78.54%) were found to be lowest at the lowest catalyst concentration (2 wt.%). The glycerol conversion of 92.25% was achieved with 83.54% polyglycerol yield for 3 wt.% of catalyst. Both the diglycerol and triglycerol yields increased with TOS for both 2 and 3 wt.% catalyst loading, and the overall yields were higher for 3 wt.% catalyst loading. The highest diglycerol and triglycerol yields were marked at 52.26% and 33.5%, respectively. Even though the glycerol conversion attained 95.1% when it increased the catalyst loading from 3 to 4 wt.%, its polyglycerol yield was unsatisfactory when drastic decrement (to 62.1% at 4 h TOS) was notified after the maximum point was achieved at 2.5 h TOS (73.6%). As time increased, the diglycerol yield increased up to 2 h TOS but decreased to 21.5% for 4 wt.% catalyst with a prolonged reaction time. Even though the triglycerol yield increased with reaction time for the first 3.5 h TOS with a maximum at 27.45%, it decreased to 18.16% in the end. As tabulated in Table 3, the long-chain polyglycerol was more prone to produce when using 4 wt.%Li/AlPC catalyst, which also explains the decline in the formation of the short-chain oligomers.

These results proved that 3 wt.% catalyst loading was the optimal point for this study. This is owing to the sufficient effective interaction amid the reactant molecules to form polyglycerol in the end, which was largely attributed to the adequate number of accessible active sites of the catalyst. After 2.5 h TOS, an increase in catalyst loading resulted in a non-accelerated reaction rate due to the mass transfer limit. Therefore, increasing the catalyst concentration to more than 3 wt.% was not recommended because no significant improvement was observed, but it decreased the polyglycerol yield. Apart from promoting the over-polymerization reaction, a further increase of the catalyst loading to 3 wt.% at the reaction conditions could also form glycerol back from back-scission of diglycerol, which was proven in a drastic decrease in the diglycerol and triglycerol yield with respect to time. As 3 wt% of LiOH catalyst performed the best during the reactions, this loading was chosen for the following research work.

3.2.3. Effect of Reaction Temperature

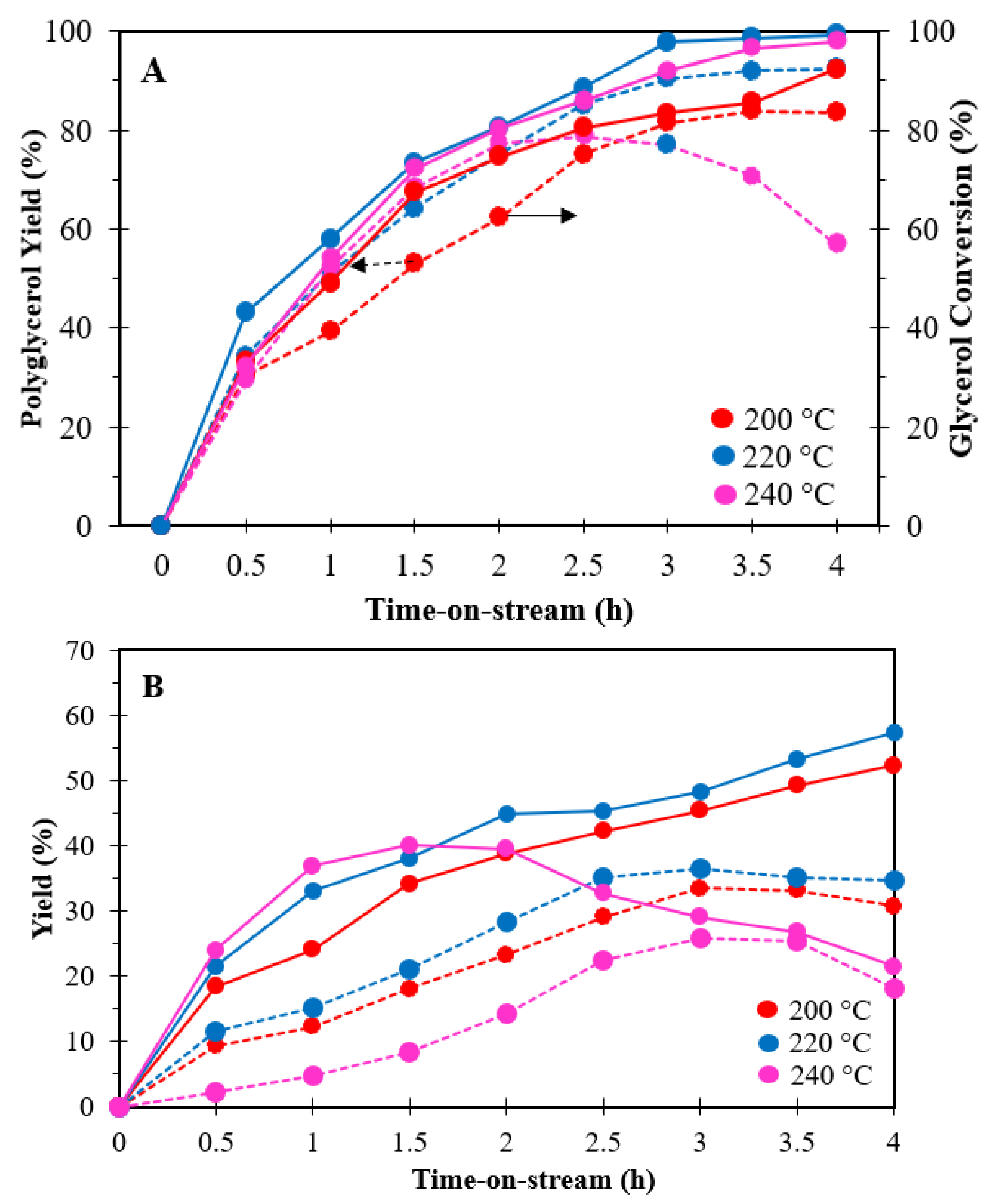

Glycerol polymerization is a temperature-dependent reaction, which is strongly influenced by the reaction temperature. The effect of reaction temperature (200 °C, 220 °C and 240 °C) on the polymerization was investigated over 3 wt.% loading of 20 wt.%Li/AlPC catalyst. Figure 9A,B shows the results of the current study for glycerol conversion and di/triglycerol yields. The glycerol conversion increased with the reaction temperature increment from 200 °C to 220 °C. In comparison, the catalyst exhibited the least glycerol conversion and polyglycerol yield at a reaction temperature of 200 °C. Glycerol conversion of 99.3% was obtained with 92.54% of polyglycerol yield for catalyst at 220 °C as shown in Figure 9A. Both the diglycerol and triglycerol yields at 220 °C surpassed the reaction performed at 200 °C, with the maximum diglycerol and triglycerol yield marked at 57.26% and 34.71%, respectively. As the temperature increased to 240 °C, glycerol conversion was 98%, and the polyglycerol yield increased gradually until 2 h TOS and then decreased to 56.9% at 4 h TOS. For this reaction temperature, the diglycerol and triglycerol yield reached their maximum at 1.5 h and 3.5 h, respectively, but decreased after that. The diglycerol and triglycerol yields were 21.5% and 18.16% after 4 h of the reaction at 240 °C. Despite the glycerol conversion being very high at 240 °C, the decreased polyglycerol yield suggested the further polymerization of short-chain polyglycerol to longer-chain oligomers. This statement was proven when the overall long-chain polyglycerol composition was the highest within 4 h TOS as tabulated in Table 3. This observation suggested that higher reaction temperature sped up the remaining glycerol and successive polymerization of diglycerol and triglycerol to longer-chain polyglycerol.

At high reaction temperature (>300 °C), active phase leaching into the reaction medium and the acrolein formation are the two main disadvantages of heterogeneous catalysts. Therefore, the reactions were conducted at the low reaction temperature to prevent substantial degradation reactions over the reactants, intermediates and products. However, relatively high temperature favours a high extent of product yield for an endothermic reaction; therefore, choosing optimal temperature is vital for maximum reactant conversion and product yield. The poorer catalytic performance was at 200 °C as the temperature was insufficient to overcome the activation energy required for successful glycerol conversion as the energy possessed by the glycerol molecule itself is weaker. It can be noted that polymerization is not favoured at 240 °C as secondary products tended to form secondary products instead of primary products (di- and triglycerol), due to the further activated reaction for further oligomerization to form long-chain polyglycerol. Therefore, 220 °C was suggested as the optimal reaction temperature by considering the glycerol conversion and short-chain polyglycerol yield over 20 wt%Li/AlPC-catalyzed microwave-assisted glycerol polymerization. This reaction temperature allows the optimal reaction rate to allow diffusion out of di- and triglycerol from the pores for new glycerol to polymerize.

3.2.4. Effect of Reaction Time

The effect of reaction time on glycerol polymerization was performed on 3 wt.% of 20 wt.%Li/AlPC catalyst at 220 °C as illustrated in Figure 7, Figure 8 and Figure 9. By referring to the figures, the conversions and polyglycerol yields were mostly increased with TOS. This tendency of conversion and yield increase can be attributed to the impurities removal at prolonged reaction time. Generally, glycerol polymerization or glycerol oligomerization is a chain reaction in which glycerol forms diglycerol first, then triglycerol and so on to longer-chain polyglycerol. The short-chain oligomers polyglycerol are formed through successive glycerol polymerization where glycerol molecules condensed either in linear, cyclic or branched fashions [18]. Indeed, the diglycerol formed during the catalytic reaction might be transformed into higher polyglycerol under uncontrolled reaction condition or prolonged reaction time. The further polymerization steps after di- and triglycerol formation stop when the catalysts pore is not big enough. However, the short-chain polyglycerol may further continue its formation when the pore is sufficient to fit longer-chain polyglycerol. As observed in Figure 7A and Table 2, it was suggested that the pore sizes of 30 wt.% Li/AlPC were large enough to fit longer-chain polyglycerol when a drastic decrement in the polyglycerol was observed. In this study, the possible formation of higher cyclic oligomers that takes place at longer reaction time was minimized as reaction time up to 4 h only. Furthermore, the longer reaction time was susceptible to acrolein by-product generation due to double dehydration [37]. After the optimum reaction condition was confirmed at 20 wt.%Li loading, 2 wt.% catalyst loading, the glycerol conversion and polyglycerol yield were at a plateau after 3 h. A further increase in reaction time to 4 h did not give any significant changes. Furthermore, the di- and triglycerol yields also showed minor increment only, signifying that the reaction might finish in the first 3 h. Therefore, reaction time 3 h was chosen as the optimal point for this study.

The LiOH-impregnated AlPC catalyst facilitated via microwave technology proved to be more efficient for the glycerol polymerization into polyglycerol as compared to the previous studies. Furthermore, the desired reaction time was shorter for the synthesis of short-chain polyglycerol facilitated by microwave (3 h) than the conventional heating method (12 h) [19] when using Li/AlPC. Most of the previously published work for the generation of selective polyglycerol was carried out by the conventional heating method, and typical reaction time for glycerol polymerization was more than 8 h. To conclude, these results confirmed the significant advantages derived from microwave heating to achieve a maximum 99.3% glycerol conversion and 92.5% polyglycerol yield, as the required heating time in previously published work was approximately 12 h by the conventional heating method. Hence, microwave technology is highly feasible to be adopted for polymerization reaction for maximum glycerol conversion and short-chain polyglycerol formation.

3.3. Spent Catalyst Characterization

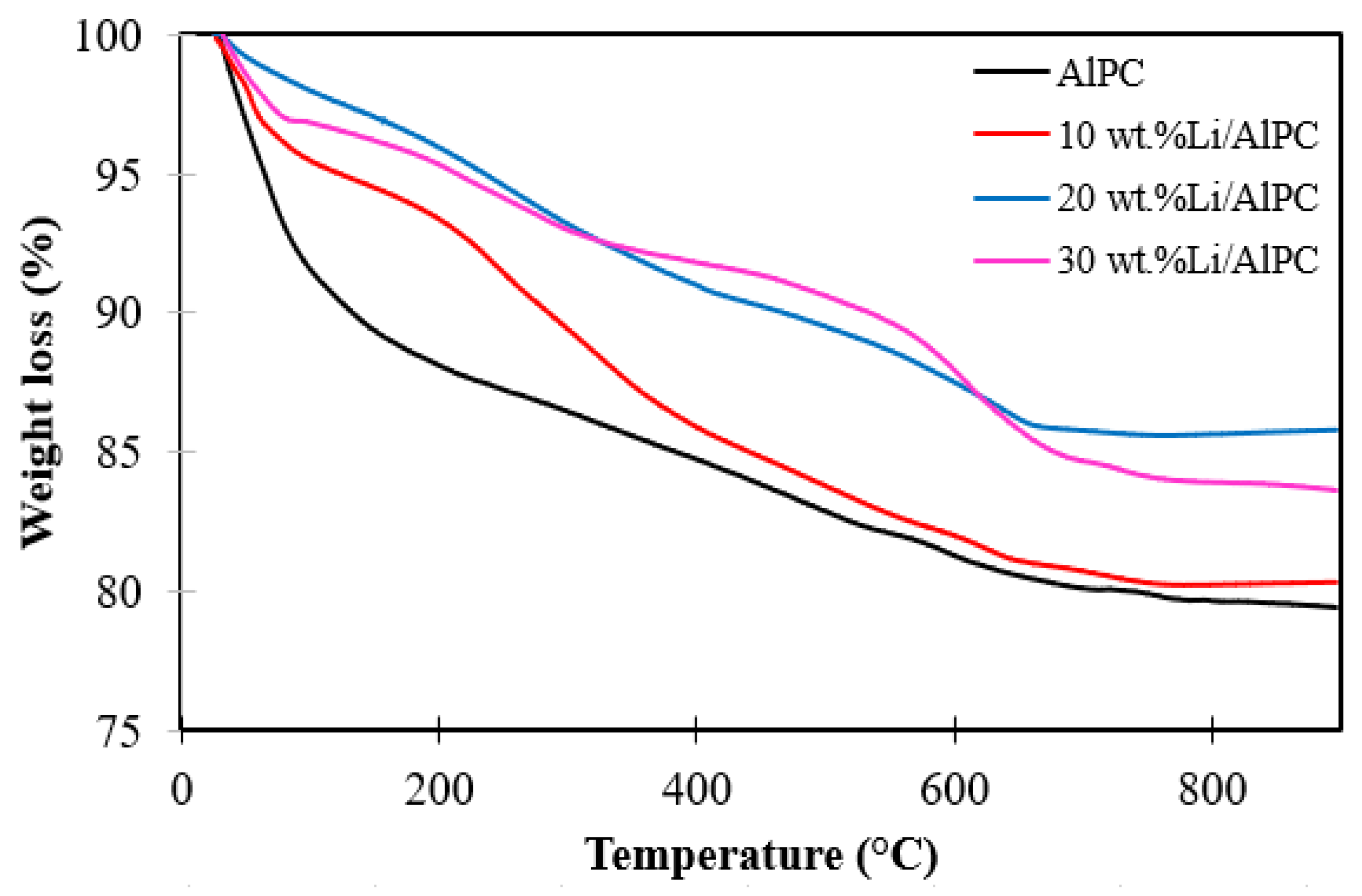

The TGA graph of spent AlPC and x wt.%Li/AlPC (x = 10, 20 and 30 wt.%) catalysts at catalyst loading = 2 wt.% and reaction temperature = 200 °C is shown in Figure 10. Overall, the weight loss of all the spent catalysts can be considered small, which is less than 25%. There is a certain indication for each weight loss at different temperature regions. Weight loss at the 70–160 °C range is assigned to the adsorbed water molecules elimination, whilst the temperature between 160–270 °C can be assigned to the elimination of residual adsorbed glycerol monomers. At a temperature more than 270 °C, it might correspond to the thermal degradation of the catalyst itself. The removal of dehydroxylation and physisorbed caused by the breaking of structural hydroxyl groups of the AlPC support took place at a temperature of more than 500 °C [18]. The weight loss of the spent catalysts followed the order of AlPC > 10 wt.%Li/AlPC > 30 wt.%Li/AlPC > 20 wt.%Li/AlPC. Therefore, there is no doubt that the 20 wt.%Li/AlPC was selected as the best catalyst in this study.

4. Conclusions

In this study, microwave-assisted catalytic polymerization has been studied using LiOH-modified AlPC catalyst for the conversion of glycerol into short-chain polyglycerol (di- and triglycerol). LiOH was able to tune the pristine basal spacing of AlPC catalysts for their products yields and sustain their layer structure. From the results obtained, 20 wt.% Li/AlPC was proven to perform the best selective polymerization as compared to 10 wt.% and 30 wt.% Li/AlPC. The superiority of 20 wt.% Li/AlPC catalysts can be credited to its high surface area (95.48 m²/g), moderate pore size (19.21 nm), interlayer space (21 Ȧ), with the proper equilibrium of Lewis acidity (2.35 mmol/g), and basicity (34.48 mmol/g). These attributes indicate an adequate number of accessible actives sites of the catalyst for sufficient effective interaction between the reactant molecules. The poor catalytic performance by 30 wt.%Li/AlPC was due to its excessive basicity (45.48 mmol/g) and metal agglomeration that resulted in porosity deterioration and active alkaline cations leaching. An excellent glycerol conversion of 99.3% with the overall polyglycerol yield of 92.5% was achieved at catalyst loading = 3 wt.%, reaction temperature = 220 °C and reaction time = 3 h in the presence of 20 wt.%Li/AlPC catalyst. The catalyst produced the prime yield of target oligomers of di- and tri-glycerol at 57.26% and 34.71%, respectively. Too low temperature is not favourable to overcome the activation energy required for successful glycerol conversion, while too high temperature led to the formation of secondary products by the further polymerization reaction. Further increase of the reaction time to 4 h did not show a positive impact due to the completion of the reaction in the first 3 h. Furthermore, the desired reaction time was shorter when facilitated by microwave (3 h) than the conventional heating method (more than 8 h). Twenty wt.%Li/AlPC catalyst was verified to be a highly active and efficient catalyst for glycerol polymerization to value-added short-chain polyglycerol production via microwave irradiation as a heating source.
