New Approach Study on Dry Coal Cleaning System with Two-Stage Corona Electrostatic Processes for High-Sulfur Low-Grade Fine Coals

Abstract

Corona electrostatic separation can remove inorganic materials from coal, reduce coal ash content and sulfur content and improve coal quality, reduce air pollution caused by smoke dust, SO_X, and CO_X. The performance of corona electrostatic separation technology in cleaning a middle ash medium-ash, high-sulfur coal was experimentally investigated. The electrode voltage, drum rotational speed, and feeding speed were tested, whereas other parameters were maintained constant during the experiment. The results indicate that the performance of this technology in cleaning medium-ash, high-sulfur coal can be improved by optimizing the process parameters. The results demonstrate that corona electrostatic separation is effective for the beneficiation of this grade coal. In addition, the efficiency of coal cleaning is significantly improved by adding the second stage beneficiation to clean the middlings out from the first stage beneficiation. In this study, the first stage of beneficiation recovered 38.00% (by weight) of clean coal (ash content below 20%), and the second stage recovered 48.58% (by weight) of clean coal, improving the overall separation efficiency from 0.69 to 1.74. Furthermore, the sulfur content was reduced from 4.71% (raw coal) to 3.53% (clean coal). Our result show that corona electrostatic separation can effectively reject inorganic sulfur from raw coal, and the two-stage separate is also very helpful for coal purification.

1. Introduction

Coal is a major energy source, accounting for approximately 27% of the world’s total energy consumption [1] and plays an important role in providing energy around the world. China is extremely poor in crude oil and natural gas resources and therefore relies heavily on imports of these two energy resources [2,3] (the proportions imported being 70.9% and 34.9%, respectively). Renewable energies, such as solar, wind, nuclear, and hydraulic energies, yet cannot provide stable supplies in large quantities (renewable energy to account for 23% of global energy supply in 2106) [4]. Therefore, coal is considered a strategic energy reservoir and has played an irreplaceable role in China for a long time [5]. The quality of coal is considerably influenced by its contents of ash and sulfur [6]. CO₂ and SO₂ have important climatic implications [7] and could lead to temperature increases [8]. In China, coal accounts for more than 70% of the nation’s total energy consumption [9,10], but high-sulfur coal cannot be used for producing high-quality coke and is not a good combustion fuel, furthermore, 92% of SO₂ emissions were from coal consumption in 2007 [11]. SO₂ can result in acid rain and photochemical smog [12], erode boilers [13], plant deaths, river and lake acidification, and human health hazards [14]. A recent study has shown that there was a significant positive correlation between SO₂ concentrations and environmentally persistent free radicals, which are similar to carcinogenic tar paramagnetic species in cigarettes that can cause DNA damage [15]. However, approximately 30% of China’s coal resources have a medium to high sulfur content [16]. Therefore, reasonable utilization of high-sulfur coal is an urgent issue [17], efforts should be made to reduce the emissions of SO₂, such as pre-combustion measures (i.e., coal beneficiation), process treatment during combustion (mainly efficiency improvements), and end-of-pipe treatment after combustion (the installation of scrubbers) [18,19].

Corona electrostatic separation is a coal separation technology that does not require the use of water, widely used to separate small-particle materials, such as separation of metallic and non-metallic minerals [20,21], recovery of metallic materials from waste electrical and electronic equipment [22,23], seed hulling [24], and coal purification [25]. Electrostatic separation is a low-cost, low-pollution technology for removing impurities.

In this study, the performance of corona electrostatic separation of medium-ash high-sulfur coal and the factors that influence the performance were experimentally investigated through conducting a series of experiments on samples of medium-ash high-sulfur coal.

In this study, the optimal conditions of electrode voltage, drum rotational speed, and conveyor speed in the experiment were discussed separately, and the reasons for the formation of the optimal conditions were analyzed separately to gain a deeper understanding of the principle of understanding electrostatic coal separation. Finally, the secondary coal separation by the optimal conditions resulted in a purer coal, but the improvement of efficiency was limited because the organic sulfur in the coal could not be removed by this method. In the future, a further step of purification can be carried out by chemical methods.

2. Test Samples and Methods

2.1. Testing Devices

When using a corona electrostatic separator to separate coal, a considerable proportion of the separated coal is particles with an ash content of 20–60%, which are referred to as middlings. The middlings were fed into the second stage separator to improve the combustible body recovery rate and efficiency of coal beneficiation [26].

Figure 1 is a schematic illustration of the separation system, which mainly consists of a feeding funnel, conveyor, steel drum, corona electrode, and 12 equally sized collecting trays. The following process parameters were controllable: the opening size of the feeding funnel, the conveyor speed, the drum rotational speed, and the electrode voltage. The separator removes ash and sulfur from coal in the following manner. The coal fed into the feeding funnel is transferred by the conveyor onto the surface of the drum.

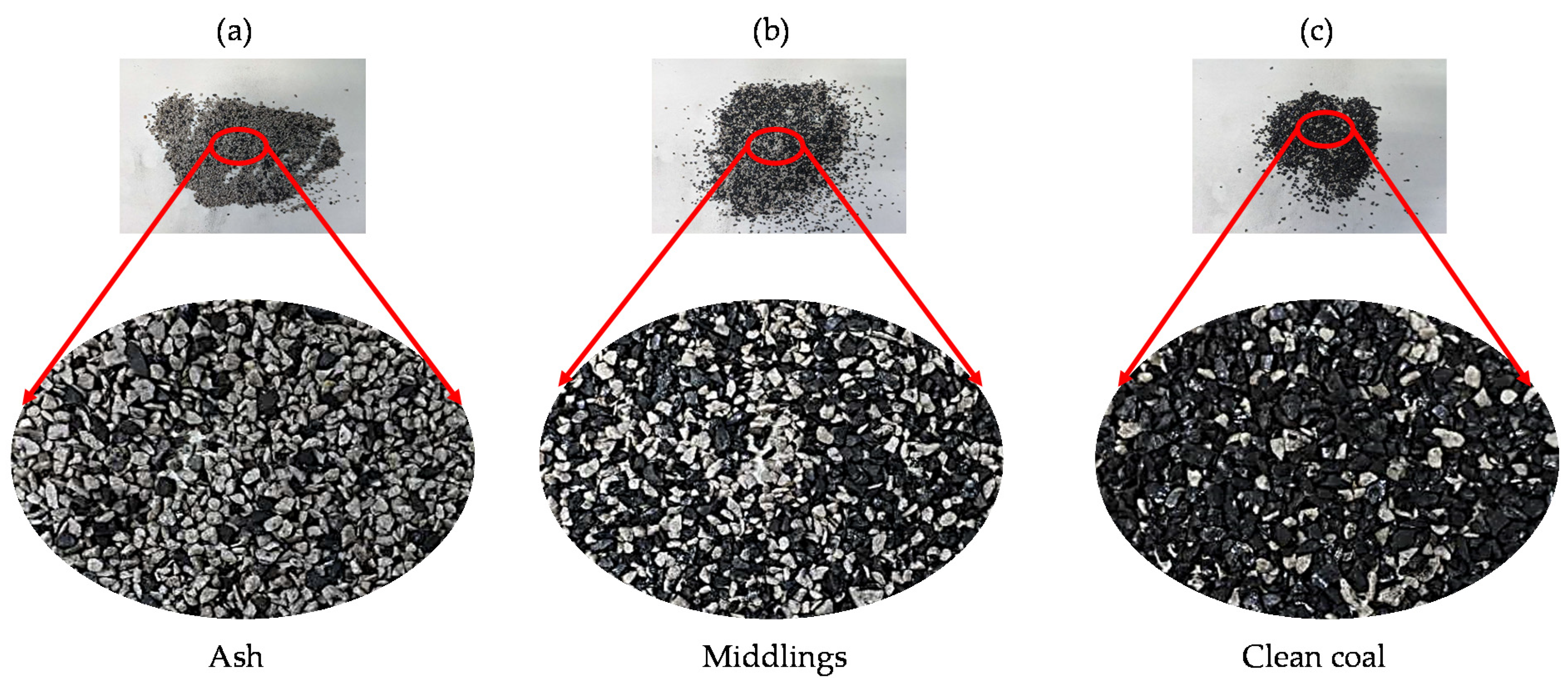

The electrode generates a corona discharge and electric field. Owing to the effect of the electric field force, particles of different properties will be differently charged and be subjected to different electrical field forces. In addition, different particles have different specific gravity and centrifugal force, so, the test material model experiment shows that ash and sulfur particles will fall into collecting trays on the left, while clean coal particles fall into collecting trays on the right. Different particles of ash (a), middlings (d), and clean coal (c) from the different trays are illustrated in Figure 2.

The separator has a maximum electrode voltage of negative (U₁ and U₂) = 30 kV. The angle (θ₁ and θ₂) between the line from the electrode to the center of the drum circle and the vertical line of the drum can be adjusted within the range of 30–75°. The distance (S₁ and S₂) between the electrode and drum surface can be adjusted within the range of 5–11 cm. The raw coal of approximately 100 g was fed into the separator each time. After each test, the particles collected in each of the 12 trays were weighed, and the weights were used to determine the recovery ratio of the sample. The particles collected in each tray were analyzed to determine their ash and sulfur content. The particles collected in the right trays with ash content below 20% were considered as clean coal, the particles collected in the middle trays with ash contents of 20–60% were considered as middlings and the particles collected in the left trays with ash contents above 60% were considered as tailing. The separation efficiency was computed using the following equations:

$$\left[SR\right]=\frac{\left(W{t}_{feed}\times Sulfu{r}_{feed ratio} \right)-\left(W{t}_{clean}\times Sulfu{r}_{clean ratio} \right)}{W{t}_{feed}\times Sulfu{r}_{feed ratio}}\times 100$$

(1)

$$\left[AR\right]=\frac{\left(W{t}_{feed}\times As{h}_{feed ratio}\right)-\left(W{t}_{clean}\times As{h}_{clean ratio}\right)}{W{t}_{feed}\times As{h}_{feed ratio}}\times 100$$

(2)

$$\left[CMR\right]=\frac{W{t}_{clean}-\left(W{t}_{clean}\times As{h}_{clean ratio} \right)}{W{t}_{feed}-(W{t}_{feed}\times As{h}_{feed ratio})}\times 100$$

(3)

$$\left[SE\right]=\frac{\left[AR\right]+\left[CMR\right]-100}{\left|AR-CMR\right|}$$

(4)

SR = sulfur removal

AR = ash removal

CMR = combustible matter recover

SE = separation efficiency

Wt_feed = mass of raw coal supply

Wt_clean = mass of recovery of clean coal

Sulfur_{feed ratio} = mass of sulfur rate of raw coal

Sulfur_{clean ratio} = mass of sulfur rate of clean coal

Ash_{feed ratio} = mass of ash rate of raw coal

Ash_{clean ratio} = mass of ash rate of clean coal

2.2. High-Sulfur Raw Coal

A medium-ash and high-sulfur raw coal from China was selected for the experimental investigation. The raw coal was screened to a size range of 0.5–1 mm. Proximate analysis and ultimate analysis were performed on the raw coal particles with an analyzer of JIS M 8812: 2006 and JIS M 8819: 1997, respectively, and the sulfur content of the raw coal was determined using an HYDL-9 sulfur content analyzer (21).

Table 1. Proximate analysis and ultimate analyses of Chinese high-sulfur raw coal.

Size (mm)	Proximate Analysis (wt.%)				Ultimate Analysis (wt.%)
	Ash	M	V.M	F.C	S	C	H	N	O
0.5–1	28.92	2.35	21.71	47.02	4.71	49.82	0.31	7.07	9.17

shows the results of the proximate analysis and ultimate analysis. The ash content and sulfur content of the raw coal are 28.92% and 4.71%, respectively. According to the Chinese classifications of ash and sulfur contents in coal (shown in

Table 2. Classification categories of ash and sulfur of coal in China [27].

Coal Grade of Ash	Ash Content (Ad) Range/%	Coal Grade of Sulfur	Sulfur Content (Sd) Range/%
Ultra-low-ash coal	Ad ≤ 10.00	Ultra-low-sulfur coal	Sd ≤ 0.50
Low-ash coal	10.00 < Ad ≤ 20.00	Low-sulfur coal	0.50 < Sd ≤ 1.00
Medium ash coal	20.00 < Ad ≤ 30.00	Medium-low-sulfur coal	1.00 < Sd ≤ 1.50
High-ash coal	30.00 < Ad ≤ 40.00	Medium sulfur coal	1.50 < Sd ≤ 2.00
Ultra-high-ash coal	40.00 < Ad ≤ 50.00	High-sulfur coal	2.00 < Sd ≤ 3.00
		Ultra-high-sulfur coal	Sd > 3.00

, respectively), the raw coal belonged to medium-ash, high-sulfur grade. This grade coal is difficult to use for burning because the combustion process will produce large amounts of SO_X pollution. Therefore, it is necessary to reduce the ash and sulfur in the coal.

2.3. Experimental Methods

A three-step experimental procedure was conducted. In the first step, the coal was beneficiated using different process parameters. The major process parameters included the voltage of the electrode, the distance from the electrode to the drum, the angle between the electrode and the drum, the geometry of the electrode, the rotational speed of the drum, the speed of the conveyor, the temperature, the humidity, and the properties of the raw coal. The influences of three of the process parameters (the electrode voltage, drum rotational speed, and feeding speed) on the performance of the electrostatic separation of raw coal were investigated. To simplify the experiment, only one corona electrode was used. The factors that most influenced the electrical field were the electrode voltage, the electrode–drum distance, and electrode–drum angle. The electrical field was controlled by adjusting the voltage in the test process.

Other parameters were fixed as follows: weight of raw coal at each time: 100 g; distance between the electrode and the drum (S₁ and S₂): 7 cm; angle between the line from the electrode to the center of the drum circle and the vertical line of the drum (θ₁ and θ₂): 75°; room temperature (T): 25 °C; relative humidity (RH): 60%; particle size range: 0.5–1 mm. The corona electrostatic separator had a maximum electrode voltage of 30 kV, a maximum drum rotational speed (R₁ and R₂) of 40 rpm, and a conveyor speed (V₁ and V₂) of 23 g/m (for conveying a thin layer of sample coal). At the beginning of the experiment, the drum rotational speed was set to the maximum value of 40 rpm, the conveyor speed was set to 23 g/m, and the electrode voltage was set to the maximum value of 30 kV.

During each experiment, only one of the three variable parameters changed. First, the voltage was adjusted downwardly 2.5 kV each time. The best three voltage settings were determined based on the efficiency of separation. Then, the drum rotational speed was adjusted downwardly to 10 rpm each time to investigate the performance of the separator at the optimal electrode voltage and drum rotational speeds of 40, 30, and 20 rpm. Finally, the performance of the separator at the optimal electrode voltage and drum rotational speed was observed at three different conveyor speeds: 23, 48, and 73 g/m. (Note that because accurate control of the conveyor speed was difficult, the second and third conveyor speed settings were approximately two and three times of the first setting, respectively.) Based on the data obtained, the influences of variations in the three parameters on the performance of the separator were analyzed.

In the second step, the optimal parametric settings were determined based on the performance of the separator at the different parametric settings. The middlings were fed into the separator for the second stage of separation with the optimal parametric settings. The total yield of clean coal by two stages separation was used to compute the efficiency of the two-stage separation.

In the third step, a thermogravimetric/differential thermal analysis (TG-DTA) [28] was performed on the raw coal and the clean coal of the two-stage separation using a PG 250 analyzer [29] to compare the environmental impacts of the clean coal and raw coal.

3. Results and Discussion

Typically, most of the inorganic sulfur can be removed during the ash removal process, as this inorganic sulfur is mainly bound to gangue particles. However, it is well known that organic sulfur in coal is usually bound to the macromolecular skeletal structure of the organic components and is therefore difficult to remove by density separation and flotation. Therefore, desulfurization is ineffective for coals with high organic sulfur.

3.1. Factors Influencing Separation Efficiency

3.1.1. The Influence of Electrode Voltage

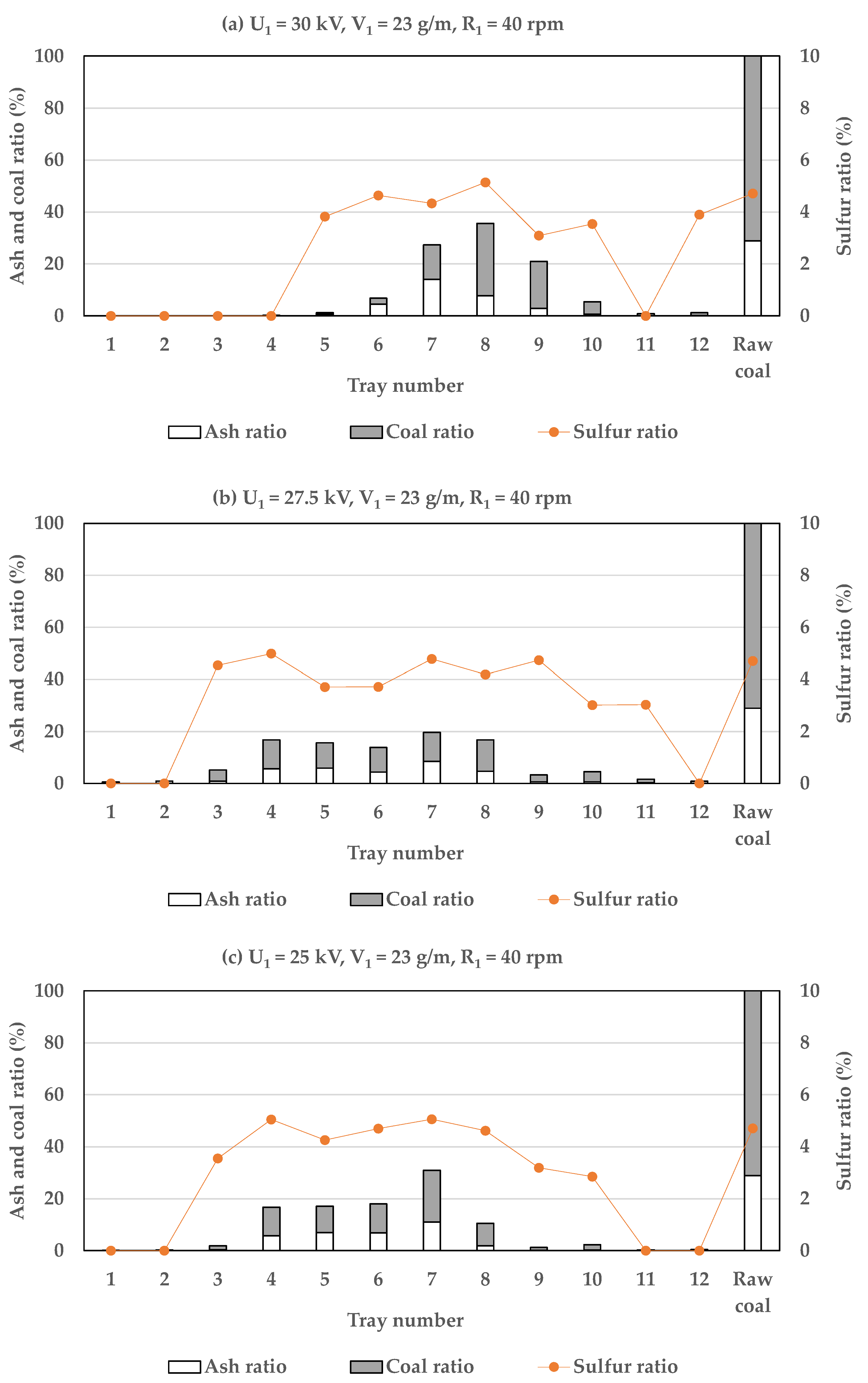

The parameters were set as follows: distance (S₁): 7 cm; angle (θ₁): 75°; temperature (T): 25 °C; relative humidity (RH): 60%; rotation speed of drum (R₁): 40 rpm; conveyor speed (V₁): 23 g/min; the particle size range of raw coal: 0.5–1 mm. Figure 3 and Figure 4 show the effect of separation at different electrode voltages. Figure 3a–c shows the ash ratio (%) (percentage of ash to raw coal), coal ratio (%) (percentage of coal to raw coal), and sulfur ratio (%) (percentage of sulfur to each tray) of the particles collected in the 12 trays at electrode voltages (U₁) of 30, 27.5, and 25 kV, respectively. Coal particle weights less than 1% of that of the feedstock were not included in the analysis (their weight percentages and corresponding ash contents and sulfur contents are indicated as zero in the figures). At a voltage of 30 kV, the major particles were collected in tray numbers 7–9; at voltages of 27.5 and 25 kV, more particles were collected in tray numbers 4–8.

A high voltage will conduct a high electric field strength, then increase the charge on the particles, and the magnitude of the force acting on the particles. Consequently, more particles adhered onto the drum surface and fell into the right trays. At a voltage of 30 kV, the particles collected from tray number 6 had the highest ash content (66.17%), followed by those in tray numbers 5–7 (ash content above 50%).

The ash content gradually decreased from tray number 8 rightward. The particles collected from tray number 8 had an ash content of 21.82% and nearly satisfied the definition of low-ash coal. The particles collected from tray numbers 9–12 had ash contents below 20% and satisfied the definition of low-ash coal (defined as clean coal in this study). In particular, the sulfur content was reduced from 4.71% to 3.09% in tray 9, and the ash content was reduced from 28.92% to 12.40% in tray 10, which has shown good experimental results.

At a voltage of 27.5 kV, the particles collected from tray numbers 9–12 also had ash contents below 20%, but their weight accounted for only 9.50% of that of the feedstock, compared with 27.75% at a voltage of 30 kV. At a voltage of 25 kV, the particles collected from tray numbers 8–12 satisfied the definition of clean coal but weighed only 14.17% of that of the feedstock. The sulfur contents of the clean coal at voltages of 30, 27.5, and 25 kV were 3.22%, 3.62%, and 4.2%, respectively. Among the three voltage settings, the 30 kV voltage resulted in the highest ash removal and combustible matter recovery ratios (Figure 4a) and the highest separation efficiency (Figure 4b). This finding is consistent with the analysis results summarized above. Therefore, at the parametric settings described at the beginning of this subsection, an electrode voltage of 30 kV resulted in the best performance of the separation of the raw coal. The performance of electrostatic separation could not be estimated when the electrode voltages were over 30 kV because of the limitations of the separator.

A low voltage will lead to low recovery ratio of combustible matter, thus leading to low separation efficiency.

3.1.2. The Influence of Drum Rotational Speed

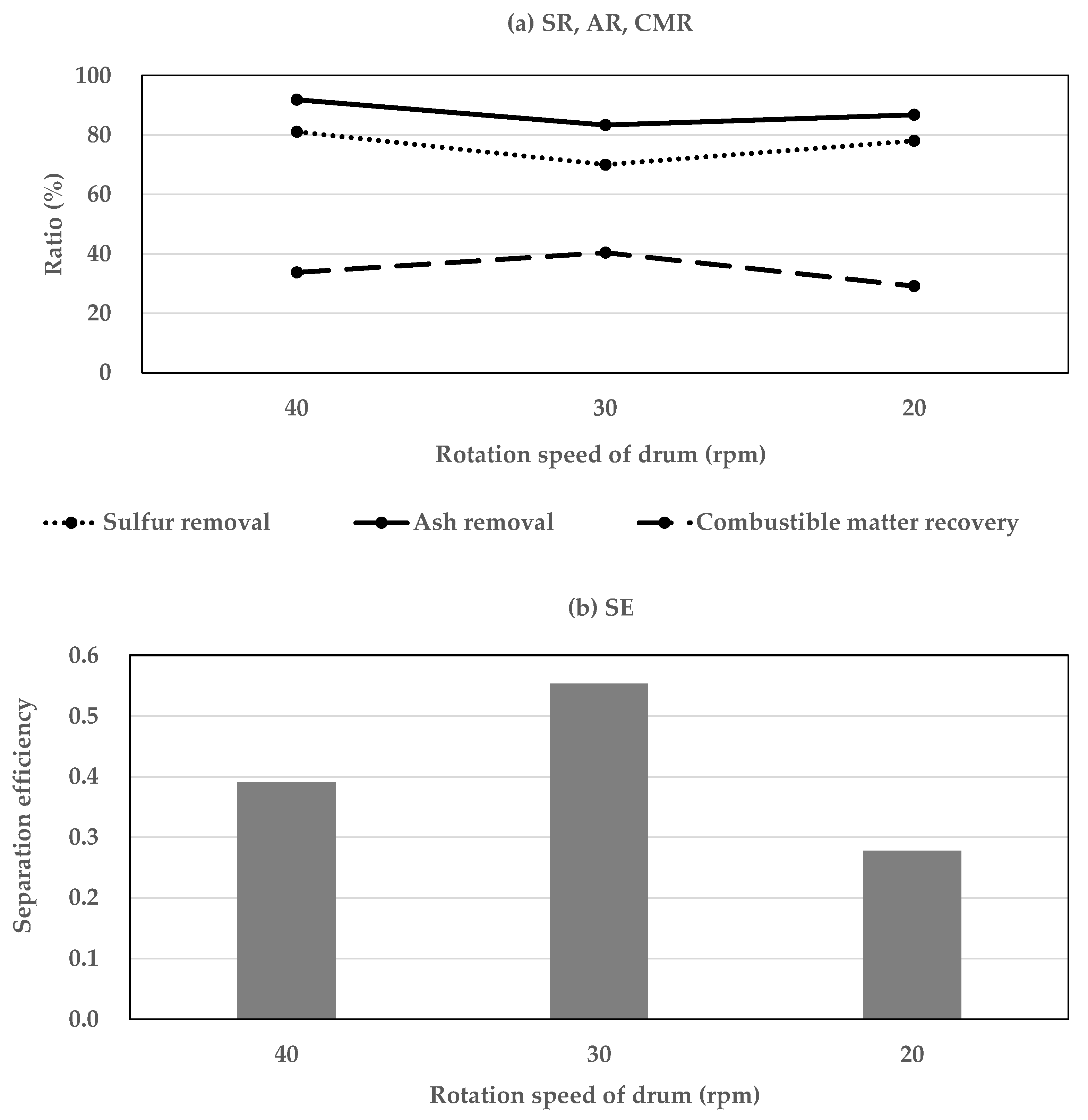

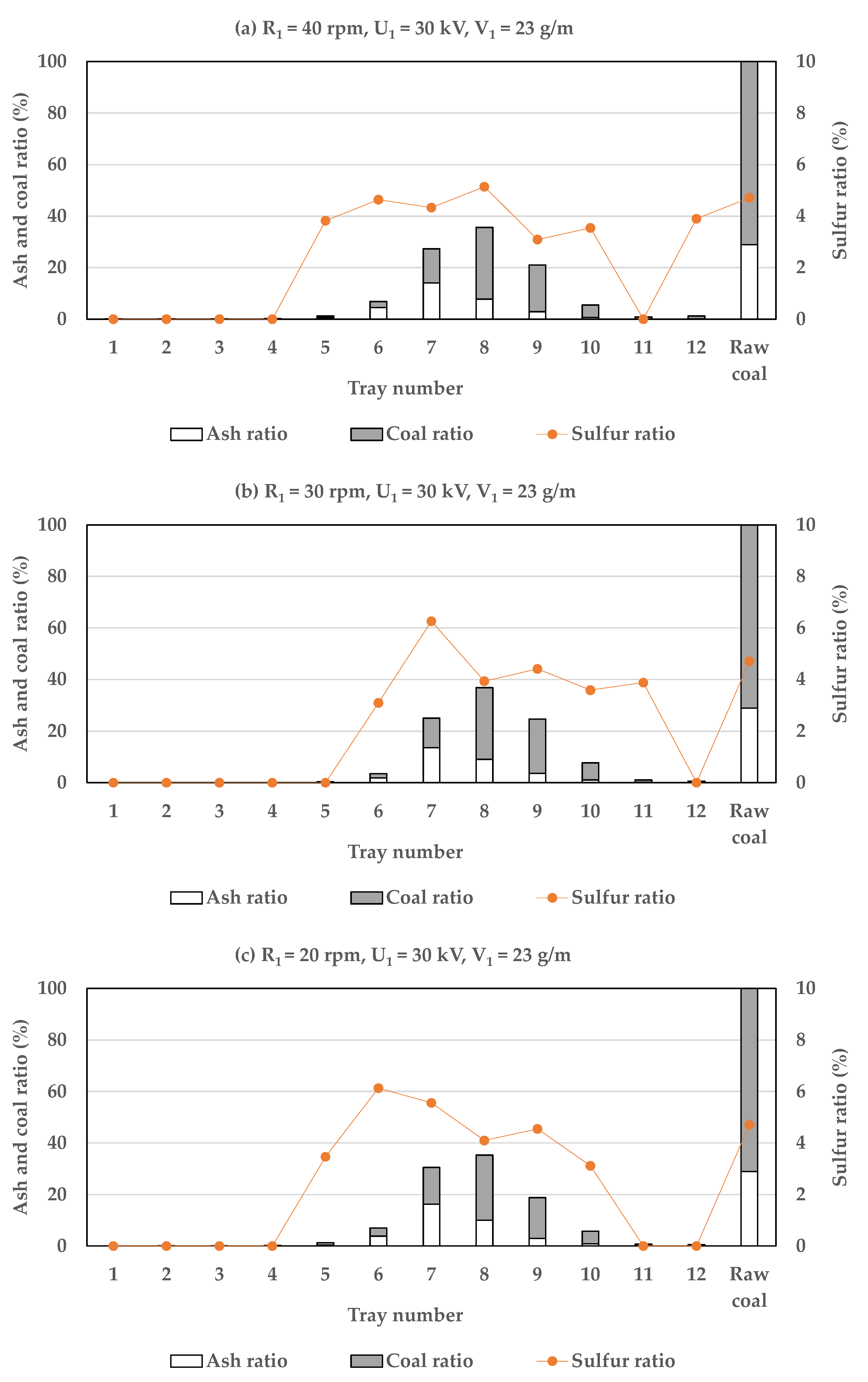

Based on the tests of the influence of the electrode voltage, the test of the influences of the drum rotational speed was conducted with electrode voltage (U₁) of 30 kV, distance (S₁) of 7 cm, electrode angle (θ₁) of 75°, temperature of 25 °C, relative humidity of 60%, conveyor speed (V₁) of 23 g/min, and particle size range of raw coal of 0.5–1 mm. Figure 5 and Figure 6 show the experimental results. Figure 5a–c shows the ash ratio (%) (percentage of ash to raw coal), coal ratio (%) (percentage of coal to raw coal), and sulfur ratio (%) (percentage of sulfur to each tray) of the particles collected from 12 trays at drum rotational speeds (R₁) of 40, 30, and 20 rpm, respectively. The majority of the particles were collected in tray numbers 7–9 with all three drum rotational speeds. However, the ash content of the particles collected in a given tray varied with the drum rotational speed changing, and more high-purity ash particles were obtained with the drum rotational speed of 40 rpm.

However, the particles collected from tray number 8 had the largest weight (%) but had an ash content slightly exceeding 20% (21.82%) and could not be considered as clean coal, resulting in a low recovery ratio of combustible matter. The drum rotational speed of 40 rpm led to a higher ash removal ratio but a lower combustible matter recovery ratio compared with a drum rotational speed of 30 rpm (Figure 6a) and a very low proportion of middlings (which have an ash content similar to that of the raw coal). However, in this study, clean coal was defined as with ash content below 20%, and the amount of clean coal yield was used to measure the efficiency of separation, so the best setting for the drum rotational speed was judged to be 30 rpm. However, the sulfur contents of clean coal particles tested with drum rotational speeds of 40, 30, and 20 rpm were 3.22%, 4.20%, and 4.21%, respectively, which indicates that the drum rotational speed of 40 rpm will produce higher-purity clean coal and effectively reduce the sulfur content, because a higher drum rotational speed results in a larger centrifugal force, meanwhile compared with coal, mineral particles tend to lose electrical charges more easily, then the mineral particles fall from drum surface more quickly under the influence of a larger centrifugal force and a lower electric force, as a result, the particles collected from the left trays had higher ash content and high sulfur content. In addition, a lower drum rotational speed results in a smaller centrifugal force and a lower electric force because of longer time for the particles to lose their electrical charges, so some clean coal particles fall into the middle trays.

3.1.3. The Influence of Conveyor Speed

Based on the tests of the influences of the electrode voltage and drum rotational speed, the influence of the conveyor speed was conducted with the optimal voltage of 30 kV, the optimal drum rotational speed (R₁) of 30 rpm, distance (S₁) of 7 cm, electrode angle (θ₁) of 75°, temperature of 25 °C, relative humidity of 60%, and feedstock size range of 0.5–1 mm. The conveyor speed is an important parameter that determines the capacity of the separator. Figure 7 and Figure 8 show the experiment results.

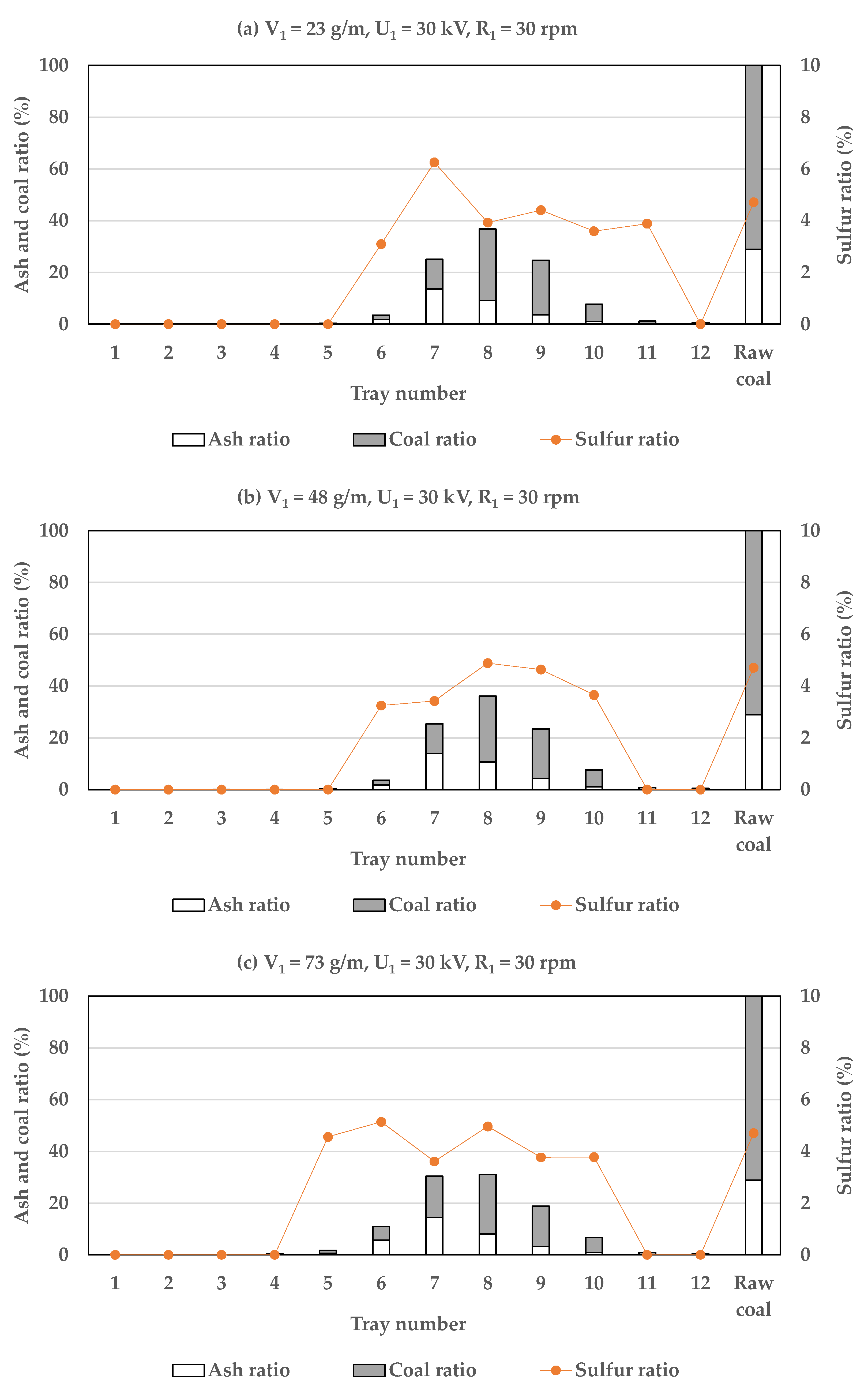

Figure 7a–c shows the ash ratio (%) (percentage of ash to raw coal), coal ratio (%) (percentage of coal to raw coal), and sulfur ratio (%) (percentage of sulfur to each tray) of the collected particles from each tray at conveyor speeds (V₁) of 23, 48, and 73 g/min. The ash removal ratio, combustible matter recovery ratio, and separation efficiency at a conveyor speed of 23 g/min were slightly higher than those of conveyor speed of 48 g/min (Figure 8a,b), and the ash removal ratio, the combustible matter recovery ratio, and the separation efficiency at a conveyor speed of 73 g/min were markedly lower than those of conveyor speeds of 23 and 48 g/min.

It is reasonable to conclude that a larger feeding speed leads to poorer performance such as a lower clean coal recovery ratio and a higher ash content of the clean coal from Figure 7 and Figure 8. An excessively high conveyor speed results in some feedstock particles not being fully electrically charged in the electrical field because of the thick layer and some particles not coming into full contact with the drum surface, as a result, these particles are subjected a small electric force compared to a large centrifugal force and gravity force and then fall into the left trays, resulting in a lower clean coal recovery ratio.

3.2. Efficiency of Two-Stage Coal Separation

In order to improve the separation efficiency, we conducted a two-stage separation process experiment based on the experimental results described above. In the process, the middling particles of the first stage were given to the second stage to separate, the second stage experiment conditions are as follows: drum rotational speed (R₂) of 30 rpm, distance (S₂) of 7 cm, electrode angle (θ₂) of 75°, temperature of 25 °C, relative humidity of 60%, and feedstock size range of 0.5–1 mm. The total yield of clean coal of the two stages was considered as the final efficiency of the two-stage process. Figure 9 and Figure 10 show the results. Figure 9a,b shows the results of the first and second stages of separation, respectively.

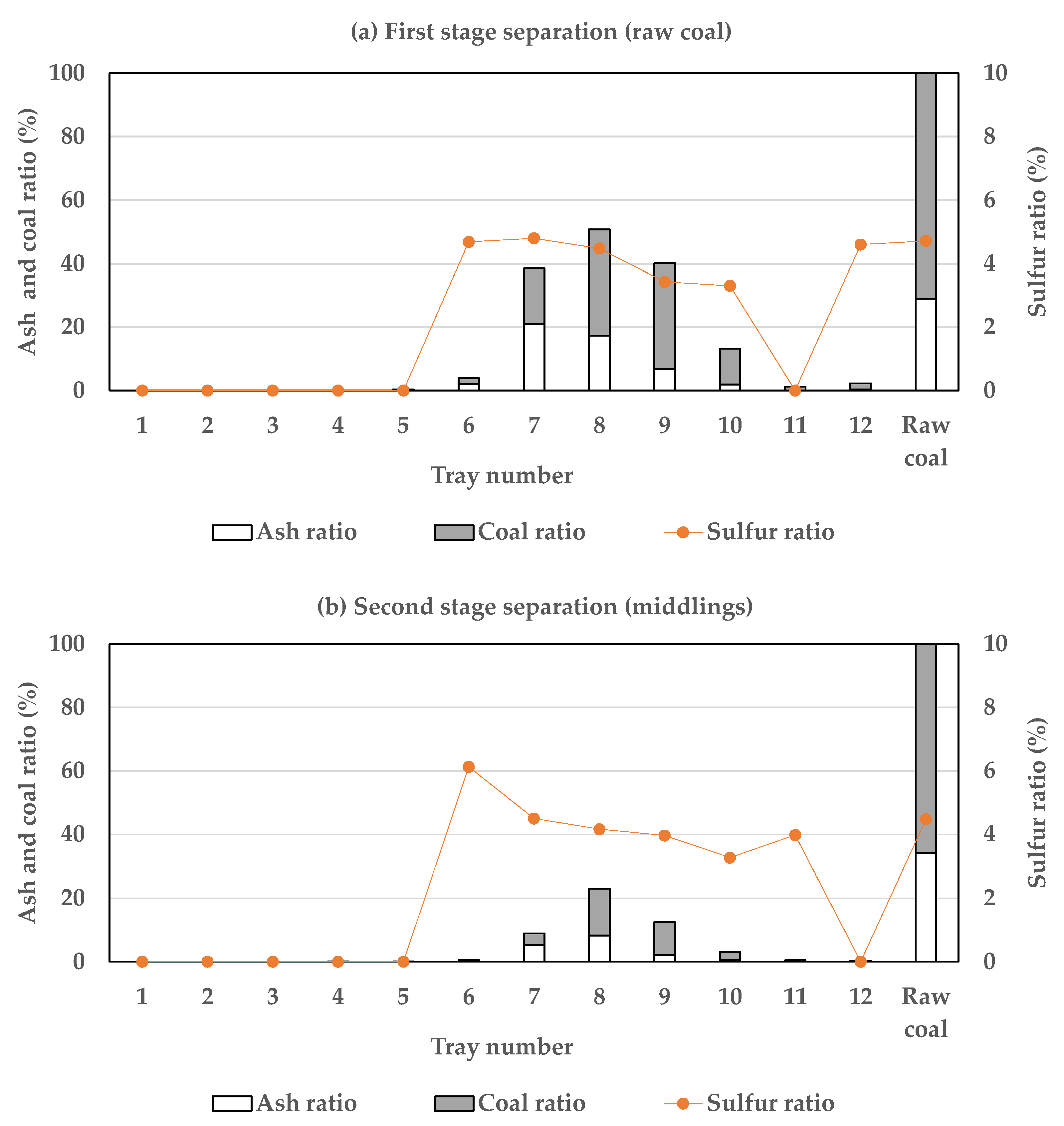

The clean coal recovery ratio (particles collected from tray numbers 9–12) of the first stage was 37.80% (Figure 9a). The middlings (particles collected from tray number 8) accounted for 33.78% by weight of the feedstock and had an ash content of 34.04%. The middlings were fed to the second separator for the second stage of cleaning. The results are shown in Figure 9b. The second stage process will produce 46.84% middlings, higher than that of the first stage, but will produce a higher clean coal recovery ratio of 33.00% (Figure 9b).

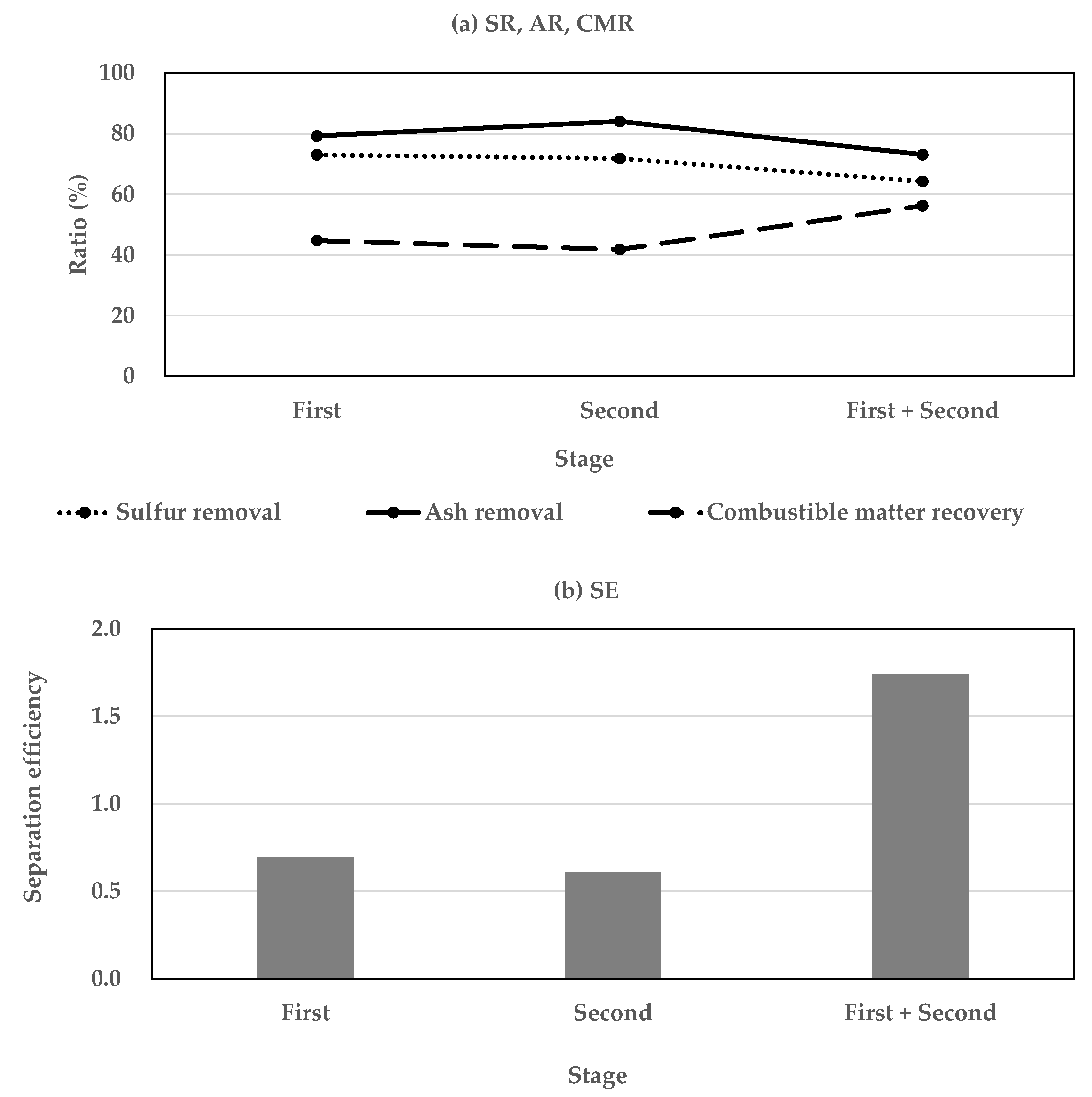

The first-stage separation of dry coal cleaning system achieved a lower ash removal ratio but a higher combustible matter recovery ratio than that of the second-stage separation (Figure 10a). The separation efficiencies of the first and second stages were 0.69 and 0.61, respectively (Figure 10b), therefore, the second stage separation was also very effective. The overall performance of two stage separation process was calculated by combining the data in Figure 10a,b. The combustible matter recovery ratio and overall separation efficiency of two stage process were markedly improved compared with that of the single-stage process.

3.3. Comparative Analysis of the Composition and Properties of the High-Sulfur Raw Coal and Clean Coal

3.3.1. Combustion Behavior

The optimum conditions for voltage (U₁), distance (S₁), and angle (θ₁) were discussed above (Section 3.1); these are 30 kV, 7 cm, and 75°, respectively. After separation, the quality of clean coal accounted for 48.41% of the raw coal mass, the proximate analysis results of clean coal show that the ash content decreases from 38.60 to 18.71%, the volatile matter content increases from 33.20% to 44.60%, and the water content increases from 2.90 to 10.11%. It is seen that the ash content in clean coal decreases significantly, which indicates that the raw coal is converted from high-ash coal to low-ash coal.

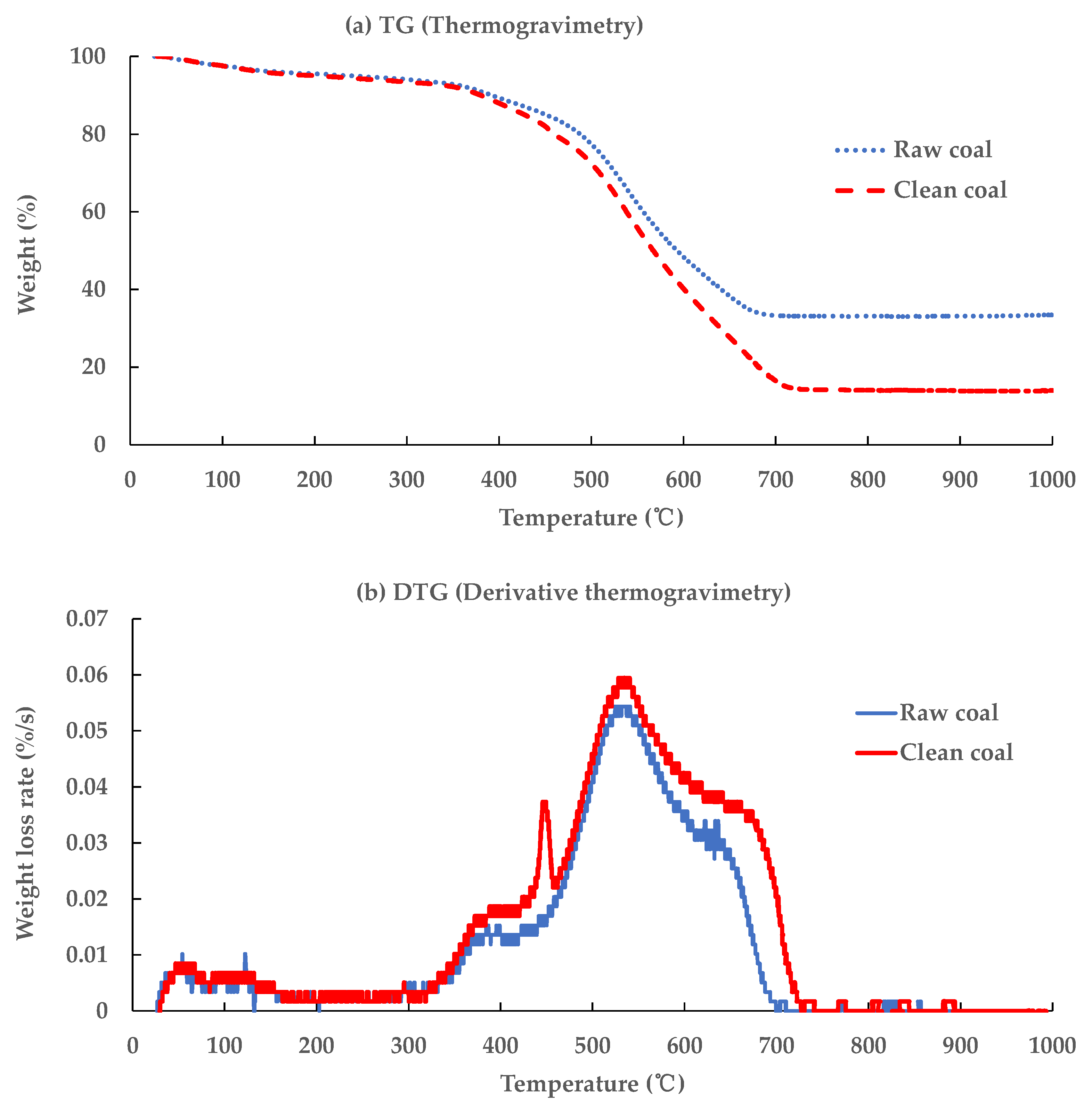

Figure 11a,b shows the mass loss rates at different temperatures. At temperatures in the range of 25–200 °C, the mass losses involved only moisture evaporation. The clean coal had a larger maximum mass loss rate and a higher burn-out temperature, which indicates that the clean coal was more combustible than raw coal and has a great calorific value. The mass loss–temperature curve exhibits a small peak at 450 °C and it is reasonable to conclude that this small peak is due to the rapid combustion of the sulfur from the data shown in Figure 12a.

3.3.2. Experimental Investigation of Air Pollutant Emissions

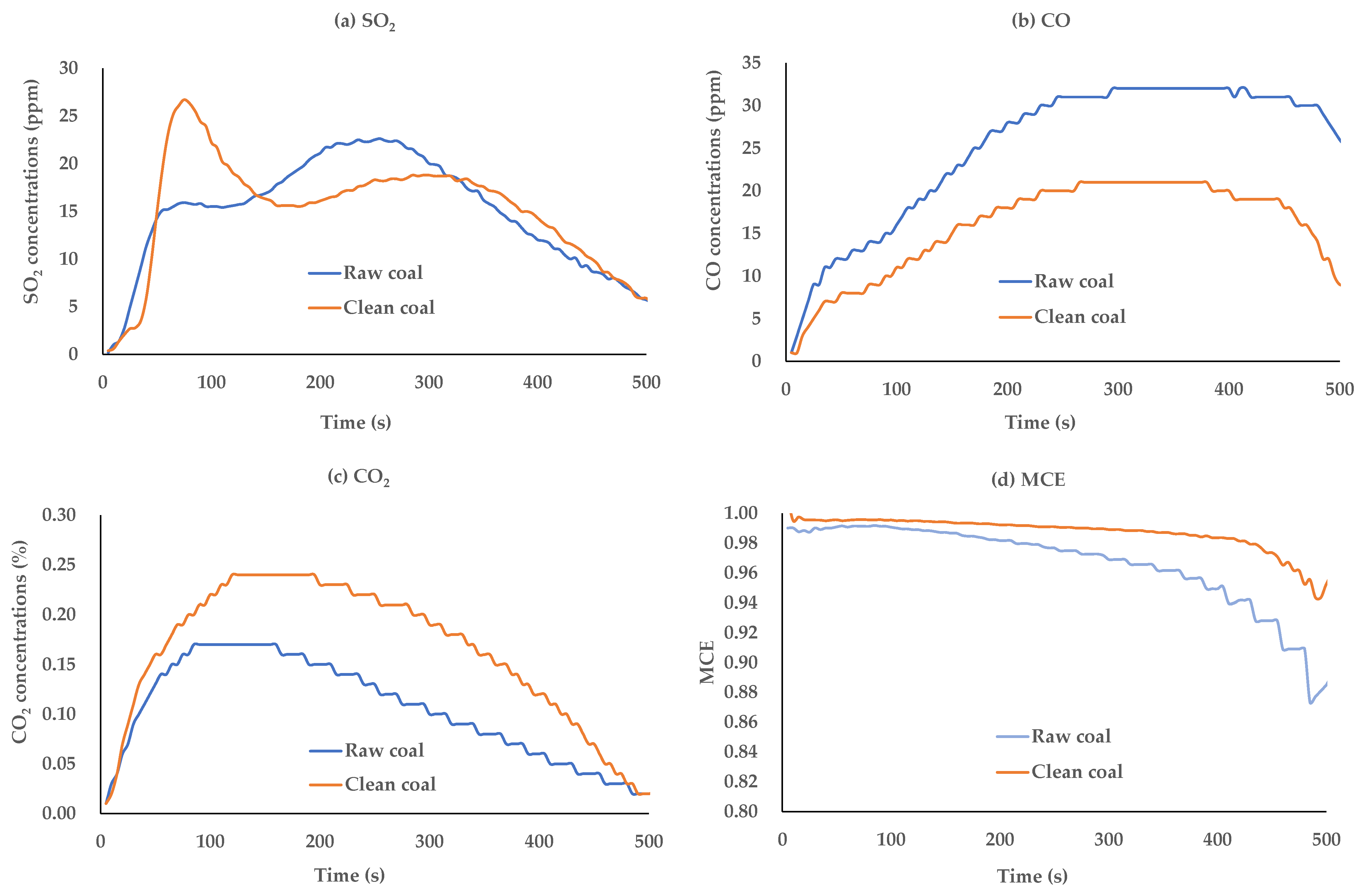

The air pollutant emissions from the combustion of the raw coal and clean coal were experimentally investigated by burning 200 mg samples of raw coal and clean coal at the temperature of 850 °C and airflow rate of 5 L/min. Figure 12 shows the amounts of air pollutant emissions. Figure 12a shows the variation of SO₂ concentration with time during the process of combustion. It can be seen that the clean coal released more sulfur from the 50th to 150th second than the raw coal based on surveying data using TG-DTA analyzer, it is because the organic sulfur in clean coal is higher than that in raw coal, and the organic sulfur will easily burn at a lower temperature, and clean coal will release less CO in the combustion process because of complete combustion, and clean coal released more CO₂ in the combustion process (Figure 12c) because clean coal had a larger combustible ratio than that of raw coal, which is consistent with the results presented in Figure 12b. Clean coal had a higher modified combustion efficiency (MCE: CO₂/CO_X) (Figure 12d) because of more complete combustion.

4. Conclusions

The experimental results show that the factors of electrode voltage, drum rotational speed, and feedstock feeding speed of the corona separator had marked influences on the performance of the separation process, and this dry coal cleaning system with two-stage corona electrostatic processes can effectively reduce the ash content of the coal and performs much better than single-stage separation processes. Under the experimentally determined optimal parametric settings, the process can reduce ash content from 28.92% (raw coal) to 16.32% (clean coal) and sulfur content reduced from 4.71% to 3.53%. The sulfur content of the raw coal could not be further reduced because of organic sulfur associated with clean coal and concentrated in clean coal, and no physical methods can effectively remove this proportion of the organic sulfur.

The combustion behavior of raw coal and the clean coal and the air pollutant emissions released from the combustion of the raw and clean coals were comparatively analyzed. The results show that clean coal was a better fuel for combustion, the clean coal burned more completely and resulted in fewer CO emissions. This experimental study provides a simple and feasible approach to dry coal cleaning that is particularly well suited to preliminary coal cleaning in the power stations.

Finally, this study has its limitations. Firstly, corona electrostatic separation is a physical separate method, and the sub-method can only reject inorganic sulfur in raw coal, but not organic sulfur effectively, therefore, it is not effective for raw coals with high organic sulfur content. Secondly, because the charged properties of coal and ash vary significantly for different raw coals, the optimal separate conditions of each raw coal need to be confirmed, so it is not possible to screen multiple raw coals simultaneously. In the future, it will be a very interesting topic to confirm the electrical properties and density of different substances in the raw coal, and hopefully find the better method of electric coal cleaning system.
