A Novel Manganese-Rich Pokeweed Biochar for Highly Efficient Adsorption of Heavy Metals from Wastewater: Performance, Mechanisms, and Potential Risk Analysis

Abstract

A novel manganese-rich pokeweed biochar was prepared at different temperatures from manganese-rich pokeweed plants collected at manganese tailings, resulting in materials identified as BC300, BC400, and BC500. The synthetized biochar materials were investigated as regards their potential for removing Cu²⁺, Pb²⁺, and Cd²⁺, specifically in terms of adsorption performances, adsorption kinetics, adsorption isotherms, and potential environmental pollution risk. The results showed that the sorption process fitted well to the pseudo-second-order kinetic and Langmuir models, and the maximum adsorption capacities of BC500 were 246, 326, and 310 mg·g⁻¹ for Cu²⁺, Pb²⁺, and Cd²⁺ respectively. The physicochemical characteristics of the biochars, and the adsorption mechanisms, were revealed by using scanning electron microscopy-energy spectrometer, elemental analysis, Brunauer–Emmett–Teller techniques, X-ray diffraction, X-ray photoelectron spectroscopy, and Fourier transform infrared spectroscopy. The sorption mechanism of these three heavy metal ions onto biochars included ion exchange, electrostatic adsorption, chemical adsorption, and precipitation. Besides, the potential pollution risk of manganese-rich pokeweed biochars was significantly reduced after pyrolysis. Therefore, it is feasible to transform manganese-rich pokeweed biomass into manganese-rich pokeweed biochar with potential for heavy metals removal, showing high adsorption capacity, recyclability, and low environmental pollution.

1. Introduction

Environmental pollution caused by heavy metals or their compounds is mainly driven by mining and dressing, electroplating, smelting, and a variety of uses of heavy metal products [1,2]. Some industrial enterprises discharge, indirectly or directly, untreated heavy metal-contained wastewater into the environment, leading to severe water pollution [3,4,5]. Manganese is associated with an abundant supply of mineral ores in Hunan Province (China), causing the generation of many Mn tailings wasteland in the long-term mining and smelting process. Due to poor management, some heavy metals (e.g., Zn, Cu, Cd, and Pb) present in the left lands around the manganese ore area enter the surrounding water (surface water and groundwater), or reach soil, resulting from washing and dissolution by rainwater. These facts suppose high risks of damaging the safety of agriculture and animal husbandry production, as well as for human and environmental health [6,7].

Cu, Pb, and Cd are the most common heavy metals presenting toxicity. Once they enter the human body via drinking, eating, breathing or via direct contact, they will deposit and accumulate, with high risks of causing significant damage to the normal function of the body [8,9]. And once threshold levels are exceeded, it is easy to cause gene mutations and affect cell inheritance. In some cases, it could produce teratosis or induce cancer [10,11].

At the same time, these heavy metals can penetrate the soil environment under the action of water flow. The roots of plants absorb nutrients from the soil, as well as the heavy metals contained in the ground. The increased levels of heavy metals will affect the growth and development of plants [12].

Overall, it is clear that there is a need for performing an appropriate treatment of wastewater containing heavy metals before being discharged into the environment.

The methods for treating heavy metal in wastewater include flocculation/precipitation, oxidation/reduction, ion exchange, membrane separation, and adsorption. However, some of these methods are not always suitable for removing heavy metals from wastewater due to expensive equipment, high operating costs, and high maintenance costs [13,14,15].

The adsorption method has attracted the attention of researchers all over the world because of its simple operation, relatively low cost, and high efficiency and selectivity [16,17]. When adsorption is used to remove heavy metals from wastewater, its efficiency mainly depends on the choice of the adsorbents, such as biosorbents, polymer fiber, oxide minerals, activated carbon [18,19], and biochar [20,21], which need to have a capacity to effectively adsorb the heavy metals present in wastewater.

Biochar is a relatively novel, low-cost, and carbon-rich porous material, prepared by pyrolysis of biomass in oxygen-deficient environments [22,23]. It is featured with a large specific surface area, strong adsorption capacity, and does caus secondary pollution [24,25]. Biochar has high capacity for the adsorption of heavy metal ions in the environment. The metallic mineral components in biomass (such as calcium, potassium, and other) facilitate the production of biochar and the formation of void structure, thereby enhancing its physical adsorption potential [26]. Especially in recent years, biomass containing heavy metals has been converted into biochar by pyrolysis under anaerobic conditions in an increasing number of research experiments. It is to be noted that the biomass containing heavy metals can be reduced to the maximum extent, effectively reducing the leaching and bioavailability of these heavy metals [27]. Also relevant, the production of toxic and harmful substances (polycyclic aromatic hydrocarbons, dioxins, etc.), as well as greenhouse gases generated in the traditional incineration process, can be effectively avoided. In fact, this is a common method used for the disposal of plant wastes containing heavy metals [28,29].

To achieve a higher adsorption capacity of biochar, different modification methods have been considered. For example, Ying et al. [30] used magnesium (Mg) nutrient solution to cultivate tomato plants for preparing a new type of magnesium-rich biochar. The experimental results showed that the obtained biochar had a Mg(OH)₂ and MgO particles-rich surface, which significantly improved its capacity for adsorption of phosphorus (P) in wastewater. According to Zhou et al. [31], a ferromanganese binary oxide-biochar was prepared by means of an impregnation/sintering method for adsorption of Cu²⁺ and Cd²⁺. A manganese salt solution (MnCl₂, KMnO₄, etc.) with potential for modifying biomass could be used to load MnO particles on the surface of biochar materials through high-temperature pyrolysis. This would help to achieve a significant improvement of biochar composite materials in terms of the number of functional groups, void structure, specific surface area, and adsorption capacity [32,33]. These studies showed that the adsorption capacity of these biochars prepared by modification methods dramatically improved, thereby clearly increasing the efficiency in the removal of heavy metals.

One of the plants with potential for being used in the elaboration of biochar is Phytolacca acinosa, which in fact was used as the raw material to prepare biochar in the current study. It is a perennial stout herbaceous plant with a height of 0.5–1.5 m and a strong adaptability. Numerous studies have shown that this plant has strong enrichment and tolerance to manganese in soil media [34]. Mn accumulation in its leaves can exceed 19 g·kg⁻¹, with an average of 14 g·kg⁻¹. It was the first Mn hyperaccumulator discovered in China [35]. Phytolacca acinosa does not show the biological defects of many hyperaccumulators (small size, low biomass, slow growth rate, long growth cycle). It has many advantages such as good adaptability, strong fecundity, and wide geographical distribution. Besides, it should be noted that the specific plant specimens used in this experiment came from a manganese mining area, which is interesting in order to investigate if the overall procedure could aid to solve the problem of treatment and disposal of Phytolacca acinosa containing heavy metals. In addition, converting these plants into biochar could be useful to achieve the adsorption of heavy metals present in wastewater.

In view of that, in this work, manganese-rich pokeweed biomass was used as the raw material for producing novel biochar materials at different temperatures (300, 400, and 500 °C) under anaerobic pyrolysis conditions. Then, the manganese-rich pokeweed biochars were investigated as regards their potential for removing Cu²⁺, Pb²⁺, and Cd²⁺ from wastewater, this is in terms of adsorption performance, recyclability, and environmental pollution risks. This was carried out performing experiments varying pH, time, temperature, dosage, concentration, and circulation, also focusing on potential risk analysis. Moreover, parameters relevant for kinetics and adsorption isotherms models were also investigated. Finally, the characterization of the biochars before and after adsorption, as well as the adsorption mechanism, were also studied by means of FTIR, SEM-EDS, BET, elemental analysis, and XRD and XPS techniques. The results of the study could be of environmental relevance, especially for recycling of biomass and removal of heavy metals from polluted media.

2. Materials and Methods

2.1. Chemicals and Raw Materials

The raw materials used for manufacturing biochars in this study were pokeweed plants from the manganese mining area of Xiangxi Prefecture, Hunan province, China. The chemicals used in the experiments, including NaOH (analytical reagent), MgCl₂ (analytical reagent), CH₃COONH₄ (analytical reagent), HONH₃CI (analytical reagent), and CH₃COOH (analytical reagent) were obtained from Guangdong Xilong Scientific Co. Ltd. (China). Pb(NO₃)₂ (analytical reagent), Cu(NO₃)₂·3H₂O (analytical reagent) Cd(NO₃)₂·4H₂O (analytical reagent), HNO₃ (analytical reagent), NaOAc (analytical reagent), and 30% H₂O₂ (analytical reagent) were obtained from Chengdu Jinshan Chemical Reagent Co., Ltd. (China). All the solutions including reagents were prepared with ultrapure water.

2.2. Preparation of the Biochar

Peeled manganese-rich pokeweed was used as biomass raw material, which was washed, dried, crushed, and passed through a 100-mesh sieve. A specific amount of sieved biomass was weighed and then placed in a vacuum tube furnace and heated at a rate of 5 °C min⁻¹ under N₂. Afterwards, it was heated to 300 °C, 400 °C, or 500 °C and kept for 2 h. After being cooled to room temperature, it was washed with ultrapure water and dried to obtain the manganese-rich pokeweed biochar materials (designed as BC300, BC400, and BC500). The number (300–500) indicates the pyrolysis temperature during the preparation.

2.3. Characterization

The surface morphology changes of the BC300, BC400, and BC500 biochar materials used in this study were observed by means of a Scanning electron microscopy-energy spectrometer (Quanta FEG 250, USA). The specific surface area and pore structure of the BC300, BC400, and BC500 materials were determined by using Brunauer–Emmett–Teller methodology (NOVA4200e, USA). The C, N, H, S, and O elemental contents for the BC300, BC400, and BC500 biochar samples were measured by using an elemental analyzer (EAICE-440, USA). The changes in the surface functional groups of the BC300, BC400, and BC500 materials before and after adsorption were determined by using Fourier transform infrared spectroscopy (Nicolet 5700 Spectrometer, USA). The changes in the crystallinity of the BC300, BC400, and BC500 biochars before and after the adsorption of the heavy metals were determined by using X-ray diffraction (XRD-6100, Japan). The chemical composition of the surfaces of the BC300, BC400, and BC500 biochars was determined by using X-ray photoelectron spectroscopy (ESCALAB 250Xi, USA).

2.4. Adsorption Experiments

We performed every and each adsorption experiment in a constant temperature oscillation incubator at 160 rpm, with triplicate samples in each group, where the average values were obtained for analysis and RSD of less than 5%. The concentration of heavy metals before and after adsorption was determined by ICP-OES (Agilent 5800, USA). The calculation formulas of the adsorption capacities and removal rate of biochars towards to heavy metals are as follows:

$$Q_e=\frac{\left(C_0-C_e\right)\times V}{M}$$

(1)

$$R=\frac{C_0-C_e}{C_0}\times 100\%$$

(2)

where Q_e is adsorption capacity of biochar (mg·g⁻¹); C₀ and C_e are the initial and residual concentration of heavy metal remaining in solution (mg·L⁻¹), respectively; V is the solution volume (mL); M is the mass of biochar (g); and R (%) is the heavy metal removal rate from solution.

Amounts of 15 mg of BC300, BC400, and BC500, as well as of NM500 and activated carbon, were added to 50 mL Erlenmeyer flask, and each of them received 50 mL of Cu²⁺, Pb²⁺, or Cd²⁺ solutions (100 mg·L⁻¹), respectively. Under the same adsorption parameters, we compared the difference in the adsorption capacity among the tested materials.

In the range of pH 2–6, we added 5 mg of BC300, BC400, and BC500 and 50 mL of Cu²⁺, Pb²⁺, and Cd²⁺ solutions (100 mg·L⁻¹) to a 50 mL Erlenmeyer flask. Then, a small amount of NaOH or HNO₃ (0.1 mol·L⁻¹) was dropped to adjust the pH.

In addition, we added 5 mg of BC300, BC400, and BC500 and 50 mL of Cu²⁺, Pb²⁺, and Cd²⁺ solutions (100 mg·L⁻¹) to a 50 mL Erlenmeyer flask, and oscillated at the optimal pH. Then we took aliquots at the corresponding reaction time (0.25, 0.5, 1, 2, 3, 6, 8, 10, 12, 18, 24, and 36 h). To analyze the adsorption mechanism of Cu²⁺, Pb²⁺, and Cd²⁺ on biochars, we used the pseudo-first-order (PFO) and the pseudo-second-order (PSO) kinetic models. The model formulas are as follows:

$$q_t=q_e\left(1-e^{-k_{1}t}\right)$$

(3)

$$q_t=\frac{k_2{q}_e^{2}t}{1+k_2{q}_{e}t}$$

(4)

where q_e and q_t are the adsorption capacities (mg·g⁻¹) of biochars at equilibrium and at time t, respectively, and k₁ (min⁻¹) and k₂ (g mg⁻¹·min⁻¹) are the rate constants at PFO and PSO, respectively.

At the optimal pH and reaction time, we added 5 mg of BC300, BC400, and BC500, and 50 mL of Cu²⁺, Pb²⁺, and Cd²⁺ solutions (100 mg·L⁻¹) to a 50 mL Erlenmeyer flask, and oscillated at different temperatures (15, 20, 25, 30, and 35 °C).

Under the optimum pH, reaction time and reaction temperature, we added 5, 10, 15, 20, 25, and 30 mg of BC300, BC400, and BC500 respectively, and 50 mL of Cu²⁺, Pb²⁺, and Cd²⁺ solutions (100 mg·L⁻¹) to a 50 mL Erlenmeyer flask, and then oscillated.

Under the optimum pH, reaction time, reaction temperature, and dosage, we added 50 mL of Cu²⁺, Pb²⁺, and Cd²⁺ solutions with concentrations of 25, 50, 100, 150, 200, 300, and 400 mg·L⁻¹ respectively, to a 50 mL Erlenmeyer flask, and then oscillated. The adsorption mechanism of Cu²⁺, Pb²⁺, and Cd²⁺ on biochars was analyzed using the Langmuir model and the Freundlich model. The model formulas are as follows:

$$q_e=\frac{K_L{q}_m{C}_e}{1+K_L{C}_e}$$

(5)

$$q_e=K_F{C}_e^{1/n}$$

(6)

where q_e and C_e are the adsorption capacity of biochar at equilibrium (mg·g⁻¹) and the solution concentration at equilibrium (mg·L⁻¹), respectively; q_m is the biochar maximum adsorption capacity (mg·g⁻¹); K_L (L·mg⁻¹) and K_F ((mg·g⁻¹) (mg·L⁻¹)⁻ⁿ) are the adsorption constants of Langmuir and Freundlich, respectively; and n is an indicator of the adsorption intensity and heterogenicity.

The manganese-rich pokeweed biochars with the best comprehensive performance were taken as the representative material. The study was carried out for four consecutive cycles under the best adsorption parameters. After each cycle, the adsorbent was regenerated by means of H₂SO₄ or NaOH (0.1 mol·L⁻¹), washed repeatedly with deionized water, and dried for later use.

2.5. Potential Risk Analysis

The Tessier chemical sequence extraction method was used to analyze the presence of heavy metals in manganese-rich pokeweed biomass and manganese-rich pokeweed biochar [36,37]. And the content of Mn, Cu, Zn, and Pb in the sample was determined by ICP-OES analysis. Finally, we employed the Hakanson heavy metal risk assessment index in evaluating the potential pollution risk of the heavy metals in the manganese-rich pokeweed biomass and manganese-rich pokeweed biochars. The formula is as follows:

$$RI=\sum E_r=T_r\times C_f=T_f\times C_i÷C_n$$

(7)

RI is the potential ecological risk index; E_r represents the potential ecological index of a single heavy metal; C_f represents the pollution factor; and C_i and C_n are the transferable part and the stable part of the distribution of the heavy metals, respectively.

3. Results

3.1. Characterization of the Materials

3.1.1. FTIR Analyses

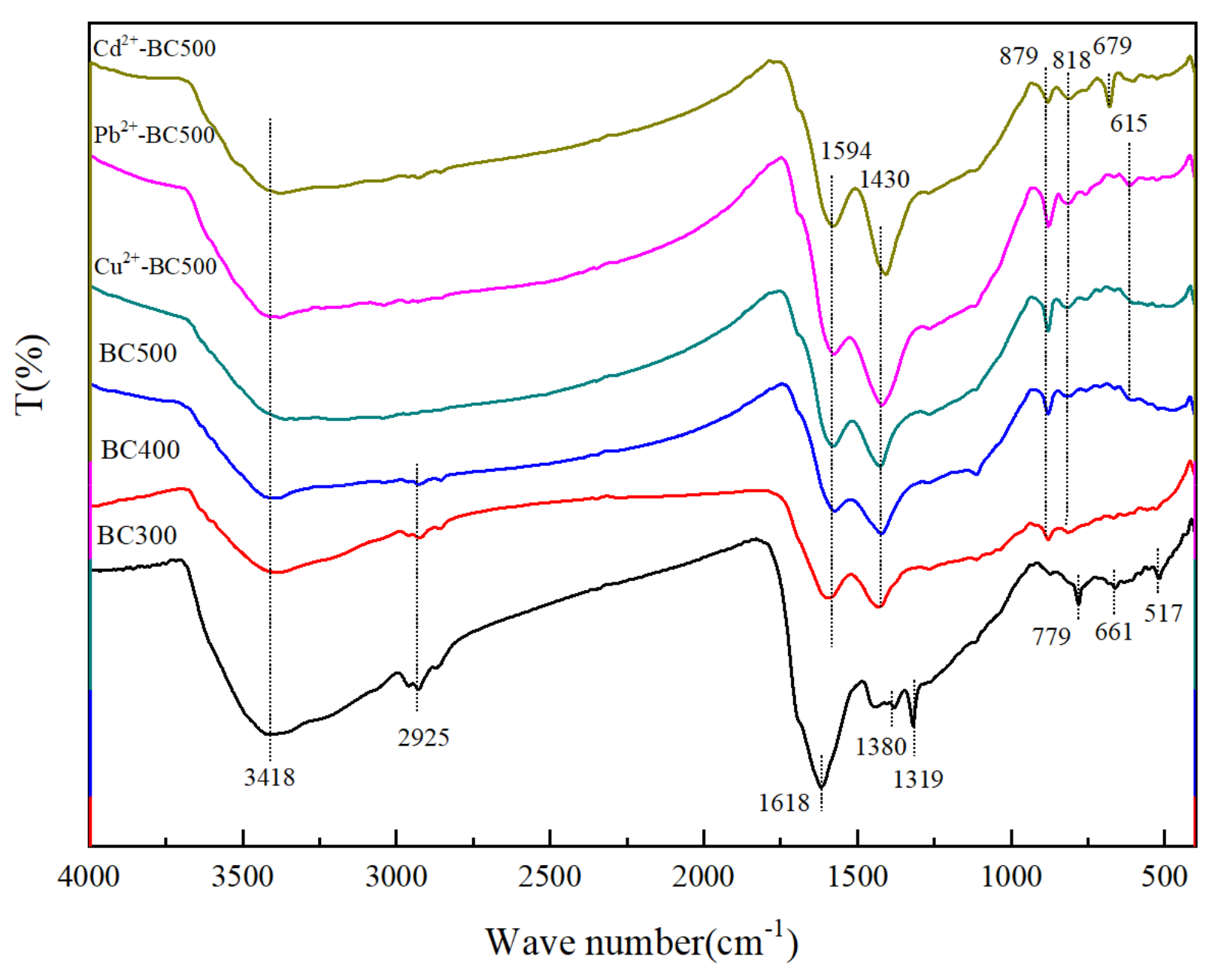

Figure 1 shows the functional groups on the surface of the manganese-rich pokeweed biochars, in terms of the type and number, which were analyzed by means of FTIR. The adsorption peaks near 3418 cm⁻¹ and 2925 cm⁻¹ were -OH stretching vibration peaks, indicating the presence of water molecules and hydroxyl groups on the surface of the biochars. The adsorption peaks near 1618 cm⁻¹ to 1594 cm⁻¹ and 1430 cm⁻¹ were due to the vibration of C=O, indicating that there might be carbonyl groups on the surface of the biochars. The adsorption peaks ranging from 879 cm⁻¹ to 779 cm⁻¹ might be caused by C-H bending. The adsorption peak near 517 cm⁻¹ indicated the adsorption peak of the Mn-O bond bending vibration in MnOx, which proved the existence of Mn in the material. According to the analysis of the infrared spectroscopy, we found that the increase in the pyrolysis temperature caused some characteristic peaks of the biochars to shift or disappear, and it should be noted that the presence of abundant surface functional groups can improve the capacity of the manganese-rich pokeweed biochars as regards adsorption of the heavy metal ions [38].

3.1.2. SEM-EDS Analyses

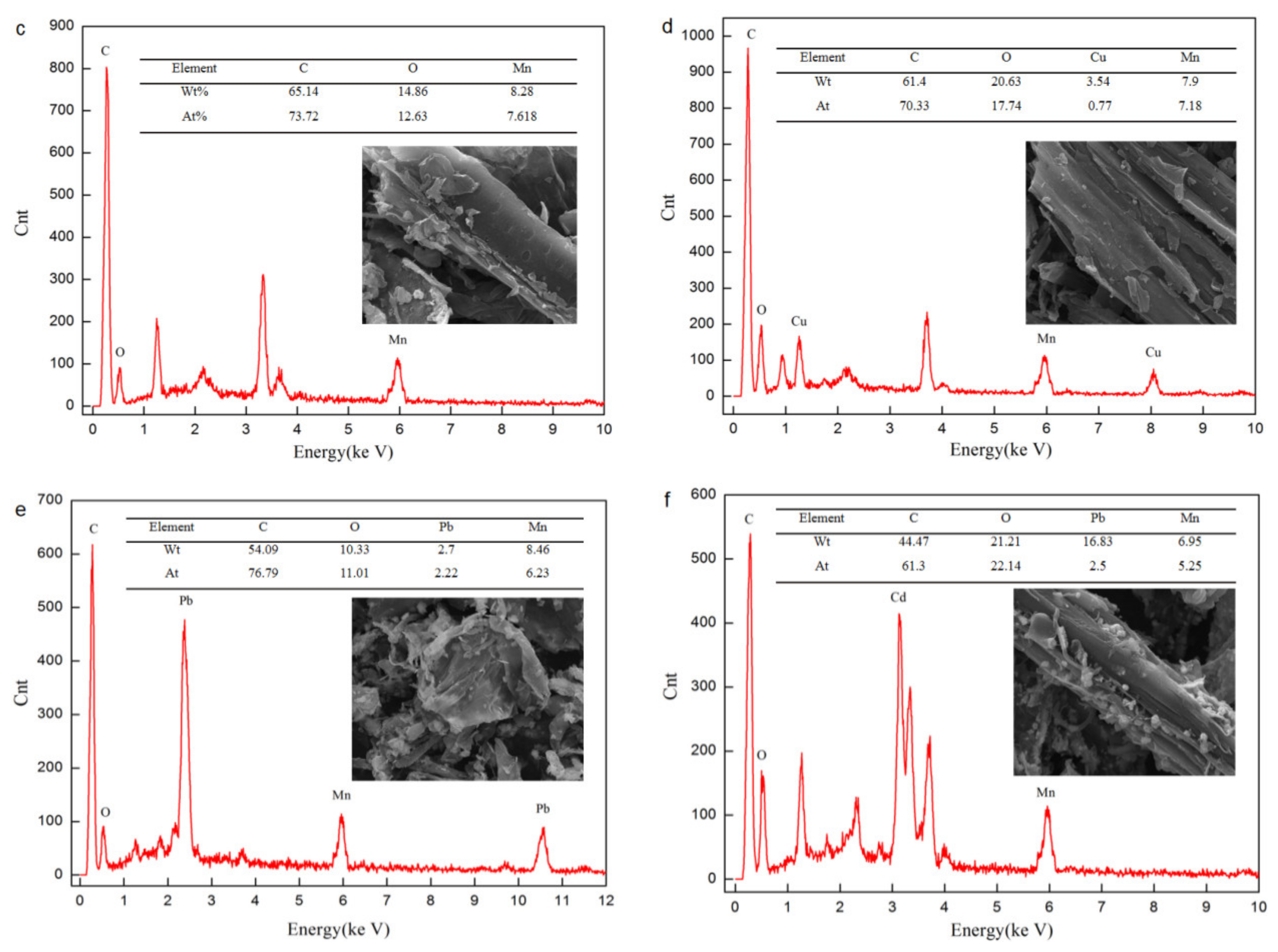

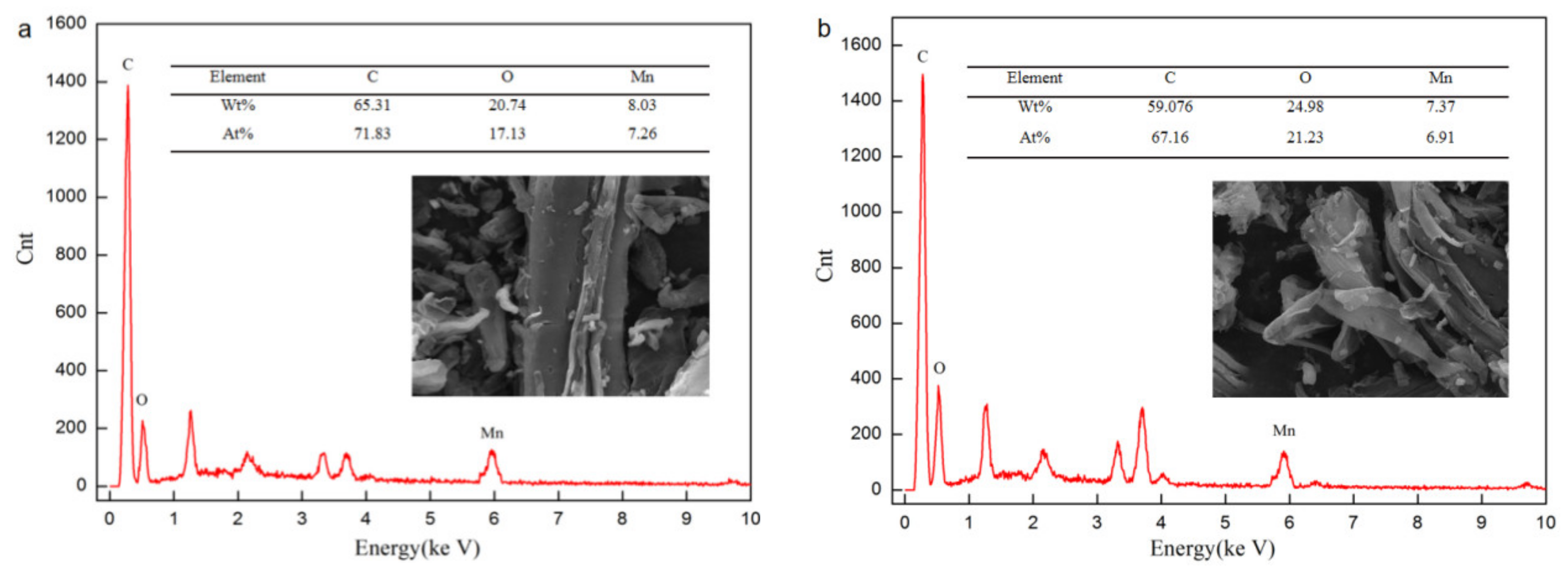

As shown in Figure 2, SEM-EDS was used to analyze the surface topography and basic composition of the BC300, BC400, and BC500 biochar materials. From the SEM images, it can be observed that the BC300, BC400, and BC500 biochars had a fibrous structure, uneven pores, and particles on the surface before adsorption [39]. However, the particulate matter may be MnOx. After the adsorption of Pb²⁺ and Cd²⁺, the BC500 biochar showed that the surface particulate matter increased significantly in number, possibly due to compound precipitation of Pb²⁺ and Cd²⁺. The signal peak of Mn could be observed from the EDS spectrum, which also proved the existence of Mn on the surface of the raw materials. The quantitative presence of Mn in the BC300, BC400, and BC500 materials before adsorption was 7.26%, 6.91% and 7.61%, respectively, as noted previously [40]. After the adsorption, Cu²⁺, Pb²⁺, and Cd²⁺ signal peaks were observed in the corresponding EDS spectra, indicating successful adsorption of the heavy metals onto the BC500 biochar.

3.1.3. BET Results and Elemental Analyses

Table 1. BET parameters of the manganese-rich pokeweed biochars.

Sample	Surface Area (m2·g−1)	Pore Volume (m3·g−1)
BC300	5.564	0.013
BC400	9.416	0.011
BC500	20.233	0.014

shows data on pore structure parameters and specific surface area for the BC300, BC400, and BC500 biochars. Comparing some parameters, it was found that since the pyrolysis temperature rose, the surface area and pore size of the biochars increased to different degrees, indicating a certain impact of the pyrolysis temperature in promoting the surface area and pore size of the biochars. However, the fact that the surface of the BC300, BC400, and BC500 materials was loaded with a certain amount of Mn might cause a reduction in the surface area and pore size values.

The element composition of the BC300, BC400, and BC500 materials is shown in

Table 2. Elemental composition of the manganese-rich pokeweed biochars.

Sample	C%	N%	H%	O%	H/C	O/C
BC300	61.6	0.93	4.62	28.724	0.075	0.46
BC400	65.83	0.83	3.87	24.442	0.058	0.37
BC500	69.49	0.51	3.5	21.91	0.05	0.31

, indicating that as the pyrolysis temperature rose, the content of the C element continued to increase, while the content of the N, H, and O elements decreased, to different degrees. Besides, the H/C ratio of the BC300, BC400, and BC500 materials constantly diminished, which indicates that the increase in the pyrolysis temperature could promote the carbonization of the biochars and contribute to a higher aromaticity. At the same time, the O/C ratio of all three materials also gradually decreased, which indicates that the polarity of the biochars gradually decreased with the increase in the pyrolysis temperature. By comparing the elemental compositions among BC300, BC400, and BC500, it was found that BC500 had a higher content of the C element and aromaticity, but with the lowest polarity, which was more conducive to the adsorption of the heavy metals [41].

3.1.4. XRD Analyses

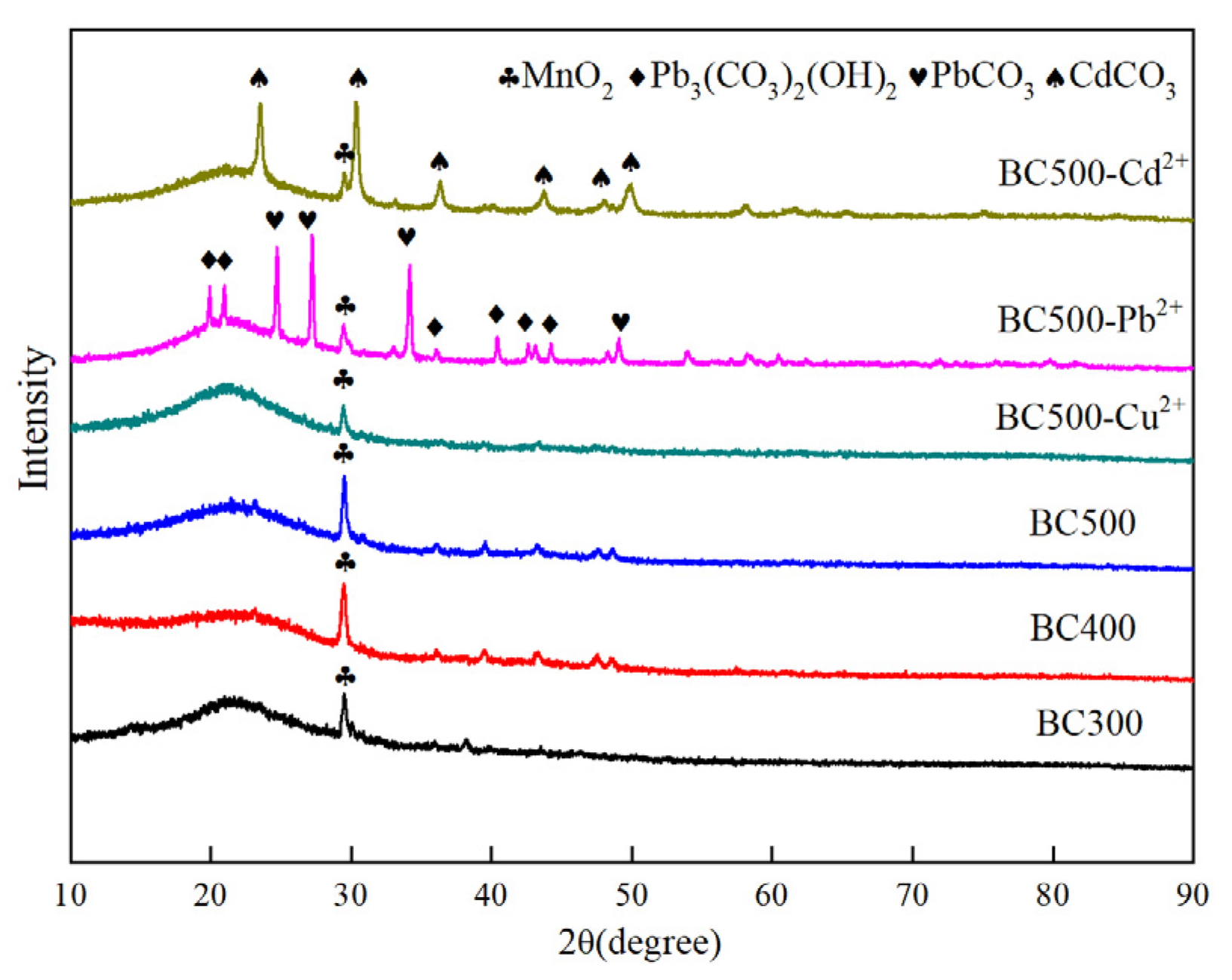

Figure 3 shows the XRD patterns of the BC300, BC400, and BC500 biochars, as well as of the BC500 biochar after the adsorption of Cu²⁺, Pb²⁺, and Cd²⁺. Such patterns showed that BC300, BC400, and BC500 all had strong diffraction peaks at 2θ = 30.067, which corresponded to the typical diffraction peaks of MnO₂ [40]. As the pyrolysis temperature went up, the diffraction peaks of MnO₂ increased, to different degrees, indicating a major effect of the pyrolysis temperature on this specific peak [42,43]. After the BC500 adsorbed Cu²⁺, Pb²⁺, and Cd²⁺, the diffraction peaks of MnO₂ showed different degrees of weakening, with no new peaks appearing after the adsorption of Cu²⁺, while new diffraction peaks corresponding to Pb₃(CO₃)₂(OH)₂, PbCO₃, and CdCO₃ were detected after the adsorption of Pb²⁺ and Cd²⁺, respectively. This indicates that precipitation is a consistent as sorption mechanism for Pb²⁺ and Cd²⁺ retention onto BC500, which is coherent with the fine particles appearing in the SEM image after the adsorption of these last two metals [38,43].

3.1.5. XPS Analyses

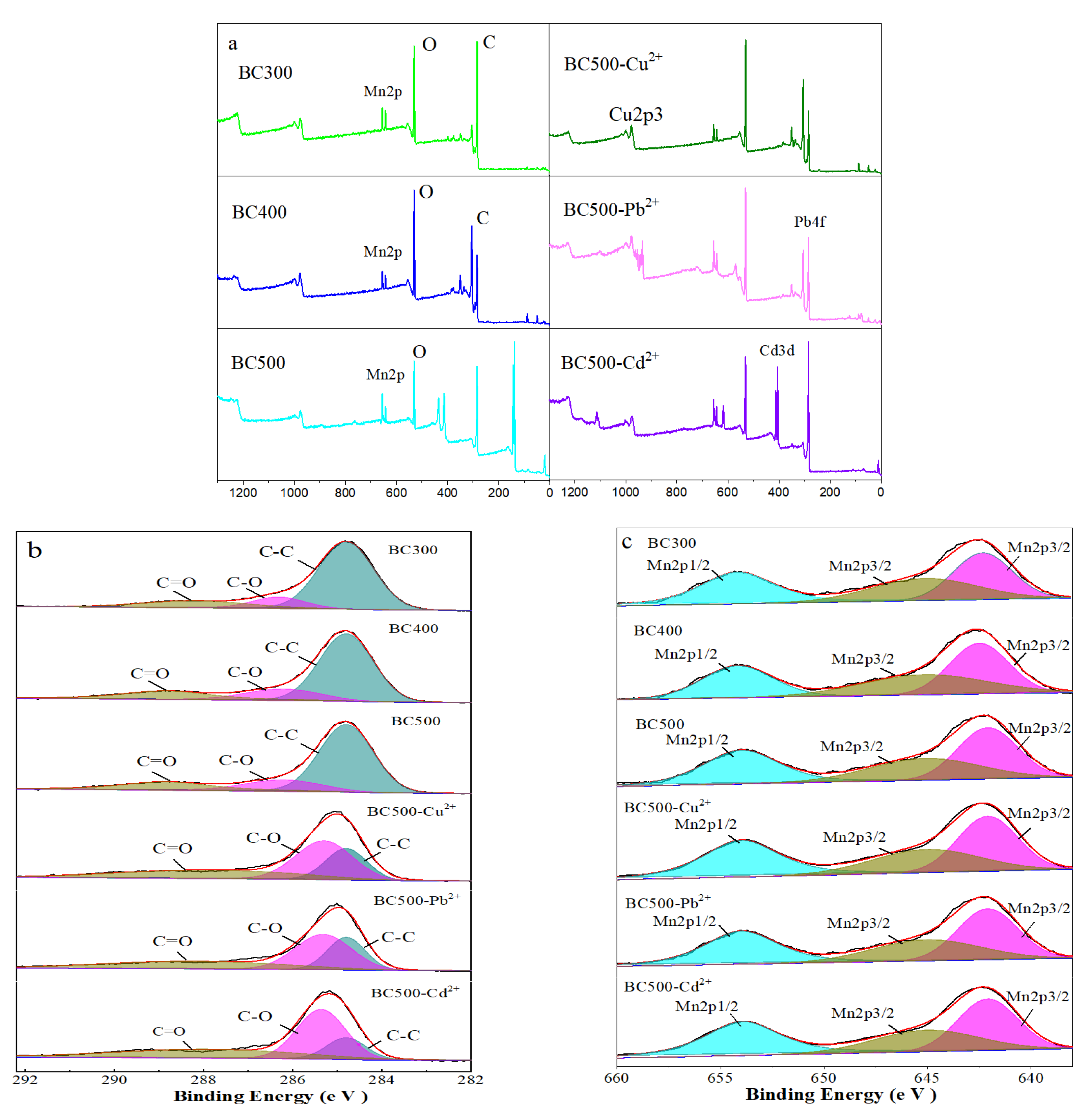

Figure 4 shows the XPS patterns of the BC300, BC400, and BC500 biochars before and after the adsorption of Cu²⁺, Pb²⁺, and Cd²⁺. As presented in Figure 4a, the carbon and oxygen functional groups changed on the biochar surface before and after adsorption in terms of the binding energy, which indicates the importance of these functional groups in the process of adsorption of the heavy metals [44]. After Cu²⁺, Pd²⁺ and Cd²⁺ were adsorbed onto BC500, and peaks corresponding to Cu2p3, Pb4f, and Cd3d were detected, indicating that the biochars had successfully adsorbed the heavy metals. As shown in Figure 4b, C 1s spectrum, the three peaks corresponding to BC300, BC400, and BC500 at binding energies of 284.8, 286.3, and 288.2 ev were C=C, C-O, and C=O. However, there were almost no changes in the peak positions, which is similar to other materials in previous works [45]. By comparing the BC500 spectra after adsorption, we found that the peak areas of C=C, C-O, and C=O changed significantly, which indicates the reaction of the functional groups with heavy metals on the surface of the biochars [31,46]. As shown in Figure 4c, Mn2p spectrum, the binding energies of BC300, BC400, and BC500 at 654.18 ev and 642.33 ev corresponded to the characteristic peaks of Mn2p3/2 and Mn2p1/2 in MnO₂, respectively. The binding energy 645.13 ev corresponded to the characteristic peaks of Mn2p3/2 in MnO or Mn₂O₃, which indicates that Mn was mainly MnO₂ in the manganese-rich pokeweed biochars [47].

3.2. Adsorption Experiments

3.2.1. The Effect of pH

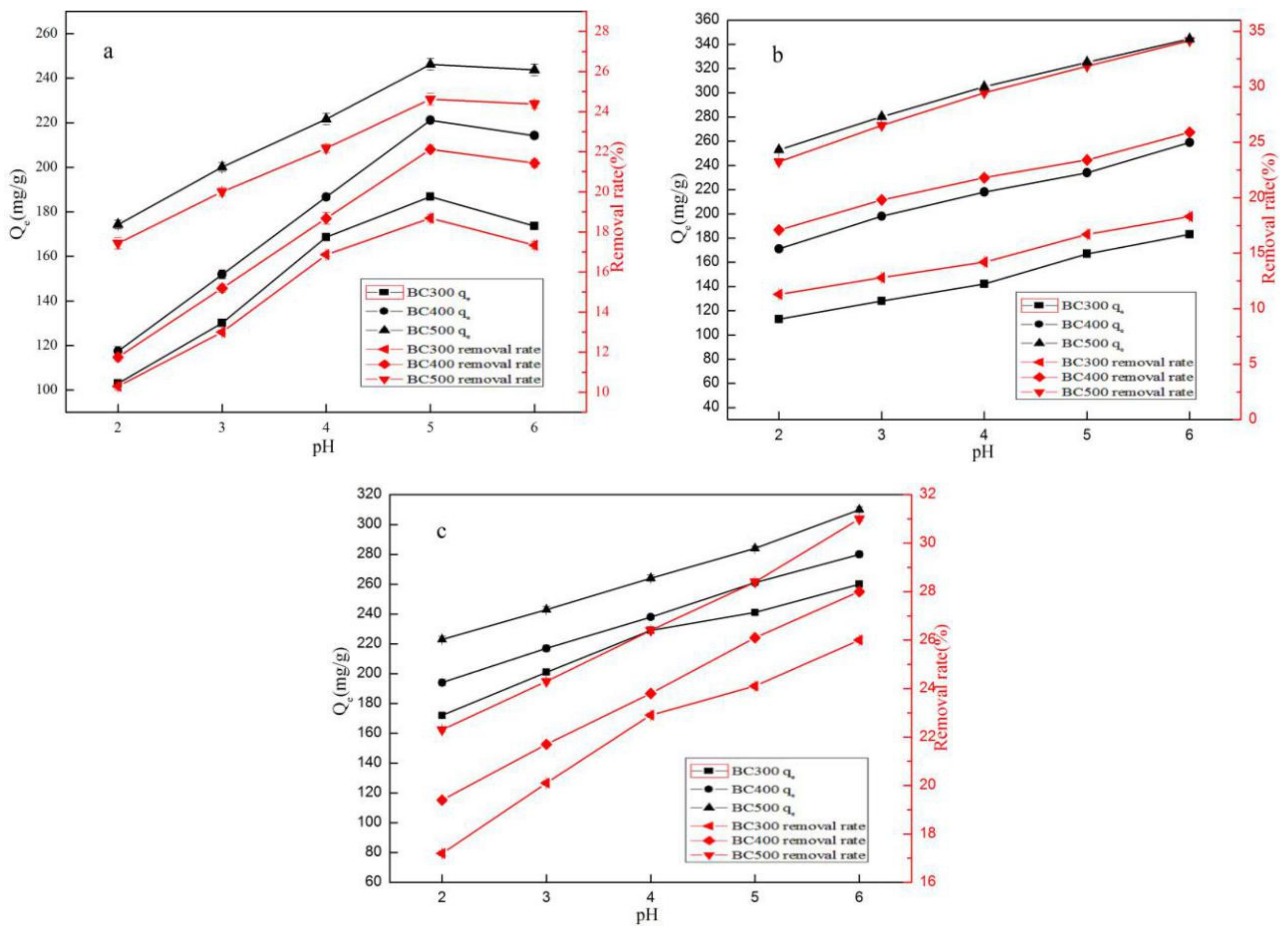

Biochars are significantly affected by the solution pH in terms of the adsorption capacity [48]. As shown in Figure 5a–c, when the pH increased from 2 to 6, adsorption capacity and removing rate for Cu²⁺ rapidly increased, and then slightly decreased, onto BC300, BC400, and BC500. It is important to note that the adsorption capacity and removing rate of Pb²⁺ and Cd²⁺ were positively correlated. When the solution was at a low pH, the surfaces of the biochars were positively charged, which would cause the electrostatic repulsion of the heavy metal ions, thereby reducing the adsorption capacity of the biochars [48,49]. However, with the rise of pH, the biochars were less protonated, thereby increasing their negative charge on the surfaces and promoting its capacity for adsorption of the heavy metals [50,51]. When the Cu²⁺ and Pb²⁺ solutions had a pH = 6, and the Cd²⁺ solution had a pH = 7, precipitation occured in the solution. Therefore, the adsorption of the heavy metal was affected. Subsequently, the Cu²⁺ and Pb²⁺ solutions had a pH = 5, and the Cd²⁺ solution had a pH = 6. Under the optimal pH conditions, the adsorption capacity of BC500 was 246.21, 328, and 284 mg g⁻¹ for Cu²⁺, Pb²⁺ and Cd²⁺, respectively, visibly higher than the maximum adsorption capacities of BC300 and BC400. This might be due to the fact that specific surface area and pore size of the carbon surface were related to functional groups [52].

3.2.2. Adsorption Kinetics

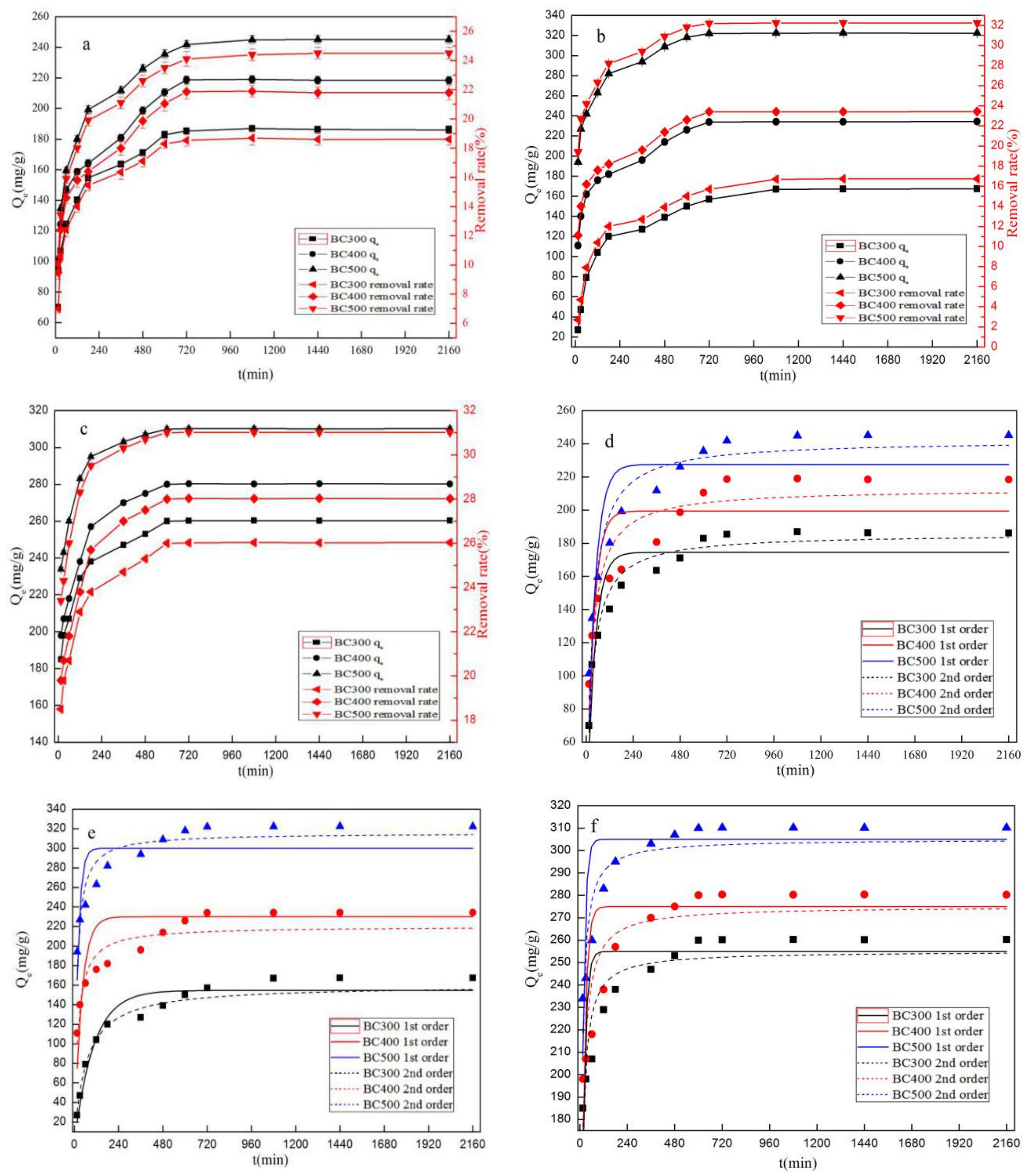

As shown in Figure 6a–c, the reaction time had an effect on the adsorption behavior of BC300, BC400, and BC500. The adsorption process included two main stages. In the initial stage, the adsorption capacity increased rapidly, due to the biochars having many adsorption sites on their surfaces [53]. Subsequently, a decelerated adsorption rate was seen until reaching the adsorption equilibrium [54,55].

To study the mechanism of adsorption of the Cu²⁺, Pb²⁺, and Cd²⁺ by the BC300, BC400, and BC500 biochars, the experimental data were fitted to the PFO and PSO models, with the fitting results shown in Figure 6d–f and

Table 3. The adsorption kinetic parameters for Cu²⁺, Pb²⁺, and Cd²⁺.

Adsorbent	PFO			PSO
	Qe (mg·g−1)	k1	R2	Qe (mg·g−1)	k2	R2
BC300-Cu2+	174.52597	0.02544	0.83879	185.55783	1.97835	0.96389
BC400-Cu2+	199.43948	0.02895	0.69816	212.80717	1.87106	0.88866
BC500-Cu2+	227.52499	0.02527	0.79485	242.06866	1.51741	0.94866
BC300-Pb2+	154.68393	0.00964	0.93444	160.15713	9.96497	0.96666
BC400-Pb2+	190.51352	0.02642	0.60892	229.21786	2.50427	0.87913
BC500-Pb2+	280.64762	0.05335	0.66377	315.52997	2.60974	0.88855
BC300-Cd2+	214.25541	0.06576	0.59985	252.24123	5.1848	0.86809
BC400-Cd2+	229.54123	0.06143	0.55518	275.27413	4.36213	0.83837
BC500-Cd2+	242.57136	0.07693	0.53173	306.54189	5.54803	0.88314

, in line with what was done in previous works [56]. R² values were higher for the PSO model than for the PFO model, and the simulated adsorption capacity in the PSO model was also relatively close to the experimental data. This indicates that the adsorption of Cu²⁺, Pb²⁺, and Cd²⁺ by the BC300, BC400, and BC500 biochars was more in line with the PSO model and that the adsorption process was mainly chemisorption [57,58].

3.2.3. The Effect of Temperature

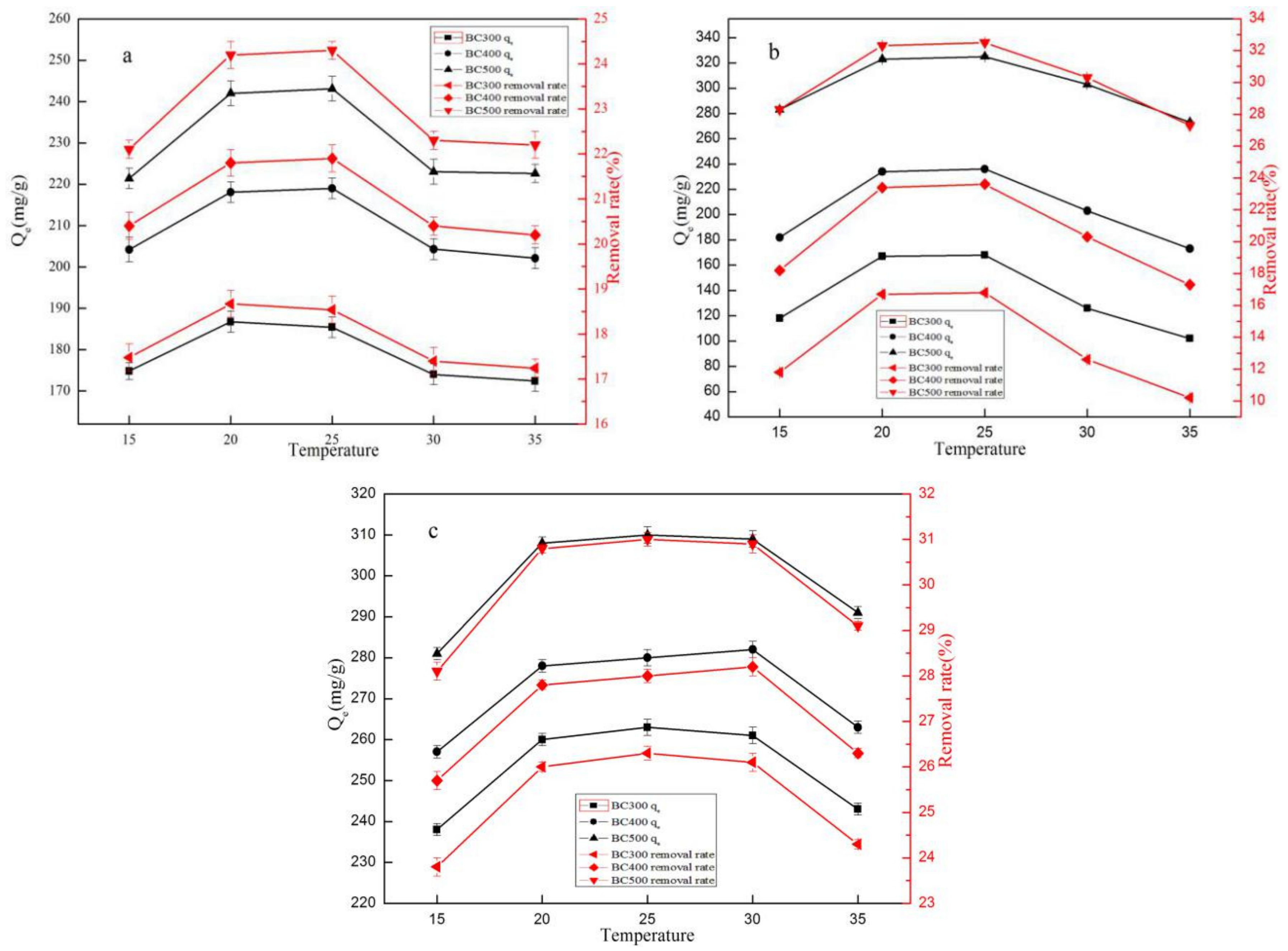

As shown in Figure 7a–c, the reaction temperatures had an effect on the adsorption properties of the BC300, BC400, and BC500 materials. The adsorption capacities and removing rates of BC300, BC400, and BC500 for Cu²⁺, Pb²⁺, and Cd²⁺ increased when the temperature rose from 15 °C. As the temperature continued to increase from 25 °C, they began to gradually decrease. Therefore, the best temperature for adsorption was 25 °C.

3.2.4. The Effect of Dosages

As shown in Figure 8a–c, the dosages also had an effect on the adsorption behavior of BC300, BC400, and BC500. With the increase in the dosage, the rate of removal of Cu²⁺, Pb²⁺, and Cd²⁺ by BC300, BC400, and BC500 showed a rapid increase until it stabilized; however, the adsorption capacity was stable in the early stage, but rapidly decreased in the later stage. The removal rate rose with the rise in dosage, which provided more adsorption sites and surface area [59]. The decrease in the adsorption capacity was due to the progressive saturation of the adsorption sites caused by the adsorption reaction [60]. Especially, when the dosage of the BC500 was 15 mg, the rate to remove Cu²⁺ was as high as 98.5%; and when the dosage was 20 mg, the rate to remove Pb²⁺ and Cd²⁺ reached 97.5% and 92.7%, respectively.

3.2.5. Adsorption Isotherms

As shown in Figure 9a–c, the initial concentration affected the adsorption properties of BC300, BC400, and BC500. At low Cu²⁺, Pb²⁺, and Cd²⁺ concentrations (below 100 mg·L⁻¹), the adsorption capacities and removal rates of BC300, BC400, and BC500 increased as a function of the concentration added. At these low concentrations of the heavy metals, a lot of adsorption sites remained available on the surfaces of the biochars [61]. With the increase in the concentration of heavy metals added, the adsorption capacity of BC300, BC400, and BC500 gradually approached saturation, and the removal rate began to decline rapidly. However, by increasing the dosage of the biochars, the removal rate could be increased even for high concentrations of heavy metals [62,63,64].

In addition, the Langmuir model and the Freundlich model were used to further study adsorption. Figure 9d–f and

Table 4. The adsorption isotherms parameters of Cu²⁺, Pb²⁺, and Cd²⁺.

Adsorbent	Langmuir			Freundlich
	Qm (mg g−1)	KL	R2	KF	n	R2
BC300-Cu2+	188.18668	28.02274	0.96239	128.6307	0.07737	0.79598
BC400-Cu2+	222.20807	20.67084	0.98487	187.66081	0.0343	0.51224
BC500-Cu2+	248.30945	10.33169	0.98888	166.26842	0.08327	0.65712
BC300-Pb2+	170.12479	70.51657	0.6445	140.66621	0.03573	0.55412
BC400-Pb2+	237.54248	31.24189	0.9487	166.11347	0.07216	0.77502
BC500-Pb2+	328.39095	17.43978	0.99035	217.32022	0.08652	0.69727
BC300-Cd2+	263.34945	25.55479	0.9713	176.87751	0.08143	0.80421
BC400-Cd2+	284.33611	22.21888	0.98114	186.82251	0.08687	0.80392
BC500-Cd2+	311.37099	18.9919	0.98834	202.64684	0.09002	0.77071

show that, according to the observations, the capacities of the manganese-rich pokeweed biochars for the adsorption of the heavy metals followed the sequence BC500 > BC400 > BC300, while their rates of removal were Pb²⁺ > Cd²⁺Cu²⁺ > Cu²⁺. PB500 showed maximum adsorption capacities of 246, 326, and 310 mg·g⁻¹ for Cu²⁺, Pb²⁺, and Cd²⁺, respectively. It is important to note that the R² values of the Langmuir model were higher than those of the Frendlich model. This indicated that the adsorption of the heavy metals Cu²⁺, Pb²⁺, and Cd²⁺ by the BC300, BC400, and BC500 biochars was more consistent with the Langmuir model, meaning that the adsorption process was dominated by monolayer interactions [65].

3.2.6. Effects of Repeated Adsorption Cycles

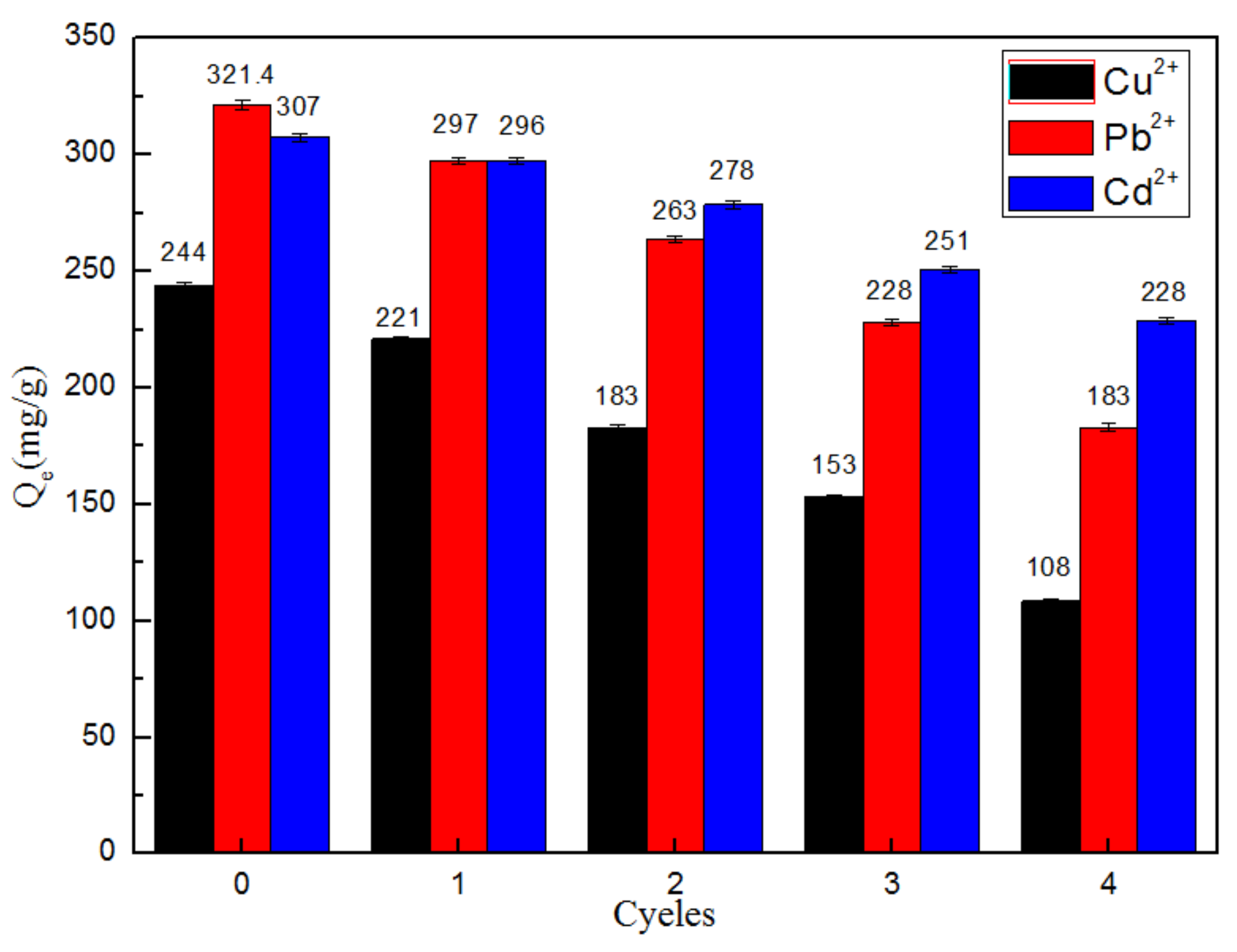

The manganese-rich pokeweed biochar BC500 with the best comprehensive performance was used as representative material. The adsorption study was carried out for four consecutive cycles under the best adsorption conditions. As shown in Figure 10, the capacity of the BC500 in adsorption of the Cu²⁺, Pb²⁺, and Cd²⁺ decreased, to different degrees, after several cycles. Its capacity in adsorption of the Cu²⁺, Pb²⁺, and Cd²⁺ decreased from 244, 321, and 307 mg·g⁻¹, to 108, 183, and 228 mg·g⁻¹, respectively. In general, the adsorption capacity of the BC500 remained at a high level after four cycles, indicating that the material had good recyclability.

3.3. Potential Risk Analysis

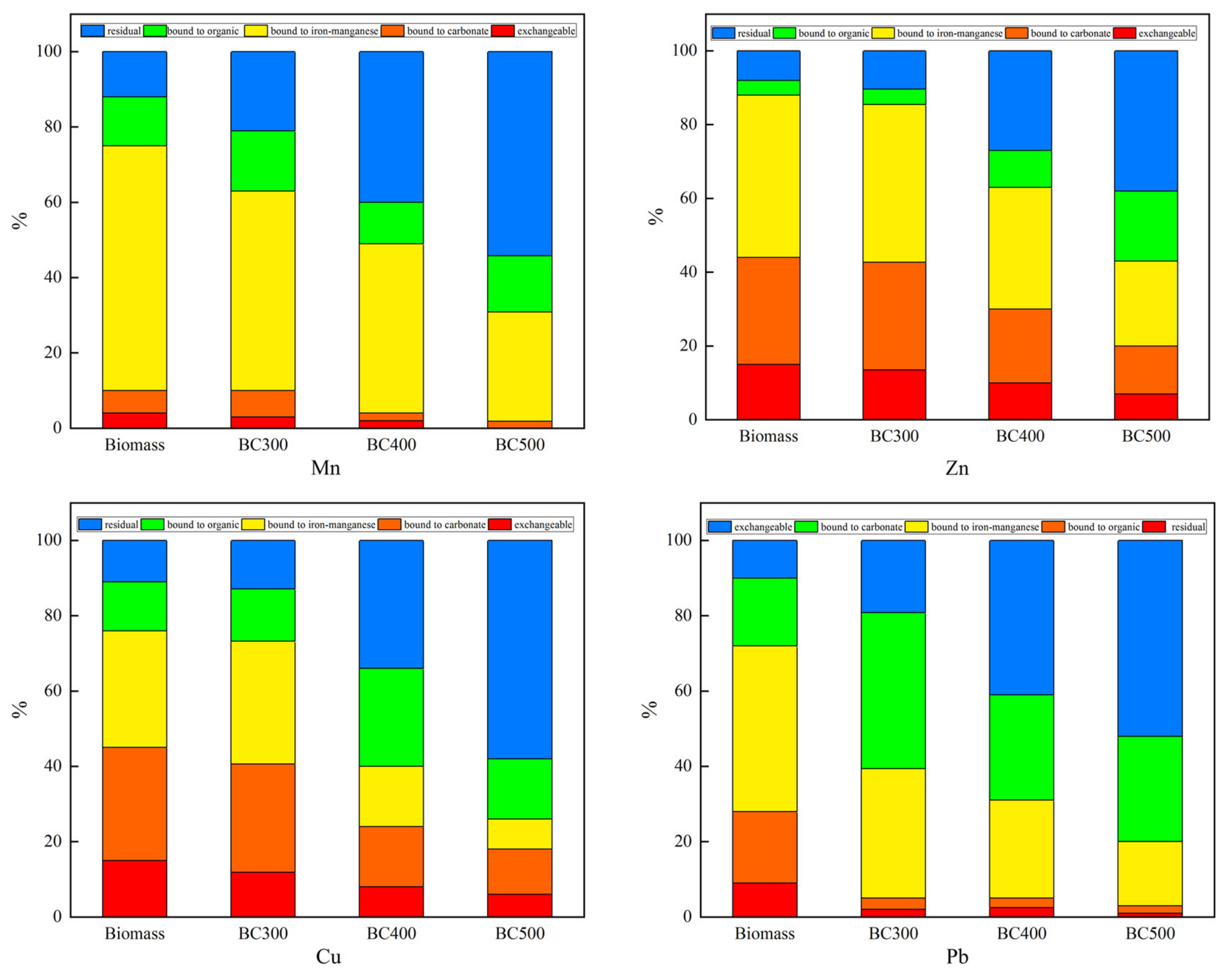

The Tessier chemical sequence extraction method was used to study the morphological distribution of the heavy metals Mn, Zn, Cu, and Pb in the manganese-rich pokeweed biomasses BC300, BC400, and BC500, as indicated in previous works [66]. As shown in Figure 11, the heavy metals in the manganese-rich pokeweed biomasses BC300, BC400, and BC500 were divided into five forms: exchangeable state, carbonate-bound state, iron-manganese-bound state, organic-bound state, and residue state. The results were as follows: Mn was mainly present in the form of the iron-manganese combined state (65%) in the manganese-rich pokeweed biomasses. As the transformation pyrolysis temperature increased, the iron-manganese combined state of manganese in the BC500 dropped to 31%, while the residual state rose to 55%. Zn was mainly present in the form of carbonate-bound (29%) and iron-manganese (44%) in the manganese-rich pokeweed biomasses. With the increase in the pyrolysis temperature, the carbonate-bound state and iron manganese-bound state of the Zn in the BC500 decreased to 13% and 27%, respectively, while the residual state rose to 38%. Cu was mainly present in the form of carbonate combined state (30%) and iron-manganese combined state (31%) in the manganese-rich pokeweed biomasses. With the increase in the pyrolysis temperature, the carbonate binding state and ferromanganese binding state in the Cu in the BC500 decreased to 12% and 8%, respectively, while the residue state rose to 55%. Pb was mainly in the form of carbonate-bound (19%) and iron-manganese (44%) in the manganese-rich pokeweed biomasses. With the increase in the pyrolysis temperature, the carbonate-bound state and iron manganese-bound state of the Pb in the BC500 decreased to 2% and 17%, respectively, while the residue state rose to 52%.

Based on the above analysis, the heavy metals were present in the manganese-rich pokeweed biomasses mainly in the form of higher activity, which would cause a certain potential pollution risk to the environment. However, the pyrolysis could promote the heavy metals to convert from a more active form to a stable residue state. As the pyrolysis temperature increased, the conversion ratio of the residue state increased, as previously shown [67]. The increase in the residue state content indicated high stability of the heavy metals in the material [68].

The Hakanson heavy metal risk assessment index was adopted for evaluating the potential pollution risk of the heavy metals in the manganese-rich pokeweed biomasses BC300, BC400, and BC500 [69]. The specific index classification standards and statistics are shown in

Table 5. Index classification of Hakanson potential risk assessment.

Er	Potential Ecological Risk	RI	Biochar Contamination
Er < 40	Low	RI ≤ 50	Low
40 ≤ Er < 80	Moderate	50 < RI ≤ 100	Moderate
80 ≤ Er < 160	Considerable	100 ≤ RI < 200	Considerable
160 ≤ Er < 320	High	RI > 200	High
Er ≥ 320	Very high

and

Table 6. Potential risk assessment of heavy metals in the manganese-rich pokeweed biomass, BC300, BC400, and BC500.

Samples	Parameter	Mn	Zn	Cu	Pb
Biomass	Cf	7.33	11.5	8.09	9
	Er	7.33	11.5	40.45	45
	RI	104.28
BC300	Cf	3.76	9	6.69	4.26
	Er	3.76	9	33.45	21.3
	RI	67.51
BC400	Cf	1.5	2.7	1.94	1.43
	Er	1.5	2.7	9.7	7.15
	RI	21.05
BC500	Cf	0.81	1.89	0.72	0.92
	Er	0.81	1.89	3.6	4.6
	RI	10.9

, indicating that the C_f values of the Mn, Zn, Cu, and Pb in the manganese-rich pokeweed biomasses were 7.33, 11.5, 8.09, and 9, respectively. As the pyrolysis temperature rose, the C_f of the Mn, Zn, Cu and Pb continued to decrease, and its risk was also decreasing. In particular, the C_f of Mn, Zn, Cu, and Pb in BC500 decreased to 0.81, 1.89, 0.72, and 0.92, respectively.

Cu and Pb had the main risk factors in the E_r of the manganese-rich pokeweed biomasses, with risk coefficients of 40.45 and 45, respectively, representing moderate potential ecological risk. As the pyrolysis temperature went up, the E_r of Mn, Zn, Cu, and Pb continued to decrease, and their potential risks also decreased. In particular, the E_r of Mn, Zn, Cu, and Pb in BC500 dropped to 0.81, 1.89, 3.6, and 4.6, respectively, which meant that the potential ecological risk had dropped to a low level.

According to the RI values, it can be seen that the manganese-rich pokeweed biomasses had a considerable potential ecological risk due to the heavy metals, reaching 104.28. However, after the pyrolysis, the potential ecological risks of BC300, BC400, and BC500 were reduced to 67.51, 21.05, and 10.9, respectively. Compared with the biomasses, the potential ecological risk of the heavy metals in the biochars after the pyrolysis was significantly reduced. Especially, for BC500, it was reduced to a low level. It showed that preparing the biomasses into the biochars could effectively reduce the potential pollution risk of the heavy metals.

4. Conclusions

In this study, three manganese-rich pokeweed biochar materials (designed as BC300, BC400 and BC500) were prepared from manganese-rich pokeweed plants to study its performance as regards adsorption of Cu²⁺, Pb²⁺, and Cd²⁺. Under the optimal conditions and values of the adsorption parameters, one of the biochars (BC500) showed maximum adsorption capacity as high as 246, 326, and 310 mg·g⁻¹ for Cu²⁺, Pb²⁺, and Cd²⁺, meaning 98.5, 97.5, and 92.7% in removing rates. After being used for four cycles, the adsorption capacity was maintained, and the potential pollution risk of the heavy metals remained low. Regarding adsorption kinetics and adsorption isotherms, the PSO and the Langmuir models fitted well to the experimental data. By means of different characterization analyses (FTIR, SEM-EDS, BET, XRD, and XPS), it was shown that the Mn in the biochars was mainly MnO₂, with these sorbent materials having many functional groups on their surfaces. The mechanism involved in the sorption of Cu²⁺, Pb²⁺, and Cd²⁺ onto the three biochars (BC300, BC400 and BC500) included ion exchange, electrostatic attraction, chemical adsorption, and precipitation. All three biochars (BC300, BC400, and BC500) were featured with high adsorption capacity, recyclability, and low environmental pollution. The elaboration of these biochar materials could be also used for scientific treatment and disposal of the manganese-rich pokeweed plants. Overall, the results of the study can be considered of clear environmental relevance.
