Performance of Alternative Methane Reforms Based on Experimental Kinetic Evaluation and Simulation in a Fixed Bed Reactor

Abstract

A comparative evaluation of alternative methane reforming processes as an option to steam reforming was performed by carrying out simulations of operations in a fixed bed reactor with a Ni (4.8 wt.%/γ-Al₂O₃) catalyst at 1023 K under 1.0 bar. Methane reforms, including processing with carbon dioxide (DRM, CH₄/CO₂), autothermal reform (ATRM, CH_4/H₂O/O₂), and combined reform (CRM, CH₄/CO₂/H₂O/O₂) had their operations predicted based on experimental data developed to represent their kinetic behavior, formalized with mechanisms and parametric quantifications. The performance of fixed bed reactor operations for methane conversions occurred with different reaction rates in the three alternative processes, and comparatively the orders of magnitude were 10², 10⁻¹, and 10⁻⁴ in CRM, ATRM, and DRM, respectively. According to each process, the methane conversions were oriented towards the predominant productions of hydrogen or carbon monoxide, indicating the kinetic selectivities of H₂, 86.1% and CO, 59.2% in CRM and DRM, respectively. Considering the possibility of catalyst deactivation by carbon deposition, its predicted yields are low due to the slow stages of its production and due to its simultaneous consumption through interactions with O₂, CO_2, and H₂O, reflecting favorably in additional productions of H₂ and CO.

1. Introduction

Different reform technologies’ studies and their combinations converge on the production of different intermediate chemicals or final products such as hydrocarbons, methanol, natural gasoline, and diesel oil [1,2,3,4]. Methane steam reform, due to its characteristics, is the process most employed to convert natural gas into synthesis gas to meet the demand for synthetic liquid fuels via GTL (gas–to–liquids) technologies. Advantageously, this route produces a synthesis gas with high H₂/CO ratios (3:1), indicated as feed for ammonia synthesis processes, oil refining (hydrotreating, hydrocracking, etc.), and hydrocarbon synthesis via Fischer–Tropsch, in addition to the hydrogen production itself.

Alternatively, using other types of methane reforms, different synthesis gases can be obtained, meaning several intermediate products must attend to the subsequent production of various derivatives. Reforms other than steam reforming, here called alternatives, have the potential to produce synthesis gas with different compositions in terms of the H₂/CO ratio.

For each of these processes, aspects that impact its performance can be highlighted. Reactions with H₂O, CO₂, and O₂, characterizing the SRM, DRM, and POM reforms, respectively, may present advantages and disadvantages related mainly to the reaction kinetics and thermality, coke deposition, and intrinsic catalyst regeneration.

In order to operate the methane conversion with the best performance, the objective is to combine the advantages of each of the reforms and reduce their disadvantages. Thus, steam reforming and carbon dioxide reforming, combining with other reforms, including autothermal reforming and partial oxidation, can provide possibilities for achieving significant performances.

In this context are included the dry reform with carbon dioxide (DRM), the autothermal reform of methane with oxygen and water (ATRM), and the combined reform of methane with three components with oxygen, water, and carbon dioxide (CRM) [5,6,7].

DRM is an endothermic process, requiring large amounts of energy, and providing a H₂/CO ratio at the level of one unit. ATR combines endothermic steam reforming with partial exothermic oxidation reactions leading to different H₂/CO ratios and has low energy requirements. The association of the dry reform with the stages of steam reform and the partial oxidation of methane constitutes low thermality CRM.

The dry methane reform was carried out employing different catalysts. However, efforts have been made to continue the effective use of nickel catalysts [8]. Thus, the production of the synthesis gas was carried out with Ni-catalysts, optimizing their performance by varying the parameters such as the type of support, promoters, and the synthesis of the catalyst. Employed to the DRM, Ni–Mo nanocatalysts resistant to coke and sintering were synthesized as a molybdenum-doped nickel with monocrystalline MgO [9]. Experiments on the autothermal reform of methane were carried out for operations with structured Si−SiC catalysts based on Ni–Rh, and mechanisms were formulated to be used in the modeling of the process [10]. Kinetic studies were performed varying the input concentration of methane, water, and carbon dioxide. Other theoretical studies were used as a basis for establishing a mechanism for ATR [11]. An adequate syngas (H₂/CO) was produced by performing the TRM with adjusted operating variables (GHSV, feed composition), providing a long reaction time under low coke deposition [12].

For the Fischer–Tropsch synthesis, CRM was performed using nickel supported on MgAl₂O₄ promoted with Zr, Ce, and Ce–Zr [13]. These systems were effective to prevent nickel oxidation and deactivation by carbon deposition. In order to intensify the production of a more suitable syngas for the employment of CRM, an alternative was recently proposed through the combination of steam and dry reformings [14].

Conventional operations of industrial natural gas reform processes use catalytic fixed bed reactors, which are subjected to high temperature conditions under different pressure ranges and involve mass transfer and thermal non-uniformity effects. Thus, this equipment operates in different kinetic regimes (chemical, intermediate, diffusive), presenting operational requirements that guarantee conversions and yields appropriate to industrial practice. The operation times count on the active life of the catalyst where its deactivation (coke, sintering, etc.) must be under constant observation.

Due to the effect on methane stability by the use of new catalysts and equipments improving its conversion, the development of different reform technologies are in perspective. In the present approach, based on proposals for mechanisms and quantifications of the kinetics of alternative reforms [5,6,7] conducted by our research group, their operations were simulated in a fixed bed reactor in the presence of a supported nickel catalyst on alumina. Data obtained in our reseach were applied as the basis for each of the processes, and included the mass balance formulations for the fixed bed reactor. The results were compared in terms of the evolution and concentration profiles of hydrogen and carbon monoxide produced, as well as the carbon content with potential for deposition and consequent deactivation of the catalyst. The formulated predictions were confirmed as effective for comparing the performances of the three methane reforms.

2. Materials and Methods

For the purpose of conducting a comparative assessment between alternative methane reform processes, other than steam reform, a numerical simulation of their operations in a fixed bed reactor was employed. For this, the following strategy was adopted: identification and characterization of the catalyst used in the kinetic evaluations of the reform processes; formulation of the mass balances of the components of each process for isothermal operations and inclusion of the expressions of apparent reaction rates; consideration of the gas flow with axial dispersion; consideration of the kinetics of reactions without limitations due to the effects of mass transfer; use of quantified reaction rates with experimental bases.

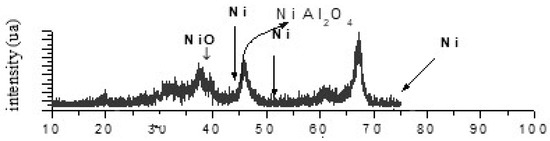

The nickel catalyst with an estimated metal content of 5.0% by weight was prepared from its salt precursor via the incipient wetting method involving impregnation, calcination, and reduction. Material characteristics were obtained by AAS (atomic absorption spectrometry), XRD (X-ray diffraction, XRD, CuK–alpha radiation), and textural analysis (BET–N₂ method).

For the kinetic operational evaluations of each process, a small-scale fixed bed reactor was used (2.0 g cat., <dp> = 50 µm) operating isothermally at 1023 K under atmospheric pressure ([5,6,7]). Different gas feed compositions were used according to the reforming process, and with each composition different flow rates were practiced, meaning variations in space time. Under each feed composition and applying different flow rates, a steady state was established for each one of them, observed by the constant composition of the reactor effluent product.

The experimental data obtained in the spatial time domain served to validate the proposed reaction rate expressions for each component in each process and allowed the estimation of the orders of magnitude of the kinetic parameters.

Predicting the methane behavior in the reforms in a fixed bed reactor on a pilot scale, mass balances were formulated for the components of each process, which included the validated reaction rates. The solutions of the balance equations led to the predictions of operation behavior through concentration profiles.

The simulations indicated by the experimental bases involved in them, characterized the comparisons of the alternative reforms in terms of the yields in hydrogen and carbon monoxide, and in relation to the production of carbon.

2.1. Numerical Method

The simulation of the operational behavior of the reform processes was carried out through the solutions of the partial differential equations formulated by the mass balances related to the chemical components involved. The method of solving the model of equations for methane reforms involved discretization in terms of time and space. Second-order spatial discretization was applied in relation to position, while a method based on numerical differentiation (numerical differentiation formulas, NDFs) provided solutions for concentration over time. The solutions of the model equations (Equation (18)), associated with the initial conditions and the boundary conditions (Equation (19)), were elaborated by applying the line method, recurring to the spatial and temporal discretization, where the space dependent variables (∆x = L/[n − 1]) and time (∆t = tn[nt − 1]⁻¹) were the object of simultaneous interactions. For each advance of the concentration in time, the calculation of the concentration profiles followed, continuing until all the pre-established points in time (nt) were covered. Numerical differentiation (NDFs) was employed to obtain the evolution based on the expansion of the various derivatives in the Taylor series, in terms of the central point. An algorithm was formulated serving the calculation by the line method. The discretization for evaluations in space is expressed as:

$$\frac{{\partial }^{2}C}{\partial x^2}=\frac{C_{i,k-1}-2C_{i,k}+C_{i,k+1}}{\Delta x^2}, \frac{\partial C}{\partial x}=\frac{C_{i,k}-C_{i,k-1}}{\Delta x}$$

(1)

To calculate the concentration over time,

$$C_i(t_0+\Delta t)=C_i(t_0)+\Delta t\frac{d{C}_i(t_0)}{dt}+\frac{1}{2}\Delta t^2\frac{d^2{C}_i(t_0)}{d{t}^2}+\frac{1}{6}\Delta t^3\frac{d^3{C}_i(t_0)}{d{t}^3}+\frac{1}{24}\Delta t^4\frac{d^4{C}_i(t_0)}{d{t}^4}$$

(2)

$$C_i(t_0-\Delta t)=C_i(t_0)-\Delta t\frac{d{C}_i(t_0)}{dt}+\frac{1}{2}\Delta t^2\frac{d^2{C}_i(t_0)}{d{t}^2}-\frac{1}{6}\Delta t^3\frac{d^3{C}_i(t_0)}{d{t}^3}+\frac{1}{24}\Delta t^4\frac{d^4{C}_i(t_0)}{d{t}^4}$$

(3)

$$\frac{d{C}_i(t_0)}{dt}=-\frac{3C_i(t_0-\Delta t)-3C_i(t_0+\Delta t)+\Delta t^3\frac{d^3{C}_i(t_0)}{d{t}^3}}{6\Delta t}$$

(4)

From the discretization of the system of differential equations, it was possible to obtain the evolution and the concentration profiles of the reagents and products present in the reaction medium of the reform processes in operation in the fixed bed reactor.

3. Kinetics and Reactor Modeling

The experimental bases for methane reform processes were developed in our previous studies [5,6,7] via a kinetic approach, referring to the DRM methane dry reform of methane [5], the ATRM autothermal reform of methane [6], and the CRM combined methane reform [7]. In sequence, the reform processes, their reaction steps (i) and the corresponding reaction rates (r_i) are described.

3.1. Kinetics of Reforming Processes

The kinetic behavior of the reform processes were previously evaluated from the experimental data of the proposed reaction rates formulated for the steps of each process. The expressions of these rates, containing the respective quantified parameters, were included in the mass balances of the fixed bed reactor used to simulate the operations of the methane reforms.

Dry methane reform (DRM) was described by the global stoichiometric equation CH₄ + CO₂ → 2CO + 2H₂, where the reaction steps are shown in

Table 1. Steps of the reaction for dry methane reform DRM [5].

Step (i)	Chemical Equation	Reaction
1	CH4 → C + 2H2	Methane cracking
2	C + CO2 → 2CO	Boudouard reverse reaction
3	CO2 + H2 → CO + H2O	Reverse water gas shift reaction

. In this model under the reaction conditions (>973 K, 1.0 bar), the cracking of methane (step 1) was considered to be catalytic, the reverse Boudouard reaction was assumed to be heterogeneous non-catalytic (step 2), practically irreversible, while the reverse reaction of water gas-shift (step 3) was qualified as homogeneous.

The evaluations carried out based on the steps evidenced experimentally, used the corresponding reaction rates thus expressed:

$$r_1=\frac{k_1{K}_{C{H}_4}{C}_{C{H}_4}}{1+K_{C{H}_4}{C}_{C{H}_4}}$$

(5)

$$r_2=k_3{C}_{C{O}_2}$$

(6)

$$r_3=k_3\left(C_{C{O}_2}{C}_{H_2}-\frac{C_{CO}{C}_{H_{2}O}}{K_{eq}}\right)$$

(7)

The methane autothermal reform (ATRM) occured in the presence of oxygen and water vapor involving steps that formed the steam reform and oxidation of methane. After partial oxidation with oxygen, the process was qualified as an autothermal reform due to the presence of water [15,16,17]. In the operating conditions practiced (1023 K, 1.0 bar), based on the proposed mechanisms [18], the steps listed in

Table 2. Reaction steps of the autothermal reform of methane ATRM [6].

Step (i)	Chemical Equation	Reaction
1	CH4 + 1/2O2 → CO + 2H2	Partial oxidation of methane
2	CH4 + 2H2O → CO2 + 4H2	Steam reforming of methane
3	CO2 + H2 → CO + H2O	Reverse reaction WGS
4	CH4 → C + 2H2	Methane cracking
5	C + CO2 → 2CO	Boudouard reverse reaction
6	C + O2 → CO2	Carbon gasification

were adopted and evaluated for the purposes of the process kinetics.

The corresponding reaction rates proposed and to be included in the reactor’s balance equations were expressed as:

$$r_1=\left[\frac{k_1{K}_{CH4}{C}_{CH4}{(K_{O2}{C}_{O2})}^2}{{(1+K_{CH4}{C}_{CH4}+{(K_{O2}{C}_{O2})}^2)}^2}\right]$$

(8)

$$r_2=\left[\frac{k_2(C_{CH4}{C}^2{}_{H2O})C_{H2}^{-3.5}}{{(1+K_{CH4}{C}_{CH4}+K_{H2O}{C}_{H2O}{C}_{H2}^{-1})}^2}\right]$$

(9)

$$r_3=k_3{C}_{H2}{C}_{CO2}$$

(10)

$$r_4=\left[\frac{k_4{K}_{CH4}{C}_{CH4}}{1+K_{CH4}{C}_{CH4}}\right]$$

(11)

$$r_5=k_5{C}_{CO2}^{}$$

(12)

$$r_6=k_6{C}_{O2}$$

(13)

Combined methane reform (CRM) is a process that combines dry and steam reforms and oxidation of methane [19,20,21]. A set of reaction steps based on experimental evidence was proposed [6].

Table 3. Reaction steps of the combined methane reform CRM [7].

Step (i)	Chemical Equation	Reaction
1	CH4 +5/8 O2 ↔ CO + 7/4 H2 + ¼H2O	Partial oxidation of methane
2	CH4 → C + 2H2	Methane cracking
3	CO → 1/2C + 1/2CO2	Boudouard reaction
4	CO2 + H2 → CO + H2O	Reverse reaction of WGS

lists the reaction steps.

The reaction rates of the combined reform of methane were expressed for the purpose of quantifying the process kinetics as:

$$r_1=\left[\frac{k_1{K}_{CH4}{C}_{CH4}{K}_{O2}{C}_{O2}}{{(1+K_{CH4}{C}_{CH4}+K_{O2}{C}_{O2})}^2}\right]$$

(14)

$$r_2=\left[\frac{k_2{K}_{CH4}{C}_{CH4}}{1+K_{CH4}{C}_{CH4}}\right]$$

(15)

$$r_3=k_3{C}_{CO}^2$$

(16)

$$r_4=k_4\left(C_{C{O}_2}{C}_{H_2}-\frac{C_{CO}{C}_{H_{2}O}}{K_{eq}}\right)$$

(17)

3.2. Modeling of the Fixed Bed Reactor

The model developed to represent the behavior of the process based on the mass balance equations of the components (J = CH₄, CO₂, CO, H₂, H₂O) was of the heterogeneous one-dimensional type, considering axial dispersion and mass transfer effects (Equation (18)).

$$\epsilon D_{ax}\frac{{\partial }^2{C}_J}{\partial Z^2}-u\frac{\partial C_J}{\partial Z}-(1-\epsilon ){\rho }_{cat}{R}_J=\epsilon \frac{\partial C_J}{\partial t}$$

(18)

The partial differential equations formulated for the components involved in the different reform processes admitted the initial condition: t = 0, ∀z C_J (0) = 0 and the following boundary conditions:

$$z=0, \forall t C_J(0^{-})=\frac{-D_{ax}}{U_0}\left(\frac{\partial C_J}{\partial Z}\right)+C_J(0^{+}); Z=L, \forall t \frac{\partial C_J}{\partial Z}=0$$

(19)

Dax is the axial dispersion coefficient of the gas mixture, estimated by the Ruthven correlation (1984) [22], proposed as D_ax = γ₁D_mJ + 2γ₂R_pu, with u = U₀ε⁻¹, and the tortuosity term, γ₁, is a function of the porosity of the bed (ε.). D_mJ is the molecular diffusion coefficient of each component and R_p the radius of the catalyst particle (d_p = 2R_p, particle diameter).

For the application of the proposed model, especially for the quantifications of the apparent reaction rates (r_Jap) terms, possibilities for the occurrence of different kinetic regimes of the catalyst’s functioning were considered, involving surface reaction (r_J) and the internal and external mass transfer of the catalyst. Thus, to express the apparent reaction rate, the effectiveness factor η_J (r_Jap = η_Jr_J) was quantified according to previous evaluations based on the Weisz criterion (modified Thiele’s modulus (Φ_J = [r_JapL²/De_JC_J], L = d_p/6)) and the fraction of external resistance (fe = r_JapL/k_meC_J) [23], where De_J and k_me are the internal effective diffusivity and the external mass transfer coefficient, respectively.

4. Results and Discussion

Based on our experimental kinetic operational data of each process ([5,6,7]) obtained as described in Section 2.1, the validate reaction rate expressions for each component in each process are presented including the kinetic parameters.

The evaluations of the alternative reform processes (DRM, ATRM, CRM) via simulations of their operations in the fixed bed reactor were initially developed for each of the reform processes in operation in the fixed bed reactor, representing the concentrations and the reactants and products by evolutions in different positions on the fixed bed and by profiles at different times of observation. In the sequence, oriented by the comparative evaluation, simulations were carried out on the same experimental bases, focusing on the concentrations of H₂ and CO products, which were represented and compared for the three reform processes.

The experimental data of the processes, which were given by the simulations through the evaluated reaction rates, came from the nickel catalyst (Ni(4.8 wt.%)/γ-Al₂O₃), which is characterized by the composition (XRD, Figure 1): γ-Al₂O₃ (2θ 19.4°, 31.9°, 37.6°, 39.5°, 45.9°, 60.9°, 67.0°), Ni (2θ 44.4°, 51.7°, 76.3°, 92.9°, 98.6°), NiO (2θ 37.2°, 62.9°, 43.30°, 62.9°, 75.4°, 79.4°, 95.0°), the spinel NiAl₂O₄ (2θ 19.1°, 31.4°, 45.0°, 59.7°) [24,25], by the textural characteristics (BET–N₂), specific surface area, Sp_γ-Al2O3 = 174 m² g⁻¹ and Sp _Ni/γ-Al2O3 = 165 m² g⁻¹), and pore volume, Vp_γ-Al2O3 = 0.71 cm³ g⁻¹ e Vp_Ni/γ-Al2O3 = 0.65 cm³ g⁻¹.

In the present development, using the mathematical models as described in Section 2. (Materials and Methods), the operational performance of the processes in the fixed bed reactor was simulated under the conditions listed in

Table 4. Characteristics of the catalytic system and operating conditions.

Cat. Bed	Operation	Parameters
Ni (4.87%wt.)/γ-Al2O3	Uo, 0.66 m s−1	Dax, 7.89 × 10−4 m2 s−1
ε, 0.67	1023 K
ρcat, 2300 kg m−3	1.0 bar
dpt, 2.0 × 10−3 m
wcat, 10.4 g

and

Table 5. Composition of the reactor feed in the operation of the reform processes.

Reactant	DRM (mol m−3)	ATRM (mol m−3)	CRM (mol m−3)
CH4	11.4	20	43
CO2	16.0	-	25
O2	-	4.0	1.7
H2O	-	12	12

.

In terms of hydrogen and carbon monoxide productions, comparisons were made taking into account the concentration evolutions (C_J vs. t) and concentration profiles (C_J vs. z). The formulated mass balance equation (Equation (18)) for the components of each reform, performed in the fixed bed reactor was expressed including the respective general reaction rate (R_J, Equation (20)), considering the rates of reaction steps (r_J) assumed in the kinetic evaluation of the processes.

$$R_J={\displaystyle \sum _J{r}_{Jap}}={\displaystyle \sum _J{\eta }_J{r}_J}$$

(20)

where r_J = ν_iJ r_i, and ν_iJ is the stoechiometric coefficient of the J component in reaction step i.

In the processes involving the direct or reverse reaction step of water gas shift, the equilibrium constant (K_eq) was employed as a function of the temperature expressed as follows:

$$K_{eq}=\exp (-6.31\times {10}^{-2}-1.86\times {10}^{-7}\ln (T)+2.11\times {10}^{-4}T+\frac{9.37\times {10}^{-1}}{T}-\frac{5.44\times {10}^{-6}(T-298.15)}{T^2}$$

(21)

For each reform process, the specific reaction rates evaluated under the operating conditions and the global reaction rates (R_J) for the CH₄, H₂ and CO components are listed in

Table 6. Reaction rates of the dry reform of methane. Conditions: Ni (4.82 wt.%)/γ-Al₂O₃,1023 K, 1.0 bar [5].

J	Consumption	Production	RJ
CH4	Step 1 k1 = 6.79 × 10−4 mol kg−1s−1	-	r1
CO	Step 2 k2 = 9.89 × 10−6 (m3)2 mol−1kg−1s−1	Step 1 k1 = 6.79 × 10−4 mol kg−1s−1	2r1 + r3
H2	-	Steps 2, 3 k2 = 9.89 × 10−6 (m3)2 mol−1kg−1s−1 k3 = 3.94 × 10−4 m3 kg−1s−1	2r2 + r3

,

Table 7. Reaction rates of the autothermal reform of methane. Conditions: Ni(4.8 wt.%)/γ-Al₂O₃, 1023 K, 1.0 bar [6].

J	Consumption	Production	RJ
CH4	Steps 1, 2, 4 k1 = 1.31 × 10−1 mol/kg s k2 = 8.30 × 10−2 (m3)2/kg s mol k4 = 1.04 × 10−1 m3/kg s	-	−r1 − r2 − r4
CO	Step 3 k3 = 4.11 × 10−5 m3/kg s	Steps 1, 5 k1 = 1.31 × 10−1 mol/kg.s k5 = 9.41 × 10−8 m3/kg s	2r1 − r3 + r5
H2	Step 3 k3 = 4.11 × 10−5 m3/kg s	Steps 1, 2, 3, 4 k1 = 1.31 × 10−1 mol/kg s k2 = 8.30 × 10−2 (m3)2/kg s mol k4 = 1.04 × 10−1 m3/kg s	2r1 + 4r2 − r3 + 2r4

and

Table 8. Reaction rates of the combined reform of methane. Conditions: Ni (4.82 wt.%)/γ-Al₂O₃, 1023 K, 1.0 bar [7].

J	Consumption	Production	RJ
CH4	Step 1 k1 = 6.79 × 10−4 mol kg−1s−1		−r1 − r2
CO	Step 2 k2 = 9.89 × 10−6 (m3)2 mol−1kg−1s−1	Step 1 k1 = 6.79 × 10−4 mol kg−1s−1	r1 + r3 + 2r5
H2	-	Steps 2, 3 k2 = 9.89 × 10−6 (m3)2 mol−1kg−1s−1 k3 = 3.94 × 10−4 m3 kg−1s−1	(7/4)r1 + 2r2 − r4

.

Under the practiced conditions and according to the reaction speeds of methane consumption, the criteria (phi′, fe) were calculated to quantify the evaluation of the kinetic regimes of mass transfer in relation to the reaction kinetics. Weisz’s modulus (modified Thiele’s modulus) phi′ and the external resistance fraction fe were estimated in the following ranges, phi′_CH4 = [0.22 – 8.35] × 10⁻⁴ close to zero, and fe_CH4 = [1.07 – 1.43] × 10⁻² less than 0.02. Thus, the low limitations imposed by mass transfer were characterized, so that η_J → 1, r_Jap ≈ r_J. Figure 2 shows the evolution of the component concentrations (CH₄, CO₂, H₂O, O₂, H₂, CO) of the alternative reforms DRM, ATRM, and CRM, characterized for the initial times of each operation.

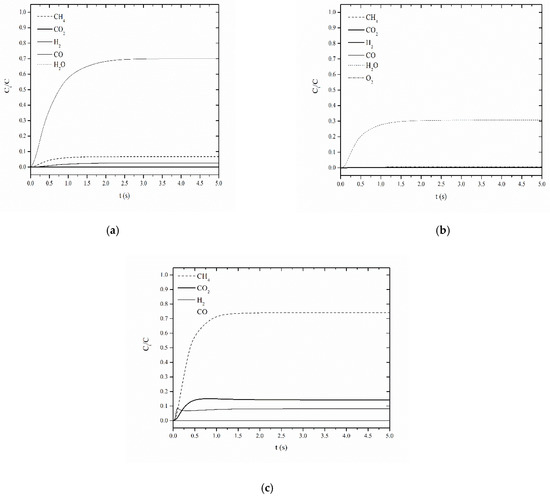

The concentration evolutions were more advanced for the feed reagents and then for product evolutions. In general, it was indicated for the three reforms that after approximately three seconds the steady state was reached. The short times for the operation to become stationary were due to the small bed size and the relatively high flow of gas flowing through it.

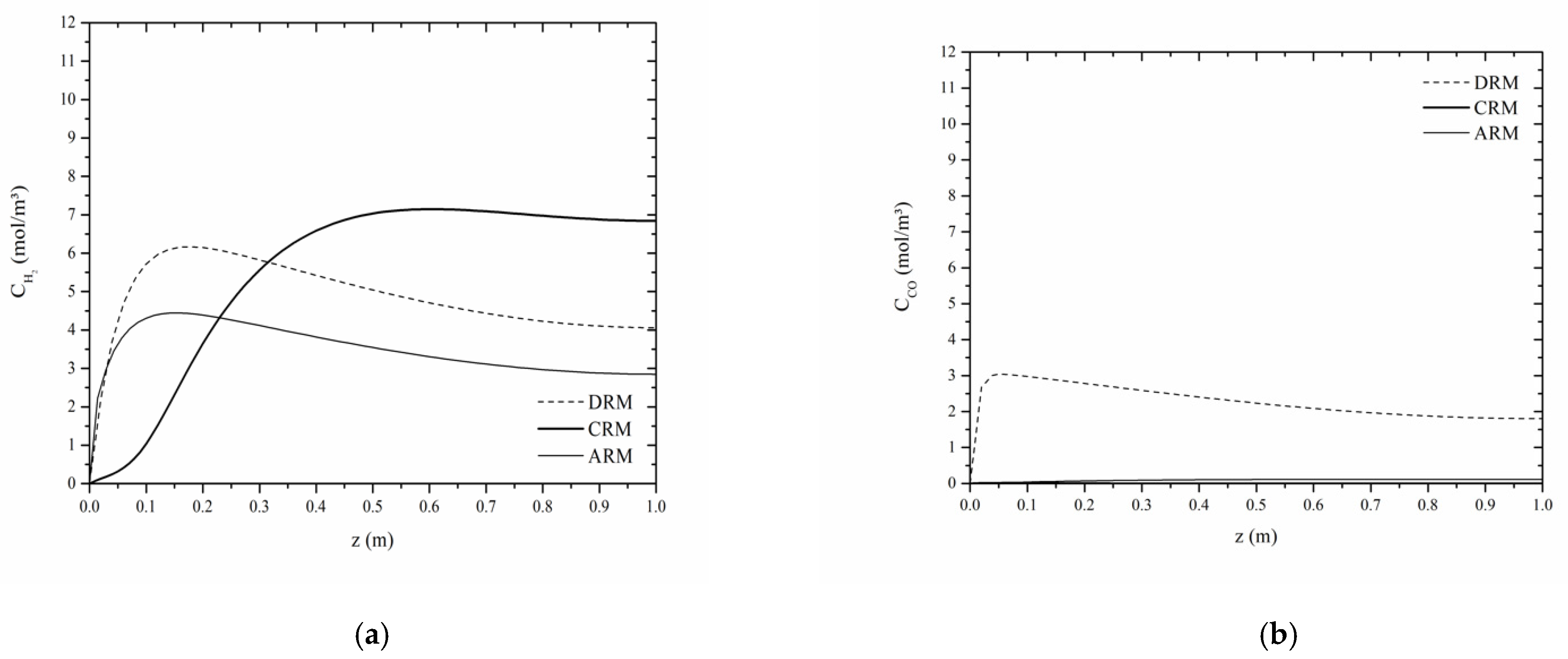

In Figure 3, for comparison purposes, the concentration profiles of hydrogen and carbon monoxide (C_H2, C_CO) in the three alternative reforms are represented. The hydrogen concentration profiles for the three reforms were similar and increasing, and showed levels that varied according to bed positions, from the inlet to the outlet of the reactor. In the positions close to the reactor inlet (0.1 L), the hydrogen production was higher in the DRM operation, with a concentration approximately 50% higher than that obtained in the ATRM, and much higher than the concentration achieved in the CRM. However, at the outlet of the reactor that represented the production of the system, the level of hydrogen concentration obtained in the operation of the CRM was 75% higher than that of the DRM, while in the ATRM the concentration was lower, about twice lower.

The alternative reforms evaluated according to the kinetics of their reaction steps (i = 1, 2, 3, etc.) that formed the mechanism of each process reflected the evolutionary characteristics of the productions. To express them, using the specific rates of the reaction steps related to each product (k_iJ), it was possible to calculate the kinetic selectivities defined as $S_J={{\displaystyle \sum }}_i{\nu }_{iJ}{k}_{iJ}{\left[{{\displaystyle \sum }}_i{k}_i\right]}^{-1}$, where J is a product present in the reaction step i, and ν_iJ its stoechimetric coefficient for comparative evaluation purposes, S_J is calculated for H₂ and CO according to Equations (22)–(24), denominated S_J-DRM, S_J-ATRM and S_J-CRM, respectively.

$$S_{H2-DRM}={10}^2{\left(2k_1-k_3\right)}_{DRM}{\left[{\displaystyle \sum _i{k}_{i-DRM}}\right]}^{-1}{ , }^{}{S}_{CO-DRM}={10}^2{\left(k_2+2k_3\right)}_{DRM}{\left[{\displaystyle \sum _i{k}_{i-DRM}}\right]}^{-1}$$

(22)

$$S_{H2-ATRM}={10}^2{\left(2k_1+4k_2-k_3+2k_4\right)}_{ATRM}{\left[{\displaystyle \sum _i{k}_{i-ATRM}}\right]}^{-1}{ , }^{}{S}_{CO-ATRM}={10}^2{\left(k_1-2k_3+k_4\right)}_{ATRM}{\left[{\displaystyle \sum _i{k}_{i-ATRM}}\right]}^{-1}$$

(23)

$$S_{H2-CRM}={10}^2{\left(7/4k_1+2k_2-k_4\right)}_{CRM}{\left[{\displaystyle \sum _i{k}_{i-CRM}}\right]}^{-1} , S_{CO-CRM}={10}^2{\left(k_1-2k_3+k_4\right)}_{CRM}{\left[{\displaystyle \sum _i{k}_{i-CRM}}\right]}^{-1}$$

(24)

In

Table 9. Kinetic selectivities of products (H₂, CO).

Reform	Kinetic Selectivities Sip (%, i = H2, CO)
Product	H2	CO
DRM	13.3	59.2
ATRM	31.6	28.3
CRM	86.1	5.1

, the orders of magnitude of the kinetic selectivities S_H2 and S_CO calculated through the Equations (22)–(24) are listed.

The kinetic selectivities indicated the following highlights for the CRM process, with S_H2-CRM = 86.1%, and for the DRM process, with S_CO-DRM = 59.2%, which characterized the process guidelines for the selective production of hydrogen and carbon monoxide. Hydrogen productions, considering the reaction steps for consumption in each reform process, had their specific rates in the following orders of magnitude: 10⁻⁴ DRM, 10⁻¹ ATRM, and 10² CRM, involving, respectively, one-step, three-step, and two-step reactions. Such checks showed compliance with the highest levels of evolution and profiles obtained in the operations of CRM. On the other hand, the production of carbon monoxide occurred more quickly and at higher levels in DRM operations, where the process produced it through two reaction steps.

The prospects for operating selective synthesis gas and/or hydrogen productions by methane reforming can be based on the simulations obtained for a fixed bed reactor that converge to the MRC choice. To be viable, this choice must resort to the use of a low-cost Ni catalyst, which operates in a chemical kinetic regime and with minimal loss of activity.

In this sense, it is intended to operate with a fixed bed reactor structured in monolith, when the Ni phase is dispersed on the walls of the multichannel system. Thus, the system will work in a chemical kinetic regime and with low pressure drops, allowing high processing flows.

5. Conclusions

Using experimental kinetic bases, predictions were made for methane reform operations, characterized as dry reform (DRM), autothermal reform (ATRM), and combined reform (CRM), constituting alternatives to steam reform of methane. Simulations were developed using a heterogeneous model for operations in a fixed bed reactor compacted with the catalyst Ni (4.8 wt.%)/γ-Al₂O₃ at 1023 K and 1.0 bar, considering the reactor fed with CH₄/CO₂ in DRM, CH₄/H₂O/O₂ in ATRM, and CH₄/CO₂/H₂O/O₂ in CRM.

The simulations of the operations were expressed in terms of the concentrations of the components as evolutions, in different positions of the fixed bed, and as profiles, for various times of observation. The predictions allow the following behaviors to be indicated for processes:

• The evolution of the concentration of reagents and products increase and are similar between them, with the reagents evolving in the reactor earlier, and the products afterwards;
• The reagent profiles decrease, while the product profiles increase, reaching higher levels of concentration in the outlet sector of the reactor;
• Carbon yields can be predicted at low levels, where the reaction steps involving its production are compensated by its consumption, according to interactions with O₂, CO₂ and H₂O.

The predicted behaviors serve as a basis for the comparative evaluations of the different reforms of methane, which were elaborated by analyzing the profiles of methane, hydrogen and carbon monoxide, establishing the following conclusions:

• Methane is always consumed in the operations of the three reforms; this consumption occurs at the CRM via three reaction steps, with a predominance of the order of magnitude 10² of the specific reaction rates compared to the orders of 10⁻⁴ and 10⁻¹ in the operations of the DRM and ARM reforms;
• Hydrogen production, considering the steps that involve consumption in each reform process, have their specific rates in the following orders of magnitude: 10⁻⁴ DRM, 10⁻¹ RAM, and 10² RCM, considering, respectively, one step, three steps, and two reaction steps;
• The production of carbon monoxide occurs more quickly and at higher levels in DRM operations where its conversion is not verified, and the referred production occurs through two reaction steps.

The comparisons according to the performance of the alternative reforms were made through the kinetic selectivities of H₂ and CO. Thus, in the course of operations in the fixed bed reactor, the CRM and DRM reforms highlight, respectively, a hydrogen selectivity of 86.1% and a carbon monoxide selectivity of 59.2%.
