Article

Determination of Sr–Nd–Pb Isotopic Ratios of Rock Reference Materials Using Column Separation Techniques and TIMS

by
Hui Je Jo
,
Hyo Min Lee
*,
Go-Eun Kim
,
Won Myung Choi
and
Taehoon Kim
Geoscience Platform Division, Korea Institute of Geoscience and Mineral Resources, 124 Gwahak-ro, Yuseong-gu, Daejeon 34132, Korea
*
Author to whom correspondence should be addressed.
Separations 2021, 8(11), 213; https://doi.org/10.3390/separations8110213
Submission received: 19 October 2021 / Revised: 3 November 2021 / Accepted: 8 November 2021 / Published: 10 November 2021
(This article belongs to the Special Issue Application of Mass Spectrometry Technology in Geochemistry)
Browse Figures
Versions Notes

Abstract

:
Thermal ionization mass spectrometry (TIMS) can provide highly accurate strontium (Sr), neodymium (Nd), and lead (Pb) isotope measurements for geological and environmental samples. Traces of these isotopes are useful for understanding crustal reworking and growth. In this study, we conducted a sequential separation of Sr, Nd, and Pb and subsequently measured the 87Sr/86Sr, 143Nd/144Nd, 206Pb/204Pb, 207Pb/204Pb, and 208Pb/204Pb ratios of 13 widely used rock certified reference materials (CRMs), namely BCR-2, BHVO-2, GSP-2, JG-1a, HISS-1, JLk-1, JSd-1, JSd-2, JSd-3, LKSD-1, MAG-1, SGR-1, and 4353A, using TIMS. In particular, we reported the first isotopic ratios of Sr, Nd, and Pb in 4353A, Sr and Nd in HISS-1 and SGR-1, and Sr in JLk-1, JSd-2, JSd-3, and LKSD-1. The Sr–Nd–Pb isotopic compositions of most in-house CRMs were indistinguishable from previously reported values, although the Sr and Pb isotopic ratios of GSP-2, JSd-2, JSd-3, and LKSD-1 obtained in different aliquots and/or batches varied slightly. Hence, these rock reference materials can be used for monitoring the sample accuracy and assessing the quality of Sr–Nd–Pb isotope analyses.

1. Introduction

In geosciences, radiogenic isotopic ratios, combined with geochemical and stable isotope data, are used to determine the ages of terrestrial and extraterrestrial rocks and to understand geological processes and environments [1]. The daughter isotopes strontium (Sr) and neodymium (Nd) are produced by the decay of rubidium (Rb) and samarium (Sm), respectively. Radiometric Rb–Sr and Sm–Nd dating techniques are commonly used for silicate rock analysis because of the relatively long half-lives of parent isotopes. Lead (Pb) has four naturally occurring isotopes: 208Pb, 207Pb, 206Pb, and 204Pb. The former three isotopes are produced by the decay of thorium (Th) and uranium (U). Pb isotope systems are characterized by different decay chains, linked to the half-lives of parent isotopes and relatively large U–Th–Pb fractionations during geological processes. As members of radiogenic isotope systems, Sr, Nd, and Pb are abundant in the continental crust [2]. Numerous studies have clearly demonstrated the potential of radiogenic isotopes in terrestrial rocks to interpret the evolution of continental crust, the role of crustal and mantle interactions, supercontinent and orogenic cycles, and magmatic flare-ups [3,4,5,6,7,8,9]. Thus, the precise determination of Sr–Nd–Pb isotopic ratios is essential to understanding crustal reworking and growth. In addition, the importance of isotope analyses has been noted in a wide range of fields, such as environmental science, biology, archaeology, food traceability, and forensic investigations [10,11,12,13,14,15,16]. In particular, Pb isotopes, sometimes combined with Sr and Nd isotopes, have been used to effectively trace environmental metal pollution sources. Atmospheric Pb emissions are divided into trace amounts of natural emissions due to rock and/or mineral weathering and volcanic activity and abundant anthropogenic emissions due to large-scale fossil fuel combustion, mining, and smelting, which cause serious environmental pollution. Because Pb emissions change natural Pb isotopic ratios, Pb isotope analysis is widely used to trace the origin and migration of pollutants in various fields, such as sediment [17,18,19,20,21], peat bog [22,23,24], ice and snow [25,26], soil [27,28], tree ring [29,30,31], and lichen [32,33,34,35,36].
In geochemical research, including age dating, crustal evolution, and tracing pollutant origins, isotopic ratios are measured using high-precision analysis equipment, such as thermal ionization mass spectrometry (TIMS) and multi-collector inductively coupled plasma mass spectrometry (MC-ICP-MS) equipped with a laser ablation system. Although advances in MC-ICP-MS have easily enabled measurements of Sr and Nd isotopic ratios, TIMS is the preferred method. The advantage of TIMS is that it produces lower and more consistent average instrumental mass fractionation (IMF), obtaining precise results using small amounts of samples and manually optimized evaporation and ionization of the elements of interest [37]. Isobaric (87Rb), monoatomic (86Kr+), polyatomic (48Ca40Ar+), and molecular interferences in TIMS are relatively small and simple compared to with MC-ICP-MS [38,39,40]. To achieve reproducible and reliable Sr–Nd–Pb isotope data using TIMS, external reference materials (e.g., NIST SRM 987, JNdi-1, and NIST SRM 981) and certified geological materials are used to correct IMF and monitor analytical conditions, and chemical treatments and column chemistry are performed under clean conditions. For accurate isotope measurement, the high-purity separation of each element of interest is fundamental to prevent the interference from other elements. Therefore, it is important to determine the optimal element separation conditions, such as eluent type and concentration, resin type and particle size, and to increase the recovery rate. Generally, rock powders of certified reference materials (CRMs), distributed by the United States Geological Survey (USGS), the Geological Survey of Japan (GSJ), and the International Atomic Energy Agency (IAEA), are widely used. However, differences in Sr isotopic compositions have been found between new reference materials and their original counterparts [41]. This is probably caused by sample heterogeneity and contamination during sample, chemical, and analytical processing.
In this study, we conducted a sequential separation of Sr, Nd, and Pb, subsequently measured several aliquots of rock reference materials, investigated the reproducibility of this method in Sr–Nd–Pb isotope analyses, and determined the Sr–Nd–Pb isotopic ratios of in-house CRMs using TIMS.

2. Materials and Methods

The whole-rock Sr–Nd–Pb isotopic compositions of 13 powdered rock CRMs were measured. Basalts (BCR-2 and BHVO-2), granodiorite (GSP-2), marine mud (MAG-1), and shale (SGR-1) were obtained from the USGS. Another granodiorite sample (JG-1a) was obtained from the GSJ. Stream (JSd-1, JSd-2, and JSd-3), lake (JLk-1 and LKSD-1), and marine (HISS-1) sediments were obtained from the GSJ, the Canadian Certified Reference Material Programme, and the National Research Council. Lastly, rocky flats soil (4353A) was obtained from the IAEA. The geochemical processing of the samples and the Sr–Nd–Pb isotope analyses were carried out in the TIMS laboratory at the Korea Institute of Geoscience and Mineral Resources (KIGAM) in Daejeon, South Korea. Sample digestion and column chemistry were performed under conditions above the threshold of class 1000. The Sr–Nd–Pb isotopes were measured using TIMS (TRITON Plus, Thermo Fisher Scientific, Waltham, MA, USA) at the KIGAM.

2.1. Reagents, Labware, and Chromatographic Materials

Ultra-pure Milli-Q water (Millipore, Molsheim, France) with a resistivity of 18.2 MΩ cm−1 was used in all experiments. All chemicals used in this study were commercial products from Merck (Kenilworth, NJ, USA) and ODLAB (Gyeonggi, South Korea) without any further purification. Ultra-pure acids, namely hydrochloric acid (HCl), nitric acid (HNO3), and hydrofluoric acid (HF), were used for sample digestion and column chemistry. Supra-pure HCl and perchloric acid (HClO4) were only used for washing vials and resins and sample decomposition, respectively. Acid digestion was performed in pre-cleaned 60 mL Savillex® screw-top Teflon perfluoroalkoxy (PFA) vessels (Eden Prairie, MN, USA). The element fractions were collected and dried in 7 and 15 mL PFA vials.
DOWEX® 50WX8 resin (hydrogen form, 100–200 mesh), manufactured by Merck, was reacted with cations and used to separate Pb, Sr, and rare earth elements (REEs). Ln resin, with a particle size of 100–150 μm and based on di-(2-ethylhexyl) orthophosphoric acid (HDEHP) in a pre-filter material (Eichrom Industries, Lyle, IL, USA), is commercially available and used for the purification of Nd. These resins must be pre-washed to remove impurities and organic components. After being cleaned three times with 6 M HCl and deionized water (DIW), the cationic and anionic exchange resins were poured into a self-designed quartz-glass column, which was 270 mm long with an inner diameter of 5 mm and a 30 mL reservoir (Figure 1). For the Pb purification, a 2 mL Poly-Prep® chromatography column (0.8 cm × 4 cm, a 10 mL reservoir; Bio-Rad, Hercules, CA, USA) and Eichrom extraction chromatographic Pb resin (100–150 μm) were used [42]. To remove impurities, the Pb resin was rinsed with 6 M HCl, 7 M HNO3, and DIW.

2.2. Sample Digestion

The modified HF–HNO3–HClO4–HCl digestion method from [43] was applied for the decomposition of the rock samples. Approximately 100–200 mg of rock powder were weighed into 60 mL PFA vessels, followed by the addition of concentrated HF and HNO3 (HF:HNO3 = 2:1). The samples containing the HF–HNO3 mixtures were sonicated in an ultrasonic bath for at least 15 min and heated on a hot plate at 160 °C for 2–3 days. The dissolved samples were dried overnight at 140 °C after the addition of 100–200 μL of concentrated HClO4 to decompose the fluorides. Subsequently, 1 mL of concentrated HCl was added. The samples were again heated overnight at 160 °C and then dried at 110 °C. The samples were dissolved in 2–4 mL of 6 M HCl to check any remaining particles. Upon complete dissolution, the rock samples were finally dissolved using 0.5 mL of 2.5 M HCl.

2.3. Sr–Nd–Pb Separation

Before TIMS analysis, samples must be purified through ion-exchange. Table 1 presented the modified separation conditions of Sr and Nd from [44,45]. Before loading the sample solutions, the column and resin were pre-cleaned twice with 4 mL of 2.5 M HCl. The 0.5 mL HCl solution obtained from the acid digestion was centrifuged at 13,000 rpm for 5 min and then transferred to a quartz-glass column packed with 4 mL of DOWEX® 50WX8 resin. The resin was subsequently washed with 0.5 mL of 2.5 M HCl, followed by 9.5 mL of 2.5 M HCl, to collect the Pb fraction. The resin was then rinsed with a further 13.5 mL of 2.5 M HCl to remove unnecessary matrix elements, particularly isobaric 87Rb. The Sr fraction was eluted with 5.5 mL of 2.5 M HCl. The resin was then rinsed with 2 mL of 2.5 M HCl, followed by 1 mL of 6 M HCl to elute REEs. Finally, the REEs fraction was collected in 10 mL of 6 M HCl. To separate Nd using the Ln resin method [45], a sample solution including REEs was prepared by keeping the samples in 0.2 mL of 0.25 M HCl. A quartz-glass column was pre-cleaned with 4 mL 0.25 M HCl and packed with 2 mL of Ln (HDEHP) resin, after which the sample solution was passed through the column. The residues were rinsed with 7.3–7.5 mL 0.25 M HCl, depending on the Nd concentration. Then, Nd was collected with 3.5–3.7 mL of 0.25 M HCl. Upon completing the exchange chromatography, the cationic resin was cleaned successively with 6 M HCl, DIW, and 2.5 M HCl, and the anionic exchange resin was cleaned successively with 6 M HCl and 0.25 M HCl. The Sr and Nd fractions were further purified using concentrated HNO3.
Generally, two rounds of element separation using hydrogen bromide (HBr) are required to perform TIMS Pb isotope analysis. However, despite high analytical reproducibility and low analytical error of this separation method, the pre-treatment process is time-consuming, and the required ultra-pure HBr is difficult to obtain commercially in South Korea. To solve this problem, we attempted to establish a simple and efficient method for separating Pb using HCl and Eichrom′s extraction chromatography Pb resin [42]. Before the Pb separation, 10.5 mL of the 2.5 M HCl solution collected from cation column chemistry were dried, followed by the addition of 0.5 mL of 2 M HCl. The column and the resin were pre-cleaned and conditioned using 6 M and 2 M HCl. The 0.5 mL HCl sample solution was transferred to a Poly-Prep® chromatography column packed with 0.4 mL of Pb resin. After washing with 4.5 mL of 2 M HCl, the Pb fraction was eluted with 2 mL of 8 M HCl. The column and resin were cleaned using 6 M HCl and DIW. The Pb sample was further purified using concentrated HNO3 and 0.1 M phosphoric acid (H3PO4). Detailed column conditions and procedures for Pb separation are described in [42].

2.4. TIMS Sr–Nd–Pb Isotope Analyses

Sr–Nd–Pb isotope measurements were conducted using a TRITON Plus TIMS instrument equipped with nine Faraday detectors and one ion counter. All Faraday cups with a 1011-Ω resistor were sequentially connected to all amplifiers to cancel the gain factor uncertainties by using amplifier rotation. Therefore, this technique can achieve low-ppm external reproducibility. Pre-degassed filaments with welded tantalum (Ta) were used for Sr isotope analysis, while rhenium (Re) ribbons (0.035 mm thick, 0.77 mm wide, and 99.98% pure; H. Cross Company) were used for Nd and Pb analyses. Raw Sr and Nd data were collected in multi-dynamic collection mode. The collector arrays are presented in Table 2.
During the Sr isotope analysis, the purified Sr sample, dissolved in 1 μL of DIW, was transferred onto a single Ta filament with 1 M H3PO4 to stimulate strong emission. The suitable ionization temperature for TIMS Sr measurements is 1350−1400 °C, depending on the sample. When the 88Sr ion beam intensity reached approximately 1 V in the Faraday cup, data acquisition was performed using the static multiple Faraday cup mode. Each run consisted of 10 blocks of 20 cycles each. The 87Sr/86Sr ratio was corrected for IMF and normalized by the 86Sr/88Sr ratio of 0.1194 using an exponential law. During the analytical period, the replicate analyses of NIST SRM 987 yielded an average 87Sr/86Sr ratio of 0.710268 ± 0.000003 (n = 10, 1 standard deviation (SD); Figure 2a and Table 3). This result agreed with a previously reported value within the error range [46].
During the Nd isotope analysis, the Nd fraction, dissolved in 1 μL of DIW, was transferred onto double-Re filaments with 0.1 M H3PO4. An ionization temperature of 1650−1700 °C is desirable for TIMS Nd measurements. Data were acquired using the static multiple Faraday cup mode with a mass 144Nd ion beam intensity of 1 V and a run consisting of 18 blocks of 10 cycles each. The 143Nd/144Nd ratio was normalized by a 146Nd/144Nd ratio of 0.7219 using an exponential law. The replicate analyses of JNdi-1 gave an average 143Nd/144Nd ratio of 0.512101 ± 0.000001 (n = 10, 1 SD), which is indistinguishable from previously reported values of 0.512070–0.512129 (Figure 2b and Table 3).
During the Pb isotope analysis, the Pb sample, dissolved in 1 μL of DIW, was transferred onto a single-Re filament with a silica gel and 0.1 M H3PO4. Depending on the silica gel, an ionization temperature of 1200−1250 °C is preferable for TIMS Pb measurements. Data were acquired using the static multiple Faraday cup mode, with a 208Pb ion beam intensity of approximately 3 V and a run consisting of 4 blocks of 10 cycles each. Unfortunately, internal calibration was not available for Pb analysis because only 204Pb was non-radiogenic among the four Pb isotopes. This can be corrected by using double spikes, but it is not widely used because it is difficult to obtain commercially in South Korea. Therefore, external calibration was applied to the mass fractionation generated during analysis by measuring the Pb isotopic ratios of NIST SRM 981. Replicate analyses of NIST SRM 981 yielded 206Pb/204Pb, 207Pb/204Pb, and 208Pb/204Pb ratios of 16.894 ± 0.002, 15.434 ± 0.002, and 36.518 ± 0.008 (n = 5, 1 SD), respectively, which are consistent with those reported in [47] (Figure 2c,d and Table 4). The total procedural blank levels of Sr, Nd, and Pb were below ca. 300, 50, and 200 pg, respectively.

3. Results and Discussion

In contrast to the basalt samples, the granodiorite (GSP-2 and JG-1a) and sedimentary (JLk-1, JSd-3, LKSD-1, MAG-1, SGR-1, and 4353A) samples had difficulties in completely decomposing with an acid mixture of HF–HNO3–HClO4–HCl. In most cases, a small amount of black particles remained. To compensate for the uncertainty in the geochemical and isotope data, complete recovery and sample homogeneity are required. However, it is difficult to completely recover trace elements in felsic and mafic rocks because of the presence of hard-to-digest minerals and co-precipitated insoluble fluoride [43,48]. Rock samples from outcrops are also easily contaminated and altered. Pretorius et al. [49] found that some granitoid samples show the poorer reproducibility of elemental concentrations because of the inhomogeneous distribution of elements. Fortunately, a Sr–Nd–Pb isotope equilibrium between the sample solution and suspended particles was mostly attained.
During the separation protocol, there were elution overlaps between Sr and Rb and between Nd and Ce (see Figure I–4 from [44] and Figure 4 from [45]), but no overlap was found between Sr, Nd, and Pb. Because of the peak overlapping and tailing, the Sr and Nd solutions had isobaric interferences such as 87Rb and 143(CeH)+ [38,39,40,50]. However, these Rb and Ce interferences were not ionized under the TIMS Sr and Nd measurement conditions. Therefore, this separation protocol is not suitable for the Sr–Nd isotope analysis of geological and environmental samples with high Rb and Ce concentrations using MC-ICP-MS. To determine whether the Pb separation method affects the isotopic ratio [42], Pb isotopic ratios were measured by separating NIST SRM 981 in the same way as the standard rock sample. The Pb isotopic ratios (206Pb/204Pb, 207Pb/204Pb, and 208Pb/204Pb) agreed with those without Pb separation within the error range. This means that the conditions of the experimental environment, including DIW, reagents, containers, and acid-resistant clean laboratory used for Pb separation experiments, are also suitable for Pb isotope analysis.
The Sr and Nd isotopic compositions of the 13 rock CRMs are shown in Table 5. To our knowledge, we have presented the first Sr isotope data for JSd-2, JSd-3, HISS-1, JLk-1, LKSD-1 SGR-1, and 4353A and the first Nd isotope data for HISS-1, SGR-1, and 4353A. All errors are given as 2σ standard errors (SE). Typically, the internal precision of every run of Sr and Nd isotope measurements was less than 20 ppm. The Sr and Nd isotopic compositions of the two basalt samples strongly agreed with the literature data given in the GeoReM database. The Sr and Nd isotopic ratios of BCR-2 measured in this study were 0.705022 ± 0.000011 (n = 5, 1 SD) and 0.512628 ± 0.000003 (n = 5, 1 SD), respectively. The Sr and Nd isotope analyses of BHVO-2 yielded a 87Sr/86Sr ratio of 0.703487 ± 0.000003 (n = 4, 1 SD) and a 143Nd/144Nd ratio of 0.512974 ± 0.000006 (n = 4, 1 SD). The different sample aliquots of GSP-2 showed small variations in 87Sr/86Sr ratios, ranging from 0.765019 to 0.765212 with an average of 0.765143 ± 0.00054 (n = 10, 1 SD). It is possible that this was caused by sample heterogeneity and/or incomplete recovery. By contrast, Nd isotopic compositions were considerably more homogeneous, with an average of 0.511359 ± 0.000003 (n = 10, 1 SD). Four Sr–Nd isotope measurements for JG-1a yielded the average 87Sr/86Sr and 143Nd/144Nd ratios of 0.710984 ± 0.000008 (1 SD) and 0.512372 ± 0.000004 (1 SD), respectively. The respective isotopic ratios of 87Sr/86Sr and 143Nd/144Nd obtained for HISS-1 were 0.712681 ± 0.000009 (2σ SE) and 0.511844 ± 0.000006 (2σ SE). Two Sr–Nd measurements of MAG-1 yielded an average 87Sr/86Sr ratio of 0.722747 ± 0.000023 (1 SD) and an average 143Nd/144Nd ratio of 0.512059 ± 0.000004 (1 SD), which are in line with the previously reported TIMS ratios within the error range [51]. The 87Sr/86Sr and 143Nd/144Nd ratios of the three stream sediments (JSd-1, JSd-2, and JSd-3) ranged from 0.705732 to 0.731407 and from 0.511970 to 0.512640, respectively. The respective Sr and Nd isotopic ratios of the two lake sediments (JLk-1 and LKSD-1) ranged from 0.709773 to 0.721863 and from 0.512134 to 0.512173. The results of the TIMS Nd measurements in stream and lake sediments were within the range reported in previous studies [51,52]. The 87Sr/86Sr and 143Nd/144Nd isotopic ratios of SGR-1 were 0.712139 ± 0.000011 (2σ SE) and 0.512003 ± 0.000005 (2σ SE), respectively. Lastly, seven Sr–Nd measurements for 4353A yielded average 87Sr/86Sr and 143Nd/144Nd ratios of 0.730442 ± 0.000017 (1 SD) and 0.511782 ± 0.000005 (1 SD), respectively. Although each sedimentary rock sample had slightly heterogeneous Sr isotopic compositions, their Nd isotopic compositions were relatively constant. The percent-relative SD of isotopic values measured across the various rock CRMs was less than ± 0.005% for the Nd isotope and ± 0.01% for the Sr isotope, although some Sr isotope results of GSP-2 and MAG-1 showed slightly higher SD (Figure 3).
Eight reference materials were selected to measure Pb isotopic compositions using TIMS, the results of which are shown in Table 6. The Pb isotopic compositions of 4353A are presented first. Six Pb analyses of GSP-2 yielded average 206Pb/204Pb, 207Pb/204Pb, and 208Pb/204Pb ratios of 17.595 ± 0.032 (1 SD), 15.508 ± 0.017 (1 SD), and 51.261 ± 0.377 (1 SD), respectively. The Pb isotopic ratios of JG-1a were as follows: 206Pb/204Pb ratio, 18.613 ± 0.008 (n = 2, 1 SD); 207Pb/204Pb ratio, 15.624 ± 0.001 (n = 2, 1 SD); and 208Pb/204Pb ratio, 38.782 ± 0.041 (n = 2, 1 SD). The Pb isotopic compositions measured in the two granodiorite samples agreed strongly with the published values given in the GeoReM database. The 206Pb/204Pb, 207Pb/204Pb, and 208Pb/204Pb ratios of MAG-1 and JSd-1 are as well in agreement with the previously reported values [51,52,54]. The averages of the 207Pb/204Pb and 208Pb/204Pb ratios obtained for JSd-2, JSd-3, and LKSD-1 in this study were slightly higher than those obtained from the MC-ICP-MS analysis [52]. In contrast to JSd-1 and JSd-2, JSd-3 and LKSD-1 were difficult to completely dissolve using the acid digestion method. Révillon and Hureau-Mazaudier [55] recommended the Parr bombs digestion method, using HClO4 and HF, for the complete decomposition of sediment samples. However, the geochemical results from [52] suggested that the inhomogeneous sample powder and a relatively large sample grain size could be attributed to the large bias of elemental and isotopic compositions. In the case of JG-1a, which has a granodiorite composition, the Pb isotopic ratios exhibited a broader range than those of Sr and Nd (Figure 3 and Figure 4) [56,57,58]. Five Pb analyses of 4353A yielded average 206Pb/204Pb, 207Pb/204Pb, and 208Pb/204Pb ratios of 19.094 ± 0.015 (1 SD), 15.681 ± 0.014 (1 SD), and 39.722 ± 0.053 (1 SD), respectively. Excluding some data from GSP-2 and JSd-2, the relative deviation of Pb isotopic ratios across all rock CRMs was less than ± 0.5% for 206Pb/204Pb and 207Pb/204Pb ratios, and ± 1% for 208Pb/204Pb ratios (Figure 4). Overall, the Sr–Nd–Pb isotopic compositions of rock CRMs obtained in this study using acid digestion, column chemistry, and TIMS analyses agree strongly with the literature (see the GeoReM online database, accessed 1 October 2021).

4. Conclusions

In this study, Sr–Nd–Pb isotopic compositions were measured in 13 geological reference materials, such as basalt, granodiorite, shale, and sediments (marine mud and soil) using TIMS at the KIGAM. Although some Sr and Pb isotopic compositions of CRMs (GSP-2, JSd-2, JSd-3, and LKSD-1) varied slightly, the Sr–Nd–Pb isotopic compositions of most reference materials corresponded well with previously reported values within the error range. Furthermore, we presented the first Sr–Nd–Pb isotopic ratios of several reference materials (JSd-2, JSd-3, HISS-1, JLk-1, LKSD-1, SGR-1, and 4353A). Therefore, these can be used as in-house reference materials to verify the performance of instruments and validate Sr, Nd, and Pb isotopes in unknown geological and environmental samples. The combination of sample treatments, separation methods, and TIMS measurements used in this study also achieved high internal precisions of less than 20 ppm for 87Sr/86Sr ratios and less than 10 ppm for 143Nd/144Nd ratios.

Author Contributions

Conceptualization, methodology, and investigation, H.J.J., H.M.L., and T.K.; resources, G.-E.K. and W.M.C.; data curation, H.J.J. and H.M.L.; writing—original draft preparation, H.J.J. and H.M.L.; writing—review and editing, H.J.J. and H.M.L.; visualization, H.J.J. and H.M.L.; funding acquisition, H.M.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants from the Korea Institute of Geoscience and Mineral Resources (GP2020-019).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available in a publicly accessible repository.

Acknowledgments

We thank Sanghee Park at the Korea Basic Science Institute for the help with the experimental setup of Pb separation. We also thank two anonymous reviewers for their help in improving the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Faure, G.; Mensing, T.A. Isotopes: Principles and Applications, 3rd ed.; John Wiley & Sons, Inc.: New York, NY, USA, 2005; p. 897. [Google Scholar]
  2. Rudnick, R.L.; Gao, S. Composition of the continental crust. In The Crust; Rudnick, R.L., Ed.; Elsevier: Amsterdam, The Netherlands, 2003; Volume 3, pp. 1–64. [Google Scholar]
  3. Dhuime, B.; Wuestefeld, A.; Hawkesworth, C.J. Emergence of modern continental crust about 3 billion years ago. Nat. Geosci. 2015, 8, 552–555. [Google Scholar] [CrossRef]
  4. Hawkesworth, C.J.; Cawood, P.A.; Dhuime, B.; Kemp, T.I.S. Earth’s Continental Lithosphere through Time. Annu. Rev. Earth Planet Sci. 2017, 45, 169–198. [Google Scholar] [CrossRef] [Green Version]
  5. Gao, S.; Rudnick, R.L.; Yuan, H.; Liu, X.; Liu, Y.; Xu, W.; Ling, W.; Ayers, J.; Wang, X.; Wang, Q. Recycling lower continental crust in the North China craton. Nature 2004, 432, 892–897. [Google Scholar] [CrossRef] [PubMed]
  6. Chauvel, C.; Lewin, E.; Carpentier, M.; Arndt, N.T.; Marini, J.C. Role of recycled oceanic basalt and sediment in generating the Hf–Nd mantle array. Nat. Geosci. 2008, 1, 64–67. [Google Scholar] [CrossRef]
  7. Spencer, C.J.; Murphy, J.B.; Kirkland, C.L.; Liu, Y.; Mitchell, R.N. A Palaeoproterozoic tectono-magmatic lull as a potential trigger for the supercontinent cycle. Nat. Geosci. 2018, 11, 97–101. [Google Scholar] [CrossRef]
  8. Chapman, J.B.; Ducea, M.N. The role of arc migration in Cordilleran orogenic cyclicity. Geology 2019, 47, 627–631. [Google Scholar] [CrossRef]
  9. Ducea, M.N.; Barton, M.D. Igniting flare-up events in Cordilleran arcs. Geology 2007, 35, 1047–1050. [Google Scholar] [CrossRef]
  10. Slovak, N.M.; Paytan, A. Application of Sr isotopes in archaeology. In Handbook of Environmental Isotope Geochemistry; Baskaran, M., Ed.; Springer: Berlin/Heidelberg, Gernmany, 2012; Volume 1, pp. 743–768. [Google Scholar]
  11. Font, L.; Jonker, G.; van Aalderen, P.A.; Schiltmans, E.F.; Davies, G.R. Provenancing of unidentified World War II casualties: Application of strontium and oxygen isotope analysis in tooth enamel. Sci. Justice 2015, 55, 10–17. [Google Scholar] [CrossRef]
  12. Coelho, I.; Castanheira, I.; Bordado, J.M.; Donard, O.; Silva, J.A.L. Recent developments and trends in the application of strontium and its isotopes in biological related fields. TrAC-Trends Anal. Chem. 2017, 90, 45–61. [Google Scholar] [CrossRef]
  13. Crowley, B.E.; Miller, J.H.; Bataille, C.P. Strontium isotopes (87Sr/86Sr) in terrestrial ecological and palaeoecological research: Empirical efforts and recent advances in continental-scale models. Biol. Rev. 2017, 92, 43–59. [Google Scholar] [CrossRef]
  14. Cheng, Y.; Zhang, R.; Li, T.; Zhang, F.; Russell, J.; Guan, M.; Han, Q.; Zhou, Y.; Xiao, X.; Wang, X. Spatial distributions and sources of heavy metals in sediments of the Changjiang Estuary and its adjacent coastal areas based on mercury, lead and strontium isotopic compositions. Catena 2019, 174, 154–163. [Google Scholar] [CrossRef]
  15. Nakano, T.; Yamashita, K.; Ando, A.; Kusaka, S.; Saitoh, Y. Geographic variation of Sr and S isotope ratios in bottled waters in Japan and sources of Sr and S. Sci. Total Environ. 2020, 704, 135449. [Google Scholar] [CrossRef] [PubMed]
  16. Lee, S.G.; Koh, D.C.; Ha, K.; Ko, K.S.; Lee, Y.S.; Jung, Y.Y.; Cheng, Z.; Chen, S.S. Geochemical Implication of Chemical Composition of Mineral Water (Bottled Water) Produced Near Mt. Baekdu (Changbai), Northeast China. Water 2021, 13, 2191. [Google Scholar] [CrossRef]
  17. Shirahata, H.; Ellias, R.W.; Patterson, C.C.; Koide, M. Chronological variations in concentrations and isotopic compositions of anthropogenic atmospheric lead in sediments of a remote subalpine pond. Geochim. Cosmochim. Acta 1980, 44, 149–162. [Google Scholar] [CrossRef]
  18. Elbaz-Poulichet, F.; Holliger, P.; Huang, W.W.; Martin, J.M. Lead cycling in estuaries, illustrated by the Gironde estuary, France. Nature 1984, 308, 409–411. [Google Scholar] [CrossRef]
  19. Farmer, J.G.; Eades, L.J.; Mackenzie, A.B.; Kirika, A.; Bailey-Watts, T.E. Stable lead isotope record of lead pollution in Loch Lomond sediments since 1630 AD. Environ. Sci. Technol. 1996, 30, 3080–3083. [Google Scholar] [CrossRef]
  20. Monna, F.; Dominik, J.; Loizeau, J.L.; Pardos, M.; Arpagaus, P. Origin and Evolution of Pb in Sediments of Lake Geneva (Switzerland-France). Establishing a Stable Pb Record. Environ. Sci. Technol. 1999, 33, 2850–2857. [Google Scholar] [CrossRef]
  21. Townsend, A.T.; Snape, I. The use of Pb isotope ratios determined by magnetic sector ICP-MS for tracing Pb pollution in marine sediments near Casey Station, East Antarctica. J. Anal. At. Spectrom. 2002, 17, 922–928. [Google Scholar] [CrossRef] [Green Version]
  22. Shotyk, W.; Weiss, D.J.; Appleby, P.G.; Cheburkin, A.K.; Frei, R.; Gloor, M.; Kramers, J.D.; Reese, S.; Van Der Knaap, W.O. History of atmospheric lead deposition since 12,370 14C yr BP from a peat bog, Jura Mountains, Switzerland. Science 1998, 281, 1635–1640. [Google Scholar] [CrossRef] [Green Version]
  23. Weiss, D.; Shotyk, W.; Appleby, P.G.; Kramers, J.D.; Cheburkin, A.K. Atmospheric Pb deposition since the industrial revolution recorded by five Swiss peat profiles: Enrichment factors, fluxes, isotopic composition, and sources. Environ. Sci. Technol. 1999, 33, 1340–1352. [Google Scholar] [CrossRef]
  24. Novák, M.; Emmanuel, S.; Vile, M.A.; Erel, Y.; Véron, A.; Paces, T.; Wieder, R.K.; Vanecek, M.; Stepanova, M.; Brizova, E.; et al. Origin of lead in eight Central European peat bogs determined from isotope ratios, strengths, and operation times of regional pollution sources. Environ. Sci. Technol. 2003, 37, 437–445. [Google Scholar] [CrossRef] [PubMed]
  25. Rosman, K.J.R.; Chisholm, W.; Boutron, C.F.; Candelone, J.P.; Goerlach, U. Isotopic evidence for the source of lead in Greenland snows since the late 1960s. Nature 1993, 362, 333–335. [Google Scholar] [CrossRef] [PubMed]
  26. Simonetti, A.; Gariépy, C.; Carignan, J. Pb and Sr isotopic compositions of snowpack from Québec, Canada: Inferences on the sources and deposition budgets of atmospheric heavy metals. Geochim. Cosmochim. Acta 2000, 64, 5–20. [Google Scholar] [CrossRef]
  27. Walraven, N.; van Os, B.J.H.; Klaver, G.T.; Baker, J.H.; Vriend, S.P. Trace element concentrations and stable lead isotopes in soils as tracers of lead pollution in Graft-De Rijp, The Netherlands. J. Geochem. Explor. 1997, 59, 47–58. [Google Scholar] [CrossRef]
  28. Hansmann, W.; Köppel, V. Lead-isotopes as tracers of pollutants in soils. Chem. Geol. 2000, 171, 123–144. [Google Scholar] [CrossRef]
  29. Marcantonio, F.; Flowers, G.; Thien, L.; Ellgaard, E. Lead isotopes in tree rings: Chronology of pollution in Bayou Trepagnier, Louisiana. Environ. Sci. Technol. 1998, 32, 2371–2376. [Google Scholar] [CrossRef]
  30. Watmough, S.A.; Hughes, R.J.; Hutchinson, T.C. 206Pb/207Pb Ratios in Tree Rings as Monitors of Environmental change. Environ. Sci. Technol. 1999, 33, 670–673. [Google Scholar] [CrossRef]
  31. Patrick, G.J.; Farmer, J.G. A stable lead isotopic investigation of the use of sycamore tree rings as a historical biomonitor of environmental lead contamination. Sci. Total Environ. 2006, 362, 278–291. [Google Scholar] [CrossRef]
  32. Carignan, J.; Gariépy, C. Isotopic composition of epiphytic lichens as a tracer of sources of atmospheric lead emissions in southern Québec, Canada. Geochim. Cosmochim. Acta 1995, 59, 4427–4433. [Google Scholar] [CrossRef]
  33. Monna, F.; Aiuppa, A.; Varrica, D.; Dongarra, G. Pb isotope composition in lichens and aerosols from eastern Sicily: Insights into the regional impact of volcanoes on the environment. Environ. Sci. Technol. 1999, 33, 2517–2523. [Google Scholar] [CrossRef]
  34. Doucet, F.J.; Carignan, J. Atmospheric Pb isotopic composition and trace metal concentration as revealed by epiphytic lichens: An investigation related to two altitudinal sections in Eastern France. Atmos. Environ. 2001, 35, 3681–3690. [Google Scholar] [CrossRef]
  35. Cloquet, C.; Carignan, J.; Libourel, G. Atmospheric pollutant dispersal around an urban area using trace metal concentrations and Pb isotopic compositions in epiphytic lichens. Atmos. Environ. 2006, 40, 574–587. [Google Scholar] [CrossRef]
  36. Kylander, M.E.; Weiss, D.J.; Jeffries, T.E.; Kober, B.; Dolgopolova, A.; Garcia-Sanchez, R.; Coles, B.J. A rapid and reliable method for Pb isotopic analysis of peat and lichens by laser ablation-quadrupole-inductively coupled plasma-mass spectrometry for biomonitoring and sample screening. Anal. Chim. Acta 2007, 582, 116–124. [Google Scholar] [CrossRef] [PubMed]
  37. Makishima, A. Thermal Ionization Mass Spectrometry (TIMS): Silicate Digestion, Separation, and Measurement; John Wiley & Sons, Inc: Weinheim, Germany, 2016; p. 339. [Google Scholar]
  38. Ehrlich, S.; Gavrieli, I.; Dor, L.B.; Halicz, L.J. Direct high-precision measurements of the 87Sr/86Sr isotope ratio in natural water, carbonates and related materials by multiple collector inductively coupled plasma mass spectrometry (MC-ICP-MS). J. Anal. At. Spectrom. 2001, 16, 1389–1392. [Google Scholar] [CrossRef]
  39. Yang, Y.H.; Wu, F.Y.; Xie, L.W.; Yang, J.H.; Zhang, Y.B. High-precision direct determination of the 87Sr/86Sr isotope ratio of bottled Sr-rich natural mineral drinking water using multiple collector inductively coupled plasma mass spectrometry. Spectrochim. Acta Part B 2011, 66, 656–660. [Google Scholar] [CrossRef]
  40. Li, C.F.; Guo, J.H.; Chu, Z.Y.; Feng, L.J.; Wang, X.C. Direct high-precision measurements of the 87Sr/86Sr isotope ratio in natural water without chemical separation using thermal ionization mass spectrometry equipped with 1012 Ω resistors. Anal. Chem. 2015, 87, 7426–7432. [Google Scholar] [CrossRef] [PubMed]
  41. Raczek, I.; Jochum, K.P.; Hofmann, A.W. Neodymium and strontium isotope data for USGS reference materials BCR-1, BCR-2, BHVO-1, BHVO-2, AGV-1, AGV-2, GSP-1, GSP-2 and eight MPI-DING reference glasses. Geostand. Geoanal. Res. 2003, 27, 173–179. [Google Scholar] [CrossRef]
  42. Lee, H.M.; Jo, H.J.; Kim, T.H. Lead isotope measurement of geological reference materials using thermal ionization mass spectrometry. Anal. Sci. Technol. 2020, 33, 245–251, (In Korean with English abstract). [Google Scholar]
  43. Yokoyama, T.; Makishima, A.; Nakamura, E. Evaluation of the coprecipitation of incompatible trace elements with fluoride during silicate rock dissolution by acid digestion. Chem. Geol. 1999, 157, 175–187. [Google Scholar] [CrossRef]
  44. Lee, H.M. Geochemical and isotopic characteristics of the Pirrit Hills granite in West Antarctica. Ph.D. Thesis, Kongju National University, South Korea, 2013. [Google Scholar]
  45. Lee, H.M.; Lee, S.G.; Tanaka, T. The effect of eluent concentration on the separation of Nd with Ln-resin method. J. Petrol. Soc. Korea 2015, 24, 365–371, (In Korean with English abstract). [Google Scholar] [CrossRef] [Green Version]
  46. Stein, M.; Starinsky, A.; Katz, A.; Glodstein, S.L.; Machlus, M.; Schramm, A. Strontium isotopic, chemical, and sedimentological evidence for the evolution of Lake Lisan and the Dead Sea. Geochim. Cosmochim. Acta 1997, 61, 3975–3992. [Google Scholar] [CrossRef]
  47. Yuan, H.; Yuan, W.; Cheng, C.; Liang, P.; Liu, X.; Dai, M.; Bao, Z.; Zong, C.; Chen, K.; Lai, S. Evaluation of lead isotope compositions of NIST NBS 981 measured by thermal ionization mass spectrometer and multiple-collector inductively coupled plasma mass spectrometer. Solid Earth Sci. 2016, 1, 74–78. [Google Scholar] [CrossRef] [Green Version]
  48. Tanaka, R.; Makishima, A.; Kitagawa, H.; Nakamura, E. Suppression of Zr, Nb, Hf and Ta coprecipitation in fluoride compounds for determination in Ca-rich materials. J. Anal. At. Spectrom. 2003, 18, 1458–1463. [Google Scholar] [CrossRef]
  49. Pretorius, W.; Weis, D.; Williams, G.; Hanano, D.; Kieffer, B.; Scoates, J. Complete trace elemental characterisation of granitoid (USGS G-2, GSP-2) reference materials by high resolution inductively coupled plasma-mass spectrometry. Geostand. Geoanal. Res. 2006, 30, 39–54. [Google Scholar] [CrossRef]
  50. Retzmann, A.; Zimmermann, T.; Pröfrock, D.; Prohaska, T.; Irrgeher, J. A fully automated simultaneous single-stage separation of Sr, Pb, and Nd using DGA Resin for the isotopic analysis of marine sediments. Anal. Bioanal. Chem. 2017, 409, 5463–5480. [Google Scholar] [CrossRef] [PubMed]
  51. Nath, B.N.; Makishima, A.; Noordmann, J.; Tanaka, R.; Nakamura, E. Comprehensive analysis for major, minor and trace element contents and Sr-Nd-Pb-Hf isotope ratios in sediment reference materials, JSd-1 and MAG-1. Geochem. J. 2009, 43, 207–216. [Google Scholar] [CrossRef] [Green Version]
  52. Chauvel, C.; Bureau, S.; Poggi, C. Comprehensive chemical and isotopic analyses of basalt and sediment reference materials. Geostand. Geoanal. Res. 2011, 35, 125–143. [Google Scholar] [CrossRef]
  53. Lee, H.M.; Lee, S.G.; Tanaka, T.; Lee, S.R. Determination of Sr, Nd isotope ratios of standard rock samples using thermal ionization mass spectrometer (TIMS). In Proceedings of the Fall Conference of the Korean Association of Analytical Sciences, JeJu, Korea, 20 November 2014. [Google Scholar]
  54. Klaver, M.; Djuly, T.; de Graaf, S.; Sakes, A.; Wijbrans, J.; Davies, G.; Vroon, P. Temporal and spatial variations in provenance of Eastern Mediterranean Sea: Implications for Aegean and Aeolian arc volcanism. Geochim. Cosmochim. Acta 2015, 153, 149–168. [Google Scholar] [CrossRef]
  55. Révillon, S.; Hureau-Mazaudier, D. Improvements in digestion protocols for trace element and isotope determinations in stream and lake sediment reference materials (JSd-1, JSd-2, JSd-3, JLk-1 and LKSD-1). Geoanal. Res. 2009, 33, 397–413. [Google Scholar] [CrossRef] [Green Version]
  56. Saitoh, Y.; Ishikawa, T.; Tanimizu, M.; Murayama, M.; Ujiie, Y.; Yamamoto, Y.; Ujiie, K.; Kanamatsu, T. Sr, Nd, and Pb isotope compositions of hemipelagic sediment in the Shikoku Basin: Implications for sediment transport by the Kuroshio and Philippine Sea plate motion in the late Cenozoic. Earth Planet. Sci. Lett. 2015, 421, 47–57. [Google Scholar] [CrossRef]
  57. Li, C.F.; Wang, X.C.; Guo, J.H.; Chu, Z.Y.; Feng, L.J. Rapid separation scheme of Sr, Nd, Pb, and Hf from a single rock digest using a tandem chromatography column prior to isotope ratio measurements by mass spectrometry. J. Anal. At. Spectrom. 2016, 31, 1150–1159. [Google Scholar] [CrossRef]
  58. Ackerman, L.; Magna, T.; Rapprich, V.; Upadhyay, D.; Krátký, O.; Čejková, B.; Erban, V.; Kochergina, Y.U.V.; Hrstka, T. Contrasting petrogenesis of spatially related carbonatites from Samalpatti and Sevattur, Tamil Nadu, India. Lithos 2017, 284–285, 257–275. [Google Scholar] [CrossRef]
Separations 08 00213 g001 550
Figure 1. Sequential Sr–Nd–Pb separation chemistry.
Figure 1. Sequential Sr–Nd–Pb separation chemistry.
Separations 08 00213 g001
Separations 08 00213 g002 550

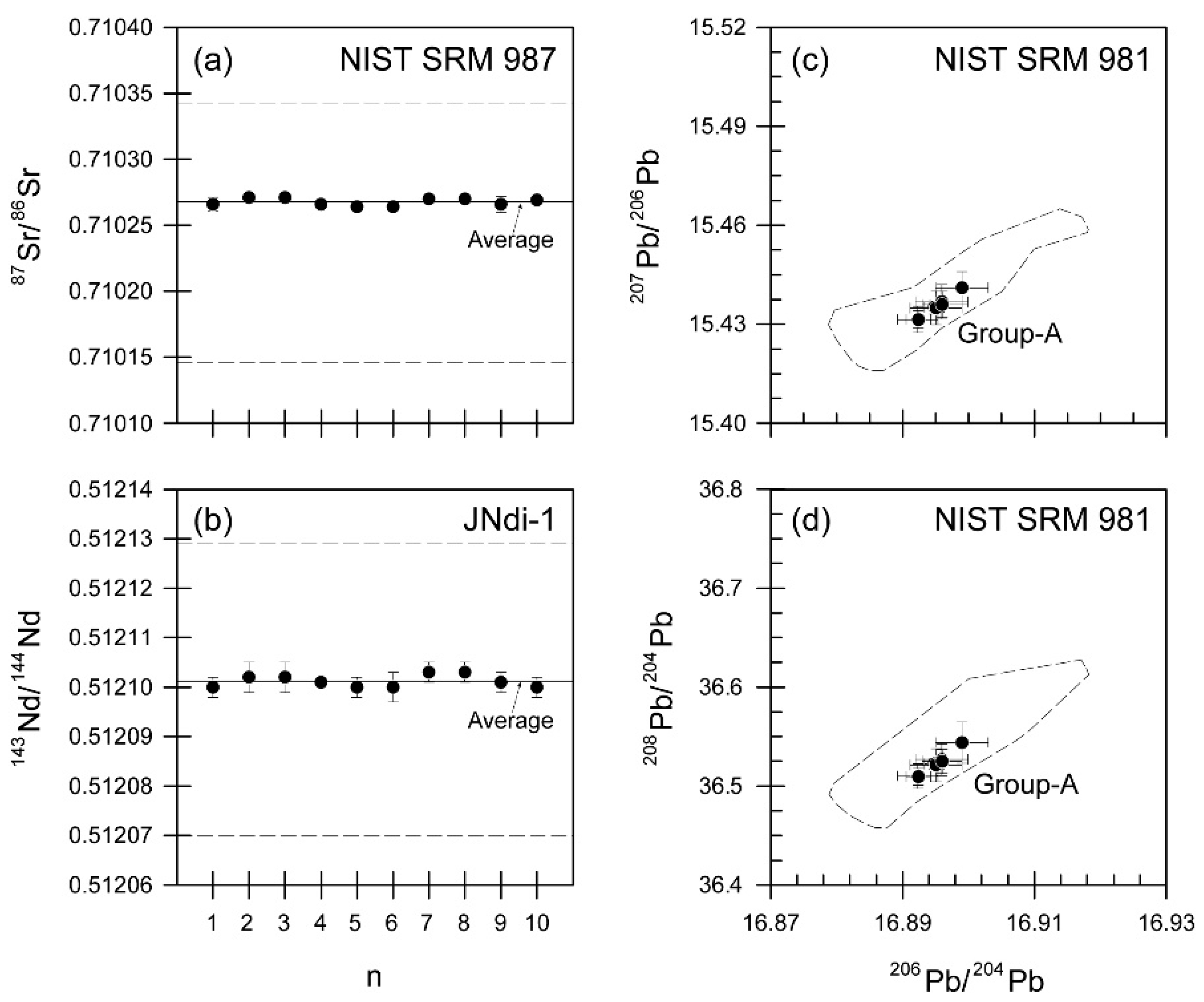

Figure 2. Replicate measurements of NIST SRM 987 for the Sr isotope (a) and JNdi-1 for Nd isotope (b) with the average (solid line) and the range (dashed lines) of the literature data from the GeoReM database (http://georem.mpch-mainz.gwdg.de/, accessed 1 October 2021). Plots of 207Pb/204Pb vs. 206Pb/204Pb ratios (c) and 208Pb/204Pb vs. 206Pb/204Pb ratios (d) showing the results obtained for NIST SRM 981 in a previous study [42] and this study. The dashed areas represent the range of Pb isotopic compositions of Group-A, obtained from [47].
Figure 2. Replicate measurements of NIST SRM 987 for the Sr isotope (a) and JNdi-1 for Nd isotope (b) with the average (solid line) and the range (dashed lines) of the literature data from the GeoReM database (http://georem.mpch-mainz.gwdg.de/, accessed 1 October 2021). Plots of 207Pb/204Pb vs. 206Pb/204Pb ratios (c) and 208Pb/204Pb vs. 206Pb/204Pb ratios (d) showing the results obtained for NIST SRM 981 in a previous study [42] and this study. The dashed areas represent the range of Pb isotopic compositions of Group-A, obtained from [47].
Separations 08 00213 g002
Separations 08 00213 g003 550

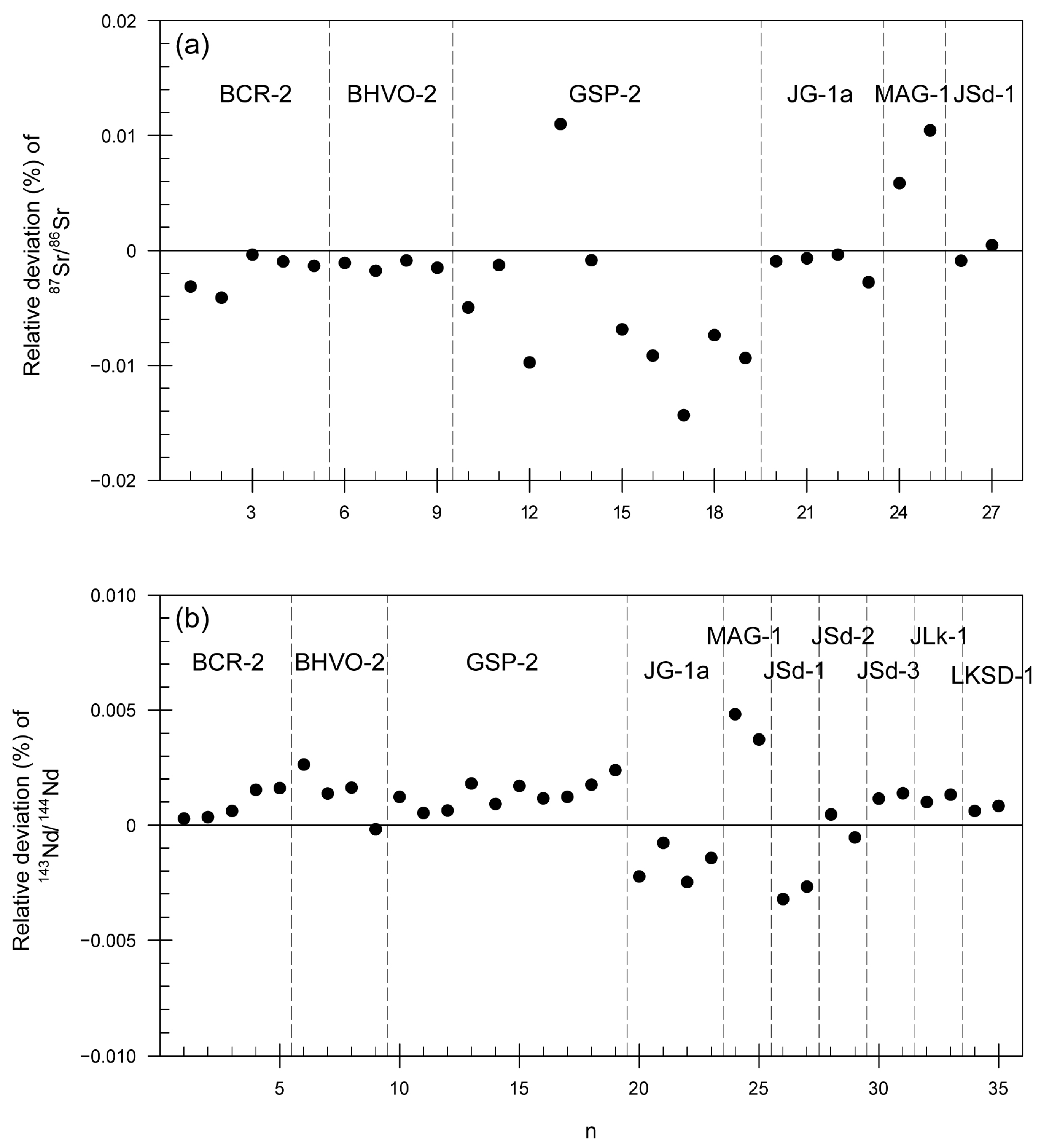

Figure 3. Comparison between the measured and certified ratios of 87Sr/86Sr (a) and 143Nd/144Nd (b) of rock CRMs. To calculate the average, the Sr and Nd isotopic compositions of CRMs were taken from the GeoReM database. Relative deviation (%) = (1—measured value/certified value) × 100%.
Figure 3. Comparison between the measured and certified ratios of 87Sr/86Sr (a) and 143Nd/144Nd (b) of rock CRMs. To calculate the average, the Sr and Nd isotopic compositions of CRMs were taken from the GeoReM database. Relative deviation (%) = (1—measured value/certified value) × 100%.
Separations 08 00213 g003
Separations 08 00213 g004 550

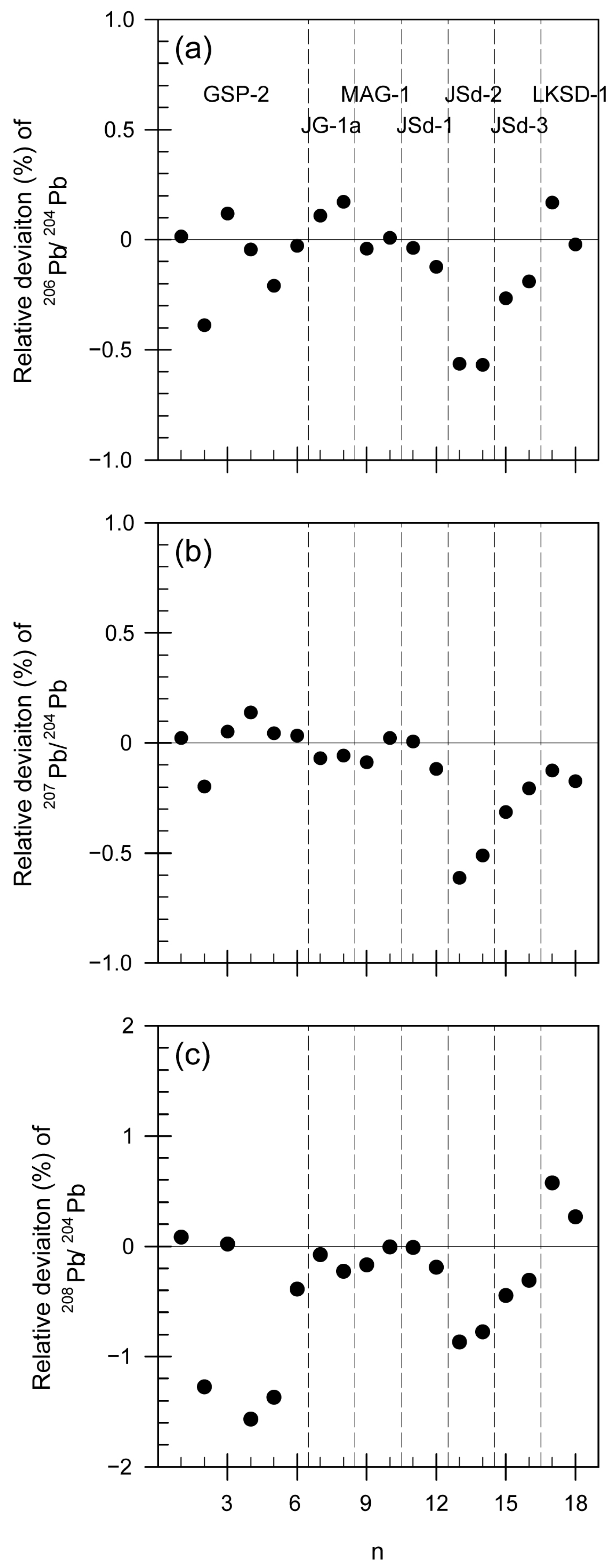

Figure 4. Comparison between the measured and certified 206Pb/204Pb (a), 207Pb/204Pb (b), and 208Pb/204Pb (c) ratios of rock CRMs. To calculate the average, the Pb isotopic compositions of CRMs were taken from the GeoReM database. Relative deviation (%) = (1—measured value/certified value) × 100%.

Figure 4. Comparison between the measured and certified 206Pb/204Pb (a), 207Pb/204Pb (b), and 208Pb/204Pb (c) ratios of rock CRMs. To calculate the average, the Pb isotopic compositions of CRMs were taken from the GeoReM database. Relative deviation (%) = (1—measured value/certified value) × 100%.
Separations 08 00213 g004
Table
Table 1. Sr–Nd purification procedures.
Table 1. Sr–Nd purification procedures.
StepEluting ReagentEluting Volume (mL)
Sr, Pb, and rare earth elements (REEs) separation (4 mL of DOWEX 50WX8 resin)
Cleaning column2.5 M HCl4 × 2
Loading sample 12.5 M HCl0.5
Rinsing 12.5 M HCl0.5
Eluting Pb2.5 M HCl9.5
Rinsing2.5 M HCl13.5
Eluting Sr2.5 M HCl5.5
Rinsing2.5 M HCl2
Rinsing6 M HCl1
Eluting REEs6 M HCl10
Cleaning column6 M HCl30
Cleaning columnDIW30
Cleaning column2.5 M HCl8
Nd separation (2 mL of Ln resin)
Cleaning column0.25 M HCl2 × 2
Loading sample0.25 M HCl0.2
Rinsing0.25 M HCl0.2
Rinsing0.25 M HCl7.5–7.3
Eluting Nd0.25 M HCl3.5–3.7
Cleaning column6 M HCl30
Cleaning column0.25 M HCl30
1 The solution was collected for Pb separation.
Table
Table 2. Cup configuration for Sr–Nd–Pb isotope analysis.
Table 2. Cup configuration for Sr–Nd–Pb isotope analysis.
ElementL4L3L2L1AxH1H2H3H4
Sr 84Sr85Rb86Sr87Sr88Sr
Nd140Ce142Nd143Nd144Nd145Nd146Nd147Sm148Nd150Nd
Pb 204Pb206Pb207Pb208Pb
Table
Table 3. TIMS results for NIST SRM 987 and JNdi-1.
Table 3. TIMS results for NIST SRM 987 and JNdi-1.
Sample
Number		87Sr/86Sr2σ SEn143Nd/144Nd2σ SEn
NIST SRM 987 JNdi-1
1907230.7102660.000005200.5121000.00000220
1911110.7102710.000003200.5121020.00000320
1912120.7102710.000003200.5121020.00000320
2005200.7102660.000003200.5121010.00000120
2007160.7102640.000003200.5121000.00000220
2008060.7102640.000003200.5121000.00000320
2104150.7102700.000003200.5121030.00000220
2105120.7102700.000003200.5121030.00000220
2106280.7102660.000006200.5121010.00000220
2109110.7102690.000003200.5121000.00000220
Table
Table 4. TIMS results for NIST SRM 981.
Table 4. TIMS results for NIST SRM 981.
Sample
Number		206Pb/204Pb2σ SE207Pb/204Pb2σ SE208Pb/204Pb2σ SEn
20071616.8950.00115.4350.00236.5220.0055
20080616.8950.00415.4350.00536.5210.0175
21051216.8920.00315.4310.00436.5100.01210
21062816.8920.00215.4310.00336.5100.00810
21091116.8960.00415.4370.00536.5270.01610
Table
Table 5. Sr–Nd isotopic compositions of rock CRMs.
Table 5. Sr–Nd isotopic compositions of rock CRMs.
Sample Number 187Sr/86Sr2σ SE143Nd/144Nd2σ SE
BCR-2 (xxx)
19110.7050300.0000110.5126310.000005
20050.7050370.0000100.5126310.000008
20070.7050110.0000110.5126290.000006
2008-10.7050150.0000090.5126240.000007
2008-20.7050180.0000090.5126240.000008
BHVO-2 (xxx)
1411 20.7034850.0000140.5129680.000012
19110.7034900.0000100.5129740.000007
20080.7034840.0000100.5129730.000007
21080.7034880.0000100.5129820.000007
GSP-2 (xxx)
19070.7651410.0000100.5113600.000006
19110.7651130.0000100.5113640.000006
19120.7651770.0000090.5113630.000006
20050.7650190.0000090.5113570.000006
20070.7651090.0000090.5113620.000006
20080.7651550.0000110.5113580.000008
GSP-2 (599)
20050.7651730.0000100.5113600.000007
20070.7652120.0000110.5113600.000006
GSP-2 (1273)
20050.7651590.0000090.5113570.000006
20070.7651740.0000100.5113540.000007
JG-1a (xxx)
19070.7109820.0000100.5123750.000007
19110.7109810.0000100.5123680.000007
20080.7109780.0000090.5123760.000007
2103-10.7109950.0000090.5123710.000006
HISS-1 (xxx)
21080.7126810.0000090.5118440.000006
MAG-1 (16)
21060.7227630.0000080.5120560.000006
21080.7227300.0000090.5120610.000007
JSd-1 (xxx)
21060.7057410.0000090.5125810.000005
21080.7057320.0000090.5125780.000007
JSd-2 (xxx)
21060.7069290.0000100.5126350.000007
21080.7069260.0000090.5126400.000007
JSd-3 (xxx)
21060.7314070.0000090.5119710.000007
21080.7312280.0000100.5119700.000007
21090.7312940.000018
JLk-1 (8)
21060.7218400.0000090.5121350.000006
21080.7218630.0000090.5121340.000006
LKSD-1 (1549)
21060.7097730.0000130.5121730.000008
21080.7098060.0000090.5121720.000007
21090.7097800.000009
SGR-1 (10)
21060.7121390.0000110.5120030.000005
4353A (xxx)
21060.7304600.0000080.5117760.000006
2108-10.7304150.0000100.5117930.000007
2108-20.7304600.0000100.5117800.000007
2109-10.7304510.0000080.5117830.000008
2109-20.7304380.0000100.5117800.000007
2109-30.7304320.0000100.5117780.000008
2109-40.7304390.0000100.5117840.000008
1 Batch or split numbers are in parentheses. xxx represents the sample without a batch number. 2 Sr–Nd isotope data are from [53].
Table
Table 6. Pb isotopic compositions of rock CRMs.
Table 6. Pb isotopic compositions of rock CRMs.
Sample Number206Pb/204Pb2σ SE207Pb/204Pb2σ SE208Pb/204Pb2σ SE
GSP-2 (xxx)
200517.5760.00115.5070.00150.8370.002
200717.6470.00115.5410.00151.5280.003
GSP-2 (599)
200517.5580.00115.5030.00150.8700.002
200717.5870.00115.4890.00151.6770.003
GSP-2 (1273)
200517.6160.00115.5040.00151.5760.003
200717.5840.00115.5060.00151.0780.003
JG-1a (xxx)
2103-118.6190.00115.6250.00138.7530.002
2103-218.6070.00215.6230.00238.8110.004
MAG-1 (16)
210618.8710.00215.6680.00238.8670.007
210918.8620.00215.6500.00238.8040.004
JSd-1 (xxx)
210618.4800.00315.6140.00238.5970.006
210918.4960.00215.6340.00238.6650.004
JSd-2 (xxx)
210618.1620.00315.6810.00338.4470.007
210918.1630.00915.6650.00838.4120.019
JSd-3 (xxx)
210618.4180.00315.6970.00339.0540.007
210918.4040.00315.6800.00238.9990.006
LKSD-1 (1549)
210618.3260.00115.6400.00138.1020.004
210918.3610.01115.6470.01038.2200.023
4353A (xxx)
210619.0890.00115.6810.00139.7210.003
2109-119.0700.00215.6580.00139.6380.003
2109-219.1050.00315.6930.00239.7680.006
2109-319.1060.00215.6940.00239.7640.005
2109-419.1000.00215.6790.00239.7170.004
