Methods Controlling Radiation Parameters of Mode-Locked All-Fiberized Lasers

by
Sergey Kobtsev
Division of Laser Physics and Innovative Technologies, Novosibirsk State University, 630090 Novosibirsk, Russia
Photonics 2024, 11(6), 552; https://doi.org/10.3390/photonics11060552
Submission received: 27 May 2024 / Revised: 10 June 2024 / Accepted: 11 June 2024 / Published: 12 June 2024
(This article belongs to the Section Lasers, Light Sources and Sensors)
Browse Figures
Versions Notes

Abstract

:
Fibre lasers are distinct in that their optical train is decoupled from the environment, especially in the all-fibre format. The attractive side of this decoupling is the simplicity of maintenance (no need to align the cavity or keep the optical elements clean), but the flip side of this is the difficulty one encounters when trying to control the output parameters. The components used in all-fibre laser cavities are usually different from those of free-space laser cavities and require new approaches to control. Essentially, an important task emerges, i.e., research and development of all-fibre laser components able to adjust their parameters (ideally by electronic means) in order to tune key parameters of the output radiation—wavelength, output power, and so on. The present review analyses the existing methods of control over the output parameters of mode-locked all-fibre lasers. It is further noted that a method relying on several independently pumped active media may be promising in this regard.

1. Introduction

Fibre lasers bring a new level of convenience, and especially when implemented in the “all-PM-fibre” configuration [1], because there is no need to align the laser cavity or to keep clean the intracavity optical elements, there is no need to keep the ambient conditions very stable, and so forth. The obverse of this convenience, however, is the quite limited possibility of control over the output parameters of fibre lasers, particularly mode-locked fibre lasers (MLFLs) and particularly those with electronic control. Here, the output parameters of MLFL mean the key parameters—wavelength, power, duration and repetition rate of pulses, and so forth. The isolation of the fibre laser cavity design needs further development of new means (compatible with fibre-optical technologies) to control over radiation properties, which differ substantially from the traditional ones used in volumetric lasers. Since there is now a significant lack of such new methods, many fibre lasers are controlled with elements that have been well established in volumetric lasers and are adapted to fibre-optical technology by adding fibre input/output and a dust-proof (or evacuated) small package. Application of such elements in fibre lasers can scarcely be a subject of special study, and this is rather a technical or technological topic. We are more interested in specifically fibre-based methods of laser radiation control, which are found only or predominantly in fibre lasers. The additional condition imposed on these methods is that they should allow electronic control. Such methods need more development because the users expect from the new methods the same level of flexibility and convenience that became habitual when working with free-space lasers with discreet elements.
If one considers only fibre lasers with such methods of control, very often MLFL offer the sole adjustment parameter, the radiation power of one pump source. Because it is not possible to use only one parameter for the flexible adjustment of several output radiation parameters (including pulse duration, energy/power, wavelength, and pulse chirp), several controllable parameters are needed.
This overview is focused on methods of radiation parameter control in MLFLs with emphasis on the possibilities of electronic control. It should be noted that in spite of a relatively long history of MLFL development, there are practically no publications systematically studying the means of control over MLFL output parameters specific to fibre optical technology. In part, this is because such means (aside from the already mentioned pump power adjustment) only started emerging in recent years (both compatible with the “all-PM-fibre” configuration and electronically controllable). Correspondingly, there also emerged the need for the thorough study of these means at the current level of advancement and possibilities.

2. Mechanical Action on Fibre

Geometrical deformation of the MLFL cavity fibre by bending, stretching, compression, or torsion may be an efficient way of control over the output parameters of MLFLs (Figure 1), especially if the mechanical action is aimed at a Bragg grating (BG) recorded in the fibre rather than the fibre itself. One demerit of mechanical methods, similar to controlling MLFL parameters by temperature variation, is relatively slow response and the need to make sure that the fibre deformation does not become irreversible.
The possibility of fibre bending as a method of controlling the parameters of radiation propagating inside is a well-known fact [2]. In particular, fibre-optical polarisation controllers (based on bending and torsion of fibre [3]) are used both for triggering passive mode-locked operation [4] and for control over the output parameters of MLFL 9 (see, for instance, [5,6]). Other problems of action of a three-paddle manual polarisation controller on fibre are that a particular setting is virtually irreproducible and, additionally, has a drift that necessitates periodic re-tuning. If we add to that the instability of ambient parameters (air temperature and pressure, and so on), it may be necessary to re-tune such a controller fairly frequently.
By bending, stretching, or compressing a fibre with a BG written into it, one can tune the radiation wavelength within broad ranges [7]. High sensitivity of parameters (such as wavelength, polarisation, mode composition, etc.) characterising radiation passing through the fibre BG to its response to mechanical action is also used in the opposite direction for sensing [8].
It must be noted here that the amount of mechanical force applied to the fibre is limited by the requirement that the resulting deformation be elastic, i.e., reversible. Additionally, instead of fibre or fibre BG, mechanical action may affect, for example, a cavity mirror [9]. The electrostatically actuated micro-mirror used in [9] played at the same time the role of the cavity Q-switch.

3. Temperature Adjustment of MLFL Cavity Elements

Temperature adjustment of MLFL cavity elements is an obvious approach to remotely modify their parameters (Figure 2). The advantage of this method is the possibility of electronic control of heating and temperature stabilisation, and the drawbacks are slow response time and the need of thermally isolated spaces around the controlled elements. Aside from this, controlling the temperature of MLFL elements does not allow adjustment of MLFL radiation parameters in a broad range. However, this last statement is not universal: temperature sensitivity of various MLFL elements may be different, and some of them may be controlled fairly efficiently. First, let us consider the temperature dependence of the properties of the cavity fibre itself. Its chromatic dispersion is the most temperature-sensitive parameter [10,11,12,13,14,15]. Within a modest range of temperature excursion (e.g., −10 °C to +50 °C), the chromatic dispersion variation is also relatively small and amounts to 0.0003–0.004 (ps/nm/km)/°C. Correspondingly, adjustment of the fibre temperature within a small range does not affect chromatic dispersion significantly. Nevertheless, the temperature adjustment range may be substantially expanded into positive values up to ~+1000 °C (silica glass does not suffer deformation up to 1000 °C) and into negative values down to ~−270 °C [16]. As the temperature excursion range was broadened (from 20 °C to 420 °C), the measured shift of the zero-dispersion wavelength was found to be 0.02 nm/°C [15]. Temperature dependence of chromatic dispersion and the zero-dispersion wavelength are fairly weak, and to change them significantly, the temperature must be varied in even broader ranges and/or longer fibre must be used.
It is more efficient to vary temperature of fibre Bragg gratings (FBG) [17]. Temperature expansion/contraction of the fibre material leads to the modification of the grating period, which, in its turn, shifts the spectral position of the grating reflection peak [17,18]. The typical magnitude of change lies within ~12–14 pm/°C (around 1.55 μm) [19,20]. This sensitivity may be improved significantly (by a factor of 4–5), for example, through the use of an external conduit with a larger coefficient of thermal expansion [21]. High thermal sensitivity of the transmission/reflection spectrum of FBG makes it possible not only to control the fibre laser parameters by adjustment of the FBG temperature, but also to use FBG as a high-precision temperature sensor [22].
It may be possible to use the temperature dependence of some physical effect (for instance, the Kerr effect [23]) not for controlling the laser’s output parameters, but for changing the temperature or electrical field strength.
Another element whose properties may significantly change over a temperature range is a saturable absorber. Temperature sensitivity of this element’s properties was demonstrated in [24].
Heating/cooling of other elements of a fibre laser cavity (WDM combiners/dividers, couplers, isolators, etc.) only affects weakly the optical properties of these elements. Therefore, in practice, their properties are not adjusted by temperature variation.
A certain temperature profile is necessary when the mechanism of nonlinear polarisation evolution is used [4] for mode locking of the laser radiation. The evolution of radiation polarisation within the fibre depends, among other things, upon the fibre temperature. Hence, for maintaining mode-locked operation of a fibre laser by this method, the fibre temperature must be stabilised.
Other ambient parameters (air humidity, pressure) affect comparatively weakly the properties of the fibre laser elements. However, specially designed elements (D-shaped/no-core fibre or micro-cavities, etc.) may be more sensitive to these parameters [25,26,27,28]. It should be mentioned that controlling fibre laser parameters by variation in humidity or ambient pressure is not practically used.
Furthermore, variation in magnetic or electric field for controlling output parameters of fibre lasers is also not used, even though fibre lasers are actually used as sensors of these fields [29,30]. Although, instead of the natural fibre sensitivity to these fields, that of the material (e.g., modulator piezo-element and so on) used in a quasi-fibre component (a volumetric element with fibre-optical input and output) may be relied upon [29].

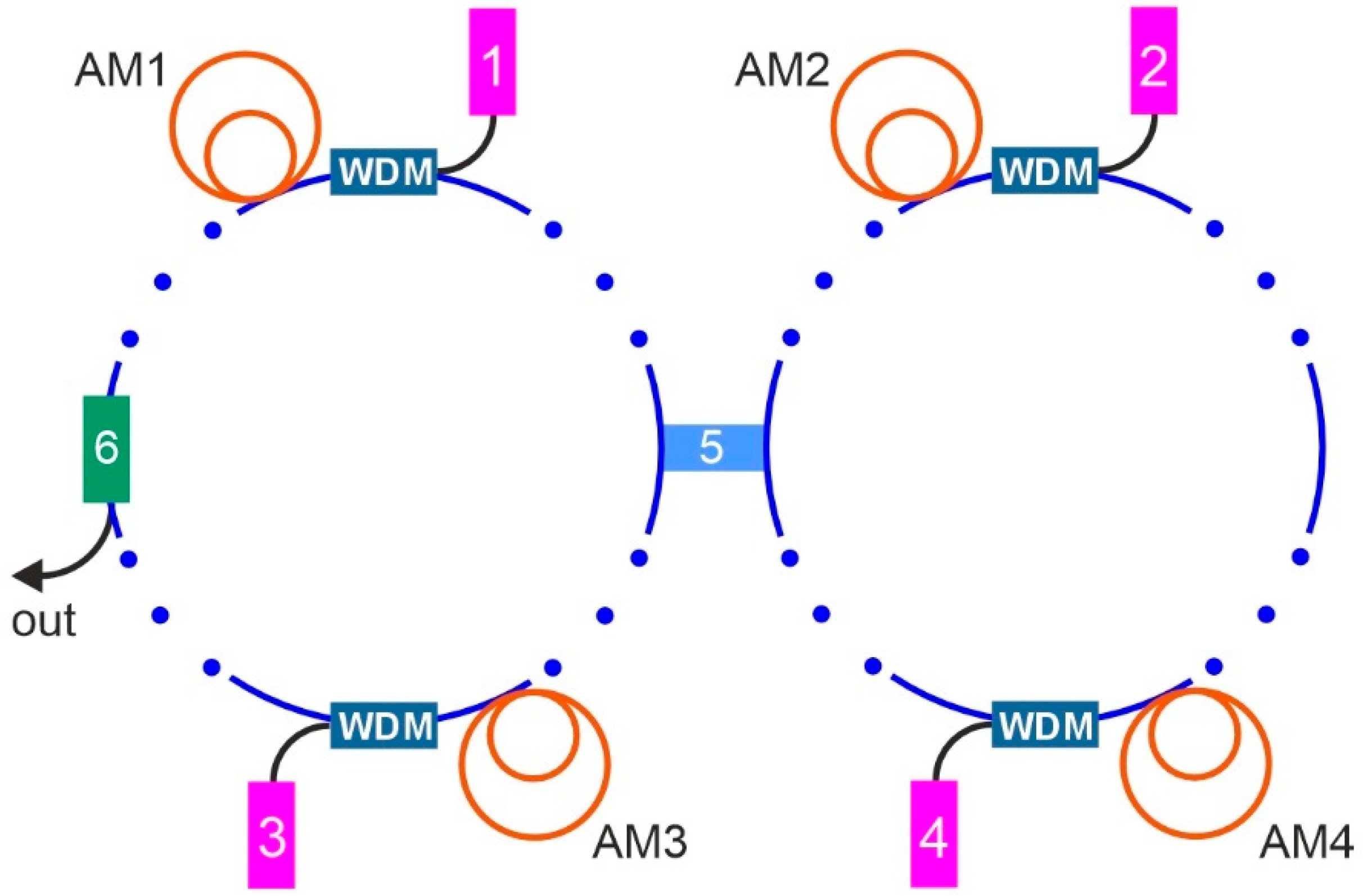

4. Controlling Output Parameters of MLFLs with Two Pump Sources

This method may be applicable when changing the ratio of the pump source powers may extend the range of control and/or the number of adjustable MLFL parameters or may even modify the MLFL generation regime. This method is attractive because the pump sources may be electronically controlled, particularly in the “all-fibre” configurations. For control, one may use relatively inexpensive semiconductor pump lasers, which may be well integrated into fibre-optical systems (fibre-coupled output and wavelength division multiplexing fibre device). Its application is especially effective in combination with artificial saturable absorbers [31] based on NOLM/NALM [32,33,34,35]. Placing the pump sources either in the same NALM ring or in different rings of the Figure 3 cavity (Figure 3) improves the flexibility of control over the output laser parameters. Adjustment of the ratio of the pump source input powers allows compiling a map of generation regimes [36] that usually spans three distinct regimes: continuous wave, noise-like pulse [37,38], and generation of conventional unstructured pulses. If the laser cavity uses polarisation-maintaining fibre and other elements, the generation map is reliably reproducible and can be used not only for the selection of the generation regime but also for choosing a regime with desirable pulse parameters. The main disadvantage of the method is that the desired pulse parameters may be only reachable at pumping powers below the maximum, thus reducing generation efficiency. This is why this method cannot be called perfect. Furthermore, it does not allow substantial tuning of the output wavelength. Among the advantages of this approach are compatibility with electronic control, all-fibre configurations, and the good scaling. Using a greater number of pump sources for controlling the output parameters of MLFLs may become a promising field of development because pumping laser diodes are relatively inexpensive and long-lasting.
It is important to emphasise that the smooth adjustment of the ratio between the powers of the two pumping sources does not always correspond to a continuous change in some radiation parameter. Nevertheless, this method allows in some way (either continuously or discretely) changing the parameters of the generated pulses.

5. Controlling the Output Radiation Parameters of MLFLs through Adjustment of the Material-Based Absorbers

Most implementations of material-based saturable absorbers in fibre lasers do not provide for any adjustment of any absorber property during operation. Such absorbers are secured between fibre ferrules or deposited on the end facet of the fibre/ferrule or interact with the cavity radiation through side-polished/tapered fibre. Normally, the conditions of interaction between the radiation and the absorber remain fixed, even though they may be altered manually (by variation in the fixation pressure). Nevertheless, certain types of material-based saturable absorbers allow the electrical control of their properties. Consequently, this makes them amenable to electronic control of the generated pulse parameters. In particular, such control is possible with semiconductor-based saturable absorber structures [39,40] (Figure 4).
It must be mentioned here that non-semiconductor material-based saturable absorbers may be also electrically controllable (such as graphene-based super-capacitors [41,42,43]), and not only in the free-space configuration, but also in the “all-fibre” format [44,45]. Moreover, the “all-fibre” format was demonstrated for variation in the properties of a graphene saturable absorber driven by separate optical radiation [46,47]. Essentially, this is equivalent to electronic control. A different approach was demonstrated in [48,49,50] where it is shown that an ionic liquid in contact with a carbon-nanotube saturable absorber (CNSA) may provide electrically driven control over the CNSA properties by the application of voltage to the ionic liquid.
As it is demonstrated, electronic control over the parameters of material-based saturable absorbers is possible. It does not, however, solve their major problem, a limited lifetime [51,52], which is substantially shorter than that of other components in a fibre laser cavity. Artificial saturable absorbers [53] deliver far better lifetime, but other methods are necessary to control their parameters.

6. Controlling Output Parameters of MLFLs with Modified Fibres

Another way of action on radiation propagating down the optical fibre core and fully contained inside is a modification of the fibre that allows the radiation in the core to partially spread outside (for example, as an evanescent field: D-shaped fibres [54] or tapered fibres [55,56]). Fibre modification technologies may include side polishing [57,58], chemical [59] or CO2 laser etching [60,61], femtosecond laser-induced water breakdown [62], or D-shaped fibre drawn from D-shaped preforms [63], or arc-shaped fibre [64], or others. Furthermore, for affecting the radiation in the fibre core, the corresponding modifications may be made directly to the core: it may be local or periodic changes in the core refractive index by UV radiation [65,66] or by ultra-short laser pulses [64], introduction directly into the core of some material through a microscopic hole in the fibre [67], or formation of a micro-cavity inside the fibre [68]. Additional optical action on the fibre core may be created by a V-groove [69].
Nevertheless, these methods, in their majority, do not allow dynamic control over output parameters of MLFLs; the interaction of radiation with introduced objects inside or close to the core is stationary. Rare exceptions are those objects (substances) whose properties may be changed by electric signals [48,49,50].

7. Controlling Output Parameters of MLFLs by Radiation Selection: Spectral, Amplitude, Polarisational, and Temporal

This type of control implies the presence in the cavity of an element that can be electrically driven to modify the spectrum, intensity, and polarisation of MLFL output. A recent review [6] analyses the methods of electronic control over the generation wavelength(s) of MLFL. Variation in the radiation intensity may be implemented both with the adjustment of the pump power fed into the active medium (relatively fast changes may be introduced if the active medium is a semiconductor optical amplifier [70]) or when using radiation intensity modulators [71] (electro-optical, acousto-optical, and others). It must be noted that there are a variety of approaches to adjusting the MLFL radiation intensity. Modulation of the radiation polarisation can also be implemented [72]. A more complex mechanism of electrically driven polarisation control using liquid crystal phase plates was demonstrated in [73]. Application of liquid crystals for the control of MLFL radiation polarisation is known for a long time [74]. However, this method is only feasible at relatively low output power of the laser that does not cause excessive heating or photo-darkening of the liquid crystal. Spatial light modulators [75] allow modification not only of the radiation spectrum, but also of the temporal properties of MLFL pulses. The drawback of this method is that it is not compatible with the “all-fibre” format. For the same reason and because electrical control is not possible, passive radiation intensity filters are rarely used [76]. Spectral filters with variable transmission bandwidth may have fibre-optical input and output [77], and also may be electrically driven [78], but they are used infrequently in their simple configurations (as a free-space component without electrical control [79]). A promising solution compatible with the “all-fibre” format and allowing electronic control was proposed in [80]: wavelength tuning in the range exceeding 40 nm around 1.5 µm was achieved by temperature adjustment from 23 °C to 100 °C of a system consisting of three Bragg gratings with different periods. For selection of MLFL radiation, some exotic components may be used, such as optofluidic chips [81] or micro-fibre [82].

8. Intellectual Technologies for Controlling MLFL Radiation Parameters

This approach relies on the assumption that it is possible to use machine learning methods (or artificial intelligence, neural networks, etc.) in order to make a fibre laser generate radiation with pre-determined (or improved) parameters. Here, the output data are radiation parameters (in the case of short pulses, it will be spectrum, duration, energy, and pulse structure), whereas the input data are the pumping radiation power and other control parameters described earlier. The objective of intellectual technologies is the identification of complex dependencies between the input and output data [83,84,85,86,87,88,89,90].
The general problem of this approach is that acquisition of the output parameters requires measurement equipment (auto-correlator, spectrum analyser, and so forth), whose cost may exceed that of the laser. Careful identification of radiation pulse parameters is also important because diverse generation regimes may exist in one and the same laser [91,92]. Comprehensive definition of the output data, as well as their sufficient amount, are the pre-requisite for the successful application of artificial intelligence algorithms. Only being able to detect the presence of a pulsed generation is not adequate for the unambiguous determination of the generated pulses. Consequently, the weak spot of the intellectual methods is the need of data about the output pulse parameters, which is acquired by complex equipment that effectively becomes an integral part of the laser. This poses additional onus on the users: they have to be proficient in working with this equipment.
Therefore, adoption of intellectual technologies entails extra costs and efforts. There is no clarity about the net advantage because fibre lasers with output parameters meeting the users’ expectations may be also implemented without intellectual technologies.
The main advantages and drawbacks of the methods discussed so far are summarised in Table 1.

9. Conclusions

The analysis of methods used to control the parameters of radiation pulses generated by mode-locked fibre lasers shows that one of the promising approaches may be control through laser diodes pumping independent active media (Figure 5). Such control may be electronic and relatively inexpensive to implement. Another advantage of this method is its compatibility with the “all-fibre” format. Two laser diodes independently pumping two active media may modify the parameters of an artificial saturable absorber [34] or the laser as a whole [36]. It has been already demonstrated that, in principle, broad-range tuning of the output wavelength of a mode-locked fibre laser is possible through adjustment of the pump radiation power [93]. This method may be further developed by implementation in a cavity with an artificial saturable absorber. Control over other radiation parameters (for instance, the radiation spectral width and so on) via local changes in intracavity gain so far has not been demonstrated. But controlling these parameters with additional laser diodes could further develop the idea of using several pumping laser diodes to control output parameters of a mode-locked fibre lasers and thus achieve a certain uniformity in doing this. One obvious advantage of this control method is the possibility of electronic implementation, relatively low cost, and compatibility with the “all-fibre” or “all-PM-fibre” format.

Funding

This research was funded by the Ministry of Science and Higher Education of the Russian Federation (FSUS-2020-0036).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated in this study are shown in the manuscript.

Conflicts of Interest

The author declares no conflicts of interest.

References

  1. Dong, L.; Samson, B. Fiber Lasers: Basics, Technology, and Applications; CRC Press: Boca Raton, FL, USA, 2016; p. 340. ISBN 978-1-49872-554-5. [Google Scholar] [CrossRef]
  2. Taylor, H. Bending effects in optical fibers. J. Lightwave Technol. 1984, 2, 617–628. [Google Scholar] [CrossRef]
  3. Collett, E. Polarized Light in Fiber Optics; SPIE Press: St Bellingham, WA, USA, 2003; p. 540. ISBN 978-0-81945-761-5. [Google Scholar]
  4. Matsas, V.; Newson, T.; Richardson, D.; Payne, D. Selfstarting passively mode-locked fibre ring soliton laser exploiting nonlinear polarisation rotation. Electron. Lett. 1992, 28, 1391–1393. [Google Scholar] [CrossRef]
  5. Li, Z.; Li, M.; Hou, X.; Du, L.; Xiao, L.; Wang, T.; Ma, W. Generation of mode-locked states of conventional solitons and bright-dark solitons in graphene mode-locked fiber laser. Front. Optoelectron. 2023, 16, 12. [Google Scholar] [CrossRef] [PubMed]
  6. Kobtsev, S. Methods of radiation wavelength tuning in short-pulsed fibre lasers. Photonics 2024, 11, 28. [Google Scholar] [CrossRef]
  7. Abdullina, S.R.; Babin, S.A.; Vlasov, A.A.; Kablukov, S.I. Tunable Bragg gratings for fiber lasers. Opt. Spectrosc. 2007, 103, 1007–1011. [Google Scholar] [CrossRef]
  8. Hisham, H.K. Fiber Bragg Grating Sensors: Development and Applications; CRC Press: Boca Raton, FL, USA, 2019; p. 136. [Google Scholar] [CrossRef]
  9. Crunteanu, A.; Bouyge, D.; Sabourdy, D.; Blondy, P.; Couderc, V.; Grossard, L.; Pioger, P.H.; Barthélemy, A. Deformable micro-electro-mechanical mirror integration in a fibre laser Q-switch system. J. Opt. A Pure Appl. Opt. 2006, 8, S347–S351. [Google Scholar] [CrossRef]
  10. Hatton, W.; Nishimura, M. Temperature dependence of chromatic dispersion in single mode fibers. J. Lightwave Technol. 1986, 4, 1552–1555. [Google Scholar] [CrossRef]
  11. Ghosh, G.; Endo, M.; Iwasaki, T. Temperature-dependent Sellmeier coefficients and chromatic dispersions for some optical fiber glasses. J. Lightwave Technol. 1994, 12, 1338–1342. [Google Scholar] [CrossRef]
  12. Kato, T.; Koyano, Y.; Nishimura, M. Temperature dependence of chromatic dispersion in various types of optical fiber. Opt. Lett. 2000, 25, 1156–1158. [Google Scholar] [CrossRef]
  13. Hamp, M.; Wright, J.; Hubbard, M.; Brimacombe, B. Investigation into the temperature dependence of chromatic dispersion in optical fiber. IEEE Photon Technol. Lett. 2002, 14, 1524–1526. [Google Scholar] [CrossRef]
  14. Andre, P.; Pinto, A.; Pinto, J. Effect of temperature on the single mode fibers chromatic dispersion. J. Microw. Optoelectron. 2004, 3, 64–70. [Google Scholar]
  15. Stepniewski, G.; Kasztelanic, R.; Pysz, D.; Stepien, R.; Klimczak, M.; Buczynski, R. Temperature sensitivity of chromatic dispersion in nonlinear silica and heavy metal oxide glass photonic crystal fibers. Opt. Mater. Express 2016, 6, 2689–2703. [Google Scholar] [CrossRef]
  16. Hashimoto, D.; Shimizu, K. Cooling an optical fiber to 4.5 K by indirect thermal contact with a liquid-helium flow and spectroscopic temperature measurements. Rev. Sci. Instrum. 2008, 79, 093102. [Google Scholar] [CrossRef]
  17. Kashyap, R. Fiber Bragg Gratings; Academic Press: Cambridge, MA, USA, 2010; p. 614. [Google Scholar] [CrossRef]
  18. Othonos, A.; Kalli, K.; Kohnke, G.E. Fiber Bragg Gratings: Fundamentals and Applications in Telecommunications and Sensing; Artech House: Norwood, MA, USA, 1999; p. 433. ISBN 978-0-89006-344-6. [Google Scholar]
  19. Rosman, N.A.; Rashidi, C.B.M.; Aljunid, S.A.; Endut, R. Temperature monitoring system using fiber Bragg grating (FBG) approach. In Proceedings of the 2nd International Conference on Applied Photonics and Electronics 2019 (Incape 2019), Putrajaya, Malaysia, 22 August 2019; Volume 34, p. 085122. [Google Scholar] [CrossRef]
  20. Khan, R.Y.M.; Ullah, R.; Faisal, M. Design and development of cost-effective fiber Bragg grating temperature sensor package. Meas. Sci. Technol. 2023, 34, 085122. [Google Scholar] [CrossRef]
  21. Lin, G.-C.; Wang, L.; Yang, C.; Shih, M.; Chuang, T. Thermal performance of metal-clad fiber Bragg grating sensors. IEEE Photon Technol. Lett. 1998, 10, 406–408. [Google Scholar] [CrossRef]
  22. Kersey, A.; Davis, M.; Patrick, H.; LeBlanc, M.; Koo, K.; Askins, C.; Putnam, M.; Friebele, E. Fiber grating sensors. J. Lightwave Technol. 1997, 15, 1442–1463. [Google Scholar] [CrossRef]
  23. Farries, M.; Rogers, A. Temperature dependence of the Kerr effect in a silica optical fibre. Electron. Lett. 1983, 19, 890–891. [Google Scholar] [CrossRef]
  24. Koo, J.; Kim, J.; Lee, J.H. A Thermo-optically controllable saturable absorber for switchable operation of a fiber laser between Q-switching and harmonic mode-locking. J. Lumin. 2019, 205, 30–36. [Google Scholar] [CrossRef]
  25. Shi, J.; Xu, W.; Xu, D.; Wang, Y.; Zhang, C.; Yan, C.; Yan, D.; He, Y.; Tang, L.; Zhang, W.; et al. Humidity sensor based on intracavity sensing of fiber ring laser. J. Phys. D Appl. Phys. 2017, 50, 425105. [Google Scholar] [CrossRef]
  26. Guo, K.; He, J.; Li, H.; Xu, X.; Du, B.; Liu, S.; Chen, Y.; Ma, D.; Xu, G.; Wang, Y. Polarimetric fiber laser for relative humidity sensing based on graphene oxide-coated D-shaped fiber and beat frequency demodulation. Opt. Express 2022, 30, 15998–16008. [Google Scholar] [CrossRef]
  27. Zhang, Z.; Gong, H.; Yu, C.; Ni, K.; Zhao, C. An optical fiber humidity sensor based on femtosecond laser micromachining Fabry-Perot cavity with composite film. Opt. Laser Technol. 2022, 150, 107949. [Google Scholar] [CrossRef]
  28. Wang, J.; Kou, Y.; Wang, A.; Hao, J.; Niu, C.; Jiang, H.; Meng, H.; Sun, W.; Geng, T. Lab-on-fiber: Laser-induced micro-cavity for a relative humidity measurement. Opt. Lett. 2023, 48, 5261–5264. [Google Scholar] [CrossRef] [PubMed]
  29. Deng, M.; Liu, D.; Huang, W.; Zhu, T. Highly-sensitive magnetic field sensor based on fiber ring laser. Opt. Express 2016, 24, 645–651. [Google Scholar] [CrossRef] [PubMed]
  30. Bohnert, K.M.; Nehring, J. Fiber-optic sensing of electric field components. Appl. Opt. 1988, 27, 4814–4818. [Google Scholar] [CrossRef] [PubMed]
  31. Kobtsev, S.M. Artificial saturable absorbers for ultrafast fibre lasers. Opt. Fiber Technol. 2022, 68, 102764. [Google Scholar] [CrossRef]
  32. Doran, N.J.; Wood, D. Nonlinear-optical loop mirror. Opt. Lett. 1988, 13, 56–58. [Google Scholar] [CrossRef]
  33. Fermann, M.E.; Haberl, F.; Hofer, M.; Hochreiter, H. Nonlinear amplifying loop mirror. Opt. Lett. 1990, 15, 752–754. [Google Scholar] [CrossRef] [PubMed]
  34. Kokhanovskiy, A.; Kobtsev, S.; Ivanenko, A.; Smirnov, S. Properties of artificial saturable absorbers based on NALM with two pumped active fibres. Laser Phys. Lett. 2018, 15, 125101. [Google Scholar] [CrossRef]
  35. Smirnov, S.; Kobtsev, S.; Ivanenko, A.; Kokhanovskiy, A.; Kemmer, A.; Gervaziev, M. Layout of NALM fiber laser with adjustable peak power of generated pulses. Opt. Lett. 2017, 42, 1732–1735. [Google Scholar] [CrossRef]
  36. Kokhanovskiy, A.; Kuprikov, E.; Ivanenko, A.; Kobtsev, S. All-polarisation-maintaining modified figure-of-8 fibre laser as a source of soliton molecules. Laser Phys. Lett. 2020, 17, 085101. [Google Scholar] [CrossRef]
  37. Horowitz, M.; Barad, Y.; Silberberg, Y. Noiselike pulses with a broadband spectrum generated from an erbium-doped fiber laser. Opt. Lett. 1997, 22, 799–801. [Google Scholar] [CrossRef] [PubMed]
  38. Kobtsev, S.; Kukarin, S.; Smirnov, S.; Turitsyn, S.; Latkin, A. Generation of double-scale femto/pico-second optical lumps in mode-locked fiber lasers. Opt. Express 2009, 17, 20707–20713. [Google Scholar] [CrossRef] [PubMed]
  39. Liu, X.; Rafailov, E.U.; Livshits, D.; Turchinovich, D. Quantum well saturable absorber mirror with electrical control of modulation depth. Appl. Phys. Lett. 2010, 97, 051103. [Google Scholar] [CrossRef]
  40. Zolotovskaya, S.A.; Butkus, M.; Häring, R.; Able, A.; Kaenders, W.; Krestnikov, I.L.; Livshits, D.A.; Rafailov, E.U. P-i-n junction quantum dot saturable absorber mirror: Electrical control of ultrafast dynamics. Opt. Express 2012, 20, 9038–9045. [Google Scholar] [CrossRef] [PubMed]
  41. Baylam, I.; Cizmeciyan, M.N.; Ozharar, S.; Polat, E.O.; Kocabas, C.; Sennaroglu, A. Femtosecond pulse generation with voltage-controlled graphene saturable absorber. Opt. Lett. 2014, 39, 5180–5183. [Google Scholar] [CrossRef] [PubMed]
  42. Baylam, I.; Balci, O.; Kakenov, N.; Kocabas, C.; Sennaroglu, A. Graphene-gold supercapacitor as a voltage controlled saturable absorber for femtosecond pulse generation. Opt. Lett. 2016, 41, 910–913. [Google Scholar] [CrossRef] [PubMed]
  43. Baylam, I.; Ozharar, S.; Kakenov, N.; Kocabas, C.; Sennaroglu, A. Femtosecond pulse generation from a Ti3+:sapphire laser near 800 nm with voltage reconfigurable graphene saturable absorbers. Opt. Lett. 2017, 42, 1404–1407. [Google Scholar] [CrossRef]
  44. Lee, E.J.; Choi, S.Y.; Jeong, H.; Park, N.H.; Yim, W.; Kim, M.H.; Park, J.-K.; Son, S.; Bae, S.; Kim, S.J.; et al. Active control of all-fibre graphene devices with electrical gating. Nat. Commun. 2015, 6, 6851. [Google Scholar] [CrossRef]
  45. Kovalchuk, O.; Uddin, S.; Lee, S.; Song, Y.-W. Graphene capacitor-based electrical switching of mode-locking in all-fiberized femtosecond lasers. ACS Appl. Mater. Interfaces 2020, 12, 54005–54011. [Google Scholar] [CrossRef]
  46. Gene, J.; Park, N.H.; Jeong, H.; Choi, S.Y.; Rotermund, F.; Yeom, D.-I.; Kim, B.Y. Optically controlled in-line graphene saturable absorber for the manipulation of pulsed fiber laser operation. Opt. Express 2016, 24, 21301–21307. [Google Scholar] [CrossRef]
  47. Wilson, M.; Aboites, V.; Pisarchik, A.; Pinto, V.; Barmenkov, Y. Controlling a laser output through an active saturable absorber. Rev. Mex. Fis. 2011, 57, 250–254. Available online: https://www.scielo.org.mx/pdf/rmf/v57n3/v57n3a13.pdf (accessed on 1 June 2024).
  48. Gladush, Y.; Mkrtchyan, A.; Nyushkov, B.; Ivanenko, A.; Kokhanovskiy, A.; Kobtsev, S.M.; Nasibulin, A.G. Electro-optically gated in-line saturable absorbers for fibre lasers. In Proceedings of the AOPC 2019: Advanced Laser Materials and Laser Technology, Beijing, China, 7–9 July 2019; Volume 11333, p. 113331M. [Google Scholar] [CrossRef]
  49. Gladush, Y.; Mkrtchyan, A.A.; Kopylova, D.S.; Ivanenko, A.; Nyushkov, B.; Kobtsev, S.; Kokhanovskiy, A.; Khegai, A.; Melkumov, M.; Burdanova, M.; et al. Ionic Liquid Gated Carbon Nanotube Saturable Absorber for Switchable Pulse Generation. Nano Lett. 2019, 19, 5836–5843. [Google Scholar] [CrossRef] [PubMed]
  50. Kokhanovskiy, A.; Kuprikov, E.; Serebrennikov, K.; Mkrtchyan, A.; Davletkhanov, A.; Bunkov, A.; Krasnikov, D.; Shashkov, M.; Nasibulin, A.; Gladush, Y. Multistability manipulation by reinforcement learning algorithm inside mode-locked fiber laser. Nanophotonics 2024, 13. [Google Scholar] [CrossRef]
  51. Viskontas, K.; Regelskis, K.; Rusteika, N. Slow and fast optical degradation of the SESAM for fiber laser mode-locking at 1 μm. Lith. J. Phys. 2014, 54, 127–135. [Google Scholar] [CrossRef]
  52. Ryu, S.Y.; Kim, K.-S.; Kim, J.; Kim, S. Degradation of optical properties of a film-type single-wall carbon nanotubes saturable absorber (SWNT-SA) with an Er-doped all-fiber laser. Opt. Express 2012, 20, 12966–12974. [Google Scholar] [CrossRef] [PubMed]
  53. Stępień, W.; Szczepanek, J.; Kardaś, T.; Nejbauer, M.; Radzewicz, C.; Stepanenko, Y. Study on parameters of fiber loop mirrors as artificial saturable absorbers. Proc. SPIE 2017, 10094, 100941N. [Google Scholar] [CrossRef]
  54. Tseng, S.-M.; Chen, C.-L. Side-polished fibers. Appl. Opt. 1992, 31, 3438–3447. [Google Scholar] [CrossRef] [PubMed]
  55. Lacroix, S.; Black, R.J.; Veilleux, C.; Lapierre, J. Tapered single-mode fibers: External refractive-index dependence. Appl. Opt. 1986, 25, 2468–2469. [Google Scholar] [CrossRef] [PubMed]
  56. Falciai, R.; Scheggi, A.M. Biconical fibers as mode and wavelength filters. Appl. Opt. 1989, 28, 1309–1311. [Google Scholar] [CrossRef]
  57. Tang, J.; Zhou, J.; Guan, J.; Long, S. Fabrication of side-polished single mode-multimode-single mode fiber and its characteristics of refractive index sensing. IEEE J. Sel. Top. Quantum Electron. 2017, 23, 238–245. [Google Scholar] [CrossRef]
  58. Zhuo, L.; Tang, J.; Zhu, W.; Zheng, H.; Guan, H.; Lu, H.; Chen, Y.; Luo, Y.; Zhang, J.; Zhong, Y.; et al. Side polished fiber: A versatile platform for compact fiber devices and sensors. Photon. Sens. 2023, 13, 230120. [Google Scholar] [CrossRef]
  59. Markos, D.J.; Ipson, B.L.; Smith, K.H.; Schultz, S.M.; Selfridge, R.H.; Monte, T.D.; Dyott, R.B.; Miller, G. Controlled core removal from a D-shaped optical fiber. Appl. Opt. 2003, 42, 7121–7125. [Google Scholar] [CrossRef]
  60. Fan, S.; Healy, N. CO2 laser-based side-polishing of silica optical fibers. Opt. Lett. 2020, 45, 4128–4131. [Google Scholar] [CrossRef]
  61. Hu, C.; Ma, X.; Wang, C.; Zhou, S.; Wu, H.; Sun, K. High-quality rapid fabrication method of a D-shaped optical fiber based on a CO2 laser. Opt. Mater. Express 2021, 11, 2025–2036. [Google Scholar] [CrossRef]
  62. Pan, Y.Z.; Liu, W.J.; Tian, Z.S.; Wang, S.S.; Su, X.H.; Liu, Y.; Qu, S.L. Fabrication of a D-shaped fiber by femtosecond laser-induced water breakdown for carbon nanotubes’ evanescent field interaction mode-locking of a double-clad fiber laser. Laser Phys. 2013, 23, 85110. [Google Scholar] [CrossRef]
  63. Stepniewski, G.; Filipkowski, A.; Pysz, D.; Warszewski, J.; Buczynski, R.; Smietana, M.; Kasztelanic, R. From D-shaped to D-shape optical fiber—A universal solution for sensing and biosensing applications: Drawn D-shape fiber and its sensing applications. Measurement 2023, 222, 113642. [Google Scholar] [CrossRef]
  64. Ahmad, H.; Sadafi, N.; Yusoff, N.; Samion, M.; Ismail, M.; Chong, W. Arc-shaped fiber coated with Ta2AlC MAX phase as mode-locker for pulse laser generation in thulium/holmium doped fiber laser. Optik 2022, 252, 168508. [Google Scholar] [CrossRef]
  65. Chen, K.; Herman, P.; Taylor, R.; Hnatovsky, C. Vacuum-ultraviolet laser-induced refractive-index change and birefringence in standard optical fibers. J. Lightwave Technol. 2003, 21, 1969–1977. [Google Scholar] [CrossRef]
  66. Meltz, G.; Morey, W.W.; Glenn, W.H. Formation of Bragg gratings in optical fibers by a transverse holographic method. Opt. Lett. 1989, 14, 823–825. [Google Scholar] [CrossRef]
  67. Salter, P.S.; Woolley, M.J.; Morris, S.M.; Booth, M.J.; Fells, J.A.J. Femtosecond fiber Bragg grating fabrication with adaptive optics aberration compensation. Opt. Lett. 2018, 43, 5993–5996. [Google Scholar] [CrossRef]
  68. Yang, F.; Wang, D.N.; Wang, Z.; Li, L.; Zhao, C.-L.; Xu, B.; Jin, S.; Cao, S.-Y.; Fang, Z.-J. Saturable absorber based on a single mode fiber—Graded index fiber—Single mode fiber structure with inner micro-cavity. Opt. Express 2018, 26, 927–934. [Google Scholar] [CrossRef]
  69. Hideur, A.; Chartier, T.; Özkul, C.; Sanchez, F. All-fiber tunable ytterbium-doped double-clad fiber ring laser. Opt. Lett. 2001, 26, 1054–1056. [Google Scholar] [CrossRef] [PubMed]
  70. Nyushkov, B.N.; Kobtsev, S.M.; Ivanenko, A.V.; Smirnov, S.V. Programmable optical waveform generation in a mode-locked gain-modulated SOA-fiber laser. J. Opt. Soc. Am. B 2019, 36, 3133–3138. [Google Scholar] [CrossRef]
  71. Nyushkov, B.N.; Ivanenko, A.V.; Smirnov, S.V. Control of the regimes and parameters of lasing in mode-locked fiber lasers: Opportunities and prospects. Optoelectron. Instrum. Data Process. 2021, 57, 569–583. [Google Scholar] [CrossRef]
  72. Lam, H.Q.; Li, R.; Lee, K.E.K.; Wong, V.; Shum, P. Mode locking of an erbium-doped fiber laser with intra-cavity polarization modulation. Opt. Commun. 2011, 284, 1026–1028. [Google Scholar] [CrossRef]
  73. Winters, D.G.; Backus, S.; Kirchner, M.S. Electronic control of nonlinear polarization evolution modelocking in a fiber laser. In Proceedings of the Nonlinear Optics, OSA Technical Digest (Online), Waikoloa, HI, USA, 17–21 July 2017; paper NTh3A.5. Optica Publishing Group: Washington, DC, USA, 2017. [Google Scholar] [CrossRef]
  74. Nikodem, M.; Krzempek, K.; Zygadlo, K.; Dudzik, G.; Waz, A.; Abramski, K.; Komorowska, K. Intracavity polarization control in mode-locked Er-doped fibre lasers using liquid crystals. Opto-Electronics Rev. 2014, 22, 113–117. [Google Scholar] [CrossRef]
  75. Iegorov, R.; Ilday, F. Spectral sculpting a fiber laser via intracavity spatial light modulator. In Proceedings of the 2015 European Conference on Lasers and Electro-Optics—European Quantum Electronics Conference, Munich, Germany, 21–25 June 2015; paper CJ_2_3. Optica Publishing Group: Washington, DC, USA, 2015. Available online: https://opg.optica.org/abstract.cfm?URI=CLEO_Europe-2015-CJ_2_3 (accessed on 1 June 2024).
  76. Reber, M.; Cooper, N.; Ta, U. Spectral shaping of an ultrafast ytterbium fiber laser via a passive intracavity optical filter: A simple and reliable route to sub-45 fs pulses. Appl. Opt. 2023, 62, 2195–2199. [Google Scholar] [CrossRef] [PubMed]
  77. Yun, S.H.; Hwang, I.K.; Kim, B.Y. All-fiber tunable filter and laser based on two-mode fiber. Opt. Lett. 1996, 21, 27–29. [Google Scholar] [CrossRef] [PubMed]
  78. Jeon, M.-Y.; Lee, H.K.; Kim, K.H.; Lee, E.-H.; Yun, S.H.; Kim, B.Y.; Koh, Y.W. An electronically wavelength-tunable mode-locked fiber laser using an all-fiber acoustooptic tunable filter. IEEE Photon. Technol. Lett. 1996, 8, 1618–1620. [Google Scholar] [CrossRef] [PubMed]
  79. Jiang, H.; Chu, H. Bandpass filter tuned wavelength-variable mode-locked PM fiber laser at 1.06 μm. Optik 2019, 188, 87–90. [Google Scholar] [CrossRef]
  80. Wang, J.; Zhang, A.P.; Shen, Y.H.; Tam, H.-Y.; Wai, P.K.A. Widely tunable mode-locked fiber laser using carbon nanotube and LPG W-shaped filter. Opt. Lett. 2015, 40, 4329–4332. [Google Scholar] [CrossRef] [PubMed]
  81. Wang, J.; Yao, M.; Hu, C.; Zhang, A.P.; Shen, Y.; Tam, H.-Y.; Wai, P.K.A. Optofluidic tunable mode-locked fiber laser using a long-period grating integrated microfluidic chip. Opt. Lett. 2017, 42, 1117–1120. [Google Scholar] [CrossRef] [PubMed]
  82. Dai, L.; Huang, Z.; Huang, Q.; Al Araimi, M.; Rozhin, A.; Liang, X.; Mou, C. Microfiber assisted bidirectional wavelength-locked ultrafast erbium-doped fiber laser. Opt. Laser Technol. 2023, 162, 109219. [Google Scholar] [CrossRef]
  83. Pu, G.; Yi, L.; Zhang, L.; Hu, W. Intelligent programmable mode-locked fiber laser with a human-like algorithm. Optica 2019, 6, 362–369. [Google Scholar] [CrossRef]
  84. Genty, G.; Salmela, L.; Dudley, J.M.; Brunner, D.; Kokhanovskiy, A.; Kobtsev, S.; Turitsyn, S.K. Machine learning and applications in ultrafast photonics. Nat. Photon. 2021, 15, 91–101. [Google Scholar] [CrossRef]
  85. Kobtsev, S.M. Perspective paper: Can machine learning become a universal method of laser photonics? Opt. Fiber Technol. 2021, 65, 102626. [Google Scholar] [CrossRef]
  86. Zheng, P.-Z.; Li, T.-J.; Xia, H.-D.; Feng, M.-J.; Liu, M.; Ye, B.-L.; Luo, A.-P.; Xu, W.-C.; Luo, Z.-C. Autosetting soliton pulsation in a fiber laser by an improved depth-first search algorithm. Opt. Express 2021, 29, 34684–34694. [Google Scholar] [CrossRef] [PubMed]
  87. Ma, Q.; Yu, H. Artificial Intelligence-Enabled Mode-Locked Fiber Laser: A Review. Nanomanuf. Metrol. 2023, 6, 36. [Google Scholar] [CrossRef]
  88. Freire, P.; Manuylovich, E.; Prilepsky, J.E.; Turitsyn, S.K. Artificial neural networks for photonic applications—From algorithms to implementation: Tutorial. Adv. Opt. Photon. 2023, 15, 739–834. [Google Scholar] [CrossRef]
  89. Yan, Q.; Tian, Y.; Zhang, T.; Lv, C.; Meng, F.; Jia, Z.; Qin, W.; Qin, G. Machine learning based automatic mode-locking of a dual-wavelength soliton fiber laser. Photonics 2024, 11, 47. [Google Scholar] [CrossRef]
  90. Jiang, X.; Zhang, M.; Song, Y.; Chen, H.; Huang, D.; Wang, D. Predicting ultrafast nonlinear dynamics in fiber optics by enhanced physics-informed neural network. J. Lightwave Technol. 2024, 42, 1381–1394. [Google Scholar] [CrossRef]
  91. Smirnov, S.; Kobtsev, S.; Kukarin, S.; Ivanenko, A. Three key regimes of single pulse generation per round trip of all-normal-dispersion fiber lasers mode-locked with nonlinear polarization rotation. Opt. Express 2012, 20, 27447–27453. [Google Scholar] [CrossRef]
  92. Kobtsev, S.; Smirnov, S.; Kukarin, S.; Turitsyn, S. Mode-locked fiber lasers with significant variability of generation regimes. Opt. Fiber Technol. 2014, 20, 615–620. [Google Scholar] [CrossRef]
  93. Ye, G.; Liu, B.; Dai, M.; Ma, Y.; Shirahata, T.; Yamashita, S.; Set, S.Y. Pump-power-controlled L-band wavelength-tunable mode-locked fiber laser utilizing nonlinear polarization evolution in all-polarization-maintaining fibers. Opt. Lett. 2024, 49, 2433–2436. [Google Scholar] [CrossRef]
Photonics 11 00552 g001

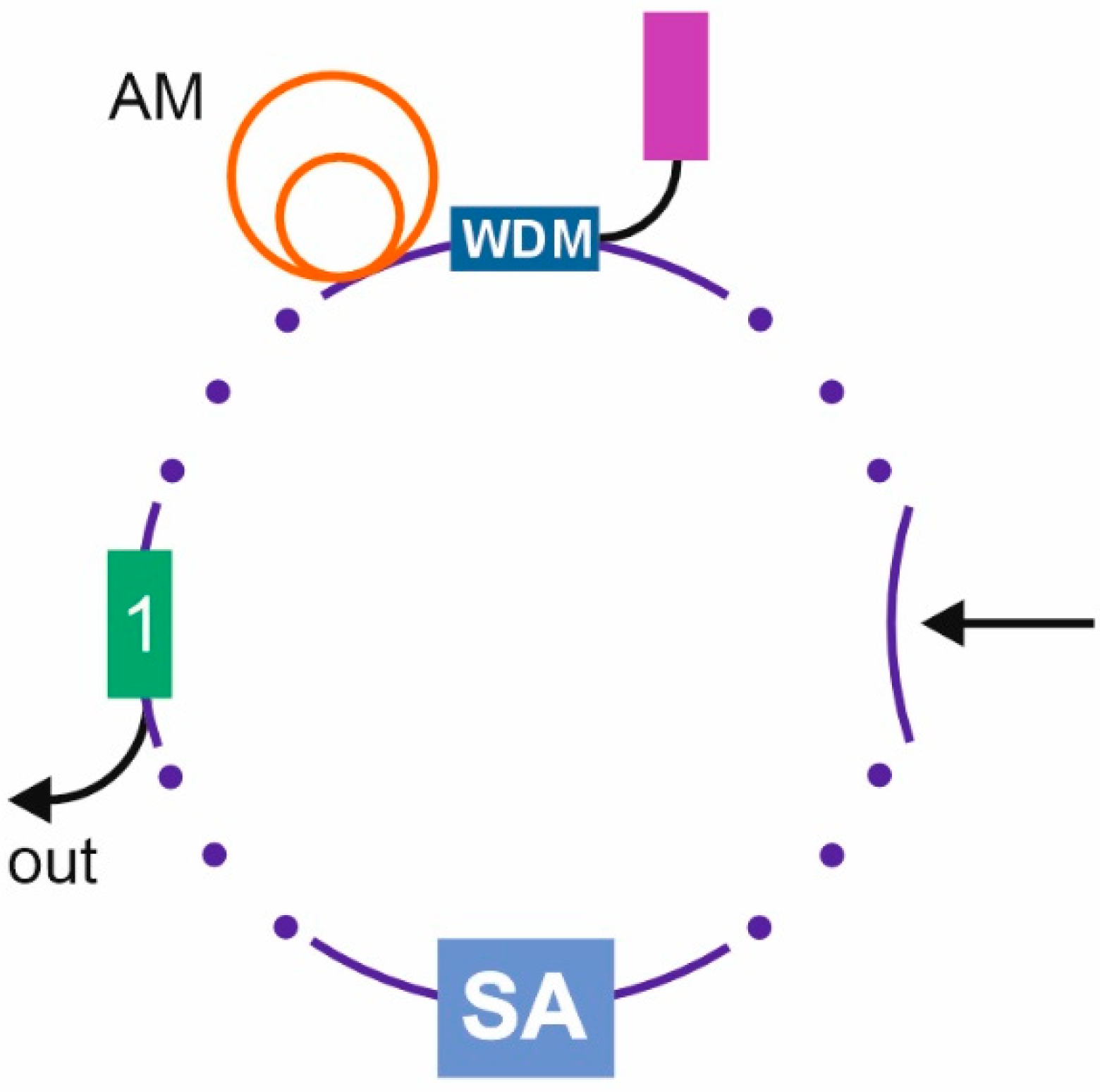

Figure 1. General scheme of mode-locked fibre laser with mechanical action on fibre: SA—saturable absorber (material or artificial); AM—active medium; and 1—coupler.
Figure 1. General scheme of mode-locked fibre laser with mechanical action on fibre: SA—saturable absorber (material or artificial); AM—active medium; and 1—coupler.
Photonics 11 00552 g001
Photonics 11 00552 g002

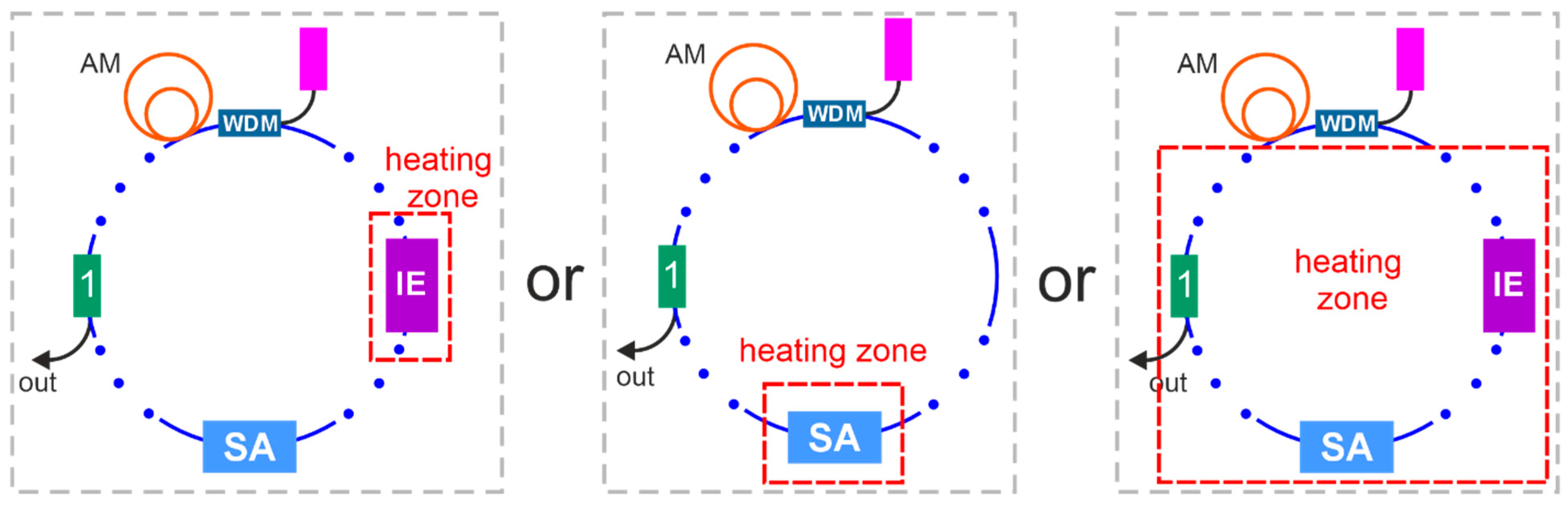

Figure 2. General scheme of mode-locked fibre laser with temperature adjustment: SA—saturable absorber (material or artificial); AM—active medium; IE—intracavity element; and 1—coupler.
Figure 2. General scheme of mode-locked fibre laser with temperature adjustment: SA—saturable absorber (material or artificial); AM—active medium; IE—intracavity element; and 1—coupler.
Photonics 11 00552 g002
Photonics 11 00552 g003

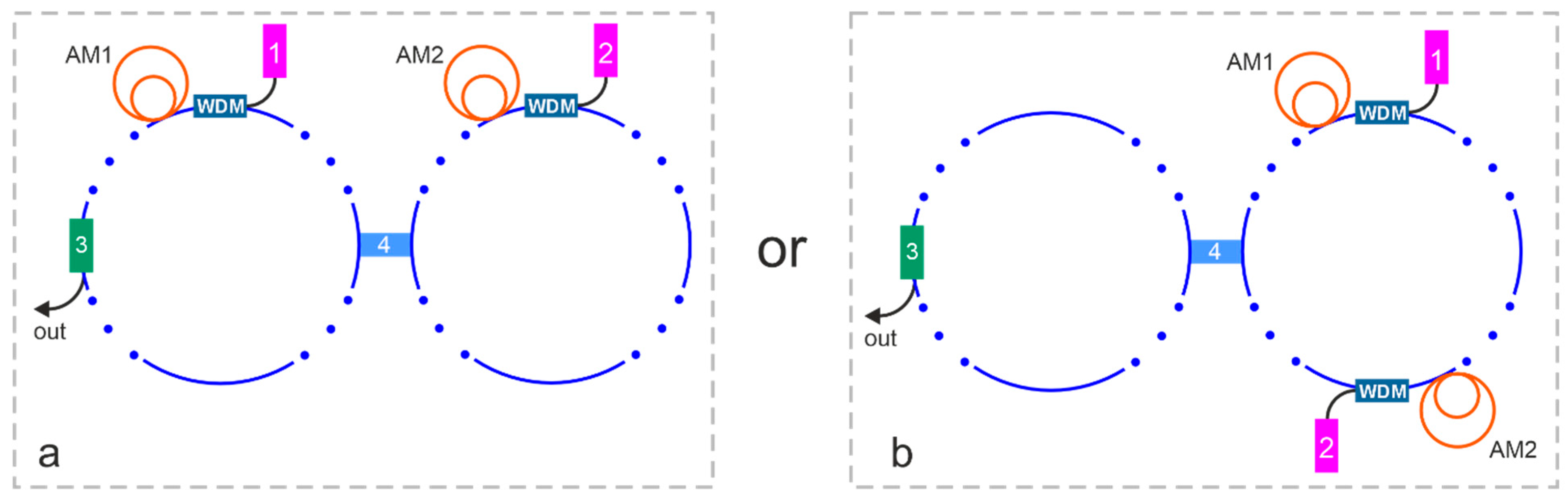

Figure 3. General scheme of mode-locked fibre laser with two pump sources: AM1;2—active media; 1;2—pump lasers; 3—coupler 1; and 4—coupler 2; (a)—active media in different resonator rings, (b)—active media in the same resonator ring.
Figure 3. General scheme of mode-locked fibre laser with two pump sources: AM1;2—active media; 1;2—pump lasers; 3—coupler 1; and 4—coupler 2; (a)—active media in different resonator rings, (b)—active media in the same resonator ring.
Photonics 11 00552 g003
Photonics 11 00552 g004
Figure 4. General scheme of mode-locked fibre laser with adjustable material-based absorbers: AM—active medium; 1—coupler.
Figure 4. General scheme of mode-locked fibre laser with adjustable material-based absorbers: AM—active medium; 1—coupler.
Photonics 11 00552 g004
Photonics 11 00552 g005
Figure 5. Concept of electronic control over parameters of a mode-locked fibre laser: 1–4—pumping semiconductor laser diodes; 5—coupler 1; 6—coupler 2; and AM1–4—active media.
Figure 5. Concept of electronic control over parameters of a mode-locked fibre laser: 1–4—pumping semiconductor laser diodes; 5—coupler 1; 6—coupler 2; and AM1–4—active media.
Photonics 11 00552 g005
Table 1. The main advantages and drawbacks of controlling methods.
Table 1. The main advantages and drawbacks of controlling methods.
№Control MethodAdvantagesDisadvantages
1Mechanical action on fibreSimplicity, possibility of implementation in practically any conditionsSlow response time, repeatability problems, possible lack of parameter reproducibility due to plastic deformation of the fibre
2Temperature adjustment of MLFL cavity elementsSimplicity, possibility of electronic controlSlow response time, need of thermally isolated spaces
3Controlling output parameters of MLFL with two pump sourcesFast response time, possibility of electronic control Desired pulse parameters may be only reachable at pumping powers below the maximum
4Controlling the output radiation parameters of MLFL through adjustment of material-based absorbersCertain types of material-based saturable absorbers allow electrical control of their propertiesLimited lifetime of material-based absorbers, difficulties in controlling the properties of absorbers
5Controlling output parameters of MLFL with modified fibresGreat variety of methods, possibility of electronic control in rare casesMethods, in their majority, do not allow dynamic control over output radiation parameters
6Controlling output parameters of MLFL by radiation selection: spectral, amplitude, polarisational, and temporalFast response time, use of components adapted to the all-fibre formatNeeds intracavity elements allowing adjustment (electronic or manual) of their parameters.
7Intellectual technologies for controlling MLFL radiation parametersMany laser tuning functions may be automatedAcquisition of the output radiation parameters requires complex measurement equipment
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kobtsev, S. Methods Controlling Radiation Parameters of Mode-Locked All-Fiberized Lasers. Photonics 2024, 11, 552. https://doi.org/10.3390/photonics11060552

AMA Style

Kobtsev S. Methods Controlling Radiation Parameters of Mode-Locked All-Fiberized Lasers. Photonics. 2024; 11(6):552. https://doi.org/10.3390/photonics11060552

Chicago/Turabian Style

Kobtsev, Sergey. 2024. "Methods Controlling Radiation Parameters of Mode-Locked All-Fiberized Lasers" Photonics 11, no. 6: 552. https://doi.org/10.3390/photonics11060552

APA Style

Kobtsev, S. (2024). Methods Controlling Radiation Parameters of Mode-Locked All-Fiberized Lasers. Photonics, 11(6), 552. https://doi.org/10.3390/photonics11060552

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
