Quantitative Evaluation of the Phase Function Effects on Light Scattering and Radiative Transfer in Dispersed Systems

Abstract

The light scattering properties of particles play important roles in radiative transfer in many dispersed systems, such as turbid atmosphere, ocean water, nanofluids, composite coatings and so on. As one of the scattering property parameters, the scattering phase functions of particles are strongly dependent on the particle size, size distribution, and morphology, as well as on the complex refractive indices of the particles and surrounding media. For the sake of simplicity, the empirical phase function models are widely used in many practical applications. In this work, we focus on the radiative transfer problem in dispersed systems composed of spherical particles, and give quantitative analyses of the impact of scattering phase functions on the radiative transfer process. We fit the scattering phase functions of four different types of practical dispersed systems using four previously proposed empirical phase function models, including the Henyey–Greenstein (HG) model, Cornette Shanks (CS) model, Reynold and McCormick (RM) model and two-term Reynolds–McCormick (TTRM) model. By comparing the radiative transfer characteristics (i.e., hemispherical reflectance, hemispherical transmittance and total absorptance) of dispersed layers calculated using the Monte Carlo method, the relative errors caused by using the empirical phase functions are systematically investigated. The results demonstrate that the HG, CS and RM models cause obvious errors in the calculation of hemispherical reflectance in many cases. Meanwhile, the induced errors show no obvious regularity, but are related to the particle size and layer optical thickness. Due to the good fitting effect in both forward and backward directions, the TTRM model provides significantly higher performances in fitting the phase functions of all considered cases than the widely used single-term parametrizations. Moreover, for different particle sizes and layer optical thicknesses, the induced errors of the TTRM model in radiative transfer characteristics are very small, especially for the case of polydisperse particles. Our results can be used to guide the design, analysis and optimization of dispersed systems in practical optics and photonics applications.

1. Introduction

Light scattering and radiative transfer in dispersed systems are of great importance in many fields of natural sciences and engineering, such as remote sensing and modelling of the ocean and atmosphere, biomedical imaging and diagnostics, photocatalytic and photothermal techniques and so on [1,2,3,4,5]. In the theoretical analysis and experimental study of radiative transfer processes in such dispersed systems, the fundamental optical/radiative properties of particles, such as the absorption coefficient μ_abs, scattering coefficient μ_sca, extinction coefficient μ_ext and scattering phase function Φ(θ) (or volume scattering function β(θ), VSF) should be obtained first [6,7]. Those optical properties of particles are determined by the chemical composition, size, shape, volume fraction and mixing state, and are generally obtained through the electromagnetic scattering calculation or experimental measurement [8,9].

With the development of optical measurement technology, the measurement of light attenuation and absorption is advanced for both laboratory and field measuring, whereas the scattering phase functions or VSF are rare and difficult to measured, due to the complicated measurement geometries and the difficulty of achieving accurate measurements at forward and backward scattering angles [2,10]. Specifically, the range of scattering energy over all scattering angles typically reaches 5 or 6 orders of magnitude in many cases, which necessitates high measurement accuracy in photodetectors. As a consequence, the mechanical design of the instruments for scattering phase function measurements is often very complicated, and only several prototype sensors with broad angular ranges exist [11,12]. Lee and Lewis [13] developed a prototype VSF sensor (MVSM) for the measurement of the VSF of the ocean, which resolves the VSF from 0.6° to 177.3° in 0.3° increments at eight wavelengths. Twardowski et al. [14] introduced a prototype VSF sensor (MASCOT), which measures the VSF at angles spanning 10° to 170° in 10° increments. Babin et al. [15] described a methodology for determining the VSF of aqueous particle suspensions from measurements with a laboratory multi-angle light scattering instrument called DAWN. Tan et al. [16] presented a novel optical approach to measure the volume scattering function (VSF) by image detection, which realizes the scattering angle measurement from 8° to 172° at 1° intervals. Wu et al. [17] developed a laboratory-based VSF instrument adopting the periscopic optical system, which can realize the measurement of VSF in the range of 1–178.5°. Moreover, Sequoia Scientific Inc developed a commercial instrument (LISST–VSF) for measuring the VSF in situ or in the laboratory for angles 0.1–150° at a 515 nm wavelength [18]. Overall, although related experimental techniques and studies regarding the measurement of scattering phase functions or VSFs have been extensively conducted in the past decade, the spectral distributions of the scattering phase function for most particles remain mostly unknown because of the lack of direct measurement.

If we know the distributions of size, shape, internal structure and the complex refractive index for particles, the optical properties of particles can be accurately calculated. The common calculation methods include Lorentz–Mie theory [8], discrete dipole approximation (DDA) [19], T-matrix method [20], geometric optical approximation [21] and so on. However, it should be noted that it is usually difficult to obtain all these geometric and physical parameters of dispersed media. Therefore, many empirical phase function models have been developed and used in numerical simulations of radiative transfer in dispersed systems, such as the Henyey–Greenstein (HG) model [22], Cornette Shanks (CS) model [23], Fournier–Forand (FF) model [24], Reynold and McCormick (RM) model [25], and two-term Reynolds–McCormick (TTRM) model [26]. Mobley et al. [27] conducted numerical simulations of the phase function effects on oceanic light fields. The results show that the shape of the phase function can have a significant effect on the underwater radiances, irradiances and reflectances. Bodenschatz et al. [28] carried out a quantitative analysis of the influences of different scattering phase functions on subdiffusive backscattered light. Moreover, the authors introduced a new parameter that more accurately relates a scattering phase function to its subdiffusive backscattering intensity. Vaudelle [29] proposed an approximate analytical effective phase function from a thin slab, which can realize the fast estimation of the asymmetry factor of turbid media. Miramirkhani et al. [30] assessed the effect of scattering phase functions on underwater visible light communication channel models and demonstrated that the simplified phase function models (one-term or two-term HG models) result in a large discrepancy of channel gain in a typical underwater scenario. Wang et al. [26] proposed a five-parameter two-term Reynolds–McCormick (TTRM) phase function model and compared it with eight different empirical models. The results indicated that the TTRM model provides the best fit to the experimental results in all cases. Moreover, according to the measurements of sediments and microalgae, Harmel et al. [31] demonstrated that the TTRM model provides significantly higher performances in fitting the phase functions of actual living or mineral hydrosols than the widely used single-term phase function models.

Although many studies on the scattering phase function models and their related applications have been carried out, due to the complexity of the scattering phase function, there is still no universal phase function model that can comprehensively represent the scattering properties of different kinds of particles. In addition, the influences of the empirical phase function models on the radiative transfer process are still lacking in systematic evaluation. In this work, the radiative transfer characteristics of four different types of dispersed media (SiO₂, TiO₂, Si and Au spherical particles embedded in water) are investigated to quantitatively assess the influence of the empirical phase function models (HG, CS, RM and TTRM) on radiative transfer. The single-scattering properties of spherical particles are calculated using Lorenz–Mie theory. HG and CS phase functions are calculated by using the asymmetry factor. RM and TTRM phase functions are obtained by fitting the Mie phase function. The directional–hemispherical reflectance, directional–hemispherical transmittance and the total absorptance for a plane-parallel layer of spherical particles are calculated and compared using the Monte Carlo method. In order to further characterize the effects of scattering phase functions on radiative transfer, the errors of the radiative transfer characteristics calculated using four empirical phase function models relative to the Mie-calculated phase function are compared. The influences of particle sizes, size distributions and layer optical thicknesses are discussed. The goal of this work is to elucidate how and to what extent the empirical phase function models influence the radiative transfer characteristic of dispersed media.

2. Model and Methods

2.1. Radiative Transfer Model

We considered radiative energy transfer in a plane-parallel layer composed of sparsely dispersed spherical particles, as shown in Figure 1. The spherical particles with radius r and complex refractive index m_p = n_p + iκ_p were randomly dispersed in a non-absorbing host medium with refractive index n_host. To avoid the influences of Fresnel reflections from the boundaries, the refractive index of the host medium was set to equal that of the surrounding medium. For simplicity, the incident wavelength λ was set to 0.6 μm. In each case, the conventional gamma distribution of particle radii defined by Hansen and Travis [32] was used:

$$n\left(r\right)=\mathrm{constant}\times r^{\left(1-3b\right)/b}\exp \left(-\frac{r}{ab}\right),b\in \left(0,0.5\right)$$

(1)

where the constant was chosen such that the size distribution satisfied the standard normalization ${\displaystyle {\int }_0^{\infty }n\left(r\right)dr=1}$. Two important characteristics of the size distribution were the effective radius r_eff and effective variance v_eff defined by:

$$r_{\mathrm{eff}}=\frac{1}{{\langle G\rangle }_{\mathrm{r}}}{\displaystyle {\int }_{r_{\min }}^{r_{\max }}\pi r^{3}n\left(r\right)dr}$$

(2)

$$v_{\mathrm{eff}}=\frac{1}{{\langle G\rangle }_r{r}_{\mathrm{eff}}^2}{\displaystyle {\int }_{r_{\min }}^{r_{\max }}{\left(r-r_{\mathrm{eff}}\right)}^2\pi r^{2}n\left(r\right)dr}$$

(3)

where ${\langle G\rangle }_r={\displaystyle {\int }_{r_{\min }}^{r_{\max }}\pi r^{2}n\left(r\right)dr}$ was the average area of the geometric projection per particle, and r_max and r_min represented the maximum and minimum radius of the particles. Note that for the gamma distribution with r_min = 0 and r_min = ∞, a and b coincided with r_eff and v_eff, and the distribution with v_eff = 0 corresponded to monodisperse particles.

It must be emphasized that the radiative transfer model presented in this paper is based on the independent scattering approximation, which means the dependent scattering effect or near-field coupling effect were not considered [33,34,35]. Under the framework of independent scattering theory, the radiative/optical properties of the dispersed systems, including the extinction coefficient μ_ext, scattering coefficient μ_sca and scattering phase function Φ(θ), can be calculated as [6,9]:

$${\mu }_{\mathrm{sca}}={\mu }_{\mathrm{sca},\mathrm{p}}=n_0{\displaystyle {\int }_{r_{\min }}^{r_{\max }}n\left(r\right)}{C}_{\mathrm{sca}}\left(r\right)dr=\frac{f_{\mathrm{v}}}{{\langle V\rangle }_r}{\langle C_{\mathrm{sca}}\rangle }_r$$

(4)

$${\mu }_{\mathrm{ext}}={\mu }_{\mathrm{ext},\mathrm{p}}=n_0{\displaystyle {\int }_{r_{\min }}^{r_{\max }}n\left(r\right)}{C}_{\mathrm{ext}}\left(r\right)dr=\frac{f_{\mathrm{v}}}{{\langle V\rangle }_r}{\langle C_{\mathrm{ext}}\rangle }_r$$

(5)

$$\Phi \left(\theta \right)=\frac{n_0}{{\mu }_{\mathrm{sca}}}{\displaystyle {\int }_{r_{\min }}^{r_{\max }}{C}_{\mathrm{sca}}\left(r\right){\Phi }_{\mathrm{p}}\left(r,\theta \right)n\left(r\right)}dr$$

(6)

where μ_ext,p and μ_sca,p are the extinction coefficient and scattering coefficient of the particles, ${\langle C_{\mathrm{ext}}\rangle }_r$ and ${\langle C_{\mathrm{sca}}\rangle }_r$ are the ensemble-averaged extinction cross section and scattering cross section per particle, C_ext, C_sca and Φ_p are the far-field extinction cross section, scattering cross section and scattering phase function of single particles, respectively, and can be calculated using the Lorenz–Mie theory [8,36]. n₀ is the number of particles per unit volume of discrete random medium, ${\langle V\rangle }_r=4\pi {\displaystyle {\int }_{r_{\min }}^{r_{\max }}{r}^{3}n\left(r\right)}dr/3$ is the average volume per particle, and $f_{\mathrm{v}}=4\pi n_0{\displaystyle {\int }_{r_{\min }}^{r_{\max }}{r}^{3}n\left(r\right)}dr/3$ is the volume fraction of the particles.

2.2. Empirical Phase Functions

Four previously proposed empirical phase function models, including the HG model, CS model, RM model, and TTRM model, are studied and discussed herein. The HG model is one of the most widely used empirical phase functions, and is a function of the asymmetry factor with the following analytic form [22]:

$${\Phi }_{\mathrm{HG}}\left(\theta ,g\right)=\frac{1}{4\pi }\frac{1-g^2}{{\left[1+g^2-2g\cos \theta \right]}^{3/2}}$$

(7)

where g is the asymmetry factor and related to the phase function by:

$$g=\frac{1}{4\pi }{\displaystyle {\int }_{4\pi }\Phi \left(\theta \right)\cos \theta d\Omega }$$

(8)

The value of g ranges from backscattering (−1) through isotropic scattering (0) to forward scattering (1).

Similarly to the HG phase function, the CS phase function is a function of the asymmetry factor g, and has the following form [23]:

$${\Phi }_{\mathrm{CS}}\left(\theta ,g\right)=\frac{3\left[1+{\cos }^2\theta \right]}{2\left(2+g^2\right)}\frac{1-g^2}{{\left[1+g^2-2g\cos \theta \right]}^{3/2}}$$

(9)

The CS phase function is mainly suitable for characterizing the scattering by small particles. It converges to the Rayleigh phase function when g = 0, and it approaches the HG phase function when g = 1.

The RM phase function, which was proposed by Reynold and McCormick [25], describes highly anisotropic angular scattering distributions and has the following form:

$${\Phi }_{\mathrm{RM}}\left(\theta ,\overline{g},\alpha \right)=\frac{\alpha \overline{g}{\left(1-{\overline{g}}^2\right)}^{2\alpha }}{\pi {\left[1+{\overline{g}}^2-2\overline{g}\cos \theta \right]}^{\alpha +1}\left[{\left(1+\overline{g}\right)}^{2\alpha }-{\left(1-\overline{g}\right)}^{2\alpha }\right]}$$

(10)

where $\overline{g}$ and α are two fitting parameters. Note that the RM phase function approaches the HG phase function when α = 0.5, and only in this situation does the parameter $\overline{g}$ have the same meaning of asymmetry factor g. The two-term TTRM phase function, which was recently proposed by Wang et al. [26], is a modification of the RM phase function, introducing a mixing parameter γ, as follows:

$${\Phi }_{\mathrm{TTRM}}\left(\theta ,g_1,{\alpha }_1,g_2,{\alpha }_2,\gamma \right)=\gamma {\Phi }_{\mathrm{RM}}\left(\theta ,g_1,{\alpha }_1\right)+\left(1-\gamma \right){\Phi }_{\mathrm{RM}}\left(\theta ,g_2,{\alpha }_2\right)$$

(11)

This function has two parts with two different parameters, where g₁ is positive and g₂ is negative, in order to treat the forward and backward peaks in the phase function. The parameter γ gives the forward scattering portion while (1−γ) is the backward scattering portion. Meanwhile, in order to assess the fitting effects of the RM and TTRM phase functions, a loss function, which is defined as the mean square logarithmic error (MSLE) between the fitting results Φ_Model and Mie results Φ_Mie is used [31]:

$$\mathrm{MSLE}=\frac{{\displaystyle {\sum }_{{\theta }_i=0}^{{\theta }_i=\pi }{\left[\log {\Phi }_{\mathrm{Mie}}\left({\theta }_i\right)-\log {\Phi }_{\mathrm{Model}}\left({\theta }_i\right)\right]}^2}}{N_{\mathrm{sca}}-N_{\mathrm{param}}}$$

(12)

where N_sca is the number of scattering angles of the phase function and N_param is the number of fitting parameters of the phase function model (N_param = 2 for RM model and N_param = 5 for TTRM model). By using a large number of fitting parameters, the RM and TTRM phase functions can be well-fitted with the Mie phase function. In this work, the fitting procedure is based on the particle swarm optimization algorithm under given bound constraint values (see supporting material, Table S1).

2.3. Radiative Transfer Calculation

Multiple scatterings of light in the dispersed systems are accounted for by the meanings of the radiative transfer equation (RTE), which can be written as [6,7]:

$$\frac{dI\left(\tau \right)}{d\tau }=-I\left(\tau \right)+\frac{\omega }{4\mathsf{\pi }}{\displaystyle \underset{4\mathsf{\pi }}{\int }I\left(\tau ,\overrightarrow{\mathsf{\Omega }\text{′}}\right)\mathsf{\Phi }\left(\overrightarrow{\mathsf{\Omega }\text{′}},\overrightarrow{\mathsf{\Omega }}\right)\mathrm{d} \mathsf{\Omega } \text{′}}$$

(13)

where I is the radiation intensity in the direction of $\overrightarrow{\mathsf{\Omega }}$, τ = μ_extL is the optical thickness of the dispersed layer, L is the geometric thickness of the dispersed layer, ω = μ_sca/μ_ext is the single scattering albedo, and $\mathsf{\Omega }\text{′}$ is the solid angle. We note that the thermal radiation term was neglected in this study, and the RTE was solved by using the widely used Monte Carlo (MC) method [6,37]. A light beam was perpendicularly incident on the boundary (z = 0) of the layer by default. After interacting with the layer, the reflected and transmitted photons were collected, and the directional–hemispherical reflectance R, directional–hemispherical transmittance T and the total absorbance A of the dispersed layer were finally determined:

$$R=\frac{N_r}{N_0}$$

(14)

$$T=\frac{N_t}{N_0}$$

(15)

$$A=1-R-T$$

(16)

where N₀ is the total number of the photons that are incident on the layer, and N_r and N_t are the number of photons that are collected with the use of detectors positioned in the hemispherical space outside the upper surface and the lower surface, respectively. In this study, 5 × 10⁶ photons were used for each calculation to obtain accurate results without using too much computation time.

3. Results and Discussion

To theoretically investigate the influence of the scattering phase function on a practical radiative transfer process, the radiative transfer characteristics of four different types of dispersed systems were studied in this paper. Firstly, Lorenz–Mie theory considering the particle size distribution was used to calculate the far-field extinction cross section, scattering cross section, scattering phase function, and the asymmetry factor of the particles. Secondly, HG and CS phase functions were calculated by using the asymmetry factor g. Additionally, RM and TTRM phase functions were obtained by fitting the Mie phase function. Lastly, radiative transfer characteristics (i.e., R, T and A) of the dispersed media were calculated and compared using the MC method on account of the Mie phase function, HG, CS, RM and TTRM phase functions.

In order to cover more comprehensive and more realistic situations, four different types of dispersed systems with a wide range of particle sizes (x_eff = 2πn_hostr_eff/λ = 1.0, 2.0, 5.0 and 10.0, respectively) and size distributions (v_eff = 0, 0.01, 0.05 and 0.15, respectively) were studied in this paper. For simplicity, the incident wavelength λ was set to 0.6 μm; the complex refractive indices of spherical particles m_p and water host medium n_host for the four cases are listed in

Table 1. Four different types of spherical particles embedded in water (λ = 0.6 μm).

Number	Materials of Particles	mp (Particles)	nhost (Water) [42]
Case 1	Silicon dioxide (SiO2)	1.458 + 0i [43]	1.333
Case 2	Titanium dioxide (TiO2)	2.605 + 0i [44]	1.333
Case 3	Silicon (Si)	3.949 + 0.0274i [45]	1.333
Case 4	Gold (Au)	0.249 + 3.074i [46]	1.333

. Note that these four cases can be considered as the situation of micro–nano particles embedded in water, which is common in many practical applications, such as photothermal, photocatalytic and optical visualization [38,39,40,41]. In Case 1 and Case 2, both the particles and media were non-absorbing. In Case 3 and Case 4, absorbing particles with higher and lower refractive indices were embedded in the non-absorbing water medium. The radiative properties of different monodisperse and polydisperse size distributions of spheres are given in the supporting material, Table S2.

3.1. Scattering Phase Functions of Monodisperse and Polydisperse Spherical Particles

The Mie phase functions considering the size distribution of particles, as characterized by conventional gamma distributions with effective particle size parameter x_eff equal to 1.0, 2.0, 5.0 and 10.0 and effective variance v_eff equal to 0, 0.01, 0.05 and 0.15 were calculated. Meanwhile, HG and CS phase functions were calculated on account of the asymmetry factor g, and the RM and TTRM empirical phase functions were fitted to the calculated Mie phase functions. The specific parameters obtained by fitting the Mie scattering phase function with RM and TTRM models are shown in the supporting material, Tables S3 and S4. All MSLE numbers for the TTRM model were less than 0.1, and most of them were less than 0.01, demonstrating the validity of our parameter fitting [31]. Parameters γ, g₁ and g₂ varied greatly from case to case. Since the upper and lower limits of parameters α₁ and α₂ were set at −5 to 5, the cases that reached the upper and lower limits needed further optimization with extended limits. In this work, we did not carry out further optimizations, considering the MSLEs to be acceptable. Moreover, it was observed that for most cases, the retrieved α parameters obviously departed from the 0.5 value considered in the HG model [31]. In general, if the exact phase functions are known (e.g., Mie phase functions), the TTRM model can fit well to the exact phase functions by choosing appropriate fitting parameters. However, if accurate calculations are not performed first, the data of phase functions should be obtained based on a significant number of measurements, and if possible in a high angular resolution manner [26,31].

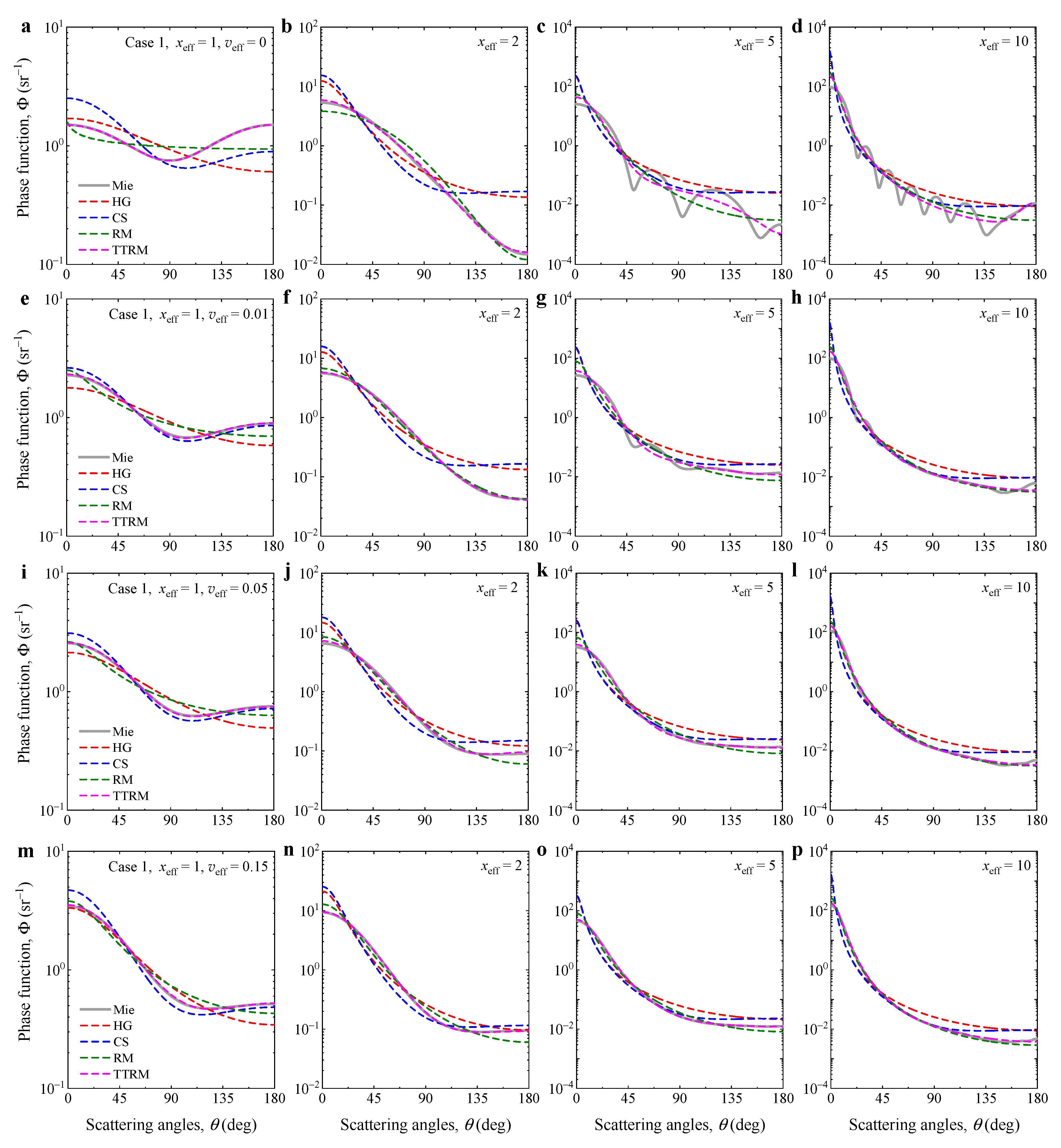

Figure 2 presents the comparison of the Mie phase function with four phase function empirical models for SiO₂ particles embedded in water (Case 1). Overall, the scattering pattern became more anisotropic, and forward scattering became more dominant with increasing particle size. Meanwhile, we can observe that the HG and CS phase functions had poor overlaps with the Mie phase functions in most circumstances, especially for forward and backward scattering. The RM phase function showed good agreement with the Mie phase functions, apart from some situations involving small size particles with x_eff = 1.0. In most cases, the results showed that the TTRM functions fit better to the Mie phase functions than the HG, CS and RM phase functions, but some discrepancies appeared when there were oscillations in the Mie calculations, owing to excitations of higher order eigenmodes for large size particles in the monodisperse situations with v_eff = 0, as shown in Figure 2c,d. Nevertheless, TTRM function still followed the trend, although it did not describe the multiple peaks. Such scattering phase function oscillations were smoothed for polydisperse situations with increasing effective variance v_eff due to the averaging procedure. Considering that the particles were polydisperse in most practical applications, TTRM phase function could fit Mie calculations within a wide range of particle sizes and distributions. Moreover, the TTRM outperformed the other models even when scattering angles are larger than 140°. This result implies that the TTRM could provide a new means to extrapolate phase function measurements when instrumentation is limited in the backward directions [26].

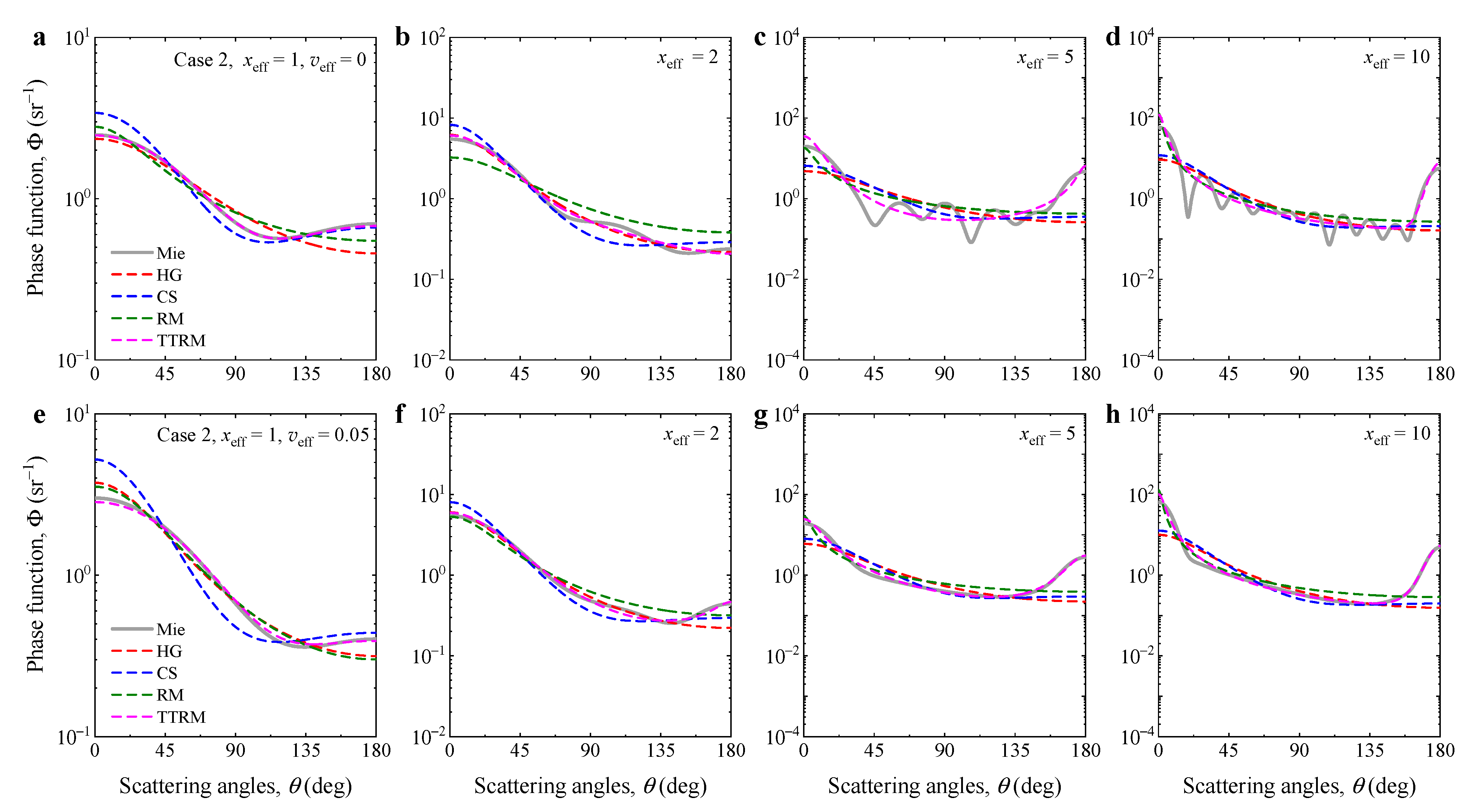

We also present Mie calculations and phase function fittings for monodisperse (v_eff = 0) and polydisperse (v_eff = 0.05) TiO₂ particles (Case 2, with refractive index n_p = 2.605), as shown in Figure 3. The fitting effects of the HG phase function for x_eff = 2 were better than the CS and RM phase functions. Compared with Case 1 (SiO₂ particles with n_p = 1.458), the higher refractive index of particles led to stronger backward scattering, especially for larger size particles. Meanwhile, it was found that the difference between forward scattering and backward scattering became smaller. Multiple peaks also appeared when x_eff was larger than 1.0, and the oscillations in the phase function were obviously reduced for polydisperse situations. The RM phase function showed poor overlap with the Mie phase functions for backward scattering due to its simple expression. By introducing a mixing parameter, the TTRM was able to sufficiently characterize the forward and backward peaks in the phase function. As shown in Figure 3d,h, for large size particles with x_eff = 10, the TTRM model outperformed the other models over the full range of scattering angles, although the forward and backward scattering peaks were very high.

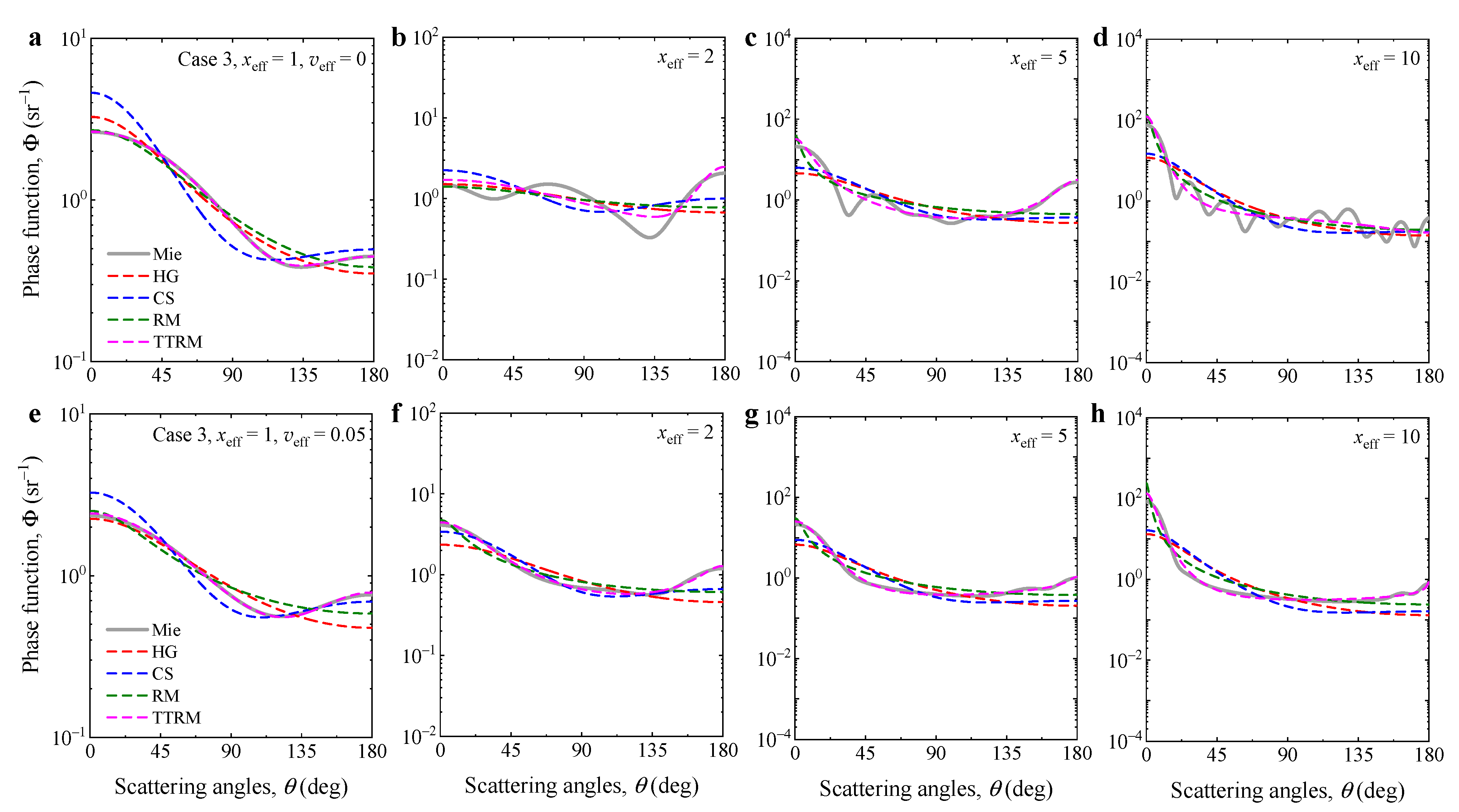

To study the effect of particle absorption on scattering phase functions, we performed Mie calculations and phase function fittings for Si particles and Au particles embedded in water, as shown in Figure 4 and Figure 5. In general, the forward scattering increased markedly with increasing particle size parameter. However, a peculiar phenomenon occurred: the forward scattering was even weaker than the backward scattering for monodisperse Si particles with x_eff = 2.0, as shown in Figure 4b. This result is mainly attributed to the Mie resonances of high refractive-index dielectric particles [41,47]. In some cases, the antiphase interference of the electric dipole and magnetic dipole modes resulted in the radiation pattern of particles dominated by backward scattering. When the effective variance v_eff increased to 0.05, due to the averaging procedure, the phenomenon of the forward scattering being greater than the backscattering disappeared, as indicated in Figure 4f. By comparing the Mie phase functions with the phase functions obtained from the four empirical phase function models, it was also found that the TTRM model outperformed the other models over the full range of scattering angles for both the cases of Si particles and Au particles. However, for the other three empirical models, the fitting effects were unstable and depended on circumstances. For example, the RM model fit the Mie phase function well in the forward directions, but poorly in the backward directions, as shown in Figure 4a,e. In general, because of the simple form of the three empirical models (HG, CS and RM), it was difficult for these models to remain consistent with the Mie phase function in all scattering angles. In addition, it should be noted that the four empirical phase function models could be used for both spherical and non-spherical particles if the exact phase functions, measured data or necessary parameters (e.g., asymmetry factors need to be given for HG and CS models) were known. The phase function effects on light scattering and radiative transfer in dispersed systems composed of non-spherical particles will be investigated in future work.

3.2. Radiative Transfer Characteristics of the Dispersed Layer

The radiative transfer process can be affected by many factors. The most direct way to describe the effects of multiple scattering between particles on radiative transfer is to solve the RTE to obtain the apparent reflection, transmission and absorption characteristics of the dispersed systems. In this section, the directional-hemispherical reflectance R, directional-hemispherical transmittance T and total absorptance A of the dispersed layer are calculated using the MC method on account of the Mie, HG, CS, RM and TTRM phase functions. To further characterize the effects of scattering phase functions on the radiative transfer process, the errors of the radiative transfer characteristics (R, T and A) caused by using the empirical phase function models are obtained and analyzed. The relative errors are defined according to ${\delta }_{\xi }=\left|{\xi }_{\mathrm{Mie}}-{\xi }_{\mathrm{EM}}\right|/{\xi }_{\mathrm{Mie}}\times 100\%$, where ${\xi }_{\mathrm{Mie}}$ and ${\xi }_{\mathrm{EM}}$ refer to the characteristic parameters (R, T and A) obtained by using the Mie phase function and empirical phase function models, respectively.

3.2.1. Case 1: Non-Absorbing SiO₂ Particles Embedded in Water

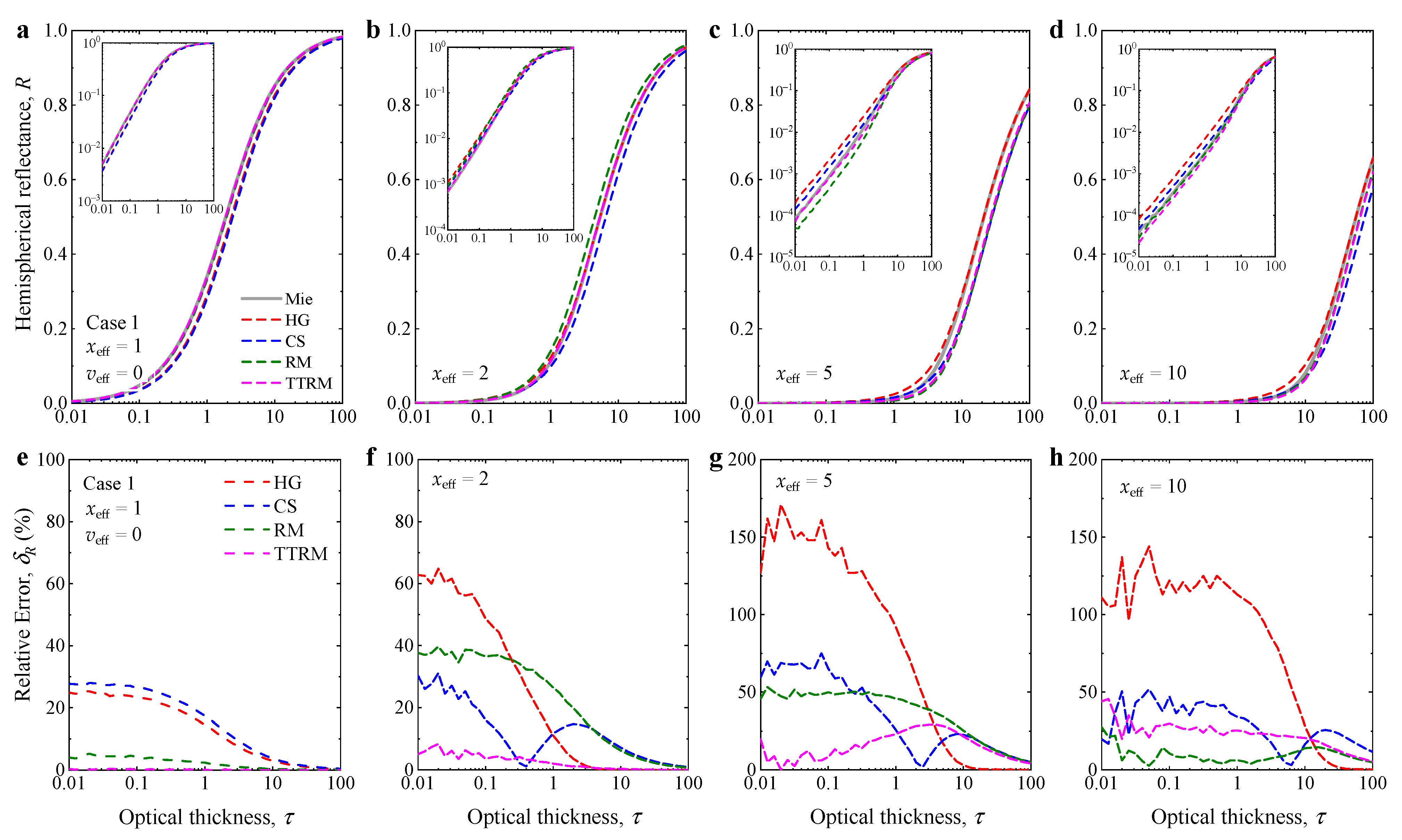

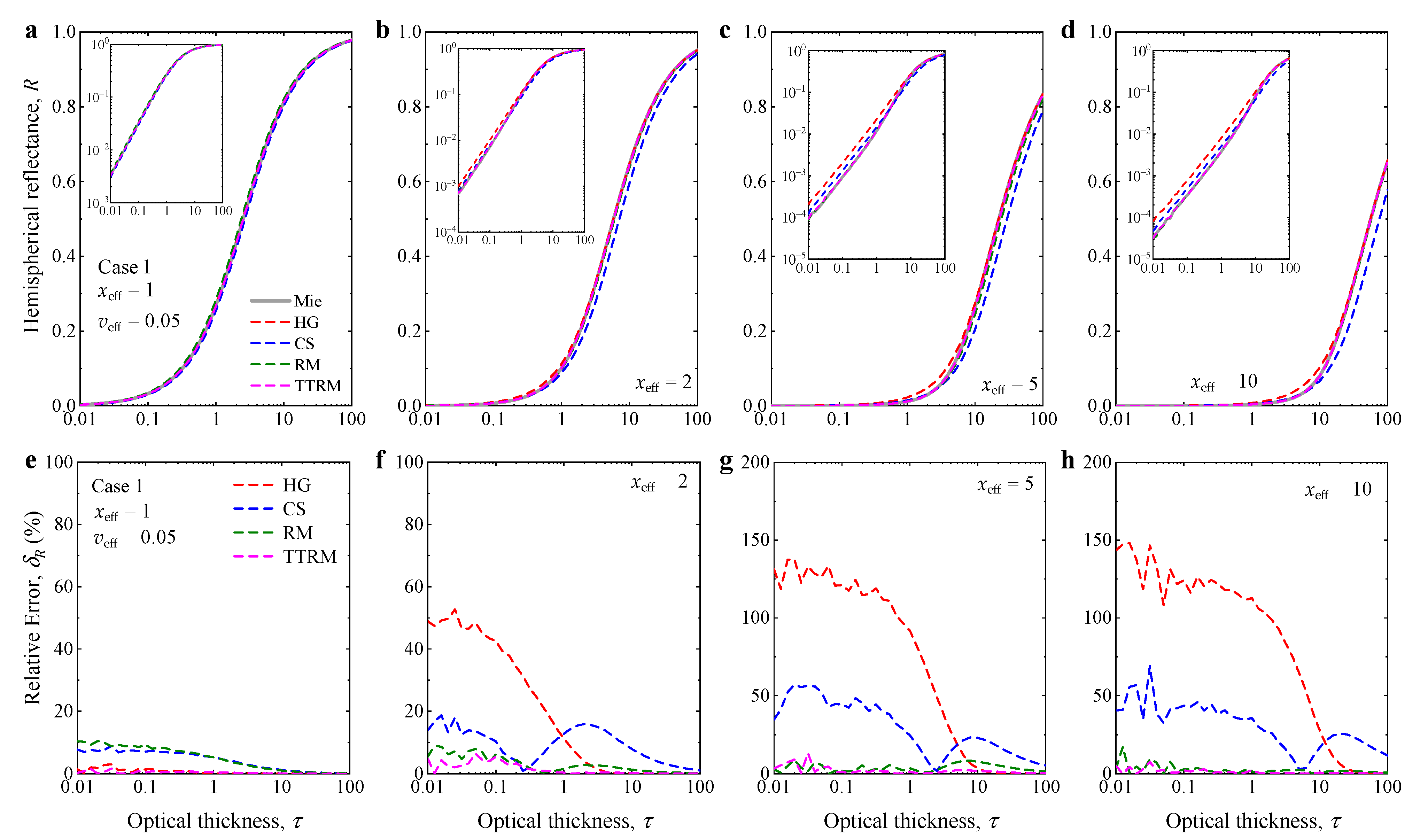

Figure 6 and Figure 7 present the hemispherical reflectances R of the dispersed plane-parallel layer (for Case 1 with non-absorbing SiO₂ particles embedded in water) as functions of the layer optical thickness for monodisperse (v_eff = 0) and polydisperse (v_eff = 0.05) particles, respectively. Insets are logarithmic plots of the corresponding reflectance. The figures also include the relative errors δ_R of the hemispherical reflectances caused by using the empirical phase function models. As shown in the figures, the hemispherical reflectance is relatively small for media with a small optical thickness (e.g., τ < 1.0), and such reflectance calculated using HG phase function is extremely inaccurate. The corresponding relative errors may be more than 100% for some circumstances when x_eff = 5.0 and 10.0. Accordingly, small reflectance corresponds to high transmittance (Figures S1 and S2 in the supplement material) and the relative errors of hemispherical transmittance will be small. As the spectral reflectance of ocean seawater is mostly within 0.05 [37,48], the relative errors of the reflectance calculated using HG and CS phase functions are extremely large under this background. With increasing optical thickness, the reflectance of the dispersed layer increases, along with reducing relative errors in different degrees for the reflectance calculated by the four different phase functions. Besides the layer optical thickness, the size parameter x_eff of particles also has a significant influence on the relative error δ_R. The smaller the size parameter is, the closer the particle scattering is to Rayleigh scattering, and the less influence the scattering phase function shows on the reflection characteristics. With increasing particle size parameters, the particle scattering effect enhances, especially the forward scattering, which leads to the decrease in the hemispherical reflectance of the dispersed layer and the increase in the influence of scattering phase function on the radiative transfer process.

According to the foregoing results, the fitting effect of RM phase function is contingent for some situations; thus, the relative error of the hemispherical reflectance calculated by RM phase function is also contingent, especially for the case of monodisperse particles. As shown in Figure 6f,g, for dispersed layers with x_eff = 2.0 and 5.0, the maximum relative errors of reflectance can reach up to about 40% and 50%, respectively. However, when x_eff = 1.0 and 10.0, the maximum relative errors of reflectance decrease to about 7% and 26%, respectively. By comparison, the relative errors of the hemispherical reflectance calculated by the TTRM models are very small for different particle sizes and layer optical thicknesses, especially for the case of polydisperse particles. This is because the TTRM empirical phase function models have good fitting effects in both forward and backward directions, as indicated in Figure 2. Meanwhile, it should be noted that for monodisperse particle systems, the relative errors of the hemispherical reflectance induced by using the TTRM models are still uncertain because the TTRM model cannot perfectly fit all the characteristics of Mie phase function.

3.2.2. Case 2: Non-Absorbing TiO₂ Particles Embedded in Water

Figure 8 and Figure 9 present the hemispherical reflectances R of the dispersed plane-parallel layer (for Case 2 with non-absorbing TiO₂ particles embedded in water) and the relative errors δ_R of the hemispherical reflectance caused by using four phase function empirical models as functions of the layer optical thickness for monodisperse (v_eff = 0) and polydisperse (v_eff = 0.05) particles, respectively. As shown in the figures, the relative errors of hemispherical reflectance calculated using HG phase function for particle size parameter x_eff = 1.0 and 2.0 are less than 10%. At this point, the performance of the HG phase function model in radiative transfer process is better than that of CS and RM models. It is worth noting that the overlap between the HG and Mie phase functions is not good, especially for forward and backward scattering, as Figure 3 shows, demonstrating that the general fitting effect may also result in a higher coincidence of radiative transfer characteristics. According to the forgoing results, the fitting effect of the RM phase function is contingent on some situations; thus, the relative error of the hemispherical reflectance calculated by RM phase function is also contingent, for example, on the relative error of RM-calculated hemispherical reflectance being larger than CS and HG phase functions for x = 2 situations.

Compared with Case 1 (SiO₂ particles with n = 1.458), a higher refractive index of particles leads to stronger scattering and higher reflectance for large particle size situations. In general, the HG, CS and RM models will cause obvious errors in the calculation of hemispherical reflectance for unabsorbed particles in many cases. Although the induced error is related to the particle size and layer optical thickness, it is difficult to predict the specific error, and the errors show no obvious regularity. Meanwhile, it is gratifying to note that the TTRM empirical phase function model has high accuracy and strong adaptability in the calculation of hemispherical reflectances. For the cases of different particle size and layer thickness, the relative errors of hemispherical reflectance are less than 8%, which indicates that the TTRM model has excellent performance in radiative transfer calculations. Moreover, as for the hemispherical transmittance (as shown in Figures S3 and S4), it was found that the relative errors induced by using the HG and TTRM models were very small, which indicates that the empirical phase function models can be used for radiative transfer calculations when focusing more on the transmission characteristics.

3.2.3. Case 3 and 4: Absorbing Si and Au Particles Embedded in Water

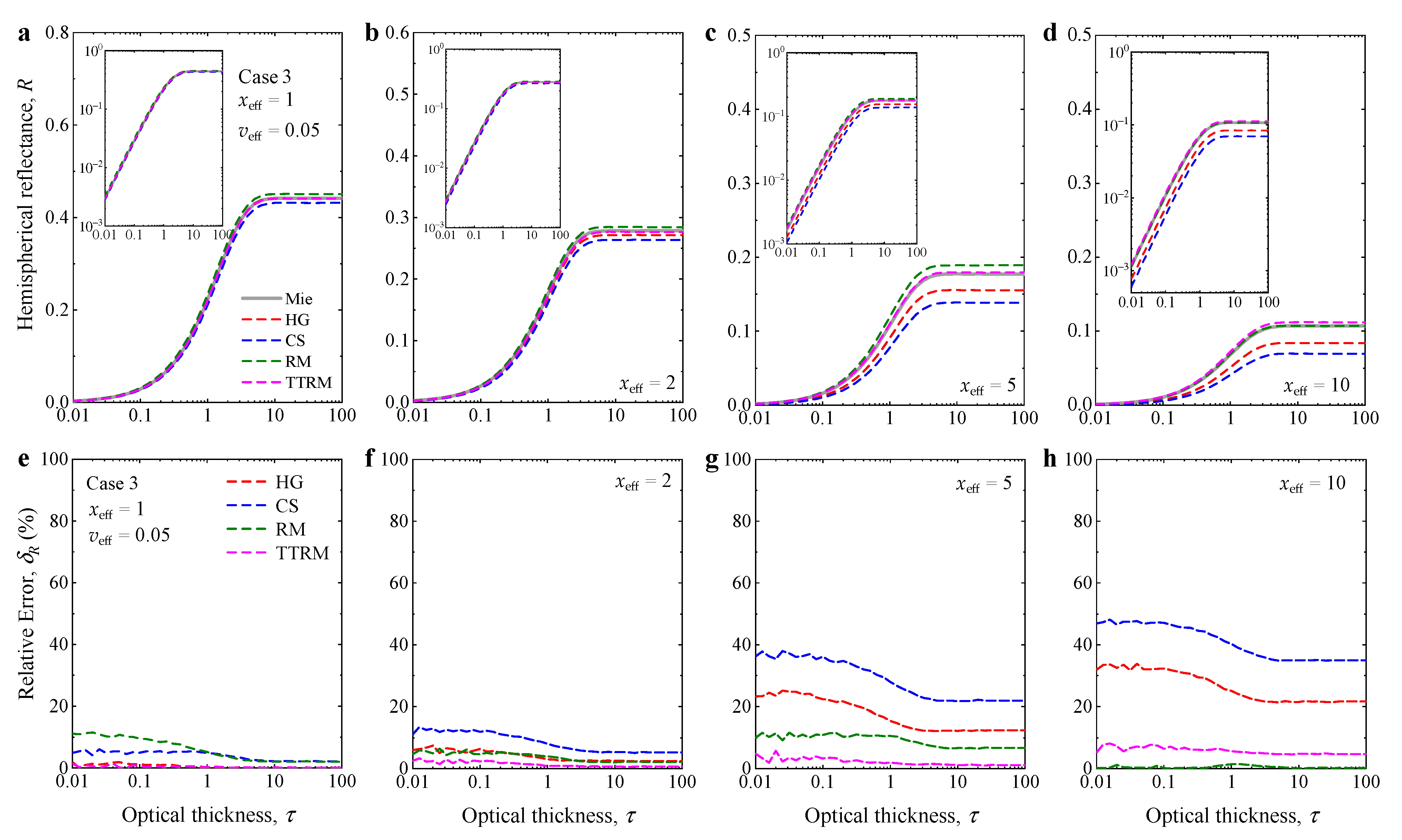

The hemispherical reflectance R of the layers (Case 3, absorbing Si particles with veff = 0.05) versus the layer optical thickness for different phase function models and the relative errors δ_R of the hemispherical reflectance caused by using four phase function empirical models are presented in Figure 10. As shown, the hemispherical reflectances R of the layers tended to be constant with increasing optical thickness due to the strong absorption properties of Si particles. Moreover, unlike the results in Case 2 (as indicated in Figure 9), the relative errors δ_R caused by using the empirical phase function models showed no obvious decreasing trend with the increase in optical thickness. Furthermore, it was found that the reflectances calculated using HG and CS phase functions were generally smaller than those calculated on account of the Mie phase function. As the particle size parameter increased, due to the decrease in single scattering albedo (as shown in Table S2), the hemispherical reflectances R gradually decreased and the relative errors δ_R caused by using HG and CS phase functions showed an obvious increasing trend. As shown in Figure 10h, for large particles with x_eff = 10, the relative errors δ_R caused by using HG and CS phase functions were larger than 21.6% and 35% for all the considered optical thicknesses. Recent studies [41,47] show that Si nanoparticles have the lowest-order Mie resonance in the visible range and are widely used in the design of structural colors. Large reflectance errors will inevitably lead to large deviations in the optical and color characteristics. By comparison, the relative errors caused by using the RM and TTRM models are obviously smaller than those of HG and CS models. As presented in Figure 10e–h, the relative errors of TTRM-calculated hemispherical reflectance were within 10% for all the considered cases.

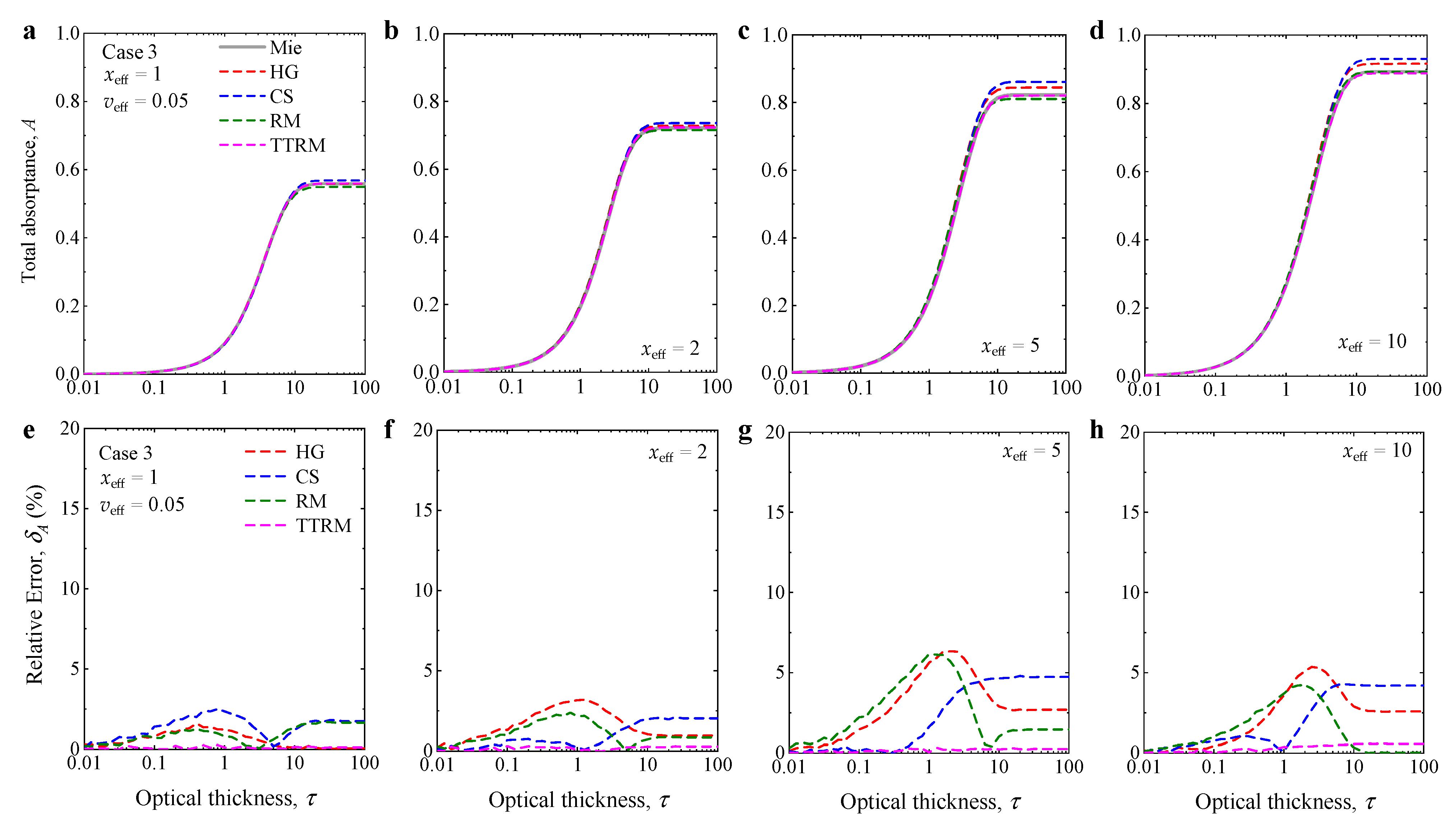

Considering the absorbance of the Si particles, we also present the total absorbance of the dispersed layers (Case 3, polydisperse particles with veff = 0.05) and the corresponding relative errors caused by using four phase function empirical models in Figure 11. As shown, the total absorptance increased obviously with increasing particle size parameters due to the decrease in single scattering albedo. Meanwhile, similarly to the situation of hemispherical reflectance, the total absorptance showed a trend of increasing first and then gradually flattening out. In addition, although the relative errors caused by using different phase function models showed complex changes with the increase in optical thickness and particle size, all the relative errors were less than 6.4%. As for the TTRM model, the accuracy of the calculated absorptance was high, and the maximum relative error was only 0.6% for all the calculated results. Overall, all the four empirical scattering phase function models could be used for radiative transfer calculations when focusing more on the absorption characteristics of dispersed systems composed of absorbing Si particles.

We also present the hemispherical reflectance R and total absorbance A of the dispersed layers (Case 4, polydisperse Au particles with veff = 0.05), and the corresponding relative errors caused by using four phase function empirical models in Figures S5 and S6. In general, the variation laws of relative errors in the reflectance and absorbance with particle size and layer optical thickness are basically similar to the corresponding situations of Si particles (Case 3). Owing to their strong interactions with visible light through localized surface plasmon resonances, Au nanoparticles have been subject to extensive research and application. According to the preceding analysis, the commonly used empirical phase function models (e.g., HG, CS, and RM) may cause obvious errors in the calculations of reflectance spectra and affect the accurate analysis of applications of plasmonic coloring and image projection [49,50]. Meanwhile, because the relative errors of absorption characteristics caused by using the empirical phase function models are relatively small, this aspect can be ignored in many engineering applications, such as photothermal utilization and energy harvesting [51,52].

4. Conclusions

In summary, we carried out systematic studies on the effects of scattering phase function on radiative transfer in realistic dispersed systems. By comparing with the Mie phase function, four empirical phase function models (HG, CS, RM and TTRM) were analyzed and discussed. To cover more comprehensive situations, the directional–hemispherical reflectance R, directional–hemispherical transmittance T and total absorptance A of four different types of dispersed systems with a wide range of particle sizes and size distributions were investigated using the Monte Carlo method.

The results demonstrate that the TTRM model provides significantly higher performances in fitting Mie phase functions than the widely used HG phase function and single-term RM models. Synthesizing the four application cases, it was found that the HG, CS and RM models caused obvious errors in the calculation of hemispherical reflectance in many cases. Meanwhile, the induced errors were related to the particle size and layer optical thickness, and it was difficult to predict the specific errors, with the errors showing no obvious regularity. The HG phase function is more suitable for the calculation conditions with smaller size parameters (x_eff = 1 and 2 in this study). CS phase function is not recommended because of its poor accuracy in most cases. The relative error of the hemispherical reflectance calculated by the RM phase function is contingent, especially for the case of monodisperse particles. Due to the good fitting effect in both forward and backward directions, the relative errors of the hemispherical reflectance calculated by the TTRM model are very small for different particle sizes and layer optical thicknesses, especially for the case of polydisperse particles. As for the dispersed systems composed of absorbing particles, because the relative errors of total absorptance are relatively small, all the four empirical scattering phase function models can be used for radiative transfer calculations when focusing more on the absorption characteristics in practical engineering applications. Our work gives quantitative analyses of the impacts of scattering phase function on the light scattering and radiative transfer process, which can guide the design, analysis and optimization of dispersed systems in practical optics and photonics applications.
