Limited Domain SnSb@N-PC Composite Material as a High-Performance Anode for Sodium Ion Batteries

Abstract

Anode materials have a vital influence on the performance of sodium ion batteries. In this paper, SnSb nanoparticles were distributed uniformly in N-doped three-dimensional porous carbon (SnSb@N-PC), which effectively avoided the agglomeration of alloy nanoparticles and greatly improved the capacity retention rate of SnSb@N-PC. At the same time, the porous carbon substrate brings higher conductivity, larger specific surface area, and more sodium storage sites, which makes the material obtain excellent sodium storage properties. The first discharge-specific capacity of SnSb@N-PC was 846.3 mAh g⁻¹ at the current density of 0.1 A g⁻¹, and the specific capacity remained at 483 mAh g⁻¹ after 100 cycles. Meanwhile, the specific capacity of SnSb@N-PC was kept at 323 mAh g⁻¹ after 400 cycles at a high current density of 1.5 A g⁻¹, which indicated that the recombination of SnSb with porous carbon played a key role in the electrochemical performance of SnSb. The contribution of capacitance contrast capacity was able to reach more than 90% by the cyclic voltammetry (CV) test at high sweep speed, and larger Na⁺ diffusivity was obtained by the constant current intermittent titration technique (GITT) test, which explains the good rate performance of SnSb@N-PC.

1. Introduction

With the rapid development of the economy, problems such as energy shortage and environmental pollution are becoming more and more serious, and it is urgent to develop clean and renewable energy [1,2,3,4]. It has become the consensus of the international community to promote green and low-carbon technology innovation and develop a modern energy system based on renewable energy [5,6,7]. Accelerating the transition to clean and low-carbon energy is a global trend [8,9,10]. The lithium-ion battery has emerged as the most practical energy storage solution due to its high energy density, extended cycle life, portability, and environmental friendliness. Therefore, it is widely used in electronic equipment, electric vehicles, and power grid energy storage fields [11,12,13]. However, due to the limited and uneven distribution of lithium resources, there is a contradiction between supply and demand, which causes concern about the cost of renewable energy and lithium-ion batteries. Therefore, it is urgent to develop new energy storage systems [14,15,16,17]. Sodium ion batteries (NIBs) are considered as one of the most promising electrochemical energy storage systems because of their abundant resources, high safety, and low price [18,19,20]. Improving the performance of anode materials, cathode anode materials, electrolytes, and other key components of NIBs has been widely studied, which is very important for designing high-performance NIBs to meet the needs of large-scale electrochemical energy storage [21,22,23,24].

Anode materials have a vital influence on the performance of sodium ion batteries [25,26,27]. Up to now, various anode materials, including insertion reactive (graphite anode, MXene, etc.), alloy reactive (Sn, Sb, P, etc.), and conversion (Co₃O₄, FeS₂, NiS/NiS₂, CoP, CoS/CoSe, CoSe, etc.), have been explored for NIBs [28,29,30,31,32,33,34,35,36]. Alloy materials have been widely concerned by researchers because of their high specific capacity of sodium storage, relatively high reaction potential, and high conductivity [37,38,39]. However, the poor reaction kinetics of alloy materials, huge volume changes, and irreversible structural deterioration in the process of sodium intercalation and desalination lead to pulverization of materials and rapid attenuation of specific capacity, which limit the application of alloy materials [40,41]. In order to solve these problems, a great deal of work including micro/nano-scale structure design, introduction of buffer matrix materials, preparation of multi-metallic compounds, and so on have been devoted to improving properties of alloy materials [42,43,44]. But up to now, the performance of alloy-based hosts is not satisfactory, which is very important for the design of high-performance NIBs [45]. Therefore, it is a key problem to explore high-performance anodes and promote the application of alloy materials in NIBs.

Among the various alloy anode materials, Sn and Sb as anodes for NIBs usually undergo serious structural degradation and large volume change (Na₁₅Sn₄ is about 424%, and Na₃Sb is about 390%) during sodiation/desodiation processes, which results in agglomeration, pulverization, and electrochemical inactivation [46,47,48]. Due to the different sodiation/desodiation of Sn and Sb, alloying can achieve the gradual formation of amorphous, nano-limited intermediate phases and the corresponding elastic softening of highly natrified Sn and Sb phases, which becomes an effective way to absorb and mitigate the large volume changes and material pulverization during Na⁺ insertion/extraction [49,50,51]. Hence, SnSb alloys have received widespread attention as anode materials for NIBs. A series of unique SnSb alloys (such as SnSb microparticles, colloidal SnSb nanocrystals, and porous SnSb) and SnSb@C composites (such as SnSb@N-doped carbon, SnSb@porous carbon nanofibers, SnSb@carbon nanocable@graphene sheets, SnSb@graphene, SnSb@N-doped porous graphene network, and SnSb@N-rich porous carbon nanowires) have been lucubrated, which presents excellent Na⁺ storage performances [46,49,50,51,52,53,54,55]. However, to meet the growing demand for high-power electric vehicles and large-scale energy storage systems and compete with LIBs and other emerging battery technologies, the rate performance and cycle stability of SnSb-based anode materials in NIBs need further improvement [56,57,58]. The corresponding Na⁺ storage mechanism also needs to be further investigated [59,60,61,62,63,64]. At present, there are two significant issues should be addressed urgently for the development of SnSb-based anode materials in NIBs: how to obtain the fabrication of ultrasmall SnSb nanoparticles (e.g., <5 nm in diameter) and how to select the suitable substrates for SnSb alloys (currently mainly refer to carbon materials) [65,66,67].

Recently, metal-organic frameworks (MOFs), especially the ZIF-8 system with the advantages of wide range of application, easy synthesis, and relatively excellent structural stability, have received a lot of attention as starting materials for carbon and carbon composites. An important application of MOFs is to combine with other materials to prepare ultra-small nanoparticle hybrids embedded in a carbon matrix [68]. For example, ultra-small Sn nanodots with a size of 2–3 nm were synthesized, and Sn particles have limited dispersion in N-doped mesoporous MOF-derived carbon substrates [69]. Yu et al. used the constraint effect of N-doped microporous carbon derived from ZIF-8 to prepare ultra-small red P nanoparticles with a diameter of <1 nm by the evaporation–condension–transformation method [70]. Jiao et al. reported that ultra-small Sn nanoparticles (≈0.8 nm) were encapsulated in N-doped microporous carbon matrix derived from ZIF-8 by the chemical vapor transformation method [71]. However, the electrochemical properties of the materials obtained by the above experimental scheme are still lacking. In order to solve the above problems, it is very important to use the facial chemical reduction method based on liquid phase adsorption to reduce different metal ions to metal particles, which has the advantages of high efficiency, easy operation, and simple equipment, as well as being conducive to the preparation of different kinds of nanoparticles [72]. However, the preparation of ultra-small SnSb nanoparticles by rapid reduction methods has not yet been reported, and this remains a challenge [73]. In addition, a suitable carbon substrate with small size and a large number of micropores plays an important role in the preparation of ultra-small alloy nanoparticles, avoiding the aggregation of alloy nanoparticles, and promoting the Na⁺ insertion/extraction kinetics [74].

Herein, in order to solve the problem of excessive volume expansion of antimony during charge and discharge and the rapid decay of capacity caused by the material pulverization, we employed ZIF-8 as carbon substrate and successfully synthesized the N-doped three-dimensional porous carbon (N-PC)-supported SnSb@N-PC nanocomposites as anodes for rechargeable NIBs with the chemical reduction method and a subsequent thermal treatment process. N-doped three-dimensional porous carbon (N-PC) was selected as the matrix, which can store and limit the SnSb alloy particles. With SbCl₃ and SnCl₄ as raw materials, SnSb@N-PC composites with unique structure were prepared by the chemical reduction method with small size and limited domain. The special structure effectively avoided agglomeration of SnSb alloy nanoparticles. Therefore, the cycle stability of the material of SnSb@N-PC as an anode for NIBs was tested. SnSb@N-PC composites present a specific capacity of 483 mAh g⁻¹ and maintained stable cycling after 100 cycles at 0.1 A g⁻¹ current density, and it showed a high capacity of 323 mAh g⁻¹ after 400 cycles at the current density of 1.5 A g⁻¹. Moreover, the porous carbon substrate brings higher conductivity, larger specific surface area, and more sodium storage sites. The diffusion coefficients of SnSb@N-PC composites are mainly about 10⁻¹¹ cm² s⁻¹. As a result, the rate performance and sodium storage performance are significantly improved. On the basis of the ultrafast electrochemical performance, the SnSb@N-PC is a highly promising electrode material for sodium ion batteries and it may serve as an appropriate electrode material for other energy storage devices.

2. Results

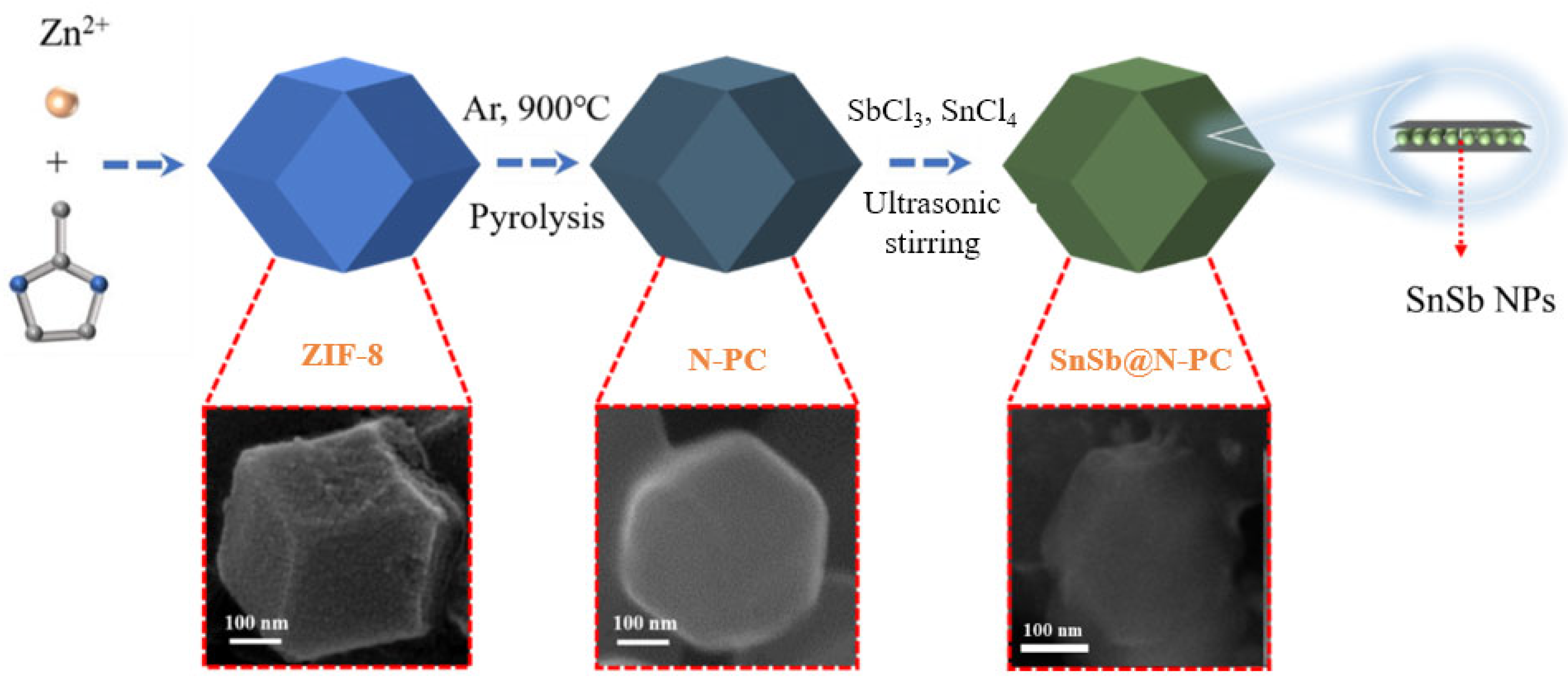

Figure 1 shows the synthesis process of SnSb@N-PC composite. The size of ZIF-8 ranged from 150 nm to 200 nm. The sample was washed with 2.5 mol L⁻¹ dilute HCl solution because Zn²⁺ was oxidized to Zn during high-temperature pyrolysis. In this process, the disappearance of Zn made a large number of micropores and mesopores appear in the samples (N-PC). Then, SnSb nanoparticles were uniformly distributed in the three-dimensional porous carbon materials using SnCl₄ and SbCl₃ as raw materials. Subsequently, the composites were characterized, and electrochemical tests were carried out. The corresponding reaction process of SnSb@N-PC is as follows:

Zn + 2HCl → ZnCl₂ + H₂,

(1)

2SbCl₃ + 6NaBH₄ → 2Sb + 6BH₃ + 6NaCl + 3H₂,

(2)

SnCl₄ + NaBH₄ → Sn + BCl₃ + NaCl + 2H₂,

(3)

3. Discussion

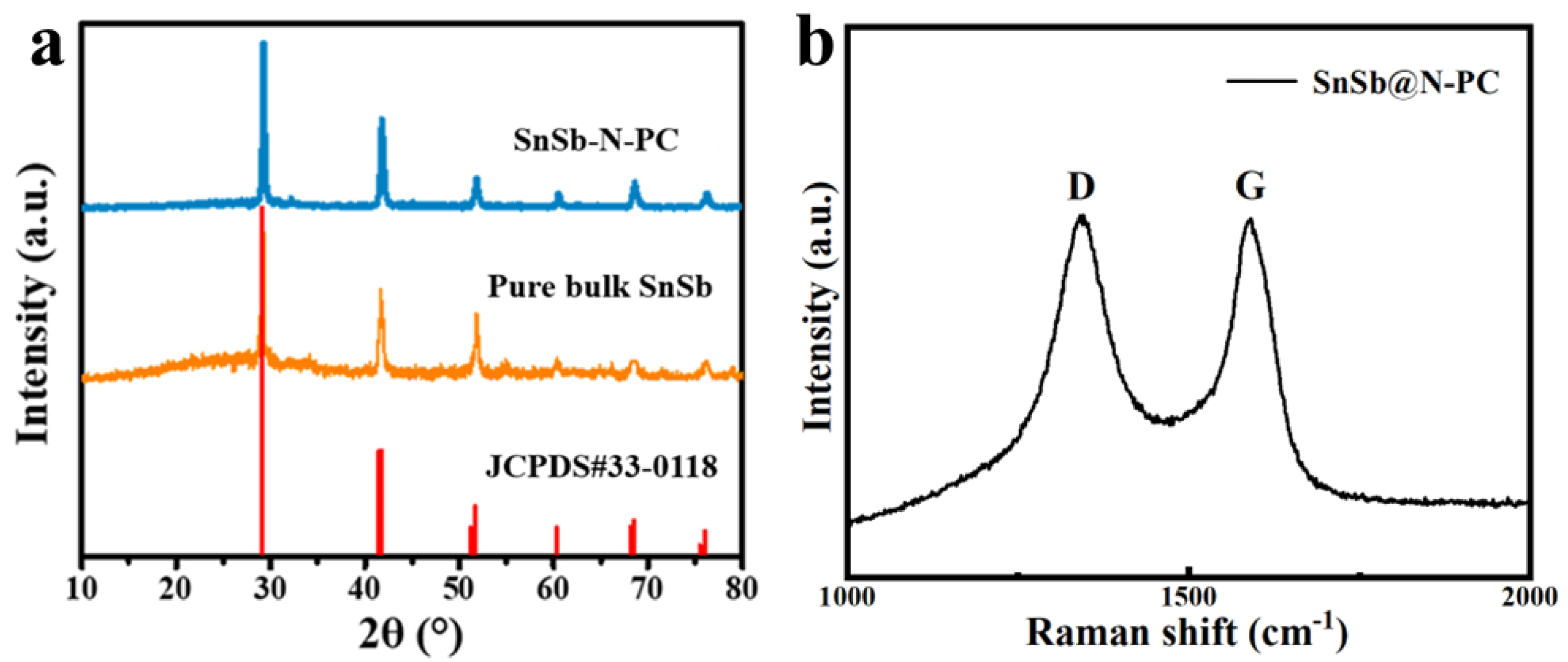

The XRD of SnSb@N-PC composite material is shown in Figure 2a. The positions of the characteristic peaks of SnSb@N-PC and pure bulk SnSb were basically the same. The diffraction peaks at 28.8°, 40.1°, 41.9°, 51.7°, 59.8°, 68.6°, and 75.8° corresponded to the (012), (104), (110), (202), (024), (122), and (009) crystal planes of Sb in SnSb and SnSb@N-PC by comparing with the SnSb standard card (JCPDS#33-0118), respectively. All the diffraction peaks were very sharp, and there were no obvious miscellaneous peaks, which shows that the alloy material had a high degree of crystallization, uniform composition, and ideal purity of the material. As shown in Figure 2b, Raman spectra of SnSb@N-PC were measured, where two typical peaks at 1342.58 and 1591.00 cm⁻¹ belonged to the D band and G band of pyrolytic carbon, respectively. The D band can reflect the disorder and defect of carbon, while the G band can represent the in-plane stretching vibration of sp² hybrid carbon atoms. According to the strength of D-band and G-band, the intensity ratio of I_D/I_G is ≈ 1.02, it is obvious that there were a certain number of defects and disorders in N-PC, which is beneficial to improve the storage capacity of Na⁺. The N₂ adsorption/desorption isotherms showed porous characteristics of SnSb@N-PC, which showed that the Brunauer–Emmett–Teller (BET) specific surface areas of the designed composite were 382.4 m² g⁻¹. SnSb nanoparticles were coated by the N-PC carbon with limited self-agglomeration.

The morphology of SnSb@N-PC composites was characterized by SEM and TEM. According to the scanning electron microscope image of Figure 3a,b, it can be clearly found that the amorphous porous carbon was evenly dispersed on the dodecahedral nanosheets. The HRTEM diagram in Figure 3c presents the selected broken nanocomposite, in which several tens of nanometer-sized SnSb phases were homogeneously distributed throughout the particles. The typical characteristic interlayer shows the spacing of 0.299 nm and 0.200 nm, corresponding to the (1 0 1) lattice and (1 1 0) planes of the SnSb alloy, respectively. The lattice spacing of the short-range ordered pyrolytic carbon (0.34 nm) is not marked in Figure 3c because of the similar spacing of the (0 1 2) crystal face spacing in the SnSb alloy [50,53,56]. It was proven to be stable in MOF-derived carbon. The composite carbon structure can not only improve the conductivity of the material but can also accelerate the diffusion rate of ions, thus enhancing the electrochemical performance of the material [34,59]. Due to the large specific surface area of N-doped three-dimensional porous carbon, SnSb alloy particles can be prevented from accumulating by the limited domain of carbon, so that the grains do not agglomerate and exist in the form of nano-sized small particles. The element distribution diagram of the composite material (Figure 3d) shows that Sb, Sn, and N elements are uniformly distributed in the nanocomposite material, indicating that the MOF-derived nanocarbon material has been successfully doped with heteroatom (N element) during the sample preparation process [75], and the beneficial heteroatom doping is conducive to increasing the active site of the material, thereby improving the sodium storage performance of the material.

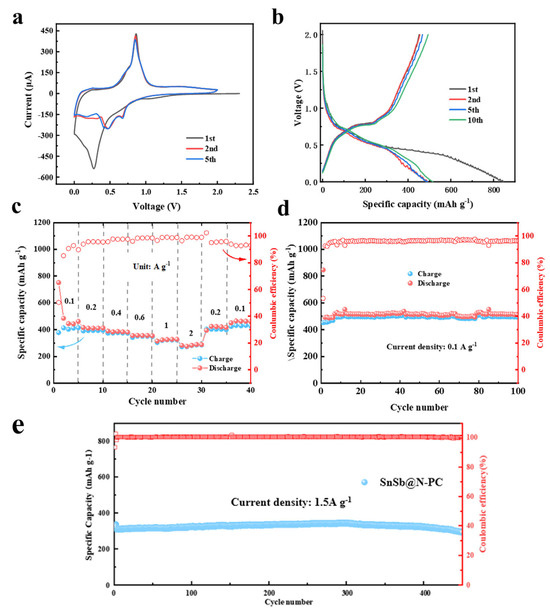

In order to test the electrochemical performance of SnSb@N-PC nano-material as the negative electrode of sodium ion battery, it was assembled into a button half-cell for the CV test and constant current charge–discharge test. Figure 4a shows the CV curve of SnSb@N-PC composite electrode for three cycles in the first five cycles, with a scanning rate of 0.1 mV s⁻¹ and a voltage range of 0.005–2.0 V (vs. Na⁺/Na). It can be clearly seen that the CV curve of the first cycle was quite different from that of the other two cycles, which can mainly be attributed to the irreversible decomposition of electrolyte and the irreversible deintercalation of Na⁺ in carbon and SnSb. For the first cathodic scan, the reduction peak at 1.0 V can be attributed to the formation of solid electrolyte interface (SEI) film on the alloy surface and the reduction of SnSb oxide. The reduction peak at 0.26 V can be attributed to the formation of Na₁₅Sn₄ and Na₃Sb by the alloying reaction of Na-Sn and Na-Sb. The reduction peak at about 0.01 V is related to Na⁺ insertion into porous carbon. In anodic scanning, the first peak of 0.25 V can correspond to the removal of Na⁺ from porous carbon. In addition, the reduction peak at about 1.0 V for the first cathodic scan disappeared in the subsequent scan, which can be attributed to the formation of SEI film. The alloying reaction occurred at about 0.72 V (Na_xSb) and 0.49 V (Na₃Sb and Na₁₅Sn₄), starting with the second cathodic scan. In addition, the other scan curves coincided well after the first scan, which indicates that the electrode material has good reversibility of reaction. Figure 4b shows the constant current charge–discharge curves of the material at 0.1 A g⁻¹ current density for the first, second, fifth, and tenth cycles. The plateau at about 0.5 V (vs. Na⁺/Na) corresponded to the formation of SEI film in the first cycle discharge curve of SnSb@N-PC nanomaterials. The first discharge and charge capacity of SnSb@N-PC nanomaterials were 846.3 mAh g⁻¹ and 451.8 mAh g⁻¹, respectively, and the first coulomb efficiency (CE) was only 53.4%. The lower initial coulomb efficiency can be attributed to the irreversible decomposition of electrolytes, the formation of SEI film, and the irreversible deintercalation of sodium ions in porous carbon. The specific capacity of the sample was stable at 516 mAh g⁻¹, and the coulomb efficiency reached 95.6% after ten cycles, which shows the stability of electrode structure and cycle. Figure 4c–e shows the good cycle performance and rate ability of SnSb@N-PC nanomaterials. The first discharge specific capacity of SnSb@N-PC was 846.3 mAh g⁻¹ at 0.1 A g⁻¹ current density, and the specific capacity remained at 483 mAh g⁻¹ after 100 cycles. At the same time, the specific capacity was kept at 323 mAh g⁻¹ after 400 cycles at a high current density of 1.5 A g⁻¹.

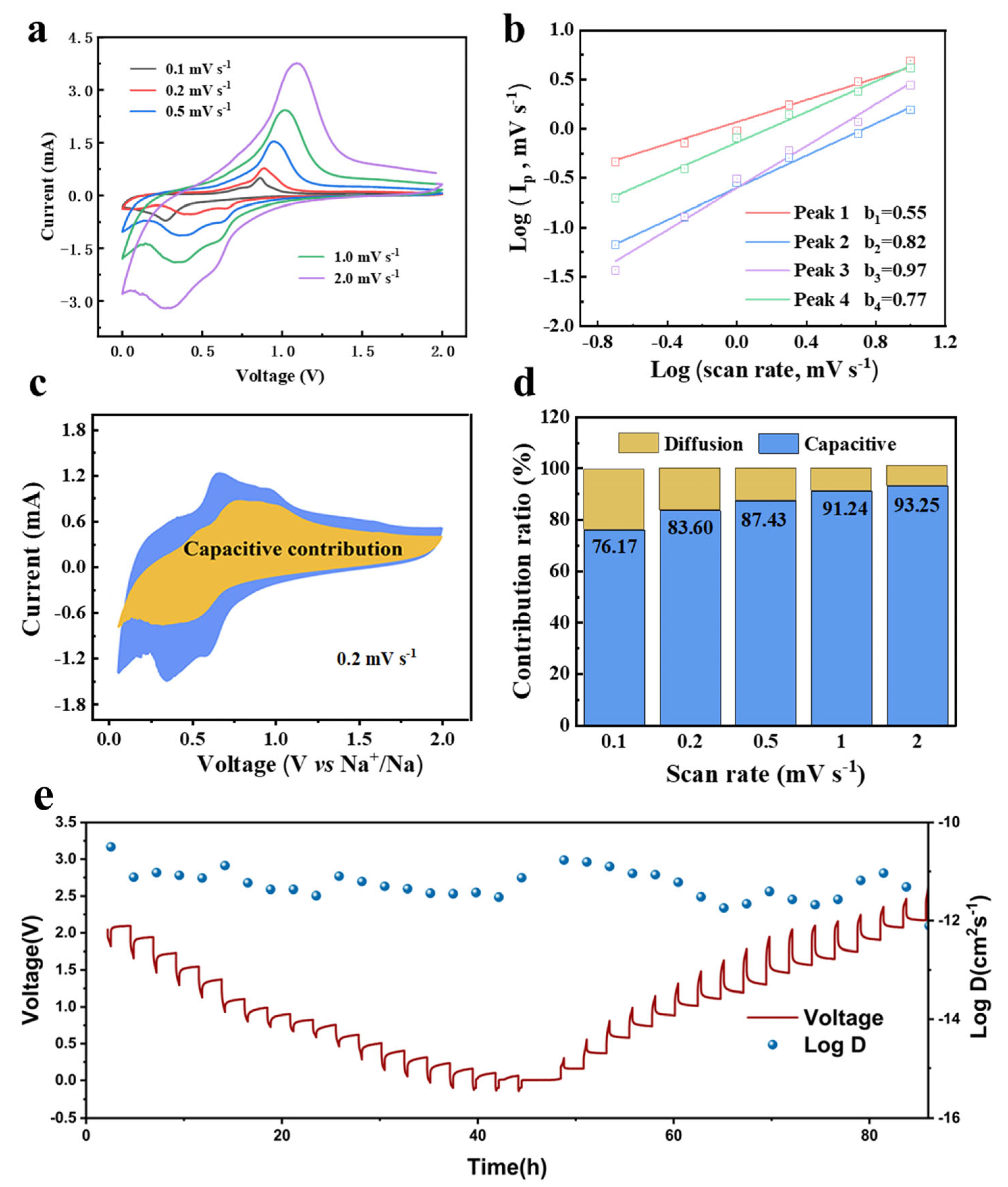

In order to further analyze the kinetics of sodium storage in SnSb@N-PC anode materials, the CV curves of sodium ion batteries were measured at different sweep rates (0.1, 0.2, 0.5, 1.0, 2.0 mV s⁻¹). Figure 5a shows that the shape of the curve did not change obviously with the increase in scanning speed, so SnSb@N-PC had good stability. However, the area of the CV curve increased with the increase in scanning speed, which indicates that there was a capacitive sodium storage behavior on the electrode surface. The behavior of peak current is analyzed by Equation (3) in this paper [76,77].

i = a v^b

(4)

where a is a constant and v is the scanning speed. The b value is the slope of the ln i and ln v graphs where the b value can vary between 0.5 and 1.0, which shows that the specific capacity of the electrode is dominated by diffusion process and capacitance drive, respectively. The b value of the negative electrode gradually increased from 0.55 to 0.97 with the increase in scanning speed, which indicated that the electrochemical reaction of SnSb@N-PC negative electrode was controlled by the combination of capacitance and diffusion process (Figure 5b). In addition, according to the Equation (4), the specific proportion of the contribution of capacitance (k₁ v) and diffusion-controlled effects (k₂ v^1/2) to the material capacity is discussed.

i (V) = k₁ v + k₂ v^1/2

(5)

As shown in Figure 5c, the capacitive capacity contribution accounted for 83.6% in the CV curve with a scanning speed of 0.2 mV s⁻¹. The capacitance contributions were 76.17%, 83.60%, 87.43%, 91.24%, and 93.25% at the scanning rates of 0.1, 0.2, 0.5, 1, and 2 mV s⁻¹, respectively (Figure 5d). The capacitance effect dominated the storage behavior of Na⁺ under high current, which is beneficial to the structural stability of materials, and this is also the main reason for the excellent cycle and rate performance. Figure 5e further shows the sodium ion diffusion coefficient of the SnSb@N-PC anode calculated according to the GITT curve, which can analyze the diffusion behavior of Na⁺ in solid-phase electrode charging and discharging. The measured diffusion coefficients of Na⁺ in active materials ranged from 10⁻¹² to 10⁻¹⁰ cm² s⁻¹ and was mainly concentrated in about 10⁻¹¹ cm² s⁻¹. Combining the above results, the three-dimensional porous carbon had a positive effect on the electrochemical behavior of the SnSb@N-PC electrode by improving the sodium ion diffusion coefficient during the cycling process. This structure makes the electrolyte fully infiltrated, has high conductivity, promotes ion migration, and prevents alloy particles from agglomerating.

4. Materials and Methods

4.1. Preparation of SnSb@N-PC

Firstly, a ZIF-8 metal-organic framework synthesized by coordination chelation of dimethylimidazole (C₄H₆N₂) and Zn²⁺ was used as a precursor [78]. The ZIF-8 nanocrystals were heated to 300 °C for 2 h and then carbonized at 900 °C for 5 h at a heating rate of 5 °C/min. Subsequently, the sample was washed with 2.5 mol L⁻¹ dilute HCl solution. Finally, the sample was washed repeatedly with deionized water and dried in vacuum at 70 °C for 12 h. Porous structure with N doping (N-PC) with a large number of micropores and mesopores was obtained, and high homogeneity of in situ N doping was achieved. Then, 40 mg of the prepared N-PC powder was diluted in a 40 mL solution of SnCl₄ (140 mg) and SbCl₃ (91.2 mg) in methanol and stirred at room temperature for 3 h. Subsequently, a 2 mL solution of methanol NaBH₄ (200 mg) was then rapidly added to the mixture, which was then magnetically stirred at room temperature for 30 min. The mixture was centrifuged, washed with deionized water and methanol, and dried in a vacuum drying oven at 70 °C for 12 h. The above steps are repeated without adding porous carbon to obtain SnSb@N-PC.

4.2. Characterization

In order to study the morphology, crystal structure, and chemical composition of the samples, X-ray diffraction (XRD) was used to characterize the samples. The X-ray diffraction instrument (D 8, Cu K α irradiation, λ = 0.154 nm, 40 kV, 2 θ = 20~80°) is manufactured by Bruker. A scanning electron microscope (SEM, Zeiss, Oberkochen, Germany, 15 kV) and transmission electron microscope (TEM, FEI, 200 Kv, Portland, OR, USA) were also used to analyze the samples. The corresponding EDS Mappings was tested using One Max 20 equipment. Raman spectroscopy (Senterra, Bruker, Karlsruhe, Germany) was also used to characterize the disorder and defects of carbon materials.

4.3. Electrochemical Measurements

Firstly, the active material, acetylene carbon black and polyvinylidene fluoride (PVDF) were weighed and mixed evenly according to the mass ratio of 8:1:1. N-methyl pyrrolidone (NMP) was used as solvent to form a uniform slurry, which was coated on copper foil. The electrodes were then dried in a vacuum oven at 80 °C for 12 h. The button half-cell was fabricated with sodium as counter electrode, glass superfine fiber as the separator and 1 M NaPF₆ in EC/DEC as the electrolyte. The LAND battery instrument (Wuhan Kingnuo Electronic Co., Wuhan, China) was used to conduct the constant current charge and discharge test and galvanostatic intermittent titration technique (GITT) test. The cyclic voltammetry test (CV, scanning speed 0.1–1 mV s⁻¹) was measured in an electrochemical workstation (CHI660E) with a voltage window of 0.005–2 V. The apparent diffusion coefficients of Na⁺ in the electrode were measured by GITT [37]. The ratio of capacitance drive and diffusion process to total capacity was calculated [79].

Equation (3) is the apparent diffusion coefficients of Na⁺.

$$D_k=\frac{4}{\pi \tau }\left(\frac{m_B{V}_m}{M_{B}S}\right){\left(\frac{\Delta E_S}{\Delta E_{\tau }}\right)}^2\left(\ll \frac{I^2}{D_k}\right)$$

(6)

where m_B and M_B are the mass of the active substance and molecular weight, respectively; S is the total contact area between the electrolyte and the electrode; V_m is the molar volume of the active substance; I is the thickness of the electrode; and ΔE_s and ΔE_τ are the steady-state voltage change after subtracting the voltage drop and the total transient change in cell voltage during a single titration, respectively.

5. Conclusions

SnSb@N-PC composite was successfully prepared with SbCl₃, SnCl₄, and N-PC as raw materials, in which SnSb nanoparticles were uniformly distributed in three-dimensional porous carbon materials. The special composite structure greatly avoided the agglomeration of alloy nanoparticles during synthesis process, which improved the capacity retention of SnSb@N-PC composite. On the other hand, the high conductivity, larger specific surface area, and more sodium storage sites brought by porous carbon substrate materials make SnSb@N-PC composites obtain excellent sodium storage performance. The specific capacity of SnSb@N-PC composites was maintained at 483 mAh g⁻¹ after 100 cycles at 0.1 A g⁻¹ current density, and at 323 mAh g⁻¹ after 400 cycles at 1.5 A g⁻¹ current density. The results of the CV test show that the sodium storage process of SnSb@N-PC composites is controlled by the combination of capacitive and diffusion processes, and the contribution of capacitance to capacity can reach more than 90% at high scanning speed. The diffusion coefficients of SnSb@N-PC composites were mainly about 10⁻¹¹ cm² s⁻¹. Therefore, SnSb@N-PC composites have good rate performance.
