Investigation of the Thermodynamic Properties of Surface Ceria and Ceria–Zirconia Solid Solution Films Prepared by Atomic Layer Deposition on Al₂O₃

Abstract

The properties of 20 wt % CeO₂ and 21 wt % Ce_0.5Zr_0.5O₂ films, deposited onto a γ-Al₂O₃ by Atomic Layer Deposition (ALD), were compared to bulk Ce_0.5Zr_0.5O₂ and γ-Al₂O₃-supported samples on which 20 wt % CeO₂ or 21 wt % CeO₂–ZrO₂ were deposited by impregnation. Following calcination to 1073 K, the ALD-prepared catalysts showed much lower XRD peak intensities, implying that these samples existed as thin films, rather than larger crystallites. Following the addition of 1 wt % Pd to each of the supports, the ALD-prepared samples exhibited much higher rates for CO oxidation due to better interfacial contact between the Pd and ceria-containing phases. The redox properties of the ALD samples and bulk Ce_0.5Zr_0.5O₂ were measured by determining the oxidation state of the ceria as a function of the H₂:H₂O ratio using flow titration and coulometric titration. The 20 wt % CeO₂ ALD film exhibited similar thermodynamics to that measured previously for a sample prepared by impregnation. However, the sample with 21 wt % Ce_0.5Zr_0.5O₂ on γ-Al₂O₃ reduced at a much higher $P_{O_2}$ and showed evidence for transition between the Ce_0.5Zr_0.5O₂ and Ce_0.5Zr_0.5O_1.75 phases.

1. Introduction

Ceria is a component in a number of commercial catalysts, as demonstrated in a recent, comprehensive review [1]. Two important examples include the use of ceria-based materials as oxidation catalysts in Diesel particulate filters [2] and the use of ceria–zirconia solid-solutions as Oxygen-Storage Capacitors (OSC) in automotive three-way catalysts [3,4,5,6,7]. The critical property of ceria that makes it useful in these and other catalytic applications is the relative ease with which it changes oxidation states between Ce³⁺ and Ce⁴⁺. This, together with the fact that reduced ceria can be oxidized by steam or CO₂ [8] and then transfer oxygen to transition metals with which it is in contact make it a promoter of hydrocarbon oxidation [9,10], water-gas-shift (WGS) reaction [11,12,13,14], steam reforming [15,16,17,18], and more.

It is known that pure ceria becomes essentially unreducible after harsh redox cycling [19]. Although this loss in reducibility is accompanied by a loss in surface area, it is not simply a kinetic phenomenon, since the ceria–zirconia solid solutions that are used in three-way catalysts also have low surface areas but still maintain their OSC properties [20]. While the loss in surface area does not prevent the application of ceria–zirconia solid solutions for OSC, high surface areas are required in other cases. For example, for CO-oxidation and WGS reactions over Pd/ceria, the sites at the Pd–ceria boundary have been shown to exhibit much higher rates [21]. In these examples, the surface area of the ceria should be as high as possible.

An obvious approach for maintaining a high surface area for the ceria phase is to deposit it onto a high-surface-area support that has good thermal stability, such as γ-Al₂O₃. The ceria phase is usually added by infiltration with metal salts, followed by calcination; however, the use of a support for the ceria phase is often only partially effective because the ceria does not typically cover the entire surface. For example, rates on a catalyst in which Pd is deposited onto a ceria/γ-Al₂O₃ support prepared by infiltration of ceria are often much lower than rates on ceria-supported Pd because much of the Pd is not in contact with ceria in the former case [22]. Finally, it can be difficult to produce a supported, ceria–zirconia solid solution because this requires good mixing of the Ce and Zr cations during the precipitation stage in catalyst preparation.

Work from our laboratory has recently demonstrated that one can use Atomic Layer Deposition (ALD) to prepare thin ceria [22] and ceria–zirconia [23] films that uniformly cover a γ-Al₂O₃ support. The principle behind ALD is that an organometallic precursor is allowed to react with the substrate surface, after which the adsorbed precursor is oxidized in a separate step. Because reaction of the precursor with the substrate is limited to a monolayer at most, ALD allows the formation of uniform, atomic-scale, oxide films. There are comprehensive reviews of ALD topics that are available [24,25]. Mixed oxides are easily formed by alternating between different precursors. Because oxides have low surface energies compared to metals, the uniform films formed by ALD tend to be thermally stable. In the cases of ceria and ceria–zirconia films on γ-Al₂O₃, the γ-Al₂O₃ remains “covered”, even after calcination to 1173 K.

As mentioned previously, the reducibility of ceria depends on the surface area and/or crystallite size [19,26] and ceria–zirconia solid solutions are more reducible than pure ceria [20,27]. Because the films prepared by ALD can be sub-nanometer in thickness, it is anticipated that the reducibility of these materials may be very different from even ordinary polycrystalline ceria. Quantification of reducibility can be difficult and kinetic measures, such as Temperature Programmed Reduction peak temperatures, can be dramatically affected by the presence of catalysts and other factors. Therefore, we chose to quantify reducibility by measuring the thermodynamic properties of ALD-prepared films using flow titration and coulometric titration [20,27]. In both of these techniques, the sample is equilibrated at high temperatures in a specified $P_{O_2}$ and the extent of ceria reduction (e.g., x in CeO_(2−x)) is then determined as a function of that $P_{O_2}$ and temperature. The $P_{O_2}$ is typically established by equilibrium with H₂ oxidation (i.e., $P_{O_2}^{\mathrm{½}}=K_{equi}^{-1}\frac{P_{H_{2}O}}{P_{H_2}}$) and is therefore fixed by passing a mixture of H₂ and H₂O over the sample at a specified H₂O:H₂ ratio. Because the activity of solids is one, the equilibrium constant for oxidation of CeO_(2−x), and therefore the free energy of oxidation at that value of x, is determine directly from the measured $P_{O_2}$. Furthermore, the temperature dependence of the equilibrium constant can be used to determine the heat of oxidation through the Clausius-Clapeyron Equation.

What we will show is that 0.4-nm, ALD ceria films on γ-Al₂O₃ have thermodynamic redox properties that are different from that of bulk ceria but essentially identical to that reported previously for polycrystalline ceria formed by impregnation into γ-Al₂O₃. This may be due the film coalescing into particles upon redox cycling. By contrast, the 0.5-nm ceria–zirconia films were stable and very different from either bulk ceria or ceria–zirconia solid solution. The films exhibit evidence for an equilibrium transition between the Ce_0.5Zr_0.5O₂ and Ce_0.5Zr_0.5O_1.75 phases.

2. Results

2.1. Sample Characterization

The synthesis and characterization of the CeO₂(ALD)/γ-Al₂O₃ and the CZ(ALD)/γ-Al₂O₃ samples have been presented in detail elsewhere [22,23]. Results from Transmission Electron Microscopy (TEM) indicated that the γ-Al₂O₃ was uniformly covered by the ALD films, and there was good agreement between the thicknesses of the films determined from TEM and value of 0.4-nm estimated from the sample weight changes. By contrast, TEM of a CeO₂(IMP)/γ-Al₂O₃ sample with the same ceria loading as the ALD sample showed the presence of relatively large CeO₂ crystallites that covered only a fraction of alumina surface [22].

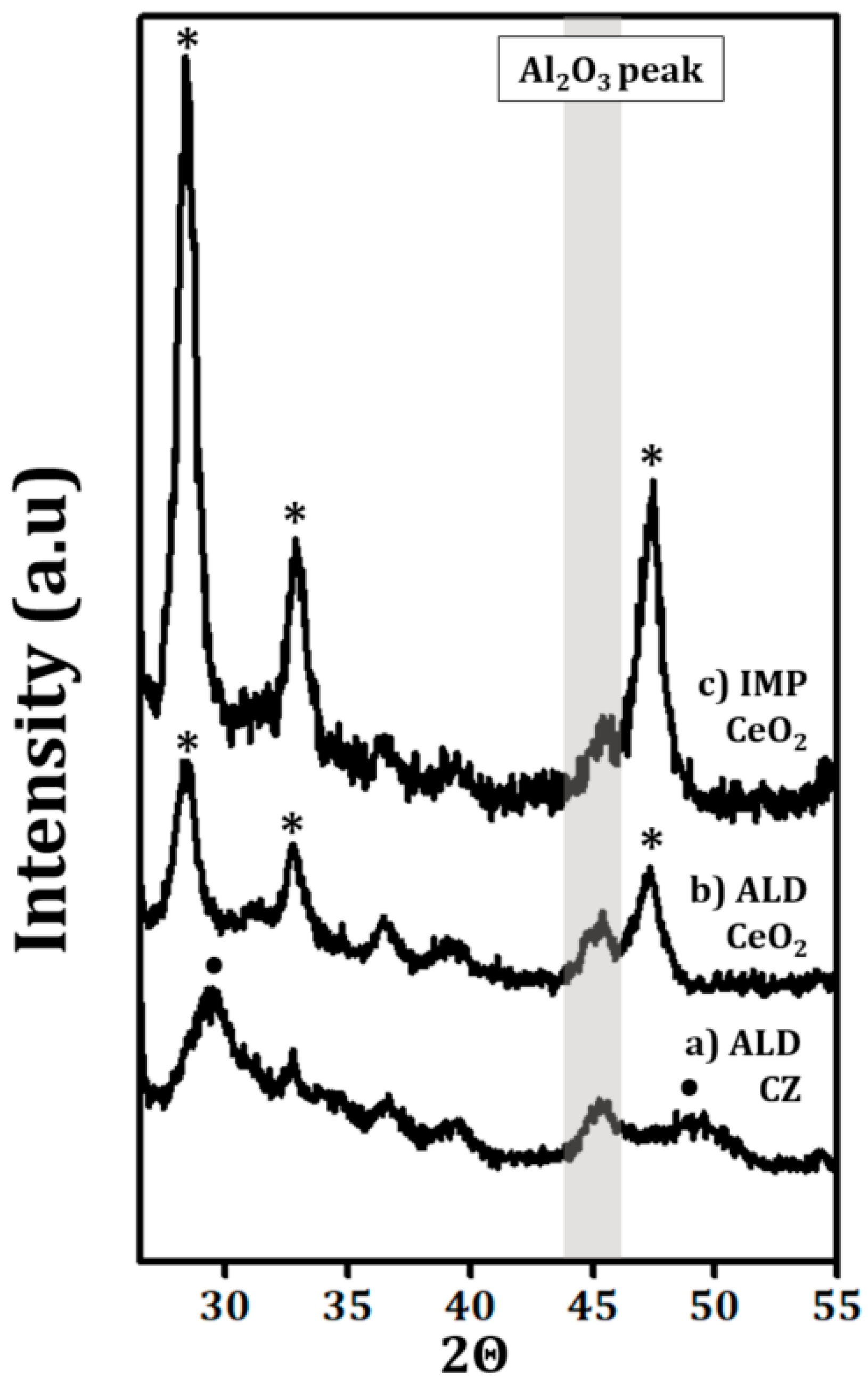

The differences between the ALD and impregnated samples are readily apparent from the XRD patterns, shown in Figure 1. All of the samples in this figure were calcined in air to 1073 K for 2 h prior to the measurements. To normalize the intensities, 12.5 wt % carbon was added to each sample and the height of the peak XRD peak at 26.7 degrees 2θ was fixed. The XRD pattern for the unmodified γ-Al₂O₃ is shown in Figure 1a for reference. In agreement with the previous report [22], the patterns for the CeO₂(ALD)/γ-Al₂O₃ (Figure 1b) and CeO₂(IMP)/γ-Al₂O₃ (Figure 1c) samples, both of which had 20 wt % CeO₂, are very different. The diffraction pattern of CeO₂(ALD)/γ-Al₂O₃ remained unchanged from that of γ-Al₂O₃, either because the CeO₂ film is amorphous or because the thickness of the CeO₂ film is less than the coherence length of the X-rays [22]. By contrast, the CeO₂(IMP)/γ-Al₂O₃ shows relatively intense peaks corresponding to the fluorite structure of CeO₂.

The XRD patterns for the CZ(ALD)/γ-Al₂O₃ (Figure 1d) and CZ(IMP)/γ-Al₂O₃ (Figure 1e) samples, both with 21 wt % Ce_0.5Zr_0.5O₂, are similarly different. There is evidence for a fluorite-related feature at 29.4 degrees 2θ on the ALD sample; but the feature is very broad and weak, again suggesting that the oxide remains in the form of amorphous film. The peak position, roughly half way between the expected angles for CeO₂ and ZrO₂, is consistent with formation of a solid, ceria–zirconia solution [28]. Because it is difficult to form a single-phase, ceria–zirconia solid solution by impregnation, the impregnated sample shows two features in this region, at approximately 28 and 30 degrees 2θ, which are due to ceria- and zirconia-rich phases, respectively [28]. Again, the intensities of the peaks on CZ(IMP)/γ-Al₂O₃ are much greater, implying the presence of three-dimensional crystallites.

Because redox cycling, alternating between reducing and oxidizing environments at high temperatures, has been shown to affect ceria crystallite size much more strongly than simple, high-temperature calcination [19], we also measured XRD patterns for the CeO₂(ALD)/γ-Al₂O₃, CZ(ALD)/γ-Al₂O₃, and CeO₂(IMP)/γ-Al₂O₃ samples after redox cycling, with results shown in Figure 2. The CeO₂(IMP)/γ-Al₂O₃ sample underwent three cycles of alternating reduction (90% H₂ and 10% H₂O for 30 min) at 1073 K and oxidation (dry air for 30 min) at 1073 K. The two ALD-prepared samples were used for the thermodynamic measurements that will be discussed later in this paper and were exposed to many oxidation and reduction cycles over a period of several weeks, at temperatures between 873 and 1073 K. Redox cycling significantly narrowed and increased the intensity of the peak at approximately 28 degrees 2θ on the CeO₂(IMP)/γ-Al₂O₃ sample. Using the width at half height of the (220) diffraction peak, the ceria crystallite size on the CeO₂(IMP)/γ-Al₂O₃ sample increased from 7 to 18 nm. Redox aging also caused changes in the XRD pattern for the CeO₂(ALD)/γ-Al₂O₃ in that the fluorite phase now clearly evident, implying that the film had formed at least some crystallites. However, even after this harsh treatment, the CeO₂ crystallite size on the CeO₂(ALD)/γ-Al₂O₃ sample was only 5 nm. Furthermore, the intensity of the CeO₂ diffraction peak remained much lower than that of even the fresh CeO₂(IMP)/γ-Al₂O₃ sample. The CZ(ALD)/γ-Al₂O₃ sample also exhibited a weak peak that can be associated with a Ce_0.5Zr_0.5O₂ phase; but, again, this feature is weak in intensity and very broad.

The sites at the interface between Pd and ceria are known to be considerably more active for CO oxidation than either Pd or ceria sites individually [21,29]. Therefore, another indication of how well CeO₂ or Ce_0.5Zr_0.5O₂ cover the γ-Al₂O₃ in these composite oxides was gained by adding Pd to the oxide supports and then measuring CO oxidation rates. With the exception of the bulk CeO₂, 1 wt % Pd was added to the γ-Al₂O₃, CeO₂(ALD)/γ-Al₂O₃, CeO₂(IMP)/γ-Al₂O₃, CZ(ALD)/γ-Al₂O₃, and CZ(IMP)/γ-Al₂O₃ after each of the supports had been calcined at 1073 K for 2 h. The bulk CeO₂ was calcined to only 773 K as it may lose significant surface area after high temperature treatment. After adding the Pd, the catalysts were dried and then calcined to 773 K. BET surface areas and the Pd dispersions, measured after reduction at 673 K, are reported in

Table 1. Metal Dispersion and BET Surface Area of Catalysts.

	Pd Dispersion (%)	BET Surface Area (m2/g)
Pd/Al2O3	28	96
Pd/CeO2(IMP)/Al2O3	23	80
Pd/CZ(IMP)/Al2O3	26	82
Pd/20CeO2–Al2O3	33	77
Pd/20Ce0.5Zr0.5O2/Al2O3	34	71
Pd/CeO2	40	45

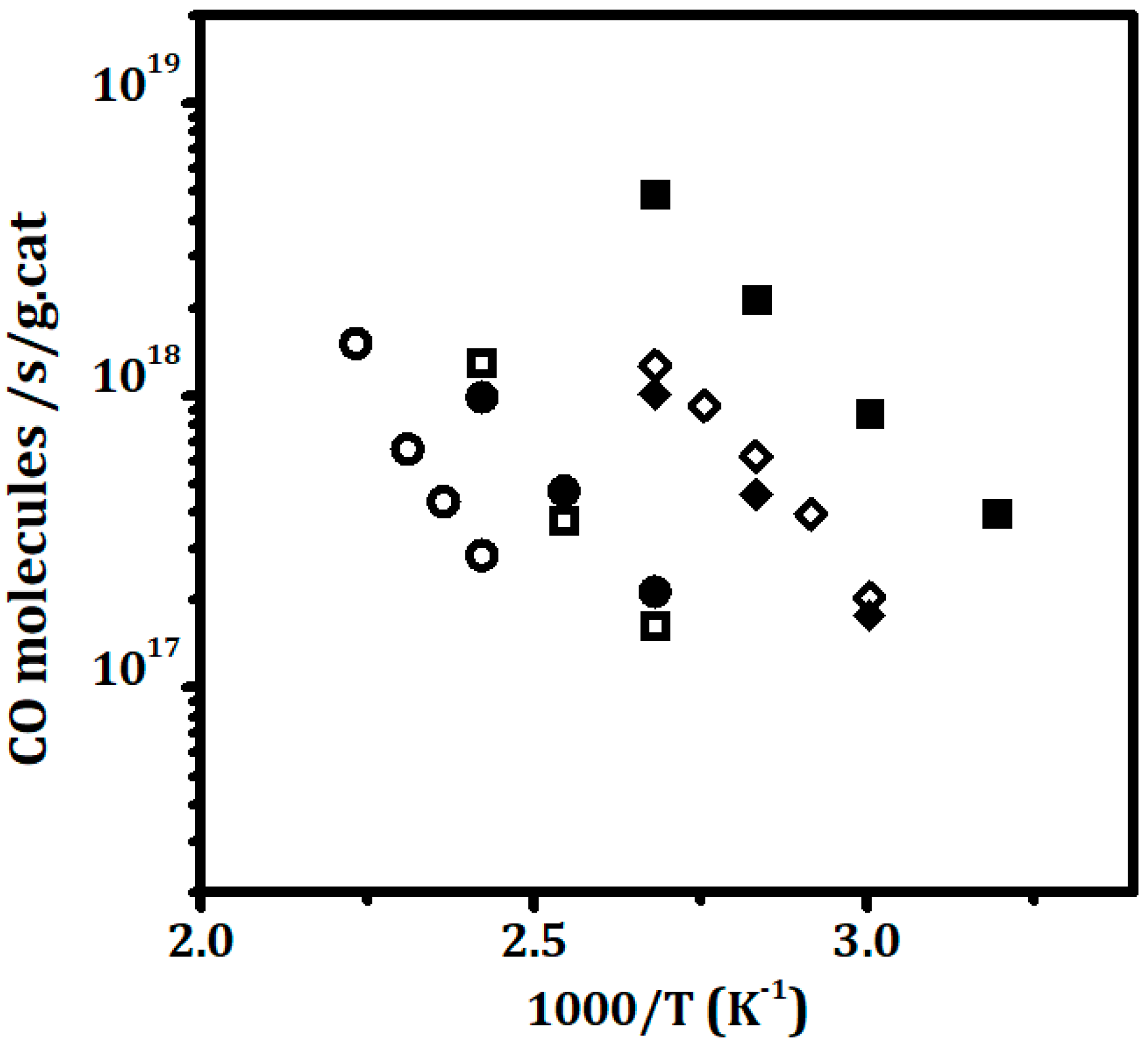

; and differential reaction rates are shown in Figure 3. All of the catalysts had similar BET surface areas and Pd dispersions but the catalytic activities varied significantly. To obtain rates under differential conditions, it was therefore necessary to measure them over different temperature ranges. Since the activation energies were similar, it was possible to extrapolate the rates to a common temperature and qualitatively estimate the contact between Pd and the ceria phase in each sample.

First, at 373 K, the Pd/CeO₂(ALD)/γ-Al₂O₃ sample was nearly 100 times more active than Pd/γ-Al₂O₃, demonstrating that the Pd–CeO₂ interfacial sites are indeed more active for this reaction. Although the differential rates on Pd/CeO₂(ALD)/γ-Al₂O₃ were also a factor of three higher than those on Pd/CeO₂, this is likely due to the higher surface area of the ALD sample. In any case, the results on Pd/CeO₂(ALD)/γ-Al₂O₃ suggest that all of the Pd is in contact with CeO₂ ALD film and that the CeO₂ must cover the entire surface of the support. This is the same conclusion reached earlier from WGS measurements on similar samples [22]. The Pd/CZ(ALD)/γ-Al₂O₃ catalyst exhibited rates similar to that found on Pd/CeO₂ and the two impregnated samples showed activities closer to that of Pd/γ-Al₂O₃. These results imply that Pd is not in good contact with the ceria phases on the supports prepared by impregnation. The lower activity of Pd/CZ(ALD)/γ-Al₂O₃ compared to Pd/CeO₂(ALD)/γ-Al₂O₃ may be due to the fact that the presence of ZrO₂ decreases contact area between Pd and CeO₂ in the Pd/CZ(ALD)/γ-Al₂O₃ sample.

2.2. Thermodynamic Measurements

Thermodynamic measurements were performed on the bulk Ce_0.5Zr_0.5O₂, the CeO₂(ALD)/γ-Al₂O₃, and the CZ(ALD)/γ-Al₂O₃ samples after each sample has been calcined to 1073 K for 2 h. To determine the maximum extents of reduction in the CeO₂(ALD)/γ-Al₂O₃ and the CZ(ALD)/γ-Al₂O₃ samples, the samples were initially exposed to dry, flowing H₂ at 973 K in the flow-titration system. Assuming that all the oxygen which could be reversibly removed was due to reduction of Ce⁴⁺ to Ce³⁺, the calculated O:Ce ratio for both samples was 1.55 after reduction. This value did not change with repeated oxidation-reduction cycles and differs from the value expected for complete reduction by 10%. The probable reason for the discrepancy is the uncertainty in the ceria loading (e.g., Sample weights can be difficult to measure due to water adsorption upon exposure to laboratory air). The result demonstrates that the ceria in the ALD films is fully reducible.

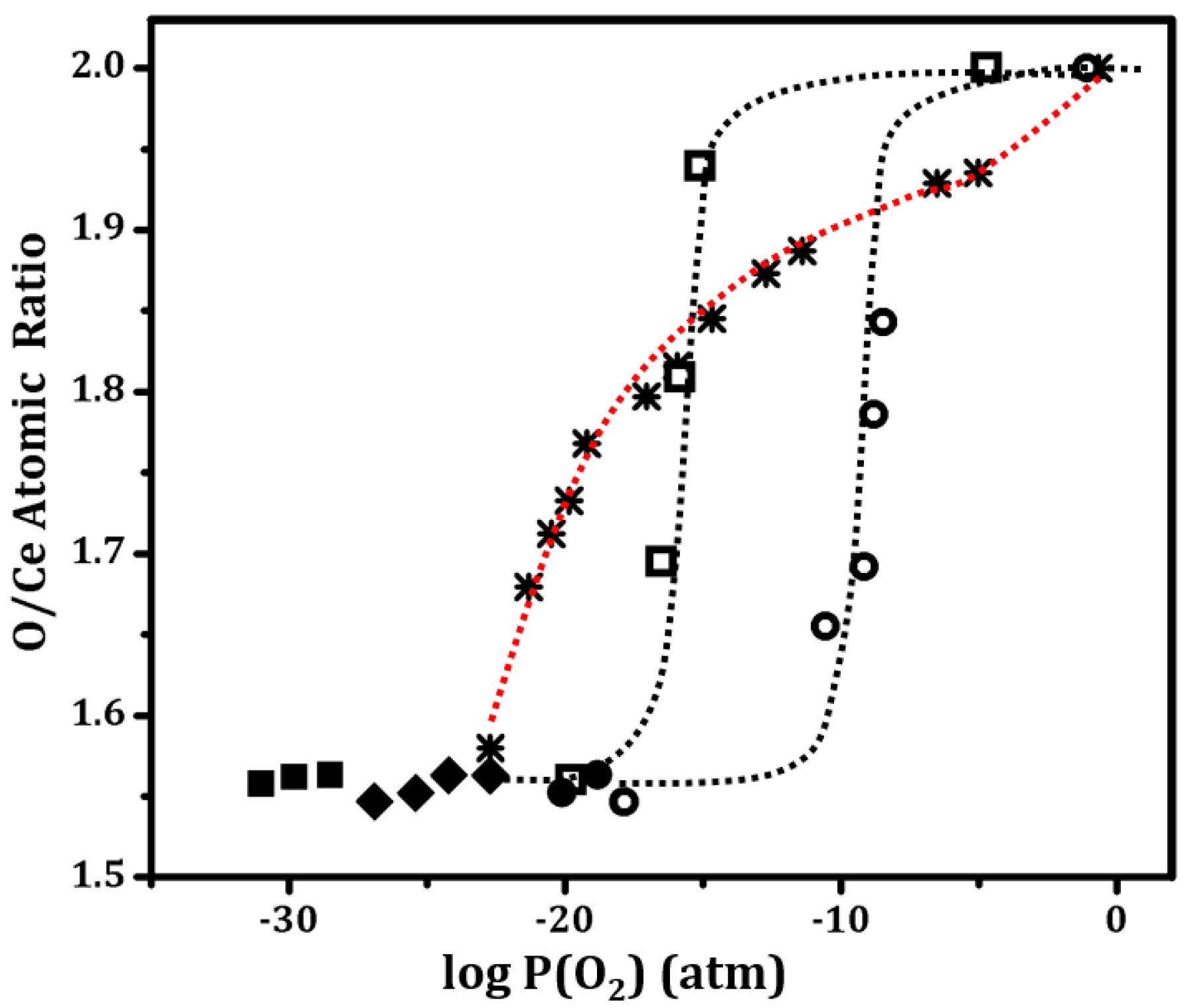

The thermodynamic, redox properties of the CeO₂(ALD)/γ-Al₂O₃ sample were measured using both flow-titration (the solid data points) and coulometric-titration (the unfilled points) measurements; and a plot of the cerium oxygen stoichiometry as a function of $P_{O_2}$ is shown in Figure 4. For comparison purposes, the figure also includes data from earlier work on bulk ceria and from an impregnated, 30 wt % ceria on La-treated Al₂O₃ (shown in the inset) [19]. Flow-titration measurements were performed at 873, 973, and 1073 K but coulometric-titration was performed only at 1073 K on this sample. The data at 1073 K showed that there was good agreement between the two techniques in the $P_{O_2}$ range where the measurements overlapped. The redox thermodynamics for the CeO₂(ALD)/γ-Al₂O₃ sample differ dramatically from that for bulk ceria. As noted in previous publications, bulk ceria is very difficult to reduce [30]. Of equal interest, the thermodynamic data for the CeO₂(ALD)/γ-Al₂O₃ sample are remarkably similar to the previously published data for impregnated ceria on La-doped alumina in regions where the $P_{O_2}$ values overlap. For example, at 973 K and a $P_{O_2}$ of 10⁻²⁰ atm, the O:Ce ratio was close to 1.75 on both samples. Similarly, at 873 K and a $P_{O_2}$ of 10⁻²⁵ atm, the O:Ce ratio was close to 1.78 on both samples. As shown by the earlier XRD data, the CeO₂(ALD)/γ-Al₂O₃ showed some formation of CeO₂ crystallites upon redox cycling, but the crystallites on the ALD-prepared sample were clearly much smaller. The fact that the thermodynamic data did not change would suggest that equilibrium data is not a strong function of crystallite size, at least over the range of crystallite sizes investigated here.

The oxidation isotherms for bulk Ce_0.5Zr_0.5O₂ and for CZ(ALD)/γ-Al₂O₃ are shown in Figure 5. Results for the bulk Ce_0.5Zr_0.5O₂ were only measured at 1073 K but the data again agree well with previously published data for a sample with this composition in regions where measurements were previously performed [27]. Similar to results for bulk CeO₂ and CeO₂(ALD)/γ-Al₂O₃, the equilibrium oxygen stoichiometry in the bulk Ce_0.5Zr_0.5O₂ sample varied gradually with the $P_{O_2}$. The data for the CZ(ALD)/γ-Al₂O₃ sample were significantly different. First, flow titration was not useful in measuring the properties for the CZ(ALD)/γ-Al₂O₃ sample because the sample was completely reduced at all experimentally accessible H₂O:H₂ ratios between 873 K and 1073 K. It was therefore necessary to measure the equilibrium isotherms at 873 and 1073 K using coulometric titration. Interestingly, the isotherms at both temperatures were nearly vertical lines, which is an indication that there is equilibrium between two well-defined compounds. The transitions for reduction of Ce⁴⁺ to the Ce³⁺ states occur at $P_{O_2}$ of approximately 10⁻⁹ atm at 1073 K and 10⁻¹⁵ atm at 873 K. These values are much higher than the equilibrium $P_{O_2}$ for the CeO₂(ALD)/γ-Al₂O₃ sample, showing that the mixed oxide is much easier to reduce.

Heats of oxidation can be calculated from the temperature dependence of the isotherm using Equation (1):

$$-\Delta H= R\frac{\partial lnP\left(O_2\right)}{\partial \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$T$}\right.}$$

(1)

The heats, $-\Delta H$, calculated from this equation and the data in Figure 4 and Figure 5 are plotted in Figure 6, together with previously reported numbers for CeO₂ supported on La-Al₂O₃ [19] and for bulk Ce_0.5Zr_0.5O₂ [26]. The heats of oxidation for both the CeO₂(ALD)/γ-Al₂O₃ and CZ(ALD)/γ-Al₂O₃ samples were between 550 and 600 kJ/mol O₂, independent of the extent of reduction. This is much lower than the reported heat of oxidation for bulk CeO₂, 760 kJ/mol O₂. In the previous study of impregnated CeO₂ on La-doped Al₂O₃, $-\Delta H$ was reported to vary with stoichiometry, increasing from 500 kJ/mol O₂ at low extents of reduction and to a value close to that of the bulk oxide at high reduction levels. $-\Delta H$ for Ce_0.5Zr_0.5O₂ were reported to be in the range of 500 kJ/mol O₂. The uncertainty in the calculated $-\Delta H$ is relatively high, perhaps ~50 kJ/mol, when the oxide stoichiometry varies with $P_{O_2}$, as it does for the CeO₂(ALD)/γ-Al₂O₃ sample. However, when the isotherm is a vertical line, as with the CZ(ALD)/γ-Al₂O₃ sample, the uncertainty is much less. Therefore, we suggest that the oxidation enthalpies for all of these catalysts may be similar, at least for low extents of reduction.

3. Discussion

The results in this paper demonstrate that novel ceria and ceria–zirconia supports can be prepared by ALD onto stable supports. In particular, the thin films grown on γ-Al₂O₃ are shown to be stable to high temperature sintering and relatively immune to redox cycling. The ALD-grown materials are structurally very different from materials having the same compositions but prepared by conventional impregnation. Not only do the ALD films form a more uniform coverage over the γ-Al₂O₃ support but one can more easily form mixed oxides like Ce_0.5Zr_0.5O₂ without the use of chelating agents, like citric acid.

Since there was no loss in reducibility upon redox cycling on any of the samples, CeAlO₃ formation does not appear to be a serious issue with these materials. However, there was evidence of CeO₂ crystallite growth on the CeO₂(ALD)/γ-Al₂O₃ sample under redox cycling. This may be partly due to differences in the “wetting” properties of CeO₂ and Ce₂O₃ on γ-Al₂O₃ or it may be due to the expansion and contraction that must occur in the film upon oxidation and reduction. If wetting issues dominate, it may be possible to stabilize the CeO₂ films by using something other than γ-Al₂O₃ as the underlying support; if expansion-contraction issue are responsible, the underlying support will probably not matter. It is interesting that the ceria–zirconia film in the CZ(ALD)/γ-Al₂O₃ sample appears to be more stable but the reasons for this are still uncertain.

The thin Ce_0.5Zr_0.5O₂ film on the CZ(ALD)/γ-Al₂O₃ sample appears to exhibit different equilibrium $P_{O_2}$ from that of bulk Ce_0.5Zr_0.5O₂. While this could be due to surface energies, we suggest that it may also due to the confined geometry of the film. In previous work with bulk ceria–zirconia mixed oxides [31], it was argued that the shape of the isotherm results primarily from changes in the entropy of oxidation, rather than changes in the heats of oxidation. This conclusion was based on the fact that $-\Delta H$ was found to be independent of the extent of reduction. To explain how the oxidation entropy would change with the extent of reduction while the enthalpy was constant, it was suggested that each lattice oxygen that is adjacent to a pair of Ce⁴⁺ ions is energetically equivalent. However, since it should be energetically difficult to remove a lattice oxygen that is next to a vacancy, the number of possible oxygens that can be removed next to each set of adjacent Ce⁴⁺ ions will decrease as the solid becomes progressively reduced. In a film that is less than one unit cell in thickness, there is no possibility for adjacent vacancies and $-\Delta G$ could be independent of the extent of reduction. According to this hypothesis, the equilibrium properties of ceria–zirconia films should change with thickness, a possibility that would be interesting to test in future work.

Obviously, there is still much to learn about the properties of thin ceria and ceria–zirconia films prepared by ALD. The materials clearly show interesting properties as catalyst supports. Studying their redox properties may help to elucidate how surfaces and interfaces with other oxides affect thermodynamic equilibria.

4. Experimental Methods

4.1. Sample Preparation and Characterization

Samples were prepared by both ALD and conventional impregnation methods, using γ-Al₂O₃ (Strem Chemicals, Inc., Newburyport, MA, USA) as a support that had been calcined at 1173 K and had a BET surface area of 130 m²/g. The ALD-prepared samples were synthesized in a home-built apparatus using very similar methods to that described in previous work [32]. Briefly, the ALD cycle consisted of exposing the evacuated γ-Al₂O₃ substrate to a few Torr of the organometallic precursors, either Ce(TMHD)₄ (Strem Chemicals, Inc.) or Zr(TMHD)₄ (Strem Chemicals, Inc.), at 503 K for ~300 s, followed by evacuation to ~50 millitorr and precursor oxidation. It should be noted that the substrate was exposed to each gaseous precursor for multiple times to ensure surface saturation. One change in the present study from that in previous work was that precursor oxidation was performed at 503 K for 300 s using an O₂ plasma generated by adding ~100 Torr of O₂ to the substrate chamber, followed by contacting a tesla coil to a Cu wire that was wrapped around the substrate chamber. Oxidation using a plasma has previously been shown to be very effective at removing difficult-to-oxidize species at low temperatures [33]. To ensure that the ligands were completely oxidized, we removed each sample from the system after every 5 cycles and then heated it to 673 K in a muffle furnace for 5 min. Growth rates for both CeO₂ (0.016 nm/cycle) and ZrO₂ (0.024 nm/cycle) were determined by measuring the sample mass after every five cycles and were identical to that which was reported in earlier publications from our laboratory [22,23]. The present study focused on just two ALD-prepared samples: a CeO₂/γ-Al₂O₃ made with 20 ALD cycles of ceria (20 wt % CeO₂, CeO₂(ALD)/γ-Al₂O₃) and a Ce_0.5Zr_0.5O₂/γ-Al₂O₃ made with 12 ALD cycles of ceria and 8 ALD cycles of zirconia (21 wt % Ce_0.5Zr_0.5O₂, CZ(ALD)/γ-Al₂O₃). In both samples, the films were estimated to be 0.4-nm thick, based on the sample weight changes, assuming a uniform film over the entire alumina surface.

Conventional alumina-supported catalysts containing 20 wt % CeO₂ (CeO₂(IMP)/γ-Al₂O₃) or 21 wt % of a CeO₂–ZrO₂ mixture (CZ(IMP)/γ-Al₂O₃) were prepared by infiltration with aqueous solutions of cerium (III) nitrate hexahydrate (Ce(NO₃)₃·6H₂O, Sigma Aldrich, St. Louis, MO, USA) or a mixture of zirconium oxynitrate hydrate (ZrO(NO₃)₂·xH₂O, Sigma Aldrich, degree of hydration of fresh bottle ~6) and Ce(NO₃)₃·6H₂O. The samples were then dried at 333 K overnight, followed by calcination to 673 K for 6 h to remove the remaining nitrates. Bulk CeO₂ was prepared by precipitating an aqueous solution of Ce(NO₃)₃·6H₂O with excess ammonium hydroxide (NH₄OH, Fisher Scientific, Hampton, NH, USA), then drying the sample overnight at 333 K followed by calcination at 773 K for 6 h [22]. Bulk Ce_0.5Zr_0.5O₂ was prepared by first dissolving stoichiometric amounts of Ce(NO₃)₃ and ZrO(NO₃)₂ in distilled water. The aqueous mixture was titrated at a rate of 5 mL/min into a solution of ammonium hydroxide, while stirring. The precipitate was allowed to dry overnight at 333 K, followed by calcination to 773 K for 6 h [23].

Samples containing 1 wt % Pd were prepared by incipient wetness using aqueous solutions of tetraaminepalladium(II) nitrate (Sigma Aldrich). The materials were dried overnight at 333 K and calcined at 773 K in air for 6 h to remove any organics and nitrates. It is noteworthy that the ceria-containing samples prepared by ALD were relatively hydrophobic, a fact that has been reported previously for flat surfaces modified by CeO₂ ALD [34]. However, the aqueous solutions did slowly absorb into the powders and the preparation procedure for adding Pd was the same except for the time required to impregnate.

X-ray Diffraction (XRD) patterns were recorded on a Rigaku Smartlab diffractometer (Toyko, Japan) equipped with a Cu Kα source (λ = 0.15416 nm). Crystalline graphite, physically mixed with the samples in a ratio of 1:8, was used as a reference for the peak positions in XRD. The Pd dispersions were determined by CO chemisorption at room temperature on the reduced catalysts. In this procedure, the samples were first oxidized in 200 Torr O₂ at 673 K and reduced in 200 Torr H₂ at 673 K before measuring CO uptakes. Dispersions were calculated assuming one CO per surface Pd.

Steady-state rates for CO oxidation were measured under differential conditions in a quartz-tube, flow reactor using 25 Torr CO and 12.5 Torr O₂. The total flow rate of He was maintained at 60 mL/min and the mass of catalyst was 0.10 g. Products were analyzed using a gas chromatograph (SRI8610C) (Torrance, CA, USA) equipped with a Hayesep Q column and a TCD detector. All rates in this study were normalized to the mass of the catalyst. Differential conversions were maintained in all cases.

4.2. Redox Equilibrium Measurements

Equilibrium oxidation isotherms were obtained by both flow titration and coulometric titration. In flow titration, the oxidation state of the catalyst is measured by determining the amount of oxygen required to completely re-oxidize the sample after it has been equilibrated at a given $P_{O_2}$. While the equilibrium stoichiometry for a specified H₂–H₂O ratio was the same whether starting from an oxidized or a reduced sample, we found that equilibrium was achieved more rapidly starting from the reduced form. Therefore, the experiments were performed in the following manner: 0.5 g of sample were placed in a quartz-tube flow reactor, exposed to dry flowing H₂ (30 mL/min) at the temperature of interest for 0.5 h, and then exposed to a flowing H₂–H₂O mixture (30 mL/min) for 1 h. The H₂–H₂O mixture was produced by passing H₂ through a temperature-controlled water bubbler, using the equilibrium vapor pressure to calculate the H₂O partial pressure. After purging the sample with dry He for 0.5 h, flowing air (21% O₂ and 79% N₂, Airgas) was passed over the sample at a rate of 3.1 mL/min and the composition of the effluent gas was determined using a quadrupole mass spectrometer. The amount of oxygen required to re-oxidize the sample was obtained by integrating the difference between the N₂ and O₂ signals. This in turn provides the oxidation state of the ceria that had been in equilibrium with the H₂–H₂O mixture.

Because the H₂–H₂O ratio can only be controlled over a limited range in flow titration, coulometric titration was also used to verify the flow-titration data and to extend the range of $P_{O_2}$ equilibrium measurements [19]. In coulometric titration, a 0.5 g sample was inserted into a YSZ (yttria-stabilized zirconia) tube that had Ag electrodes painted on both inside and outside. The YSZ tube was then placed in a horizontal tube furnace and then heated to the temperature of interest, either 873 K or 1073 K, using a heating rate of 1.0 K/min. During the temperature ramp, a mixture of 5% O₂, 10% H₂O, and 85% Ar was allowed to flow over the sample at a flow rate of 110 mL/min in order to ensure that the sample was completely oxidized at the start of the measurements. After 1 h at the temperature of interest, the flow was stopped and the ends of the YSZ tube were sealed with Cajon fittings. Specified amounts of oxygen were then electrochemically pumped from the inside of the YSZ tube by applying a current across the electrodes using a Gamry instruments potentiostat. After allowing the system to come to equilibrium with the electrodes at open circuit, the equilibrium $P_{O_2}$ was calculated from the Nernst equation and the open circuit potential. To demonstrate equilibrium, oxidation isotherms were also measured starting with the reduced sample.

5. Conclusions

Atomic Layer Deposition (ALD) of CeO₂ and Ce_0.5Zr_0.5O₂ films on γ-Al₂O₃ produces materials in which the alumina surface is coated with either ceria or a ceria–zirconia mixed oxide. The films exhibit good thermal stability upon oxidation and are also reasonably stable to redox cycling. Although the thermodynamic, redox properties of the CeO₂ films prepared by ALD were similar to those of a sample prepared by impregnation, the ALD samples showed better catalytic properties as supports for Pd due to improved contact between the ceria and the Pd. Thermodynamic measurements on the mixed-oxide film indicated that solid solutions were formed and these were much more easily reduced than normal ceria.
