Phenylacetylene and Carbon Dioxide Activation by an Organometallic Samarium Complex

Abstract

Small molecule activation is a topic of growing importance and the use of low-valent f-elements to perform these reactions is nowadays well established. The complex Cp^tt₂Sm(thf) (1, Cp^tt = 1,3-(^tBu)₂Cp) is shown to activate the alkyne C–H bond of phenylacetylene to form the Cp^tt₂Sm(C≡C–Ph)(thf) complex. The subsequent reaction of this Sm(III) complex with CO₂ leads to the CO₂ insertion, yielding a dimeric [Cp^tt₂Sm(O₂C–C≡C–Ph)]₂ complex (2), in which the carbon dioxide has been inserted in the Sm–C bond. Along with the experimental chemical structure analysis, theoretical calculations have been performed in order to rationalize the formation of 1 and 2.

1. Introduction

Small-molecule activation is a topic of growing importance from both academic and societal aspects [1,2,3]. The transformation of pollutant gases such as nitrous oxide (N₂O), methane (CH₄), carbon monoxide (CO), and carbon dioxide (CO₂) into fine chemicals by low-valent coordination complexes is of particular interest and has been well investigated with both electron-rich transition metal compounds and low-valent f-elements, but the topic is still very active [4,5,6,7,8,9]. In this matter, the use of soluble divalent samarium complexes is well established, since the early 1980s, with the reports of the useful Cp*₂Sm(L) complexes by W. J. Evans [10].

For example, in 1985, Evans reported the reaction between the Cp*₂Sm(thf)₂ (Cp* = C₅Me₅) and N₂O to form an oxo-bridged bimetallic organosamarium complex [11]. A decade later, the same group reported the reaction of the Cp*₂Sm(thf)₂ with CO₂, which led to a bridged oxalate dimer [12]. This seminal report of CO₂ activation with divalent lanthanide marked out the field very strongly since the latter reaction is a single electron transfer followed by a radical-radical coupling, a very appealing transformation that is rare with transition metal complexes, which would prefer two electron processes. However, in 2006, Gardiner reported the reaction between a macrocyclic divalent organosamarium complex and CO₂, yielding the formation of a carbonate complex [13] in strong contrast with Evans initial report with Cp*₂Sm(thf)₂ and indicating the possibility of multiple mechanisms pathways. As such, initially, the different steric demand of the complexes has been incriminated.

The mechanisms have been studied [14] while the studies with different complexes having various steric demands have continued and recently, the formation of both oxalate and carbonate compounds from the reaction of a divalent ytterbium complex and CO₂ has been demonstrated by Mazzanti, reinforcing the subtle differences between the different pathways and the crucial role of the sterics in these complexes [15]. In 2017, Cloke made a similar reaction with a low-valent uranium complex [16].

Based on these very important studies, we recently have reported the reductive disproportionation of CO₂ with bulky divalent samarium incorporating Cp^tt and Cp^ttt ligand (Cp^tt = 1,3-(^tBu)₂Cp and Cp^ttt = 1,2,4-^tBu)₃Cp) [17]. In both cases, we observed the clean formation of dimeric carbonate complexes while the steric bulk between the Cp^tt and Cp^ttt is obviously different. The theoretical studies helped us to rationalize this observation and led us to conclude that the differentiation between the oxalate and carbonate formation mostly comes from the negative charge delocalization (on the carbon for the oxalate or on the oxygen for the carbonate) and therefore has both steric and electronic contributions.

In a different direction, this kind of divalent samarium complexes can also undergo C–H bond activation mediated by single-electron transfer reactivity. In 1990, Evans reported the dehydrocoupling of phenylacetylene by the Cp*₂Sm complex yielding a dinuclear samarium (III) trienediyl complexes [18]. In 2015, Maron investigated the mechanism of this interesting reaction [19]. An important note in Evans work was the role of solvent in the product formation as well as the bulk of the true alkene in the outcome of the reaction. As we were interested in these intermediates, we wondered what role would play a different bulk on the samarocene complexes and were curious of the possibility in sequencing C–H activation and CO₂ activation to yield organic carboxylate derivatives.

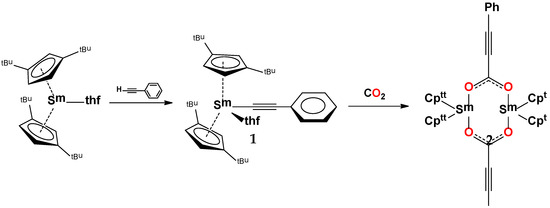

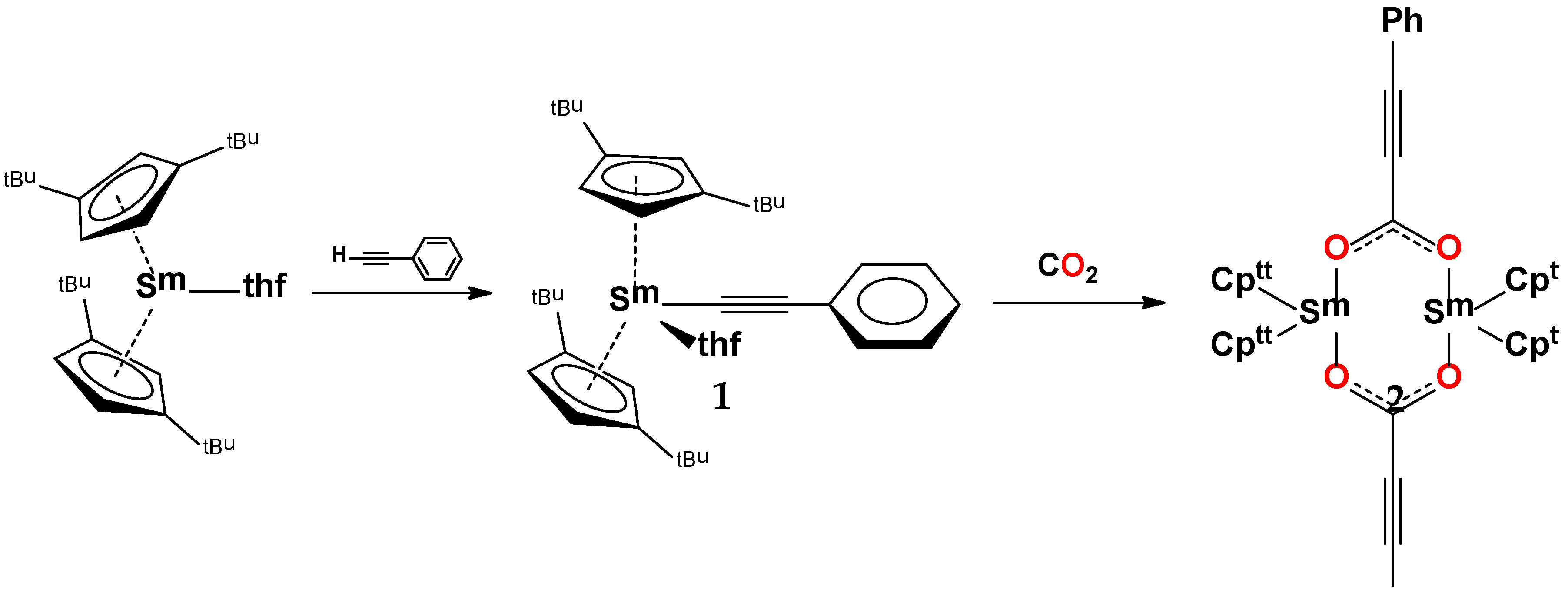

Therefore, the present work intents to report the C–H bond activation by an organometallic divalent samarium complex containing bulkier substituted cyclopentadienyl ligand, Cp^tt₂Sm(thf), to form the monomeric Cp^tt₂Sm(C≡C–Ph)(thf) complex, which then reacts with CO₂, leading to the CO₂ insertion in the samarium-alkynyl bond yielding a dimeric organic carboxylate complex (Scheme 1).

2. Results and Discussion

2.1. Synthesis, Solid-State and Solution Structures

The synthesis of the Cp^tt₂Sm(thf) complex was reported in 1990 by Bel’sky [20]. The reaction between Cp^tt₂Sm(thf) and phenylacetylene was performed in toluene. A color change from deep brown to light yellow is accompanied by gas evolution. Cooling the solution at −35 °C overnight, led to the formation of yellow crystals, which were analyzed as the Cp^tt₂Sm(C≡C–Ph)(thf) complex, 1. An ORTEP (Oak Ridge Thermal Ellipsoid Plot) of 1 is presented in Figure 1 while the metrics are reported in Supplementary Materials. A similar reaction has been observed by Evans starting from Cp*₂Sm(thf)₂ complex [21].

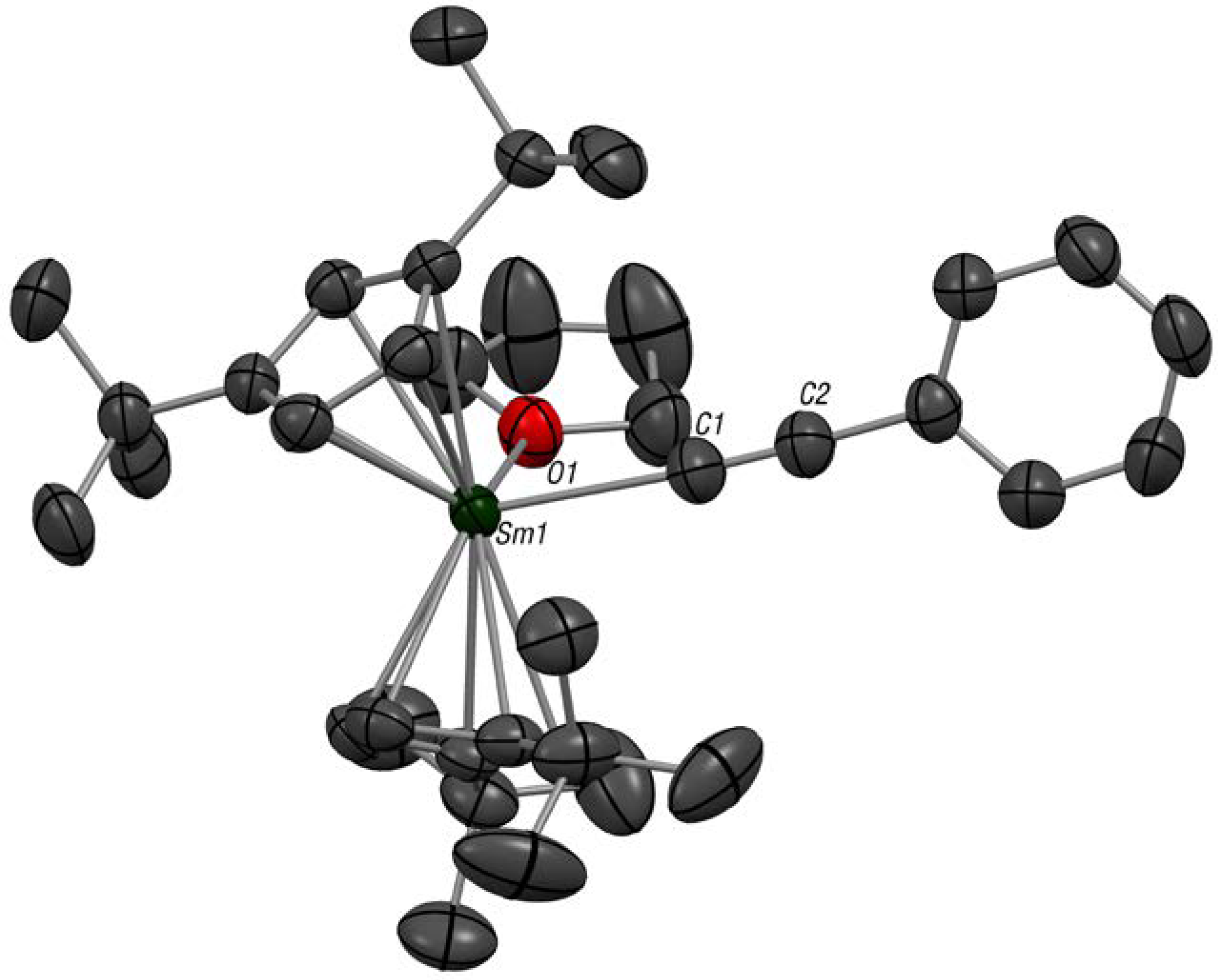

The Cp^tt–Sm average distance in 1 is 2.48(1) Å and is indicative of the trivalent oxidation state of the samarium metal center. Indeed, the Cp^tt–Sm distance is shorter than these found in divalent samarocene complexes (2.54 Å in Cp^tt₂Sm(thf) complex). The Cp^tt–Sm–Cp^tt angle is of 130° at the lower side of the 130–138° range usually observed for similar complexes [21]. In the Cp*₂Sm(C≡C–Ph)(thf) complex, the Cp*–Sm–Cp* angle is at the opposite end of the range with 138°. The Sm–O distance is 2.504(2) Å close to Evans observation for Cp*₂Sm–O (2.47(2) Å) and similar to what has already been observed for this type of complexes [22,23]. The Sm–C≡C–Ph distance is a little shorter than that reported in Evans complex (2.450(3) Å in 1, vs. 2.49(2) Å in Cp*₂Sm(C≡C–Ph)(thf) complex). On the contrary the C≡C bond is really different between complex 1 and Cp*₂Sm(C≡C–Ph)(thf). In Cp*₂Sm(C≡C–Ph)(thf), the C≡C distance is 1.11(2) Å that is shorter than the 1.202(4) Å observed in complex 1. This distance is similar to the 1.19–1.21 Å distances in free alkynes. This is one of the major difference between Cp*₂Sm(C≡C–Ph)(thf) and Cp^tt₂Sm(C≡C–Ph)(thf). Whereas most of the small differences between the metric of 1 and the one of Cp*₂Sm(C≡C–Ph)(thf) can find their source in the variation of the hindrance caused by the Cp^tt ligand, the different C≡C distance would better be explained by different electronic properties of the two complexes. This difference of electronic density between 1 and Evans complex would indeed impact the C≡C distance and the difference in the sterics would impact less this distance, especially since the distance in 1 is shorter compared to that in Cp*₂Sm(C≡C–Ph)(thf) but the bulk is slightly larger.

The complex has also been studied by ¹H NMR and is consistent with the crystalline structure obtained. ¹H NMR spectrum of 1 (Figure S1) was recorded in toluene-d₈ on crystals and shows two signals at 13.11 ppm and 9.22 ppm attributed to the protons of the Cp ring and another one at 0.60 ppm attributed to ^tBu substituent. The phenyl ring exhibits two signals at 8.36 ppm and 7.40 ppm. The two signals attributed to the coordinated thf are at −0.27 ppm and −1.43 ppm.

Since the Sm–C bond is likely to be highly polarized, we reasoned that an insertion would be favored and investigated the opportunity with CO₂. Thus, the reaction of 1 with 1 atmosphere of CO₂ was performed in deuterated toluene. No color evolution was observed but after 12 h of reaction, the yellow solution was cooled at −35 °C and yellow X-ray suitable crystals were obtained. The structure revealed a dimeric structure, in which the CO₂ is inserted in the Sm–alkene bond yielding an organic carboxylate Ph–C≡C–CO²⁻ species that bridged two samarocene fragments (Figure 2). A planar eight-membered ring structure is obtained and is similar to other reported lanthanides–carboxylates complexes [Cp*₂Sm(O₂C₆H₄Me-m)]₂ and [(Cp*₂Sm(O₂CCH₂Ph)]₂ [24]. Evans complexes were obtained from a different synthetic pathway than complex 2. The complexes were synthesized from Cp*₂Sm(thf)₂ and m-toluic acid or phenylacetic acid to form [Cp*₂Sm(O₂C₆H₄Me-m)]₂ and [(Cp*₂Sm(O₂CCH₂Ph)]₂. Those two complexes have been prepared to identify the several products obtained from the reaction between [Cp*₂Sm][(µ-Ph)₂BPh₂]/LiMe/toluene and CO₂ [24].

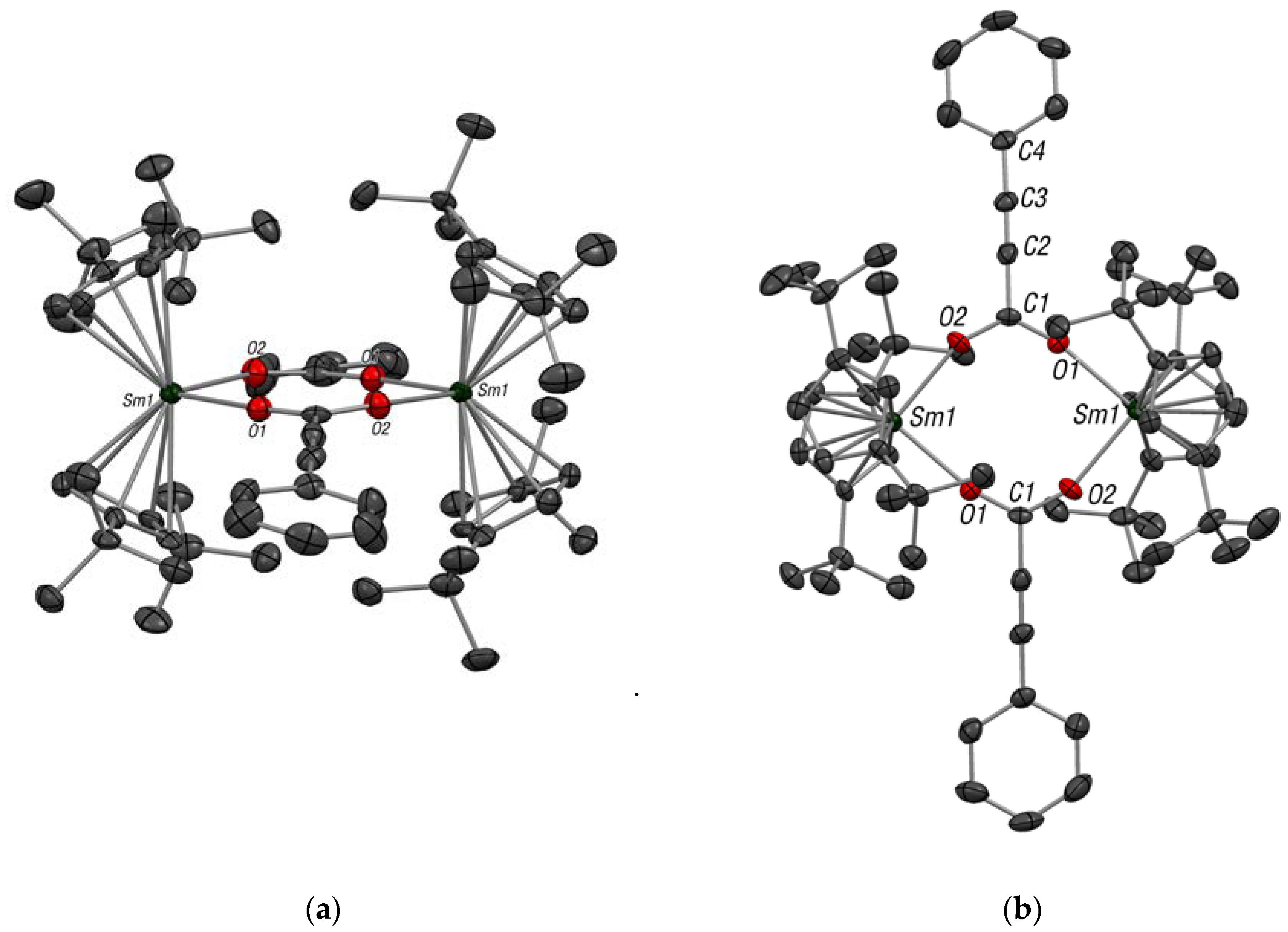

The Cp^tt–Sm average distance in 2 is similar to the average distance in the complex 1 (2.45(1) Å vs. 2.48(1) Å). The Sm–O average distance is 2.31(1) Å and is consistent with that have been already observed for [Cp*₂Sm(O₂C₆H₄Me-m)]₂ and [(Cp*₂Sm(O₂CCH₂Ph)]₂. The C–O distance of the carboxylate moiety in the complex 2 is also in good agreement with the average C–O distance observed in Evans complexes.

The reaction was monitored by ¹H NMR and ¹H NMR of 2 showed shifted signals compared to the signals of 1 (Figure S2). The three signals attributed to the Cp ring and the ^tBu substituents are at 14.75 ppm, 12.44 ppm, and 0.10 ppm. The phenyl ring exhibits two signals at 5.95 ppm and 5.25 ppm.

Other alkynes such as 4-methyl-1-pentyne, trimethylsilylacetylene, and but-2-yne have been used to study the impact of the steric hindrance on the formation of the complex 1. Those reactions have been followed by ¹H NMR and shown no reaction between Cp^tt₂Sm(thf) and the other alkynes.

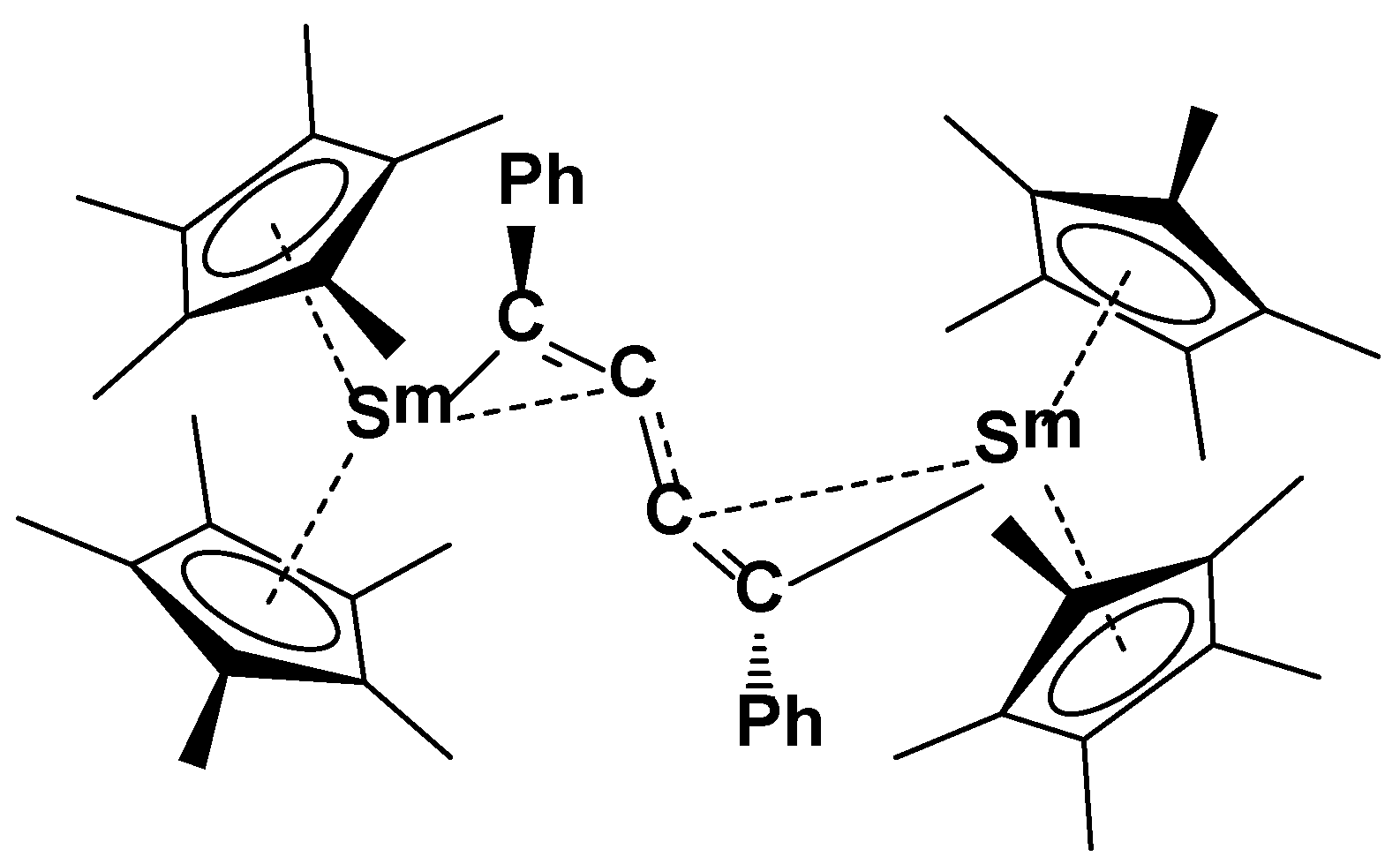

The importance of the samarium precursor has also been studied. Indeed, Evans published in 1990, the formation of a dimeric samarium complex by the reaction between the solvent-free precursor Cp*₂Sm and the phenylacetylene (Figure 3) [18], i.e., a dehydrogenative coupling. The reaction of Cp^tt₂Sm with the phenylacetylene has been followed by ¹H NMR and the presence of several products has been observed. Unsuccessful attempts have been made to isolate the dimeric complex obtained from a similar dehydrocoupling as the one observed for Cp*₂Sm were unsuccessful.

The difference of steric hindrance of the samarocene complexes incorporating Cp* and Cp^tt ligand plays a role in the formation of stable dimeric samarium complexes. Thus, theoretical calculations have been performed in order to study the mechanism leading to 2.

2.2. Theoretical Studies

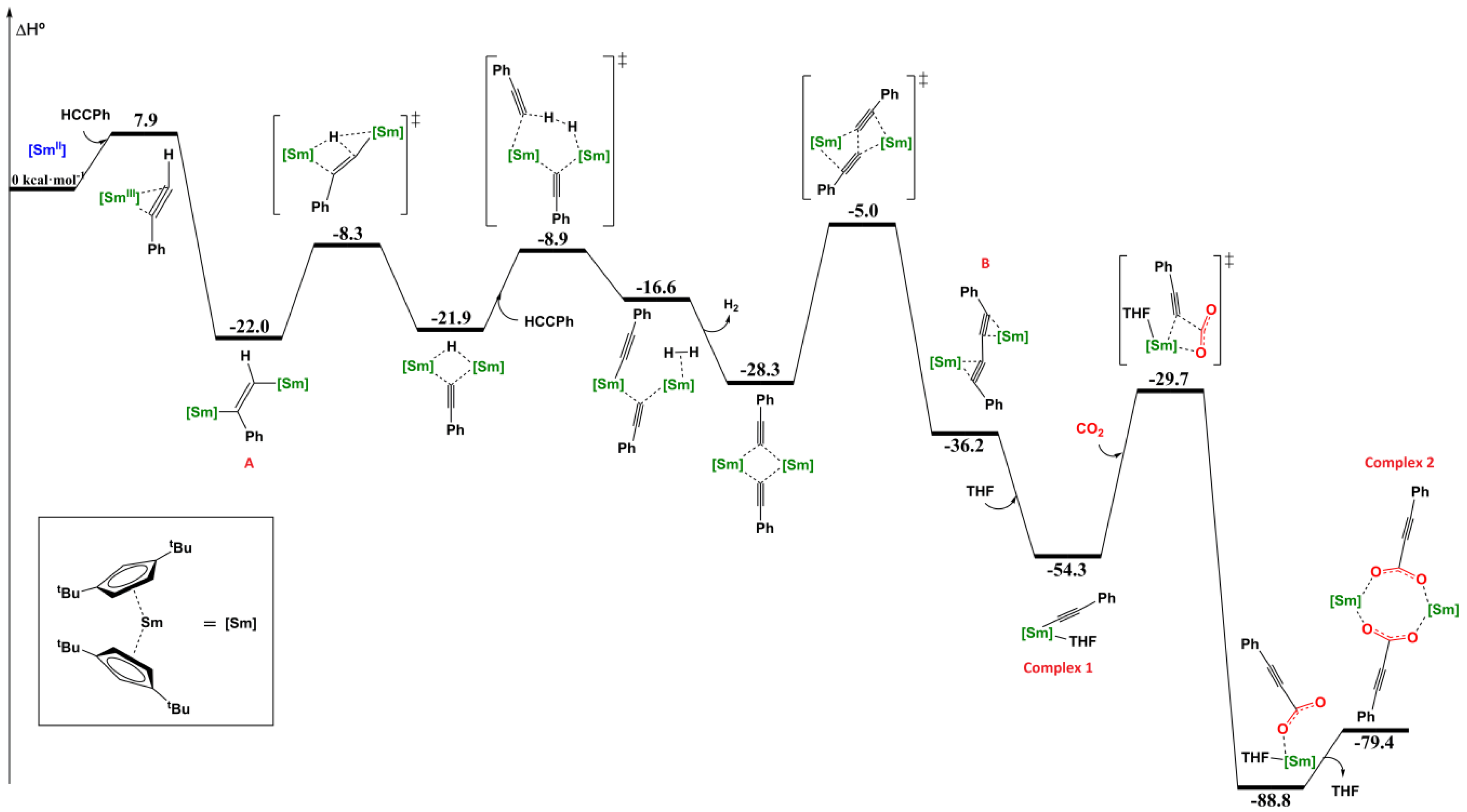

Theoretical calculations have been performed on the formation of 1 and 2. The addition of phenylacetylene on the divalent samarium complex is favorable as shown in Figure 4. Two samarium centers are needed to achieve the formation of 1.

The intermediate A at −22 kcal·mol⁻¹ is the initiation step in the dehydrocoupling of phenylacetylene by Cp*₂Sm as shown by Maron in 2015. This intermediate A is formed by a reduced phenylacetylene coordinated to two samarium through an exothermic process. The dimeric complex B is similar to the isolated complex of Evans [18] with Cp*Sm and is also proposed as an intermediate to the formation of 1. Three different types of reaction pathways have been investigated by Maron for the formation of this intermediate B with Cp*₂Sm in a previous article [18]. All the mechanisms studied have the initiation step in common, which leads to the formation of the intermediate A (Figure 4). From this intermediate, three pathways have been studied depending on the first step: a C–C coupling, an H–H coupling, or a C–H coupling [18]. According to the calculations performed in this article, the overall mechanism proposed for the formation of 1 is very similar to the one observed for the reaction of Cp*₂Sm and phenylacetylene. The first step is a C–H activation, then an isomerization and a C–C coupling in order to obtain the intermediate B. This intermediate cannot be isolated from the reaction of the solvent free Cp^tt₂Sm complex and phenylacetylene. Indeed, the complex 1 lays −54.3 kcal·mol⁻¹ below the starting material and −18.1 kcal·mol⁻¹ below the intermediate B. This would explain the formation of the monomeric complex 1 instead of the dimeric complex B: the presence of coordinating solvent (thf) easily breaks this dimeric complex and leads to the formation of 1.

Then CO₂ insertion on 1 shows two monomeric intermediates before the formation of 2. Theoretical calculations show the easy insertion of the CO₂ into the Sm–C bond with a moderate energy barrier of 24.6 kcal·mol⁻¹ before the elimination of the solvent to form 2.

In conclusion, we have successfully obtained Cp^tt₂Sm(C≡C–Ph)(thf) by C–H bond activation mediated by single-electron transfer reactivity. The subsequent CO₂ insertion in the Sm–C bond forms a dimeric carboxylate complex. The mechanism for those reactions has been investigated by theoretical computations and led to a similar mechanism as the one calculated for Cp*₂Sm. The structural difference between Cp*₂Sm(C≡C–Ph)(thf) studied by Evans [21] and Cp^tt₂Sm(C≡C–Ph)(thf) have also been investigated. This work has also shown the importance of the steric hindrance of the samarocene complexes on the reactivity of those precursors with alkynes. The possibility to release the obtained carboxylic acid to recycle the active Sm^II complex is under study; it would then be an elegant pathway to the synthesis of carboxylic acid from CO₂ activation [25].

3. Experimental Section

3.1. General Considerations

All reactions were performed using standard Schlenk-line techniques or in an argon-filled glovebox (MBraun, Garching, Germany). All glassware has been dried at 120 °C for at least 12 h prior to use. KCp^tt and Cp^tt₂Sm(thf) were prepared according to published procedures [20]. Toluene and toluene-d₈ were dried over sodium and transferred under reduced pressure in a cold flask and all solvents were degassed prior to use. Phenylacetylene was purchased from Sigma-Aldrich (Merck KGaA, Darmstadt, Germany) and purified prior to use. CO₂ was purchased from Air liquid (Air liquid, Paris, France) as Alphagaz N48.

NMR spectra were recorded in 5 mm tubes adapted with a J. Young valve on Bruker 300 MHz Avance III spectrometers (Bruker, Billerica, MA, USA). Chemical shifts are expressed relative to TMS in ppm. Elemental analyses were performed at Mikroanalytisches Labor Pascher (Remagen, Germany).

3.2. Synthesis of Cp^tt₂Sm(C≡C–Ph)(thf) (1)

To a brown solution of Cp^tt₂Sm(thf) (75.7 mg, 0.13 mmol, 1 equiv.) in toluene was added phenylacetylene (14.3 µL, 0.13 mmol, 1 equiv.). A discoloration of the solution from brown to yellow was observed. After storage overnight at −35 °C, yellow crystals (69.1 mg, 71%) suitable for X-ray diffraction crashed out from the mother liquor.

¹H NMR (300 MHz, toluene-d₈, 293 K): 12.96 (s, 2H, Cp), 9.10 (s, 4H, Cp), 8.32 (d, J = 6 Hz, 2H, Ph), 7.39 (t, J = 8 Hz, 2H, Ph), 7.19 (t, J = 9 Hz, 1H, Ph), 0.60 (m, 36H, ^tBu), 0.18 (s, 4H, thf), −0.35 (s, 4H, thf).

Elemental analysis: calculated for C₃₈H₅₅OSm: C: 67.29; H: 8.17. Found: C: 64.28; H: 8.09. The elemental analysis is low for carbon even when measured on crystals.

3.3. Synthesis of [Cp^tt₂Sm(O₂C–C≡C–Ph)]₂ (2)

Cp^tt₂Sm(C≡C–Ph)(thf) (20 mg, 0.04 mmol) was dissolved in 1 mL of toluene-d₈. The obtained solution was transferred into a J. Young tapered NMR tube and degassed by three freeze-pump-thaw cycles, before being reacted with an atmosphere of CO₂. After cooling the solution to −35 °C, yellow crystals (12 mg, 28%) suitable for X-ray diffraction were obtained.

¹H NMR (300 MHz, toluene-d₈, 293 K): 14.75 (s, 4H, Cp), 12.44 (s, 8H, Cp), 6.16 (s, br, 2H), 5.93 (s, br, 4H, Ph), 5.25 (s, 4H, Ph), 0.10 (s, 72H, ^tBu).

Elemental analysis: calculated for C₇₀H₉₄O₄Sm₂: C: 64.80; H: 7.07. Found: C: 52.95; H: 6.18. The elemental analysis is low for carbon and hydrogen even when measured on crystals.

3.4. X-Ray Diffraction

Single crystals of the compounds 1 and 2 were mounted on a Kapton loop using a Paratone-N oil. An APEX II CCD BRUKER detector and a graphite Mo-Kα monochromator (Nonius, Delft, Netherlands) were used for the data acquisition. All measurements were done at 150 K and a refinement method was used for solving the structure. The structure resolution was accomplished using the SHELXT-2014 [26,27] program and the refinement was done with the SHELXL-2014/7 [28] program. The structure solution and the refinement were achieved with the PLATON software [29]. Finally, ORTEP of the compounds were obtained using the MERCURY software [30]. During the refinement steps, all atoms—except hydrogens—were refined anisotropically. The position of the hydrogens was determined using residual electronic densities which are calculated by a Fourier difference. Finally, in order to obtain a complete refinement, a weighting step followed by multiples loops of refinement was done. Details on crystal data and structure refinements are summarized in Table S1 in the Supplementary Material. CIF files are deposited at the Cambridge Data Base Centre under the reference CCDC numbers 1852482–1852483.

3.5. Theoretical Computations Diffraction

Calculations were performed with the Gaussian 09 program [31] at the DFT level of theory using the hybrid functional B3PW91 [32,33]. Samarium was treated with a large-core Stuttgart-Dresden relativistic effective core potential (RECP), adapted to the +3 oxidation state, used in combination with its optimized basis set augmented by set of f polarization functions (α = 1.000) [32]. Hydrogen, oxygen and carbon atoms were described with a 6-31G+(d,p) double-ζ-quality basis set. Electronic energies and enthalpies were computed at T = 298 K in the gas phase. Geometry optimizations were performed without any symmetry constraints, and analytical frequency calculations allowed verification of the nature of the extrema. Intrinsic reaction coordinate (IRC) calculations were carried out to verify the connections of the optimized transition states.
