Effects of Modified Atmosphere Packaging with Various CO2 Concentrations on the Bacterial Community and Shelf-Life of Smoked Chicken Legs

by
Qiang Wang
,
Qian Chen
,
Jianhang Xu
,
Fangda Sun
,
Haotian Liu
and
Baohua Kong
*
College of Food Science, Northeast Agricultural University, Harbin 150030, China
*
Author to whom correspondence should be addressed.
Foods 2022, 11(4), 559; https://doi.org/10.3390/foods11040559
Submission received: 20 January 2022 / Revised: 6 February 2022 / Accepted: 14 February 2022 / Published: 16 February 2022
(This article belongs to the Section Food Microbiology)
Browse Figures
Versions Notes

Abstract

:
The effects of modified atmosphere packaging (MAP) with various CO2 concentrations on the bacterial community and shelf-life of smoked chicken legs during 25 d of storage at 4 °C were evaluated herein. Four treatments were stored in pallets (PAL) and MAP under 20% (M20), 60% (M60), and 100% (M100) CO2, respectively. The results indicated that the MAP treatments provided the legs with higher redness and hardness and lower yellowness, luminance, and lipid oxidation, compared with the PAL treatment. In addition, the MAP treatments effectively inhibited the growth of viable bacteria, delayed bacterial spoilage, and extended the shelf-life of the samples. The M60 and M100 treatments had a better inhibition effect on bacteria. In terms of bacterial community, Carnobacterium, Pseudomonas, Brochothrix, and Lactococcus were the most predominant genera in the 25 d-stored MAP samples, with Carnobacterium maltaromaticum, Pseudomonas fragi, Shewanella baltica, and Lactococcus piscium being the dominant species. However, while the inhibition effects of the M60 and M100 treatments on the bacterial community at Day 25 were similar, the outer package of the M100 treatment collapsed. Overall, the M60 treatment may be a promising approach to improving the quality and extending the shelf-life of smoked chicken legs.

1. Introduction

Smoked chicken leg is a very popular ready-to-eat smoked poultry product in China. As a smoked meat product, it is favored by consumers because of its attractive sugar-smoked flavor and color [1]. However, while the smoking process provides the chicken legs with a certain anti-corrosion ability, the high nutritional value and moisture content of the smoked chicken legs are easily compromised. Moreover, such products are often sold in pallets or unpackaged, thus facilitating the growth and reproduction of microorganisms, which lead to the loss of quality, e.g., slime formation, compromised texture, and an off flavor [2,3].
Modified atmosphere packaging (MAP) is a proven preservation technology for maintaining the quality and extending the shelf-life of high-grade meat and ready-to-eat meat products [4] and is widely used in the marketplace [5]. The most commonly used packaging gases for cooked meat products are carbon dioxide (CO2) and nitrogen (N2), where the CO2 is used to inhibit microorganisms and the N2 is used as the filling gas. MAP with 100% N2 can slow down the oxidative deterioration of food, but it has no obvious effect on inhibiting the growth of microorganisms [6], so N2 is generally used in combination with CO2. Studies have demonstrated that MAP has the ability to inhibit the growth of microorganisms when the CO2 concentration exceeds 20% [7]. However, while many studies have focused on the presence of spoilage microorganisms in MAP-treated meat and meat products such as sliced cooked ham [8], raw poultry sausage [9], roasted chicken [10], and precooked chicken breast slices [11], few of these have examined the effect of MAP on the structure of the microbiological community in these products. Bassey et al. [12] evaluated the effects of the gas composition on the quality characteristics and bacterial diversity in MAP fresh pork loins in chilled storage. Chen et al. [6] evaluated the effect of modified atmosphere packaging on the shelf-life and bacterial community of roasted duck legs. Moreover, second-generation sequencing technology revealed that Pseudomonas, Acinetobacter, and Vibrio were the main spoilage bacteria in roasted chicken [13], and Pseudomonas, Weissella, Brochothrix, Lactococcus, Acinetobacter, Psychrobacter, and Kurthia were the main spoilage bacteria in braised chicken [14]. To the best of our knowledge, there are no reports of applying third-generation sequencing technology to monitor the bacterial communities in meat products with MAP.
Third-generation sequencing (also known as single-molecule real-time (SMRT) sequencing) is an improved method for tapping into richer strains of bacteria. It has been shown to be more efficient and reliable than culture-dependent microbiological analysis, polymerase chain reaction-denaturing gradient gel electrophoresis (PCR-DGGE), and second-generation sequencing, for the monitoring of changes in food microbiology [15]. Compared with the other sequencing technologies, SMRT sequencing has four main advantages, namely: long read, high consistency, low deviation, and the ability to detect epigenetic characteristics. In particular, long-read SMRT sequencing enables the coverage of more repeated and missing bases and can save time by automatically eliminating gaps [16]. The SMRT sequencing technology covers both hypervariable regions V1–V9 and conserved regions, avoids primer bias, and can accurately identify the species level, which cannot be achieved by the second-generation sequencing [17].
In view of the above considerations, SMRT sequencing was used in the present study to explore the bacterial community of smoked chicken legs after MAP storage for up to 25 d at 4 °C under various concentrations of CO2. Meanwhile, the physicochemical properties and quality characteristics were evaluated. The identification of an optimum CO2 concentration is expected to provide a basis for extending the shelf-life and improving the quality of smoked meat products via MAP, and the application of SMRT sequencing will provide valuable information for the screening and targeted inhibition of spoilage bacteria.

2. Materials and Methods

2.1. Preparation of Smoked Chicken Legs

Chicken legs (thigh and drumstick) were used in this experiment. The fresh chicken legs (285 ± 10 g) and additives were purchased from Carrefour (Harbin, China). First, the fresh chicken legs were soaked in water and cleaned three times in order to remove the surface blood. The chicken legs were marinated for 12 h at 4 °C, then boiled for 50 min at 90–95 °C in a brine containing the following additives (g/L water): salt (50), ginger (2.5), garlic (1.5), onion (1.5), monosodium glutamate (1.0), liqueur (5.0), and a dry spices bag (11.5). The dry spices bag contained aniseed (2.5), pepper (2.5), orange peel (1.0), radix angelicae (1.0), cinnamon (0.5), fructus amomi (0.5), cardamom (0.5), kaempferiae galanga (1.5), and clove (1.5). After cooling to room temperature, the cooked chicken legs were smoked in the sugar smoking device described previously [1]. For this process, cooked chicken legs were placed on a stainless-steel tray with small holes. When the temperature of the iron pot bottom reached 200–210 °C, 50.0 g of sucrose was placed in the bottom of the iron pot. Then, the tray with chicken legs was placed on the pot, the lid was immediately positioned, and the smoking was performed for 4 min. The smoked chicken legs were then cooled to room temperature (20 ± 5 °C) and subjected to MAP once the color was stable.

2.2. Packaging and Storage

Four distinct packaging treatments were applied, including palletization (PAL) and MAP under 20% (M20), 60% (M60), and 100% (M100) CO2. In the PAL treatment, each smoked chicken leg was individually placed in a polypropylene tray (TQBC-0775, Sealed Air Corp., Danbury, CT, USA) and then covered with an oxygen-permeable polyethylene film (8 μm in thickness and 18,500 cm3 m−2 per 24 h of oxygen permeability; Weiguang Plastic Co., Ltd., Shanghai, China). In the MAP treatments, for the M20 and M60 samples, the CO2 was mixed with N2. Each smoked chicken leg was individually placed in a polypropylene tray (TQBC-0775, Sealed Air Corp., Danbury, CT, USA), which was then flushed with the desired gas mixture and sealed with an oxygen-barrier film (Lid 1050, Sealed Air Corp., Danbury, CT, USA) using a DT-6D packaging machine (Dajiang Machinery Equipment Co., Ltd., Wenzhou, China). According to the supplier specifications, the polypropylene trays have an oxygen transmission rate of 10 cm3 m−2 per 24 h at 23 °C and 0% relative humidity (RH) and a water vapor transmission rate of 15 g m−2 per 24 h at 38 °C and 90% RH, while the oxygen-barrier film has an oxygen transmission rate of 25 cm3 m−2 per 24 h at 23 °C and 0% RH and a water vapor transmission rate of 10 g m−2 per 24 h at 4 °C and 100% RH. After packaging, all legs (100 packaged and 5 unpackaged) were stored at 4 °C. After 2 h, the 5 unpackaged legs were used as the Day 0 samples. There were 105 chicken legs used for each batch production. Five of them were used at 0 d and the other one-hundred packaged samples were used for the storage experiment. Each treatment had 25 samples. Samples were stored for 0 d, 5 d, 10 d, 15 d, 20 d, and 25 d. For each treatment at each storage time (5 d, 10 d, 15 d, 20 d, and 25 d), five smoked chicken legs were used for the analysis. Therefore, in total, there were 315 chicken legs used for 3 production batches. The thighs were used to analyze the physicochemical properties, and the drumsticks were used to evaluate the total viable counts (TVC) and for DNA extraction and sequencing. For the physicochemical properties, first, the hardness was measured, then the surface skin color was analyzed, and finally, the pH value, moisture content, and lipid oxidation were determined. However, the PAL-packaged legs were spoiled after 15 d of storage and were not examined thereafter. In addition, for bacterial community analysis, the legs were sampled at 0 d and the MAP legs at 25 d.

2.3. Determination of the pH Value and Moisture Content

The smoked chicken sample (10.0 g) was mixed with 90.0 mL of 0.1 mol/L KCl and homogenized at 10,000 rpm for 60 s. The pH of the mixture was then determined using a pH meter (Mettler Toledo Instruments Co., Ltd., Shanghai, China) in accordance with the procedure of Lv et al. [18]. In addition, the moisture content was measured according to the Association of Official Analytical Chemists (AOAC) standard procedure [19]. Two grams of minced chicken was evenly spread on the bottom of the aluminum dish, then dried in an oven (101-3S air oven Lichen Science and Technology Co., Ltd., Shanghai, China) at 102 °C for 16 h. The moisture content was calculated as the weight of the lost moisture as a percentage of the weight of the sample.

2.4. Determination of Lipid Oxidation

Based on the method of Chen et al. [20], the content of lipid oxidation was evaluated according to the thiobarbituric acid reactive substance (TBARS) value:
TBARS (mg/kg) = (A532/W) × 9.48
where A532 is the absorbance of the assay solution at 532 nm, W is the weight of the sample (g), and 9.48 is a constant derived from the dilution factor and the molar extinction coefficient (152,000 M−1 cm−1) of the thiobarbituric acid reaction product.

2.5. Determination of Hardness

A TA-XT plus texture analyzer (Stable Micro Systems, Godalming, UK) with a Meullenet–Owens razor shear (MORS) probe was used to determine the texture profile of the smoked chicken legs. The hardness was determined using the textural profile analysis (TPA) mode, with a pre-test speed of 2 mm/s, a triggering force of 20 g, and a compression distance of 10 mm [21]. The thighs with bones were placed on the center of the console and cut six times for the hardness measurement. The values are expressed as newton (N) units.

2.6. Determination of Color

The color on the skin of the chicken leg was measured using a ZE-6000 colorimeter (Juki Corp., Tokyo, Japan) with a D65 light source and a 10° observer. The values were expressed as the L*-value (lightness), a*-value (redness), and b*-value (yellowness). A white standard plate (L* = 95.26, a* = −0.89, b* = 1.18) was used for calibration.

2.7. Determination of Total Viable Counts

According to GB 2726-2016 [22], the packages containing the smoked chicken legs were aseptically opened, the chicken legs (minus the bones) were chopped, then 25.0 g samples were homogenized in sterilized 0.85% NaCl (225 mL) solution, followed by a series of dilutions with sterilized 0.85% NaCl (9.0 mL) solution. Each dilution was then inoculated into plate count agar (PCA, Hope Bio-Tech, Qingdao, China) and incubated at 37 ± 1 °C for 48 h to determine the TVC. The results are expressed as log CFU/g chicken legs.

2.8. DNA Extraction and Sequencing

2.8.1. Extraction of Bacterial DNA

The bacterial DNA was extracted from the smoked chicken legs (0.2 g) using the cetyl trimethyl ammonium bromide/sodium dodecyl sulphate (CTAB/SDS) method [23]. The DNA purity was determined using 1% (w/v) agarose gel, and the DNA concentration was diluted to 1 ng/μL using sterile water. The DNA concentration and purity were determined using Nanodrop 2000 (Thermo Fisher Scientific, Waltham, MA, USA) to ensure the OD260/280 was between 1.8 and 2.0. The cetyl trimethyl ammonium bromide/sodium dodecyl sulphate and agarose gel were obtained from Solarbio Technology Co. Ltd. (Beijing, China).

2.8.2. Amplification and Sequencing of 16S rRNA

The bacterial 16S rRNA was amplified via the polymerase chain reaction (PCR) according to previously reported conditions and methods [23]. The V1–V9 region of the bacterial 16S rRNA gene was amplified using the specific primers with barcodes (forward: 5′-AGAGTTTGATCCTGGCTCAG-3′; reverse: 5′-GNTACCTTGTTACGACTT-3′). The PCR was performed using TransStart® FastPfu DNA Polymerase (TransGen Biotech, Beijing, China) according to the following protocol: (i) initial denaturation at 98 °C for 5 min, (ii) 35 cycles of denaturation at 95 °C for 30 s, (iii) annealing at 60 °C for 45 s, (iv) extension at 72 °C for 9 s, and (v) extension at 72 °C for 10 min. The PCR products were detected via 2% agarose gel electrophoresis and purified using a QIAquick@ gel extraction kit (QIAGEN, Hilden, Germany). The sequencing libraries were generated using the SMRTbell TM Template Prep Kit (Pacific Biosciences, Menlo Park, CA, USA). The library quality was assessed on the Qubit@ 2.0 Fluorometer (Thermo Fisher Scientific, Waltham, MA, USA) and the FEMTO Pulse system. Lastly, the library preparation and sequencing were conducted with the help of Novogene Company (Beijing, China, https://www.novogene.com/ (6 May 2021)).

2.8.3. Bioinformatics Analysis

The raw reads were filtered and analyzed using the QIIME software package (Version 1.9.1). During this process, the UCHIME algorithm (http://www.drive5.com/usearch/manual/uchime_algo.html (20 May 2021)) was used to eliminate any ambiguous and chimeric sequences, and the clean reads were validated by comparison with the Gold database (http://drive5.com/uchime/uchime_download.html (23 May 2021)). The sequence analysis was performed using the Uparse software (Uparse v7.0.1001, http://drive5.com/uparse/ (23 May 2021)). Sequences with ≥97% similarity were assigned to the same operational taxonomic unit (OTU), and representative sequences were then screened for each OTU. For each representative sequence, the Silva SSUrRNA database (https://www.arb-silva.de/ (28 May 2021)) was used based on the Mothur algorithm for annotating the taxonomic information. The alpha-diversity (Shannon, Simpson, abundance-based coverage estimator (ACE), Chao1, Good’s coverage) and beta diversity indices on the weighted and unweighted UniFrac distances were calculated using the QIIME software (Version 1.7.0). To assess the differences between the bacterial communities of the MAP smoked chicken legs with various concentrations of CO2, a principal co-ordinates analysis (PCoA) was performed on the identified OTU, and the results were displayed using the R software (Version 2.15.3). Then, the 30 most abundant bacterial species were selected as the core bacteria for correlation by distance-based redundancy analysis (db-RDA).

2.9. Statistical Analysis

Three independent batches (replicates) of the smoked chicken legs were prepared, and all measurements were conducted in triplicate for each batch. The data were analyzed via the General Linear Models procedure of the Statistix 8.1 software package (Analytical Software, St. Paul, MN, USA), and the results are expressed as the mean ± standard error (SE). The normality and homogeneity of variance were analyzed via the Shapiro–Wilk and Levene procedure of the Statistix 8.1 software package (Analytical Software, St Paul, MN, USA), p > 0.05. The significance of each treatment effect (p < 0.05) was evaluated via an analysis of variance (ANOVA) and Tukey’s multiple comparison test, and the data were plotted using the Origin 2019 software package (Analytical Software, Systat, Hampton, MA, USA). In addition, the db-RDA correlation was performed and plotted using the R software (Version 2.15.3) package.

3. Results and Discussion

3.1. pH Value and Moisture Content

The changes in the pH and moisture content of the variously packaged smoked chicken legs during storage for up to 25 d at 4 °C are presented in Figure 1A,B, respectively. For all treatments, the pH was seen to initially increase, then decrease, within the range of 6.44 to 6.84 (Figure 1A). It is generally believed that the antibacterial effect of CO2 is mainly dependent on its dissolution in water to form H2CO3, which dissociates into H+ and HCO3− ions, thus reducing the pH. The observed, and contrary-to-expected, increase in the initial pH of the various samples may be attributed to the following two factors: (i) the anaerobic environment with a high concentration of CO2 promoted the expression of arginine deiminase, alanine dehydrogenase, and tyrosine dehydrogenase in microorganisms such as Carnobacterium, which catalyze the production of ammonia and biogenic amines, thus maintaining the pH stability and weakening the antibacterial effect of the CO2 [24]; (ii) the accumulation of ammonia from the decomposition of nucleic bases and amino acid during the whole stages of the storage can lead to an increase in pH [11]. During the later stages of storage, the decrease in the pH values may be related to a significantly increased relative abundance of acid-producing microorganisms. Notably, the highest pH values were observed on Days 5, 10, 15, and 20 for the PAL, M20, M60, and M100 samples, respectively (p < 0.05). Thus, the increase in CO2 concentration during packaging was seen to delay the decrease in pH. This, in turn, can potentially decrease the rate of spoilage by inhibiting the expression of metabolic proteins in lactic acid bacteria, thus reducing the production of lactic acid [11].
No significant change in the moisture content was observed for the PAL, M20, and M60 samples during storage (p > 0.05), thus indicating that MAP with medium and low concentrations of CO2 does not affect the moisture content (Figure 1B). By contrast, the moisture content of the M100 sample was seen to significantly decrease from 65.43% on Day 15 to 62.35% on Day 25 (p < 0.05), at which time the outer package was seen to be seriously collapsed and deformed. This may be because some of the CO2 content became dissolved in the fat and water [12], thus generating negative pressure and causing the package to dent noticeably. In addition, the spoilage process is accompanied by the reproduction of microorganisms and the oxidation of fat and protein [6], which may lead to the quality deterioration of smoked chicken legs. Under negative pressure, the moisture content of the smoked chicken legs could flow out and be seen in the package. Such a collapse and deformation of the outer package can seriously affect product sales. Indeed, similar results were previously reported by Sun et al. [25], who observed high drip loss, serious collapse, and a low overall acceptability of swimming crab packaged in 100% CO2.

3.2. Lipid Oxidation

The changes in the content of TBARS of the variously packaged smoked chicken legs during storage for up to 25 d at 4 °C are presented in Figure 1C. Here, the TBARS value of the PAL sample was seen to increase significantly from 0.24 on Day 0 to 1.18 on Day 15, while that of the M20, M60, and M100 samples reached 0.94, 0.88, and 0.93, respectively, on Day 25 (p < 0.05). Thus, the TBARS value of the PAL sample was significantly higher than that of the MAP samples during storage (p < 0.05). This may be because lipid oxidation was promoted by the presence of O2 in the PAL treatment, but inhibited by the presence of CO2 in the MAP treatments. Similar results were obtained by Guo et al. [7], who found that an anaerobic environment can inhibit the lipid oxidation of roasted chicken. Moreover, Del Olmo et al. [26] found that the combination of CO2 and N2 can minimize the oxidative deterioration of cured/cooked pork meat products.

3.3. Hardness

Hardness is a very important quality indicator of cooked meat products. As shown in Figure 1D, the hardness of the fresh smoked chicken legs on Day 0 was the highest (at 4.02 N) and decreased to 2.85 N for the PAL sample on Day 15 and to 2.63, 3.34, and 3.73 N for the M20, M60, and M100 samples, respectively, on Day 25 (p < 0.05). This may be attributed to the deterioration of the product structure due to the reproduction of microorganisms and oxidation of the product [27]. It can also be noted that, on day 15, the hardness of the M60 and M100 samples was higher than that of the M20 sample, and the hardness of the M20 sample was significantly higher than that of the PAL sample (p < 0.05). Furthermore, on Day 25, the hardness of the M60 and M100 samples was significantly higher than that of the M20 sample (p < 0.05). These results indicate that the MAP treatments with higher concentrations of CO2 provided better protection to the texture of the chicken legs. Notably, the hardness of the M100 sample did not increase during storage, even though its moisture content decreased significantly from 65.43% to 62.35%.

3.4. Color

The color of the skin is a key factor in the customers’ decision to purchase the product and is an important indicator of freshness. The changes in the skin color of the smoked chicken legs during storage for up to 25 d at 4 °C are indicated in Table 1. Here, the yellowness (b*-value) of each sample was seen to increase from 39.22 at Day 0 to 41.74 for the PAL sample on Day 15 and to 42.34–42.55 for the various MAP samples on Day 25 (p < 0.05). This may be due to the generation of a yellow pigment by the reaction of the lipid oxidation products with amines in the phospholipid head groups or in the proteins [18].
Meanwhile, the redness (a*-value) was seen to decrease from 18.06 on Day 0 to 14.9 on Day 15 for the PAL sample and to 15.39–15.78 on Day 25 for the MAP samples (p < 0.05). The decrease in redness may be due to the interaction between the pigment and the lipid oxidation products [28]. Similar results were reported by Chen et al. [6], who demonstrated that lipid oxidation can lead to the decrease of the a*-value of the skin surface of roasted duck legs with MAP. Moreover, the MAP samples each showed a relatively stable redness after Day 5. Similarly, Chen et al. [6] demonstrated that the a*-value of roasted duck legs with MAP (100% N2, 30% CO2/70% N2, 50% CO2/50% N2, and 0.4% CO/30% CO2/69.6% N2) was significantly higher than that of the air package.
Finally, the lightness (L*-value) of the PAL sample was seen to increase from 38.54 on Day 0 to 40.62 on Day 5 and to 42.06 on Day 15. The initial increase may be due to the presence of moisture on the skin of the legs caused by the low temperature and high humidity [10]. Meanwhile, the MAP samples each exhibited a relatively stable L*-value, with a slight increase from 38.54 on Day 0 to 39.70–40.60 on Day 25. Notably, on Day 15, the L*-value of the PAL sample (i.e., 42.06) was higher than that of the MAP samples (39.75–40.36; p < 0.05), which may be due to the more intense oxidative cleavage of pigment in the PAL sample [29], which is consistent with the changing trend of the a*-value. These results indicate that MAP is an efficient method for maintaining the skin color of smoked chicken and are consistent with the results of Chen et al. [6] and Guo et al. [7] for the benefits of MAP for roasted chicken and duck.

3.5. Total Viable Counts

The changes in the TVC of the variously packaged smoked chicken leg samples during storage for up to 25 d at 4 °C are presented in Figure 2. For the PAL sample, the TVC was seen to increase significantly from 2.24 log CFU/g on Day 0 to 6.99 log CFU/g on Day 15, at which time, the storage was terminated due to evident spoilage. Even on Day 10, the TVC of the PAL sample (i.e., 5.94 log CFU/g) was significantly higher than that of the MAP samples (3.21–4.05 log CFU/g; p < 0.05). Thereafter, the TVC values of the M20, M60, and M100 samples continued to increase up to 7.13 log CFU/g, 6.00 log CFU/g, and 5.87 log CFU/g, respectively, on Day 25 (p < 0.05). These results indicate that MAP provides a better inhibitory effect on bacterial growth and that this effect increases with the increase in CO2 concentration. According to GB 2726-2016 [22], the safety limit value of TVC is ≤5 log CFU/g for cooked meat products. During storage, the TVC values of the PAL, M20, M60, and M100 samples were more than 5 log CFU/g on Days 10, 15, 20, and 25, respectively. Except for the PAL sample on Day 15, the TBARS values of all the samples were lower than 1.0 mg MDA/kg (a threshold value for perceiving undesirable rancid flavor and odor) during storage (Figure 1C), indicating that such a degree of lipid oxidation has no negative effect on the sensory quality of the products [21]. The hardness of the PAL samples decreased obviously on Day 10, which may be due to the breakdown of the muscle tissue structure caused by microbial growth. In addition, the changes in the moisture content, pH, and color of all samples during storage were within an acceptable range. Although the M100 samples had the lowest TVC and least quality deterioration during storage, the serious collapse of the outer packaging induced by the high CO2 concentration may cause a decrease in the acceptability of the product. In general, the shelf-life of products is affected by many factors, and the shelf-life of the MAP samples was significantly longer than that of the PAL samples. The shelf-life of the MAP treatments in this study was shorter than that reported by Guo et al. [7], which may be due to the higher initial TVC level and the different cooking methods.

3.6. Bacterial Community Diversity Analysis

3.6.1. Bacterial Diversity and Richness

The bacterial diversities of the variously packaged smoked chicken legs after 25 d of storage at 4 °C are indicated in Table 2. For comparison, the bacterial diversity of a control sample (the fresh, unpacked chicken legs on Day 0) is also indicated. Here, the number of high-quality clean reads obtained for each sample ranged from 7207 to 9584, with an average of 8682.5. The richness (ACE and Chao1) indices and observed operational taxonomic units (OTUs) of the control sample were higher than those of the variously packaged samples at Day 25. Furthermore, the diversity (Shannon and Simpson) indices of the M20 sample were lower than those of the M60 and M100 samples. Finally, the Good’s coverage was above 99.3% for all samples, thus indicating that most of the bacterial phylotypes were detected.

3.6.2. Bacterial Community

The SMRT sequencing analyzed the bacterial community in the smoked chicken legs well and realized the species-level identification. Moreover, such an extended read length enabled higher confidence in the phylogenetic classifications and offered additional OTU for clusterin improvement, effectively reducing the underestimation or overestimation of the taxonomic diversity occasionally caused by second-generation sequencing [17]. The relative bacterial abundances in the smoked chicken leg samples at Day 0 and Day 25 are presented at the phylum, genus, and species levels, along with a principal co-ordinates analysis, in Figure 3. Here, a total of 12 phyla were identified in the sequencing analysis (Figure 3A), with Firmicutes and Proteobacteria predominating at the beginning and end of storage. This is comparable to the results obtained by Zhang et al. [30] for cooked meat. In the present study, the relative abundance of Proteobacteria (81.71%) was higher than that of Firmicutes (9.46%) in the fresh smoked chicken legs (control, Day 0), followed by Acidobacteria (3.14%) and Actinobacteria (2.21%). By contrast, the relative abundance of Firmicutes dramatically increased in the MAP samples on Day 25, when the relative abundance of Firmicutes was 88.14%, 63.33%, and 50.01% in the M20, M60, and M100 samples, respectively. Conversely, the relative abundance of Proteobacteria was seen to decrease to 10.23%, 34.81%, and 46.54% in the M20, M60, and M100 samples, respectively. Thus, the relative abundance of Firmicutes was negatively correlated with the concentration of CO2 in the packaging treatment, whereas the relative abundance of Proteobacteria was positively correlated with the concentration of CO2. In other words, these results demonstrate that an increased CO2 concentration can inhibit Firmicutes and promote Proteobacteria. Similar trends in Firmicutes and Proteobacteria were previously observed by Chen et al. [6] in fresh roasted duck meat and in MAP roasted duck meat with various CO2 concentrations, after storage for 7 d and 14 d.
At the genus level, 103 genera were identified, with Carnobacterium, Methylobacterium, Pseudomonas, Brochothrix, Shewanella, and Lactococcus being the most prevalent in all samples (Figure 3B). In the fresh smoked chicken legs, Methylobacterium was the predominant genus (55.59%), followed by Klebsiella (6.98%), and Psychrobacter (6.57%). Methylobacterium is ubiquitous in nature and exists in various environments (such as soil, dust, fresh water, and laboratory environment) [31]. Klebsiella is a conditional pathogen that can cause pneumonia and widely exists in chickens, sheep, pigs, and other animals [32]. Psychrobacter is an aerobic bacterium that can grow readily under chilled conditions and has been identified as the main genus in roasted chicken that has been packaged in air [13].
For the three MAP treatments, significant differences were observed in the bacterial community at the genus level on Day 25, thus revealing the influence of the atmospheric composition used in the MAP. Overall, Carnobacterium, Pseudomonas, Brochothrix, Shewanella, and Lactococcus were the predominant genera. This is consistent with other recent studies, where the predominance of Lactobacillus, Brochothrix, Pseudomonas, and Carnobacterium has been associated with the spoilage of MAP meats [16,33]. In detail, the main genera in the M20 sample on Day 25 were Carnobacterium (74.15%), Brochothrix (5.85%), Pseudomonas (4.86%), and Lactococcus (4.28%), while the main genera in the M60 sample were Carnobacterium (32.28%) and Shewanella (15.59%), followed by Lactococcus (10.48%), Vagococcus (6.01%), Lactobacillus (5.91%), Pseudomonas (5.16%), and Brochothrix (3.70%). Further, relatively high abundances of 27.01%, 20.19%, 11.37%, and 8.63% were observed for Pseudomonas, Brochothrix, Lactococcus, and Carnobacterium, respectively, in the M100 sample on Day 25.
The results in Figure 3B reveal that the relative abundance of Carnobacterium was negatively correlated with the concentration of CO2 in the packaging treatment, thus indicating that CO2 has a significant inhibitory effect on Carnobacterium. This is consistent with the results of Zhang et al. [30], who reported that Carnobacterium was the dominant genus on chilled beef primal cuts collected from three Canadian abattoirs at the end of storage. However, while the growth of Carnobacterium has a minor impact on the sensory properties of meat and meat products, the presence of Brochothrix can produce an off odor and slime [34].
In the present study, the abundance of Pseudomonas and Lactococcus was positively correlated with the CO2 concentration in the packaging treatment. This result was unexpected for Pseudomonas because it is sensitive to CO2; nevertheless, Chen et al. [6] also identified high levels of Pseudomonas in roasted chicken that were stored in MAP under a high concentration of CO2 (50%), thus indicating incomplete inhibition of this genus. Previous studies have also identified Lactococcus as a dominant bacterium and a cause of reduced shelf-life in various MAP meat products, including chicken, pork, and beef [35].
In Figure 3B, the 25 d-stored M100 samples exhibited the highest abundance of Brochothrix out of all the MAP samples. As a facultatively anaerobic bacterium, Brochothrix is commonly found at high levels in meat and meat products under various packaging conditions and is the dominant spoilage species in roasted duck meat [6]. Meanwhile, the 25 d-stored M60 sample exhibited the highest abundance of Shewanella. This is a group of Gram-negative, facultative anaerobic, H2S-producing rod-shaped bacteria that are responsible for spoilage by producing a “fishy” off odor [36].
At the species level, a total of 62 species were identified in all the samples, with Pseudomonas fragi, Shewanella baltica, Lactococcus piscium, Klebsiella pneumoniae, and Lactobacillus sakei predominating (Figure 3C). In the fresh smoked chicken legs, K. pneumoniae is the predominant species (6.98%), followed by Lactobacillus plantarum (2.48%), and Alcaligenes faecalis (1.30%). In the 25 d-stored M20 sample, however, the main species were P. fragi (4.74%), L. piscium (4.11%), and Enterococcus faecium (1.68%). For the M60 sample, S. baltica (15.59%) and L. piscium (10.32%) were the main species at the end of storage, followed by L. sakei (5.43%), P. fragi (5.16%), and Serratia proteamaculans (1.38%). Finally, for the M100 sample, the predominant species were P. fragi (26.62%), L. piscium (11.31%), Weissella ghanensis (5.41%), S. baltica (4.99%), and Photobacterium phosphoreum (4.99%). These results reveal an increase in the relative abundances of P. fragi and L. piscium with increased CO2 concentration in the MAP treatments. Among the psychrotrophic spoilage Pseudomonas species, P. fragi is the most frequently encountered on meats such as beef, chicken, pork, and lamb [37]. Although CO2 increases the permeability of the P. fragi cell membrane and may alter the ability of the cell to absorb ions by inhibiting the expression of certain transporters, it does not destroy the cell integrity [38]. P. fragi readily forms a surface biofilm that can combine with the meat exudate to generate slime, which is a key quality defect that can influence consumer acceptability [39]. In addition, P. fragi can promote the release of amines and increase the pH [40]. Meanwhile, the growth of L. piscium can lead to meat spoilage and decreased shelf-life [35]. In addition, S. baltica is a major spoilage bacterium in seafood and produces volatile compounds with a spoilage smell [41]. By contrast, L. sakei and L. plantarum can produce lactic acid, hydrogen peroxide, bacteriocin, and other bacteriostatic metabolites in the later stages of low-oxygen MAP storage, thus inhibiting the growth of other bacteria and prolonging the shelf-life [42]. Notably, just as Carnobacterium exhibited the highest abundance at the genus level, Carnobacterium divergens and Carnobacterium maltaromaticum were identified at the species level. These two species can maintain their homeostasis and structural stability by regulating their protein expression and metabolic activities so as to adapt to conditions of 20–40% CO2 [24,43]. Furthermore, they can promote the expression of arginine deiminase, alanine dehydrogenase, and tyrosine dehydrogenase and can catalyze the production of alkaline products such as ammonia and biogenic amines to maintain the stability of their internal environment. Moreover, C. maltaromaticum also promotes the expression of acetyl-CoA carboxylase, S-malonyl transferase, and 3-keto acyl ACP reductase related to fatty acid synthesis of the cell membrane and regulates the fluidity of the cell membrane in order to maintain its structural stability in conditions of 20–40% CO2 [24].

3.6.3. Differences in the Bacterial Composition

The results of the PCoA analysis are presented in Figure 3D; two principal components (labelled PC1 and PC2) accounted for 96.34% of the total variance. Further, the 25 d-stored M20, M60, and M100 samples exhibited relatively similar PC1 values that differed significantly from that of the fresh smoked chicken leg sample on Day 0. Moreover, the PC1 value of the M60 sample was much more similar to that of the M100 sample than to the M20 sample, thus indicating similar bacterial communities in the M60 and M100 samples in the later stages of storage. It seems that the MAP with various concentrations of CO2 would significantly influence the bacterial communities [6].

3.7. The Correlations between Bacterial Community and Environmental Indicators

The CO2 concentration and pH are important environmental indicators that affect bacterial communities. Hence, the db-RDA correlations between the 30 most dominant bacteria and the environmental factors (CO2 and pH) of the variously packaged smoked chicken legs are presented in Figure 4. Here, the relative abundance of each bacterium (B1–B30) is indicated by its distance from the origin, and the correlation between the bacterial abundance and each environmental factor is indicated by the relative orientation of the point representing the bacterium with respect to the arrowed line representing the specific environmental indicator. Thus, P. fragi, S. baltica, L. piscium, W. ghanensis, and P. phosphoreum (B1, B2, B3, B6, and B7, respectively) were significantly positively correlated with CO2 and pH (appearing in the same quadrant of the plot), thereby indicating that these strains can survive in high concentrations of CO2 [6,13]. Furthermore, the point B1 was closest to the red pentagon representing the M100 treatment, thereby indicating that P. fragi was the most abundant species in the M100 sample on Day 25. In addition, the closeness of points B2 and B3 to the blue quadrangle representing the M60 treatment indicates that S. baltica (B2) and L. piscium (B3) were abundant in the M60 treatment on Day 25. These results are consistent with the above-mentioned relative abundance analysis and with the OTU-based PCoA, thus confirming that similar bacterial communities developed in the chicken legs stored under 60% CO2 (M60) and 100% CO2 (M100).

4. Conclusions

The present study examined the effects of MAP under various CO2 concentrations on the bacterial community and shelf-life of smoked chicken legs. The MAP treatments provided better color, hardness, and pH stability during storage, along with lower lipid oxidation and total viable counts, than did the PAL treatment. In addition, the MAP treatment effectively delayed the onset of bacterial spoilage and extended the shelf-life of the smoked chicken legs. The MAP treatments with 60% and 100% CO2 had similar inhibitory effects on the bacterial community and similar effects on the total viable counts after storage at 4 °C for 25 d. However, the MAP treatment with 100% CO2 resulted in severe denting of the package and a decreased moisture content of the smoked chicken legs at the later stages of storage. In conclusion, the MAP treatment with 60% CO2 is recommended as a promising packaging method for improving the quality of smoked chicken legs.

Author Contributions

Methodology, investigation, and writing—original draft, Q.W.; funding acquisition and investigation, Q.C.; software and investigation, J.X.; data curation and formal analysis, F.S.; visualization and resources, H.L.; formal analysis and software; and conceptualization, funding acquisition, supervision, and writing—review and editing, B.K. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Major Science and Technology Projects in Heilongjiang Province (2020ZX07B72), the Major Science and Technology Projects in Heilongjiang Province (2021ZX12B05).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available within the article.

Acknowledgments

The Bacterial Community Diversity Analysis was supported by Novogene Company (Beijing, China, https://www.novogene.com/ (accessed on 6 May 2021)).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, L.; Hu, Y.Y.; Wang, Y.; Kong, B.H.; Chen, Q. Evaluation of the flavour properties of cooked chicken drumsticks as affected by sugar smoking times using an electronic nose, electronic tongue, and HS-SPME/GC-MS. LWT—Food Sci. Technol. 2021, 140, 110764. [Google Scholar] [CrossRef]
  2. Gram, L.; Ravn, L.; Rasch, M.; Bruhn, J.B.; Christensen, A.B.; Givskov, M. Food spoilage—Interactions between food spoilage bacteria. Int. J. Food Microbiol. 2002, 78, 79–97. [Google Scholar] [CrossRef]
  3. Wang, G.Y.; Wang, H.H.; Han, Y.W.; Xing, T.; Ye, K.P.; Xu, X.L.; Zhou, G.H. Evaluation of the spoilage potential of bacteria isolated from chilled chicken in vitro and in situ. Food Microbiol. 2017, 63, 139–146. [Google Scholar] [CrossRef] [PubMed]
  4. Tsironi, T.N.; Ntzimani, A.G.; Taoukis, P.S. Reference Module in Food Science, 1st ed.; Elsevier Publishing: Amsterdam, The Netherlands, 2019; pp. 1–4. [Google Scholar] [CrossRef]
  5. Ye, K.P.; Ding, D.M.; Zhu, X.; Wu, Z.C.; Hu, Q.Y.; Li, R. Modified atmosphere packaging with a small change in gas ratio could maintain pork quality during −3 °C storage. Food Control. 2020, 109, 106943. [Google Scholar] [CrossRef]
  6. Chen, X.; Zhao, J.Y.; Zhu, L.X.; Luo, X.; Mao, Y.W.; Hopkins, D.L.; Zhang, Y.M.; Dong, P.C. Effect of modified atmosphere packaging on shelf life and bacterial community of roast duck meat. Food Res. Int. 2020, 137, 109645. [Google Scholar] [CrossRef] [PubMed]
  7. Guo, Y.C.; Huang, J.C.; Sun, X.B.; Lu, Q.; Huang, M.; Zhou, G.H. Effect of normal and modified atmosphere packaging on shelf life of roast chicken meat. J. Food Saf. 2018, 38, e12493. [Google Scholar] [CrossRef]
  8. Raimondi, S.; Luciani, R.; Sirangelo, T.M.; Amaretti, A.; Leonardi, A.; Ulrici, A.; Foca, G.; D’Auria, G.; Moya, A.; Zuliani, V.; et al. Microbiota of sliced cooked ham packaged in modified atmosphere throughout the shelf life: Microbiota of sliced cooked ham in MAP. Int. J. Food Microbiol. 2018, 289, 200–208. [Google Scholar] [CrossRef]
  9. Lerasle, M.; Federighi, M.; Simonin, H.; Anthoine, V.; Rezé, S.; Chéret, R.; Guillou, S. Combined use of modified atmosphere packaging and high pressure to extend the shelf-life of raw poultry sausage. Innov. Food Sci. Emerg. Technol. 2014, 23, 54–60. [Google Scholar] [CrossRef]
  10. Guo, Y.C.; Huang, J.C.; Chen, Y.R.; Hou, Q.; Huang, M. Effect of grape seed extract combined with modified atmosphere packaging on the quality of roast chicken. Poult. Sci. 2020, 99, 1598–1605. [Google Scholar] [CrossRef]
  11. Dang, T.T.; Rode, T.M.; Skipnes, D. Independent and combined effects of high pressure, microwave, soluble gas stabilization, modified atmosphere and vacuum packaging on microbiological and physicochemical shelf life of precooked chicken breast slices. J. Food Eng. 2020, 292, 110352. [Google Scholar] [CrossRef]
  12. Bassey, A.P.; Chen, Y.; Zhu, Z.; Odeyemi, O.A.; Frimpong, E.B.; Ye, K.; Li, C.; Zhou, G. Assessment of quality characteristics and bacterial community of modified atmosphere packaged chilled pork loins using 16S rRNA amplicon sequencing analysis. Food Res. Int. 2021, 145, 110412. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, J.C.; Guo, Y.C.; Hou, Q.; Huang, M.; Zhou, X.H. Dynamic changes of the bacterial communities in roast chicken stored under normal and modified atmosphere packaging. J. Food Sci. 2020, 85, 1231–1239. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, D.Y.; Xiao, X.; Wang, H.H.; Zhang, Q.Y.; Zou, Y.F. Characterization of the bacterial community of braised chicken, a specialty poultry product in China. Poult. Sci. 2019, 98, 1055–1063. Available online: https://doi.org/10.3382/ps/pey375 (accessed on 23 July 2021). [CrossRef]
  15. Kim, M.; Morrison, M.; Yu, Z.T. Evaluation of different partial 16S rRNA gene sequence regions for phylogenetic analysis of microbiomes. J. Microbiol. Methods 2011, 84, 81–87. [Google Scholar] [CrossRef] [PubMed]
  16. Roberts, R.J.; Carneiro, M.O.; Schatz, M.C. The advantages of SMRT sequencing. Genome Biol. 2013, 14, 1–4. [Google Scholar] [CrossRef]
  17. Lam, T.Y.C.; Mei, R.; Wu, Z.; Lee, P.K.H.; Liu, W.T.; Lee, P.H. Superior resolution characterisation of microbial diversity in anaerobic digesters using full-length 16S rRNA gene amplicon sequencing. Water Res. 2020, 178, 115815. [Google Scholar] [CrossRef]
  18. Lv, Y.C.; Yin, X.Y.; Wang, Y.; Chen, Q.; Kong, B.H. The prediction of specific spoilage organisms in Harbin red sausage stored at room temperature by multivariate statistical analysis. Food Control 2020, 123, 107701. [Google Scholar] [CrossRef]
  19. AOAC. AOAC, Association of Official Methods of Analysis Methods 950.46; Association of Official Analytical Chemists: Arlington, VA, USA, 2006. [Google Scholar]
  20. Chen, Q.; Kong, B.H.; Han, Q.; Xia, X.F.; Xu, L. The role of bacterial fermentation in lipolysis and lipid oxidation in Harbin dry sausages and its flavour development. LWT—Food Sci. Technol. 2017, 77, 389–396. [Google Scholar] [CrossRef]
  21. Zhang, L.; Du, H.Z.; Zhang, P.; Kong, B.H.; Liu, Q. Heterocyclic aromatic amine concentrations and quality characteristics of traditional smoked and roasted poultry products on the northern Chinese market. Food Chem. Toxicol. 2019, 135, 110931. [Google Scholar] [CrossRef]
  22. National Health and Family Planning Commission of the People’s Republic of China. GB 2726; National Food Safety Standard for Cooked Meat Products. Standard Press of China: Beijing, China, 2016; pp. 1–2.
  23. Hu, Y.Y.; Wang, H.; Kong, B.H.; Wang, Y.; Chen, Q. The succession and correlation of the bacterial community and flavour characteristics of Harbin dry sausages during fermentation. LWT—Food Sci. Technol. 2021, 138, 110689. [Google Scholar] [CrossRef]
  24. Kolbeck, S.; Ludwig, C.; Meng, C.; Hilgarth, M.; Vogel, R.F. Comparative proteomics of meat spoilage bacteria predicts drivers for their coexistence on modified atmosphere packaged meat. Front. Microbiol. 2020, 11, 209. [Google Scholar] [CrossRef] [PubMed]
  25. Sun, B.; Zhao, Y.; Yu, J.; Ling, J.; Shang, H.; Liu, Z. The combined efficacy of superchilling and high CO2 modified atmosphere packaging on shelf life and quality of swimming crab (Portunus trituberculatus). J. Aquat. Food Prod. Technol. 2017, 26, 655–664. [Google Scholar] [CrossRef]
  26. Del Olmo, A.; Calzada, J.; Nuñez, M. Effect of high pressure processing and modified atmosphere packaging on the safety and quality of sliced ready-to-eat “lacón”, a cured–cooked pork meat product. Innov. Food Sci. Emerg. Technol. 2014, 23, 25–32. [Google Scholar] [CrossRef]
  27. Segli, F.; Melian, C.; Vignolo, G.; Castellano, P. Inhibition of a spoilage exopolysaccharide producer by bioprotective extracts from Lactobacillus acidophilus CRL641 and Latilactobacillus curvatus CRL705 in vacuum-packaged refrigerated meat discs. Meat Sci. 2021, 178, 108509. [Google Scholar] [CrossRef]
  28. Falowo, A.B.; Fayemi, P.O.; Muchenje, V. Natural antioxidants against lipid protein oxidative deterioration in meat and meat products: A review. Food Res. Int. 2014, 64, 171–181. [Google Scholar] [CrossRef]
  29. Estevez, M.; Cava, R. Lipid and protein oxidation, release of iron from heme molecule and colour deterioration during refrigerated storage of liver pate. Meat Sci. 2004, 68, 551–558. [Google Scholar] [CrossRef]
  30. Zhang, Y.T.; Yao, Y.J.; Gao, L.F.; Wang, Z.P.; Xu, B.C. Characterization of a microbial community developing during refrigerated storage of vacuum packed Yao meat, a Chinese traditional food. LWT—Food Sci. Technol. 2018, 90, 562–569. [Google Scholar] [CrossRef]
  31. Tsagkari, E.; Sloan, W.T. Impact of Methylobacterium in the drinking water microbiome on removal of trihalomethanes. Int. Biodeterior. Biodegrad. 2018, 141, 10–16. [Google Scholar] [CrossRef]
  32. Bhardwaj, K.; Shenoy, M.S.; Baliga, S.B.U.; Baliga, B.S.; Shetty, V.K. Research note: Characterization of antibiotic resistant phenotypes and linked genes of Escherichia coli and Klebsiella pneumoniae from healthy broiler chickens, Karnataka, India. Poult. Sci. 2021, 100, 101094. [Google Scholar] [CrossRef]
  33. Stoops, J.; Ruyters, S.; Busschaert, P.; Spaepen, R.; Verreth, C.; Claes, J.; Lievens, B.; Van Campenhout, L. Bacterial community dynamics during cold storage of minced meat packaged under modified atmosphere and supplemented with different preservatives. Food Microbiol. 2015, 48, 192–199. [Google Scholar] [CrossRef]
  34. Leisner, J.J.; Laursen, B.G.; Prévost, H.; Drider, D.; Dalgaard, P. Carnobacterium: Positive and negative effects in the environment and in foods. FEMS Microbiol. Rev. 2007, 31, 592–613. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Rahkila, R.; Nieminen, T.; Johansson, P.; Säde, E.; Björkroth, J. Characterization and evaluation of the spoilage potential of Lactococcus piscium isolates from modified atmosphere packaged meat. Int. J. Food Microbiol. 2012, 156, 50–59. [Google Scholar] [CrossRef]
  36. Lou, X.W.; Zhai, D.D.; Yang, H.S. Changes of metabolite profiles of fish models inoculated with Shewanella baltica during spoilage. Food Control. 2020, 123, 107697. [Google Scholar] [CrossRef]
  37. Ferrocino, I.; Ercolini, D.; Villani, F.; Moorhead, S.M.; Griffiths, M.W. Pseudomonas fragi strains isolated from meat do not produce N-acyl homoserine lactones as signal molecules. J. Food Prot. 2009, 72, 2597–2601. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, G.Y.; Ma, F.; Zeng, L.Y.; Bai, Y.; Wang, H.H.; Xu, X.L.; Zhou, G.H. Modified atmosphere packaging decreased Pseudomonas fragi cell metabolism and extracellular proteolytic activities on meat. Food Microbiol. 2018, 76, 443–449. [Google Scholar] [CrossRef]
  39. Wickramasinghe, N.N.; Ravensdale, J.; Coorey, R.; Dykes, G.A.; Chandry, P.S. Transcriptional profiling of biofilms formed on chilled beef by psychrotrophic meat spoilage bacterium, Pseudomonas fragi 1793. Biofilm 2021, 3, 100045. [Google Scholar] [CrossRef]
  40. Nychas, G.-J.E.; Skandamis, P.N. Improving the Safety of Fresh Meat, 1st ed.; Woodhead Publishing: Cambridge, UK, 2005; pp. 154–196. [Google Scholar] [CrossRef]
  41. Odeyemi, O.A.; Burke, C.M.; Bolch, C.J.S.; Stanley, R. Evaluation of spoilage potential and volatile metabolites production by Shewanella baltica isolated from modified atmosphere packaged live mussels. Food Res. Int. 2018, 103, 415–425. [Google Scholar] [CrossRef]
  42. Yang, X.Y.; Zhu, L.X.; Zhang, Y.M.; Liang, R.R.; Luo, X. Microbial community dynamics analysis by high-throughput sequencing in chilled beef longissimus steaks packaged under modified atmospheres. Meat Sci. 2018, 141, 94–102. [Google Scholar] [CrossRef]
  43. Höll, L.; Hilgarth, M.; Geissler, A.J.; Behr, J.; Vogel, R.F. Prediction of in situ metabolism of photobacteria in modified atmosphere packaged poultry meat using metatranscriptomic data. Microbiol. Res. 2019, 222, 52–59. [Google Scholar] [CrossRef]
Foods 11 00559 g001 550

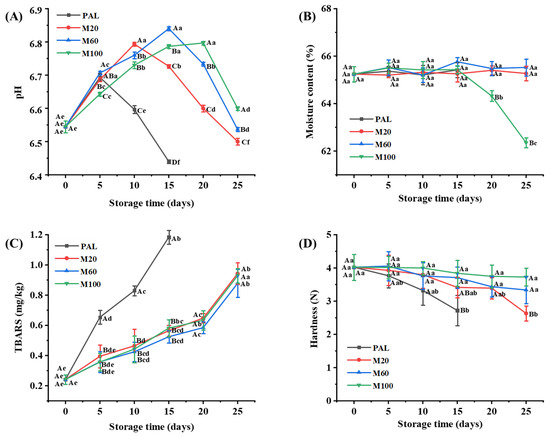

Figure 1. The changes in pH (A), moisture content (B), thiobarbituric acid reactive substances (TBARS) (C), and hardness (D) of the variously packaged smoked chicken legs during storage for up to 25 d at 4 °C. PAL: the palletized smoked chicken legs; M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentrations of 20%, 60%, and 100%, respectively. The different uppercase letters (A–D) indicate significant differences between the variously packaged samples after the same storage time (p < 0.05), while the different lowercase letters (a–f) indicate significant differences in the same packaged sample after different storage times (p < 0.05).
Figure 1. The changes in pH (A), moisture content (B), thiobarbituric acid reactive substances (TBARS) (C), and hardness (D) of the variously packaged smoked chicken legs during storage for up to 25 d at 4 °C. PAL: the palletized smoked chicken legs; M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentrations of 20%, 60%, and 100%, respectively. The different uppercase letters (A–D) indicate significant differences between the variously packaged samples after the same storage time (p < 0.05), while the different lowercase letters (a–f) indicate significant differences in the same packaged sample after different storage times (p < 0.05).
Foods 11 00559 g001
Foods 11 00559 g002 550

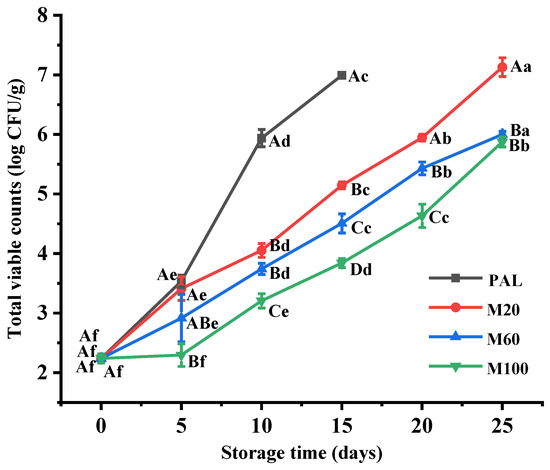

Figure 2. The changes in the total viable counts of the variously packaged smoked chicken legs during storage for up to 25 d at 4 °C. PAL: the palletized smoked chicken legs; M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentration of 20%, 60%, and 100%, respectively. The different uppercase letters (A–D) indicate significant differences between the variously packaged samples after the same storage time (p < 0.05), while the different lowercase letters (a–f) indicate significant differences in the same packaged sample after different storage times (p < 0.05).
Figure 2. The changes in the total viable counts of the variously packaged smoked chicken legs during storage for up to 25 d at 4 °C. PAL: the palletized smoked chicken legs; M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentration of 20%, 60%, and 100%, respectively. The different uppercase letters (A–D) indicate significant differences between the variously packaged samples after the same storage time (p < 0.05), while the different lowercase letters (a–f) indicate significant differences in the same packaged sample after different storage times (p < 0.05).
Foods 11 00559 g002
Foods 11 00559 g003 550

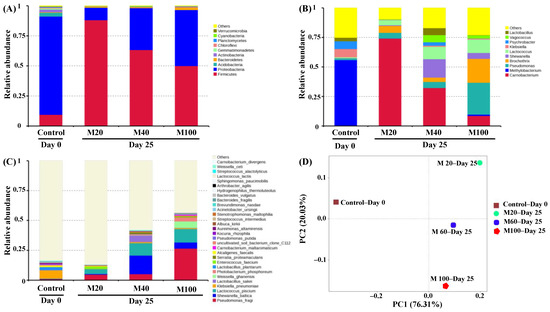

Figure 3. The relative bacterial abundances at (A) the phylum level, (B) the genus level, and (C) the species level for the control sample (fresh smoked chicken legs, Day 0) and the variously packaged samples at Day 25 and (D) the corresponding principal co-ordinates analysis. M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentration of 20%, 60%, and 100%, respectively.
Figure 3. The relative bacterial abundances at (A) the phylum level, (B) the genus level, and (C) the species level for the control sample (fresh smoked chicken legs, Day 0) and the variously packaged samples at Day 25 and (D) the corresponding principal co-ordinates analysis. M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentration of 20%, 60%, and 100%, respectively.
Foods 11 00559 g003
Foods 11 00559 g004 550

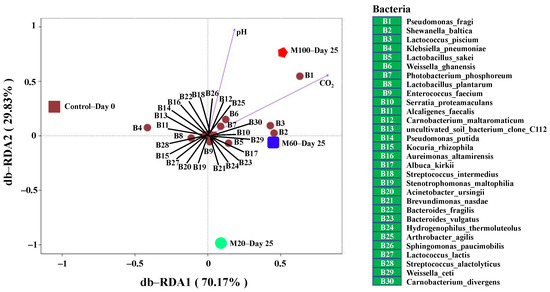

Figure 4. A distance-based redundancy analysis (db-RDA) of the correlations between the 30 most dominant bacteria and the environmental factors (pH and CO2 concentration) for the control sample (fresh smoked chicken legs, Day 0) and the variously packaged samples at Day 25. M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentration of 20%, 60%, and 100%, respectively.
Figure 4. A distance-based redundancy analysis (db-RDA) of the correlations between the 30 most dominant bacteria and the environmental factors (pH and CO2 concentration) for the control sample (fresh smoked chicken legs, Day 0) and the variously packaged samples at Day 25. M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentration of 20%, 60%, and 100%, respectively.
Foods 11 00559 g004
Table
Table 1. The changes in color of the variously packaged smoked chicken legs during storage at 4 °C.
Table 1. The changes in color of the variously packaged smoked chicken legs during storage at 4 °C.
Storage TimeTreatment
PALM20M60M100
L*-value
Day 038.54 ± 0.96 Ab38.54 ± 0.96 Aa38.54 ± 0.96 Aa38.54 ± 0.96 Aa
Day 540.62 ± 0.93 Aab40.79 ± 1.08 Aa40.45 ± 0.98 Aa40.16 ± 1.14 Aa
Day 1040.74 ± 0.66 Aab40.59 ± 0.88 Aa39.66 ± 0.91 Aa40.36 ± 0.43 Aa
Day 1542.06 ± 0.90 Aa40.27 ± 0.64 Ba40.36 ± 0.75 Ba39.75 ± 0.27 Ba
Day 20 39.82 ± 0.75 Aa40.59 ± 0.63 Aa40.50 ± 0.63 Aa
Day 25 40.60 ± 0.61 Aa39.70 ± 0.40 Aa40.41 ± 0.91 Aa
a*-value
Day 018.06 ± 0.56 Aa18.06 ± 0.56 Aa18.06 ± 0.56 Aa18.06 ± 0.56 Aa
Day 516.39 ± 0.44 Ab16.27 ± 0.55 Ab16.53 ± 0.51 Ab16.20 ± 0.87 Ab
Day 1015.63 ± 0.51 Abc16.19 ± 0.55 Ab16.23 ± 0.52 Ab16.00 ± 0.74 Ab
Day 1514.90 ± 0.62 Ac15.88 ± 0.45 Ab16.05 ± 0.63 Ab15.75 ± 0.35 Ab
Day 20 15.71 ± 0.72 Ab15.84 ± 0.41 Ab15.55 ± 0.40 Ab
Day 25 15.39 ± 0.50 Ab15.78 ± 0.43 Ab15.55 ± 0.34 Ab
b*-value
Day 039.22 ± 0.66 Ab39.22 ± 0.66 Ac39.22 ± 0.66 Ac39.22 ± 0.66 Ac
Day 538.82 ± 1.17 Ab38.76 ± 0.70 Ac38.99 ± 0.75 Ac38.92 ± 0.53 Ac
Day 1040.00 ± 0.51 Aab39.41 ± 0.58 Ac39.42 ± 0.43 Ac39.52 ± 0.83 Ac
Day 1541.74 ± 0.57 Aa40.29 ± 0.53 Bbc39.84 ± 0.41 Bbc40.20 ± 0.57 Bbc
Day 20 41.64 ± 0.38 Aab41.20 ± 0.46 Aab41.55 ± 0.47 Aab
Day 25 42.55 ± 0.49 Aa42.34 ± 0.93 Aa42.42 ± 0.36 Aa
A,B These values indicate significant differences between the various packaging treatments after the same storage time (p < 0.05). a–c These values indicate significant differences for the same packaging treatment after various storage times (p < 0.05). PAL: the palletized smoked chicken legs; M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentration of 20%, 60%, and 100%, respectively.
Table
Table 2. Number of total reads, observed operational taxonomic units (OTUs), diversity indices (Shannon and Simpson), and diversity richness (Chao1 and ACE) for the 16S rRNA amplicons of the control sample (fresh smoked chicken legs, Day 0) and the variously packaged samples at Day 25.
Table 2. Number of total reads, observed operational taxonomic units (OTUs), diversity indices (Shannon and Simpson), and diversity richness (Chao1 and ACE) for the 16S rRNA amplicons of the control sample (fresh smoked chicken legs, Day 0) and the variously packaged samples at Day 25.
Storage TimeTreatmentTotal ReadsObserved OTUsShannonSimpsonChao1ACEGood’s Coverage
Day 0Control72071333.440.68138.46140.090.996
Day 25M208744741.890.4586.8396.990.994
M609195913.840.8591.0391.760.999
M1009584753.700.8682.0984.640.996
M20, M60, and M100: the modified atmosphere packaged smoked chicken legs with CO2 concentration of 20%, 60%, and 100%, respectively.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, Q.; Chen, Q.; Xu, J.; Sun, F.; Liu, H.; Kong, B. Effects of Modified Atmosphere Packaging with Various CO2 Concentrations on the Bacterial Community and Shelf-Life of Smoked Chicken Legs. Foods 2022, 11, 559. https://doi.org/10.3390/foods11040559

AMA Style

Wang Q, Chen Q, Xu J, Sun F, Liu H, Kong B. Effects of Modified Atmosphere Packaging with Various CO2 Concentrations on the Bacterial Community and Shelf-Life of Smoked Chicken Legs. Foods. 2022; 11(4):559. https://doi.org/10.3390/foods11040559

Chicago/Turabian Style

Wang, Qiang, Qian Chen, Jianhang Xu, Fangda Sun, Haotian Liu, and Baohua Kong. 2022. "Effects of Modified Atmosphere Packaging with Various CO2 Concentrations on the Bacterial Community and Shelf-Life of Smoked Chicken Legs" Foods 11, no. 4: 559. https://doi.org/10.3390/foods11040559

APA Style

Wang, Q., Chen, Q., Xu, J., Sun, F., Liu, H., & Kong, B. (2022). Effects of Modified Atmosphere Packaging with Various CO2 Concentrations on the Bacterial Community and Shelf-Life of Smoked Chicken Legs. Foods, 11(4), 559. https://doi.org/10.3390/foods11040559

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
