Effect of 100% Oxygen-Modified Atmosphere Packaging on Maintaining the Quality of Fresh-Cut Broccoli during Refrigerated Storage

by
Yukexin Dai
1,2,
Xiaoyan Zhao
1,
Jinhua Zuo
1 and
Yanyan Zheng
1,*
1
Institute of Agri-Food Processing and Nutrition, Beijing Academy of Agriculture and Forestry Sciences, Beijing Key Laboratory of Agricultural Products of Fruits and Vegetables Preservation and Processing, Key Laboratory of Vegetable Postharvest Processing, Ministry of Agriculture and Rural Affairs, Beijing 100097, China
2
College of Food Science, Shenyang Agricultural University, Shenyang 110866, China
*
Author to whom correspondence should be addressed.
Foods 2023, 12(7), 1524; https://doi.org/10.3390/foods12071524
Submission received: 26 February 2023 / Revised: 28 March 2023 / Accepted: 29 March 2023 / Published: 4 April 2023
(This article belongs to the Special Issue Fruit and Vegetable: Postharvest Physiology, Pathology, Metabolic Changes and Storage Quality)
Browse Figures
Versions Notes

Abstract

:
The effect of 100% oxygen (O2)-modified atmosphere packaging (MAP) on the quality improvement of fresh-cut broccoli stored at 4 °C for 15 days was investigated in this study. The results indicated that, compared to the control group conditions, 100% O2 MAP treatment effectively maintained broccoli sensory evaluation scores, green color, and texture; reduced respiration and chlorophyll degradation; and reduced total bacterial count (TBC), malondialdehyde (MDA) levels, electrolyte leakage (EL), hydrogen peroxide (H2O2), and superoxide (O2−) contents. Furthermore, 100% O2 MAP led to a smaller loss of nutrients and increased antioxidant capacity. In conclusion, the use of 100% O2 MAP is an effective approach for maintaining high-quality fresh-cut broccoli during refrigerated storage at 4 °C.

Graphical Abstract

1. Introduction

The demand for fresh-cut vegetables, especially fresh-cut broccoli, has increased due to the convenience, freshness, and nutritional value of fresh-cut vegetables [1]. Fresh-cut broccoli is highly nutritious, serving as an excellent source of vitamins, phenolic compounds, and glucosinolates, which have antioxidant, anticancer, and metabolic balance properties [2]. However, fresh-cut broccoli is prone to severe quality deterioration, such as that caused by chlorophyll degradation [3]; production of off-odors [4]; and loss of nutrients and antioxidants [5], which limit its market circulation and sales. Therefore, effective and safe technologies, such as voltage electrostatic fields [6], UV-C [7], ultrasonication [8], and selenium-chitosan [9], need to be developed in the fresh-cut broccoli industry. The use of modified atmosphere packaging (MAP) is becoming increasingly popular as a preservation technique in the fresh-cut vegetable industry due to its ability to extend the shelf-life of fresh-cut produce. By modifying the gas ratio within the packaging, MAP can help prevent the deterioration of fresh-cut vegetables and maintain their quality [10]. The technique is widely used in the preservation of various fresh-cut vegetables, including Chinese yam [11], cucumber [12], iceberg lettuce [13], potato [14], and lotus root [15]. Recently, high-oxygen MAP has emerged as a novel approach in maintaining the quality of fresh-cut vegetables. A study by Li et al. (2021) showed that using 80% O2 MAP can effectively minimize the loss of firmness, color, and nutrients in fresh-cut carrots [16]. Another study by Fan et al. (2016) found that 60% O2 MAP can reduce the accumulation of reactive oxygen species (ROS) and decreased flavor decay in fresh-cut vegetables [17]. Additionally, a report by Kader et al. (2000) suggested that high-level O2 MAP has the potential to alleviate oxidative damage in vegetables, resist microbial invasion, and preserve the fresh flavor and sensory quality of the produce [18]. These findings highlight the potential benefits of high-oxygen MAP in the fresh-cut vegetable industry and encourage further exploration of its use in preserving the quality of fresh-cut produce. However, no study has reported an investigation of the effect of high-oxygen MAP (100% O2) on fresh-cut broccoli.
The aim of this study was to investigate the effects of 100% O2 MAP on the visual appearance, microbial count, respiratory rate, nutritional quality, cell membrane integrity, reactive oxygen scavenging (ROS) system, and antioxidant activity of broccoli. This study is significant, as it aims to elucidate the impact of 100% O2 MAP on various aspects of fresh-cut broccoli during storage, which will provide valuable insights into the preservation of fresh-cut broccoli and help extend its shelf-life.

2. Materials and Methods

2.1. Materials

Broccoli (Brassica oleracea L.) was procured from an agricultural market in Beijing and immediately transported under refrigeration at 4 °C to the laboratory. Only broccoli heads that were free from yellowing, damage, and decay were selected for the study.

2.2. Sample Preparation

The broccoli heads were cut into uniform florets with a height of 4 cm and a weight of 10–18 g. They were then washed three times with clean water and centrifuged for 2 min at 4500 rpm. The broccoli florets were divided into two groups, each group with 32 polyethylene terephthalate (PET) boxes, containing 200 g of broccoli. The boxes were connected to an atmosphere packaging machine (YZ-600, Yizun Biotechnology Company, Shenzhen, China). The control group (CK) samples were directly sealed and packaged, while the 100% O2 group samples were filled with 100% O2 and then sealed before being stored at 4 ± 0.5 °C with 90–95% humidity for 15 days. Sampling was done every 3 days, and one box was used for quality determination, including appearance, firmness, color, sensory scores, total bacterial count, electrolyte leakage (EL) rate, headspace gas, and respiration rate. The remaining two boxes of broccoli florets were frozen using liquid nitrogen for subsequent analysis of the remaining indices. Unless specifically stated in the measurement method, the indicators were measured three times (n = 3).

2.3. Visual Appearance, Color, Sensory Quality

The color of five broccoli florets was measured using a colorimeter (CM-700d, Konica Minolta Co., Osaka, Japan), with a single experiment conducted. The color parameters, L* (lightness) and a* (reddish-greenish), were determined. The visual appearance of four representative broccoli florets was captured using a camera (EOS80D, Canon Digital Co., Ltd., Tokyo, Japan) in a single experiment.
The sensory quality of the broccoli florets was evaluated by ten trained panelists, who judged changes in color, flavor, structural state, decay rate, and flower bud opening degree. The visual quality was assessed using a 10-1 hedonic scale, as described by Alvarez et al. (2019), where 10 represents “extremely fresh and marketable”, 7 represents “inferior fresh” (minimal quality change), 5 represents “limit of marketability”, and 1 represents “extremely unacceptable” [19]. The experiment was conducted once.

2.4. Gas Composition

The concentrations of O2 and CO2 in each package were determined three times using a gas analyzer (Oxybaby 6.0 O2/CO2, MAPX 4.0, Rome, Italy). To ensure accurate measurements, the sample was inserted into the package before analysis.

2.5. Texture Analysis

The texture of the broccoli stem was analyzed using a texture analyzer (Stable Micro Systems, Surrey, UK). A cylindrical probe with a 5 mm diameter and 5 g trigger load was used, with a pretest speed of 1 mm/s, test speed of 1 mm/s, posttest speed of 10 mm/s, and a 7 mm distance between the probe and the sample [20]. The texture analysis was performed once on five broccoli florets, and each stem was measured at two points. The results were reported as force (N).

2.6. Respiration Rate

The respiration rate was measured at 4 °C by a respiration analyzer (GXH-3059, Junfang Scientific Instrument, Beijing, China) according to Lv et al. [21]. Fresh-cut broccoli (200 g) was placed in a 1.5 L sterile glass container. The measurement was performed three times, with intervals of 30 min, 10 min, and 10 min. The respiration rate (Q) was expressed as the release amount of CO2 kg−1 h−1.
Q = F × 60 × C 22.4 × 44 W × 1 0 − 6 × 273 273 + T
where the F, C, W, and T represent the flow rate of 500 mL min−1, CO2 concentration, sample weight, and temperature of 4 °C, respectively.

2.7. Electrolyte Leakage (EL) Rate and Malondialdehyde (MDA) Content

Briefly, 15 g of florets were immersed in 35 mL distilled water for 1 h (represented as EI0). The sample was then heated at 100 °C for 10 min and cooled to obtain EI1. The EL was calculated as EI0/EI1%.
The MDA content was assessed according to the methods of Xie et al. [22]. The mixture of 2 mL trichloroacetic acid solution (0.6% w/v) and 2 mL sample supernatant was boiled at 100 °C for 10 min. The absorbance was measured at 450 nm, 532 nm, and 600 nm.
MDA nmol   g − 1   FW = 6.45 × A 532 − A 600 − 0.56 × A 450 × V t / ( V s × m )
where A450, A532, and A600 represent the absorbance at 450, 532, and 600 nm, respectively. Vt and Vs represent the total volume of the extract solution and volume of extract solution involved in the reaction, respectively, and represents potato sample quality [22].

2.8. Total Bacterial Count (TBC)

The TBC was determined according to Park et al. [8]. First, 25 g of fresh-cut broccoli sample were mixed with 225 mL of 0.1% sterilized peptone water (Biolink Microbiology Technology Co., Ltd., Guangdong, China) and homogenized in a sterile filter bag (Bi Teman Biological Science and Technology Ltd., Shanghai, China) for 3 min. A 1 mL aliquot of the supernatant was diluted in 9 mL of 0.1% peptone water with a 10-fold gradient. An amount of 100 μL of the diluted supernatant was carefully placed on agar medium (Bi Teman Biological Science and Technology Ltd., Shanghai, China) and incubated at 37 °C for 48 h.

2.9. Total Chlorophyll and Total Carotenoid Content

The total chlorophyll and carotenoid content was determined according to the methods of Xu et al. [23]. First, 0.5 g of frozen broccoli was homogenized with a mixture of acetone and ethanol (2:1) for approximately 20 min at 4 ℃. The total chlorophyll content absorbance was measured at 645 nm, and the carotenoid content was determined at 663 nm.

2.10. Total Glucosinolates and Sulforaphane

The total glucosinolate content was assessed according to the methods of Mawlong et al. [24]. A frozen broccoli sample was extracted with 80% methanol for 30 min. The reaction system consisted of 100 μL of supernatant, 250 μL of distilled water, and 3 mL of 2 mM sodium tetrachloropalladate. The total glucosinolate content was measured at 425 nm.
The sulforaphane content was determined according to the methods of Huang et al. [25]. The extraction was carried out using dichloromethane, anhydrous sodium sulfate, and a rotary evaporator (MLC3, Heidolph Instruments GmbH & CO. KG, Schwabach Municipality, Germany). The sulforaphane content was measured by high-performance liquid chromatography (HPLC) (1260, Agilent Technologies, California, USA) using a C18 reversed-phase column.

2.11. Vitamin C (VC) Content

The VC content was assessed according to the methods of Xu et al. [23]. To extract the VC, 1 g of broccoli was mixed with 5 mL of oxalic acid-EDTA in the dark for 10 min and then centrifuged. The reaction system was made up of 2 mL of the supernatant, 3 mL of oxalic acid-EDTA, 0.5 mL of metaphosphoric acid-acetic acid, 1 mL of 5% H2SO4, and 2 mL of 5% ammonium molybdate solution. The absorbance was measured at 750 nm.

2.12. Total Phenolic (TP) Content

The total phenolic (TP) content of broccoli was determined according to the methods of Blainski et al. [26]. Three grams of frozen broccoli were homogenized with 6 mL of precooled ethanol. The reaction system consisted of the sample supernatant (0.5 mL), 15 mL of distilled water, 1.25 mL of 0.5 mol/L Folin-Ciocalteu reagent, and 25 mL of 20% Na2CO3 solution. The mixture was incubated at 75 °C for 10 min and then measured at 760 nm. The standard curve was based on gallic acid, and the total phenolic content was expressed as gallic acid equivalents per gram of fresh weight (mg/g FW).

2.13. Superoxide (O2−) and Hydrogen Peroxide (H2O2) Content

The superoxide (O2−) content was determined according to the methods of Fan et al. [17]. The procedure involved incubating 2 mL of the supernatant with a mixture of hydroxylamine hydrochloride (10 mmol/L), sulfanilic acid (17 mmol/L), and α-naphthol (7 mmol/L) for 10 min. The absorption was recorded at 525 nm.
The hydrogen peroxide (H2O2) content was determined according to the methods of Lanubile et al. [27]. A 3 g frozen sample was homogenized with 6 mL precooled acetone. The extracted solution (1 mL) was mixed with a mixture of 0.1 mL 5% Ti(SO4)2, 0.2 mL concentrated NH4OH solution, and 3 mL of 18 mol/L H2SO4. The absorbance was read at 405 nm.

2.14. Measurement of Antioxidant Activity: DPPH, ABTS, SOD, and CAT

The measurement of antioxidant activity was performed as follows:
DPPH: The assay was carried out based on the methods of Ancos et al. [28]. One hundred microliters of extract were mixed with 900 μL of 0.5 mM DPPH solution, and the absorbance was measured at 517 nm.
ABTS: The assay was performed according to the methods of Re et al. [29]. An amount of 25 μL of sample extract was added to 2 mL ABTS solution and reacted in the dark for 6 min. The absorbance was measured at 734 nm using Trolox solution for the standard curve.
SOD: The activity of SOD was measured using a spectrophotometry method [30]. The reaction mixture consisted of 45 μL of 100 μmol/L EDTA-Na2 solution, 100 μL of 750 μmol/L nitroblue tetrazolium solution, 3 μL of xanthine oxidase, 35 μL of 130 mmol/L methionine solution, and 18 μL of the crude enzyme extract. The absorbance was read at 560 nm.
CAT: The activity of CAT was determined based on the methods of Sun and Li [31]. One gram of frozen tissue was homogenized in 5 mL of 0.5% w/v polyvinyl polypyrrolidone solution to prepare the crude enzyme solution. The reaction mixture consisted of 1.9 mL PBS (pH 7.8, 0.1 M), 1 mL H2O2 (0.3% w/v), and 0.1 mL enzyme extract, and the change in absorbance was recorded at 240 nm.

2.15. Statistical Analyses

The experiments were conducted three times, except where otherwise specified. Statistical analysis was performed using IBM SPSS 27 and Origin 2011. ANOVA was used to establish a 95% confidence interval. Different letters present in a single figure indicates a statistically significant difference (p < 0.05).

3. Results and Discussion

3.1. Effect of 100% O2 MAP on Gas Composition and Respiration Rate of Fresh-Cut Broccoli

After cutting, potatoes are still alive, and breathing inevitably consumes O2 and releases CO2 in the packaging. The gas composition in the package can reflect the metabolic rate of fruits and vegetables. In this study, the concentration of O2 and CO2 inside the package over the course of 15 days at 4 °C was monitored and is shown in Figure 1A. Both 100% MAP and the control group (CK) showed a declining trend in O2 and an increasing trend in CO2, which was consistent with the findings of Barbosa et al. [32]. During the storage period from day 0 to 12, the 100% O2 MAP group maintained a higher concentration of O2 and a lower concentration of CO2 compared to the control group. However, the control group had a detrimental gas environment with low O2 and high CO2, leading to unpleasant flavors. The respiration rate is shown in Figure 1B. During storage, respiration rate initially decreased after day 3, increased after day 6, and decreased after day 12; however, the respiration rate in 100% O2 MAP was slightly lower than that of control group.
Anaerobic respiration, caused by a low O2 and high CO2 environment, limits the quality of vegetables during storage [33]. Additionally, an increase in respiration due to a higher metabolic rate can result in decay and senescence of fruits and vegetables [34]. Bal (2013) found that vegetables with lower respiration rates have a longer shelf-life compared to those with higher respiration rates [35]. The findings of these studies strongly support the conclusion that 100% O2 MAP creates a favorable gas packaging environment and regulates the respiratory metabolism of broccoli.

3.2. Effect of 100% O2 MAP on the Appearance, Color, Chlorophylls, and Carotenoids of Fresh-Cut Broccoli

The visual quality of fresh-cut broccoli is a crucial factor in its commercial appeal. The effects of a high O2 atmosphere on broccoli’s appearance and sensory scores were investigated and are shown in Figure 2. Both the control and 100% O2 MAP-treated broccoli showed a decrease in sensory scores as storage time progressed (Figure 2A). The control group showed signs of commercial decline by the 12th day (sensory score 5.47) and was no longer acceptable by the 15th day (sensory score 4.07). In contrast, the 100% O2 MAP group had a higher sensory score and was still acceptable at the 15th day of storage (sensory score 6.23), indicating that 100% O2 MAP helped maintain the commercial viability of broccoli. On the 15th day of cold storage, most of the fresh-cut broccoli in the control group appeared to have decayed and had a peculiar smell, which contributed to its loss of commercial value. However, the fresh-cut broccoli in the 100% O2 MAP group did not decay, and the smell of broccoli slightly faded, but it was still acceptable (Figure 2B).
Color change is a key sensory index for evaluating the freshness of broccoli [36]. The effect of color, chlorophyll, and total carotenoids is shown in Figure 3. As shown in Figure 3A,B, the L* and a* values increased during storage but were lower in the broccoli treated with 100% O2 MAP after the sixth day (p < 0.05). In this study, 100% O2 MAP effectively delayed the increase in L* and a* values, maintaining the green coloration of the broccoli, which is consistent with Wang et al. (2022) [37]. The biosynthesis of pigments, mainly chlorophyll and carotenoids, drives the greening and yellowing of broccoli, respectively [38]. A gradual decrease in chlorophyll and increase in carotenoids were observed in the control group, as shown in Figure 3C,D, indicating a loss of the original green color. However, broccoli treated with 100% O2 MAP maintained the total chlorophyll content and had an improved synthesis of carotenoids. Overall, the 100% O2 MAP group maintained lower L* and a* values by inhibiting chlorophyll degradation and carotenoid accumulation.

3.3. Effect of 100% O2 MAP on the Microbiological Quality of Fresh-Cut Broccoli

The safety of fresh-cut produce is closely linked to the levels of microorganisms present, and thus, monitoring microbial count is critical [39]. In this study, total bacterial count (TBC) was used to evaluate the quantity of microorganisms (Figure 4), and the results showed that the TBC of fresh-cut broccoli consistently increased during the 12 days of cold storage. However, the TBC in the 100% O2 MAP group was significantly lower than in the control group from the sixth to fifteenth day (p < 0.05). Furthermore, in the 100% O2 MAP group, the TBC was kept below 5 log CFU/g until the twelfth day, while in the control group, the TBC exceeded 5.66 log CFU/g on the ninth day. These results suggest that the 100% O2 MAP treatment effectively inhibits microbial growth and reduces TBC levels.

3.4. Effect of 100% O2 MAP on Nutrients in Fresh-Cut Broccoli

VC is an essential nutrient for humans that deteriorates over time. As shown in Figure 5A, the VC content decreased, but at storage day 15, the decrease was much faster in the control group compared to the 100% O2 MAP group (49.96% vs. 13.73%). This indicates that 100% O2 MAP effectively preserves the VC content in fresh-cut broccoli.
The TP content increased and then decreased (Figure 5B). During storage from the sixth to fifteenth day, the TP content in 100% O2 MAP was significantly higher than that in the control group. A study by Woods et al. (2007) showed that higher oxygen levels can enhance total phenol biosynthesis in blueberries [40], which is consistent with the 10.56% increase in TP content observed in 100% O2 MAP broccoli on the 15th day in the present study.
Retaining glucosinolates, a bioactive component in broccoli, is crucial for preserving its quality [41]. As shown in Figure 5C, total glucosinolate content declined during the 15 days of storage, which is consistent with Pe’rez et al. [42]. On the 15th day of storage, the total glucosinolate content in the 100% O2 MAP group was 0.64 times the initial value, while it was 0.38 times the initial value of the control group. The 100% O2 MAP group showed significantly higher total glucosinolate content than did the control group, indicating that 100% O2 MAP is effective in maintaining glucosinolate content in broccoli at 4 °C.
Sulforaphane (4-methylsulfinylbutyl isothiocyanate), a natural bioactive substance, is a compound with antioxidant and anticancer properties. Sulforaphane content decreased with storage time (Figure 5D), but the decrease was more pronounced in the control group. The sulforaphane content of the 100% O2 MAP group was 112.90 mg/100 g on the 15th day, which was 1.3 times higher than that of the control group (86.40 mg/100 g). There was a significant difference between the two groups from the third to fifteenth day of storage (p < 0.05). This suggests that 100% O2 MAP packaging helps preserve the sulforaphane content in broccoli.

3.5. Effect of 100% O2 MAP on Membrane Structure of Fresh-Cut Broccoli

The parameters related to membrane integrity such as MDA, EL, H2O2, and O2− are reported in Figure 6. As shown in Figure 6A, on day 15, the untreated group showed a higher loss of firmness (3.42 N) compared to the 100% O2 MAP group (1.62 N). This was likely due to less cellular tissue damage in the 100% O2 MAP treatment group, which is consistent with the findings of Huang et al. [43]. MDA is the final product of membrane lipid peroxidation, and EL reflects cell membrane permeability. As shown in Figure 6B,C, both the untreated and 100% O2 MAP groups showed a gradual increase in MDA and EL over time, but the increase was much slower in the 100% O2 MAP group, indicating its ability to reduce lipid peroxidation. When exposed to mechanical injury, the accumulation of oxygen species (ROS) increases, finally resulting in lipid peroxidation [44]. H2O2 and O2− are involved in ROS metabolism, triggered by imbalances in ROS. The content of H2O2 and O2− is shown in Figure 6D,E, with a serial upward trend observed in H2O2 and a fluctuant upward trend in O2−. The 100% O2 MAP group maintained significantly lower H2O2 levels from day six to fifteen (p < 0.05) and a significantly lower O2− content on days six, twelve, and fifteen (p < 0.05), indicating its ability to minimize ROS metabolism.
Research has found that firmness loss is accompanied by membrane damage [45]. In this study, broccoli treated with 100% O2 MAP showed minimum values for MDA, EL, H2O2, and O2−, indicating reduced lipid peroxidation and minimized membrane damage, thereby preserving its firm texture.

3.6. Effect of 100% O2 MAP on Antioxidant Activity of Fresh-Cut Broccoli

The parameters related to antioxidant capacity, such as DPPH and ABTS free radical scavenging activities, are reported in Figure 7A,B. During storage, the DPPH and ABTS scavenging capacity of the 100% O2 MAP-treated broccoli increased, while the control group showed a decrease or no change. The 100% O2 MAP treatment led to a 48.04% and 142.33% increase in DPPH and ABTS scavenging after eight days, respectively, while the control group showed a 50.74% and 3.8% decrease, respectively. These findings support the conclusion that 100% O2 MAP increases the antioxidant capacity by enhancing DPPH and ABTS free radical scavenging capacity.
The establishment of an antioxidant defense barrier in plants can delay ROS accumulation and improve antioxidation ability. The major nonenzymatic antioxidant enzymes include SOD and CAT, which are responsible for the decomposition of H2O2 [46]. To further elucidate the mechanism of antioxidant activity, we analyzed the antioxidant enzyme activity of SOD and CAT (Figure 7C,D). During storage, compared with the control group, the 100% O2 MAP treatment group had higher SOD and CAT activity. On the 15th day, the SOD and CAT activity of the 100% O2 MAP-treated broccoli was 1.75-fold and 1.22-fold higher, respectively, than on day zero. Other studies have reported a significant positive correlation between antioxidant enzymes and antioxidant capacity, which is due to the ROS scavenging ability [18]. In our study, 100% O2 MAP reduced ROS damage and enhanced the antioxidant defense system by increasing SOD and CAT enzyme activity.

4. Conclusions

In conclusion, this study reports on the effectiveness of 100% oxygen-modified atmosphere packaging (MAP) on extending the shelf-life of fresh-cut broccoli to up to 15 days at 4 °C. The results indicate that 100% O2 MAP effectively preserves the sensory quality and reduces lipid peroxidation and chlorophyll degradation while increasing bioactive compounds and antioxidant capacity and suppressing microbial growth. These findings have important implications for the food packaging industry and suggest that high-oxygen MAP is a valuable solution for the storage of fresh-cut broccoli. The food packaging industry is encouraged to further explore the potential of 100% O2 MAP for the preservation of fresh-cut broccoli.

Author Contributions

Y.D.: wrote the manuscript; Y.Z.: designed the research and revised the manuscript; X.Z. and J.Z.: found funding and provided guidance on experimental design and article writing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Youth Fund of the Beijing Academy of Agricultural and Forestry Sciences (QNJJ202122), the Outstanding Scientists Special Project of the Beijing Academy of Agricultural and Forestry Sciences (JKZX201908), and the China Agriculture Research System of MOF and MARA (CARS-23).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ansah, F.A.; Amodio, M.L.; Colelli, G. Quality of fresh-cut products as affected by harvest and postharvest operations. J. Sci. Food Agri. 2018, 98, 3614–3626. [Google Scholar] [CrossRef] [PubMed]
  2. Li, H.; Xia, Y.; Liu, H.Y.; Guo, H.; He, X.Q.; Liu, Y.; Gan, R.Y. Nutritional values, beneficial effects, and food applications of broccoli (Brassica oleracea var. italica Plenck). Trends Food Sci. Technol. 2022, 119, 288–308. [Google Scholar] [CrossRef]
  3. Luo, F.; Fang, H.; Wei, B.; Cheng, S.; Zhou, Q.; Zhou, X.; Ji, S. Advance in yellowing mechanism and the regulation technology of post-harvested broccoli. Food Qua. Saf. 2020, 4, 107–113. [Google Scholar] [CrossRef]
  4. Wang, L.; Zhang, Y.; Chen, Y.; Liu, S.; Yun, L.; Guo, Y.; Wang, F. Investigating the relationship between volatile components and differentially expressed proteins in broccoli heads during storage in high CO2 atmospheres. Postharvest Biol. Technol. 2019, 153, 43–51. [Google Scholar] [CrossRef]
  5. El-Beltagi, H.S.; Ali, M.R.; Ramadan, K.M.A.; Anwar, R.; Shalaby, T.A.; Rezk, A.A.; El-Mogy, M.M. Exogenous postharvest application of calcium chloride and salicylic acid to maintain the quality of broccoli florets. Plants 2022, 11, 1513. [Google Scholar] [CrossRef] [PubMed]
  6. Kao, N.Y.; Tu, Y.F.; Sridhar, K.; Tsai, P.J. Effect of a high voltage electrostatic field (HVEF) on the shelf-life of fresh-cut broccoli (Brassica oleracea var. italica). LWT–Food Sci.Technol. 2019, 116, 108532. [Google Scholar] [CrossRef]
  7. Collazo, C.; Charles, F.; Aguiló-Aguayo, I.; Marín-Sáez, J.; Lafarga, T.; Abadias, M.; Viñas, I. Decontamination of Listeria innocua from fresh-cut broccoli using UV-C applied in water or peroxyacetic acid, and dry-pulsed light. Innov. Food Sci. Emerg. Technol. 2019, 52, 438–449. [Google Scholar] [CrossRef] [Green Version]
  8. Park, J.J.; Lee, W.Y. Reduction in Listeria monocytogenes on fresh-cut broccoli by chlorine dioxide with ultrasonication. Food Preserv. 2018, 5, 755–762. [Google Scholar] [CrossRef]
  9. Ren, G.; Liu, Y.; Deng, B.; Wang, Y.; Lin, W.; Zhang, Y.; Yang, J. Gene expression analyses reveal mechanisms of inhibited yellowing by applying selenium chitosan on fresh cut broccoli. Foods 2022, 11, 3123. [Google Scholar] [CrossRef]
  10. Ali, J.; Sadegh, S.; Manfred, L.; Mahajan, P. A comprehensive simulation program for modified atmosphere and humidity packaging (MAHP) of fresh fruits and vegetables. Food Eng. 2017, 206, 88–97. [Google Scholar] [CrossRef]
  11. Gao, J.; Zhu, Y.; Luo, F. Effects of ethanol combined with ascorbic acid and packaging on the inhibition of browning and microbial growth in fresh-cut Chinese yam. Food Sci. Nut. 2018, 6, 998–1005. [Google Scholar] [CrossRef] [PubMed]
  12. Sun, Y.; Zhao, X.; Ma, Y.; Guan, H.; Liang, H.; Wang, D. Inhibitory effect of modified atmosphere packaging on Escherichia coli O157:H7 in fresh-cut cucumbers (Cucumis sativus L.) and effectively maintain quality during storage. Food Chem. 2022, 369, 130969. [Google Scholar] [CrossRef]
  13. Haque, M.A.; Asaduzzaman, M.; Mahomud, M.S.; Alam, M.R.; Khaliduzzaman, A.; Pattadar, S.N.; Ahmmed, R. High carbon di-oxide modified atmospheric packaging on quality of ready-to-eat minimally processed fresh-cut iceberg lettuce. Food Sci. Biotechnol. 2021, 30, 413–421. [Google Scholar] [CrossRef] [PubMed]
  14. Shen, X.; Zhang, M.; Devahastin, S.; Guo, Z. Effects of pressurized argon and nitrogen treatments in combination with modified atmosphere on quality characteristics of fresh-cut potatoes. Postharvest Biol. Technol. 2019, 149, 159–165. [Google Scholar] [CrossRef]
  15. Liu, E.C.; Niu, L.F.; Yi, Y.; Wang, L.M.; Ai, Y.W.; Zhao, Y.; Min, T. Expression analysis of ERFs during storage under modified atmosphere packaging (high-concentration of CO2) of fresh-cut Lotus Root. Hort. Sci. 2020, 55, 216–223. [Google Scholar] [CrossRef] [Green Version]
  16. Li, L.; Li, C.B.; Sun, J. Synergistic effects of ultraviolet light irradiation and high-oxygen modified atmosphere packaging on physiological quality, microbial growth and lignification metabolism of fresh-cut carrots. Postharvest Biol. Technol. 2021, 173, 111365. [Google Scholar] [CrossRef]
  17. Fan, M.; Li, W.; Hu, X.; Sun, Y.N.; Yu, G.; Zhang, X. Effect of micro-vacuum storage on active oxygen metabolism, internal browning and related enzyme activities in Laiyang pear (Pyrus bretschneideri Reld). LWT–Food Sci. Technol. 2016, 72, 467–474. [Google Scholar] [CrossRef]
  18. Kader, A.; Ben-Yehoshua, S. Effects of superatmospheric oxygen levels on postharvest, physiology and quality of fresh fruits and vegetables. Postharvest Biol. Technol. 2000, 20, 1–13. [Google Scholar] [CrossRef]
  19. Alvarez, M.V.; Ortega-Ramirez, L.A.; Silva-Espinoza, B.A.; Gonzalez-Aguilar, G.A.; Ayala-Zavala, J.F. Antimicrobial, antioxidant, and sensorial impacts of oregano and rosemary essential oils over broccoli florets. J. Food Process. Pres. 2019, 43, 8892. [Google Scholar] [CrossRef]
  20. He, Q.; Xiao, K. Quality of broccoli (Brassica oleracea L. var. italica) in modified atmosphere packaging made by gas barrier-gas promoter blending materials. Postharvest Biol. Technol. 2018, 144, 63–69. [Google Scholar] [CrossRef]
  21. Lv, J.; Wu, J.; Zuo, J.; Fan, L.; Shi, J.; Gao, L.; Wang, Q. Effect of Se treatment on the volatile compounds in broccoli. Food Chem. 2017, 216, 225–233. [Google Scholar] [CrossRef] [PubMed]
  22. Xie, C.; Tang, J.; Xiao, J.; Geng, X.; Guo, L. Purple light-emitting diode (Pereyra et al.) lights controls chlorophyll degradation and enhances nutraceutical quality of postharvest broccoli florets. Sci. Hort. 2022, 294, 110768. [Google Scholar] [CrossRef]
  23. Xu, D.; Zuo, J.; Li, P.; Yan, Z.; Gao, L.; Wang, Q.; Jiang, A. Effect of methyl jasmonate on the quality of harvested broccoli after simulated transport. Food Chem. 2020, 319, 126561. [Google Scholar] [CrossRef] [PubMed]
  24. Mawlong, I.; Sujith, K.; Gurung, B.; Singh, K.H.; Singh, D. A simple spectrophotometric method for estimating total glucosinolates in mustard de-oiled cake. Inter. J. Food Prop. 2017, 20, 3274–3281. [Google Scholar] [CrossRef] [Green Version]
  25. Huang, K.; Lin, J.C.; Wu, Q.Y.; Yan, J.Y.; Liu, M.Y.; Zhang, S.; Xiao, W.J. Changes in sulforaphane and selenocysteine methyltransferase transcript levels in broccoli treated with sodium selenite. Plant Mol. Biol. Rep. 2015, 34, 807–814. [Google Scholar] [CrossRef]
  26. Blainski, A.; Lopes, G.C.; Mello, J.C. Application and analysis of the folin ciocalteu method for the determination of the total phenolic content from Limonium brasiliense L. Molecules 2013, 18, 6852–6865. [Google Scholar] [CrossRef] [Green Version]
  27. Lanubile, A.; Maschietto, V.; De Leonardis, S.; Battilani, P.; Paciolla, C.; Marocco, A. Defense responses to mycotoxin-producing fungi Fusarium proliferatum, F. subglutinans, and Aspergillus flavus in kernels of susceptible and resistant maize genotypes. Mol. Plant Microbe Interact. 2015, 28, 546–557. [Google Scholar] [CrossRef] [Green Version]
  28. Ancos, B.D.; Sgroppo, S.; Plaza, L.; Cano, M.P. Possible nutritional and health-related value promotion in orange juice preserved by high-pressure treatment. J. Sci. Food Agri. 2002, 82, 790–796. [Google Scholar] [CrossRef]
  29. Re, R.; Pellegrini, N.; Proteggente, A.; Pannala, A.; Yang, M.; Rice-Evans, C. Antioxidant activity applying and improved ABTS radical cation decolorization assay. Free Radical Bio. Med. 1999, 26, 1231–1237. [Google Scholar] [CrossRef]
  30. Li, B.; Ding, Y.; Tang, X.; Wang, G.; Wu, S.; Li, X.; Tang, X. Effect of L-Arginine on Maintaining Storage Quality of the White Button Mushroom (Agaricus bisporus). Food and Bioprocess Tech. 2019, 12, 563–574. [Google Scholar] [CrossRef]
  31. Sun, Y.; Li, W. Effects the mechanism of micro-vacuum storage on broccoli chlorophyll degradation and builds prediction model of chlorophyll content based on the color parameter changes. Sci. Hort. 2017, 224, 206–214. [Google Scholar] [CrossRef]
  32. Barbosa, C.; Machado, T.B.; Alves, M.R.; Oliveira, M. Fresh-cut bell peppers in modified atmosphere packaging: Improving shelf life to answer food security concerns. Molecules 2020, 25, 2323. [Google Scholar] [CrossRef] [PubMed]
  33. Beaudry, R.M. Responses of horticultural commodities to low oxygen: Limits to the expanded use of modified atmosphere packaging. Hort. Technol. 2000, 10, 491–500. [Google Scholar] [CrossRef] [Green Version]
  34. Guo, Q.; Wu, B.; Peng, X.; Wang, J.; Li, Q.; Jin, J.; Ha, Y. Effects of chlorine dioxide treatment on respiration rate and ethylene synthesis of postharvest tomato fruit. Postharvest Biol. Technol. 2014, 93, 9–14. [Google Scholar] [CrossRef]
  35. Bal, E. Postharvest application of chitosan and low temperature storage affect respiration rate and quality of plum fruits. Agr. Sci. Technol. 2013, 15, 1219–1230. [Google Scholar] [CrossRef]
  36. Loredana, L.; Francesca, M.; Florinda, F.; Filomena, N.; Paola, O.; Donatella, A. Effect of argon-enriched modified atmosphere on the over quality and bioactive compounds of ready-to-use broccoli rabe (Brassica rapa sylvestris L. var. esculenta) during the storage. Food Sci. Technol. Int. 2023, 29, 84–94. [Google Scholar] [CrossRef]
  37. Wang, Z.; Li, C.; Zou, D.; Ji, S.; Cheng, S.; Zhou, Q.; Wei, B. Chlorine dioxide alleviates the yellowing process of broccoli by regulating chlorophyll degrading enzyme activity and gene expression. J. Food Proces. Pres. 2022, 46, e16985. [Google Scholar] [CrossRef]
  38. Zhang, Y.; Chen, Y.; Guo, Y.; Ma, Y.; Yang, M.; Fu, R.; Sun, Y. Elevated CO2 delayed yellowing by maintaining chlorophyll biosynthesis and inhibiting chlorophyll degradation and carotenoid accumulation of postharvest broccoli. Postharvest Biol. Technol. 2022, 94, 112089. [Google Scholar] [CrossRef]
  39. Bico, S.L.S.; Raposo, M.F.J.; Morais, R.M.S.C.; Morais, A.M.M.B. Combined effects of chemical dip and/or carrageenan coating and/or controlled atmosphere on quality of fresh-cut banana. Food Control 2009, 20, 508–514. [Google Scholar] [CrossRef]
  40. Woods, F.M.; Dozier, W.A.; Ebel, R.C.; Thomas, R.H.; Nesbitt, M.; Wilkins, B.S.; Himelrick, D.G. Fruit quality and antioxidant properties in alabama-grown blackberries during fruit maturation. Inter. J. Fruit Sci. 2007, 6, 67–85. [Google Scholar] [CrossRef]
  41. Wei, L.; Liu, C.; Zheng, H.; Zheng, L. Melatonin treatment affects the glucoraphanin-sulforaphane system in postharvest fresh-cut broccoli (Brassica oleracea L.). Food Chem. 2020, 307, 125562. [Google Scholar] [CrossRef] [PubMed]
  42. Pe´rez, A.G.; Sanz, C. Effect of high oxygen and high carbon dioxide atmospheres on strawberry flavor and other quality traits. J. Agric. Food Chem. 2001, 49, 2370–2375. [Google Scholar] [CrossRef] [PubMed]
  43. Huang, Y.C.; Yang, Y.H.; Sridhar, K.; Tsai, P.J. Synergies of modified atmosphere packaging and high-voltage electrostatic field to extend the shelf-life of fresh-cut cabbage and baby corn. LWT–Food Sci. and Technol. 2021, 138, 110559. [Google Scholar] [CrossRef]
  44. Jiang, A.; Zuo, J.; Zheng, Q.; Guo, L.; Gao, L.; Zhao, S.; Hu, W. Red LED irradiation maintains the postharvest quality of broccoli by elevating antioxidant enzyme activity and reducing the expression of senescence-related genes. Hort. Sci. 2019, 251, 73–79. [Google Scholar] [CrossRef]
  45. Aiamla-or, S.; Shigyo, M.; Yamauchi, N. UV-B treatment controls chlorophyll degradation and related gene expression in broccoli (Brassica oleracea L. Italica Group) florets during storage. Sci. Hort. 2019, 243, 524–527. [Google Scholar] [CrossRef]
  46. Shi, J.; Zuo, J.; Zhou, F.; Gao, L.; Wang, Q.; Jiang, A. Low-temperature conditioning enhances chilling tolerance and reduces damage in cold-stored eggplant (Solanum melongena L.) fruit. Postharvest Biol. Technol. 2018, 141, 33–38. [Google Scholar] [CrossRef]
Foods 12 01524 g001 550
Figure 1. Effect of 100% O2 MAP on the gas concentrations of O2 and CO2 (A) and respiration (B) of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05). The error bar represents the standard deviation, and the data in the figure are displayed in the form of average.
Figure 1. Effect of 100% O2 MAP on the gas concentrations of O2 and CO2 (A) and respiration (B) of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05). The error bar represents the standard deviation, and the data in the figure are displayed in the form of average.
Foods 12 01524 g001
Foods 12 01524 g002 550
Figure 2. Effect of 100% O2 MAP on representative sensory scores (A), visual photograph (B), of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Figure 2. Effect of 100% O2 MAP on representative sensory scores (A), visual photograph (B), of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Foods 12 01524 g002
Foods 12 01524 g003 550

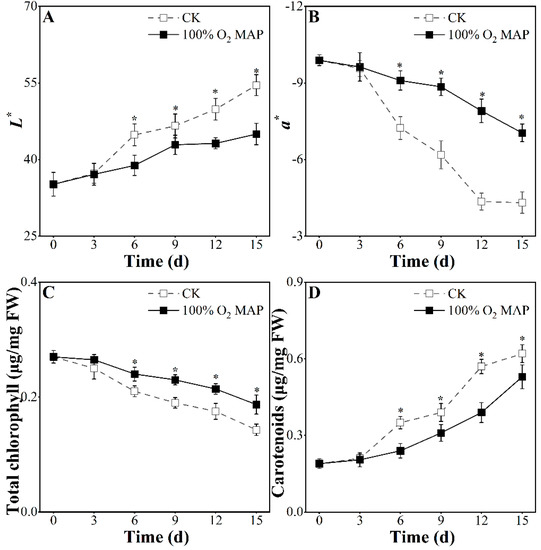

Figure 3. Effect of 100% O2 MAP on L* (A), a* (B), chlorophyll (C), and carotenoids (D) of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Figure 3. Effect of 100% O2 MAP on L* (A), a* (B), chlorophyll (C), and carotenoids (D) of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Foods 12 01524 g003
Foods 12 01524 g004 550

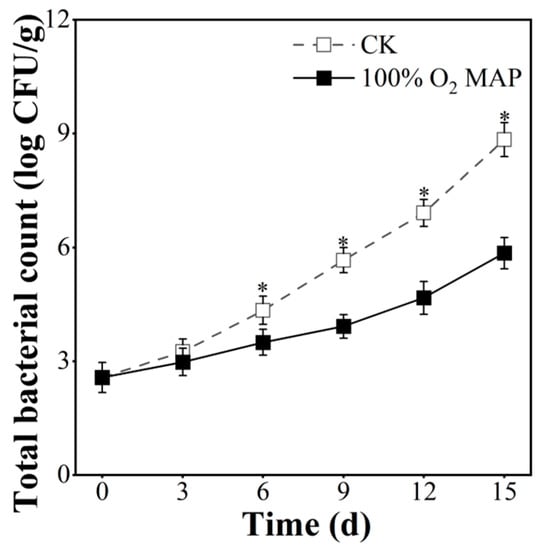

Figure 4. Effect of 100% O2 MAP on total bacterial count of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Figure 4. Effect of 100% O2 MAP on total bacterial count of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Foods 12 01524 g004
Foods 12 01524 g005 550
Figure 5. Effect of 100% O2 MAP on VC, TPs, total glucosinolates, and sulforaphane of fresh-cut broccoli; (A)—VC (mg/100 g FW); (B)—TPs (mg/100 g FW); (C)—Total glucosinolates (mg/100 g); (D)—Sulforaphane (mg/100 g) of fresh broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Figure 5. Effect of 100% O2 MAP on VC, TPs, total glucosinolates, and sulforaphane of fresh-cut broccoli; (A)—VC (mg/100 g FW); (B)—TPs (mg/100 g FW); (C)—Total glucosinolates (mg/100 g); (D)—Sulforaphane (mg/100 g) of fresh broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Foods 12 01524 g005
Foods 12 01524 g006 550

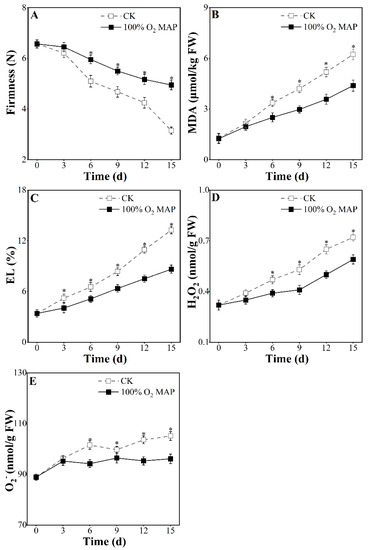

Figure 6. Effect of 100% O2 MAP on firmness (A), MDA (B), EL (C), H2O2 (D), and O2− (E) of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Figure 6. Effect of 100% O2 MAP on firmness (A), MDA (B), EL (C), H2O2 (D), and O2− (E) of fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Foods 12 01524 g006
Foods 12 01524 g007 550

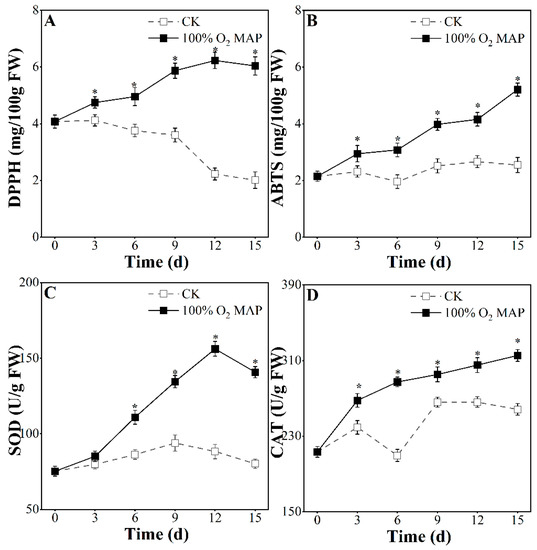

Figure 7. Effect of 100% O2 MAP on DPPH (A), ABTS (B), SOD (C), and CAT (D) in fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Figure 7. Effect of 100% O2 MAP on DPPH (A), ABTS (B), SOD (C), and CAT (D) in fresh-cut broccoli. * in the figure indicates significant differences among treatments at the same storage time (p < 0.05).
Foods 12 01524 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Dai, Y.; Zhao, X.; Zuo, J.; Zheng, Y. Effect of 100% Oxygen-Modified Atmosphere Packaging on Maintaining the Quality of Fresh-Cut Broccoli during Refrigerated Storage. Foods 2023, 12, 1524. https://doi.org/10.3390/foods12071524

AMA Style

Dai Y, Zhao X, Zuo J, Zheng Y. Effect of 100% Oxygen-Modified Atmosphere Packaging on Maintaining the Quality of Fresh-Cut Broccoli during Refrigerated Storage. Foods. 2023; 12(7):1524. https://doi.org/10.3390/foods12071524

Chicago/Turabian Style

Dai, Yukexin, Xiaoyan Zhao, Jinhua Zuo, and Yanyan Zheng. 2023. "Effect of 100% Oxygen-Modified Atmosphere Packaging on Maintaining the Quality of Fresh-Cut Broccoli during Refrigerated Storage" Foods 12, no. 7: 1524. https://doi.org/10.3390/foods12071524

APA Style

Dai, Y., Zhao, X., Zuo, J., & Zheng, Y. (2023). Effect of 100% Oxygen-Modified Atmosphere Packaging on Maintaining the Quality of Fresh-Cut Broccoli during Refrigerated Storage. Foods, 12(7), 1524. https://doi.org/10.3390/foods12071524

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
