Polyphenolic Characterization and Antioxidant Activity of Malus domestica and Prunus domestica Cultivars from Costa Rica

by
Mirtha Navarro
1,*,
Ileana Moreira
2,
Elizabeth Arnaez
2,
Silvia Quesada
3,
Gabriela Azofeifa
3,
Felipe Vargas
1,
Diego Alvarado
4 and
Pei Chen
5
1
Department of Chemistry, University of Costa Rica (UCR), Rodrigo Facio Campus, San Pedro Montes Oca, San Jose 2060, Costa Rica
2
Department of Biology, Technological University of Costa Rica (TEC), Cartago 7050, Costa Rica
3
Department of Biochemistry, School of Medicine, University of Costa Rica (UCR), Rodrigo Facio Campus, San Pedro Montes Oca, San Jose 2060, Costa Rica
4
Department of Biology, University of Costa Rica (UCR), Rodrigo Facio Campus, San Pedro Montes Oca, San Jose 2060, Costa Rica
5
Food Composition and Methods Development Laboratory, Beltsville Human Nutrition Research Center, Agricultural Research Service, U.S. Department of Agriculture, MD 20705, USA
*
Author to whom correspondence should be addressed.
Foods 2018, 7(2), 15; https://doi.org/10.3390/foods7020015
Submission received: 5 December 2017 / Revised: 21 January 2018 / Accepted: 22 January 2018 / Published: 30 January 2018
(This article belongs to the Special Issue Qualitative Analysis of Food Products)
Browse Figures
Versions Notes

Abstract

:
The phenolic composition of skin and flesh from Malus domestica apples (Anna cultivar) and Prunus domestica plums (satsuma cultivar) commercial cultivars in Costa Rica, was studied using Ultra Performance Liquid Chromatography coupled with High Resolution Mass Spectrometry (UPLC-DAD-ESI-MS) on enriched-phenolic extracts, with particular emphasis in proanthocyanidin and flavonoids characterization. A total of 52 compounds were identified, including 21 proanthocyanidins ([(+)-catechin and (−)-epicatechin]) flavan-3-ols monomers, five procyanidin B-type dimers and two procyanidin A-type dimers, five procyanidin B-type trimers and two procyanidin A-type trimers, as well as one procyanidin B-type tetramer, two procyanidin B-type pentamers, and two flavan-3-ol gallates); 15 flavonoids (kaempferol, quercetin and naringenin derivatives); nine phenolic acids (protochatechuic, caffeoylquinic, and hydroxycinnamic acid derivatives); five hydroxychalcones (phloretin and 3-hydroxyphloretin derivatives); and two isoprenoid glycosides (vomifoliol derivatives). These findings constitute the first report of such a high number and diversity of compounds in skins of one single plum cultivar and of the presence of proanthocyanidin pentamers in apple skins. Also, it is the first time that such a large number of glycosylated flavonoids and proanthocyanidins are reported in skins and flesh of a single plum cultivar. In addition, total phenolic content (TPC) was measured with high values observed for all samples, especially for fruits skins with a TPC of 619.6 and 640.3 mg gallic acid equivalents/g extract respectively for apple and plum. Antioxidant potential using 2,2-diphenyl-1-picrylhidrazyl (DPPH) and oxygen radical absorbance capacity (ORAC) methods were evaluated, with results showing also high values for all samples, especially again for fruit skins with IC50 of 4.54 and 5.19 µg/mL (DPPH) and 16.8 and 14.6 mmol TE/g (ORAC) respectively for apple and plum, indicating the potential value of these extracts. Significant negative correlation was found for both apple and plum samples between TPC and DPPH antioxidant values, especially for plum fruits (R = −0.981, p < 0.05) as well as significant positive correlation between TPC and ORAC, also especially for plum fruits (R = 0.993, p < 0.05) and between both, DPPH and ORAC antioxidant methods (R = 0.994, p < 0.05).

1. Introduction

Polyphenols effects on health are based on results obtained from bioactivity studies, which in turn, has increased the interest in the consumption of foods and beverages rich in polyphenols as well as the importance of related scientific research. Such bioactive effects include antioxidant properties, prevention of oxidative stress associated diseases like cardiovascular, neurodegenerative diseases and cancer [1] and their role in long-term health protection by reducing the risk of chronic and degenerative diseases [2].
Several studies have linked vegetable consumption, specially fruits with a reduced risk for cancer and cardiovascular disease, thus characterization of polyphenols is essential to increase the knowledge on fruits contents and their related beneficial effects. Malus domestica (apple) and Prunus domestica (plum) are trees from the Rosaceae family, both native from southern Europe and western Asia that were introduced in Costa Rica as an initiative of local producers to diversify their crops, constitute fruits of high consumption in the country.
Studies on M. domestica have found these fruits to have a potent antioxidant activity and to inhibit the growth of cancer cells in vitro [3,4]. Similar properties have been described for plum [5,6] and some of these effects were attributed at least partially to its polyphenolic contents.
Previous studies on polyphenols of M. domestica have shown mainly flavonoids, phenolic acids, and chalcones, while proanthocyanidins included only catechin and epicatechin monomers and procyanidin dimers [7,8,9] and other reporting also trimers mainly in skin [10,11]. In the case of P. domestica, studies have focused mostly in a specific type of compounds, such as caffeolylquinic acid derivatives [12,13], flavonoids such as quercetin derivatives [14], and both type of compounds [15]. Few reports have studied also extensively proanthocyanidins, findings indicating mainly monomers and procyanidin dimers [16,17].
However other findings [18] would suggest proanthocyanidins with higher polymerization degree, without having reported their particular characterization. Despite the increasing number of studies on phenolics, the characterization of proanthocyanidins remains a complex task because of the need for high-end techniques such as high-resolution mass spectroscopy (HRMS). Proanthocyanidins, which are condensed flavan-3-ols, constitute an important group of polyphenols because of their bioactivities, for instance, mainly to their antioxidant capacity, which in turn is linked, among others, with their ant-inflammatory and anti-cancer activities [19].
Antioxidant properties have been reported to increase with proanthocyanidins degree of polymerization and the presence of specific structures such as procyanidin tetramers and pentamers has been found to enhance such properties [20,21], thus further knowledge on these phenolic structures characterization in apple and plum would contribute to a better understanding of their implications in the fruits quality as a source of dietary compounds with potential biological properties. Therefore, the objective of the present work was to obtain enriched polyphenolic extracts of fruits from M. domestica and P. domestica commercial cultivars in Costa Rica, and to characterize them through Ultra Performance Liquid Chromatography coupled with High Resolution Mass Spectrometry (UPLC-DAD-ESI-MS), with particular emphasis in flavonoids and proanthocyanidins. Evaluation of the total polyphenolic contents and antioxidant activity using 2,2-diphenyl-1-picrylhidrazyl (DPPH) and oxygen radical absorbance capacity (ORAC) methods, was also carried out in the different extracts.

2. Results and Discussion

2.1. Phenolic Yield and Total Phenolic Contents

The extraction process described in the Materials and Methods section, allowed to obtain phenolic enriched extracts, as summarized in Table 1. P. domestica (satsuma cultivar) skin presented the highest yield (2.74%) whereas M. domestica (Anna cultivar) flesh showed the lowest value (0.51%). In both fruits, skin extract yields were higher than flesh extracts. The total phenolic contents (TPC) shown also in Table 1, resulted in high values for all samples with both skins exhibiting slightly higher results, ranging from 619.6–640.3 gallic acid equivalents (GAE)/g dry extract.
Results from literature show variability among reports from other apple cultivars with total phenolic contents (TPC) values ranging between 0.3–25.9 mg GAE/g DW for skin and 1.6–14.8 mg GAE/g DW for flesh [22,23,24,25]. Our results for Anna cultivar skin and flesh 7.4 and 3 mg GAE/g DW respectively (values calculated using TPC and extract yields from Table 1) are within that range. A similar situation occurs in the case of plum, with determination of total phenolic contents in the literature revealing variability, with values ranging between 18.4–495 mg GAE/100 g fresh weight (FW) [14,26,27], whereas our findings of 109–179 mg GAE/100 g FW (values calculated using TPC, extract and lyophilization yields from Table 1) are in agreement with the published results.

2.2. Profile by UPLC-DAD-ESI-TQ-MS Analysis

The UPLC-DAD-ESI-MS/MS analysis described in the Materials and Methods section, allowed to identify 52 compounds, including 21 proanthocyanidins and flavan-3-ol monomers, 15 glycosylated flavonols and nine acids and derivatives in Costa Rican apple (Anna cultivar) and plum (Satsuma cultivar) only commercial cultivars; as well as five hydroxy chalcones and two glycosylated isoprenoids characteristic of apple fruits. Figure 1 and Figure 2 show the chromatograms of the samples and Table 2 summarizes the analysis results for the 52 compounds.
The first common group of compounds, proanthocyanidins, corresponded to oligomers of flavan-3-ols catechin and epicatechin. The monomeric units of these proanthocyanidins are linked through a C4-C8 or C4-C6 bond (B-type), which coexist with an additional C2-O-C7 linkage (A-type) [28]. Peaks 9 (Rt = 8.87 min) and 15 (Rt = 13.97 min) showed a [M − H]− at m/z 289.0710 (C15H14O6) that correspond to monomers catechin or epicatechin. The main MS2 fragments at m/z 245 and 205, occur through the loss of C2H4O and C4H4O2 due to retro-Diels-Alder fission (RDA) of ring A [29].
On the other hand, peaks 3 (Rt = 3.96 min), 4 (Rt = 5.40 min), whose [M − H]− is at m/z 441.0819 (C22H18O10) correspond to (epi)catechin-3-O-gallate (Figure 3). The main fragment at m/z 315 [M – H − 126]− is due to the elimination of a phloroglucinol, and fragments at m/z 289 and 153 are both residuals from the cleavage of the ester group [30].
Peak 36 (Rt = 25.19 min) shows a [M − H]− at m/z 575.1185 (C30H24O12) and main MS2 ion at m/z 449, which indicate the presence of a procyanidin A-type dimer. The base ion at m/z 449 [M – H − 126]−, corresponds to the elimination of a phloroglucinol molecule from this A-type dimer [31]. Peaks 24 (Rt = 18.98 min), 25 (Rt = 19.37 min) and 31 (Rt = 23.54 min) show a [M − H]− at m/z 863.1798 (C45H36O18), revealing the presence of a procyanidin trimer with A-type interflavan linkage (Figure 4). In the MS2 spectrum, fragment ions at m/z 711 [M – H − 152]− and 575 [M – H − 288]− observed, result from the RDA fission and quinone-methide (QM) cleavage, respectively [32].
Peaks 1 (Rt = 2.69 min), 8 (Rt = 8.44 min), 13 (Rt = 12.75 min), 38 (Rt = 27.21 min) and 42 (Rt = 28.62 min) show [M − H]− at m/z 577.1344 (C30H26O12), corresponding to procyanidins with B-type linkage (Figure 5), 2 amu (atomic mass units) higher than that of the A-type procyanidin, and major ions containing the structural information at m/z 559, 451, 425, 407 and 289. The ion at m/z 559 [M – H − 18]− originates from water loss. The ion at m/z 451 [M – 126 − H]− results from the elimination of the phloroglucinal as in A-type dimers. The fragment ions at m/z 425 [M – H − 152]− and 407 [M – H − 170]− come from RDA, while the ion at m/z 289 originates from QM resulting in the ion of the monomer [31].
On the other hand (Figure 5), peaks 14 (Rt = 13.20 min), 22 (Rt = 17.88 min), 23 (Rt = 18.16 min), 28 (Rt = 21.23 min) and 30 (Rt = 22.21 min) with ([M − H]−) at m/z 865.1956 (C45H38O18) were tentatively identified to be procyanidin B-type trimers. Their fragmentation behaviors seem to be similar to that of dimers, with ion fragments at m/z 695 [M – H − 170]−, 713 [M – H − 152]− and 739 [M – H − 126]−. The QM cleavage of the interflavan bond mainly produced the ions at m/z 289 and 577, indicating the cleavage happens in upper interflavan bond [31].
In a similar way (Figure 5), peak 26 (Rt = 19.70 min), [M − H]− at m/z 1153.2603 (C60H50O24) was identified as a procyanidin B-type tetramer, with fragments at m/z 1027 [M – H − 126]−, 1001 [M – H − 152]−, 983 [M – H − 170]−, 865 and 577. Also, peaks 27 (Rt = 20.54 min) and 29 (Rt = 21.83 min), with [M − H]− at m/z 1441.3229 (C75H62O30), were identified as two procyanidin B-type pentamers with a characteristic fragment at m/z 1315 [M – H − 126]−, and also those derived from QM cleavage at m/z 1151, 865, 577 and 289 [33].
The second group of common compounds, glycosylated flavonol derivatives were elucidated based in the fragmentation pattern from the aglycone due to the loss of glycosides (Figure 6). For instance, peaks 18 (Rt = 14.97 min) and 19 (Rt = 15.90 min) had [M − H]− at m/z 447.0922 (C21H20O11) were identified as kaempferol-hexoside isomers with a main fragment at m/z 285 corresponding to kaempferol [34]. Peak 32 (Rt = 23.97 min) with [M − H]− at m/z 433.1131 (C21H22O10) showed its main fragment at m/z 271, corresponding to naringenin-hexoside [35].
All the remaining flavonol derivatives presented their main fragment at m/z 301, which corresponds to the quercetin aglycone. They differ in the bonded glycoside with some variations among them. For instance, peaks 33 (Rt = 24.12 min) and 34 (Rt = 24.72 min) had a [M − H]− at m/z 595.1284 (C26H28O16), were assigned to quercetin-pentosylhexoside isomers. Peaks 37 (Rt = 26.57 min) and 41 (Rt = 27.79 min), with [M − H]− at m/z 463.0875 (C21H20O12) correspond to quercetin-hexoside isomers. Peak 40 (Rt = 27.60 min), with [M − H]− at m/z 609.1440 (C27H30O16) was identified as quercetin-rutinoside. Peaks 43 (Rt = 29.28 min) and 46 (Rt = 30.69 min) had [M − H]− at m/z 433.0769 (C20H18O11), coincident with isomers of quercetin-pentoside [36].
Peak 47 (Rt = 31.21 min) had [M − H]− at m/z 565.1184 (C25H26O15), were identified as quercetin-pentosyl-pentoside. Peaks 48 (Rt = 32.46 min), 49 (Rt = 32.57 min) and 51 (Rt = 33.27 min) with [M − H]− at m/z 447.0922 (C21H20O11) were assigned as quercetin-deoxyhexoside isomers. Finally, peak 52 (Rt = 33.51 min) with [M − H]− at m/z 505.0975 (C23H22O13), was identified as quercetin-acetylhexoside [16].
Among the third group of common compounds, acids and derivatives, two small acids correspond (Figure 7) to peak 2 (Rt = 3.36 min) with [M − H]− at m/z 153.0191 (C7H6O4) and a main fragment at m/z 109 [M – H − 44]− due to the loss of CO2 from a carboxylic acid [37] identified as protocatechuic acid, and peak 16 (Rt = 14.44 min), with [M − H]− at m/z 173.0454 (C7H10O5) and main fragments at m/z 111 generated from RDA fission, and 93 from subsequent loss of water assigned to shikimic acid [38].
On the other hand, a series of p-coumaric acid derivatives was identified, as shown in Figure 8. For instance, peaks 5 (Rt = 5.95 min) and 12 (Rt = 11.10 min), with [M − H]− at m/z 353.0869 (C16H18O9), are identified as caffeoylquinic acid isomers, with main fragments at m/z 191 [quinic acid−H]−, 179 [caffeic acid−H]−, and 145 due to the loss of CO2 from the quinic acid ion. Peak 6 (Rt = 7.23 min) shows [M − H]− at m/z 341.0872 (C15H18O9), with main fragments at m/z 179 [caffeic acid − H]− and 161 [M – H − 179]−, corresponding to caffeoyl-hexoside. Peak 7 (Rt = 8.30 min) with [M − H]− at m/z 163.0398 (C9H6O3), is identified as coumaric acid due to the fragment at 119 [M – H − CO2]−. Peaks 10 (Rt = 9.94 min) and 11 (Rt = 10.27 min), with [M − H]− at m/z 325.0921 (C15H18O8) are assigned to coumaroyl-hexoside isomers, due to fragments at m/z 163 [coumaric acid−H]− and 145 [coumaric acid−H−H2O]−. Another cinnamic acid derivative was found in peak 17 (Rt = 14.49 min) with [M − H]− at m/z 337.0927 (C16H18O8), and a main fragment at m/z 173 due to the loss of water of the quinic acid ion, thus corresponding to p-coumaroylquinic acid [16].
The fourth group of compounds, chalcones, shown in Figure 9, were found only in apples. For instance, peak 35 (Rt = 24.87 min) shows [M − H]− at m/z 583.1660 (C26H32O15) and the main fragment at m/z 289, which correspond to 3-hydroxyphloretin aglycone, allowing to identify the compound as 3-hydroxyphloretin-pentosylhexoside [11]. Peak 39 (Rt = 27.29 min) shows [M − H]− at m/z 289.0716 (C15H14O6), the same mass and molecular formula of flavan-3-ols, but differs in the fragmentation that occurs at m/z 271 [M – H − H2O]− due to the loss of water, 245 coming from RDA, and 167 due to α-cleavage of the carbonyl group [39] therefore being assigned as 3-hydroxyphloretin.
On the other hand, peaks 44 (Rt = 30.11 min) and 45 (Rt = 31.04 min) with [M − H]− at m/z 567.1704 (C26H32O14) were identified as phloretin-pentosylhexoside isomers, due to the main fragment at m/z 273 which corresponds to the phloretin ion generated from loss of glycosides. Finally, peak 50 (Rt = 32.78 min), [M − H]− at m/z 273.0767 (C15H14O5) is assigned as phloretin, with a main fragment at m/z 167 due to α-cleavage of the carbonyl group [11,39].

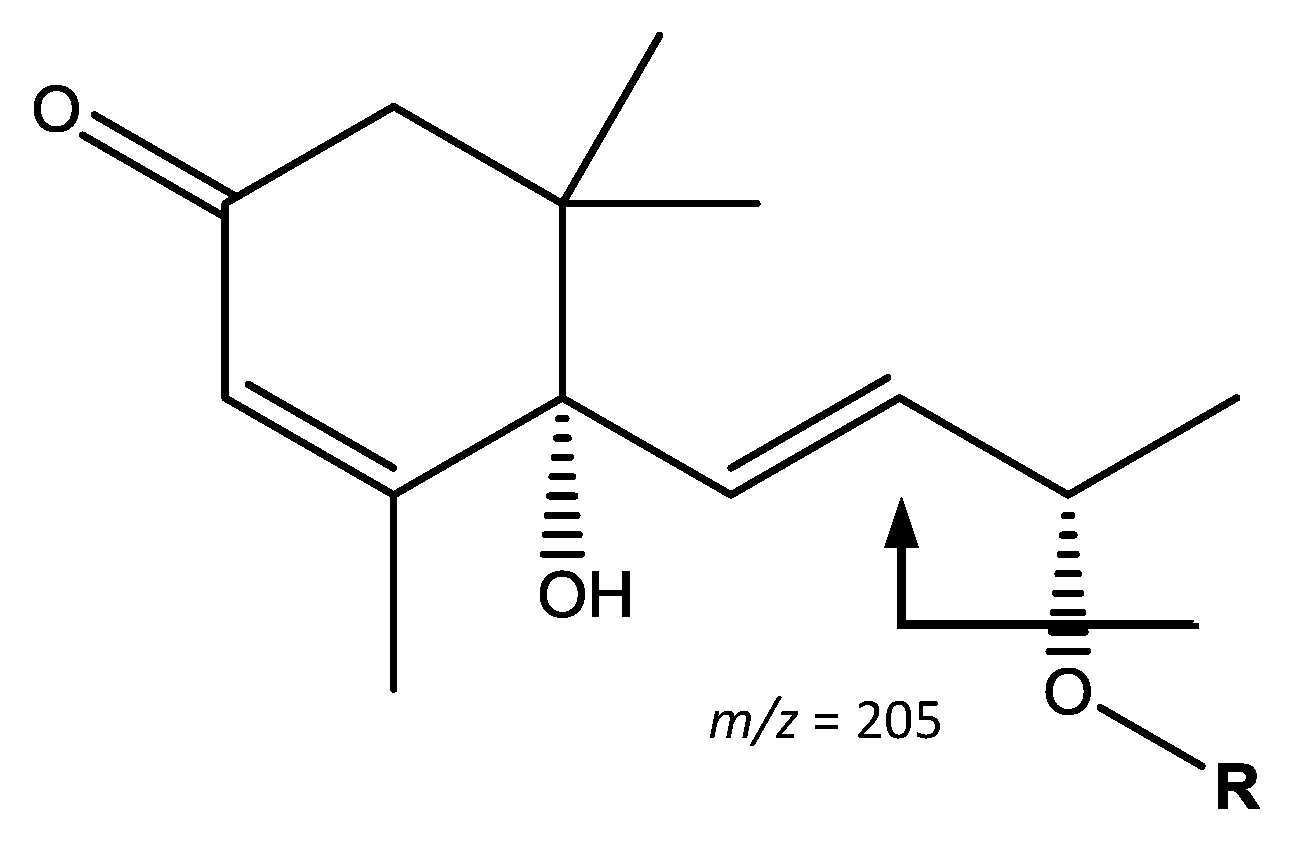

The fifth group of compounds, glycosylated isoprenoid derivatives, shown in Figure 10, was found only in apple. Peaks 20 (Rt = 16.80 min) and 21 (Rt = 17.10 min) showed [M − H]− at m/z 517.2280 (C24H38O12). Their main fragments at m/z 385 [M – H − 132]− and 205 [M – H − 312]− correspond to the loss of a pentoside and a pentosylhexoside respectively. The resulting ion is coincident with vomifoliol, allowing the peaks to be assigned to vomifoliol-pentosylhexoside isomers [40].
Polyphenol profiling reveals great similarities between skins and flesh, with a high number of compounds and high diversity for both fruits. When comparing the reports for apple cultivars in the literature, our results for Anna cultivar from Costa Rica show greater number and diversity of polyphenols than the findings on sixteen cultivars from Norway, Italy, Canada and United States [7,8,9,10], and similar to only two cultivars, namely Golden Delicious and Braeburn from Slovenia [11]. Further, findings on proanthocyanidins indicate better results both in total occurrence and in greater polymerization degree, for instance procyanidin tetramers and pentamers in the skins of Costa Rican Anna apple cultivar.
In the case of plums, when comparing the reports of twenty-four cultivars from United States, Germany and Portugal [15,16,17,18], greater number and diversity of polyphenols is observed in the skins of Satsuma cultivar from Costa Rica. Likewise, results for Satsuma flesh are also superior to twenty-three of the cultivars, being similar to President cultivar from Germany. Of special interest is the presence of a greater number of procyanidins oligomers, such as procyanidin trimers and one tetramer as well as of glycosylated flavonols, showing different quercetin derivatives not reported in previous characterizations of plum skins.
It is important to highlight the characterization of proanthocyanidin oligomers present in both fruits, which is of special interest due to procyanidins antioxidant results having been reported to increase with higher degree of polymerization, for instance trimers, tetramers and pentamers showing better results than dimers or flavan-3-ol monomers [20,21]. The detailed characterization of these fruit cultivars provides an important contribution expanding the knowledge for their exploitation as available sources of such diversity of polyphenols, which in turn can be of interest for further research due to their potential biological activities.

2.3. Antioxidant Activity

The DPPH and ORAC values obtained are summarized in Table 3. All samples show high antioxidant values and in both antioxidant tests, skins have better results than flesh, with Anna skin presenting the highest value with IC50 = 4.54 μg/mL for DPPH and 16.78 mmol Trolox equivalents/g for ORAC. Regarding antioxidant values from the literature, while no comparable results are available for plum fruits, evaluation of methanolic and aqueous extracts from Kahsmir cultivar apple skins show DPPH IC50 values of 55.54 µg/mL and 41.41 µg/mL respectively [41], thus Anna cultivar extracts showing better results. DPPH values expressed as mmol TE/g extract were obtained as described in the experimental section (in respect to Trolox IC50 = 5.62 μg/mL) and allow to compare our results with those reported in the literature for different extracts, for instance our values fit in the range between enju and grape seed extracts (0.76–1.35 mmol TE/g extract) used as antioxidant food additives [42,43].
On the other hand, for ORAC, a study of ethanolic extracts of Pelingo cultivar apples [10], reported values of 44.07 μmol Trolox eq./g DW for skin and 23.19 μmol Trolox eq./g DW for flesh, while findings for aqueous extracts showed values of 42.97 μmol Trolox eq./g DW and 31.99 μmol Trolox eq./g DW for skin and flesh respectively, therefore ORAC of extracts from Anna cultivar apples are superior for both skin and flesh since our findings indicate values of 57.33 μmol Trolox eq./g DW for flesh and 202.03 μmol Trolox eq./g DW (values calculated using ORAC from Table 3 and extract yields from Table 1).
The difference in antioxidant values among extracts could be attributed to the differences in their phenolic content and distribution. Thus, in order to investigate if the total phenolic contents (TPC, Table 1) contributes to the antioxidant activity, a correlation analysis was carried out between these TPC values with DPPH and ORAC results. Significant positive correlation (p < 0.05) was found for both apple and plum samples between TPC values and ORAC with R = 0.827 and R = 0.993 respectively, as well as significant negative correlation (p < 0.05) between TPC results and DPPH with R = −0.833 and R = −0.981 respectively. Therefore, our results are in agreement with previous studies reporting correlation between total polyphenolic contents and ORAC antioxidant activity [44]. Finally, our findings indicate positive correlation (p < 0.05) between both DPPH and ORAC antioxidant values (R = 0.994), thus in agreement with previous studies [43].

3. Materials and Methods

3.1. Materials, Reagents and Solvents

Malus domestica and Prunus domestica fruits were acquired in ripe state from FRUTALCOOP, a local producer cooperative located in Los Santos in Costa Rica. Cultivars were confirmed with the support of the Costa Rican National Herbarium and vouchers are deposited there. Reagents, such as fluorescein, 2,2-azobis(2-amidinopropane) dihydrochloride (AAPH), 2,2-diphenyl-1-picrylhidrazyl (DPPH), Trolox, gallic acid, and Amberlite XAD-7 resin were provided by Sigma-Aldrich (St. Louis, MO, USA), while solvents such as acetone, chloroform and methanol were purchased from Baker (Center Valley, PA, USA).

3.2. Phenolic Extracts from M. domestica and P. domestica Fruits

M. domestica and P. domestica fruits were rinsed in water, peeled, and both, skin and flesh material were freeze-dried in a Free Zone −105 °C, 4.5 L, Cascade Benchtop Freeze Dry System (Labconco, Kansas, MO, USA), and the freeze-dried material was preserved at −20 °C until extraction. Freeze-dried samples were extracted in a Dionex™ ASE™ 150 Accelerated Solvent Extractor (Thermo Scientific™, Walthman, MA, USA) using acetone:water (70:30) as solvent in a 34 mL cell, at 40 °C. Next, the extract was evaporated under vacuum to eliminate the acetone and the aqueous phase was washed with ethyl acetate and chloroform to remove less-polar compounds. Afterwards, the aqueous extract was evaporated under vacuum to eliminate organic solvent residues and was eluted (2 mL/min) in Amberlite XAD7 column (150 mm × 20 mm), starting with 300 mL of water to remove sugars, and then with 200 mL each of methanol:water (80:20) and pure methanol to obtain the polyphenols. Finally, the enriched extract was obtained after evaporating to dryness using a Buchi™ 215 (Flawil, Switzerland) rotavapor.

3.3. Total Phenolic Content

The polyphenolic content was determined by a modification of the Folin-Ciocalteu (FC) method [45], whose reagent is composed of a mixture of phosphotungstic and phosphomolybdic acids. Each sample was dissolved in MeOH (0.1% HCl) and combined with 0.5 mL of FC reagent. Afterwards 10 mL of Na2CO3 (7.5%) were added and the volume was completed to 25 mL with water. Blanks were prepared in a similar way but using 0.5 mL of MeOH (0.1% HCl) instead of sample. The mixture was let standing in the dark for 1 h and then absorbance was measured at 750 nm. Values obtained were extrapolated in a gallic acid calibration curve. Total phenolic content was expressed as mg gallic acid equivalents (GAE)/g sample. Analyses were performed in triplicate.

3.4. UPLC-DAD-ESI-TQ-MS Analysis

The UPLC-MS system used to analyze the composition of M. domestica and P. domestica fruit extracts consisted of an LTQ Orbitrap XL mass spectrometer with an Accela 1250 binary Pump, a PAL HTC Accela TMO autosampler, a PDA detector (Thermo Fisher Scientific, San Jose, CA, USA), and a G1316A column compartment (Agilent, Palo Alto, CA, USA). Separation was carried out on a Hypersil Gold AQ RP-C18 UHPLC column (200 mm × 2.1 mm i.d., 1.9 µm, Thermo Fisher Scientific) with an UltraShield pre-column filter (Analytical Scientific Instruments, Richmond, CA, USA) at a flow rate of 0.3 mL/min. Mobile phases A and B consist of a combination of 0.1% formic acid in water, v/v and 0.1% formic acid in acetonitrile, v/v, respectively. The linear gradient is from 4% to 20% B (v/v) at 20 min, to 35% B at 30 min and to 100% B at 31 min, and held at 100% B to 35 min. The UV/Vis spectra were acquired from 200–700 nm.
Negative electrospray ionization mode was used and the conditions were set as follows: sheath gas, 70 (arbitrary units); aux and sweep gas, 15 (arbitrary units); spray voltage, 4.8 kV; capillary temperature, 300 °C; capillary voltage, 15 V; tube lens, 70 V. The mass range was from 100 to 2000 amu with a resolution of 30,000, FTMS AGC target at 2 × 105, FT- MS/MS AGC target at 1 × 105, isolation width of 1.5 amu, and max ion injection time of 500 ms. The most intense ion was selected for the data-dependent scan to offer their MS2 to MS5 product ions, respectively, with a normalization collision energy at 35%.

3.5. DPPH Radical-Scavenging Activity

DPPH evaluation was performed as previously reported [46] and was expressed as IC50 (µg/mL), which is the amount of sample required to reach the 50% radical-scavenging activity, and also as mmol of Trolox equivalents (TE)/g extract. Briefly, a solution of 2,2-diphenyl-1-picrylhidrazyl (DPPH) (0.25 mM) was prepared using methanol as solvent. Next, 0.5 mL of this solution were mixed with 1 mL of extract or Trolox at different concentrations, and incubated at 25 °C in the dark for 30 min. DPPH absorbance was measured at 517 nm. Blanks were prepared for each concentration. The percentage of the radical-scavenging activity of the sample or Trolox was plotted against its concentration to calculate IC50 (µg/mL). The samples were analyzed in three independent assays. In order to express the DPPH results as mmol TE/g extract, the IC50 (µg/mL) of Trolox was converted to mmol/mL using Trolox molecular weight (250.29 mg/mmol) and then dividing by the IC50 of each sample.

3.6. ORAC Antioxidant Activity

The ORAC (Oxygen Radical Absorbance Capacity) antioxidant activity was determined following a method previously described [47] using fluorescein as a fluorescence probe. The reaction was performed in 75 mM phosphate buffer (pH 7.4) at 37 °C. The final assay mixture consisted of AAPH (12 mM), fluorescein (70 nM), and either Trolox (1–8 µM) or the extract at different concentrations. Fluorescence was recorded every minute for 98 min in black 96-well untreated microplates (Nunc, Denmark), using a Polarstar Galaxy plate reader (BMG Labtechnologies GmbH, Offenburg, Germany) with 485-P excitation and 520-P emission filters. Fluostar Galaxy software version 4.11-0 (BMG Labtechnologies GmbH, Offenburg, Germany) was used to measure fluorescence. Fluorescein was diluted from a stock solution (1.17 mM) in 75 mM phosphate buffer (pH 7.4), while AAPH and Trolox solutions were freshly prepared. All reaction mixtures were prepared in duplicate and three independent runs were completed for each extract. Fluorescence measurements were normalized to the curve of the blank (no antioxidant). From the normalized curves, the area under the fluorescence decay curve (AUC) was calculated as:
A U C = 1 + ∑ i = 1 i = 98 ∫ ​ i / ∫ ​ 0
where f0 is the initial fluorescence reading at 0 min and fi is the fluorescence reading at time i. The net AUC corresponding to a sample was calculated as follows:
Net AUC = AUCantioxidant − AUCblank
The regression equation between net AUC and antioxidant concentration was calculated. The ORAC value was estimated by dividing the slope of the latter equation by the slope of the Trolox line obtained for the same assay. Final ORAC values were expressed as mmol of Trolox equivalents (TE)/g of phenolic extract.

3.7. Statistical Analysis

In order to evaluate if the total phenolic contents (TPC) contributes to the antioxidant activity evaluated with DPPH and ORAC methodologies, a correlation analysis was carried out between TPC values with DPPH and ORAC results. Also, one-way analysis of variance (ANOVA) followed by Tukey’s post hoc test was applied to TPC, DPPH and ORAC values, and differences were considered significant at p < 0.05.

4. Conclusions

The qualitative analysis of phenolic-enriched extracts of the only commercial cultivars of M. domestica (Anna cultivar) and P. domestica (Satsuma cultivar) in Costa Rica, using UPLC-DAD-ESI-MS techniques, shows 52 compounds characterized, distributed as 21 proanthocyanidins, including procyanidin A-type and B-type dimers and trimers, B-type tetramer and pentamers, flavan-3-ol monomers and gallates; 15 flavonoids, including kaempferol, quercetin and naringenin derivatives, and eight phenolic acid derivatives in both fruits; as well as chalcones and isoprenoid glycosides in Anna apples. These findings constitute the first report of such a high number and diversity of compounds in skins of one single plum cultivar and of the presence of proanthocyanidin pentamers in apple skins. Also, it is the first time that such a large number of glycosylated flavonoids and proanthocyanidins are reported in skins and flesh of a single plum cultivar. Further, significant negative correlation was found for both apple and plum samples between TPC and DPPH antioxidant values, especially for plum fruits (R = −0.981, p < 0.05) as well as significant positive correlation between TPC and ORAC, also especially for plum fruits (R = 0.993, p < 0.05). DPPH and ORAC methods show high values for all samples, especially for fruits skins, thus indicating the potential value of these extracts. The presence of procyanidin tetramers and pentamers in apple skin could be responsible for the higher antioxidant potential, in agreement with reports indicating higher antioxidant values related to the presence of this type of procyanidin oligomers [20,21]. Further purification or fractioning of these extracts would be important to evaluate their structure-bioactivity relationship and, for instance, specific proanthocyanidin structures effect on epithelial gastrointestinal cancer cells, of particular relevance due to promising related results [3,48] and the fact that proanthocyanidins low absorption make gut epithelial cells [49] likely one of the main tissues where these compounds can actually exert their biological effects.

Acknowledgments

This work was partially funded by a grant from FORINVES (Ref FV-0028-2013/115-B4-515). Authors also thank financial support from the University of Costa Rica and the Technological Institute of Costa Rica. Special thanks are due to Alonso Quesada from Costa Rican National Herbarium for his support with the vouchers.

Author Contributions

Mirtha Navarro participated in the conception and design of the study. Mirtha Navarro, Pei Chen, Silvia Quesada, Gabriela Azofeifa, Felipe Vargas and Diego Alvarado were involved in technical work and interpretation of data. Elizabeth Arnaez and Ileana Moreira participated in fruit collection, identification and initial samples treatment. Mirtha Navarro drafted the manuscript that was revised and approved by all the authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Dai, J.; Mumper, R.J. Plant Phenolics: Extraction, Analysis and Their Antioxidant and Anticancer Properties. Molecules 2010, 15, 7313–7352. [Google Scholar] [CrossRef] [PubMed]
  2. Quideau, S.; Deffieux, D.; Douat-Casassus, C.; Pouységu, L. Plant Polyphenols: Chemical Properties, Biological Activities, and Synthesis. Angew. Chem. Int. Ed. 2011, 50, 586–621. [Google Scholar] [CrossRef] [PubMed]
  3. Eberhardt, M.; Lee, C.; Liu, R.H. Antioxidant activity of fresh apples. Nature 2000, 405, 903–904. [Google Scholar] [CrossRef] [PubMed]
  4. Wolfe, K.; Wu, X.; Liu, R.H. Antioxidant activity of apple peels. J. Agric. Food Chem. 2003, 51, 609–614. [Google Scholar] [CrossRef] [PubMed]
  5. Halvorsen, B.L.; Holte, K.; Myhrstad, M.C.W.; Barikmo, I.; Hvattum, E.; Remberg, S.F.; Wold, A.B.; Haffner, K.; Baugerod, H.; Andersen, L.F.; et al. A systematic screening of total antioxidant in dietary plants. J. Nutr. 2002, 132, 461–471. [Google Scholar] [CrossRef] [PubMed]
  6. Noratto, G.; Porter, W.; Byrne, D.; Cisneros, L. Identifying Peach and Plum Polyphenols with Chemopreventive Potential against Estrogen-Independent Breast Cancer Cells. J. Agric. Food Chem. 2009, 57, 5219–5226. [Google Scholar] [CrossRef] [PubMed]
  7. Hagen, S.F.; Borge, G.I.; Bengtsson, G.B.; Bilger, W.; Berge, A.; Haffner, K.; Solhaug, K.A. Phenolic contents and other health and sensory related properties of apple fruit (Malus domestica Borkh. Cv. Aroma): Effect of postharvest UV-B irradiation. Postharvest Biol. Technol. 2007, 45, 1–10. [Google Scholar] [CrossRef]
  8. Khanizadeh, S.; Tsao, R.; Rekika, D.; Yang, R.; Charles, M.T.; Rupasinghe, V. Polyphenol composition and total antioxidant capacity of selected apple genotypes for processing. J. Food Compost. Anal. 2008, 21, 396–401. [Google Scholar] [CrossRef]
  9. Tsao, R.; Yang, R.; Young, C.; Zhu, H. Polyphenolic Profiles in Eight Apple Cultivars Using High-Perfornance Liquid Chromatography (HPLC). J. Agric. Food Chem. 2003, 57, 6347–6353. [Google Scholar] [CrossRef] [PubMed]
  10. Giomaro, G.; Karioti, A.; Bucchini, A.; Giamperi, L.; Ricci, D.; Fraternale, D. Polyphenols profile and antioxidant activity of skin and pulp of a rare apple from Marche region (Italy). Chem. Cent. J. 2014, 8, 45. [Google Scholar] [CrossRef] [PubMed]
  11. Zupan, A.; Mikulic-Petkovsek, M.; Slantnar, A.; Stampar, F.; Veberic, R. Individual phenolic response and peroxidase activity in peel of differently sun-exposed apples in the period favorable for sunburn occurrence. J. Plant Physiol. 2014, 171, 1706–1712. [Google Scholar] [CrossRef] [PubMed]
  12. Fang, N.; Yu, S.; Prior, R.L. LC/MS/MS Characterization of Phenolic Constituents in Dried Plums. J. Agric. Food Chem. 2002, 50, 3579–3585. [Google Scholar] [CrossRef] [PubMed]
  13. Nakatani, N.; Kayano, S.; Kikuzaki, H.; Sumino, K.; Katagiri, K.; Mitani, T. Identification, quantitative determination, and antioxidative activities of chlorogenic acid isomers in prune (Prunus domestica L.). J. Agric. Food Chem. 2000, 48, 5512–5516. [Google Scholar] [CrossRef] [PubMed]
  14. Slimstead, R.; Vangdal, E.; Brede, C. Analysis of Phenolic Compounds in Six Norwegian Plum Cultivars (Prunus domestica L.). J. Agric. Food Chem. 2009, 57, 11370–11375. [Google Scholar] [CrossRef] [PubMed]
  15. Treutter, D.; Wang, D.; Farag, M.A.; Baires, G.D.; Rühmann, S.; Neumüller, M. Diversity of phenolic profiles in the fruit skin of Prunus domestica plums and related species. J. Agric. Food Chem. 2012, 60, 12011–12019. [Google Scholar] [CrossRef] [PubMed]
  16. Jaiswal, R.; Karakose, H.; Ruhmann, S.; Goldner, K.; Neumuller, M.; Treutter, D.; Kuhnert, N. Identification of phenolic compounds in plum fruits (Prunus salicina L. and Prunus domestica L.) by HPLC/MS and characterization of varieties by quantitative phenolic fingerprints. J. Agric. Food Chem. 2013, 61, 12020–12031. [Google Scholar] [CrossRef] [PubMed]
  17. Tomas-Barberan, F.; Gil, M.I.; Cremin, P.; Waterhouse, A.L.; Hess-Pierce, B.; Adel, A.; Kader, A.A. HPLC-DAD-ESIMS Analysis of Phenolic Compounds in Nectarines, Peaches, and Plums. J. Agric. Food Chem. 2001, 49, 4748–4760. [Google Scholar] [CrossRef] [PubMed]
  18. Nunes, C.; Guyot, S.; Marnet, N.; Barros, A.S.; Saraiva, J.A.; Renard, C.M.; Coimbra, M.A. Characterization of plum procyanidins by thiolytic depolymerization. J. Agric. Food Chem. 2008, 56, 5188–5196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Navarro, M.; Lebron, R.; Quintanilla, J.E.; Cueva, C.; Hevia, D.; Quesada, S.; Gabriela Azofeifa, G.; Moreno, M.V.; Monagas, M.; Bartolome, B. Proanthocyanidin Characterization and Bioactivity of Extracts from Different Parts of Uncaria tomentosa L. (Cat’s Claw). Antioxidants 2017, 6, 12. [Google Scholar] [CrossRef] [PubMed]
  20. Es-Safi, N.E.; Guyot, S.; Ducrot, P.H. NMR, ESI/MS, and MALDI-TOF/MS analysis of pear juice polymeric proanthocyanidins with potent free radical scavenging activity. J. Agric. Food Chem. 2006, 54, 6969–6977. [Google Scholar] [CrossRef] [PubMed]
  21. Spranger, I.; Sun, B.; Mateus, A.M.; Freitas, V.; Ricardo-da-Silva, J.M. Chemical characterization and antioxidant activities of oligomeric and polymeric procyanidin fractions from grape seeds. Food Chem. 2008, 108, 519–532. [Google Scholar] [CrossRef] [PubMed]
  22. Arnous, A.; Anne, S.; Meyer, A.S. Comparison of methods for compositional characterization of grape (Vitis vinifera L.) and apple (Malus domestica) skins. Food Bioprod. Process. 2008, 86, 79–86. [Google Scholar] [CrossRef]
  23. Lee, J.; Jeong, M.C.; Ku, K.H. Chemical, physical, and sensory properties of 1-MCP-treated Fuji apple (Malus domestica Borkh.) fruits after long-term cold storage. Appl. Biol. Chem. 2017. [Google Scholar] [CrossRef]
  24. Manzoor, M.; Anwar, F.; Saari, N.; Ashraf, M. Variations of Antioxidant Characteristics and Mineral Contents in Pulp and Peel of Different Apple (Malus domestica Borkh.) Cultivars from Pakistan. Molecules 2012, 17, 390–407. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, T.; Wei, X.; Miao, Z.; Hassan, H.; Song, Y.; Fan, M. Screening for antioxidant and antibacterial activities of phenolics from Golden Delicious apple pomace. Chem. Cent. J. 2016, 10, 47. [Google Scholar] [CrossRef] [PubMed]
  26. Cinquantaa, L.; Di Matteo, M.; Estia, M. Physical pre-treatment of plums (Prunus domestica). Part 2. Effect on the quality characteristics of different prune cultivars. Food Chem. 2002, 79, 233–238. [Google Scholar] [CrossRef]
  27. Rop, O.; Jurikova, T.; Mlcek, J.; Kramarova, D.; Sengee, Z. Antioxidant activity and selected nutritional values of plums (Prunus domestica L.) typical of the White Carpathian Mountains. Sci. Hortic. 2009, 122, 545–549. [Google Scholar] [CrossRef]
  28. Navarro, M.; Sanchez, F.; Murillo, R.; Martín, P.; Zamora, W.; Monagas, M.; Bartolomé, B. Phenolic assesment of Uncaria tomentosa L. (Cat’s Claw): Leaves, stem, bark and wood extracts. Molecules 2015, 20, 22703–22717. [Google Scholar] [CrossRef] [PubMed]
  29. Hamed, A.I.; Al-Ayed, A.S.; Moldoch, J.; Piacente, S.; Oleszek, W.; Stochmal, A. Profiles analysis of proanthocyanidins in the argun nut (Medemia argun—An ancient Egyptian palm) by LC-ESI-MS/MS. J. Mass Spectrom. 2014, 49, 306–315. [Google Scholar] [CrossRef] [PubMed]
  30. Kammerer, D.; Claus, A.; Carle, R.; Schieber, A. Polyphenol Screening of Pomace from Red and White Grape Varieties (Vitis vinifera L.) by HPLC-DAD-MS/MS. J. Agric. Food Chem. 2004, 52, 4360–4367. [Google Scholar] [CrossRef] [PubMed]
  31. Karonen, M.; Loponen, J.; Ossipov, V.; Pihlaja, K. Analysis of procyanidins in pine bark with reversed-phase and normal-phase high-performance liquid chromatography-electrospray ionization mass spectrometry. Anal. Chim. Acta 2004, 522, 105–112. [Google Scholar] [CrossRef]
  32. Sarnoski, P.J.; Johnson, J.V.; Reed, K.A.; Tanko, J.M.; O’Keefe, S.F. Separation and characterisation of proanthocyanidins in Virginia type peanut skins by LC-MSn. Food Chem. 2012, 131, 927–939. [Google Scholar] [CrossRef]
  33. Ojwang, L.O.; Yang, L.Y.; Dykes, L.; Awika, J. Proanthocyanidin profile of cowpea (Vigna unguiculata) reveals catechin-O-glucoside as the dominant compound. Food Chem. 2013, 139, 35–43. [Google Scholar] [CrossRef] [PubMed]
  34. March, R.E.; Miao, X.S. A fragmentation study of kaempferol using electrospray quadrupole time-of-flight mass spectrometry at high mass resolution. Int. J. Mass Spectrom. 2004, 231, 157–167. [Google Scholar] [CrossRef]
  35. Schültz, K.; Kammerer, D.; Carle, R.; Schieber, A. Identification and Quantification of Caffeoylquinic Acids and Flavonoids from Artichoke (Cynara scolymus L.) Heads, Juice, and Pomace by HPLC-DAD-ESI/MSn. J. Agric. Food Chem. 2004, 52, 4090–4096. [Google Scholar] [CrossRef] [PubMed]
  36. Lin, L.Z.; Harnly, J.M. A screening method for the identification of glycosylated flavonoids and other phenolic compounds using a standard analytical approach for all plant materials. J. Agric. Food Chem. 2007, 55, 1084–1096. [Google Scholar] [CrossRef] [PubMed]
  37. Gruz, J.; Novák, O.; Strnad, M. Rapid analysis of phenolic acids in beverages by UPLC–MS/MS. Food Chem. 2008, 111, 789–794. [Google Scholar] [CrossRef]
  38. Bylund, D.; Norström, S.H.; Essén, S.A.; Lundström, U.S. Analysis of low molecular mass organic acids in natural waters by ion exclusion chromatography tandem mass spectrometry. J. Chromatogr. A 2007, 1176, 89–93. [Google Scholar] [CrossRef] [PubMed]
  39. Shao, X.; Bai, N.; He, K.; Ho, C.-T.; Yang, C.S.; Sang, S. Apple Polyphenols, Phloretin and Phloridzin: New Trapping Agents of Reactive Dicarbonyl Species. Chem. Res. Toxicol. 2008, 21, 2042–2050. [Google Scholar] [CrossRef] [PubMed]
  40. Schwab, W.; Schreier, P. Vomifoliol l-0-β-d-xylopyranosyl-6-o-β-d-glucopyranoside: A disaccharide glycoside from apple fruit. Phytochemistry 2008, 29, 161–164. [Google Scholar] [CrossRef]
  41. Vineetha, V.P.; Girija, S.; Soumya, R.S.; Raghu, K.G. Polyphenol-rich apple (Malus domestica L.) peel extract attenuates arsenic trioxide induced cardiotoxicity in H9c2 cells via its antioxidant activity. Food Funct. 2014, 5, 502–511. [Google Scholar] [CrossRef] [PubMed]
  42. Shimamura, T.; Sumikura, Y.; Yamazaki, T.; Tada, A.; Kashiwagi, T.; Ishikawa, H.; Matsui, T.; Sugimoto, N.; Akiyama, H.; Ukeda, H. Applicability of the DPPH assay for evaluating the antioxidant capacity of food additives—Inter-laboratory evaluation study. Anal. Sci. 2014, 30, 717–721. [Google Scholar] [CrossRef] [PubMed]
  43. Wong, S.P.; Leong, L.P.; Koh, J.H. Antioxidant activities of aqueous extracts of selected plants. Food Chem. 2006, 99, 775–783. [Google Scholar] [CrossRef]
  44. Lizcano, L.J.; Bakkali, F.; Ruiz-Larrea, B.; Ruiz-Sanz, J.I. Antioxidant activity and polyphenol content of aqueous extracts from Colombia Amazonian plants with medicinal use. Food Chem. 2010, 119, 1566–1570. [Google Scholar] [CrossRef]
  45. Singleton, V.; Rossi, J. Colorimetry of total phenolics with phosphomolybdic-phosphotungstic acid reagents. Am. J. Enol. Vitic. 1965, 16, 144–158. [Google Scholar]
  46. Navarro, M.; Moreira, I.; Arnaez, E.; Quesada, S.; Azofeifa, G.; Alvarado, D.; Monagas, M.J. Proanthocyanidin Characterization, Antioxidant and Cytotoxic Activities of Three Plants Commonly Used in Traditional Medicine in Costa Rica: Petiveria alliaceae L., Phyllanthus niruri L. and Senna reticulata Willd. Plants 2017, 6, 50. [Google Scholar] [CrossRef] [PubMed]
  47. Davalos, A.; Gomez-Cordoves, C.; Bartolome, B. Extending applicability of the oxygen radical absorbance capacity (ORAC-Fluorescein) assay. J. Agric. Food Chem. 2004, 52, 48–54. [Google Scholar] [CrossRef] [PubMed]
  48. Navarro, M.; Zamora, W.; Quesada, S.; Azofeifa, G.; Alvarado, D.; Monagas, M. Fractioning of Proanthocyanidins of Uncaria tomentosa. Composition and Structure-Bioactivity Relationship. Antioxidants 2017, 6, 60. [Google Scholar] [CrossRef] [PubMed]
  49. Monagas, M.; Urpi-Sarda, M.; Sanchez-Patán, F.; Llorach, R.; Garrido, I.; Gómez-Cordoves, C.; Andres-Lacueva, C.; Bartolome, B. Insights into the metabolism and microbial biotransformation of dietary flavan-3-ols and the bioactivity of their metabolites. Food Funct. 2010, 1, 233–253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Foods 07 00015 g001 550

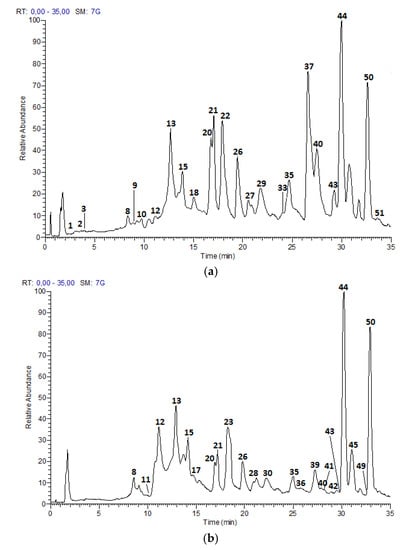

Figure 1. HPLC Chromatograms of M. domestica extracts: (a) Anna skins (b) Anna flesh, in a Hypersil Gold AQ RP-C18 column (200 mm × 2.1 mm × 1.9 µm) using a LTQ Orbitrap XL Mass spectrometer (Thermo Scientific™, Walthman, MA, USA) in a mass range from 100 to 2000 amu.
Figure 1. HPLC Chromatograms of M. domestica extracts: (a) Anna skins (b) Anna flesh, in a Hypersil Gold AQ RP-C18 column (200 mm × 2.1 mm × 1.9 µm) using a LTQ Orbitrap XL Mass spectrometer (Thermo Scientific™, Walthman, MA, USA) in a mass range from 100 to 2000 amu.
Foods 07 00015 g001
Foods 07 00015 g002a 550Foods 07 00015 g002b 550

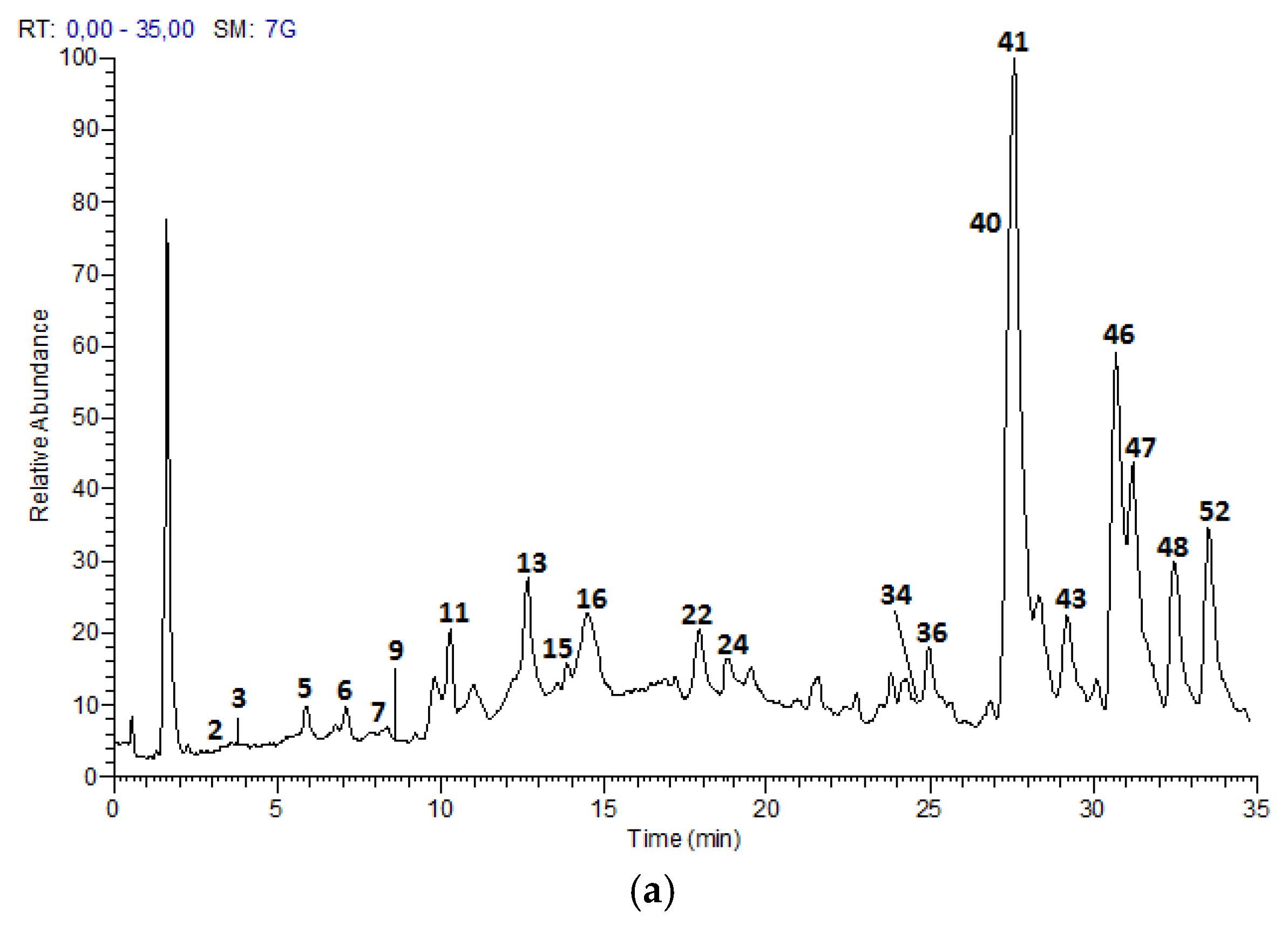

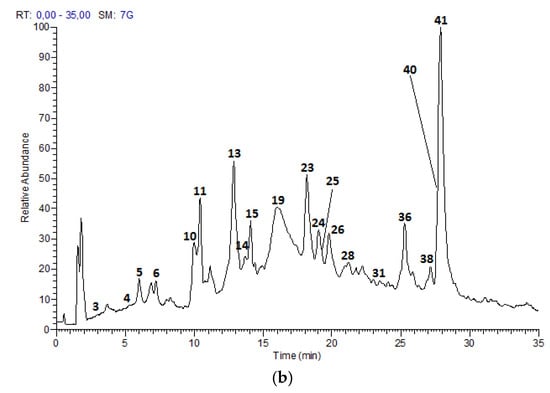

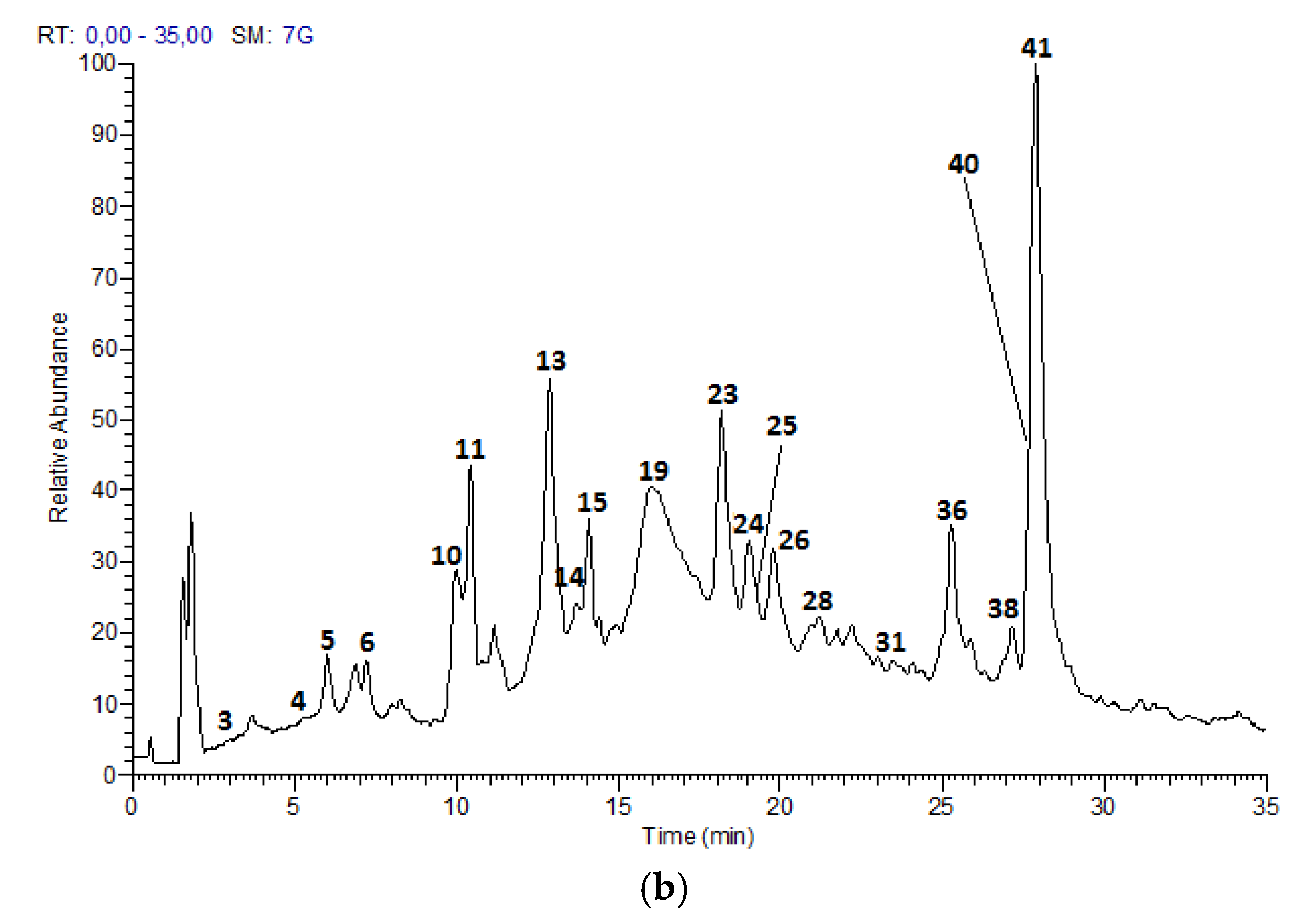

Figure 2. HPLC Chromatograms of P. domestica extracts: (a) Satsuma skin (b) Satsuma flesh in a Hypersil Gold AQ RP-C18 column (200 mm × 2.1 mm × 1.9 µm) using a LTQ Orbitrap XL Mass spectrometer (Thermo Scientific™, Walthman, MA, USA) in a mass range from 100 to 2000 amu.
Figure 2. HPLC Chromatograms of P. domestica extracts: (a) Satsuma skin (b) Satsuma flesh in a Hypersil Gold AQ RP-C18 column (200 mm × 2.1 mm × 1.9 µm) using a LTQ Orbitrap XL Mass spectrometer (Thermo Scientific™, Walthman, MA, USA) in a mass range from 100 to 2000 amu.
Foods 07 00015 g002aFoods 07 00015 g002b
Foods 07 00015 g003 550

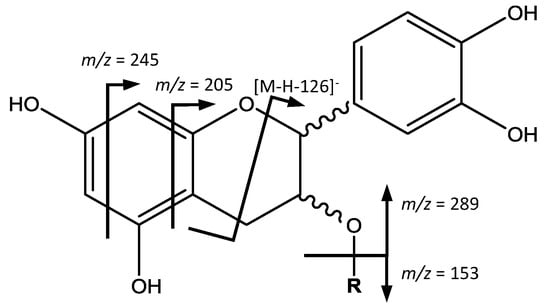

Figure 3. Flavan-3-ols monomers and gallates structure and main fragments.
Figure 3. Flavan-3-ols monomers and gallates structure and main fragments.
Foods 07 00015 g003
Compound No.R
3, 4Galloyl
9, 15H
Foods 07 00015 g004 550

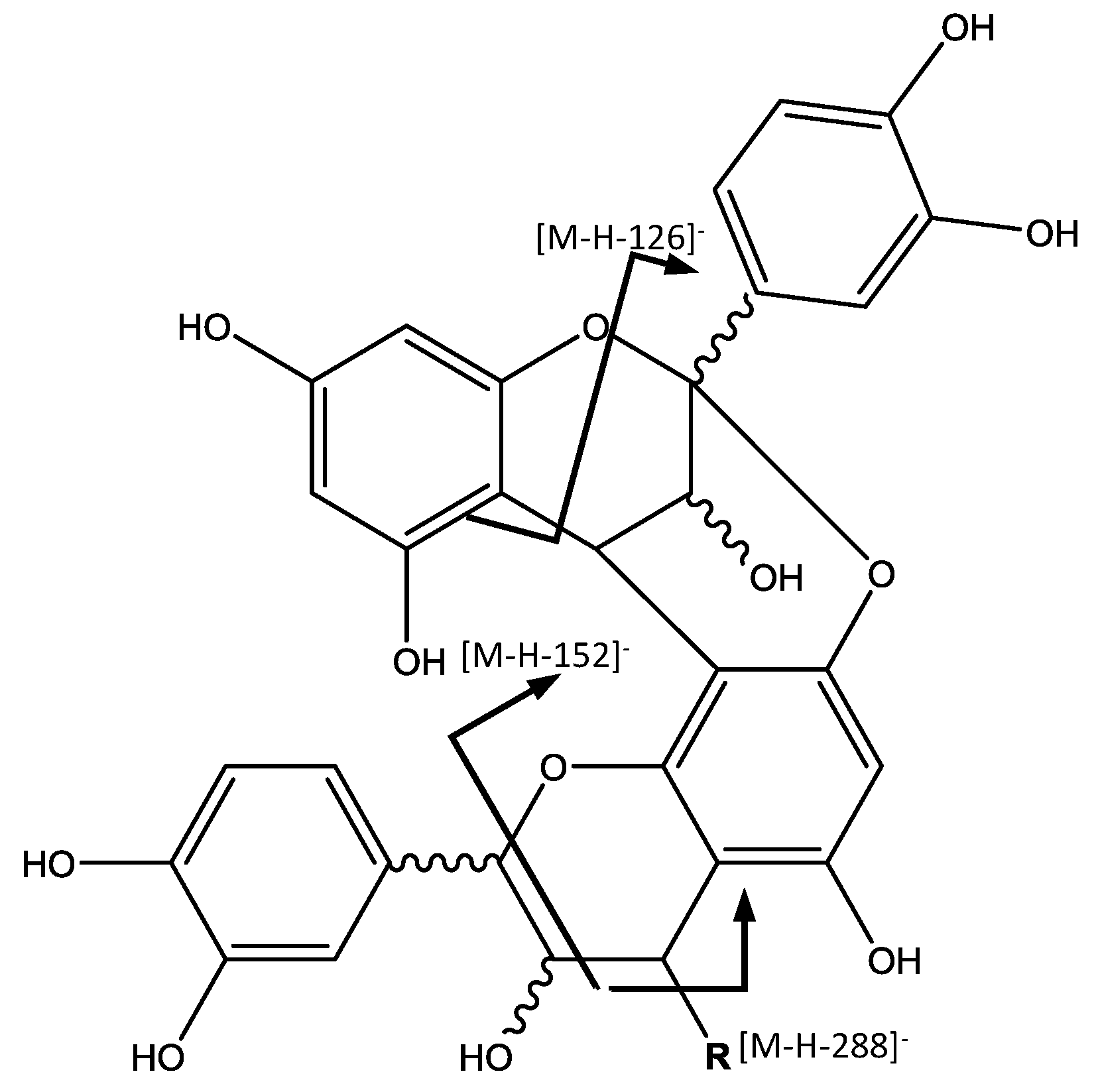

Figure 4. Proanthocyanidin A-type structure and main fragments.
Figure 4. Proanthocyanidin A-type structure and main fragments.
Foods 07 00015 g004
Compound No.R
36H
24, 25, 31(epi)catechin
Foods 07 00015 g005 550

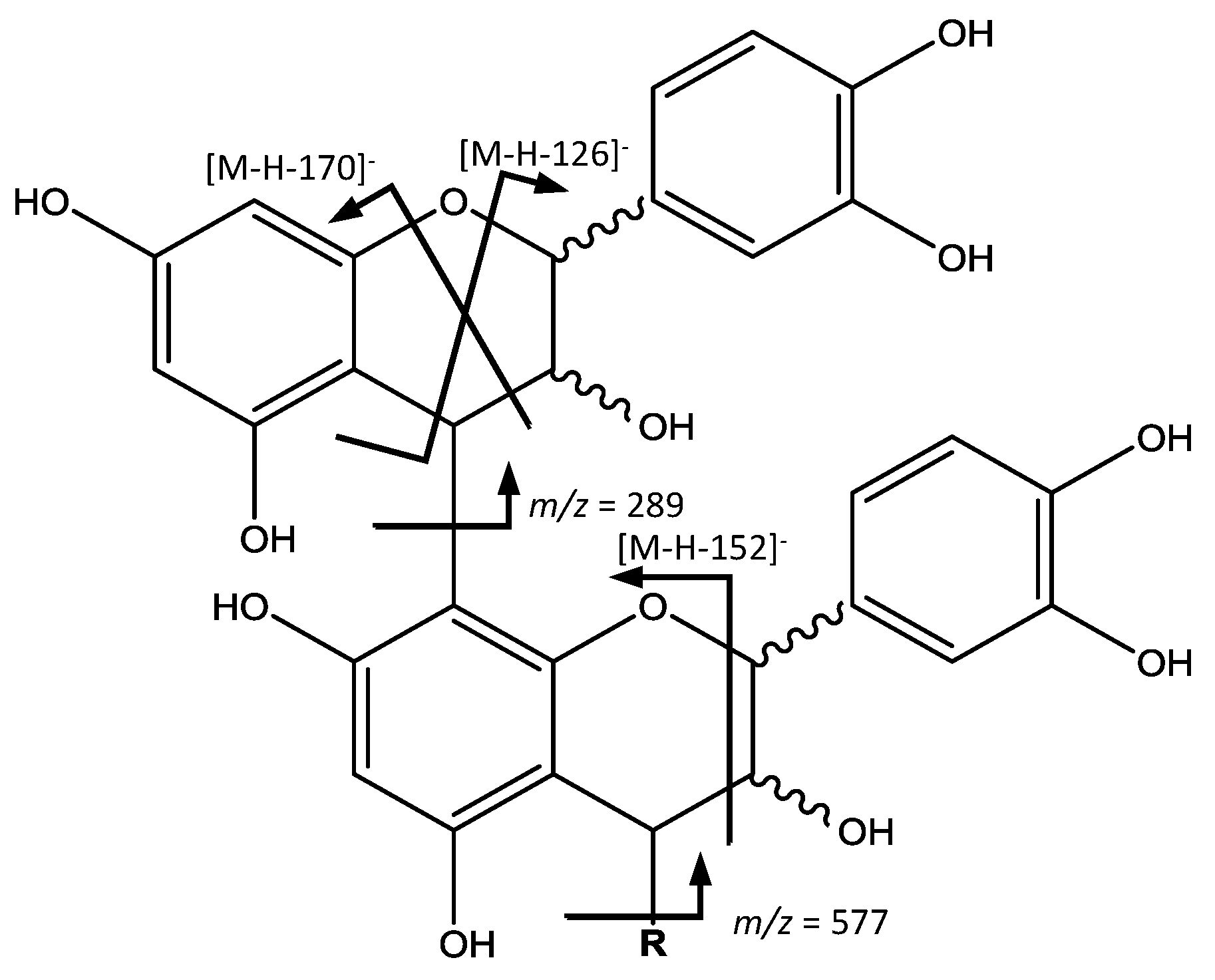

Figure 5. Proanthocyanidin B-type structure and main fragments.
Figure 5. Proanthocyanidin B-type structure and main fragments.
Foods 07 00015 g005
Compound No.R
1, 8, 13, 38, 42H
14, 22, 23, 28, 30(epi)catechin
26(epi)catechin-(epi)catechin
27, 29(epi)catechin-(epi)catechin-(epi)catechin
Foods 07 00015 g006 550

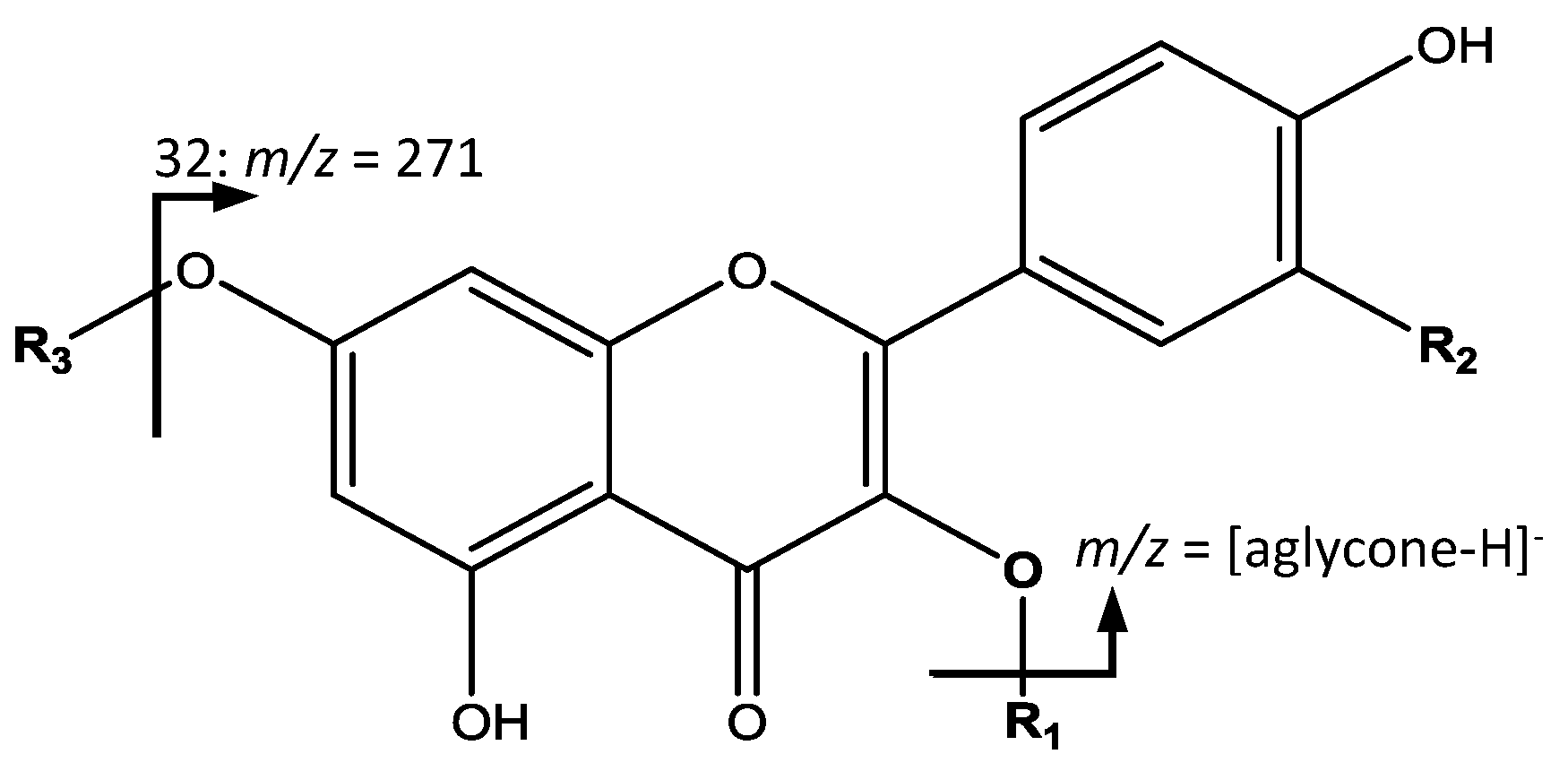

Figure 6. Flavonol glycosides structure and main fragments.
Figure 6. Flavonol glycosides structure and main fragments.
Foods 07 00015 g006
Compound No.O-R1R2R3
18, 19O-hexosideHH
32HHhexoside
33, 34O-pentosylhexosideOHH
37, 41O-hexosideOHH
40O-rutinosideOHH
43, 46O-pentosideOHH
47O-pentosylpentosideOHH
48, 49, 51O-deoxyhexosideOHH
52O-acetylhexosideOHH
Foods 07 00015 g007 550

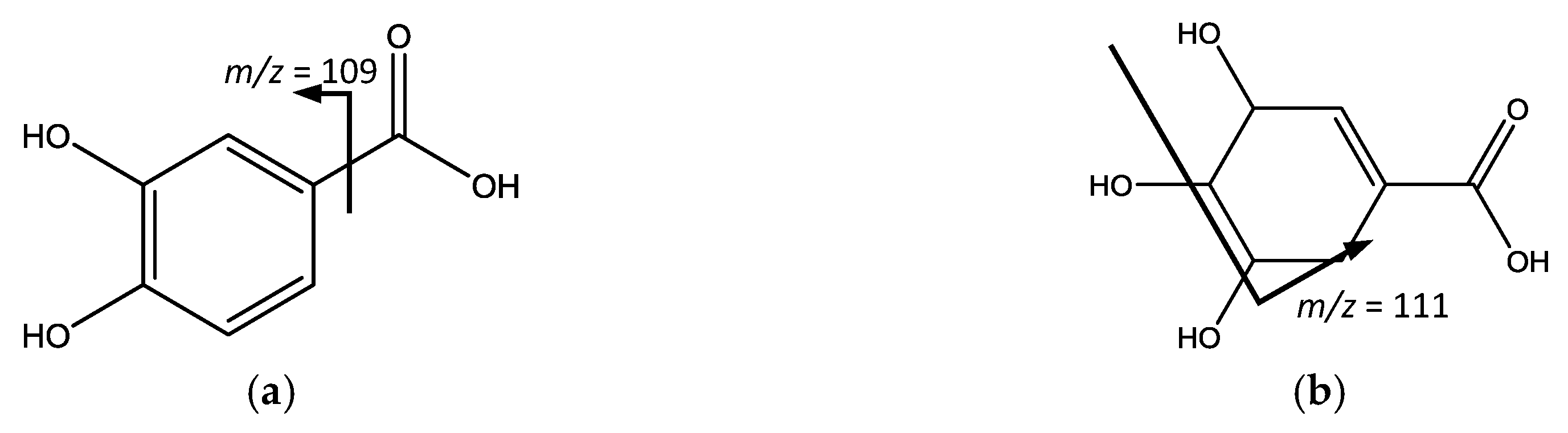

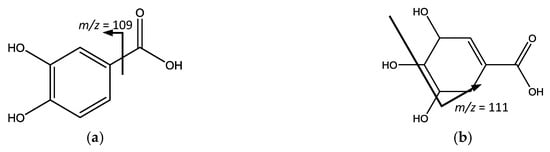

Figure 7. (a) Protochatechuic acid and (b) Shikimic acid structure and main fragments.
Figure 7. (a) Protochatechuic acid and (b) Shikimic acid structure and main fragments.
Foods 07 00015 g007
Foods 07 00015 g008 550

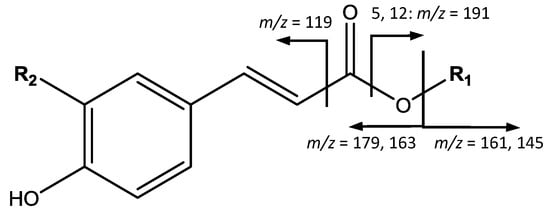

Figure 8. p-coumaric acid derivatives structure and main fragments.
Figure 8. p-coumaric acid derivatives structure and main fragments.
Foods 07 00015 g008
Compound No.R1R2
5, 12quinic acidOH
6hexosideOH
7HH
10, 11hexosideH
17quinic acidH
Foods 07 00015 g009 550

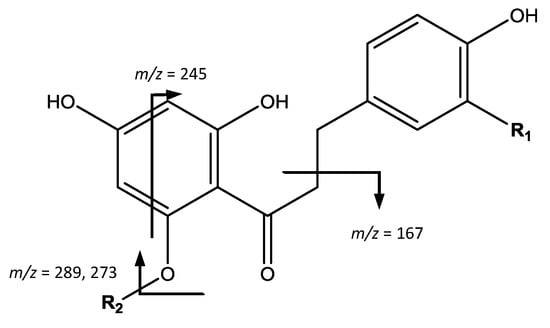

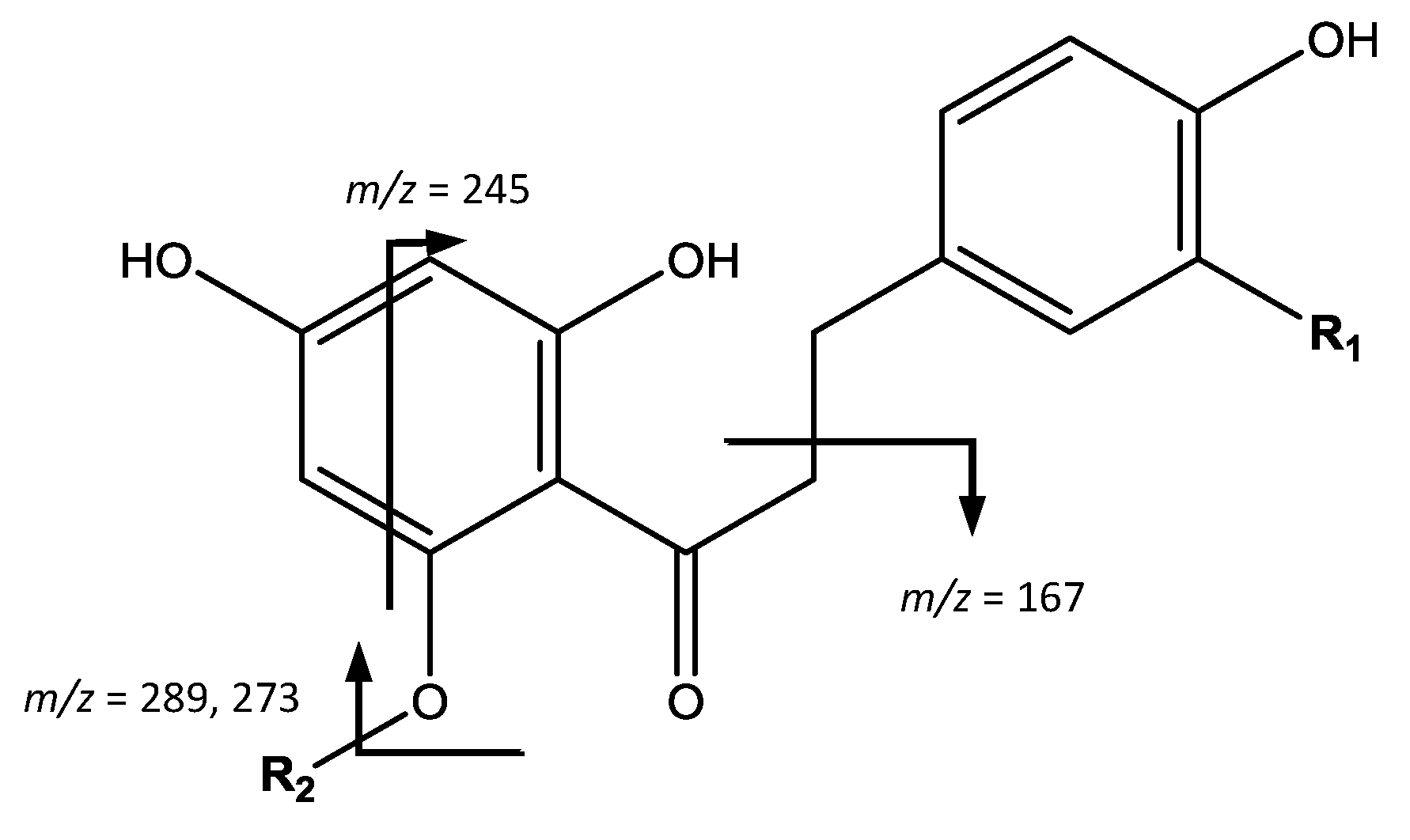

Figure 9. Chalcones structure and main fragments.
Figure 9. Chalcones structure and main fragments.
Foods 07 00015 g009
Compound No.R1R2
35OHpentosylhexoside
39OHH
44, 45HPentosylhexoside
50HH
Foods 07 00015 g010 550
Figure 10. Vomifoliol-pentosylhexoside structure and main fragments.
Figure 10. Vomifoliol-pentosylhexoside structure and main fragments.
Foods 07 00015 g010
Compound No.R
20, 21pentosylhexoside
Table
Table 1. Extraction yield and total phenolic content.
Table 1. Extraction yield and total phenolic content.
SampleLyophilization Yield (%) 1Extraction Yield (%) 2Total Phenolic Content (mg GAE/g Extract) 3,4
M. domestica
Anna-Skin11.61.20619.6 a,b ± 19.5
Anna-Flesh13.80.51576.0 a ± 20.9
P. domestica
Satsuma-Skin13.12.74640.3 b ± 22.7
Satsuma-Flesh17.11.24515.2 c ± 17.3
1 g of dry material/g of fresh weight expressed as %. 2 g of extract/g of dry material expressed as %. 3 Values are expressed as mean ± Standard Deviation (S.D.). 4 Different superscript letters in the column indicate differences are significant at p < 0.05 using one-way analysis of variance (ANOVA) with a Tukey post hoc as statistical test. GAE: gallic acid equivalents.
Table
Table 2. Profile of phenolic compounds identified by UPLC-DAD-ESI-TQ-MS analysis for apple and plum samples.
Table 2. Profile of phenolic compounds identified by UPLC-DAD-ESI-TQ-MS analysis for apple and plum samples.
No.Tentative IdentificationtR (min)λmax (nm)[M − H]−FormulaMS2 Fragments (% Abundance)Apple Anna SkinApple Anna FleshPlum Satsuma SkinPlum Satsuma Flesh
Proanthocyanidins
1Procyanidin B-type dimer2.69277577.1344C30H26O12[577]: 289(28), 407(79), 425(100), 451(49), 559(66)x
3(epi)catechin 3-O-gallate3.96284441.0818C22H18O10[441]: 153(31), 289(35), 315(100)x xx
4(epi)catechin 3-O-gallate5.40284441.0819C22H18O10[441]: 153(32), 289(28), 315(100) x
8Procyanidin B-type dimer8.44279577.1344C30H26O12[577]: 289(50), 407(70), 425(100), 451(80), 559(42)xx
9Catechin8.87289289.0709C15H20O6[289]: 205(38),245(100)x x
13Procyanidin B-type dimer12.75282577.1344C30H26O12[577]: 289(35), 407(57), 425(100), 451(56), 559(28)xxxx
14Procyanidin B-type trimer13.20282865.1956C45H38O18[865]: 577(43), 695(100), 713(39), 739(60) x
15Epicatechin13.97280289.0707C15H14O6[289]: 205(35), 245(100)xxxx
22Procyanidin B-type trimer17.88279865.1956C45H38O18[865]: 577(54), 695(100), 713(37), 739(71)x x
23Procyanidin B-type trimer18.16278865.1956C45H38O18[865]: 577(61), 695(100), 713(33), 739(67) x x
24Procyanidin A-type trimer18.98278863.1798C45H36O18[863]: 575(100), 711(63) xx
25Procyanidin A-type trimer19.37277, 517863.1798C45H36O18[863]: 575(100), 711(63) x
26Procyanidin B-type tetramer19.70279, 5171153.2603C60H50O24[1153]: 575(43), 577(46), 863(62), 865(100), 983(87), 1001(37), 1027(66)xx x
27Procyanidin B-type pentamer20.542801441.3229C75H62O30[1441]: 1315(43), 1151(70), 863(68), 635(100), 577(40)x
28Procyanidin B-type trimer21.23279865.1956C45H38O18[865]: 407(45), 577(59), 695(100), 713(66), 739(73) x x
29Procyanidin B-type pentamer21.832781441.3229C75H62O30[1441]: 1315(33), 1151(69), 863(95), 635(100), 577(60)x
30Procyanidin B-type trimer22.21279865.1956C45H38O18[865]: 575(46), 577(53), 695(100), 713(44), 739(84) x
31Procyanidin A-type trimer23.54282863.1798C45H36O18[863]: 575(100), 711(58) x
36Procyanidin A-type dimer25.19279575.1185C30H24O12[575]: 289(35), 449(100) xxx
38Procyanidin B-type dimer27.21276577.1344C30H26O12[577]: 289(34), 407(60), 425(100), 451(78), 559(31), x
42Procyanidin B-type dimer28.62279577.1344C30H26O12[577]: 289(50), 407(65), 425(100), 451(76), 559(44) x
Glycosylated flavonols
18Kaempferol-hexoside14.97280, 351447.0922C21H20O11[447]: 284(70), 285(100)x
19Kaempferol-hexoside15.90278, 360, 516447.0922C21H20O11[447]: 284(23), 285(100) x
32Naringenin-hexoside23.97278, 351433.1131C21H22O10[433]: 271(100)x
33Quercetin-pentosylhexoside24.12279, 351595.1284C26H28O16[595]: 300(100), 301(41)x
34Quercetin-pentosylhexoside24.72281, 357595.1284C26H28O16[595]: 300(100), 301(40) x
37Quercetin-hexoside26.57255, 350463.0875C21H20O12[463]: 300(36), 301(100)x
40Quercetin-rutinoside27.60255, 360609.1440C27H30O16[609]: 300(31), 301(100)xxxx
41Quercetin-hexoside27.79252, 351463.0875C21H20O12[463]: 300(28), 301(100) xxx
43Quercetin-pentoside29.28258, 355433.0769C20H18O11[433]: 300(29), 301(100)xxx
46Quercetin-pentoside30.69258, 347433.0769C20H18O11[433]: 301(100) x
47Quercetin-pentosylpentoside31.21258, 354565.1184C25H26O15[565]: 300(100), 301(16) x
48Quercetin-deoxyhexoside32.46355447.0922C21H20O11[447]: 300(26), 301(100) x
49Quercetin-deoxyhexoside32.57284447.0922C21H20O11[447]: 300(30), 301(100) x
51Quercetin-deoxyhexoside33.27281447.0922C21H20O11[447]: 300(30), 301(100)x
52Quercetin-acetylhexoside33.51354505.0975C23H22O13[505]: 300(63), 301(100) x
Acids and derivates
2Protocatechuic acid3.36280153.0191C7H6O4[153]: 109(100)x x
5Caffeoylquinic acid isomer5.95323353.0869C16H18O9[353]: 191(100), 179(71) xx
6Caffeoyl hexoside7.23331341.0872C15H18O9[341]: 161(37), 179(100) xx
7Coumaric acid8.30313163.0398C9H6O3[163]: 119(100) x
10p-coumaroyl-hexoside9.94297325.0921C15H18O8[325]: 145(100), 163(92), 187(49)x x
11p-coumaroyl-hexoside10.27314325.0921C15H18O8[325]: 145(100), 163(87), 187(50) xxx
12Caffeoylquinic acid isomer11.10270, 313353.0869C16H19O9[353]: 191(100), 145(46)xx
16Shikimic acid14.44316173.0454C7H10O5[173]: 93(100),111(43) x
17p-coumaroylquinic acid14.49311337.0927C16H18O8[337]: 173(100) x
Chalcones
353-hydroxyphloretin-pentosylhexoside24.87281583.1660C26H32O15[583]: 289(100)xx
393-hydroxyphloretin27.29283289.0716C15H14O6[289]: 167(100), 245(49), 271(81) x
44Phloretin-pentosilhexoside30.11284567.1704C26H32O14[567]: 273(100)xx
45Phloretin-pentosilhexoside31.04283567.1704C26H32O14[567]: 273(100) x
50Phloretin32.78283273.0767C15H14O5[273]: 167(100)xx
Other compounds
20Vomifoliol-pentosilhexoside16.80281517.2280C24H38O12[517]: 205(100), 385(58)xx
21Vomifoliol-pentosilhexoside17.10281517.2280C24H38O12[517]: 205(100), 385(64)xx
Table
Table 3. DPPH and ORAC antioxidant activity.
Table 3. DPPH and ORAC antioxidant activity.
SampleDPPH 1,2ORAC 1,2
IC50 (μg/mL)(mmol TE/g Extract)(mmol TE/g Extract)
M. domestica
Anna-Skin4.54 a ± 0.061.24 a ± 0.0216.78 a ± 0.25
Anna-Flesh6.64 b ± 0.120.85 b ± 0.0111.22 b ± 0.13
P. domestica
Satsuma-Skin5.19 c ± 0.121.08 c ± 0.0214.55 c ± 0.21
Satsuma-Flesh5.95 d ± 0.140.94 d ± 0.0313.02 d ± 0.29
1 Values are expressed as mean ± S.D. 2 Different superscript letters in the same column indicate differences are significant at p < 0.05 using ANOVA with a Tukey post hoc as statistical test. ORAC: oxygen radical absorbance capacity; DPPH: 2,2-diphenyl-1-picrylhidrazyl method.

Share and Cite

MDPI and ACS Style

Navarro, M.; Moreira, I.; Arnaez, E.; Quesada, S.; Azofeifa, G.; Vargas, F.; Alvarado, D.; Chen, P. Polyphenolic Characterization and Antioxidant Activity of Malus domestica and Prunus domestica Cultivars from Costa Rica. Foods 2018, 7, 15. https://doi.org/10.3390/foods7020015

AMA Style

Navarro M, Moreira I, Arnaez E, Quesada S, Azofeifa G, Vargas F, Alvarado D, Chen P. Polyphenolic Characterization and Antioxidant Activity of Malus domestica and Prunus domestica Cultivars from Costa Rica. Foods. 2018; 7(2):15. https://doi.org/10.3390/foods7020015

Chicago/Turabian Style

Navarro, Mirtha, Ileana Moreira, Elizabeth Arnaez, Silvia Quesada, Gabriela Azofeifa, Felipe Vargas, Diego Alvarado, and Pei Chen. 2018. "Polyphenolic Characterization and Antioxidant Activity of Malus domestica and Prunus domestica Cultivars from Costa Rica" Foods 7, no. 2: 15. https://doi.org/10.3390/foods7020015

APA Style

Navarro, M., Moreira, I., Arnaez, E., Quesada, S., Azofeifa, G., Vargas, F., Alvarado, D., & Chen, P. (2018). Polyphenolic Characterization and Antioxidant Activity of Malus domestica and Prunus domestica Cultivars from Costa Rica. Foods, 7(2), 15. https://doi.org/10.3390/foods7020015

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
