Article

Antibiotics in Surface Sediments from the Anning River in Sichuan Province, China: Occurrence, Distribution, and Risk Assessment

1
School of Environment & Resource, Xichang University, Xichang 615000, China
2
School of Sciences, Xichang University, Xichang 615000, China
*
Author to whom correspondence should be addressed.
Toxics 2024, 12(6), 411; https://doi.org/10.3390/toxics12060411
Submission received: 2 May 2024 / Revised: 29 May 2024 / Accepted: 31 May 2024 / Published: 4 June 2024
(This article belongs to the Section Emerging Contaminants)

Abstract

:
The occurrence, distribution, and ecological risk assessment of 36 antibiotics from five groups, including macrolides (MLs), fluoroquinolones (FQs), tetracyclines (TCs), amphenicols (APs), and sulfonamides (SAs), were investigated for the first time in the Anning River, Sichuan Province, China. The results show that antibiotics were widely present in the sediments of the Anning River, with a total of 22 antibiotics detected. FQs were among the most abundant antibiotics, followed by TCs, MLs, APs, and SAs. The total concentrations of antibiotics in surface sediments varied from 0.05 to 53.35 ng/g, with an average of 8.09 ng/g. Among these groups, MLs, FQs, and TCs emerged as the predominant classes of antibiotics. The midstream sediments showed the highest residual levels of antibiotics, with lower levels observed in the downstream and upstream sediments. Anthropogenic activities, such as human clinical practices and animal breeding, might be sources of antibiotics released into the river. An ecological risk assessment revealed that trimethoprim from the SA group exhibited high risks, and MLs showed medium risks in the Anning River, whereas most antibiotics presented minimal to low risks. This study provides valuable information on antibiotic pollution in the upstream region of the Yangtze River, and future management measures are needed for the Anning River.

1. Introduction

Antibiotics have been widely employed in both veterinary and human medicine due to their exceptional ability to treat infectious diseases, as well as their role in promoting growth in aquatic animals, livestock, and plants [1,2,3]. During its rapid growth, China has emerged as one of the leading global producers and users of antibiotics, with a total antibiotic consumption of 162,000 tons in 2013 [4,5,6], which is approximately 150 times greater than that of the United Kingdom [7]. Most antibiotics cannot be completely metabolized by organisms, and up to 85% of these antibiotics or their metabolites can enter surface water and sediment via the excretion of urine and feces, household waste, livestock, and agricultural wastewater [8,9]. Additionally, the widespread usage of antibiotics has negative effects on various organisms and ecosystems. It is possible that they can cause phytoplankton toxicity, inhibit the growth of microorganisms, and alter the structure of microbial communities [10]. Furthermore, exposure to antibiotics may promote the development of antibiotic-resistant bacteria and genes [11,12], raising serious concerns regarding animal and human health through food consumption [13].
Owing to the mismanagement of antibiotics, they are widely distributed in surface water [14,15,16]. Upon entering the water, antibiotics have the potential to be harmful to aquatic organisms at even minimal concentrations (ng/L or μg/L) [17,18,19,20]. Previous studies have suggested that sediments serve as significant repositories for antibiotics [21,22,23] and may also act as potential secondary reservoirs of these contaminants [14,15]. It is natural for many chemicals to accumulate in sediments, which form habitats for plants and animals [24]. Releasing antibiotics into water can potentially act as a source under hydraulic conditions and aquatic physicochemical properties, including pH, organic carbon content, and the presence of metal ions [16,25,26]. Their residual levels in sediments can provide information about long-term pollution levels in an area [27]. Hence, it is essential to analyze the pollution attributes of antibiotics in sediments and assess their potential effects on aquatic ecosystems. In recent years, numerous studies have been conducted on the occurrence, distribution, and risk assessment of antibiotics in sediments in China, such as the Yongjiang River [28], Pearl River, Yellow River, Hai River, Liao River [29], Hanjiang River [14], and Yangtze River [27]. In addition, Sichuan Province is a key region for economic development and environmental conservation upstream of the Yangtze River. Among the 10 typical rivers in Sichuan Province, the levels of antibiotics in the Minjiang River, Jialing River, and Qujiang River exhibited higher concentrations and posed more significant ecological risks compared to other regions [30]. However, relevant studies on the Anning River remain limited.
The Anning River flows through four counties and finally runs into the Yalong River Basin, one of the seven major river basins in China. It covers an area of 11,150 km2 and has a river length of ~350 km. The topography is marked by higher latitudes in the northwest and lower latitudes in the southeast. The Anning Valley Great Plains rank as the second largest plains in Sichuan Province [31]. Within the basin drainage area, the river serves not only as the primary source of drinking water for the towns along the river but also as an important water source for agricultural irrigation. Therefore, it is necessary to conduct a systematic and comprehensive study of the occurrence, distribution, and risk assessment of antibiotics in the surface sediments of the Anning River. Moreover, the stability of analytes is a critical point in chemical analysis, especially in the field of trace levels of antibiotics residue analysis [32]. This study has implemented rigorous sample collection and pretreatment methods, as well as strict quality control and assurance measures for antibiotic analysis in sediments, in order to ensure the stability of analysis results. Our study offers a comprehensive insight into the presence of antibiotics in the main river of Sichuan Province and offers theoretical support for safeguarding the river’s water quality.

2. Materials and Methods

2.1. Sample Collection

During the month of April in 2023, a total of ten surface sediment samples were collected from ten different locations along the Anning River, in conjunction with field research and an examination of pertinent information (Figure 1 and Table 1). Each sample was collected from the top 5 cm of the river sediments using a core sampler and was partitioned into two subsamples. The surface sediments were collected with a stainless-steel shovel that had been cleaned thoroughly. After sampling, the samples were wrapped in aluminum foil that had been rinsed with solvent, placed in a cooler, and transported to the laboratory within 24 h. They were then stored at −20 °C in darkness until they could be further processed. Subsequently, the samples underwent freeze-drying, milling, and sieving (0.25 mm). The treated sediment samples were then stored in opaque glass containers.

2.2. Chemicals and Reagents

This study focused on 36 antibiotics from five different categories: macrolides (MLs), fluoroquinolones (FQs), tetracyclines (TCs), amphenicols (APs), and sulfonamides (SAs). The MLs included Azithromycin (AZM), Erythromycin (ETM), Roxithromycin (ROM), Lincomycin (LM), Clindamycin (CLM), and Tylosin (TYL). The FQs included Danofloxacin (DAN), Sarafloxacin (SAN), Difloxacin (DIF), Enrofloxacin (ENR), Fleroxacin (FLN), Ciprofloxacin (CIP), Sparfloxacin (SPX), Norfloxacin (NOR), Pefloxacin (PFX), Ofloxacin (OFL), and Lomefloxacin (LMF). The TCs included Doxycycline (DC), Tetracycline (TC), Chlortetracycline (CTC), and Oxytetracycline (OTC). The SAs included Trimethoprim (TMP), Sulfamethoxazole (SMO), Sulfamethazine (SMH), Sulfadimethoxine (SMX), Sulfadiazine (SDZ), Sulfapyridine (SPD), Sulfathiazole (STZ), Sulfaquinoxaline (SQX), Sulfamonomethoxine (SMM), Sulfamethizole (SMT), Sulfachloropyridazine (SCP), and Sulfacetamide (SCT). The APs included Chloramphenicol (CHH), Thiamphenicol (THH), and Florfenicol (FF). The four internal standard compounds (ISTDs) included sulfadiazine-d6, levofloxacin-d8, tetracycline-d6, and chloramphenicol-d5. All the standards and ISTDs were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd (Shanghai, China).

2.3. Sample Treatment

The sediment samples were freeze-dried under dark conditions and homogenized by passing through a 2 mm mesh sieve. The sediment samples (2 g) were weighed into a centrifuge tube, mixed with ISTDs (50 ng), and extracted with 20 mL of ACN/0.1 M EDTA-McIlvaine buffer (pH 4.0). The mixture was immediately vortexed for 2 min and ultrasonicated for 15 min. The solution was centrifuged at 6000 rpm for 5 min, and the resulting liquid above the sediment was gently moved to a clean centrifuge tube. The extraction process was repeated three times, and all the supernatants were combined and diluted to 250 mL with ultrapure water. Prior to solid-phase extraction, 0.4 g Na2EDTA was added to the extract to chelate the metal cations, and hydrochloric acid was added to adjust the pH of the water sample to 3.0. The cartridge was eluted using a solid-phase Oasis HLB (200 mg/6 cc) at a flow rate of 5 mL/min. The HLB cartridge was prepared by adding 5 mL of methanol and 5 mL of 0.1% formic acid. After loading the samples into the HLB cartridges, the column was purified with nitrogen for 20 min, eluted three times using 6 mL of methanol, dried under nitrogen, reconstituted in a 1.0 mL mixture of acetonitrile and water (1:1, v/v), and stored at −20 °C until HPLC analysis.

2.4. Instrumental Analysis

The HPLC-MS/MS utilized an Agilent 6410 B tandem triple-quadrupole LC-MS/MS with a Waters Xterra C18 separation column (100 mm × 2.1 mm, 3.5 μm) and an ESI ionization source. Mobile phase: phase A consisted of 0.1% formic acid and ammonium formate, whereas Phase B was composed of acetonitrile. Linear gradient: 0 min, 5% B; 0.1~10 min, 10~60% B; 10~12 min, 60%; and 12.1~22 min, 10% B. The flow rate was 0.25 mL/min. The temperature of the column was held at 25 °C, with an injection volume of 200 μL. The parameters for MS were set as follows: the temperature of the gas was 350 °C, with a flow rate of 8 mL/min; the nebulizer pressure was maintained at 25 psi; and the capillary voltage was set to 4000 V.

2.5. Quality Control and Quality Assurance

The analyses underwent rigorous quality control measures. One parent ion and two sub-ion ions were selected for each compound for monitoring. Under the same experimental conditions, the absolute value of the relative standard deviation should be less than 3% when comparing the retention time of the compound to be tested with that of the target compound in the standard sample. Standard solution spectra with similar concentrations were used to compare the relative abundances of the qualitative ions of each compound. This difference did not exceed the relative standard deviation (0.81–2.74%). Before sample analysis, experimental blanks, procedure blanks, and blank spiked recoveries were established.

2.6. Ecological Risk Assessment

The potential ecotoxicological risks of antibiotics in rivers were assessed using the risk quotient (RQ) [27,33]. The RQ values are typically represented as the ratio between the measured environmental concentrations (MECs) or predicted environmental concentrations (PECs) of pollutants and the predicted no-effect concentrations (PNECs) for those pollutants [34]. The RQ value is the measured environmental concentration (MEC) divided by the PNEC.
The PNECw was calculated according to the following equation (Equation (1)):
P N E C W = N O E C   o r   E C 50 A F
where the no observed effect concentration and mean effective concentration are represented by NOEC and EC50, respectively. The assessment factor (AF) depends on toxicity data, with values of ten, fifty, or one hundred for chronic toxicity and one thousand for acute toxicity [34,35]. The most sensitive species were chosen to maximize the ecological impact of antibiotics. Without sediment toxicity data, the PNEC values were estimated from the PNECw values using the equilibrium partition approach, as shown in the following equation (Equation (2)) [33]
P N E C S = P N E C W × K d
where Kd represents the sediment–water partition coefficient (L/kg) of antibiotics, as determined in previous studies [30,35]. The toxicity data for the antibiotics in this study were primarily obtained from previously documented sources, as detailed in Table 2.
The RQ values for evaluating the risks of antibiotics in the sediments were determined using the following equation (Equation (3)):
R Q = M E C S P N E C W × K d
where the MECs represent the concentrations of antibiotics in the sediments. Based on the RQ values, four levels of risk were defined: minimal risk (RQ < 0.01), low risk (0.01 ≤ RQ < 0.1), moderate risk (0.01 ≤ RQ < 1), and high risk (RQ ≥ 1) [27].
Antibiotics frequently occur in the natural environment in combinations, which can intensify their impact on the environment due to their combined effects [36]. Therefore, the combined risks should be calculated to evaluate the synergistic effects of antibiotics on biological systems [37]. A new combined RQ (ΣRQ) of antibiotics, utilizing the concentration coefficients of antibiotics as the weight assignments for evaluating the ecological risks of different antibiotics, was developed in a previous study [38]. Equation (4) is given as follows:
Σ R Q = Σ R Q s M E C s / M E C s u m
where ΣRQ is the combined ecological risk of the 17 antibiotics, RQs is the ecological risk of each antibiotic, and MECsum is the total concentration of antibiotics in the sediment samples (ng/g).
Table 2. Toxicity data of the antibiotics, including their AF, PNECw, Kd, and PNECs values.
Table 2. Toxicity data of the antibiotics, including their AF, PNECw, Kd, and PNECs values.
AntibioticsSpeciesToxicity Data (μg/L)AFPNECw
(ng/L)
KdPNECs
(ng/g)
Ref.
AZMP. subcapitataNOEC = 105020017.33.46[39,40]
ROMP. subcapitataNOEC = 101010001212[27]
LMP. sucapitataNOEC = 5105005.42.7[39,40]
CLMB. cifloruEC50 = 24,940100024,9405.4134.676[39,40]
TYLD. polymorphaNOEC = 0.2910295.40.1566[39,41]
ENRV. fischeriNOEC = 2.881028826074.880[27,42]
CIPL. perenneNOEC = 501050004172085.000[39,43]
NORM. aeruginosaNOEC = 1.61016053785.92[27,40]
OFLP. subcapitataNOEC = 1.13101131471166.223[39,44]
DCL. gibbaNOEC = 10101000724724[39,40]
TCP. subcapitataNOEC = 0.51050109354.650[27]
CTCL. gibbaNOEC = 301030007782334.000[39,40]
OTCE. densaNOEC = 201020006701340.000[39,40]
TMPD. polymorphaNOEC = 0.2910297.40.2146[39,45]
SMMC. vulgarisEC50 = 5900100059009.6957.171[27,29]
SCPL. gibbaEC50 = 2330100023300.40.932[39,40]
FFR. subcapitataEC50 = 23001000230029. 467.62[27]

3. Results and Discussion

3.1. Occurrence and Composition of Antibiotics

The results from the antibiotic monitoring experiments carried out in the Anning River are displayed in Table 3 and Table S1. In general, the sediment samples detected 22 of the 36 antibiotics monitored. The recovery rate of antibiotics was 50.6~110.93%, the detection limit of the samples was 0.003~0.326 ng/L, and the quantitative line was 0.01~1.09 ng/L. At least four antibiotics were found at each sampling site, suggesting their widespread distribution in the Anning River. A total of 12 compounds, including LM, CLM, TYL, DAN, CIP, PFX, LMF, CTC, SMM, SMT, SCP, and SCT, were sporadically identified in the sediments at levels lower than 1 ng/g. As for the remaining ten antibiotics (AZM, ROM, ENR, NOR, OFL, DC, TC, OTC, TMP, and FF), their concentrations and detection frequencies (DFs) were relatively high.
According to Table 3, the total concentrations of antibiotics in surface sediments varied from 0.05 to 53.35 ng/g, with an average of 8.09 ng/g. The concentrations of SAs and APs ranged from <LOD to 39.54 ng/g and <LOD to 5.11 ng/g, respectively, with relatively low DFs of 40% and 70%, respectively. Contrastingly, MLs, FQs, and TCs exhibited the highest levels of DFs among the antibiotic categories. The concentrations ranged from <LOD to 6.39 ng/g (mean: 0.69 ng/g), 0.51 to 27.41 ng/g (mean: 2.1 ng/g), and <LOD to 7.98 ng/g (mean: 1.05 ng/g) for MLs, FQs, and TCs, with DFs of 80%, 100%, and 90%, respectively. In general, the sediment DFs were ordered as follows: FQs > TCs > MLs > APs > SAs. The variations in distribution were associated with the adsorption capacities, as compounds with greater adsorption coefficients were more commonly detected in the sediments. The distribution trend was consistent with the findings in Yangtze River sediments, showing a positive correlation between the distribution coefficients of these antibiotics and their Kd values [27].
Additionally, FQs may also occur frequently due to their common usage in daily life. FQs are commonly utilized in human clinical medicine and animal breeding, whereas TCs are frequently utilized in veterinary medicine for prophylaxis and infection management, as well as for promoting animal growth due to their cost-effectiveness [7]. Among the FQs, OFL exhibited a concentration of 16.26 ng/g (mean: 4.18 ng/g), with a DF of 100%. ENR was typically found in concentrations ranging from <LOD to 1.44 ng/g (mean: 0.61 ng/g), with a DF of 90%. Meanwhile, the concentrations of four TCs ranged from <LOD to 4.76 ng/g, with DFs ranging from 20% (CTC) to 70% (doxycycline and tetracycline). In contrast, TMP from the SAs category exhibited the highest concentration at 39.49 ng/g (mean: 17.78 ng/g), with a DF of 30%.
The antibiotic concentrations observed in this study were generally lower than those reported in other river sediment studies. For instance, CIP, ENR, and NOR from the FQ category had concentrations of less than the limit of quantification (LOQ) of 44.23, 19.53, and 46.64 ng/g, respectively, in the Yangtze River [27]. Additionally, the concentration of TC in the Yangtze River (Chongqing section) ranged from <LOD to 5.03 ng/g, which was higher than the results obtained in this study. In contrast, the concentration of OTC in the Yangtze River was lower, ranging from <LOD to 2.59 ng/g [46].
When compared to other rivers in China (Table S2), the concentrations of TCs in this study were similar to those found in the urban rivers of Chengdu City, Sichuan Province (mean: 2.59 ng/g) [47]. However, the concentrations were notably lower than those in major rivers across China, such as the Pearl River (mean: 24.85 ng/g), the Yangtze River (mean: 25.95 ng/g), the Hai River (mean: 534.58 ng/g) [29], and the Hanjiang River (mean: 9.2 ng/g) [14]. Furthermore, the levels of MLs, FQs, and SAs in this study were found to be comparatively lower than those documented for other major rivers throughout China.

3.2. Spatial Distribution of Antibiotic Concentrations along the Anning River

The total concentrations of antibiotics in the sediment samples ranged from 0.80 to 55.51 ng/g (Figure 2a). There was no clear increasing trend in the sediment samples from upstream to downstream. The highest levels of antibiotic residues were found in midstream sediments, with average concentrations of 25.78 ng/g. This was followed by downstream concentrations of 15.36 ng/g and upstream concentrations of 1.55 ng/g.
The most polluted midstream area was found at site A3, where the total concentration in the sediments was 55.51 ng/g, dominated by TMP from the SAs category (Figure 2a,b). SAs are frequently employed in medical, agricultural, aquaculture, and livestock sectors to prevent and treat bacterial and protozoan infections [48]. Site A3 was located in the Anning Valley Great Plains, an area with developed animal husbandry and agriculture, suggesting a high likelihood of veterinary residue [49].
Another significantly polluted midstream area was observed at site A5, with total sediment concentrations reaching 42.43 ng/g. These concentrations were dominated by OFL and NOR in the FQ category. Both are used in human and veterinary pharmaceuticals [50], with a significant annual consumption of 5110 tons in China in 2013 [7]. Site A5 was located near Xichang City in the Anning Valley Great Plains, the largest city along the river. The potential sources of these antibiotics, due to dense population and economic growth, include wastewater treatment plants, sludge, and hospital wastewater associated with human activities [51,52,53].
However, no notable increase in concentrations was found in major cities along the river, such as Mianning (A2), Dechang (A7), and Miyi (A9). The most polluted downstream area was observed at site A8, with total concentrations in the sediments reaching 30.07 ng/g, dominated by OFL from the FQ category. OFL was the only compound detected at each sampling site. Its high absorption capability could be a significant contributor to its heightened detection levels [54]. OFL is primarily employed in the realm of human medicine, and its utilization is quite prevalent in China [16,55,56,57].

3.3. Ecological Risk Assessment

According to the risk assessment methods of the European Commission (2003), risk quotients (RQs) were estimated based on the predicted no-effect concentrations (PNECs) for the most sensitive species. The potential ecological risks of the antibiotics under investigation were evaluated based on toxicity data obtained from previous studies (Table 2). Out of the 22 compounds that were detected, ecological risk assessments could not be conducted for five (DAN, PFX, LMF, SMT, and SCT) due to insufficient toxicity data.
The results are presented in Figure 3 and Table S3. Most antibiotics exhibited trace residues, resulting in RQs below 0.1, indicating low to minimal ecological risk. FQs, TCs, SAs, and APs generally pose minimal to low risks, suggesting that they may have a limited ecological impact on the Anning River. TMP from the SA group presented a high risk at sites A3, A4, and A5, with the highest concentrations at site A3. These findings indicate that TMP poses a high ecological risk to aquatic ecosystems and should be prioritized for control. OFL exhibited low risk at all the sampling sites, consistent with its 100% detection frequency.
The MLs, AZM, TYL, and ROM, were found to have medium risks at 70%, 40%, and 30% of the sampling sites, respectively. The high-risk sites were predominantly located in the midstream segment of the Anning River, in close proximity to residential and agricultural areas, whereas the medium-risk sites were found in both the midstream and downstream areas close to agricultural regions. The combined ecological risk (ΣRQ) of antibiotics was low at some sampling sites (sites A1–2, A6–7, and A9–10), with ΣRQ values ranging from 0.01 to 0.1 (Figure 3). The ΣRQ value at sampling site A8 indicated medium risk. High risks were noted at sites A3, A4, and A5, along the midstream area of the Anning River.
Upon comparing the ecological risk values of antibiotics in the typical rivers of Sichuan Province [30] with those in the Anning River, it was revealed that despite the highest value being present in the Anning River, the overall antibiotic risk values in this river were relatively low (Figure 4). However, the ecological risk level varies depending on factors such as the type of the antibiotic being tested, the quantity of sampling sites, and the duration of monitoring. Hence, further research is imperative to more accurately evaluate the ecological risk posed by antibiotics in the study area.
Although the ecological risk associated with most antibiotics is considered to be low, there should be greater focus on the antibiotic risk to human health. Antibiotics in aquatic ecosystems can affect aquatic organisms, bacterial population dynamics, and the spread of antibiotic-resistant genes (ARGs) [58,59]. ARGs have the potential to be transmitted through horizontal gene transfer among different organisms, leading to the emergence of antibiotic-resistant bacteria that could pose a risk to human health through the food chain [60]. Unfortunately, there is limited data on the pollution characteristics and ecological risks of ARGs in the sediments of the Anning River. Further research in this area is necessary, and future ecological risk assessments of antibiotics in the environment should incorporate ARGs. Therefore, ecological risk assessment methods should continue to evolve and improve.

4. Conclusions

This study systematically investigated the occurrence, distribution, and ecological risks of 36 antibiotics in the surface sediments of the Anning River in Southwest China. A total of 22 antibiotics were detected in the sediments in the following order of abundance: FQs > TCs > MLs > APs > SAs. TMP from the SA group exhibited the highest concentration, reaching 39.49 ng/g (mean: 17.78 ng/g) at site A3, located in the Anning Valley Great Plains, where animal husbandry and agriculture are prevalent. The average concentrations of antibiotics in the Anning River were generally lower than those found in other studies of river sediments, including the Pearl, Yangtze, and Hai Rivers. The risk quotient method was used to assess the ecological risks of the detected antibiotics, and the results indicated that TMP from the SA group posed a high risk in the midstream section of the river (sites A3, A4, and A5), whereas AZM, TYL, and ROM from the ML group presented a medium risk. Compared to the RQ values observed in typical rivers within Sichuan Province [30], the ecological risk posed by antibiotics in the Anning River was relatively minimal. Nevertheless, further efforts are required to enhance the ongoing surveillance of antibiotic contamination within the study area. The findings of this study will contribute to bridging the existing knowledge gap regarding the antibiotic profiles in the surface sediments of the Anning River on a local scale. This information can contribute to future research on the long-term monitoring and risk control of the study area.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/toxics12060411/s1, Table S1: Concentrations (ng/g) of antibiotics detected in the sediments of the Anning river; Table S2: The concentration of antibiotics in surface sediments in China (ng/g); Table S3: The risk quotients (RQs) of the target antibiotics in sediments from the Anning river. Reference [61] is cited in the Supplementary Materials.

Author Contributions

Conceptualization, J.Z.; methodology, J.Z., J.K., C.L. and J.L.; software, Q.X. and J.K.; investigation, J.Z., J.K., C.L., Q.X., W.Y. and K.F.; data curation, J.K., C.L., Q.X., W.Y. and K.F.; writing—original draft preparation, J.Z.; writing—review and editing, J.Z., J.K., C.L., Q.X., W.Y., K.F. and J.L.; visualization, Q.X. and J.K.; project administration, J.Z.; funding acquisition, J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key R&D Projects of Liangshan Prefecture Science and Technology Plan (grant number: 22ZDYF0171).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the data used in this work are available either within the article or in the Supporting Information File.

Acknowledgments

We acknowledge all the participants in this study and all the researchers and research assistants who collected data for this project. We also acknowledge the anonymous reviewers for reviewing this paper.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Cromwell, G.L. Why and how antibiotics are used in swine production. Anim. Biotechnol. 2002, 13, 7–27. [Google Scholar] [CrossRef] [PubMed]
  2. Gibs, J.; Heckathorn, H.A.; Meyer, M.T.; Klapinski, F.R.; Alebus, M.; Lippincott, R.L. Occurrence and partitioning of antibiotic compounds found in the water column and bottom sediments from a stream receiving two wastewater treatment plant effluents in Northern New Jersey, 2008. Sci. Total Environ. 2013, 458–460, 107–116. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, B.; Cao, M.; Zhu, H.; Chen, J.; Wang, L.; Liu, G.; Gu, X.; Lu, X. Distribution of perfluorinated compounds in surface water from Hanjiang River in Wuhan, China. Chemosphere 2013, 93, 468–473. [Google Scholar] [CrossRef] [PubMed]
  4. Jiang, L.; Hu, X.; Yin, D.; Zhang, H.; Yu, Z. Occurrence, distribution and seasonal variation of antibiotics in the Huangpu River, Shanghai, China. Chemosphere 2011, 82, 822–828. [Google Scholar] [CrossRef] [PubMed]
  5. Lei, X.; Lu, J.; Liu, Z.; Tong, Y.; Li, S. Concentration and distribution of antibiotics in water–sediment system of Bosten Lake, Xinjiang. Environ. Sci. Pollut. Res. 2015, 22, 1670–1678. [Google Scholar] [CrossRef]
  6. Zhao, S.; Liu, X.; Cheng, D.; Liu, G.; Liang, B.; Cui, B.; Bai, J. Temporal–spatial variation and partitioning prediction of antibiotics in surface water and sediments from the intertidal zones of the Yellow River Delta, China. Sci. Total Environ. 2016, 569–570, 1350–1358. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, Q.Q.; Ying, G.G.; Pan, C.G.; Liu, Y.S.; Zhao, J.L. Comprehensive evaluation of antibiotics emission and fate in the river basins of China: Source analysis, multimedia modeling, and linkage to bacterial resistance. Environ. Sci. Technol. 2015, 49, 6772–6782. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, D.; Sui, Q.; Zhao, W.T.; Lv, S.G.; Qiu, Z.F.; Yu, G. Pharmaceutical and personal care products in the surface water of China: A review. Chin. Sci. Bull. 2014, 59, 743–751. (In Chinese) [Google Scholar]
  9. Fatta-Kassinos, D.; Meric, S.; Nikolaou, A. Pharmaceutical residues in environmental waters and wastewater: Current state of knowledge and future research. Anal. Bioanal. Chem. 2011, 399, 251–275. [Google Scholar] [CrossRef]
  10. Liao, X.; Zou, R.; Li, B.; Tong, T.; Xie, S.; Yuan, B. Biodegradation of chlortetracycline by acclimated microbiota. Process Saf. Environ. Prot. 2017, 109, 11–17. [Google Scholar] [CrossRef]
  11. Cai, Y.; Sun, T.; Li, G.; An, T. Traditional and Emerging Water Disinfection Technologies Challenging the Control of Antibiotic-Resistant Bacteria and Antibiotic Resistance Genes. ACS EST Eng. 2021, 1, 1046–1064. [Google Scholar] [CrossRef]
  12. Qi, Z.; Li, G.; Wang, M.; Chen, C.; Xu, Z.; An, T. Photoelectrocatalytic inactivation mechanism of E. coli DH5α (TET) and synergistic degradation of corresponding antibiotics in water. Water Res. 2022, 215, 118240. [Google Scholar] [CrossRef] [PubMed]
  13. Oberoi, A.S.; Jia, Y.; Zhang, H.; Khanal, S.K.; Lu, H. Insights into the Fate and Removal of Antibiotics in Engineered Biological Treatment Systems: A Critical Review. Environ. Sci. Technol. 2019, 53, 7234–7264. [Google Scholar] [CrossRef] [PubMed]
  14. Hu, Y.; Xue, Y.; Shen, Y.; Di, M.X.; Wang, J. Antibiotics in surface water and sediments from Hanjiang River, Central China: Occurrence, behavior and risk assessmen. Ecotoxicol. Environ. Saf. 2018, 157, 150–158. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, K.; Zhou, J.L. Occurrence and behavior of antibiotics in water and sediments from the Huangpu River, Shanghai, China. Chemosphere 2014, 95, 604–612. [Google Scholar] [CrossRef]
  16. Liang, X.; Chen, B.; Nie, X.; Shi, Z.; Huang, X.; Li, X. The distribution and partitioning of common antibiotics in water and sediment of the Pearl River Estuary, South China. Chemosphere 2013, 92, 1410–1416. [Google Scholar] [CrossRef]
  17. Colzani, L.; Forni, C.; Clerici, L.; Barreca, S.; Dellavedova, S. Determination of pollutants, antibiotics, and drugs in surface water in Italy as required by the third EU Water Framework Directive Watch List: Method development, validation, and assessment. Environ. Sci. Pollut. Res. 2024, 31, 14791–14803. [Google Scholar] [CrossRef]
  18. Chen, H.; Liu, S.; Xu, X.R.; Zhou, G.J.; Liu, S.S.; Yue, W.Z.; Sun, K.F.; Ying, G.G. Antibiotics in the coastal environment of the Hailing Bay region, South China Sea: Spatial distribution, source analysis and ecological risks. Mar. Pollut. Bull. 2015, 95, 365–373. [Google Scholar] [CrossRef]
  19. Hernando, M.D.; Mezcua, M.; Fernández-Alba, A.R.; Barceló, D. Environmental risk assessment of pharmaceutical residues in wastewater effluents, surface waters and sediments. Talanta 2006, 69, 334–342. [Google Scholar] [CrossRef]
  20. Wollenberger, L.; Halling-Sørensen, B.; Kusk, K.O. Acute and chronic toxicity of veterinary antibiotics to Daphnia magna. Chemosphere 2000, 40, 723–730. [Google Scholar] [CrossRef]
  21. Yang, J.F.; Ying, G.G.; Zhao, J.L.; Tao, R.; Su, H.C.; Chen, F. Simultaneous determination of four classes of antibiotics in sediments of the Pearl Rivers using RRLC–MS/MS. Sci. Total Environ. 2010, 408, 3424–3432. [Google Scholar] [CrossRef]
  22. Dong, D.M.; Zhang, L.W.; Liu, S.; Guo, Z.Y.; Hua, X.Y. Antibiotics in water and sediments from Liao River in JilinProvince, China: Occurrence, distribution, and risk assessment. Environ. Earth Sci. 2016, 75, 1202. [Google Scholar] [CrossRef]
  23. Zhou, L.J.; Ying, G.G.; Zhao, J.L.; Yang, J.F.; Wang, L.; Yang, B.; Liu, S. Trends in the occurrence of human and veterinary antibiotics in the sediments of the Yellow River, Hai River and Liao River in northern China. Environ. Pollut. 2011, 159, 1877–1885. [Google Scholar] [CrossRef]
  24. Jamieson, A.J.; Malkocs, T.; Piertney, S.B.; Fujii, T.; Zhang, Z. Bioaccumulation of persistent organic pollutants in the deepest ocean fauna. Nat. Ecol. Evol. 2017, 1, 51. [Google Scholar] [CrossRef] [PubMed]
  25. Hong, B.; Yu, S.; Zhou, M.; Li, J.; Li, Q.; Ding, J.; Lin, Q.; Lin, X.; Liu, X.; Chen, P.; et al. Sedimentary spectrum and potential ecological risks of residual pharmaceuticals in relation to sediment water partitioning and land uses in a watershed. Sci. Total Environ. 2022, 817, 152979. [Google Scholar] [CrossRef]
  26. Fernandes, M.J.; Paíga, P.; Silva, A.; Llaguno, C.P.; Carvalho, M.; Vázquez, F.M.; Delerue-Matos, C. Antibiotics and antidepressants occurrence in surface waters and sediments collected in the north of Portugal. Chemosphere 2020, 239, 124729. [Google Scholar] [CrossRef] [PubMed]
  27. Chen, Y.; Jiang, C.; Wang, Y.; Song, R.; Tan, Y.; Yang, Y.; Zhang, Z. Sources, Environmental Fate, and Ecological Risks of Antibiotics in Sediments of Asia’s Longest River: A Whole-Basin Investigation. Environ. Sci. Technol. 2022, 56, 14439–14451. [Google Scholar] [CrossRef]
  28. Xue, B.; Zhang, R.; Wang, Y.; Liu, X.; Li, J.; Zhang, G. Antibiotic contamination in a typical developing city in south China: Occurrence and ecological risks in the Yongjiang River impacted by tributary discharge and anthropogenic activities. Ecotoxicol. Environ. Saf. 2013, 92, 229–236. [Google Scholar] [CrossRef]
  29. Li, S.; Shi, W.Z.; Liu, W.; Li, H.M.; Zhang, W.; Hu, J.R.; Ke, Y.C.; Sun, W.L.; Ni, J.R. A duodecennial national synthesis of antibiotics in China’s major rivers and seas (2005–2016). Sci. Total Environ. 2018, 615, 906–917. [Google Scholar] [CrossRef]
  30. Wu, M.H. Characteristics of Antibiotic Residues and Drug Resistance of Enterobacteriaceae Bacteria in Typical Rivers in Sichuan. Master’s Thesis, Chengdu Medical College, Chengdu, China, 2021. (In Chinese with English Abstract). [Google Scholar]
  31. Shi, Z.; Wang, X.; Shi, Y.; Ni, S.; Li, Y.; Wang, D.; Wang, R. Impact of intensive mining on the distribution of heavy metals in water and sediment of Anning River, southwest China. Geochem. Explor. Environ. Anal. 2018, 19, 24–30. [Google Scholar] [CrossRef]
  32. Barreca, S.; Forni, C.; Colzani, L.; Clerici, L.; Daverio, D.; Dellavedova, P. Study on the Stability of Antibiotics, Pesticides and Drugs in Water by Using a Straightforward Procedure Applying HPLC-Mass Spectrometric Determination for Analytical Purposes. Separations 2021, 8, 179. [Google Scholar] [CrossRef]
  33. Wu, X.L.; Xiang, L.; Yan, Q.Y.; Jiang, Y.N.; Li, Y.W.; Huang, X.P.; Li, H.; Cai, Q.Y.; Mo, C.H. Distribution and risk assessment of quinolone antibiotics in the soils from organic vegetable farms of a subtropical city, Southern China. Sci. Total Environ. 2014, 487, 399–406. [Google Scholar] [CrossRef] [PubMed]
  34. European Commission. Technical Guidance Document in Support of Commission Directive 93/67/EEC on Risk Assessment for New Notified Substances and Commission Regulation (EC) No. 1488/94 on Risk Assessment for Existing Substances, Part II; European Commission: Brussels, Belgium, 2003. [Google Scholar]
  35. Martin, J.; Camacho-Munoz, D.; Santos, J.L.; Aparicio, I.; Alonso, E. Occurrence of pharmaceutical compounds in wastewater and sludge from wastewater treatment plants: Removal and ecotoxicological impact of wastewater discharges and sludge disposal. J. Hazard. Mater. 2012, 239–240, 40–47. [Google Scholar] [CrossRef] [PubMed]
  36. Cleuvers, M. Mixture toxicity of the anti-inflammatory drugs diclofenac, ibuprofen, naproxen and acetylsalicylic acid. Ecotoxicol. Environ. Saf. 2004, 59, 309–315. [Google Scholar] [CrossRef] [PubMed]
  37. Liu, X.; Lu, S.; Meng, W.; Wang, W. Occurrence, source, and ecological risk of antibiotics in Dongting Lake, China. Environ. Sci. Pollut. Res. 2018, 25, 11063–11073. [Google Scholar] [CrossRef] [PubMed]
  38. Zhang, L.; Bai, J.; Zhang, K.; Zhai, Y.; Wang, Y.; Liu, H.; Xiao, R.; Jorquera, M.A.; Xia, J. Spatial variability, source identification and risks assessment of antibiotics in multimedia of North China’s largest freshwater lake using positive matrix factorization and Monte Carlo simulation. J. Hazard. Mater. 2023, 457, 131751. [Google Scholar] [CrossRef] [PubMed]
  39. Wu, J.Y.; Gao, J.M.; Wang, D.R.; Hou, X.Y.; Zhu, T. Characteristics and potential ecological risk assessment of antibiotic pollution in a farming site in a village in Northeast China. In Proceedings of the 2022 Annual Science and Technology Conference of the Chinese Society of Environmental Sciences, Nanchang, China, 20–21 August 2022; pp. 1308–1317, (In Chinese with English Abstract). [Google Scholar]
  40. Gu, J.; Chen, C.; Huang, X.; Mo, J.C.; Xie, Q.L.; Zeng, Q.Y. Occurrence and risk assessment of telraeyeline antibiotics in soils and vegetables from vegetable fields in Pearl River Delta, South China. Sci. Total Environ. 2021, 776, 145959. [Google Scholar] [CrossRef]
  41. Sassman, S.A.; Sarmah, A.K.; Lee, L.S. Sorption of tylosin A, D, and A-aldol and degradation of tylosin A in soils. Environ. Toxicol. Chem. 2007, 26, 1629–1635. [Google Scholar] [CrossRef] [PubMed]
  42. Nowara, A.; Burhenne, J.; Spiteller, M. Binding of fluoroquinolone car-boxylic acid derivatives to clay minerals. J. Agric. Land Food Chem. 1997, 45, 1459–1463. [Google Scholar] [CrossRef]
  43. Halling Sorensen, B. Algal toxicity of antibacterial agents used in intensive farming. Chemosphere 2000, 40, 731–739. [Google Scholar] [CrossRef]
  44. Conkle, J.L.; Lattao, C.; White, J.R.; Cook, R.L. Competitive sorption and desorption behavior for three fluoroquinolone antibiotics in a waste water treatment wetland soil. Chemosphere 2010, 80, 1353–1359. [Google Scholar] [CrossRef] [PubMed]
  45. Lin, K.; Gan, J. Sorption and degradation of wastewater-associated non-steroidal anti-inflammatory drugs and antibiotics in soils. Chemosphere 2011, 83, 240–246. [Google Scholar] [CrossRef] [PubMed]
  46. Wang, G.; Zhou, S.; Han, X.; Zhang, L.; Ding, S.; Li, Y.; Zhang, D.; Zarin, K. Occurrence, distribution, and source track of antibiotics and antibiotic resistance genes in the main rivers of Chongqing city, Southwest China. J. Hazard. Mater. 2020, 389, 122110. [Google Scholar] [CrossRef] [PubMed]
  47. Lyu, Y.; Xu, X.; Yuan, Y.; Wang, Z.; Hu, J.; Chen, Q.; Sun, W. Antibiotic profiles and their relationships with multitrophic aquatic communities in an urban river. Sci. Total Environ. 2023, 868, 161678. [Google Scholar] [CrossRef] [PubMed]
  48. Wu, W.; Qi, M.; Zhang, Z.; Lan, Q.; Hu, H. Study on the current situation and detection methods of sulfonamide antibiotics contamination. J. Environ. Sci. Manag. 2022, 47, 121–126, (In Chinese with English Abstract). [Google Scholar]
  49. Wang, Z.; Du, Y.; Yang, C.; Liu, X.; Zhang, J.; Li, E.; Zhang, Q.; Wang, X. Occurrence and ecological hazard assessment of selected antibiotics in the surface waters in and around Lake Honghu, China. Sci. Total Environ. 2017, 609, 1423–1432. [Google Scholar] [CrossRef] [PubMed]
  50. Castrignanò, E.; Kannan, A.M.; Proctor, K.; Petrie, B.; Hodgen, S.; Feil, E.J.; Lewis, S.E.; Lopardo, L.; Camacho-Muñoz, D.; Rice, J. (Fluoro) quinolones and quinolone resistance genes in the aquatic environment: A river catchment perspective. Water Res. 2020, 182, 116015. [Google Scholar] [CrossRef]
  51. Xie, Y.; Wang, P.; Li, P.; He, Y. Co-degradation of ofloxacin and its impact on solid phase denitrification with polycaprolactone as carbon source. Bioresour. Technol. 2022, 350, 126938. [Google Scholar] [CrossRef] [PubMed]
  52. Khadra, A.; Ezzariai, A.; Merlina, G.; Capdeville, M.-J.; Budzinski, H.; Hamdi, H.; Pinelli, E.; Hafidi, M. Fate of antibiotics present in a primary sludge of WWTP during their co-composting with palm wastes. Waste Manag. 2019, 84, 13–19. [Google Scholar] [CrossRef]
  53. Husain Khan, A.; Abdul Aziz, H.; Khan, N.A.; Ahmed, S.; Mehtab, M.S.; Vambol, S.; Vambol, V.; Changani, F.; Islam, S. Pharmaceuticals of emerging concern in hospital wastewater: Removal of ibuprofen and ofloxacin drugs using MBBR method. Int. J. Environ. Anal. Chem. 2023, 103, 140–154. [Google Scholar] [CrossRef]
  54. Li, W.H.; Shi, Y.L.; Gao, L.H.; Liu, J.M.; Cai, Y.Q. Occurrence of antibiotics in water, sediments, aquatic plants, and animals from Baiyangdian Lake in North China. Chemosphere 2012, 89, 1307–1315. [Google Scholar] [CrossRef]
  55. Luo, J.; Wang, R.L. Analysis of quinolones used in 35 hospitals of Guangzhou area during the 4-year period. Chin. J. Process Eng. 2006, 15, 31–33. [Google Scholar]
  56. Zhang, R.J.; Zhang, G.; Zheng, Q.; Tang, J.H.; Chen, Y.J.; Xu, W.H.; Zou, Y.D.; Chen, X.X. Occurrence and risks of antibiotics in the Laizhou Bay, China: Impacts of river discharge. Ecotoxicol. Environ. Saf. 2012, 80, 208–215. [Google Scholar] [CrossRef] [PubMed]
  57. Zhang, H.M.; Liu, P.X.; Peng, Y.J.; Yang, F.L. Fate of antibiotics during wastewater treatment and antibiotic distribution in the effluent-receiving waters of the Yellow Sea, northern China. Mar. Pollut. Bull. 2013, 73, 282–290. [Google Scholar] [CrossRef] [PubMed]
  58. Martínez, J.L. Antibiotics and antibiotic resistance genes in natural environments. Science 2008, 321, 365–367. [Google Scholar] [CrossRef] [PubMed]
  59. Larsson, D.G. Antibiotics in the environment. Upsala J. Med. Sci. 2014, 119, 108–112. [Google Scholar] [CrossRef] [PubMed]
  60. Pruden, A.; Pei, R.; Storteboom, H.; Carlson, K.H. Antibiotic resistance genes as emerging contaminants: Studies in northern Colorado. Environ. Sci. Technol. 2006, 40, 7445–7450. [Google Scholar] [CrossRef]
  61. Zhang, G.; Lu, S.; Wang, Y.; Liu, X.; Liu, Y.; Xu, J.; Zhang, T.; Wang, Z.; Yang, Y. Occurrence of antibiotics and antibiotic resistance genes and their correlations in lower Yangtze River, China. Environ. Pollut. 2020, 257, 113365. [Google Scholar] [CrossRef]

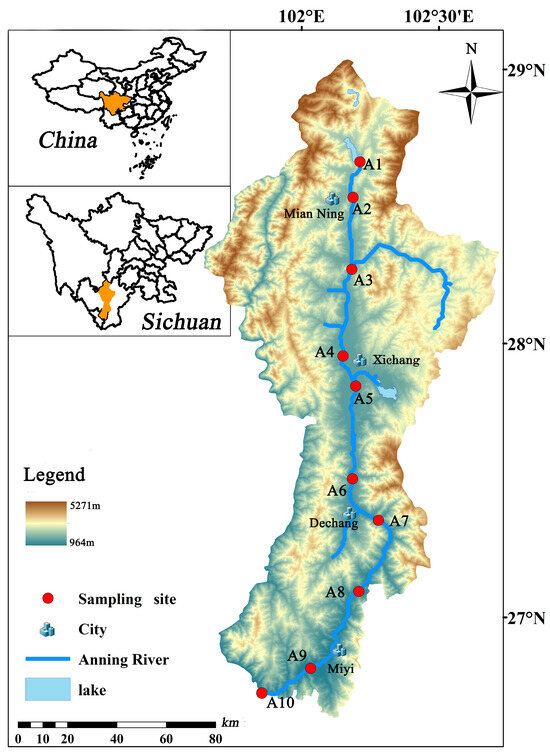

Figure 1. Location of sampling sites in the Anning River.
Figure 1. Location of sampling sites in the Anning River.
Toxics 12 00411 g001

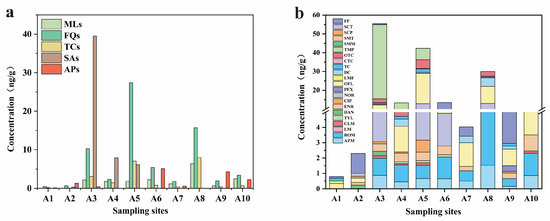

Figure 2. Concentration distribution of five antibiotic categories (a) and each antibiotic (b) in sediments from the Anning River.
Figure 2. Concentration distribution of five antibiotic categories (a) and each antibiotic (b) in sediments from the Anning River.
Toxics 12 00411 g002

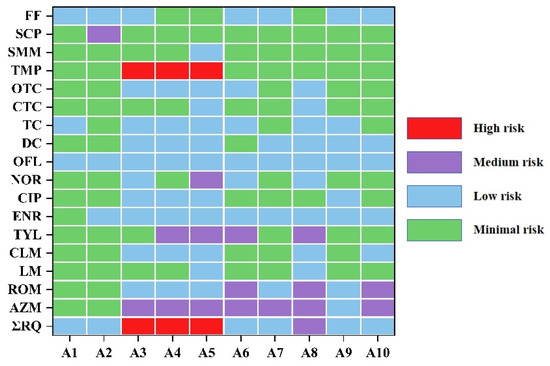

Figure 3. Ecological risks (RQs) of antibiotics in surface sediments from the Anning River.
Figure 3. Ecological risks (RQs) of antibiotics in surface sediments from the Anning River.
Toxics 12 00411 g003

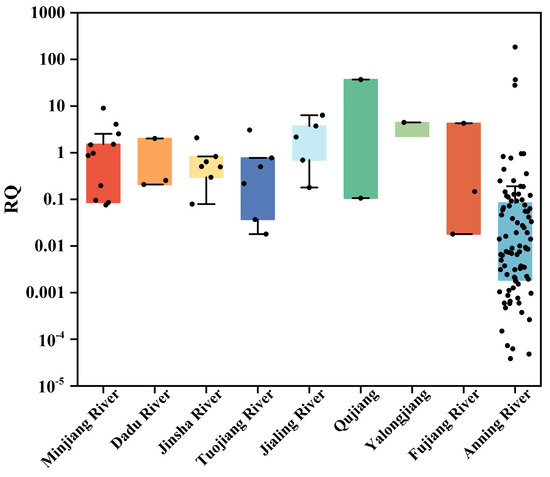

Figure 4. Ecological risks (RQs) of antibiotics from typical rivers in Sichuan Province [30] and the Anning River.
Figure 4. Ecological risks (RQs) of antibiotics from typical rivers in Sichuan Province [30] and the Anning River.
Toxics 12 00411 g004
Table 1. Basic information for each sampling site of the Anning River.
Table 1. Basic information for each sampling site of the Anning River.
Sampling SiteGeographic Location
(N, E)
CountyLand UseSite Characteristic
A128.66°102.21°MianningForestUpstream
A228.53°102.18°Built land
A328.27°102.18°CroplandMidstream
A427.95°102.15°XichangCropland
A527.84°102.20°Built land
A627.51°102.18°DechangCropland
A727.36°102.28°Built land
A827.10°102.21°MiyiCroplandDownstream
A926.81°102.03°Cropland
A1026.72°101.85°Forest
Table 3. Concentrations (ng/g) of Antibiotics in Surface Sediments from the Anning River.
Table 3. Concentrations (ng/g) of Antibiotics in Surface Sediments from the Anning River.
AntibioticsMinMaxMeanDF ** (%)
AZM<LOD *1.530.7180
ROM<LOD4.251.4280
LM<LOD0.180.1020
CLM<LOD0.300.1750
TYL<LOD0.150.1440
MLs<LOD6.390.6980
DAN<LOD0.290.2720
ENR<LOD1.440.6190
CIP<LOD0.780.2740
NOR<LOD9.644.9040
PFX<LOD0.370.3710
OFL0.2916.264.18100
LMF<LOD0.190.1830
FQs0.5127.412.10100
DC<LOD4.561.0870
TC<LOD1.50.4570
CTC<LOD0.350.2620
OTC<LOD4.762.1650
TCs<LOD7.981.0590
TMP<LOD39.4917.7830
SMM<LOD0.140.1410
SMT<LOD0.050.0510
SCP<LOD0.120.1210
SCT<LOD0.190.1910
SAs<LOD39.547.6940
FF<LOD5.112.0270
APs<LOD5.112.0270
* <LOD: below the limit of detection. ** DF: detection frequency.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhou, J.; Kang, J.; Lin, C.; Xu, Q.; Yang, W.; Fan, K.; Li, J. Antibiotics in Surface Sediments from the Anning River in Sichuan Province, China: Occurrence, Distribution, and Risk Assessment. Toxics 2024, 12, 411. https://doi.org/10.3390/toxics12060411

AMA Style

Zhou J, Kang J, Lin C, Xu Q, Yang W, Fan K, Li J. Antibiotics in Surface Sediments from the Anning River in Sichuan Province, China: Occurrence, Distribution, and Risk Assessment. Toxics. 2024; 12(6):411. https://doi.org/10.3390/toxics12060411

Chicago/Turabian Style

Zhou, Junlie, Jianglin Kang, Chunyan Lin, Qi Xu, Wanrong Yang, Ke Fan, and Jinrong Li. 2024. "Antibiotics in Surface Sediments from the Anning River in Sichuan Province, China: Occurrence, Distribution, and Risk Assessment" Toxics 12, no. 6: 411. https://doi.org/10.3390/toxics12060411

APA Style

Zhou, J., Kang, J., Lin, C., Xu, Q., Yang, W., Fan, K., & Li, J. (2024). Antibiotics in Surface Sediments from the Anning River in Sichuan Province, China: Occurrence, Distribution, and Risk Assessment. Toxics, 12(6), 411. https://doi.org/10.3390/toxics12060411

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
