Local Antimicrobial Potential of Bupivacaine and Tolfenamic Acid-Loaded Ultra-High Molecular Weight Polyethylene (UHMWPE) for Orthopedic Infection

by
Amita Sekar
1,2,
Nicoletta Inverardi
1,2,
Sashank Lekkala
1,
Andrew Thomson
1,
Vikram Daesety
1,
Darina Trendafilova
1,
Peyton Tierney
1,
Jamie E. Collins
2,3,
Orhun K. Muratoglu
1,2 and
Ebru Oral
1,2,*
1
Harris Orthopaedics Laboratory, Massachusetts General Hospital, Boston, MA 02114, USA
2
Department of Orthopaedic Surgery, Harvard Medical School, Boston, MA 02115, USA
3
Department of Orthopaedic Surgery, Brigham and Women’s Hospital, Boston, MA 02115, USA
*
Author to whom correspondence should be addressed.
Bioengineering 2025, 12(2), 173; https://doi.org/10.3390/bioengineering12020173
Submission received: 31 December 2024 / Revised: 30 January 2025 / Accepted: 6 February 2025 / Published: 12 February 2025
(This article belongs to the Special Issue Advanced Technology for Implant Polymers in Orthopaedics, Spine, and Trauma)
Browse Figures
Versions Notes

Abstract

:
Peri-prosthetic joint infection (PJI) is a major post-arthroplasty complication that warrants alternative antibacterial approaches to improve prophylaxis and treatment outcomes. Local administration of analgesics post-surgery is common. Recent studies have demonstrated the antimicrobial potential of analgesics and the feasibility of dual drug-eluting ultra-high molecular weight polyethylene (UHMWPE) for local antibacterial applications. However, the antibacterial mechanism of action is poorly understood, and the translational value of antimicrobial dual drug-loaded UHMWPE has not been evaluated. In this study, we utilized the Laurdan assay and gene expression analysis to demonstrate the antibacterial action of bupivacaine hydrochloride (BP) and tolfenamic acid (TA) against Staphylococcus aureus. Furthermore, we incorporated BP and TA into UHMWPE at different weight concentrations and studied their longitudinal drug release and real-time antibacterial properties. The analgesics showed a significant effect on the bacterial membrane properties comparable to known antibiotics and regulated bacterial gene expression. For the dual drug-loaded UHMWPE, the drug release rate from BP/TA combinations was interestingly not a direct function of the loaded drug weight percent, potentially due to the hydrophobicity of TA and the interactions between the two drugs. Combinations of BP and TA at the higher total drug concentration (10 and 20%) showed a prolonged antibacterial effect against S. aureus, with great potential for prophylactic use.

Graphical Abstract

1. Introduction

Peri-prosthetic joint infection (PJI) has been recognized as a devastating complication associated with total joint arthroplasty (TJA) with high morbidity and mortality rates [1,2,3]. Two-stage revision surgery remains the standard procedure for managing PJI, which involves tissue debridement, the removal of infected implant components, prolonged antibiotic therapy, and replacement with new implant materials [4,5,6]. The primary causative organism is Staphylococcus aureus, which adheres to the implant materials following surgical site contamination and colonizes the joint space, eventually resulting in deep bone infections [7,8]. There is a high revision failure rate associated with PJI incidence due to the presence of S. aureus biofilms, which interferes with the effective eradication of PJI [9,10,11]. It has been reported that biofilms provide a physical and chemical protective barrier against host responses and antibiotic treatment [12]. Furthermore, biofilm formation promotes antibiotic tolerance and an increase in the protected transfer of antibiotic resistance [13,14,15]. This is the main reason why antibiotics can fail to eradicate biofilms, despite being the most effective treatment against it.
Currently, treatment approaches for PJI heavily rely on the systemic dosing of a cocktail of antibiotics for a prolonged period. Common empirical therapy involves broad spectrum β-lactam or fourth-generation cephalosporins along with vancomycin, and adjunctive agents such as rifampicin are used when needed [16,17]. For prophylaxis, antibiotic-loaded bone cement is commonly used for the local delivery of aminoglycosides such as gentamicin [18]. Clinical breakpoints derived from the antibiotic susceptibility profiles of bacteria in suspension are typically used to guide dosing decisions. However, in PJI, the risk and severity associated with implant-adhered S. aureus biofilms often warrant the prolonged application of high doses of antibiotics (>100× MIC) locally to ensure the efficient eradication of infection and to improve treatment outcomes [19]. Drug delivery devices that can locally release therapeutics to increase the bioavailability and efficacy of the drugs can be an additional tool for the treatment of PJI [18]. Ultra-high molecular weight polyethylene (UHMWPE) is routinely used as the preferred bearing component in total joint replacement implants, and a drug delivery device made from UHMWPE could provide not only load-bearing and function, but also the sustained release of high concentrations of the drug. Antibiotic-loaded UHMWPE implant materials have been developed to address this gap [20,21,22].
While antibiotics remain our strongest tool against infections, antibiotic resistance poses a significant global health threat, with over 2.8 million cases reported annually in the U.S. [23]. The National Action Plan outlines strategic steps to address this issue including slowing the emergence of antibiotic resistance, preventing the spread of resistant infections, and accelerating research on new treatments. In PJI, biofilm-associated antibiotic tolerance is a particularly prominent problem due to the presence of avascular orthopedic hardware [24,25]. Therefore, it has become necessary to seek alternative strategies to bolster the efficacy of antibiotics in the face of an overall increase in PJI risk and severity.
One important strategy is the repurposing of drugs commonly used for other indications. In our previous work, we showed that the analgesic bupivacaine (BP) and the non-steroidal anti-inflammatory drugs (NSAID) tolfenamic acid (TA) and ketorolac in their free drug form [26,27] possessed antimicrobial activity by themselves and could act synergistically with gentamicin and vancomycin against S. aureus. Detailed studies on repurposed drugs have demonstrated mechanisms of action against bacteria through cell wall/membrane disruption, metabolic pathway inhibition, and DNA damage, comparable to known antibiotic action [28,29,30]. However, there is limited information regarding the exact mechanism of the antibacterial action of pain medications. Analgesic-loaded or doped UHMWPE can be an additional tool contributing to multi-modal prophylaxis and the treatment of post-arthroplasty associated infection besides providing pain management [31,32]. In this context, we have previously demonstrated the synergistic antibacterial activity of BP and TA and determined an optimal range for the loading ratio of these two drugs in UHMWPE for surface protection [33]. Here, we investigated the effect of total drug dosing as well as the longitudinal antimicrobial effect of the eluted drugs. In this study, we also aimed to understand the antibacterial activity of BP and TA by studying its effect on the bacterial membrane and gene expression. The longitudinal antibacterial activity correlating to its dual drug elution kinetics were evaluated using a purposely designed methodology based on real-time microbial viability detection. This study will further our understanding of the antimicrobial potential of analgesics and the translational value of dual analgesic-loaded UHMWPE for PJI prophylaxis and treatment.

2. Materials and Methods

2.1. Bacteria, Drug Stock, and Material Preparation

S. aureus ATCC 12600 was used in this study. The frozen stocks of bacterial culture were thawed and grown overnight (18–24 h) in tryptic soy agar plates (TSA) at 35 °C. The S. aureus colonies were cultured in tryptic soy broth (TSB) or agar (TSA) at 35 °C overnight (18–24 h). The turbidity of the broth cultures was measured at 600 nm and adjusted to ~105 CFU/mL using an enumeration curve or real-time microbial viability assay (BacTiter Glo®, Promega, Madison, WI, USA). BP HCl (PHR1128, Sigma Aldrich, St. Louis, MO, USA) and TA (70480, Cayman Chemical, Ann Arbor, MI, USA) were purchased as crystalline solid powders. BP was solubilized in deionized water (solubility < 50 mg/mL) and TA was dissolved in DMSO for drug stock preparation, then diluted in deionized water by keeping the volume concentration of DMSO < 5% while performing antibacterial activity assays.
Ultra-high molecular weight polyethylene (medical grade UHMWPE, GUR® 1020) (Celanese Corporation, Irving, TX, USA) was used. The drug powder was sieved through a 75 µm mesh. Blending was performed by the mechanical mixing of the UHMWPE powder (mean particle size of 150 µm) with the sieved drug powder (powder fraction < 75 µm) for 30 min through a Turbula® shaker (Willy. A. Bachofen AG, Muttenz, Switzerland). Blends were prepared at a total drug loading of 10 or 20 wt. % as single drug-loaded compositions or as dual drug-loaded compositions with both BP and TA, according to the formulations listed in Table 1. Virgin UHMWPE (i.e., without drug loading) was used as the control. The formulations were processed by compression molding (Carver Press, Carver, Wabash, IN, USA) by filling a custom mold (cavity: 50 × 85 mm2) with the blend and applying a compressive force at 170 °C for 10 min (pressure: 20 MPa) followed by cooling under pressure to room temperature for at least 45 min. Blocks with a thickness of about 4 mm were obtained and machined by a benchtop CNC machine (ShopBot Desktop, ShopBot Tools, Inc., Durham, NC, USA) into the prismatic samples (3 × 5 × 20 or 3 × 5 × 10 mm3) used for testing.

2.2. Antibacterial Activity of Analgesics

The MIC of BP and TA against S. aureus was determined according to the established broth microdilution protocol (CLSI M07-A10). Briefly, drug stocks were serially diluted in Mueller Hinton Broth (MHB) and ~105 CFU was incubated with the drug concentrations for a period of 18–24 h at 35 °C. Bacteria with no drug exposure and blank media served as internal controls for the experiment. The MIC was determined as the minimum concentration of respective drugs that inhibited the growth of bacteria as indicated by clear wells. The MBC was determined by plating samples on TSA from the MIC and three more wells that showed no turbidity.

2.3. Bacterial Membrane Fluidity Analysis

The Laurdan assay was performed on S. aureus to determine the effect of BP and TA on the bacterial membrane fluidity dynamics. Briefly, overnight, S. aureus cultures were diluted and adjusted to 108 CFU/mL, and the bacteria were centrifuged at 6000× g for 5 min and washed 3× with sterile 1 × phosphate buffered saline (PBS). The bacteria were then stained for 10 min with 10 µM Laurdan reagent (Invitrogen™ Carlsbad, CA, USA), and using centrifugation, the excess stain on the bacteria was washed using the Laurdan assay buffer (5×). The stained bacteria were then exposed to MIC and sub-MIC (0.5× MIC, 0.25× MIC) concentrations of BP and TA, and the fluorescence units (λex = 350 nm, λem = 435, 500 nm) from bacterial membrane-bound Laurdan was measured every 10 min for a period of 40 min. Benzyl alcohol-treated bacteria served as the positive control to measure fluidization of the bacterial membrane. Bacteria with no drug exposure served as the internal control. The generalized polarization of membrane-bound Laurdan fluorescence was calculated using the following equation: Laurdan GP = (i435 nm − i500 nm)/(i435 nm + i500 nm), where i is the intensity of fluorescence [34].

2.4. Gene Expression Studies

Overnight cultures of S. aureus adjusted to 108 CFU/mL were exposed to inhibitory and sub-inhibitory concentrations (MIC, 0.5× and 0.25× MIC) of BP and TA for a period of 1 h. Bacteria with no drug exposure served as the internal control. The treated and non-treated bacteria were pelleted by centrifugation at 6000× g, 5 min, and were washed with ice-cold PBS (3×). The bacteria pellet was then subjected to lysostaphin (100 µg/mL) treatment at 37 °C for 10 min and underwent mechanical lysis using acid-washed beads. The lysate was used to extract RNA using an RNeasy kit according to the manufacturer’s protocol (Qiagen, Hilden, Germany). The RNA concentration was spectrophotometrically determined using NanoDrop One (ThermoScientific, Waltham, MA, USA). Bacterial gene expression was performed for S. aureus vraR, ebpS, and icaA using specific primers (Table 2). S. aureus 16srRNA served as a housekeeping gene to perform relative gene expression analysis using the 2(−ΔΔCq) method.

2.5. Drug Release Profile of BP/TA-Loaded UHMWPE

Drug release studies were performed by eluting samples (3 × 5 × 20 mm3, n = 6) into deionized water (1.7 mL) at room temperature under mild shaking. Eluent collection was performed at given timepoints (6 h, 1, 2, 3 days, 1, 2, and 3 weeks), and fresh medium was replenished at each point. The concentration of the drugs in the eluent was determined spectrophotometrically by measuring their UV absorbance with a plate reader (BioTek, Synergy H1, Agilent, Santa Clara, CA, USA). The wavelength used for measuring BP was 250 nm, and the one for measuring TA was 285 nm. The drug mass released was used to build cumulative drug mass and fractional release curves, and the release rate profiles as a function of the elution time.

2.6. Longitudinal Antibacterial Activity of BP/TA-Loaded UHMWPE

The antibacterial activity of the analgesic-loaded UHMWPE samples was tested using a purposely developed semi-static method based on a chemiluminescent assay [35]. Using a 10 mL syringe setup, six 3 × 5 × 10 mm3 strips were incubated with 105 CFU/mL S. aureus suspension in Mueller Hinton Broth (3.1 mL) at 37 °C, 100 rpm. At each timepoint (i.e., 6 h, 1, 2, 3, and 7 days), 0.5 mL of the bacterial suspension was collected. A total of 100 μL of suspension was mixed with 100 μL of the BacTiter-Glo™ reagent and its luminescence was measured using the microplate reader. The observed luminescence values were correlated to bacteria viability (CFU/mL) using a calibration curve (y = 0.1075x2 − 0.5512x + 2.8533; detection limit ~103 CFU/mL). Centrifugation was performed on the remaining solution at 10,000× g, 10 min for pelleting the bacterial population. The spent media were discarded, and pellet was resuspended in fresh MHB. Then, 10 µL of the bacterial suspension was also plated on TSA to verify the bacteria viability. Virgin UHMWPE was used as a positive control. The mean concentration of the drug in bacterial broth was estimated by scaling the released drug for the surface area of the sample and considering the mean for each time period (i.e., 0–6 h, 6 h–1 d, 2–3 d, 3–7 d).

2.7. Statistics

The longitudinal antibacterial activity data of the BP/TA-loaded UHMWPE was analyzed using the 2-way ANOVA test and the Benjamini–Hochberg method to adjust for multiple testing. The Student t-test was performed on the relative gene expression data. p-values < 0.05 were considered statistically significant.

3. Results

3.1. Antibacterial Properties of BP and TA Against S. aureus

The minimum inhibitory concentration of BP and TA against S. aureus ATCC 12600 was 1.75 ± 0.75 mg/mL and 62.5 ± 0 µg/mL, respectively. The S. aureus membrane dynamics were assessed to evaluate the potential of analgesics to trigger membrane fluidity or rigidity. The inhibitory and sub-inhibitory concentrations (0.5× MIC and 0.25× MIC) showed decreased Laurdan GP values for the S. aureus membrane within 10 min of exposure compared with the no drug control (Figure 1A). The GP values of BP-exposed S. aureus were comparable to the bacteria exposed to the membrane fluidizing agent benzyl alcohol that served as the positive control for the experiment. The inhibitory and sub-inhibitory concentrations of TA (MIC, and 0.5× MIC) triggered an increase in the Laurdan GP values for S. aureus within 10 min of exposure, with the 0.5× MIC concentration exhibiting a significant increase in the Laurdan GP values compared with the inhibitory concentrations of TA. The 0.25× MIC GP values were comparable to those of the control bacteria without drug exposure (Figure 1A).
Gene expression studies were performed on the BP- and TA-treated S. aureus to determine the expression changes in the bacterial genes vraR, icaA, and ebpS. In bacteria exposed to inhibitory concentrations of BP, the gene expression of icaA remained unaltered compared with the control bacteria without drug exposure. The ebpS and vraR gene expression were significantly elevated (>1 log) compared with the control. On the contrary, the sub-inhibitory concentration of BP did not trigger drastic fold change differences for vraR, icaA, and ebpS compared with the control, even though the observed changes were significant. In bacteria exposed to inhibitory concentrations of TA, all of the genes were somewhat regulated (<1 log). The sub-inhibitory concentration of TA, 0.5× MIC, significantly downregulated ebpS and vraR (>1.5 log), and 0.25× MIC significantly downregulated ebpS and vraR (>0.5 log) compared with the control bacteria without drug exposure. The icaA expression remained unaltered in the presence of sub-inhibitory concentrations of TA (Figure 1B).

3.2. Longitudinal Assessment of Drug Release and Antibacterial Activity

The elution of BP and TA out of the polymeric matrix was very different. More BP could be released compared with TA over the course of the experiment (21 days) for all loading conditions (Figure 2A,B). There was generally an increasing trend in cumulative BP release as the drug loading of BP increased (maximum of ~24 mg at day 21 for 20BP loaded UHMWPE). The burst release rates (6 h) for UHMWPEs with a total drug loading of 20% (maximum of ~140 mg/day) were higher than those with a total drug loading of 10% (maximum of ~40 mg/day). The release rate of BP remained higher than 2 mg/day for about 3 days for the UHMWPEs with the highest drug loading (20% total drug, Figure 2B). The released amount of TA was small (maximum of 0.8 mg at day 21) and was not dependent on drug loading (Figure 2B). The release rates of TA remained significantly higher than 0.15 mg/day for 3 days for all UHMWPEs (Figure 2A,B).
The UHMWPE formulations were incubated with a 105 CFU/mL bacterial inoculum. The bacterial viability was measured as the drug eluted out of the polymeric matrix using a semi-static protocol. The 10BP-loaded UHMWPE could inhibit bacterial growth only at the first timepoint, as the eluted BP concentration (~2 mg/mL) was greater than the MIC. As the eluted concentration fell below the MIC after day 1, the bacterial growth increased to 108 CFU/mL, similar to VPE (Figure 3A). The 10TA-loaded UHMWPE released concentrations above the MIC for the duration of the study. Consequently, the bacterial viability was inhibited for the first few timepoints; thereafter, bacterial growth up to 108 CFU/mL occurred on day 7. Dual drug-loaded UHMWPE with a total drug loading of 10 wt% showed an initial inhibition in bacterial growth, and the composition with the highest percentage of TA (5BP5TA) could inhibit bacterial growth up to day 3 when compared with 7BP3TA. For the 5BP5TA composition, not only was the released TA concentration higher than the MIC for the whole duration, but the released BP concentration was also significantly higher than the one released by the 7BP3TA composition (Figure 3A).
Among the compositions with 20 wt% total drug loading, 20BP and 20TA demonstrated an initial inhibition of the bacterial growth for only the first 6 h burst release for BP and up to day 1 for TA, respectively. The released concentrations were above the MIC up to day 1 for BP and consistently below the MIC for TA. The 14BP6TA sample could inhibit bacterial growth until day 7, whereas the TA concentration released was lower than the MIC at 6 h but increased above the MIC thereafter. The 10TA10BP sample had the best antibacterial performance as it could significantly decrease bacterial viability close to the detection limit until day 3. For the 10BP10TA composition, the TA concentration at 6 h was above the MIC (Figure 3B).

4. Discussion

PJI remains one of the most challenging complications associated with orthopedic implants. Bacterial biofilm formation on the implant and surrounding joint tissue and its associated antibiotic tolerance and resistance pose a significant problem that warrants effective and novel prophylactic and treatment approaches [24,36,37]. Previously, we have demonstrated the growth dynamics and evolution of antibiotic tolerance and resistance for implant-associated S. aureus infections in vivo [19,27]. To circumvent the challenges associated with antibiotics, synergistic formulations and repurposed drugs could be promising tools that could aid in developing preventive and therapeutic orthopedic drug delivery applications, which is our long-term goal. In this study, we assessed the potential of two drugs, BP and TA, for their antibacterial properties and evaluated the translational efficacy of high percentage (w/w) dual-analgesic loaded UHMWPE by correlating the release kinetics and their antibacterial activity.
The observed minimum inhibitory concentrations (MICs) of BP (1.75 ± 0.75 mg/mL) and TA (62.5 ± 0 µg/mL) against S. aureus ATCC 12600 highlight their potential to act as antimicrobial agents. The key feature of antibiotics is their mechanism of action, which ranges from interactions with the bacterial cell wall (i.e., penicillin, vancomycin, and daptomycin) to affecting bacterial efflux pumps and biosynthesis processes (gentamicin) [38,39,40]. Repurposed drugs have shown significant promise, as approximately 30% of the U.S. FDA-approved drugs are repurposed, enabling their expanded use [41]. High-throughput screening utilizing systems biology and integrative multi-omics approaches are the norm for the drug discovery of non-antibiotics with potential antimicrobial activity [42]. Detailed studies have revealed specific mechanisms of action for repurposed drugs against Gram-positive and Gram-negative bacteria. Drugs such as halicin and fluoxetine have been shown to disrupt the bacterial membrane, effectively targeting multi-drug resistance [43,44]. The mechanisms of action for BP (sodium ion channel blocker) and TA (prostaglandin biosynthesis inhibitor) were similarly explored in this study for their impact on bacterial membrane dynamics using Laurdan generalized polarization (GP) values. BP exposure led to a significant decrease in GP values, suggesting increased membrane fluidity similar to antibiotics such as vancomycin and gentamicin [44]. The result was comparable to benzyl alcohol, a known membrane fluidizing agent, indicating that BP destabilizes the bacterial membrane. Such disruption can compromise the bacterial membrane’s integrity, leading to cell death. Conversely, TA exhibited the opposite effect by increasing the GP values at inhibitory and sub-inhibitory concentrations (0.5× MIC), suggesting membrane rigidification comparable to antibiotics such as daptomycin [40]. Interestingly, the 0.5× MIC concentration had a more pronounced effect on increasing the GP values compared with the MIC, indicating concentration-dependent interactions with the bacterial membrane. At 0.25× MIC, TA’s effect was minimal, resembling the control. These findings imply that BP and TA employ distinct mechanisms of membrane fluidization and rigidification, respectively, that contribute to their antibacterial activity.
Antimicrobial activity is closely tied to the bacterial response to the drug action, which can be determined using gene expression studies. The presence of antibiotics triggers critical cell wall biosynthesis, ion transport, and nucleic acid metabolic processes that determine the outcomes of the antibacterial efficacy of the drugs [45,46,47]. The adverse drug action can also unexpectedly promote bacterial survival and biofilm formation in the case of gentamicin [48]. In this study, the expression profiles of the cell-wall biosynthesis associated vraR, bacterial adhesion-associated ebpS, and biofilm formation-associated icaA were determined in the presence of BP and TA to provide further insights into their effects on bacterial stress and virulence pathways. BP at inhibitory concentrations significantly upregulated (>1 log) genes associated with the bacterial stress response (vraR) and extracellular matrix proteins (ebpS), respectively. On the contrary, sub-inhibitory concentrations of BP did not induce drastic changes in gene expression. The upregulation of vraR and ebpS in the presence of inhibitory concentrations of BP suggests an attempt by S. aureus to respond to membrane stress induced by BP and promote adhesion. In contrast, TA had a concentration-dependent regulatory effect. At sub-inhibitory concentrations (0.5× and 0.25× MIC), vraR and ebpS were significantly downregulated (>1.5 log and >0.5 log, respectively). The downregulation of these genes at sub-inhibitory concentrations suggests a unique property of TA to interfere with stress-response pathways, potentially reducing bacterial resistance mechanisms and impairing biofilm formation. The expression of icaA, a key gene for polysaccharide intercellular adhesin production and biofilm formation, remained unaltered under both BP and TA exposure, suggesting that the drugs’ primary mode of action does not directly target biofilm production at the genetic level.
UHMWPE loading with analgesics and NSAID was already demonstrated in our previous work, where we showed that BP and TA could be loaded into UHMWPE, and their elution was controlled by their morphology [31]. BP and TA are moderately thermally stable and their stability after high-temperature processing with UHMWPE has been previously demonstrated by NMR [32,49,50]. These blends could also be sterilized by radiation exposure without affecting the stability of the drugs. This was particularly important for obtaining a crosslinked network to achieve suitable wear properties. Thus, the translational value of these blends is promising, and furthering the understanding of their antibacterial properties is of high significance. The difference in the physical properties of BP HCl (hydrophilic and polar) and TA (hydrophobic and non-polar) determines their elution behavior and kinetics. The salt form of BP is hydrophilic, and it is known to lead to a phase-separated structure when blended with the hydrophobic UHMWPE. TA is highly hydrophobic and potentially partially soluble inside the hydrophobic UHMWPE matrix [34]. The longitudinal assessment of drug release from the UHMWPE matrices revealed stark differences between BP and TA, influencing their antibacterial performance. BP demonstrated higher cumulative release compared with TA, with an increasing trend correlating with drug loading (e.g., ~24 mg for 20BP at day 21). However, the BP release rates exhibited a burst release within the first 6 h, followed by a sharp decline. The highest burst release for BP was observed at 20% drug loading (~140 mg/day), but the concentrations fell below the MIC after 1 day, allowing bacterial regrowth. In contrast, TA displayed a sustained release profile with minimal dependence on drug loading, thus contributing to prolonged antibacterial activity.
For drug-delivery applications, standard antibacterial activity evaluation methods lack real-time microbial viability data corresponding to the drug-release profiles [51]. Consequently, a longitudinal analysis of the drug-delivery application to evaluate its activity potential cannot be performed. To address this gap, a semi-static method based on the elution kinetics experimental setup was purposely designed to determine the antibacterial activity kinetics and thereby its translational value [35]. The antibacterial efficacy of these formulations was evaluated under a bacterial inoculum of 105 CFU/mL. The 10BP-loaded UHMWPE inhibited bacterial growth only initially (eluted concentration > MIC), but failed to sustain efficacy as the concentrations dropped below MIC after 1 day, mirroring the burst-release kinetics. In contrast, the 10TA-loaded UHMWPE exhibited antibacterial activity for the first few timepoints, after which bacterial regrowth occurred at day 7. Dual drug-loaded formulations demonstrated a superior performance, combining the benefits of both drugs. At 10% total drug loading, the 5BP5TA sample achieved extended bacterial inhibition up to day 3, outperforming the 7BP3TA composition. This result can be attributed to the sustained release of TA and higher BP concentrations at early timepoints. At 20% total drug loading, the 14BP6TA formulation inhibited bacterial growth for 7 days, likely due to a more balanced release profile of both drugs. The 10TA10BP composition exhibited the best antibacterial performance, reducing the bacterial viability close to the detection limit up to day 3. Notably, this composition maintained TA concentrations above MIC at the critical 6-h timepoint, emphasizing the importance of achieving therapeutic drug levels early to prevent bacterial colonization and its value as a prophylactic application.
The findings of this study highlight the potential of BP and TA for preventing and managing PJIs. The insights into the mechanism of the antibacterial action of BP and TA could aid in rational repurposing and synergistic use with reduced side effects [52,53]. BP’s rapid burst release and membrane fluidizing effects make it a valuable candidate for early-stage infection prevention immediately after implantation. However, its limited antibacterial activity necessitates combination strategies. TA’s sustained release, membrane-rigidifying effects, and downregulation of bacterial stress genes suggest its utility in prolonged infection prevention. Dual drug-loaded formulations, particularly 5BP5TA, 10TA10BP, and 14BP6TA, demonstrate synergistic effects by providing both immediate and sustained antibacterial activity. In addition, TA is non-inflammatory, the effects of which can be beneficial in managing post-surgical pain and complications [54]. These compositions are promising candidates for further preclinical evaluation as they address both early bacterial colonization and prolonged inhibition, two critical aspects of PJI prevention.

5. Conclusions

The findings underscore the importance of drug release kinetics, membrane-targeting mechanisms, and bacterial gene regulation in determining the efficacy of UHMWPE-based drug-eluting systems for PJI prevention. Revealing the mechanism of the antibacterial action of BP/TA and the subsequent longitudinal assessment of their synergistic application have furthered our understanding of the antimicrobial potential of analgesics and the translational value of dual analgesic-loaded UHMWPE for PJI prophylaxis and treatment. Dual-drug systems combining BP and TA show enhanced antibacterial performance, offering a potential solution for mitigating PJI risk associated with orthopedic implants. Furthermore, in vivo studies will be essential to validate these findings and optimize formulations for clinical applications.

Author Contributions

Conceptualization, A.S. and E.O.; Methodology, A.S. and E.O.; Validation, A.S., N.I. and E.O.; Formal analysis, A.S., N.I., S.L., J.E.C. and E.O.; Investigation, A.S., N.I., S.L., A.T., V.D., D.T. and P.T.; Writing—original draft preparation, A.S. and E.O.; Writing—review and editing, A.S., N.I., O.K.M. and E.O.; Supervision, O.K.M. and E.O.; Project administration, E.O.; Funding acquisition, E.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Office of the Assistant Secretary of Defense for Health Affairs under Award No. W81XWH-17-1-0614. Opinions, interpretations, conclusions, and recommendations are those of the author and are not necessarily endorsed by the Department of Defense.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this published article.

Conflicts of Interest

The authors declare conflicts of interest. O.K.M receives royalties from companies Corin, Mako, Iconacy, Renovis, Arthrex, ConforMIS, Meril Healthcare, Exactech, Cambridge Polymer Group and has Stake/Equity in companies Cambridge Polymer Group, Orthopedic Technology Group, Alchimist. E.O receives royalties from companies Corin, Iconacy, Renovis, Arthrex, ConforMIS, Meril Healthcare, Exactech; E.O is a paid consultant for WL Gore & Assoc E.O serves on the Editorial Board ofJBMR and as Officer/Committee member in-SFB, ISTA. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Zmistowski, B.; Karam, J.A.; Durinka, J.B.; Casper, D.S.; Parvizi, J. Periprosthetic Joint Infection Increases the Risk of One-Year Mortality. J. Bone Jt. Surg. 2013, 95, 2177–2184. [Google Scholar] [CrossRef] [PubMed]
  2. Thompson, O.; W-Dahl, A.; Stefánsdóttir, A. Increased Short- and Long-Term Mortality amongst Patients with Early Periprosthetic Knee Joint Infection. BMC Musculoskelet. Disord. 2022, 23, 1069. [Google Scholar] [CrossRef]
  3. Kapadia, B.H.; Berg, R.A.; Daley, J.A.; Fritz, J.; Bhave, A.; Mont, M.A. Periprosthetic Joint Infection. Lancet 2016, 387, 386–394. [Google Scholar] [CrossRef]
  4. Castelli, C.C.; Gotti, V.; Ferrari, R. Two-Stage Treatment of Infected Total Knee Arthroplasty: Two to Thirteen Year Experience Using an Articulating Preformed Spacer. Int. Orthop. 2014, 38, 405–412. [Google Scholar] [CrossRef] [PubMed]
  5. Charette, R.S.; Melnic, C.M. Two-Stage Revision Arthroplasty for the Treatment of Prosthetic Joint Infection. Curr. Rev. Musculoskelet. Med. 2018, 11, 332–340. [Google Scholar] [CrossRef] [PubMed]
  6. Rottier, W.; Seidelman, J.; Wouthuyzen-Bakker, M. Antimicrobial Treatment of Patients with a Periprosthetic Joint Infection: Basic Principles. Arthroplasty 2023, 5, 10. [Google Scholar] [CrossRef]
  7. Flurin, L.; Greenwood-Quaintance, K.E.; Patel, R. Microbiology of Polymicrobial Prosthetic Joint Infection. Diagn. Microbiol. Infect. Dis. 2019, 94, 255–259. [Google Scholar] [CrossRef]
  8. Peng, H.-M.; Zhou, Z.-K.; Wang, F.; Yan, S.-G.; Xu, P.; Shang, X.-F.; Zheng, J.; Zhu, Q.-S.; Cao, L.; Weng, X.-S. Microbiology of Periprosthetic Hip and Knee Infections in Surgically Revised Cases from 34 Centers in Mainland China. Infect. Drug Resist. 2021, 14, 2411–2418. [Google Scholar] [CrossRef] [PubMed]
  9. Dapunt, U.; Radzuweit-Mihaljevic, S.; Lehner, B.; Haensch, G.M.; Ewerbeck, V. Bacterial Infection and Implant Loosening in Hip and Knee Arthroplasty: Evaluation of 209 Cases. Materials 2016, 9, 871. [Google Scholar] [CrossRef]
  10. Labek, G.; Thaler, M.; Janda, W.; Agreiter, M.; Stöckl, B. Revision Rates after Total Joint Replacement. J. Bone Jt. Surg. Br. 2011, 93-B, 293–297. [Google Scholar] [CrossRef] [PubMed]
  11. Goud, A.L.; Harlianto, N.I.; Ezzafzafi, S.; Veltman, E.S.; Bekkers, J.E.J.; van der Wal, B.C.H. Reinfection Rates after One- and Two-Stage Revision Surgery for Hip and Knee Arthroplasty: A Systematic Review and Meta-Analysis. Arch. Orthop. Trauma Surg. 2021, 143, 829–838. [Google Scholar] [CrossRef] [PubMed]
  12. Kranjec, C.; Angeles, D.M.; Mårli, M.T.; Fernández, L.; García, P.; Kjos, M.; Diep, D.B. Staphylococcal Biofilms: Challenges and Novel Therapeutic Perspectives. Antibiotics 2021, 10, 131. [Google Scholar] [CrossRef] [PubMed]
  13. Uruén, C.; Chopo-Escuin, G.; Tommassen, J.; Mainar-Jaime, R.C.; Arenas, J. Biofilms as Promoters of Bacterial Antibiotic Resistance and Tolerance. Antibiotics 2020, 10, 3. [Google Scholar] [CrossRef] [PubMed]
  14. Sivori, F.; Cavallo, I.; Truglio, M.; Pelagalli, L.; Mariani, V.; Fabrizio, G.; Abril, E.; Santino, I.; Fradiani, P.A.; Solmone, M.; et al. Biofilm-Mediated Antibiotic Tolerance in Staphylococcus aureus from Spinal Cord Stimulation Device-Related Infections. Microbiol. Spectr. 2024, 12, e0168324. [Google Scholar] [CrossRef] [PubMed]
  15. Stewart, P.S.; Franklin, M.J. Physiological Heterogeneity in Biofilms. Nat. Rev. Microbiol. 2008, 6, 199–210. [Google Scholar] [CrossRef]
  16. Le Vavasseur, B.; Zeller, V. Antibiotic Therapy for Prosthetic Joint Infections: An Overview. Antibiotics 2022, 11, 486. [Google Scholar] [CrossRef]
  17. Yates, A.J.; American Association of Hip and Knee Surgeons Evidence-Based Medicine Committee. Postoperative Prophylactic Antibiotics in Total Joint Arthroplasty. Arthroplast. Today 2018, 4, 130–131. [Google Scholar] [CrossRef] [PubMed]
  18. Steadman, W.; Chapman, P.R.; Schuetz, M.; Schmutz, B.; Trampuz, A.; Tetsworth, K. Local Antibiotic Delivery Options in Prosthetic Joint Infection. Antibiotics 2023, 12, 752. [Google Scholar] [CrossRef]
  19. Sekar, A.; Fan, Y.; Tierney, P.; McCanne, M.; Jones, P.; Malick, F.; Kannambadi, D.; Wannomae, K.K.; Inverardi, N.; Muratoglu, O.K.; et al. Investigating the Translational Value of Periprosthetic Joint Infection Models to Determine the Risk and Severity of Staphylococcal Biofilms. ACS Infect. Dis. 2024, 10, 4156–4166. [Google Scholar] [CrossRef]
  20. Lekkala, S.; Inverardi, N.; Yuh, J.; Wannomae, K.K.; Tierney, P.; Sekar, A.; Muratoglu, O.K.; Oral, E. Antibiotic-Loaded Ultrahigh Molecular Weight Polyethylenes. Macromol. Biosci. 2024, 24, 2300389. [Google Scholar] [CrossRef]
  21. Suhardi, V.J.; Bichara, D.A.; Kwok, S.J.J.; Freiberg, A.A.; Rubash, H.; Malchau, H.; Yun, S.H.; Muratoglu, O.K.; Oral, E. A Fully Functional Drug-Eluting Joint Implant. Nat. Biomed. Eng. 2017, 1, 80. [Google Scholar] [CrossRef] [PubMed]
  22. Gil, D.; Atici, A.E.; Connolly, R.L.; Hugard, S.; Shuvaev, S.; Wannomae, K.K.; Oral, E.; Muratoglu, O.K. Addressing Prosthetic Joint Infections via Gentamicin-Eluting UHMWPE Spacer. Bone Jt. J. 2020, 102-B, 151–157. [Google Scholar] [CrossRef] [PubMed]
  23. Antimicrobial Resistance. Available online: https://www.cdc.gov/antimicrobial-resistance/data-research/facts-stats/index.html (accessed on 27 December 2024).
  24. Svensson Malchau, K.; Tillander, J.; Zaborowska, M.; Hoffman, M.; Lasa, I.; Thomsen, P.; Malchau, H.; Rolfson, O.; Trobos, M. Biofilm Properties in Relation to Treatment Outcome in Patients with First-Time Periprosthetic Hip or Knee Joint Infection. J. Orthop. Transl. 2021, 30, 31–40. [Google Scholar] [CrossRef] [PubMed]
  25. Davidson, D.J.; Spratt, D.; Liddle, A.D. Implant Materials and Prosthetic Joint Infection: The Battle with the Biofilm. EFORT Open Rev. 2019, 4, 633–639. [Google Scholar] [CrossRef]
  26. Gil, D.; Daffinee, K.; Friedman, R.; Bhushan, B.; Muratoglu, O.K.; LaPlante, K.; Oral, E. Synergistic Antibacterial Effects of Analgesics and Antibiotics against Staphylococcus aureus. Diagn. Microbiol. Infect. Dis. 2020, 96, 114967. [Google Scholar] [CrossRef] [PubMed]
  27. Sekar, A.; Gil, D.; Tierney, P.; McCanne, M.; Daesety, V.; Trendafilova, D.; Muratoglu, O.K.; Oral, E. Synergistic Use of Anti-Inflammatory Ketorolac and Gentamicin to Target Staphylococcal Biofilms. J. Transl. Med. 2024, 22, 102. [Google Scholar] [CrossRef] [PubMed]
  28. Barbarossa, A.; Rosato, A.; Corbo, F.; Clodoveo, M.L.; Fracchiolla, G.; Carrieri, A.; Carocci, A. Non-Antibiotic Drug Repositioning as an Alternative Antimicrobial Approach. Antibiotics 2022, 11, 816. [Google Scholar] [CrossRef]
  29. Kim, W.; Zou, G.; Hari, T.P.A.; Wilt, I.K.; Zhu, W.; Galle, N.; Faizi, H.A.; Hendricks, G.L.; Tori, K.; Pan, W.; et al. A Selective Membrane-Targeting Repurposed Antibiotic with Activity against Persistent Methicillin-Resistant Staphylococcus aureus. Proc. Natl. Acad. Sci. USA 2019, 116, 16529–16534. [Google Scholar] [CrossRef] [PubMed]
  30. Kamurai, B.; Mombeshora, M.; Mukanganyama, S. Repurposing of Drugs for Antibacterial Activities on Selected ESKAPE Bacteria Staphylococcus aureus and Pseudomonas aeruginosa. Int. J. Microbiol. 2020, 2020, 8885338. [Google Scholar] [CrossRef] [PubMed]
  31. Gil, D.; Hugard, S.; Grindy, S.; Borodinov, N.; Ovchinnikova, O.S.; Muratoglu, O.K.; Bedair, H.; Oral, E. Structural and Antibacterial Properties of NSAID-Loaded Ultra-High Molecular Weight Polyethylene. Materialia 2020, 12, 100662. [Google Scholar] [CrossRef]
  32. Inverardi, N.; Lekkala, S.; Serafim, M.F.; Sekar, A.; Wannomae, K.K.; Micheli, B.; Bedair, H.; Muratoglu, O.K.; Oral, E. Diffusion Doping of Analgesics into UHMWPE for Prophylactic Pain Management. J. Mater. Chem. B 2024, 12, 10332–10345. [Google Scholar] [CrossRef]
  33. Gil, D.; Hugard, S.; Borodinov, N.; Ovchinnikova, O.S.; Muratoglu, O.K.; Bedair, H.; Oral, E. Dual-analgesic Loaded UHMWPE Exhibits Synergistic Antibacterial Effects against Staphylococci. J. Biomed. Mater. Res. B Appl. Biomater. 2023, 111, 912–922. [Google Scholar] [CrossRef] [PubMed]
  34. Wenzel, M.; Vischer, N.; Strahl, H.; Hamoen, L. Assessing Membrane Fluidity and Visualizing Fluid Membrane Domains in Bacteria Using Fluorescent Membrane Dyes. Bio-Protocol 2018, 8, e3063. [Google Scholar] [CrossRef] [PubMed]
  35. Sekar, A.; Lekkala, S.; Oral, E. A Novel Method to Determine the Longitudinal Antibacterial Activity of Drug-Eluting Materials. J. Vis. Exp. 2023, 193, e64641. [Google Scholar] [CrossRef] [PubMed]
  36. Staats, A.; Li, D.; Sullivan, A.C.; Stoodley, P. Biofilm Formation in Periprosthetic Joint Infections. Ann. Jt. 2021, 6, 43. [Google Scholar] [CrossRef] [PubMed]
  37. Mandell, J.B.; Orr, S.; Koch, J.; Nourie, B.; Ma, D.; Bonar, D.D.; Shah, N.; Urish, K.L. Large Variations in Clinical Antibiotic Activity against Staphylococcus aureus Biofilms of Periprosthetic Joint Infection Isolates. J. Orthop. Res. 2019, 37, 1604–1609. [Google Scholar] [CrossRef] [PubMed]
  38. Gonçalves, F.D.A.; de Carvalho, C.C.C.R. Phenotypic Modifications in Staphylococcus Aureus Cells Exposed to High Concentrations of Vancomycin and Teicoplanin. Front. Microbiol. 2016, 7, 13. [Google Scholar] [CrossRef] [PubMed]
  39. Müller, A.; Wenzel, M.; Strahl, H.; Grein, F.; Saaki, T.N.V.; Kohl, B.; Siersma, T.; Bandow, J.E.; Sahl, H.-G.; Schneider, T.; et al. Daptomycin Inhibits Cell Envelope Synthesis by Interfering with Fluid Membrane Microdomains. Proc. Natl. Acad. Sci. USA 2016, 113, E7077–E7086. [Google Scholar] [CrossRef] [PubMed]
  40. Gerlach, D.; Guo, Y.; De Castro, C.; Kim, S.-H.; Schlatterer, K.; Xu, F.-F.; Pereira, C.; Seeberger, P.H.; Ali, S.; Codée, J.; et al. Methicillin-Resistant Staphylococcus aureus Alters Cell Wall Glycosylation to Evade Immunity. Nature 2018, 563, 705–709. [Google Scholar] [CrossRef]
  41. Aggarwal, M.; Patra, A.; Awasthi, I.; George, A.; Gagneja, S.; Gupta, V.; Capalash, N.; Sharma, P. Drug Repurposing against Antibiotic Resistant Bacterial Pathogens. Eur. J. Med. Chem. 2024, 279, 116833. [Google Scholar] [CrossRef]
  42. Stokes, J.M.; Yang, K.; Swanson, K.; Jin, W.; Cubillos-Ruiz, A.; Donghia, N.M.; MacNair, C.R.; French, S.; Carfrae, L.A.; Bloom-Ackermann, Z.; et al. A Deep Learning Approach to Antibiotic Discovery. Cell 2020, 180, 688–702.e13. [Google Scholar] [CrossRef]
  43. Higashihira, S.; Simpson, S.J.; Collier, C.D.; Natoli, R.M.; Kittaka, M.; Greenfield, E.M. Halicin Is Effective Against Staphylococcus aureus Biofilms In Vitro. Clin. Orthop. Relat. Res. 2022, 480, 1476–1487. [Google Scholar] [CrossRef] [PubMed]
  44. Mackay, A.M. Fluoxetine Is Antimicrobial and Modulates the Antibiotic Resistance Status of Bacteria. J. Cell. Immunol. 2023, 5, 87–91. [Google Scholar] [CrossRef]
  45. Gardete, S.; Wu, S.W.; Gill, S.; Tomasz, A. Role of VraSR in Antibiotic Resistance and Antibiotic-Induced Stress Response in Staphylococcus aureus. Antimicrob. Agents Chemother. 2006, 50, 3424–3434. [Google Scholar] [CrossRef] [PubMed]
  46. Vestergaard, M.; Frees, D.; Ingmer, H. Antibiotic Resistance and the MRSA Problem. Microbiol. Spectr. 2019, 7. [Google Scholar] [CrossRef]
  47. Kuroda, M.; Kuroda, H.; Oshima, T.; Takeuchi, F.; Mori, H.; Hiramatsu, K. Two-Component System VraSR Positively Modulates the Regulation of Cell-Wall Biosynthesis Pathway in Staphylococcus aureus. Mol. Microbiol. 2004, 49, 807–821. [Google Scholar] [CrossRef] [PubMed]
  48. Hess, D.J.; Henry-Stanley, M.J.; Wells, C.L. Gentamicin Promotes Staphylococcus aureus Biofilms on Silk Suture. J. Surg. Res. 2011, 170, 302–308. [Google Scholar] [CrossRef]
  49. Lekkala, S.; Inverardi, N.; Grindy, S.C.; Hugard, S.; Muratoglu, O.K.; Oral, E. Irradiation Behavior of Analgesic and Nonsteroidal Anti-Inflammatory Drug-Loaded UHMWPE for Joint Replacement. Biomacromolecules 2024, 25, 2312–2322. [Google Scholar] [CrossRef] [PubMed]
  50. Gaglioti, K.; Chierotti, M.R.; Grifasi, F.; Gobetto, R.; Griesser, U.J.; Hasa, D.; Voinovich, D. Improvement of the Water Solubility of Tolfenamic Acid by New Multiple-Component Crystals Produced by Mechanochemical Methods. CrystEngComm 2014, 16, 8252–8262. [Google Scholar] [CrossRef]
  51. Balouiri, M.; Sadiki, M.; Ibnsouda, S.K. Methods for in Vitro Evaluating Antimicrobial Activity: A Review. J. Pharm. Anal. 2016, 6, 71–79. [Google Scholar] [CrossRef]
  52. Mechanism Matters. Nat. Med. 2010, 16, 347. [CrossRef] [PubMed]
  53. Davis, R.L. Mechanism of Action and Target Identification: A Matter of Timing in Drug Discovery. iScience 2020, 23, 101487. [Google Scholar] [CrossRef] [PubMed]
  54. Shao, H.J.; Lou, Z.; Jeong, J.B.; Kim, K.J.; Lee, J.; Lee, S.-H. Tolfenamic Acid Suppresses Inflammatory Stimuli-Mediated Activation of NF-ΚB Signaling. Biomol. Ther. 2015, 23, 39–44. [Google Scholar] [CrossRef] [PubMed]
Bioengineering 12 00173 g001

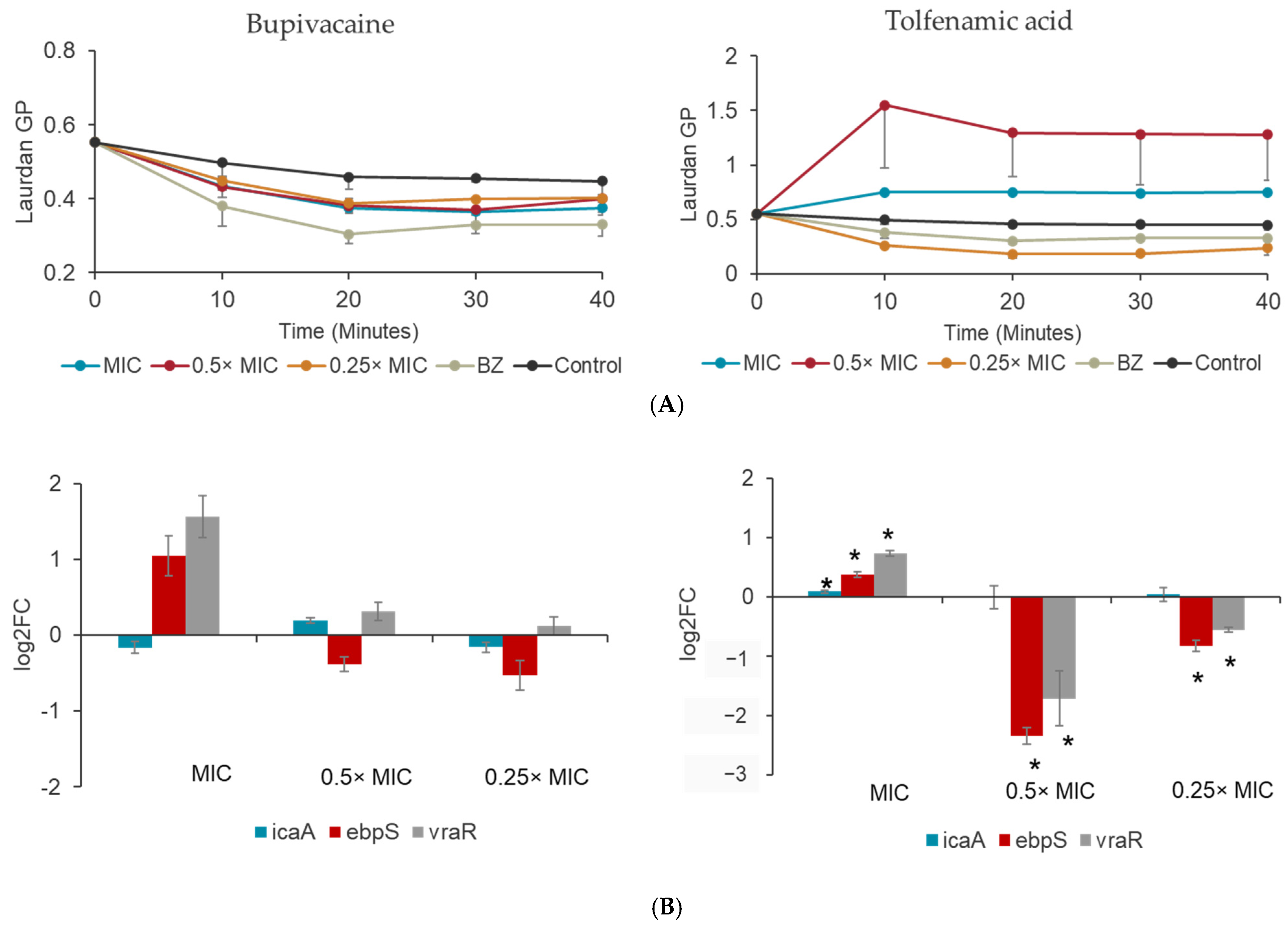

Figure 1. (A) Membrane fluidity analysis of S. aureus exposed to inhibitory and sub-inhibitory concentrations of BP and TA using the Laurdan reagent. The Laurdan GP of benzyl alcohol (BZ) served as the positive control. (B) Relative gene expression analysis of the icaA, vraR, and ebpS genes of S. aureus exposed to MIC, 0.5× MIC, and 0.25× MIC of BP and TA. * indicates p < 0.05 vs. control.
Figure 1. (A) Membrane fluidity analysis of S. aureus exposed to inhibitory and sub-inhibitory concentrations of BP and TA using the Laurdan reagent. The Laurdan GP of benzyl alcohol (BZ) served as the positive control. (B) Relative gene expression analysis of the icaA, vraR, and ebpS genes of S. aureus exposed to MIC, 0.5× MIC, and 0.25× MIC of BP and TA. * indicates p < 0.05 vs. control.
Bioengineering 12 00173 g001
Bioengineering 12 00173 g002

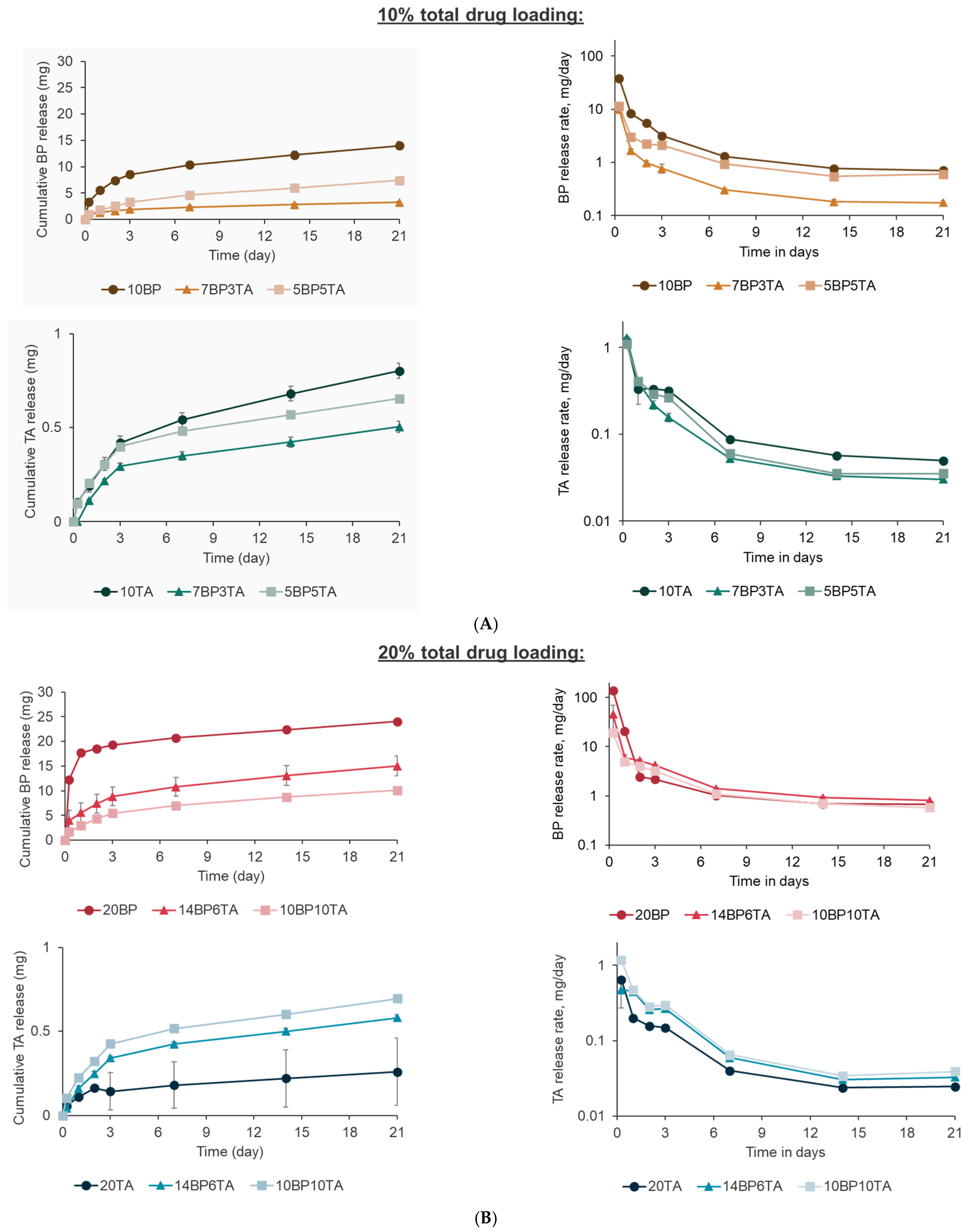

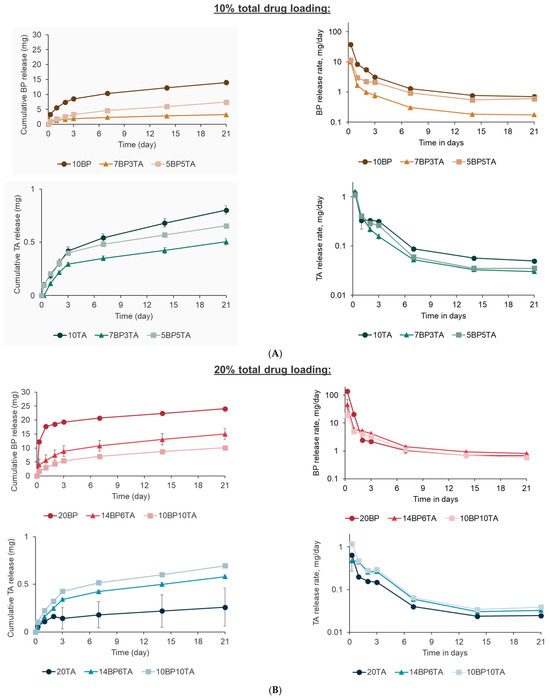

Figure 2. Cumulative drug release of BP and TA and the drug release rate (determined for a hypothetical 10 cm2 implant surface area) for the (A) 10% total drug-loaded UHMWPE for 21 days and (B) 20% total drug-loaded UHMWPE for 21 days.
Figure 2. Cumulative drug release of BP and TA and the drug release rate (determined for a hypothetical 10 cm2 implant surface area) for the (A) 10% total drug-loaded UHMWPE for 21 days and (B) 20% total drug-loaded UHMWPE for 21 days.
Bioengineering 12 00173 g002
Bioengineering 12 00173 g003

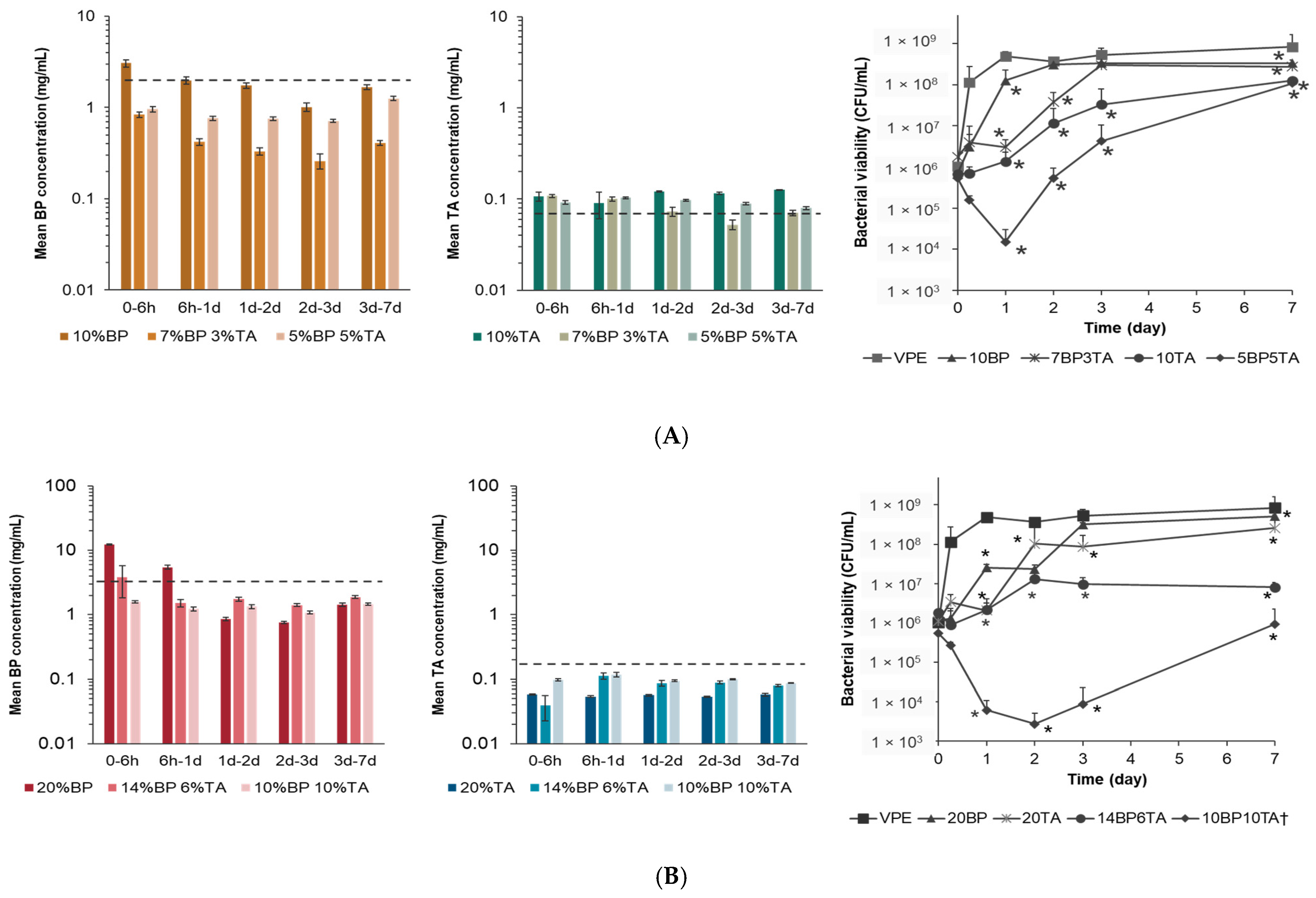

Figure 3. (A) Concentration of BP and TA released from the 10% w/w drug-loaded strips (3 × 5 × 10 mm3) and their antibacterial activity was assessed by the BacTiter-Glo assay. (B) Concentration of BP and TA released from the 20% w/w drug-loaded strips (3 × 5 × 10 mm3) and their antibacterial activity assessed by the BacTiter-Glo assay. * indicates p < 0.05 vs. VPE. p-values were determined from the 2-way ANOVA adjusted with the Benjamini–Hochberg procedure. The minimum inhibitory concentration (MIC) for S. aureus is shown as a dotted line.
Figure 3. (A) Concentration of BP and TA released from the 10% w/w drug-loaded strips (3 × 5 × 10 mm3) and their antibacterial activity was assessed by the BacTiter-Glo assay. (B) Concentration of BP and TA released from the 20% w/w drug-loaded strips (3 × 5 × 10 mm3) and their antibacterial activity assessed by the BacTiter-Glo assay. * indicates p < 0.05 vs. VPE. p-values were determined from the 2-way ANOVA adjusted with the Benjamini–Hochberg procedure. The minimum inhibitory concentration (MIC) for S. aureus is shown as a dotted line.
Bioengineering 12 00173 g003
Table 1. List of drug-loaded UHMWPE formulations tested.
Table 1. List of drug-loaded UHMWPE formulations tested.
FormulationBP HCl [% w/w]TA [%w/w]Code
Virgin UHMWPE 00VPE
10% w/w10010BP
737BP3TA
555BP5TA
01010TA
20% w/w20020BP
14614BP6TA
101010BP10TA
02020TA
Table 2. List of primers.
Table 2. List of primers.
GenePrimer Sequences
vraRFP 5′-AACTCTGCGCGCTTTTTCAT-3′
RP 5′-ATATCGCCGATGCAGTTCGT-3′
icaAFP 5′-TTGTCGACGTTGGCTACTGG-3′
RP 5′-GCGTTGCTTCCAAAGACCTC-3′
ebpSFP 5′-TACTTTGGCCATGCCACCTT-3′
RP 5′-TGCTTCTGCCGCTTCAAAAC-3′
16srRNAFP 5′-AGACCAGAAAGTCGCCTTCG-3′
RP 5′-TCAACCGTGGAGGGTCATTG-3′
