Corneal Epithelial–Stromal Fibroblast Constructs to Study Cell–Cell Communication in Vitro

by
Tina B. McKay
1,
Dimitrios Karamichos
2,3,
Audrey E. K. Hutcheon
1,
Xiaoqing Guo
1 and
James D. Zieske
1,*
1
Schepens Eye Research Institute/Massachusetts Eye and Ear, Department of Ophthalmology, Harvard Medical School, Boston, MA 02114, USA
2
Department of Ophthalmology/Dean McGee Eye Institute, University of Oklahoma Health Science Center, Oklahoma City, OK 73104, USA
3
Department of Cell Biology, University of Oklahoma Health Sciences Center, Oklahoma City, OK 73104, USA
*
Author to whom correspondence should be addressed.
Bioengineering 2019, 6(4), 110; https://doi.org/10.3390/bioengineering6040110
Submission received: 31 October 2019 / Revised: 27 November 2019 / Accepted: 2 December 2019 / Published: 4 December 2019
(This article belongs to the Special Issue Bioengineering and the Eye)
Browse Figures
Versions Notes

Abstract

:
Cell–cell communication plays a fundamental role in mediating corneal wound healing following injury or infection. Depending on the severity of the wound, regeneration of the cornea and the propensity for scar development are influenced by the acute resolution of the pro-fibrotic response mediated by closure of the wound via cellular and tissue contraction. Damage of the corneal epithelium, basement membrane, and anterior stroma following a superficial keratectomy is known to lead to significant provisional matrix deposition, including secretion of fibronectin and thrombospondin-1, as well as development of a corneal scar. In addition, corneal wounding has previously been shown to promote release of extracellular vesicles from the corneal epithelium, which, in addition to soluble factors, may play a role in promoting tissue regeneration. In this study, we report the development and characterization of a co-culture system of human corneal epithelial cells and corneal stromal fibroblasts cultured for 4 weeks to allow extracellular matrix deposition and tissue maturation. The secretion of provisional matrix components, as well as small and large extracellular vesicles, was apparent within the constructs, suggesting cell–cell communication between epithelial and stromal cell populations. Laminin-1β was highly expressed by the corneal epithelial layer with the presence of notable patches of basement membrane identified by transmission electron microscopy. Interestingly, we identified expression of collagen type III, fibronectin, and thrombospondin-1 along the epithelial–stromal interface similar to observations seen in vivo following a keratectomy, as well as expression of the myofibroblast marker, α-smooth muscle actin, within the stroma. Our results suggest that this corneal epithelial–stromal model may be useful in the study of the biochemical phenomena that occur during corneal wound healing.

1. Introduction

The cornea serves as a transparent barrier to protect the eye against environmental stresses. The optical properties of the tissue require high transparency mediated by intricate organization of the stromal extracellular matrix (ECM). Prolonged or irregular wound healing may promote opacification of the cornea leading to fibrotic ECM deposition and ultimately vision loss. Over six million people are visually impaired due to corneal scarring, primarily a result of trachoma infections [1]. Corneal transplantation remains the only therapeutic option to recover vision loss due to corneal scarring. Thus, physiologically relevant models to examine the pharmacological and toxicological effects of infection, chemical application, and disease are needed to develop novel therapeutics to prevent permanent corneal scarring.
Cell–cell communication between the epithelial and stromal layers within the cornea directly influences whether a corneal scar develops. The basement membrane is thought to play a determinant role in stromal fibrosis by regulating the diffusion of soluble, free-factors, such as transforming growth factor-β1 or thrombospondin-1, from the epithelium to the stroma [2,3]. Moreover, we have previously found that the wounded corneal epithelium in vivo secretes extracellular vesicles in response to epithelial debridement that also appear to be restricted by the basement membrane [4]; however, in the absence of a basement membrane, as with a keratectomy, these extracellular vesicles appear to freely disperse into the corneal stroma [4]. We hypothesize that extracellular vesicles may play an important role in corneal regeneration and scar development.
A number of corneal in vitro constructs have been proposed over the years as potential models to study corneal biology. Full-thickness cornea models containing epithelial, stromal, and endothelial cell types, have been constructed by our lab [5], as well as others [6,7], using a collagen hydrogel seeded with corneal fibroblasts and epithelial and endothelial cell layers at the anterior and posterior surfaces, respectively. Co-cultures of corneal epithelial cells and fibroblasts have also been reported with inclusion of amniotic membrane [8], epithelial explants [9], or acellular porcine matrices [10]. A self-assembled approach has also been proposed using stacked ECM sheets generated by human corneal fibroblasts with epithelial cells seeded on top [11]. Other approaches using compressed collagen hydrogels containing stromal fibroblasts with improved biomechanical and optical properties have likewise been reported [12,13]. These models highlight the importance and potential application of multi-cellular systems to study physiological processes in vitro [14].
During corneal wound repair, the corneal epithelium can presumably stimulate fibroblast fibrosis or scarless regeneration. The healing process is thought to be partly regulated by the epithelial–stromal interactions [15]. In this study, we applied an in vitro approach to examine the interaction between the epithelium and a self-secreted fibroblast matrix. The goal of the study was to develop an in vitro co-culture model to examine epithelial–stromal interactions mimicking the wound-healing process. The co-culture system utilizes primary or immortalized human corneal epithelial cells as the epithelial cell layer and self-assembled constructs generated by human corneal fibroblasts (hCFs) as the stromal layer. Primary hCFs have been commonly applied in the development of corneal stromal models [16,17,18]. These cells are derived from keratocytes present in the corneal stroma that become activated upon exposure to serum [19,20]. This model implements a developmental tissue-engineering approach [21] that relies upon stimulated ECM deposition to form an aligned collagenous matrix [17] reminiscent of the developing cornea during embryogenesis (reviewed in [22]). This methodology differs greatly from a classical tissue engineering approach that involves seeding cells within pre-formed scaffolds, and instead relies on in situ collagen production within a quiescent microenvironment in the context of cell phenotype and ECM composition and organization, which is in sharp contrast to the disorganized ECM deposition in the corneal stroma during wound healing [16]. The stromal constructs utilized in this study are formed over 3–4 weeks by promoting resident corneal fibroblasts to secrete and assemble an ECM rich in collagen types I and V mediated by stimulation with a stable Vitamin C derivative [16,17]. Addition of an overlaying epithelial layer in this co-culture system allows for cell–cell interactions between the epithelial and stromal layers. In this study, we evaluated the microscopic structure and cellular components contained within this novel epithelial–stromal co-culture construct, as a potential means to study corneal epithelial–stromal interactions in vitro.

2. Materials and Methods

2.1. Cell Culture

This study adheres to the Declaration of Helsinki and all donor eyes were received from the National Disease Research Interchange (NDRI, Philadelphia, PA, USA). No identifying information was provided. The institutional review board at the Schepens Eye Research Institute deemed these experiments to be exempt.

2.1.1. Human Corneal Fibroblasts

Primary hCFs were isolated from corneal tissue and cultured according to established protocols [16,17]. Briefly, following epithelial and endothelial layer debridement, the stroma was cut into small pieces (~2 mm2) using a surgical scalpel and allowed to adhere onto the bottom of a T25 flask followed by incubation at 37 °C/5% CO2 in complete fibroblast media (10% fetal bovine serum (FBS: Atlanta Biologicals, Flowery Branch, GA, USA), Eagle’s Minimum Essential Medium (EMEM: ATCC, Manassas, VA, USA), and 1X antibiotic-antimycotic (Gibco, Grand Island, NY, USA)) for 2–4 weeks until ~75% confluent [16,17].

2.1.2. Human Corneal Epithelial Cells

Two different human corneal epithelial cell sources were used in these studies and isolated per previously described methods: (1) primary human corneal epithelial cells (hCECs) [23], and (2) the SV40-immortalized epithelial cell line (hCE-TJ) [24,25]. Corneal epithelial cells were sub-cultured in complete epithelial growth media (Keratinocyte-SFM (Gibco), 0.05 mg/mL bovine pituitary extract (Gibco), and 5 ng/mL epithelial growth factor (Gibco)) in T75 flasks coated with fibronectin (Athena Environmental Sciences, Baltimore, MD, USA) at 37 °C/5% CO2 until 90% confluent [24,25].

2.1.3. Three-Dimensional (3D) Corneal Stromal Constructs

Stromal constructs generated by hCFs were cultured in 3D model conditions, as previously described [16,17]. Briefly, hCFs (passages 2–4) were seeded into 24 mm polycarbonate transwell plates with 0.4 μm pores (Corning, Corning, NY, USA) at a density of 106 cells/well maintained in complete fibroblast media. At 24 h post-seeding, fresh complete fibroblast media containing a stable Vitamin C (VitC) derivative (2-O-α-D-glucopyranosyl-L-ascorbic acid (CAS # 129499-78-1): Wako Chemicals, Richmond, VA, USA) at a final concentration of 0.5 mM, was added to each well to stimulate ECM production [16,17]. Constructs were maintained in VitC-supplemented complete fibroblast media for 3 weeks for co-culture studies and a total of 4 weeks for monoculture studies with media changes 3× per week.

2.1.4. Co-Culture of Corneal Epithelium and Stromal Fibroblasts

To generate corneal construct co-cultures, we seeded hCECs or hCE-TJs (passage 40+) at a density of 106 cells/well on top of a 3-week stromal construct. Complete epithelial and fibroblast media were supplemented in the top and bottom well, respectively, for 4 days and cultured at 37 °C/5% CO2. After 4 days, the epithelial media on top of the co-culture was reduced so that only enough media was present to keep the cells moist, thus creating an air-liquid interface. The co-cultures were maintained in this manner for 3–6 additional days.

2.2. TEM

The constructs were collected, fixed in 1/2 strength Karnovsky’s fixative (2% paraformaldehyde and 2.5% gluteraldehyde in 0.1M cacodylate buffer, pH 7.4) [26], and processed for TEM using standard procedures based on established methods [17,27]. After fixation, the constructs were washed in phosphate buffered saline (PBS), post-fixed in 2% osmium tetroxide in 0.1M cacodylate buffer (pH 7.4), and en bloc stained in 0.5% uranyl oxide. The constructs then were dehydrated in a graded alcohol series followed by propylene oxide and embedded (EMbed 812: Electron Microscopy Sciences; Hatfield, PA, USA). Thin sections (60–90 Å) were cut transverse to the plane of the construct using a diamond knife on an ultramicrotome (LKB; Bromma, Sweden), and viewed and imaged with a transmission electron microscope (Tecnai G2 Spirit, FEI Company, Hillsboro, OR, USA).

2.3. Immunohistochemistry

Constructs were isolated and fixed in 4% paraformaldehyde in PBS for 30 min at room temperature to overnight at 4 °C followed by permeabilization in 0.1% Triton-X-100 for 10 min to 1 h at room temperature. Blocking was performed in either 1 or 2% bovine serum albumin (Sigma Aldrich, St. Louis, MO, USA) for 1 h at room temperature, and samples were incubated with primary antibody overnight (in 1% bovine serum albumin) at 4 °C with rocking. The samples were then incubated with the secondary antibody, as well as phalloidin and/or TOPRO-3-iodide overnight at 4 °C with rocking. Commercial antibodies utilized in these studies are listed in Table 1. Samples were mounted onto a slide with mounting medium (Vectashield Mounting Medium for fluorescence, Vector Laboratories, Burlingame, CA, USA) and imaged using a Leica TCS SP2 or SP5 confocal microscope (Leica Microsystems, Bannockburn, IL, USA) under oil-immersion with a 40× objective lens and zoom function. A negative control without the primary antibody was performed to verify specificity.

3. Results

To develop an epithelial–stromal co-culture system, we applied a similar approach to our previous work on the monoculture model [16,17], with the added inclusion of an epithelial layer (Figure 1). Initially, the hCFs were grown on a porous transwell membrane and stimulated to secrete and deposit an ECM, which occurred over 3 weeks in the presence of a stable VitC derivative that is known to stimulate collagen production [28]. The hCECs were then seeded onto the monoculture construct, and the co-culture system was cultivated for an additional 7–10 days, with the hCECs submerged in serum-free epithelial media for 4 days and airlifted to an air–liquid interface for the final 3–6 days, to allow for the maturation of the epithelial layer [5]. The porous transwell system allowed for the inclusion of VitC-supplemented complete corneal fibroblast media within the bottom well and serum-free epithelial media in the top well, thereby permitting specific cellular nutritional support.
To characterize the cellular and structural morphology of the epithelial–stromal co-culture system, we isolated the constructs and imaged by TEM. We identified minor stratification of hCECs (2–3 layers) with localization of hCFs throughout the construct (Figure 2). Consistent with the sparse distribution of keratocytes within the corneal stroma in vivo [29], the cell abundance of hCFs was higher proximal to the hCEC layer (Figure 2A). Substantial amounts of ECM were seen throughout the construct with a stromal thickness of 27–30 μm and a total thickness of 43–45 μm from the anterior epithelium to the posterior side of the stroma (Figure 2A and Appendix A (Figure A1)). Constructs composed of hCE-TJ/hCFs generated a thinner matrix with total thickness of 21.54 ± 6.58 μm [Appendix A (Table A1)]. The presence of a presumed basement membrane was observed at high magnification oriented along the epithelial–stromal interface (Figure 2B).
In terms of sub-cellular structure, the abundance of cytoplasmic features in hCECs and hCFs were evident, including mitochondria, lysosomes, and vacuoles (Figure 3). The presence of small vesicles (188 ± 10 nm, range 96–342 nm; arrowheads) was also identified within the extracellular space between hCECs and hCFs (Figure 3A) and between hCFs (Figure 3B). It is likely that these extracellular vesicles may play a fundamental role in cell–cell communication between the epithelium and stromal cell populations [4,30].
The presence of extracellular vesicles (131 ± 5 nm, range 77–228 nm) was also identified between hCFs within the stromal layer of the co-culture constructs (Figure 4, arrowheads). In particular, large vesicular bodies (300–330 nm in diameter) were apparent within the stroma near resident hCFs (Figure 4, right panel ellipse). These vesicles may be attributed as microvesicles, which are larger vesicles (up to 1 μm in diameter) formed directly from the plasma membrane. Some of these large aggregates may also be remnants of apoptotic bodies that have formed as a result of cell turnover within the stroma [31].
To determine if our co-culture model mimicked a stromal injury consistent with the absence of a uniform basement membrane, we stained for fibrotic markers, collagen type III, and α-smooth muscle actin, at 1-week post-epithelial seeding (Figure 5). Collagen type III expression appeared low in hCF monocultures (Figure 5A), but was highly localized at the epithelial–stromal interface in the co-culture system with high expression localized to resident hCFs (Figure 5D). Likewise, we found relatively low expression of α-smooth muscle actin in hCECs (Figure 5E) with high expression by hCFs in epithelial–stromal co-cultures (Figure 5F1). Little, if any, α-smooth muscle actin expression was observed in hCF construct only (Figure 5F2). The upregulation in α-smooth muscle actin in co-culture suggests that the addition of hCECs promotes differentiation of hCFs to myofibroblasts.
We have previously found that the wounded corneal epithelium in vivo secretes fibronectin into the anterior stroma by 3 days following a keratectomy [32]. Moreover, expression of fibronectin appears to localize at the epithelial–stromal interface and anterior stroma from 3–42 days post-keratectomy [33]. Fibronectin is known to aid in epithelial cell migration post-debridement [34], thus playing an important role in epithelial regeneration. To determine if hCECs express provisional matrix proteins in our co-culture system, we evaluated the expression and localization of fibronectin. We found that control hCFs expressed little to no fibronectin in vitro (Figure 6A). In co-cultures, fibronectin expression appeared to localize to the epithelial–stromal interface, primarily at the anterior side of the stromal layer (Figure 6B–D). This expression pattern was similar to that observed following a keratectomy in vivo [32,35] (Figure 6B2). We also examined fibronectin expression in immortalized epithelial cells (hCE-TJ) in 3-day post-airlift co-cultures, and found that hCFs did not appear to express fibronectin; however, the majority of fibronectin was likely derived from the hCE-TJ layer [Figure 7 and Appendix A (Table A2)].
Given the importance of thrombospondin-1 in corneal wound healing [36], we sought to determine the expression pattern of this ECM protein within the co-culture system. We found that hCE-TJs expressed high amounts of thrombospondin-1 with localization found primarily at the epithelial–stromal interface (Figure 8A), similar to the spatial localization of fibronectin (Figure 6B1). Thrombospondin-1 appeared as a fibrous matrix, similar in appearance to collagen, at the apical side of the stromal hCF layer, suggesting that secreted thrombospondin-1 (likely originating from the hCE-TJ-layer) may be binding to stromal collagen deposited by hCFs [Figure 8B and Appendix A (Table A2)].
In the human cornea in vivo, an epithelial basement membrane rich in collagen type IV, laminin, heparan sulfate proteoglycans (e.g., perlecan and agrin), and nidogen, separates the epithelial layer from the stromal layer [37,38]. Formation of this basement membrane may play an important role in protecting the stroma from pro-fibrotic factors that are secreted by the epithelium following injury [2,3]. Epithelial cells are considered the dominant source for assembling the epithelial basement membrane with possible contributions from stromal keratocytes [39,40]. To determine if the epithelium begins to express basement membrane proteins by 1 week when cultured in our co-culture system, we stained for laminin-1β, a highly abundant protein found in the epithelial basement membrane [38]. We identified high expression of laminin-1β by hCE-TJs, with localization near the basal surface of the epithelium (Figure 9); however, by 3 days post-airlift, the laminin-1β did not form a cohesive layer at the epithelial–stromal interface (Figure 9A). Little to no expression of laminin-1β was found in hCFs compared to the high expression in hCE-TJs, suggesting that the laminin-1β in this co-culture system was primarily epithelial-derived (Figure 9B).

4. Discussion

We have previously developed a 3D model of the human corneal stroma that relied upon self-assembly of an ECM produced by hCFs in situ over 4 weeks [16,17]. This 3D stromal model has been applied in the study of endothelial [30] and neuronal [41] cell interactions, as well as in investigations of the effects of hypoxia [42,43] and corneal disease (e.g., keratoconus [44] and diabetes [45]). In this study, we report the development and characterization of corneal epithelial–stromal co-cultures that are constructed using the 3D in vitro model with an overlaying epithelial layer. We found that our corneal co-culture constructs re-capitulated epithelial–stromal interactions during wound healing with clear evidence of extracellular vesicle secretion and deposition of provisional matrix proteins between epithelial and stromal layers. Similar to our findings using endothelial–stromal co-cultures [46], diffusion and uptake of extracellular vesicles within the stroma appeared to occur, suggesting that vesicle migration is not inhibited or limited by the stromal ECM, which is composed predominately of collagen types I and V. The use of this co-culture system as a model of human wound repair has many advantages: (1) it uses human cells and can be easily manipulated to knock-in or -down genes in either the hCEC or hCF; (2) by treating the cultures with EDTA [47], the epithelial layer can be separated from the hCF, allowing for a more precise analysis of both cell groups; and (3) the lack of inclusion of any exogenous scaffold, collagen or synthetic, reduces any interference due to an added substrate and improves the physiological relevance of this system in the study of biological interactions.
A potential limitation noted in this system is the limited multicellular stratification of the epithelial layer by hCECs and hCE-TJ. The human cornea in vivo contains 5–7 layers of epithelial cell layers, including the superficial epithelial cells, wing cells, and basal cells [48]. While our model showed 1–3 layers of epithelial cells depending on the region of interest, further stratification of the epithelium appeared limited using the epithelial cell line (hCE-TJ) [49]; thus utilization of primary limbal epithelial cells [50] may be required to improve epithelial barrier function. Further validation comparing primary corneal epithelial cells (hCECs) and hCE-TJs is warranted to determine if differences in maturation of the epithelium or barrier function occur depending on the cell type. In addition, we did observe what appeared to be an hCF undergoing apoptosis resulting in the generation of apoptotic bodies within the stroma suggesting cell turnover within the construct. The utilization of hCFs in this model over the quiescent, native keratocyte must also be carefully considered when applying this model in the study of corneal wound healing. While hCFs are easily isolated from the human cornea due to their high proliferative and migratory properties [51], the cellular and morphological properties of hCFs are distinct from the keratocyte with lower expression of the classic keratocyte markers, aldehyde dehydrogenase 3a [52], and keratocan [53]. However, studies have suggested that transfer of hCFs to a serum-free environment may recover the keratocyte phenotype [54].
It is well-established that the wounded corneal epithelium secretes a number of factors, such as transforming growth factor-β1, platelet-derived growth factor, and insulin growth factor, that promote myofibroblast differentiation by stromal keratocytes or fibroblasts that eventually undergo apoptosis [55]. In this study, we found that the addition of hCECs to stromal hCF constructs stimulated a wound-healing response within the hCF population, characterized by high expression of collagen type III and α-smooth muscle actin. The results from our current investigation suggest that this model may be useful in the study of corneal wounding to identify specific free- and bound-factors important in promoting scar development. Of note, the lack of a coherent laminin-1β layer in this co-culture model agrees with previous work, which shows that the corneal endothelium is required for the assembly of a proper epithelial basement membrane [5], suggesting that inclusion of an endothelial layer may be warranted. Whether the corneal endothelium promotes stromal or epithelial expression of basement membrane proteins, or secretes these structural proteins directly for assembly at the anterior surface, remains unclear.
Further development of in vitro approaches to model the human cornea with additional characterization of the epithelial and stromal interactions during homeostasis and wound healing will likely prove fruitful in developing novel therapeutics to inhibit corneal scar development. Of note, while multiple pathways are involved in corneal scarring and regeneration, targeting the myofibroblast appears to be key to this endeavor [56,57]. The appearance of extracellular vesicles during corneal wound healing [4,46] warrants further study to determine if these membrane-bound factors favor corneal regeneration by increasing matrix deposition and influence myofibroblast persistence. Our results suggest that this co-culture system may be useful in studying epithelial–stromal cell interactions during corneal wound healing. We hypothesize that secretion of provisional matrix components by the corneal epithelium post-injury may be a fundamental mode for promoting tissue closure and regeneration. Further studies are required to characterize the biological features of the developed epithelial–stromal co-culture system to determine if further cultivation of the epithelial layer promotes the downregulation of fibronectin and thrombospondin-1 expression, and the formation of a proper laminin-rich basement membrane.

Author Contributions

Conceptualization, J.D.Z., D.K., X.G., and T.B.M.; methodology, J.D.Z., T.B.M., D.K., A.E.K.H., and X.G.; software, T.B.M.; validation, T.B.M. and D.K.; formal analysis, T.B.M., D.K., and A.E.K.H.; investigation, T.B.M., X.G., and D.K.; resources, J.D.Z.; data curation, T.B.M. and A.E.K.H.; writing—original draft preparation, T.B.M. and A.E.K.H.; writing—review and editing, T.B.M., A.E.K.H., D.K., and J.D.Z.; visualization, T.B.M., D.K., and A.E.K.H.; supervision, J.D.Z.; project administration, J.D.Z.; funding acquisition, J.D.Z.

Funding

This research was funded by the National Institutes of Health (NIH) and National Eye Institute (NEI), R01EY005665, 5T32EY007145-20, and the NEI Core grant P30EY003790. In addition, tissues procured by NDRI with support from NIH 2U42 OD011158.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Bioengineering 06 00110 g0a1 550

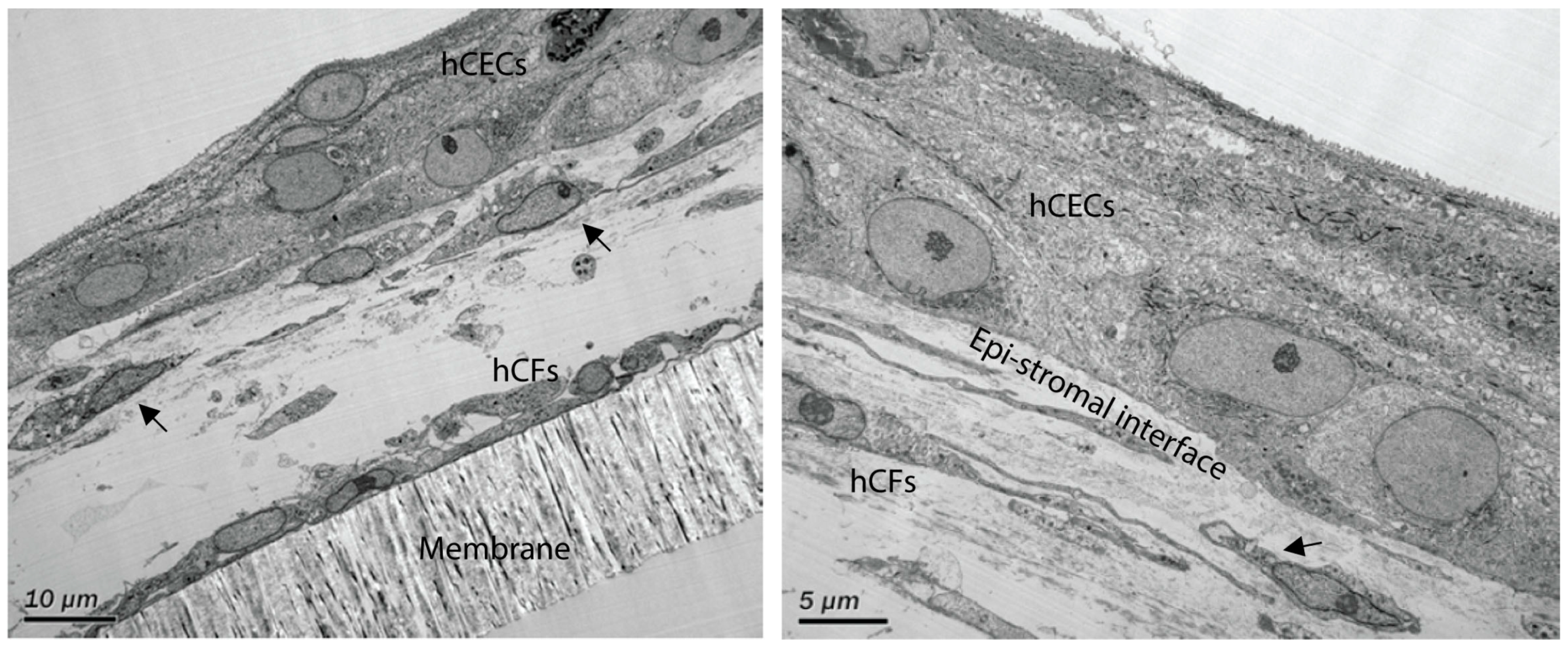

Figure A1. TEM of corneal epithelial–stromal co-cultures at low magnification. 2–3 layers of hCECs formed at the apical side of the construct with dispersion of fibroblasts (arrows) within the self-assembled matrix and on top of the transwell membrane. The total thickness of the construct = 45 μm. Magnification = 1600× (left panel) and 3000× (right panel).
Figure A1. TEM of corneal epithelial–stromal co-cultures at low magnification. 2–3 layers of hCECs formed at the apical side of the construct with dispersion of fibroblasts (arrows) within the self-assembled matrix and on top of the transwell membrane. The total thickness of the construct = 45 μm. Magnification = 1600× (left panel) and 3000× (right panel).
Bioengineering 06 00110 g0a1
Table
Table A1. Relative thickness of hCE-TJ/hCF constructs. Based on n = 3 constructs (average ± stdev).
Table A1. Relative thickness of hCE-TJ/hCF constructs. Based on n = 3 constructs (average ± stdev).
ConstructThickness
hCE-TJ/hCF co-culture21.54 ± 6.58 μm
Table
Table A2. Relative fluorescence intensity of fibronectin and thrombospondin-1 in the epithelial and stromal regions of hCE-TJ/hCF constructs determined using Fiji [58]. Based on n = 3 constructs (average ± stdev).
Table A2. Relative fluorescence intensity of fibronectin and thrombospondin-1 in the epithelial and stromal regions of hCE-TJ/hCF constructs determined using Fiji [58]. Based on n = 3 constructs (average ± stdev).
ProteinRelative Fluorescence Intensity
EpitheliumStroma
Fibronectin1346.99 ± 228.17812.10 ± 422.80
Thrombospondin-11477.24 ± 484.141200.52 ± 600.91

References

  1. Whitcher, J.P.; Srinivasan, M.; Upadhyay, M.P. Corneal blindness: A global perspective. Bull. World Health Organ. 2001, 79, 214–221. [Google Scholar] [PubMed]
  2. Marino, G.K.; Santhiago, M.R.; Torricelli, A.A.; Santhanam, A.; Wilson, S.E. Corneal Molecular and Cellular Biology for the Refractive Surgeon: The Critical Role of the Epithelial Basement Membrane. J. Refract. Surg. 2016, 32, 118–125. [Google Scholar] [CrossRef] [PubMed]
  3. Wilson, S.E.; Marino, G.K.; Torricelli, A.A.M.; Medeiros, C.S. Injury and defective regeneration of the epithelial basement membrane in corneal fibrosis: A paradigm for fibrosis in other organs? Matrix Biol. J. Int. Soc. Matrix Biol. 2017, 64, 17–26. [Google Scholar] [CrossRef] [PubMed]
  4. Han, K.Y.; Tran, J.A.; Chang, J.H.; Azar, D.T.; Zieske, J.D. Potential role of corneal epithelial cell-derived exosomes in corneal wound healing and neovascularization. Sci. Rep. 2017, 7, 40548. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Zieske, J.D.; Mason, V.S.; Wasson, M.E.; Meunier, S.F.; Nolte, C.J.M.; Fukai, N.; Olsen, B.R.; Parenteau, N.L. Basement Membrane Assembly and Differentiation of Cultured Corneal Cells: Importance of Culture Environment and Endothelial Cell Interaction. Exp. Cell Res. 1994, 214, 621–633. [Google Scholar] [CrossRef] [PubMed]
  6. Griffith, M.; Osborne, R.; Munger, R.; Xiong, X.; Doillon, C.J.; Laycock, N.L.; Hakim, M.; Song, Y.; Watsky, M.A. Functional human corneal equivalents constructed from cell lines. Science 1999, 286, 2169–2172. [Google Scholar] [CrossRef]
  7. Reichl, S.; Bednarz, J.; Müller-Goymann, C.C. Human corneal equivalent as cell culture model for in vitro drug permeation studies. Br. J. Ophthalmol. 2004, 88, 560–565. [Google Scholar] [CrossRef] [Green Version]
  8. Kobayashi, T.; Shiraishi, A.; Hara, Y.; Kadota, Y.; Yang, L.; Inoue, T.; Shirakata, Y.; Ohashi, Y. Stromal-epithelial interaction study: The effect of corneal epithelial cells on growth factor expression in stromal cells using organotypic culture model. Exp. Eye Res. 2015, 135, 109–117. [Google Scholar] [CrossRef]
  9. Wilson, S.L.; Yang, Y.; El Haj, A.J. Corneal stromal cell plasticity: In Vitro regulation of cell phenotype through cell-cell interactions in a three-dimensional model. Tissue Eng. Part A 2014, 20, 225–238. [Google Scholar] [CrossRef] [Green Version]
  10. Zhang, C.; Du, L.; Sun, P.; Shen, L.; Zhu, J.; Pang, K.; Wu, X. Construction of tissue-engineered full-thickness cornea substitute using limbal epithelial cell-like and corneal endothelial cell-like cells derived from human embryonic stem cells. Biomaterials 2017, 124, 180–194. [Google Scholar] [CrossRef]
  11. Couture, C.; Zaniolo, K.; Carrier, P.; Lake, J.; Patenaude, J.; Germain, L.; Guérin, S.L. The tissue-engineered human cornea as a model to study expression of matrix metalloproteinases during corneal wound healing. Biomaterials 2016, 78, 86–101. [Google Scholar] [CrossRef] [PubMed]
  12. Levis, H.J.; Brown, R.A.; Daniels, J.T. Plastic compressed collagen as a biomimetic substrate for human limbal epithelial cell culture. Biomaterials 2010, 31, 7726–7737. [Google Scholar] [CrossRef] [PubMed]
  13. Mi, S.; Chen, B.; Wright, B.; Connon, C.J. Ex vivo construction of an artificial ocular surface by combination of corneal limbal epithelial cells and a compressed collagen scaffold containing keratocytes. Tissue Eng. Part A 2010, 16, 2091–2100. [Google Scholar] [CrossRef] [PubMed]
  14. McKay, T.B.; Seyed-Razavi, Y.; Ghezzi, C.E.; Dieckmann, G.; Nieland, T.J.F.; Cairns, D.M.; Pollard, R.E.; Hamrah, P.; Kaplan, D.L. Corneal pain and experimental model development. Prog. Retin. Eye Res. 2019, 71, 88–113. [Google Scholar] [CrossRef] [PubMed]
  15. Gabison, E.E.; Huet, E.; Baudouin, C.; Menashi, S. Direct epithelial-stromal interaction in corneal wound healing: Role of EMMPRIN/CD147 in MMPs induction and beyond. Prog. Retin. Eye Res. 2009, 28, 19–33. [Google Scholar] [CrossRef] [PubMed]
  16. Ren, R.; Hutcheon, A.E.; Guo, X.Q.; Saeidi, N.; Melotti, S.A.; Ruberti, J.W.; Zieske, J.D.; Trinkaus-Randall, V. Human primary corneal fibroblasts synthesize and deposit proteoglycans in long-term 3-D cultures. Dev. Dyn. 2008, 237, 2705–2715. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Guo, X.; Hutcheon, A.E.; Melotti, S.A.; Zieske, J.D.; Trinkaus-Randall, V.; Ruberti, J.W. Morphologic characterization of organized extracellular matrix deposition by ascorbic acid-stimulated human corneal fibroblasts. Investig. Ophthalmol. Vis. Sci. 2007, 48, 4050–4060. [Google Scholar] [CrossRef]
  18. Wilson, S.L.; Wimpenny, I.; Ahearne, M.; Rauz, S.; El Haj, A.J.; Yang, Y. Chemical and topographical effects on cell differentiation and matrix elasticity in a corneal stromal layer model. Adv. Funct. Mater. 2012, 22, 3641–3649. [Google Scholar] [CrossRef] [Green Version]
  19. Beales, M.P.; Funderburgh, J.L.; Jester, J.V.; Hassell, J.R. Proteoglycan synthesis by bovine keratocytes and corneal fibroblasts: Maintenance of the keratocyte phenotype in culture. Investig. Ophthalmol. Vis. Sci. 1999, 40, 1658–1663. [Google Scholar]
  20. Jester, J.V.; Barry-Lane, P.A.; Cavanagh, H.D.; Petroll, W.M. Induction of alpha-smooth muscle actin expression and myofibroblast transformation in cultured corneal keratocytes. Cornea 1996, 15, 505–516. [Google Scholar] [CrossRef]
  21. Marcucio, R.S.; Qin, L.; Alsberg, E.; Boerckel, J.D. Reverse engineering development: Crosstalk opportunities between developmental biology and tissue engineering. J. Orthop. Res. 2017, 35, 2356–2368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Ruberti, J.W.; Zieske, J.D. Prelude to corneal tissue engineering-gaining control of collagen organization. Prog. Retin. Eye Res. 2008, 27, 549–577. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Zieske, J.D.; Hutcheon, A.E.K.; Guo, X.; Chung, E.-H.; Joyce, N.C. TGF-β Receptor Types I and II Are Differentially Expressed during Corneal Epithelial Wound Repair. Investig. Ophthalmol. Vis. Sci. 2001, 42, 1465–1471. [Google Scholar]
  24. Guo, X.; Hutcheon, A.E.K.; Tran, J.A.; Zieske, J.D. TGF-beta-target genes are differentially regulated in corneal epithelial cells and fibroblasts. New Front. Ophthalmol. 2017, 3. [Google Scholar] [CrossRef] [PubMed]
  25. Xu, K.P.; Zoukhri, D.; Zieske, J.D.; Dartt, D.A.; Sergheraert, C.; Loing, E.; Yu, F.S. A role for MAP kinase in regulating ectodomain shedding of APLP2 in corneal epithelial cells. Am. J. Physiol. Cell Physiol. 2001, 281, C603–C614. [Google Scholar] [CrossRef] [PubMed]
  26. Morris, J.K. A formaldehyde glutaraldehyde fixative of high osmolality for use in electron microscopy. J. Cell Biol. 1965, 27, 1A–149A. [Google Scholar]
  27. Gipson, I.K.; Grill, S.M.; Spurr, S.J.; Brennan, S.J. Hemidesmosome formation in vitro. J. Cell Biol. 1983, 97, 849–857. [Google Scholar] [CrossRef] [Green Version]
  28. Kumano, Y.; Sakamoto, T.; Egawa, M.; Tanaka, M.; Yamamoto, I. Enhancing effect of 2-o-α-d-glucopyranosyl-L-ascorbic acid, a stable ascorbic acid derivative, on collagen synthesis. Biol. Pharm. Bull. 1998, 21, 662–666. [Google Scholar] [CrossRef] [Green Version]
  29. Jester, J.V.; Barry, P.A.; Lind, G.J.; Petroll, W.M.; Garana, R.; Cavanagh, H.D. Corneal keratocytes: In Situ and In Vitro organization of cytoskeletal contractile proteins. Investig. Ophthalmol. Vis. Sci. 1994, 35, 730–743. [Google Scholar]
  30. Hutcheon, A.E.K.; Zieske, J.D.; Guo, X. 3D in vitro model for human corneal endothelial cell maturation. Exp. Eye Res. 2019, 184, 183–191. [Google Scholar] [CrossRef]
  31. Akers, J.C.; Gonda, D.; Kim, R.; Carter, B.S.; Chen, C.C. Biogenesis of extracellular vesicles (EV): Exosomes, microvesicles, retrovirus-like vesicles, and apoptotic bodies. J. Neuro-Oncol. 2013, 113, 1–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Zieske, J.D.; Higashijima, S.C.; Spurr-Michaud, S.J.; Gipson, I.K. Biosynthetic responses of the rabbit cornea to a keratectomy wound. Investig. Ophthalmol. Vis. Sci. 1987, 28, 1668–1677. [Google Scholar]
  33. Nickeleit, V.; Kaufman, A.H.; Zagachin, L.; Dutt, J.E.; Foster, C.S.; Colvin, R.B. Healing corneas express embryonic fibronectin isoforms in the epithelium, subepithelial stroma, and endothelium. Am. J. Pathol. 1996, 149, 549–558. [Google Scholar] [PubMed]
  34. Nishida, T.; Nakagawa, S.; Awata, T.; Ohashi, Y.; Watanabe, K.; Manabe, R. Fibronectin promotes epithelial migration of cultured rabbit cornea in situ. J. Cell Biol. 1983, 97, 1653–1657. [Google Scholar] [CrossRef] [PubMed]
  35. Tervo, K.; Van Setten, G.; Beuerman, R.; Virtanen, I.; Tarkkanen, A.; Tervo, T. Expression of tenascin and cellular fibronectin in the rabbit cornea after anterior keratectomy. Immunohistochemical study of wound healing dynamics. Investig. Ophthalmol. Vis. Sci. 1991, 32, 2912–2918. [Google Scholar]
  36. Uno, K.; Hayashi, H.; Kuroki, M.; Uchida, H.; Yamauchi, Y.; Kuroki, M.; Oshima, K. Thrombospondin-1 accelerates wound healing of corneal epithelia. Biochem. Biophys. Res. Commun. 2004, 315, 928–934. [Google Scholar] [CrossRef]
  37. Torricelli, A.A.; Singh, V.; Santhiago, M.R.; Wilson, S.E. The corneal epithelial basement membrane: Structure, function, and disease. Investig. Ophthalmol. Vis. Sci. 2013, 54, 6390–6400. [Google Scholar] [CrossRef]
  38. Ljubimov, A.V.; Burgeson, R.E.; Butkowski, R.J.; Michael, A.F.; Sun, T.T.; Kenney, M.C. Human corneal basement membrane heterogeneity: Topographical differences in the expression of type IV collagen and laminin isoforms. Lab. Investig. J. Tech. Methods Pathol. 1995, 72, 461–473. [Google Scholar]
  39. Torricelli, A.A.; Marino, G.K.; Santhanam, A.; Wu, J.; Singh, A.; Wilson, S.E. Epithelial basement membrane proteins perlecan and nidogen-2 are up-regulated in stromal cells after epithelial injury in human corneas. Exp. Eye Res. 2015, 134, 33–38. [Google Scholar] [CrossRef] [Green Version]
  40. Gallego-Muñoz, P.; Lorenzo-Martín, E.; Fernández, I.; Herrero-Pérez, C.; Martínez-García, M.C. Nidogen-2: Location and expression during corneal wound healing. Exp. Eye Res. 2019, 178, 1–9. [Google Scholar] [CrossRef]
  41. Sharif, R.; Priyadarsini, S.; Rowsey, T.G.; Ma, J.X.; Karamichos, D. Corneal Tissue Engineering: An In Vitro Model of the Stromal-nerve Interactions of the Human Cornea. J. Vis. Exp. 2018, e56308. [Google Scholar] [CrossRef] [PubMed]
  42. McKay, T.B.; Hjortdal, J.; Priyadarsini, S.; Karamichos, D. Acute hypoxia influences collagen and matrix metalloproteinase expression by human keratoconus cells in vitro. PLoS ONE 2017, 12, e0176017. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Lee, A.; Karamichos, D.; Onochie, O.E.; Hutcheon, A.E.K.; Rich, C.B.; Zieske, J.D.; Trinkaus-Randall, V. Hypoxia modulates the development of a corneal stromal matrix model. Exp. Eye Res. 2018, 170, 127–137. [Google Scholar] [CrossRef] [PubMed]
  44. Karamichos, D.; Zareian, R.; Guo, X.; Hutcheon, A.E.; Ruberti, J.W.; Zieske, J.D. Novel in Vitro Model for Keratoconus Disease. J. Funct. Biomater. 2012, 3, 760–775. [Google Scholar] [CrossRef] [Green Version]
  45. Priyadarsini, S.; Rowsey, T.G.; Ma, J.X.; Karamichos, D. Unravelling the stromal-nerve interactions in the human diabetic cornea. Exp. Eye Res. 2017, 164, 22–30. [Google Scholar] [CrossRef]
  46. Zieske, J.D.; Hutcheon, A.E.K.; Guo, X. Extracellular Vesicles and Cell-Cell Communication in the Cornea. Anat. Record 2019. [Google Scholar] [CrossRef] [Green Version]
  47. Koskela, A.; Engström, K.; Hakelius, M.; Nowinski, D.; Ivarsson, M. Regulation of fibroblast gene expression by keratinocytes in organotypic skin culture provides possible mechanisms for the antifibrotic effect of reepithelialization. Wound Repair Regen. 2010, 18, 452–459. [Google Scholar] [CrossRef]
  48. DelMonte, D.W.; Kim, T. Anatomy and physiology of the cornea. J. Cataract. Refract. Surg. 2011, 37, 588–598. [Google Scholar] [CrossRef]
  49. Araki-Sasaki, K.; Ohashi, Y.; Sasabe, T.; Hayashi, K.; Watanabe, H.; Tano, Y.; Handa, H. An SV40-immortalized human corneal epithelial cell line and its characterization. Investig. Ophthalmol. Vis. Sci. 1995, 36, 614–621. [Google Scholar]
  50. Li, D.Q.; Wang, Z.; Yoon, K.C.; Bian, F. Characterization, isolation, expansion and clinical therapy of human corneal epithelial stem/progenitor cells. J. Stem Cells 2014, 9, 79–91. [Google Scholar]
  51. Fernández-Pérez, J.; Ahearne, M. Influence of Biochemical Cues in Human Corneal Stromal Cell Phenotype. Curr. Eye Res. 2019, 44, 135–146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Pei, Y.; Reins, R.Y.; McDermott, A.M. Aldehyde dehydrogenase (ALDH) 3A1 expression by the human keratocyte and its repair phenotypes. Exp. Eye Res. 2006, 83, 1063–1073. [Google Scholar] [CrossRef] [PubMed]
  53. Funderburgh, J.L.; Mann, M.M.; Funderburgh, M.L. Keratocyte phenotype mediates proteoglycan structure: A role for fibroblasts in corneal fibrosis. J. Biol. Chem. 2003, 278, 45629–45637. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Berryhill, B.L.; Kader, R.; Kane, B.; Birk, D.E.; Feng, J.; Hassell, J.R. Partial Restoration of the Keratocyte Phenotype to Bovine Keratocytes Made Fibroblastic by Serum. Investig. Ophthalmol. Vis. Sci. 2002, 43, 3416–3421. [Google Scholar]
  55. Ljubimov, A.V.; Saghizadeh, M. Progress in corneal wound healing. Prog. Retin. Eye Res. 2015, 49, 17–45. [Google Scholar] [CrossRef]
  56. Myrna, K.E.; Pot, S.A.; Murphy, C.J. Meet the corneal myofibroblast: The role of myofibroblast transformation in corneal wound healing and pathology. Vet. Ophthalmol. 2009, 12 (Suppl. 1), 25–27. [Google Scholar] [CrossRef]
  57. Shu, D.Y.; Lovicu, F.J. Myofibroblast transdifferentiation: The dark force in ocular wound healing and fibrosis. Prog. Retin. Eye Res. 2017, 60, 44–65. [Google Scholar] [CrossRef]
  58. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B. Fiji: An open-source platform for biological-image analysis. Nat. Methods 2012, 9, 676. [Google Scholar] [CrossRef] [Green Version]
Bioengineering 06 00110 g001 550

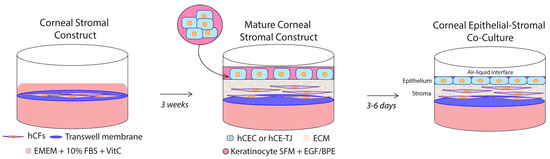

Figure 1. Schematic depicting the assembly of the corneal tissue co-culture system. Human corneal fibroblasts (hCFs) were seeded onto a polycarbonate transwell membrane followed by incubation in 0.5 mM Vitamin C-supplemented complete fibroblast media (Eagle’s Minimum Essential Medium (EMEM) + 10% fetal bovine serum (FBS) + 1X antibiotic/antimycotic) for 3 weeks at 37 °C/5% CO2 to allow in situ extracellular matrix (ECM) deposition. Human corneal epithelial cells (hCECs) were then seeded on top of the mature stromal construct and incubated in complete epithelial media (keratinocyte serum-free media (SFM) plus epithelial growth factor (EGF) and bovine pituitary extract (BPE)) for 4 days and airlifted to an air–liquid interface for 3–6 days at 37 °C/5% CO2 with complete fibroblast media in the bottom well.
Figure 1. Schematic depicting the assembly of the corneal tissue co-culture system. Human corneal fibroblasts (hCFs) were seeded onto a polycarbonate transwell membrane followed by incubation in 0.5 mM Vitamin C-supplemented complete fibroblast media (Eagle’s Minimum Essential Medium (EMEM) + 10% fetal bovine serum (FBS) + 1X antibiotic/antimycotic) for 3 weeks at 37 °C/5% CO2 to allow in situ extracellular matrix (ECM) deposition. Human corneal epithelial cells (hCECs) were then seeded on top of the mature stromal construct and incubated in complete epithelial media (keratinocyte serum-free media (SFM) plus epithelial growth factor (EGF) and bovine pituitary extract (BPE)) for 4 days and airlifted to an air–liquid interface for 3–6 days at 37 °C/5% CO2 with complete fibroblast media in the bottom well.
Bioengineering 06 00110 g001
Bioengineering 06 00110 g002 550

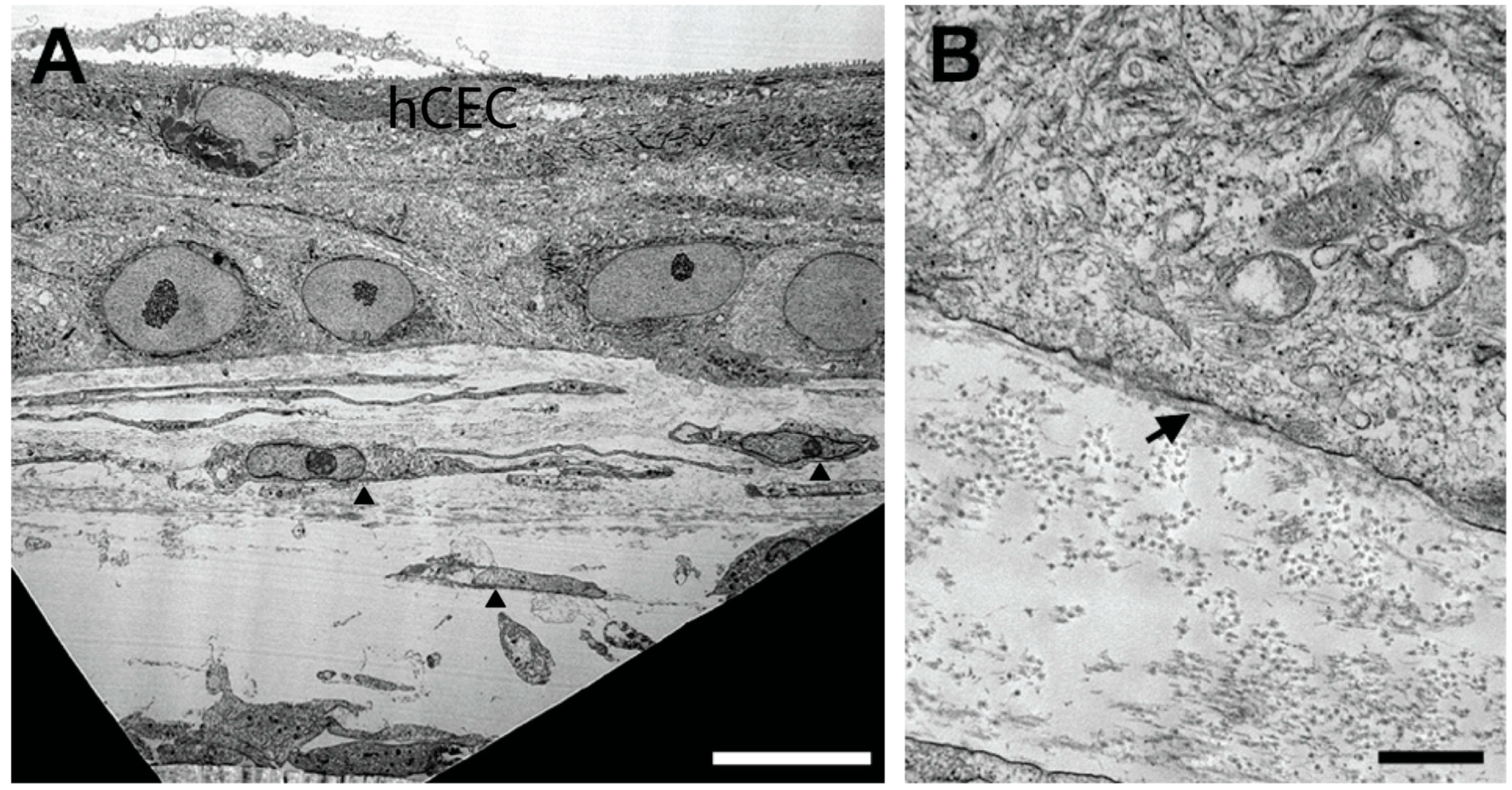

Figure 2. TEM images of the epithelial–stromal constructs. (A) The stromal matrix reached a thickness of 30 µm with a total thickness from the epithelial surface to the posterior stroma of 43 µm. The epithelium stratified to 2–3 cell layers with a sparse distribution of hCFs (arrowheads); scale bar = 10 µm. (B) High magnification TEM revealed the presence of notable patches of basement membrane (arrow); scale bar = 0.5 µm.
Figure 2. TEM images of the epithelial–stromal constructs. (A) The stromal matrix reached a thickness of 30 µm with a total thickness from the epithelial surface to the posterior stroma of 43 µm. The epithelium stratified to 2–3 cell layers with a sparse distribution of hCFs (arrowheads); scale bar = 10 µm. (B) High magnification TEM revealed the presence of notable patches of basement membrane (arrow); scale bar = 0.5 µm.
Bioengineering 06 00110 g002
Bioengineering 06 00110 g003 550

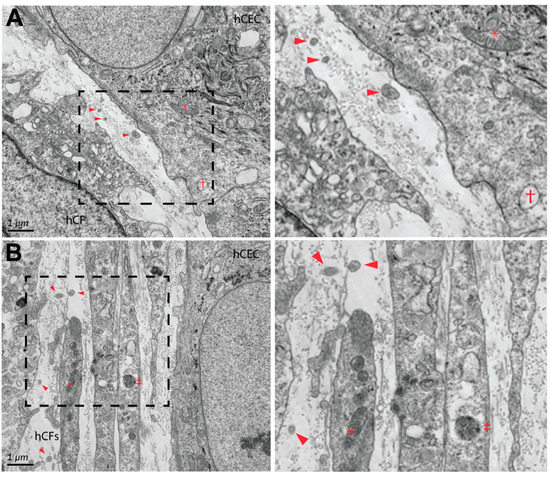

Figure 3. TEM of corneal epithelial–stromal interactions. (A) The presence of secreted collagen and extracellular vesicles were apparent between human corneal epithelial cells (hCECs) and human corneal fibroblasts (hCFs) (dashed box enlarged in right panel). (B) Extracellular vesicles were also present in between hCF cell populations (dashed box enlarged in right panel). Arrowheads = extracellular vesicles; * = mitochondria; † = vacuole; and ‡ = lysosome. Magnification = 12,000×.
Figure 3. TEM of corneal epithelial–stromal interactions. (A) The presence of secreted collagen and extracellular vesicles were apparent between human corneal epithelial cells (hCECs) and human corneal fibroblasts (hCFs) (dashed box enlarged in right panel). (B) Extracellular vesicles were also present in between hCF cell populations (dashed box enlarged in right panel). Arrowheads = extracellular vesicles; * = mitochondria; † = vacuole; and ‡ = lysosome. Magnification = 12,000×.
Bioengineering 06 00110 g003
Bioengineering 06 00110 g004 550

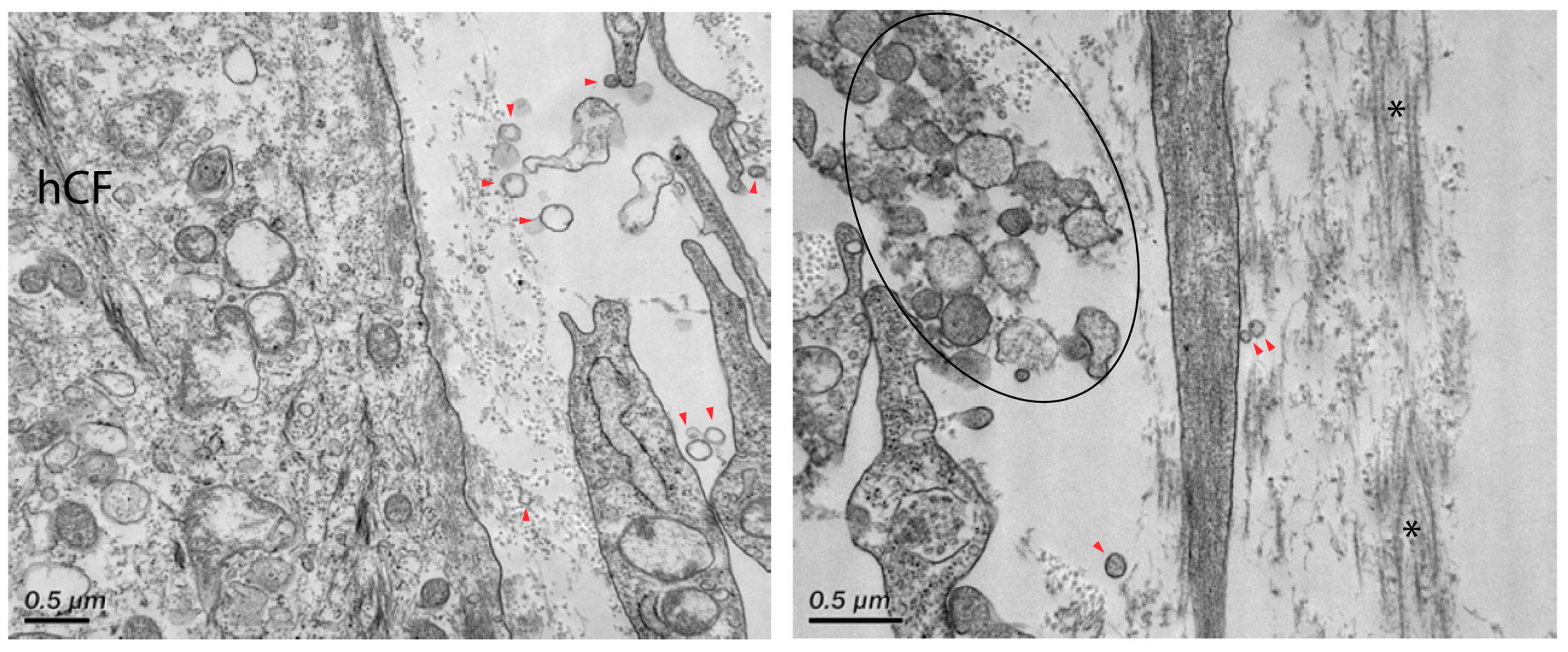

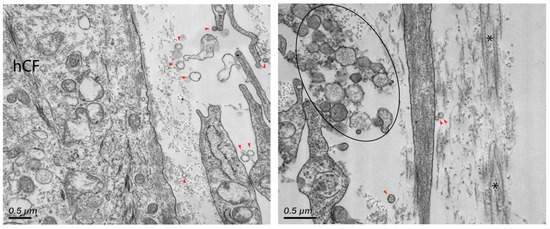

Figure 4. TEM of corneal stromal interactions at high magnification. Secreted extracellular vesicles were identified within the stroma (red arrowheads). Large aggregates of extracellular vesicles (50–330 nm) were also found within the stroma near adjacent cells (black ellipse). Asterisks (*) denote deposited collagen fibrils. Magnification = 21,000× (left panel) and 31,000× (right panel).
Figure 4. TEM of corneal stromal interactions at high magnification. Secreted extracellular vesicles were identified within the stroma (red arrowheads). Large aggregates of extracellular vesicles (50–330 nm) were also found within the stroma near adjacent cells (black ellipse). Asterisks (*) denote deposited collagen fibrils. Magnification = 21,000× (left panel) and 31,000× (right panel).
Bioengineering 06 00110 g004
Bioengineering 06 00110 g005 550

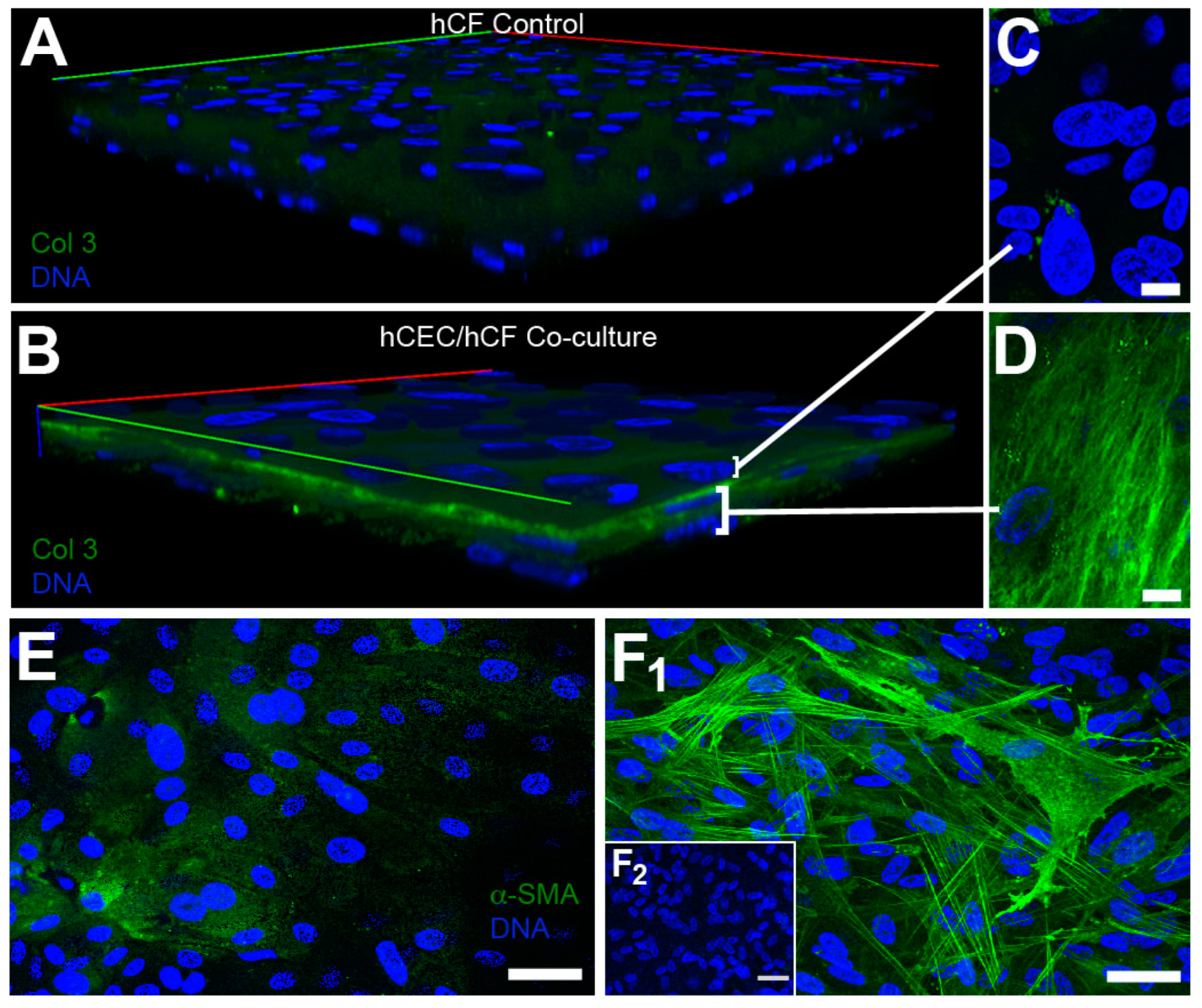

Figure 5. Expression of fibrotic markers in stromal constructs and epithelial–stromal co-cultures. Expression of collagen type III (Col 3) in (A) hCF control constructs and (B) epithelial–stromal (hCEC/hCF) co-culture. High magnification of a single plane of focus in the (C) epithelial layer and (D) stromal layer show high expression of collagen type III by hCFs and little expression by hCECs. Expression of α-smooth muscle actin in the (E) epithelial layer (max projection) and (F1) stromal layer (max projection) of a co-culture show similar high expression by hCFs with low expression by hCECs. (F2) Expression of α-smooth muscle actin in hCF control. Imaged using a 40× objective lens. Scale bar = 10 μm (C and D) and 50 μm (E and F).
Figure 5. Expression of fibrotic markers in stromal constructs and epithelial–stromal co-cultures. Expression of collagen type III (Col 3) in (A) hCF control constructs and (B) epithelial–stromal (hCEC/hCF) co-culture. High magnification of a single plane of focus in the (C) epithelial layer and (D) stromal layer show high expression of collagen type III by hCFs and little expression by hCECs. Expression of α-smooth muscle actin in the (E) epithelial layer (max projection) and (F1) stromal layer (max projection) of a co-culture show similar high expression by hCFs with low expression by hCECs. (F2) Expression of α-smooth muscle actin in hCF control. Imaged using a 40× objective lens. Scale bar = 10 μm (C and D) and 50 μm (E and F).
Bioengineering 06 00110 g005
Bioengineering 06 00110 g006 550

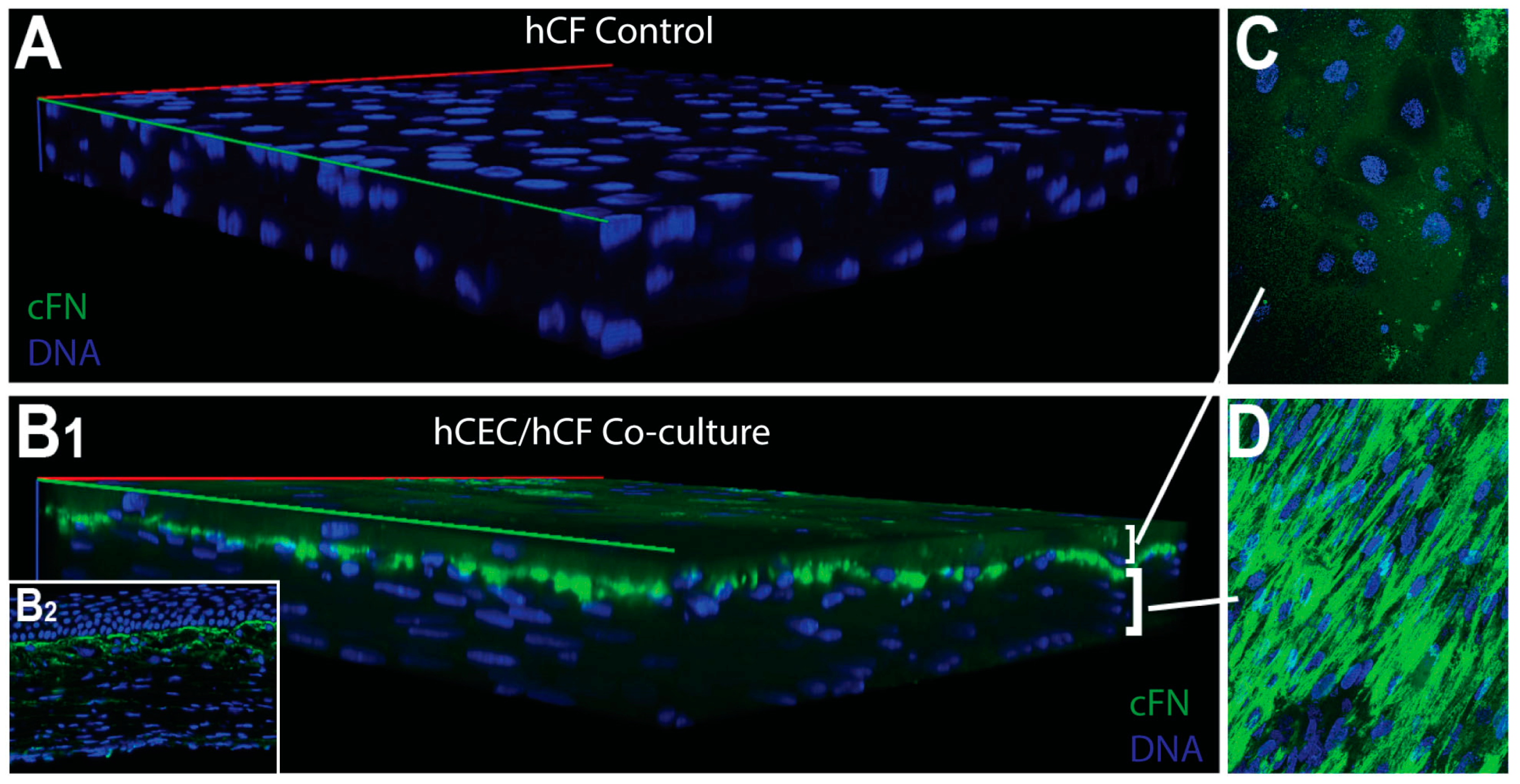

Figure 6. Fibronectin (cFN) expression in hCF stromal constructs and epithelial–stromal co-cultures. (A) hCF construct only, showing no fibronectin staining. (B1) Epithelial–stromal (hCEC/hCF) co-culture showing the expression of fibronectin at the epithelial–stromal interface similar to (B2) rat cornea 1-week post-keratectomy. (C) Max projection image of the hCEC layer showing little expression in the epithelial layer. (D) Max projection image of the hCF layer showing high fibronectin expression at the epithelial–stromal interface. Imaged using a 40× objective lens.
Figure 6. Fibronectin (cFN) expression in hCF stromal constructs and epithelial–stromal co-cultures. (A) hCF construct only, showing no fibronectin staining. (B1) Epithelial–stromal (hCEC/hCF) co-culture showing the expression of fibronectin at the epithelial–stromal interface similar to (B2) rat cornea 1-week post-keratectomy. (C) Max projection image of the hCEC layer showing little expression in the epithelial layer. (D) Max projection image of the hCF layer showing high fibronectin expression at the epithelial–stromal interface. Imaged using a 40× objective lens.
Bioengineering 06 00110 g006
Bioengineering 06 00110 g007 550

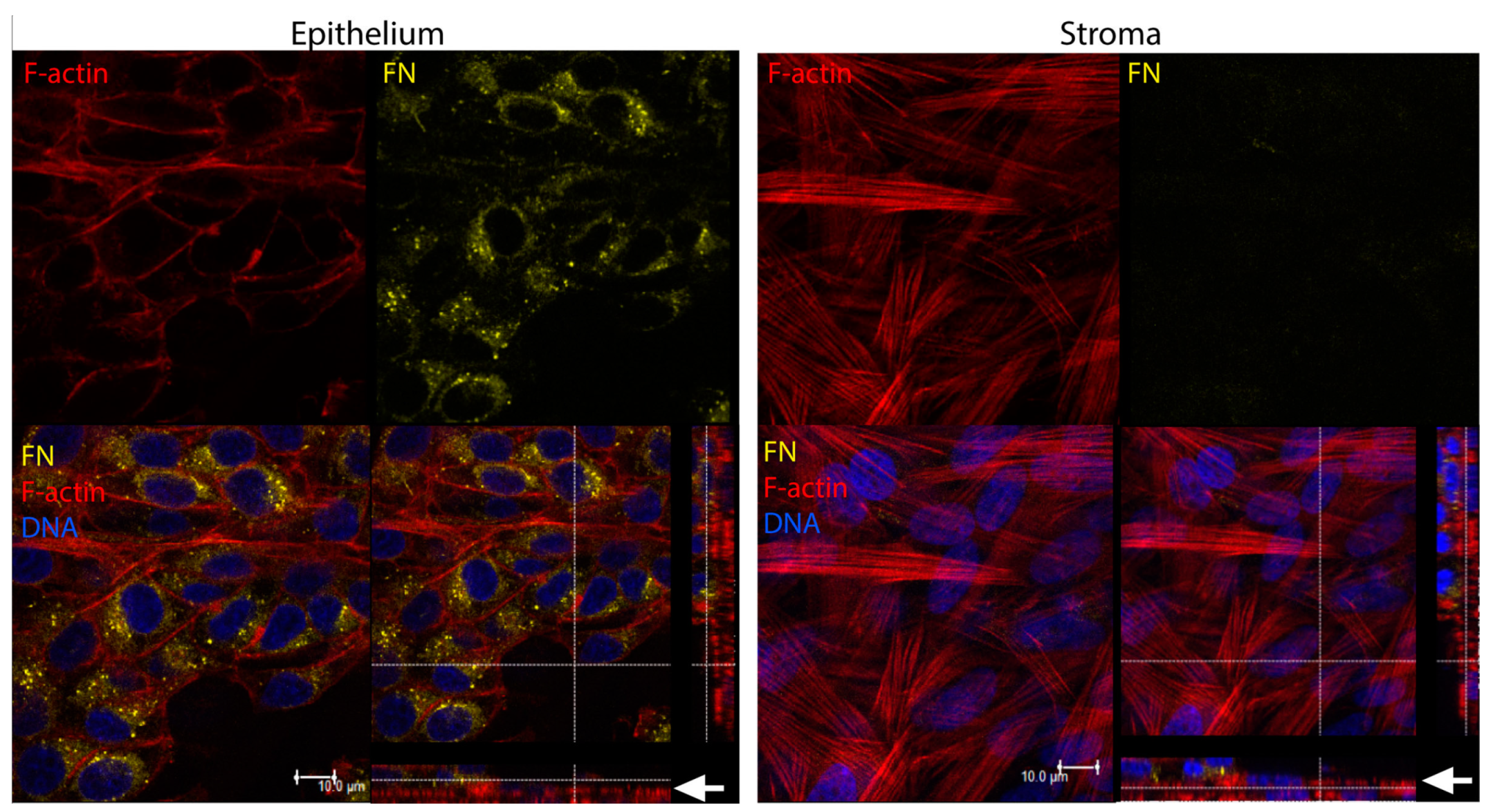

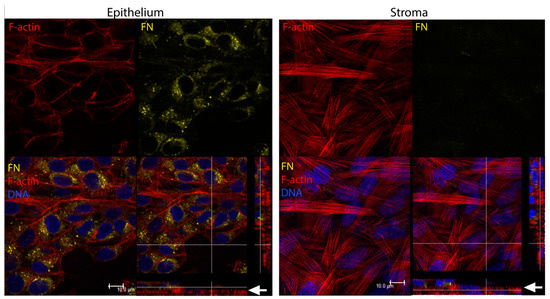

Figure 7. Localization of fibronectin (FN) in corneal epithelial–stromal co-cultures (hCE-TJ/hCF) at 3 days post-airlift. High expression of fibronectin in the epithelial layer (left panel) with little expression in the stromal layer (right panel). Arrows (white) denote the region of the epithelial–stromal interface. Scale bar = 10 μm.
Figure 7. Localization of fibronectin (FN) in corneal epithelial–stromal co-cultures (hCE-TJ/hCF) at 3 days post-airlift. High expression of fibronectin in the epithelial layer (left panel) with little expression in the stromal layer (right panel). Arrows (white) denote the region of the epithelial–stromal interface. Scale bar = 10 μm.
Bioengineering 06 00110 g007
Bioengineering 06 00110 g008 550

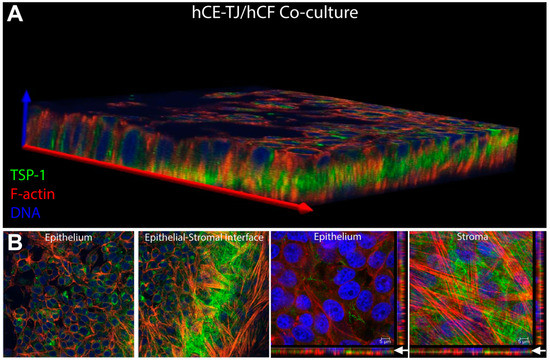

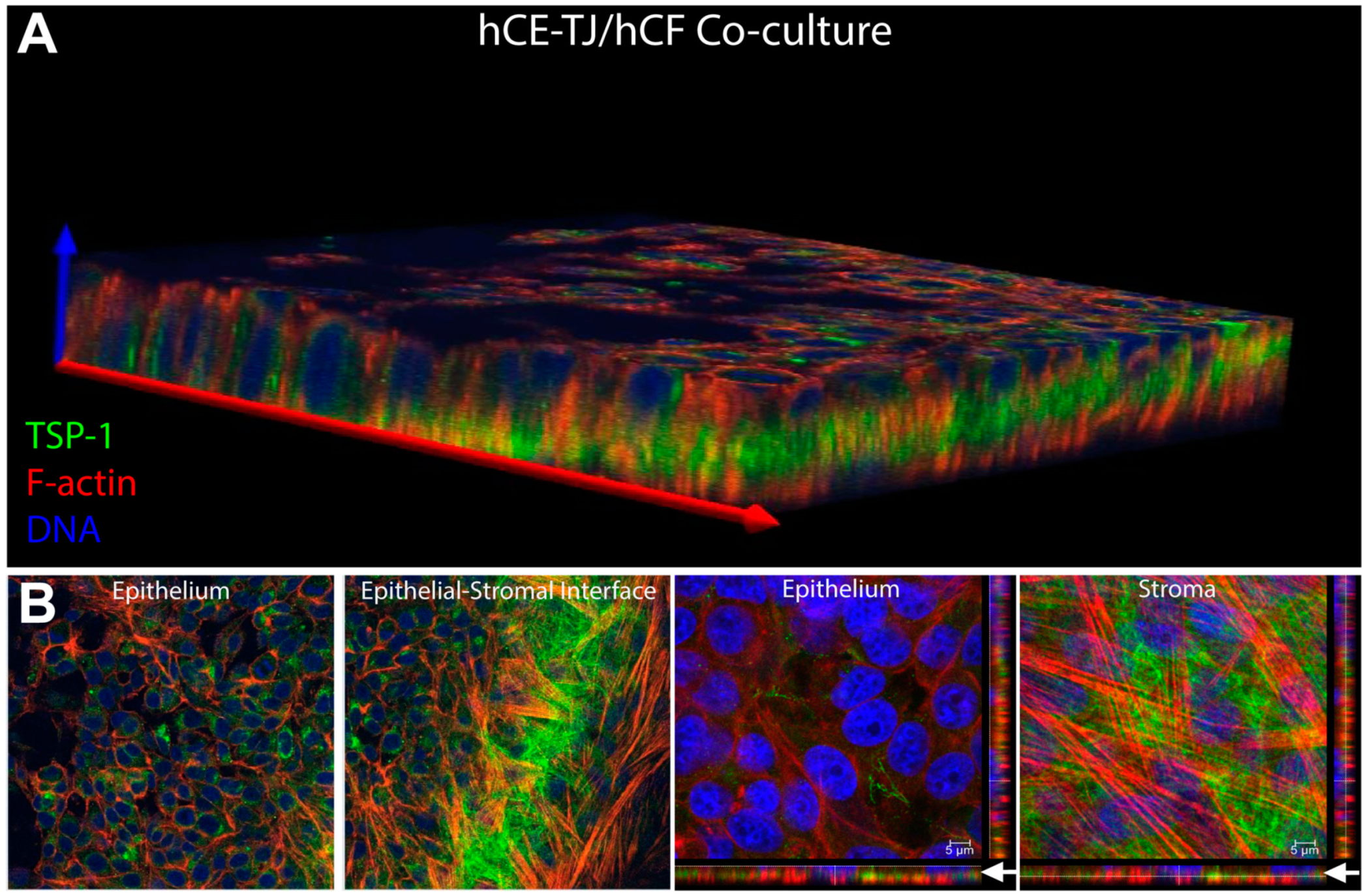

Figure 8. Thrombospondin-1 (TSP-1) expression in corneal epithelial–stromal co-cultures (hCE-TJ/hCF). (A) 3D-reconstruction of the corneal co-culture shows localization of thrombospondin-1 primarily at the epithelial–stromal interface. (B) Individual slices of the epithelial and stromal layers showed high expression within epithelial cells (left panel) and a fibrous appearance of thrombospondin-1 at the epithelial–stromal interface (right panel). Arrows (white) denote the region of the epithelial–stromal interface.
Figure 8. Thrombospondin-1 (TSP-1) expression in corneal epithelial–stromal co-cultures (hCE-TJ/hCF). (A) 3D-reconstruction of the corneal co-culture shows localization of thrombospondin-1 primarily at the epithelial–stromal interface. (B) Individual slices of the epithelial and stromal layers showed high expression within epithelial cells (left panel) and a fibrous appearance of thrombospondin-1 at the epithelial–stromal interface (right panel). Arrows (white) denote the region of the epithelial–stromal interface.
Bioengineering 06 00110 g008
Bioengineering 06 00110 g009 550

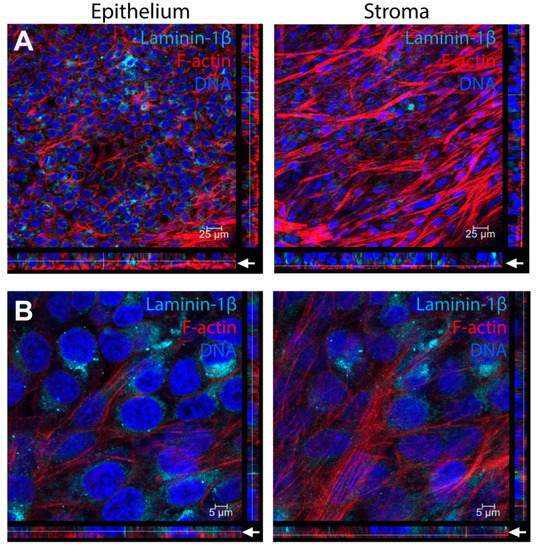

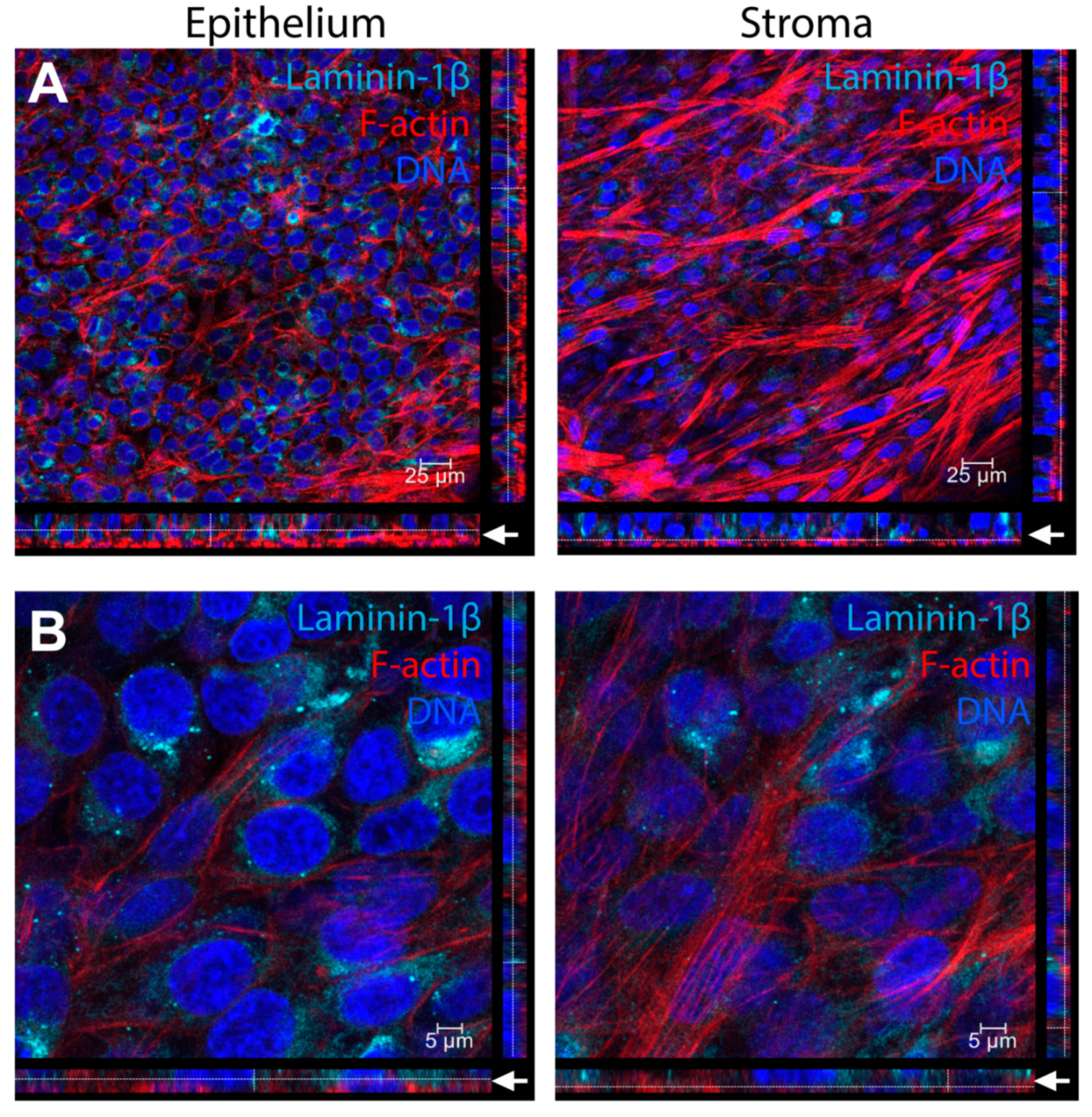

Figure 9. Laminin-1β localization in corneal epithelial–stromal co-cultures (hCE-TJ/hCF) at 3 days post-airlift. Expression of laminin-1β is predominately found within the epithelial layer at the apical side of the hCE-TJ/hCF junction, as can be seen at (A) low (40× objective) and (B) high (40× objective + zoom 4) magnification. Arrows (white) denote the region of the epithelial–stromal interface. Constructs were isolated at a total incubation period of 4 weeks in culture.
Figure 9. Laminin-1β localization in corneal epithelial–stromal co-cultures (hCE-TJ/hCF) at 3 days post-airlift. Expression of laminin-1β is predominately found within the epithelial layer at the apical side of the hCE-TJ/hCF junction, as can be seen at (A) low (40× objective) and (B) high (40× objective + zoom 4) magnification. Arrows (white) denote the region of the epithelial–stromal interface. Constructs were isolated at a total incubation period of 4 weeks in culture.
Bioengineering 06 00110 g009
Table
Table 1. Antibodies and labeling agents used for fluorescence microscopy.
Table 1. Antibodies and labeling agents used for fluorescence microscopy.
Antibody/Labeling AgentHost SpeciesConcentrationManufacturer (City, State; Catalog Number)
Anti-cellular fibronectin (cFN)Mouse1:400Sigma Aldrich (F6140)
Anti-collagen type IIIGoat1:25–1:50Southern Biotech
(Birmingham, AL, USA; 1330-01)
Anti-fibronectinGoat1:50Santa Cruz Biotechnologies (Dallas, TX, USA; SC-90)
Anti-laminin-1βRabbit1:50Abcam (Cambridge, MA, USA; ab108536)
Anti-α-smooth muscle actinMouse1:25–1:50Dako North America (Carpinteria, CA, USA; M0851)
Anti-thrombospondin-1Rabbit1:50Abcam (ab85762)
Fluorescein (FITC) AffiniPure Donkey Anti-Goat IgG (H+L)Donkey1:100Jackson ImmunoResearch (Philadelphia, PA, USA; 705-095-147)
Fluorescein (FITC) AffiniPure Donkey Anti-Mouse IgG (H+L)Donkey1:100Jackson ImmunoResearch (715-095-151)
Fluorescein (FITC) AffiniPure Donkey Anti-Mouse IgMDonkey1:100Jackson ImmunoResearch (715-095-140)
Fluorescein (FITC)-phalloidin 1n.a.1:40ThermoFisher (Waltham, MA, USA; F432)
Rhodamine (TRITC)-AffiniPure Donkey Anti-Rabbit IgG (H+L)Donkey1:100Jackson ImmunoResearch (711-025-152)
Rhodamine (TRITC)-phalloidin 1n.a.1:40Invitrogen (Carlsbad, CA, USA; 1001302)
TOPRO-3-iodide 2n.a.1:100Life Technologies
(Carlsbad, CA, USA; T-3605)
1 Used as a cytoskeletal marker (binds F-actin); 2 Used as a nuclear marker (binds DNA).

Share and Cite

MDPI and ACS Style

McKay, T.B.; Karamichos, D.; Hutcheon, A.E.K.; Guo, X.; Zieske, J.D. Corneal Epithelial–Stromal Fibroblast Constructs to Study Cell–Cell Communication in Vitro. Bioengineering 2019, 6, 110. https://doi.org/10.3390/bioengineering6040110

AMA Style

McKay TB, Karamichos D, Hutcheon AEK, Guo X, Zieske JD. Corneal Epithelial–Stromal Fibroblast Constructs to Study Cell–Cell Communication in Vitro. Bioengineering. 2019; 6(4):110. https://doi.org/10.3390/bioengineering6040110

Chicago/Turabian Style

McKay, Tina B., Dimitrios Karamichos, Audrey E. K. Hutcheon, Xiaoqing Guo, and James D. Zieske. 2019. "Corneal Epithelial–Stromal Fibroblast Constructs to Study Cell–Cell Communication in Vitro" Bioengineering 6, no. 4: 110. https://doi.org/10.3390/bioengineering6040110

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
