Modified Sol–Gel Synthesis of Mesoporous Borate Bioactive Glasses for Potential Use in Wound Healing
Abstract
:1. Introduction
2. Materials and Methods

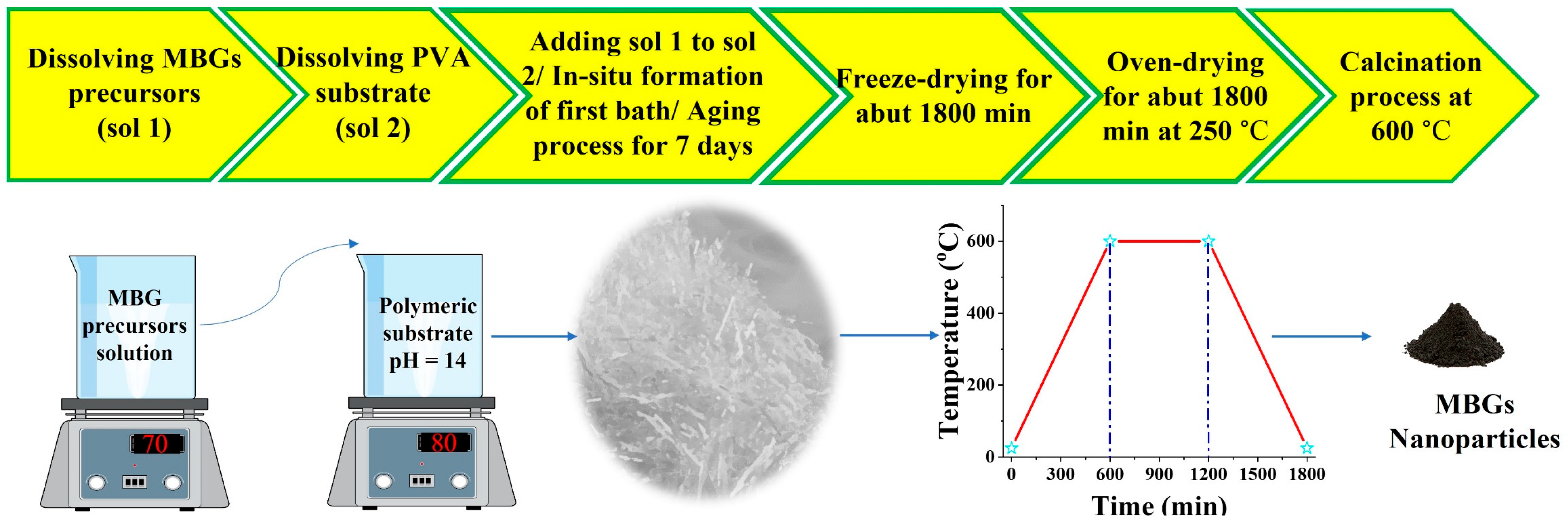

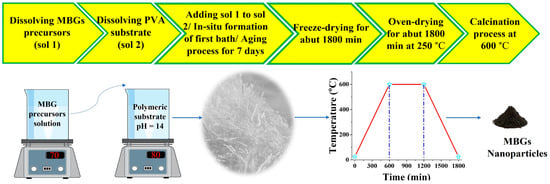

2.1. Glass Synthesis
2.2. Characterizations
2.2.1. Thermal Behavior
2.2.2. Elemental Composition Analysis
2.2.3. XRD Analysis
2.2.4. FTIR Study
2.2.5. DLS and Surface Charge
2.2.6. Electron Microscopy Observations
2.2.7. N2 Adsorption-Desorption Analysis
2.3. Biological Evaluations
2.3.1. In Vitro Bioactivity Assessment
2.3.2. Cell Viability
2.3.3. Antibacterial Activity
2.4. Statistical Analysis
3. Results
3.1. ICP Results

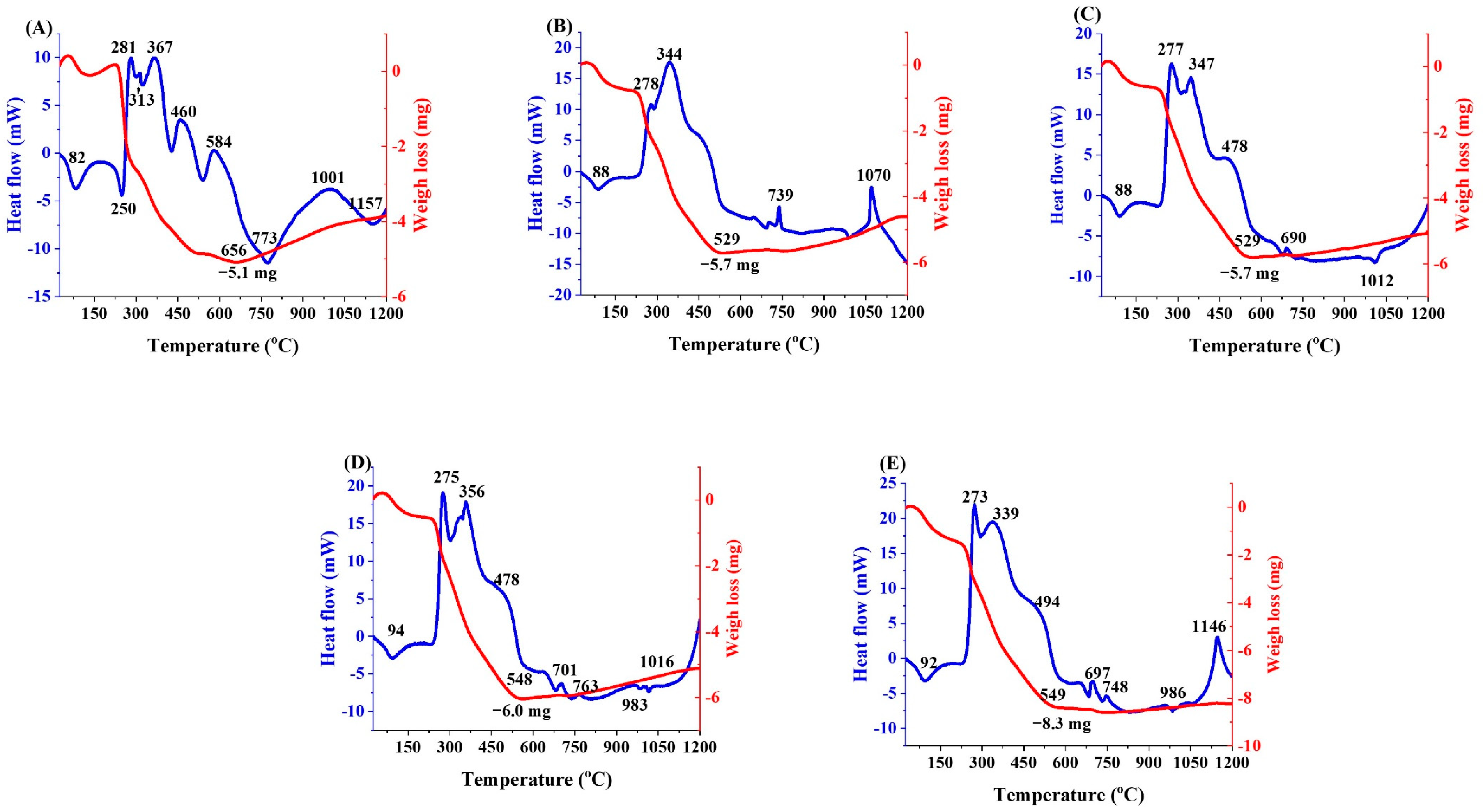

3.2. DTA/TGA Analysis
3.3. DLS Characterization

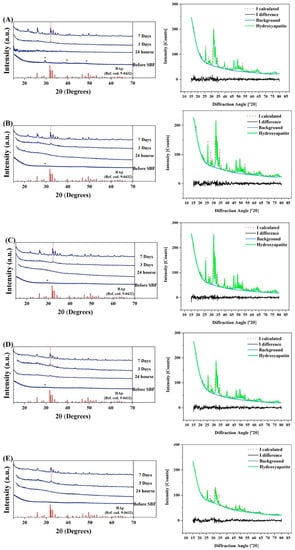

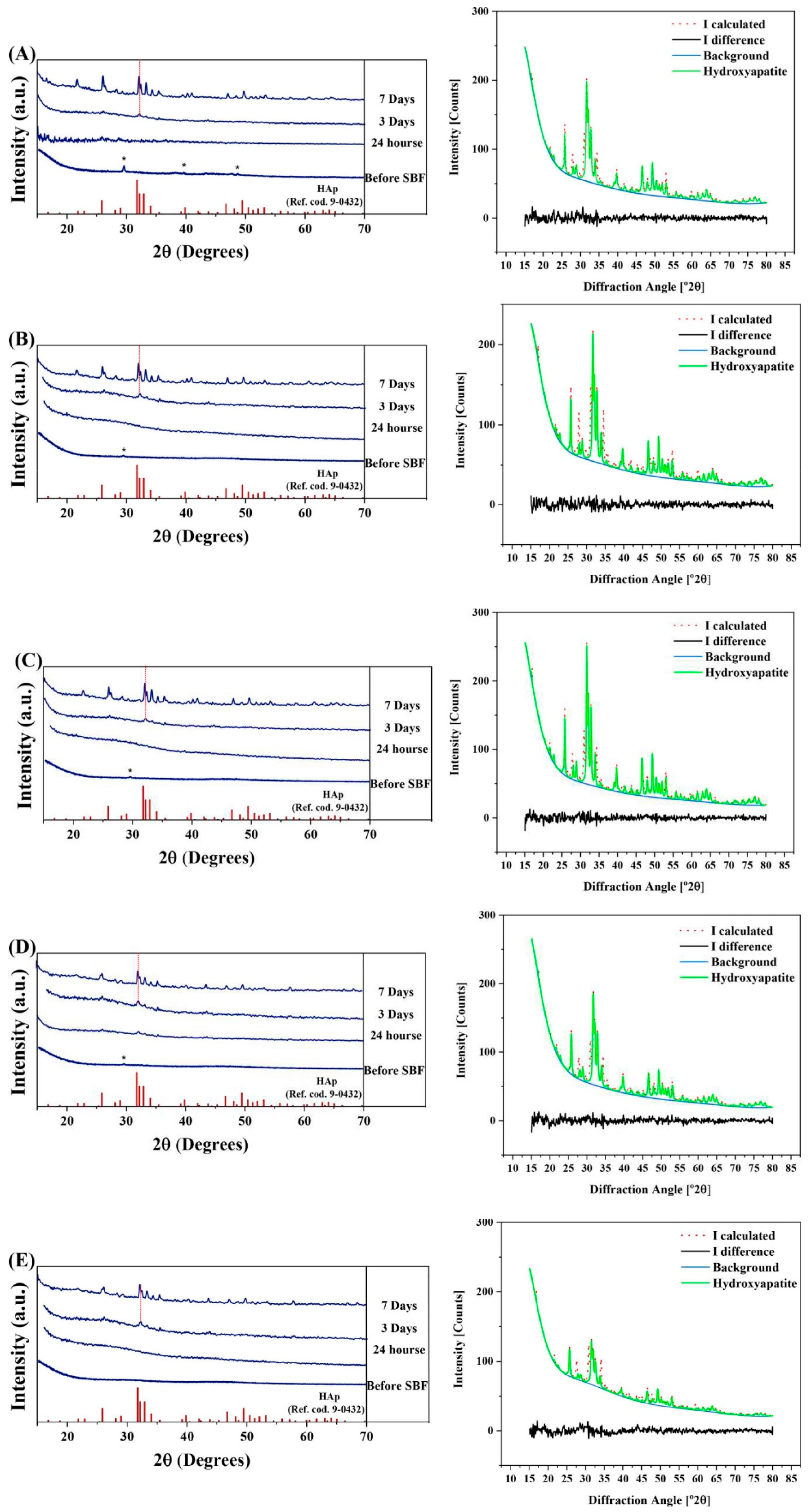

3.4. XRD Patterns

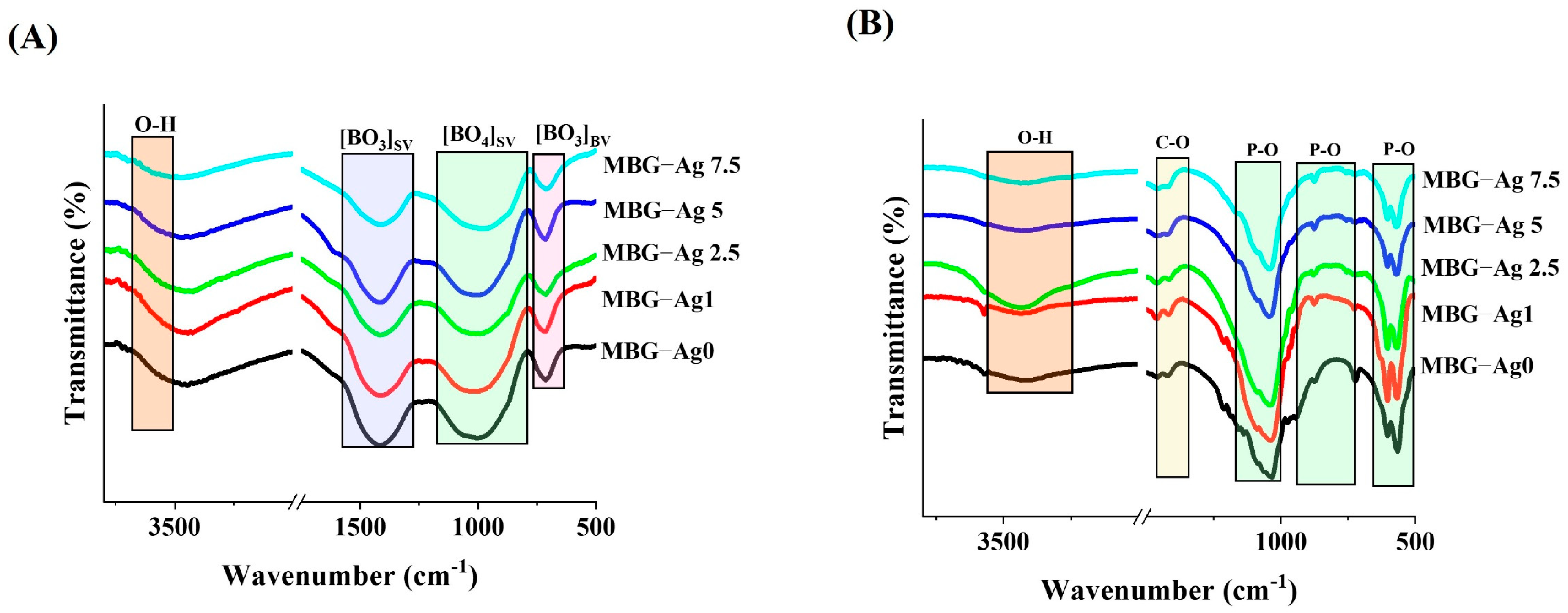

3.5. FTIR Spectroscopy
3.6. FESEM Observations

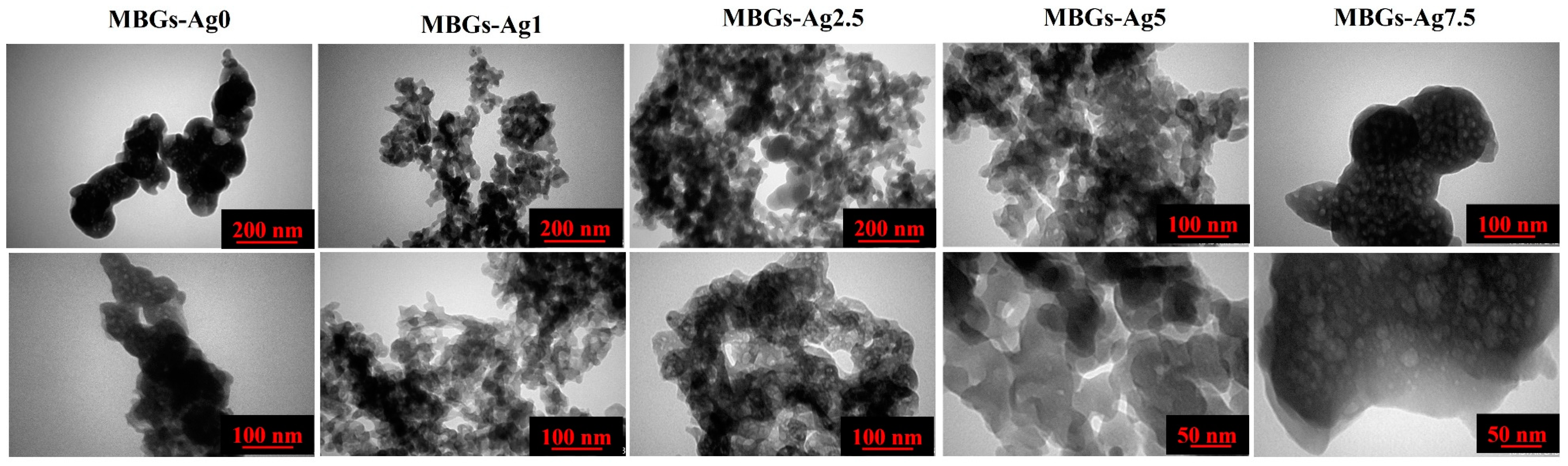

3.7. TEM Images

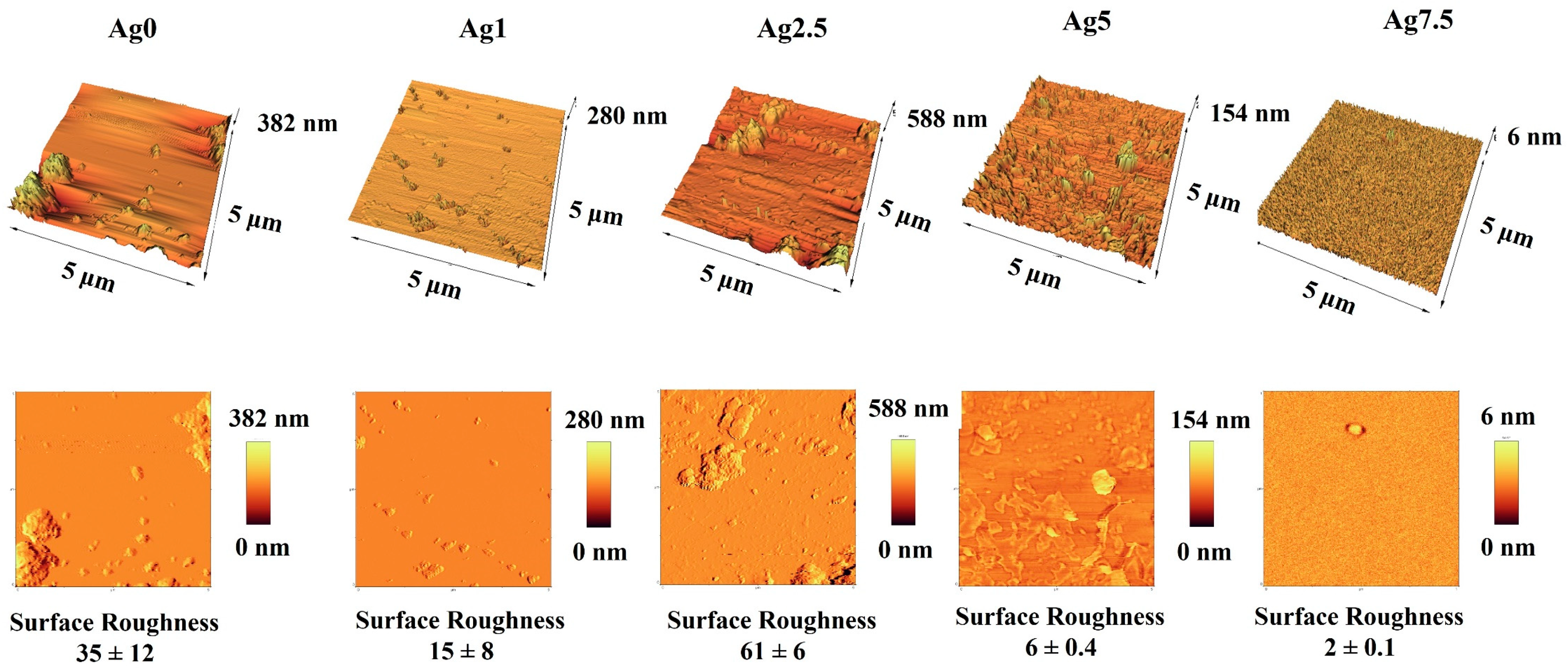

3.8. AFM Micrographs

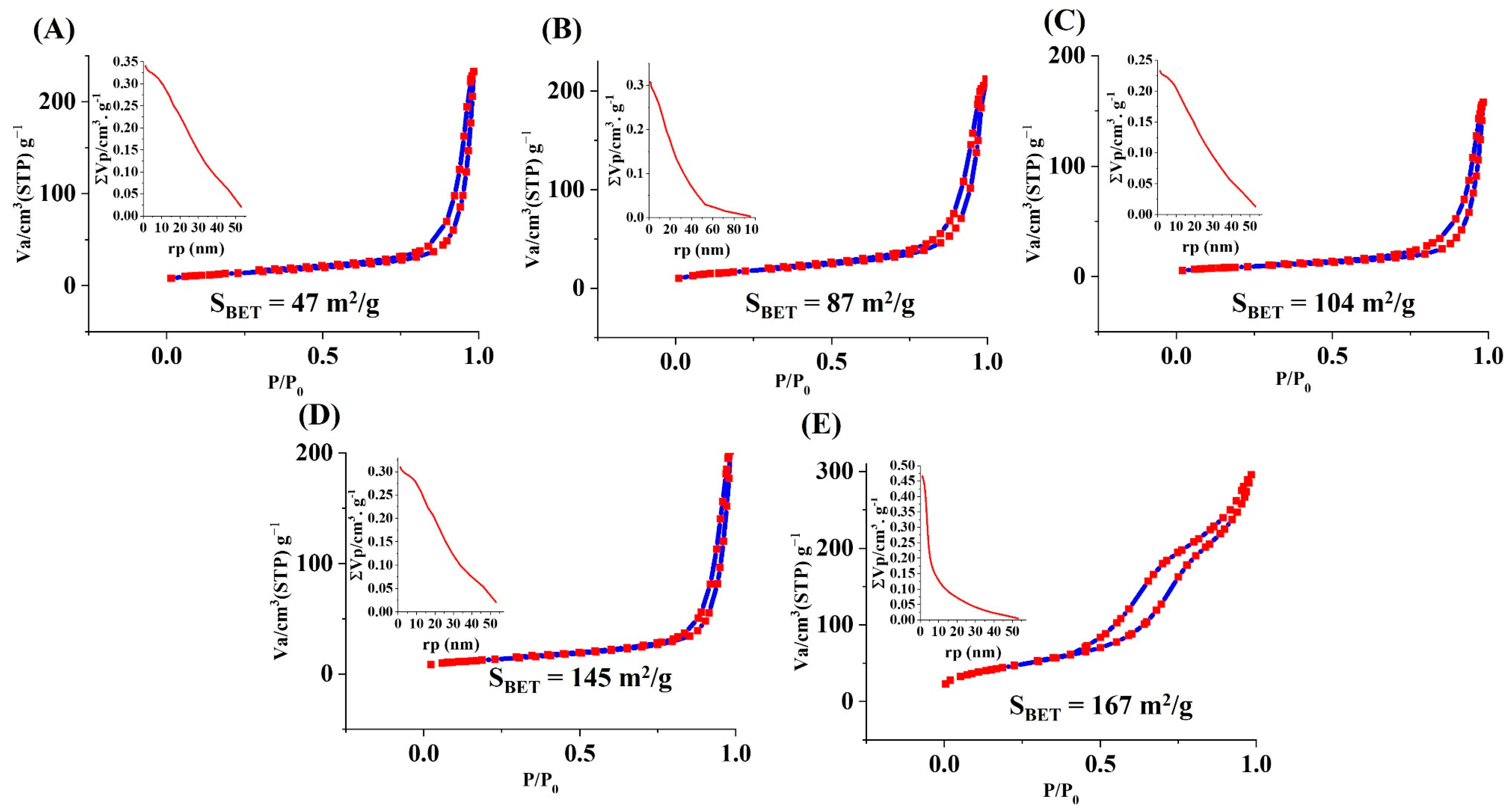

3.9. N2 Adsorption/Desorption Analysis

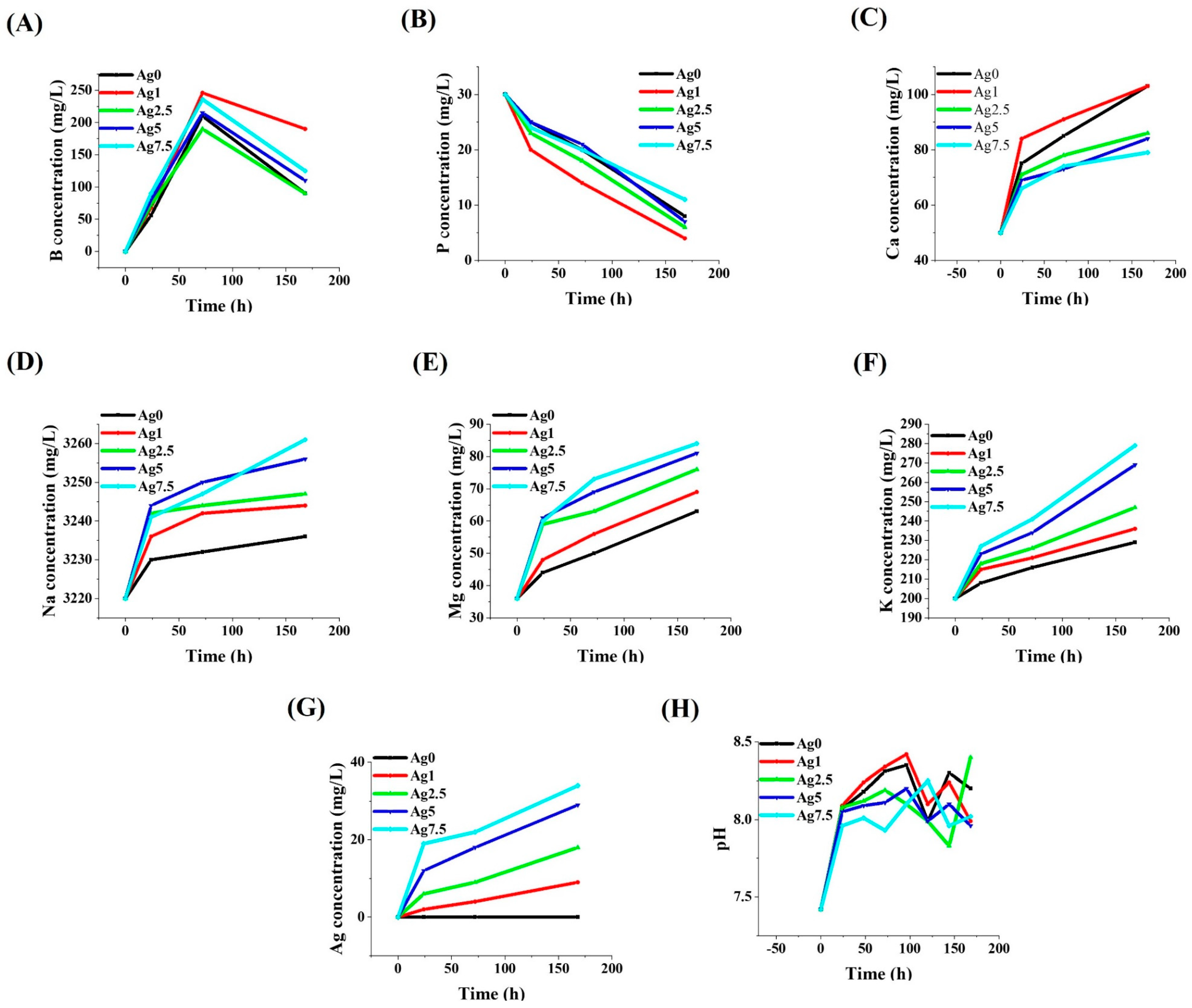

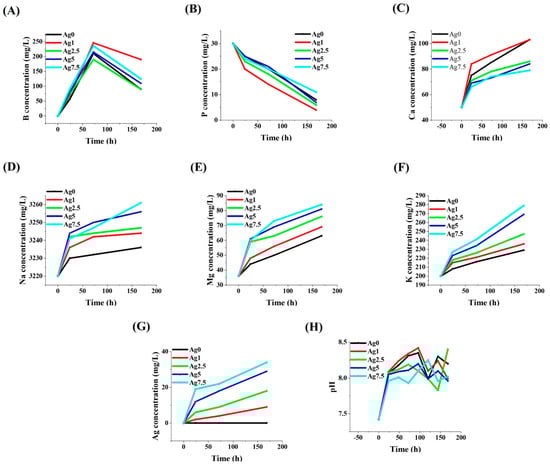

3.10. Ions Release Profile
3.11. pH Variations

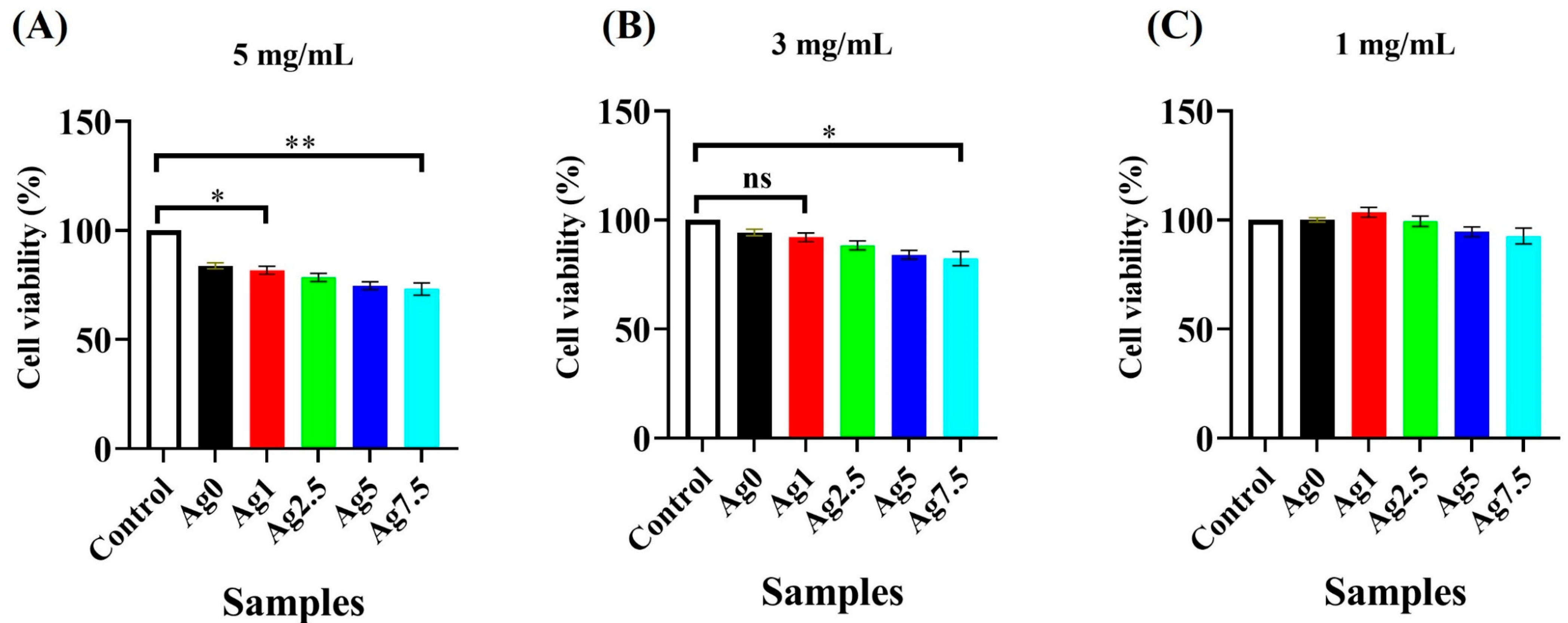

3.12. Cell Viability

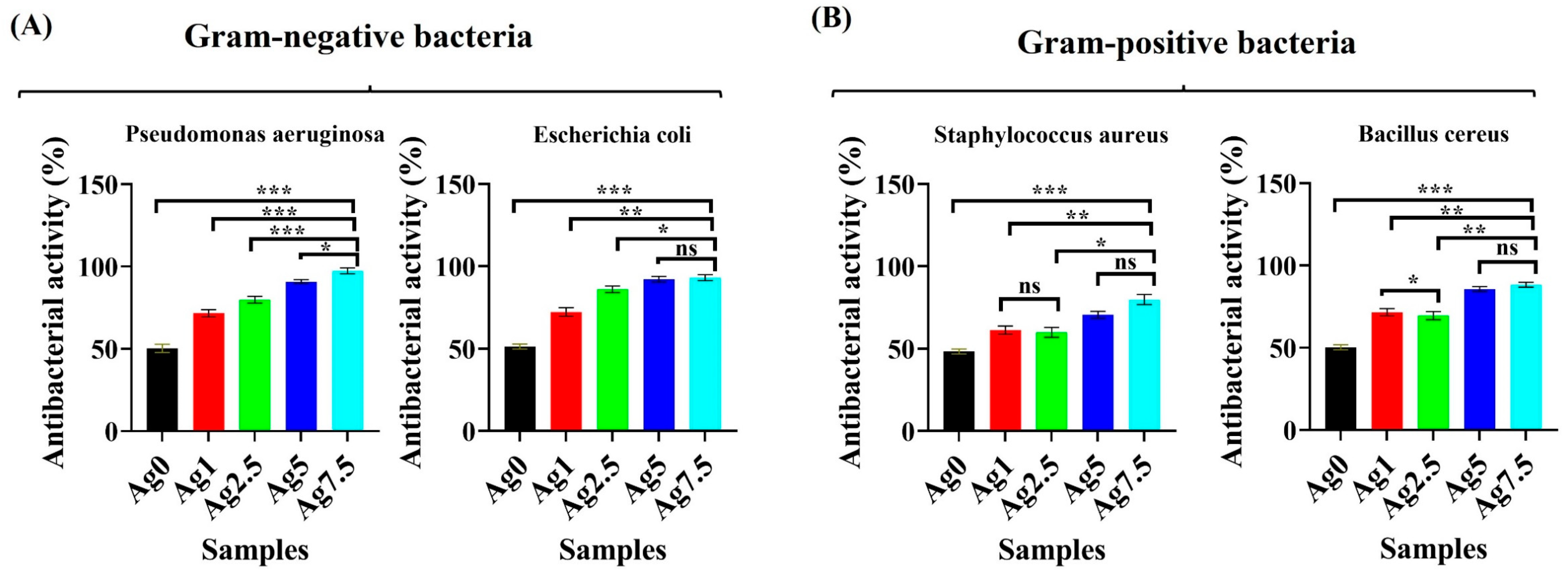

3.13. Antibacterial Activity
4. Discussion
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Sen, C.K. Human Wound and Its Burden: Updated 2020 Compendium of Estimates. Adv. Wound Care 2021, 10, 281–292. [Google Scholar] [CrossRef] [PubMed]
- Dhinasekaran, D.; Vimalraj, S.; Rajendran, A.R.; Saravanan, S.; Purushothaman, B.; Subramaniam, B. Bio-inspired multifunctional collagen/electrospun bioactive glass membranes for bone tissue engineering applications. Mater. Sci Eng. C 2021, 126, 111856. [Google Scholar] [CrossRef]
- Sergi, R.; Cannillo, V.; Boccaccini, A.R.; Liverani, L. A New Generation of Electrospun Fibers Containing Bioactive Glass Particles for Wound Healing. Materials 2020, 13, 5651. [Google Scholar] [CrossRef] [PubMed]
- Begum, S.; Johnson, W.E.; Worthington, T.; Martin, R.A. The influence of pH and fluid dynamics on the antibacterial efficacy of 45S5 Bioglass. Biomed. Mater. 2016, 11, 015006. [Google Scholar] [CrossRef] [PubMed]
- Hench, L.L.; Splinter, R.J.; Allen, W.; Greenlee, T. Bonding mechanisms at the interface of ceramic prosthetic materials. J. Biomed. Mater. Res. 1971, 5, 117–141. [Google Scholar] [CrossRef]
- Kargozar, S.; Mozafari, M.; Ghodrat, S.; Fiume, E.; Baino, F. Copper-containing bioactive glasses and glass-ceramics: From tissue regeneration to cancer therapeutic strategies. Mater. Sci. Eng. C 2021, 121, 111741. [Google Scholar] [CrossRef]
- Kargozar, S.; Singh, R.K.; Kim, H.-W.; Baino, F. “Hard” ceramics for “Soft” tissue engineering: Paradox or opportunity? Acta Biomater. 2020, 115, 1–28. [Google Scholar] [CrossRef]
- Kargozar, S.; Kermani, F.; Mollazadeh Beidokhti, S.; Hamzehlou, S.; Verné, E.; Ferraris, S.; Baino, F. Functionalization and Surface Modifications of Bioactive Glasses (BGs): Tailoring of the Biological Response Working on the Outermost Surface Layer. Materials 2019, 12, 3696. [Google Scholar] [CrossRef]
- Baino, F.; Novajra, G.; Miguez-Pacheco, V.; Boccaccini, A.R.; Vitale-Brovarone, C. Bioactive glasses: Special applications outside the skeletal system. J. Non-Cryst. Solids 2016, 432, 15–30. [Google Scholar] [CrossRef]
- Kermani, F.; Vojdani-Saghir, A.; Mollazadeh Beidokhti, S.; Nazarnezhad, S.; Mollaei, Z.; Hamzehlou, S.; El-Fiqi, A.; Baino, F.; Kargozar, S. Iron (Fe)-doped mesoporous 45S5 bioactive glasses: Implications for cancer therapy. Transl. Oncol. 2022, 20, 101397. [Google Scholar] [CrossRef]
- Zhao, S.; Li, L.; Wang, H.; Zhang, Y.; Cheng, X.; Zhou, N.; Rahaman, M.N.; Liu, Z.; Huang, W.; Zhang, C. Wound dressings composed of copper-doped borate bioactive glass microfibers stimulate angiogenesis and heal full-thickness skin defects in a rodent model. Biomaterials 2015, 53, 379–391. [Google Scholar] [CrossRef] [PubMed]
- Chen, R.; Li, Q.; Zhang, Q.; Xu, S.; Han, J.; Huang, P.; Yu, Z.; Jia, D.; Liu, J.; Jia, H.; et al. Nanosized HCA-coated borate bioactive glass with improved wound healing effects on rodent model. Chem. Eng. J. 2021, 426, 130299. [Google Scholar] [CrossRef]
- Hu, H.; Tang, Y.; Pang, L.; Lin, C.; Huang, W.; Wang, D.; Jia, W. Angiogenesis and full-thickness wound healing efficiency of a copper-doped borate bioactive glass/poly (lactic-co-glycolic acid) dressing loaded with vitamin E in vivo and in vitro. ACS Appl. Mater. Interfaces 2018, 10, 22939–22950. [Google Scholar] [CrossRef]
- Zhou, J.; Wang, H.; Zhao, S.; Zhou, N.; Li, L.; Huang, W.; Wang, D.; Zhang, C. In vivo and in vitro studies of borate based glass micro-fibers for dermal repairing. Mater. Sci. Eng. C 2016, 60, 437–445. [Google Scholar] [CrossRef]
- Balasubramanian, P.; Büttner, T.; Miguez Pacheco, V.; Boccaccini, A.R. Boron-containing bioactive glasses in bone and soft tissue engineering. J. Eur. Ceram. Soc. 2018, 38, 855–869. [Google Scholar] [CrossRef]
- Peter, W. Cotton candy’ that heals? Borate glass nanofiber look promising. Am. Ceram. Bull. 2011, 4, 25–29. [Google Scholar]
- Yamaguchi, S.; Takeuchi, T.; Ito, M.; Kokubo, T. CaO-B2O3-SiO2 glass fibers for wound healing. J. Mater. Sci. Mater. Med. 2022, 33, 15. [Google Scholar] [CrossRef]
- Naseri, S.; Griffanti, G.; Lepry, W.C.; Maisuria, V.B.; Tufenkji, N.; Nazhat, S.N. Silver-doped sol-gel borate glasses: Dose-dependent effect on Pseudomonas aeruginosa biofilms and keratinocyte function. J. Am. Ceram. Soc. 2022, 105, 1711–1722. [Google Scholar] [CrossRef]
- Xiu, Z.-M.; Ma, J.; Alvarez, P.J. Differential effect of common ligands and molecular oxygen on antimicrobial activity of silver nanoparticles versus silver ions. Environ. Sci. Technol. 2011, 45, 9003–9008. [Google Scholar] [CrossRef]
- He, D.; Jones, A.M.; Garg, S.; Pham, A.N.; Waite, T.D. Silver nanoparticle− reactive oxygen species interactions: Application of a charging− discharging model. J. Phys. Chem. C 2011, 115, 5461–5468. [Google Scholar] [CrossRef]
- Mollaei, Z.; Kermani, F.; Moosavi, F.; Kargozar, S.; Khakhi, J.V.; Mollazadeh, S. In silico study and experimental evaluation of the solution combustion synthesized manganese oxide (MnO2) nanoparticles. Ceram. Int. 2022, 48, 1659–1672. [Google Scholar] [CrossRef]
- Kokubo, T.; Takadama, H. How useful is SBF in predicting in vivo bone bioactivity? Biomaterials 2006, 27, 2907–2915. [Google Scholar] [CrossRef] [PubMed]
- Kermani, F.; Mollazadeh Beidokhti, S.; Baino, F.; Gholamzadeh-Virany, Z.; Mozafari, M.; Kargozar, S. Strontium- and Cobalt-Doped Multicomponent Mesoporous Bioactive Glasses (MBGs) for Potential Use in Bone Tissue Engineering Applications. Materials 2020, 13, 1348. [Google Scholar] [CrossRef] [PubMed]
- Wiśniewska, M.; Chibowski, S.; Urban, T.; Sternik, D. Investigation of the alumina properties with adsorbed polyvinyl alcohol. J. Therm. Anal. Calorim. 2010, 103, 329–337. [Google Scholar] [CrossRef]
- Fiume, E.; Migneco, C.; Verne, E.; Baino, F. Comparison Between Bioactive Sol-Gel and Melt-Derived Glasses/Glass-Ceramics Based on the Multicomponent SiO2-P2O5-CaO-MgO-Na2O-K2O System. Materials 2020, 13, 540. [Google Scholar] [CrossRef] [PubMed]
- Gautam, C.; Yadav, A.K.; Singh, A.K. A Review on Infrared Spectroscopy of Borate Glasses with Effects of Different Additives. ISRN Ceram. 2012, 2012, 428497. [Google Scholar] [CrossRef]
- Kermani, F.; Mollazadeh, S.; Kargozar, S.; Vahdati Khakhi, J. Improved osteogenesis and angiogenesis of theranostic ions doped calcium phosphates (CaPs) by a simple surface treatment process: A state-of-the-art study. Mater. Sci. Eng. C 2021, 124, 112082. [Google Scholar] [CrossRef]
- Deliormanlı, A.M. Sol-gel synthesis of borate-based 13-93B3 bioactive glass powders for biomedical applications. Mater. Technol. 2021, 37, 1808–1817. [Google Scholar] [CrossRef]
- Mollaei, Z.; Kermani, F.; Kahani, M.; Moosavi, F.; Mollazadeh, S.; Vahdati Khaki, J. Configurational entropy as a simple input data for glass science and engineering. Mater. Today Commun. 2022, 32, 104153. [Google Scholar] [CrossRef]
- Naresh, P.; Narsimlu, N.; Srinivas, C.; Shareefuddin, M.; Siva Kumar, K. Ag2O doped bioactive glasses: An investigation on the antibacterial, optical, structural and impedance studies. J. Non-Cryst. Solids 2020, 549, 120361. [Google Scholar] [CrossRef]
- Vessal, B.; Greaves, G.N.; Marten, P.T.; Chadwick, A.V.; Mole, R.; Houde-Walter, S. Cation microsegregation and ionic mobility in mixed alkali glasses. Nature 1992, 356, 504–506. [Google Scholar] [CrossRef]
- Nesbitt, H.W.; Bancroft, G.M.; Henderson, G.S.; Ho, R.; Dalby, K.N.; Huang, Y.; Yan, Z. Bridging, non-bridging and free (O2–) oxygen in Na2O-SiO2 glasses: An X-ray Photoelectron Spectroscopic (XPS) and Nuclear Magnetic Resonance (NMR) study. J. Non-Cryst. Solids 2011, 357, 170–180. [Google Scholar] [CrossRef]
- Pedone, A.; Tavanti, F.; Malavasi, G.; Menziani, M.C. An atomic-level look at the structure-property relationship of cerium-doped glasses using classical molecular dynamics. J. Non-Cryst. Solids 2018, 498, 331–337. [Google Scholar] [CrossRef]
- Kermani, F.; Kargozar, S.; Tayarani-Najaran, Z.; Yousefi, A.; Beidokhti, S.M.; Moayed, M.H. Synthesis of nano HA/betaTCP mesoporous particles using a simple modification in granulation method. Mater. Sci. Eng. C 2019, 96, 859–871. [Google Scholar] [CrossRef] [PubMed]
- Naseri, S.; Lepry, W.C.; Maisuria, V.B.; Tufenkji, N.; Nazhat, S.N. Development and characterization of silver-doped sol-gel-derived borate glasses with anti-bacterial activity. J. Non-Cryst. Solids 2019, 505, 438–446. [Google Scholar] [CrossRef]
- Kermani, F.; Mollazadeh, S.; Kargozar, S.; Vahdati Khakhi, J. Solution combustion synthesis (SCS) of theranostic ions doped biphasic calcium phosphates; kinetic of ions release in simulated body fluid (SBF) and reactive oxygen species (ROS) generation. Mater. Sci. Eng. C 2021, 118, 111533. [Google Scholar] [CrossRef]
- Hohenbild, F.; Arango-Ospina, M.; Moghaddam, A.; Boccaccini, A.R.; Westhauser, F. Preconditioning of bioactive glasses before introduction to static cell culture: What is really necessary? Methods Protoc. 2020, 3, 38. [Google Scholar] [CrossRef]
- Ottomeyer, M.; Mohammadkah, A.; Day, D.; Westenberg, D. Broad-Spectrum Antibacterial Characteristics of Four Novel Borate-Based Bioactive Glasses. Adv. Microbiol. 2016, 06, 776–787. [Google Scholar] [CrossRef]
- Yin, I.X.; Zhang, J.; Zhao, I.S.; Mei, M.L.; Li, Q.; Chu, C.H. The antibacterial mechanism of silver nanoparticles and its application in dentistry. Int. J. Nanomed. 2020, 15, 2555. [Google Scholar] [CrossRef]
- Jung, W.K.; Koo, H.C.; Kim, K.W.; Shin, S.; Kim, S.H.; Park, Y.H. Antibacterial activity and mechanism of action of the silver ion in Staphylococcus aureus and Escherichia coli. Appl. Environ. Microbiol. 2008, 74, 2171–2178. [Google Scholar] [CrossRef] [Green Version]
Sample | B2O3 | CaO | Ag2O | MgO | K2O | Na2O | P2O5 |
---|---|---|---|---|---|---|---|
MBG-Ag0 | 54.6 | 22.1 | 0 | 7.6 | 7.9 | 6.1 | 1.7 |
MBG-Ag1 | 54.6 | 21.1 | 1 | 7.6 | 7.9 | 6.1 | 1.7 |
MBG-Ag2.5 | 54.6 | 19.6 | 2.5 | 7.6 | 7.9 | 6.1 | 1.7 |
MBG-Ag5 | 54.6 | 17.1 | 5 | 7.6 | 7.9 | 6.1 | 1.7 |
MBG-Ag7.5 | 54.6 | 14.6 | 7.5 | 7.6 | 7.9 | 6.1 | 1.7 |
Sample | B2O3 | CaO | Ag2O | MgO | K2O | Na2O | P2O5 | |
---|---|---|---|---|---|---|---|---|
MBG-Ag0 | ICP (mol%) | 54.74 ± 0.20 | 22.08 ± 0.05 | - | 7.58 ± 0.30 | 7.85 ± 0.10 | 6.10 ± 0.05 | 1.62 ± 0.21 |
Designed (mol%) | 54.6 | 22.1 | - | 7.6 | 7.9 | 6.1 | 1.7 | |
MBG-Ag1 | ICP (mol%) | 54.6 ± 0.21 | 21.12 ± 0.05 | 0.90 ± 0.3 | 7.60 ± 0.02 | 7.91 ± 0.02 | 6.1 ± 0.05 | 1.7 ± 0.23 |
Designed (mol%) | 54.6 | 21.1 | 1 | 7.6 | 7.9 | 6.1 | 1.7 | |
MBG-Ag2.5 | ICP (mol%) | 54.7 ± 0.2 | 19.64 ± 0.06 | 2.3 ± 0.05 | 7.62 ± 0.03 | 7.92 ± 0.04 | 6.1 ± 0.01 | 1.7 ± 0.04 |
Designed (mol %) | 54.6 | 19.6 | 2.5 | 7.6 | 7.9 | 6.1 | 1.7 | |
MBG-Ag5 | ICP (mol%) | 54.7 ± 0.03 | 17.03 ± 0.10 | 4.92 ± 0.01 | 7.61 ± 0.03 | 7.91 ± 0.05 | 6.11 ± 0.04 | 1.71 ± 0.05 |
Designed (mol%) | 54.6 | 17.1 | 5 | 7.6 | 7.9 | 6.1 | 1.7 | |
MBG-Ag7.5 | ICP (mol%) | 54.74 ± 0.06 | 14.90 ± 0.20 | 7.01 ± 0.02 | 7.60 ± 0.03 | 7.90 ± 0.03 | 6.1 ± 0.04 | 1.72 ± 0.03 |
Designed (mol%) | 54.6 | 14.6 | 7.5 | 7.6 | 7.9 | 6.1 | 1.7 |
DLS Characteristics | Surface Charge Characteristics | ||||||
---|---|---|---|---|---|---|---|
Sample | Dv50 (nm) | Dv90 (nm) | p Value | Zeta (mV) | p Value | Mobility μ/s/V/cm | p Value |
MBG-Ag0 | 51 ± 3 | 105 ± 8 | - | −12 ± 2 | - | −0.89 ± 0.2 | - |
MBG-Ag1 | 17 ± 2 | 50 ± 10 | *** | −16 ± 2 | ** | −1.07 ± 0.1 | *** |
MBG-Ag2.5 | 12 ± 1 | 40 ± 6 | *** | −18 ± 3 | ** | −1.18 ± 0.1 | *** |
MBG-Ag5 | 8 ± 4 | 25 ± 5 | **** | −20 ± 2 | ** | −1.28 ± 0.1 | *** |
MBG-Ag7.5 | 44 ± 6 | 54 ± 9 | **** | −22 ± 1 | *** | −1.58 ± 0.3 | *** |
Sample | Crystallite Size (nm) | Crystallinity (%) | a Å | c Å | Average Rate Constant (K × 10−7) (s−1) | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Day | 3 | 7 | 0 | 1 | 3 | 7 | 3 | 7 | 3 | 7 | - |
MBG-Ag0 | 8 | 38 | 11 | 8 | 12 | 35 | 9.438 | 9.442 | 6.864 | 6.895 | 7.4 |
MBG-Ag1 | 4 | 43 | 7 | 4 | 16 | 41 | 9.429 | 9.433 | 6.893 | 6.893 | 14 |
MBG-Ag2.5 | 9 | 41 | 4 | 4 | 12 | 39 | 9.431 | 9.433 | 6.896 | 6.898 | 13 |
MBG-Ag5 | 7 | 35 | 4 | 6 | 15 | 36 | 9.438 | 9.440 | 8.899 | 6.902 | 11 |
MBG-Ag7.5 | 4 | 31 | <1 | 3 | 6 | 20 | 9.442 | 9.449 | 6.890 | 6.891 | 10 |
Sample | SBET (m2/g) | Total Pore Volume (cm3/g) | Range of Pore Diameter (nm) | P/P0 |
---|---|---|---|---|
MBG-Ag0 | 47 | 0.36 | 27–33 | 0.79 |
MBG-Ag1 | 87 | 0.31 | 17–25 | 0.80 |
MBG-Ag2.5 | 104 | 0.24 | 29–33 | 0.74 |
MBG-Ag5 | 145 | 0.31 | 23–31 | 0.82 |
MBG-Ag7.5 | 167 | 0.45 | 6–12 | 0.40 |
