Article

The Sclerotinia sclerotiorum ADP-Ribosylation Factor 6 Plays an Essential Role in Abiotic Stress Response and Fungal Virulence to Host Plants

by
Kunmei Wang
,
Siyi Wang
,
Ting Wang
,
Qi Xia
and
Shitou Xia
*
Hunan Provincial Key Laboratory of Phytohormones and Growth Development, College of Bioscience and Biotechnology, Hunan Agricultural University, Changsha 410128, China
*
Author to whom correspondence should be addressed.
J. Fungi 2024, 10(1), 12; https://doi.org/10.3390/jof10010012
Submission received: 16 November 2023 / Revised: 21 December 2023 / Accepted: 22 December 2023 / Published: 25 December 2023
(This article belongs to the Special Issue Genomics of Fungal Plant Pathogens, 2nd Edition)
Browse Figures
Review Reports Versions Notes

Abstract

:
The ADP-ribosylation factor 6 (Arf6), as the only member of the Arf family III protein, has been extensively studied for its diverse biological functions in animals. Previously, the Arf6 protein in Magnaporthe oryzae was found to be crucial for endocytosis and polarity establishment during asexual development. However, its role remains unclear in S. sclerotiorum. Here, we identified and characterized SsArf6 in S. sclerotiorum using a reverse genetic approach. Deletion of SsArf6 impaired hyphal growth and development and produced more branches. Interestingly, knockout of SsArf6 resulted in an augmented tolerance of S. sclerotiorum towards oxidative stress, and increased its sensitivity towards osmotic stress, indicative of the different roles of SsArf6 in various stress responses. Simultaneously, SsArf6 deletion led to an elevation in melanin accumulation. Moreover, the appressorium formation was severely impaired, and fungal virulence to host plants was significantly reduced. Overall, our findings demonstrate the essential role of SsArf6 in hyphal development, stress responses, appressorium formation, and fungal virulence to host plants.

1. Introduction

Sclerotinia sclerotiorum, as a notorious soilborne plant pathogenic fungus, which has an extremely broad host range, is capable of infecting economically significant crops such as rapeseed, sunflower, and soybeans, resulting in substantial agricultural losses [1,2,3,4,5]. In China, one of the main diseases of oilseed rape is Sclerotinia stem rot (SSR) caused by S. sclerotiorum, leading to losses of approximate 8.4 billion RMB annually [6,7]. S. sclerotiorum produces sclerotia that can survive in the field for multiple years [8,9]. In addition, it employs different infection pathways, including infection of host plant tissues through the hypha by germination of sclerotia. When conditions are favorable, sclerotia can also germinate to form apothecia, releasing many ascospores to infect the hosts [1,10].
Previous studies indicate that the interaction mechanisms between S. sclerotiorum and its host are intricate. To establish successful colonization, S. sclerotiorum undergoes specific morphological changes in its hyphal tips, leading to the formation of appressoria [11,12,13]. Appressoria play a crucial role in adhering to the host surface and penetrating the cuticle [14]. In the past few decades, some proteins related to the development and formation of appressoria have been identified and characterized in S. sclerotiorum, including mitogen-activated protein kinase (MAPK) signaling pathway proteins SsSte12 [15] and SsFkh1 [16], autophagy-related proteins SsATG8, SsNBR1 [17], SsFoxE3 [18], and SsAtg1 [19], as well as TOR signaling pathway protein SsTOR [20]. Additionally, secreted proteins SsRhs1 [21], Ssams2 [22], SsNsd1 [23], and Magnaporthe appressoria-specific (MAS) protein Sscnd1 [24] have also been confirmed to participate in appressoria formation.
S. sclerotiorum possesses pathogenic characteristics that involve a transition from biotrophic to necrotrophic lifestyles [25]. During the early stages of infection, S. sclerotiorum secretes virulent factors, for instance oxalic acid [26,27], cell wall-degrading enzymes [28,29], and effectors [30,31] to impede mechanisms for recognizing and defending against pathogens [32]. Then the S. sclerotiorum quickly enters into the necrotrophic phase, characterized by the production of substantial amounts of reactive oxygen species (ROS) and virulent factors, which induce rapid cell death and the progression of necrotic symptoms [3,14,25,32,33]. Despite research reports identifying candidate genes [34] or significant quantitative trait loci (QTL) [35] associated with resistance to SSR in B. napus, there is still a lack of resistant varieties in production. As a result, chemical methods remain the primary means of controlling SSR in B. napus [36]. However, S. sclerotiorum has been reported to develop resistance to fungicides [37,38]. Furthermore, it has been observed that there are variations in the resistance of S. sclerotiorum to fungicides, and these variations exist both within and among populations of the fungus [39]. This has raised significant attention towards the control and prevention of S. sclerotiorum.
ADP-ribosylation factor 6 (Arf6) is a member of the ADP-ribosylation factors (Arf) family, which can regulate endomembrane recycling and actin cytoskeleton remodeling at the cell surface [40,41]. In mammals, Arf6 plays a crucial role in regulating neutrophil energy metabolism [42], cancer cell invasion, metastasis, and proliferation [43], as well as membrane lipid homeostasis [44]. Additionally, a homolog of Arf6 in Aspergillus nidulans, named ArfB, functions in endocytosis to play important roles in polarity establishment during isotropic growth and polarity maintenance during hyphal extension [45]. The Arf6’s homolog in M. oryzae also has similar functions [41]. However, the biological function of Arf6 in S. sclerotiorum remains unclear.
Through reverse genetic approaches, we characterized the roles of SsArf6 in S. sclerotiorum, and found that SsArf6 is highly conserved among various plant pathogenic fungi. The knockout of SsArf6 led to hindered mycelial growth and development, characterized by increased branching and aerial hyphae formation, as well as reduced sclerotia production. Surprisingly, SsArf6 negatively regulates melanin accumulation and hydrogen peroxide resistance. In addition, deletion of SsArf6 significantly increased the sensitivity of S. sclerotiorum to osmotic stress. Most importantly, the appressorium formation and virulence to host plants exhibited severe impairments in knockout mutants. Together, our results suggest that SsArf6 plays a significant role in the formation of appressorium, hyphal development, resistance to abiotic stress in S. sclerotiorum, and fungal virulence to host plants.

2. Materials and Methods

2.1. Fungal Strains and Culture Conditions

The wild-type strain S. sclerotiorum 1980, knockout mutant, and complemented strains were grown on potato dextrose agar plates (potato dipping powder 5 g/L, glucose 20 g/L, agar 15 g/L, and chloramphenicol 0.1 g/L, Bio-Way Technology, Shanghai, China), and cultured in a constant temperature incubator at 20 °C. The PDA plates were supplemented with a concentration of 200 μg/mL hygromycin B (Roche, Basel, Switzerland) and 100 μg/mL G418 sulfate (Geneticin, Yeasen, Shanghai, China) for long-term storage of knockout mutants and complementation strains at 4 °C.

2.2. Plant Materials and Growth Conditions

Arabidopsis thaliana (ecotype Col-0), Brassica napus (Zhongshuang 11), and Nicotiana benthamiana LAB seedlings were cultivated in a growth room at a temperature of 22 °C, with a photoperiod of 16 h of light followed by 8 h of darkness. Except for B. napus, which were cultivated for 5 weeks, all other plants were cultivated for 4 weeks and were selected for the virulence assays with S. sclerotiorum.

2.3. Phylogenetic Tree Construction and Sequence Analysis

Homologous sequences of Arf6 in Zymoseptoria tritici, S. sclerotiorum, Ustilago maydis, Botrytis cinerea, Magnaporthe oryzae, Fusarium oxysporum, and Fusarium graminearum were obtained from the NCBI database (https://www.ncbi.nlm.nih.gov/ accessed on 16 March 2023). The Arf6 gff3 files were obtained from the ensemblFungi database (https://fungi.ensembl.org/ accessed on 16 March 2023). The phylogenetic tree was constructed using MEGA11 programs with 1000 bootstrap replicates and the neighbor joining method [46]. The gene feature was visualized with GSDS2.0 [47], and the alignment of Arf6 proteins was performed using Clustal Omega (https://www.ebi.ac.uk/Tools/msa/clustalo/ accessed on 16 March 2023) [48] and the results were viewed with Jalview Version 2 [49].

2.4. Knockout and Complementation of SsArf6

The split-marker method was employed to knockout the SsArf6 gene (sscle_03g022330) in S. sclerotiorum. As previously described [50], two rounds of PCR were used to construct the replacement fragments, SsArf6-UP-HY and SsArf6-Down-YG, which were used to replace the target gene, SsArf6. The PCR products were cotransformed into wild-type (WT) strain protoplasts. SsArf6 knockout transformants were selected on PDA plates containing 200 μg/mL hygromycin B, and at least three rounds of hyphae tip transfer and protoplast purification were performed to obtain knockout mutant homozygotes.
In genetic complementation, a 1746-bp fragment consisting of upstream and full-length genomic DNA of SsArf6 was amplified specifically through PCR. The resulting fragment was individually fused with NEO fragments, which were amplified from the pCH-EF-1 plasmid (provided by D. Jiang from Huazhong Agricultural University). The resulting PCR products were cotransformed into protoplasts of the knockout mutant strain. Validation was achieved through PCR using six sets of primers (Table S1), and the transformed knockout and complementation strains were selected for further experimentation.

2.5. DNA and RNA Manipulation

The mycelium of S. sclerotiorum was cultivated on PDA medium containing cellophane for 48 h, and then ground into fine powder in liquid nitrogen. Genomic DNA was extracted from both WT and mutant strains using the cetyltrimethylammonium bromide (CTAB) method [51]. The extracted WT genomic DNA was used as a template for amplifying the full-length sequence and the flanking sequence of SsArf6. The extracted genomic DNA from the mutants was used to confirm the knockout and complementation of SsArf6. To evaluate the expression of SsArf6 in the knockout and complementation strains at the transcriptional level, the mycelium was collected after 48 h of cultivation on PDA medium containing cellophane, and total RNA was extracted using the SteadyPure Plant RNA Extraction Kit (Accurate Biology, Changsha, China). The first-strand cDNA was synthesized from the total RNA using the Evo M-MLV RT-PCR Kit (Accurate Biology, Changsha, China) as the template. Semi-quantitative RT-PCR was performed with cDNA as the template for 28 PCR cycles. All primers used in this study are listed in Table S1.

2.6. Colony Morphology Observation

The WT, knockout mutant (ΔSsarf6), and complemented strain (SsArf6-C) mycelial plugs with a diameter of 5 mm were inoculated at the center of 9 cm Petri dishes containing PDA medium. The plates were incubated at a constant temperature of 20 °C, and the mycelial growth length was measured every 24 h for a period of 48 h. The average growth rate was calculated at the end of the 48 h period. The plates were further incubated for a total of 14 days, and the number of sclerotia in each PDA plate was counted. The colony and sclerotia morphologies of the WT, Δssarf6, and SsArf6-C strains on PDA medium were documented using a digital camera at 24 h, 48 h, 5 days, and 14 days of cultivation, respectively. The experiment was conducted independently three times, with three technical replicates performed in each trial.

2.7. Stress Treatment

Mycelial plugs, measuring 5 mm in diameter, from the WT, ΔSsarf6, and SsArf6-C strains were introduced at the center of 9 cm Petri dishes that were filled with PDA medium supplemented with varying concentrations of H2O2 (5 mM, 10 mM, and 15 mM), cell wall inhibitor Congo Red (CR), 0.02% Sodium Dodecyl Sulfate (SDS), as well as the osmotic stressors 0.5 M NaCl, KCl, and 1 M sorbitol and glucose. The plates were incubated at a constant temperature of 20 °C. After 48 h, the growth radius of mycelium under various stress conditions was measured, and the growth inhibition rate of the mycelium was calculated. In addition, the morphology of the colonies was recorded using a digital camera. The inhibition rate (%) was calculated as 100 × (the colony radius of the strain on pure PDA subtracted by the colony radius of the strain under different stressors) divided by the colony radius of the strain on pure PDA. The experiment was conducted independently three times, with three technical replicates performed in each trial.

2.8. Analysis of Compound Appressoria, OA, and Virulence to Host Plants

The WT, ΔSsarf6, and SsArf6-C strain mycelial plugs with a diameter of 5 mm were inoculated onto a PDA medium containing 0.005% (w/v) Bromophenol Blue. After 48 h of being placed in a constant temperature incubator set at 20 °C the color change was recorded using a digital camera, with three repeats.
To observe appressorium formation, mycelial plugs, with a diameter of 8 mm, from the WT, ΔSsarf6, and SsArf6-C strains were inoculated onto a slide. The slides were then transferred to square Petri dishes measuring 9 cm in diameter, which contained a folded square of moistened paper towels, measuring 25 cm in diameter, saturated with 11 mL of sterile water. The Petri dishes were then placed in a constant temperature incubator at 20 °C; after 24 h of cultivation, the morphology of the compound appressoria was observed and recorded under an optical microscope (Axio Imager 2, ZEISS, Oberkochen, Germany). After a cultivation period of 48 h, the appressorium of the WT, ΔSsarf6, and SsArf6-C strains was recorded using a digital camera, with three repeats.
To examine the morphology of the compound appressoria formed on onion epidermal cells, mycelial plugs measuring 5 mm in diameter from the WT, ΔSsarf6, and SsArf6-C strains were inoculated onto the onion epidermis and transferred to square Petri dishes measuring 9 cm in diameter, which contained a folded paper towel measuring 25 cm in diameter and saturated with 11 mL of sterile water, and were then cultured for 16 h at 20 °C in a temperature incubator. Afterwards, the onion epidermis was soaked in a 0.5% Trypan Blue solution for 30 min. Then, a bleaching solution was prepared in a ratio of ethanol: acetic acid: glycerol of 3:1:1, used to decolorize the samples. The morphology of the composite attached cells was then observed and recorded under an optical microscope, as previously described [52]. The experiment was conducted independently three times.
For the virulence analysis, mycelial plugs with a diameter of 2 mm and 5 mm were obtained from the wild-type (WT), ΔSsarf6, and SsArf6-C strains. These plugs, with a diameter of 2 mm, were subsequently used to inoculate detached leaves of A. thaliana (5 mm in diameter on B. napus and N. benthamiana). Similarly, mycelial plugs measuring 5 mm in diameter from the corresponding strains were used to inoculate wounded detached leaves of N. benthamiana and were placed in square Petri dishes measuring 9 cm in diameter, which contained a folded square moistened paper towel, measuring 25 cm in diameter, saturated with 11 mL of sterile water. In a growth room at a temperature of 22 °C, with a photoperiod of 16 h of light followed by 8 h of darkness, after 36 h of infection, the infection morphology was recorded using a digital camera, and the lesion areas were analyzed using ImageJ 1.46r software to calculate the reduction in the lesion areas [53]. The reduction rate of lesion areas (%) was calculated as 100 × (the infection area of WT on detached leaves subtracted by the infection area of the ΔSsarf6 mutant on detached leaves) divided by the infection area of WT on detached leaves. The experiment was conducted independently three times, with three technical replicates performed in each trial.

3. Results

3.1. Identification of the Arf6 Homolog in S. sclerotiorum

Previously, when using a forward genetic approach to screen hypo-virulent mutants of S. sclerotiorum, we obtained one mutant with a candidate gene which was speculated to be a guanine exchange factor for Arf6 (SsEFA6, sscle_12g090120), related to the pathogenic capacity of S. sclerotiorum (unpublished data). To determine whether Arf6 is also associated with pathogenicity, we then performed a genomic blasting and identified sscle_03g022330 as the homologous gene of MoArf6 in S. sclerotiorum, named SsArf6, which comprised four exons and three introns, spanning a length of 794 base pairs and encoding 186 amino acids. As shown in Figure 1A, SsArf6 homologous proteins were prevalent among plant pathogenic fungi. When conducting gene structure analysis of these homologues, we discovered that UmArf6 contained only one CDS region, while SsArf6 and BcArf6 had up to four CDSs (Figure 1B). In addition, protein sequence alignment revealed evolutionary conservation of SsArf6, which had a high similarity to Arf6 homologs in F. oxysporum, F. graminearum, B. cinerea, Z. tritici, and U. maydis, with 86.02%, 84.95%, 85.48%, 98.39%, 76.92%, and 76.84% amino acid sequence identity, respectively (Figure 1C).

3.2. Knockout of SsArf6 Leads to Aberrant Mycelium Growth, Increased Melanin Accumulation, and Decreased Sclerotium Production

In order to investigate the biological function of SsArf6 in S. sclerotiorum, we generated the SsArf6 deletion mutant, ΔSsarf6 (Figure S1A), using a split-marker method based on homologous recombination. The results indicated that SsArf6 was completely replaced by hph (Figures S1B and S3). The growth of ΔSsarf6 strain mycelium was hindered, with an average growth rate of 1.27 cm/24 h, significantly lower than that of the WT strain (Figure 2A,B). In addition, the ΔSsarf6 strains produced more branches and melanin compared to WT strains (Figure 2C,D). After incubation on PDA medium for 14 days, there were noticeable differences in colony morphology among WT and ΔSsarf6 strains. Specifically, the ΔSsarf6 strain formed many aerial hyphae (Figure 2E) but fewer sclerotia (Figure 2F,G) compared to WT. Furthermore, the phenotype of SsArf6-C, which was generated through in situ complementation in the ΔSsarf6 background using a knock-in method (Figures S2A,B and S3), was similar to WT (Figure 2). These findings strongly indicate that SsArf6 plays an important role in hyphal growth, melanin accumulation, and sclerotium production.

3.3. SsArf6 Is Implicated in the Abiotic Stress Response in S. sclerotiorum

To explore the response of SsArf6 to different stresses, S. sclerotiorum was treated with various cell wall inhibitors and osmotic stresses. When 0.5 M NaCl, 0.5 M KCl, 1 M glucose, and 1 M sorbitol were applied exogenously, the colony radii of ΔSsarf6 were significantly reduced, and the inhibition rate were significantly higher than that of WT and SsArf6-C strains (Figure 3A,B). However, in the medium supplemented with cell wall inhibitors Congo red (CR) and Sodium Dodecyl Sulfate (SDS), ΔSsarf6 demonstrated a stress response that was comparable to both the WT and SsArf6-C strains (Figure 3C,D). This implies that SsArf6 is necessary for responding to osmotic stress in S. sclerotiorum, but it may not be essential for maintaining cell wall integrity.
Former studies suggested that fungal melanin is frequently located intracellularly and has antioxidant properties, as it can neutralize reactive oxygen species and other free radicals [54]. Therefore, we assessed the antioxidant capacity of the ΔSsarf6 mutant, and found that it exhibited significant tolerance to hydrogen peroxide compared to the WT and SsArf6-C strains (Figure 4A,B), indicative of the essential role of SsArf6 in regulating the oxidative stress responses in S. sclerotiorum.

3.4. SsArf6 Is Involved in Compound Appressoria Development

To successfully colonize, S. sclerotiorum undergoes specific morphological changes in its hyphal tips to form appressoria to break down the host cuticle [14]. Therefore, we analyzed the formation of compound appressoria in ΔSsarf6 mutants and found that the production of compound appressoria by ΔSsarf6 mutants was significantly abnormal compared to the WT and SsArf6-C strains. Upon observing the formation of compound appressoria on glass slides 24 h later, we discovered that both WT and SsArf6-C strains formed compound appressoria on the glass surface, whereas the ΔSsarf6 mutant did not (Figure 5A). To confirm whether the deletion of SsArf6 would delay the development and formation of compound appressoria, we observed the formation of compound appressoria on glass slides again after 48 h. We found that the WT and SsArf6-C strains were able to form a large number of compound appressoria on the glass surface, while the ΔSsarf6 mutant still failed to form them (Figure 5B). Additionally, similar results were obtained on onion epidermal cells (Figure 5C). We also assessed the secretion capacity of ΔSsarf6 mutants for oxalic acid and revealed that the secretion of oxalic acid was normal in the ΔSsarf6 strain, with no significant differences compared to the WT and SsArf6-C strains (Figure 5D). These findings indicate that SsArf6 does not participate in the secretion process of oxalic acid in S. sclerotium but is crucial for the formation of compound appressoria and might be associated with the pathogenicity of S. sclerotium.

3.5. SsArf6 Is Essential for Virulence to Host Plants

To confirm whether SsArf6 is related to the pathogenicity of S. sclerotiorum, we inoculated WT, ΔSsarf6, and SsArf6-C strains onto detached leaves of A. thaliana, B. napus, and N. Benthamian. After 36 h of infection, the ΔSsarf6, WT, and SsArf6-C strains caused water-soaked pale brown lesions on the leaves. However, the ΔSsarf6 mutants showed a significant decrease in lesion area, compared to WT and SsArf6-C strains, on leaf blades of different hosts (Figure 6A,B). When we further calculated the reduction rate of lesion areas infected by the ΔSsarf6 mutant and WT strain on detached leaves of these three host plants, the results showed that there was a difference in the reduction rate of lesion areas between B. napus and A. thaliana or N. Benthamian, but the difference was not significant (Figure 6C). In addition, when inoculated onto the wounded N. Benthamiana detached leaves, we observed a significant increase in the infection area of ΔSsarf6 after 36 h, compared to the intact detached leaves under the same infection conditions, but the infection area of ΔSsarf6 was still significantly less than that of WT and SsArf6-C strains (Figure 6D,E). These findings strongly indicate that SsArf6 plays an essential role in the fungal virulence to hosts, except for its function in appressoria formation of S. sclerotiorum.

4. Discussion

Arf6 is a conserved protein that plays a vital role in the development of fungi; deletion of Arf6 in M. oryzae and A. nidulans results in slower mycelium growth and an increased number of mycelial branches [41,45]. In this study, we identified a homologous protein SsArf6 in S. sclerotiorum, which shares a high degree of similarity with Arf6 proteins in other plant pathogenic fungi. Knockout of SsArf6 led to impaired hyphal development, increased branching and melanin accumulation, and excessive growth of aerial hyphae, as well as negatively impacted sclerotia yield in S. sclerotiorum.
Fungal melanin, as a potent antioxidant, protects cells by scavenging hydrogen peroxide, hydroxyl radicals, and superoxide anions [55]. To investigate whether or not the SsArf6 mutant is tolerant to oxidative stress due to its melanin accumulation, we simulated oxidative stress by adding different concentrations of hydrogen peroxide exogenously to evaluate the antioxidant capacity of the SsArf6 deletion mutant. As expected, ΔSsarf6 mutants indeed exhibited significant tolerance to oxidative stress caused by hydrogen peroxide, compared to WT and SsArf6-C. Additionally, we observed that ΔSsarf6 mutants were more sensitive to hyperosmotic stress but unaffected by cell wall inhibitory agents, indicating that SsArf6 plays an important but different role in responding to different abiotic stress.
Appressoria and oxalic acid are essential for the interaction between S. sclerotiorum and its host. The formation of appressoria helps to break down the physical barriers of the host, such as the cell wall and cuticle [56], and oxalic acid is a key virulence factor in the invasion process, as its secretion enhances the activity of hydrolytic enzymes [26], induces programmed cell death in plants [57], and inhibits host defenses [27]. The absence of SsArf6 resulted in abnormal appressoria development while it did not affect oxalic acid secretion in S. sclerotiorum, suggesting that SsArf6 is involved in the interaction between S. sclerotiorum and its host in a manner other than the oxalic acid pathway.
In M. oryzae, Arf6 was reported to be nonessential for its pathogenicity [41]. When fungal virulence of the SsArf6 deletion mutant was assessed, we observed significantly decreased virulence compared to the WT and SsArf6-C strains. Furthermore, when infection assays were performed on wounded leaves of N. benthamiana, the area of infection by the ΔSsarf6 mutant significantly increased compared to unwounded leaves 36 h post inoculation, although it still remained significantly lower than that of the WT and SsArf6-C strains under the same infection conditions. This evidence indicated an essential role of SsArf6 in fungal virulence to hosts, except for its function in appressoria formation of S. sclerotiorum. Further characterization is needed regarding the specific mechanisms by which SsArf6 regulates the formation of appressoria and pathogenicity.
Taken together, SsArf6 is involved in mycelial growth, appressorium development, and stress response in S. sclerotiorum and contributes to the infection process and fungal virulence to host plants. Our study provides evidence for an improved understanding of the role of Arf6 in the interaction between S. sclerotiorum and its hosts.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jof10010012/s1. Figure S1: Knockout of SsArf6 in S. sclerotiorum. (A) The schematic diagram of the strategy used for knockout of SsArf6. The SsArf6, Hygromycin phosphotransferase (hph), and G418 resistance gene NEO were denoted by yellow, red, and green rectangles, respectively. The labeled primers in the diagram were used for amplifying flanking sequences of SsArf6 or facilitating mutant screening. (B) The verification of knockout of SsArf6 via PCR. Genomic DNA obtained from WT, knockout mutant ΔSsarf6 were utilized as templates for PCR. A total of six primer pairs were employed to detect the insertion of hph and its upstream and downstream fragments, as well as to confirm the knockout of SsArf6. The sizes of the amplified bands were indicated within brackets. The lanes labeled as M represent the DNA marker. Figure S2: Complementation of SsArf6 in ΔSsarf6 mutants of S. sclerotiorum. (A) The schematic diagram of the strategy used for the complementation of ΔSsarf6. The SsArf6, Hygromycin phosphotransferase (hph), and G418 resistance gene NEO were denoted by yellow, red, and green rectangles, respectively. The labeled primers in the diagram were used for amplifying full-length genomic DNA of SsArf6 or facilitating transformant screening. (B) The verification of complementation of SsArf6 via PCR. Genomic DNA obtained from the deletion mutant ΔSpsarf6 and complemented strain SsArf6-C were utilized as templates for PCR. A total of six primer pairs were employed to confirm the complementation of SsArf6. The sizes of the amplified bands were indicated within brackets. The lanes labeled as M represent the DNA marker. Figure S3: The semi-quantitative RT-PCR analysis of the ΔSsarf6 mutant and SsArf6-C strain. Table S1: Primers in this study.

Author Contributions

K.W. and S.X. planned and designed the research. K.W. carried out most of the experiments. K.W., S.W. and S.X. wrote the original draft of the manuscript. S.W. and Q.X. contributed to the mutagenized population of S. sclerotiorum. T.W. analyzed and validated the data. All authors contributed to and approved the submitted version. All authors have read and agreed to the published version of the manuscript.

Funding

National Natural Science Foundation of China (grant 31971836).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The GenBank accession numbers (species names) for organisms used in this study are as follows: Zymoseptoria tritici (ZtArf6, XP_003857013.1), Sclerotinia sclerotiorum (SsArf6, APA07463.1), Ustilago maydis (UmArf6, XP_011391884.1), Botrytis cinerea (BcArf6, XP_001547581.1), Magnaporthe oryzae (MoArf6, XP_003715902.1), Fusarium oxysporum (FoArf6, XP_018253040.1), and Fusarium graminearum (FgArf6, XP_011321112.1) were obtained from the NCBI database (https://www.ncbi.nlm.nih.gov/ accessed on 16 March 2023). The Arf6 gff3 files were obtained from the ensemblFungi database (https://fungi.ensembl.org/ accessed on 16 March 2023).

Acknowledgments

We cordially thank Xin Li (University of British Columbia) for the critical suggestions regarding the experiments, Daohong Jiang (Huazhong Agricultural University) for sharing pCH-EF-1 plasmid, and Jeffrey Rollins (University of Florida) for sharing WT S. sclerotiorum strain 1980.

Conflicts of Interest

All authors declare no conflicts of interest.

References

  1. Xia, S.; Xu, Y.; Hoy, R.; Zhang, J.; Qin, L.; Li, X. The notorious soilborne pathogenic fungus Sclerotinia sclerotiorum: An update on genes studied with mutant analysis. Pathogens 2019, 9, 27. [Google Scholar] [CrossRef]
  2. Boland, G.J.; Hall, R. Index of plant hosts of Sclerotinia sclerotiorum. Can. J. Plant Pathol. 1994, 16, 93–108. [Google Scholar] [CrossRef]
  3. Ding, L.N.; Li, T.; Guo, X.J.; Li, M.; Liu, X.Y.; Cao, J.; Tan, X.L. Sclerotinia stem rot resistance in rapeseed: Recent progress and future prospects. J. Agric. Food Chem. 2021, 69, 2965–2978. [Google Scholar] [CrossRef]
  4. Fass, M.I.; Rivarola, M.; Ehrenbolger, G.F.; Maringolo, C.A.; Montecchia, J.F.; Quiroz, F.; García-García, F.; Blázquez, J.D.; Hopp, H.E.; Heinz, R.A.; et al. Exploring sunflower responses to Sclerotinia head rot at early stages of infection using RNA-seq analysis. Sci. Rep. 2020, 10, 13347. [Google Scholar] [CrossRef]
  5. Hoffman, D.D.; Hartman, G.L.; Mueller, D.S.; Leitz, R.A.; Nickell, C.D.; Pedersen, W.L. Yield and seed quality of soybean cultivars infected with Sclerotinia sclerotiorum. Plant Dis. 1998, 82, 826–829. [Google Scholar] [CrossRef]
  6. Hu, Q.; Hua, W.; Yin, Y.; Zhang, X.; Liu, L.; Shi, J.; Zhao, Y.; Qin, L.; Chen, C.; Wang, H. Rapeseed research and production in China. Crop J. 2017, 5, 127–135. [Google Scholar] [CrossRef]
  7. Zhang, X.; Cheng, J.; Lin, Y.; Fu, Y.; Xie, J.; Li, B.; Bian, X.; Feng, Y.; Liang, W.; Tang, Q.; et al. Editing homologous copies of an essential gene affords crop resistance against two cosmopolitan necrotrophic pathogens. Plant Biotechnol. J. 2021, 19, 2349–2361. [Google Scholar] [CrossRef]
  8. Yang, G.; Tang, L.; Gong, Y.; Xie, J.; Fu, Y.; Jiang, D.; Li, G.; Collinge, D.B.; Chen, W.; Cheng, J. A cerato-platanin protein SsCP1 targets plant PR1 and contributes to virulence of Sclerotinia sclerotiorum. New Phytol. 2018, 217, 739–755. [Google Scholar] [CrossRef]
  9. Harper, G.E.; Frampton, C.M.; Stewart, A. Factors influencing survival of sclerotia of Sclerotium cepivorum in New Zealand soils. N. Z. J. Crop Hortic. Sci. 2002, 30, 29–35. [Google Scholar] [CrossRef]
  10. Willetts, H.J.; Wong, J.A.L. The biology of Sclerotinia sclerotiorum, S. trifoliorum, and S. minor with emphasis on specific nomenclature. Bot. Rev. 1980, 46, 101–165. [Google Scholar] [CrossRef]
  11. Zhang, J.; Xiao, K.; Li, M.; Hu, H.; Zhang, X.; Liu, J.; Pan, H.; Zhang, Y. SsAGM1-mediated uridine diphosphate-N-acetylglucosamine synthesis is essential for development, stress response, and pathogenicity of Sclerotinia sclerotiorum. Front. Microbiol. 2022, 13, 938784. [Google Scholar] [CrossRef]
  12. Huang, L.; Buchenauer, H.; Han, Q.; Zhang, X.; Kang, Z. Ultrastructural and cytochemical studies on the infection process of Sclerotinia sclerotiorum in oilseed rape. J. Plant Dis. Prot. 2008, 115, 9–16. [Google Scholar] [CrossRef]
  13. Uloth, M.B.; Clode, P.L.; You, M.P.; Barbetti, M.J. Attack modes and defence reactions in pathosystems involving Sclerotinia sclerotiorum, Brassica carinata, B. juncea and B. napus. Ann. Bot. 2015, 117, 79–95. [Google Scholar] [CrossRef]
  14. Liang, X.; Rollins, J.A. Mechanisms of broad host range necrotrophic pathogenesis in Sclerotinia sclerotiorum. Phytopathology 2018, 108, 1128–1140. [Google Scholar] [CrossRef]
  15. Xu, T.; Li, J.; Yu, B.; Liu, L.; Zhang, X.; Liu, J.; Pan, H.; Zhang, Y. Transcription factor SsSte12 was involved in mycelium growth and development in Sclerotinia sclerotiorum. Front. Microbiol. 2018, 9, 2476. [Google Scholar] [CrossRef]
  16. Cong, J.; Xiao, K.; Jiao, W.; Zhang, C.; Zhang, X.; Liu, J.; Zhang, Y.; Pan, H. The coupling between cell wall integrity mediated by MAPK kinases and SsFkh1 is involved in sclerotia formation and pathogenicity of Sclerotinia sclerotiorum. Front. Microbiol. 2022, 13, 816091. [Google Scholar] [CrossRef]
  17. Zhang, H.; Li, Y.; Lai, W.; Huang, K.; Li, Y.; Wang, Z.; Chen, X.; Wang, A. SsATG8 and SsNBR1 mediated-autophagy is required for fungal development, proteasomal stress response and virulence in Sclerotinia sclerotiorum. Fungal Genet. Biol. 2021, 157, 103632. [Google Scholar] [CrossRef]
  18. Jiao, W.; Yu, H.; Cong, J.; Xiao, K.; Zhang, X.; Liu, J.; Zhang, Y.; Pan, H. Transcription factor SsFoxE3 activating SsAtg8 is critical for sclerotia, compound appressoria formation, and pathogenicity in Sclerotinia sclerotiorum. Mol. Plant Pathol. 2022, 23, 204–217. [Google Scholar] [CrossRef]
  19. Jiao, W.; Yu, H.; Chen, X.; Xiao, K.; Jia, D.; Wang, F.; Zhang, Y.; Pan, H. The SsAtg1 activating autophagy is required for sclerotia formation and pathogenicity in Sclerotinia sclerotiorum. J. Fungi 2022, 8, 1314. [Google Scholar] [CrossRef]
  20. Jiao, W.; Ding, W.; Rollins, J.A.; Liu, J.; Zhang, Y.; Zhang, X.; Pan, H. Cross-talk and multiple control of Target of Rapamycin (TOR) in Sclerotinia sclerotiorum. Microbiol. Spectr. 2023, 11, e0001323. [Google Scholar] [CrossRef]
  21. Yu, Y.; Xiao, J.; Zhu, W.; Yang, Y.; Mei, J.; Bi, C.; Qian, W.; Qing, L.; Tan, W. Ss-Rhs1, a secretory Rhs repeat-containing protein, is required for the virulence of Sclerotinia sclerotiorum. Mol. Plant Pathol. 2017, 18, 1052–1061. [Google Scholar] [CrossRef]
  22. Liu, L.; Wang, Q.; Zhang, X.; Liu, J.; Zhang, Y.; Pan, H. Ssams2, a gene encoding GATA transcription factor, is required for appressoria formation and chromosome segregation in Sclerotinia sclerotiorum. Front. Microbiol. 2018, 9, 3031. [Google Scholar] [CrossRef]
  23. Li, J.; Zhang, X.; Li, L.; Liu, J.; Zhang, Y.; Pan, H. Proteomics analysis of SsNsd1-mediated compound appressoria formation in Sclerotinia sclerotiorum. Int. J. Mol. Sci. 2018, 19, 2946. [Google Scholar] [CrossRef]
  24. Ding, Y.; Chen, Y.; Yan, B.; Liao, H.; Dong, M.; Meng, X.; Wan, H.; Qian, W. Host-induced gene silencing of a multifunction gene Sscnd1 enhances plant resistance against Sclerotinia sclerotiorum. Front. Microbiol. 2021, 12, 693334. [Google Scholar] [CrossRef]
  25. Kabbage, M.; Yarden, O.; Dickman, M.B. Pathogenic attributes of Sclerotinia sclerotiorum: Switching from a biotrophic to necrotrophic lifestyle. Plant Sci. 2015, 233, 53–60. [Google Scholar] [CrossRef]
  26. Monazzah, M.; Rabiei, Z.; Enferadi, S.T. The effect of oxalic acid, the pathogenicity factor of Sclerotinia Sclerotiorum on the two susceptible and moderately resistant lines of sunflower. Iran. J. Biotechnol. 2018, 16, e1832. [Google Scholar] [CrossRef]
  27. Williams, B.; Kabbage, M.; Kim, H.J.; Britt, R.; Dickman, M.B. Tipping the balance: Sclerotinia sclerotiorum secreted oxalic acid suppresses host defenses by manipulating the host redox environment. PLoS Pathog. 2011, 7, e1002107. [Google Scholar] [CrossRef]
  28. Wei, W.; Pierre-Pierre, N.; Peng, H.; Ellur, V.; Vandemark, G.J.; Chen, W. The D-galacturonic acid catabolic pathway genes differentially regulate virulence and salinity response in Sclerotinia sclerotiorum. Fungal Genet. Biol. 2020, 145, 103482. [Google Scholar] [CrossRef]
  29. Yang, B.; Yajima, W.; Das, D.; Suresh, M.R.; Kav, N.N. Isolation, expression and characterization of two single-chain variable fragment antibodies against an endo-polygalacturonase secreted by Sclerotinia sclerotiorum. Protein Expr. Purif. 2009, 64, 237–243. [Google Scholar] [CrossRef]
  30. Fan, H.; Yang, W.; Nie, J.; Zhang, W.; Wu, J.; Wu, D.; Wang, Y. A novel effector protein SsERP1 inhibits plant ethylene signaling to promote Sclerotinia sclerotiorum infection. J. Fungi 2021, 7, 825. [Google Scholar] [CrossRef]
  31. Seifbarghi, S.; Borhan, M.H.; Wei, Y.; Ma, L.; Coutu, C.; Bekkaoui, D.; Hegedus, D.D. Receptor-like kinases BAK1 and SOBIR1 are required for necrotizing activity of a novel group of Sclerotinia sclerotiorum necrosis-inducing effectors. Front. Plant Sci. 2020, 11, 1021. [Google Scholar] [CrossRef]
  32. Hossain, M.M.; Sultana, F.; Li, W.; Tran, L.P.; Mostofa, M.G. Sclerotinia sclerotiorum (Lib.) de Bary: Insights into the pathogenomic features of a global pathogen. Cells 2023, 12, 1063. [Google Scholar] [CrossRef]
  33. Seifbarghi, S.; Borhan, M.H.; Wei, Y.; Coutu, C.; Robinson, S.J.; Hegedus, D.D. Changes in the Sclerotinia sclerotiorum transcriptome during infection of Brassica napus. BMC Genom. 2017, 18, 266. [Google Scholar] [CrossRef]
  34. Newman, T.E.; Khentry, Y.; Leo, A.; Lindbeck, K.D.; Kamphuis, L.G.; Derbyshire, M.C. Association Mapping Combined with Whole Genome Sequencing Data Reveals Candidate Causal Variants for Sclerotinia Stem Rot Resistance in Brassica napus. Phytopathology 2023, 113, 800–811. [Google Scholar] [CrossRef]
  35. Khan, M.A.; Cowling, W.A.; Banga, S.S.; Barbetti, M.J.; Cantila, A.Y.; Amas, J.C.; Thomas, W.J.W.; You, M.P.; Tyagi, V.; Bharti, B.; et al. Genetic and molecular analysis of stem rot (Sclerotinia sclerotiorum) resistance in Brassica napus (canola type). Heliyon 2023, 9, e19237. [Google Scholar] [CrossRef]
  36. O’Sullivan, C.A.; Belt, K.; Thatcher, L.F. Tackling Control of a Cosmopolitan Phytopathogen: Sclerotinia. Front. Plant Sci. 2021, 12, 707509. [Google Scholar] [CrossRef]
  37. Zhou, F.; Zhang, X.L.; Li, J.L.; Zhu, F.X. Dimethachlon Resistance in Sclerotinia sclerotiorum in China. Plant Dis. 2014, 98, 1221–1226. [Google Scholar] [CrossRef]
  38. Wang, Y.; Hou, Y.-P.; Chen, C.-J.; Zhou, M.-G. Detection of resistance in Sclerotinia sclerotiorum to carbendazim and dimethachlon in Jiangsu Province of China. Australas. Plant Pathol. 2014, 43, 307–312. [Google Scholar] [CrossRef]
  39. Attanayake, R.N.; Carter, P.A.; Jiang, D.; Del Rio-Mendoza, L.; Chen, W. Sclerotinia sclerotiorum populations infecting canola from China and the United States are genetically and phenotypically distinct. Phytopathology 2013, 103, 750–761. [Google Scholar] [CrossRef]
  40. Donaldson, J.G. Multiple roles for Arf6: Sorting, structuring, and signaling at the plasma membrane. J. Biol. Chem. 2003, 278, 41573–41576. [Google Scholar] [CrossRef]
  41. Zhu, X.; Zhou, T.; Chen, L.; Zheng, S.; Chen, S.; Zhang, D.; Li, G.; Wang, Z. Arf6 controls endocytosis and polarity during asexual development of Magnaporthe oryzae. FEMS Microbiol. Lett. 2016, 363, fnw248. [Google Scholar] [CrossRef] [PubMed]
  42. Gamara, J.; Davis, L.; Leong, A.Z.; Page, N.; Rollet-Labelle, E.; Zhao, C.; Hongu, T.; Funakoshi, Y.; Kanaho, Y.; Aoudji, F.; et al. Arf6 regulates energy metabolism in neutrophils. Free Radic. Biol. Med. 2021, 172, 550–561. [Google Scholar] [CrossRef] [PubMed]
  43. Li, R.; Peng, C.; Zhang, X.; Wu, Y.; Pan, S.; Xiao, Y. Roles of Arf6 in cancer cell invasion, metastasis and proliferation. Life Sci. 2017, 182, 80–84. [Google Scholar] [CrossRef] [PubMed]
  44. Schweitzer, J.K.; Sedgwick, A.E.; D’Souza-Schorey, C. ARF6-mediated endocytic recycling impacts cell movement, cell division and lipid homeostasis. Semin. Cell Dev. Biol. 2011, 22, 39–47. [Google Scholar] [CrossRef] [PubMed]
  45. Lee, S.C.; Schmidtke, S.N.; Dangott, L.J.; Shaw, B.D. Aspergillus nidulans ArfB plays a role in endocytosis and polarized growth. Eukaryot. Cell 2008, 7, 1278–1288. [Google Scholar] [CrossRef] [PubMed]
  46. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular evolutionary genetics analysis version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef] [PubMed]
  47. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef]
  48. Madeira, F.; Pearce, M.; Tivey, A.R.N.; Basutkar, P.; Lee, J.; Edbali, O.; Madhusoodanan, N.; Kolesnikov, A.; Lopez, R. Search and sequence analysis tools services from EMBL-EBI in 2022. Nucleic Acids Res. 2022, 50, W276–W279. [Google Scholar] [CrossRef]
  49. Waterhouse, A.M.; Procter, J.B.; Martin, D.M.; Clamp, M.; Barton, G.J. Jalview Version 2—A multiple sequence alignment editor and analysis workbench. Bioinformatics 2009, 25, 1189–1191. [Google Scholar] [CrossRef]
  50. Goswami, R.S. Targeted gene replacement in fungi using a split-marker approach. Methods Mol. Biol. 2012, 835, 255–269. [Google Scholar] [CrossRef]
  51. Xu, Y.; Ao, K.; Tian, L.; Qiu, Y.; Huang, X.; Liu, X.; Hoy, R.; Zhang, Y.; Rashid, K.Y.; Xia, S.; et al. A forward genetic screen in Sclerotinia sclerotiorum revealed the transcriptional regulation of its sclerotial melanization pathway. Mol. Plant-Microbe Interact. 2022, 35, 244–256. [Google Scholar] [CrossRef]
  52. Yang, C.; Tang, L.; Qin, L.; Zhong, W.; Tang, X.; Gong, X.; Xie, W.; Li, Y.; Xia, S. mRNA turnover protein 4 is vital for fungal pathogenicity and response to oxidative stress in Sclerotinia sclerotiorum. Pathogens 2023, 12, 281. [Google Scholar] [CrossRef]
  53. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods. 2012, 9, 671–675. [Google Scholar] [CrossRef]
  54. Smith, D.F.Q.; Casadevall, A. The role of melanin in fungal pathogenesis for animal hosts. Curr. Top. Microbiol. Immunol. 2019, 422, 1–30. [Google Scholar] [CrossRef]
  55. Liu, R.; Meng, X.; Mo, C.; Wei, X.; Ma, A. Melanin of fungi: From classification to application. World J. Microbiol. Biotechnol. 2022, 38, 228. [Google Scholar] [CrossRef]
  56. Gong, Y.; Fu, Y.; Xie, J.; Li, B.; Chen, T.; Lin, Y.; Chen, W.; Jiang, D.; Cheng, J. Sclerotinia sclerotiorum SsCut1 modulates virulence and cutinase activity. J. Fungi 2022, 8, 526. [Google Scholar] [CrossRef]
  57. Kim, K.S.; Min, J.Y.; Dickman, M.B. Oxalic acid is an elicitor of plant programmed cell death during Sclerotinia sclerotiorum disease development. Mol. Plant-Microbe Interact. 2008, 21, 605–612. [Google Scholar] [CrossRef]
Jof 10 00012 g001

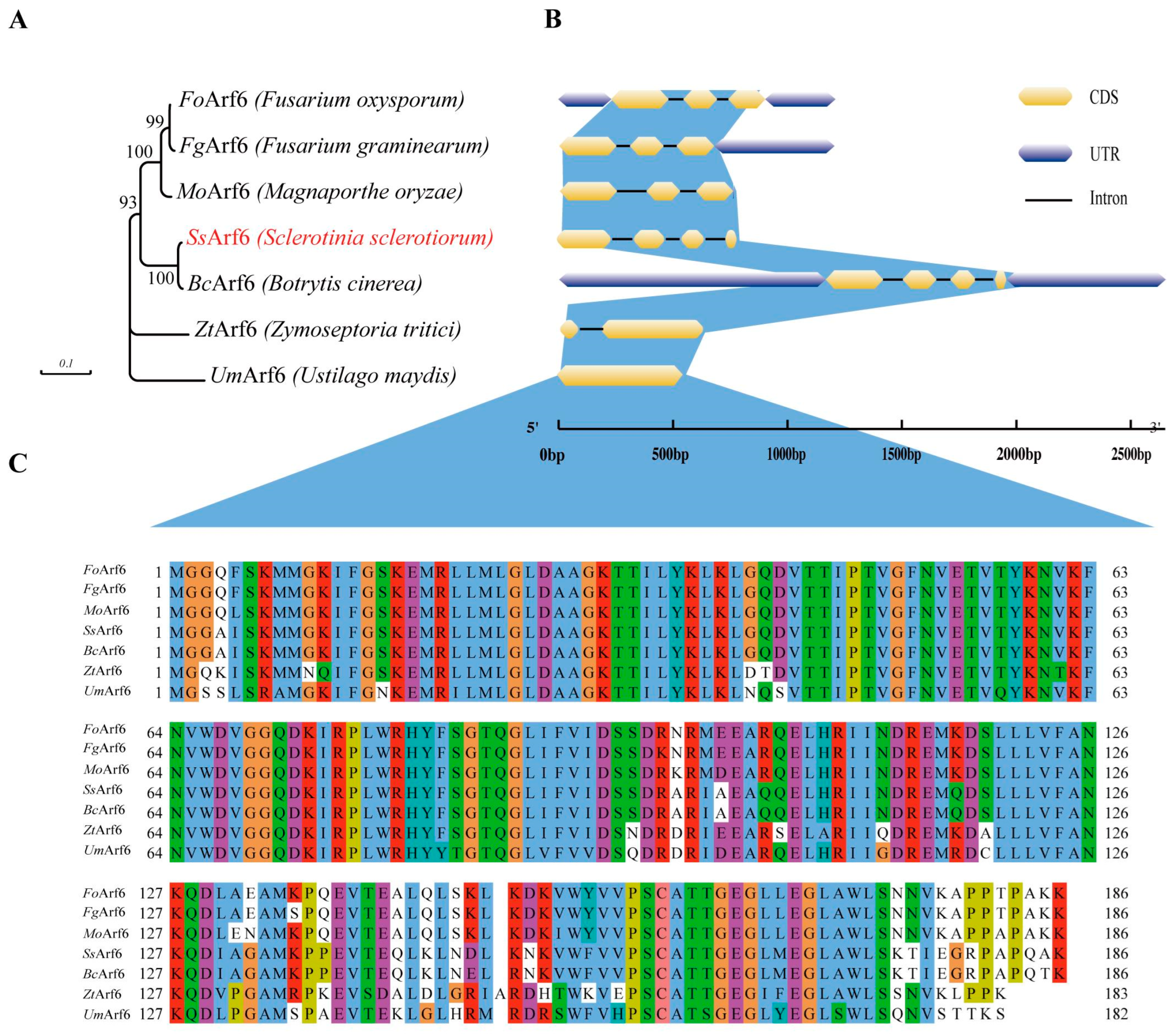

Figure 1. Phylogenetic and sequence analysis of SsArf6. (A) Phylogenetic analysis of Arf6 between different species. (B) The Arf6 gene features in F. oxysporum, F. graminearum, M. oryzae, S. sclerotiorum, B. cinerea, Z. tritici, and U. maydis illustrated schematically by GSDS2.0. (C) Multiple sequence alignment of FoArf6, FgArf6, PoArf6, SsArf6, BcArf6, ZtArf6, and UmArf6. The alignment results were visualized using Jalview Version 2 clustal Colour Scheme. Blue indicates hydrophobic amino acid, Red: Positive charged amino acid, Magenta: Negative charged amino acid, Green: Polar amino acid, Pink: Cysteines, Orange: Glycines, Yellow: Prolines, Cyan: Aromatic amino acid, White: Unconserved amino acid.
Figure 1. Phylogenetic and sequence analysis of SsArf6. (A) Phylogenetic analysis of Arf6 between different species. (B) The Arf6 gene features in F. oxysporum, F. graminearum, M. oryzae, S. sclerotiorum, B. cinerea, Z. tritici, and U. maydis illustrated schematically by GSDS2.0. (C) Multiple sequence alignment of FoArf6, FgArf6, PoArf6, SsArf6, BcArf6, ZtArf6, and UmArf6. The alignment results were visualized using Jalview Version 2 clustal Colour Scheme. Blue indicates hydrophobic amino acid, Red: Positive charged amino acid, Magenta: Negative charged amino acid, Green: Polar amino acid, Pink: Cysteines, Orange: Glycines, Yellow: Prolines, Cyan: Aromatic amino acid, White: Unconserved amino acid.
Jof 10 00012 g001
Jof 10 00012 g002
Figure 2. SsArf6 contributes to mycelial development, melanin accumulation, and sclerotia production in S. sclerotiorum. (A) The colony morphology of WT, ΔSsarf6, and SsArf6-C strains grown on PDA culture medium for 24 h and 48 h. (B) The average mycelial length of WT, ΔSsarf6, and SsArf6-C strains, measured at 24 and 48 h after inoculation, and average growth rate. (C) Melanin accumulation of WT, ΔSsarf6, and SsArf6-C strains grown on PDA culture medium for 5 d. (D) Branching patterns of mycelia of WT, ΔSsarf6, and SsArf6-C strains. (E) The colony morphology of WT, ΔSsarf6, and SsArf6-C strains grown on PDA medium for 14 days. (F,G) The number of sclerotia per plate. WT refers to the wild-type strain; ΔSsarf6, the knockout strain; and SsArf6-C, the complemented strain. The experiment was repeated three times with similar results. Error bars represent the standard deviation (SD). The statistical significance between WT and knockout mutant or complemented strains was analyzed using the Student’s t-test (* p < 0.05).
Figure 2. SsArf6 contributes to mycelial development, melanin accumulation, and sclerotia production in S. sclerotiorum. (A) The colony morphology of WT, ΔSsarf6, and SsArf6-C strains grown on PDA culture medium for 24 h and 48 h. (B) The average mycelial length of WT, ΔSsarf6, and SsArf6-C strains, measured at 24 and 48 h after inoculation, and average growth rate. (C) Melanin accumulation of WT, ΔSsarf6, and SsArf6-C strains grown on PDA culture medium for 5 d. (D) Branching patterns of mycelia of WT, ΔSsarf6, and SsArf6-C strains. (E) The colony morphology of WT, ΔSsarf6, and SsArf6-C strains grown on PDA medium for 14 days. (F,G) The number of sclerotia per plate. WT refers to the wild-type strain; ΔSsarf6, the knockout strain; and SsArf6-C, the complemented strain. The experiment was repeated three times with similar results. Error bars represent the standard deviation (SD). The statistical significance between WT and knockout mutant or complemented strains was analyzed using the Student’s t-test (* p < 0.05).
Jof 10 00012 g002
Jof 10 00012 g003
Figure 3. SsArf6 contributes to the responses to osmotic stress in S. sclerotiorum. (A,B) The colony morphology and inhibition rate of WT, ΔSsarf6, and SsArf6-C strains grown on PDA medium containing different osmotic stressors, 0.5 M NaCl, 0.5 M KCl, 1 M glucose, and 1 M sorbitol, for 48 h. (C,D) The colony morphology and inhibition rate of WT, ΔSsarf6, and SsArf6-C strains grown on PDA medium containing different cell wall inhibitors, 0.5 mg/mL Congo Red (CR) and 0.02% Sodium Dodecyl Sulfate (SDS), for 48 h. ΔSsarf6 represents the knockout strain and SsArf6-C, the complemented strain. The experiment was conducted three times with similar results. Error bars represent the standard deviation (SD). The statistical significance between the WT and knockout mutant or complemented strains was analyzed using the Student’s t-test (** p < 0.01).
Figure 3. SsArf6 contributes to the responses to osmotic stress in S. sclerotiorum. (A,B) The colony morphology and inhibition rate of WT, ΔSsarf6, and SsArf6-C strains grown on PDA medium containing different osmotic stressors, 0.5 M NaCl, 0.5 M KCl, 1 M glucose, and 1 M sorbitol, for 48 h. (C,D) The colony morphology and inhibition rate of WT, ΔSsarf6, and SsArf6-C strains grown on PDA medium containing different cell wall inhibitors, 0.5 mg/mL Congo Red (CR) and 0.02% Sodium Dodecyl Sulfate (SDS), for 48 h. ΔSsarf6 represents the knockout strain and SsArf6-C, the complemented strain. The experiment was conducted three times with similar results. Error bars represent the standard deviation (SD). The statistical significance between the WT and knockout mutant or complemented strains was analyzed using the Student’s t-test (** p < 0.01).
Jof 10 00012 g003
Jof 10 00012 g004
Figure 4. SsArf6 negatively regulates the resistance of S. sclerotiorum to hydrogen peroxide. (A,B) The mycelium morphology and inhibition rate of WT, ΔSsarf6, and SsArf6-C strains grown on PDA medium containing 5 mM, 10 mM, and 15 mM H2O2 for 48 h. The experiment was conducted three times with similar results. Error bars represent the standard deviation (SD). The statistical significance between the WT and knockout mutant or complemented strains was analyzed using the Student’s t-test (** p < 0.01).
Figure 4. SsArf6 negatively regulates the resistance of S. sclerotiorum to hydrogen peroxide. (A,B) The mycelium morphology and inhibition rate of WT, ΔSsarf6, and SsArf6-C strains grown on PDA medium containing 5 mM, 10 mM, and 15 mM H2O2 for 48 h. The experiment was conducted three times with similar results. Error bars represent the standard deviation (SD). The statistical significance between the WT and knockout mutant or complemented strains was analyzed using the Student’s t-test (** p < 0.01).
Jof 10 00012 g004
Jof 10 00012 g005
Figure 5. SsArf6 is involved in compound appressoria formation. (A) Appressorium formed, after 24 h on glass slides, by WT, ΔSsarf6, and SsArf6-C strains observed under an optical microscope. Bar = 1 µm. (B) The appressorium morphology, after 48 h on glass slides, for WT, ΔSsarf6, and SsArf6-C strains. (C) Invasion assay of WT, ΔSsarf6, and SsArf6-C on onion epidermis. Invasion mycelial were stained with Trypan Blue. (D) Analysis of the oxalic acid secretion ability of WT, ΔSsarf6, and SsArf6-C strains, with colony morphology after 48 h cultivation on PDA medium containing Bromophenol Blue. When the pH of Bromophenol Blue is greater than or equal to 3.0 and less than 4.6, it appears yellow, and when the pH is greater than or equal to 4.6, it appears blue. The experiment was repeated three times with similar results. Red arrows point to appressoria. WT represents the wild-type strain; ΔSsarf6, the knockout strain; and SsArf6-C, the complemented strain.
Figure 5. SsArf6 is involved in compound appressoria formation. (A) Appressorium formed, after 24 h on glass slides, by WT, ΔSsarf6, and SsArf6-C strains observed under an optical microscope. Bar = 1 µm. (B) The appressorium morphology, after 48 h on glass slides, for WT, ΔSsarf6, and SsArf6-C strains. (C) Invasion assay of WT, ΔSsarf6, and SsArf6-C on onion epidermis. Invasion mycelial were stained with Trypan Blue. (D) Analysis of the oxalic acid secretion ability of WT, ΔSsarf6, and SsArf6-C strains, with colony morphology after 48 h cultivation on PDA medium containing Bromophenol Blue. When the pH of Bromophenol Blue is greater than or equal to 3.0 and less than 4.6, it appears yellow, and when the pH is greater than or equal to 4.6, it appears blue. The experiment was repeated three times with similar results. Red arrows point to appressoria. WT represents the wild-type strain; ΔSsarf6, the knockout strain; and SsArf6-C, the complemented strain.
Jof 10 00012 g005
Jof 10 00012 g006
Figure 6. SsArf6 contributes to the virulence of S. sclerotiorum. (A) Inoculated lesions of WT, ΔSsarf6, and Ssarf6-C of detached leaves of A. thaliana, B. napus, and N. benthamiana. (B) Lesion areas of WT, ΔSsarf6, and SsArf6-C on leaves of A. thaliana, B. napus, and N. benthamiana. (C) Reduction rate of lesion areas between ΔSsarf6 mutant and WT strain on detached leaves of A. thaliana, B. napus, and N. benthamiana. (D) Inoculated lesions of ΔSsarf6 on detached unwounded/wounded leaves of N. benthamiana. (E) Lesion areas of ΔSsarf6 on wounded/unwounded leaves of N. benthamiana. Data were recorded at 36 h post inoculation. Bar = 10 mm. ImageJ 1.46r was used to analyze the lesion area. The experiment was repeated three times with similar results. Error bars represent SD. The statistical significance between WT and knockout mutant or complemented strains was analyzed using the Student’s t-test (** p < 0.01). WT represents the wild-type strain; ΔSsarf6, the knockout strain; and SsArf6-C, the complemented strain.
Figure 6. SsArf6 contributes to the virulence of S. sclerotiorum. (A) Inoculated lesions of WT, ΔSsarf6, and Ssarf6-C of detached leaves of A. thaliana, B. napus, and N. benthamiana. (B) Lesion areas of WT, ΔSsarf6, and SsArf6-C on leaves of A. thaliana, B. napus, and N. benthamiana. (C) Reduction rate of lesion areas between ΔSsarf6 mutant and WT strain on detached leaves of A. thaliana, B. napus, and N. benthamiana. (D) Inoculated lesions of ΔSsarf6 on detached unwounded/wounded leaves of N. benthamiana. (E) Lesion areas of ΔSsarf6 on wounded/unwounded leaves of N. benthamiana. Data were recorded at 36 h post inoculation. Bar = 10 mm. ImageJ 1.46r was used to analyze the lesion area. The experiment was repeated three times with similar results. Error bars represent SD. The statistical significance between WT and knockout mutant or complemented strains was analyzed using the Student’s t-test (** p < 0.01). WT represents the wild-type strain; ΔSsarf6, the knockout strain; and SsArf6-C, the complemented strain.
Jof 10 00012 g006
