Improving and Streamlining Gene Editing in Yarrowia lipolytica via Integration of Engineered Cas9 Protein

by
Baixi Zhang
1,2,*,† and
Jiacan Cao
1,†
1
School of Food Science and Technology, Jiangnan University, Wuxi 214122, China
2
National Engineering Research Center for Functional Food, Jiangnan University, Wuxi 214122, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Fungi 2024, 10(1), 63; https://doi.org/10.3390/jof10010063
Submission received: 14 December 2023 / Revised: 6 January 2024 / Accepted: 10 January 2024 / Published: 12 January 2024
(This article belongs to the Special Issue Fungal Biotechnology and Application 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
The oleaginous yeast Yarrowia lipolytica is a prominent subject of biorefinery research due to its exceptional performance in oil production, exogenous protein secretion, and utilization of various inexpensive carbon sources. Many CRISPR/Cas9 genome-editing systems have been developed for Y. lipolytica to meet the high demand for metabolic engineering studies. However, these systems often necessitate an additional outgrowth step to achieve high gene editing efficiency. In this study, we introduced the eSpCas9 protein, derived from the Streptococcus pyogenes Cas9(SpCas9) protein, into the Y. lipolytica genome to enhance gene editing efficiency and fidelity, and subsequently explored the optimal expression level of eSpCas9 gene by utilizing different promoters and selecting various growth periods for yeast transformation. The results demonstrated that the integrated eSpCas9 gene editing system significantly enhanced gene editing efficiency, increasing from 16.61% to 86.09% on TRP1 and from 33.61% to 95.19% on LIP2, all without the need for a time-consuming outgrowth step. Furthermore, growth curves and dilution assays indicated that the consistent expression of eSpCas9 protein slightly suppressed the growth of Y. lipolytica, revealing that strong inducible promoters may be a potential avenue for future research. This work simplifies the gene editing process in Y. lipolytica, thus advancing its potential as a natural product synthesis chassis and providing valuable insights for other comparable microorganisms.

1. Introduction

As a result of recent advances in gene editing technology, metabolic engineering, and synthetic biology, an increasing number of nonconventional microorganisms with unique characteristics have become hosts for synthesizing natural products [1,2,3]. Among these highly potential microorganisms, the oleaginous yeast Yarrowia lipolytica is a prominent subject of recent biorefinery research [4]. Y. lipolytica is an ideal host for industrial biomanufacturing, due to its excellent performance in oil production, exogenous protein secretion, and its ability to utilize various inexpensive carbon sources such as glycerol, alkanes, and acetic acid [5,6,7]. So far, Y. lipolytica has been used to produce various valuable products, including polyunsaturated fatty acids EPA [8] and CLA [9,10], terpenoid α-farnesene [11], and flavonoid naringenin [12], with several reaching commercialization. Despite numerous successful applications, there is still a lack of fundamental knowledge about Y. lipolytica. Only 44.5% of the 6448 coding genes are considered to be confidently annotated [13]. Thus, there is a need for more convenient and highly efficient gene editing tools to uncover the unknown secrets in Y. lipolytica and facilitate the construction of natural product synthesis chassis.
In recent years, the application of type II CRISPR/Cas9 systems from Streptococcus pyogenes has enhanced gene editing flexibility and efficiency in a wide range of organisms [14]. The CRISPR/Cas9 system comprises a Cas9 protein and a corresponding sgRNA. The sgRNA recognizes targeted sequences, while the Cas9 protein catalyzes a double-strand break (DSB) in the targeted genome loci. After the DSB forms, cells initiate the repair process, such as non-homologous end joining (NHEJ) and homologous recombination (HR) to repair the break loci, potentially introducing insertions and deletions (indels), or heterologous DNA fragments [15,16]. As a result, the CRISPR/Cas9 system has quickly gained widespread adoption due to its precision and high efficiency. Moreover, as metabolic engineering studies rapidly increase, various CRISPR/Cas9 systems have also been developed in Y. lipolytica as well [17].
Schwartz et al. [18] were the first to establish the CRISPR/Cas9 system in Y. lipolytica. Their focus was on identifying the best promoters for synthesis of sgRNA to enhance gene editing efficiency, resulting in high efficiency during single gene disruption by NHEJ. Subsequently, Gao et al. [19] developed a similar all-in-one CRISPR/Cas9 system, and successfully achieved double and triple gene disruption through NHEJ in Y. lipolytica. However, the CRISPR/Cas9 systems for Y. lipolytica mentioned above require an extended outgrowth step of 2-4 days following transformation to achieve high gene editing efficiency. While the outgrowth step has significantly increased gene editing efficiency by three to four times, it also presents some issues. Firstly, the gene editing process is extended by at least two days, making it more time-consuming. Besides, with the extension of cultivation time after transformation, the persistence of Cas9-sgRNA complex might also lead to increased frequencies of off-target mutations [20,21]. Moreover, the Cas9 nucleases of the aforementioned systems are delivered by plasmid vector with the size over 10kb, resulting in inconveniences when carrying out multiple genes’ editing [22].
In this study, we initially introduced an engineered Cas9 protein, eSpCas9 [23], to the CRISPR/Cas9 system of Y. lipolytica, to improve the fidelity and efficiency of gene editing. Subsequently, we integrated the eSpCas9 gene into the genome of Y. lipolytica, and investigated the optimal expression level of eSpCas9 by employing different promoters and selecting various growth periods for yeast transformation. The objective of this work is to propose a strategy for streamlining the gene editing workflow in Y. lipolytica, with the potential to expand the synthetic toolbox of Y. lipolytica and provide insights for other similar microorganisms.

2. Materials and Methods

2.1. Strains, Media, and Culture Conditions

Escherichia coli DH5α was used for plasmid construction and propagation. All E. coli cultures were cultured in Luria–Bertani (LB) medium at 37 °C. Suitable antibiotics (100 mg/L ampicillin or 50 mg/L kanamycin) were added to the LB medium when necessary. Y. lipolytica Po1f (Catherine Madzak, Paris-Saclay University, INRA, AgroParisTech, UMR SayFood, Palaiseau, France), a leucine and uracil auxotrophic strain, was used as the base strain in this study. All engineered strains are listed in Table 1. The Y. lipolytica cells stored in glycerol stock were initialized by streaking onto a YPD plate and cultivated at 28 °C overnight. A single colony from the plate was cultivated overnight in 5 mL YPD medium (1% yeast extract, 2% tryptone and 2% glucose) to create a seed culture, which was then transferred to culture flasks with a 1% inoculation dose for transformation. Post-transformation, the yeast cells were cultivated in appropriate selective media. YNBD medium (0.67% yeast nitrogen base (without amino acids) and 2% glucose) and YNBD-triglyceride medium (0.67% yeast nitrogen base (without amino acids) and 0.5% triglyceride) were used for LIP2 disruption transformants. YNBD-leu medium (YNBD medium supplemented with 0.01% Leucine) was used for transformants with pINA1312 plasmid. YNBD-trp medium (YNBD supplemented with 0.01% tryptophan) was used for TRP1 disruption transformants. Then, 2% agar was added to the solid medium. All Y. lipolytica culturing was conducted at 28 °C, with liquid cultures shaken at 200 rpm.

2.2. Plasmid Construction

Plasmids are listed in Table 1; primers are listed in Table 2. Representative plasmid maps can be found in Figure S1. The plasmid peCASyl, derived from pCASyl-trp, was synthesized by GenScript Biotech Co., Ltd. (Nanjing, China), which contained a codon-optimized eSpCas9 cassette and an empty sgRNA cassette. The sequence of the codon-optimized eSpCas9 gene is available in Table S1. The plasmid pUC57-USA1B16 was derived from pUC57-USA1B8 [9]. The UAS1B8 fragment was obtained from pUC57-UAS1B8 by digestion with HindIII and XbaI restriction enzymes, and then ligated with pUC-UAS1B8 cut with HindIII and SpeI using T4 DNA Ligase (Vayzme, Nanjing, China), resulting in pUC57-USA1B16. All remaining plasmids assemblies were completed using a ClonExpress Ultra One Step Cloning Kit V2 (Vayzme, Nanjing, China). Plasmids pINA1312-TEFin-eCAS9 and pINA1312-UAS16TEFin-eCAS9 were derived from pINA1312. The eSpCas9 cassette was amplified with primer pairs eCAS9-F10/eCAS9-R10 from peCASyl. The vector fragment from pINA1312 was amplified with primer pairs pINA1312-F/pINA1312-R for pINA1312-TEFin-eCAS9, and primer pairs pINA1312-F/pINA1312-R-2 for pINA1312-UAS16TEFin-eCAS9. The pUC57-USA1B16 plasmid was digested by restrictive endonucleases Spe I and Xba I to obtain 16 tandem copies of UAS1B for construction of pINA1312-UAS16TEFin-eCAS9. Plasmid pCEN1-Leu-gRNA was derived from peCASyl, which abandoned the eSpCas9 cassette. Primer pairs Mig1t-F2/TEF-R2 and AmpR-F/ORI001-R were used to amplified the required fragments for construction of pCEN1-Leu-gRNA. As for the insertion of 20 bp gRNA in peCASyl-trp, pCEN1-Leu-gTrp, and pCEN1-Leu-gLip, primer pairs gRNA-Trp-F/gRNA-Trp-R were used for gRNA of TRP1 (5′-CGATGGCGTCCTGATCCAGT-3′), and primer pairs gRNA-LIP-F/gRNA-LIP-R were used for gRNA of TRP1 (5′-CAGTTGAAGGGCTTGAAGAT-3′). All products from PCR or restrictive endonuclease were recovered by gel extraction and electrophoresis using The Fast Pure Gel DNA Extraction Mini Kit (Vayzme, Nanjing, China). The recombination products were transformed into E. coli DH5α, and cultured at 37 °C overnight. Single colonies were then picked for final verification. Plasmid DNA was extracted using TIANprep Mini Plasmid Kit from Tiangen Biotech Co., Ltd. (Beijing, China).

2.3. Yeast Transformation

The transformation of Y. lipolytica utilized the Frozen-EZ Yeast Transformation II Kit (Zymo Research, Orange, CA, USA). The number of cells was adjusted to a range of 1 × 107 to 1 × 108 before transforming. Subsequently, 1 mL of YPD medium was introduced into the transformation mixture, followed by cultivation at 28 °C and 200 rpm for 2 h to facilitate cell recovery. Post-recovery, the cells were harvested via centrifugation at 13,400× g for 1 min and then plated onto suitable medium.

2.4. Phenotype Verification

The phenotype verification involved transferring single transformant colonies from the original plate to two plates. One plate served for selecting transformants with distinct phenotypes, while the other functioned as a non-selective control. YNBD and YNBD-trp media were utilized to confirm the TRP1 disruption transformants, while YNBD and YNBD-triglyceride media were used to validate the LIP2 disruption transformants.

2.5. Colony PCR Confirmation and Sequencing

To obtain the genome template, the single colony was dispersed in 20 μL of a 0.25% SDS solution, followed by incubation at 90 °C for 3 min. The PCR was performed using the 2× Phanta Max Master Mix (Dye Plus) from Vazyme Biotech Co., Ltd. (Nanjing, China). And the resulting products were verified by DNA electrophoresis or sequenced as necessary by Sangon Biotech Co., Ltd. (Shanghai, China). eSpCas9 was confirmed using primer pairs eCAS9-F/eCAS9-R; TRP1 was confirmed using primer pairs TRP-F/TRP-R; and LIP2 was confirmed using primer pairs LIP-F/LIP-R.

2.6. Real-Time Quantitative PCR

Total RNA from the yeast was extracted and purified using the RNAprep Pure Plant Kit from Tiangen Biotech Co., Ltd. (Beijing, China). Subsequently, the cDNA was synthesized using the HiScript III 1st cDNA synthesis kit from Vazyme Biotech Co., Ltd. (Nanjing, China). For the qPCR reaction system, SYBR GREEN 2×PCR Master Mix (ABI, Carlsbad, CA, USA) was employed. In the relative copy number measurement, strain Po1g was utilized as the control organism with a single copy of both the URA3 and SUC2 target sequences. The primer pairs targeting URA3 are ura3-F/ura3-R, and the primer pairs targeting SUC2 are Suc2-F/Suc2-R. As for the relative expression level measurement, ACT1 (YALI0D08272g) was employed as the reference gene due to its relatively constant expression. The primer pairs targeting eSpCas9 are qeCAS9-F2/qeCAS9-R2, and the primer pairs targeting ACT1 are ACT-F/ACT-R. Gene expression changes were assessed using the 2−ΔΔCt method, and all samples were prepared in triplicate to obtain the Ct value.

3. Results and Discussion

3.1. Gene Editing Efficiency of eSpCas9 in Y. lipolytica

Off-target effects arise when the nuclease activity of Cas9 is triggered at sites where the RNA guide sequence exhibits imperfect complementarity with off-target genomic sites, presenting a significant challenge for genome editing applications [26]. To improve specificity and efficiency in gene editing, several variants of SpCas9 were initially created through mutagenesis of protein regions involved in target DNA binding [27]. One such variant, eSpCas9, was engineered with K848A, K1003A, and R1060A mutations using alanine mutagenesis of positively charged residues in the non-target strand binding groove. This was to reduce affinity and promote rehybridization between the target and non-target DNA strands, resulting in highly efficient and more specific gene editing in mammalian cells compared to wild-type cells [23]. Building upon the CRISPR/Cas9 system established by Gao [19], we developed all-in-one CRISPR plasmids, termed peCASyl, containing a de novo codon-optimized version of the eSpCas9 gene, with the aim of achieving higher gene editing efficiency in Y. lipolytica.
To assess the efficacy of peCASyl in gene editing, we targeted the TRP1 gene for editing, as its absence renders strains unable to grow in tryptophan-deficient media (Figure 1A). As the results demonstrate, a disruption efficiency of 35.5% was observed in strains transformed with peCASyl, and the disruption efficiency further increased to 71.23% and 77.21% after outgrowth periods of 2 and 4 days, respectively (Figure 2). It is worth noting that the introduction of eSpCas9 significantly enhances the efficiency of gene editing compared to the original CRISPR/Cas9 system, whether engaging in an additional outgrowth step or not (Figure 2). The efficient expression of the recombinant protein, facilitated by codon optimization and minimal off-target effects, likely contributes to this improvement in gene editing efficiency. Furthermore, there appears to be no substantial difference in gene editing efficiency for peCASyl between 2 and 4 days of outgrowth analyzed with an unpaired Student’s t-test (Figure 2), suggesting the potential to shorten the gene editing workflow while maintaining high efficiency. These findings indicate that the introduction of eSpCas9 into Y. lipolytica enables normal function and enhances gene editing efficiencies, akin to its performance in mammalian cells. The use of eSpCas9 is particularly suitable for specific experimental requirements or for expanding the capabilities and applications of CRISPR toolboxes, such as single-nucleotide conversion, which may provide potential insights into the synthetic toolbox of Y. lipolytica [28].

3.2. Integration of eSpCas9 in Y. lipolytica

As previously mentioned, most CRISPR/Cas9 systems in Y. lipolytica use plasmids to deliver Cas9 into cells, often necessitating additional outgrowth to achieve high gene editing efficiency, and potentially resulting in oversized plasmids. Therefore, we opted to develop a recombinant yeast strain with integrated eSpCas9 for more efficient and convenient gene editing [29]. Taking into account the subsequent marker rescue, we selected the single-copy vector pINA1312, which contains the non-defective ura3d1 gene for mono-copy expression, to integrate the eSpCas9 gene into Y. lipolytica [25]. Initially, we constructed the plasmid pINA1312-TEFin-eCas9, which inserted an eSpCas9 cassette into vector pINA1312. Subsequently, we linearized the plasmid with restrictive endonucleases NotI to obtain a DNA fragment containing ura3d1 marker, eSpCas9 cassette and Zeta sequence, which was subsequently introduced into yeast genome through transformation. The agarose gel electrophoresis results confirmed the successful integration of the eSpCas9 gene into the yeast strains, designated as po1fe-3 (Figure 3A). Following the integration of the expression cassette, we confirmed the copy numbers using real-time quantitative PCR. Y. lipolytica Po1g, which contains a single copy of the URA3 and SUC2 target sequences, was employed as a control organism. Given the co-existence of URA3 and eSpCas9 within the expression cassette, their relative copy numbers were assumed to be equivalent. As depicted in Figure 3B, all transformants exhibited less than two copies.
To assess the functionality of integrated eSpCas9, we introduced a replicative plasmid containing the 20bp gRNA of the TRP1 gene, named pCEN1-Leu-gTrp, which abandoned the eSpCas9 cassette on peCASyl. As depicted in Table 3, the disruption efficiency achieved with the system po1fe3-1/pCEN1-Leu-gTrp reached 86.09% ± 3.28 on TRP1 without the need for outgrowth, compared to a disruption efficiency of 35.50% ± 5.22 for po1f/peCASyl-trp and 16.61% ± 5.31 for po1f/pCASyl-trp without outgrowth as well. As anticipated, the heterologous expression of eSpCas9 in Y. lipolytica significantly enhances gene editing efficiency. This is due to the pre-existing abundance of Cas9 protein in the cell before the delivery and transcription of the sgRNA cassette. This abundance immediately facilitates the formation of Cas9-sgRNA complexes within the cell, ultimately leading to a higher rate of double-strand break formation at the target site. Consequently, we achieved a five-fold increase in gene editing efficiency compared to the original CRISPR/Cas9 system developed by Gao [19], without the need for outgrowth. This implies that we can forego the time-consuming outgrowth step and reduce the risk of off-target effects caused by the continuous presence of Cas9-sgRNA complexes through use of the high-fidelity eSpCas9 protein [23,27].
It is widely recognized that an increase in gene editing efficiency typically leads to a decrease in the survival rate of edited cells, as more cells are susceptible to genomic damage [19]. As demonstrated in Table 3, we attained comparable transformation efficiency between the po1fe3-1 and peCASyl systems while significantly enhancing gene editing efficiency. We attribute this difference to the plasmid size, as the po1fe3-1 system requires a smaller plasmid than the peCASyl system, which does not require transfection of the eSpCas9 gene. This smaller plasmid size allows more cells to be transfected with the plasmid under the same mass of plasmid, yielding more transformants.
Additionally, to further validate the po1fe strains, we expanded the testing gene to include the LIP2 gene. The LIP2 gene encodes extracellular lipase, and in its absence, the strains exhibit a reduced halo of triglyceride hydrolysis when cultured on medium containing tributyrin (Figure 1B) [30]. The results show a substantial enhancement in gene editing efficiency for the LIP2 gene, increasing from 33.61% ± 7.08 for the pCASyl system to 95.19% ± 1.7 for the po1fe3-1 system (Table 3). The trend of transformation efficiency among the three systems is consistent with that of the TRP1 gene. Additionally, the transformation efficiency in LIP2 exhibited a specific reduction compared to TRP1, which can be attributed to the higher gene editing efficiency in LIP2, making more cells vulnerable to genomic damage.

3.3. Effect of Enhancing Gene Expression Level of Integrated eSpCas9 on Gene Editing Efficiency

Previous studies have shown that increasing the expression of Cas9 nuclease can enhance the indel rate in mammalian cells [31]. While we achieved high gene editing efficiency with po1fe3-1, there is potential for further improvement by regulating the eSpCas9 expression level. Therefore, we enhanced the original promoter TEFin by adding 16 tandem copies of an upstream activation sequence (UAS) from PTEF [32,33]. Subsequently, we integrated the eSpCas9 expression cassette containing the enhanced promoter into yeast cells to create a recombinant strain named po1fe4 in the same way as po1fe3, choosing po1fe4-2 as the tested strain based on relative copy number data. Additionally, according to the experience in previous studies, the expression level of heterologous proteins in Y. lipolytica varies with the growth phases [9]. This suggests that the growth phases may potentially influence the intracellular eSpCas9 protein content before transforming the plasmids containing the sgRNA cassette, which could consequently impact gene editing efficiency. Therefore, to confirm this hypothesis, we tested the gene editing efficiency of the selected genes after enhancing the promoter and preparing receptive cells at different growth cycles.
At first, we assessed the relative expression levels among the above strains using real-time quantitative PCR. As shown in Figure 4A, the enhanced promoter led to a nearly 12-fold increase in the eSpCas9 expression level. While the influence of the growth cycle on eSpCas9 expression was not as significant as the influence of the enhanced promoter, the most significant difference in eSpCas9 expression between the early log-phase and mid-stationary phase was less than two-fold (Figure 4B). However, as depicted in Figure 5, whether the eSpCas9 expression level was significantly increased by enhancing the promoter or slightly adjusted by transforming at different growth phases, there were no significant variances in gene editing efficiency of TRP1 analyzed with an unpaired Student’s t-test, showing an efficiency of approximately 90%. We speculated that the expression of eSpCas9 reached a sufficient level to achieve the highest editing efficiency under the regulation of promoter TEFin, indicating no need to pursue a higher expression level of the nuclease. Furthermore, the limitation of sgRNA expression may also be the reason for the lack of further improvement in editing efficiency, as the level of the sgRNA-Cas9 complex failed to increase with the level of eSpCas9 nuclease [34].

3.4. Effect of Integrated eSpCas9 on Growth of Y. lipolytica

Cas9 nucleases are recognized for their toxicity to various species, especially when expressed at high levels in host cells [35]. Therefore, we investigated the impact of eSpCas9 on the growth of Y. lipolytica at varying expression levels using growth curves. Initially, we transformed pINA1312 plasmids into po1f to restore the ura auxotroph, constructing po1f-ura+ as a control strain. Subsequently, we prepared seed cultures of the strains po1f-ura+, po1fe3-1, po1fe4-2, and inoculated them into fresh YPD medium for cultivation at 28 °C, 200 rpm, measuring the OD600 every 4 h as the data of growth curves. As depicted in Figure 6A, the growth of po1fe3-1 closely resembled that of the control strain po1f-ura+. Despite significantly increased expression levels using a UAS16-TEFin promoter, the growth of po1fe4-2 only suffered slight suppression (Figure 6A). In order to further explore the effect of Cas9 on strains’ growth, a dilution assay was performed [36]. The cultures of po1f-ura+, po1fe3-1 and po1fe4-2 were adjusted to an OD600 of 2.5, followed by serial dilutions, and then plating of 5 μL spots on YNBD-Leu plates. As shown in Figure 6B, after cultivation for 12 h and 24 h, the growth of strains integrated with eSpCas9, po1fe3-1 and po1fe4-2, exhibited slightly impaired growth compared to the control strain po1f-ura+. However, similar delayed growth between po1fe3-1 and po1fe4-2 was not readily observed, indicating a high tolerance of Y. lipolytica to heterologous protein to some extent. In summary, control of eSpCas9 expression using strong inducible promoters may be a potential avenue for future research.

4. Conclusions

In this study, we developed an enhanced gene editing system for Y. lipolytica based on the CRISPR/Cas9 system. The high-fidelity eSpCas9 protein was incorporated into the system to improve gene editing efficiency. Subsequently, eSpCas9 was integrated into the genome of Y. lipolytica under the control of the TEFin promoter, resulting in significantly improved gene editing efficiency without the need for outgrowth. To further maximize efficiency, the TEFin promoter was replaced by the stronger UAS16-TEFin promoter. However, the potential improvement in gene editing was constrained by the original high efficiency and expression level of sgRNA. Additionally, we confirmed that the consistent expression of eSpCas9 protein slightly suppressed the growth of Y. lipolytica, revealing that the strong inducible promoters may be a favorable approach for future research. This approach simplifies the gene editing process in Y. lipolytica, which has the potential to broaden the synthetic capabilities of Y. lipolytica and offer valuable insights for other comparable microorganisms.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jof10010063/s1, Figure S1: Maps of representative plasmids. (A) Maps of plasmids pCASyl, peCASyl, and pCEN1-Leu-sgRNA; (B) Maps of pINA1312, pINA1312-TEFin-eCAS9 and pINA1312-UAS16TEFin-eCAS9; Table S1: Codon-optimized sequence of the eSpCas9 gene.

Author Contributions

Conceptualization, J.C. and B.Z.; methodology, J.C. and B.Z.; software, J.C.; validation, J.C.; formal analysis, J.C.; investigation, J.C.; resources, J.C.; data curation, J.C.; writing—original draft preparation, J.C.; writing—review and editing, J.C.; visualization, J.C.; supervision, B.Z.; project administration, B.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data supporting the conclusions of this study are available and included within the article.

Acknowledgments

The authors thank the National Engineering Research Center of Functional Food (Jiangnan University) for access to their facilities and technical assistance. The authors would like to thank Catherine Madzak (Paris-Saclay University, INRA, AgroParisTech, UMR SayFood, Thiverval-Grignon, France) for supplying the Y. lipolytica strains and expression system. The authors thank Sheng Yang (CAS Center for Excellence in Molecular Plant Science/Institute of Plant Physiology and Ecology, Chinese Academy of Sciences, Shanghai, China) for providing the CRISPR plasmids.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Raschmanova, H.; Weninger, A.; Glieder, A.; Kovar, K.; Vogl, T. Implementing CRISPR-Cas technologies in conventional and non-conventional yeasts: Current state and future prospects. Biotechnol. Adv. 2018, 36, 641–665. [Google Scholar] [CrossRef]
  2. Naseri, G.; Koffas, M.A.G. Application of combinatorial optimization strategies in synthetic biology. Nat. Commun. 2020, 11, 2446. [Google Scholar] [CrossRef] [PubMed]
  3. Brooks, S.M.; Alper, H.S. Applications, challenges, and needs for employing synthetic biology beyond the lab. Nat. Commun. 2021, 12, 1390. [Google Scholar] [CrossRef] [PubMed]
  4. Madzak, C. Yarrowia lipolytica strains and their biotechnological applications: How natural biodiversity and metabolic engineering could contribute to cell factories improvement. J. Fungi 2021, 7, 548. [Google Scholar] [CrossRef]
  5. Miller, K.K.; Alper, H.S. Yarrowia lipolytica: More than an oleaginous workhorse. Appl. Microbiol. Biotechnol. 2019, 103, 9251–9262. [Google Scholar] [CrossRef] [PubMed]
  6. Fickers, P.; Cheng, H.; Sze Ki Lin, C. Sugar alcohols and organic acids synthesis in Yarrowia lipolytica: Where are we? Microorganisms 2020, 8, 574. [Google Scholar] [CrossRef] [PubMed]
  7. Egermeier, M.; Russmayer, H.; Sauer, M.; Marx, H. Metabolic flexibility of Yarrowia lipolytica growing on glycerol. Front. Microbiol. 2017, 8, 49. [Google Scholar] [CrossRef] [PubMed]
  8. Xue, Z.; Sharpe, P.L.; Hong, S.P.; Yadav, N.S.; Xie, D.; Short, D.R.; Damude, H.G.; Rupert, R.A.; Seip, J.E.; Wang, J.; et al. Production of omega-3 eicosapentaenoic acid by metabolic engineering of Yarrowia lipolytica. Nat. Biotechnol. 2013, 31, 734–740. [Google Scholar] [CrossRef]
  9. Zhang, B.; Chen, H.; Li, M.; Gu, Z.; Song, Y.; Ratledge, C.; Chen, Y.Q.; Zhang, H.; Chen, W. Genetic engineering of Yarrowia lipolytica for enhanced production of trans-10, cis-12 conjugated linoleic acid. Microb. Cell Factories 2013, 12, 70. [Google Scholar] [CrossRef]
  10. Obsen, T.; Faergeman, N.J.; Chung, S.; Martinez, K.; Gobern, S.; Loreau, O.; Wabitsch, M.; Mandrup, S.; McIntosh, M. Trans-10, cis-12 conjugated linoleic acid decreases de novo lipid synthesis in human adipocytes. J. Nutr. Biochem. 2012, 23, 580–590. [Google Scholar] [CrossRef]
  11. Liu, Y.; Jiang, X.; Cui, Z.; Wang, Z.; Qi, Q.; Hou, J. Engineering the oleaginous yeast Yarrowia lipolytica for production of alpha-farnesene. Biotechnol. Biofuels 2019, 12, 296. [Google Scholar] [CrossRef] [PubMed]
  12. Wei, W.; Zhang, P.; Shang, Y.; Zhou, Y.; Ye, B.C. Metabolically engineering of Yarrowia lipolytica for the biosynthesis of naringenin from a mixture of glucose and xylose. Bioresour. Technol. 2020, 314, 123726. [Google Scholar] [CrossRef] [PubMed]
  13. Park, Y.K.; Ledesma-Amaro, R. What makes Yarrowia lipolytica well suited for industry? Trends Biotechnol. 2023, 41, 242–254. [Google Scholar] [CrossRef] [PubMed]
  14. Mir, A.; Edraki, A.; Lee, J.; Sontheimer, E.J. Type II-C CRISPR-Cas9 biology, mechanism, and application. ACS Chem. Biol. 2018, 13, 357–365. [Google Scholar] [CrossRef] [PubMed]
  15. Ran, F.A.; Hsu, P.D.; Wright, J.; Agarwala, V.; Scott, D.A.; Zhang, F. Genome engineering using the CRISPR-Cas9 system. Nat. Protoc. 2013, 8, 2281–2308. [Google Scholar] [CrossRef] [PubMed]
  16. Asmamaw, M.; Zawdie, B. Mechanism and applications of CRISPR/Cas-9-mediated genome editing. Biologics 2021, 15, 353–361. [Google Scholar] [CrossRef]
  17. Shi, T.Q.; Huang, H.; Kerkhoven, E.J.; Ji, X.J. Advancing metabolic engineering of Yarrowia lipolytica using the CRISPR/Cas system. Appl. Microbiol. Biotechnol. 2018, 102, 9541–9548. [Google Scholar] [CrossRef]
  18. Schwartz, C.M.; Hussain, M.S.; Blenner, M.; Wheeldon, I. Synthetic RNA polymerase III promoters facilitate high-efficiency CRISPR-Cas9-mediated genome editing in Yarrowia lipolytica. ACS Synth. Biol. 2016, 5, 356–359. [Google Scholar] [CrossRef]
  19. Gao, S.; Tong, Y.; Wen, Z.; Zhu, L.; Ge, M.; Chen, D.; Jiang, Y.; Yang, S. Multiplex gene editing of the Yarrowia lipolytica genome using the CRISPR-Cas9 system. J. Ind. Microbiol. Biotechnol. 2016, 43, 1085–1093. [Google Scholar] [CrossRef]
  20. Sander, J.D.; Joung, J.K. CRISPR-Cas systems for editing, regulating and targeting genomes. Nat. Biotechnol. 2014, 32, 347–355. [Google Scholar] [CrossRef]
  21. Guo, C.; Ma, X.; Gao, F.; Guo, Y. Off-target effects in CRISPR/Cas9 gene editing. Front. Bioeng. Biotechnol. 2023, 11, 1143157. [Google Scholar] [CrossRef]
  22. Wilding-Steele, T.; Ramette, Q.; Jacottin, P.; Soucaille, P. Improved CRISPR/Cas9 tools for the rapid metabolic engineering of Clostridium acetobutylicum. Int. J. Mol. Sci. 2021, 22, 3704. [Google Scholar] [CrossRef] [PubMed]
  23. Slaymaker, I.M.; Gao, L.; Zetsche, B.; Scott, D.A.; Yan, W.X.; Zhang, F. Rationally engineered Cas9 nucleases with improved specificity. Science 2016, 351, 84–88. [Google Scholar] [CrossRef] [PubMed]
  24. Madzak, C.; Treton, B.; Blanchin-Roland, S. Strong hybrid promoters and integrative expression/secretion vectors for quasi-constitutive expression of heterologous proteins in the yeast Yarrowia lipolytica. J. Mol. Microbiol. Biotechnol. 2000, 2, 207–216. [Google Scholar]
  25. Nicaud, J.M.; Madzak, C.; van den Broek, P.; Gysler, C.; Duboc, P.; Niederberger, P.; Gaillardin, C. Protein expression and secretion in the yeast Yarrowia lipolytica. FEMS Yeast Res. 2002, 2, 371–379. [Google Scholar] [CrossRef]
  26. Hsu, P.D.; Scott, D.A.; Weinstein, J.A.; Ran, F.A.; Konermann, S.; Agarwala, V.; Li, Y.; Fine, E.J.; Wu, X.; Shalem, O.; et al. DNA targeting specificity of RNA-guided Cas9 nucleases. Nat. Biotechnol. 2013, 31, 827–832. [Google Scholar] [CrossRef]
  27. Koonin, E.V.; Gootenberg, J.S.; Abudayyeh, O.O. Discovery of diverse CRISPR-Cas systems and expansion of the genome engineering toolbox. Biochemistry 2023, 62, 3465–3487. [Google Scholar] [CrossRef] [PubMed]
  28. Gong, G.; Zhang, Y.; Wang, Z.; Liu, L.; Shi, S.; Siewers, V.; Yuan, Q.; Nielsen, J.; Zhang, X.; Liu, Z. GTR 2.0: gRNA-tRNA array and cas9-ng based genome disruption and single-nucleotide conversion in Saccharomyces cerevisiae. ACS Synth. Biol. 2021, 10, 1328–1337. [Google Scholar] [CrossRef] [PubMed]
  29. Mans, R.; van Rossum, H.M.; Wijsman, M.; Backx, A.; Kuijpers, N.G.; van den Broek, M.; Daran-Lapujade, P.; Pronk, J.T.; van Maris, A.J.; Daran, J.M. CRISPR/Cas9: A molecular Swiss army knife for simultaneous introduction of multiple genetic modifications in Saccharomyces cerevisiae. FEMS Yeast Res. 2015, 15, fov004. [Google Scholar] [CrossRef]
  30. Pignede, G.; Wang, H.J.; Fudalej, F.; Seman, M.; Gaillardin, C.; Nicaud, J.M. Autocloning and amplification of LIP2 in Yarrowia lipolytica. Appl. Environ. Microbiol. 2000, 66, 3283–3289. [Google Scholar] [CrossRef]
  31. Duda, K.; Lonowski, L.A.; Kofoed-Nielsen, M.; Ibarra, A.; Delay, C.M.; Kang, Q.; Yang, Z.; Pruett-Miller, S.M.; Bennett, E.P.; Wandall, H.H.; et al. High-efficiency genome editing via 2A-coupled co-expression of fluorescent proteins and zinc finger nucleases or CRISPR/Cas9 nickase pairs. Nucleic Acids Res. 2014, 42, e84. [Google Scholar] [CrossRef] [PubMed]
  32. Tai, M.; Stephanopoulos, G. Engineering the push and pull of lipid biosynthesis in oleaginous yeast Yarrowia lipolytica for biofuel production. Metab. Eng. 2013, 15, 1–9. [Google Scholar] [CrossRef] [PubMed]
  33. Blazeck, J.; Liu, L.; Redden, H.; Alper, H. Tuning gene expression in Yarrowia lipolytica by a hybrid promoter approach. Appl. Environ. Microbiol. 2011, 77, 7905–7914. [Google Scholar] [CrossRef] [PubMed]
  34. Shin, J.; Lee, N.; Song, Y.; Park, J.; Kang, T.J.; Kim, S.C.; Lee, G.M.; Cho, B.K. Efficient CRISPR/Cas9-mediated multiplex genome editing in CHO cells high-level sgRNA-Cas9 complex. Biotechnol. Bioprocess Eng. 2015, 20, 825–833. [Google Scholar] [CrossRef]
  35. Jacobs, J.Z.; Ciccaglione, K.M.; Tournier, V.; Zaratiegui, M. Implementation of the CRISPR-Cas9 system in fission yeast. Nat. Commun. 2014, 5, 5344. [Google Scholar] [CrossRef] [PubMed]
  36. Cui, L.; Vigouroux, A.; Rousset, F.; Varet, H.; Khanna, V.; Bikard, D. A CRISPRi screen in E. coli reveals sequence-specific toxicity of dCas9. Nat. Commun. 2018, 9, 1912. [Google Scholar] [CrossRef]
Jof 10 00063 g001

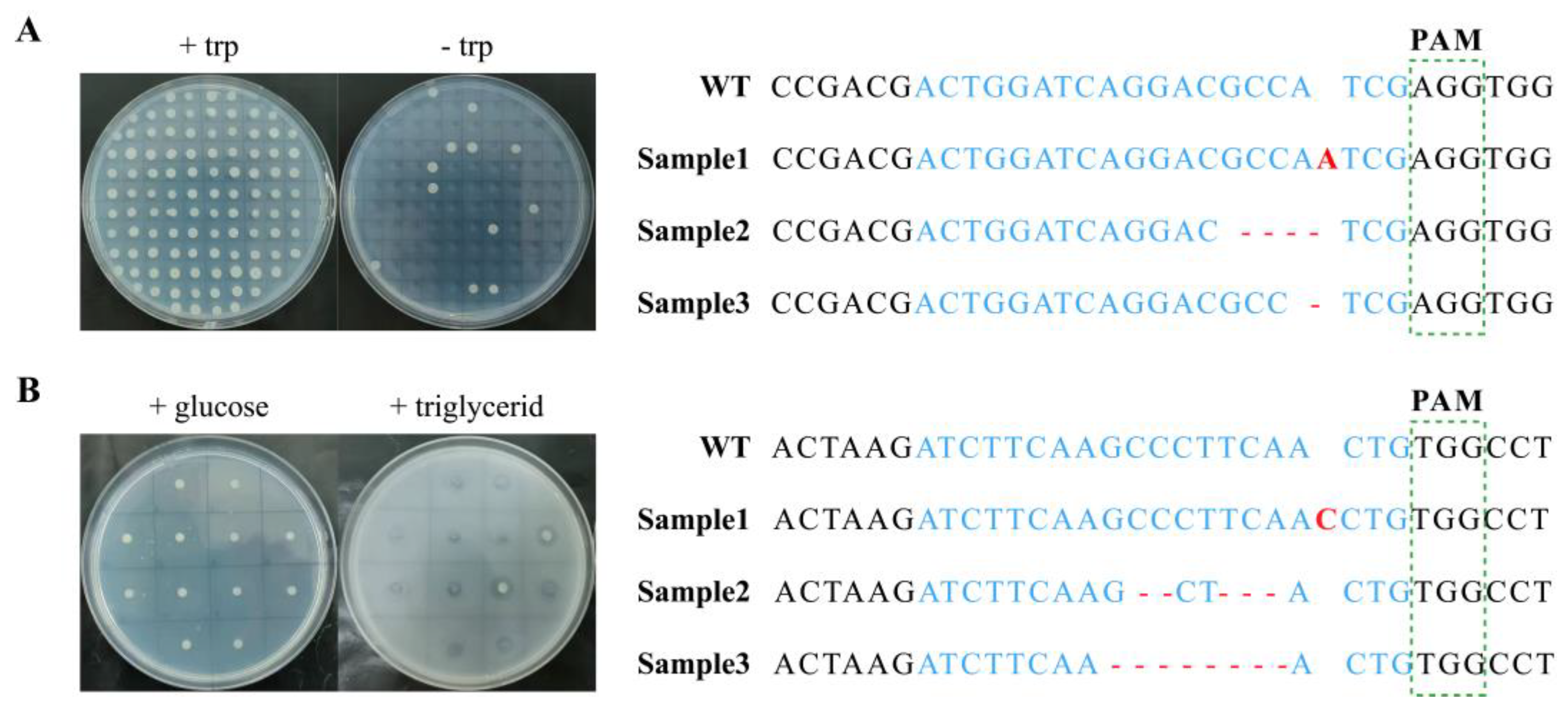

Figure 1. Phenotype and sequence confirmation of TRP1 and LIP2 disruption strains. (A) Verification of TRP1 disruption strains. Transformants that failed to grow on YNBD were trp− mutants. A representative sample is shown for the alignments of the TRP1 gene sequence from selected trp− mutants. (B) Verification of LIP2 disruption strains. Transformants that exhibited a reduced halo of triglyceride hydrolysis on YNBD-triglyceride were lip− mutans. A representative sample is shown for the alignments of the LIP2 gene sequence from selected lip− mutants. The blue represents gRNA sequence, the red represents indels, and the sequence in green rectangle represents PAM sequence.
Figure 1. Phenotype and sequence confirmation of TRP1 and LIP2 disruption strains. (A) Verification of TRP1 disruption strains. Transformants that failed to grow on YNBD were trp− mutants. A representative sample is shown for the alignments of the TRP1 gene sequence from selected trp− mutants. (B) Verification of LIP2 disruption strains. Transformants that exhibited a reduced halo of triglyceride hydrolysis on YNBD-triglyceride were lip− mutans. A representative sample is shown for the alignments of the LIP2 gene sequence from selected lip− mutants. The blue represents gRNA sequence, the red represents indels, and the sequence in green rectangle represents PAM sequence.
Jof 10 00063 g001
Jof 10 00063 g002

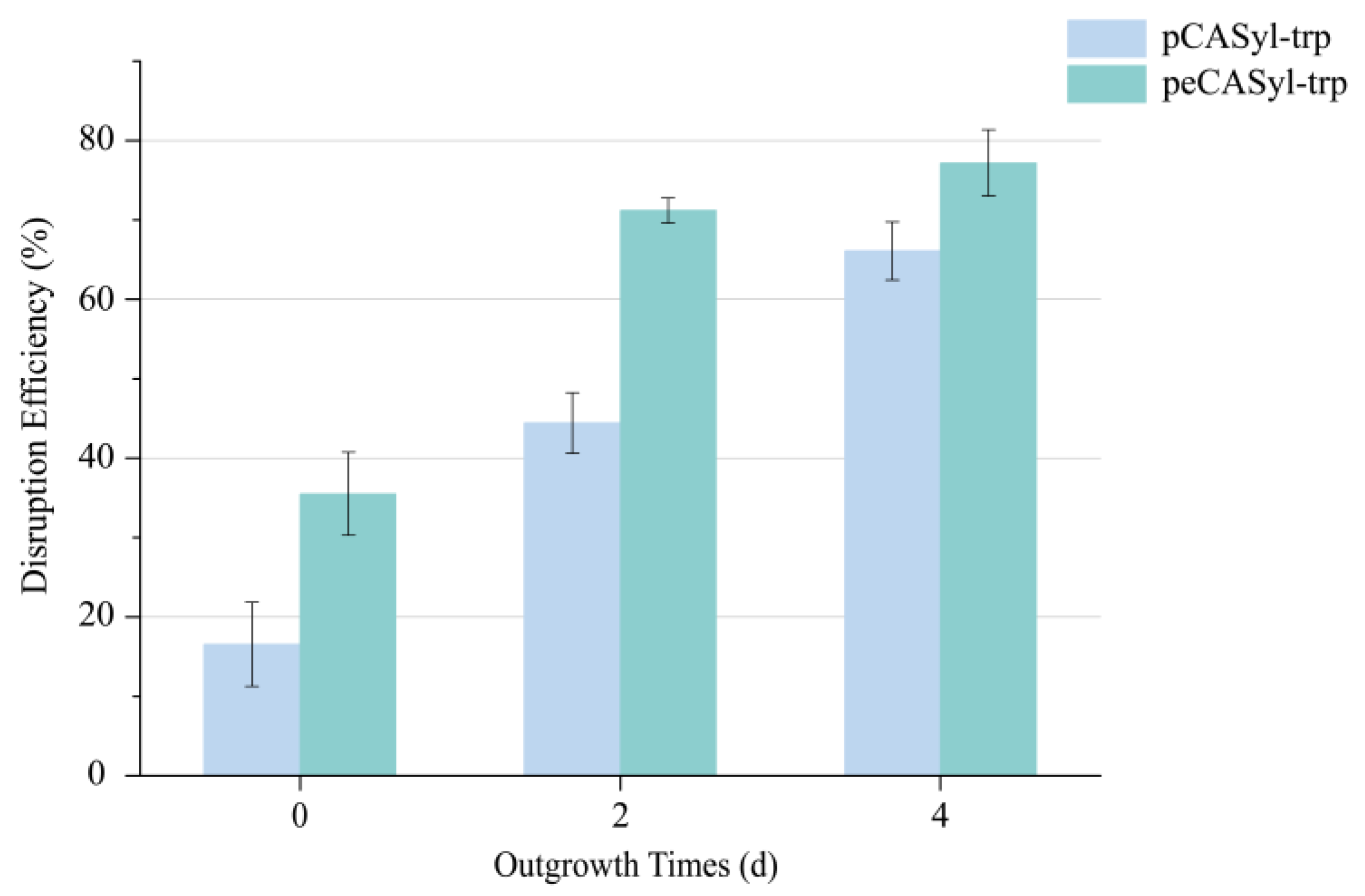

Figure 2. The disruption efficiency of pCASyl-trp and peCASyl-trp on gene TRP1. The values and error bars represent the average readings and standard deviations for three independent experiments.
Figure 2. The disruption efficiency of pCASyl-trp and peCASyl-trp on gene TRP1. The values and error bars represent the average readings and standard deviations for three independent experiments.
Jof 10 00063 g002
Jof 10 00063 g003

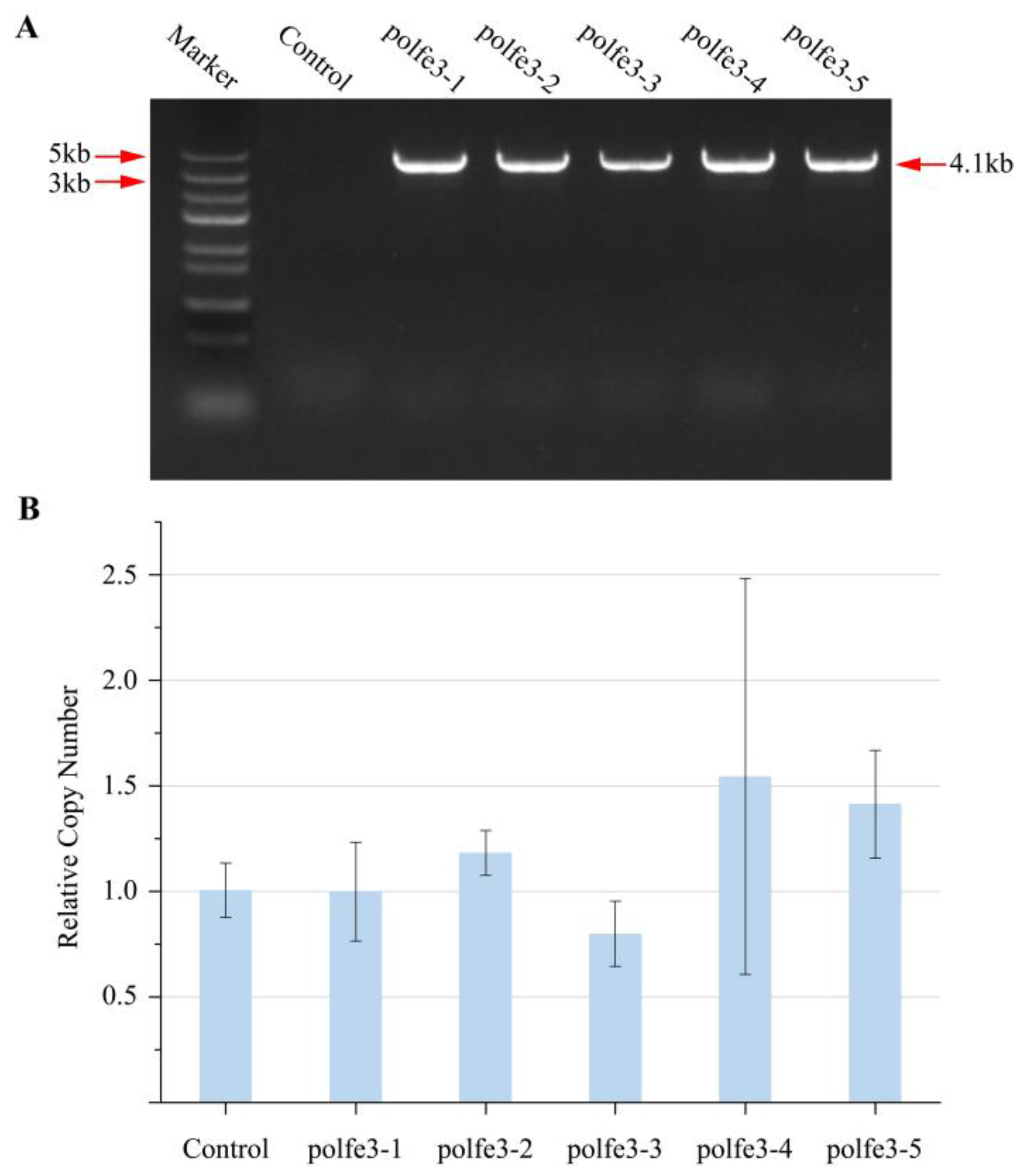

Figure 3. Confirmation of eSpCas9 integration. (A) Agarose gel electrophoresis of an eSpCAS9 fragment amplified with primer pairs eCas9-F/eCas9-R. (B) Relative copy number of eSpCAS9 in transformants via real time PCR; Y. lipolytica Po1g containing a single copy of both the URA3 and SUC2 was set as a control. The values and error bars represent the average readings and standard deviations for three independent experiments.
Figure 3. Confirmation of eSpCas9 integration. (A) Agarose gel electrophoresis of an eSpCAS9 fragment amplified with primer pairs eCas9-F/eCas9-R. (B) Relative copy number of eSpCAS9 in transformants via real time PCR; Y. lipolytica Po1g containing a single copy of both the URA3 and SUC2 was set as a control. The values and error bars represent the average readings and standard deviations for three independent experiments.
Jof 10 00063 g003
Jof 10 00063 g004
Figure 4. The relative expression level of eSpCas9 in po1fe3-1 and po1fe4-2. (A) Relative expression level with po1fe 3-1 as control. (B) Relative expression level with early log phase as control. Values and error bars represent the average readings and standard deviations for three independent experiments.
Figure 4. The relative expression level of eSpCas9 in po1fe3-1 and po1fe4-2. (A) Relative expression level with po1fe 3-1 as control. (B) Relative expression level with early log phase as control. Values and error bars represent the average readings and standard deviations for three independent experiments.
Jof 10 00063 g004
Jof 10 00063 g005

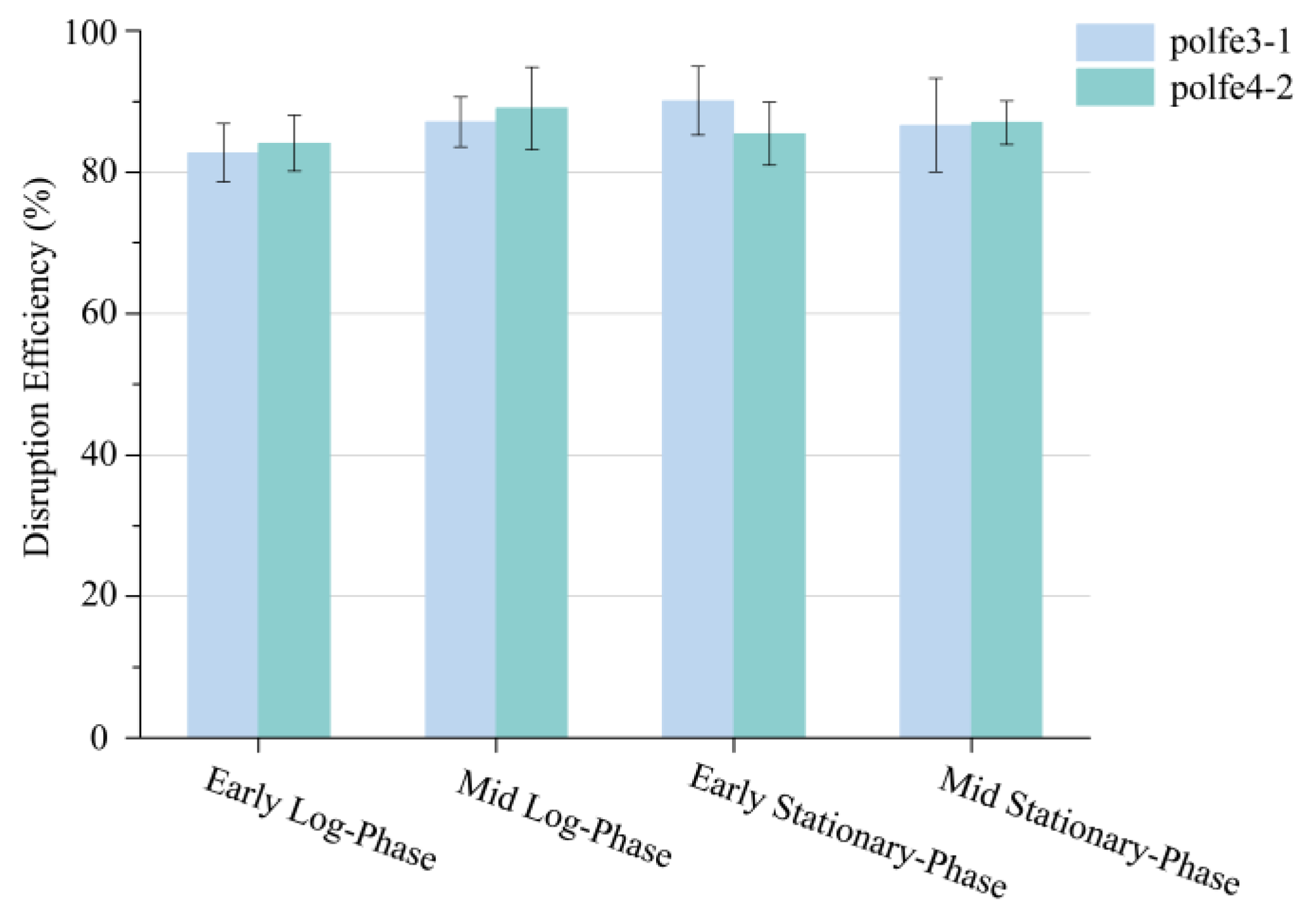

Figure 5. The disruption efficiency of TRP1 under different eSpCas9 expression levels. po1fe3-1 and po1fe4-2 shows that eSpCas9 expression was controlled under promoter pTEFin and pUAS16TEFin; the x axis shows the preparation of receptive cells in different growth cycles. Values and error bars represent the average readings and standard deviations for three independent experiments.
Figure 5. The disruption efficiency of TRP1 under different eSpCas9 expression levels. po1fe3-1 and po1fe4-2 shows that eSpCas9 expression was controlled under promoter pTEFin and pUAS16TEFin; the x axis shows the preparation of receptive cells in different growth cycles. Values and error bars represent the average readings and standard deviations for three independent experiments.
Jof 10 00063 g005
Jof 10 00063 g006
Figure 6. The effect of eSpCas9 protein on growth of Y. lipolytica. Strain po1f-ura+ was set as control. (A) Growth curves of po1f-ura+, po1fe3-1, po1fe4-2. Values and error bars represent the average readings and standard deviations for three independent experiments. (B) Dilution assay of po1f-ura+, po1fe3-1, po1fe4-2, with a consistent initial OD600 of 2.5.
Figure 6. The effect of eSpCas9 protein on growth of Y. lipolytica. Strain po1f-ura+ was set as control. (A) Growth curves of po1f-ura+, po1fe3-1, po1fe4-2. Values and error bars represent the average readings and standard deviations for three independent experiments. (B) Dilution assay of po1f-ura+, po1fe3-1, po1fe4-2, with a consistent initial OD600 of 2.5.
Jof 10 00063 g006
Table 1. Strains and plasmids used in this work.
Table 1. Strains and plasmids used in this work.
Strains or PlasmidsCharacteristicsSource or References
Strains
Po1fMatA, leu2-270, ura3-302, xpr2-322, axp-2, Leu−, Ura−, ΔAEP, ΔAXP, Suc+[24]
Po1gMatA, leu2-270, ura3-302: :URA3, xpr2-322, axp-2, Leu−, ΔAEP, ΔAXP, Suc+, pBR[24]
Po1fe-3Po1f, pINA1312-TEFin-eCAS9 (URA3, eSpCas9)This work
Po1fe-4Po1f, pINA1312-UAS16TEFin-eCAS9 (URA3, eSpCas9)This work
Po1f-ura+Po1f, pINA1312 (URA3)This work
Plasmids
pCASyl-trpY. lipolytica-replicative plasmid, containing TRP1 Guide RNA module and Cas9 expression cassette[19]
pINA1312Y. lipolytica-integrative plasmid, Kan, hp4d, XPR2t, ura3d1[25]
pUC57-UAS1B8Containing 8 tandem copies of UAS1B flanked with ClaI-HindIII-SpeI siteson the 5′-end and MluI-XbaI sites on the 3′-end.[9]
pUC57-USA1B16Derived from pUC57-UAS1B8, containing 16 tandem copies of UAS1BThis work
peCASylDerived from pCASyl-trp, replacing Cas9 gene to codon-optimized eSpCas9 geneThis work
peCASyl-trpDerived from peCASyl, containing TRP1 Guide RNA moduleThis work
pINA1312-TEFin-eCAS9pINA1312 containing TEFin-eSpCas9 cassetteThis work
pINA1312-UAS16TEFin-eCAS9pINA1312 containing UAS16TEFin-eSpCas9 cassetteThis work
pCEN1-Leu-gRNADerived from pCASyl-trp, containing empty sgRNA cassetteThis work
pCEN1-Leu-gTRP1Derived from pCEN1-Leu-gRNA, containing TRP1 Guide RNA moduleThis work
pCEN1-Leu-gLIP2Derived from pCEN1-Leu-gRNA, containing LIP2 Guide RNA moduleThis work
Table 2. Primers used in this work.
Table 2. Primers used in this work.
PrimersSequence (5′-3′)
eCAS9-F10ACATGGAATTCGGACACGGGccgacgcgtctgtacaga
eCAS9-R10AGTCTGCAGCCCAAGCTAGCgcccttttgggtttgtcgac
pINA1312-FCCCGTGTCCGAATTCCATGTGTAAC
pINA1312-RGCTAGCTTGGGCTGCAGACTAAATT
pINA1312-R-2GACACCTCAGCATGCACTAGgctagcttgggctgcagactaaatt
Mig1t-F2agacatagcggccgcttcgaaaacccaaaagggccgaagg
TEF-R2ggggttccgcacacatttccagagaccgggttggcgg
AmpR-Fggaaatgtgtgcggaacccc
ORI001-Rtcgaagcggccgctatgtct
NdeI-FGTGCGGTATTTCACACCGCAtatggtgcactctcagtacaatctgc
NdeI-Rtgcggtgtgaaataccgcac
gRNA-Trp-FCGATGGCGTCCTGATCCAGTgacgagcttactcgtttcg
gRNA-Trp-RACTGGATCAGGACGCCATCGgttttagagctagaaatagcaagt
gRNA-LIP-FCAGTTGAAGGGCTTGAAGATgacgagcttactcgtttcg
gRNA-LIP-RATCTTCAAGCCCTTCAACTGgttttagagctagaaatagcaagt
eCas9-FATCGCCACCGAGCTGACT
eCas9-RGACAAGAAGTACTCAATCGGCCTGG
TRP-FATGGACTTTCTCTACTCTTCGACAT
TRP-RTTACCCCCTGGCGTTTTTGAC
LIP-FCCCAAGTACCAGCTCCCCTC
LIP-RCCACAGACACCCTCGGTGAC
Suc2-FCTACGGTTCAGCATTAGGTATTG
Suc2-RGACCAGGGACCAGCATTAC
ura3-FGTGCTTCTCTGGATGTTACC
ura3-RCAATATCTGCGAACTTTCTGTC
ACT2-FTCCAGGCCGTCCTCTCCC
ACT2-RGGCCAGCCATATCGAGTCGCA
qeCAS9-F2TAAGCAACCGTAGGGGAATC
qeCAS9-R2GTGTGGGACAAGGGCAGAGA
Table 3. The disruption efficiency and transformation efficiency of different gene editing systems targeting TRP1 and LIP2 without outgrowth.
Table 3. The disruption efficiency and transformation efficiency of different gene editing systems targeting TRP1 and LIP2 without outgrowth.
Targeted GeneStrain/PalsmidDisruption Efficiency
(%)		Transformation Efficiency
(CFU/ng)
TRP1po1f/pCASyl-trp16.61 ± 5.31689.67 ± 62.85
po1f/peCASyl-trp35.50 ± 5.22536.67 ± 38.52
po1fe3-1/pCEN1-Leu-gTrp86.09 ± 3.28626.00 ± 57.20
LIP2po1f/pCASyl-trp33.61 ± 7.08281.67 ± 57.62
po1f/peCASyl-trp62.78 ± 5.20211.33 ± 69.94
po1fe3-1/pCEN1-Leu-gTrp95.19 ± 1.70189.00 ± 50.04
Note: Results are presented as mean ± SD for three independent experiments.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, B.; Cao, J. Improving and Streamlining Gene Editing in Yarrowia lipolytica via Integration of Engineered Cas9 Protein. J. Fungi 2024, 10, 63. https://doi.org/10.3390/jof10010063

AMA Style

Zhang B, Cao J. Improving and Streamlining Gene Editing in Yarrowia lipolytica via Integration of Engineered Cas9 Protein. Journal of Fungi. 2024; 10(1):63. https://doi.org/10.3390/jof10010063

Chicago/Turabian Style

Zhang, Baixi, and Jiacan Cao. 2024. "Improving and Streamlining Gene Editing in Yarrowia lipolytica via Integration of Engineered Cas9 Protein" Journal of Fungi 10, no. 1: 63. https://doi.org/10.3390/jof10010063

APA Style

Zhang, B., & Cao, J. (2024). Improving and Streamlining Gene Editing in Yarrowia lipolytica via Integration of Engineered Cas9 Protein. Journal of Fungi, 10(1), 63. https://doi.org/10.3390/jof10010063

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
