Taxonomy and Phylogeny of the Wood-Inhabiting Fungal Genus Hyphoderma with Descriptions of Three New Species from East Asia
Abstract
:1. Introduction
2. Materials and Methods
2.1. Morphology
2.2. Molecular Phylogeny
3. Results

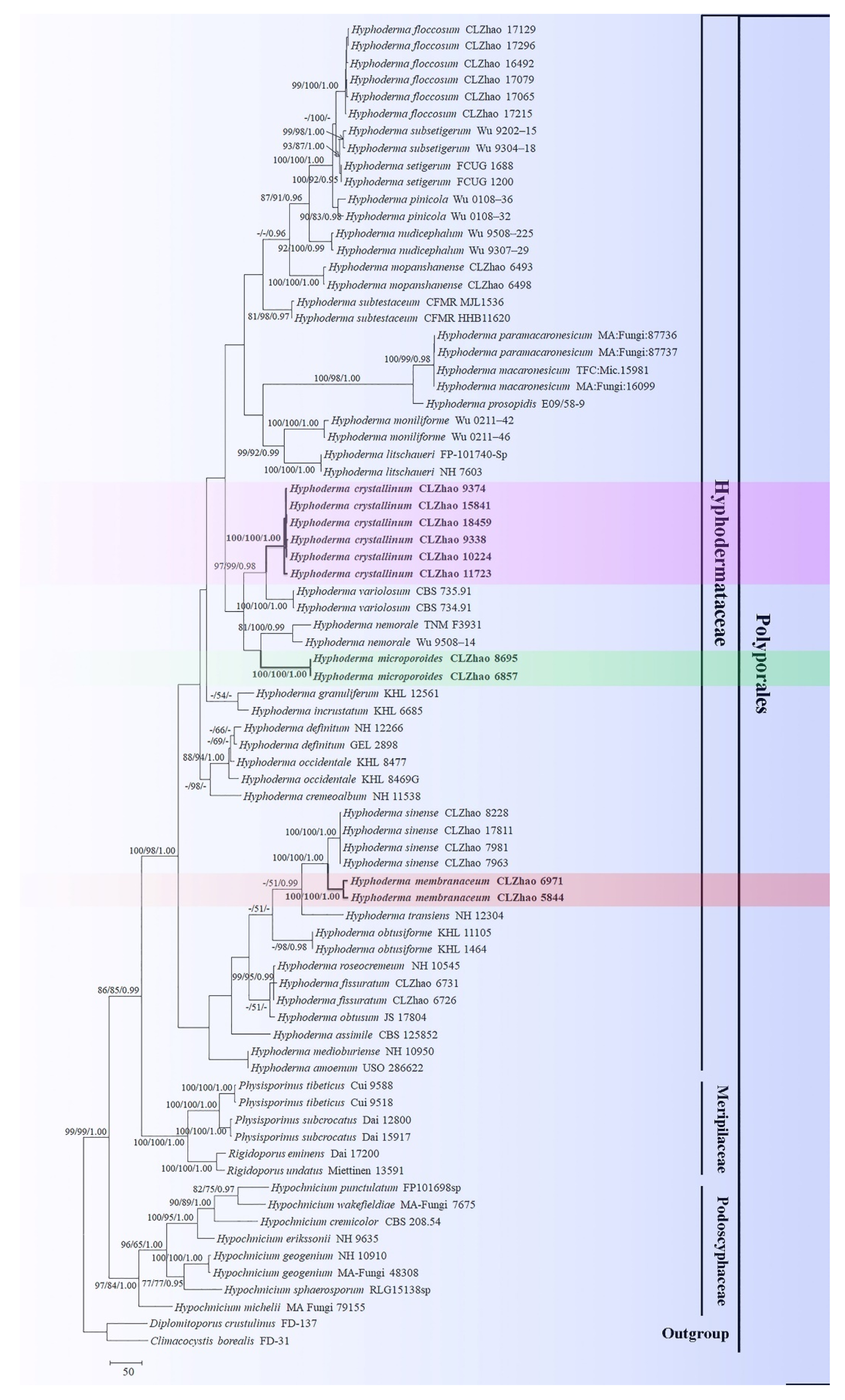

3.1. Molecular Phylogeny
3.2. Taxonomy
4. Discussion
- Cystidia absent 2
- Cystidia present 5
- Hymenial surface grandinioid H. acystidiatum
- Hymenial surface smooth 3
- Basidiospores > 10.5 µm in length H. densum
- Basidiospores < 10.5 µm in length 4
- Hymenophore cracked; basidiospores > 8.5 µm in length H. fissuratum
- Hymenophore uncracked; basidiospores < 8.5 µm in length H. sibiricum
- Hymenophore smooth 6
- Hymenophore tuberculate, porulose, grandinioid, or odontoid 14
- Two types of cystidia present 7
- One type of cystidia present 8
- Moniliform cystidia absent H. microcystidium
- Moniliform cystidia present H. sinense
- Hymenophore uncracked 9
- Hymenophore cracked 10
- Basidiospores > 11 µm in length H. definitum
- Basidiospores < 11 µm in length H. microporoides
- Cystidia moniliform 11
- Cystidia cylindrical 12
- Basidiospores > 9 µm in length H. litschaueri
- Basidiospores < 9 µm in length H. moniliforme
- Basidiospores ellipsoid < 10 μm in length H. rimulosum
- Basidiospores cylindrical > 10 μm in length 13
- Basidiospores > 12 µm in length H. cremeum
- Basidiospores < 12 µm in length H. subclavatum
- Hymenophore odontoid or grandinioid 15
- Hymenophore tuberculate, porulose 16
- Hymenophore odontoid, basidiospores > 9 µm in length H. transiens
- Hymenophore grandinioid, basidiospores < 9 µm in length H. subsetigerum
- Cystidia of two types 17
- Cystidia of one type 19
- Septate cystidia absent H. crystallinum
- Septate cystidia present 18
- Basidia 2-sterigmata, basidiospores > 13 µm in length H. pinicola
- Basidia 4-sterigmata, basidiospores < 13 µm in length H. floccosum
- Septate cystidia present 20
- Septate cystidia absent 21
- Hymenophore porulose to pilose, basidia < 5 µm in width H. mopanshanense
- Hymenophore tuberculate, basidia > 5 µm in width H. setigerum
- Hymenophore porulose H. obtusiforme
- Hymenophore tuberculate, colliculose 22
- Cystidia > 30 µm in length 23
- Cystidia < 30 µm in length H. cremeoalbum
- Basidia > 30 µm in length 24
- Basidia < 30 µm in length 25
- Hymenophore cracking, cystidia < 10 µm in width H. medioburiense
- Hymenophore not cracking, cystidia > 10 µm in width H. clavatum
- Hymenophore colliculose H. nemorale
- Hymenophore tuberculate H. membranaceum
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- James, T.Y.; Stajich, J.E.; Hittinger, C.T.; Rokas, A. Toward a fully resolved fungal tree of life. Annu. Rev. Microbiol. 2020, 74, 1–23. [Google Scholar] [CrossRef]
- Lutzoni, F.; Nowak, M.D.; Alfaro, M.E.; Reeb, V.; Miadlikowska, J.; Krug, M.; Arnold, A.E.; Lewis, L.A.; Swofford, D.L.; Hibbett, D.; et al. Contemporaneous radiations of fungi and plants linked to symbiosis. Nat. Commun. 2018, 9, 5451. [Google Scholar] [CrossRef]
- Rokas, A.; Wisecaver, J.H.; Lind, A.L. The birth, evolution and death of metabolic gene clusters in fungi. Nat. Rev. Microbiol. 2018, 16, 731–744. [Google Scholar] [CrossRef]
- Hibbett, D.S. The invisible dimension of fungal diversity. Science 2016, 351, 1150–1151. [Google Scholar] [CrossRef] [PubMed]
- Blackwell, M. The Fungi: 1, 2, 3... 5.1 million species? Am. J. Bot. 2011, 98, 426–438. [Google Scholar] [CrossRef]
- Hawksworth, D.L.; Lücking, R. Fungal diversity revisited: 2.2 to 3.8 million species. Microbiol. Spectr. 2017, 5. [Google Scholar] [CrossRef]
- Floudas, D.; Binder, M.; Riley, R.; Barry, K.; Blanchette, R.A.; Henrissat, B.; Martínez, A.T.; Otillar, R.; Spatafora, J.W.; Yadav, J.S.; et al. The Paleozoic origin of enzymatic lignin decomposition reconstructed from 31 fungal genomes. Science 2012, 336, 1715–1719. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Donk, M.A. Notes on resupinate Hymenomycetes IV. Fungus 1957, 27, 1–29. [Google Scholar]
- Wallroth, C.F.W. Flora Cryptogamica Germaniae; Nabu Press: Nürnberg, Germany, 1833; Volume 2, pp. 1–923. [Google Scholar]
- Bernicchia, A.; Gorjón, S.P. Fungi Europaei 12: Corticiaceae s.l.; Edizioni Candusso: Alassio, Italy, 2010. [Google Scholar]
- Nakasone, K.K. Type studies of corticioid Hymenomycetes described by Bresadola. Cryptogam. Mycol. 2008, 29, 231–257. [Google Scholar] [CrossRef] [Green Version]
- Wu, S.H.; Nilsson, H.R.; Chen, C.T.; Yu, S.Y.; Hallenberg, N. The white-rotting genus Phanerochaete is polyphyletic and distributed throughout the phlebioid clade of the Polyporales (Basidiomycota). Fungal Divers. 2010, 42, 107–118. [Google Scholar] [CrossRef]
- Baltazar, J.M.; Silveira, R.M.B.; Rajchenberg, M. Type studies of J. Rick’s corticioid Homobasidiomycetes (Agaricomycetes, Basidiomycota) housed in the Herbarium Anchieta (PACA). Phytotaxa 2016, 255, 101–132. [Google Scholar] [CrossRef]
- Martín, M.P.; Zhang, L.F.; Fernández-López, J.; Dueñas, M.; Rodríguez-Armas, J.L.; Beltrán-Tejera, E.; Telleria, M.T. Hyphoderma paramacaronesicum sp. nov. (Meruliaceae, Polyporales, Basidiomycota), a cryptic lineage to H. macaronesicum. Fungal Syst. Evol. 2018, 2, 57–68. [Google Scholar] [CrossRef] [PubMed]
- Ma, X.; Huang, R.X.; Zhang, Y.; Zhao, C.L. Hyphoderma fissuratum and H. mopanshanense spp. nov. (Polyporales) from southern China. Mycoscience 2021, 62, 36–41. [Google Scholar] [CrossRef]
- Larsson, K.H. Re-thinking the classification of corticioid fungi. Mycol. Res. 2007, 111, 1040–1063. [Google Scholar] [CrossRef] [PubMed]
- Telleria, M.T.; Dueñas, M.; Beltrán-Tejera, E.; Rodríguez-Armas, J.L.; Martín, M.P. A new species of Hyphoderma (Meruliaceae, Polyporales) and its discrimination from closely related taxa. Mycologia 2012, 104, 1121–1132. [Google Scholar] [CrossRef]
- Yurchenko, E.; Wu, S.H. Hyphoderma formosanum sp. nov. (Meruliaceae, Basidiomycota) from Taiwan. Sydowia 2014, 66, 19–23. [Google Scholar]
- Justo, A.; Miettinen, O.; Floudas, D.; Ortiz-Santana, B.; Sjökvist, E.; Linder, D.; Nakasone, K.; Niemelä, T.; Larsson, K.; Ryvarden, L.; et al. A revised family-level classification of the Polyporales (Basidiomycota). Fungal Biol. 2017, 121, 798–824. [Google Scholar] [CrossRef] [PubMed]
- Petersen, J.H. Farvekort. The Danish Mycological Society’s Colour-Chart; Foreningen til Svampekundskabens Fremme: Greve, Denmark, 1996; pp. 1–6. [Google Scholar]
- Dai, Y.C. Polypore diversity in China with an annotated checklist of Chinese polypores. Mycoscience 2012, 53, 49–80. [Google Scholar] [CrossRef]
- Zhao, C.L.; Wu, Z.Q. Ceriporiopsis kunmingensis sp. nov. (Polyporales, Basidiomycota) evidenced by morphological characters and phylogenetic analysis. Mycol. Prog. 2017, 16, 93–100. [Google Scholar] [CrossRef]
- White, T.J.; Bruns, T.; Lee, S.; Taylor, J. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. PCR Protoc. Guide Methods Appl. 1990, 18, 315–322. [Google Scholar] [CrossRef]
- Vu, D.; Groenewald, M.; Vries, M.; Gehrmann, T.; Stielow, B.; Eberhardt, U.; Al-Hatmi, A.; Groenewald, J.Z.; Cardinali, G.; Houbraken, J.; et al. Large-scale generation and analysis of filamentous fungal DNA barcodes boosts coverage for kingdom Fungi and reveals thresholds for fungal species and higher taxon delimitation. Stud. Mycol. 2019, 92, 135–154. [Google Scholar] [CrossRef] [PubMed]
- Guan, Q.X.; Zhao, C.L. Two new corticioid species: Hyphoderma sinense and H. floccosum spp. nov. (Hyphodermataceae, Polyporales) from southern China. Mycosystema 2021, in press. [Google Scholar] [CrossRef]
- Floudas, D.; Hibbett, D.S. Revisiting the taxonomy of Phanerochaete (Polyporales, Basidiomycota) using a four gene dataset and extensive ITS sampling. Fungal Biol. 2015, 119, 679–719. [Google Scholar] [CrossRef] [PubMed]
- Yurchenko, E.; Wu, S.H. Hyphoderma moniliforme and H. nemorale (Basidiomycota) newly recorded from China. Mycosphere 2015, 6, 113–121. [Google Scholar] [CrossRef]
- Nilsson, R.H.; Hallenberg, N.; Nordén, B.; Maekawa, N.; Wu, S.H. Phylogeography of Hyphoderma setigerum (Basidiomycota) in the Northern Hemisphere. Mycol. Res. 2003, 107, 645–652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Yurchenko, E.; Wu, S.H. Hyphoderma pinicola sp. nov. of H. setigerum complex (Basidiomycota) from Yunnan, China. Bot. Stud. 2014, 55, 71–78. [Google Scholar] [CrossRef] [Green Version]
- Telleria, M.T.; Duenas, M.; Melo, I.; Hallenberg, N.; Martin, M.P. A re-evaluation of hypochnicium (polyporales) based on morphological and molecular characters. Mycologia 2010, 102, 1426–1436. [Google Scholar] [CrossRef] [PubMed]
- Wu, F.; Chen, J.J.; Ji, X.H.; Vlasák, J.; Dai, Y.C. Phylogeny and diversity of the morphologically similar polypore genera Rigidoporus, Physisporinus, Oxyporus and Leucophellinus. Mycologia 2017, 109, 749–765. [Google Scholar] [CrossRef]
- Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp. Ser. 1999, 41, 95–98. [Google Scholar] [CrossRef]
- Swofford, D.L. PAUP*: Phylogenetic Analysis Using Parsimony (*and Other Methods); Version 4.0b10; Sinauer Associates: Sunderland, MA, USA, 2002. [Google Scholar]
- Felsenstein, J. Confidence intervals on phylogenetics: An approach using bootstrap. Evolution 1985, 39, 783–791. [Google Scholar] [CrossRef] [PubMed]
- Miller, M.A.; Holder, M.T.; Vos, R.; Midford, P.E.; Liebowitz, T.; Chan, L.; Hoover, P.; Warnow, T. The CIPRES Portals. CIPRES. Available online: http://www.phylo.org/sub_sections/portal (accessed on 9 September 2020).
- Nylander, J.A.A. MrModeltest v2. Program Distributed by the Author; Evolutionary Biology Centre, Uppsala University: Uppsala, Sweden, 2004. [Google Scholar]
- Ronquist, F.; Huelsenbeck, J.P. MrBayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics 2003, 19, 1572–1574. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Boidin, J.; Gilles, G. Basidiomycètes Aphyllophorales de l’Île de La Réunion. XVI. Les genres Hyphoderma, Hyphodermopsis, Chrysoderma nov. gen. et Crustoderma. Cryptogam. Mycol. 1991, 12, 97–132. [Google Scholar]
- Parmasto, E. Conspectus Systematis Corticiacearum; Institutum Zoologicum et Botanicum Academiae Scientiarum RPSS Estonicae: Tartu, Estonia, 1968. [Google Scholar]
- Wu, S.H. New species of Hyphoderma from Taiwan. Mycologia 1997, 89, 132–140. [Google Scholar] [CrossRef]
- Wu, S.H. New species and new records of Hyphoderma (Basidiomycotina) from Taiwan. Bot. Bull. Acad. Sin. 1997, 38, 63–72. [Google Scholar]
- Larsson, K.H. Two new species in Hyphoderma. Nord. J. Bot. 1998, 18, 121–127. [Google Scholar] [CrossRef]
- Tellería, M.T. Annotated list of the Corticiaceae, sensu lato (Aphyllophorales, Basidiomycotina), for Peninsular Spain and Balearic Islands. Bibl. Mycol. 1990, 135, 1–152. [Google Scholar]
- Eriksson, J.; Ryvarden, L. The Corticiaceae of North Europe; Fungiflora: Oslo, Norway, 1975; Volume 3, pp. 288–546. [Google Scholar]
- Bernicchia, A. Hyphoderma etruriae sp. nov. (Corticiaceae, Basidiomycetes) from the natural reserve of Burano, Italy. Mycotaxon 1993, 46, 37–40. [Google Scholar]
- Dai, Y.C. A revised checklist of corticioid and hydnoid fungi in China for 2010. Mycoscience 2011, 52, 69–79. [Google Scholar] [CrossRef]
- Bhunjun, C.S.; Phukhamsakda, C.; Jeewon, R.; Promputtha, I.; Hyde, K.D. Integrating different lines of evidence to establish a novel Ascomycete genus and family (anastomitrabeculia, anastomitrabeculiaceae) in Pleosporales. J. Fungi 2021, 7, 94. [Google Scholar] [CrossRef]
- Lambert, C.; Pourmoghaddam, M.J.; Cedeo-Sanchez, M.; Surup, F.; Stadler, M. Resolution of the hypoxylon fuscum complex (Hypoxylaceae, Xylariales) and discovery and biological characterization of two of its prominent secondary metabolites. J. Fungi 2021, 7, 131. [Google Scholar] [CrossRef]
- Zhou, M.; Dai, Y.C.; Vlasák, J.; Yuan, Y. Molecular phylogeny and global diversity of the genus Haploporus (Polyporales, Basidiomycota). J. Fungi 2021, 7, 96. [Google Scholar] [CrossRef] [PubMed]
- Cui, B.K.; Li, H.J.; Ji, X.; Zhou, J.L.; Song, J.; Si, J.; Yang, Z.L.; Dai, Y.C. Species diversity, taxonomy and phylogeny of Polyporaceae (Basidiomycota) in China. Fungal Divers 2019, 97, 137–392. [Google Scholar] [CrossRef]
- Wu, F.; Yuan, H.S.; Zhou, L.W.; Yuan, Y.; Cui, B.K.; Dai, Y.C. Polypore diversity in South China. Mycosystema 2020, 39, 653–681. [Google Scholar] [CrossRef]
Species Name | Specimen No. | GenBank Accession No. | References | |
---|---|---|---|---|
ITS | LSU | |||
Climacocystis borealis | FD-31 | KP135308 | KP135210 | [19] |
Diplomitoporus crustulinus | FD-137 | KP135299 | KP135211 | [19] |
Hyphoderma amoenum | USO 286622 | HE577030 | [17] | |
H. assimile | CBS 125852 | MH863808 | MH875272 | [24] |
H. cremeoalbum | NH 11538 | DQ677492 | DQ677492 | [16] |
H. crystallinum | CLZhao 9338 | MW917161 | MW913414 | Present study |
H. crystallinum | CLZhao 9374 | MW917162 | MW913415 | Present study |
H. crystallinum | CLZhao 10224 | MW917163 | MW913416 | Present study |
H. crystallinum | CLZhao 11723 | MW917164 | MW913417 | Present study |
H. crystallinum | CLZhao 15841 | MW917165 | MW913418 | Present study |
H. crystallinum | CLZhao 18459 | MW917166 | MW913419 | Present study |
H. definitum | GEL 2898 | AJ406509 | [18] | |
H. definitum | NH 12266 | DQ677493 | DQ677493 | [16] |
H.fissuratum | CLZhao 6731 | MT791331 | MT791335 | [15] |
H.fissuratum | CLZhao 6726 | MT791330 | MT791334 | [15] |
H. floccosum | CLZhao 17129 | MW301683 | MW293733 | [25] |
H. floccosum | CLZhao 17296 | MW301686 | MW293736 | [25] |
H. floccosum | CLZhao 16492 | MW301688 | MW293734 | [25] |
H. floccosum | CLZhao 17215 | MW301687 | MW293735 | [25] |
H. floccosum | CLZhao 17079 | MW301685 | [25] | |
H. floccosum | CLZhao 17065 | MW301684 | [25] | |
H. granuliferum | KHL 12561 | JN710545 | JN710545 | [18] |
H. incrustatum | KHL 6685 | AY586668 | [18] | |
H. litschaueri | NH 7603 | DQ677496 | DQ677496 | [16] |
H. litschaueri | FP-101740- sp | KP135295 | KP135219 | [26] |
H. macaronesicum | MA:Fungi:16099 | HE577027 | [18] | |
H. macaronesicum | TFC:Mic.15981 | HE577028 | [18] | |
H. medioburiense | NH 10950 | DQ677497 | DQ677497 | [16] |
H. membranaceum | CLZhao 5844 | MW917167 | MW913420 | Present study |
H. membranaceum | CLZhao 6971 | MW917168 | MW913421 | Present study |
H. microporoides | CLZhao 6857 | MW917169 | MW913422 | Present study |
H. microporoides | CLZhao 8695 | MW917170 | MW913423 | Present study |
H. moniliforme | Wu 0211-42 | KC928282 | KC928283 | [27] |
H. moniliforme | Wu 0211-46 | KC928284 | KC928285 | [27] |
H. mopanshanense | CLZhao 6498 | MT791329 | MT791333 | [15] |
H. mopanshanense | CLZhao 6493 | MT791328 | MT791332 | [15] |
H. nemorale | TNM F3931 | KJ885183 | KJ885184 | [27] |
H. nemorale | Wu 9508-14 | KC928280 | KC928281 | [27] |
H. nudicephalum | Wu 9307-29 | AJ534269 | [28] | |
H. nudicephalum | Wu 9508-225 | AJ534268 | [28] | |
H. obtusiforme | KHL 1464 | JN572909 | [29] | |
H. obtusiforme | KHL 11105 | JN572910 | [29] | |
H. obtusum | JS 17804 | AY586670 | [29] | |
H. occidentale | KHL 8469 | AY586674 | [29] | |
H. occidentale | KHL 8477 | DQ677499 | DQ677499 | [16] |
H. paramacaronesicum | MA:Fungi:87736 | KC984399 | KF150074 | [14] |
H. paramacaronesicum | MA:Fungi:87737 | KC984405 | KF150073 | [14] |
H. pinicola | Wu 0108-32 | KJ885181 | KJ885182 | [29] |
H. pinicola | Wu 0108-36 | KC928278 | KC928279 | [29] |
H. prosopidis | E09/58-9 | HE577029 | [29] | |
H. roseocremeum | NH 10545 | AY586672 | [29] | |
H. setigerum | FCUG 1200 | AJ534273 | [28] | |
H. setigerum | FCUG 1688 | AJ534272 | [28] | |
H. sinense | CLZhao 7963 | MW301679 | MW293730 | [25] |
H. sinense | CLZhao 17811 | MW301682 | MW293732 | [25] |
H. sinense | CLZhao 8228 | MW301681 | [25] | |
H. sinense | CLZhao 7981 | MW301680 | MW293731 | [25] |
H. subsetigerum | Wu 9304-18 | AJ534277 | [28] | |
H. subsetigerum | Wu 9202-15 | AJ534278 | [28] | |
H. subtestaceum | HHB11620 | GQ409521 | [29] | |
H. subtestaceum | CFMR MJL1536 | GQ409522 | [29] | |
H. transiens | NH 12304 | DQ677504 | DQ677504 | [16] |
H. variolosum | CBS 734.91 | MH862320 | MH873992 | [24] |
H. variolosum | CBS 735.91 | MH862321 | MH873993 | [24] |
Hypochnicium cremicolor | CBS 208.54 | MH857294 | MH868826 | [24] |
H. erikssonii | NH 9635 | DQ677508 | DQ677508 | [16] |
H. geogenium | NH 10910 | DQ677509 | DQ677509 | [16] |
H. geogenium | MA-Fungi 48308 | FN552534 | JN939576 | [30] |
H. michelii | MA-Fungi 79155 | NR119742 | NG060635 | [30] |
H. punctulatum | FP101698sp | KY948827 | KY948860 | [19] |
H. sphaerosporum | RLG15138sp | KY948803 | KY948861 | [19] |
H. wakefieldiae | MA-Fungi 7675 | FN552531 | JN939577 | [30] |
Physisporinus subcrocatus | Dai 15917 | KY131870 | KY131926 | [31] |
P. subcrocatus | Dai 12800 | KY131869 | KY131925 | [31] |
P. tibeticus | Cui 9588 | KY131873 | KY131929 | [31] |
P. tibeticus | Cui 9518 | KY131872 | KY131928 | [31] |
Rigidoporus eminens | Dai 17200 | MT279690 | MT279911 | [31] |
R. undatus | Miettinen-13591 | KY948731 | KY948870 | [19] |
