A Barcode-Based Phylogenetic Characterization of Phytophthora cactorum Identifies Two Cosmopolitan Lineages with Distinct Host Affinities and the First Report of Phytophthora pseudotsugae in California

by
Tyler B. Bourret
*,
Sebastian N. Fajardo
,
Cole P. Engert
and
David M. Rizzo
Department of Plant Pathology, University of California, Davis, Davis, CA 95616, USA
*
Author to whom correspondence should be addressed.
J. Fungi 2022, 8(3), 303; https://doi.org/10.3390/jof8030303
Submission received: 24 January 2022 / Revised: 11 March 2022 / Accepted: 12 March 2022 / Published: 16 March 2022
(This article belongs to the Special Issue Oomycetes – Diversity, Taxonomy, Evolution, Ecology and Host-Pathogen Interactions)
Browse Figures
Versions Notes

Abstract

:
A collection of 30 Phytophthora cactorum and 12 P. pseudotsugae (subclade 1a) strains isolated from several recent surveys across California was phylogenetically compared to a worldwide collection of 112 conspecific strains using sequences from three barcoding loci. The surveys baited P. cactorum from soil and water across a wide variety of forested ecosystems with a geographic range of more than 1000 km. Two cosmopolitan lineages were identified within the widespread P. cactorum, one being mainly associated with strawberry production and the other more closely associated with apple orchards, oaks and ornamental trees. Two other well-sampled P. cactorum lineages, including one that dominated Californian restoration outplantings, were only found in the western United States, while a third was only found in Japan. Coastal California forest isolates of both Phytophthora species exhibited considerable diversity, suggesting both may be indigenous to the state. Many isolates with sequence accessions deposited as P. cactorum were determined to be P. hedraiandra and P. ×serendipita, with one hybrid lineage appearing relatively common across Europe and Asia. This study contains the first report of P. pseudotsugae from the state of California and one of the only reports of that species since its original description.

1. Introduction

Phytophthora is a genus of oomycete plant pathogens with the potential to cause great harm to plants in both agriculture and forests. Phytophthora cactorum (Leb. and Cohn) Schroeter (1886) is one of the oldest and best-known Phytophthora species, having originally been described as Peronospora cactorum in 1870 before the establishment of Phytophthora in 1876 [1,2]. Phytophthora cactorum has long been recognized as a cosmopolitan species with a wide host range, particularly associated with orchard crown and fruit rots, and remains an important agricultural pest [3,4,5].
In a genus with few reliable morphological characteristics for species diagnostics, P. cactorum remained literally in its own morphological “group” for most of the 20th century due to the species’ unique combination of homothallism with largely paragynous antheridia and papillate, deciduous, externally proliferating sporangia [6]. In 1983, Phytophthora pseudotsugae (Hamm and Hansen) was separated from P. cactorum and described based on subtle but reliably distinct morphological characteristics. In contrast to P. cactorum, P. pseudotsugae appears to have a narrow host range, having only been found to cause a root rot of Pseudotsugae menziesii and Abies spp. in Washington and Oregon, USA [2,7,8]. In 1995, P. idaei was described [9,10] and, along with P. cactorum and P. pseudotsugae, the three similar-looking species were soon identified as forming a phylogenetic clade [11]. This clade was designated subclade 1a [12]. Since 2000, P. hedraiandra, P. aleatoria and P. alpina have been added to subclade 1a, as well as the hybrids P. ×serendipita (P. cactorum × hedraiandra) and P. ×pelgrandis (P. cactorum × nicotianae) [13,14,15,16,17].
Much research has been conducted regarding the host preferences of individual isolates of P. cactorum. Before molecular genetic characterization was feasible, researchers noticed varying levels of aggressiveness when strains of P. cactorum isolated from different hosts were tested on a common host [18,19]. Restriction enzyme-based molecular studies identified considerable intraspecific genetic diversity, excepting the majority of isolates from Fragaria which appeared to derive from a relatively clonal lineage [10,20,21,22,23]. This early molecular evidence and pathogenicity trials suggested that the P. cactorum isolates capable of causing strawberry crown rot are phylogenetically distinct from those causing leather (fruit) rot, and that the former are also more capable pathogens on a variety of other hosts. These findings were recently confirmed by Nellist et al. (2021) [24], finding a strawberry crown rot-associated clade; isolates from outside that clade were less aggressive on strawberry crowns, and isolates from within the strawberry lineage were less aggressive on apple.
Pánek et al. (2016 & 2021) [25,26] found higher genetic diversity in European strains of P. ×serendipita than of P. cactorum, concluding that P. cactorum was not indigenous to Europe; Jung (2009) [27] found P. cactorum to have a largely urban distribution within Bavaria. Based on the inclusion of many isolates from New York state, Eikemo et al. (2004) [20] suggested that the leather rot-associated, wider host-range lineage, may have originated in North America; Bhat et al. (2006) [23] saw considerable intraspecific diversity within a collection of mostly agricultural isolates from California. Over the past 20 years of field work in California, we have amassed a large collection of P. cactorum and P. pseudotsugae strains. These strains have come from a range of native plant communities (Table 1). Our P. cactorum strains exhibited intraspecific variability based on the primary barcoding locus, the internal transcribed spacer of the ribosomal DNA repeat (ITS rDNA), and these differences appeared to correlate somewhat with different projects and land-uses across California.
The overall objective of this study was to compare these putative intraspecific P. cactorum lineages from California to a worldwide sample of P. cactorum. This was done by sequencing two additional loci known to be more rapidly-evolving than ITS, “cox1” (mitochondrially-encoded cytochrome c oxidase subunit I, COI or COX1) [28,29] and “cox2+spacer” (cox2, cytochrome c oxidase subunit II, along with the intergenic spacer between cox1 and cox2) [30,31] from a selection of 30 P. cactorum isolates with five different ITS variants. We also included 12 putative P. pseudotsugae isolates from California to support their phylogenetic placement and investigate the hypothesis that both P. cactorum and P. pseudotsugae may be indigenous to western North America. To place our P. cactorum isolates within a worldwide species, we obtained cox1 and/or cox2+spacer data in the GenBank nucleotide collection sequenced from 86 P. cactorum strains isolated across six continents, augmenting this with genome-sequencing data from an additional 21 strains.

2. Materials and Methods

2.1. Sources of California Isolates

The isolates for this study originate from several projects conducted during the last decade (Table 1) over a geographic range of more than 1000 km within California (Figure 1). Isolations were plated into semi-selective media CMA-PARP (corn meal agar amended with pimaricin, ampicillin, rifampicin and pentachloronitrobenzene, and sometimes hymexazol) [32]. All strains are stored as water vials [33] in our long-term isolate collection at the University of California, Davis (UCD).
Restoration outplantings. The largest number of P. cactorum isolates were collected from surveys of restoration outplantings in California. A 2015–2016 survey in Santa Clara County in the southern San Francisco Bay-area found P. cactorum to be the most common and widespread species [32], and the eight isolates in this study represent only a subsampling of the P. cactorum isolates obtained in that survey. P. cactorum is also one of the species most commonly encountered in surveys of restoration areas within the Angeles National Forest (ANF) in southern California [34]. Isolates from these surveys were obtained via soil baiting: soil (and sometimes soil and root) samples were collected beneath plants, transported to the laboratory, and baited with pear fruit and rhododendron leaves.
Stream monitoring. As part of a Phytophthora ramorum stream-monitoring program in coastal California, other species of Phytophthora have been isolated and saved [35,36]. This includes 8 strains of P. cactorum between 2013 and 2015 and a single isolate of P. pseudotsugae from 2010 (Table S1). Isolates were collected by deploying rhododendron leaf bait into coastal streams during the spring and early summer [35,37,38]. Leaves were left in the running water for several weeks and surface-sterilized in 10% bleach prior to isolations.
Chapparal and stream soil baiting. Phytophthora surveys have been conducted in recently-burned ANF chaparral and woodlands, including riparian vegetation not associated with ecosystem restoration [34]. These surveys employed the same sampling methods as the restoration outplantings.
Forest soil baiting. As part of a survey for sudden oak death, soils were sampled from a plot network in the Big Sur region of California [39]. In 2013, 40 plots, dominated by coast redwood (Sequoia sempervirens), were visited, and 9 soil monoliths ~0.5 L were randomly collected within each 500 m2 plot. Soil samples of ~50 g were placed in plastic tubs and baited with rhododendron leaves. Ten isolates of P. pseudotsugae were baited with this method, along with 7 isolates of P. ramorum, 6 of P. pseudosyringae, and one each of P. chlamydospora, P. nemorosa and P. syringae (unpublished data).
Direct sampling of seedling roots. In summer 2015, seedling fine roots were sampled from within the same Big Sur plot network, yielding a single P. pseudotsugae isolated directly from thoroughly-rinsed roots of Notholithocarpus densiflorus (tanoak).
UCD campus baiting. Two P. cactorum isolates were collected on UCD campus in California’s central valley, where Mircetich et al. (1977) [40] had previously isolated P. cactorum from declining, nursery-origin Quercus agrifolia (coast live oak). In 2012 and 2016, soil samples were taken beneath the same declining Q. agrifolia specimen and baited with rhododendron leaves (2012) and rhododendron leaves and pear fruit (2016) (Table 1).

2.2. DNA Extraction, Amplification & Sequencing

ITS rDNA and mt cox2-cox1 sequences were obtained as described by Bourret et al. (2018) [41]. Briefly, isolates were grown in 1 mL of pea broth, then DNA was extracted using PrepMan Ultra according to manufacturer’s instructions. ITS sequences were amplified and sequenced using the primers FRiz+ITS4TT [41], while the mitochondrial contig between primers FM75 and FM83 [29] (i.e., cox2-cox1) was obtained using two overlapping sets of primers: FM75+COXFRizA for the cox2+spacer and COXFRizB+FM83 for the cox1. For the cox2+spacer, primer FM78 was employed as an internal reverse primer to ensure complete coverage of the partial cox2 CDS, and COXFRizC as an internal forward primer if homopolymers in the spacer region caused downstream issues with COXFRizA runs [41]. Mitochondrial-encoded ribosomal protein S10 (rps10) sequences were obtained using primers rps10-F and rps10-R [42]. Sanger sequencing was performed by the UC Davis DNASeq facility, and the data assembled using the Chromaseq plugin of Mesquite [43,44]. Sequences were deposited into the NCBI nucleotide collection (Table S1).

2.3. Data Assembly & Phylogenetic Inference

Comparable P. cactorum and P. pseudotsugae isolates with sequence accessions in the nucleotide collection were discovered using separate BLAST searches of the cox2+spacer and cox1 loci as well as text searches of the NCBI Nucleotide collection. The NCBI Genomes page was searched for P. pseudotsugae and P. cactorum, revealing 21 P. cactorum strains with genome-sequencing data available in GenBank (Table S1). Sequences were obtained from the sequence read archive data as described by [41], and in the case of one strain, from the assembly data (Table S1). The cox2+spacer sequence of the ex-type strain of P. aleatoria was also obtained from genome-sequencing data.
Sequences from all three loci (i.e., ITS rDNA, mitochondrial cox2+spacer and mt cox1) were available for 72 subclade 1a strains: 42 California isolates from this study, 21 P. cactorum strains with publicly-available genomes, four P. cactorum and two P. pseudotsugae strains from GenBank nucleotide collection with complete coverage (including ex-type strains of both species), as well as the ex-type strains of P. aleatoria, P. hedraiandra and P. idaei (Table S1). Phytophthora iranica (subclade 1b) and P. ipomoeae (subclade 1c) were used as outgroups to produce a complete-coverage, 74-isolate alignment.
A partial-coverage, multi-locus data set of 169 isolates including outgroups was also constructed. Added to the 74-isolate alignments were an additional 76 P. cactorum strains, three P. pseudotsugae strains and the ex-type strains of P. alpina and P. ×serendipita, which had cox1 sequences available in the nucleotide collection but no cox2+spacer sequence, although six did have cox2-only sequences available (Table S1). Six additional P. cactorum strains had cox2+spacer sequences in the collection without any accompanying cox1, and eight strains had only the cox2-cox1 spacer available. Of the 95 additional isolates with mitochondrial sequence data, all but 11 also had accompanying ITS sequences. In this larger data set there was just over 50% coverage of the cox2+spacer locus, and nearly full coverage of ITS and cox1. The loci were also analyzed individually (Figures S1–S3).
Data sets were assembled and aligned within AliView [45] using MAFFT [46,47,48], as described by [41]. Phylogenetically informative insertion/deletion data were encoded as separate alignments of binary characters for the cox2+spacer and ITS alignments using FastGap [49]. Maximum likelihood phylogenetic inference was conducted with IQTREE 2.1.2 [50,51,52] using the following options: --merit -AICc (use corrected Akaike information criterion for model-testing) -merge greedy -merge-model all -merge-rate all -Q (use the greedy algorithm of PartitionFinder2 [53] to compare partition schemata and test all possible evolutionary models, with unlinked branches) -allnni (use a more thorough best-tree search) -polytomy (collapse zero-length branches) -b 1000 (perform 1000 non-parametric bootstrap replicates). Loci were partitioned according to sequence features, with ITS1, 5.8S rRNA and ITS2 partitioned for ITS, the cox2+spacer partitioned into cox2 CDS (by codon position), small spacer, “orf32” CDS (by codon position) and the large spacer, and the cox1 CDS by codon position. This resulted in a total of 16 partitioned subsets including two binary gap subsets, which (when option -Q was invoked to allow unlinked branch lengths across partitions) were combined into a single nucleotide subset (model: TVM+F+R2) and a single binary subset (model: JC2+FQ+ASC) by the PartitionFinder2 function of IQTREE for the 169-isolate data set. In the 74-isolate data set, there were two nucleotide subsets, one containing the cox2 CDS 3rd codon position, the “orf32” CDS 3rd codon position, cox1 CDS 3rd codon position, and the small cox2 spacer (model: TIM3+F+R2) and a second containing the rest of the nucleotide subsets (model: GTR+F+I). Bayesian trees were also obtained for the two multi-locus data sets, omitting the gap partitions, and using PartitionFinder2 with linked branch lengths, as described by [41]. Trees were visualized and support values from Bayesian and ML analyses combined using TreeGraph2 [54], followed by annotations with InkScape (inkscape.org). The multi-locus alignments, along with ITS and cox2-cox1 sequences derived from genome sequencing data were deposited in a Dryad repository at doi:10.25338/B8J33M. Split-decomposition (SDN) and median-joining networks (MJN) were constructed from the 74-isolate data set. The methods of [55] were followed employing SplitsTree4 [56,57] for SDNs and Network 10 (fluxus-engineering.com, accessed on 23 January 2022) [58] for MJNs, and analyzing nuclear and mitochondrial loci separately. Outgroups were omitted for the nuclear data set and only P. cactorum, P. hedraiandra and P. pseudotsugae were included in the mitochondrial data set. The 14 bp and 6 bp insertions in the cox2-cox1 spacer of strains LA266_L3 and 268, respectively, were each shortened to a single bp for the MJN analysis.

3. Results

3.1. Multi-Locus Genotypes

Multi-locus genotypes of the combined ITS, mitochondrial cox2+cox1 and mitochondrial rps10 loci, with a combined length of ~3600 bp were obtained for 42 California isolates (Table S1). Intraspecific sequence variants were observed at each locus, except that identical ITS sequences were retrieved from the 12 P. pseudotsugae isolates; the 30 P. cactorum isolates yielded five distinct ITS haplotypes. Ten P. cactorum cox2-cox1 genotypes were observed, and nine for P. pseudotsugae; three rps10 genotypes were observed for each species. In some cases, a mitochondrial genotype was associated with more than a single ITS haplotype. There were several amino acid substitutions observed within the cox2 CDS alignment, including for several California isolates of both species. All California isolates had identical cox1 amino acid sequences (but not identical nucleotide sequences).
The 30 California P. cactorum isolates yielded 15 distinct multi-locus genotypes, while nine distinct multi-locus genotypes were derived from the 12 P. pseudotsugae isolates. The most common P. cactorum haplotype was CAC3-2-F, with nine isolates from restoration outplantings in both northern and southern California and a single isolate from a native plant nursery. The next most common multi-locus genotype, CAC2-4-D, was shared by four of the stream-baited isolates, including three strains isolated at different sampling times from a single site in Del Norte County. Of the 12 P. cactorum strains with unique genotypes, four each were from stream-baiting and restoration outplantings. The single stream-baited, north-coast isolate of P. pseudotsugae had the same genotype as the central-coast tanoak isolate, PTS1-13-A. The three P. pseudotsugae isolates collected from the same 500 m2 plot, TB191, TB192 & ABS-BS-2015(140) all exhibited distinct genotypes from each other, as did the two P. cactorum isolates collected under the same Quercus agrifolia tree on the UCD campus. This is the first published report of P. pseudotsugae in California, the first report of baiting the species from a body of water, and the first isolation of P. pseudotsugae from an angiosperm host, tanoak.

3.2. Full-Coverage, 74-Isolate Multi-Locus Trees

The results of the 74-isolate multi-locus inference found several distinct intraspecific lineages within P. cactorum, with clear distinctions between geographic ranges and isolation sources (Figure 2). Three lineages corresponded to clades with significant support values. Two intraspecific lineages had cosmopolitan distributions (Figure 2). One intraspecific lineage was composed mostly of strawberry (Fragaria × ananassa) isolates with no isolates from California. The other widely distributed intraspecific lineage comprises many apple (Malus domestica), California oak (Quercus spp.) and other isolates. This apple–oak lineage also contains the ex-neotype of P. cactorum. Two other intraspecific lineages were composed entirely of California isolates but with different land-uses. One lineage consisted of stream-baited isolates from the forested, coastal, northernmost reaches of the state (northern California forest lineage) and the other from restoration outplantings in both northern and southern California (California restoration lineage). Southern California restoration outplantings also had isolates from the apple–oak lineage, while the outplantings in the Bay area had only isolates from the California restoration lineage.
The clades corresponding to P. cactorum + P. pseudotsugae and P. cactorum had strong support, but not the clade corresponding to P. pseudotsugae (Figure 2). Within the P. pseudotsugae clade, Oregon and California isolates were reciprocally monophyletic with significant support. Based on its placement and the comparison of the single-locus trees, the Chinese strain D-1, from Panax notoginseng, was determined to be P. ×serendipita and not P. cactorum, as originally designated in GenBank (Figure 2). Our results do not support the hypothesis that P. hedraiandra and P. cactorum may be conspecific [25,26] unless the entire subclade is considered a single species.

3.3. Partial-Coverage, 169-Isolate Multi-Locus Trees

The 169-isolate, partial-coverage multi-locus tree was congruent with the 74-isolate tree, albeit with lower support values, and augmented the membership of the four previously-identified subspecific lineages (Figure 3 and Figure 4). Additional isolates placed in the greatly expanded apple–oak lineage gave it a much wider geographic range, including South Africa, Zimbabwe, and New Zealand. One additional Quercus isolate, several more Rhododendron and many additional isolates from Malus were added to the expanded lineage, but isolates from Acer, Kalopanax, Larix, Lilium, Syringa, Tilia, and Vitis demonstrate the wide host range of this lineage and suggest ornamental plant production, alongside apple production, as a possible worldwide vector; four of the six California Quercus agrifolia isolates in this lineage were baited from nursery-origin oaks, while the other two were from natural recruits growing in southern California. Another widespread, early diverging P. cactorum lineage was associated with P. ×serendipita strains possessing P. cactorum-like mitochondrial sequences and P. hedraiandra-like ITS sequences. On the cox1-only tree, these strains corresponded to three different cox1 genotypes, with the most common genotype corresponding to the strawberry lineage, and the other genotypes corresponding to a ginseng isolate D-1 from China and rhododendron isolate 216/08 from Czechia. Two strains could not be determined to a described species: P13, from Quercus, Slovakia, appears to be a hybrid between an undescribed species and P. cactorum, while PDA1788, from Fagus, Pennsylvania [59], appears to be a hybrid between P. cactorum and an undescribed relative of P. alpina (Figure 4 and Figures S1–S4). P13 was previously identified as a taxonomic novelty by [25].
The additional strains added to the strawberry lineage in the 169-isolate tree increased its geographic range, adding China, Czechia, Japan, Germany, New Zealand and Russia to The Netherlands, Norway, Sweden, UK and USA, but largely replicated the host fidelity to Fragaria, suggesting strawberry production as the driver of the cosmopolitan distribution of this lineage. Based on our results, both the strawberry and apple–oak lineages are present in Czechia, Germany, Japan, The Netherlands, New Zealand, Russia, the UK and the USA. An additional P. cactorum subspecific lineage was identified in the 169-isolate tree—a “spikenard lineage” (Figure 3) associated with Japanese-origin isolates from Aralia and other plants cultivated in Japan [60].
The larger tree featured P. cactorum isolates from additional western US states, including Washington, Idaho, Oregon, and Utah (Figure 3). One of the three isolates from Washington State, baited from Potentilla gracilis, was placed within the California restoration lineage, while the other two, along with the isolate from Idaho, were placed within the apple–oak lineage on a node with two isolates from Czechia. The isolate from a Utah nursery was placed in the northern California forest lineage based solely on the cox2-spacer sequence (Figure S2), but two autapomorphic insertions in the ITS2 sequence kept it out of the lineage in the multi-locus tree. The single Oregon isolate of P. cactorum, from Paeonia, had an identical cox1 sequence to the majority of the California isolates and the ex-neotype (Figure S3), but a distinct ITS sequence kept it out of one of the named subspecific lineages. The three additional Oregon P. pseudotsugae isolates clustered with the strain P10218 rather than the ex-type (Figure 4).

3.4. Single-Locus Trees

Although the ITS provided some inter- and intraspecific distinctions, only P. hedraiandra represented a monophyletic clade in the ITS-only tree (Figure S1). The Oregon and California P. pseudotsugae isolates had distinct ITS sequences that were polyphyletic. P. cactorum was paraphyletic in respect to P. aleatoria, P. alpina, P. hedraiandra, and P. pseudotsugae. The cox1-only tree found P. cactorum and P. pseudotsugae to be monophyletic, but P. pseudotsugae was paraphyletic with respect to P. cactorum in the cox2+spacer-only tree (Figures S2 and S3). Only the strawberry intraspecific lineage was apparent in the cox1-only tree, with the other P. cactorum lineages combining or becoming paraphyletic in respect to each other. The strawberry and northern California forest lineages were not monophyletic in the cox2+spacer-only tree, forming two phylogenetic grades between the California restoration lineage and the apple–oak lineage (Figure S2). The California P. pseudotsugae isolates were paraphyletic with respect to the Oregon isolates in both of the single-locus mitochondrial trees (Figures S2 and S3).

3.5. Networks

The mitochondrial SDN reduced the intraspecific complexity of P. cactorum considerably, with only five nodes (Figure 5). A node shared by most of the strawberry crown rot isolates, the northern California stream isolates and the California restoration isolates connected P. cactorum to the rest of the network and had the most connections of any of the species’ nodes. One of the California soil-baited isolates, TB277, connected P. pseudotsugae to the rest of the network, and a node containing the single water-baited and tanoak isolates and two additional soil isolates had the most connections for that species. In the mitochondrial MJN with tolerance ε = 0, the strawberry lineage and strain D-1 formed a smaller network connecting the remainder of P. cactorum isolates to the rest of the network (Figure 6), but this topology was not maintained with ε increased to 10 (Figure S5). In both mitochondrial MJNs, strain SM15APR_WNS, baited from a forest stream the very northernmost of coastal California, was on a node with the most connections, an indication of ancestral status. In both the ITS SDN and MJN, the ITS haplotype corresponding to several isolates from northern California forest streams (including SM15APR_WNS) had the most connections of any node, suggesting it is ancestral within the subclade (Figure 7 and Figure 8). The topology of the ITS MJN was not altered when ε was increased to 10.

4. Discussion

4.1. Two Worldwide Lineages of P. cactorum

Phytophthora cactorum is widely regarded as a worldwide pathogen with a wide host range and low host specialization [2]. Our results generally confirm this characterization but strongly suggest there are at least two distinct intraspecific lineages distributed across the world, one strongly associated with strawberry production and the other with a wider range of hosts, notably apples, oak trees and woody ornamentals. Identifying a strawberry crown rot-associated lineage distinct from a lineage with a wider host range is generally congruent with previous efforts to characterize this worldwide species [20,21,24,25]. Re-creating and re-investigating these findings within a phylogenetic, barcode-based context, congruent with ongoing systematic studies, but also including recent genome-sequencing efforts allowed for greater contextualization of our California isolates, and may do the same for P. cactorum research worldwide.
We identified subspecific lineages in California and Japan that appear to be geographically isolated and others with much wider distributions, but it is beyond the power of this study to determine to what extent anthropogenic movement is responsible for the worldwide nature of P. cactorum. Nevertheless, based on our findings, it seems unlikely to observe multi-locus genotypes at these phylogenetic resolutions naturally distributed across such major geographic divisions. It is likely that the global trade of both agricultural and horticultural plants is responsible for these patterns.
Describing intraspecific diversity is difficult, and traditional phylogenetic methods are limited, even for a homothallic species such as P. cactorum that is predominantly asexual [26]. Although the four intraspecific lineages we identified clustered relatively consistently across our phylogenies and networks (Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure S5), the topology of the relationships between the lineages was not consistent. We consider complete and near-complete matches of barcoding sequences from pathogen isolates across the world significant results, but illustrating them within bifurcating phylogenetic figures represents a compromise. The phylogenetic networks uncovered multifurcations within both species, suggesting the presence of both ancestral and derived isolates within our analysis (Figure 5, Figure 6, Figure 7, Figure 8 and Figure S5) a realistic biological possibility. This, along with a paucity of informative sites, may explain the relatively low support values for intraspecific bipartitions in the phylogenetic analyses (Figure 2, Figure 3, Figure 4 and Figures S1–S4). While a better understanding of the global population of all Phytophthora species is vital, molecular barcodes are not designed to facilitate analysis of populations, and insightful population analyses require the genome of each isolate to be much more thoroughly sampled.

4.2. Diversity of California Isolates

The intraspecific diversity observed among the local isolates suggests that both P. cactorum and P. pseudotsugae are pathogens indigenous to California (i.e., not initially introduced by humans). A northern California stream isolate, SM15APR_WNS, occupied an ancestral node in all of the intraspecific networks constructed (Figure 5, Figure 6, Figure 7, Figure 8 and Figure S5). Our evidence also suggests that the native range of P. cactorum also includes Japan (Figure 2, Figure 3 and Figure 4). According to our results, there are lineages within both species that are not currently present in California and, therefore, theoretically pose risks to native plants if they were to be introduced. Our evidence also suggests that at least one genotype of P. cactorum is being locally spread via restoration activities. In California, the native plant nurseries serving restoration needs are often separate from the nurseries serving horticulture, though the latter often sell native plants. It appears that the P. cactorum California restoration lineage is, at the moment, only moving locally through restoration nurseries, while the apple–oak lineage is moving locally and worldwide through horticulture. These findings highlight some of the limitations posed by regulatory efforts aimed at Phytophthora and other plant pathogens, which are often codified to be species-based [61]. Non-native lineages of P. cactorum and even P. pseudotsugae may pose a double-threat to California biodiversity, inasmuch as they both threaten native plants species and might potentially compete with or even displace native Phytophthora lineages. Non-native lineages also increase the potential for inter- and intraspecific hybridization, compounding the potential biodiversity threat [62,63,64].

4.3. Phytophthora ×serendipita

While P. cactorum is undoubtedly a wide-ranging species, our analysis suggests that a significant portion (24/145, 17%) of the isolates previously named P. cactorum should be more accurately determined to be P. hedraiandra or P. ×serendipita, and in a few cases could not be unambiguously determined to a described species. The nomenclatural code dictates that once a nothospecific name is applied to an interspecific hybrid, this nothospecies applies to any pairing between the two parental species [65]. The original description of P. ×serendipita described recent hybrids with single-nucleotide variants (SNVs) (double-peaks) in nuclear sequences and instances of both species serving as mitochondrial parents [13]. In this study, we observed strains of P. ×serendipita without evidence of SNVs, but with ITS sequences corresponding to one species and mitochondrial sequences corresponding to the other (Table S1, Figures S2–S4). The lack of SNVs may mean these isolates derive from older hybridization events and have had more opportunities for loss of heterozygosity and homogenization of rDNA repeats [63,64,66]. Like the original description [13], we found evidence of reciprocal pairings, although the lineage associated with P. cactorum mitochondrial sequences was more common, appearing to be relatively widespread across Asia and Europe and including the D-1 strain from Panax. It is not clear to what extent human activity is responsible for these putative hybrids. The intermediate placement of strain D-1 in the cox2+spacer only tree (Figure S2) could also be interpreted as arising from incomplete lineage sorting rather than recent hybridization [26,67,68,69]. The Eurasian P. ×serendipita lineage, along with several P. cactorum isolates from Finland (isolated from Betula and water) were consistently inferred to be the most early-diverging within the species (Figure 2, Figure 4 and Figures S2 and S3).

4.4. Sequence Barcodes and Data Sources

Genome-sequencing reads were an excellent source of data for this study, as any desired loci were available with full coverage, but required a great deal of additional effort to include these strains in an analysis. Nucleotide accessions can be downloaded and immediately analyzed, and are accessible in BLAST searches. As predicted by [31], we found the cox2+spacer locus to provide much better intraspecific resolution than the cox1, but cox1 had a much greater range of sequences available in the nucleotide collection for comparison (Figures S2 and S3, Table S1). ITS sequences alone are not sufficient to make accurate species determinations for many isolates in the species complex that is subclade 1a (Figure S1). Although there were discernable differences between groups of isolates (e.g., all California P. pseudotsugae strains had an identical, otherwise unique ITS sequence), in most cases these were not phylogenetically consistent enough to serve as a basis for species determinations (Figure S1). Furthermore, the existence of the P. ×serendipita isolates without obvious SNVs in their ITS sequences confirm that P. cactorum and P. hedraiandra cannot be accurately separated from P. ×serendipita with the sequence of a single locus, be it nuclear or mitochondrial [13].

4.5. Host Specificity of P. cactorum

While our results support the wide host range of P. cactorum, there is no doubt that members of the Rosaceae are particularly well-represented. This affinity is not unique within subclade 1a, as P. idaei possesses apparent host specialization for Rubus [9]. There are Rosaceae-associated isolates in all of the P. cactorum intraspecific lineages, except the Eurasian P. ×serendipita lineage (Figure 3 and Figure 4), nor any of the P. hedraiandra or P. pseudotsugae isolates included in this study. Two recent studies [24,26] found considerable differences in effector repertoires between intraspecific P. cactorum lineages, but this does not necessarily indicate specialization or coevolution with a particular host. There are isolates from Fragaria in the apple–oak lineage and from Fagus in the strawberry lineage, suggesting whatever host specialization may have occurred in the lineages has not considerably limited their host range. Previous studies have found strawberry isolates to be less aggressive on apple and vice versa [22,24]. Nevertheless, it is quite possible that the apparent host affinities of the apple–oak and strawberry lineages may be less about host specialization and more about the different patterns and frequencies of global plant (and soil) movement by strawberry and apple production, and in the case of the former, ornamental plant production as well. It is unfortunate that no California Fragaria or Malus isolates were able to be included in this study, and undoubtedly more isolates across the world need to be sampled. Due to the limited resolution of the barcoding loci employed in this study and the ability to directly study genes associated with pathogenicity [24,26], future work may wish to focus on accumulating additional genome-sequencing data from the worldwide population. Pathogenicity trials using several of the P. cactorum isolates from distinct lineages with a variety of native California host species are currently in progress.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/jof8030303/s1, Figure S1: ITS-only, Figure S2: cox2+spacer-only, Figure S3: cox1-only, Figure S4: 169-isolate multi-locus tree (full), Figure S5: mitochondrial median-joining network, ε = 10, Table S1: Isolates and Sequence Accessions.

Author Contributions

Conceptualization, D.M.R., T.B.B. and S.N.F.; methodology, T.B.B.; software, T.B.B.; validation, C.P.E., D.M.R., S.N.F. and T.B.B.; formal analysis, T.B.B.; investigation, C.P.E., D.M.R., S.N.F. and T.B.B.; resources, C.P.E., D.M.R., S.N.F. and T.B.B.; data curation, C.P.E., S.N.F. and T.B.B.; writing—original draft preparation, D.M.R. and T.B.B.; writing—review and editing, C.P.E., D.M.R., S.N.F. and T.B.B.; visualization, T.B.B.; supervision, D.M.R. and T.B.B.; project administration, D.M.R.; funding acquisition, D.M.R. and T.B.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the USDA Forest Service, Forest Health Protection; USDA Forest Service, Pacific Southwest Research Station; National Fish and Wildlife Foundation; Santa Clara Valley Water District; San Francisco Public Utilities Commission; and the National Science Foundation (DEB-1115664, ES-1753965) to D.M.R. and a UC Davis Jastro Shields award to T.B.B.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Nucleotide sequence accessions produced for this study are listed in Table S1.

Acknowledgments

We acknowledge the extensive contributions of Rizzo lab members Heather Mehl, Kerri Frangioso and Alison Simler-Williamson, as well as the project collaborators Phytosphere Research, Susan Frankel, Janell Hillman, Humboldt County UC Cooperate Extension and the UC Davis Arboretum and Public Garden. We greatly appreciate the efforts and suggestions of the insightful reviewers. The sequence depositions of the World Phytophthora Genetic Resource Collection (WPC), IDphy (idtools.org/id/phytophthora/, accessed on 23 January 2022) and many others made this study possible.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tucker, C. Taxonomy of the Genus Phytophthora de Bary; Research Bulletin; University of Missouri, Agricultural Experiment Station: Columbia, MO, USA, 1931. [Google Scholar]
  2. Erwin, D.C.; Ribeiro, O.K. Phytophthora Diseases Worldwide; American Phytopathological Society: St. Paul, MN, USA, 1996; ISBN 978-0-89054-212-5. [Google Scholar]
  3. Marin, M.V.; Seijo, T.E.; Zuchelli, E.; Peres, N.A. Resistance to Mefenoxam of Phytophthora cactorum and Phytophthora nicotianae Causing Crown and Leather Rot in Florida Strawberry. Plant Dis. 2021, 105, 3490–3495. [Google Scholar] [CrossRef] [PubMed]
  4. Maas, J.L. Compendium of Strawberry Diseases, 2nd ed.; Diseases and Pests Compendium Series; The American Phytopathological Society: St. Paul, MN, USA, 1998; ISBN 978-0-89054-617-8. [Google Scholar]
  5. Sutton, T.B.; Aldwinckle, H.S.; Agnello, A.M.; Walgenbach, J.F. Compendium of Apple and Pear Diseases and Pests, 2nd ed.; Diseases and Pests Compendium Series; The American Phytopathological Society: St. Paul, MN, USA, 2014; ISBN 978-0-89054-433-4. [Google Scholar]
  6. Waterhouse, G.M. Key to the Species of Phytophthora de Bary; Mycological Papers, No. 92; Commonwealth Mycological Institute: Kew, UK, 1963. [Google Scholar]
  7. Hansen, E.M.; Roth, L.F.; Hamm, P.B.; Julis, A.J. Survival, Spread and Pathogenicity of Phytophthora spp. on Douglas-Fir Seedlings Planted on Forest Sites. Phytopathology 1980, 70, 422. [Google Scholar] [CrossRef]
  8. Hamm, P.B.; Hansen, E.M. Phytophthora pseudotsugae, a New Species Causing Root Rot of Douglas-Fir. Can. J. Bot. 1983, 61, 2626–2631. [Google Scholar] [CrossRef]
  9. Kennedy, D.M.; Duncan, J.M. A Papillate Phytophthora Species with Specificity to Rubus. Mycol. Res. 1995, 99, 57–68. [Google Scholar] [CrossRef]
  10. Cooke, D.E.L.; Kennedy, D.M.; Guy, D.C.; Russell, J.; Unkles, S.E.; Duncan, J.M. Relatedness of Group I Species of Phytophthora as Assessed by Randomly Amplified Polymorphic DNA (RAPDs) and Sequences of Ribosomal DNA. Mycol. Res. 1996, 100, 297–303. [Google Scholar] [CrossRef]
  11. Cooke, D.E.L.; Duncan, J.M. Phylogenetic Analysis of Phytophthora Species Based on ITS1 and ITS2 Sequences of the Ribosomal RNA Gene Repeat. Mycol. Res. 1997, 101, 667–677. [Google Scholar] [CrossRef]
  12. Cooke, D.E.L.; Drenth, A.; Duncan, J.M.; Wagels, G.; Brasier, C.M. A Molecular Phylogeny of Phytophthora and Related Oomycetes. Fungal Genet. Biol. 2000, 30, 17–32. [Google Scholar] [CrossRef] [PubMed]
  13. Man in ’t Veld, W.A.; Rosendahl, K.C.H.M.; Hong, C. Phytophthora × serendipita Sp. Nov. and P. × pelgrandis, Two Destructive Pathogens Generated by Natural Hybridization. Mycologia 2012, 104, 1390–1396. [Google Scholar] [CrossRef] [PubMed]
  14. Scott, P.; Taylor, P.; Gardner, J.; Puértolas, A.; Panda, P.; Addison, S.; Hood, I.; Burgess, T.; Horner, I.; Williams, N.; et al. Phytophthora aleatoria Sp. Nov., Associated with Root and Collar Damage on Pinus Rrdiata from Nurseries and Plantations. Australas. Plant Pathol. 2019, 48, 313–321. [Google Scholar] [CrossRef]
  15. De Cock, A.; Lévesque, C. New Species of Pythium and Phytophthora. Stud. Mycol. 2004, 50, 481–487. [Google Scholar]
  16. Bregant, C.; Sanna, G.P.; Bottos, A.; Maddau, L.; Montecchio, L.; Linaldeddu, B.T. Diversity and Pathogenicity of Phytophthora Species Associated with Declining Alder Trees in Italy and Description of Phytophthora alpina Sp. Nov. Forests 2020, 11, 848. [Google Scholar] [CrossRef]
  17. Nirenberg, H.I.; Gerlach, W.F.; Gräfenhan, T. Phytophthora × pelgrandis, a New Natural Hybrid Pathogenic to Pelargonium grandiflorum Hort. Mycologia 2009, 101, 220–231. [Google Scholar] [CrossRef] [PubMed]
  18. Scheer, H.A.T. Isolation of Phytophthora cactorum from Soil in Orchards and Strawberry Fields and Differences in Pathogenicity to Apple. Neth. J. Plant Pathol. 1971, 77, 65–72. [Google Scholar] [CrossRef]
  19. Darmono, T.W. Isolation and Pathogenicity of Phytophthora cactorum from Forest and Ginseng Garden Soils in Wisconsin. Plant Dis. 1991, 75, 610. [Google Scholar] [CrossRef]
  20. Eikemo, H.; Klemsdal, S.S.; Riisberg, I.; Bonants, P.; Stensvand, A.; Tronsmo, A.M. Genetic Variation between Phytophthora cactorum Isolates Differing in Their Ability to Cause Crown Rot in Strawberry. Mycol. Res. 2004, 108, 317–324. [Google Scholar] [CrossRef] [PubMed]
  21. Hantula, J.; Lilja, A.; Parikka, P. Genetic Variation and Host Specificity of Phytophthora cactorum Isolated in Europe. Mycol. Res. 1997, 101, 565–572. [Google Scholar] [CrossRef]
  22. Hantula, J.; Lilja, A.; Nuorteva, H.; Parikka, P.; Werres, S. Pathogenicity, Morphology and Genetic Variation of Phytophthora cactorum from Strawberry, Apple, Rhododendron, and Silver Birch. Mycol. Res. 2000, 104, 1062–1068. [Google Scholar] [CrossRef]
  23. Bhat, R.G.; Colowit, P.M.; Tai, T.H.; Aradhya, M.K.; Browne, G.T. Genetic and Pathogenic Variation in Phytophthora cactorum Affecting Fruit and Nut Crops in California. Plant Dis. 2006, 90, 161–169. [Google Scholar] [CrossRef] [PubMed]
  24. Nellist, C.F.; Armitage, A.D.; Bates, H.J.; Sobczyk, M.K.; Luberti, M.; Lewis, L.A.; Harrison, R.J. Comparative Analysis of Host-Associated Variation in Phytophthora cactorum. Front. Microbiol. 2021, 12, 679936. [Google Scholar] [CrossRef]
  25. Pánek, M.; Fér, T.; Mráček, J.; Tomšovský, M. Evolutionary Relationships within the Phytophthora cactorum Species Complex in Europe. Fungal Biol. 2016, 120, 836–851. [Google Scholar] [CrossRef]
  26. Pánek, M.; Střížková, I.; Zouhar, M.; Kudláček, T.; Tomšovský, M. Mixed-Mating Model of Reproduction Revealed in European Phytophthora cactorum by DdRADseq and Effector Gene Sequence Data. Microorganisms 2021, 9, 345. [Google Scholar] [CrossRef] [PubMed]
  27. Jung, T. Beech Decline in Central Europe Driven by the Interaction between Phytophthora Infections and Climatic Extremes. Forest Pathol. 2009, 39, 73–94. [Google Scholar] [CrossRef]
  28. Robideau, G.P.; de Cock, A.W.A.M.; Coffey, M.D.; Voglmayr, H.; Brouwer, H.; Bala, K.; Chitty, D.W.; DéSaulniers, N.; Eggertson, Q.A.; Gachon, C.M.M.; et al. DNA Barcoding of Oomycetes with Cytochrome c Oxidase Subunit I and Internal Transcribed Spacer. Mol. Ecol. Resour. 2011, 11, 1002–1011. [Google Scholar] [CrossRef] [PubMed]
  29. Martin, F.N.; Tooley, P.W. Phylogenetic Relationships among Phytophthora Species Inferred from Sequence Analysis of Mitochondrially Encoded Cytochrome Oxidase I and II Genes. Mycologia 2003, 95, 269. [Google Scholar] [CrossRef]
  30. Martin, F.N. Phylogenetic Relationships among Some Pythium Species Inferred from Sequence Analysis of the Mitochondrially Encoded Cytochrome Oxidase II Gene. Mycologia 2000, 92, 711. [Google Scholar] [CrossRef]
  31. Choi, Y.-J.; Beakes, G.; Glockling, S.; Kruse, J.; Nam, B.; Nigrelli, L.; Ploch, S.; Shin, H.-D.; Shivas, R.G.; Telle, S.; et al. Towards a Universal Barcode of Oomycetes—A Comparison of the Cox 1 and Cox 2 Loci. Mol. Ecol. Resour. 2015, 15, 1275–1288. [Google Scholar] [CrossRef] [PubMed]
  32. Bourret, T.B.; Mehl, H.K.; Swiecki, T.J.; Bernhardt, E.A.; Hillman, J.M.; Rizzo, D.M. Chapter 2: Restoration Outplantings of Nursery-Origin Californian Flora Are Heavily Infested with Phytophthora. Ph.D. Thesis, University of California, Davis, Davis, CA, USA, 2018. [Google Scholar]
  33. Boesewinkel, H.J. Storage of Fungal Cultures in Water. Trans. Br. Mycol. Soc. 1976, 66, 183–185. [Google Scholar] [CrossRef]
  34. Fajardo, S.N.; Bourret, T.B.; Endelenbos, C.; Lozano, E.; Rizzo, D.M.; Frankel, S.J.; VinZant, K. Assessing the Incidence and Diversity of Phytophthora Species Ocurring in Planned Restoration Areas of the Angeles National Forest. In Proceedings of the 9th Meeting of the International Union of Forest Research Organizations IUFRO Working Party 7.02.09 Phytophthora in Forests and Natural Ecosystems, Sardinia, Italy, 17 October 2019; p. 2. [Google Scholar]
  35. Bourret, T.B.; Mehl, H.K.; Aram, K.; Rizzo, D.M.; Hillman, J.M.; Rizzo, D.M. Chapter 3: Rhododendron Leaf Baiting of Coastal California Watersheds for Phytophthora. Ph.D. Thesis, University of California, Davis, Davis, CA, USA, 2018. [Google Scholar]
  36. Bourret, T.B.; Mehl, H.K.; Aram, K.; Rizzo, D.M. Rhododendron Leaf Baiting of Coastal California Watersheds for Phytophthora (Poster). In Proceedings of the Sixth Sudden Oak Death Science Symposium, San Francisco, CA, USA, 20–23 June 2016. [Google Scholar]
  37. Aram, K.; Rizzo, D.M. Distinct Trophic Specializations Affect How Phytophthora ramorum and Clade 6 Phytophthora spp. Colonize and Persist on Umbellularia californica Leaves in Streams. Phytopathology 2018, 108, 858–869. [Google Scholar] [CrossRef] [PubMed]
  38. Murphy, S.K.; Lee, C.; Valachovic, Y.; Bienapfl, J.; Mark, W.; Jirka, A.; Owen, D.R.; Smith, T.F.; Rizzo, D.M. Monitoring Phytophthora Ramorum Distribution in Streams Within California Watersheds. In Proceedings of the Sudden Oak Death Third Science Symposium, Santa Rosa, CA, USA, 15 December 2008. [Google Scholar]
  39. Metz, M.R.; Frangioso, K.M.; Meentemeyer, R.K.; Rizzo, D.M. Interacting Disturbances: Wildfire Severity Affected by Stage of Forest Disease Invasion. Ecol. Appl. Publ. Ecol. Soc. Am. 2011, 21, 313–320. [Google Scholar] [CrossRef] [PubMed]
  40. Mircetich, S.M.; Campbell, R.N.; Matheron, M.E. Phytophthora Trunk Canker of Coast Live Oak and Cork Oak Trees in California. Plant Dis. Report. 1977, 61, 66–70. [Google Scholar]
  41. Bourret, T.B.; Choudhury, R.A.; Mehl, H.K.; Blomquist, C.L.; McRoberts, N.; Rizzo, D.M. Multiple Origins of Downy Mildews and Mito-Nuclear Discordance within the Paraphyletic Genus Phytophthora. PLoS ONE 2018, 13, e0192502. [Google Scholar] [CrossRef] [PubMed]
  42. Martin, F.N.; Coffey, M.D. Mitochondrial Haplotype Analysis for Differentiation of Isolates of Phytophthora cinnamomi. Phytopathology 2012, 102, 229–239. [Google Scholar] [CrossRef] [PubMed]
  43. Maddison, D.R.; Maddison, W.P. Chromaseq: A Mesquite Package for Analyzing Sequence Chromatograms. Version 1.12. 2014. Available online: http://mesquiteproject.org/packages/chromaseq (accessed on 31 October 2020).
  44. Maddison, W.P.; Maddison, D.R. Mesquite: A Modular System for Evolutionary Analysis. Version 3.04. 2015. Available online: http://mesquiteproject.org (accessed on 31 October 2020).
  45. Larsson, A. AliView: A Fast and Lightweight Alignment Viewer and Editor for Large Datasets. Bioinformatics 2014, 30, 3276–3278. [Google Scholar] [CrossRef] [PubMed]
  46. Katoh, K. MAFFT Version 5: Improvement in Accuracy of Multiple Sequence Alignment. Nucleic Acids Res. 2005, 33, 511–518. [Google Scholar] [CrossRef] [PubMed]
  47. Katoh, K.; Standley, D.M. MAFFT Multiple Sequence Alignment Software Version 7: Improvements in Performance and Usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed]
  48. Katoh, K.; Toh, H. Improved Accuracy of Multiple NcRNA Alignment by Incorporating Structural Information into a MAFFT-Based Framework. BMC Bioinform. 2008, 9, 212. [Google Scholar] [CrossRef] [PubMed]
  49. Borchsenius, F. FastGap 1.2; Department of Biosciences, Aarhus University: Aarhus, Denmark, 2009. [Google Scholar]
  50. Minh, B.Q.; Schmidt, H.A.; Chernomor, O.; Schrempf, D.; Woodhams, M.D.; von Haeseler, A.; Lanfear, R. IQ-TREE 2: New Models and Efficient Methods for Phylogenetic Inference in the Genomic Era. Mol. Biol. Evol. 2020, 37, 1530–1534. [Google Scholar] [CrossRef]
  51. Chernomor, O.; von Haeseler, A.; Minh, B.Q. Terrace Aware Data Structure for Phylogenomic Inference from Supermatrices. Syst. Biol. 2016, 65, 997–1008. [Google Scholar] [CrossRef] [PubMed]
  52. Kalyaanamoorthy, S.; Minh, B.Q.; Wong, T.K.F.; von Haeseler, A.; Jermiin, L.S. ModelFinder: Fast Model Selection for Accurate Phylogenetic Estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar] [CrossRef] [PubMed]
  53. Lanfear, R.; Frandsen, P.B.; Wright, A.M.; Senfeld, T.; Calcott, B. PartitionFinder 2: New Methods for Selecting Partitioned Models of Evolution for Molecular and Morphological Phylogenetic Analyses. Mol. Biol. Evol. 2016, 34, 772–773. [Google Scholar] [CrossRef] [PubMed]
  54. Stöver, B.C.; Müller, K.F. TreeGraph 2: Combining and Visualizing Evidence from Different Phylogenetic Analyses. BMC Bioinform. 2010, 11, 7. [Google Scholar] [CrossRef] [PubMed]
  55. Jung, T.; Horta Jung, M.; Webber, J.F.; Kageyama, K.; Hieno, A.; Masuya, H.; Uematsu, S.; Pérez-Sierra, A.; Harris, A.R.; Forster, J.; et al. The Destructive Tree Pathogen Phytophthora ramorum Originates from the Laurosilva Forests of East Asia. J. Fungi 2021, 7, 226. [Google Scholar] [CrossRef] [PubMed]
  56. Huson, D.H. SplitsTree: Analyzing and Visualizing Evolutionary Data. Bioinformatics 1998, 14, 68–73. [Google Scholar] [CrossRef] [PubMed]
  57. Huson, D.H.; Bryant, D. Application of Phylogenetic Networks in Evolutionary Studies. Mol. Biol. Evol. 2006, 23, 254–267. [Google Scholar] [CrossRef] [PubMed]
  58. Bandelt, H.J.; Forster, P.; Rohl, A. Median-Joining Networks for Inferring Intraspecific Phylogenies. Mol. Biol. Evol. 1999, 16, 37–48. [Google Scholar] [CrossRef] [PubMed]
  59. Bily, D.; Nikolaeva, E.V.; Olson, T.; Kang, S. Phytophthora spp. Associated with Appalachian Oak Forests and Waterways in Pennsylvania, with P. abietivora as a Pathogen of Five Native Woody Plant Species. Plant Dis. 2021. [Google Scholar] [CrossRef] [PubMed]
  60. Rahman, M.Z.; Uematsu, S.; Coffey, M.D.; Uzuhashi, S.; Suga, H.; Kageyama, K. Re-Evaluation of Japanese Phytophthora Isolates Based on Molecular Phylogenetic Analyses. Mycoscience 2014, 55, 314–327. [Google Scholar] [CrossRef]
  61. Brasier, C.M. The Biosecurity Threat to the UK and Global Environment from International Trade in Plants. Plant Pathol. 2008, 57, 792–808. [Google Scholar] [CrossRef]
  62. Man in ‘t Veld, W.A.; de Cock, A.W.A.M.; Summerbell, R.C. Natural Hybrids of Resident and Introduced Phytophthora Species Proliferating on Multiple New Hosts. Eur. J. Plant Pathol. 2007, 117, 25–33. [Google Scholar] [CrossRef]
  63. Bertier, L.; Leus, L.; D’hondt, L.; de Cock, A.W.A.M.; Höfte, M. Host Adaptation and Speciation through Hybridization and Polyploidy in Phytophthora. PLoS ONE 2013, 8, e85385. [Google Scholar] [CrossRef] [PubMed]
  64. Burgess, T.I. Molecular Characterization of Natural Hybrids Formed between Five Related Indigenous Clade 6 Phytophthora Species. PLoS ONE 2015, 10, e0134225. [Google Scholar] [CrossRef] [PubMed]
  65. Turland, N.; Wiersema, J.; Barrie, F.; Greuter, W.; Hawksworth, D.; Herendeen, P.; Knapp, S.; Kusber, W.-H.; Li, D.-Z.; Marhold, K.; et al. (Eds.) International Code of Nomenclature for Algae, Fungi, and Plants; Regnum Vegetabile; Koeltz Botanical Books: Shenzhen, China, 2018; Volume 159, ISBN 978-3-946583-16-5. [Google Scholar]
  66. Ganley, A.R.D.; Kobayashi, T. Highly Efficient Concerted Evolution in the Ribosomal DNA Repeats: Total RDNA Repeat Variation Revealed by Whole-Genome Shotgun Sequence Data. Genome Res. 2007, 17, 184–191. [Google Scholar] [CrossRef] [PubMed]
  67. Zhou, Y.; Duvaux, L.; Ren, G.; Zhang, L.; Savolainen, O.; Liu, J. Importance of Incomplete Lineage Sorting and Introgression in the Origin of Shared Genetic Variation between Two Closely Related Pines with Overlapping Distributions. Heredity 2017, 118, 211–220. [Google Scholar] [CrossRef] [PubMed]
  68. Charlesworth, B.; Bartolomé, C.; Noël, V. The Detection of Shared and Ancestral Polymorphisms. Genet. Res. 2005, 86, 149–157. [Google Scholar] [CrossRef] [PubMed]
  69. Hudson, R.R.; Coyne, J.A. Mathematical Consequences of the Genealogical Species Concept. Evolution 2002, 56, 1557–1565. [Google Scholar] [CrossRef] [PubMed]
Jof 08 00303 g001 550

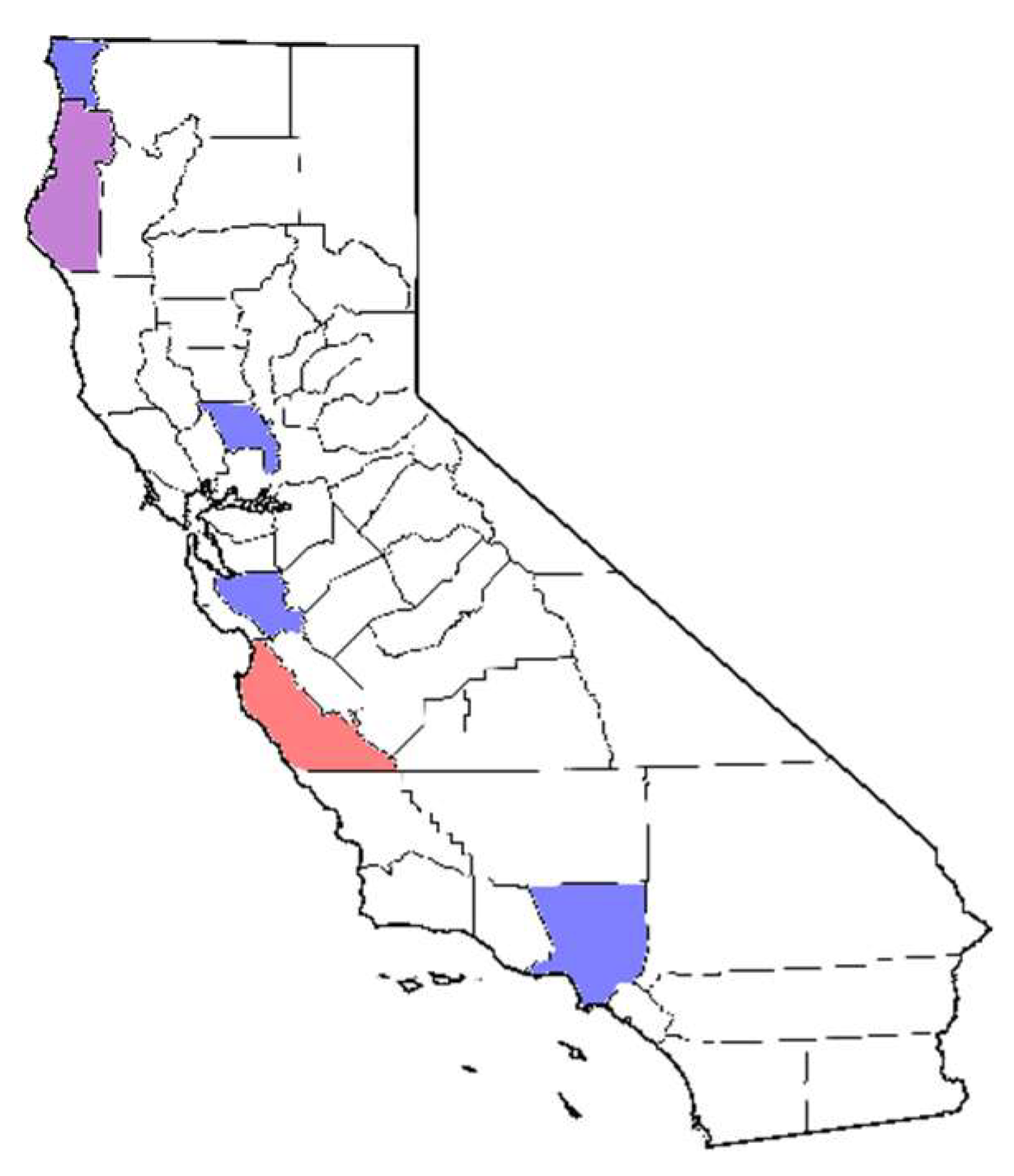

Figure 1. California counties (Co.) where Phytophthora strains were collected for this study, shaded blue for P. cactorum, red for P. pseudotsugae and purple for both species. From north (top) to south (bottom), Del Norte Co. (7 strains), Humboldt Co. (2 strains), Yolo Co. (2 strains), Santa Clara Co. (8 strains), Monterey Co. (11 strains) and Los Angeles Co. (12 strains).
Figure 1. California counties (Co.) where Phytophthora strains were collected for this study, shaded blue for P. cactorum, red for P. pseudotsugae and purple for both species. From north (top) to south (bottom), Del Norte Co. (7 strains), Humboldt Co. (2 strains), Yolo Co. (2 strains), Santa Clara Co. (8 strains), Monterey Co. (11 strains) and Los Angeles Co. (12 strains).
Jof 08 00303 g001
Jof 08 00303 g002 550

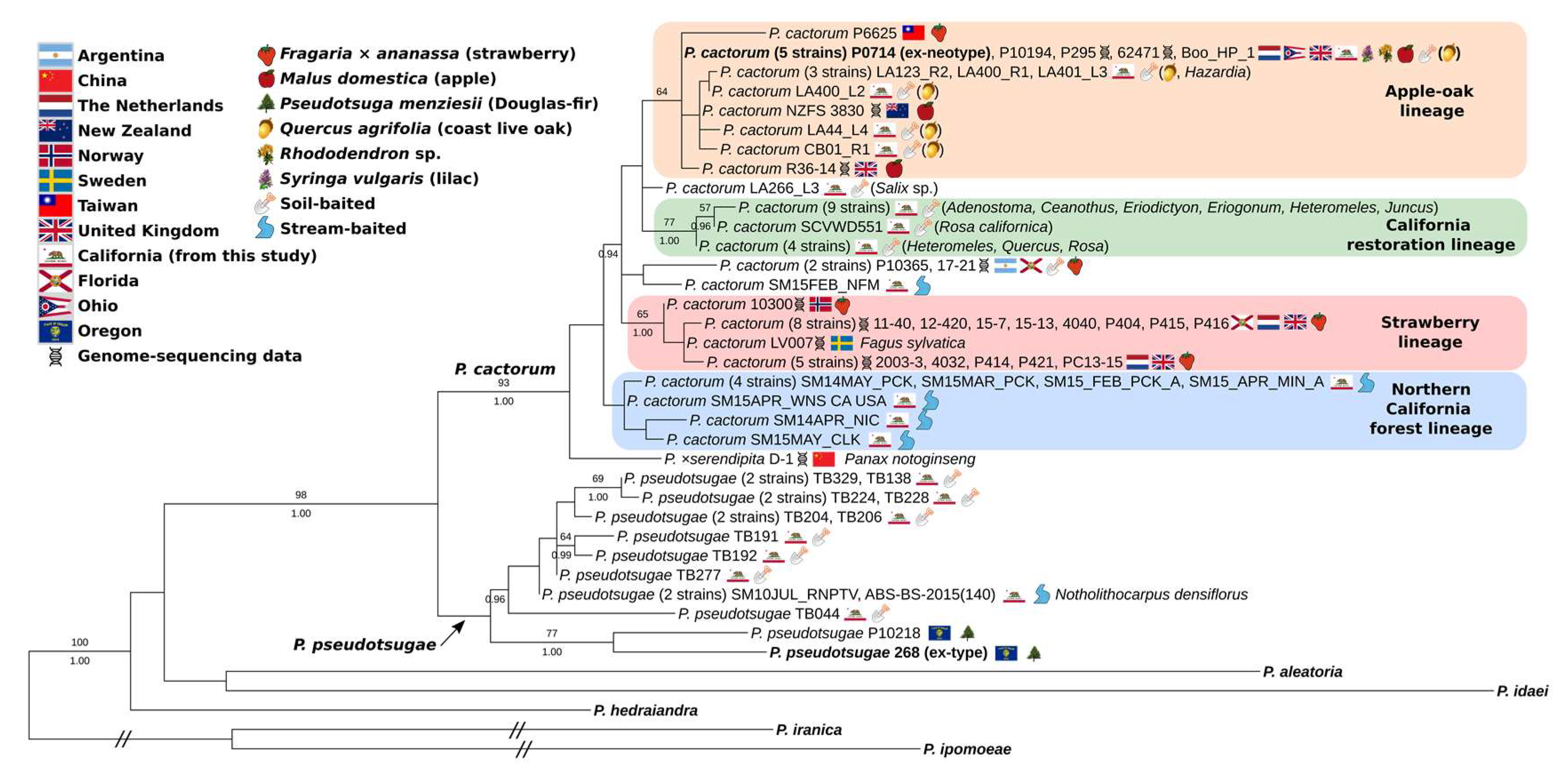

Figure 2. The 74-isolate, multi-locus maximum likelihood tree of Phytophthora subclade 1a. Tree inferred with IQTREE2 2.1.2 from ITS rDNA, mt cox2+spacer and mt cox1 loci, with a total of 2932 characters. Support values above branches are percentages ≥50 from 1000 non-parametric bootstrap replicates, and Bayesian posterior probabilities ≥0.90 from a separate analysis in MrBayes 3.2.7. Tree edited in TreeGraph2 and InkScape. Isolates on the same node were collapsed; slashes indicate branches that were artificially shortened for display purposes. Sequence accessions are listed in Table S1. When the shovel icon is followed by a host in parentheses, it indicates an isolate soil-baited from beneath that host.
Figure 2. The 74-isolate, multi-locus maximum likelihood tree of Phytophthora subclade 1a. Tree inferred with IQTREE2 2.1.2 from ITS rDNA, mt cox2+spacer and mt cox1 loci, with a total of 2932 characters. Support values above branches are percentages ≥50 from 1000 non-parametric bootstrap replicates, and Bayesian posterior probabilities ≥0.90 from a separate analysis in MrBayes 3.2.7. Tree edited in TreeGraph2 and InkScape. Isolates on the same node were collapsed; slashes indicate branches that were artificially shortened for display purposes. Sequence accessions are listed in Table S1. When the shovel icon is followed by a host in parentheses, it indicates an isolate soil-baited from beneath that host.
Jof 08 00303 g002
Jof 08 00303 g003 550

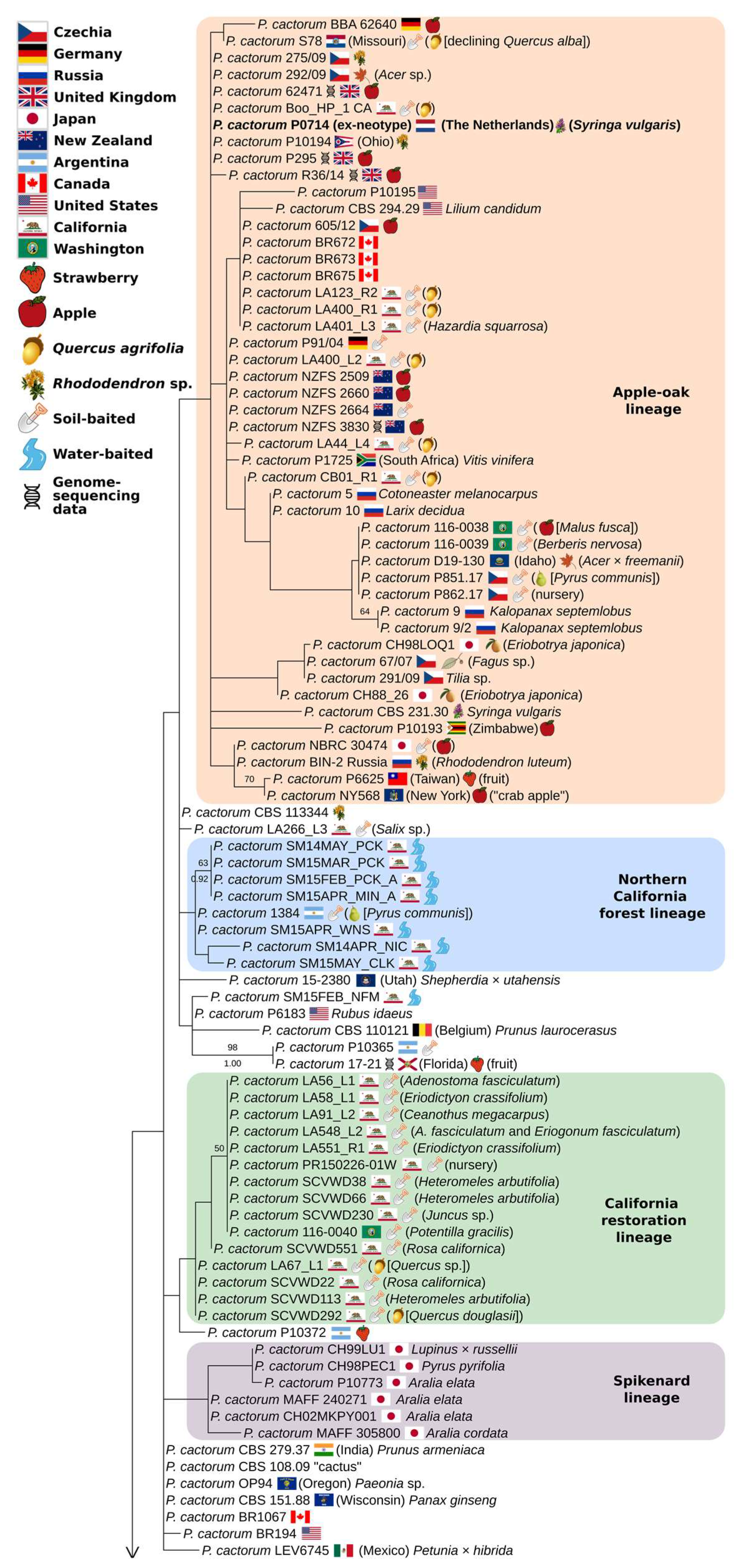

Figure 3. The 169-isolate, multi-locus maximum likelihood tree of Phytophthora subclade 1a (top). Tree inferred with IQTREE2 2.1.2 from ITS rDNA, mt cox2+spacer and mt cox1 loci, with a total of 2936 characters. Near-zero branches were collapsed with gotree (github.com/evolbioinfo/gotree, accessed on 31 December 2021). Support values above branches are percentages ≥50 from 1000 non-parametric bootstrap replicates, and Bayesian posterior probabilities ≥0.90 from a separate analysis in MrBayes 3.2.7. Tree edited in TreeGraph2 and InkScape. Slashes indicate branches that were artificially shortened for display purposes. Sequence accessions are listed in Table S1.
Figure 3. The 169-isolate, multi-locus maximum likelihood tree of Phytophthora subclade 1a (top). Tree inferred with IQTREE2 2.1.2 from ITS rDNA, mt cox2+spacer and mt cox1 loci, with a total of 2936 characters. Near-zero branches were collapsed with gotree (github.com/evolbioinfo/gotree, accessed on 31 December 2021). Support values above branches are percentages ≥50 from 1000 non-parametric bootstrap replicates, and Bayesian posterior probabilities ≥0.90 from a separate analysis in MrBayes 3.2.7. Tree edited in TreeGraph2 and InkScape. Slashes indicate branches that were artificially shortened for display purposes. Sequence accessions are listed in Table S1.
Jof 08 00303 g003
Jof 08 00303 g004 550
Figure 4. The 169-isolate, multi-locus maximum likelihood tree of Phytophthora subclade 1a (bottom). Tree inferred with IQTREE2 2.1.2 from ITS rDNA, mt cox2+spacer and mt cox1 loci, with a total of 2936 characters. Near-zero branches were collapsed with gotree (github.com/evolbioinfo/gotree, accessed on 31 December 2021). Support values above branches are percentages ≥50 from 1000 non-parametric bootstrap replicates, and Bayesian posterior probabilities ≥0.90 from a separate analysis in MrBayes 3.2.7. Tree edited in TreeGraph2 and InkScape. Slashes indicate branches that were artificially shortened for display purposes. Sequence accessions are listed in Table S1.
Figure 4. The 169-isolate, multi-locus maximum likelihood tree of Phytophthora subclade 1a (bottom). Tree inferred with IQTREE2 2.1.2 from ITS rDNA, mt cox2+spacer and mt cox1 loci, with a total of 2936 characters. Near-zero branches were collapsed with gotree (github.com/evolbioinfo/gotree, accessed on 31 December 2021). Support values above branches are percentages ≥50 from 1000 non-parametric bootstrap replicates, and Bayesian posterior probabilities ≥0.90 from a separate analysis in MrBayes 3.2.7. Tree edited in TreeGraph2 and InkScape. Slashes indicate branches that were artificially shortened for display purposes. Sequence accessions are listed in Table S1.
Jof 08 00303 g004
Jof 08 00303 g005 550
Figure 5. Split-decomposition network from mitochondrial cox2+cox1 loci of Phytophthora cactorum and P. pseudotsugae. Accession information listed in Table S1. Figure created with SplitsTree4 and annotated with InkScape. Scale bar is split support for node connections.
Figure 5. Split-decomposition network from mitochondrial cox2+cox1 loci of Phytophthora cactorum and P. pseudotsugae. Accession information listed in Table S1. Figure created with SplitsTree4 and annotated with InkScape. Scale bar is split support for node connections.
Jof 08 00303 g005
Jof 08 00303 g006 550
Figure 6. Median-joining network from mitochondrial cox2+cox1 loci of Phytophthora cactorum and P. pseudotsugae, tolerance ε = 0. Accession information listed in Table S1. Figure created with Network 10 and annotated with InkScape. Yellow circles represent isolates or groups of isolates with identical sequences, and red diamonds represent unsampled intermediates.
Figure 6. Median-joining network from mitochondrial cox2+cox1 loci of Phytophthora cactorum and P. pseudotsugae, tolerance ε = 0. Accession information listed in Table S1. Figure created with Network 10 and annotated with InkScape. Yellow circles represent isolates or groups of isolates with identical sequences, and red diamonds represent unsampled intermediates.
Jof 08 00303 g006
Jof 08 00303 g007 550
Figure 7. Split-decomposition network from ITS rDNA sequences of Phytophthora cactorum, P. pseudotsugae and other subclade 1a species. Accession information listed in Table S1. Figure created with SplitsTree4 and annotated with InkScape. Scale bar is split support for node connections.
Figure 7. Split-decomposition network from ITS rDNA sequences of Phytophthora cactorum, P. pseudotsugae and other subclade 1a species. Accession information listed in Table S1. Figure created with SplitsTree4 and annotated with InkScape. Scale bar is split support for node connections.
Jof 08 00303 g007
Jof 08 00303 g008 550

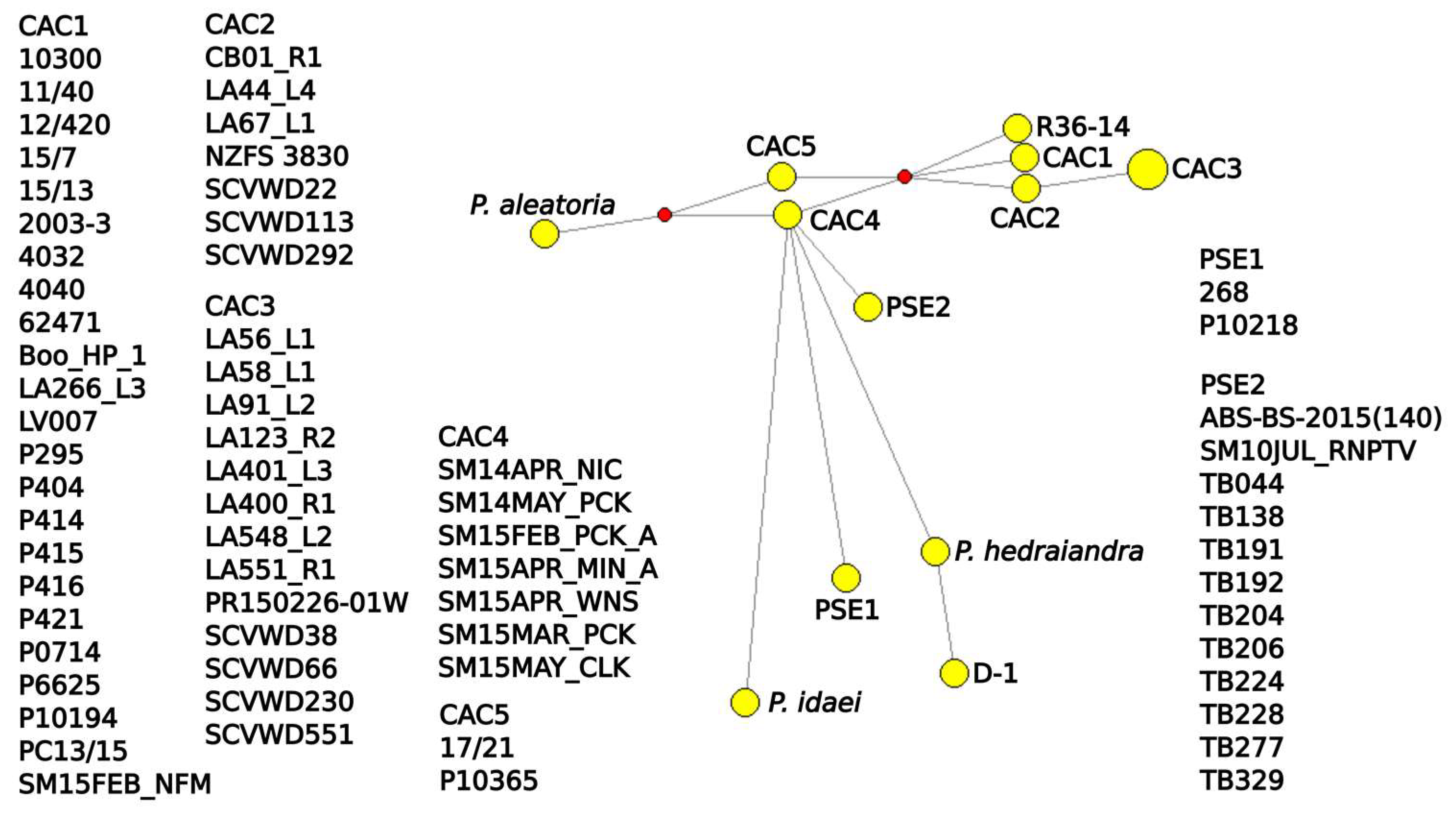

Figure 8. Median-joining network from ITS rDNA sequences of Phytophthora cactorum, P. pseudotsugae and other subclade 1a species. Accession information listed in Table S1. Figure created with Network 10 and annotated with InkScape. Yellow circles represent isolates or groups of isolates with identical sequences, and red diamonds represent unsampled intermediates.
Figure 8. Median-joining network from ITS rDNA sequences of Phytophthora cactorum, P. pseudotsugae and other subclade 1a species. Accession information listed in Table S1. Figure created with Network 10 and annotated with InkScape. Yellow circles represent isolates or groups of isolates with identical sequences, and red diamonds represent unsampled intermediates.
Jof 08 00303 g008
Table
Table 1. List of projects from which the 42 California Phytophthora isolates were selected.
Table 1. List of projects from which the 42 California Phytophthora isolates were selected.
ProjectRestoration OutplantingsStream MonitoringChapparal and Stream Soil BaitingForest Soil BaitingDirect Sampling of Seedling RootsUCD Campus Baiting
Range within CABay area (northern), Angeles National Forest (southern)Central to northernAngeles National Forest (southern)Big Sur (central)Big Sur
(central)		Sacramento Valley (northern)
Substrate(s)Rhizosphere soil and plant rootsStream waterRhizosphere soilBulk soilNotholithocarpus densiflorus seedling rootRhizosphere soil
BaitPear fruit and rhododendron leafRhododendron leafPear fruit and rhododendron leafRhododendron leafN/APear fruit and rhododendron leaf
Subclade 1a species isolatedP. cactorum, P. hedraiandra, P. ×serendipitaP. cactorum, P. pseudotsugaeP. cactorumP. pseudotsugaeP. pseudotsugaeP. cactorum
Isolates used for this study
(Counties)		15
(Los Angeles, 7; Santa Clara, 8)		9
(Del Norte, 7; Humboldt, 2)		5
(Los Angeles)		10
(Monterey)		1
(Monterey)		2
(Yolo)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bourret, T.B.; Fajardo, S.N.; Engert, C.P.; Rizzo, D.M. A Barcode-Based Phylogenetic Characterization of Phytophthora cactorum Identifies Two Cosmopolitan Lineages with Distinct Host Affinities and the First Report of Phytophthora pseudotsugae in California. J. Fungi 2022, 8, 303. https://doi.org/10.3390/jof8030303

AMA Style

Bourret TB, Fajardo SN, Engert CP, Rizzo DM. A Barcode-Based Phylogenetic Characterization of Phytophthora cactorum Identifies Two Cosmopolitan Lineages with Distinct Host Affinities and the First Report of Phytophthora pseudotsugae in California. Journal of Fungi. 2022; 8(3):303. https://doi.org/10.3390/jof8030303

Chicago/Turabian Style

Bourret, Tyler B., Sebastian N. Fajardo, Cole P. Engert, and David M. Rizzo. 2022. "A Barcode-Based Phylogenetic Characterization of Phytophthora cactorum Identifies Two Cosmopolitan Lineages with Distinct Host Affinities and the First Report of Phytophthora pseudotsugae in California" Journal of Fungi 8, no. 3: 303. https://doi.org/10.3390/jof8030303

APA Style

Bourret, T. B., Fajardo, S. N., Engert, C. P., & Rizzo, D. M. (2022). A Barcode-Based Phylogenetic Characterization of Phytophthora cactorum Identifies Two Cosmopolitan Lineages with Distinct Host Affinities and the First Report of Phytophthora pseudotsugae in California. Journal of Fungi, 8(3), 303. https://doi.org/10.3390/jof8030303

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
