Analysis of Growth and Yield of Three Types Cucumbers (Cucumis sativus L.) Based on Yield Components

Abstract

The objectives of this study were to evaluate the yield of different types of cucumbers from the perspective of yield components. The yield and yield components of nine cucumber cultivars (Beit Alpha, Greenhouse, and Japanese) grown hydroponically in a greenhouse were investigated. Fruit yield fresh weight in the Beit Alpha type was higher than that of the Japanese type, and the fruit yield fresh weight was significantly correlated with fruit yield dry weight, total dry matter (TDM), fraction of fruits, and number of fruits. However, the fruit yield fresh weight was not significantly correlated with intercepted light, light use efficiency (LUE), leaf area index, light extinction coefficient, and fruit dry matter content. High fruit yield dry weight was associated with a high TDM and the fraction of fruits. Moreover, the high TDM and fraction of fruits were associated with LUE and the number of fruits, respectively.

1. Introduction

Cucumbers (Cucumis sativus L.) are among the most widely cultivated vegetable crops worldwide and have many different genotypes [1]. Despite the wide variation in cucumbers worldwide, Japanese cucumbers have relatively narrow diversity [2]. Moreover, Japanese cucumbers have strict standards for fruit size. For example, young cucumbers are approximately 22 cm in length and 100 g in weight. Therefore, producing a variety of cucumbers may provide opportunities for market expansion and increased consumption. In yield productivity, Japanese cucumber yield is far lower, at 3.4 kg m⁻² and 10.7 kg m⁻² in summer–autumn and winter–spring periods, respectively [3], than in the Netherlands, at 72.8 kg m⁻² [4]. Moreover, according to data from the Ministry of Agriculture, Forestry and Fisheries, as much as 932 h of working time are required per 1000 m⁻² in summer and autumn cultivation, which is 33% higher than the 709 h required for tomato cultivation [5]. Therefore, to increase productivity, it is important to improve the yield while reducing working hours by simplifying operations. Moreover, it is necessary to objectively evaluate the productivity of various types of cucumbers, considering its diversification.

Many investigations have been conducted to compare the characteristics of Japanese and Dutch cultivars to identify the reason for the high yield of Dutch tomato cultivars [6,7,8,9,10]. Moreover, Higashide and Heuvelink [11] analyzed the yield difference of tomatoes developed in different years on the basis of yield components and showed that the yield increase over the past 50 years in Dutch tomatoes resulted from increased total dry matter production, which resulted from high light use efficiency (LUE). In cucumbers, Iwasaki et al. [12] compared one Japanese cultivar to two Dutch cucumbers, based on yield components and reported that the Japanese cultivar had a lower yield than the Dutch cultivar because of lower LUE and the fraction of fruit due to a lower female flowering rate on the main stem. On the other hand, Japanese cucumbers are said to make a difference in yield productivity and the yield productivity depends on the leaf area index (LAI) and female flowering rate [1,13,14]. Moreover, cucumber is generally a day neutral crop that induces both male and female flowers on the same stem, and the sex expression is affected by environmental factors and genotypes [15,16]. These results suggest that the study of variety comparisons in cucumber is insufficient, and more variety comparisons are needed to elucidate the relationship between yield and yield components.

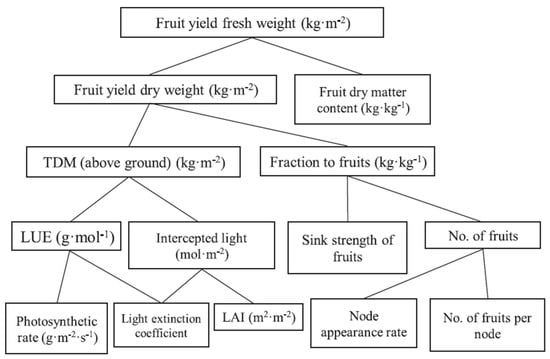

Yield components are a good tool for quantitative yield assessment (Figure 1). Therefore, we cultivated nine cultivars with a hydroponic system for a short period of about four months to evaluate the yield productivity of different types of cucumbers (Beit Alpha type, Greenhouse type, and Japanese type) and analyzed the yield and growth differences based on yield components.

2. Materials and Methods

The experiment was conducted in a greenhouse (27 m width × 36 m length × 3.6 m height; north–south oriented) covered with polyolefin film. Nine cucumber cultivars were used; ‘Media RZ’, ‘Khasib RZ’ (Rijk Zwaan Export B. V, ZUID-HOLLAND, The Netherlands) and ‘Atar’ (Hazera Genetics Ltd., Berurim M.P Shikmim, Israel) as the Beit Alpha type with short length and large width, without fruit prickles and wart; ‘Proloog RZ’, ‘Marriana RZ’ and ‘Aviance RZ’ (Rijk Zwaan Export B. V, ZUID-HOLLAND, The Netherlands) as the Greenhouse type with long length and medium width, without fruit prickles and wart; ‘Eterno’ (Tokiwa, Saitama, Japan), ‘Fresco 100’ (Kurume Vegetable Breeding co., Ltd., Fukuoka, Japan), and ‘High-green 21’ (Saitama Gensyu Ikuseikai co., Ltd., Saitama, Japan) as the Japanese type with long length and small width, and fruit prickles and wart.

On September 1, the seeds were sown in a cell tray filled with commercial substrate (Na-Terra; Mitsubishi Chemical Agri Dream Co., Ltd., Tokyo, Japan), consisting of vermiculite, peat moss, and red clay soil, and were germinated for a day in a germinator under dark conditions at 28 °C. They were then transferred to a chamber (Nae Terrace; Mitsubishi Chemical Agri Dream Co., Ltd., Tokyo, Japan) set to light and dark periods of 12 h each at 28 °C and 20 °C, respectively, with a CO₂ concentration of 1000 µmol mol⁻¹ and a PPFD of 350 µmol m⁻² s⁻¹ for 2 weeks. The seedlings were fertilized every day with commercial nutrient solution (High-Tempo; Sumitomo Chemicals, Tokyo, Japan); the solution consisted of 10.7 me·L⁻¹ NO³⁻, 6.3 me·L⁻¹ K⁺, 10.8 me·L⁻¹ Ca²⁺, 3.8 me·L⁻¹ Mg²⁺, 7.2 me·L⁻¹ H₂PO⁴⁻, 3.8 mg·L⁻¹ Fe, 0.38 mg·L⁻¹ Mn, 0.26 mg·L⁻¹ B, 0.15 mg·L⁻¹ Zn, 0.05 mg·L⁻¹ Cu, and 0.07 mg·L⁻¹ Mo, adjusted to an electrical conductivity of 1.8 dS·m⁻¹.

The seedlings were then transplanted into 11 rows (60 plants per row) of rockwool slabs with a 3.09 plants/m² plant density, and a high-wire training method (the main-stem of the plant was not pinched, and all lateral branches were removed) was conducted in a greenhouse compartment (21.9 × 13.5 m). The plants placed at rows 1 and 11 were considered guard plants, and each double row was divided into three blocks (20 plants per block). Each cultivar was arranged over these blocks according to a randomized complete block design with three replicates. The plants were supplied with a commercial nutrient solution (OAT House’ fertilizer with modified A prescription; OAT Agrio Co., Ltd., Tokyo, Japan), which consisted of 18.6 me·L⁻¹ NO₃⁻, 8.6 me·L⁻¹ K⁺, 8.2 me·L⁻¹ Ca²⁺, 3.0 me·L⁻¹ Mg²⁺, 5.1 me·L⁻¹ H₂PO₄⁻, 2.7 mg·L⁻¹ Fe, 1.2 mg·L⁻¹ Mn, 0.47 mg·L⁻¹ B, 0.09 mg·L⁻¹ Zn, 0.03 mg·L⁻¹ Cu, and 0.03 mg·L⁻¹ Mo at an electrical conductivity of 2.6 dS·m⁻¹ by drip irrigation. Three plants for plant growth and fruit yield in the center of the block were measured; thus, nine plants/cultivar were measured. The environment of the greenhouse was controlled using a ubiquitous environmental control system [18]. The temperature settings for the side window ventilation and hot air heater were 28 °C and 13 °C, respectively.

Destructive measurements (six plants per cultivar) of leaves, stem, fruit fresh weight (FW), dry matter weight (DW), and LAI at 22, 39, and 96 days after transplanting (DAT) were conducted. Nine plants were selected from each cultivar for yield monitoring. To stabilize the initial growth, fruits attached to the 5th node or less from the bottom were removed, and fruits from the 6th node were investigated. The fruits were harvested every day when they reached approximately 100 g. The ratio of fruit DW to fruit FW was defined as the fruit dry matter content (FDMC). The FDMC values in ‘Media RZ’, ‘Proloog RZ’, and ‘Eterno’ (n = 30) were measured, and confirmed that there was no difference among the cucumber types (FDMC = 0.03). The fraction of fruits was obtained as a value of the total dry weight of the harvested fruits and immature fruits on the plant divided by the total dry matter above ground to the final destructive measurement.

The light extinction coefficient (k) was obtained at 50 DAT using the following equation [19]:

$$I=I_0{e}^{-k·\mathrm{LAI}}$$

(1)

where I is the photosynthetic photon flux density (PPFD) at a given point in the plant canopy, which was measured using a line quantum sensor (LI-191SA, LI-COR Biosciences, Lincoln, NE, USA) at four different heights within the plant canopy. I₀ is the PPFD above the canopy, which was measured using a PPFD sensor (LI-190SA, LI-COR Biosciences, Lincoln, NE, USA). LAI is the cumulative LAI at each point from the top.

LUE was defined as the amount of dry matter produced per cumulative intercepted light (IL), using a previously reported method [11]. For some destructive measurements (0, 22, 39, and 96 DAT), the cumulative IL up to the time of destructive measurements was plotted on the horizontal axis, the TDM at that point was plotted on the vertical axis, and the slope of the line was defined as LUE (g·MJ⁻¹ PAR). The daily cumulative photosynthetically active radiation (PAR, MJ·m⁻²) for each plant was calculated using the following equation:

$$\mathrm{IL}=\left(1-e^{-k·\mathrm{LAI}}\right)\times \mathrm{PAR}$$

(2)

PAR is the indoor solar radiation using a facility light transmittance of 50%, which was calculated from the measured outdoor solar radiation by a pyranometer, and recorded every minute. The ratio of the PAR to solar radiation is assumed to be 50% [20]. The daily LAI was obtained by linearly interpolating the LAI obtained from three destructive measurements.

Results were analyzed using EZR (Saitama Medical Center, Jichi Medical University, Saitama, Japan), which is a graphical user interface for R (The R Foundation for Statistical Computing, Vienna, Austria). All data were analyzed with one-way ANOVA followed by Tukey’s multiple comparison and the differences were considered statistically significant at p < 0.05.

3. Results

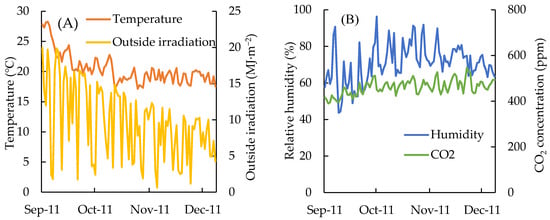

The environmental data are presented in Figure 2. Cumulative daily outdoor solar radiation showed a decreasing trend with an average value of 9.9 MJ·m⁻² during cultivation (Figure 2A). The minimum, maximum, and daily average temperatures were 10.0, 34.8, and 20.4 °C, respectively.

No significant differences in LAI obtained from the three destructive measurements were observed among the different cultivars (

Table 1. LAI, number of fruits per plant, fruit yield fresh weight, leaf, stem and fruit dry weight, total dry matter (TDM), and fraction of fruits of nine cucumbers cultivars at 96 days after transplanting.

Type	Cultivar	LAI	No. of Fruits Per Plant	Fruit Yield Fresh Weight	Dry Weight			TDM	Fraction of Fruits
					Leaves	Stem	Fruits
		m2 m−2		kg m−2	kg m−2	kg m−2	kg m−2	kg m−2	%
Beit Alpha	Media	3.0	38.3 b z	12.3 ab	0.37	0.09 c	0.44 a	0.90	49.1 a
	Khassib	3.1	54.3 a	14.9 a	0.45	0.11 bc	0.46 a	1.02	45.1 abc
	Atar	3.1	33.7 bc	10.4 bc	0.37	0.09 c	0.42 ab	0.89	47.5 a
Greenhouse	Proloog	3.1	30.0 bc	11.0 bc	0.36	0.12 ab	0.40 abc	0.88	45.7 ab
	Marriana	3.3	27.3 bc	10.3 cd	0.39	0.12 ab	0.37 abcd	0.88	42.5 abc
	Aviance	2.9	31.2 bc	11.0 bc	0.38	0.11 b	0.38 abc	0.87	43.6 abc
Japanese	Eterno	2.7	20.1 c	8.2 cd	0.44	0.11 b	0.29 cd	0.84	34.9 cd
	Fresco 100	2.7	26.1 bc	8.3 cd	0.41	0.12 ab	0.30 bcd	0.83	36.6 bcd
	Highgreen 21	3.1	19.0 c	6.9 d	0.45	0.13 a	0.26 d	0.85	30.8 d

^z Different letters indicate significant differences at p < 0.05 by ANOVA followed Tukey’s multiple comparison test (n = 9).

). The number of fruits and yield FW of ‘Khassib RZ’ fruits were 54.3 and 14.9 kg·m⁻², respectively, which was the highest among the nine varieties. The average number of fruits per plant were 42.1, 29.5, and 21.7; and average fruit yield FW values were 12.5, 10.8, and 7.8 kg·m⁻² in Beit Alpha, Greenhouse, and Japanese cultivars, respectively. Both the number of fruits and the yield FW of the Beit Alpha type were significantly higher than those of the Japanese type. There were no significant differences in the TDM and DW of leaves among the different cultivars. However, the Beit Alpha cultivars had a higher DW of fruits than the Japanese cultivars. In the fraction of fruits, the average values were 47.2%, 43.9%, and 34.1% in the Beit Alpha, Greenhouse, and Japanese cultivars, respectively. Especially ‘Media’ and ‘Atar’ had higher values than Japanese cultivars.

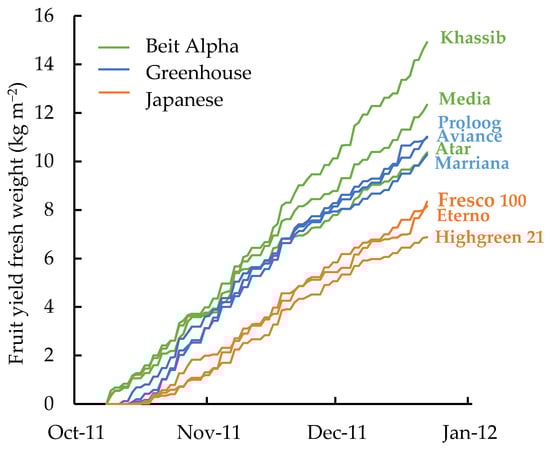

Figure 3 shows the changes in the cumulative fruit yield FW of each cultivar from October 10th to December 21st. Looking at the changes in cumulative fruit yield FW, the Beit Alpha type cultivars started harvesting earlier than the other cultivars. While the yield of ‘Khassib RZ’ increased constantly from the start of harvest to the end of the experiment, the three Japanese cultivars started harvesting later than the other cultivars and the rate of yield increase was sluggish.

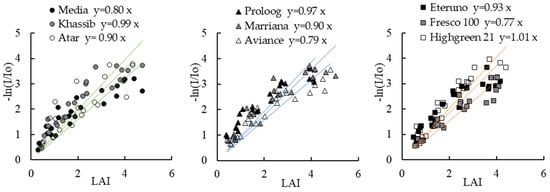

The light extinction coefficient measured at 50 DAT, based on 95% confidence intervals, and no significant difference was observed among the different cultivars (Figure 4). The values were 0.80, 0.99, 0.90, 0.97, 0.90, 0.79, 0.93, 0.77 and 1.01 in ‘Media RZ’, ‘Khasib RZ’, ‘Atar’, ‘Proloog RZ’, ‘Marriana RZ’, ‘Aviance RZ’, ‘Eterno’, ‘Fresco 100’ and ‘High-green’, respectively. (R² = 0.93–0.98, p < 0.01). The average values of light extinction coefficient were 0.90, 0.89, and 0.90 in the Beit Alpha, Greenhouse, and Japanese cultivars, respectively.

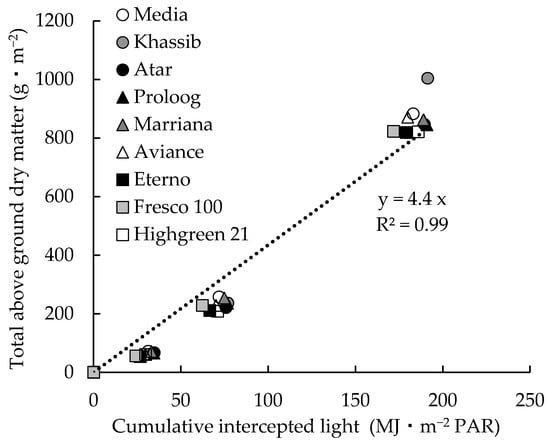

Figure 5 shows the relationship between cumulative IL and TDM in the nine cucumber cultivars. The average cumulative IL at 22, 39, and 96 DAT, calculated by Equation (2), were 33.4, 74.9, and 187.9 MJ·m⁻² in the Beit Alpha cultivars, 32.5, 73.9, and 186.6 MJ·m⁻² in the Greenhouse cultivars, and 26.9, 66.6, and 178.9 MJ·m⁻² in the Japanese cultivars (Figure 5). The values were 4.6, 4.9, 4.2, 4.2, 4.4, 4.6, 4.4, 4.6 and 4.2 in ‘Media RZ’, ‘Khasib RZ’, ‘Atar’, ‘Proloog RZ’, ‘Marriana RZ’, ‘Aviance RZ’, ‘Eterno’, ‘Fresco 100’ and ‘High-green’, respectively (g·MJ⁻¹, MJ is a unit of photosynthetically active radiation), (R² = 0.97–0.99, p < 0.01). Based on 95% confidence intervals, no significant difference was observed among the different cultivars for LUE, which is the slope of the regression line between IL and TDM.

Correlations among the yield components are shown in

Table 2. Correlation coefficient (r) between yield components and growth characteristics of cucumber cultivars at 96 days after transplanting.

	Fruit Yield Dry Weight	Total Dry Matter	Fraction of Fruits	Light Use Efficiency	Intercepted Light	Leaf Area Index	Light Extinction Coefficient	Number of Fruits
Fruit yield fresh weight	0.98	0.80	0.91	0.58	0.46	0.30	−0.09	0.91
Significance	*** z	**	***	NS	NS	NS	NS	***
Fruit yield dry weight		0.88	0.85	0.64	0.49	0.34	−0.03	0.96
Significance		**	**	NS	NS	NS	NS	***
Total dry matter			0.54	0.68	0.60	0.41	0.33	0.94
Significance			NS	*	NS	NS	NS	***
Fraction to fruits								0.70
Significance								*

^z ***, **, and * indicate significant correlation at p < 0.001, p < 0.01, and p < 0.05, respectively. NS indicates not significant difference.

. Fruit yield FW was significantly positively correlated with fruit yield DW, TDM, the fraction of fruits, and the number of fruits. The factor with the highest correlation coefficient with fruit yield FW was fruit yield DW, followed by the fruit fraction, number of fruits, and TDM. Moreover, fruit yield DW was significantly positively correlated with TDM, the fraction of fruits, and the number of fruits. However, no significant correlation was found with LUE, IL, the extinction coefficient, LAI, or the light extinction coefficient for either fruit yield FW or DW. Additionally, there was a significant positive correlation between TDM and LUE, the fraction of fruits, and the number of fruits.

4. Discussion

The yield components have a hierarchical structure, and the elements of the lower layer determine the elements of the upper layer in tomatoes [11]. This is also applicable to cucumber [12,17], where fruit fresh yield is determined by FDMC and fruit dry matter yield, which in turn is determined by TDM and the fraction of fruits. The TDM is determined by the LUE and cumulative IL, and the LUE is determined by the photosynthetic rate of individual leaves and the light extinction coefficient. In this experiment, the yield of the Beit Alpha cultivars was higher than that of the Japanese cultivars. Therefore, we discuss the cause of this difference in terms of the yield components.

There was no correlation between fruit yield fresh weight and FDMC, suggesting that fruit yield fresh weight was not affected by FDMC (data not shown). This is supported by the fact that there was no significant difference in FDMC among the cultivars. Furthermore, there was a significant correlation between fruit yield fresh weight and fruit yield dry weight (Table 2), indicating that higher fresh weight was associated with higher fruit dry weight. Moreover, fruit yield dry weight was significantly positively correlated with TDM and the fraction of fruits. Therefore, the higher yield of fruit dry weight in the Beit Alpha cultivars than in Japanese cultivars might be attributed to both higher TDM and the higher fraction of fruits. However, there were no significant differences in TDM among the different cultivars in this study, indicating that a higher fraction of fruits was the main factor causing the yield difference. Moreover, the fraction of fruits was associated with the number of fruits. In this study, the fraction of fruits was 31–37% in Japanese cultivars, which was lower than 48% [12] and 70–72% [17] that was reported in previous studies. This result might be due to the lower female flowering rate, especially in the early stages of harvest. The female flowering rate in cucumbers is mainly affected by temperature and photoperiod [15,21,22]. In this study, the plants were transplanted during the summer season, and the daily average temperature was above 25 °C. Therefore, integration of higher temperatures and longer photoperiod might have decreased the female flowering rate in Japanese cultivars and thus decreased the fraction of fruits and yield.

In conclusion, Beit Alpha cultivars had higher fruit yield fresh weights than Japanese cultivars. The high fruit yield fresh weight was due to a high fruit yield dry weight, and the dry weight was associated with TDM and fraction of fruits. The reason for the lower female flowering rate was consistent with that of a previous study on the lower yield of Japanese cultivars than that of Dutch cultivars [12] and the low female flowering rate on the main stem of Japanese cultivars is thought to be due to the breeding objectives of Japanese cucumber. Pinching cultivation is commonly preferred in cucumber production in Japan, where cultivars have been bred with high female flowering rates on side branches. However, lowering cultivation methods have attracted attention for simplifying work in terms of training method [23,24]. Therefore, in the future, it will be important to breed cultivars with high female flowering rates on the main branch.
