Tetranuclear Hetro-Metal [Mn^III₂Ni^II₂] Complexes Involving Defective Double-Cubane Structure: Synthesis, Crystal Structures, and Magnetic Properties

Abstract

Tetranuclear hetero-metal Mn^III₂Ni^II₂ complexes, [Mn₂Ni₂(L)₄(OAc)₂] (1) and [Mn₂Ni₂(L)₄(NO₃)₂] (2) [H₂L = N-(2-hydroxymethylphenyl)-5,6-benzosalicylideneimine], have been synthesized and characterized by X-ray crystal structure analyses, infrared spectra, and elemental analyses. The structure analyses revealed that the complexes have a defective double-cubane metal core connected by μ₃-alkoxo bridges. Complexes consist of two bis-μ-alkoxo bridged Mn^IIINi^II heteronuclear units making a dimer-of-dimers structure. The double-cubane cores are significantly distorted due to an effect of syn–syn mode acetato or nitrato bridges. Magnetic measurements indicate that weak antiferromagnetic interactions (Mn-Ni = −0.66 ~ −4.19 cm^–1) are dominant in the hetero-metal core.

1. Introduction

Molecular magnetism of discrete complexes with a cubane-based metal core structure have been extensively studied over the past few decades [1,2,3,4]. The key focal points of the investigation on such molecular magnetism are the following: (i) understanding of the basic correlation of spin coupling and molecular structure based on the analyses of the concerned orbitals [5]; (ii) application of the correlations in polynuclear systems that have several exchange pathways [6,7,8]; (iii) development of magnetic materials that behave like single molecule magnets (SMMs) [1,2,3,4,9]. In the case of tetranuclear complexes, two types of cubane-based structures are well known: cubane and double-cubane structures. The cubane core structures are commonly obtained with homo-metal complexes, whereas double-cubane structures are often formed by hetero-metal or mixed-valence complexes. This is due to the difference of the coordination environments between the metal ions located on the diagonal positions and those on the central positions, in the double-cubane structure. The hetero-metal complexes that form such double-cubane structures are a very interesting research target because they can be expected the synergy of hetero-metal ions, which may show unusual properties, such as selective catalytic ability or a ferromagnetic ground state. The ONO-tridentate ligands are well-known as good ligands for assisting the formation of cubane-like structures, as a result of the ability of their terminal oxygen atoms to act as good bridging groups [10,11]. The tridentate Schiff base ligands obtained by a simple dehydration-condensation of salicylaldehyde and an aminoalcohol or aminophenol are useful for the preparation of cubane-based complexes [12,13]. In our previous research, we have reported that the Schiff base tridentate ligand, N-(2-hydroxymethylphenyl) salicylideneimine (H₂L1-H) [14] and its derivatives, can be used to produce cubane-like tetranuclear complexes via simple one-pot reactions [15,16,17]. As expected, these ligands gave hetero-metal or mixed-valence complexes characterized by a double-cubane metal core structure with a large high-spin ground state; such complexes included, for instance, Mn^III₂Ni^II₂ (S_T = 6) and Co^III₂Co^II₂ (S_T = 3) systems [16,17]. During our research work aimed at obtaining hetero-metal complexes, we found that the similar Schiff-base ligand N-(2-hydroxymethylphenyl)-5,6-benzosalicylideneimine (H₂L) produced novel Mn^IIINi^II complexes comprising syn–syn bridging co-ligands as shown in Figure 1. We report here the syntheses, structures and magnetic properties of tetranuclear hetero-metal Mn^III₂Ni^II₂ complexes.

2. Results and Discussion

2.1. Synthesis and Characterization of [Mn₂Ni₂(L)₄(OAc)₂] ·H₂O (1) and [Mn₂Ni₂(L)₄(NO₃)₂]·2H₂O (2)

Analytical data of the obtained complexes 1 and 2 gave 1:1:2:1 ratio of Mn, Ni, (L)²⁻ ligand, and acetate/nitrate. In the infrared spectra (Figure S1 and Figure S2), these complexes show intense characteristic peaks at 1615 and 1619 cm⁻¹. These peaks can be assigned ν(C=N) vibration which shifted from free ligand H₂L (1620 cm⁻¹). A symmetric vibration (ν_sym) and an asymmetric vibration (ν_asym) of the syn–syn bridging acetate were observed at 1456 and 1582 cm^–1 in the spectrum of 1. For 2, corresponding two signals of bridging nitrate were observed at 1456 and 1575 cm^–1.

2.2. Single Crystal X-ray Diffraction

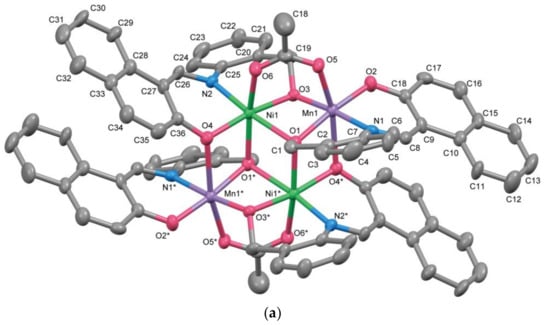

Single-crystal X-ray diffraction measurements for 1 and 2 were performed at 293 K. The crystallographic data are summarized in Table S1. A molecular structure of 1 is shown in Figure 2 with atom numbering scheme. Additionally, selected bond distances and angles are summarized in

Table 1. Selected bond lengths and angles of 1, 2,A, and 2B.

Bond/Angle	1	2A	2B
	(Å)/(°)	(Å)/(°)	(Å)/(°)
Mn1−O1	1.943(7)	1.956(5)	1.938(5)
Mn1−O2	1.882(8)	1.874(5)	1.871(5)
Mn1−O3	1.907(6)	1.897(6)	1.924(7)
Mn1−O4 *	2.410(7)	2.331(6)	2.250(6)
Mn1−O5	2.135(7)	2.244(6)	2.261(6)
Mn1−N1	1.981(9)	1.980(7)	1.985(8)
Ni1−O1	2.141(7)	2.109(6)	2.117(6)
Ni1−O1 *	2.127(6)	2.107(6)	2.111(5)
Ni1−O3 *	2.005(7)	1.999(5)	1.987(5)
Ni1−O4 *	1.986(7)	1.977(5)	1.976(5)
Ni1−O6 *	2.077(7)	2.129(6)	2.156(5)
Ni1−N2 *	2.028(8)	2.012(7)	1.996(8)
Mn1···Ni1	2.928(2)	2.939(2)	2.952(2)
Mn1···Ni1 *	3.255(2)	3.193(2)	3.182(2)
Mn1···Mn1 *	5.268(3)	5.248(3)	5.244(3)
Ni1···Ni1 *	3.253(2)	3.183(3)	3.192(2)
Mn1−O1−Ni1	91.5(3)	92.5(2)	93.3(2)
Mn1−O1−Ni1 *	106.1(3)	103.6(2)	103.5(2)
Ni1−O1−Ni1 *	99.3(3)	98.0(2)	98.0(2)
Mn1−O3−Ni1	96.9(3)	97.9(3)	98.0(3)
Ni1−O4−Mn1 *	95.0(3)	95.3(2)	97.5(2)

Symmetry code (*): −x + 1, −y, −z (1); −x + 2, −y, −z + 1 (2A); –x + 2, −y + 1, −z + 2 (2B).

and Table S2.

The obtained crystals of 1 were unstable and efflorescence due to the large voids with highly volatile dichloromethane molecules. Many solvent systems were tested for recrystallization, but our attempts were in vain. All measurements were terminated by the cracking of the single crystals. Though the analytical results are insufficient to make a crystallographically accurate discussion, they clearly reveal the molecular structures to confirm the geometries of metal ions. As shown in Figure 2a, 1 has a tetranuclear structure with an inversion center. The final refined structural model of 1 is characterized by an asymmetric unit containing a Mn(III) ion and a Ni(II) ion, two (L)²⁻ ligands, and one acetate anion. The Mn and Ni ions in the asymmetric unit of 1 rest on a dinuclear plane defined by a [MnNi(L)₂] unit with bis-μ-alkoxo bridges from two deprotonated tridentate (L)²⁻ ligands. Furthermore, an acetate anion is also present that act as syn–syn bridging ligand coordinating the hetero-metals (Mn and Ni) at their axial positions. The symmetrically-related dinuclear units are linked to each other by two μ₃-alkoxo (O1 and O1*) and two μ₂-phenoxo (O4 and O4*) bridging atoms. Consequently, the tetranuclear hetero-metal core in 1 is best represented as a dimer-of-dimers. The metal atoms arrangement with bridging oxygen atoms in 1 can be viewed as the distorted defective double-cubane core structure. The valence states of the metal ions are confirmed by charge balance considerations, bond valence sum (BVS) calculations [18], and observations of Jahn-Teller elongations. The calculated BVS values are 3.25 and 2.22 for the Mn(III) and Ni(II) ions, respectively [19]. The coordination environment of Mn1 is a distorted octahedral geometry in which the equatorial positions are occupied by three oxygen atoms (O1, O2, and O3) and one nitrogen (N1) atom, whereas the axial positions are occupied by two oxygen atoms (O4* and O5). The bond distances in the equatorial plane of Mn1 are in 1.882(8)–1.981(9) Å range. The axial bond distances [2.135(7) and 2.410(7) Å] are longer than their counterparts in the equatorial plane, due to Jahn-Teller distortions that are typical for Mn(III) ions. The coordination geometry of Ni1 is also octahedral. The combination of atoms coordinating Ni1 is the same as that coordinating Mn1. However, the deviation of coordination bond distances [1.986(7)–2.141(7) Å] of Ni1 is within 0.155 Å, a substantially smaller value than in the case of Mn1. These distances are in the normal ranges for Mn(III) and Ni(II) complexes with Schiff-base ligands [16,20]. The syn–syn bridging acetate forces the structure to be folded with the value of the bent angle of the Mn(μ-O₂)Ni bridging fragment being equal to 15.8(2)°. The intramolecular metal-to-metal distances between Mn1···Ni1, Mn1···Ni1*, Ni1···Ni1*, and Mn1···Mn1* are 2.928(2), 3.255(2), 3.253(2), and 5.286(3) Å, respectively. The bond angles subtended by the μ₃-alkoxo are 91.5(3)° for Mn1–O1–Ni1, 106.1(3)° for Mn1–O1–Ni1*, and 99.3(3)° for Ni1−O1−Ni1*. The short Mn1···Ni1 distance and narrow Mn1−O1−Ni1 angle is a common feature of syn–syn carboxylato bridging dinuclear structures [21]. The interdimer Mn1···Ni1* is much longer than the intradimer Mn1···Ni1 counterpart; additionally the bond angles Mn1−O1−Ni1* and Ni1−O1−Ni1* are much larger than 90°. Hence, the defective double-cubane core of 1 is highly distorted in the rhombic direction. Notably, the distorted core structure might be stabilized by intramolecular π−π stacking interactions as shown in Figure 2b [C9···C36* = 3.197(15), C11···C28* = 3.565(18), C13···C32* = 3.88(2), and C15···C34* = 3.621(17) Å, (*) −x + 1, −y, −z] between naphthyl groups belonging to the two asymmetric dimer units.

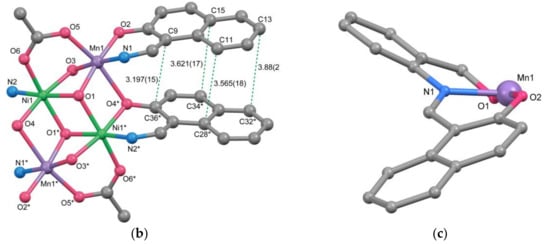

The molecular structure of 1 is resembles quite closely the structure of [Mn₂Ni₂(L1-H)₄(OAc)₂] [H₂L1-H = N-(2-hydroxymethylphenyl)salicylideneimine] [22]. In our previously reported complexes with L1-H ligand, the planarity of the ligand was considerably low because of the strain due to two adjacent 6-membered chelate rings [15,16,17,22]. For the present complex 1, the deprotonated ligand (L)²⁻ is also distorted at the imino group connecting the benzyl and naphthyl groups as shown in Figure 2c. The torsion angle of the C=N bond (C7−N1−C8−C9 ) is 164.6(8)°. The C−N bond of the aminobenzyl moiety is twisted, giving rise to a large dihedral angle [50.1(3)°] between the phenyl and naphthyl groups. Due to such distortions and stacking interactions, the complex assumes a chair conformation like [Mn₂Ni₂(L1-H)₄(OAc)₂]. The crystal packing diagram of 1 is shown in Figure S3. Notably, the structural features of the complex indicate that there is no remarkable intermolecular interaction.

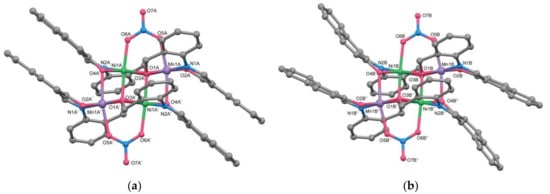

The crystal structure of 2 comprises two crystallographically independent molecules. These two molecules (2A and 2B) are shown in Figure 3, and selected bond distances and angles are summarized in Table 1. Each molecule in 2 has a similar tetranuclear structure with an inversion center. These complexes are comprised of two Mn and Ni ions, four (L)²⁻ ligands, and two nitrate anions (instead of the acetate anions present in 1). The difference between 2A and 2B is the intramolecular π−π stacking between the naphthyl groups of H₂L in each molecule. The molecular structure of 2A is almost the same as that of 1. The small dihedral angle 5.0(2)° of naphthyl groups suggests the existence of a π−π stacking interaction in 2A. The C···C distance between stacking naphthyl groups are C9A···C36A’ = 3.145(12), C11A···C28A’ = 3.249(12), C13A···C32A’ = 3.457(13), and C15A···C34A’ = 3.367(12) Å [(’) −x + 2, −y, −z + 1], respectively. On the other hand, the corresponding dihedral angle in 2B is very large [24.2(2)°] and the C···C distance between naphthyl groups are too distant [C9B···C36B’’ = 3.277(11), C11B···C28B’’ = 3.969(12), C13B···C32B’’ = 4.871(13), and C15B···C34B’’ = 3.898(12) Å; (’’) −x + 2, −y + 1, −z + 2]. The reason for this difference in π−π stacking between the naphthyl groups of 2A and those of 2B is assumed to have to do with crystal packing interactions. Figure 4 shows the crystal packing view of 2 along the a-axis. The oxygen atom O7A of bridging nitrate in 2A slightly overlapped at the gap between the naphthyl groups of 2B. Due to this steric hindrance, it seems that the π−π stacking of the naphthyl groups was inhibited in 2B. The crystal packing diagram for 2 is reported in Figure S4. As in the case of complex 1, there is no evidence of a remarkable intermolecular interaction.

Similarly to 1, in 2 the metal ions have octahedral coordination geometries. The axial bond distances between the nitrate oxygens and the Mn(III) ions, 2.244(6) Å for Mn1A−O5A and 2.261(6) Å for Mn1B−O5B, are ~0.1 Å longer than their counterparts measured in 1. This evidence suggests that the magnetic exchange interaction between Mn(III) and Ni(II) in 2 might be smaller than corresponding parameter for 1. Hetero-metal complexes with a syn–syn nitrato bridge are rare, with only a few examples reported in the literature [23]. To the best of our knowledge, complex 2 is the first example of a hetero-metal Mn^IIINi^II complex bridged by syn–syn nitrate anions. The coordination environment of Ni(II) in 2 is almost the same as that of the same metal ion in 1, and the bond distances around Ni(II) are in the 1.976(5)–2.156(5) Å range. The average intramolecular metal-to-metal distances within 2A and 2B are 2.946(2) Å for Mn···Ni, 3.188(2) Å for Mn···Ni*, 3.188(3) Å for Ni···Ni^*, and 5.246(3) Å for Mn···Mn*, respectively. The average bond angles around the μ₃-alkoxo group are 92.9(2)° for Mn−O−Ni, 103.6(2)° for Mn−O−Ni*, and 98.0(2)° for Ni−O−Ni*. Given the substantial Mn···Ni* distance and the wide bond angles around the μ₃-O center, the double-cubane core of 2 is distorted, but the distortion is rather small compared to the case of 1.

2.3. Magnetic Property

Magnetic susceptibility measurements for 1 and 2 were performed with a SQUID (superconducting quantum interference device) magnetometer within the 4.5–300 K temperature range for 1 and the 2–300 K range for 2. Figure 5 shows the temperature dependence of χ_m and χ_mT vs. T plots of 1 (a) and 2 (b).

The χ_mT values at 300 K of 1 and 2 are, respectively, 7.98 and 7.55 cm³ mol⁻¹ K, which are slightly smaller than the spin-only value of 8.00 cm³ mol^–1 K expected for magnetically uncoupled two high-spin Mn(III) (S = 2) and two Ni(II) (S =1) system. With decreasing temperature, the χ_mT values for 1 gradually decrease to reach 2.71 cm³ mol^–1 K at 4.5 K, which suggests an S = 2 ground state. This magnetic behavior closely resembles those previously reported for tetranuclear hetero-metal Mn^III₂Ni^II₂ complexes with bis-μ-alkoxo and syn–syn acetato triple bridges [24]. The χ_mT values for 2 are virtually constant from 300 K to 80 K; they then start decreasing as the temperature decreases below 80 K to reach 2.26 cm³ mol⁻¹ K at 2.0 K. These magnetic behaviors indicate that for both 1 and 2 antiferromagnetic interactions are dominant in the hetero-metal tetranuclear cores. The magnetic analyses for 1 and 2 were simulated using the PHI program [25]. The Hamiltonian is written as:

$$\begin{gathered} \widehat{H}=-2J_{MnNi}\left({\widehat{S}}_1{\widehat{S}}_2+{\widehat{S}}_3{\widehat{S}}_4\right)-2J_{MnN{i}^{*}}\left({\widehat{S}}_1{\widehat{S}}_3+{\widehat{S}}_2{\widehat{S}}_4\right)-2J_{MnM{n}^{*}}{\widehat{S}}_1{\widehat{S}}_4-2J_{NiN{i}^{*}}{\widehat{S}}_2{\widehat{S}}_3 \\ +D_{Mn}\left({\widehat{S}}_1{}^2+{\widehat{S}}_4{}^2\right)+D_{Ni}\left({\widehat{S}}_2{}^2+{\widehat{S}}_3{}^2\right) \end{gathered}$$

(1)

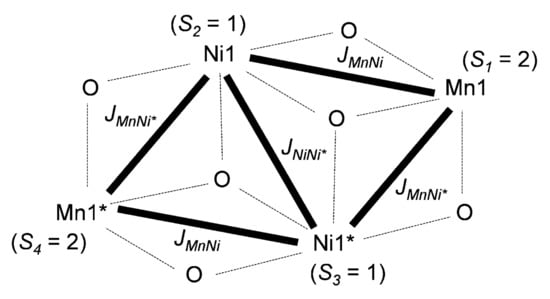

where J_MnNi is the exchange integral between the Mn and Ni ions in the asymmetric unit bridged by acetate or nitrate, whereas J_MnNi*, J_NiNi*, and J_MnMn* are the exchange integrals between the metal ions located in the asymmetric units as defined in Scheme 1.

In complexes 1 and 2, the interaction J_MnMn* can be ignored because the distance is too large to make a spin exchange [16,24]. The obtained J, g, and D parameters are the following: J_MnNi = −4.19 cm⁻¹, J_MnNi* = −1.36 cm⁻¹, J_NiNi* = −4.03 cm⁻¹, g_Mn = 2.14, g_Ni = 2.29, D_Mn = –0.22 cm⁻¹, and D_Ni = 0.54 cm⁻¹ for 1; J_MnNi = −0.82 cm⁻¹, J_MnNi* = −0.66 cm⁻¹, J_NiNi* = 0.79 cm⁻¹, g_Mn = 1.93, g_Ni = 2.01, D_Mn = –0.70 cm⁻¹, and D_Ni = 0.37 cm⁻¹ for 2. These results demonstrate that the magnetic interactions between Mn(III) and Ni(II) are antiferromagnetic in both complexes. In both cases, the absolute value |J_MnNi| is larger than |J_MnNi*|. The magnetic paths between Mn(III) and Ni(II) ions go through μ₂-, μ₃-alkoxo, and syn–syn acetato or nitrato bridges. Among them, the antiferromagnetic pathway through acetato bridges might be dominant. It is thought that the interaction J_MnNi influence most strongly the magnetic behavior of the complex. The interaction J_MnNi of 1 is much larger than its counterpart for 2. As mentioned in Section 2.2, one of the reasons for this observation is that the metal–nitrate bonds in 2 are longer than the metal–acetate bonds in 1. Results thus suggest that the acetato bridge is more effective than the nitrato bridge in assisting local spin-exchange interaction. The interactions J_MnNi*, are relatively small due to the large bridging angles. The value of the metal‒O‒metal bridging angle is known to be one of the important parameters determining the magnitude of magnetic exchange interactions through phenoxo/hydroxo/alkoxo bridges. Typically, the cross-over angle in bridging 3d–3d systems lie in the 95–98° range [26,27]. The Mn−O−Ni* angles in 1 and 2 are large enough to assume the existence of antiferromagnetic interactions. For the interaction J_NiNi*, the cross-over angle in dinickel(II) systems is 97.5° [28]. The Ni−O−Ni* angles in 1, 2a, and 2b are 99.6(3),98.0(2), and 98.0(2)°, respectively. The angle for 1 is larger than the cross-over angle known to afford an antiferromagnetic interaction. However, those for 2 are close to the mentioned value of 97.5°, leading to a weak ferromagnetic interaction. Hence, the difference in J_NiNi* between 1 and 2 can be explained by the values of the Ni−O−Ni* angles.

The J values and μ₃-O bridging angles of structurally related tetranuclear Mn^III₂Ni^II₂ complexes are summarized in

Table 2. Best fitting magnetic parameters and μ₃-O bridging angles of 1, 2, and related complexes.

Complex	JMnNi (cm−1)	JMnNi* (cm−1)	JNiNi* (cm−1)	Mn−O−Ni (°)	Mn−O−Ni*(°)	Ni−O−Ni*(°)	References
Type-I: without syn–syn bridging ligand
A	4.5	4.3	–7.9	97.3(2)	95.4(2)	101.6(2)	[12]
B	3.62	= JMnNi	–7.81	98.51(14)	99.95(14)	97.85(14)	[24]
C	0.75	= JMnNi	10	96.2(2)	99.3(2)	96.1(2)	[16]
Type-II: with syn–syn bridging carboxylate
D	−1.80	= JMnNi	–3.41	94.16(8)	103.61(8)	98.19(8)	[24]
E	–11.85	–6.44	0.34	95.7(1)	105.1(1)	100.4 av	[29]
1	−4.19	−1.36	−4.04	91.5(3)	106.1(3)	99.3(3)	This work
Type-III: with syn–syn bridging nitrate
2	−0.82	−0.66	0.79	92.9(2) av	103.5(2) av	98.0(2) av	This work

A = [Mn^III₂Ni^II₂Cl₂(salpa)₂] (H₂salpa: N-(2-hydroxybenzyl)-3-amino-1-propanol); B = [Mn^III₂Ni^II₂(sap)₂(sal)₂(μ₃-OMe)₂(NO₃)₂(MeOH)₂] (H₂sap: N-(3-hydroxypropyl)salicylideneimine, Hsal: salicyl aldehyde); C = [Mn^III₂Ni^II₂Cl₂(L1)₄(H₂O)₂] (H₂L1: N-(2-hydroxy-methylphenyl)salicylideneimine); D = [Mn^III₂Ni^II₂(sap)₂(sal)₂(μ₃-OMe)₂(OAc)₂]; E = [Mn^III₂Ni^II₂(HL)₂L₂(OAc)₂(CH₃OH)₂] (H₂L: N-(2-hydroxy-5-fluro-methylphenyl)-3-imine-2-propanol); av = an average angle in the asymmetric unit.

. Whether the overall magnetic behavior is ferromagnetic or antiferromagnetic is strongly influenced by the presence of syn–syn bridging ligands. The reported complexes without syn–syn bridging ligands (Type-I in Table 2) show totally ferromagnetic behavior, and in these complexes the Mn−O−Ni angles are in the 96–98° range. Those angles are nearly equal in size or smaller than the cross-over angle in phenoxo/alkoxo-bridged 3d–3d systems. In the case of complexes with syn–syn carboxylato bridges (Type-II), the Mn−O−Ni angles are much smaller than those of Type-I complexes. However, the bridging carboxylates provide a good magnetic exchange pathway. In addition, those complexes are characterized by a distortion of the double-cubane metal core that causes the large Mn−O−Ni* angles. These factors result in complexes 1 and 2 displaying antiferromagnetic properties. Finally, complex 2 is the first example of a Type-III complex, which is characterized by the presence of syn–syn nitrato bridges. Based on evidence gathered on other hetero-metal complexes [23], the magnetic pathway through the nitrate ligand is considered to have a small contribution to the magnetic exchange due to the weak coordination.

3. Materials and Methods

3.1. General

All chemicals were purchased and used as received, unless otherwise noted. Methanol was purified by distillation over magnesium turnings. The ligand H₂L was obtained by the literature method [13]. Elemental analyses for C, H, and N were obtained at the Elemental Analysis Service Center, Kyushu University. Analyses of Mn and Ni were made on a Shimadzu ICPS-8100 (Shimadzu Co. Ltd., Kyoto, Japan) twin sequential high-frequency plasma emission spectrometer. Fluorescent X-ray analyses were obtained on a Shimadzu Rayny EDX-700HS energy dispersive X-ray spectrometer (Shimadzu Co. Ltd., Kyoto, Japan). Infrared spectra were recorded on a Bruker VERTEX70-S FT-IR spectrometer on ATR (Attenuated Total Reflection) method at the Instrumental Analysis Center, Saga University. Reflection spectra were recorded on a PERKIN ELMER Lambda19 UV/VIS/NIR Spectrometer (PerkinElmer, Inc., Waltham, MA, USA) and Ocean Optics USB2000+ fiber optic spectrometer (Ocean Optics, Inc., Dunedin, FL, USA). The magnetic susceptibilities were measured on a Quantum Design MPMS-XL5R SQUID susceptometer (Quantum Design, Inc., San Diego, CA, USA) under an applied magnetic field of 0.5 T in the temperature range 2–300 K. The susceptibilities were corrected for the diamagnetism of the constituent atoms using Pascal’s constant [30].

3.2. Single Crystal X-ray Diffraction

X-ray diffraction measurements were made on a Rigaku AFC5S automated four-circle diffractometer (Rigaku Corp, Tokyo, Japan) for 1 and a Rigaku Vari-Max Saturn CCD 724 diffractometer (Rigaku Corp, Tokyo, Japan) for 2 with graphite monochromated Mo Ka radiation (λ = 0.71069 Å). Data were collected and processed using CrystalClear [31]. An empirical absorption correction was applied. The data were corrected for Lorentz and polarization effects. The crystal data and experimental parameters are summarized in Table S1. The structures were solved by direct methods (SIR92) and expanded using Fourier techniques [32,33]. The nonhydrogen atoms were refined anisotropically. All the hydrogen atoms, except those of the water molecule in 1 as crystal solvents which were not included in the structural models because their positions could not be determined precisely, were located on the calculated positions, and refined using the riding model. The final cycle of full-matrix least-squares refinement on F² using SHELXL-2016 [34] was based on observed reflections and variable parameters, and converged with unweighted and weighted agreement factors of R and R_w. All calculations were performed using the CrystalStructure [35] crystallographic software package of Molecular Structure Corporation except for refinement, which was performed using SHELXL-2016.

3.3. Synthesis of [Mn₂Ni₂(L)₄(OAc)₂] ·H₂O (1)

A methanol solution (20 mL) of Mn(OAc)₃·2H₂O (0.133 g, 0.5 mmol) and H₂L (0.278 g, 1.0 mmol) was added Et₃N (0.210 g, 2.0 mmol) drop-by-drop with stirring for 60 min. To the resulted solution was added a solution of NiCl₂·6H₂O (0.066 g, 0.5 mmol) in 5 mL methanol. After 60 min, brown precipitate was obtained. The brown single crystals were obtained by recrystallization of CH₂Cl₂ /toluene mixed solvent (9:1, 10 mL). [Mn₂Ni₂(L)₄(OAc)₂]·H₂O; Yield: 17.8%. Anal. Calc. for C₇₆H₆₀Mn₂N₄Ni₂O₁₃: C, 62.30; H, 4.13; N, 3.83; Mn, 7.50; Ni, 8.01. Found: C, 62.02; H, 4.07; N, 3.85; Mn, 7.60; Ni, 7.92%. IR data [$\tilde{\nu }$/cm^–1]: 3060 (w), 2857 (w), 1615 (m), 1603 (m), 1572 (m) 1531 (s) 1376 (s), 1025 (m), 860 (s), 779 (s), 710 (m) and 566 (s). UV–VIS [$\tilde{\nu }$/10³ cm^–1]: 7.0^sh, 12^sh, 13^sh, 16^sh, 19^sh, 22^sh (sh = shoulder).

3.4. Synthesis of [Mn₂Ni₂(L)₄(NO₃)₂]⋅2H₂O (2)

A methanol solution (20 mL) of Mn(NO₃)₂·6H₂O (0.080 g, 0.278 mmol) and H₂L (0.278 g, 1.0 mmol) was added Et₃N (0.101g, 1.00 mmol) drop-by-drop and refluxed for two hours. The mixture was added a methanol solution (5 mL) of Ni(NO₃)₂·6H₂O (0.073 g, 0.250 mmol) further refluxed for two hours. The resulting dark brown solution was evaporated to dryness under reduced pressure. The obtained oily substance was dissolved in 10 mL of CH₂Cl₂ including small amount of Na₂SO₄ with stirring. The dehydrated solution was filtered and left at room temperature. Dark brown crystals suitable for X-ray crystallography were obtained after two weeks. [Mn₂Ni₂(L)₄(NO₃)₂]·2H₂O; Yield: 67.2%. Anal. Calc. for C₇₂H₅₆Mn₂N₆Ni₂O₁₆: C, 58.10; H, 3.79; N, 5.65; Mn, 7.38; Ni, 7.89. Found: C, 57.76; H, 3.61; N, 5.65; Mn, 7.02; Ni, 7.93%. IR data [$\tilde{\nu }$/cm^–1]: 3056 (w), 2926 (w), 2852 (w), 1619 (m), 1601 (m), 1575 (m), 1540 (s), 1436 (m), 1387 (s), 1361 (w), 1284 (m), 1030 (m), 829 (s), 758 (s), 654 (w) and 577 (m). UV-VIS [$\tilde{\nu }$/10³ cm^–1]: 12^sh, 13^sh, 16^sh, 19^sh, 22^sh.

5. Conclusions

New tetranuclear hetero-metal Mn^III₂Ni^II₂ complexes, [Mn₂Ni₂(L)₄(OAc)₂] and [Mn₂Ni₂(L)₄(NO₃)₂], were prepared by the simple one-pot reaction of metal sources with Schiff base ligand. Single crystal X-ray analyses reveal that these complexes adopt defective double-cubane metal cores with syn–syn bridging acetate or nitrate. The temperature dependent magnetic susceptibility measurements showed that both complexes have antiferromagnetic behaviors and S = 2 ground state. The obtained magnetic parameters indicate that all magnetic pathway in the hetero-metal core are weak antiferromagnetic.
