Integral Equations of the First Kind for Calculating Electro- and Magnetostatic Fields Perturbed by Conductors and Ferro-Magnets

Abstract

The aim of the study was to develop a methodology for calculating and optimizing devices for the magnetic exploration of fossils containing materials with a high magnetic permeability. The proposed technique is based on the calculation of electrostatic fields perturbed by conducting bodies and of magnetic fields perturbed by ferromagnets with a high magnetic permeability. It uses an integral equation of the first kind. This technique is preferable to the technique consisting in the use of an integral equation of the second kind, since in the situation under consideration, the latter does not have a unique solution and requires transformation. Prospects for the development of this area allow one to bring geophysical services to the service market on a new scientific and technical production level; reduce the environmental burden on nature by replacing magnetometric measurements with energy-saving, environmentally safe technology; and ensure the export potential of magnetometric equipment.

1. Introduction

The aim of the study was to develop a methodology for calculating and optimizing devices for the magnetic exploration of fossils containing materials with a high magnetic permeability.

Magnetic prospecting is based on the differentiation of rocks and ores according to their physical properties. The main magnetic characteristics of any medium are magnetic susceptibility and magnetization. Magnetic susceptibility is characterized by the ability of minerals and rocks to be magnetized under the action of an external magnetic field, and magnetization is the magnetic moment per unit volume of the rock. The magnetic properties of minerals are determined by the chemical composition and structure of the crystal lattice, and the magnetic properties of rocks depend on their mineral composition, texture and structure, temperature, and pressure [1,2,3].

A modern magnetic-prospecting measuring device consists of a number of mandatory components: a sensor, an amplifier, a signal meter, and an analog-to-digital converter (ADC). However, the most important component is still the sensor. The sensor is a primary converter, an element of a measuring, signaling, regulating or controlling device of a system that converts a controlled value (pressure, temperature, frequency, speed, displacement, voltage, electric current, etc.) into a signal that is convenient for measurement, transmission, conversion, storage, and registration, as well as for their impact on managed processes [4,5,6]. Magnetometers differ in their principle of operation from magnetically sensitive sensors, which determine which field components the magnetometer is able to measure. The classification of magnetometers according to the principle of operation is given in

Table 1. Classification of magnetometers according to the principle of operation.

Magnetometer Type	Magnetic Sensitive Element	Measured Components
Optical-mechanical	Permanent magnet	Z, ΔZ
Proton	Hydrogen liquid	T, ΔT, ∂T ∂x, ∂T ∂x
Overhauser	Hydrogen-containing liquid with the addition of free radicals with unpaired electrons
Quantum	Alkali metal vapors
Ferroprobe	Ferrosonde	X, Y, Z, ΔX, ΔY, ΔZ
Cryogenic	Superconducting quantum interferometer	T, ΔT

. T is the total vector of the Earth’s magnetic field (EMF), and the physical essence of T is magnetic induction, where Z is the vertical component of the total EMF vector, H is its horizontal component, X is its northern component, and Y is its eastern component. In a physical meaning, each of these components is an induction [7,8,9,10,11]. Devices with a different principle of operation have certain advantages and shortcomings.

A magnetic-field sensitivity G is one of the crucial parameters of the magnetometer. At the same time, it is almost impossible to formalize this parameter, to make it the same for all magnetometers, and this is not only the case because magnetometers differ in their principle of operation but also because they do so in the design of the transducers and the signal-processing function. For magnetometers, sensitivity to a magnetic field is usually denoted by the value of the magnetic-field induction, which the device is able to register. Usually, the sensitivity G is measured in nanotesla.

The main positive and negative qualities of different types of magnetometers are given in the

Table 2. Comparative characteristics of various types of magnetometers.

Magnetometer Type	Advantages	Disadvantages
Optical-mechanical	Able to measure Z, X, Y and H components.	Zero point creep, presence of azimuth correction, temperature drift, low measurement speed, low accuracy.
Proton	This magnetometer type is impervious to shaking and vibrations, measurements are practically independent of changes in external conditions (temperature, humidity, pressure), there is no need for precise orientation of the sensor, there is no need to stake out reference networks, zero-point shift is negligible.	Instability and signal loss at high magnetic field gradients.
Overhauser	All the benefits of proton magnetometers, plus reduced measurement time, lower uncertainty due to increased signal-to-noise ratio, small sensor size.	Short lifetime of the working substance, the appearance of a systematic error, due to the influence of the microwave unit.
Quantum	High measurement speed, high resolution.	The need for orientation of the sensor is present, but with small values: orientation and azimuth errors, temperature drift. Sensitivity to mechanical influences (shock, vibration).
Ferroprobe	Able to measure Z, X, Y and H components with high accuracy.	The bulkiness of the equipment, the need to orient the sensor.
Cryogenic	High accuracy.	The need to maintain very low temperatures for a superconductor. There are no mass-produced devices.

.

The processing of magnetic survey data is aimed at eliminating various kinds of “interference” from the primary data, for example, variations, the normal gradient of the Earth’s magnetic field, and others [12,13,14,15]. The result of processing should be maps and maps of graphs of the anomalous magnetic field (Figure 1).

The goal of this research was to develop a method for the magnetic prospecting of, predominantly, fossils containing materials with a high magnetic permeability.

Materials with a high magnetic permeability exist; for example, permalloys belong to them. Pure iron also has a fairly high magnetic permeability. The infinite magnetic permeability of a material is, of course, a mathematical abstraction. However, in the absence of the phenomenon of magnetic saturation in a ferromagnet under certain conditions of the problem, if the magnetic permeability of the material of this ferromagnet is sufficiently large and is, for example, 1000 µ₀ or higher, then the field perturbed by such a material will practically not differ in any way from the field perturbed by a ferromagnet with an infinite magnetic permeability [16,17,18,19].

Problems of electrostatics and magnetostatics are considered and solved. The basic integral equations of electro-magnetostatics are reduced to linear algebraic equations, which, in particular, can be solved using a numeric computing environment. The equations for magnetic charges are similar to the equations for electric charges, so they have the same form in this approximation. Since a system of linear equations of a sufficiently large order is used to solve integral equations, it is advisable to use a numeric computing environment to solve them [20,21,22,23].

In the introduction of this study, we have tried to provide:

-

a brief overview of the comparative characteristics of various types of magnetometers;

-

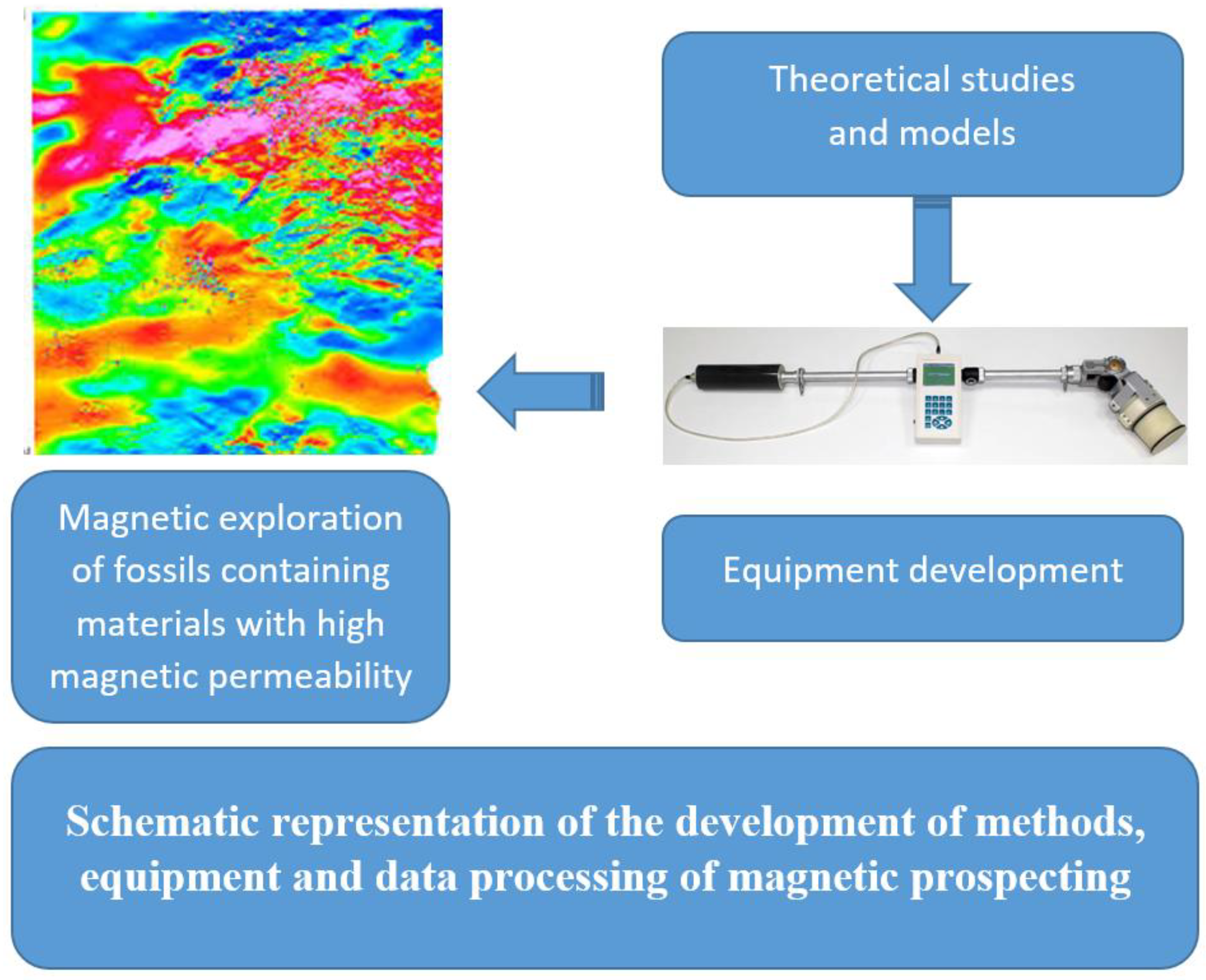

a schematic representation of the development of methods, equipment, and data processing of magnetic prospecting;

-

the goal of this research as the development of a method for magnetic prospecting of, predominantly, fossils containing materials with a high magnetic permeability.

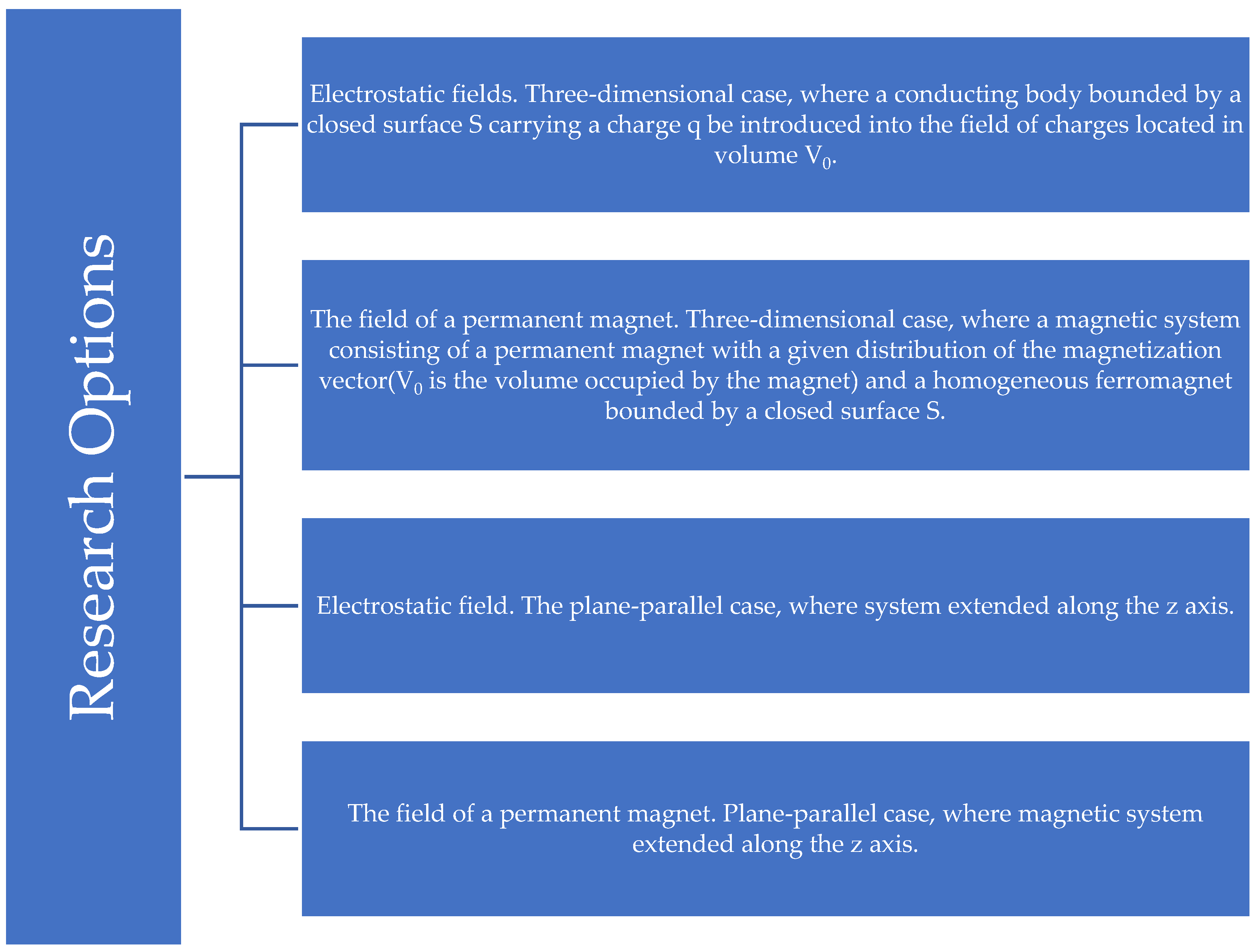

In this study, the following options are considered (Figure 2):

(A)

Electrostatic fields. Three-dimensional case, where a conducting body bounded by a closed surface S carrying a charge q is introduced into the field of charges located in volume V₀.

(B)

The field of a permanent magnet. Three-dimensional case, where a magnetic system consists of a permanent magnet with a given distribution of the magnetization vector (V₀ is the volume occupied by the magnet) and a homogeneous ferromagnet bounded by a closed surface S.

(C)

Electrostatic field. The plane-parallel case, where the system is extended along the z axis.

(D)

The field of a permanent magnet. Plane-parallel case, where the magnetic system is extended along the z axis.

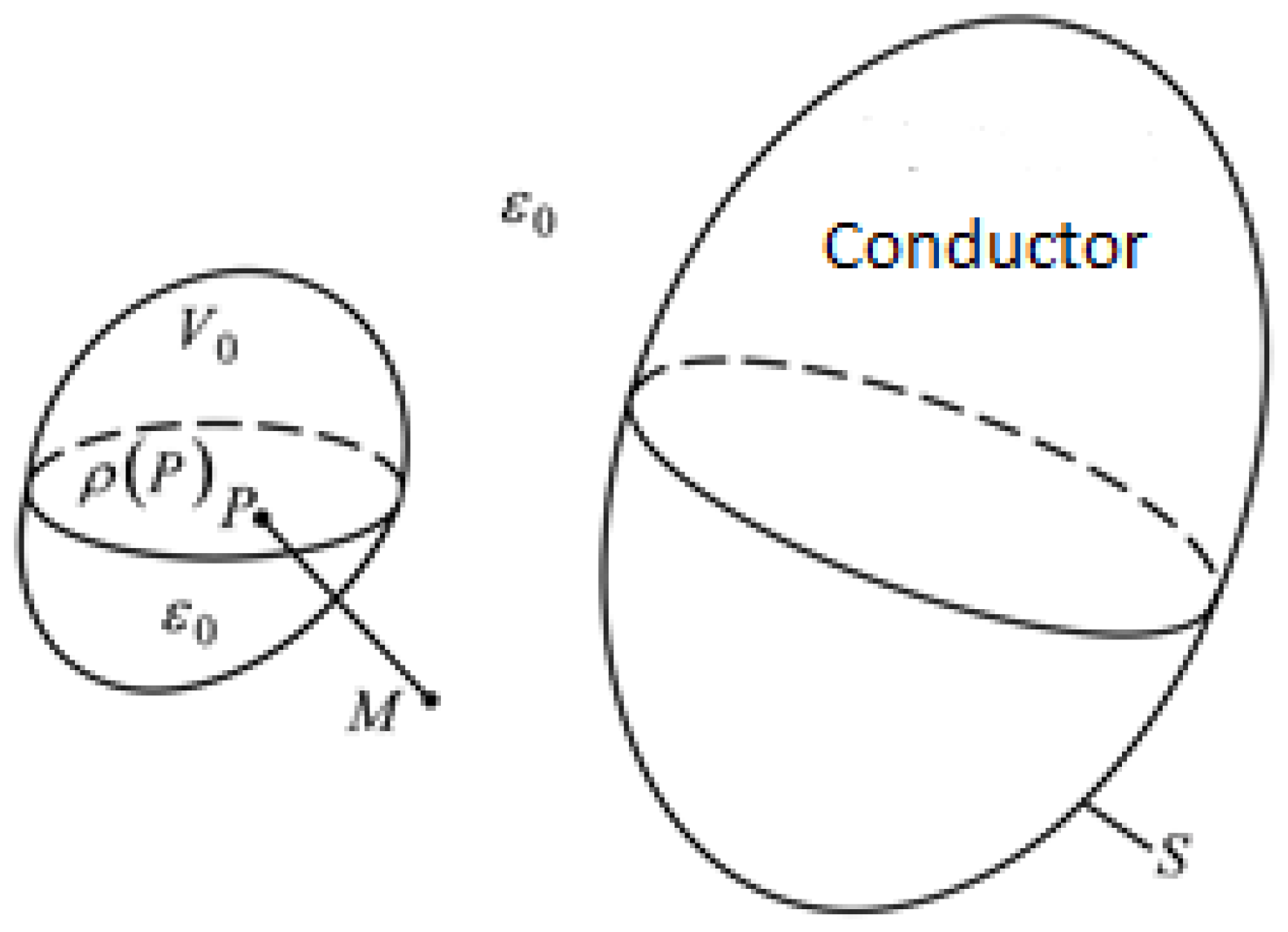

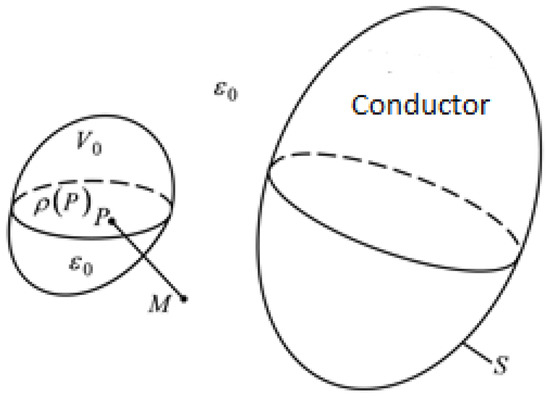

Electrostatic fields. Three-dimensional case. Let a conducting body bounded by a closed surface S carrying a charge q be introduced into the field of charges located in volume V₀ (Figure 3) [24,25,26].

It is required that one find the electric field $\overrightarrow{E}$ outside S (inside S field $\overrightarrow{E}$ = 0).

Take the point of the zero value of the potential at infinity. Then, for the potential at any point M, we can write the expression:

$$\phi \left(M\right)=\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{V_0}{\int }\frac{\rho \left(P\right)}{r_{PM}}d{V}_P}+\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{\sigma \left(P\right)}{r_{PM}}d{S}_P}$$

(1)

where $\rho \left(P\right)$ is a given distribution of the electric-charge density in a closed volume V₀, and $\sigma \left(P\right)$ is an unknown distribution of the surface-electric-charge density on a given surface S.

Using the expression for the potential at an arbitrary point Q (1) on the surface S and equating it with the as yet unknown constant C, we obtain an integral equation of the first kind for $\sigma \left(P\right)$:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{\sigma \left(P\right)}{r_{PQ}}d{S}_P}=C+f\left(Q\right),\hspace{1em}\frac{\sigma \left(P\right)}{r_{PQ}}.$$

(2)

where:

$$f\left(Q\right)=-\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{V_0}{\int }\frac{\rho \left(P\right)}{r_{PQ}}d{V}_P}$$

The unknowns in Equation (2) are $\sigma \left(P\right)$ and C.

When deriving integral Equation (2), information about the total charge of the conductor was not used. Therefore, this equation will have a non-unique solution.

In fact, if we fix $C=C^{\prime }$, then from (2), we can find ${\sigma }^{\prime }\left(P\right)$. This distribution satisfies the equation:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{{\sigma }^{\prime }\left(P\right)}{r_{PQ}}d{S}_P}=C^{\prime }+f\left(Q\right),\hspace{1em}Q\in S.$$

(3)

If fixed $C=C^{″}\ne C^{\prime }$, then Equation (2) will have a solution:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{{\sigma }^{″}\left(P\right)}{r_{PQ}}d{S}_P}=C^{″}+f\left(Q\right),\hspace{1em}Q\in S.$$

(4)

The solution $\left\{{\sigma }^{″}\left(P\right), C^{″}\right\}$ differs from the solution $\left\{{\sigma }^{\prime }\left(P\right), C^{\prime }\right\}$, at least because $C^{″}\ne C^{\prime }$. It is easy to see that ${\sigma }^{″}\left(P\right)$ is not identically equal to ${\sigma }^{\prime }\left(P\right)$, since if we assume that ${\sigma }^{″}\left(P\right)\equiv {\sigma }^{\prime }\left(P\right)$, then subtracting the expression (4) from (3), we obtain:

$$0=C^{\prime }-C^{″}+0.$$

This contradiction definitively proves that the solution of integral Equation (2) is not unique.

To (2) we must add the equation:

$${\displaystyle \underset{S}{\oint }\sigma \left(P\right)d{S}_P=q}$$

(5)

2. Materials and Methods

The system of integral Equations (2) and (5) has a unique solution.

Assuming two different solutions of the system (2) and (5) $\left\{{\sigma }^{\prime }\left(P\right), C^{\prime }\right\}$ and $\left\{{\sigma }^{″}\left(P\right), C^{″}\right\}$, for the difference distribution $\left\{{\sigma }^{‴}\left(P\right), C^{‴}\right\}$ = $\left\{{\sigma }^{\prime }\left(P\right)-{\sigma }^{″}\left(P\right), C^{\prime }-C^{″}\right\}$, we obtain the equations:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{{\sigma }^{‴}\left(P\right)}{r_{PQ}}d{S}_P}=C^{‴},Q\in S.$$

(6)

$${\displaystyle \underset{S}{\oint }{\sigma }^{‴}\left(P\right)d{S}_P=0}$$

(7)

The system of integral Equations (6) and (7) describes the distribution of the surface-charge density on a solitary uncharged conductor. Such a distribution is obviously ${\sigma }^{‴}\left(P\right)\equiv 0$. But then, as follows from (6), $C^{‴}=0$. Thus, the uniqueness of the solution of the system of integral Equations (2) and (5) is proven [21,22,23,24,25,26,27,28,29,30,31,32].

The system of Equations (2) and (5) can be solved by reducing it to a system of linear algebraic equations. We divide the surface S into N elementary surfaces $\Delta S_i$ (i = 1, 2… N). On each such surface $\Delta S_i$, the surface $\sigma$ density will be ${\sigma }_i$, considered constant and equal. Then, instead of (2), we can write:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \sum _{i=1}^N{\sigma }_i{\displaystyle \underset{\Delta S_i}{\int }\frac{d{S}_P}{r_{PQ}}}}-C=f\left(Q\right),Q\in S,$$

(8)

and instead of (5):

$${\displaystyle \sum _{i=1}^N{\sigma }_i·\Delta S_i}=q$$

(9)

Let us take the point Q_k approximately in the center of the site $\Delta S_k$; if $i\ne k$, then approximately replace the integrals in (8) with the value:

$${\displaystyle \underset{\Delta S_i}{\int }\frac{d{S}_P}{r_{PQ}}=\frac{\Delta S_i}{r_{P_i{Q}_k}}}$$

(10)

Then, instead of (8), we obtain the equations:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \sum _{\begin{array}{l}i=1\\ i\ne k\end{array}}^N\frac{{\sigma }_i\Delta S_i}{r_{P_i{Q}_k}}}+\frac{1}{4\pi {\epsilon }_0}{\sigma }_k{\displaystyle \underset{\Delta S_k}{\int }\frac{d{S}_P}{r_{P{Q}_k}}}-C=f\left(Q_k\right),k=1,2,\dots ,N.$$

(11)

Equations (9) and (11) are a system of linear algebraic equations consisting (SLAE) of N + 1 equations with N + 1 unknowns: ${\sigma }_1$, ${\sigma }_2$, …, ${\sigma }_N$, C.

The integral included in (11) can be taken analytically. For example, for the case when $\Delta S_k$, there is a rectangle with sides 2a and 2b, and the point Q_k is in the center of the rectangle; this integral is equal to (calculations are omitted):

$${\displaystyle \underset{\Delta S_k}{\int }\frac{d{S}_P}{r_{P{Q}_k}}}=4\left(a\ln tg\left(0.25\pi +0.5arctg\frac{b}{a}\right)-b\ln tg\left(0.5arctg\frac{b}{a}\right)\right)$$

(12)

Or:

$${\displaystyle \underset{\Delta S_k}{\int }\frac{d{S}_P}{r_{P{Q}_k}}}=4\left(a\ln \left(b+l\right)+b\ln \left(a+l\right)-a\ln a-b\ln b\right)$$

(13)

where: $l=\sqrt{a^2+b^2}$.

3. Results and Discussion

Let us consider the second way of solving the system of integral Equations (2) and (5). We find the solution of the equation:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{{\sigma }_1\left(P\right)}{r_{PQ}}d{S}_P}=f\left(Q\right),\hspace{1em}Q\in S.$$

(14)

This solution ${\sigma }_1\left(P\right)$ can be found by reducing integral Equation (14) to a SLAE with a matrix $N\times N$.

Next, we find the solution of the equation:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{{\sigma }_1\left(P\right)}{r_{PQ}}d{S}_P}=1,\hspace{1em}Q\in S.$$

(15)

Obviously, the solution of the system (2) and (5) will be equal to:

$$\sigma \left(P\right)={\sigma }_1\left(P\right)+C·{\sigma }_2\left(P\right)$$

(16)

where:

$$C=\frac{q-q_1}{q_2}$$

(17)

$$q_1={\displaystyle \underset{S}{\oint }{\sigma }_1\left(P\right)d{S}_P},\hspace{1em}{q}_2={\displaystyle \underset{S}{\oint }{\sigma }_2\left(P\right)d{S}_P}.$$

(18)

A special case of the considered problem is the case when there is no external electric field, and the conductor carries a charge q, i.e., these are the problems for finding the charge-density distribution on a solitary charged conductor. These problems are described by integral equations:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{\sigma \left(P\right)}{r_{PQ}}d{S}_P}=C,$$

(19)

$${\displaystyle \underset{S}{\oint }\sigma \left(P\right)d{S}_P}=q.$$

(20)

The first way to solve this system is the same as for the system (2) and (5).

The second way for the system (19) and (20) will look like this. We fix the constant C = C₁. We find the solution of the equation:

$$\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{{\sigma }_1\left(P\right)}{r_{PQ}}d{S}_P}=C_1.$$

(21)

We reduce, as before, to SLAE.

We find:

$$q_1={\displaystyle \underset{S}{\oint }{\sigma }_1\left(P\right)d{S}_P}.$$

(22)

The desired solution will obviously be equal to:

$$C=\frac{q}{q_1}{C}_1,\sigma \left(P\right)=\frac{q}{q_1}{\sigma }_1\left(P\right).$$

(23)

After finding the distribution $\sigma \left(P\right)$, the electric field strength at any point M can be found by the formula:

$$\overrightarrow{E}\left(M\right)=\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{V_0}{\int }\frac{\rho \left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^3}d{V}_P}+\frac{1}{4\pi {\epsilon }_0}{\displaystyle \underset{S}{\oint }\frac{\sigma \left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^3}d{S}_P}.$$

(24)

3.1. The Field of a Permanent Magnet—Three-Dimensional Case

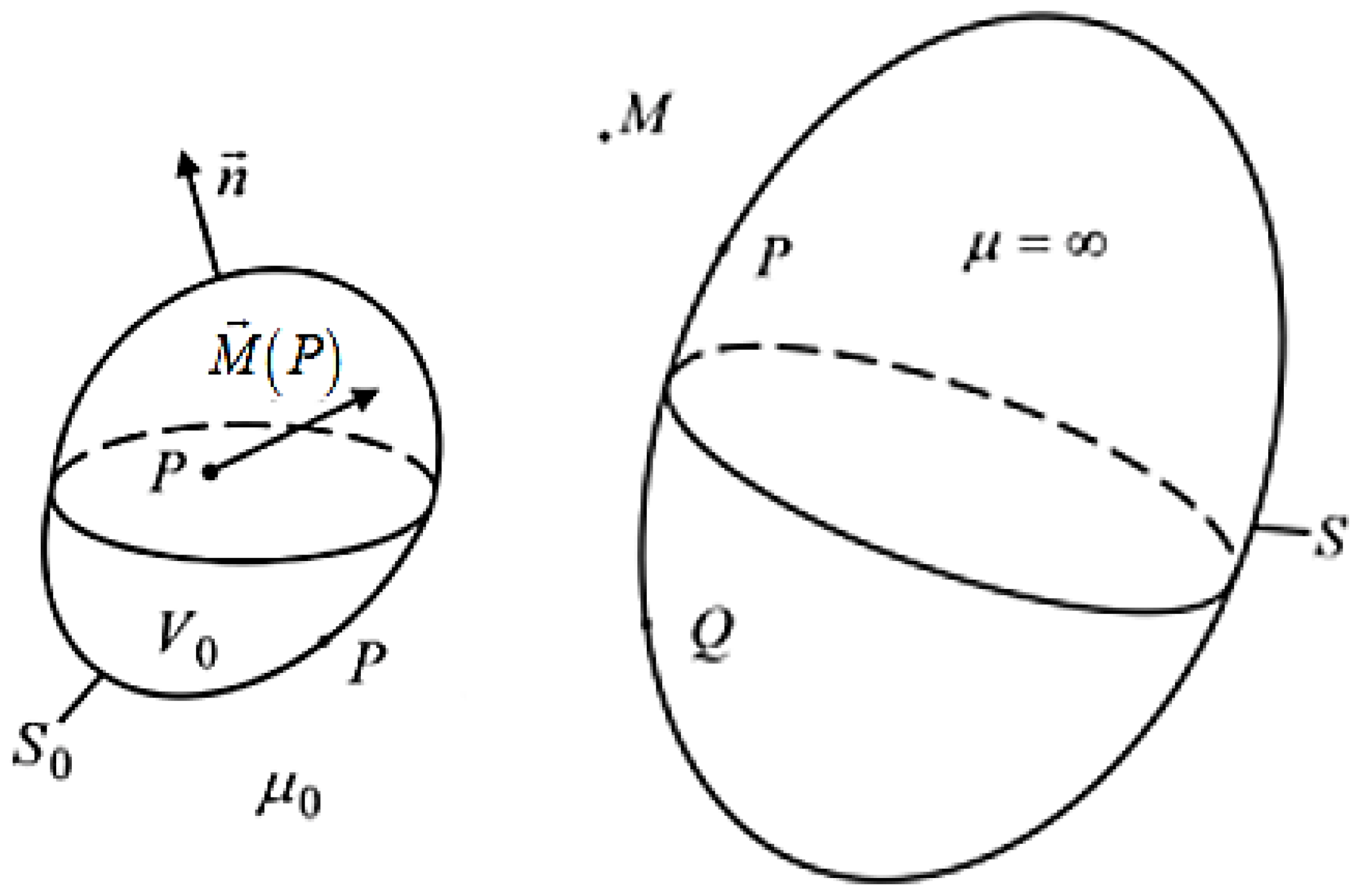

Consider a magnetic system consisting of a permanent magnet with a given distribution of the magnetization vector $\overrightarrow{M}\left(P\right)$ ($P\in V_0$, $V_0$ is the volume occupied by the magnet) and a homogeneous ferromagnet bounded by a closed surface S (Figure 4).

The magnetic permeability of a ferromagnet will be considered constant and equal to infinity. The magnetic permeability of the medium surrounding the magnet and ferromagnet is equal to ${\mu }_0$.

The geometric parameters of the system are assumed to be set.

To calculate the magnetic field, this system can be replaced with magnetic charges located in the air. By definition, the magnetic charge density $\rho$ is called:

$$\rho =div \overrightarrow{H},$$

(25)

where $\overrightarrow{H}$ is the magnetic field strength.

Since $\overrightarrow{H}=\frac{\overrightarrow{B}}{{\mu }_0}-\overrightarrow{M}$, where $\overrightarrow{B}$ is the magnetic field induction, from (20) we then obtain:

$$\rho =-div \overrightarrow{M},$$

(26)

Because: $div\overrightarrow{B}=0$.

From (21), we find that there are also magnetic charges with a surface density on the surface of the magnet S_0:

$${\sigma }_0=M_n,$$

(27)

where M_n is the normal component of the vector $\overrightarrow{M}$ on the surface of the magnet S₀ (the direction of the normal is chosen on the exterior of the magnet).

Surface magnetic charges also exist on the surface S of a ferromagnet. Inside a ferromagnet at $\mu =const$, the bulk density of magnetic charges is:

$$\rho =div \overrightarrow{H}=div \frac{\overrightarrow{B}}{\mu }=\frac{1}{\mu }div \overrightarrow{B}=0.$$

For the case when $\mu =\infty$, $\overrightarrow{H}=0$ inside a ferromagnet, and therefore:

$$\rho =div \overrightarrow{H}=0.$$

We introduce the scalar magnetic potential $\phi$ by equality:

$$-grad\phi =\overrightarrow{H}$$

(28)

or:

$$\phi \left(M\right)={\displaystyle \underset{M}{\overset{M_0}{\int }}\overrightarrow{H}d\overrightarrow{l}}$$

(29)

where M₀ is the point of the zero value of the potential.

By analogy with electrostatics:

$$\phi \left(M\right)=\frac{1}{4\pi }{\displaystyle \underset{V_0}{\int }\frac{\rho \left(P\right)}{r_{PM}}d{V}_P}+\frac{1}{4\pi }{\displaystyle \underset{S_0}{\oint }\frac{{\sigma }_0\left(P\right)}{r_{PM}}d{S}_P}+\frac{1}{4\pi }{\displaystyle \underset{S}{\oint }\frac{\sigma \left(P\right)}{r_{PM}}d{S}_P},$$

(30)

where M is an arbitrary point of space.

Since inside the ferromagnet $\overrightarrow{H}=0$, the surface S is equipotential. Having recorded this fact mathematically, we obtain an integral equation of the first kind for $\sigma$:

$$\frac{1}{4\pi }{\displaystyle \underset{S}{\oint }\frac{\sigma \left(P\right)}{r_{PQ}}d{S}_P}-C=-\frac{1}{4\pi }{\displaystyle \underset{V_0}{\int }\frac{\rho \left(P\right)}{r_{PQ}}d{V}_P}-\frac{1}{4\pi }{\displaystyle \underset{S_0}{\oint }\frac{{\sigma }_0\left(P\right)}{r_{PQ}}d{S}_P},\hspace{1em}Q\in S$$

(31)

where C is an unknown constant.

Denoting the right part (26) by $f\left(Q\right)$, we finally obtain the following integral equation of the first kind:

$$\frac{1}{4\pi }{\displaystyle \underset{S}{\oint }\frac{\sigma \left(P\right)}{r_{PQ}}d{S}_P=C+f\left(Q\right)}.$$

(32)

This is an analogue of Equation (2) in electrostatics.

To derive an equation that is an analogue of Equation (5), we do the following.

Let us take a closed surface $S^{\prime }$ located in the air and close to the surface S, i.e., only a ferromagnet is located inside the closed surface. For this surface, one can write:

$${\displaystyle \underset{S^{\prime }}{\oint }\overrightarrow{H}}d\overrightarrow{S}=\frac{1}{{\mu }_0}{\displaystyle \underset{S^{\prime }}{\oint }\overrightarrow{B}d\overrightarrow{S}}-{\displaystyle \underset{S^{\prime }}{\oint }\overrightarrow{M}d\overrightarrow{S}}=\frac{1}{{\mu }_0}·0-0=0$$

(33)

However, as follows from (25) and from the fact that there are no magnetic charges in the ferromagnet volume:

$${\displaystyle \underset{S^{\prime }}{\oint }\overrightarrow{H}d\overrightarrow{S}}={\displaystyle \underset{S}{\oint }\sigma dS}$$

(34)

From (33) and (34), the integral equation follows, which is an analogue of Equation (5):

$${\displaystyle \underset{S}{\oint }\sigma dS}=0$$

(35)

The system of integral Equations (32) and (35) can be solved along with the system (2, 5) in two ways. In this case, q = 0 is assumed.

A special case when there is no external magnetic field for magnetostatics does not exist, because for magnetostatics ${\displaystyle \underset{S}{\oint }\sigma dS=0}$ always applies, and therefore, if there is no external magnetic field, then $\sigma \equiv 0$.

After finding the distribution $\sigma \left(P\right)$ of the field of tension, $\overrightarrow{H}\left(M\right)$ can be found by the formula:

$$\overrightarrow{H}\left(M\right)=\frac{1}{4\pi }{\displaystyle \underset{V_0}{\int }\frac{\rho \left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^3}d{V}_P}+\frac{1}{4\pi }{\displaystyle \underset{S_0}{\oint }\frac{{\sigma }_0\left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^3}d{S}_P}+\frac{1}{4\pi }{\displaystyle \underset{S}{\oint }\frac{\sigma \left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^3}d{S}_P}.$$

Additionally, we find the induction of the magnetic field $\overrightarrow{B}\left(M\right)$ according to the formula:

$$\overrightarrow{B}\left(M\right)={\mu }_0\overrightarrow{H}\left(M\right)+{\mu }_0\overrightarrow{M}\left(M\right)$$

The latter formula allows us to find $\overrightarrow{B}\left(M\right)$ at all points outside the ferromagnet. We do not consider the question of finding $\overrightarrow{B}\left(M\right)$ inside a ferromagnet here.

3.2. The Electrostatic Field—The Plane-Parallel Case

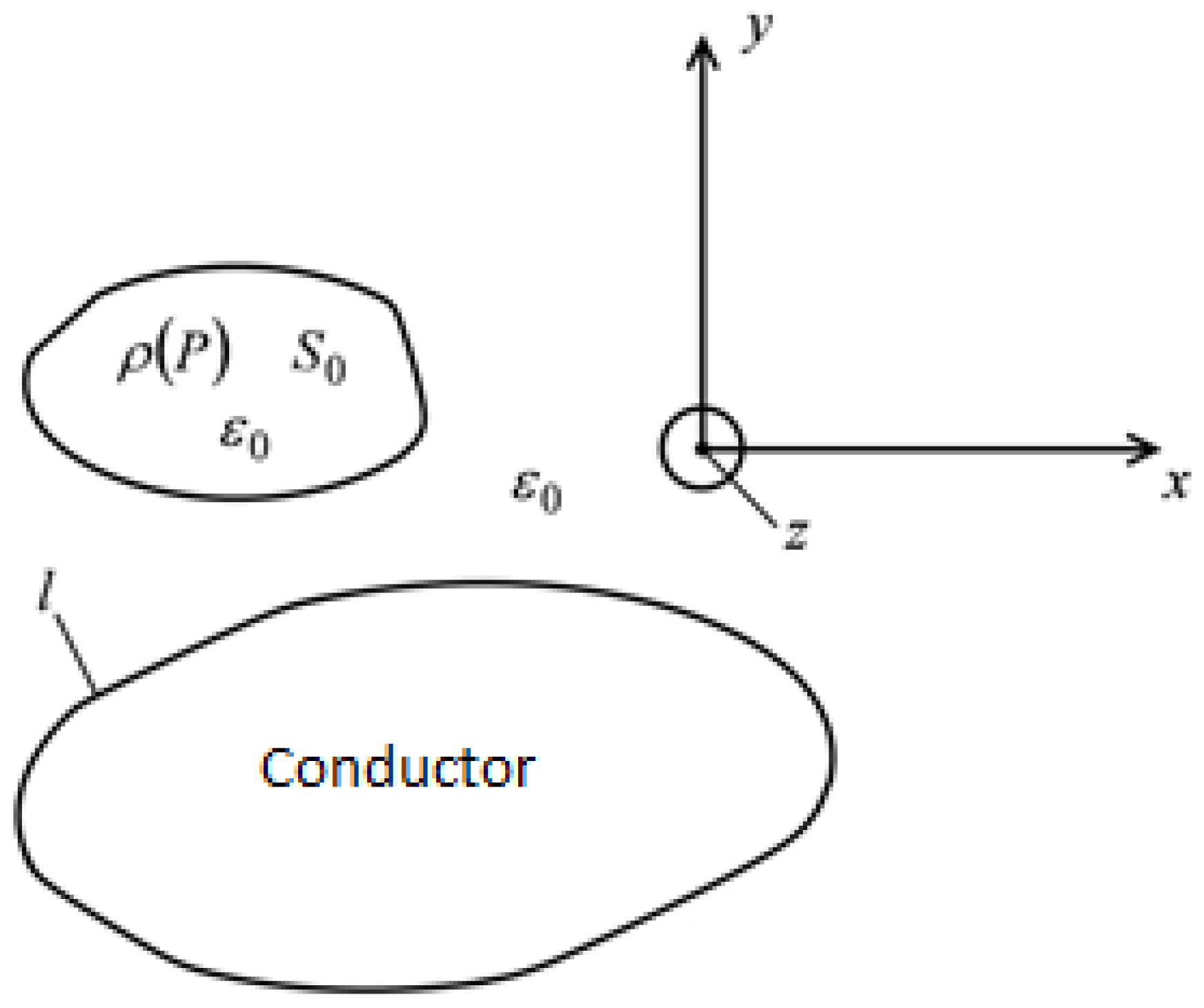

In the case of an extended system along the z axis (Figure 5), the corresponding integral equations will have the form:

$$\frac{1}{2\pi {\epsilon }_0}{\displaystyle \underset{l}{\oint }\sigma \left(P\right)\ln \frac{1}{r_{PQ}}d{l}_P}=C+f\left(Q\right),\hspace{1em}Q\in l,$$

(36)

$${\displaystyle \underset{l}{\oint }\sigma \left(P\right)d{l}_P=\tau },$$

(37)

$$f\left(Q\right)=-\frac{1}{2\pi {\epsilon }_0}{\displaystyle \underset{S_0}{\int }\rho \left(P\right)}\ln \frac{1}{r_{PQ}}d{S}_P,$$

$\tau$—a given total charge of the conductor per unit length along z.

When solving the system (36) and (37), the line l will be divided into N elementary lines, on each of which the surface density $\sigma$ will be assumed to be constant. In this case, we will need to analytically calculate the integral of the form:

$${\displaystyle \underset{\Delta l_k}{\int }d{l}_P\ln \frac{1}{r_{PQ}}}.$$

If $\Delta l_k$ is a straight-line segment and the point Q is located in the center of the segment, then:

$${\displaystyle \underset{\Delta l_k}{\int }d{l}_P\ln \frac{1}{r_{PQ}}}=2\left(a-a\ln a\right).$$

(38)

where a is half the length of the segment.

After finding $\sigma \left(P\right)$, the tension $\overrightarrow{E}\left(M\right)$ can be found by the formula:

$$\overrightarrow{E}\left(M\right)=\frac{1}{2\pi {\epsilon }_0}{\displaystyle \underset{S_0}{\int }\frac{\rho \left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^2}d{S}_P}+\frac{1}{2\pi {\epsilon }_0}{\displaystyle \underset{l}{\oint }\frac{\sigma \left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^2}d{l}_P}.$$

Along with the electrostatic three-dimensional case, a special case of the considered problem is possible when it is necessary to find the field of a solitary charged conductor. This case is described by the equations:

$$\frac{1}{2\pi {\epsilon }_0}{\displaystyle \underset{l}{\oint }\sigma \left(P\right)\ln \frac{1}{r_{PQ}}d{l}_P}=C,Q\in l,$$

$${\displaystyle \underset{l}{\oint }\sigma \left(P\right)d{l}_P}=\tau ,$$

whose solution is similar to the three-dimensional case.

3.3. The Field of a Permanent Magnet—The Plane-Parallel Case

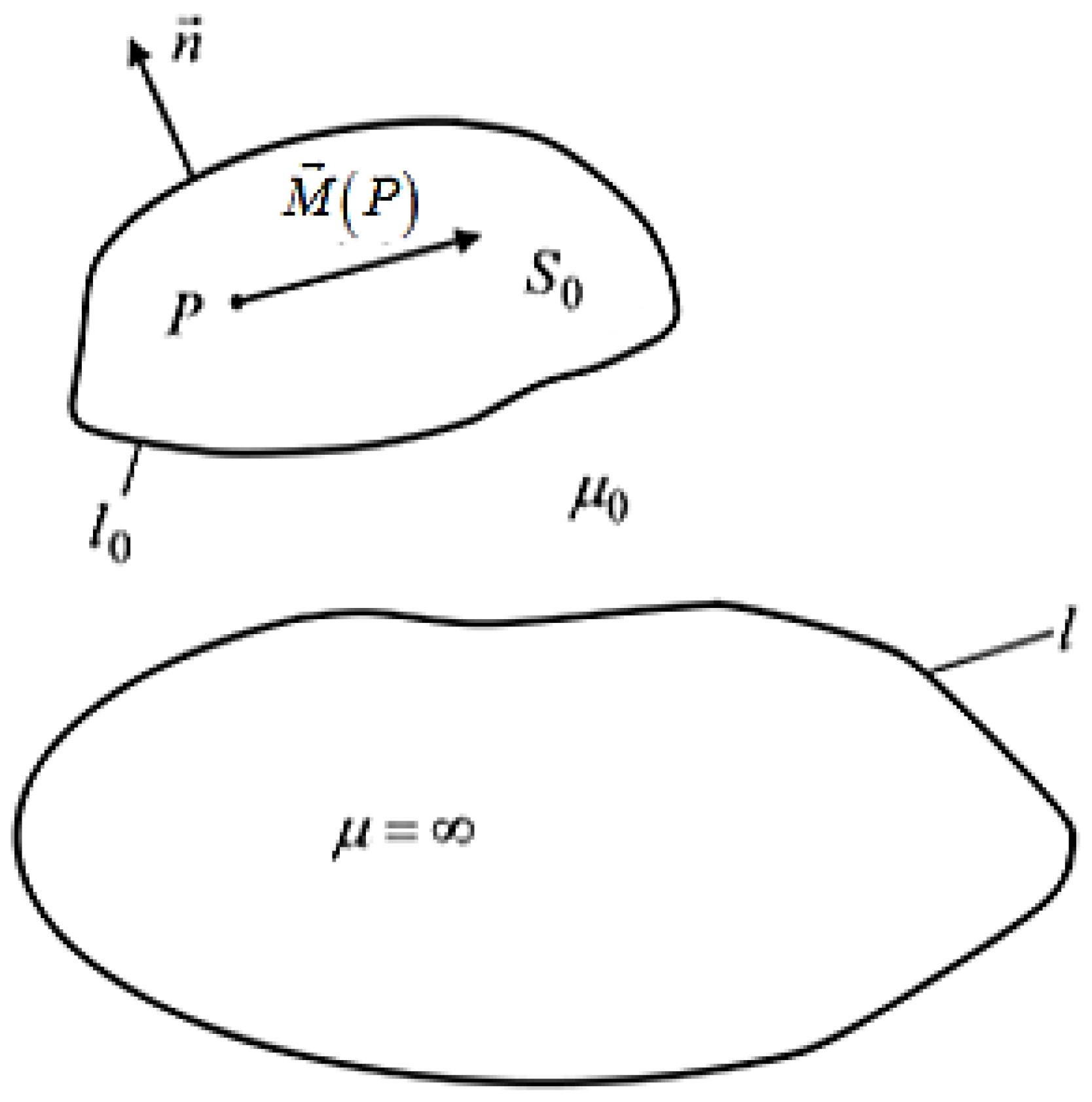

In the case of an extended magnetic system along the z axis (Figure 6), the corresponding integral equations will have the form:

$$\frac{1}{2\pi }{\displaystyle \underset{l}{\oint }\sigma \left(P\right)\ln \frac{1}{r_{PM}}d{l}_P}=C+f\left(Q\right),\hspace{1em}Q\in l,$$

(39)

$${\displaystyle \underset{l}{\oint }\sigma \left(P\right)d{l}_P}=0$$

(40)

$$f\left(Q\right)=-\frac{1}{2\pi }{\displaystyle \underset{S_0}{\int }\rho \left(P\right)\ln \frac{1}{r_{PM}}d{S}_P}-\frac{1}{2\pi }{\displaystyle \underset{l_0}{\oint }{\sigma }_0\left(P\right)\ln \frac{1}{r_{PM}}d{l}_P}$$

These equations are solved by analogy with the equations of electrostatics (31, 32), in which it is necessary to accept $\tau =0$. After finding the distribution $\sigma$, the tension $\overrightarrow{H}\left(M\right)$ and induction $\overrightarrow{B}\left(M\right)$ are calculated using the formulas:

$$\overrightarrow{H}\left(M\right)=\frac{1}{2\pi }{\displaystyle \underset{S_0}{\int }\frac{\rho \left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^2}d{S}_P}+\frac{1}{2\pi }{\displaystyle \underset{l_0}{\oint }\frac{{\sigma }_0\left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^2}d{l}_P}+\frac{1}{2\pi }{\displaystyle \underset{l}{\oint }\frac{\sigma \left(P\right) {\overrightarrow{r}}_{PM}}{r_{PM}^2}d{l}_P}.$$

$$\overrightarrow{B}\left(M\right)={\mu }_0\overrightarrow{H}\left(M\right)+{\mu }_0\overrightarrow{M}\left(M\right)$$

3.4. Examples of Calculating Magnetic Fields Using Integral Equations of the First Kind

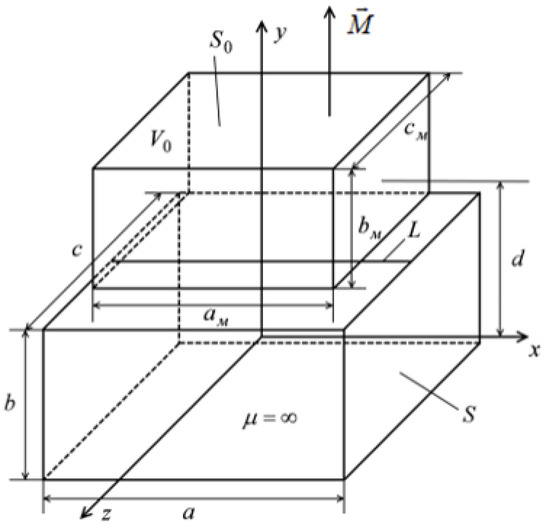

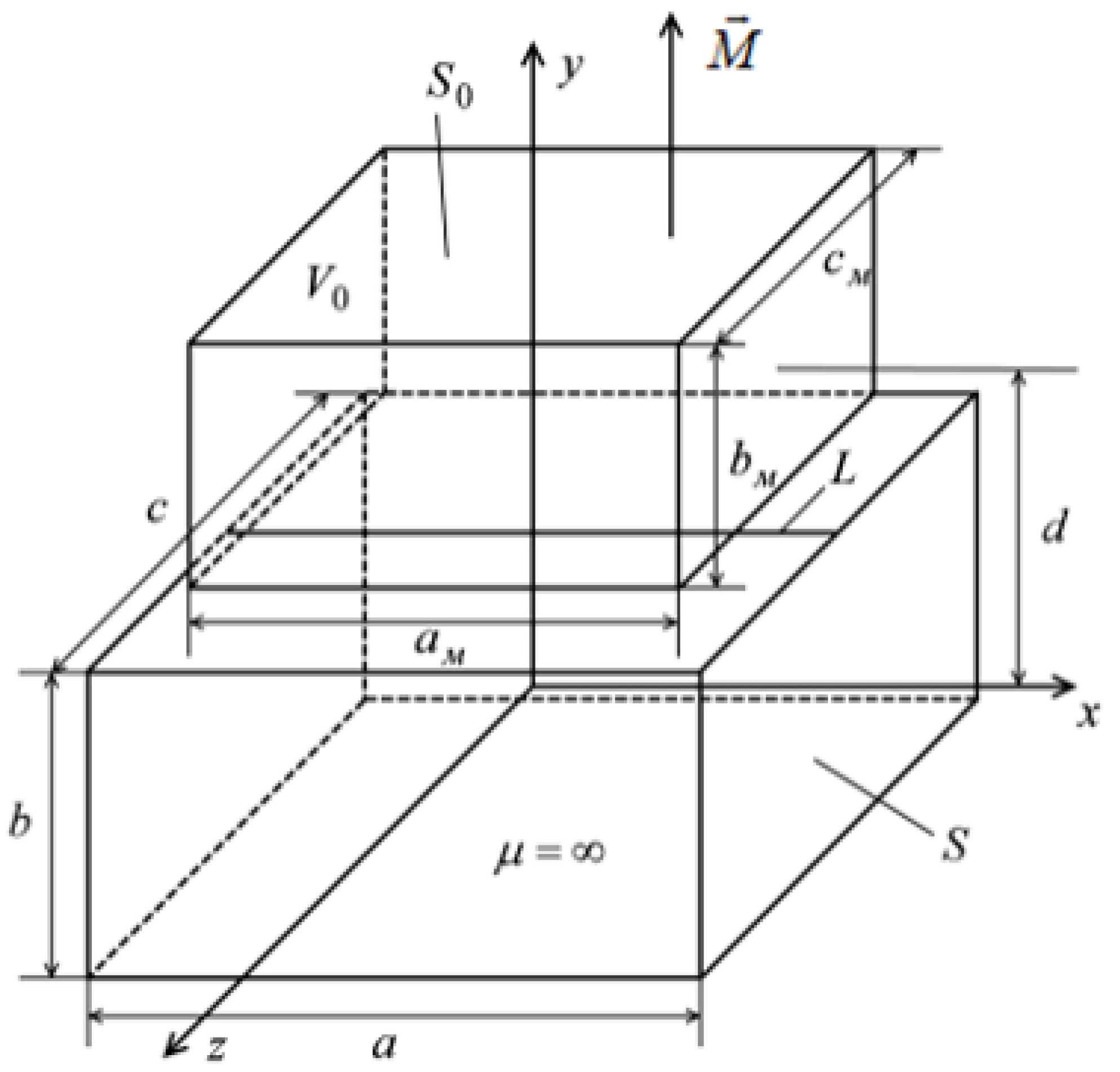

The magnetic field of the system shown in Figure 7 was calculated. The permanent magnet and ferromagnets have the shape of a parallelepiped. The centers of these parallelepipeds lie on the y axis. The magnet is magnetized uniformly along the y-axis, i.e., $\overrightarrow{M}=M{\overrightarrow{e}}_y$. Therefore, $\rho =0$ in the volume of the magnet.

After calculating the distribution $\sigma$, the potential on the segment L of the upper face of the ferromagnet was calculated. The results are presented in

Table 3. Calculation of the potential on the segment L of the upper face of the ferromagnet after calculating the distribution $\sigma$.

The First Way	The Second Way
−2410.29	−2410.29
−2368.50	−2368.50
−2354.42	−2354.42
−2353.95	−2353.95
−2354.71	−2354.71
−2354.71	−2354.71
−2353.95	−2353.95
−2354.42	−2354.42
−2368.50	−2368.50
−2410.29	−2410.29

, with the numbering of points from left to right. The magnetic-field induction was also calculated at the center of the magnet B₁ = 1.749 Tl (the first method), B₁ = 1.749 Tl (the second method) and at a point on the y axis at a distance of 0.0025 m from the ferromagnet, i.e., at the point y = 0.0275 m. It was equal to B₂ = 0.644 Tl (the first method) and B₂ = 0.644 Tl (the second method). At the same point, the induction was calculated in the absence of a ferromagnet. It was equal to ${B^{\prime }}_2$ = 0.365 Tl.

A plane-parallel version of this system was also calculated, i.e., when $c=\infty$, $c_{\mathcal{M}}=\infty$, and N was taken to be 256. The value of the potential on line L is shown in

Table 4. Calculation of the potential on the line L in the case of a plane-parallel version of this system, when $c=\infty$ and $c_{\mathcal{M}}=\infty$. N was taken to be 256.

The First Way	The Second Way
−6020.20	−6020.20
−6008.95	−6008.95
−6004.63	−6004.63
−6004.21	−6004.21
−6004.25	−6004.25
−6004.25	−6004.25
−6004.21	−6004.21
−6004.63	−6004.63
−6008.95	−6008.95
−6020.20	−6020.20

. B₁ = 1.817 Tl (first method), B₁ = 1.817 Tl (second method), B₂ = 0.44 Tl (first method), and B₂ = 0.444 Tl (second method). ${B^{\prime }}_2$ = 0.268 Tl.

4. Conclusions

Modifications of this calculation method were also used by the authors when modeling the winding of electric motors (for pumps, cars, tractors, drones), generators, permanent-magnet linear motors for machine tools, etc.

Two solutions are proposed for the obtained integral equations of the first kind. Both methods, as shown by examples of calculating magnetic fields created by permanent magnets and perturbed by ferromagnets with a magnetic permeability $\mu =\infty$, give the same results. Numerical examples also show that the SLAE to which the integral equation of the first kind is reduced is easily solved.

The existing methods of magnetic prospecting have both advantages and disadvantages. The development of new methods can open up new possibilities, increase the accuracy of calculations, increase the efficiency and reliability of equipment, and help reduce the cost of equipment and research in the field of magnetic prospecting. The proposed methods can be applied to the calculation and optimization of devices for the magnetic exploration of fossils containing materials with a high magnetic permeability.

Prospects for the development of this area allow one to:

-

bring geophysical services to the service market on a new scientific and technical production level;

-

reduce the environmental burden on nature by replacing magnetometric measurements with energy-saving, environmentally safe technology;

-

ensure the export potential of magnetometric equipment.
