Simulation of Two-Dimensional Images for Ion-Irradiation Induced Change in Lattice Structures and Magnetic States in Oxides by Using Monte Carlo Method

by
Akihiro Iwase
* and
Shigeru Nishio
The Wakasa Wan Energy Research Center (WERC), 64-52-1 Nagatani, Tsuruga, Fukui 914-0192, Japan
*
Author to whom correspondence should be addressed.
Quantum Beam Sci. 2021, 5(2), 13; https://doi.org/10.3390/qubs5020013
Submission received: 9 March 2021 / Revised: 5 May 2021 / Accepted: 10 May 2021 / Published: 13 May 2021
(This article belongs to the Special Issue The Modifications of Metallic and Inorganic Materials by Using Energetic Ion/Electron Beams)
Browse Figures
Versions Notes

Abstract

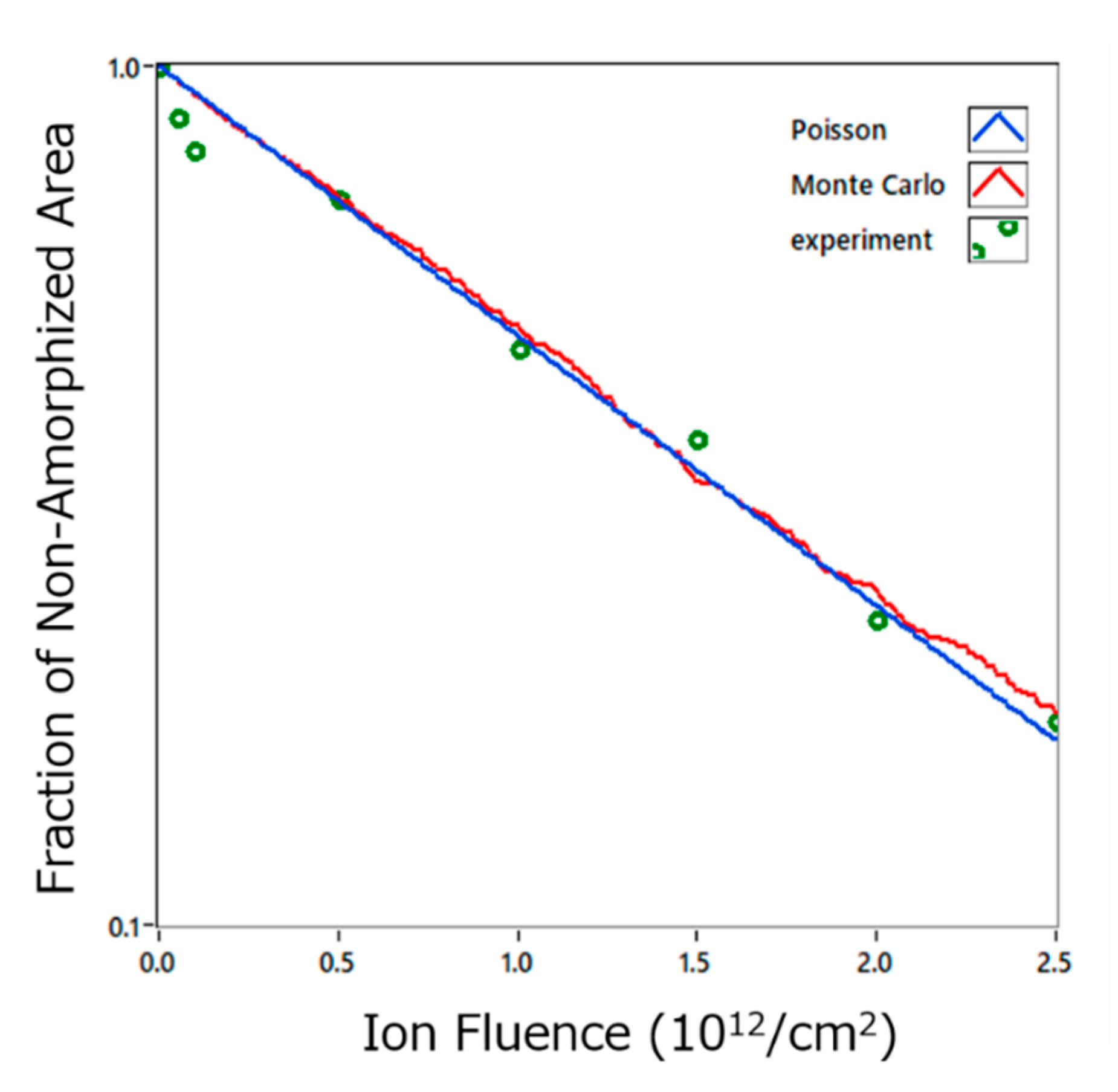

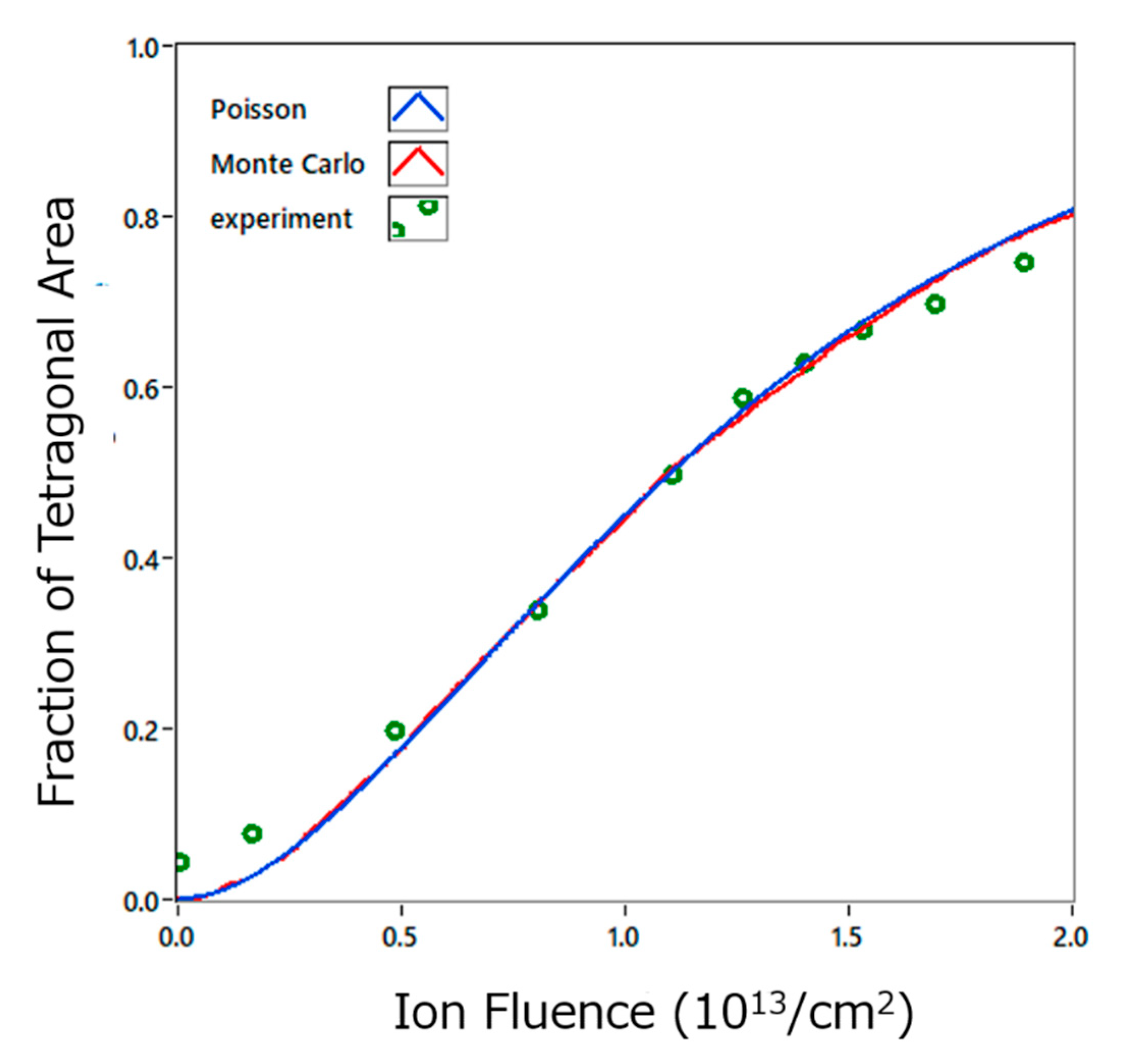

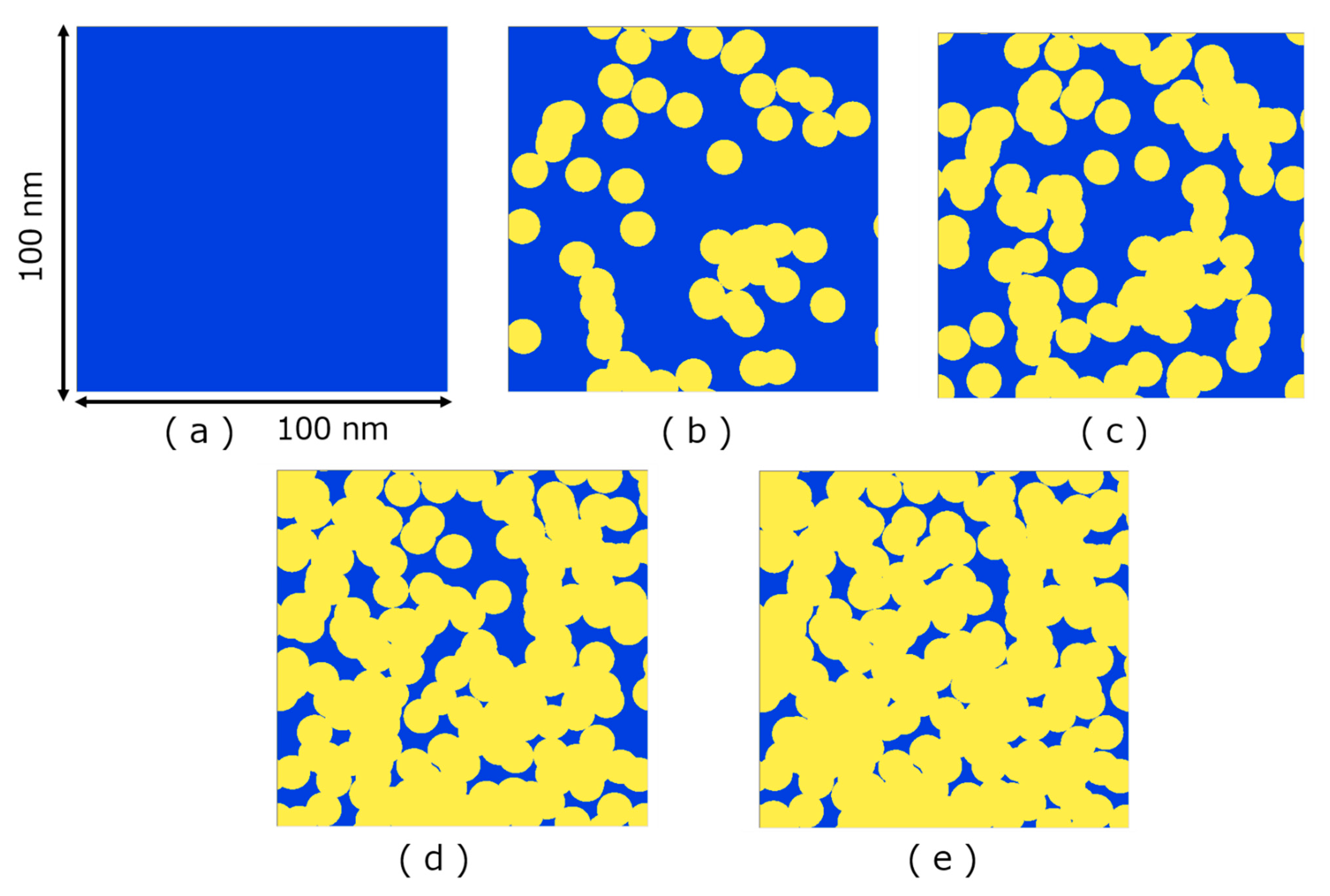

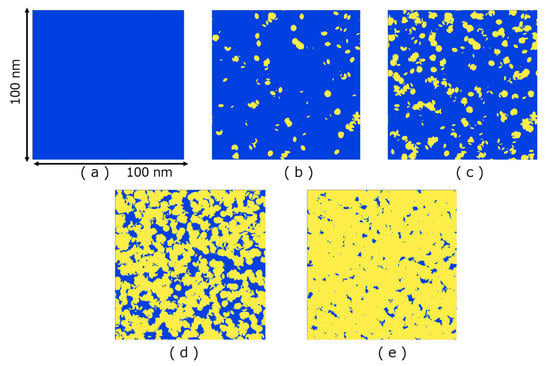

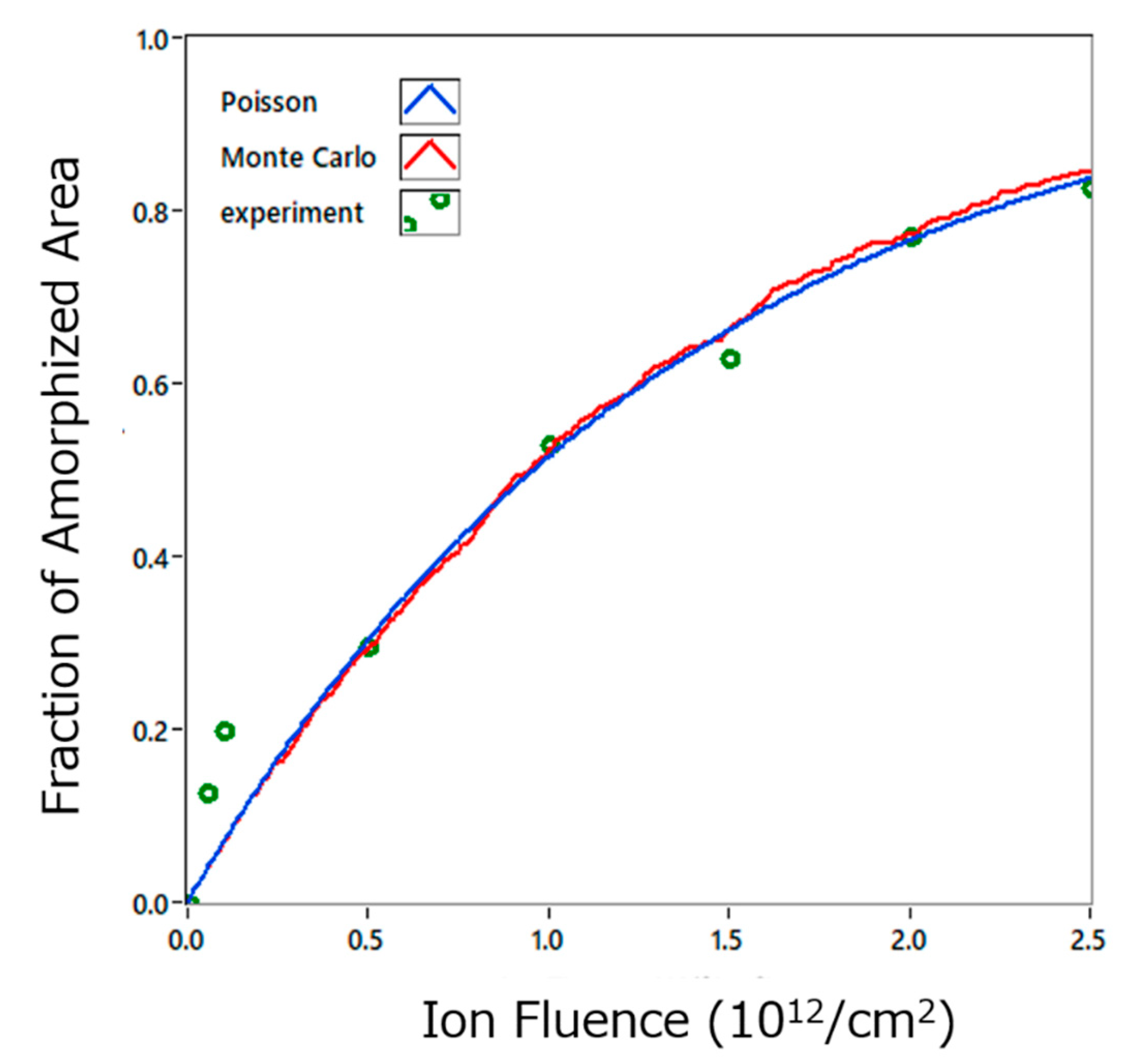

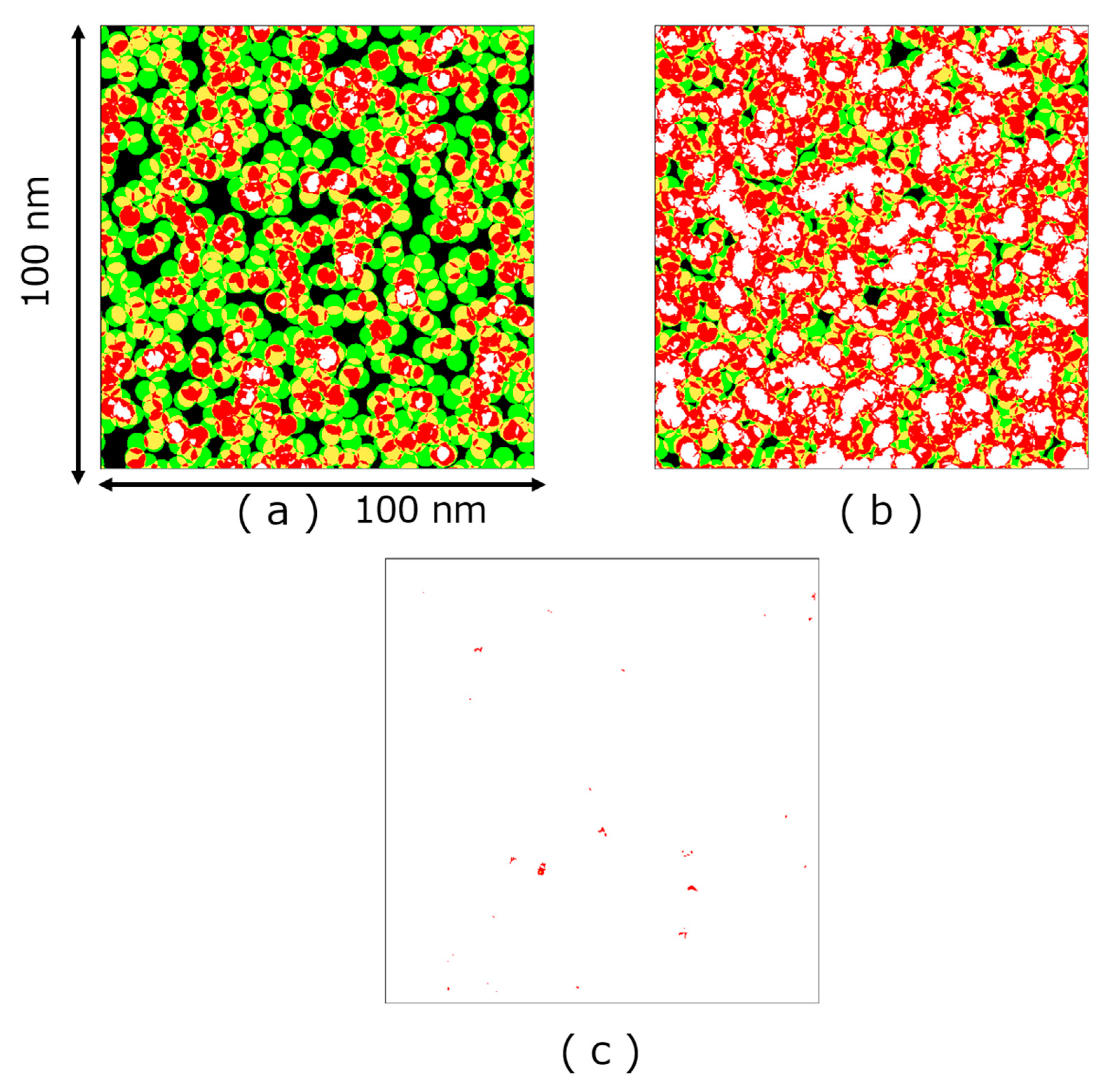

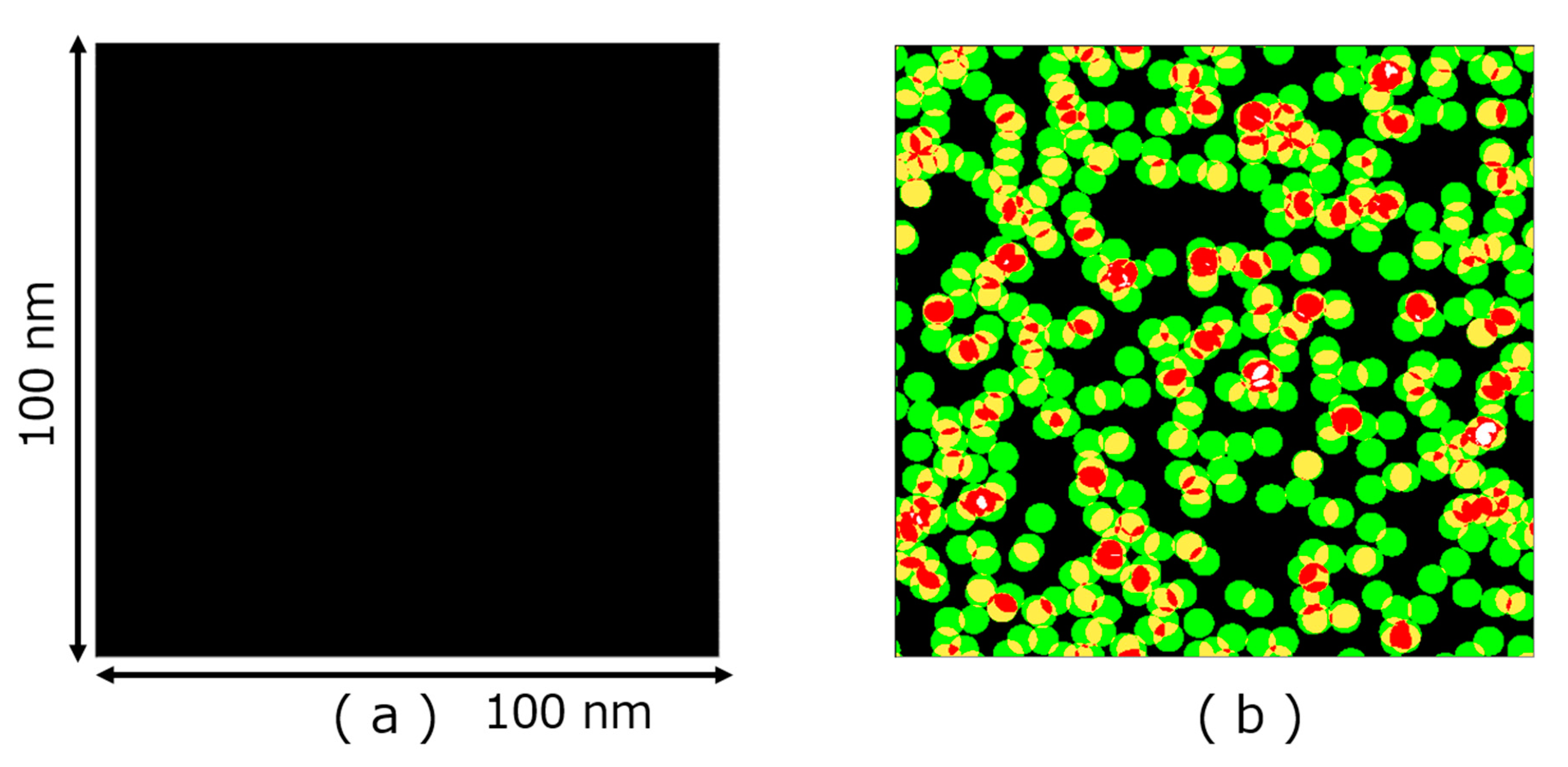

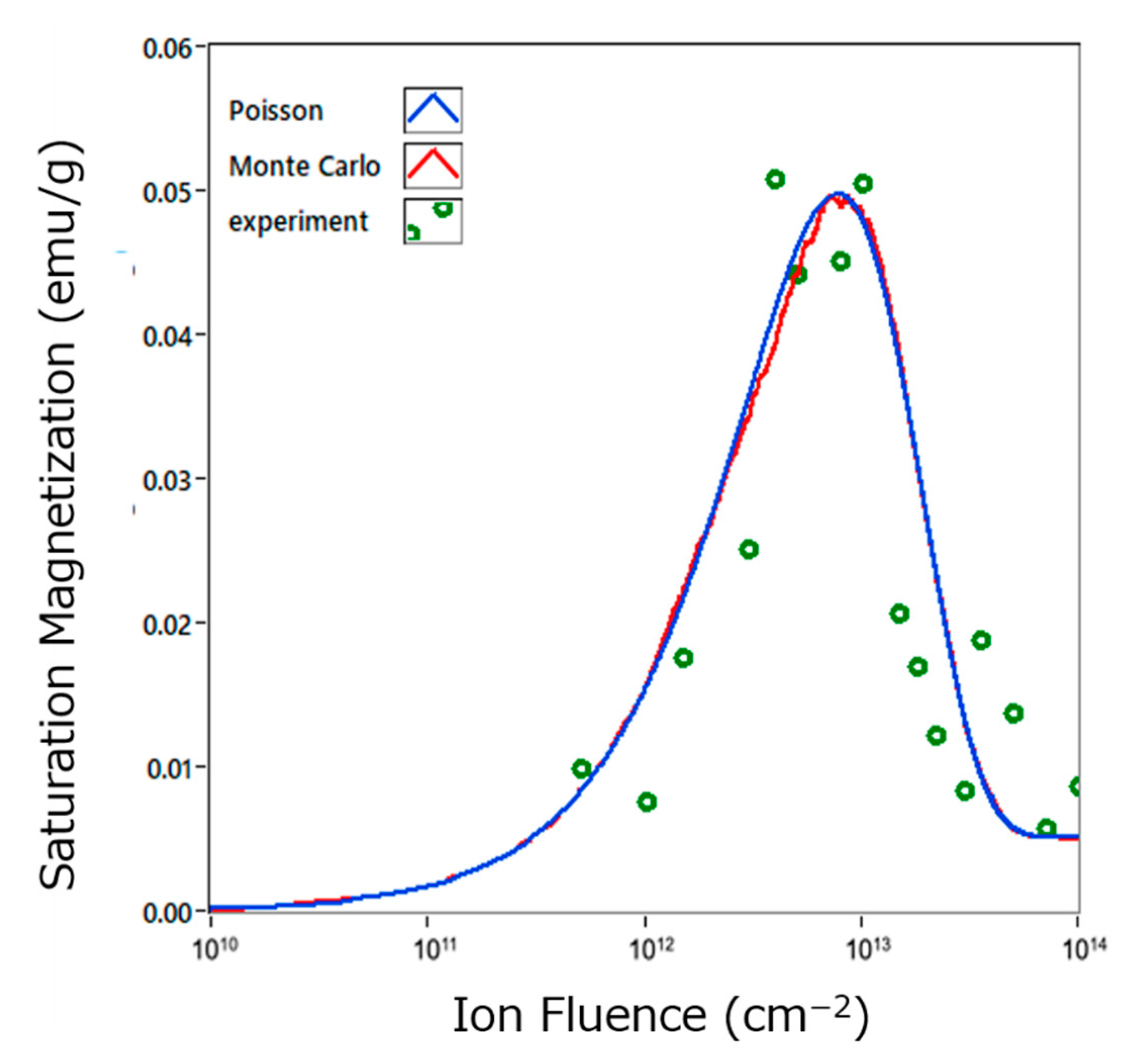

A Monte Carlo method was used to simulate the two-dimensional images of ion-irradiation-induced change in lattice structures and magnetic states in oxides. Under the assumption that the lattice structures and the magnetic states are modified only inside the narrow one-dimensional region along the ion beam path (the ion track), and that such modifications are affected by ion track overlapping, the exposure of oxide targets to spatially random ion impacts was simulated by the Monte Carlo method. Through the Monte Carlo method, the evolutions of the two-dimensional images for the amorphization of TiO2, the lattice structure transformation of ZrO2, and the transition of magnetic states of CeO2 were simulated as a function of ion fluence. The total fractions of the modified areas were calculated from the two-dimensional images. They agree well with the experimental results and those estimated by using the Poisson distribution functions.
Keywords: high energy irradiation; ion track overlapping; oxides; Monte Carlo simulation for two-dimensional images; lattice structures and magnetic states; binomial and Poisson distribution functions high energy irradiation; ion track overlapping; oxides; Monte Carlo simulation for two-dimensional images; lattice structures and magnetic states; binomial and Poisson distribution functions
