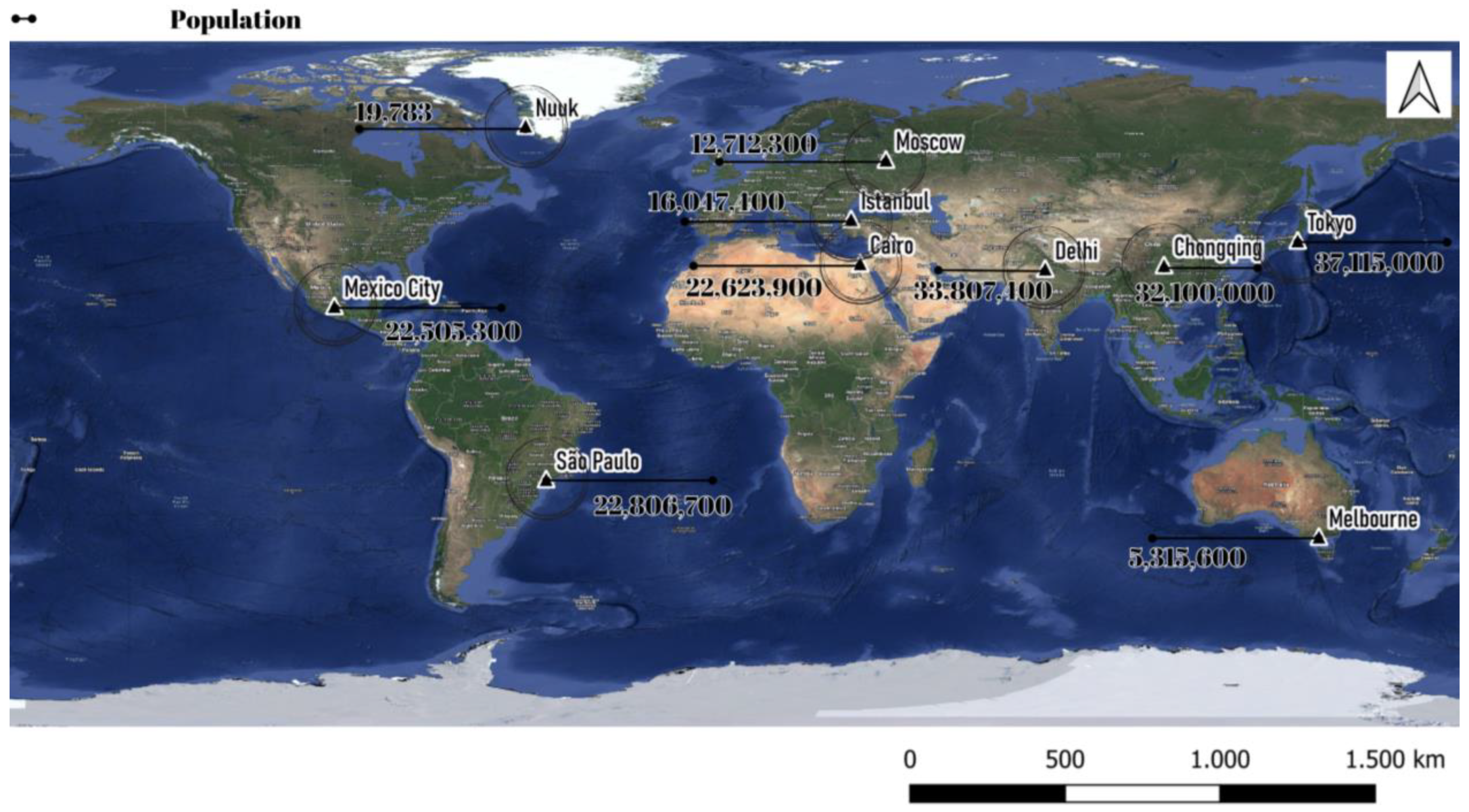

Figure 1.
Population overview of selected cities on basemap.
Figure 1.
Population overview of selected cities on basemap.

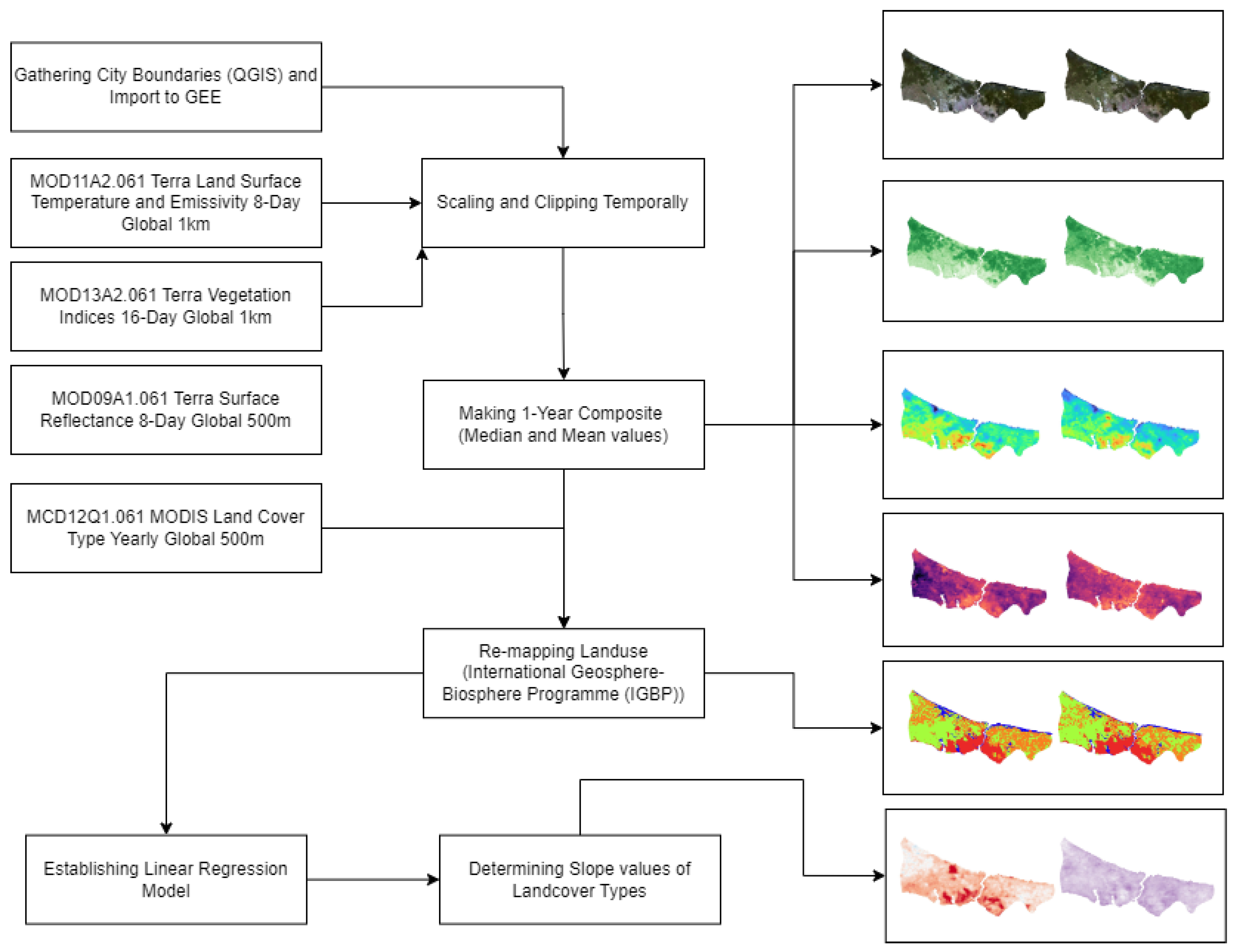

Figure 2.
Methodological framework of this study.
Figure 2.
Methodological framework of this study.

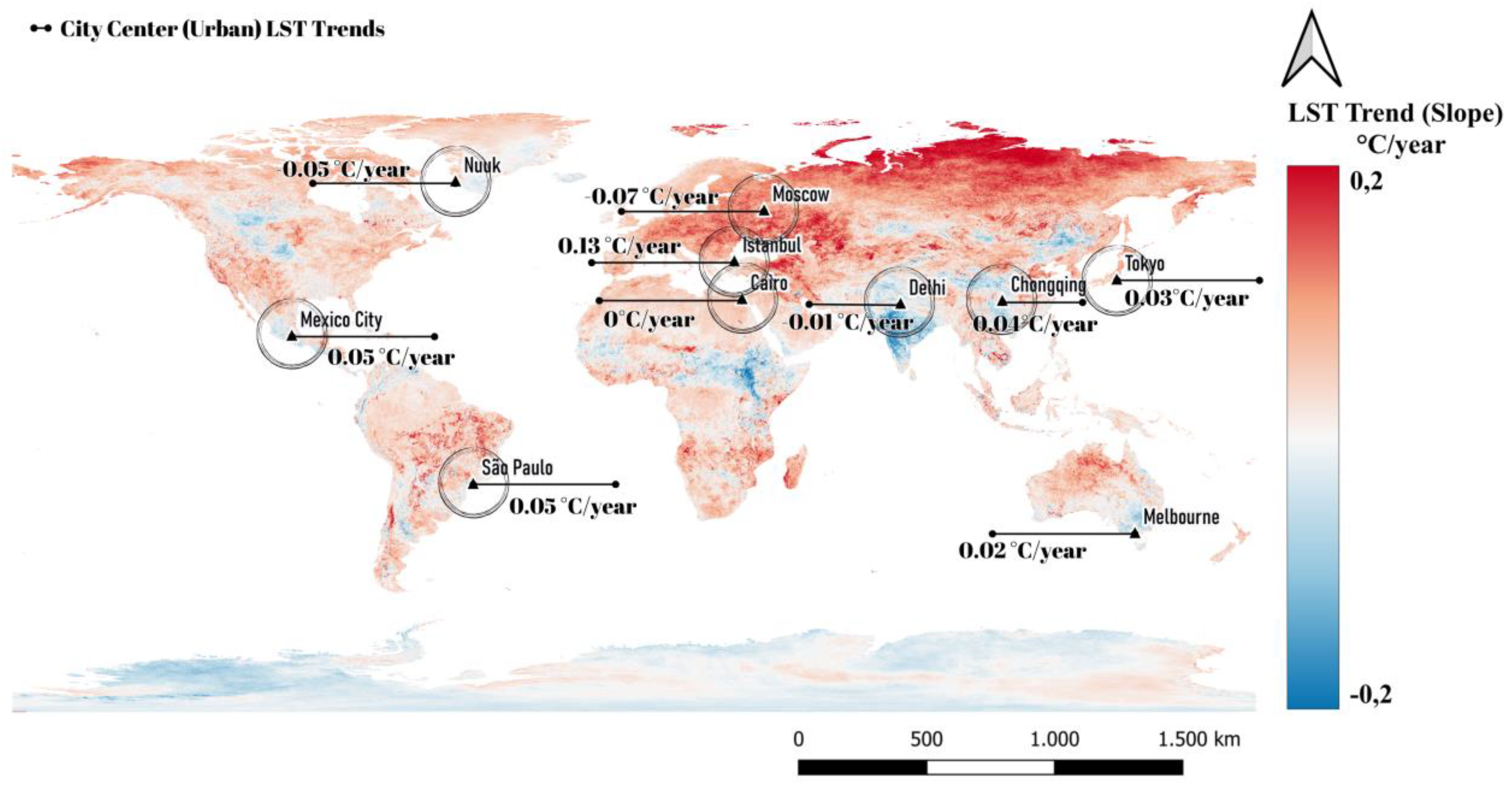

Figure 3.
Global LST trend (Slope) from 2001 to 2021 retrieved from the Terra MODIS MOD11A2 dataset.
Figure 3.
Global LST trend (Slope) from 2001 to 2021 retrieved from the Terra MODIS MOD11A2 dataset.

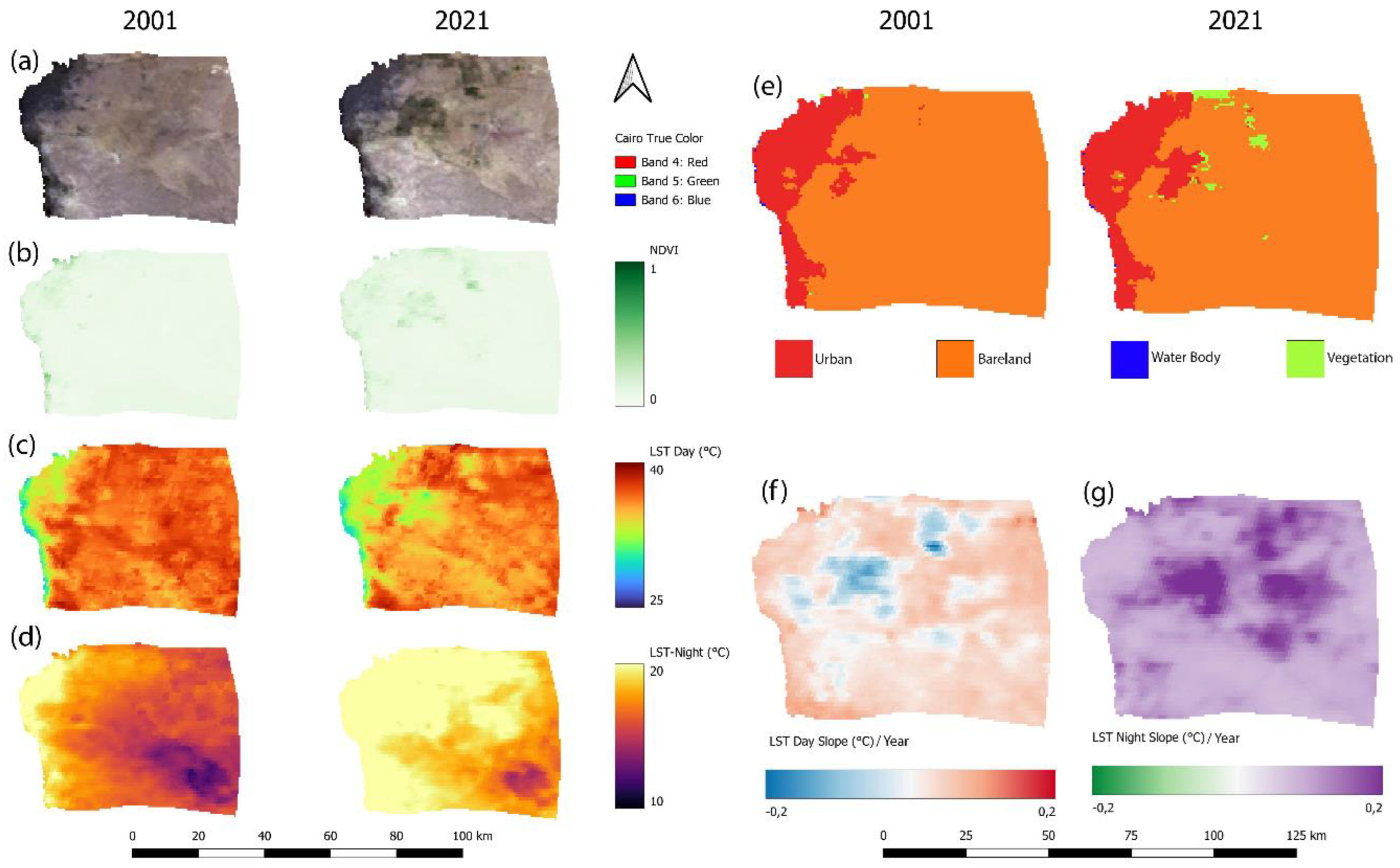

Figure 4.
Left panel: (a) true color imagery of Cairo (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 4.
Left panel: (a) true color imagery of Cairo (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.

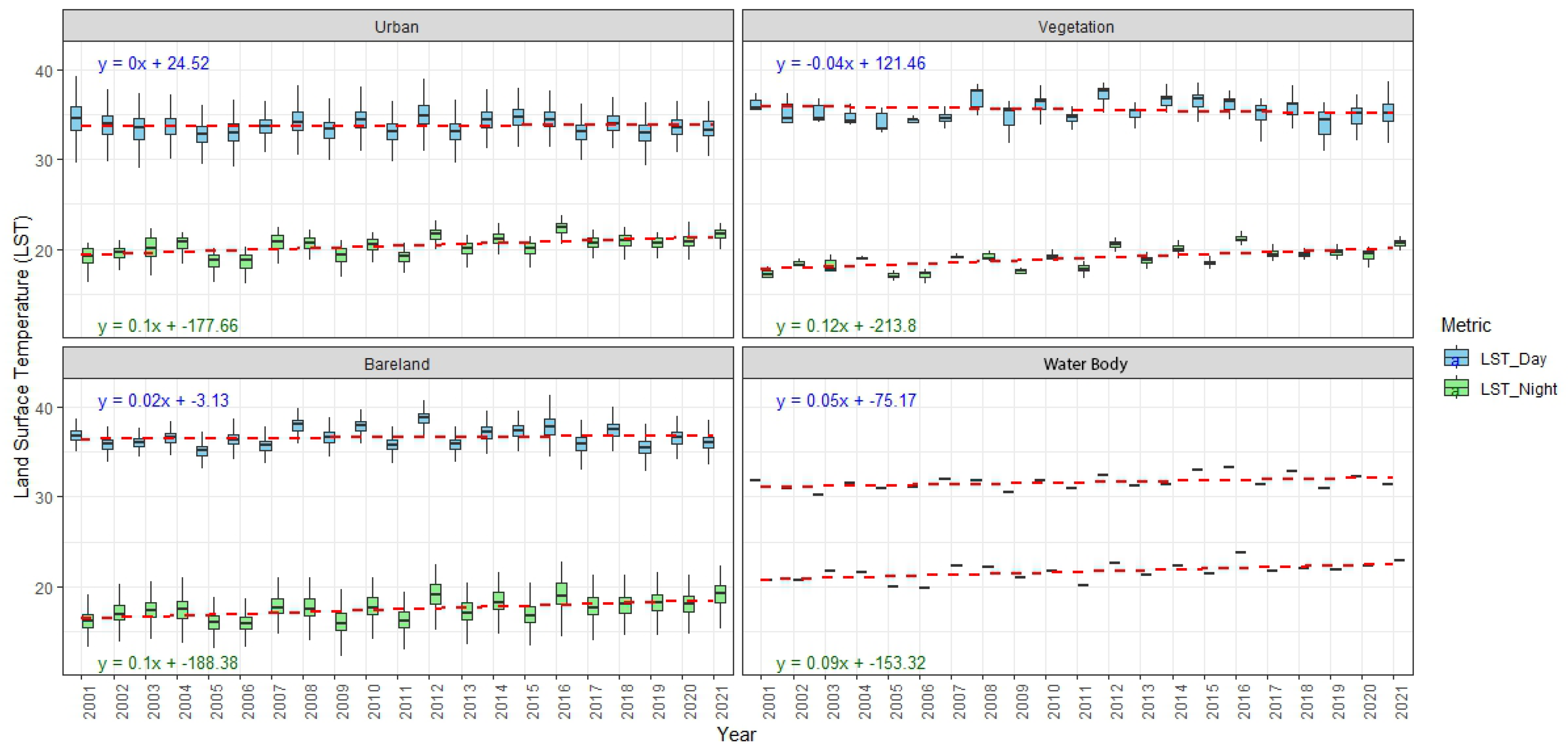

Figure 5.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Cairo.
Figure 5.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Cairo.

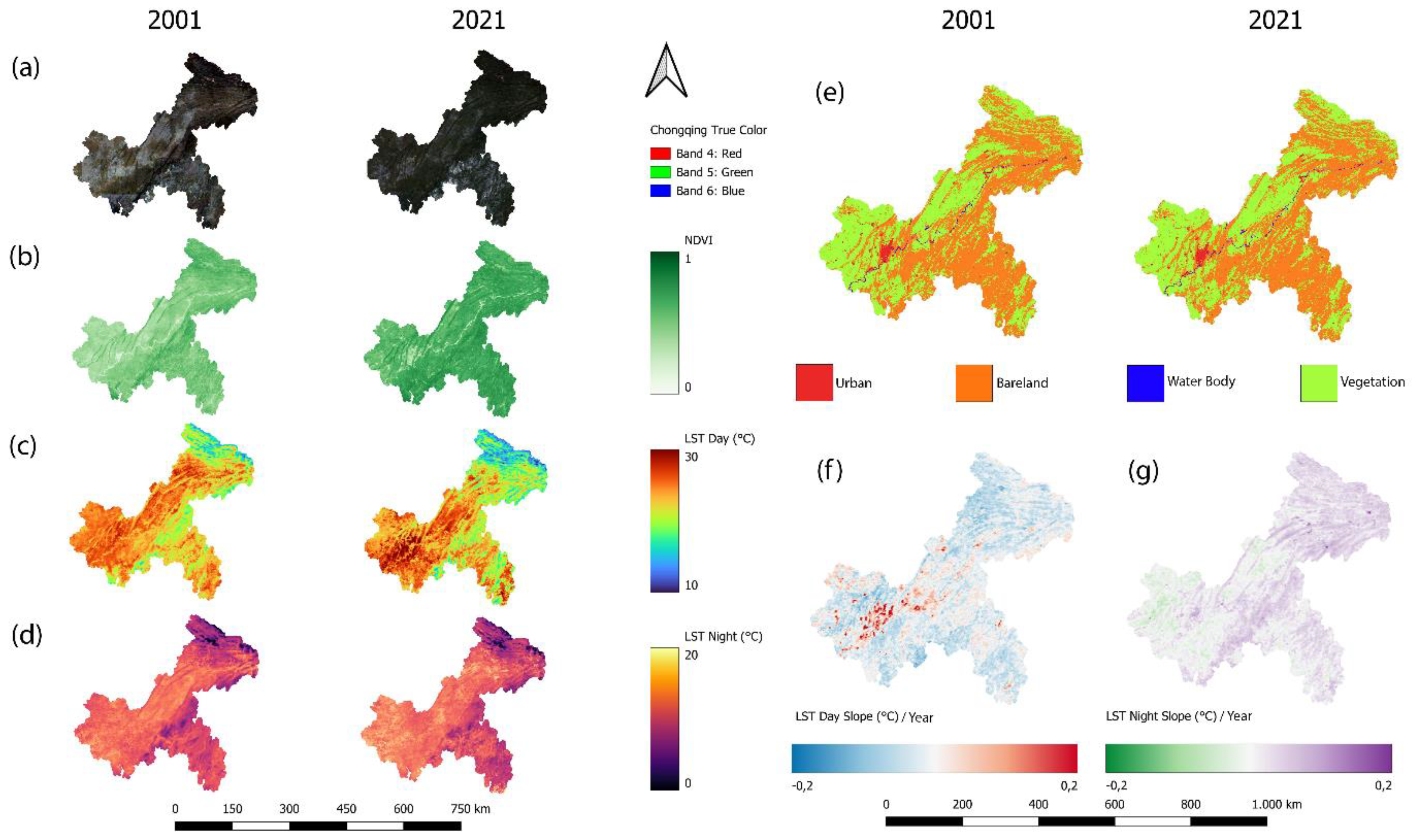

Figure 6.
Left panel: (a) true color imagery of Chongqing (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 6.
Left panel: (a) true color imagery of Chongqing (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.

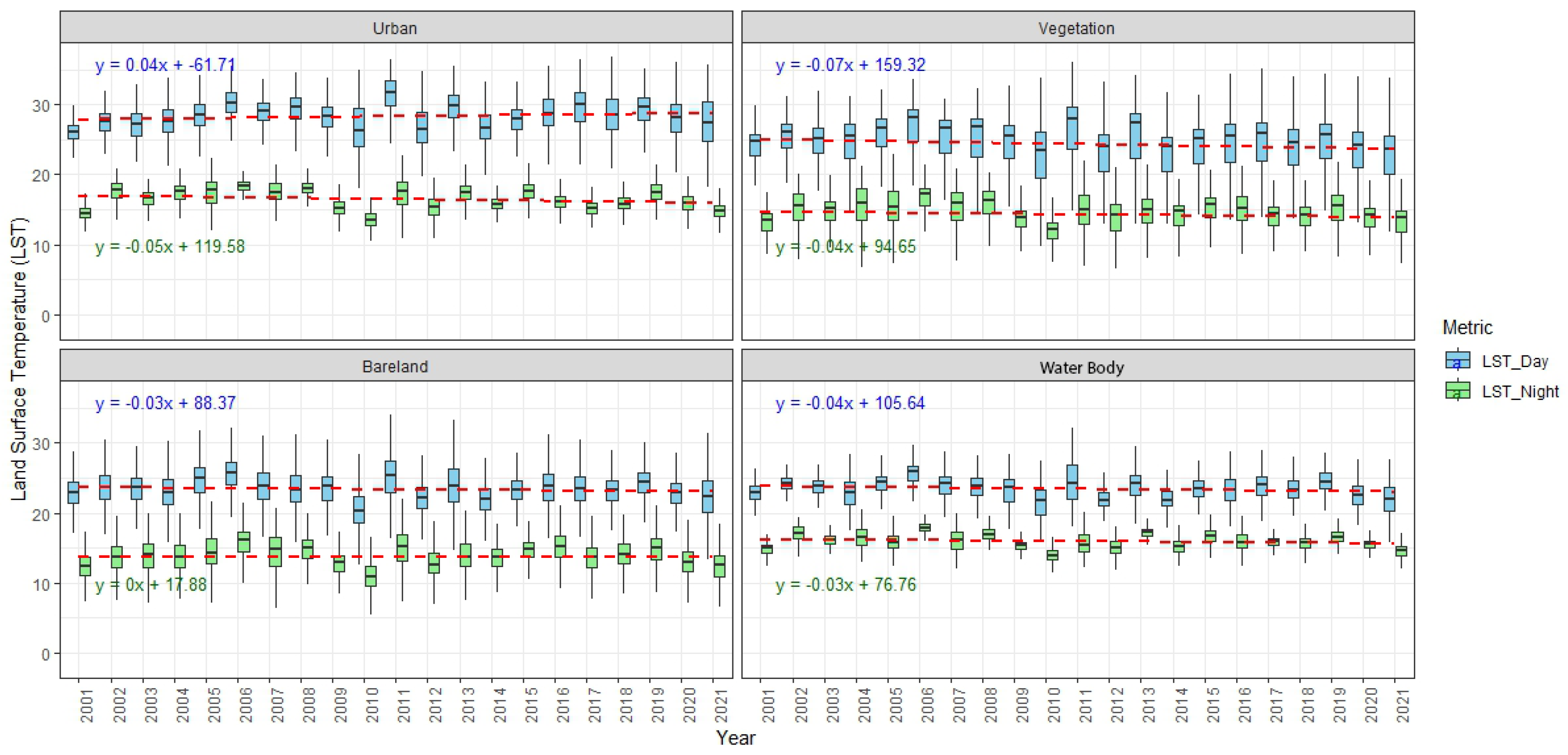

Figure 7.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Chongqing.
Figure 7.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Chongqing.

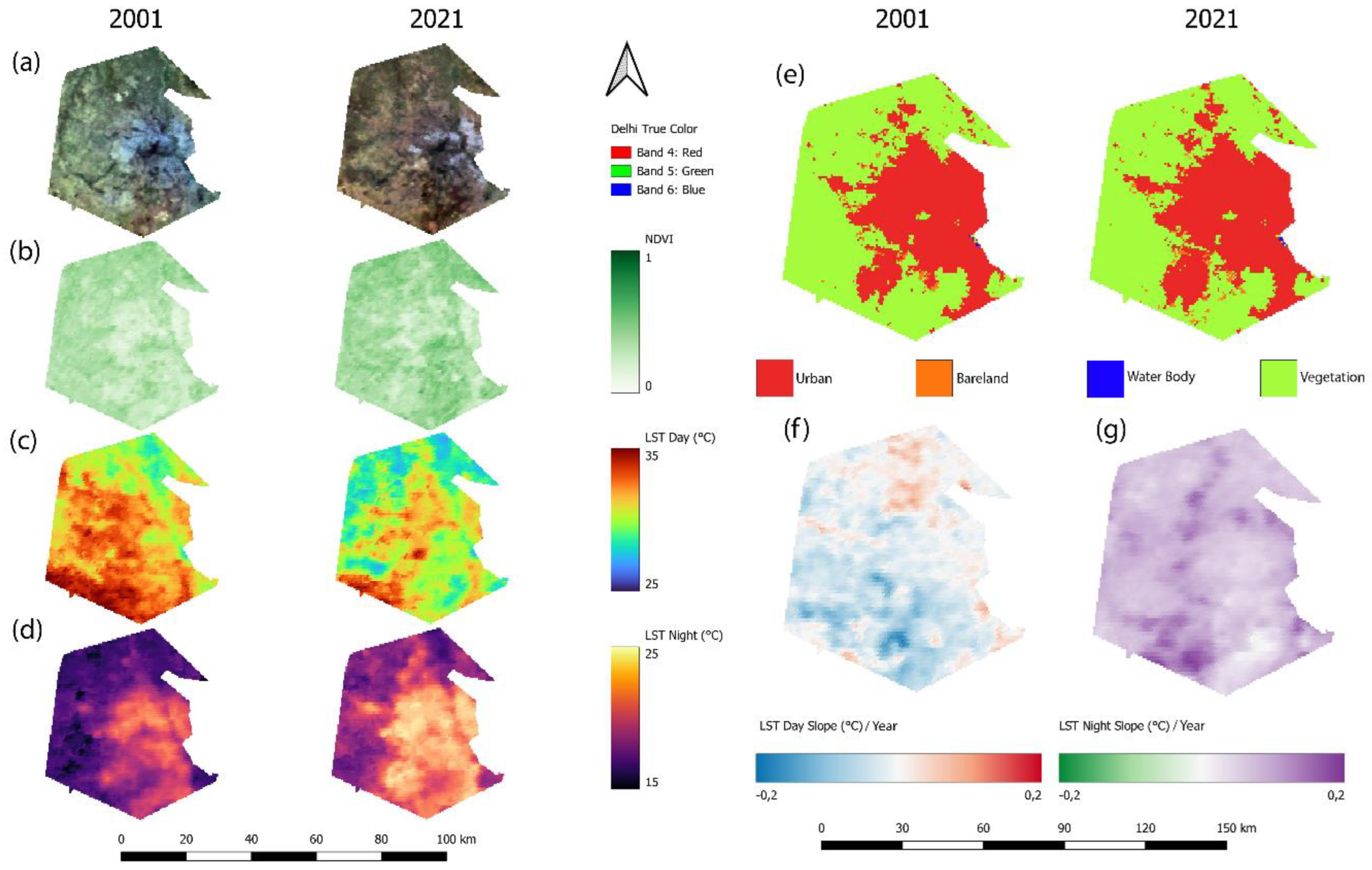

Figure 8.
Left panel: (a) true color imagery of Delhi (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 8.
Left panel: (a) true color imagery of Delhi (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 9.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Delhi.
Figure 9.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Delhi.

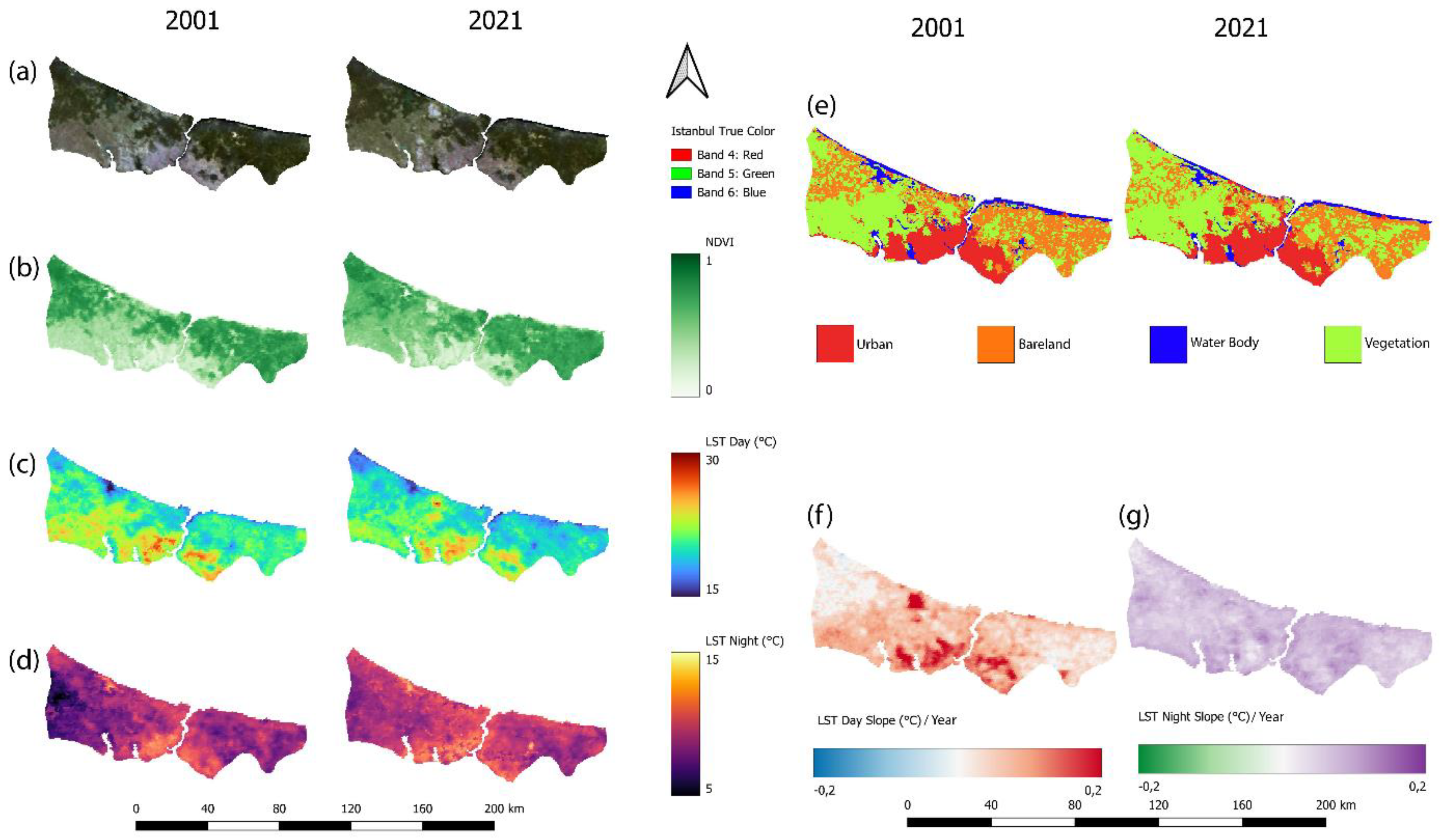

Figure 10.
Left panel: (a) true color imagery of Istanbul (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 10.
Left panel: (a) true color imagery of Istanbul (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 11.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Istanbul.
Figure 11.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Istanbul.

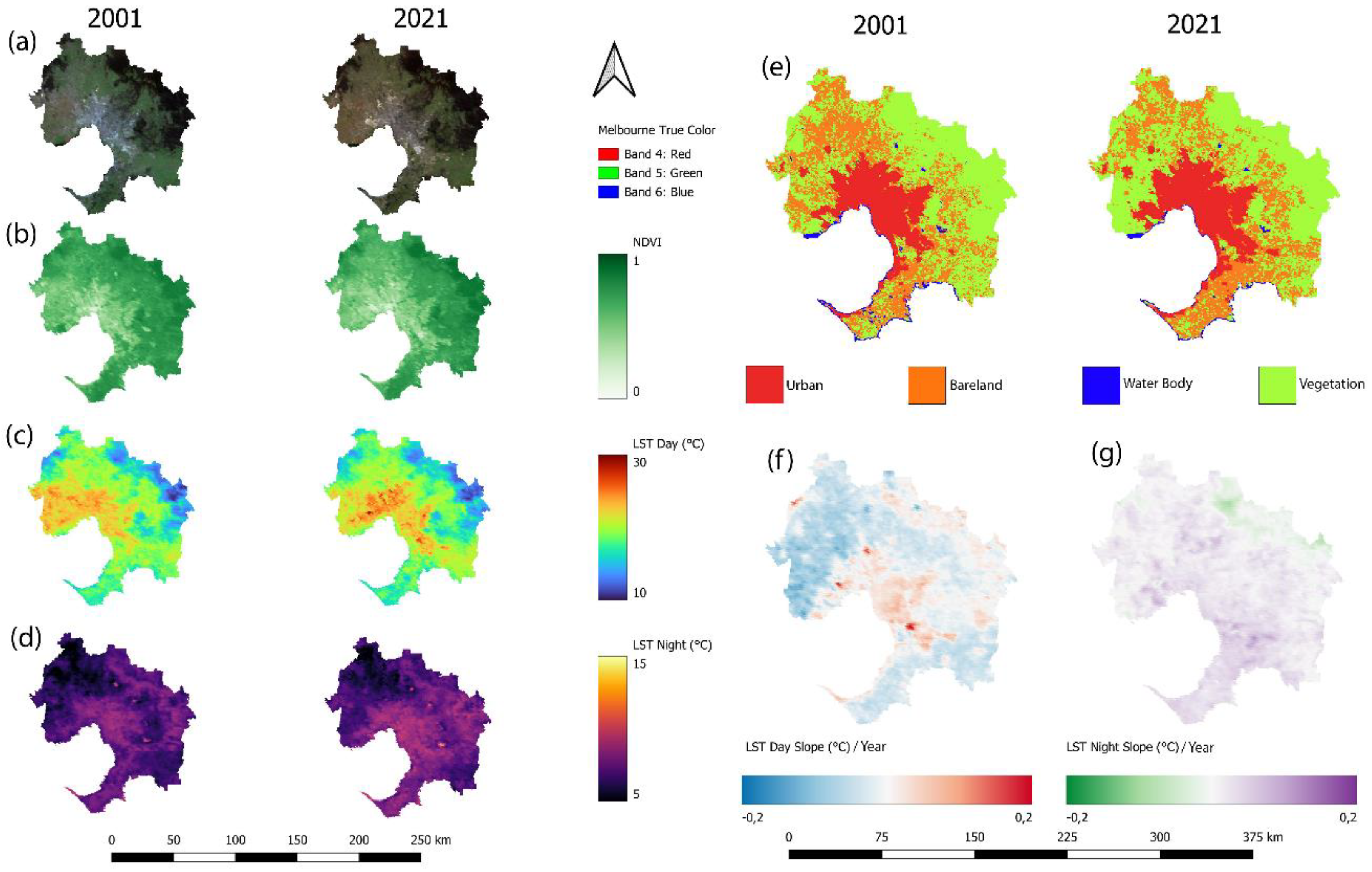

Figure 12.
Left panel: (a) true color imagery of Melbourne (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 12.
Left panel: (a) true color imagery of Melbourne (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.

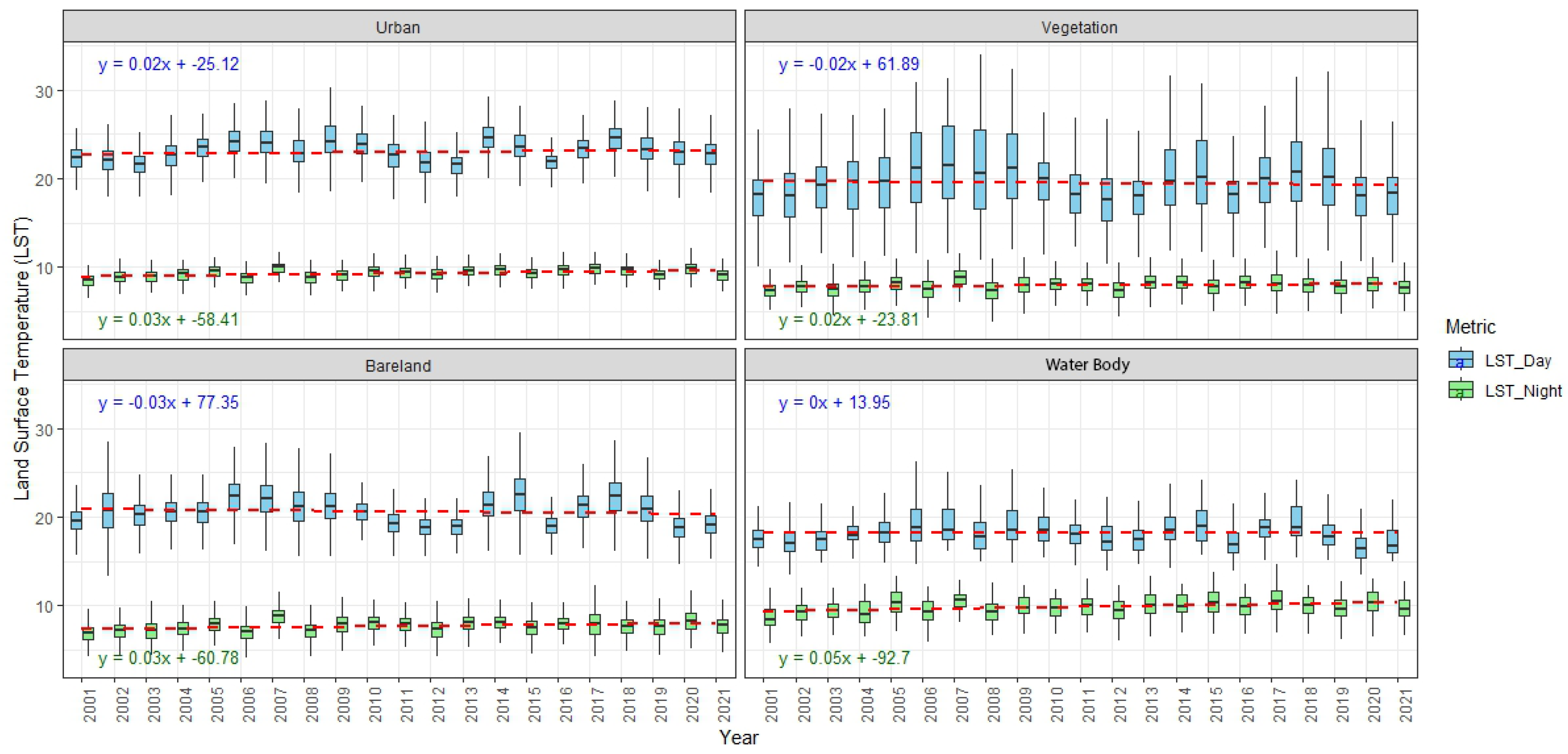

Figure 13.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Melbourne.
Figure 13.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Melbourne.

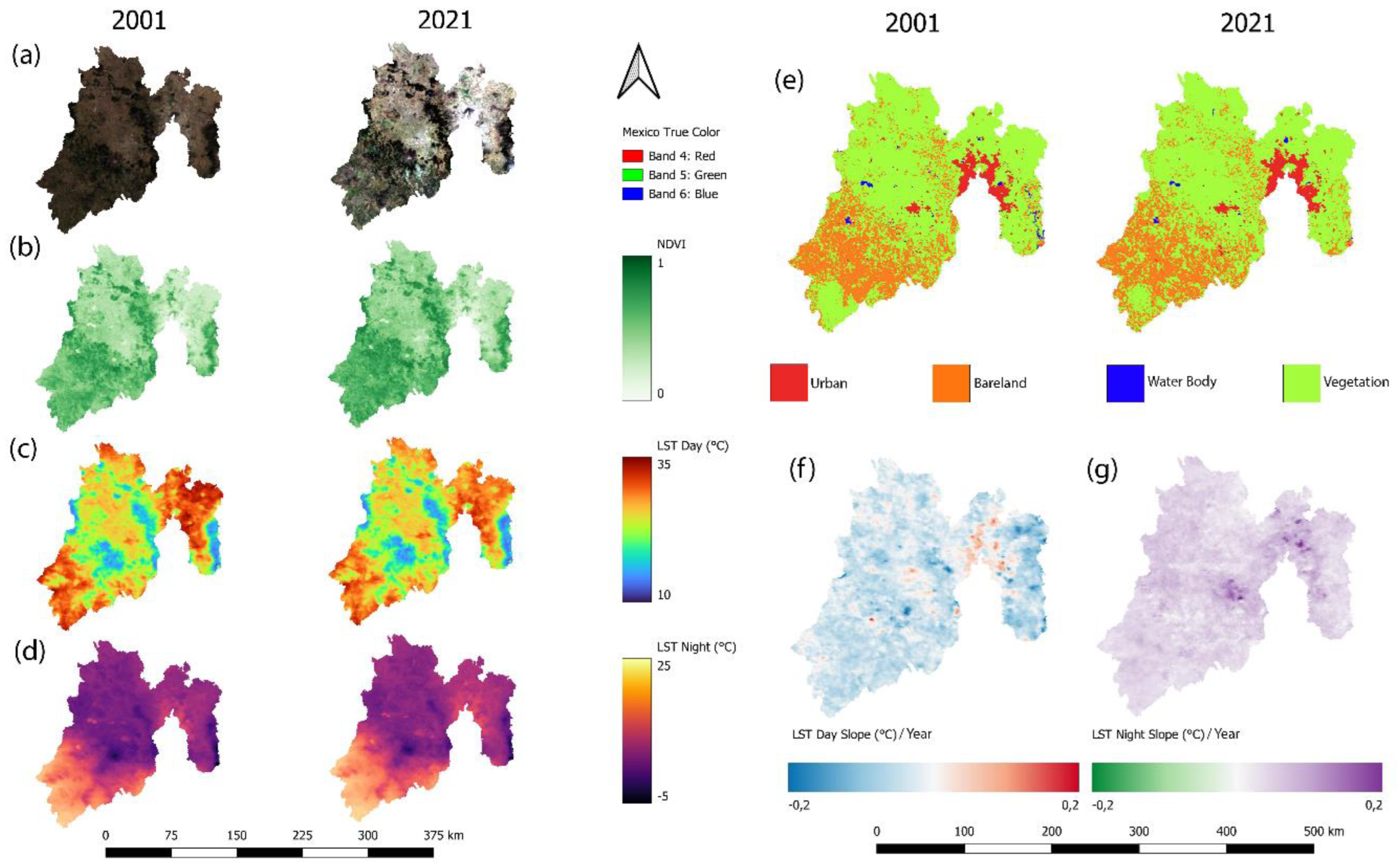

Figure 14.
Left panel: (a) true color imagery of Mexico (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 14.
Left panel: (a) true color imagery of Mexico (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.

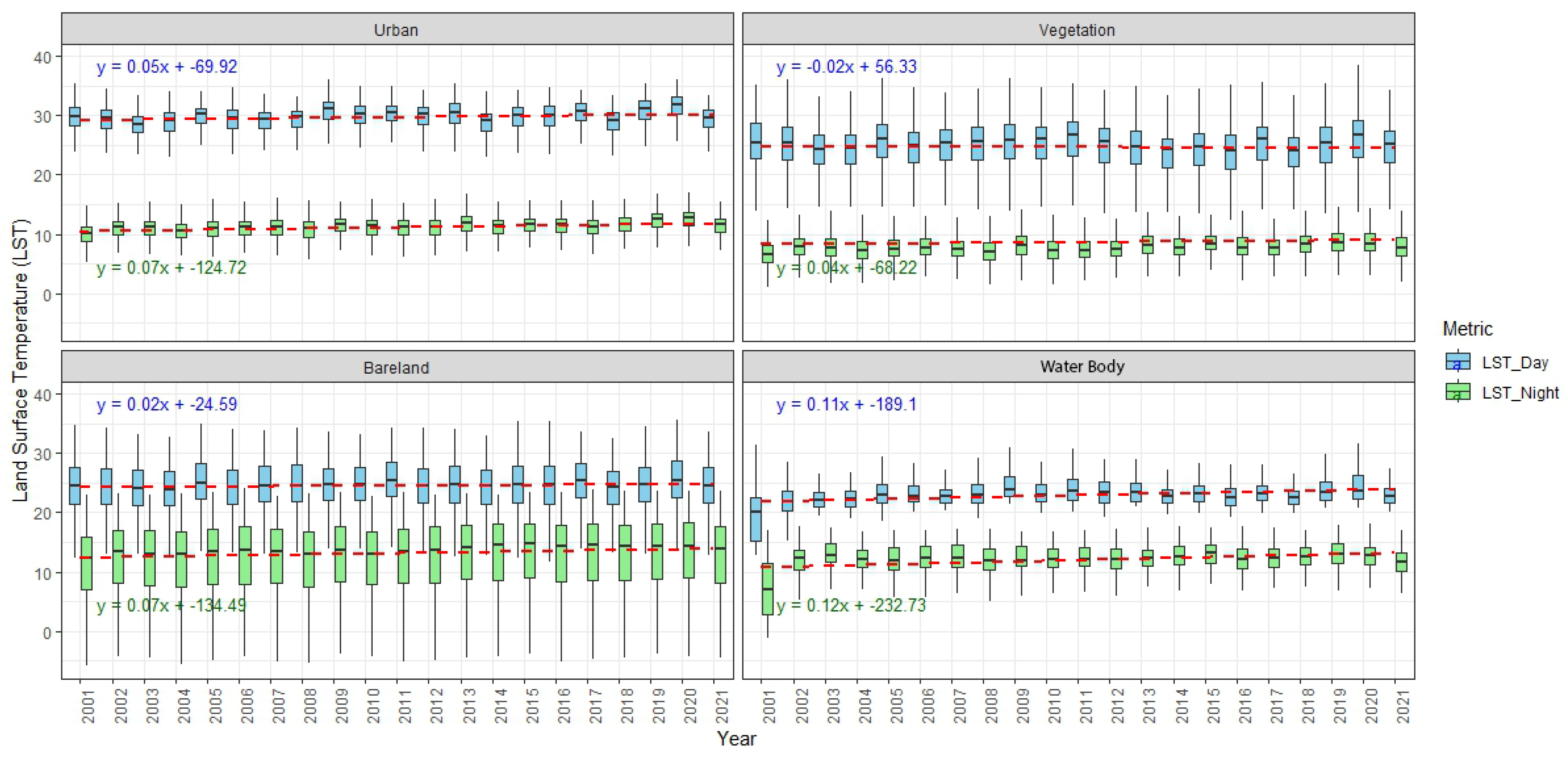

Figure 15.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Mexico.
Figure 15.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Mexico.

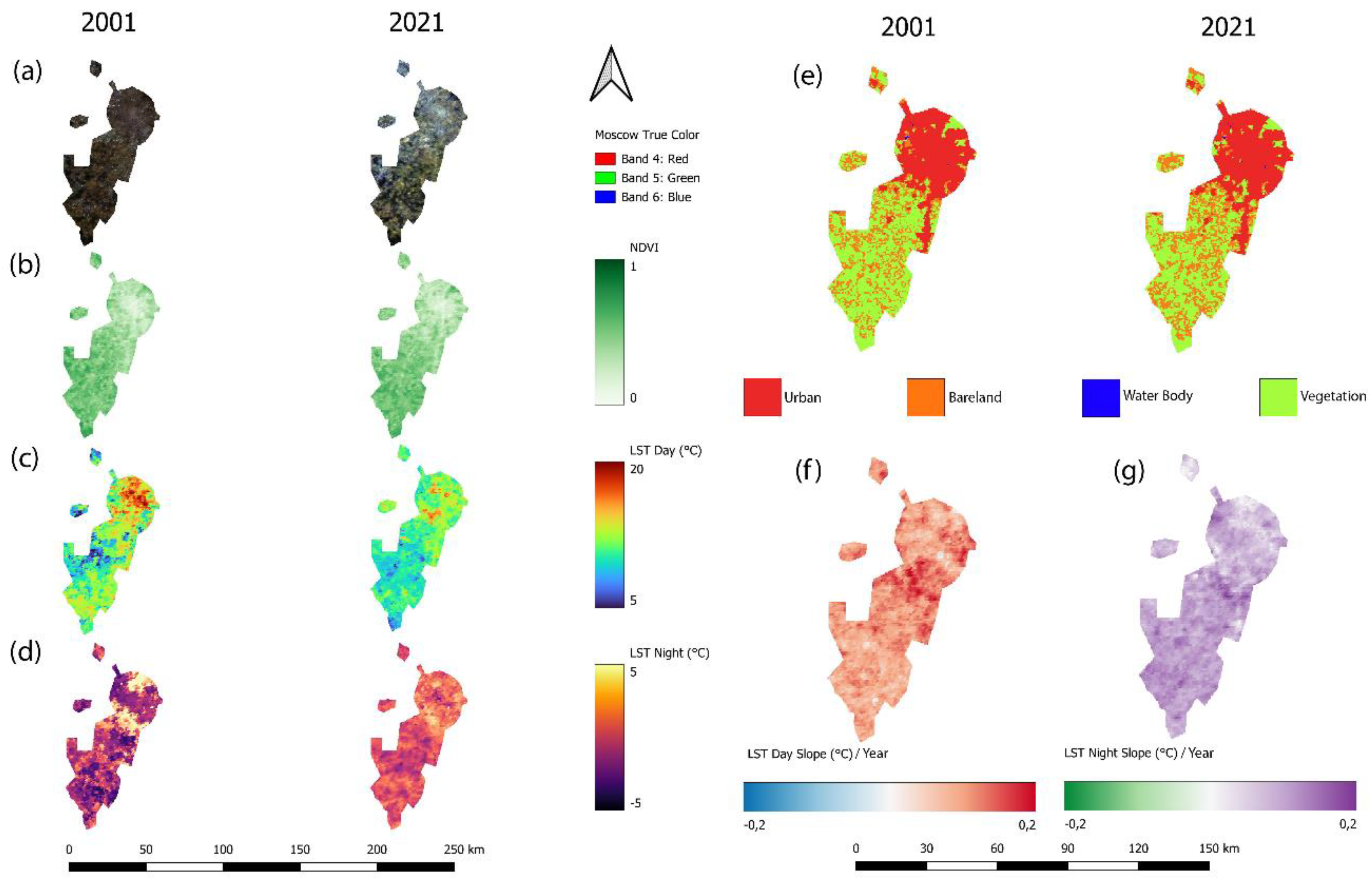

Figure 16.
Left panel: (a) true color imagery of Moscow (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 16.
Left panel: (a) true color imagery of Moscow (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.

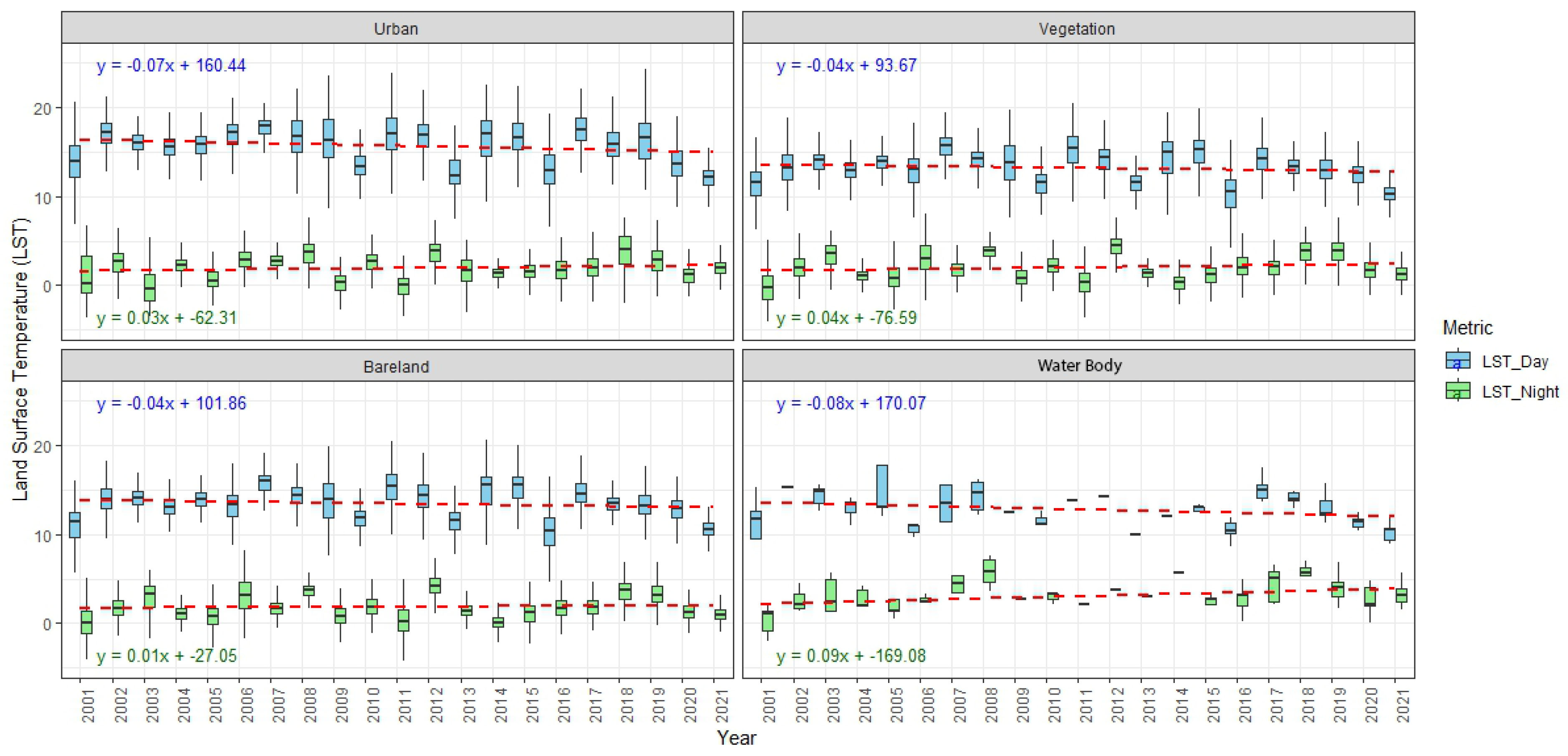

Figure 17.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Moscow.
Figure 17.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Moscow.

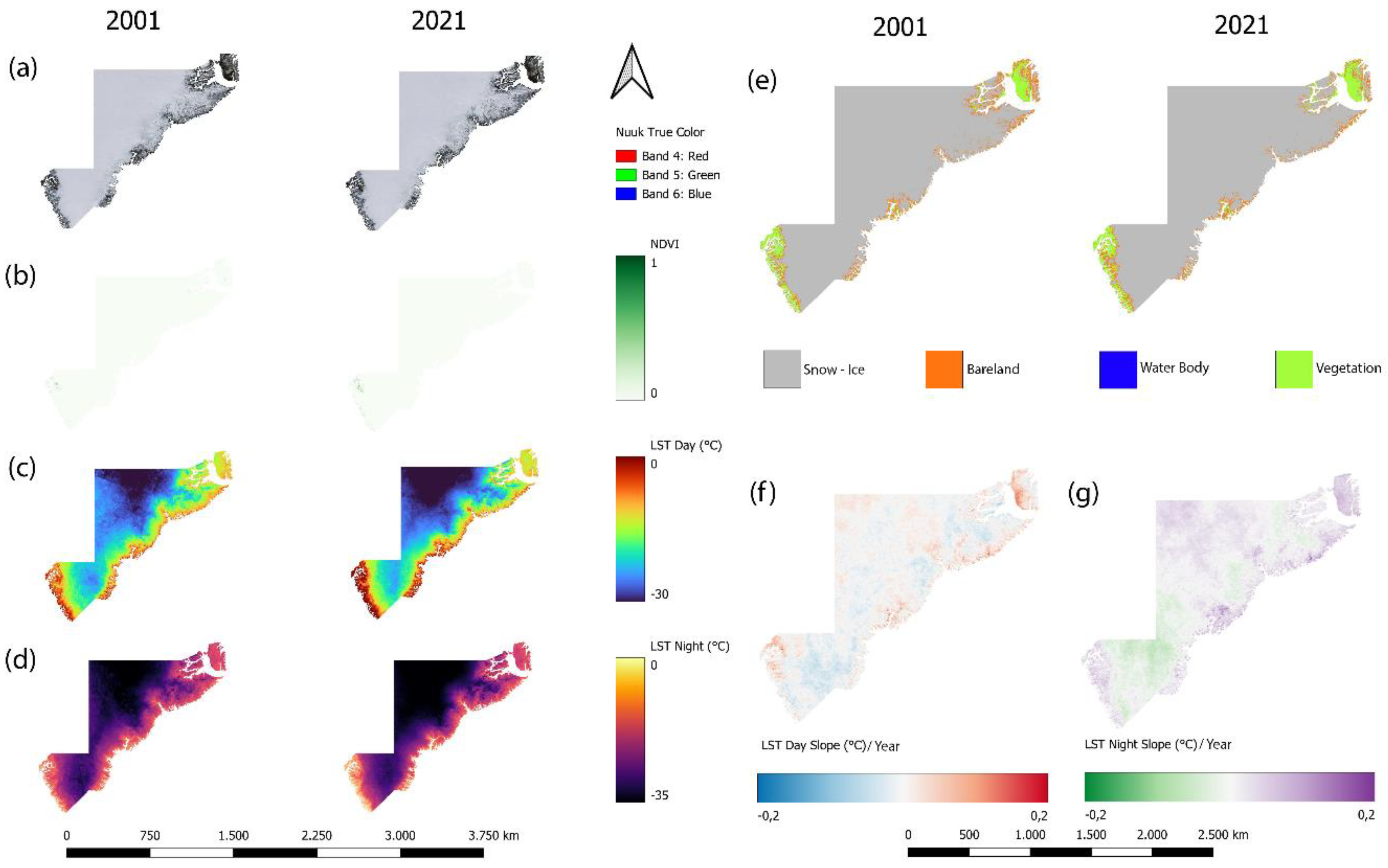

Figure 18.
Left panel: (a) true color imagery of Nuuk (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 18.
Left panel: (a) true color imagery of Nuuk (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.

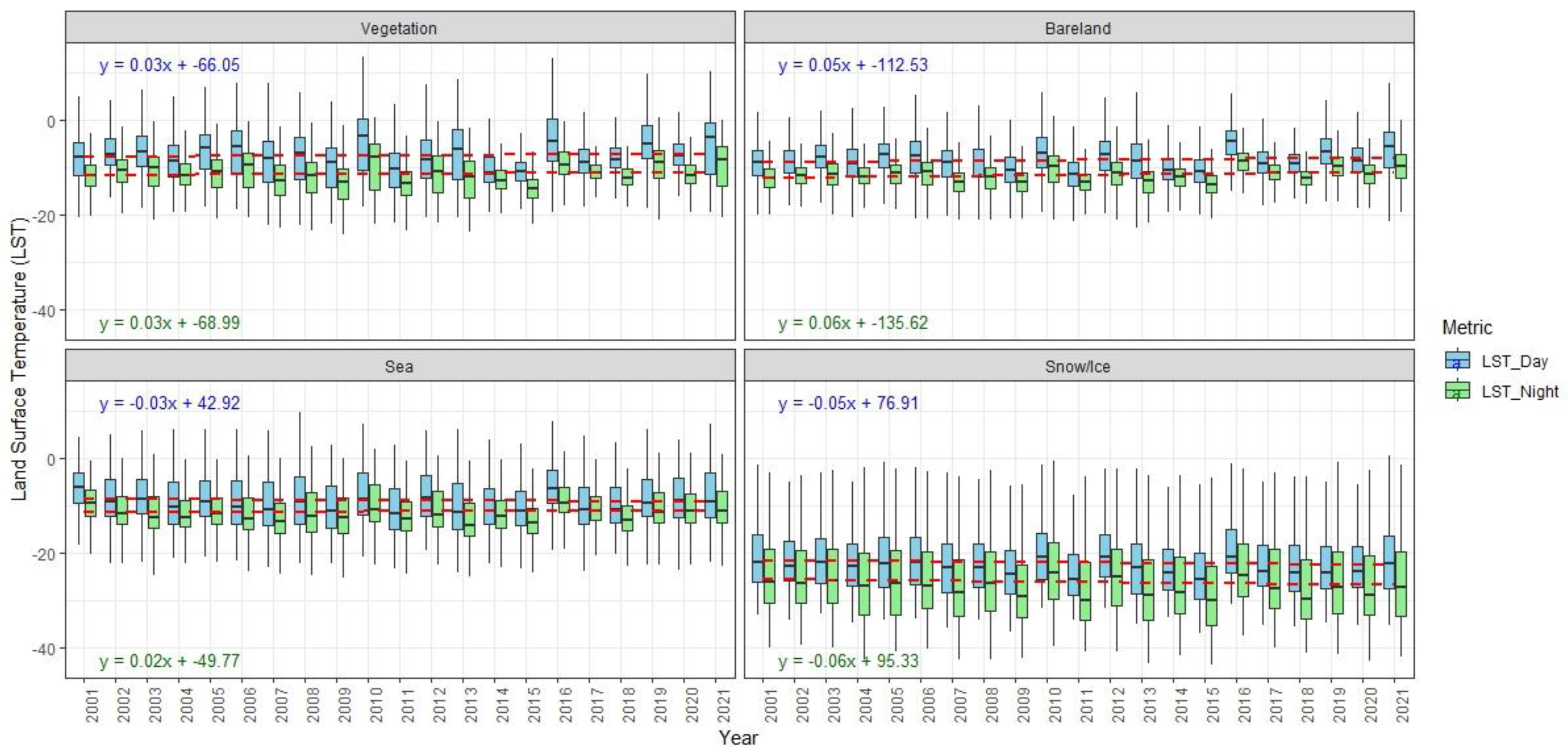

Figure 19.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Nuuk.
Figure 19.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Nuuk.

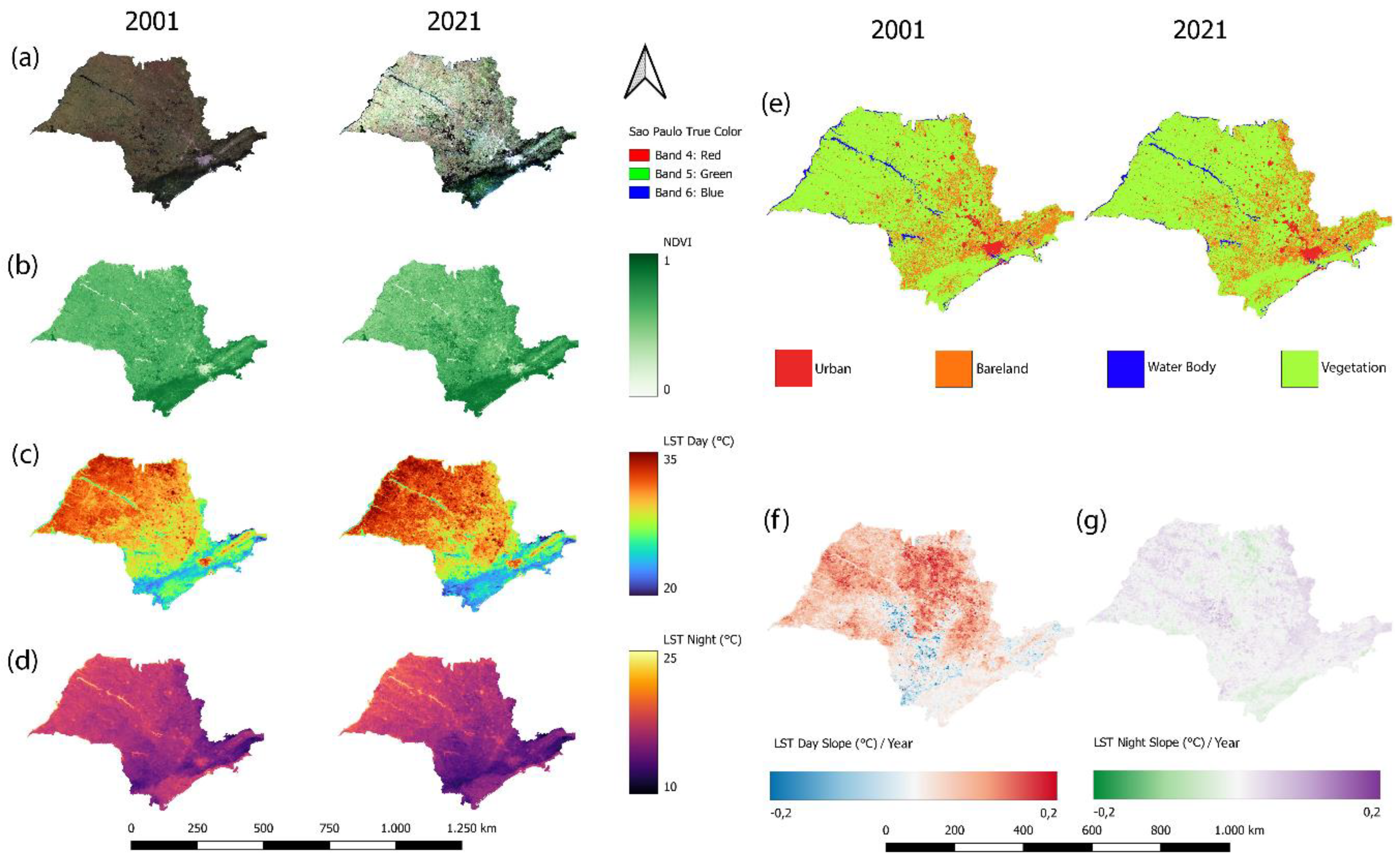

Figure 20.
Left panel: (a) true color imagery of Sao Paulo (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 20.
Left panel: (a) true color imagery of Sao Paulo (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.

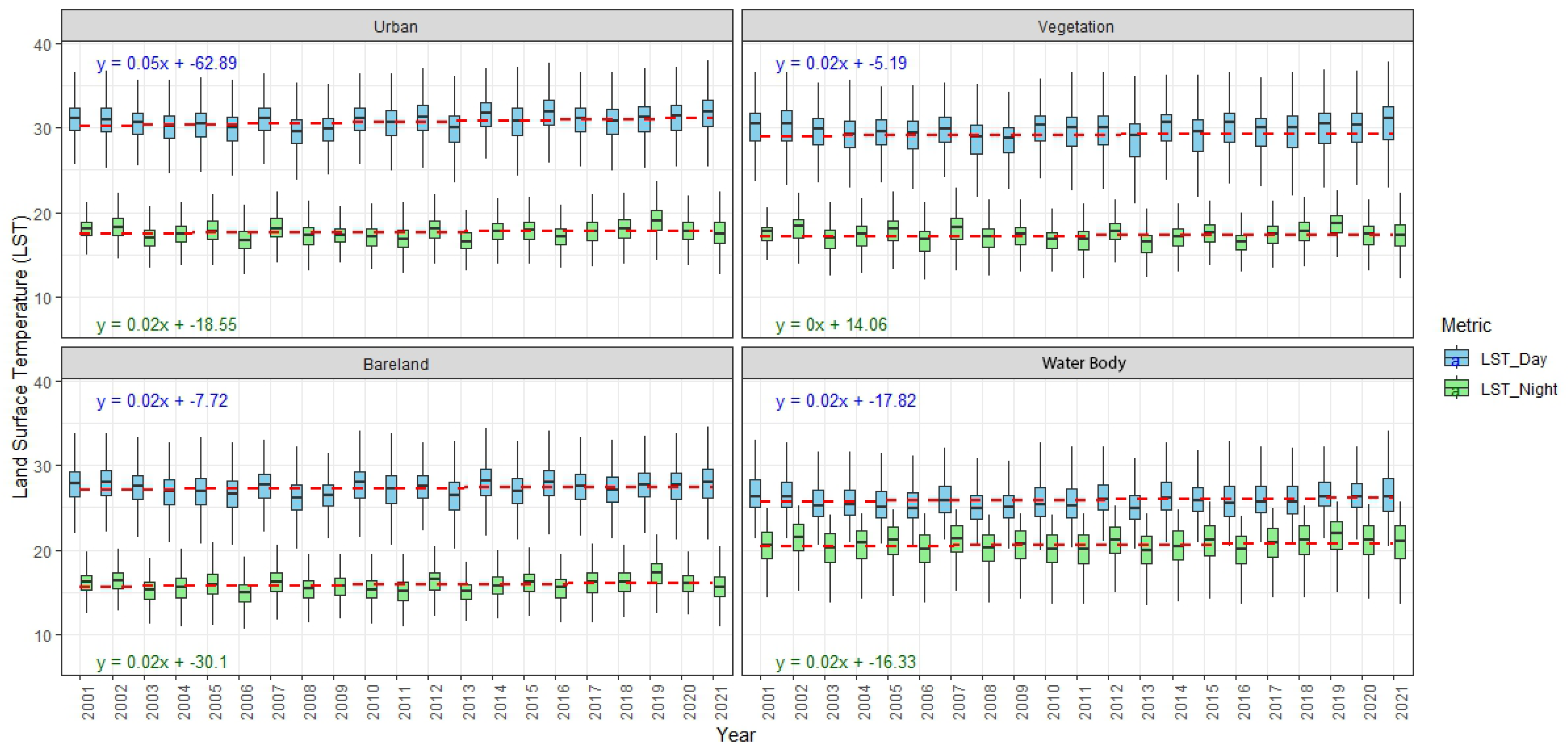

Figure 21.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Sao Paulo.
Figure 21.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Sao Paulo.

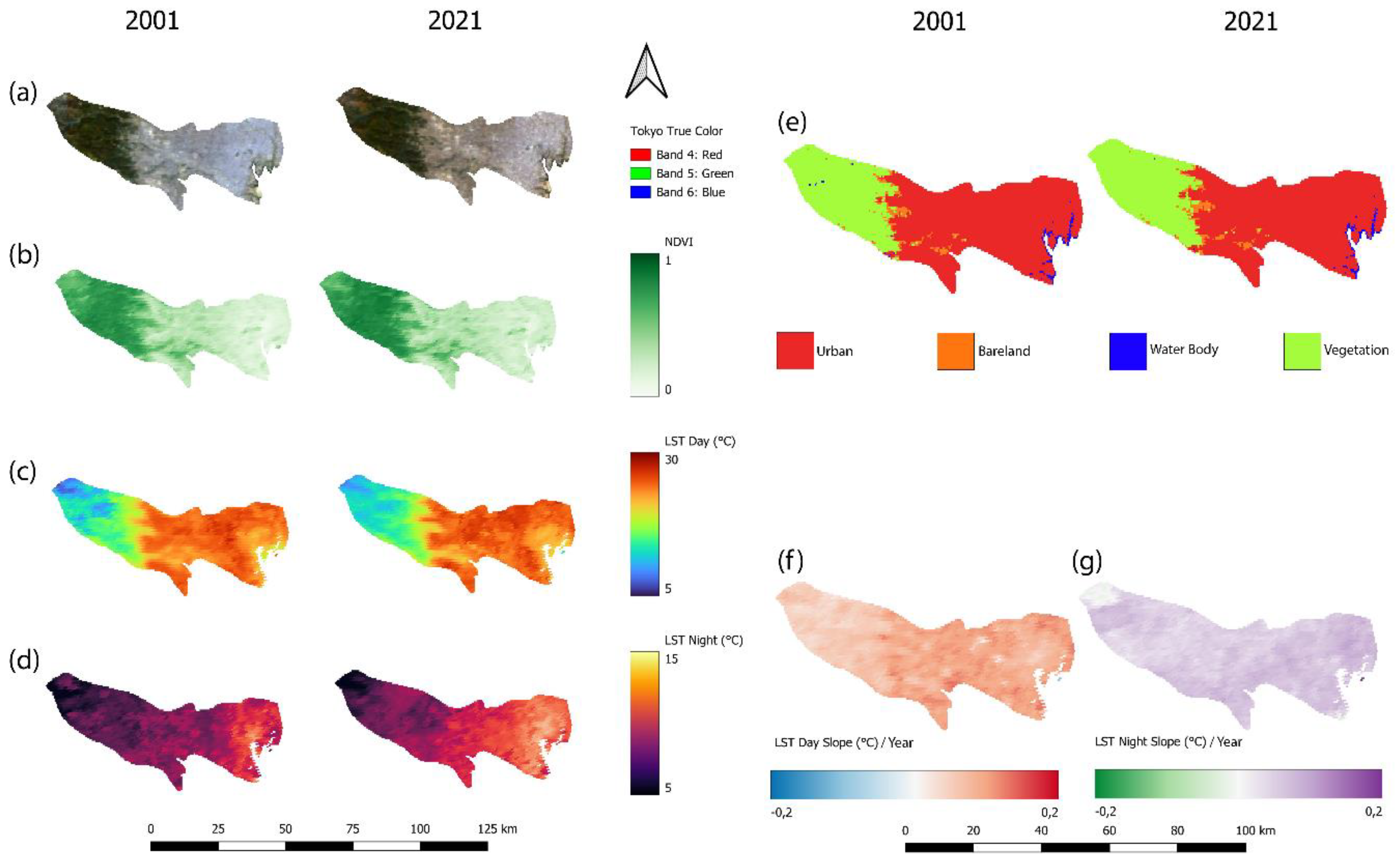

Figure 22.
Left panel: (a) true color imagery of Tokyo (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.
Figure 22.
Left panel: (a) true color imagery of Tokyo (2001 and 2021); (b) NDVI; (c) LST Day; (d) LST Night. Right panel: (e) land cover (2001 and 2021); (f) LST Day Slope; (g) LST Night Slope.

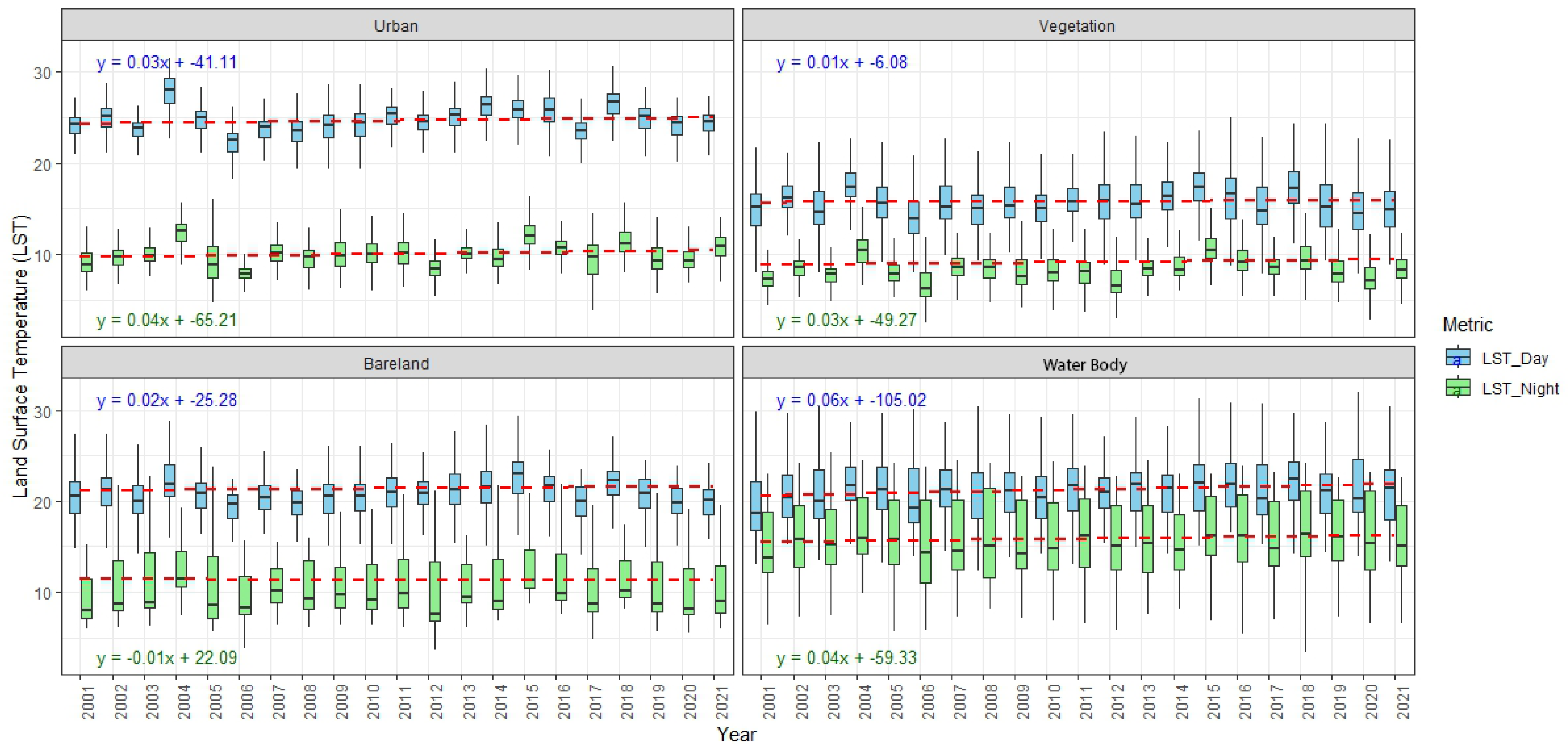

Figure 23.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Tokyo.
Figure 23.
Long-term trends and boxplots of the land surface temperature (LST) across different land cover types (urban, vegetation, bareland, and sea), showing both LST Day and LST Night trends (2001–2021) in Tokyo.
Figure 24.
Comparison of satellite-based land surface temperature (LST) data and corresponding aerial imagery across different hotspot and cold spot adjacent zones.
Figure 24.
Comparison of satellite-based land surface temperature (LST) data and corresponding aerial imagery across different hotspot and cold spot adjacent zones.
Table 1.
Selected cities in different continents with their populations.
Table 1.
Selected cities in different continents with their populations.
Continent | City | Country | Population | Climate |
---|
Asia | Tokyo | Japan | 37,115,000 | Humid Subtropical |
Asia | Delhi | India | 33,807,400 | Semi-Arid/Tropical |
Asia | Chongqing | China | 32,100,000 | Humid Subtropical |
South America | São Paulo | Brazil | 22,806,700 | Tropical Monsoon |
North America | Mexico City | Mexico | 22,505,300 | Subtropical Highland |
Africa | Cairo | Egypt | 22,623,900 | Hot Desert (Arid) |
Europe/Asia | Istanbul | Turkey | 16,047,400 | Mediterranean |
Europe | Moscow | Russia | 12,712,300 | Humid Continental |
Oceania | Melbourne | Australia | 5,315,600 | Oceanic |
Greenland | Nuuk | Greenland | 19,783 | Arctic |
Table 2.
Original and re-classified land usage classes.
Table 2.
Original and re-classified land usage classes.
Re-classified Land Usage Classes | Original LC_Type1 Classes |
---|
Urban and Built-up Lands | 13 |
Vegetation | 1 + 2 + 3 + 4+5 + 6+7 + 10 + 12 + 14 |
Bareland | 8 + 9 + 16 |
Permanent Snow and Ice | 15 |
Sea and Water sources | 11 + 17 |
Table 3.
Land use change by percent (2001–2021 difference).
Table 3.
Land use change by percent (2001–2021 difference).
City | Urban Change (%) | Vegetation (%) | Bareland (%) | Waterbody (%) |
---|
Cairo | 6.1 | 4990.8 | −3.0 | 0.0 |
Chongqing | 48.7 | 18.4 | −16.0 | 19.0 |
Delhi | 6.4 | −4.8 | 29.4 | −18.6 |
Istanbul | 10.4 | 9.8 | −15.0 | −20.3 |
Melbourne | 10.8 | 0.1 | −5.0 | −33.9 |
Mexico | 7.5 | −0.6 | 1.5 | −51.9 |
Moscow | 5.6 | −13.7 | 21.2 | 0.0 |
Nuuk | 0.0 | 5.6 | −11.7 | 5.9 |
Sao Paulo | 0.9 | 1.5 | −4.4 | −16.4 |
Tokyo | 0.1 | 5.5 | 14.4 | −21.4 |
Table 4.
Relationship between NDVI classes and daytime land surface temperatures (LSTs).
Table 4.
Relationship between NDVI classes and daytime land surface temperatures (LSTs).
Cities | NDVI ≤ 0 | 0 < X ≤ 0.2 | 0.2 < NDVI ≤ 0.6 | 0.6 < NDVI ≤ 1 |
---|
Cairo. | - | 35.61 ± 1.4 | 33.4 ± 1.9 | - |
Chongqing | 20.62 ± 1.8 | 25.42 ± 2.5 | 24.26 ± 3.8 | 22.07 ± 3.4 |
Delhi | - | 31.81 ± 0.7 | 30.20 ± 1.4 | 29.61 ± 0.4 |
Istanbul | 15.70 ± 0.0 | 24.29 ± 2.2 | 21.45 ± 1.6 | 19.33 ± 1.0 |
Melbourne | - | 23.44 ± 1.1 | 22.71 ± 1.3 | - |
Mexico | 21.6 ± 0.8 | 29.81 ± 3.3 | 25.7 ± 3.1 | 21.9 ± 4.5 |
Moscow | - | 12.7 ± 1.6 | 11.03 ± 1.5 | 9.43 ± 1.0 |
Nuuk | −20.19 ± 8.3 | −1.44 ± 4.2 | 0.46 ± 2.13 | - |
Sao Paulo | 24.9 ± 1.5 | 26.61 ± 3.0 | 31.92 ± 1.8 | 25.62 ± 3.2 |
Tokyo | - | 24.17 ± 1.48 | 23.78 ± 2.8 | 16.13 ± 3.5 |
Table 5.
Relationship between NDVI classes and nighttime land surface temperatures (LSTs).
Table 5.
Relationship between NDVI classes and nighttime land surface temperatures (LSTs).
Cities | NDVI ≤ 0 | 0 < X ≤ 0.2 | 0.2 < NDVI ≤ 0.6 | 0.6 < NDVI ≤ 1 |
---|
Cairo | - | 19.47 ± 1.6 | 21.08 ± 0.7 | |
Chongqing | 14.66 ± 0.71 | 14.91 ± 1.0 | 13.65 ± 2.8 | −12.56 ± 2.3 |
Delhi | - | 23.90 ± 0.4 | 21.02 ± 2.0 | 20.88 ± 1.5 |
Istanbul | 13.47 ± 0.19 | 11.60 ± 0.9 | 10.38 ± 1.0 | 10.10 ± 0.8 |
Melbourne | - | 9.18 ± 0.4 | 9.32 ± 0.6 | - |
Mexico | 15.36 ± 1.99 | 11.63 ± 3.1 | 9.12 ± 4.2 | 11.59 ± 5.3 |
Moscow | - | 1.48 ± 1.1 | 1.39 ± 1.0 | 1.78 ± 0.7 |
Nuuk | −24.93 ± 9.1 | −6.56 ± 3.3 | −5.58 ± 1.7 | −5.0 ± 1.5 |
Sao Paulo | 22.71 ± 1.5 | 21.47 ± 2.5 | 18.00 ± 1.50 | 15.95 ± 1.7 |
Tokyo | - | 12.27 ± 0.9 | 10.38 ± 1.8 | 9.74 ± 3.6 |
Table 6.
Land surface temperature (LST) variations across different urban zones in selected megacities.
Table 6.
Land surface temperature (LST) variations across different urban zones in selected megacities.
City | City Center | Airport | Industrial Zone | Green Space | Water Bodies |
---|
Cairo | 32.19 | 35.47 (Cairo International Airport) | 36.52 (Industrial Zone Badr City) | 31.50 (Gharb el-Golf) | 30.58 (Nil River) |
Chongqing | 26.61 | 35.05 (Chongqing Jiangbei Airport) | 35.10 (Gecaoba) | 23.11 (Wumaguicao) | 22.35 (Yangtze River) |
Delhi | 32.39 | 34.51 (Indira Gandhi Airport) | 33.05 (Mundka Industrial Area) | 29.24 (Central Ridge Reserve Forest) | 27.55 (Yamuna River) |
Istanbul | 24.19 | 28.07 (Istanbul Airport) | 25.89 (Ataşehir Industrial Zone) | 18.77 (Çatalca Forest) | 15.63 (Bosphorus) |
Melbourne | 24.63 | 25.70 (Melbourne Airport) | 27.70 (Truganina) | 20.27 (North Warrandyte) | 20.52 (Yarra River) |
Mexico | 32.16 | 33.19 (Mexico Airport) | 30.77 San Luis Tlatilco Industrial Zone | 20.03 (Sierra de Guadalupe State Park) | 22.30 (Laguna de Zumpango) |
Moscow | 12.44 | Vnukovo Airport (12.85) | 15.55 (Podolsk Industrial Area) | 10.77 (Sokoliki Park) | 11.15 (Moscow River) |
Sao Paulo | 31.65 | 32.39 (Sao Paulo Airport) | 32.80 (Viela Sabesp) | 29.17 (Parque Ibirapuera) | 28.05 (Jurubatuba River) |
Tokyo | 22.31 | 23.89 (Tokyo International Airport) | 26.51 (Toshibacho) | 21.81 (Tokyo Imperial Palace) | 23.62 (Arakawa River) |
Table 7.
Land surface temperature (LST) difference between urban mosaic and different urban zones.
Table 7.
Land surface temperature (LST) difference between urban mosaic and different urban zones.
| Difference Value ( °C) | Percentage (%) |
---|
City | Airport | Industrial Zone | Green Space | Water Bodies | Airport | Industrial Zone | Green Space | Water Bodies |
---|
Cairo | 3.28 | 4.33 | −0.69 | −1.61 | 10% | 13% | −2% | −5% |
Chongqing | 8.44 | 8.49 | −3.5 | −4.26 | 32% | 32% | −13% | −16% |
Delhi | 2.12 | 0.66 | −3.15 | −4.84 | 7% | 2% | −10% | −15% |
Istanbul | 3.88 | 1.7 | −5.42 | −8.56 | 16% | 7% | −22% | −35% |
Melbourne | 1.07 | 3.07 | −4.36 | −4.11 | 4% | 12% | −18% | −17% |
Mexico | 1.03 | −1.39 | −12.13 | −9.86 | 3% | −4% | −38% | −31% |
Moscow | 0.41 | 3.11 | −1.67 | −1.29 | 3% | 25% | −13% | −10% |
São Paulo | 0.74 | 1.15 | −2.48 | −3.6 | 2% | 4% | −8% | −11% |
Tokyo | 1.58 | 4.2 | −0.5 | 1.31 | 7% | 19% | −2% | 6% |
