Cascade Effect of Nitrogen on Brazilian Soybean Production Chain

Abstract

Soybean is one of the most traded products. Naturally, soy fixes nitrogen through biological symbiosis. Its cultivation transforms natural inert atomic nitrogen into its reactive forms. The advancement of soybean can have environmental impacts, both locally and globally. This study estimated nitrogen flows and their use efficiency in the Brazilian soybean production chain applying material flow analysis. We innovate proposing a new indicator to estimate the “cascade effect of nitrogen” in a framework of 12 years (2007 to 2019). We hypothesized that it is capable to show accumulated nitrogen emissions through the chain. Besides, the method can show the main sources of nitrogen to the environment. The biological fixation was the largest entry. The efficiency in the use of nitrogen was 81% for grain production, and the nitrogen cascade indicator, which represents the ratio of the nitrogen emission in the environment to the total nitrogen available in the product, was only 5.2% in the soybean meal production chain for the year of 2019, with a clear trend of increasing during the period. Thus, Brazil contributes significantly to global nitrogen emissions in the environment since the country is an important producer and player in the world market.

1. Introduction

Nitrogen, despite having provided growth in agricultural and livestock production, is also responsible for adverse effects on the environment with damage to human health and the biodiversity of aquatic and terrestrial ecosystems [1,2,3]. Within the nine planetary boundaries [4], nitrogen, like phosphorus, is already at levels of uncertainty, with great proven losses to the balance of ecosystems [5]. The advancement of food production contributed to the increase in reactive nitrogen emissions to the biosphere, using synthetic fertilizers, biological nitrogen fixation, and management of animal production waste, and burning of fossil fuels [6]. In 2010, the livestock chain contributed approximately 65 Tg of nitrogen to global anthropogenic emissions; these represent 39% of global nitrate emissions, 23% of nitrogen oxide emissions, 60% of ammonia emissions, and 32% of nitrous oxide emissions [7]. Reactive nitrogen means all forms of nitrogen other than gaseous nitrogen (N₂), including ammonia, nitrogen oxides, forms of nitrogen loss in waterways, and the nitrogen present in organisms in the form of proteins, amino acids, and other organic forms [3,8]. The increase in reactive nitrogen causes environmental impacts on various scales, local, regional, and worldwide because the amount of reactive nitrogen produced is greater than the capacity of ecosystems to convert it to a non-reactive form. Thus, the excess of nitrogen can then move, transform or accumulate, developing the “cascade effect” of nitrogen [9]. The “cascade effect” represents a dynamic view of the nitrogen cycle, which demonstrates the existing interactions between the evaluated systems and their impacts on the different ecosystems [10]. The cascade also reflects the opening or “linearization” of the nitrogen cycle. An important feature of the cascade is that once it has started, the initial source of reactive nitrogen becomes irrelevant. This is because the forms of reactive nitrogen can convert between them and cause different effects on the atmosphere and terrestrial and aquatic ecosystems [11].

Soy is widely cultivated due to its importance as animal feed (mainly a source of vegetable protein) and the use of its oil for domestic human consumption and the manufacture of biofuels [12]. Brazil is currently the world’s largest producer of soybeans, with 124.8 million tons produced in the 2019/2020 harvest, and is also an important exporter of soybean grains and meal. Between 1977 and 2019, there was an increase in soy production of approximately 12 times and an increase in productivity (per land area) of 2.7 times [13]. This was a consequence of cultivation expansion areas, mainly in the center-west of the country, which has become the region with the highest grain production. In recent years, there has also been an increase in plantations in the Northeast region of the country, which has transformed this region into the new Brazilian agricultural frontier. Due to this expansion, biomes such as the Amazon and the Cerrado suffered impacts and measures such as the “Soy Moratorium” (an agreement between traders and farmers not to grow soy on deforested land) and the “forest code” (the Federal Forest Protection Act) were implemented in an attempt to contain deforestation. In addition to deforestation, soy is also related to land use change in several regions of the country, replacing mainly pasture areas [14].

Changes in land use, deforestation, advances in soy plantations, and the development of agriculture in the country, have contributed to the increase in the anthropogenic use of nitrogen. As an example, biological nitrogen fixation (BNF) in agriculture in 1995 was 3.5 Tg of nitrogen per year in 2002; this value rose to 7.3 Tg per year, representing respectively 70% and 77.6% of the total Brazilian anthropogenic inputs [15]. Therefore, biological fixation represents the largest source of reactive nitrogen in the Brazilian cycle, which thus highlights the importance of soy cultivation in this cycle [15].

Thus, it is necessary to better understand the cascade effect of nitrogen and its consequences for the various ecosystems in which it operates, since this topic is not widely addressed in research and public policies for sustainable development [16]. Current policies have focused on strategies for single elements, without interrelations and connections between the elements and their scales of action [17]. Thus, the objective of this paper is to explore which stages of the Brazilian soybean production cycle have the greatest impact on the nitrogen cycle in addition to estimating the cascade effect of the nitrogen cycle of Brazilian soybeans. For this, the material flow analysis (MFA) methodology [18] was used, with an efficiency indicator for the use of nitrogen [19], and a new indicator was proposed to estimate the cascade effect. With the flows of the Brazilian soy production chain and indicators of nutrient use efficiency and cascade effect of nitrogen, we can answer the question of how much nitrogen this crop needed in all supply chains, and how much of this reactive nitrogen goes to the environment, potentializing impacts on ecosystems. This response can help to improve the management of nutrients and to reduce logistic losses in the soy supply chain in Brazil.

2. Materials and Methods

Data were collected on soybean production in Brazil and its industrial processing into soybean meal in the period from 2007 to 2019. The data were organized into nitrogen inputs and outputs (tons/year), as detailed in Appendix A. Following the MFA methodology, nitrogen balance was carried out in three phases of the production chain: (i) the production of soybean in the field (crop production); (ii) grain storage and trade (cereal unit); and (iii) the production of soybean meal by the processing industry. The balance considered that the nitrogen inputs subtracted by the outputs and stock variation must be equal to zero [19,20].

2.1. Soy Production System Considered in the Model

The technical itinerary for the soybean production used data available at Agribenchmark [21], by the BR1300MT farm, located in the Midwest region of Brazil. This itinerary represents the production system adopted in the Midwest region of Brazil, which is similar to the production systems in the Northeast and North regions of the country, thus representing 58% of the quantity produced by the 2018/2019 Brazilian soybean harvest [13]. The productive system has direct planting (also called “no-tillage farming”), genetically modified seeds, a mechanized system for soil preparation, planting, harvesting, and crop treatments. The liming of the soil is used to correct acidity, with potassium, phosphate, and micronutrient fertilization. The nitrogen supply for crops comes from biological nitrogen fixation, and natural atmospheric deposition. Crop treatments consist of herbicides and fungicides (although our estimates do not consider N in these agrochemicals). Nitrogen emissions from deforestation and changes in land use for soy cultivation were considered. Data on production, productivity, planted area, deforestation and land use change were collected at the state level, in the period from 2007 to 2019. The biomes considered in deforestation were the Cerrado, the Amazon, and the Pampa (Appendix A).

After the soybean harvest, there is a corn production season, called “safrinha” (corn “little harvest season” in portuguese), which was considered in this study as a destination for nitrogen from the remains of soybean culture. After the soybean harvest, the grains are transported to the cereal warehouses where they are dried, stored and opportunely sold. For the production of soybean meal, the data provided by the Brazilian Vegetable Oil Industry Association (ABIOVE) [22] were considered, and the losses arising from transport logistics during the production chain were calculated based on the road network, which represents the main mode of transport used in the country. Figure 1 details nitrogen flows and the production system for Brazilian soy.

2.2. Efficiency Indicators in the Use of Nitrogen and the Cascade Effect

To assess the efficiency of nitrogen use in the different stages of the soybean production cycle, we use the NUE (nitrogen use efficiency) indicator [23], which is calculated by the ratio between the total product harvested in terms of nitrogen content and the nitrogen inputs in the system [19]. Efficiency estimates are essential in studies of production chains since low efficiencies in the use of nutrients are commonly associated with high emissions to the environment [24].

The NUE for agricultural systems has been used in several studies as an indicator to estimate progress in achieving the goals proposed by the Sustainable Development policy and is an indicator accepted and used by 193 member countries of the United Nations General Assembly [25]. In this study, NUE and its evolution were considered in the Brazilian soybean production system, from 2007 to 2019. From the point of view of the nitrogen cycle, the efficiency of the crop phase of a system can be considered as the capacity of conversion of nitrogen added to the soil, fertilizers, animal waste, biological nitrogen fixation, and atmospheric deposition, compared with the amount of nitrogen in the final product [19].

A new indicator is proposed in this study: The Nitrogen Cascade Indicator (NCI), which assesses nitrogen emissions to environment along the production chain (crop, commercialization and processing). For this indicator, it is taken into account that there is a concentration of nitrogen to the environment in each phase of the production cycle. Thus, it is calculated by the ratio between tons of nitrogen made available to the environment, and the amount in tons of useful-product nitrogen. In this article, the products were considered: soybeans and soybean meal. This dimensionless indicator explicitly demonstrates the percentage of emissions sent to the environment of the total nitrogen present in the product to be sold. To calculate it, there was considered emissions to the environment, the flows of which are indicated in Figure 1. There was an NCI for soybean production, which accounts for the flows “b and c” for the environment, and the flow “a” for the product (Figure 1) and an NCI accumulated with emissions to the environment of crop (flows “b” and “c”), commercialization (flow “f”) and processing (flow “e”), and the final product was tons of soybean meal (flow “d”) (Figure 1).

$$NCI=\frac{Tons of nitrogen destined for the environment }{Tons of nitrogen present in the product}$$

As shown in Figure 1, the tons of nitrogen present in the product considered corresponds to the flows demarcated with the letter “a” and the letter “d”. For the environment, flows with the letter “b”, which aggregate emissions from deforestation and land use change, and the letters “c, e, f”, which correspond to losses related to transport, harvesting, and storage, of grain production, storage, and industrial processing sectors.

3. Results

3.1. Nitrogen Inputs and Outputs in the Brazilian Soybean Production System

Figure 2 shows the nitrogen flows within the production system (chain). The greatest nitrogen input into the soybean production system was through biological nitrogen fixation (BNF), with an increase of 39% in the 12 years evaluated. This increase in BNF is due to the increase in soybean planted area in the country, which was approximately 47 million hectares in 2007, compared to approximately 66 million hectares in 2019. This increase in the planted area also led to a greater need for inputs such as seeds. Besides this, the increase of areas occurred in forest regions and in areas that were already destined for agricultural production, but with other crops or activities. The largest growth occurred in the Cerrado region, where land use change was larger than the area deforested for soybean planting. Overall, the nitrogen inputs for Brazilian soybean production went from approximately 9 Tg of nitrogen in the year 2007, to about 12 Tg of nitrogen in the year 2019.

Regarding nitrogen outputs, it is observed that soybeans in grains have the highest amount of nitrogen transferred between sectors (or chain links). Regarding the destination of these soybeans, there was a change in the product’s commercialization: in 2007 most of the production was destined for the domestic market, and in 2019, the foreign market corresponded to 63% of the destination of Brazilian production. With this, Brazil consolidates itself as a global exporter of nitrogen, emphasizing the importance of quantifying and optimizing nitrogen flows within the soy and coproduct production system. In the commercialization sector of soybean meal, the same trend is observed with a significant increase in product exports, but still without overlapping domestic consumption. Soybean meal exports increased by more than 3 million tons of product over the 12 years.

Other important outputs which influenced the results of emissions to the environment, were losses related to logistics, harvesting, and storage, with an increase of 75.36% between 2007 and 2019. Since these results are similar to those observed in the literature, which point to the fact that the losses cannot be neglected, since in each phase the losses are decimal, but when seen at the point of the production chain these losses are significant, even more in the grain production where the volume traded is millions of tons [26].

The stock variation within the nitrogen balance of the system showed different results, however in the soybean production sector the stock variation was negative, and in the commercialization and processing stages of the grain, the values were positive. The negative stock variation in the soybean production stage come from the use of soil nitrogen stocks, in addition to possible variations in nitrogen from deforestation and changes in land use. The positive stock variation in the commercialization and processing steps may come from product stock changes from one current year to the next.

3.2. Nitrogen Use Efficiency (NUE) and Nitrogen Cascade Indicator (NIC) on Brazilian Soy Production Chain

The efficiency in the use of nitrogen in crop sector during the study period remained practically stable at around 81%. This stability can be attributed to the fact that there are no significant changes in the management of the crop during the entire study period.

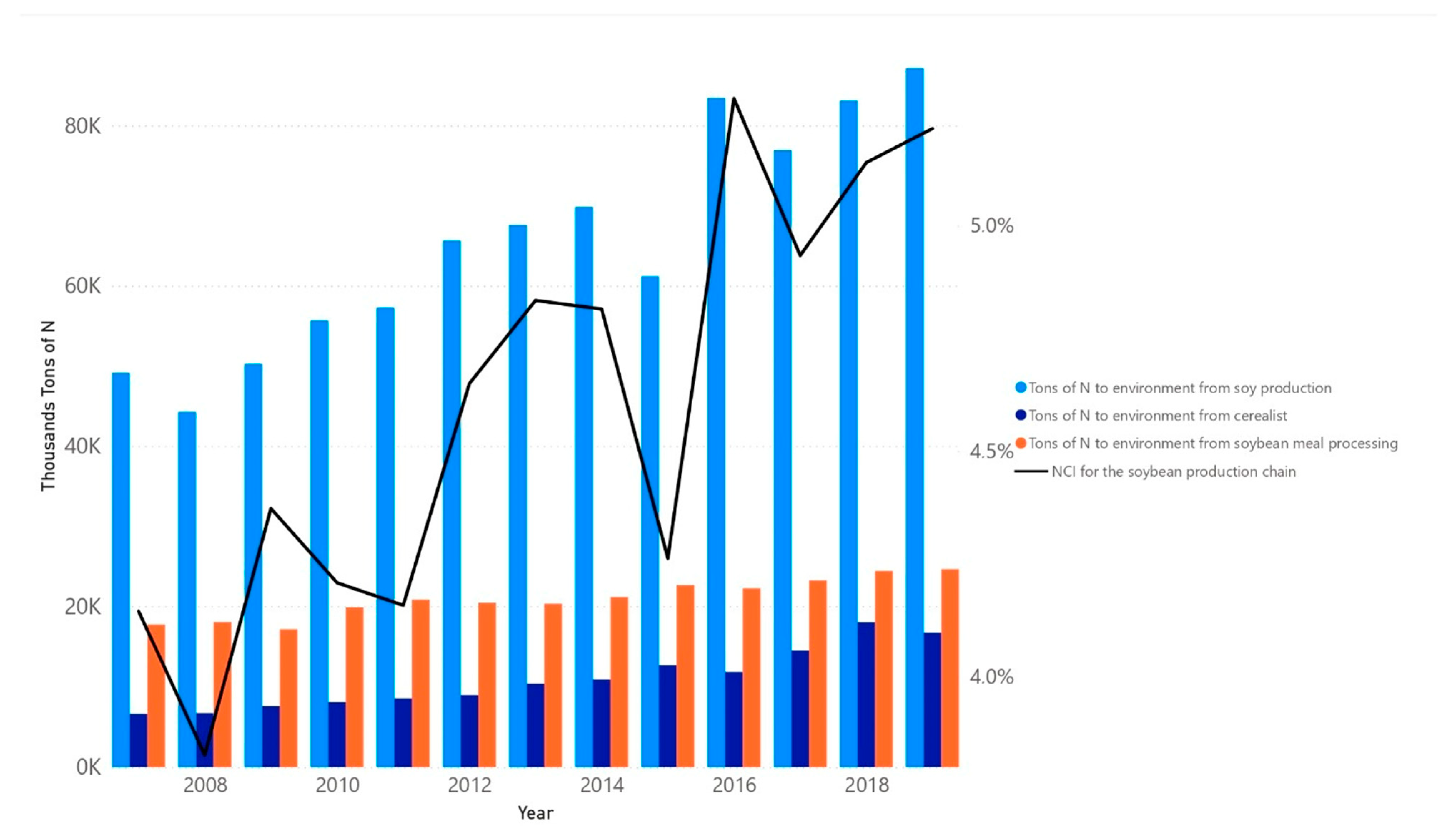

There was a significant increase in emissions to the environment in the three sectors of the study, in which the soybean production stage presented the highest values, around 49 thousand tons in 2007, for about 87 thousand tons in 2019. Despite this, the Nitrogen cascade indicator (NCI) for crop production varied from 0.524% in 2007 to 0.522% in 2019, being almost stable.

Although the NCI in the crop sector showed a slight reduction, the accumulated NCI (that is, the NCI considering the three sectors of the chain) showed values of 4.145% in 2007 and 5.216% in 2019, which emphasizes the necessity of analyzing production systems in the whole chain instead of isolated sectors. The drops in the indicator in the years 2008, 2011, and 2015 highlight the decrease in the productivity of Brazilian soybeans, and the values in these years were, respectively, 2835, 3266, and 3203.38 kg/ha (Figure 3).

4. Discussion

Since the soybean plant is a legume, it was expected that the largest entry of reactive nitrogen in the system would come from biological nitrogen fixation. The value of 11 Tg/N/year in 2019 corresponds to 13% of the maximum inflows of new anthropogenic nitrogen fixed in the atmosphere from agriculture, proposed by Rockström in the concept of planetary boundaries for nitrogen (82 Tg/N/year) [4]. Previous studies have estimated values for biological nitrogen fixation in Brazil of 7.5 Tg/N/year in 2009 [27] and 4.6 Tg/N/year in 2005 [28]. Thus, it can be observed that the increase in soybean planted area contributed to the increase in biological nitrogen fixation and that Brazil contributes with a large percentage to the maximum global nitrogen inputs from agriculture and livestock.

Deforestation and land use change were important in the growth of soy in Brazil during this study period. Measures such as the “Soy Moratorium” in the Amazon biome, which restrict the trade of soybeans from deforested areas, have reduced the conversion of tropical forests to crops, thereby encouraging the displacement of new areas to other biomes, which have environmental legislation that is less rigid, as is the case of the Cerrado. As a result, regions of the so-called MATOPIBA, which correspond to areas in the states of Maranhão, Tocantins, Piauí, and Bahia, are consolidating themselves as the largest expansions in soybean cultivation in recent years [14].

The production of soybeans and soybean meal from Brazil is sold to domestic and foreign markets. In recent years, there has been an increase in exports of these products, which has consolidated Brazil as an important supplier of global protein. The increase in this trade causes an additional increase in anthropogenic reactive nitrogen, which can affect the climate, the biogeochemical cycle of the atmosphere, and the composition of aquatic and terrestrial ecosystems. In 2004, approximately 45 Tg/N out of the total of 187 Tg/N added reactively originated from international trade, with 40 Tg of the 45 produced coming from products derived from soy and meat production [16].

Other studies have also shown negative balances in the assessment of crop systems [28]. This is due to the reduced need for synthetic fertilizers for soybeans since the plant is a legume and the fact that cultivation in a tropical climate has high BNF rates [28]. The second harvest of grains (“safrinha”) transforms this negative stock variation into a positive one, since in this phase, in addition to the use of cultural remains from the previous harvest, large amounts of nitrogen fertilizer are also added.

The efficiency in the use of nitrogen in this study was about 81% for soybean production. Efficiency studies carried out in Latin America found NUE values of 71.1% for crops in soybean-producing countries, and values of 40% for Brazilian crops, these values considered not only soybeans but also corn, wheat, and other crops, which also explains the lower NUE value observed in these studies. Legumes are known to be more efficient in using nitrogen than grasses [19,25].

The NUE points out that Brazil maintains the efficiency of use of the new nitrogen that enters the system [23], despite the increase in production observed in the period, the indicator remained constant. The NCI, which also remained practically constant in the production cycle of soybeans, shows significant increases when analyzed in the production chain until the production of soybean meal. Moreover, in values of tons of nitrogen for the environment both show significant increases, that is, the increase in the consumption of resources and the increase in externalities for the environment grew proportionally more than the productivity gains; this highlights the importance of detailed analyses of the production chain and not just a production cycle [20].

5. Conclusions

The growing advance in soy cultivation in Brazil has made the country a major supplier of global vegetal protein, but this advance influences the global nitrogen cycle, increasing the amount of reactive nitrogen produced by the production chain and increasing nitrogen emissions to the environment. The biological nitrogen fixation is the main nitrogen input of the crop and has undergone exponential increases in recent years; in 2019 it already represented 13% of the total global emissions from agriculture accepted to keep nitrogen within the zone of the uncertainty of the planetary borders. The “cascade indicator” (NCI) seems to be efficient in demonstrating the accumulation of nitrogen suffered between the productive stages of soy and its coproducts in Brazil, pointing out that for 12 years the values of emissions to the environment almost doubled in absolute terms. Therefore, improvements in the production system, with reductions in deforestation, losses from transport, and greater recycling of nutrients are necessary and can contribute to reducing the impacts of this production system on global nitrogen emissions. In addition, studies contemplating production chains instead of isolated production systems are efficient in demonstrating the cascade effect of nitrogen.

Despite the advances, some limitations must be recognized and can serve as inspirations for new studies. The main limitation of this study is the scarcity of detailed and precise official data on emissions and nitrogen flows in the different Brazilian biomes.
