Ultra-Thin Integrated ALD Al₂O₃ Electron-Transparent Windows for TEM Nanoreactor Applications ^†

Abstract

This paper presents for the first time, the integration of ultra-thin (<10 nm) atomic layer deposition (ALD) aluminum oxide (Al₂O₃) membranes as electron transparent windows (ETWs) for transmission electron microscope (TEM) nanoreactor applications. The process was successfully implemented and tested in a TEM. ETWs with thicknesses down to 5 and 10 nm were used to image nanoparticles (NPs) in a 120 keV TEM and 200 keV TEM respectively.

1. Introduction

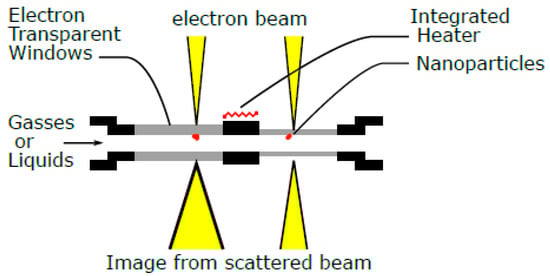

MEMS nanoreactors are devices that allow scientists to study nanocatalysis in-situ (during the reaction) in a TEM, while also controlling the pressure and temperature of the reaction [1,2]. ETWs are ultra-thin membranes that allow the transmission of the electron beam with a minimal amount of scattering. NPs are deposited onto the ETWs, and studied in a TEM at high resolution. Reducing the electron beam scattering in the ETW is critical in obtaining higher resolution NPs images [3]. To increase the resolution for TEM users, the scattering must be minimized with respect to the NP they wish to image to form the clearest possible background. The most effective way to minimize the scattering is to reduce the thickness of the ETW (Figure 1).

Current ETW materials have provided good image quality for thicker and heavier NPs, however contrast issues arise in experiments when lighter NPs need to be studied. State-of-the-art ETWs commercially available are 20–30 nm thick and are integrated in nanoreactors that can withstand 1 bar pressure [4]. This paper presents ultra-thin (<10 nm) ALD ETWs, which were successfully integrated in a TEM nanoreactor and tested.

2. Materials and Methods

2.1. Material and Deposition Selection

Current ETWs are deposited by low pressure chemical vapor deposition (LPCVD), a technique which can produce the desired qualities of ETWs (uniformity, continuity) however only down to a thickness of 15 nm. In contrast, ALD can keep these qualities for ultra-thin layers (down to a few nanometers) and can be deposited at much lower temperatures (T < 300 °C, even under 100 °C), 27 significantly reducing the thermal budget of the process. In this paper Al₂O₃ was selected as the ALD material due to its comparable mass density to LPCVD SiN, and its resistance to vapor hydrogen fluoride (VHF)—which allowed SiO₂ to be sacrificially removed in the process.

2.2. Fabrication Process

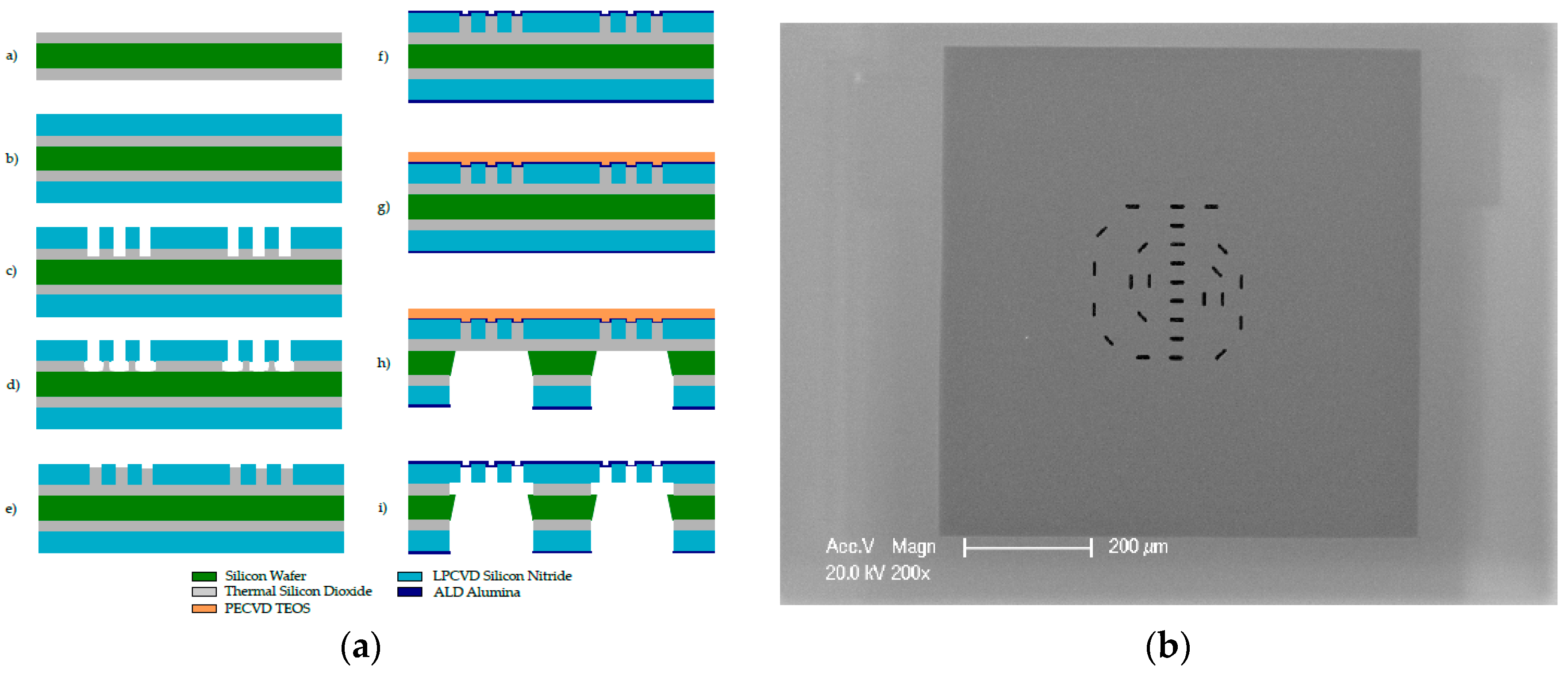

The fabrication process of the ALD Al₂O₃ integrated TEM nanoreactor is shown in nine steps in Figure 2. (a) 200 nm of thermal SiO₂ is grown on the single-side polished <100> silicon wafer. The oxidation temperature was 1000 °C. The SiO₂ is used as an etchant-stop for the (tetramethylammonium hydroxide) TMAH etch later in the process, and is used as a sacrificial layer at the end of the process. (b) 1 µm of SiN is deposited using LPCVD. The SiN will become the mechanically supporting membrane of the ETWs. (c) On the front-side, the ETW holes are dry-etched to land on the thermal SiO₂. (d) The wafers are etched in BHF to remove the remaining oxide in window holes. (e) 800 nm of thermal oxide is regrown in the window holes. (f) Al₂O₃ is deposited via ALD at 300 °C. (g) 1 µm of PECVD TEOS is deposited on top of the Al₂O₃. This TEOS layer functions as a protective capping layer. (h) On the back-side, the TMAH openings are dry-etched to remove the SiN, SiO₂ and Al₂O₃ to reveal the bare silicon. With the front-side protected by a mechanical holder, the wafer then is etched in TMAH to remove the silicon wafer. (i) Lastly, VHF is used to release TEOS and thermal SiO₂.

2.3. Process Results and Film Characterization

The ETWs are integrated into an 800 µm² square-shaped SiN membrane, which is defined in Figure 2a, step h. On the membrane there are 26, 20 × 5 µm² elongated circles. The circles are patterned in a spiral configuration, in the center of the membrane (Figure 2b).

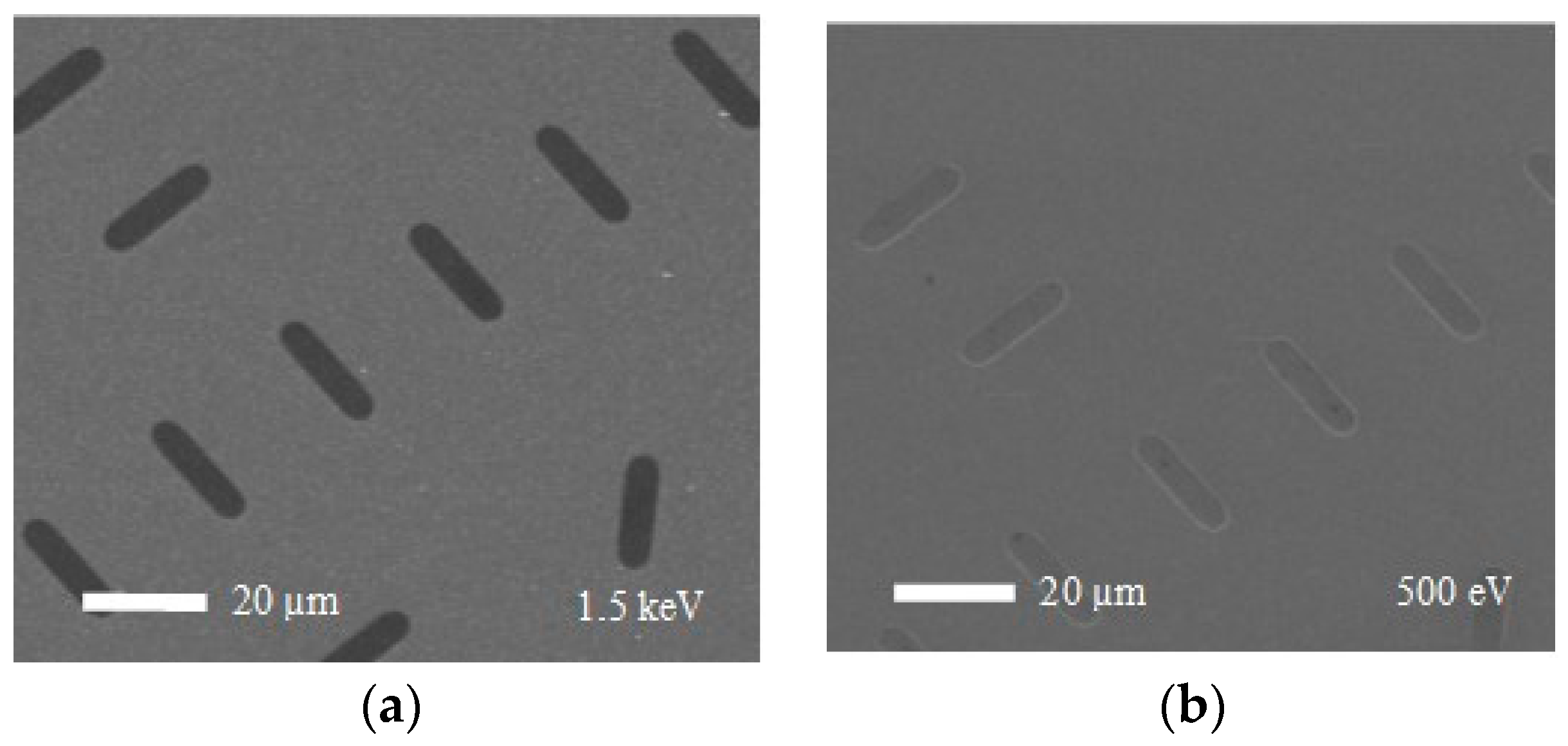

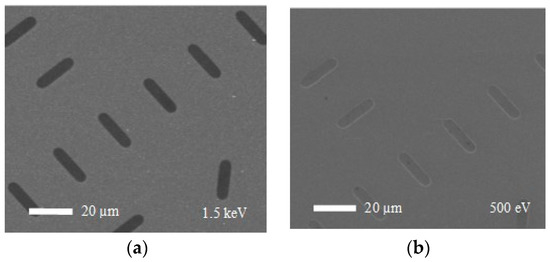

Figure 3a,b are both scanning electron microscope (SEM) images of the same device but at different electron beam energies, 1.5 keV and 500 keV respectively. At lower energies, the ETWs are indistinguishable from the SiN membrane indicating that the ETWs exist. In Figure 3a, the ETWs are completely transparent in the SEM. A finely controllable growth rate of 0.88 nm/cycle, and an ultra-smooth surface roughness of 0.3 nm were measured for the ALD Al₂O₃ layer.

3. Results and Discussion

3.1. Imaging Quality

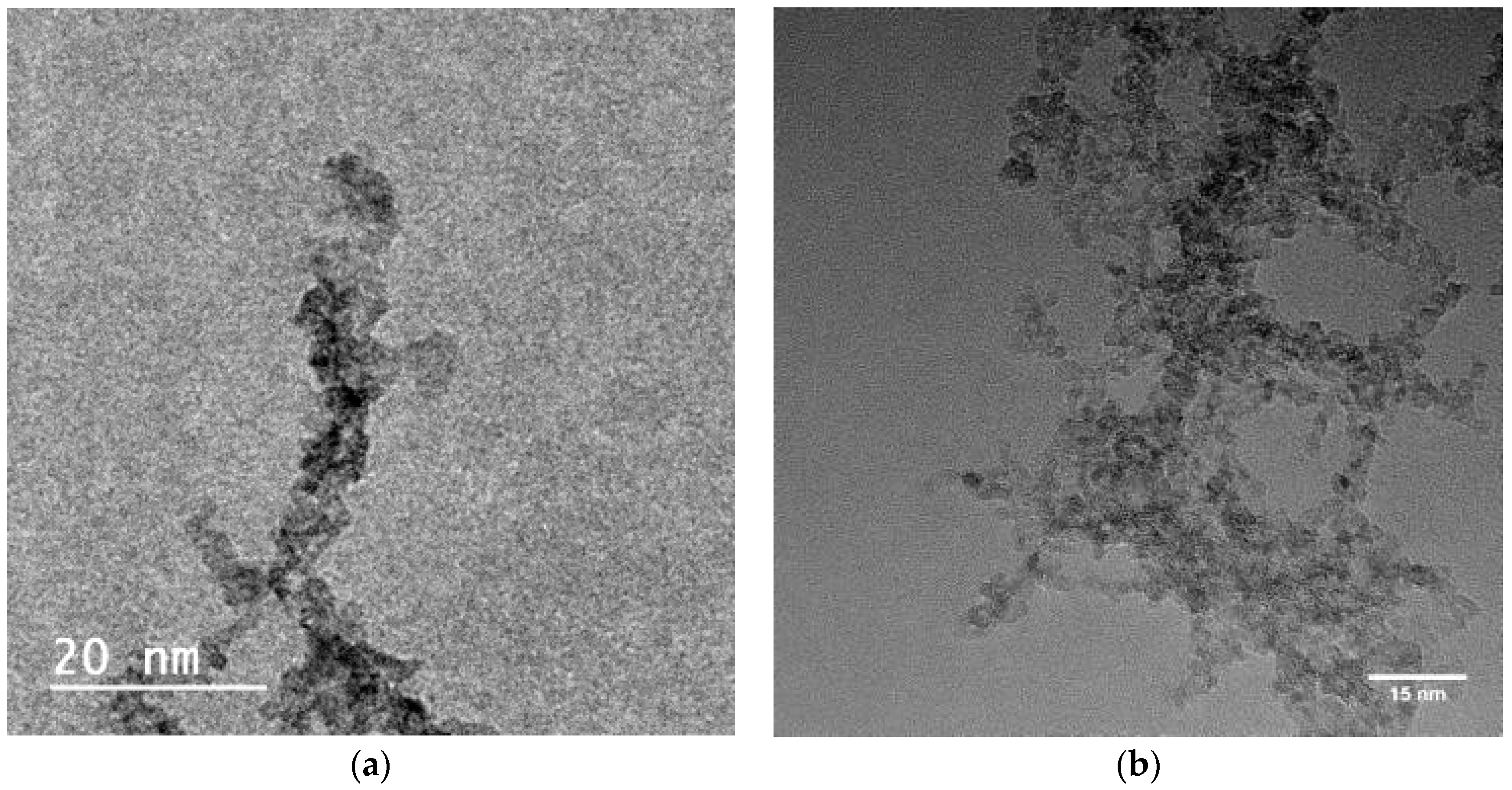

To compare the imaging quality a 5 nm Al₂O₃ (Figure 4a) and 20 nm SiN (Figure 4b) ETWs with nickel oxide (NiO) NPs imaged in a 120 keV and 200 keV, respectively. While the images are taken at different electron energies and slightly different magnifications, the comparison shows a considerable improvement in the clarity of the imaged NiO NPs.

3.2. Threshold Pressure

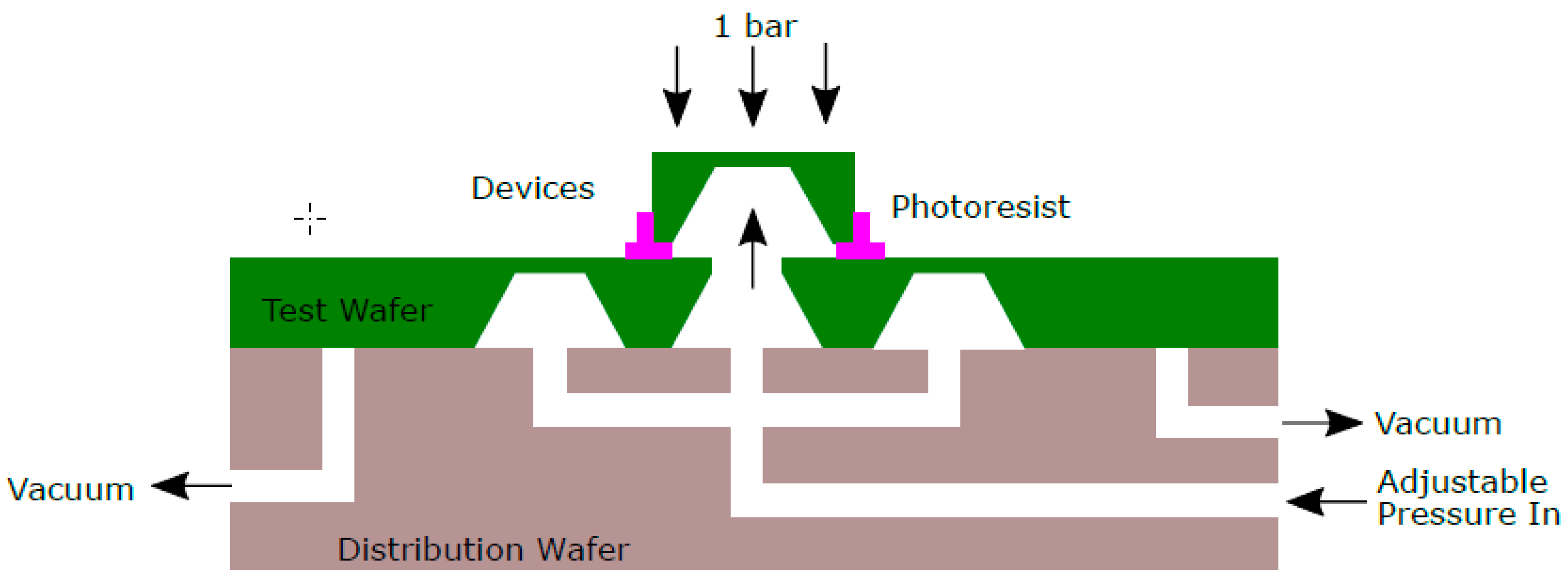

Besides providing good imaging quality, the ETW must also withstand the pressure of the reaction inside the nanoreactor. A threshold pressure test was also performed to determine the pressure limit of the Al₂O₃ ETWs using a custom build setup (Figure 5). ALD Al₂O₃ that are 5 nm and 15 nm thick were able to withstand 0.75 and 1.25 bar respectively. While the shape of these ETWs were not optimized for pressure, this test gives an indicator of what to expect with ALD Al₂O₃ at these thicknesses.

4. Conclusions

In this paper, a process was successfully developed to integrate ALD Al2O3 in a MEMS nanoreactor. ETWs as thin as 5 nm were able to be used to image NPs in a 120 keV TEM. An improvement in imaging quality is evident by the brighter background in the TEM image. Additionally, the threshold pressure was tested at different thicknesses to give an indication of robustness in pressurized nanoreactor experiments. While the technique presented in this paper is focused on improving the imaging quality of nanoreactors, it may also be useful in other membrane-based applications.
