Design of a Wind Sensor Based on Cylinder Diametrical Pressure Differences for Boundary Layer Meteorological Observation ^†

Abstract

Wind speed and direction are important parameters in meteorological observation. Solid wind sensor has needed with small Quadcopter for boundary layer meteorological observation. In this paper the principle of a cylindrical two-dimensional wind sensor is reported by analyzing the data from wind tunnel experiments. A model is proposed to describe the distribution of the pressure difference across a diameter of a cylinder and the wind sensor is fabricated with MEMS differential pressure sensors. In wind tunnel tests in range of 1~40 m/s, the relative speed measuring errors and the direction measuring errors of the prototype are no more than ±(0.2 + 0.03 V) m/s and 5° respectively.

1. Introduction

Boundary layer meteorological observation is a development direction in the field of meteorological monitoring, which could determine various meteorological elements in the lower atmosphere and vertical distribution of pollutants and their change regularity. At present, the meteorological tower is still as a kind of meteorological observation facilities. With the quadcopter development, it become increasingly common, capable, and affordable, their utility as a mobile sensor platform continues to grow [1,2].

Wind direction and speed are the important parameters in meteorological observation, while the traditional wind sensor is not suitable to apply to the quadcopter for its large size and weight. Fortunately, MEMS technology pushed the development of the wind sensor, and made the devices with small size and low cost possible [3,4,5]. Even though that the thermal and mechanical sensitive elements of wind sensor must be direct contact with fluidic air, which easy be polluted and damaged in meteorological application [6].

It is worth to mention Bruschi P’s works in this paper, which is based on both ends of the diameter of the cylinder pressure difference to measure the two-dimensional velocity vector, design structure into flow branch pipe to the pressure, and then use principle MEMS thermal flow sensor to measure the flow, and calculate the wind speed and direction [7]. Literature [8] completed the prototype of cylindrical two-dimensional wind sensor, wind speed measurements and standards of the anemometer and shown reveal consistency, the wind measurement error is no more than 8°. However all these wind sensors have some defects and cannot meet the need for boundary layer meteorological observation.

In this paper the principle of the wind sensor was introduced based on the cylinder diametrical pressure differences. The mathematical model was established and based on that the wind sensor was fabricated, in which four differential pressure sensor used to measure the pressure instead of tow flow sensors. It has advantage of small size and high accuracy in measurement of wind velocity and direction, and also has higher protection ability of dust and rain than based on MEMS flow sensors.

2. Modeling

Cylindrical two-dimensional anemometer research, involving fluid mechanics problem of flow around a cylinder, which are commonly used pressure coefficient Cp to describe cylindrical surface pressure distribution, its definition [9] is:

(1)

In which p is the object surface pressure, ρ, p∞ and U∞ are infinity fluid density, static pressure and flow rate separately. Ideally, the cylindrical surface point X, as shown in Figure 1, the pressure efficiency is:

(2)

The formula (2) shows that the pressures between the ends of a diameter in the column are equal. Actually the fluid viscosity can cause the change of flow state so that the cylindrical surface pressure distribution has obvious difference with the ideal case. Using fluid Reynolds number to determine the flow state, the definition is as following [7]

(3)

where ρ, V and μ are fluid density, velocity, and dynamic viscosity coefficient respectively. D is the diameter of the cylinder.

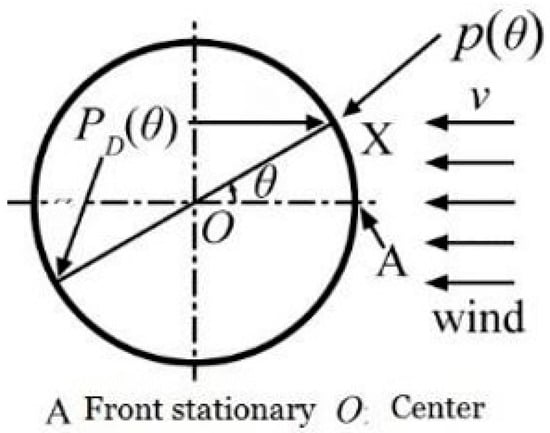

There is a choked cylindrical pressure difference usually between the two ends of a diameter. As shown in Figure 1, here defines P_D(θ) as the pressure difference on both ends of the diameter, or difference in the center O as the positive side and negative side pressure, including θ as the diameter of the azimuth Angle, namely the diameter is the end and the stagnation point A counterclockwise angle range. Define the pressure differential coefficient of C_PD(θ) as follows:

(4)

3. Wind Tunnel Experiments

We fabricated a wind speed sensor for the experiment using a cylindrical with 26 mm in diameter. There is a hole with diameter of 1 mm on both ends of the cylindrical diameter for sensing the pressure. Pressure hole inside through the pipe connected to the differential pressure sensors to measure the pressure difference on both ends of the diameter.

The pressure difference coefficient values measured between choked diameters on both ends are shown in Figure 2.

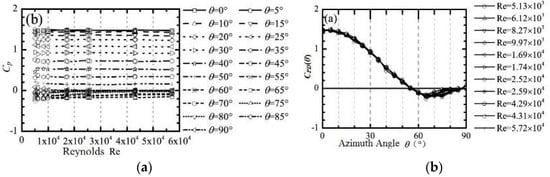

Figure 2a is a kind of representation of the distribution of the pressure difference coefficient, Figure 2b shows the Cp_D(θ) with non-monotonicity, it is monotonous about azimuth distribution within the scope of 0°~60°, but near 65° the value is zero. Therefore, wind velocity and direction are need to measure along with four diameter in time in the range of 0° to 45°.Therefore, the mathematical model of the pressure difference on both ends is as following:

(5)

4. Prototype of Wind Sensor and Results

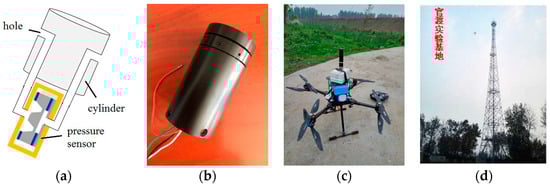

The prototype of wind sensor consists of a 30 mm diameter, 80 mm cylindrical probe with four MEMS differential pressure sensor, a temperature sensor, MCU and peripheral circuit Figure 3. Eight pressure holes equally arranged in a cylindrical, spacing between 45°. The results shown the wind sensor has excellent properties as Figure 4 and Figure 5.

The two-dimensional wind sensor was tested in a wind tunnel test. Each wind speed point, at 360° with 10° step scanning range of the wind.

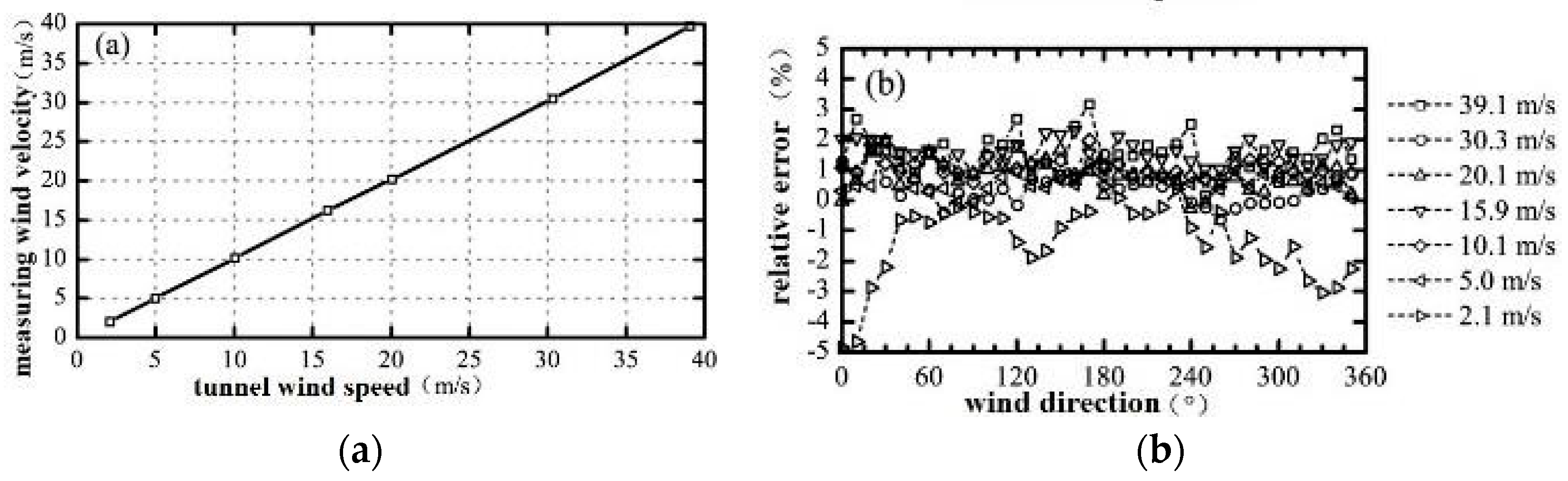

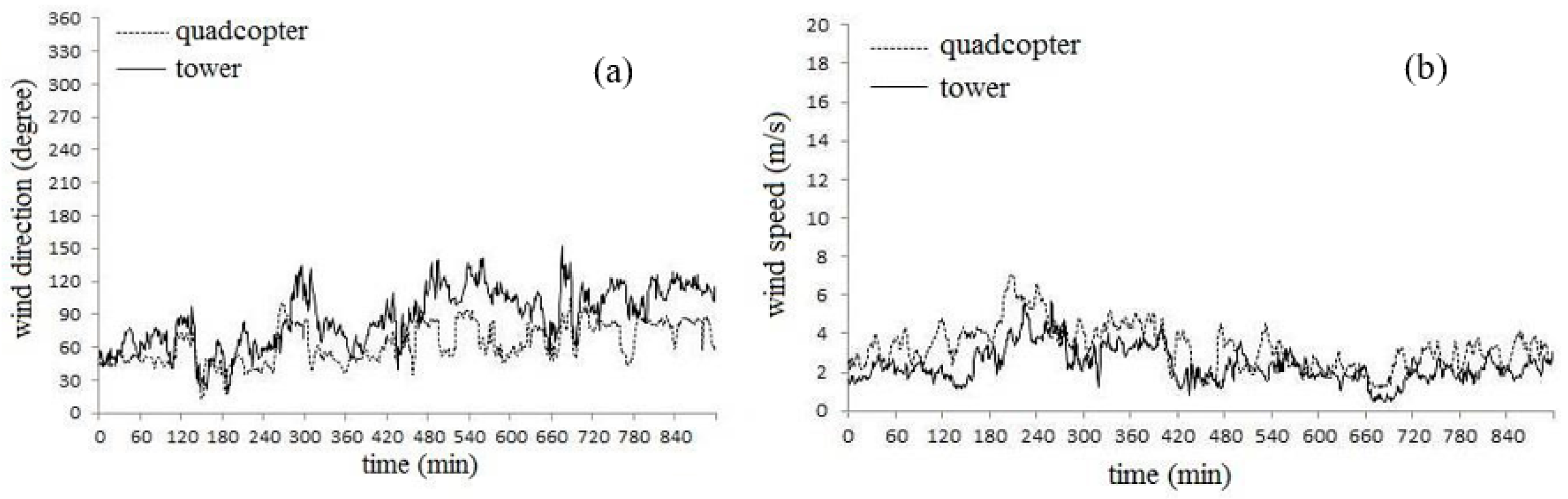

Figure 4 and Figure 5 show the relationship between the given tunnel wind speed and measured speed by the designed wind sensor for each wind speed. The relative error is not more than ±5%. When the wind speed is more than 5 m/s. The wind direction error is not more than ±5°. We have tested the wind sensor in a quadcopter and compared with cup wind sensor in the tower. The results are shown in Figure 6.

5. Conclusions

In this paper a two-dimensional wind sensor measuring principle was proposed. A mathematical model is established to describe the choke pressure difference distribution on bot h ends of the cylinder diameter. According to the principle, a prototype of two-dimensional wind sensor based on MEMS differential pressure sensor was fabricated, which has the properties of small size and high accuracy. Prototypes have been used to the quadcopter for boundary layer meteorological observation application.
