Operando Investigations of Rare-Earth Oxycarbonate CO2 Sensors †

1
Institute of Physical and Theoretical Chemistry, University of Tübingen, 72076 Tübingen, Germany
2
Corporate R&D Headquarters, Fujielectric Co. Ltd., Tokyo 1918502, Japan
3
Applied Mineralogy, University of Tübingen, 72076 Tübingen, Germany
*
Author to whom correspondence should be addressed.
Presented at the Eurosensors 2018 Conference, Graz, Austria, 9–12 September 2018.
Proceedings 2018, 2(13), 801; https://doi.org/10.3390/proceedings2130801
Published: 26 November 2018
(This article belongs to the Proceedings of EUROSENSORS 2018)

Abstract

:
In this work, we have succeeded in synthesizing monoclinic and hexagonal La2O2CO3 using two different routes and revealed that both of them are sensitive to CO2 to the same degree. Moreover, we observed that the resistance of the sensor based on hexagonal phase is much higher and more stable than the one of the sensors based on the monoclinic phase. Using Operando and time resolved XRD measurements, we have also demonstrated that the resistivity of the sensor based on monoclinic La2O2CO3 increases because of the material transformation into the hexagonal phase during an exemplarily aging process.

1. Introduction

The CO2 sensing is relevant not only in the conventional field of environmental safety, such as building and parking area management, but also in the agricultural and food businesses. The standard current technology is mainly NDIR, which is expensive, bulky, and hard to install. Obtaining low cost, simple and good performing chemoresistive CO2 gas sensors has the potential to be a game changer.
Rare-earth oxycarbonates Ln2O2CO3 (Ln = rare-earth element) have been proposed as promising chemoresistive materials for CO2 sensors [1,2,3,4,5]. The already published results indicate monoclinic La2O2CO3 as the most suitable material for CO2 sensors among this family of materials. However, the monoclinic structure is metastable and could be transformed into the hexagonal structure. There are no reports about the sensing properties of the more thermally stable hexagonal La2O2CO3. Therefore, it is very important to find out more about the sensing properties and the stability of both structures.
In this paper, we have studied the issues of CO2 sensing performance and thermal stability for both monoclinic and hexagonal La2O2CO3. To synthesize monoclinic and hexagonal La2O2CO3 separately, two different preparation routes have been investigated. Such characterizations as DC resistance measurements, X-ray Diffraction (XRD) and Operando XRD have been conducted.

2. Materials and Methods

2.1. Material Synthesis and Sensor Fabrication

In many of the previous works [1,2,3,4], rare-earth oxycarbonates were formed from the hydroxides. However the hydroxides tend to become the oxides, which are thermally stable, during the heat treatments. In this study we have investigated the synthesis of La oxycarbonates through two different routes. One was from La hydroxide and the other was from La oxalate hydrate. Starting materials are powder or chunk, which are all commercially available. Each of them was put in an alumina boat and heated in the conditions as shown Table 1.
The powders after the heat treatment were mixed with propane-1,2-diol using a vibrating mill (30 Hz) for 30 min. The resulting pastes were screen printed onto alumina substrates provided with Pt interdigitated electrodes and Pt heaters. The gap of the interdigitated electrodes is 10 μm. After the deposition of the sensing layer the substrates were dried in air at 70 °C for more than 12 h using an oven and then heated for 10 min using the same furnace and the conditions as its heat treatment.

2.2. DC Resistance Measurements

A constant DC voltage was applied to the backside heater by a power supply, so as to maintain the sensor temperature at 250 °C, 300 °C or 350 °C. The heater voltage was calibrated in advance with a contactless thermometer. The DC resistance of sensor was measured every 10 s using an electrometer with varying humidity and CO2 concentration by a flow controller. The sensors were driven in humid air (50% relative humidity at 20 °C) with 300 ppm CO2 for 12 h to stabilize the properties before the measurements of sensor responses.

2.3. XRD and Operando XRD

XRD was applied to characterize crystal structure of the powders after the heat treatment and sensors after the DC resistance measurements. The samples are scanned from 10° to 60° (2θ) by the X-ray with 1.5405980 Å wavelength (Cu-Kα1 radiation).
XRD and DC resistance under operating conditions were measured simultaneously using Operando XRD apparatus. X-ray beam focused less than 1 mm in diameter was irradiated at the sensing layer through the X-ray optics and the transparency film of the sensor chamber. Then X-ray diffraction reached X-ray detector, which measured X-ray intensity from the angle (2θ) between 20° and 60° at once. The sensor electrodes and the heater electrodes were electrically connected to an electrometer and a power supply through the sensor holder, which was put in the sensor chamber connected to a gas flow controller.

3. Results and Discussion

3.1. DC Resistance Measurements

Figure 1a shows the sensor signals for the four types of sensors with varying operation temperature when they were operated under the atmosphere of 1000 ppm CO2 and 50% relative humidity at 20 °C. The sensor signal is defined as (1)
Senor signal = Rg/R0
where Rg and R0 are the sensor DC resistance at a certain concentration of CO2 and at 0 ppm of CO2, respectively. The sensor signal was the highest when they are operated at 300 °C for No. 2, No. 3 and No. 4. Only for No. 1, the sensor signal at 350 °C is a bit higher than that at 300 °C. Based on these results, 300 °C was chosen as the standard operation temperature for the further evaluation.
Figure 1b shows sensor signals of four types of sensors with varying CO2 concentration when they were operated at 300 °C. Every curve possessed a good linearity in a double logarithmic chart indicating that the sensor signal obeys power law as (2)
Senor signal = A × [CO2 concentration] α
where A and α are constant values.
The sensor signals at a certain CO2 concentration were almost the same among four conditions. The sensitivity (corresponding to the gradient of sensor signal with CO2 concentration) of No. 4 is greater than those of the others.
In order to test the stability, a three day long aging process was performed in a high humidity and high CO2 concentration condition (80%rh@20 °C and 3000 ppm CO2) in air at an operation temperature of 350 °C.
Figure 2 shows the sensor resistances with varying CO2 concentration for the initial measurement and that after the aging process. With respect to the initial state, the sensor resistances of No. 1 and No. 4 were much higher than those of No. 2 and No. 3. After the aging process, the sensor resistances of No. 1 and No. 4 (initially hexagonal structure) remained unchanged while the sensor resistances of No. 2 and No. 3 (initially monoclinic structure) increased significantly.

3.2. XRD and Operando XRD

To investigate the differences in stability among the four types of sensors, XRD measurements were conducted before and after the aging process. The results are shown in Table 2 indicating that the hexagonal structures (No. 1 and No. 4) were preserved while the monoclinic structures (No. 2 and No. 3) were partly transformed into the hexagonal structure during the aging process.
To verify the correlation between the sensor resistance and the crystal structure, operando XRD measurements were performed using a sensor based on monoclinic La2O2CO3 (No. 3). The time dependent evolution of the sensor resistance and the XRD-patterns were measured simultaneously in humid air (80% relative humidity at 20 °C) in the presence of 3000 ppm CO2 at an operation temperature of 350 °C. Figure 3 shows the time variation of sensor resistance and XRD peak heights of hexagonal (103) and monoclinic (031) during the aging process, demonstrating that the resistance increased in direct correlation to the degree of the transformation from the monoclinic structure to the hexagonal structure.

4. Conclusions

We have succeeded for the first time in synthesizing monoclinic La2O2CO3 and hexagonal La2O2CO3 separately and showing clearly the sensing properties and stabilities of both structures.
La oxalate hydrate is a better precursor for synthesizing La2O2CO3 compared to La hydroxide which was used in many of previous works.
Hexagonal La2O2CO3 has better properties as a CO2 sensing material in terms of the sensitivity and the thermal stability than the monoclinic structure. The resistance of hexagonal La2O2CO3 is higher by approximately one digit, and the sensor signal is almost the same level compared to monoclinic La2O2CO3. The Operando XRD method has revealed the direct correlation between the increase of sensor resistance and the degree of the transformation from the monoclinic structure to the hexagonal structure during the aging process.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Djerdj, I.; Haensch, A.; Koziej, D.; Pokhrel, S.; Barsan, N.; Weimar, U.; Niederberger, M. Neodymium dioxide carbonate as a sensing layer for chemoresistive CO2 sensing. Chem. Mater. 2009, 21, 5375–5381. [Google Scholar] [CrossRef]
  2. Haensch, A.; Koziej, D.; Niederberger, M.; Barsan, N.; Weimar, U. Rare earth oxycarbonates as a material class for chemoresistive CO2 gas sensors. Procedia Eng. 2010, 5, 139–142. [Google Scholar] [CrossRef]
  3. Chen, G.; Han, B.; Deng, S.; Wang, Y.; Wang, Y. Lanthanum dioxide carbonate La2O2CO3 nanorods as a sensing material for chemoresistive CO2 gas sensor. Electrochim. Acta 2014, 127, 355–361. [Google Scholar] [CrossRef]
  4. Hirsch, O.; Kvashnina, K.O.; Luo, L.; Süess, M.J.; Glatzel, P.; Koziej, D. High-energy resolution X-ray absorption and emission spectroscopy reveals insight into unique selectivity of La-based nanoparticles for CO2. Proc. Natl. Acad. Sci. USA 2015, 112, 15803–15808. [Google Scholar] [CrossRef] [PubMed]
  5. Kodu, M.; Avarmaa, T.; Mändar, H.; Saar, R.; Jaaniso, R. Structure-Dependent CO2 Gas Sensitivity of La2O2CO3 Thin Films. J. Sens. 2017. [Google Scholar] [CrossRef]

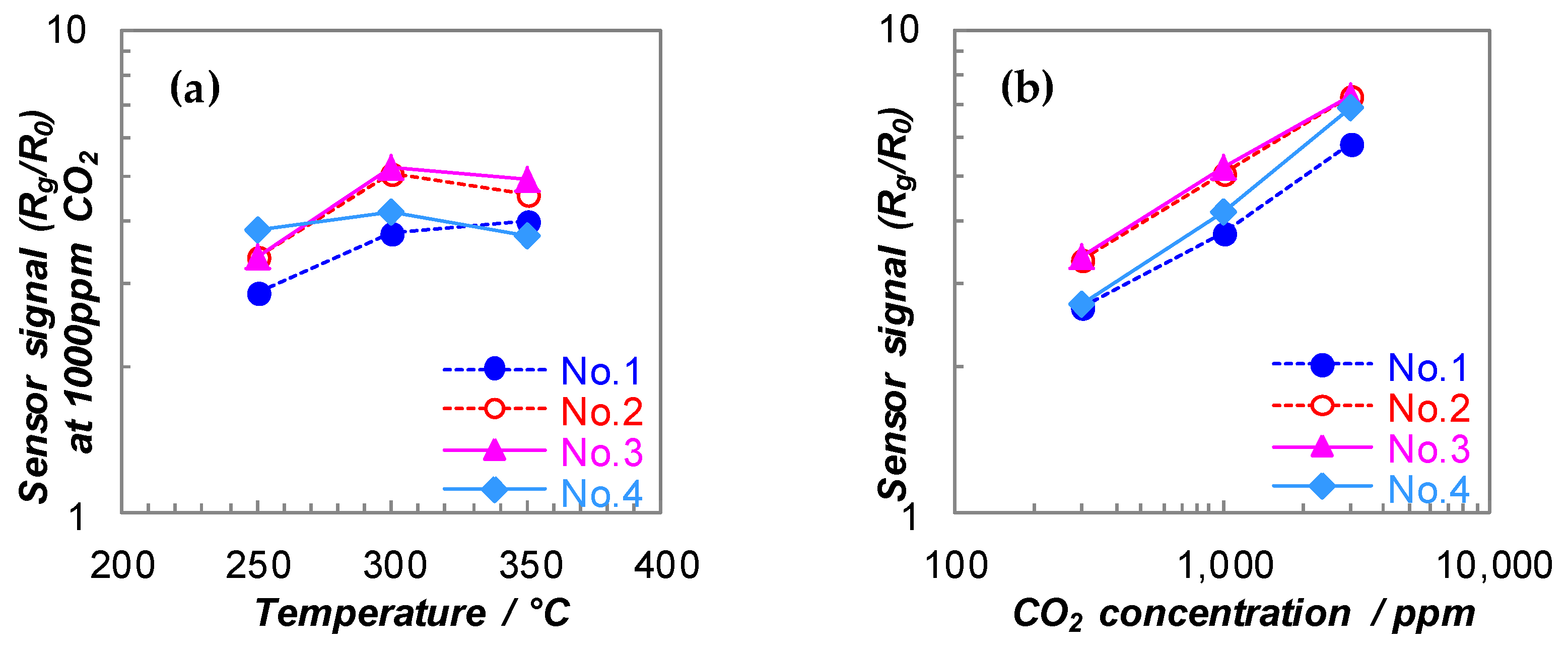

Figure 1. CO2 Sensing properties: (a) Sensor signal at 1000 ppm CO2 vs operation temperature; (b) Sensor signal vs CO2 concentration.
Figure 1. CO2 Sensing properties: (a) Sensor signal at 1000 ppm CO2 vs operation temperature; (b) Sensor signal vs CO2 concentration.
Proceedings 02 00801 g001

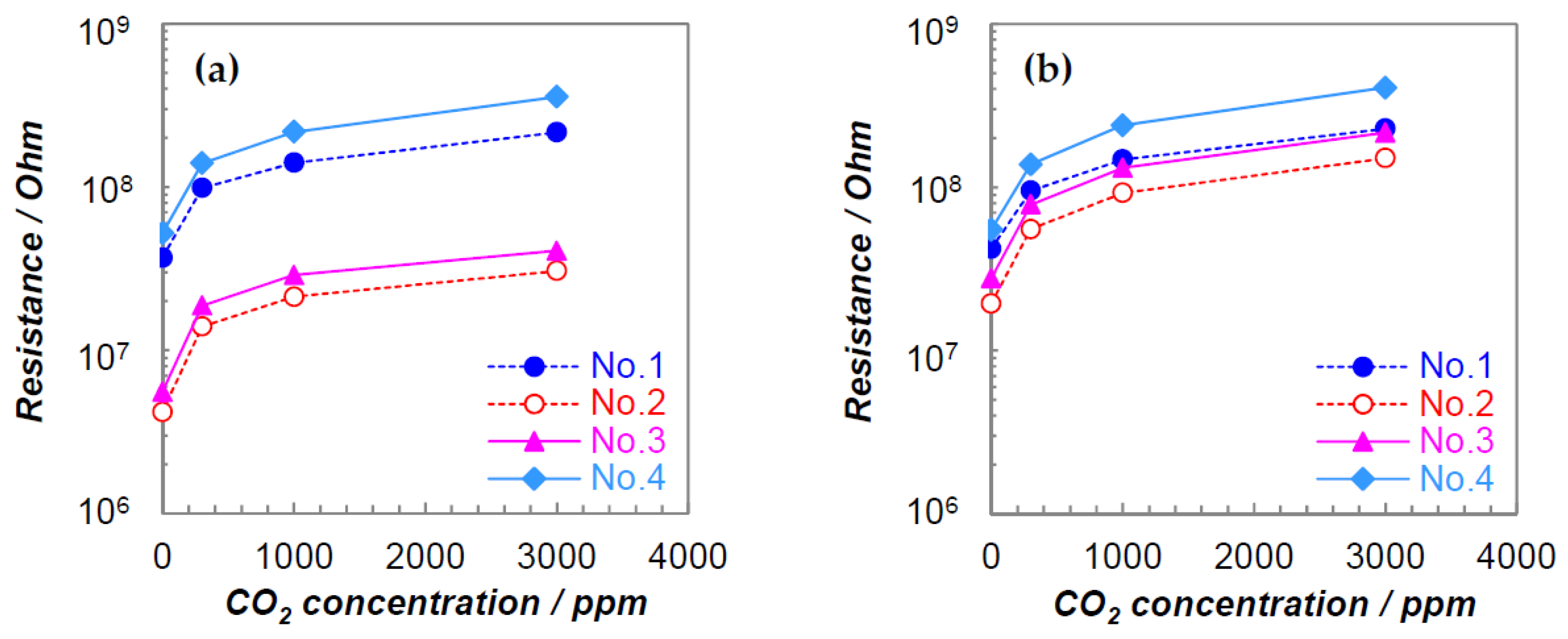

Figure 2. Sensor resistance vs CO2 concentration for (a) initial and (b) after aging.
Figure 2. Sensor resistance vs CO2 concentration for (a) initial and (b) after aging.
Proceedings 02 00801 g002

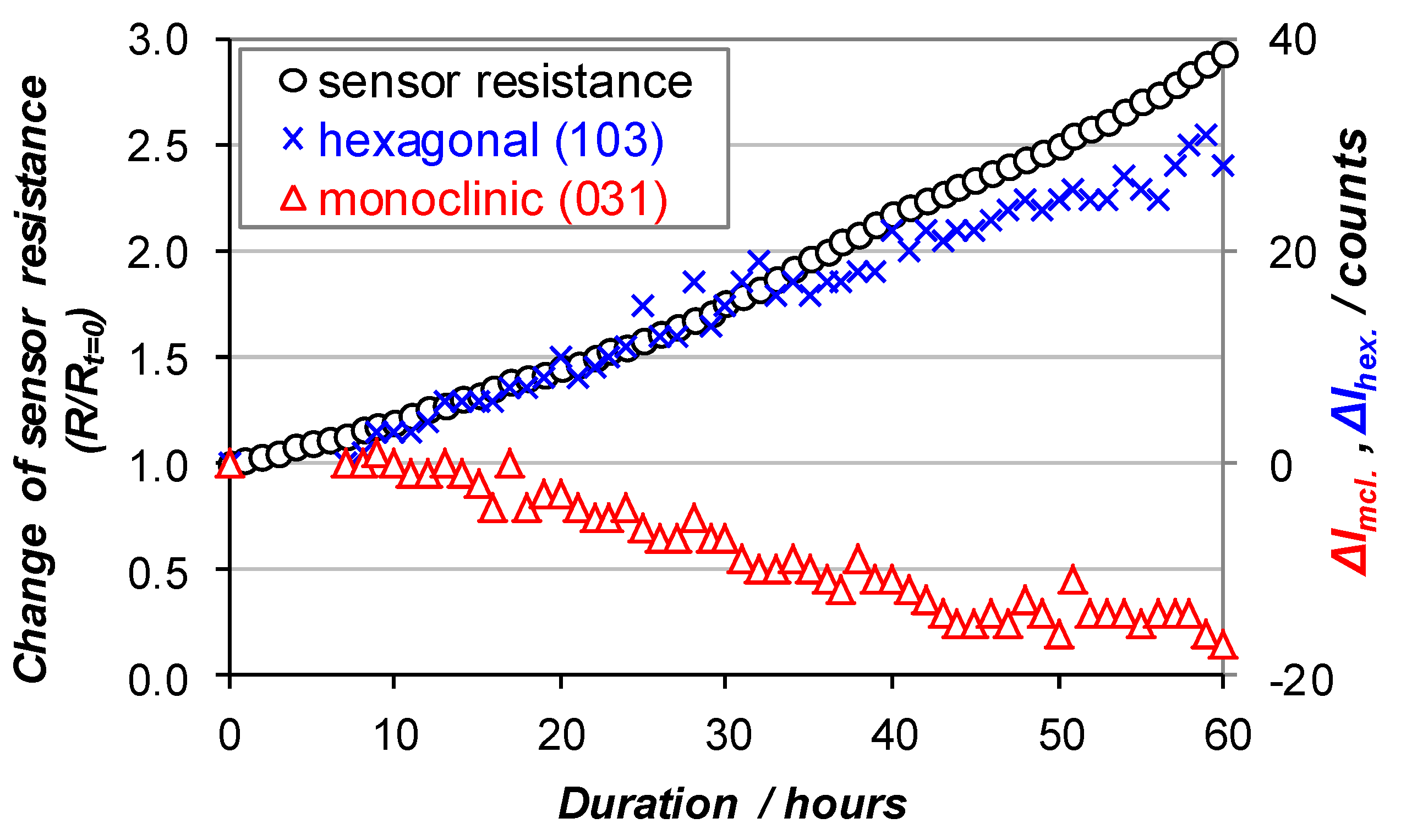

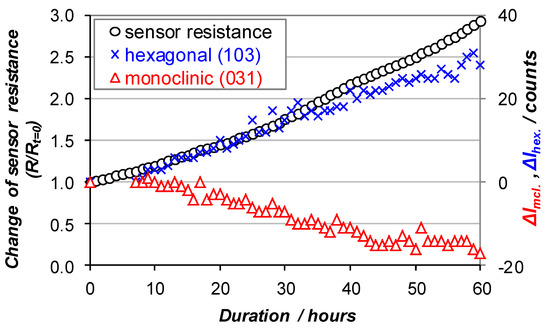

Figure 3. Time variations of sensor resistance and XRD peak height of La2O2CO3 hexagonal (103) & monoclinic (031) during the aging process.
