Apta- and Immuno-Sensors Performance Optimization: A Comparative Study of Surface Functionalization Techniques ^†

Abstract

Surface bio-functionalization plays a critical role in the performance of a biosensor and numerous techniques for the enhancement of a biosensor’s surface coverage with oriented capture biomolecules have been developed with the ultimate goal of optimizing a sensor’s performance in terms of its sensitivity and linear response over a wide dynamic range. Herein, highlights of a comparative assessment into the most promising approaches to achieve this goal are being presented. For aptamer-modified surfaces, polyamidoamine (PAMAM) dendrimers and polysaccharide networks were employed with the obtained results clearly indicating that a much denser surface coverage with aptamers can be achieved with the use of the latter. For the functionalization of surfaces with antibodies, the orientation and density of immobilized antibodies onto recombinant protein A/G- or boronic acid-modified substrates were compared, with the former leading not only to increased antibody loading but also with such an orientation that permits enhanced antigen binding. The conclusions reached can be used as a starting point for the customization of sensor functionalization in a plethora of clinical, environmental and even food-industry-related biosensing platforms.

1. Introduction

One critical consideration during the development of a biosensor is the immobilization of capture biomolecules onto a solid support with a sufficient surface density, and an orientation that maximizes their target analyte capture potential. These parameters play a critical role in the performance of a biosensor as they will influence its sensitivity and reproducibility as well as its response over a wide dynamic range. A significant amount of effort has been put towards improving these parameters for biosensors that rely on the use of antibodies or aptamers, two of the most commonly employed types of capture biomolecules in biodiagnostic or analytical assays [1]. Nevertheless, the majority of the published work focuses on the optimization of a single protocol specific to the biosensor under development. Review papers, on the other hand, are useful in presenting the techniques developed by various research groups to address these issues, however they do not permit a truly valid comparison to be made. There exists, therefore, the need for a comparative analysis of different surface biofunctionalization techniques by employing the same capture biomolecule, with the ultimate goal being the generation of a set of generally applicable guidelines rather than establishing the optimum protocol for a specific application.

Herein, a small subset of the results obtained following the bio-functionalization of silicon-based substrates with aptamers and antibodies are presented. The most promising techniques for their orientation-specific immobilization onto silanized surfaces were employed with the scope of increasing their surface loading. For aptamers, two different approaches, polyamidoamine (PAMAM) dendrimers and polysaccharides, were followed and their efficiency was compared in relation to the length of the aptameric sequences [2]. For antibodies, the silanized silicon nitride surfaces were functionalized with either recombinant protein A/G or aminophenyl boronic acid (APBA), both of which have shown potential in achieving the oriented immobilization of antibodies through the specific interaction either directly with or through polysaccharides in the constant region (Fc) of the antibody [3]. A more extensive discussion of the conclusions that were reached will be presented in articles to be published in the future.

2. Materials and Methods

The aptamer sequence against OTA (Texas Red conjugated) [4] was synthesized and purchased from Aldrich Chemicals, while the Donkey anti-Rat IgG Cy5 conjugated (2ary antibody) was purchased from Jackson Immunoresearch and the rat-raised Anti-CD24 PE conjugated (1ary antibody) from Thermo Fisher Scientific. Recombinant protein A/G and a Pierce™ Antibody Clean-up Kit were also purchased from Thermo Fisher Scientific. All other reagents were purchased from Aldrich Chemicals. All solutions were prepared with deionized (DI) water (18 MΩ/cm resistivity, Millipore MilliQ).

2.1. Surface Silanization and (Bio)-Chemical Modifications

For the functionalization of the silicon nitride (Si₃N₄) surfaces (3-glycidyloxypropyl)triethoxysilane (GOPTS) was used, according to a previously published protocol [5]. Prior to their silanization, the surfaces were cleaned by sonication in acetone and isopropanol and immersed in a solution of 1M NaOH for 1 h, rinsed with DI water and dried with nitrogen gas.

2.1.1. Aptamer-Based Sensors

The surfaces were exposed to different concentration of PAMAM dendrimers dissolved in 1% methanol overnight and were subsequently rinsed with methanol and dried with nitrogen gas. The surfaces were then treated for 2 hours with a solution of 2.5% glutaraldehyde in PBS 1× pH 7.4 and thoroughly washed with the same buffer. Alternatively, for the modification of the surfaces with polysaccharides the silanized substrates were exposed overnight to solutions of either 0.5% (w/v) chitosan in acetic acid or 0.5% (w/v) hyaluronic acid in DI water and were subsequently rinsed with DI water and dried with nitrogen gas. Chitosan-functionalized surfaces were then incubated with 2.5 % (v/v) glutaraldehyde while hyaluronic acid surface were NHS-terminated by the addition of 0.4 M EDC/ 0.1 M NHS in 0.1 M MES buffer pH 4.5 for 15 minutes.

2.1.2. Antibody-Based Sensors

Following silanization the surfaces were incubated overnight with either 100μg/mL recombinant protein A/G in 10 mM Carbonate Buffer pH 9.2 or 3% APBA in DI water. Protein A/G-modified surfaces were subsequently washed with the used buffer while the APBA-functionalized surfaces were first rinsed with ethanol and then water.

2.2. Aptamer and Antibody Immobilization

Both aptamers as well antibodies were drop-casted onto the functionalized surfaces. Prior to the application of antibodies onto the chemically-functionalized surfaces, BSA that acts as a stabilizer was removed with the use of a Pierce™ Antibody Clean-up Kit according to the manufacturer’s instructions. The aptamers were prepared in 10 mM phosphate buffer pH 7.4, containing 10 mM KCl, 5.0 mM MgCl2 and were left to immobilize onto the surfaces overnight at 4 °C prior to being rinsed with use of the same buffer. Secondary antibody solutions were prepared in either PBS 1x pH 7.4 (for protein A/G treated surfaces) or 10 mM Carbonate buffer pH 9.2 (for APBA and GOPTS-functionalized surfaces) and were incubated with the surfaces overnight at 4 °C prior to being rinsed with the used buffers respectively. The bioreactivity of the secondary antibodies was investigated through incubation with solutions of different concentrations of the 1ary antibody in PBS 1x pH 7.4 (with 0.5% Tween-20 and 1% BSA). Prior to their exposure to their antigen, the antibody-modified surfaces were blocked as follows: GOPTS and protein A/G-modified surfaces were incubated with a solution of 10 mM ethanolamine in 10 mM Carbonate buffer pH 9.2 (for 30 min, rinsed with the same buffer and then exposed for a further 30 min to PBS 1x pH 7.4 (with 0.5% Tween-20 and 1% BSA). APBA surfaces were blocked with a solution of 0.25% (w/v) dextran (MW~6000) in PBS 1× pH 7.4 for 30 minutes.

2.3. Visualization of the Immobilized and Captured Biomolecules

Finally, the surfaces were extensively rinsed to remove any unbound analyte. A Leica fluorescent microscope was used to acquire fluorescent images. In all cases, the recorded fluorescence was quantified with the use of the ImageJ software (following subtraction of the background). Quantification of the fluorescence intensity was performed with the use of the ImageJ software (1.8.0_112 version).

3. Results and Discussion

3.1. Apta-Sensors

A thorough investigation into the effect different concentrations the PAMAM dendrimers of four generations (G0 to G3) have on the amount of aptamer immobilized onto the surfaces was carried out. The results indicate that considerably more aptamer is immobilized onto the 3D dendrimer structures in comparison to flat surfaces (Figure 1).

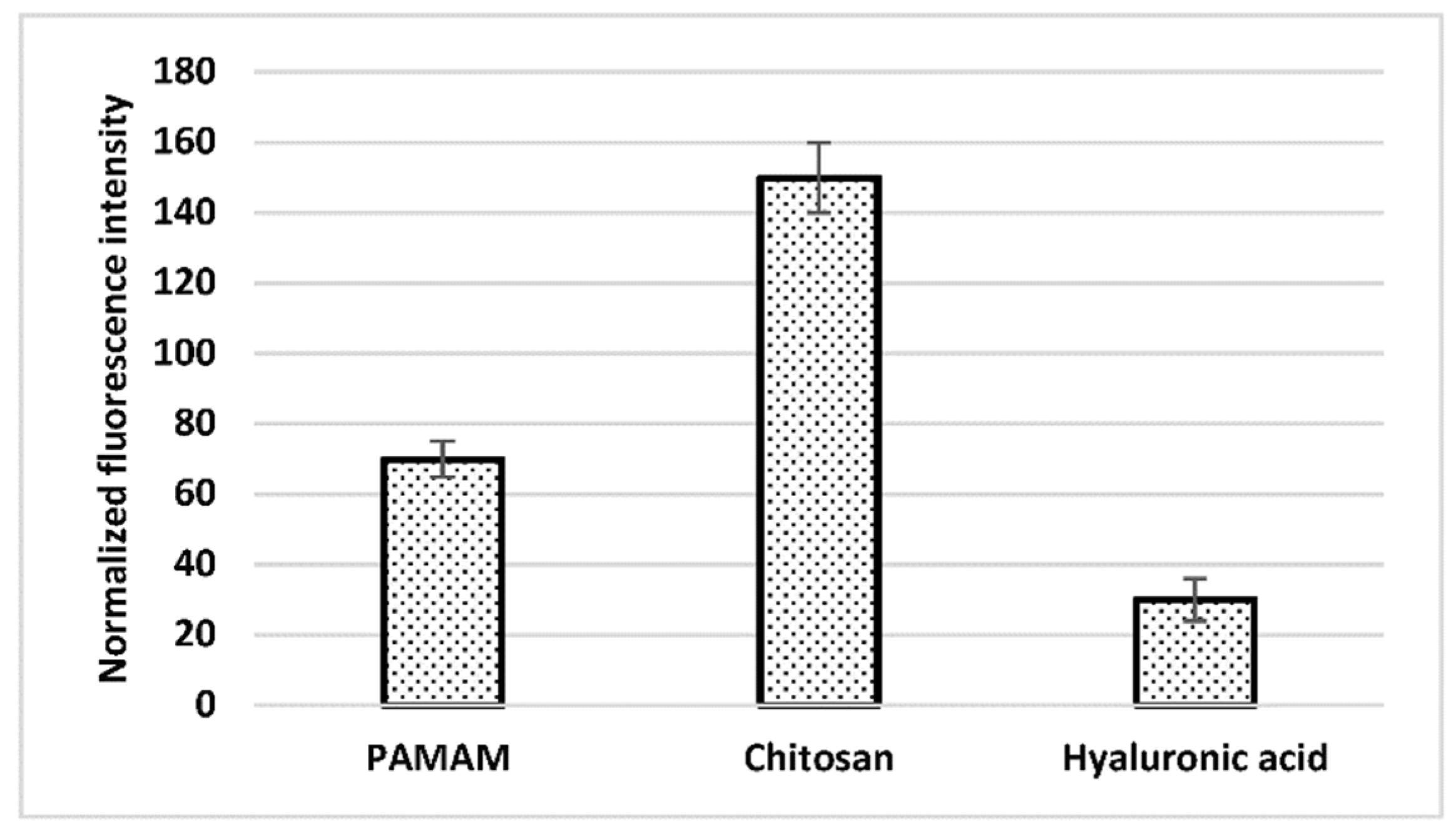

An increased number of immobilized aptamers can be observed as the number of functional groups present on the surfaces increases with higher generations of PAMAM (G0 up to G2). Despite the enhanced surface coverage achieved with PAMAM dendrimers, an even denser network of aptamers on the surfaces can be achieved with the use of chitosan as the results in Figure 2 illustrate.

3.2. Immunosensors

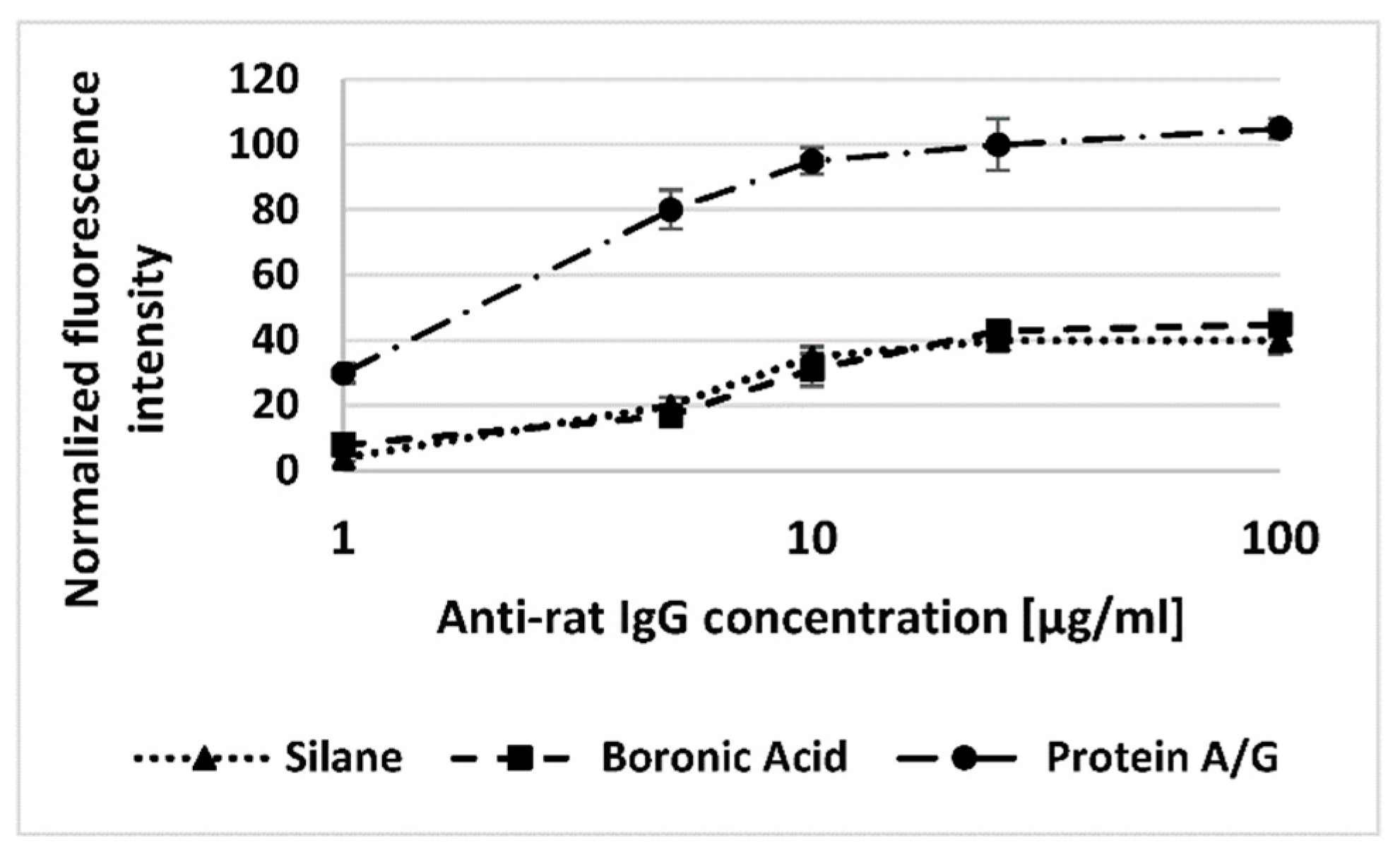

Analysis of the obtained fluorescence intensity results reveals that significantly higher amounts of antibody get immobilized onto the surfaces with the use of protein A/G in comparison to APBA-modified surfaces, whose loading capacity is comparable with that of unmodified, silanized surfaces (Figure 3).

Nevertheless, the orienation-specific immobilization of antibodies onto APBA-fucntionalized surfaces does contribute to their improved binding capacity for their antigen as the fluorescence images in Figure 4 reveal.
