Autothermal Thermophilic Aerobic Digestion of Municipal Sewage Sludge in Poland. Review ^†

Abstract

This paper presents the process of autothermal thermophilic aerobic digestion (ATAD). The installations used in municipal sewage treatment plants in Poland were reviewed. The adopted solutions for sludge management and parameters of operating installations were presented. Attention was also drawn to the energy consumption of the process. On the basis of research carried out in the years 2003–2019 in the plants in question, the characteristics of sludge after the ATAD process were presented. The parameters that determine the usefulness of the sludge as an organic fertilizer are indicated above all.

1. Introduction

Municipal sewage sludge treatment plants are an essential element of surface water protection systems. However, they cause a real nuisance to the surrounding environment in terms of air quality, acoustic climate or soil surface protection. One of the problems is the generation of a significant amount of different types of waste. These include municipal sewage sludge. The increasing amount of such sludge forces the search for methods of its final utilization.

There are many ways to process sewage sludge. One of them is the process of autothermal thermophilic aerobic digestion (ATAD), which is the subject of this paper. This process ensures full stabilization, hygienization and even disinfection of sludge, making it a biomass that can be used for natural purposes.

The cognitive aim of this study was to systematize the knowledge on the process of autothermal thermophilic stabilization of sewage sludge, which is the result of experience resulting from participation in the design, installation, technological start-up and operation of existing facilities. The presented material has been developed on the basis of many years of research carried out in eleven municipal sewage treatment plants, where sewage sludge is processed in the process of autothermal thermophilic aerobic digestion.

2. The Process and Its Technology Solution

The thermophilic stabilisation technology, which is used in treatment plants in Poland, was developed by Hubert K. E. Fuchs. In the 1970s, the first installation was built in Germany in Vilsbiburg, which is still operating today. Outside Western Europe, such plants operate in the USA, Canada, and Japan [1].

An essential role in the process of thermophilic stabilisation is played by microorganisms, thanks to which the decomposition of organic compounds contained in sewage sludge is possible [2]. It basically takes place in two stages. Hydrolysis of complex organic compounds (proteins, carbohydrates, and fats) as well as cell hydrolysis of dying microorganisms occurs in the first stage. These phenomena are caused by extracellular enzymes produced by thermophilic bacteria. In the second stage, thermophilic microorganisms oxidise the water-soluble hydrolysis products to low-energy compounds. These reactions are accompanied by heat release, and the final substances of these changes are CO₂, H₂O and NH₃ [3,4,5].

Based on the hypothetical organic matter of the C₅H₇NO₂ cell representing activated sludge [5,6], the process can be presented as the following stoichiometric reactions:

C₅H₇NO₂ + 5O₂ → 5CO₂ + 2H₂O + NH₃ + energy

$${\mathrm{C}}_5{\mathrm{H}}_7\mathrm{N}{\mathrm{O}}_2 + 7{\mathrm{O}}_2 \to 5\mathrm{C}{\mathrm{O}}_2 + 3{\mathrm{H}}_2\mathrm{O} + \mathrm{N}{\mathrm{O}}_3^{-} + {\mathrm{H}}^{+} + \mathrm{energy}$$

In the first reaction the nitrogen bound in organic compounds is ammonified and ammonia is formed. The second reaction shows the nitrification process. The stoichiometric relationships show that theoretically 1.42 kg of oxygen per kg of active cell mass is needed for the first reaction and 1.98 kg of oxygen per kg of cells for the second reaction. In reality, however, it is different, as many factors influence the oxygen demand for the process. Nitrification during auto-thermal stabilization is practically nonexistent. Despite air supply, nitrification above 30 °C is inefficient [5].

The process takes place in two- or three-stage reactors. The number of reactors is usually 2. In one of the treatment plants, the installation consists of 6 reactors that operate in three two-stage process lines. In 6 treatment plants, there are installations consisting of two reactors operating in a two-stage system. In the remaining 4 treatment plants, there is an installation consisting of three reactors, which can operate in two or three stages. Selected technical and technological parameters of the reactors are shown in

Table 1. Technical and technological parameters of two-stage reactors.

Subsequent Treatment Plants (WWTP)	Average Daily Plant Capacity (m3/d)	Reactor Dimensions (m)			Reactor Useful Capacity (m3)	Total Dwell Time of the Sludge in the Installation (d)
		Internal Diameter	Total Height	Filling Height with Sludge
WWTP_a	90	8.40	4.00	3.35	185	8.2
WWTP_b	34	7.71	3.60	2.80	130	7.65
WWTP_c	40	8.50	3.50	2.70	153	7.66
WWTP_d	27	8.00	3.30	2.50	125	9.3
WWTP_e	30	9.20 6.50 *	3.52 3.52 *	2.70 2.70*	180 90	9.3
WWTP_f	46	9.42	3.80	3.00	209	9.1
WWTP_g	16.7	6.00	3.40	2.60	73.5	8.8

* Second stage reactor dimensions.

and

Table 2. Technical and technological parameters of three-reactor installations.

Subsequent Sludge Treatment Plants (WWTP)	Average Daily Plant Capacity (m3/d)	Reactor Sizes (m)			Useful Reactor Capacity (m3)	Total Dwell Time of the Sludge in the Installation (d)
		Internal Diameter	Total Height	Sludge Filling Height
WWTP_h	58	8.57	3.80	3.00	173	8.95
WWTP_i	96.6	9.43	4.36	3.50	244	7.6
WWTP_j	45.5	8.35	3.50	2.50	137	9.0
WWTP_k	70	8.50	3.80	3.00	170	7.3

.

In the plants listed in Table 1, the reactors operate in series as a two-stage system.

The plants listed in Table 2 are ATAD plants consisting of three reactors arranged in an isosceles triangle. The armament of these tanks allows for one-, two- and three-stage operation.

3. Process Energy Consumption

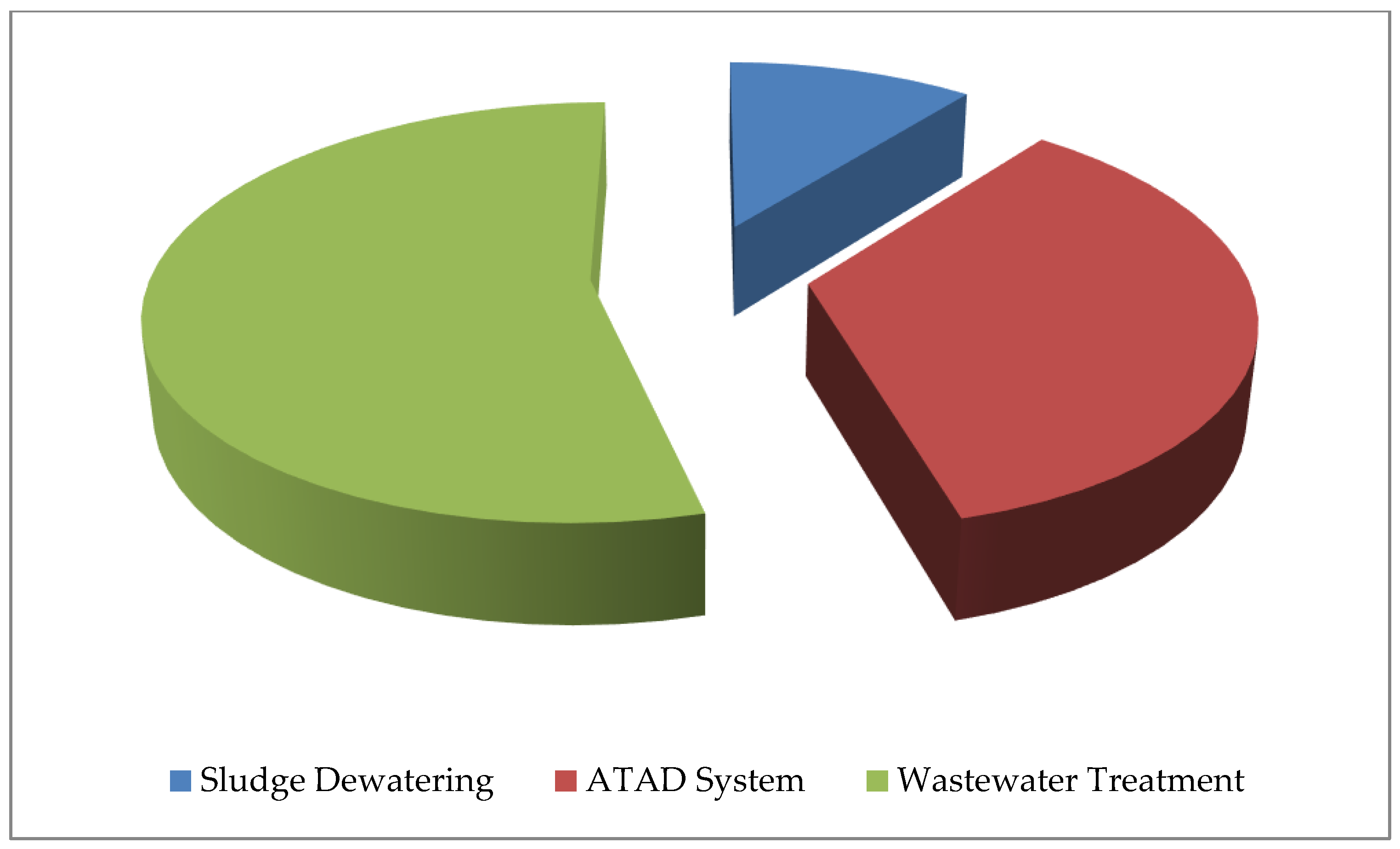

Due to the high rate of oxygen absorption by thermophilic organisms, there are high energy requirements for reactor aeration. The obvious disadvantage of the process of autothermal thermophilic stabilization is the cost of aeration, which, however, can be significantly reduced if the equipment is properly designed and the system is correctly operated. The percentage share of individual technological processes in the total annual electricity consumption in one of the sewage treatment plants is shown in Figure 1.

The knowledge of the energy balance of a sewage treatment plant allows to assess the power consumption by individual processes by means of technical indicators giving the amount of electricity consumption in relation to 1 m³ of treated sewage sludge. In the examined ATAD installations the values of electricity consumption indicators were determined.

4. Characteristics of Sewage Sludge

Qualitative studies of the sludge were carried out in the existing facilities in the years 2003–2019.The determinations required for the annual, collective data tabulations of data for the generated municipal sewage sludge were analysed. These include reaction, content of dry matter and organic substances, total and ammonia nitrogen, total phosphorus, calcium, magnesium and heavy metals (cadmium, copper, nickel, lead, zinc, mercury and chromium) and information on the content of live parasitic eggs and Salmonella bacteria.

5. Conclusions

Studies carried out in existing ATAD installations have confirmed the effectiveness of this process in gaining of stabilized and hygienised sludge. The process allows to obtain sludge that do not putrify, and are free of pathogenic microorganisms, parasites and fungi. The sludge is sanitary and hygienic safe, while it contains fertilizers which, as a valuable commodity, can successfully be returned to the natural cycle.
