Modelling of Void Collapse with Molecular Dynamics in Pure Sn ^†

Abstract

This work simulates the collapse of a spherical void in pure Sn during melting using molecular dynamics (MD). Simulations were performed for two temperatures with a modified embedded atom method (MEAM) potential, which was reported to be in good agreement with respect to melting point and elastic constants. Solutions of the Rayleigh–Plesset (RP) equation are used for comparison under the assumption of macroscopic surface tension and liquid viscosity. Despite a qualitative correlation, longer collapse times were observed in MD simulations, which arose from partial solid structures and the incubation time for melting.

1. Introduction

Healing in metals has recently gained attention as an innovative concept to reduce mechanical damage [1]. A micromechanical model was reported to formulate the liquid-assisted healing of a void collective, which is based on the Rayleigh–Plesset (RP) equation [2]. Molecular dynamics (MD) simulations can potentially provide a better understanding of processes on the nano-scale. Therefore, a modified embedded atom method (MEAM) potential for pure Sn was investigated for agreement with the RP solution [3]. In particular the collapse time due to viscosity and surface tension were evaluated with the MD simulations.

2. Materials and Methods

MD Simulations of a void in pure Sn were performed using an isothermal-isobaric (NPT) ensemble with unit cell size of 30 Å. The ensemble was equilibrated at room temperature for 120 ps and then heated up to 500 K and 600 K for each simulation, respectively. After holding the peak temperature for 100 ps, the system was cooled to room temperature. The Rayleigh–Plesset equation describes the dynamics of a bubble in a viscid fluid. The void pressure $p_{\mathrm{v}}$ and liquid pressue $p_{\mathrm{l}}$ on the left balances with the spherical flow-, inertia-, viscous- and surface tension term on the right in Equation (1).

$$\frac{\left(p_{\mathrm{v}}-p_{\mathrm{l}}\right)}{{\rho }_{\mathrm{L}}}=\frac{3}{2}{\dot{R}}^2+R\ddot{R}+4\frac{{\eta }_{\mathrm{visc}} \dot{R}}{\mathrm{R}}+2\frac{{\sigma }_{\mathrm{surf}}}{{\rho }_{\mathrm{L}}\mathrm{R}}.$$

(1)

3. Results and Discussion

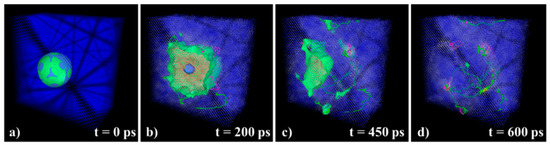

The void evolution during the heating cycle is illustrated in Figure 1. The initially spherical void in Figure 1a is surrounded by a liquid domain in Figure 1b, which is almost fully collapsed. In Figure 1c the recrystallized area is separated from the final liquid domain in green. Figure 1d shows the final structure after 600 ps, the void collapsed and several dislocations were generated.

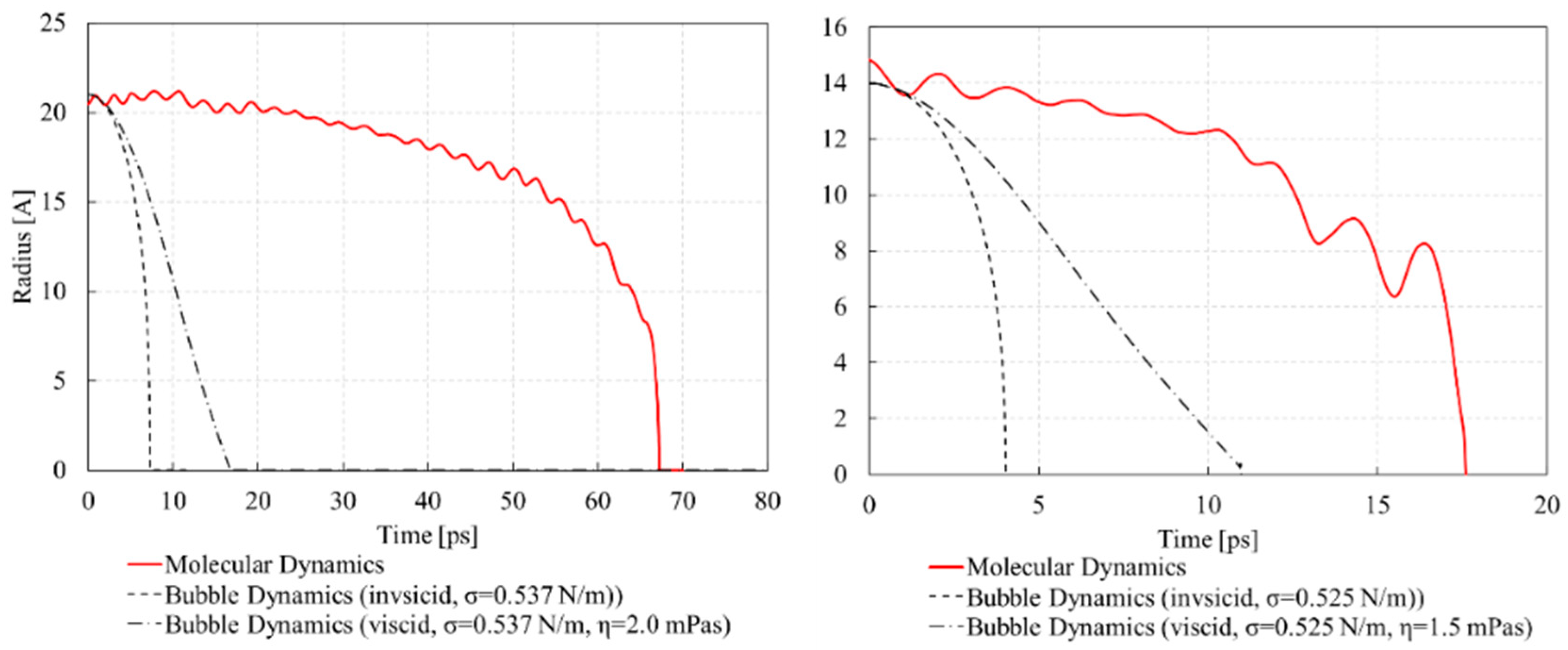

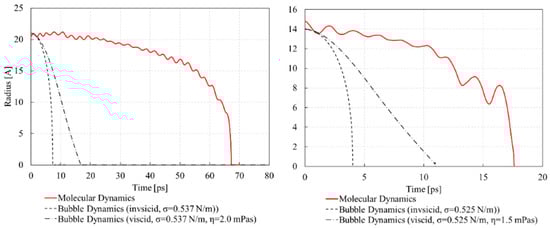

Figure 2 shows the void evolution for both temperatures of the MD simulation (red solid), the inviscid RP solution (dashed) and the viscid RP solution (dot dash). The results reveal a qualitative agreement of the MD simulations with the inviscid solution. Nevertheless, the collapse time for the MD simulations is about four times longer for T = 500 K and 1.5 times longer for T = 600 K, compared to the viscid solution. The simulation at T = 500 K in Figure 1 reveals only partial melting around the void. Therefore, a longer void collapse time was expected due to the stability of the surrounding crystal.

4. Conclusions

The application of a MEAM potential reported by Ravelo [3] for pure Sn revealed a qualitative agreement with the inviscid solution. A good agreement with the experimental surface tension was reported in the literature for the potential [4]. A four times longer void collapse time was observed in the MD simulations at T = 500 K, which can be associated with partial melting and a higher mechanical stability than that assumed in the RP model. At elevated temperatures the MD simulation showed a 1.5 times longer collapse time, which can be explained by the incubation time required for melting.
