Communication

Laser Additive Manufacturing of Oxide Dispersion-Strengthened Copper–Chromium–Niobium Alloys

by
Markus B. Wilms
* and
Silja-Katharina Rittinghaus
Chair of Materials Science and Additive Manufacturing, School of Mechanical Engineering and Safety Engineering, University of Wuppertal, Gaussstr. 20, 42119 Wuppertal, Germany
*
Author to whom correspondence should be addressed.
J. Manuf. Mater. Process. 2022, 6(5), 102; https://doi.org/10.3390/jmmp6050102
Submission received: 19 July 2022 / Revised: 29 August 2022 / Accepted: 8 September 2022 / Published: 16 September 2022
(This article belongs to the Special Issue Laser-Based Manufacturing II)
Browse Figures
Versions Notes

Abstract

:
Copper is a key material for cooling of thermally stressed components in modern aerospace propulsion systems, due to its high thermal conductivity. The use of copper materials for such applications requires both high material strength and high stability at high temperatures, which can be achieved by the concept of oxide dispersion strengthening. In the present work, we demonstrate the oxide reinforcement of two highly conductive precipitation-strengthened Cu-Cr-Nb alloys using laser additive manufacturing. Gas-atomized Cu-3.3Cr-0.5Nb and Cu-3.3Cr-1.5Nb (wt.%) powder materials are decorated with Y2O3 nanoparticles by mechanical alloying in a planetary mill and followed by consolidation by the laser additive manufacturing process of laser powder bed fusion (L-PBF). While dense specimens (>99.5%) of reinforced and nonreinforced alloys can be manufactured, oxide dispersion-strengthened alloys additionally exhibit homogeneously distributed oxide nanoparticles enriched in yttrium and chromium next to Cr2Nb precipitates present in all alloys examined. Higher niobium contents result in moderate increase of the Vickers hardness of approx. 10 HV0.3, while the homogeneously dispersed nanometer-sized oxide particles lead to a pronounced increase of approx. 30 HV0.3 in material strength compared to their nonreinforced counterparts.

1. Introduction

Copper is an indispensable material with a wide field of applications in various engineering sectors, such as automotive, aerospace, electronics, and power generation. The versatility of copper and its alloys is commonly attributed to the unique physical properties of high thermal and electrical conductivity. The utilization of copper alloys as heat-transfer media in high-performance components in aerospace [1,2,3,4] and power-generation applications [4,5,6,7] requires the development of copper alloys with both high strength and high thermal conductivity. Increasing strength by solid solution strengthening requires significant amounts of additional alloying elements, which drastically decreases the thermal conductivity of copper alloys. Among others systems, e.g., Cu-Ni-Mn [8], Cu-Ag [9], Cu-Co [10], Cu-Mg [11,12] and Cu-Fe-P [13], alloy concepts based on the binary Cu-Cr and Cu-Zr systems have been considered for the development of highly conductive high-strength copper alloys [14], which are interesting because they do not contain highly toxic beryllium. [15]. This is due to the extremely low room temperature solubility of chromium [16] and zirconium in copper at room temperature, resulting in the precipitation of Cr-rich particles [14] and Cu5Zr precipitates [14,17,18,19]. Among others, the commercial copper alloys AMZIRC [14,20], CuCr1Zr, and NARloy-Z [20] are based on these developments. The alloys GRCop-84 and GRCop-42, both developed by NASA [20], are based on the ternary Cu-Cr-Nb system, offering higher strength and improved creep properties than the alloys NARloy-Z and AMZIRC by the formation of C15 structured Cr2Nb laves phases [14,20,21,22,23,24,25]. The high affinity of Cr and Nb in combination with low solubility in the copper matrix at room temperature allow the creation of a pure Cu matrix with dispersed Cr2Nb phases [26,27] after heat treatment [28]. The remarkable creep properties [29] are attributed to the lack of coarsening of the Cr2Nb phase in the copper matrix [30]. Creep properties are believed to be further improved by the concept of oxide-dispersion strengthening (ODS), where nanoscale oxide particles are dispersed in the metallic matrix. The alloy family of GlidCop [31,32], based on the dispersion of temperature-resistant nanoscale oxides, such as aluminum oxide (Al2O3) [14,33,34,35] and yttrium oxide (Y2O3) [36,37,38,39], offers increased strength, particularly in high-temperature atmospheres, and inhibits recrystallization mechanisms [40] without significantly reducing electrical conductivity [41]. GRCop (Cu-Cr-Nb), novel Cu-Cr-Nb-Zr [42,43], and GlidCop (ODS copper alloys) [44] are conventionally manufactured via powder metallurgical or rapid solidification manufacturing processes [45,46,47,48], such as additive manufacturing processes [34,49] due to aggregation during the molten stage of Cr and Nb in GRCop alloys or oxide nanoparticles in GlidCop alloys, respectively.
Additive manufacturing processes offer near-net-shape fabrication of complex structures in addition to extremely high solidification conditions. While additive manufacturing of ODS steels using laser-based [50] or electron beam-based [51] additive manufacturing processes have already been demonstrated, additive manufacturing of oxide dispersion-strengthened copper alloys only in singular studies [52,53,54] typically results in highly porous structures [52]. This may be attributed to difficult processing of copper and its alloys, due to its low absorption for near-infrared wavelengths [55] and high specific thermal conductivity leading to unstable melt pool behavior [56], frequently resulting in high porosities [57,58,59,60,61] lack of fusion [57,59,62,63] and oxide formation [64] in printed copper components.
Different strategies for processing copper materials, such as reducing the particle sizes used [65,66,67], coating of copper powder particles with native oxide layers [68,69], nickel [70] and carbon [71], the utilization of alternative laser wavelengths in the visible spectrum of green [72,73,74] and blue light [75] and pulsed laser systems [76], have been examined to improve the processability of copper alloys in laser additive manufacturing processes. Cu-Cr-based alloys have established themselves as high-strength and highly conductive with low alloy content and hardenable by the formation of Cr precipitation [77,78,79]. The additional introduction of Zr allows the formation of nanoscale Zr-rich precipitates during aging heat treatments [80,81,82,83,84]. Moreover, the formation of Zr-O structures is observed [85,86], leading to the hypothesis that Zr may be used to capture residual oxygen introduced by the powder material or the process atmosphere. Cu-Cr-Nb alloys are also increasingly being manufactured with the laser additive manufacturing technologies of L-DED [87,88,89] and L-PBF [90,91,92,93,94,95], allowing the manufacturing of dense and defect-free parts with outstanding mechanical properties [4,91,96].
However, significant coarsening of Cr2Nb precipitations is observed in high-temperature environments [30,92], resulting in rapid degradation of the mechanical properties. In this work, we introduce nanoscale yttrium oxide nanoparticles, which are known to stabilize the microstructure and thus material strength up to high temperatures [97]. It is hypothesized that the introduction of nanoscale oxide particles may allow the increase of the service temperatures from approx. 700 °C for GRCop alloys [32] up to 800 °C for dispersion-strengthened copper alloys [98] without reducing conductive properties [99]. We chose Y2O3 as reinforcement phase due to its higher thermodynamic stability than commonly used Al2O3 in GlidCop alloys [100] and select two Cu-Cr-Nb alloys with different niobium contents to study the influence of increased niobium contents on the formation of Cr2Nb precipitates and the chemistry of the introduced yttrium oxide nanoparticles, potentially forming cubic-structured Y3NbO7, as observed in stainless steels [101]. With this approach, we combine the concepts of precipitation-strengthened GRCop and oxide dispersion-strengthened GlidCop families to develop a high-strength, high-temperature-resistant, and highly conductive copper alloy using the AM process of L-PBF.

2. Materials and Methods

2.1. Powder Preparation

Two Cu-Cr-Nb powder materials with the chemical compositions shown in Table 1 are manufactured via vacuum inert gas atomization (VIGA) using argon gas. Both powder materials are sieved to a particle size fraction of 15–45 μm prior to L-PBF processing. Manufacturing of ODS variants from both alloys with additions of 0.5 wt.% nanoscale Y2O3 (abcr GmbH, Karlsruhe, Germany) requires the fabrication of composite powder materials with oxide nanoparticles attached to micrometer-sized copper particles. Thus, mechanical alloying (MA) is used to manufacture composite powders and performed in a Pulverisette 4 classic line planetary mill (Fritsch GmbH, Idar-Oberstein, Germany) using milling containers and grinding balls (BPR: 5) with a diameter of 5 mm, both made from yttrium-stabilized zirconia (YSZ). The milling procedure is conducted under full argon atmosphere to avoid extensive oxidation of the copper powder particles in three alternating milling (20 min) and pause intervals (10 min) to allow cooling of the powder material.

2.2. Laser Powder Bed Fusion (L-PBF)

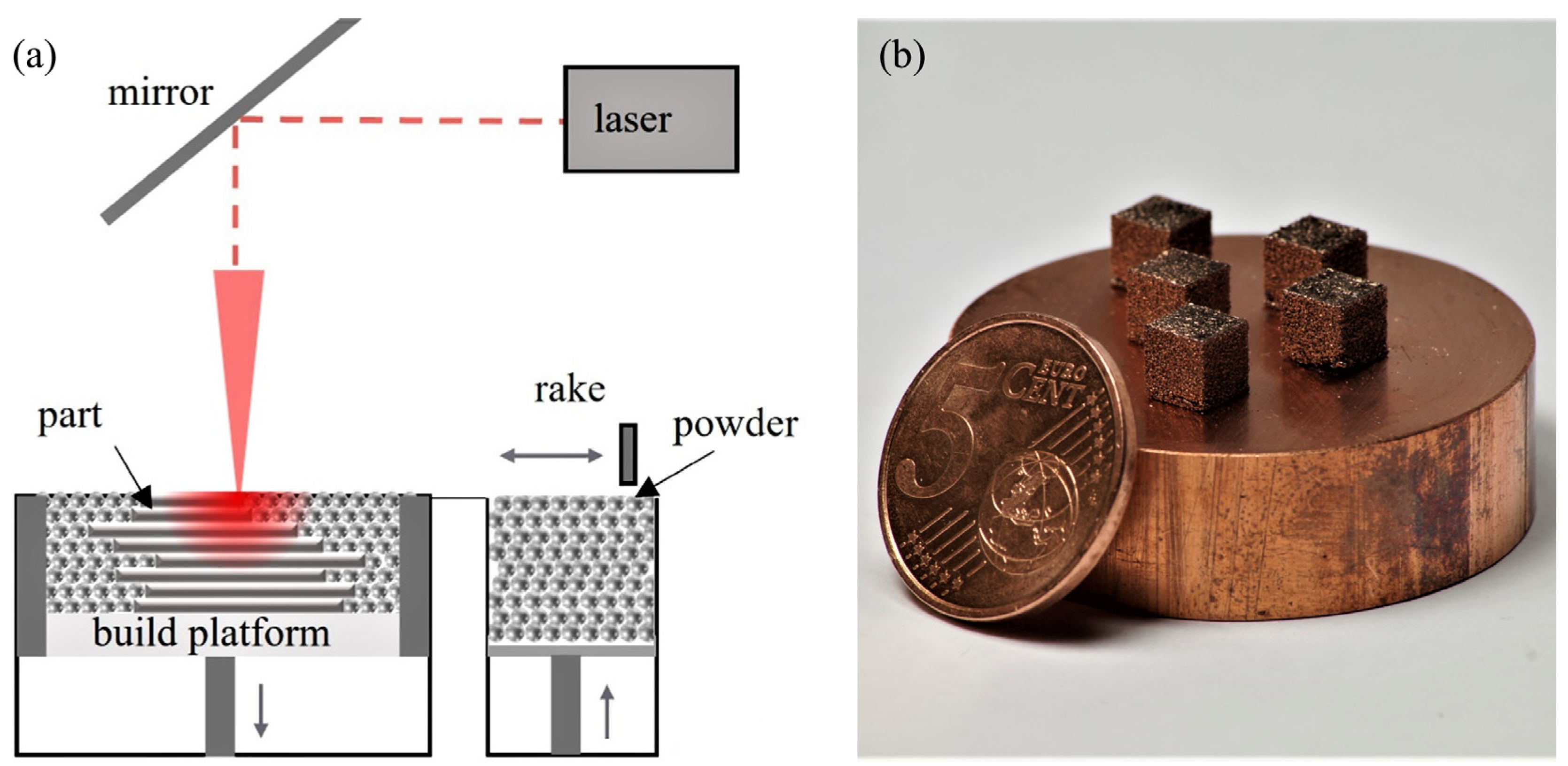

Laser powder bed fusion is conducted using a custom laboratory-scaled L-PBF machine equipped with a YLR1000WC single-mode fiber laser system (IPG Laser GmbH, Burbach, Germany) emitting laser radiation with a wavelength of 1070 nm. A Gaussian beam profile with a beam diameter of approx. 80 μm in the focal plane is created by a galvanometer scanner hurrySCAN20 (SCANLAB GmbH, Puchheim, Germany) coupled with an f-theta lens with a focal length of 255 mm. A schematic of the setup of the machine is depicted in Figure 1a.
L-PBF processing is conducted in a full argon atmosphere (residual oxygen < 10 ppm) with a slight overpressure of approx. 60 mbar compared to ambient atmosphere. Cubic samples (5 mm3) are manufactured on a CuCr1Zr (CW106C) substrate material with a layer-wise rotating stripe scan strategy (34° per layer) using a hatch distance (hs) of 120 μm and a layer thickness (tL) of 30 μm. The used laser power (PL) of 400 W and scan speed (vs) of 800 mm/s allow the calculation of the volume energy density (VED) to 138.89 J/mm3. The process parameters are selected based on the process parameter study by Ren et al. [96] The volume energy density is calculated using (1) [102]. Five specimens of each material are printed (cf. Figure 1b).
V E D = P L v s h s t L
Identical process parameter sets are applied to all powder materials processed and are summarized in Table 2.

2.3. Characterization Methods

Printed samples are examined by standard metallographic procedure including water-cooled cutting parallel to the build direction, grinding with silicon carbide (SiC) paper and subsequent polishing procedure using a 1 μm diamond polishing suspension. The visual identification of different phases and nanoparticles in the printed specimens is aided by an etching procedure prior to scanning electron microscopy (SEM) examination utilizing an aqueous etchant containing 10 g iron(III) chloride (Fe3Cl) and 20 mL hydrogen chloride (HCl) in 100 mL deionized water at room temperature for approx. 15 s. The relative density of printed specimens is determined on five polished cross sections prior to etching using the image analysis software ImageJ.
SEM for imagery of powder particles is conducted on a Leo 1455VP (Carl Zeiss Microscopy Deutschland GmbH, Oberkochen, Germany) in secondary electron (SE) mode using an acceleration voltage of 20 kV. SEM images of printed specimens are performed on an Apreo 2C (Thermo Fisher Scientific, Hillsboro, OR, USA) in SE mode and backscattered electron (BSE) mode with 10 kV acceleration voltage. The determination of chemical compositions is performed by energy-dispersive spectroscopy (EDS) measurements with a Bruker XFlash 6L100 detector integrated in the Apreo 2C SEM system.
Hardness measurements are conducted on an automated hardness tester Carat 930 (ATM Qness GmbH, Mammelzen, Germany) in Vickers mode (HV0.3). A regular grid of 6 × 6 indents per sample with a constant distance of 500 μm is performed.

3. Results and Discussion

3.1. Powder Characterization

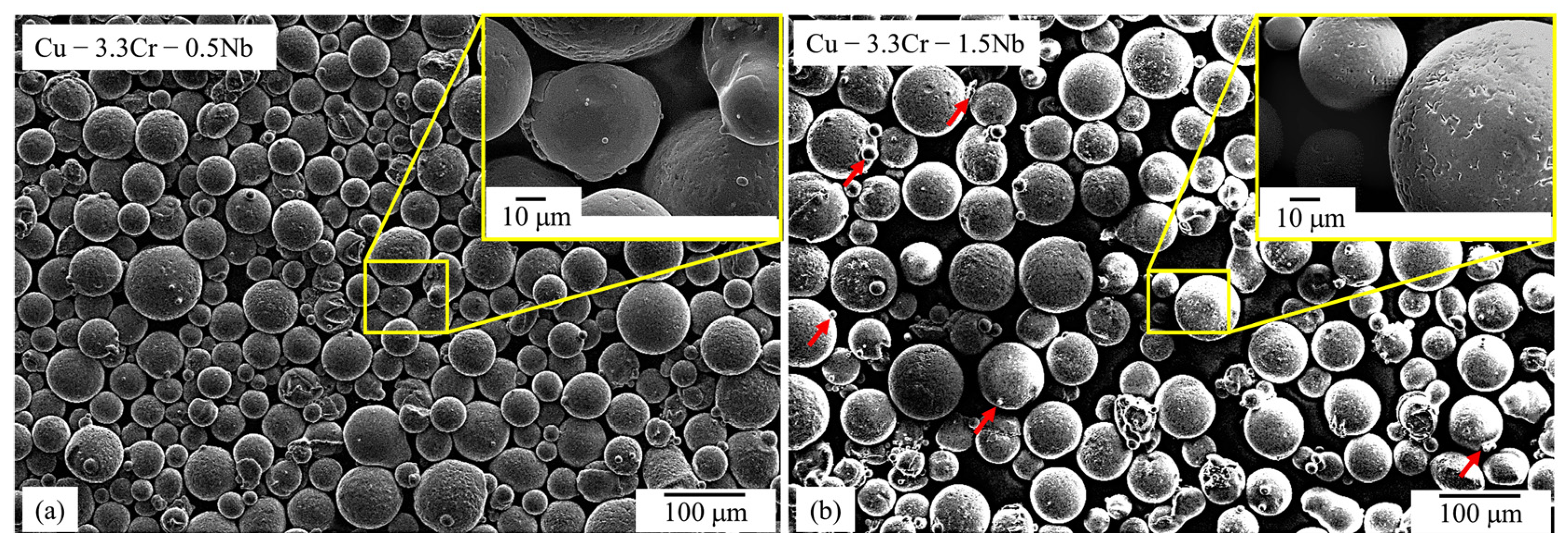

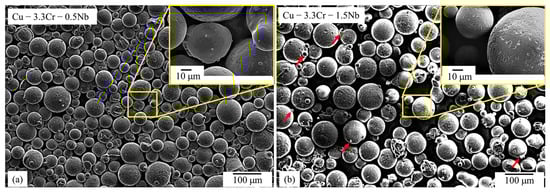

Both gas-atomized Cu-Cr-0.5Nb (Figure 2a) and Cu-Cr-1.5Nb (Figure 2b) powder materials are characterized by a predominantly spherical morphology with only few particles showing aspheric morphology. The powder particles show a smooth surface with sporadically present satellite particles attached to the powder particles.
The Cu-3.3Cr-1.5Nb powder material (Figure 2b) shows a comparably high fraction of satellites, which are regularly encountered in gas-atomized powder materials [103], showing that an increased niobium content influences the gas atomization process. The pronounced formation of satellites might stem from the higher superheat of the copper melt necessary for gas atomization [104], due to higher liquidus temperature with increasing niobium content [105].

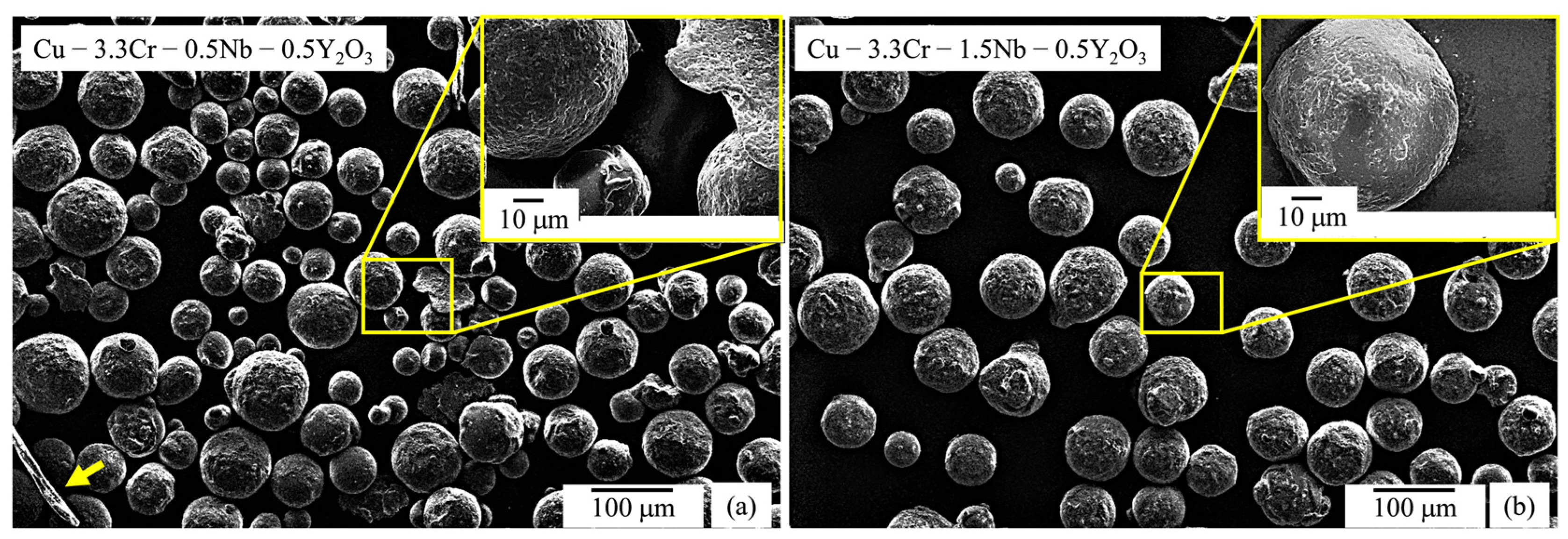

After mechanical alloying, the circularity of the gas-atomized powder particles decreases and flake-like powder particles (indicated by the yellow arrow in Figure 3a) are observed occasionally, which are frequently found in mechanically alloyed powder materials [106,107]. Additionally, the surface of the powder particles appears to be rougher, which presumably stems from the fracturing and cold-welding events during mechanical alloying processes [108]. Mechanically alloyed powder particles are covered with white-appearing particles (Figure 3a,b). Using EDS measurements, enrichments of yttrium and oxygen can be detected, proving the successful deposition of Y2O3 or related compound nanoparticles on the surface of the Cu-Cr-Nb powder particles (Table 3).
Overall, a predominantly spherical particle morphology of both gas atomized powder materials was retained after mechanical alloying (Figure 3a,b) and thus the mechanically alloyed powder materials exhibit satisfactory flowability for L-PBF processing.
The presence of yttrium-rich oxide nanoparticles is believed to allow the utilization of substantially lower VED compared to other studies, with 277.78 J/mm3 [60] to produce dense specimens in this study (Table 2) by increasing the absorptivity for the used laser radiation [109] by multiple reflections [110]. EDS measurements on the powder particles surface additionally indicate an inhomogeneous distribution of chromium and niobium in the copper matrix of the gas-atomized and mechanically alloyed powder particles, which is confirmed by EDS maps of the powder particles’ cross sections (Figure 4a–d). Comparable inhomogeneities were also observed by Seltzman et al. [4,91], but do not result in detrimental effects on the L-PBF printing process or homogeneous distribution of Cr2Nb laves phase in the printed copper matrix [91].

3.2. Microstructure

3.2.1. Unreinforced Cu-Cr-Nb Alloys

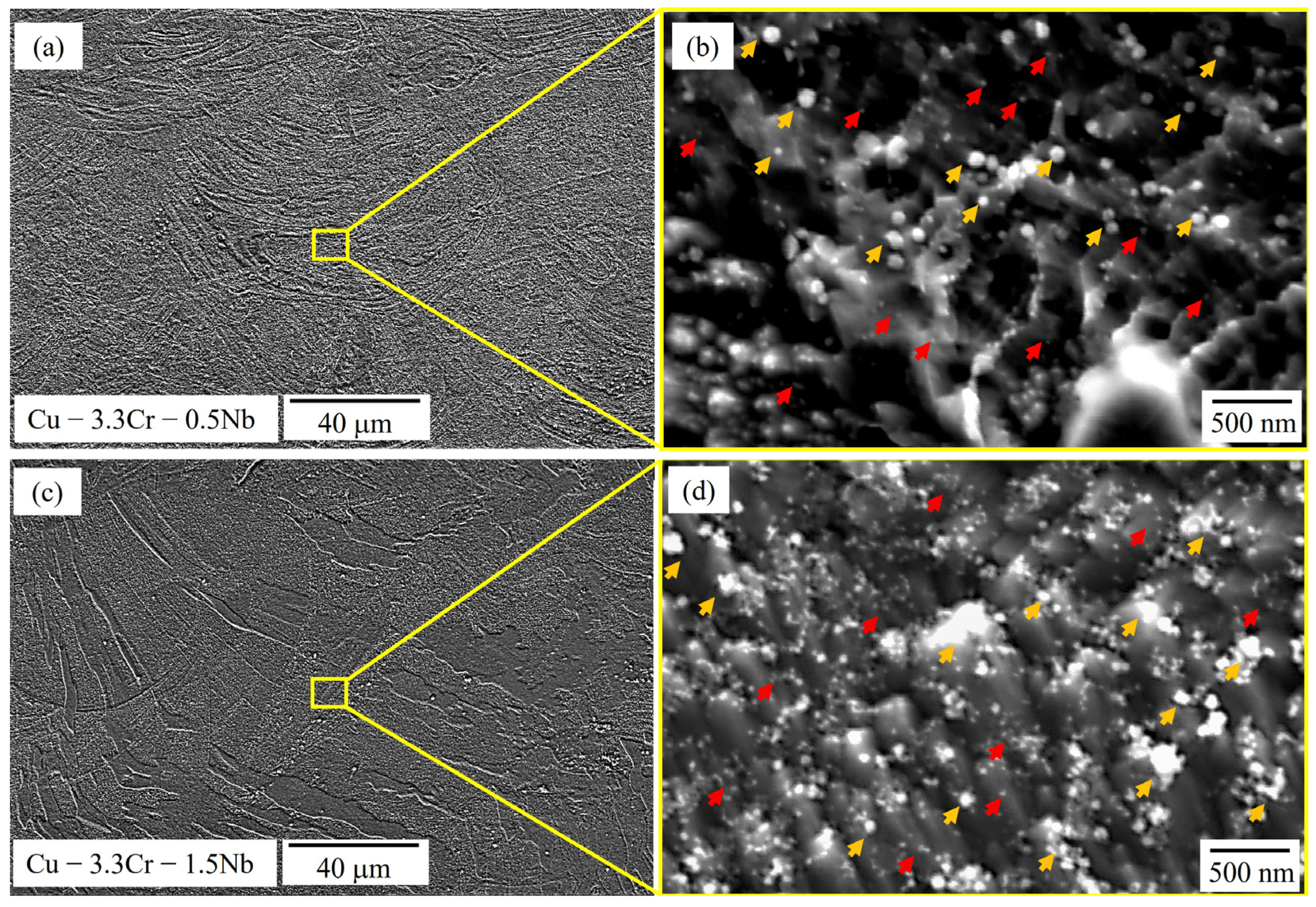

Figure 5 provides SEM images of cross sections of the unreinforced Cu-3.3Cr-0.5Nb (Figure 5a,b) and Cu-3.3Cr-1.5Nb (Figure 5c,d) in the as-printed state. The microstructure is characterized by a layered structure, showing the melt pool boundaries of the printed layers, characteristic of AM printed parts [111]. The printed cubic structures are found to be almost defect-free, exhibiting no cracks and low porosities, resulting in a relative density of 99.7% ± 0.2% and 99.4% ± 0.3% respectively. These results are in accordance with findings of Seltzman et al. [4,91] and Ren et al. [96], both demonstrating the defect-free manufacturing of GRCop-84 and Cu-1.93Cr-0.74Nb alloy. Two homogeneously distributed populations of nanosized particles, indicated by yellow and red arrows in Figure 5b,d, are observed in both unreinforced specimens, which can be distinguished by their respective size.
The larger particles, which are marked by yellow arrows (Figure 5b,d) have an approximate size of 100–300 nm and are found to be enriched in chromium. In contrast, the smaller nanoparticle population (red arrows) with sizes below 100 nm shows high amounts of chromium and niobium. This correlates with particle size found in L-PBF processed GRCop-84 alloy of 85–200 nm [4,91]. However, due to the small size of both nanoparticle species, EDS measurements were performed on sporadically found clusters of the respective nanoparticle species and therefore large amounts of copper are detected. (Table 4).
The presence of Cr-rich- [14,26] and Cr-Nb-rich precipitates [22,24,25,26,27,28] are frequently observed in Cu-Cr-Nb alloys. The latter particles may correspond to Cr2Nb laves phase, which is also found together with Cr-rich precipitates in laser-directed energy deposition (L-DED) processed Cu-3.4Cr-0.6Nb (at.%) alloy [88]. Interestingly, no Cr-rich precipitates are observed in L-PBF processed GRCop-84 alloy [4,88], which contradicts the findings of Yang et al. [112,113] showing faster precipitation of L12-structured Cu3Cr from pure Cr precipitates compared to Cr2Nb laves phases. However, it is also shown that precipitation of Cr2Nb laves phases is enabled at temperatures exceeding 600 °C, consuming Cr-rich precipitations upon formation of Cr2Nb [107]. We hypothesize that at a fixed Cr/Nb ratio of 2 in combination with high melt pool temperatures of melt pools formed in L-PBF processes favor direct precipitation of Cr2Nb from the supersaturate copper matrix or lead to full transformation of Cr-rich precipitates to Cr2Nb laves phases. Consequently, exceeding the ratio of Cr/Nb of 2 will allow excess Cr to remain in the copper matrix as Cr or Cu3Cr precipitates.

3.2.2. Y2O3-Reinforced Cu-Cr-Nb Alloys

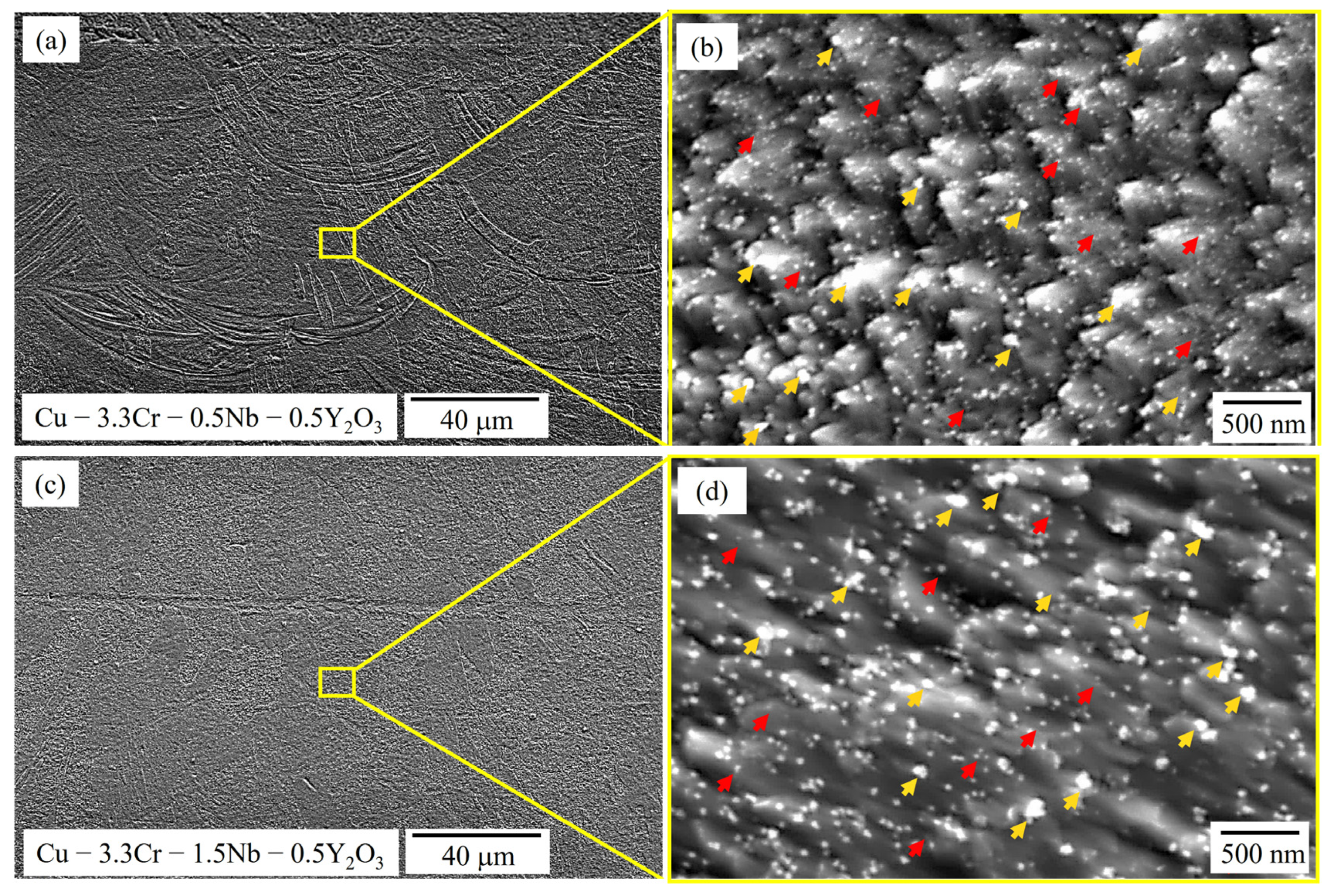

In Figure 6 SEM images of the reinforced Cu-3.3Cr-0.5Nb-0.5Y2O3 (Figure 6a,b) and Cu-3.3Cr-1.5Nb-0.5Y2O3 (Figure 6c,d) are shown. No apparent differences regarding grain morphology or size are observable compared to the unreinforced specimen in Figure 4. However, on a lower scale significant differences in the microstructure evolution become apparent: a large number of sub-100 nm-sized nanoparticles are distributed within the metallic matrix. However, EDS measurements of nanoparticle clusters (Table 5) reveal the presence of two nanoparticle species, marked with yellow and red arrows, respectively (Figure 6b,d). Smaller particles are marked with red arrows and correspond to Cr-Nb-rich precipitates, which were observed in the unreinforced specimen.
Interestingly, the larger nanoparticles, which are marked with yellow arrows, are enriched in yttrium, chromium and oxygen. Thus, the addition of Y2O3 nanoparticles seems to promote the formation of complex oxide compounds. The found chromium-rich yttrium oxide nanoparticles may be attributed to the monoclinic-structured compound of YCrO3, which is frequently observed in Cr-alloyed ODS steels [114,115,116] and nickel-based ODS alloys [117]. The formation reaction can be described according to (2) [118].
Cr2O3 + Y2O3 → 2YCrO3
The proposed formation reaction of YCrO3 (1) implies the introduction of additional oxygen to the process zone. While the gas atmosphere during L-PBF processing only contains negligible amounts of oxygen (Table 2), oxygen might be introduced into the printing process from the powder material. Copper powder handled in air is known to form an oxide layer, consisting of CuO [52,53], and thus might carry oxygen into the printing process to provide oxygen to form YCrO3. The EDS measurements performed on the powder particles’ surface confirms the presence of oxygen, presumably bound as a thin oxide layer (Table 3).

3.3. Mechanical Properties

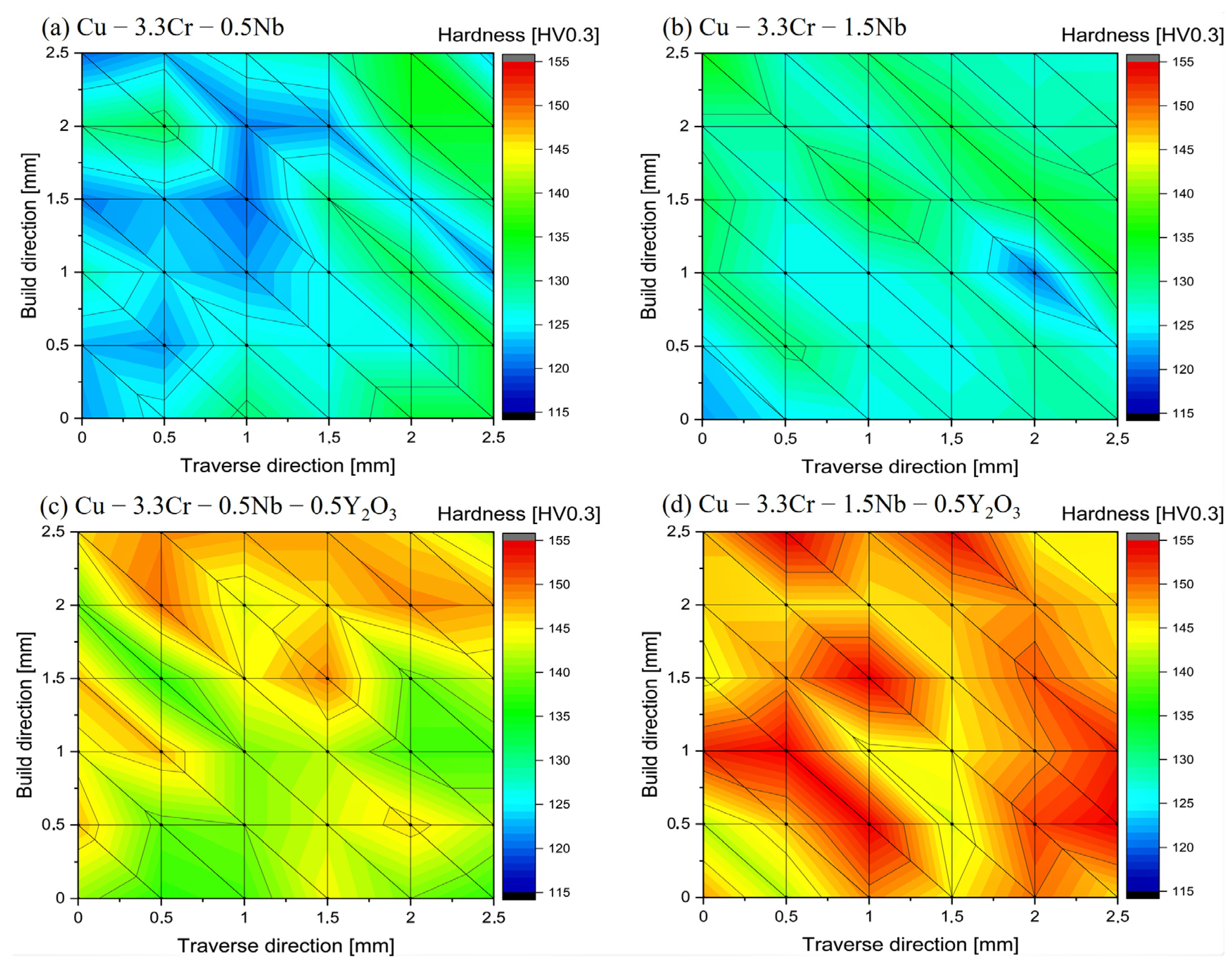

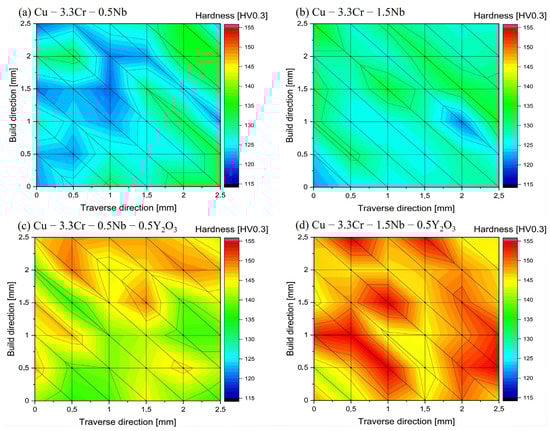

Mechanical properties of the printed oxide-reinforced materials and their unreinforced counterparts are characterized by hardness measurements. In Figure 7, representative hardness maps of printed specimens of Cu-3.3Cr-0.5Nb (Figure 7a) and Cu-3.3Cr-1.5Nb (Figure 7b) are depicted. Both materials are characterized by a relatively moderate hardness of 120–140 HV0.3. The hardness is distributed fairly homogeneous over the printed part with hardness variations up to 15 HV0.3. Oxide dispersion-strengthened Cu-3.3Cr-0.5Nb (Figure 7c) and Cu-3.3Cr-1.5Nb (Figure 7d) show considerably higher hardness compared to their unreinforced counterparts, which is in accordance with other metallic systems with dispersed oxide nanoparticles [50,119].

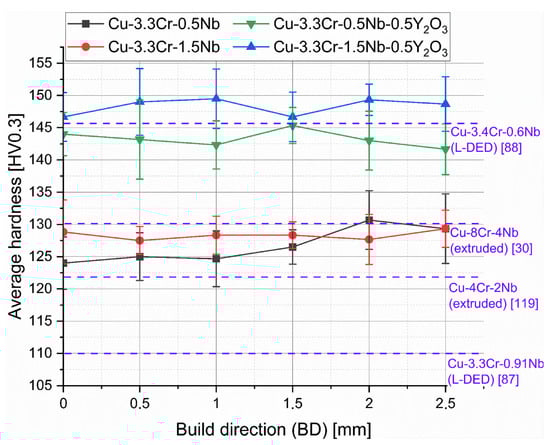

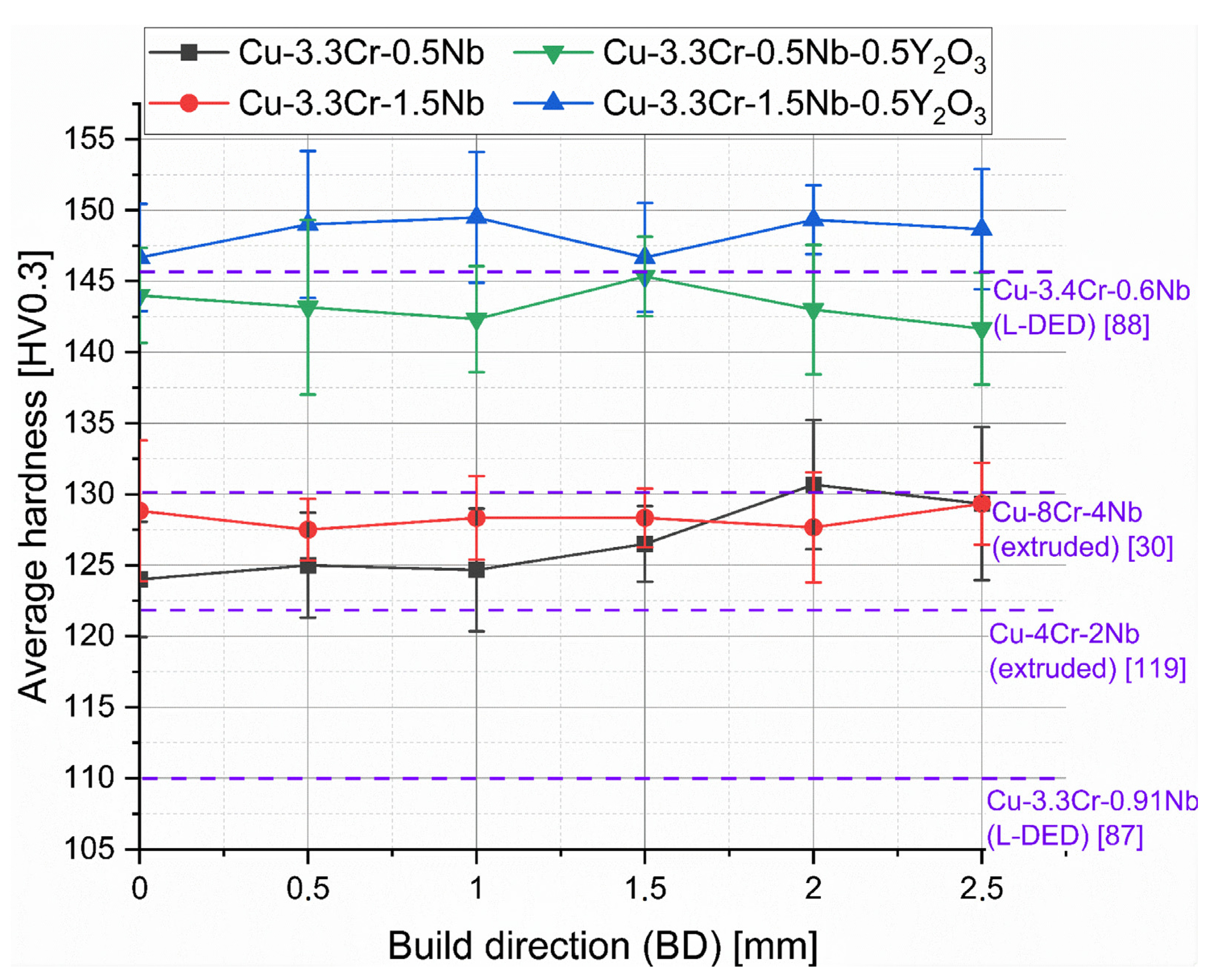

The rather homogeneous nature of the hardness distribution is also reflected by the averaged hardness of the line profiles, shown in Figure 8. Here, the superior hardness levels of oxide-dispersed material compared to the raw copper alloys becomes apparent. Additionally, higher niobium contents are also favorable for higher strength, presumably by higher fractions of nanoscale-precipitated Cr2Nb laves phases, which cannot be resolved with the used SEM system.
Considering the hardness values of extruded [30,120] and L-DED [87] processed Cu-Cr-Nb alloys, L-PBF-manufactured material shows superior hardness despite lower chromium and niobium contents, which typically stems from smaller grains due to higher cooling rates in L-PBF than L-DED or extrusion processes. [50] However, Kini et al. [88] presents notably high hardness values (approx. 146 HV) for L-DED-manufactured Cu-3.4Cr-0.6Nb (at.%) material, due to in situ precipitation of Cr2Nb laves particles by intrinsic heat treatment (IHT) mechanisms, frequently observed in L-DED processes [121,122,123,124]. The higher fraction of precipitated Cr2Nb and Cr-rich phases directly leads to increased hardness. Thus, it is hypothesized that a subsequent aging procedure of L-PBF manufactured material will result in further increase in the hardness superior to L-DED-manufactured counterparts.

4. Conclusions

In the present study, we demonstrated the feasibility of printing oxide dispersion-strengthened Cu-Cr-Nb alloys by the additive manufacturing process of laser powder bed fusion. The addition of nanoscale Y2O3 results in a complex microstructure with populations of Cr- and Nb-enriched nanoparticles next to Cr-rich yttrium oxide nanoparticles, homogeneously dispersed in the metallic copper matrix. The evolution of both nanoparticle species by addition of Y2O3 led to a remarkable increase of the hardness compared to their unreinforced counterparts. Future studies will include in-depth microstructural characterization including TEM investigations to clarify the nanoparticle chemistry and extensive mechanical characterizations using tensile test and creep tests. Additionally, modifications of the alloy system towards refined oxide nanoparticles as well as the effect of higher oxide particle contents are topics for future studies.

Author Contributions

Conceptualization, M.B.W. and S.-K.R.; methodology, M.B.W. and S.-K.R.; validation, M.B.W. and S.-K.R.; formal analysis, M.B.W.; investigation, M.B.W. and S.-K.R.; resources, M.B.W. and S.-K.R.; data curation, M.B.W.; writing—original draft preparation, M.B.W.; writing—review and editing, M.B.W. and S.-K.R.; visualization, M.B.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

All data generated or analyzed during this study are included in this published article.

Acknowledgments

We thank Herbert Horn-Solle for his support in conducting SEM imagery and EDS examinations.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Blakey-Milner, B.; Gradl, P.; Snedden, G.; Brooks, M.; Pitot, J.; Lopez, E.; Leary, M.; Berto, F.; du Plessis, A. Metal additive manufacturing in aerospace: A review. Mater. Des. 2021, 209, 110008. [Google Scholar] [CrossRef]
  2. Gradl, P.; Tinker, D.C.; Park, A.; Mireles, O.R.; Garcia, M.; Wilkerson, R.; Mckinney, C. Robust metal additive manufacturing process selection. J. Mater. Eng. Perform. 2022, 31, 6013–6044. [Google Scholar] [CrossRef]
  3. Gradl, P.R.; Protz, C.S.; Zagorski, K.; Doshi, V.; McCallum, H. Additive manufacturing and hot-fire testing of bimetallic GRCop-84 and C-18150 channel-cooled combustion chambers using powder bed fusion and Inconel 625 hybrid directed energy deposition. In Proceedings of the 55th AIAA/SAE/ASEE Joint Propulsion Conference, Indianapolis, IN, USA, 19–21 August 2019. [Google Scholar] [CrossRef]
  4. Seltzman, A.H.; Wukitch, S.J. Fracture characteristics and heat treatment of laser powder bed fusion additively manufactured GRCop-84 copper. Mater. Sci. Eng. A 2021, 827, 141690. [Google Scholar] [CrossRef]
  5. Butterworth, G.J.; Forty, C.B.A. A survey of the properties of copper alloys for use as fusion reactor materials. J. Nucl. Mater. 1992, 189, 237–276. [Google Scholar] [CrossRef]
  6. Zinkle, S.J. Applicability of copper alloys for DEMO high heat flux components. Phys. Scr. 2016, T167, 014004. [Google Scholar] [CrossRef]
  7. Singer, F.; Deisenroth, D.C.; Hymas, D.M.; Dessiatoun, S.V.; Ohadi, M.M. Additively manufactured copper components and composite structures for thermal management applications. In Proceedings of the 16th IEEE Intersoc. Conf. Thermal and Thermomechanical Phenomena in Electronic Systems, Orlando, FL, USA, 30 May–2 June 2017. [Google Scholar] [CrossRef]
  8. Altenberger, I.; Kuhn, H.-A.; Müller, H.R.; Mhaede, M.; Gholami-Kermanshahi, M.; Wagner, L. Material properties of high-strength beryllium-free copper alloys. Int. J. Mater. Prod. Techn. 2015, 50, 124–146. [Google Scholar] [CrossRef]
  9. Yang, H.-Y.; Ma, Z.-C.; Lei, C.-H.; Meng, L.; Fang, Y.-T.; Liu, J.-B.; Wang, H.-T. High strength and high conductivity Cu alloys: A review. Techn. Sci. 2020, 63, 2505–2517. [Google Scholar] [CrossRef]
  10. Geng, Y.; Ban, Y.; Li, X.; Zhang, Y.; Jia, Y.; Tian, B.; Zhou, M.; Liu, Y.; Volinsky, A.A.; Song, K.; et al. Excellent mechanical properties and high electrical conductivity of Cu-Co-Si-Ti alloy due to multiple strengthening. Mater. Sci. Eng. A 2021, 821, 141639. [Google Scholar] [CrossRef]
  11. Tong, Y.-X.; Li, S.-Y.; Zhang, D.-T.; Li, L.; Zheng, Y.-F. High strength and high electrical conductivity CuMg alloy prepared by cryorolling. Trans. Nonferr. Met. Soc. China 2019, 29, 595–600. [Google Scholar] [CrossRef]
  12. Maki, K.; Ito, Y.; Matsunaga, H.; Mori, H. Solid-solution copper alloys with high strength and high electrical conductivity. Scr. Mater. 2013, 68, 777–780. [Google Scholar] [CrossRef]
  13. Zhang, X.; Zhang, Y.; Tian, B.; Song, K.; Liu, P.; Jia, Y.; Chen, X.; An, J.; Zhao, Z.; Liu, Y.; et al. Review of nano-phase effects in high-strength and conductivity copper alloys. Nanotechn. Rev. 2019, 8, 383–395. [Google Scholar] [CrossRef]
  14. Minneci, R.P.; Lass, E.A.; Bunn, J.R.; Choo, H.; Rawn, C.J. Copper-based alloys for structural high-heat-flux applications: A review of development, properties, and performance of Cu-rich Cu-Cr-Nb alloys. Int. Mater. Rev. 2021, 66, 394–425. [Google Scholar] [CrossRef]
  15. Akada, T.; Izumida, H.; Watanabe, T.; Iwamoto, K. High-strength and high-conductive material to replace beryllium-copper alloys. SEI Techn. Rev. 2017, 84, 156–159. [Google Scholar]
  16. Raabe, D.; Ohsaki, S.; Hono, K. Mechanical alloying and amorphization in Cu-Nb-Ag in situ composite wires studied by transmission electron microscopy and atom probe tomography. Acta Mater. 2009, 57, 5254–5263. [Google Scholar] [CrossRef]
  17. Liang, D.; Wang, N.; Wang, Y.; Liu, Z.; Fu, Y. Effects of Zr, Y on the microstructure and properties of fast-cast Cu-0.5Y-xZr (wt.%) alloys. Metals 2019, 9, 1084. [Google Scholar] [CrossRef]
  18. Li, R.; Kang, H.; Chen, Z.; Fan, G.; Zou, C.; Wang, W.; Zhang, S.; Lu, Y.; Jie, J.; Cao, Z.; et al. A promising structure for fabrication high strength and high electrical conductivity copper alloys. Sci. Rep. 2016, 6, 20799. [Google Scholar] [CrossRef]
  19. Zhou, C.; Chen, Z.; Guo, E.; Kang, H.; Fan, G.; Wang, W.; Li, R.; Zhang, S.; Wang, T. A nano-micro dual-scale particulate-reinforced copper matrix composite with high strength, high electrical conductivity and superior wear resistance. RSC Adv. 2018, 8, 30777. [Google Scholar] [CrossRef]
  20. de Groh III, H.C.; Ellis, D.L.; Loewenthal, W.S. Comparison of GRCop-84 to other Cu alloys with high thermal conductivities. J. Mater. Eng. Perform. 2008, 17, 594–606. [Google Scholar] [CrossRef]
  21. Li, W.-Y.; Guo, X.-P.; Verdy, C.; Dembinski, L.; Liao, H.L.; Coddet, C. Improvement of microstructure and property of cold-sprayed Cu–4 at.%Cr–2 at.%Nb alloy by heat treatment. Scr. Mater. 2006, 55, 327–330. [Google Scholar] [CrossRef]
  22. Yang, X.H.; Wang, C.D.; Yang, L.; Zou, J.T.; Xiao, P.; Liang, S.H. Effects of Nb addition and different cooling methods on microstructures and properties of Cu-Cr alloys. J. Mater. Eng. Perform. 2020, 29, 5008–5017. [Google Scholar] [CrossRef]
  23. Li, W.-Y.; Guo, X.-P.; Verdy, C.; Dembinski, L.; Liao, H.L.; Coddet, C. Effect of vacuum heat treatment on microstructure and microhardness of cold sprayed Cu-4Cr-2Nb alloy coating. Trans. Nonferr. Met. Soc. China 2006, 16, 203–208. [Google Scholar] [CrossRef]
  24. Shukla, A.K.; Narayana Murty, S.V.S.; Suresh Kumar, R.; Mondal, K. Spark plasma sintering of dispersion hardened Cu-Cr-Nb alloy powders. J. All. Comp. 2013, 577, 70–78. [Google Scholar] [CrossRef]
  25. Wu, X.; Wang, R.; Peng, C.; Feng, Y.; Cai, Z. Microstructures and elevated temperature properties of rapidly solidified Cu-3Ag-0.5Zr and Cu-3Ag-0.5Zr-0.4Cr-0.35Nb alloys. J. All. Comp. 2019, 803, 1037–1044. [Google Scholar] [CrossRef]
  26. Guo, X.; Xiao, Z.; Qiu, W.; Li, Z.; Zhao, Z.; Wang, X.; Jiang, Y. Microstructure and properties of Cu-Cr-Nb alloy with high strength, high electrical conductivity and good softening resistance performance at elevated temperature. Mater. Sci. Eng. A 2019, 749, 281–290. [Google Scholar] [CrossRef]
  27. Scannapieco, D.S.; Lewandowski, J.J.; Rogers, R.B.; Ellis, D.L. In-situ Alloying of GRCop-42 via Additive Manufacturing: Precipitate Analysis; NASA Technical Reports, TM-20205003857; NASA Glenn Research Center: Cleveland, OH, USA, 2020.
  28. Lv, X.; Liu, Z.; Lei, T.; Li, Q.; Ren, Y.; Zhou, X.; Zhang, Z. Effect of heat treatment on Cr2Nb phase and properties of spark plasma sintered Cu-2Cr-1Nb alloy. Materials 2020, 13, 2860. [Google Scholar] [CrossRef]
  29. Decker, M.W.; Groza, J.R.; Gibeling, J.C. Creep properties of an extruded copper-8% chromium-4% niobium alloy. Mater. Sci. Eng. A 2004, 369, 101–111. [Google Scholar] [CrossRef]
  30. Anderson, K.R.; Groza, J.R.; Dreshfield, R.L.; Ellis, D. High-performance alloy dispersion-strengthened Cu-8 Cr-4 Nb alloy. Met. Mater. Trans. A 1995, 26, 2197–2206. [Google Scholar] [CrossRef]
  31. Miller, T.J.; Zinkle, S.J.; Chin, B.A. Strength and fatigue of dispersion-strengthened copper. J. Nucl. Mater. 1991, 179–181, 263–266. [Google Scholar] [CrossRef]
  32. Ellis, D.L. GRCop-84: A High-Temperature Copper Alloy for High-Heat-Flux Applications; NASA Technical Reports, TM-2005-213566; NASA Glenn Research Center: Cleveland, OH, USA, 2005.
  33. Chandrasekhar, S.B.; Sudhakakara Sarma, S.; Ramakrishna, M.; Suresh Babu, P.; Rao, T.N.; Kashyap, B.P. Microstructure and properties of hot extruded Cu-1 wt.% Al2O3 nano-composites synthesized by various techniques. Mater. Sci. Eng. A 2014, 591, 46–53. [Google Scholar] [CrossRef]
  34. Daoud, A.; Vogt, J.B.; Charkaluk, E.; Bouquerel, J.; Zhang, L.; Biasci, J.-C. Anisotropy effects on the tensile and fatigue behaviour of an oxide dispersion strengthened copper alloy. Mater. Sci. Eng. A 2012, 534, 640–648. [Google Scholar] [CrossRef]
  35. Srivatsan, T.S.; Dhana Singh, K.; Troxell, J.D. The tensile behavior of an oxide dispersion strengthened copper-niobium composite. Mater. Lett. 1996, 28, 423–429. [Google Scholar] [CrossRef]
  36. Carro, G.; Muñoz, A.; Monge, M.A.; Savoini, B.; Pareja, R.; Ballesteros, C.; Adeva, P. Fabrication and characterization of Y2O3 dispersion strengthened copper. J. Nucl. Mater. 2014, 455, 655–659. [Google Scholar] [CrossRef]
  37. Aghamiri, S.M.S.; Oono, N.; Ukai, S.; Kasada, R.; Noto, H.; Hishinuma, Y.; Muroga, T. Microstructure and mechanical properties of mechanically alloyed ODS copper alloy for fusion material application. Nucl. Mater. Ener. 2018, 15, 17–22. [Google Scholar] [CrossRef]
  38. Martin, U.; Kudashov, D.V.; Heilmaier, M.; Oettel, H. Microstructure and deformation behaviour of ultra-fine-grained ODS copper prepared by mechanical alloying. In High Performance Structures and Materials II; WIT Press: Southampton, UK, 2004. [Google Scholar] [CrossRef]
  39. Muñoz, A.; Savoini, B.; Monge, M.A.; Dura, O.J. Fabrication and characterization of Cu reinforced with Y-enriched particles following a novel powder metallurgy route. Nucl. Mater. Ener. 2021, 29, 101075. [Google Scholar] [CrossRef]
  40. Mu, Z.; Geng, H.-R.; Li, M.-M.; Nie, G.-L.; Leng, J.-F. Effects of Y2O3 on the property of copper based contact materials. Comp. B 2013, 52, 51–55. [Google Scholar] [CrossRef]
  41. Shabadi, R.; Avettand-Fènoël, M.N.; Simar, A.; Taillard, R.; Jain, P.K.; Johnson, R. Thermal conductivity in yttria dispersed copper. Mater. Des. 2015, 65, 869–877. [Google Scholar] [CrossRef]
  42. Cheng, B.; Wang, L.; Sprouster, D.J.; Trelewicz, J.R.; Zhong, W.; Yang, Y.; Zinkle, S.J.; Snead, L.L. Tailoring microstructure in sintered Cu-Cr-Nb-Zr alloys for fusion components. J. Nucl. Mater. 2021, 551, 152956. [Google Scholar] [CrossRef]
  43. Yang, Y.; Wang, L.; Snead, L.; Zinkle, S.J. Development of novel Cu-Cr-Nb-Zr alloys with the aid of computational thermodynamics. Mater. Des. 2018, 156, 370–380. [Google Scholar] [CrossRef]
  44. Broyles, S.E.; Zhang, M.; Gibeling, J.C. Influence of annealing on the creep behaviour of GlidCop Al-15. Mater. Sci. Eng. A 2020, 779, 139112. [Google Scholar] [CrossRef]
  45. Yamada, T.; Noto, H.; Hishinuma, Y.; Muroga, T.; Nakamura, H. Development of a dispersion strengthened copper alloy using a MA-HIP method. Nucl. Mater. Ener. 2016, 9, 455–458. [Google Scholar] [CrossRef]
  46. Shimada, Y.; Mizumoto, M.; Hishinuma, Y.; Ikeda, K.-I.; Yoshida, K.; Noto, H.; Ma, B.; Muroga, T.; Nagai, Y.; Konno, T.J. Microstructural changes of oxide dispersion strengthened copper powders by mechanical alloying. Fus. Eng. Des. 2021, 173, 112804. [Google Scholar] [CrossRef]
  47. Ma, B.; Hishinuma, Y.; Noto, H.; Shimada, Y.; Muroga, T. Development of Y2O3 dispersion strengthened Cu alloy using Cu6Y and Cu2O addition through the MA-HIP process. Fus. Eng. Des. 2020, 161, 112045. [Google Scholar] [CrossRef]
  48. Ma, B.; Hishinuma, Y.; Shimada, Y.; Noto, H.; Kasada, R.; Oono, N.; Ukai, S.; Muroga, T. The size dependence of microstructure and hardness on the MA powders for the MA-HIP processed Cu-Y2O3 dispersion-strengthened alloys. Nucl. Mater. Ener. 2020, 24, 100773. [Google Scholar] [CrossRef]
  49. Ramirez, D.A.; Murr, L.E.; Martinez, E.; Hernandez, D.H.; Martinez, J.L.; Machado, B.I.; Medina, F.; Frigola, P.; Wicker, R.B. Novel precipitate–microstructural architecture developed in the fabrication of solid copper components by additive manufacturing using electron beam melting. Acta Mater. 2011, 59, 4088–4099. [Google Scholar] [CrossRef]
  50. Doñate-Buendia, C.; Kürnsteiner, P.; Stern, F.; Wilms, M.B.; Streubel, R.; Kusoglu, I.M.; Tenkamp, J.; Bruder, E.; Pirch, N.; Barcikowski, S.; et al. Microstructure formation and mechanical properties of ODS steels built by laser additive manufacturing of nanoparticle coated iron-chromium powders. Acta Mater. 2021, 206, 116566. [Google Scholar] [CrossRef]
  51. Gao, R.; Zeng, L.; Ding, H.; Zhang, T.; Wang, X.; Fang, Q. Characterization of oxide dispersion strengthened ferritic steel fabricated by electron beam selective melting. Mater. Des. 2016, 89, 1171–1180. [Google Scholar] [CrossRef]
  52. Pobel, C.R.; Lodes, M.A.; Körner, C. Selective electron beam melting of oxide dispersion strengthened copper. Adv. Eng. Mater. 2018, 20, 1800068. [Google Scholar] [CrossRef]
  53. Guschlbauer, R.; Burkhardt, A.K.; Fu, Z.; Körner, C. Effect of oxygen content of pure copper powder on selective electron beam melting. Mater. Sci. Eng. A 2020, 779, 139106. [Google Scholar] [CrossRef]
  54. Baitimerov, R.M.; Bykov, V.A. Processing of alumina reinforced copper metal matrix composite by selective laser melting technology. Solid State Phenom. 2021, 316, 175–180. [Google Scholar] [CrossRef]
  55. Brandau, B.; Da Silva, A.; Wilsnack, C.; Brueckner, F.; Kaplan, A.F.H. Absorbance study of powder conditions for laser additive manufacturing. Mater. Des. 2022, 216, 110591. [Google Scholar] [CrossRef]
  56. Tran, T.Q.; Chinnappan, A.; Lee, J.K.Y.; Loc, N.H.; Tran, L.T.; Wang, G.; Kumar, V.V.; Jayathilaka, W.A.D.M.; Ji, D.; Doddamani, M.; et al. 3D printing of highly pure copper. Metals 2019, 9, 756. [Google Scholar] [CrossRef]
  57. Jiang, Q.; Zhang, P.; Yu, Z.; Shi, H.; Wu, D.; Yan, H.; Ye, X.; Lu, Q.; Tian, Y. A review on additive manufacturing of pure copper. Coatings 2021, 11, 740. [Google Scholar] [CrossRef]
  58. Constantin, L.; Wu, Z.; Fan, L.; Silvain, J.-F.; Lu, Y.F. Laser 3D printing of complex copper structures. Addit. Manuf. 2020, 35, 101268. [Google Scholar] [CrossRef]
  59. Yadav, S.; Paul, C.P.; Jinoop, A.N.; Rai, A.K.; Bindra, K.S. Laser directed energy deposition based additive manufacturing of copper: Process development and material characterizations. J. Manuf. Proc. 2020, 58, 984–997. [Google Scholar] [CrossRef]
  60. Tiberto, D.; Klotz, U.E.; Held, F.; Wolf, G. Additive manufacturing of copper alloys: Influence of process parameters and alloying elements. Mater. Sci. Techn. 2019, 35, 969–977. [Google Scholar] [CrossRef]
  61. Silbernagel, C.; Gargalis, L.; Ashcroft, I.; Hague, R.; Galea, M.; Dickens, P. Electrical resistivity of pure copper processed by medium-powered laser powder bed fusion additive manufacturing for use in electromagnetic applications. Addit. Manuf. 2019, 29, 100831. [Google Scholar] [CrossRef]
  62. Ikeshoji, T.-T.; Nakamura, K.; Yonehara, M.; Imai, K.; Kyogoku, H. Selective laser melting of pure copper. JOM 2018, 70, 396–400. [Google Scholar] [CrossRef]
  63. Colopi, M.; Caprio, L.; Demir, A.G.; Previtali, B. Selective laser melting of pure Cu with a 1 kW single mode fiber laser. Proc. CIRP 2018, 74, 59–63. [Google Scholar] [CrossRef]
  64. Zhong, Z.H.; Li, C.G.; Zhang, X.Y.; Gu, J.F. The graded microstructures evolving with thermal cycles in pure copper processed by laser metal deposition. Mater. Lett. 2018, 230, 215–218. [Google Scholar] [CrossRef]
  65. Sinico, M.; Cogo, G.; Benettoni, M.; Calliari, I.; Pepato, A. Influence of powder particle size distribution on the printability of pure copper for selective laser melting. In Proceedings of the Solid Freeform Symposium 658–667, Austin, TX, USA, 12–14 August 2019. [Google Scholar]
  66. Lingqin, X.; Guang, C.; Luyu, Z.; Pan, L. Explore the feasibility of fabricating pure copper parts with low-laser energy by selective laser melting. Mater. Res. Expr. 2020, 7, 106509. [Google Scholar] [CrossRef]
  67. Bonesso, M.; Rebesan, P.; Gennari, C.; Mancin, S.; Dima, R.; Pepato, A.; Calliari, I. Effect of particle size distribution on laser powder bed fusion manufacturability of copper. Berg. Huettenmaenn. Monatsh. 2021, 166, 256–262. [Google Scholar] [CrossRef]
  68. Yang, P.; Guo, X.; He, D.; Tan, Z.; Shao, W.; Fu, H. Selective laser melting of high relative density and high strength parts made of minor surface oxidation treated pure copper powder. Metals 2021, 11, 1883. [Google Scholar] [CrossRef]
  69. Jadhav, S.D.; Vleugels, J.; Kruth, J.-P.; van Humbeeck, J.; Vanmeensel, K. Mechanical and electrical properties of selective laser-melted parts produced from surface-oxidized copper powder. Mater. Des. Proc. Comm. 2019, 2, e94. [Google Scholar] [CrossRef]
  70. Lindström, V.; Liashenko, O.; Zweiacker, K.; Derevianko, S.; Morozovych, V.; Lyashenko, J.; Leinenbach, C. Laser powder bed fusion of metal coated copper powders. Materials 2020, 13, 3493. [Google Scholar] [CrossRef]
  71. Jadhav, S.D.; Dadbakhsh, S.; Vleugels, J.; Hofkens, J.; van Puyvelde, P.; Yang, S.; Kruth, J.-P.; van Humbeeck, J.; Vanmeensel, K. Influence of carbon nanoparticle addition (and impurities) on selective laser melting of pure copper. Materials 2019, 12, 2469. [Google Scholar] [CrossRef]
  72. Prasad, H.S.; Brückner, F.; Volpp, J.; Kaplan, A.F.H. Laser metal deposition of copper on diverse materials using green laser sources. Int. J. Adv. Manuf. Techn. 2020, 107, 1559–1568. [Google Scholar] [CrossRef]
  73. Pan, L.; Zhang, C.-L.; Liu, T.; Liu, X.-Y.; Liu, J.-L.; Liu, S.; Wang, W.-H.; Zhang, H.-H. Molten pool structure and temperature flow behavior of green-laser powder bed fusion pure copper. Mater. Res. Expr. 2022, 9, 016504. [Google Scholar] [CrossRef]
  74. Gruber, S.; Stepien, L.; Lopez, E.; Brueckner, F.; Leyens, C. Physical and geometrical properties of additively manufactured pure copper samples using a green laser source. Materials 2021, 14, 3642. [Google Scholar] [CrossRef]
  75. Higashino, R.; Sato, Y.; Masuno, S.; Shobu, T.; Funada, Y.; Abe, N.; Tsukamoto, M. Development of blue diode laser for additive manufacturing. In Proceedings of the SPIE 11271, Laser 3D Manufacturing VII, 1127114, San Francisco, CF, USA, 25 March 2020. [Google Scholar] [CrossRef]
  76. Kaden, L.; Matthäus, G.; Ramm, R.; Ullsperger, T.; Seyfarth, B.; Nolte, S. Additive manufacturing of pure copper using ultrashort laser pulses. In Proceedings of the SPIE 10909 Laser 3D manufacturing VI, 109090D, San Francisco, CF, USA, 7 June 2019. [Google Scholar] [CrossRef]
  77. Momeni, S.; Guschlbauer, R.; Osmanlic, F.; Körner, C. Selective electron beam melting of a copper-chrome powder mixture. Mater. Lett. 2018, 223, 250–252. [Google Scholar] [CrossRef]
  78. Uchida, S.; Kimura, T.; Nakamoto, T.; Ozaki, T.; Miki, T.; Takemura, M.; Oka, Y.; Tsubota, R. Microstructures and electrical and mechanical properties of Cu-Cr alloys fabricated by selective laser melting. Mater. Des. 2019, 175, 107815. [Google Scholar] [CrossRef]
  79. Chen, Y.; Ren, S.; Zhao, Y.; Qu, X. Microstructure and properties of CuCr alloy manufactured by selective laser melting. J. All. Comp. 2019, 786, 189–197. [Google Scholar] [CrossRef]
  80. Popovich, A.; Sufiiarov, V.; Polozov, I.; Borisov, E.; Masaylo, D.; Orlov, A. Microstructure and mechanical properties of additive manufactured copper alloy. Mater. Lett. 2016, 179, 38–41. [Google Scholar] [CrossRef]
  81. Guan, P.; Chen, X.; Liu, P.; Sun, F.; Zhu, C.; Zhou, H.; Fu, S.; Wu, Z.; Zhu, Y. Effect of selective laser melting process parameters and aging heat treatment on properties of CuCrZr alloy. Mater. Res. Expr. 2019, 6, 1165c1. [Google Scholar] [CrossRef]
  82. Artzt, K.; Siggel, M.; Kleinert, J.; Riccius, J.; Requena, G.; Haubrich, J. Pyrometric-based melt pool monitoring study of CuCr1Zr processed using L-PBF. Materials 2020, 13, 4626. [Google Scholar] [CrossRef] [PubMed]
  83. Buchmayr, B.; Panzl, G.; Walzl, A.; Wallis, C. Laser powder bed fusion- Materials issues and optimized processing parameters of tool steels, AlSiMg- and CuCrZr-alloys. Adv. Eng. Mater. 2017, 19, 1600667. [Google Scholar] [CrossRef]
  84. Wegener, T.; Koopmann, J.; Richter, J.; Krooß, P.; Niendorf, T. CuCrZr processed by laser powder bed fusion- Processability and influence of heat treatment on electrical conductivity, microstructure and mechanical properties. Fatigue Fract. Eng. Mater. Struct. 2021, 44, 2570–2590. [Google Scholar] [CrossRef]
  85. Jahns, K.; Bappert, R.; Böhlke, P.; Krupp, U. Additive manufacturing of CuCrZr1 by development of a gas atomization and laser powder bed fusion routine. Int. J. Adv. Manuf. Techn. 2020, 107, 2151–2161. [Google Scholar] [CrossRef]
  86. Ordás, N.; Portolés, L.; Azpeleta, M.; Gómez, A.; Blasco, J.R.; Martinez, M.; Ureña, J.; Iturriza, I. Development of CuCrZr via electron beam powder bed fusion (EB-PBF). J. Nucl. Mater. 2021, 548, 152841. [Google Scholar] [CrossRef]
  87. Maischner, D.; Fritsching, U.; Kini, A.; Weisheit, A.; Uhlenwinkel, V.; Schleifenbaum, J.H.; Biermann, T. Laser additive manufacturing of copper-chromium-niobium alloys using gas atomized powder. Int. J. Mater. Res. 2020, 111, 587–593. [Google Scholar] [CrossRef]
  88. Kini, A.R.; Maischner, D.; Weisheit, A.; Ponge, D.; Gault, B.; Jägle, E.A.; Raabe, D. In-situ synthesis via laser metal deposition of a lean Cu-3.4Cr-0.6Nb (at.%) conductive alloy hardened by Cr nano-scale precipitates and by laves phase micro-particles. Acta Mater. 2020, 197, 330–340. [Google Scholar] [CrossRef]
  89. Landes, S. Characterization of directed energy deposition additively manufactured GRCop-42 alloy. In Electronic Theses and Dissertations; South Dakota State University: Brookings, SD, USA, 2020; p. 5036. Available online: https://openprairie.sdstate.edu/etd/5036 (accessed on 7 September 2022).
  90. Seltzman, A.H.; Wukitch, S.J. RF losses in selective laser melted GRCop-84 copper waveguide for an additively manufactured lower hybrid current drive launcher. Fus. Eng. Des. 2020, 159, 111762. [Google Scholar] [CrossRef]
  91. Seltzman, A.H.; Wukitch, S.J. Precipitate size in GRCop-84 gas atomized powder and laser powder bed fusion additively manufactured material. Fus. Sci. Techn. 2021, 77, 641–646. [Google Scholar] [CrossRef]
  92. Seltzman, A.H.; Wukitch, S.J. Nuclear response of additive manufactured GRCop-84 copper for use in lower hybrid launchers in a fusion environment. Fus. Eng. Des. 2020, 159, 111726. [Google Scholar] [CrossRef]
  93. Seltzman, A.H.; Wukitch, S.J. Resolution and geometric limitations in laser powder bed fusion additively manufactured GRCop-84 structures for a lower hybrid current drive launcher. Fus. Eng. Des. 2021, 173, 112847. [Google Scholar] [CrossRef]
  94. Hayes, C.; Brown, E.; Kappes, B. Characterization of selective laser melted GRCop-84. In Proceedings of the Joint Propulsion Conference, Cincinnati, OH, USA, 9–11 July 2018. [Google Scholar] [CrossRef]
  95. Demeneghi, G.; Barnes, B.; Gradl, P.; Mayeur, J.R.; Hazeli, K. Size effects on microstructure and mechanical properties of additively manufactured copper–chromium–niobium alloy. Mater. Sci. Eng. A 2021, 820, 141511. [Google Scholar] [CrossRef]
  96. Ren, Y.; Liu, Z.; Zhang, Y.; Al, Y.; Ye, S.; Li, J.; Peng, W. Optimization of process parameters for selective laser melting of Cu-Cr-Nb alloy. Mater. Sci. Eng. Powder Met. 2022, 27, 66–76. [Google Scholar] [CrossRef]
  97. Doñate-Buendia, C.; Frömel, F.; Wilms, M.B.; Streubel, R.; Tenkamp, J.; Hupfeld, T.; Nachev, M.; Gökce, E.; Weisheit, A.; Barcikowski, S.; et al. Oxide dispersion-strengthened alloys generated by laser metal deposition of laser-generated nanoparticle-metal powder composites. Mater. Des. 2018, 154, 360–369. [Google Scholar] [CrossRef]
  98. Zhou, D.; Geng, H.; Zeng, W.; Zheng, D.; Pan, H.; Kong, C.; Munroe, P.; Sha, G.; Suryanarayana, C.; Zhang, D. High temperature stabilization of a nanostructured Cu-Y2O3 composite through microalloying with Ti. Mater. Sci. Eng. A 2018, 712, 80–87. [Google Scholar] [CrossRef]
  99. Zhou, J.; Yi, G.; Zhang, P.; Yin, S.; Xue, L.; Yan, Y. The microstructure, mechanical-thermal properties and softening resistance of Y4Al2O9 dispersion-strengthened Cu alloy. J. Nucl. Mater. 2022, 560, 153484. [Google Scholar] [CrossRef]
  100. Groza, J.R.; Gibeling, J.C. Principles of particle selection for dispersion-strengthened copper. Mater. Sci. Eng. A 1993, 171, 115–125. [Google Scholar] [CrossRef]
  101. Uchidi, Y.; Ohnuki, S.; Hashimoto, N.; Suda, T.; Nagai, T.; Shibayama, T.; Hamada, K.; Akasaka, N.; Yamashita, S.; Ohstuka, S.; et al. Effect of minor alloying element on dispersing nano-particles in ODS steel. MRS Online Proc. Libr. 2006, 981, 709. [Google Scholar] [CrossRef]
  102. Caiazzo, F.; Alfieri, V.; Casalino, G. On the relevance of volumetric energy density in the investigation of Inconel 718 laser powder bed fusion. Materials 2020, 13, 538. [Google Scholar] [CrossRef]
  103. Slotwinski, J.A.; Garboczi, E.J.; Stuzman, P.E.; Ferraris, C.F.; Watson, S.S.; Peltz, M.A. Characterization of metal powders used for additive manufacturing. J. Res. Nat. Inst. Stand. Techn. 2014, 119, 460–493. [Google Scholar] [CrossRef]
  104. Urionabarrenetxea, E.; Avello, A.; Rivas, A.; Martin, J.M. Experimental study of the influence of operational and geometric variables on the powders produced by close-coupled gas atomisation. Mater. Des. 2021, 199, 109441. [Google Scholar] [CrossRef]
  105. Li, D.; Robinson, M.B.; Rathz, T.J.; Williams, G. Liquidus temperatures and solidification behavior in the copper-niobium system. Acta Mater. 1998, 46, 3849–3855. [Google Scholar] [CrossRef]
  106. Bor, A.; Jargalsaikhan, B.; Uranchimeg, K.; Lee, J.; Choi, H. Particle morphology control of metal powder with various experimental conditions using ball milling. Powder Techn. 2021, 394, 181–190. [Google Scholar] [CrossRef]
  107. Vasquez, E.; Giroux, P.-F.; Lomello, F.; Nussbaum, M.; Maskrot, H.; Schuster, F.; Castagny, P. Effect of powder characteristics on production of oxide dispersion strengthened Fe-14Cr steel by laser powder bed fusion. Powder Techn. 2020, 360, 998–1005. [Google Scholar] [CrossRef]
  108. Suryanarayana, C. Mechanical alloying and milling. Progr. Mater. Sci. 2001, 46, 1–184. [Google Scholar] [CrossRef]
  109. Tertuliano, O.A.; DePond, P.J.; Doan, D.; Matthews, M.J.; Gu, X.W.; Cai, W. Nanoparticle-enhanced absorptivity of copper during laser powder bed fusion. Addit. Manuf. 2022, 51, 102562. [Google Scholar] [CrossRef]
  110. Kruth, J.P.; Wang, X.; Laoui, T.; Froyen, L. Lasers and materials in selective laser sintering. Assem. Autom. 2003, 23, 357–371. [Google Scholar] [CrossRef]
  111. Ren, Z.; Zhang, D.Z.; Fu, G.; Jiang, J.; Zhao, M. High-fidelity modelling of selective laser melting copper alloy: Laser reflection behaviour and thermal fluid dynamics. Mater. Des. 2021, 207, 109857. [Google Scholar] [CrossRef]
  112. Yang, Y.H.; Lei, Q.; Zhang, P.; Wang, W.Y.; Zhang, X.K.; Li, Y.P.; Zhou, K.C.; Li, Z. Stabilization of L12 structured Cr3Cu precipitates in a Cu-4.06Cr-1.25Nb alloy with high temperature strength. Mater. Res. Lett. 2022, 10, 257–263. [Google Scholar] [CrossRef]
  113. Yang, Y.; Lei, Q.; Liu, H.; Hong, J.; Han, Z.; An, Q.; Shan, J.; Chen, X.; Xu, H.; Xiao, Z.; et al. Cr-based second phases in a high conductivity Cu-Cr-Nb alloy with high high-temperature strength. Mater. Des. 2022, 219, 110784. [Google Scholar] [CrossRef]
  114. Fu, J.; Davis, T.P.; Kumar, A.; Richardson, I.M.; Hermans, M.J.M. Characterisation of the influence of vanadium and tantalum on yttrium-based nano-oxides in ODS Eurofer steel. Mater. Charact. 2021, 175, 111072. [Google Scholar] [CrossRef]
  115. Xu, H.; Lu, Z.; Wang, D.; Liu, C. Microstructure refinement and strengthening mechanisms of a 9Cr oxide dispersion strengthened steel by zirconium addition. Nucl. Eng. Techn. 2017, 49, 178–188. [Google Scholar] [CrossRef]
  116. Park, J.J.; Hong, S.M.; Park, E.K.; Lee, M.K.; Rhee, C.K. Synthesis of Fe based ODS alloys by a very high speed planetary milling process. J. Nucl. Mater. 2012, 428, 35–39. [Google Scholar] [CrossRef]
  117. Tan, L.; Wang, G.; Guo, Y.; Fang, Q.; Liu, Z.; Xiao, X.; He, W.; Qin, Z.; Zhang, Y.; Liu, F.; et al. Additively manufactured oxide dispersion strengthened nickel-based superalloy with superior high temperature properties. Virt. Phys. Prototyp. 2020, 15, 555–569. [Google Scholar] [CrossRef]
  118. Chinnappan, R. Thermodynamic stability of oxide phases of Fe-Cr based ODS steels via quantum mechanical calculations. Proc. Eng. 2014, 86, 788–798. [Google Scholar] [CrossRef]
  119. Rittinghaus, S.-K.; Wilms, M.B. Oxide dispersion strengthening of γ-TiAl laser additive manufacturing. J. All. Comp. 2019, 804, 457–460. [Google Scholar] [CrossRef]
  120. Anderson, K.R.; Groza, J.R. Microstructural size effects in high-strength high-conductivity Cu-Cr-Nb alloys. Met. Mater. Trans A 2001, 32, 1211–1224. [Google Scholar] [CrossRef]
  121. Kürnsteiner, P.; Wilms, M.B.; Weisheit, A.; Barriobero-Vila, P.; Jägle, E.A.; Raabe, D. Massive nanoprecipitation in a Fe-19Ni-xAl maraging steel triggered by the intrinsic heat treatment during laser metal deposition. Acta Mater. 2017, 129, 52–60. [Google Scholar] [CrossRef]
  122. Kürnsteiner, P.; Wilms, M.B.; Weisheit, A.; Gault, B.; Jägle, E.A.; Raabe, D. High-strength Damascus steel by additive manufacturing. Nature 2020, 582, 515–519. [Google Scholar] [CrossRef]
  123. Kürnsteiner, P.; Bajaj, P.; Gupta, A.; Wilms, M.B.; Weisheit, A.; Li, X.; Leinenbach, C.; Gault, B.; Jägle, E.A.; Raabe, D. Control of thermally stable core-shell nano-precipitates in additively manufactured Al-Sc-Zr alloys. Addit. Manuf. 2020, 32, 100910. [Google Scholar] [CrossRef]
  124. Rittinghaus, S.-K.; Amr, A.; Hecht, U. Intrinsic heat treatment of an additively manufactured medium entropy AlCrFe2Ni2-alloy. Met. Mater. Int. 2022, 1–12. [Google Scholar] [CrossRef]
Jmmp 06 00102 g001 550
Figure 1. (a) Schematic depiction of the L-PBF machine setup. (b) Photograph of five printed specimen of Cu-3.3Cr-0.5Nb-0.5Y2O3 material on a copper substrate.
Figure 1. (a) Schematic depiction of the L-PBF machine setup. (b) Photograph of five printed specimen of Cu-3.3Cr-0.5Nb-0.5Y2O3 material on a copper substrate.
Jmmp 06 00102 g001
Jmmp 06 00102 g002 550
Figure 2. SEM images (SE mode) of gas-atomized powder particles with superimposed SEM image with higher magnification: (a) Cu-3.3Cr-0.5Nb alloy. (b) Cu-3.3Cr-1.5Nb alloy.
Figure 2. SEM images (SE mode) of gas-atomized powder particles with superimposed SEM image with higher magnification: (a) Cu-3.3Cr-0.5Nb alloy. (b) Cu-3.3Cr-1.5Nb alloy.
Jmmp 06 00102 g002
Jmmp 06 00102 g003 550
Figure 3. SEM images (SE mode) of mechanically alloyed powder particles with superimposed SEM image with higher magnification: (a) Cu-3.3Cr-0.5Nb alloy. (b) Cu-3.3Cr-1.5Nb alloy.
Figure 3. SEM images (SE mode) of mechanically alloyed powder particles with superimposed SEM image with higher magnification: (a) Cu-3.3Cr-0.5Nb alloy. (b) Cu-3.3Cr-1.5Nb alloy.
Jmmp 06 00102 g003
Jmmp 06 00102 g004 550

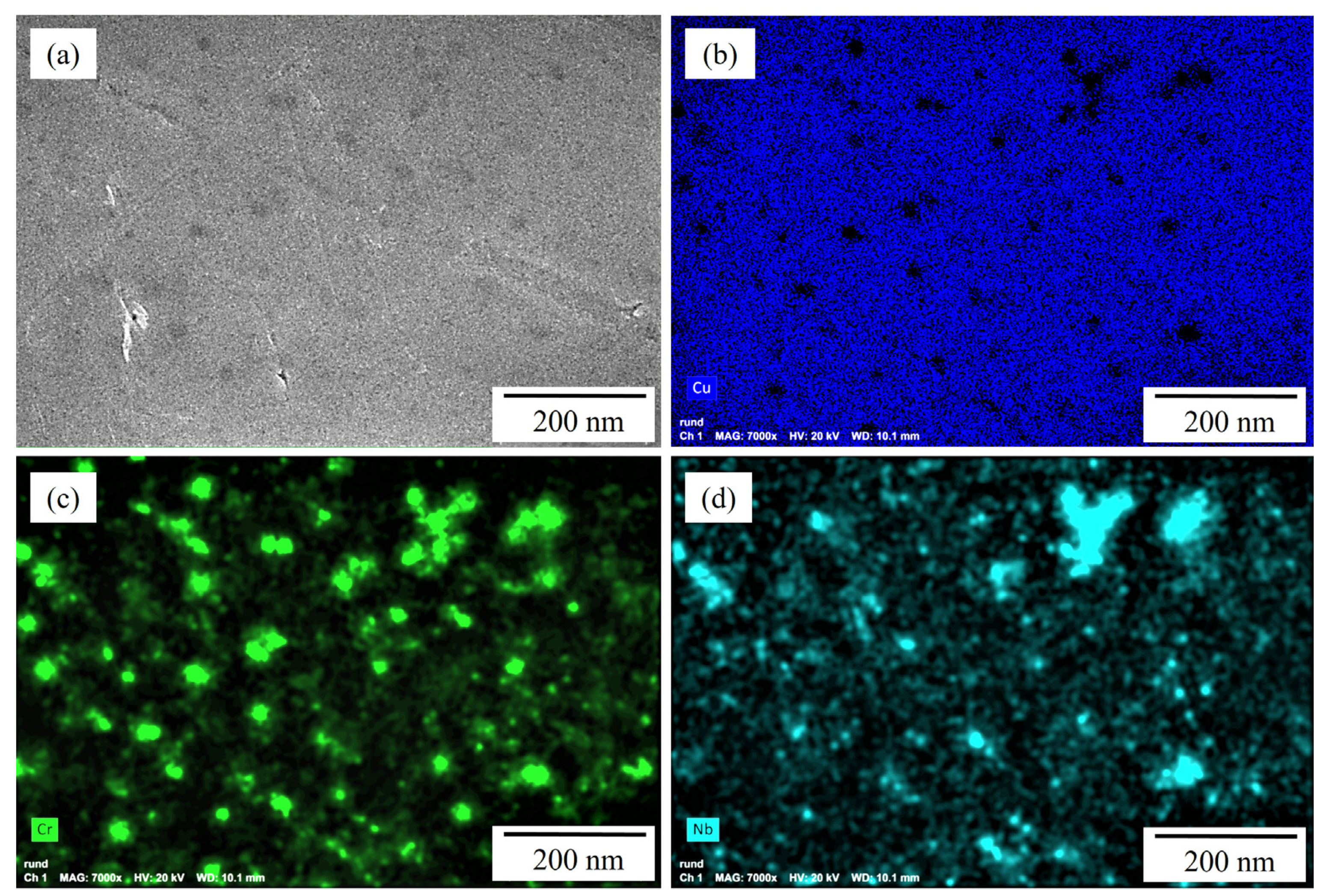

Figure 4. EDS maps of cross sections of randomly selected Cu-3.3Cr-1.5Nb powder particles in gas-atomized state: (a) BSE image showing the presence of darker-appearing particles indicating local enrichment of elements with higher atomic number. EDS maps of copper (b), chromium (c) and niobium (d) confirm the local enrichment of chromium and niobium of dark-appearing particles.
Figure 4. EDS maps of cross sections of randomly selected Cu-3.3Cr-1.5Nb powder particles in gas-atomized state: (a) BSE image showing the presence of darker-appearing particles indicating local enrichment of elements with higher atomic number. EDS maps of copper (b), chromium (c) and niobium (d) confirm the local enrichment of chromium and niobium of dark-appearing particles.
Jmmp 06 00102 g004
Jmmp 06 00102 g005 550
Figure 5. SEM images (SE mode) of Cu-3.3Cr-0.5Nb alloy in low (a) and high magnification (b) showing the presence of different precipitates (red and yellow arrows). SEM images (SE mode) of Cu-3.3Cr-1.5Nb alloy in low (c) and high magnification (d) showing the presence of different precipitates (red and yellow arrows).
Figure 5. SEM images (SE mode) of Cu-3.3Cr-0.5Nb alloy in low (a) and high magnification (b) showing the presence of different precipitates (red and yellow arrows). SEM images (SE mode) of Cu-3.3Cr-1.5Nb alloy in low (c) and high magnification (d) showing the presence of different precipitates (red and yellow arrows).
Jmmp 06 00102 g005
Jmmp 06 00102 g006 550
Figure 6. SEM images of oxide-reinforced Cu-3.3Cr-0.5Nb alloy in low (a) and high magnification (b) showing the presence of precipitates (red arrows) and dispersoids (yellow arrows). SEM images of oxide-reinforced Cu-3.3Cr-1.5Nb alloy in low (c) and high magnification (d) showing the presence of precipitates (red arrows) and dispersoids (yellow arrows).
Figure 6. SEM images of oxide-reinforced Cu-3.3Cr-0.5Nb alloy in low (a) and high magnification (b) showing the presence of precipitates (red arrows) and dispersoids (yellow arrows). SEM images of oxide-reinforced Cu-3.3Cr-1.5Nb alloy in low (c) and high magnification (d) showing the presence of precipitates (red arrows) and dispersoids (yellow arrows).
Jmmp 06 00102 g006
Jmmp 06 00102 g007 550
Figure 7. Vickers hardness (HV0.3) maps of manufactured specimens in the as-printed state. (a) Cu-3.3Cr-0.5Nb. (b) Cu-3.3Cr-1.5Nb. (c) Cu-3.3Cr-0.5Nb-0.5Y2O3. (d) Cu-3.3Cr-1.5Nb-0.5Y2O3. The hardness between the individual hardness indents is linearly interpolated.
Figure 7. Vickers hardness (HV0.3) maps of manufactured specimens in the as-printed state. (a) Cu-3.3Cr-0.5Nb. (b) Cu-3.3Cr-1.5Nb. (c) Cu-3.3Cr-0.5Nb-0.5Y2O3. (d) Cu-3.3Cr-1.5Nb-0.5Y2O3. The hardness between the individual hardness indents is linearly interpolated.
Jmmp 06 00102 g007
Jmmp 06 00102 g008 550
Figure 8. Hardness line profiles of manufactured specimen of Cu-3.3Cr-0.5Nb (black line), Cu-3.3Cr-1.5Nb (red line), Cu-3.3Cr-0.5Nb-0.5Y2O3 (green line), and Cu-3.3Cr-1.5Nb-0.5Y2O3 (blue line). Hardness values of Cu-Cr-Nb alloys manufactured by extrusion and laser directed energy deposition (L-DED) are shown in purple with their respective reference.
Figure 8. Hardness line profiles of manufactured specimen of Cu-3.3Cr-0.5Nb (black line), Cu-3.3Cr-1.5Nb (red line), Cu-3.3Cr-0.5Nb-0.5Y2O3 (green line), and Cu-3.3Cr-1.5Nb-0.5Y2O3 (blue line). Hardness values of Cu-Cr-Nb alloys manufactured by extrusion and laser directed energy deposition (L-DED) are shown in purple with their respective reference.
Jmmp 06 00102 g008
Table
Table 1. Nominal chemical composition of the Cu-Cr-Nb powder materials in wt.%.
Table 1. Nominal chemical composition of the Cu-Cr-Nb powder materials in wt.%.
Alloy 1CuCrNb
Balance3.30.5
Alloy 2CuCrNb
Balance3.31.5
Table
Table 2. Process parameters for L-PBF processing of Cu-Cr-Nb samples and their reinforced counterparts.
Table 2. Process parameters for L-PBF processing of Cu-Cr-Nb samples and their reinforced counterparts.
Process ParameterUnitValueProcess ParameterUnitValue
Laser powerW400Hatch rotation°34
Scan speedmm/s800Scan strategy-Stripes
Hatch distanceμm120Residual oxygenppm<10
Layer thicknessμm30VEDJ/mm3138.89
Table
Table 3. Chemical composition (in wt.%) of the surface of the mechanically alloyed powder depicted in Figure 2a,b. Averaged values from single-point measurements on 15 randomly selected powder particles. GA: gas-atomized, MA: mechanically alloyed.
Table 3. Chemical composition (in wt.%) of the surface of the mechanically alloyed powder depicted in Figure 2a,b. Averaged values from single-point measurements on 15 randomly selected powder particles. GA: gas-atomized, MA: mechanically alloyed.
AlloyPowder StateCuCrNbYO
Cu-3.3Cr-0.5NbGABalance2.820.77-1.77
Cu-3.3Cr-0.5Nb-0.5Y2O3MABalance3.731.154.913.18
Cu-3.3Cr-1.5NbGABalance3.551.86-2.58
Cu-3.3Cr-1.5Nb-0.5Y2O3MABalance3.311.784.022.47
Table
Table 4. Chemical composition (in wt.%) of unreinforced specimens determined by EDS. Values are averaged over 12 single-point measurements on occasionally found clusters or larger particles of the respective nanoparticle species.
Table 4. Chemical composition (in wt.%) of unreinforced specimens determined by EDS. Values are averaged over 12 single-point measurements on occasionally found clusters or larger particles of the respective nanoparticle species.
AlloyParticle SpeciesCuCrNbYO
Cu-3.3Cr-0.5NbRed arrowsBalance16.869.12-3.01
Yellow arrowsBalance37.44--1.24
Cu-3.3Cr-1.5NbRed arrowsBalance23.7312.33-4.70
Yellow arrowsBalance48.44--2.39
Table
Table 5. Chemical composition (in wt.%) of reinforced specimens determined by EDS. Values are averaged over 12 single-point measurements on occasionally found clusters or larger particles of the respective nanoparticle species.
Table 5. Chemical composition (in wt.%) of reinforced specimens determined by EDS. Values are averaged over 12 single-point measurements on occasionally found clusters or larger particles of the respective nanoparticle species.
AlloyParticle SpeciesCuCrNbYO
Cu-3.3Cr-0.5Nb-0.5Y2O3Red arrowsBalance21.867.87-4.11
Yellow arrowsBalance27.24-14.047.24
Cu-3.3Cr-1.5Nb-0.5Y2O3Red arrowsBalance24.939.85-2.68
Yellow arrowsBalance37.13-11.078.42
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wilms, M.B.; Rittinghaus, S.-K. Laser Additive Manufacturing of Oxide Dispersion-Strengthened Copper–Chromium–Niobium Alloys. J. Manuf. Mater. Process. 2022, 6, 102. https://doi.org/10.3390/jmmp6050102

AMA Style

Wilms MB, Rittinghaus S-K. Laser Additive Manufacturing of Oxide Dispersion-Strengthened Copper–Chromium–Niobium Alloys. Journal of Manufacturing and Materials Processing. 2022; 6(5):102. https://doi.org/10.3390/jmmp6050102

Chicago/Turabian Style

Wilms, Markus B., and Silja-Katharina Rittinghaus. 2022. "Laser Additive Manufacturing of Oxide Dispersion-Strengthened Copper–Chromium–Niobium Alloys" Journal of Manufacturing and Materials Processing 6, no. 5: 102. https://doi.org/10.3390/jmmp6050102

APA Style

Wilms, M. B., & Rittinghaus, S. -K. (2022). Laser Additive Manufacturing of Oxide Dispersion-Strengthened Copper–Chromium–Niobium Alloys. Journal of Manufacturing and Materials Processing, 6(5), 102. https://doi.org/10.3390/jmmp6050102

Article Metrics

Back to TopTop
