Composite Ceramics Based on Pastes Including Tricalcium Phosphate and an Aqueous Solution of Sodium Silicate

Abstract

Preceramic samples were prepared from pastes based on the aqueous solution of sodium silicate and tricalcium phosphate with a given molar ratio of (Na₂O · 2,87SiO₂)_aq/Ca₃(PO₄)₂ = 1:3 after drying at 24 °C and then 60 °C for 24 h. It established the dependence of the plastic strength of these pastes on both time and temperature and the possibility of using them for extrusion 3D printing. The phase composition of ceramic was represented by unreacted β-TCP (β-Ca₃(PO₄)₂) and β-rhenanite (β-NaCaPO₄) after heat treatment at 500 °C. Further, an increase in temperature up to 700 °C led to the appearing phase of silicon dioxide (SiO₂) and up to 900 °C, of sodium calcium phosphate (Na₃Ca₆(PO₄)₅). After heat-treatment at 1100 °C, ceramic samples consisted of the β-TCP (β-Ca₃(PO₄)₂), sodium calcium phosphate (Na₃Ca₆(PO₄)₅), silicon dioxide (SiO₂) and β-wollastonite (β-CaSiO₃). The bending and compressive strength of the ceramics rose with increasing temperature from ≈6.8 MPa and ≈31.1 MPa at 500 °C to ≈10.6 MPa and ≈43.5 MPa at 1100 °C. The obtained composite ceramics consisted of biocompatible phases that are widely studied in the literature and may be used as a biomaterial for the treatment of bone tissue defects.

1. Introduction

The experience of researchers reflected in the scientific literature [1,2,3,4] indicates the need to expand the phase structure of materials for bone implants based on calcium phosphates. Bioresorbable phases should be present in composition along with hydroxyapatite (HA) and tricalcium phosphate (TCP), or instead of them, which have a lower molar ratio of Ca/P for a successful implementation of the regenerative treatment method of bone defects [5,6,7,8]. Sodium calcium phosphates are also suitable for that purpose, such as β-rhenanite NaCaPO₄ and Na-substituted TCP Ca₁₀Na(PO₄)₇ (which can also be called double calcium phosphates) or the Na₃Ca₆(PO₄)₅ phase, because these phases increase the bioactivity of ceramics [9,10,11,12]. Double calcium phosphates have a higher solubility relative to TCP and, accordingly, HA, due to the replacement of the Ca²⁺ ion by an ion with a larger radius and (or) a lower charge. Usually, double calcium phosphates are obtained at high temperatures (above 500 °C) by the interaction of calcium phosphates and an alkali metal compound [13].

On the other side, the calcium phosphate material can be supplemented with a more osteoinductive phase containing silica in its composition [1,14]. The most common composites are calcium phosphate (HAP and (or) TCP) with Bioglass 45S5 [12,15,16], in which Na₃Ca₆(PO₄)₅ is formed as the base or secondary phase. Materials containing Na₃Ca₆(PO₄)₅ show promising trends in both in vitro and in vivo tests in those works. Na₃Ca₆(PO₄)₅ belongs to the NaCaPO₄—Ca₃(PO₄)₂ [17] system, and in [18], it was established in the high-temperature range (650–1200 °C) that the β-NaCaPO₄ phase transformed into α-NaCaPO₄, which then dissolved in β-TCP and formed a Na₃Ca₆(PO₄)₅ compound. Then, Na₃Ca₆(PO₄)₅ and β-TCP changed to a Na–Ca–P–O glass phase at elevated temperature. During the cooling, Na₃Ca₆(PO₄)₅ and β-NaCaPO₄ formed again. Similar results were observed in [19] but at higher temperatures (900–1700 °C). It is important to note that in [17,20], the Na₂Ca₅(PO₄)₄ phase was shown, and in [20], the authors suggested that the phosphate referred to as Na₃Ca₆(PO₄)₅ did not exist and was actually Na₂Ca₅(PO₄)₄, because the Na₃Ca₆(PO₄)₅ compound was previously formulated without taking into account the volatilization of Na₂O at high temperature. However, according to the X-ray diffraction analyses, only Na₃Ca₆(PO₄)₅ leads to a pure compound in agreement with the PDF [20].

In [21], the authors found that when they implanted composites of the composition β-NaCaPO₄ and α-cristobalite into a bone defect, an excellent osteoconductive effect was observed. The bone defects were filled with bone tissue after 3 weeks incorporating minimal residues of graft material. These results indicate that the Si-rich calcium phosphate ceramic containing high silica concentrations not only has a measurable stimulatory effect on bone cell function but also resorbs in harmony with the rate of new bone formation. It is due to the physicochemical properties of its mineral constituents as β-NaCaPO₄ contains Na ions weakening the bond between Ca²⁺ and the PO₄³⁻ in the crystal surface and acts as a weak interphase for α-cristobalite. Hence, all that provides an easy path for structure debonding, which facilitates silica dissolution and leads to rapid bone regeneration. The authors note the architecture of the remodeled cortical bone and marrow resembles that of normal healthy bone. In [22], the authors found that the neonatal rat calvarial osteoblasts attached to the composite consisting of β-NaCaPO₄ and α-cristobalite expressed considerably higher mRNA levels of collagen-I, osteocalcin and osteopontin genes compared to those expressed by cells attached onto the surface of other ceramic samples. The stimulation of gene expression of bone proteins by this composite can explain the expedited and abundant bone formation observed in defects grafted with such material.

In the tissue engineering design, a way of treatment suggests the possibility of using bioactive scaffolds to eliminate bone tissue defects. These scaffolds can be obtained from bioactive materials using additive technologies, which, in turn, allow the preparation of a matrix individually for each person or animal to target reconstructing a bone tissue defect.

Extrusion 3D printing was one of the first used technologies for the layer-by-layer reconstruction of three-dimensional objects. The application of extrusion 3D printing made it possible to study the pore geometry, structure gradient, permeability and mechanical properties of ceramic and bioglass scaffolds of various architectures [23,24,25]. Hexagonal pores have been found to give the highest compressive strength at 70% porosity, which is within the range of 100–150 MPa for cortical bone [26]. At the same time, this method has several limitations: it applies only to viscous fluid systems, it has a low printing speed, it requires spinnerets with different diameters to adjust the thickness of the extruded material and the spinnerets can be clogged, plus stepped edges are observed during 3D printing. However, extrusion 3D printing has wide use, and special attention is paid to the extrudable material, the rheological properties of which change with a change in the phase composition.

In the general case, the extruded material is presented as constituting highly concentrated suspensions (pastes), which contain a binder and a dispersed filler in their composition. In such suspensions, forces act between the particles, leading to the formation of structures.

Several requirements are imposed on the pastes:

• The paste should be homogeneous and free of air bubbles;
• It should possess a large volume fraction of the filler;
• It should possess sedimentation resistance;
• It should possess a fluidity suitable for extrusion;
• During extrusion, delamination should not be observed;
• It should maintain its shape after printing.

These criteria make it possible to achieve a high-resolution and quality extrusion printing of biocompatible materials.

Water [4], polymer or organic solvent [25,27] and hydrogels [28] were considered as binding components for pastes. In addition to the above binders, aqueous solutions of sodium silicate (Na₂O · nSiO₂) can be dealt with for the extrusion printing of biocompatible materials, which are environmentally friendly, nontoxic and cheap [29]. Sodium silicate can form a hydroxyapatite layer on its surface in SBF tests [30], and it was used to obtain silicon-substituted hydroxyapatite (Si-HA) materials [31].

Thus, the purpose of the current work was to obtain composite ceramics containing sodium calcium phosphates and silica compounds based on synthetic tricalcium phosphate and an aqueous solution of sodium silicate. We considered the possibility of using pastes containing tricalcium phosphate and an aqueous solution of sodium silicate as an extrusion material for obtaining scaffolds by extrusion 3D printing to eliminate bone tissue defects.

2. Materials and Methods

2.1. Samples Preparation

Pastes were based on tricalcium phosphate Ca₃(PO₄)₂ (CAS No. 7758-87-4, purum. p.a. ≥96%, Sigma-Aldrich CHEMIE GmbH, 21218, Lot BCBK8832V, Steinheim, Germany) and the aqueous solution of sodium silicate (Na₂O · 2,87SiO₂)_aq (GOST 13078-81, JSC “Salavatsteklo”, Salavat, Russian Federation).

The method of preparing pastes, preceramic samples formation and obtaining composite ceramic samples was described in more detail in previous work [32].

Briefly, the initial reagents were taken in the molar ratio (Na₂O · 2,87SiO₂)_aq/Ca₃(PO₄)₂ = 1:3 (SS_aq/TCP) for obtaining plastic molding mass. Then, preceramic samples in sizes 30 mm × 10 mm × 10 mm were molded from pastes, and after that, prepared preceramic materials were fired in the air in a furnace to obtain ceramics. The temperature range was 500–1100 °C, a heating rate of 5 °C/min, an exposure time of 2 h, and cooling in the furnace.

In the current work, together with preparing preceramic samples in size 30 mm × 10 mm × 10 mm, an attempt to obtain simple three-dimensional geometric shapes from prepared pastes based on TCP and SS_aq using layer-by-layer extrusion hand molding was considered. A disposable syringe of 10 mL with a spinneret of 0.75 mm in diameter was used for the extrusion of 3D shapes.

2.2. Characterization

2.2.1. Pastes Plastic Strength Determination

The plastic strength was measured by the conical plastometer method, which consists in determining the kinetics of immersion (penetration depth) of the cone into the studied disperse system under the action of a constant load F. When the cone is immersed in the material under study, stresses arise in it. That prevents the penetration of the cone into the material. A lever-type conical Rebinder’s plastometer was used in the work (the plastometer was developed at the Faculty of Technology of Inorganic Substances and High-Temperature Materials of the Mendeleev University of Chemical Technology, Moscow, the Soviet Union).

The plastic strength was determined by the formula:

$$\mathrm{R}=\frac{\mathrm{L}}{\mathrm{l}}\ast \mathrm{K}\ast \frac{\mathrm{F}}{{\mathrm{h}}^2},$$

(1)

where R is the plastic strength, in Pa;

L and l are plastometer arms, in cm;

K is a dimensionless coefficient depending on the angle at the cone apex;

F is a load, in g;

h is an immersion depth of the cone, in mm.

The cone constant K is determined by the formula:

$$\mathrm{K}=\frac{{\cos }^2\left(\frac{\mathsf{\alpha }}{2}\right)\ast \mathrm{ctg}(\frac{\mathsf{\alpha }}{2})}{\mathsf{\pi }},$$

(2)

where α is the angle at the cone apex.

At α = 60°, K = 0.413.

The measurements were carried out at room temperature, 60 °C and 100 °C.

2.2.2. Determination of the Strength Properties

The strength characteristics of the obtained ceramics after heat treatment of the pre-ceramic samples of size 30 mm × 10 mm × 10 mm molded from pastes based on tricalcium phosphate Ca₃(PO₄)₂ and the aqueous solution of sodium silicate (Na₂O · 2,87SiO₂)_aq in the molar ratio (Na₂O · 2,87SiO₂)_aq/Ca₃(PO₄)₂ = 1:3 were determined using a universal testing machine of the FM PW 500 (VEB Thuringer Industriewerk, Rauenstein, Germany) and PGM-100MG4 (OOO “Special Design Bureau Stroypribor”, Chelyabinsk, Russian Federation).

2.2.3. Structural Characterization

The diffractometer Rigaku D/Max-2500 with a rotating anode (Tokyo, Japan), a 2Θ angle range of 2–70° with a step of 0.02°, a rate of spectrum registration of 5°/min and a CuKα radiation (λ = 1.5406 Å) was used for the investigation samples by X-ray powder diffraction. The phases were determined using the ICDD PDF-2 database [33].

The electron microscope LEO SUPRA 50VP (Carl Zeiss, Jena, Germany; auto-emission source) with an accelerating voltage of 20 kV (SE2 detector) was used for the investigation samples by scanning electron microscopy (SEM). The samples were precoated with a layer of chromium (up to 20 nm).

The particle size distribution of a tricalcium phosphate Ca₃(PO₄)₂ (CAS No. 7758-87-4, purum. p.a. ≥ 96%, Sigma-Aldrich CHEMIE GmbH, 21218, Lot BCBK8832V, Steinheim, Germany) was investigated by an ANALYSETTE-22 MicroTec plus laser particle sizer (Fritsch GMBH, Idar-Oberstein, Germany).

2.2.4. Thermogravimetric and Mass Spectrometric Analysis

The NETZSCH STA 409 PC Luxx simultaneous thermal analyzer (NETZSCH, Selb, Germany) with a heating rate of 10 °C/min and an air atmosphere was used for the investigation of preceramic samples by thermal analysis (mass of sample—10 mg, temperature range—40–1000 °C). The quadrupole mass spectrometer QMS 403C Aëolos (NETZSCH, Selb, Germany) combined with a NETZSCH STA 409 PC Luxx thermal analyzer was used to determine the composition of the gas phase formed upon decomposition of the samples. The mass spectrum (MS) was recorded for an m/Z value of 18 (H₂O).

3. Results and Discussion

3.1. Pastes Characterization

Following the dependence of plastic strength on time (Figure 1), the plastic strength values were low in the first minutes after mixing the synthetic tricalcium phosphate powder with an aqueous solution of sodium silicate. A rise in both time and temperature led to an increase in the values of the plastic strength. It was associated with the hardening of the compositions.

The hardening process of the materials began at the paste surface–air interface. Figure 1 illustrates a gradual hardening of the composites, which can conditionally be divided into the following stages: The first stage in the time range of 0–15 min was characterized by the beginning of the hardening of the composites. A thin crust appeared on the surface of the samples. The second stage in the time range of 15–45 min was characterized by a further hardening deep into the composites. The crust became larger. The third (from 45 min) and subsequent stages were characterized by a further hardening of the composites until they were completely solidified.

The effect of temperature on the hardening time was observed immediately at the 1st stage. As a result, the plastic strength values were R_{25 °C} ≈ 0.036 MPa, R_{60 °C} ≈ 0.041 MPa and R_{100 °C} ≈ 0.047 MPa by 15 min. The hardening process was completed in 45 min for samples at 100 °C straightway in the second stage, because the values of the plastic strength reached a plateau. The plastic strength value was R_{100 °C} ≈ 0.2 MPa. At the same time, the plastic strength values for the composites at 25 °C and 60 °C by 45 min were, respectively, R_{25 °C} ≈ 0.08 MPa and R_{60 °C} ≈ 0.1 MPa. These composites would also gradually harden with a further increase in time. It is expected that the plastic strength value for solidified composites at 25 °C and 60 °C may be comparable to composites at 100 °C and reach the values of ≈0.2 MPa.

Thus, the formed samples did not solidify in a silicone mold after exposure to the air for 24 h at room temperature because the hardening process began at the paste surface–air interface, forming a crust. Hence, samples required demolding followed by a moderate heat treatment to prevent the appearance of defects due to internal stresses or intensive water evaporation. The content of retained water in the sample depends on the temperature and humidity of the air [34]. If the air humidity increases, the composite will exhibit hygroscopicity. In the current work, the temperature of 60 °C was chosen for the heat treatment of the demolded samples, because for 24 h at that temperature, a solidified state without visible defects occurred. The linear shrinkage of such composites was no more than 2%. A solidified state was observed when the water content in SS_aq and, accordingly, in the samples, decreased to 20–30 wt.% [34]. That led to the formation of preceramic samples.

Highly concentrated suspensions (pastes) based on synthetic TCP powder and SS_aq showed excellent molding properties with shape retention. In Figure 2, the samples of preceramic blanks obtained by plastic molding (a) and layer-by-layer extrusion hand molding (b) are shown.

A good adhesion and cohesion between the layers of the extruded material were observed in the samples obtained using layer-by-layer extrusion hand molding that complied with the requirements for this type of printing. A disposable syringe of 10 mL with a spinneret of 0.75 mm in diameter was used for the extrusion of 3D shapes. These samples indicated the possibility of using pastes based on TCP and SS_aq for layer-by-layer extrusion molding of both simple 3D geometric shapes and for creating an implant of a given ceramic skeleton architecture using extrusion 3D printing.

However, it should be noted that the printing process must be carried out at the first stage of hardening, while the extruded material has not had time to gain its initial strength. A time equal to 15 min may not be sufficient for using pastes directly in extrusion 3D printing, despite excellent performance in layer-by-layer extrusion hand molding. For extrusion 3D printing, the following should be taken into account: the main printing parameters (the feed rate of the mixture, the speed of the printing unit and the diameter of the spinneret) and the characteristics of the extruded material by itself (homogeneity, sedimentation resistance, viscosity and setting time). The parameters described above should be selected individually for each composition. When required, a compound may be modified by hardeners, hardening retarders, surfactants and so on.

3.2. Characterization of the Preceramic Samples

According to the XRD data (Figure 3) and the SEM data (Figure 4a,b), an interaction did not occur between TCP and SS_aq after mixing the initial reagents, molding the pastes into a silicon mold, solidification and drying them for 24 h both at room temperature and at 60 °C. Nevertheless, the applied techniques (XRD, SEM) did not allow us to conclude anything about surface reactions between TCP and SS_aq, so it should be investigated more closely in future work.

Figure 5 shows the particle size distribution of synthetic TCP powder. Following the data obtained in previous work [32], calcium phosphate powder particles were bound to each other by amorphous hydrated sodium silicate.

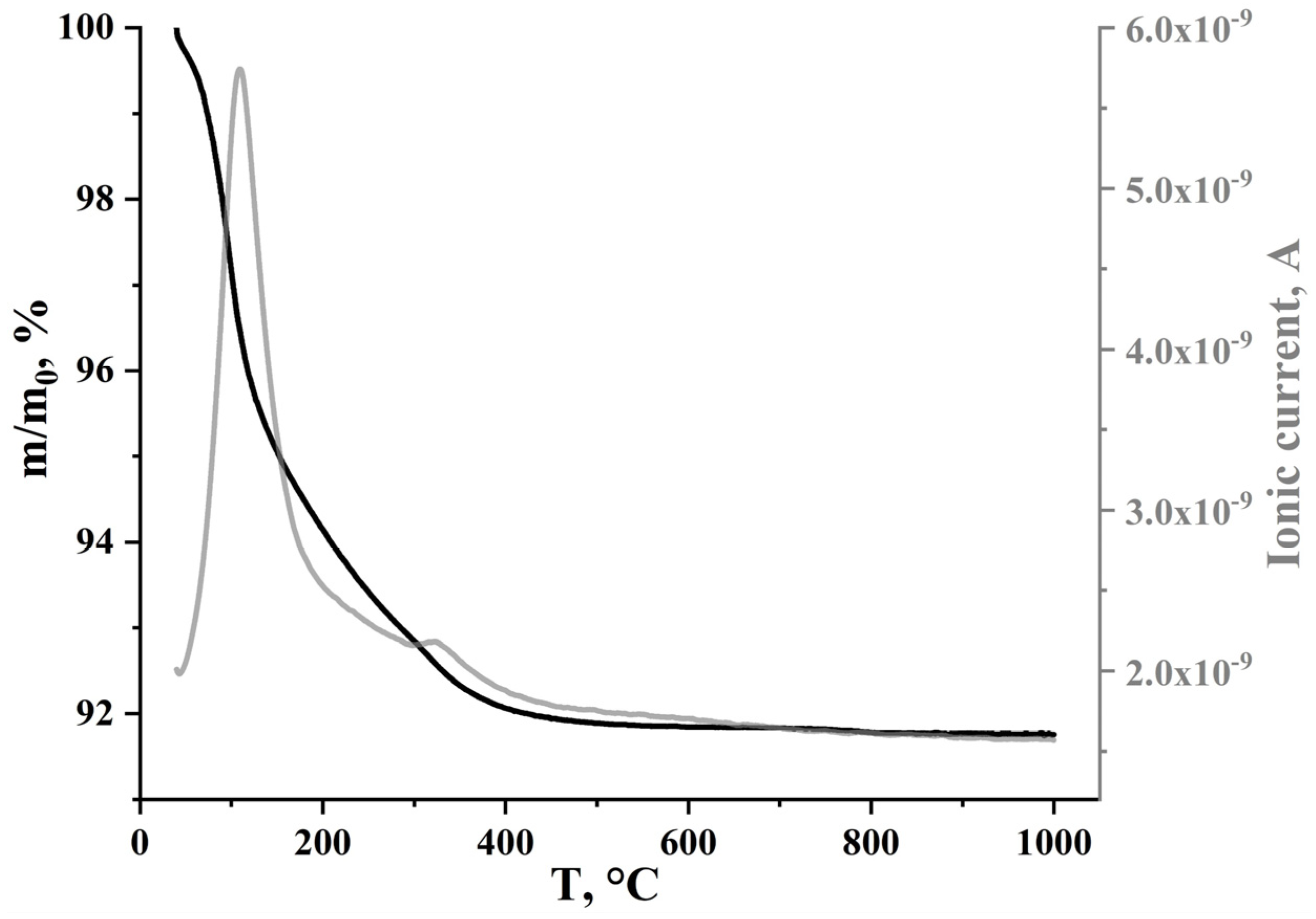

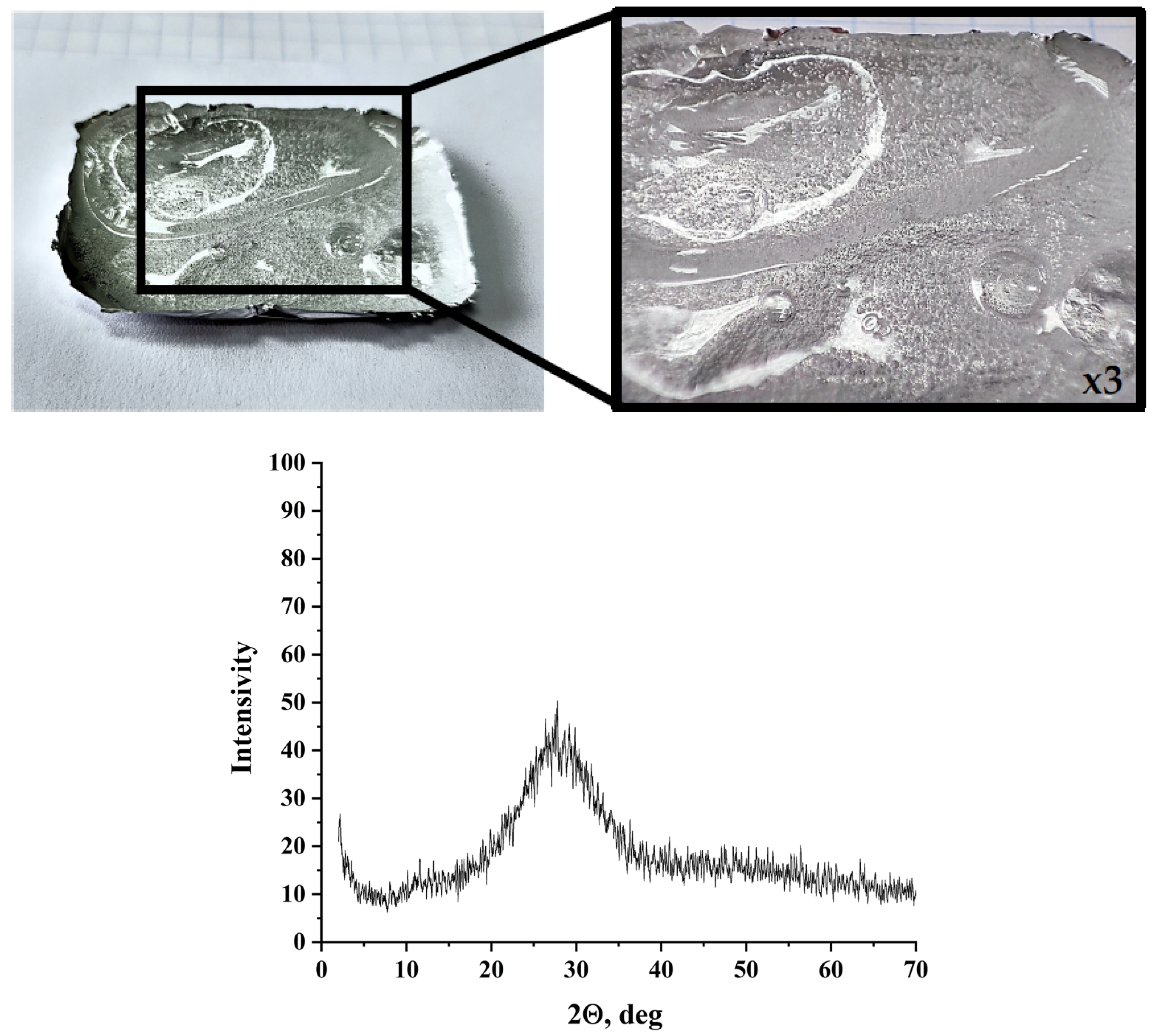

The thermal analysis (TA) and the mass spectrometry data (MS) of the samples based on TCP and SS_aq after drying in the air for 24 h at room temperature are shown in Figure 6 (black and grey lines, respectively). According to the TA, the total mass loss of the sample was 8% when heated up to 1000 °C. In the mass spectrum curve for m/Z = 18 (H₂O), there were two peaks, the first peak at 110 °C and the second at 320 °C, which correspond to the loss of physically and chemically bound water, respectively. According to Figure 7, an amorphous hydrated sodium silicate was formed after heat treatment at 100 °C. Water is removed from hydrated sodium silicate up to 600 °C, following literature data [34], and it depends on silicate modulus. The mass loss is close to a plateau above 400 °C (Figure 6), so at that moment, when the water is almost completely removed [35], polymerization processes begin in pure sodium silicate with the formation of a silicon–oxygen structure with covalent-ionic bonds [35]. The modifier cations (Na⁺) form Coulomb bonds with the framework. Nevertheless, as was suggested in previous work [32], these processes described above can also occur in the sodium silicate–calcium phosphate filler system. However, simultaneously with these processes, chemical interactions will also proceed between TCP and SS_aq with the formation of new phases.

3.3. Characterization of the Ceramic Samples

The X-ray diffraction data (Figure 8) show that the phase compositions of the ceramics after heat-treatment at 500 °C consisted of β-TCP (β-Ca₃(PO₄)₂, PDF card 9–169) and β-rhenanite (β-NaCaPO₄, PDF card 29–1193). Further, an increase in temperature up to 700 °C led to the appearing phase of silicon dioxide (SiO₂, PDF card 29–85) and up to 900 °C, of sodium calcium phosphate (Na₃Ca₆(PO₄)₅, PDF card 11–236). After the heat treatment at 1100 °C, ceramic samples consisted of the β-TCP (β-Ca₃(PO₄)₂, PDF card 9–169), sodium calcium phosphate (Na₃Ca₆(PO₄)₅, PDF card 11–236), silicon dioxide (SiO₂, PDF card 29–85) and β-wollastonite (β-CaSiO₃, PDF card 27–88). The phase compositions of preceramic and ceramic samples are shown in

Table 1. Phase transformation of composition into preceramic and ceramic samples after heat treatment.

Preceramic	500 °C	700 °C	900 °C	1100 °C
β-Ca3(PO4)2 Nonidentified phase of hydrated Na2O · 2,87SiO2	β-Ca3(PO4)2 β-NaCaPO4	β-Ca3(PO4)2 β-NaCaPO4 SiO2	β-Ca3(PO4)2 β-NaCaPO4 Na3Ca6(PO4)5 SiO2	β-Ca3(PO4)2 Na3Ca6(PO4)5 β-CaSiO3 SiO2

.

In the SS_aq/TCP samples with a molar ratio (Na₂O · 2,87SiO₂)_aq/Ca₃(PO₄)₂ = 1:3, the formation of a biocompatible double calcium phosphate phase of β-rhenanite (β-NaCaPO₄) can be observed at 500 °C. It should be noted that the interaction of sodium silicate with tricalcium phosphate can also form the Na-substituted TCP phase (NaCa₁₀(PO₄)₇). The lattice parameters of pure Ca₃(PO₄)₂ are a = 10.429 Å and c = 37.38 Å [36], and for NaCa₁₀(PO₄)₇, they are a = 10.4391(1) Å and c = 37.310(1) Å [37], which makes the determination of the presence of the Na-substituted TCP in the composition by the XRD method challenging. The determination of NaCa₁₀(PO₄)₇ by the EDX method can also be a challenge due to the presence of a β-NaCaPO₄ phase in the composition. Double phosphates are usually obtained at high temperatures (from 500 °C) [9,10,11] by the interaction of calcium phosphates with alkali metal compounds. In this case, sodium silicate acted as an alkali metal compound that interacted with tricalcium phosphate with increasing temperature, forming double calcium phosphates. It is also noted in [11] that double calcium phosphate phases are most frequently used to produce resorbable inorganic composites for regenerative bone tissue defect repairing methods. Nevertheless, it can be assumed that, since sodium silicate was deficient compared to TCP, it was not enough to obtain two phases of double calcium phosphate at once: β-NaCaPO₄ and NaCa₁₀(PO₄)₇. Thus, as a result of the heat treatment at 500 °C and 700 °C by the interaction of sodium silicate and TCP, only the β-rhenanite (β-NaCaPO₄) phase was formed, which then participated in a chemical reaction with unreacted TCP. This interaction led to the Na₃Ca₆(PO₄)₅ phase development with increasing temperatures up to 900 °C and 1100 °C.

The silicon dioxide phase began to form after heat treatment at 700 °C following XRD data, and it rose at a further increasing temperatures. Silicon dioxide is a biocompatible inorganic material [38,39,40] widely used in medicine, which in the human body can be subjected to both chemical and biological effects [41], demonstrating various behaviors. For example, silica gel formed in the presence of enzymes exhibits the properties of a biocatalyst [40].

The phase of Na₃Ca₆(PO₄)₅ began to form after 900 °C in a small amount, and it was one of the main phases at 1100 °C. This phase belongs to the NaCaPO₄–Ca₃(PO₄)₂ [17] system, and it was obtained in [12] upon mixing 75 wt.% hydroxyapatite with 25 wt.% Bioglass 45S5. The composition with the Na₃Ca₆(PO₄)₅ phase in a silicate matrix caused the highest level of mineralization on the surface when immersed in DMEM, both in the presence and the absence of bone marrow stromal cells. The top activity of alkaline phosphatase was also observed in such composites. It indicated a higher level of osteoblast differentiation [12]. In [15], the effect of adding Bioglass 45S5 to biphasic calcium phosphate (HA:β-TCP = 6:4) was demonstrated. It was found that composite ceramic frameworks showed the best complex characteristics at 30 wt.% Bioglass 45S5 when the phase composition consisted of the main Na₃Ca₆(PO₄)₅ phase and the secondary CaSiO₃ phase. Scaffolds rapidly formed an apatite layer (in 1 day), improved degradability (three times) and demonstrated good biocompatibility by cell proliferation and adhesion assays.

A minor amount of CaSiO₃ phase was developed after heat treatment at 1100 °C for 2 h. Bioceramics based on pseudowollastonite β-CaSiO₃ have good osteoconductivity and bioactivity, which was confirmed by both in vitro [42,43,44,45] and in vivo [46,47,48] tests. It is noted in [49] that such ceramics have good cytocompatibility and osteoblast-like cell attachment and promote better ALP activity of cells compared to controls. Plus, pseudowollastonite also possesses good bone inductivity properties, stimulates the formation of new bone on the surface and possesses a much faster resorption rate and bone formation rate compared to porous β-TCP.

Since the ceramics presented in this paper consisted of biocompatible phases investigated in the literature, it can be expected that the obtained ceramics based on TCP and SS_aq will show a positive trend in biocompatibility and osteoconductivity in both in vitro and in vivo tests.

Micrographs of the ceramics obtained from preceramic samples based on TCP and SS_aq after heat treatment at various temperatures are presented in Figure 9.

Based on the SEM data, the morphology of the ceramic samples after heat treatment differed from the morphology of preceramic samples (Figure 4b). Irregularly shaped sintered agglomerates sizes of 0.5–4.5 µm were observed at 500 °C and consisted of particles 200–400 nm in size. The grain size gradually rose during subsequent heat treatments, and by 1100 °C, the average grain size was 2.5–6.5 µm. Sintering was observed in all samples. At 500 °C, one can see “fibers” that presumably belong to the SiO₂ phase formed from the melt during cooling. The presence of such “fibers” in ceramic at upper temperatures is also not excluded, so their placement probably is local.

The similarity of morphologies (Figure 9), as well as the XRD data of the ceramics (Figure 8), can explain the similarity of the apparent density of the ceramic samples and the behavior of the volume shrinkage (Figure 10). The rise in temperature from 500 °C to 700 °C led to an increase in the apparent density of the samples from 1.44 g/cm³ to 1.5 g/cm³. Perhaps this can be attributed to the formation of the β-NaCaPO₄ phase, with its likely maximum content at 700 °C. Since a further rise in temperature to 1100 °C following Figure 8 led to a chemical interaction between β-NaCaPO₄ and β-Ca₃(PO₄)₂ with the formation of the Na₃Ca₆(PO₄)₅ phase, this agreed with the data of [18]. The apparent density of the samples at 1100 °C was 1.46 g/cm³. A small difference in density may be due to the similarity of crystalline density: β-Ca₃(PO₄)₂ (3.07 g/cm³) [50], β-NaCaPO₄ (3.12 g/cm³) [51], Na₃Ca₆(PO₄)₅ (3.04 g/cm³) [20]. The β-CaSiO₃ phase formed at 1100 °C was minor and probably did not add a significant value to the amount of apparent density. On the other hand, it was a challenge to estimate the effect of the SiO₂ phase on the density of the ceramic samples from the data set presented in the current work.

A negative volumetric shrinkage was observed in all ceramic samples, reflecting the expansion of the ceramics as a result of the heat treatment. This effect may be related to the removal of water. At elevated temperatures, a glass based on hydrated sodium silicate was formed (Figure 7) that melted and interacted with the filler (TCP) to develop new phases. The fixation of particles (grains) may be observed at the points of contact, which also prevents shrinkage and a rise in the material density. At the same time, the viscosity of such a melt may be assessed as high. Hence, when water was removed up to ≈500 °C, the compositions expanded with subsequent shape retention upon cooling. Nevertheless, the expansion of the samples did not exceed 4% and decreased to ≈3.6% with further increasing temperature to 1100 °C, which may be due to the “settling down” of the ceramics as a result of sintering.

Figure 11 shows the ceramic bending and compressive strength after firing at different temperatures. The rise of both bending and compressive resistance with increasing temperature may be related to the phase composition of the samples. Thus, when the β-NaCaPO₄ phase formed at 500 °C and 700 °C, the bending strength of the β-NaCaPO₄/β-Ca₃(PO₄)₂ composites did not exceed 7.5 MPa. The compressive strength for those composites did not exceed 32.5 MPa. When the Na₃Ca₆(PO₄)₅ phase formed, the bending resistance of the samples increased to ≈9.5 MPa (900 °C) and ≈10.6 MPa (1100 °C), and the compressive strength increased to ≈42.7 MPa (900 °C) and ≈43.5 MPa (1100 °C). It is possible that the strengthening effect was also achieved due to the presence of a combination of several phases and the existence of strong interfacial boundaries.

The work [12] demonstrated the effect of the Bioglass 45S5 additive on the phase composition of ceramic materials and their compressive strength. Sintering was carried out at 1200 °C for 4 h at a heating rate of 4 °C/min. The authors indicated that for composites of hydroxyapatite–Bioglass 45S5 (1, 2.5 and 5 wt.%), the phase composition was represented by HAP and TCP, and the compressive strength was 26, 34 and 79 MPa, respectively. However, at values of 25 wt.% Bioglass 45S5, the phase composition presented a Na₃Ca₆(PO₄)₅ + amorphous silicate phase. The compressive strength of such a composite increased significantly and amounted to 131 MPa. A similar trend was observed in [15] for composites of biphasic calcium phosphate (BCP)–Bioglass 45S5 with different contents of the latter. In [16], the authors indicated that for the composites of cuttlefish powders and 30wt.% Bioglass 45S5, the phase composition was represented by HA, β-TCP and Na₃Ca₆(PO₄)₅ after heat treatment at 900 °C for 3 h. The compressive strength of such a material was ≈12.5 MPa. The compressive and bending resistance of sintered β-TCP was 83 and 21 MPa, respectively [52]. In [22], it was established that the compressive strength of the material, the composition of which was represented by β-NaCaPO₄ ss and α-cristobalite, was 54.66 MPa.

All that can indirectly confirm the assumption that the strength increases with the development of the phase combination development obtained in this work, as all ceramic samples were obtained under the same conditions and the difference was observed only in the firing temperature. Besides the phase composition of the material, it is important to note that volume shrinkage decreases with the rise of temperature to 1100 °C, so compact, dense internal structures are formed, which also contribute to the development of the ceramics’ strength.

On the other hand, the XRD data (Figure 8) showed a rise in the SiO₂ phase with increasing temperature. The micrograph of the ceramic at 500 °C also illustrated “fibers” that could hypothetically refer to the SiO₂. Their local spread probably could lead to material reinforcement, increasing, in turn, the bending and compressive strength of the ceramics; however, this question remains open.

4. Conclusions

The presented research showed the possibility of using pastes based on tricalcium phosphate and an aqueous solution of sodium silicate as an extrusion material. The dependence of the plastic strength of these pastes on both time and temperature was studied. It was established that the highest plastic strength, corresponding to the fully hardened state, was achieved after 45 min at 100 °C and was R_{100 °C} ≈ 0.2 MPa. The phase composition of ceramic was represented by unreacted β-TCP (β-Ca₃(PO₄)₂) and β-rhenanite (β-NaCaPO₄) after a heat treatment at 500 °C of preceramic samples based on tricalcium phosphate and an aqueous solution of sodium silicate. Further, an increase in temperature up to 700 °C led to the appearing phase of silicon dioxide (SiO₂) and up to 900 °C, of sodium calcium phosphate (Na₃Ca₆(PO₄)₅). After the heat treatment at 1100 °C, ceramics consisted of β-TCP (β-Ca₃(PO₄)₂), sodium calcium phosphate (Na₃Ca₆(PO₄)₅), silicon dioxide (SiO₂) and β-wollastonite (β-CaSiO₃). The apparent density of the ceramic samples was in the range of 1.44–1.5 g/cm³, with a maximum of 1.5 g/cm³ at 700 °C, corresponding to the phase composition of β-TCP (β-Ca₃(PO₄)₂), β-rhenanite (β-NaCaPO₄) and silicon dioxide (SiO₂). A negative volumetric shrinkage was observed in all samples, not exceeding 4%. The bending strength of the ceramics increased with increasing temperature from ≈6.8 MPa at 500 °C to ≈10.6 MPa at 1100 °C, and the compressive strength increased from ≈31.1 MPa at 500 °C to ≈43.5 MPa at 1100 °C. The obtained composite ceramics consisted of biocompatible phases that are widely explored in the literature. Therefore, such composites may be used as a biomaterial for the treatment of bone tissue defects.
