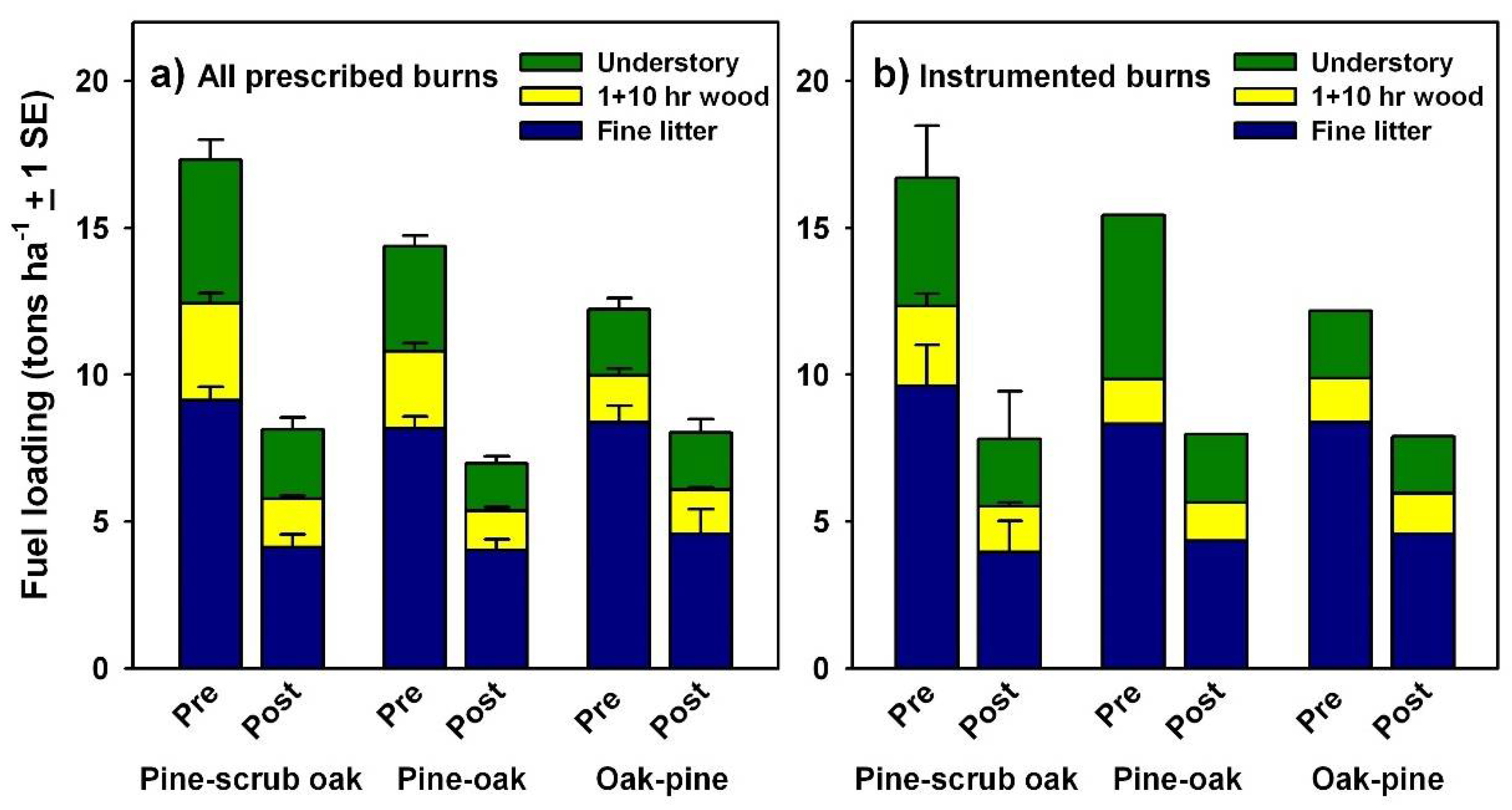

Figure 1.
Pre- and post-burn fuel loading by forest type for prescribed burns: (a) 48 prescribed burns conducted in the Pinelands from 2004 to 2020, and (b) the 11 instrumented prescribed burns. Data are tons ha−1 ± 1 standard error for understory vegetation, 1 h + 10 h woody fuels, and fine litter.
Figure 1.
Pre- and post-burn fuel loading by forest type for prescribed burns: (a) 48 prescribed burns conducted in the Pinelands from 2004 to 2020, and (b) the 11 instrumented prescribed burns. Data are tons ha−1 ± 1 standard error for understory vegetation, 1 h + 10 h woody fuels, and fine litter.

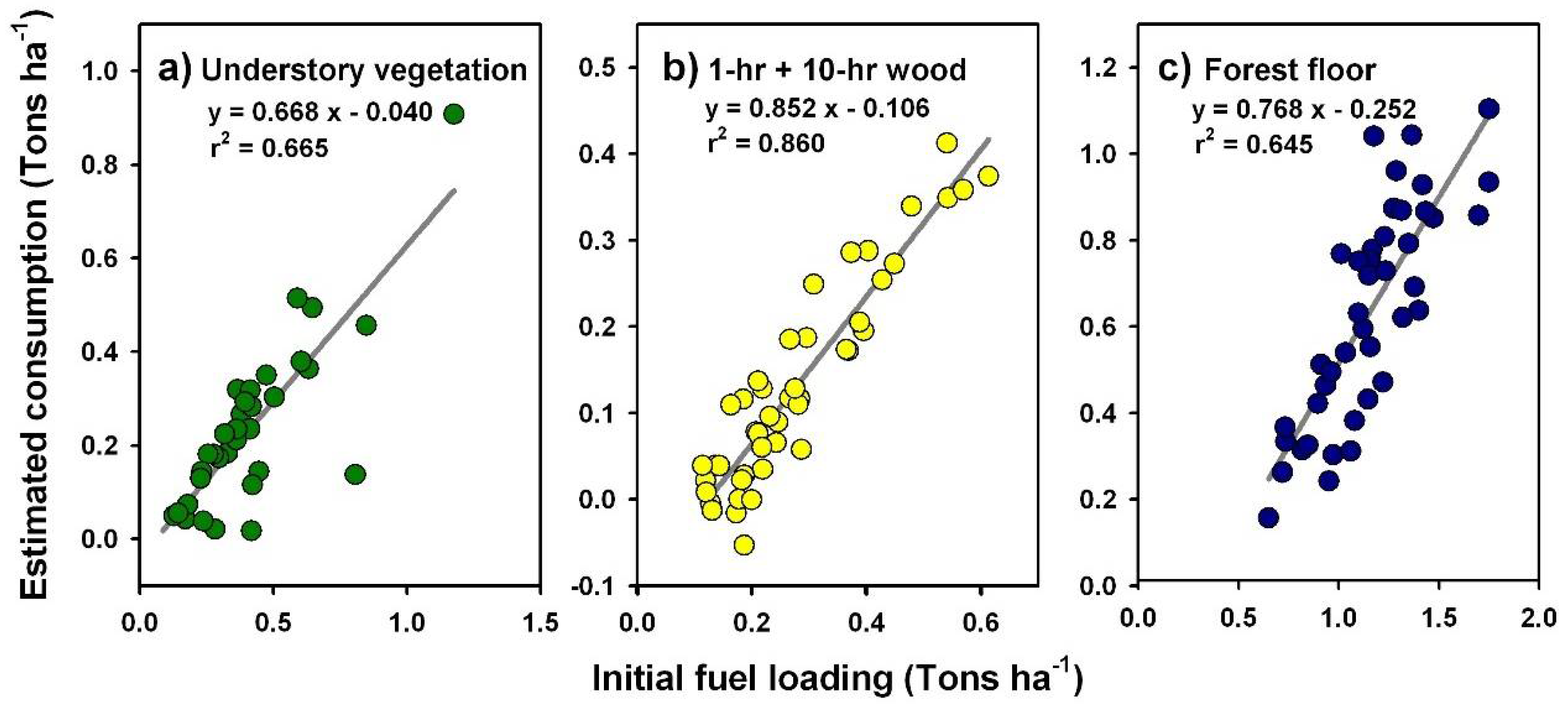

Figure 2.
Pre-burn fuel loading and estimated consumption of (a) understory vegetation, (b) 1 h + 10 h woody fuels on the forest floor, and (c) fine litter and woody fuels on the forest floor during prescribed burns conducted in the Pinelands from 2004 to 2020. All values are tons ha−1.
Figure 2.
Pre-burn fuel loading and estimated consumption of (a) understory vegetation, (b) 1 h + 10 h woody fuels on the forest floor, and (c) fine litter and woody fuels on the forest floor during prescribed burns conducted in the Pinelands from 2004 to 2020. All values are tons ha−1.

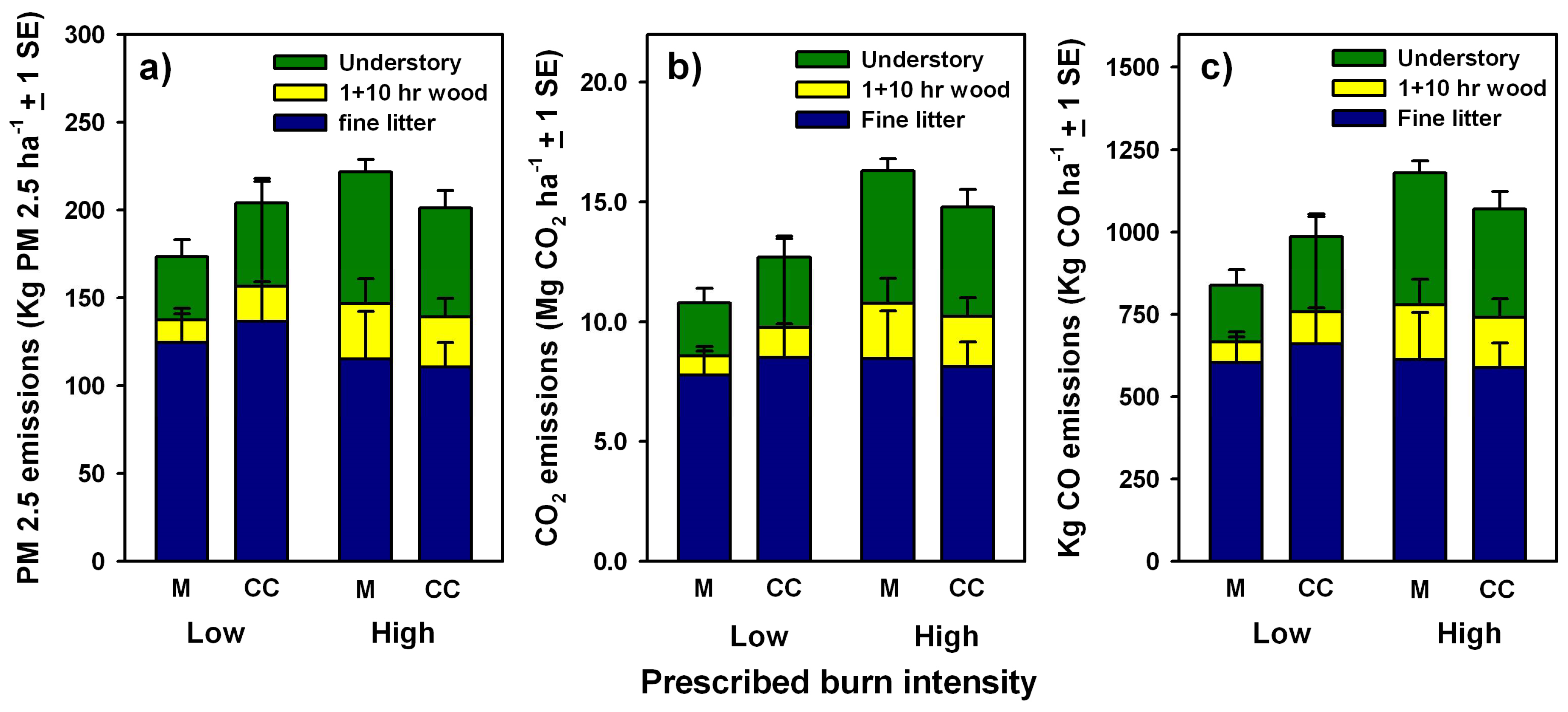

Figure 3.
Estimated emissions of (
a) PM
2.5, (
b) CO
2, and (
c) CO during low- and high-intensity instrumented prescribed burns. Values are means ± 1 standard error calculated using field measurements of pre- and post-burn fuel loading (M) or by using pre-burn fuel loading and the appropriate combustion completeness factors (CC) in
Table 4.
Figure 3.
Estimated emissions of (
a) PM
2.5, (
b) CO
2, and (
c) CO during low- and high-intensity instrumented prescribed burns. Values are means ± 1 standard error calculated using field measurements of pre- and post-burn fuel loading (M) or by using pre-burn fuel loading and the appropriate combustion completeness factors (CC) in
Table 4.

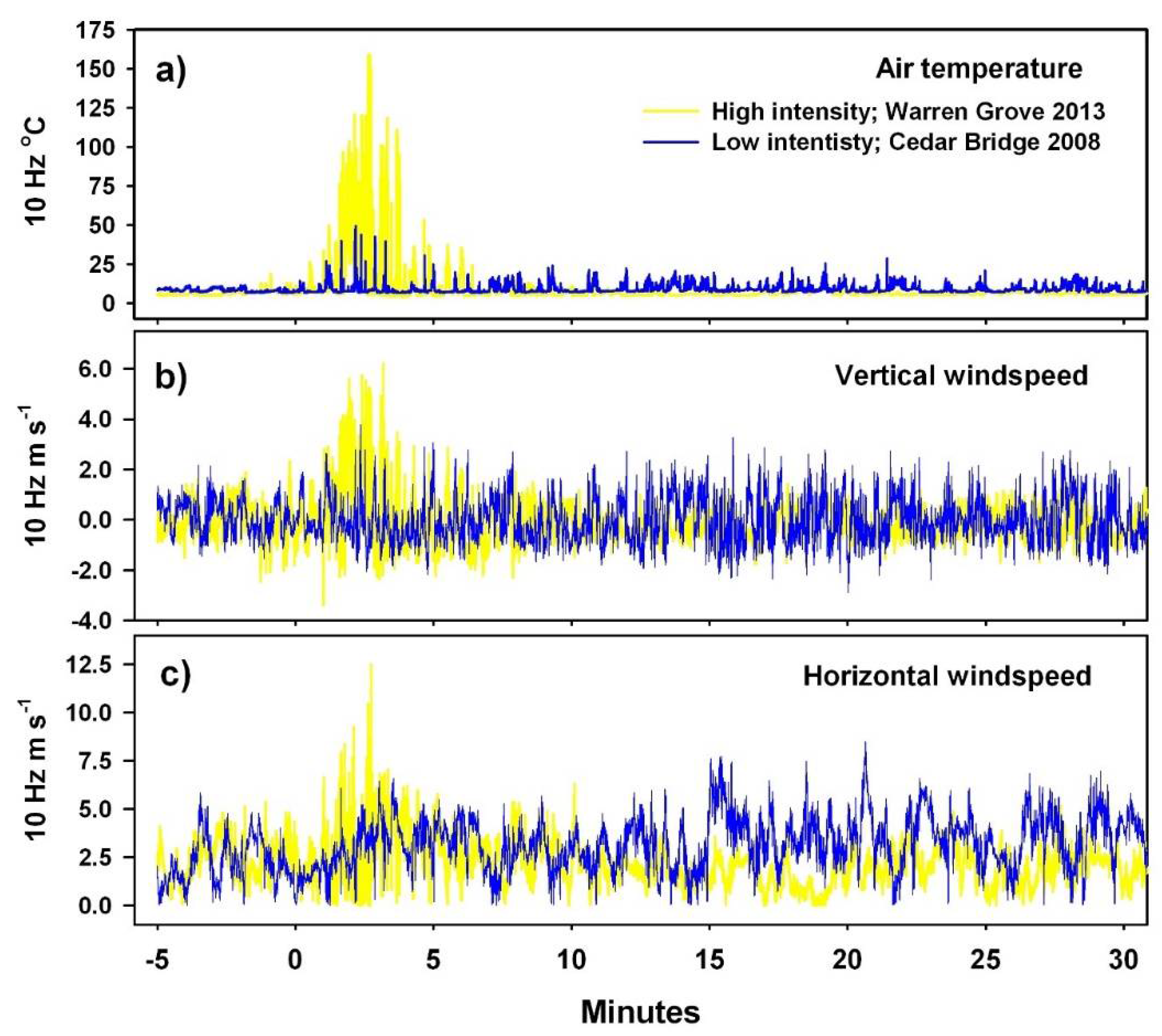

Figure 4.
Time series of above-canopy (a) air temperature measured at 10 Hz, (b) vertical wind velocity measured at 10 Hz, and (c) horizontal wind velocity measured at 10 Hz during a low-intensity backing fire in a pitch pine–scrub oak stand at Cedar Bridge in 2008 (blue line) and a high-intensity head fire in a pitch pine–scrub oak stand near Warren Grove in 2013 (yellow line).
Figure 4.
Time series of above-canopy (a) air temperature measured at 10 Hz, (b) vertical wind velocity measured at 10 Hz, and (c) horizontal wind velocity measured at 10 Hz during a low-intensity backing fire in a pitch pine–scrub oak stand at Cedar Bridge in 2008 (blue line) and a high-intensity head fire in a pitch pine–scrub oak stand near Warren Grove in 2013 (yellow line).

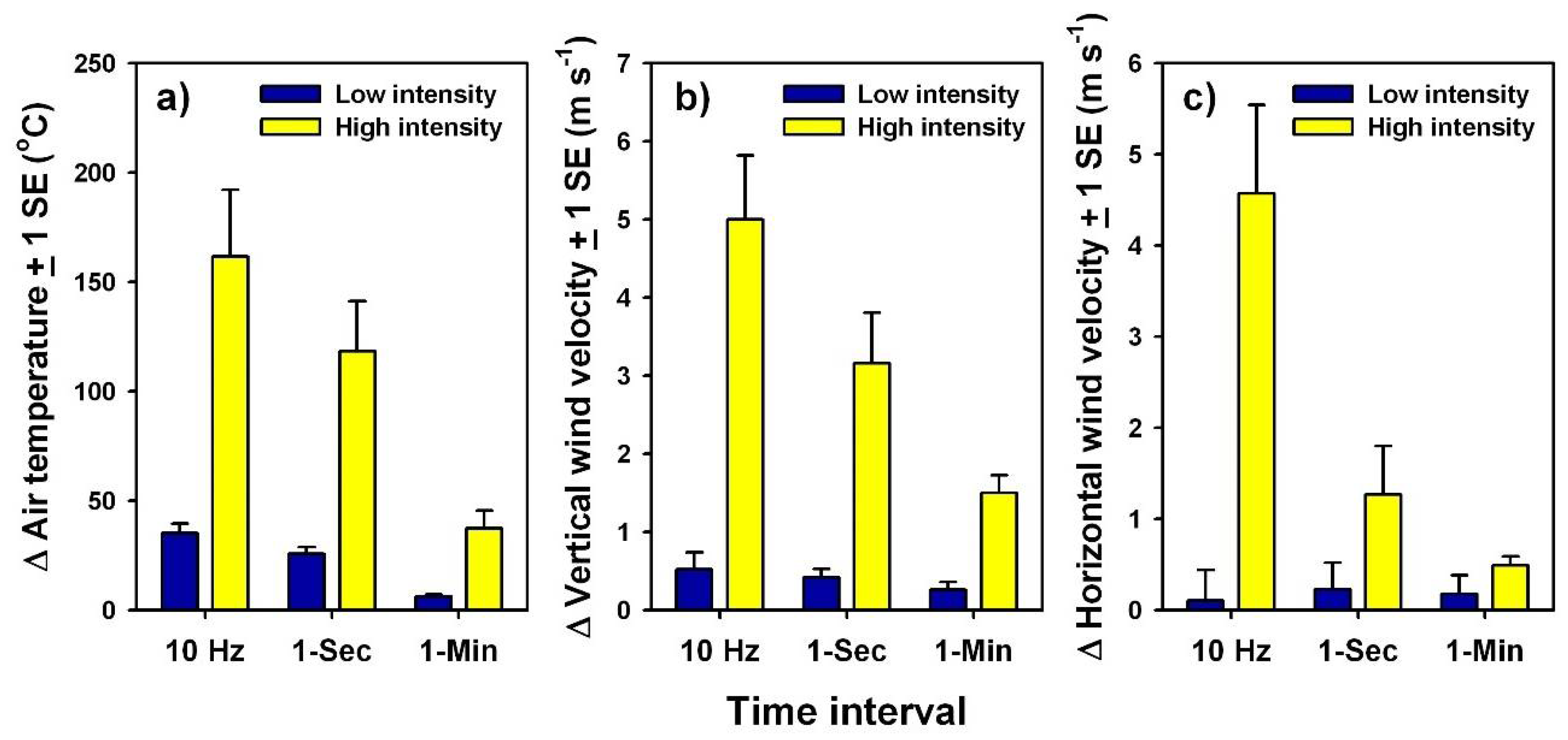

Figure 5.
Maximum (a) Δ air temperature (°C), (b) Δ vertical wind velocity (m s−1), and (c) Δ horizontal wind velocity (m s−1) measured at 10 Hz, at 1 s and 1 min intervals, measured above the canopy during low- and high-intensity prescribed burns. Values are means ± 1 standard error.
Figure 5.
Maximum (a) Δ air temperature (°C), (b) Δ vertical wind velocity (m s−1), and (c) Δ horizontal wind velocity (m s−1) measured at 10 Hz, at 1 s and 1 min intervals, measured above the canopy during low- and high-intensity prescribed burns. Values are means ± 1 standard error.

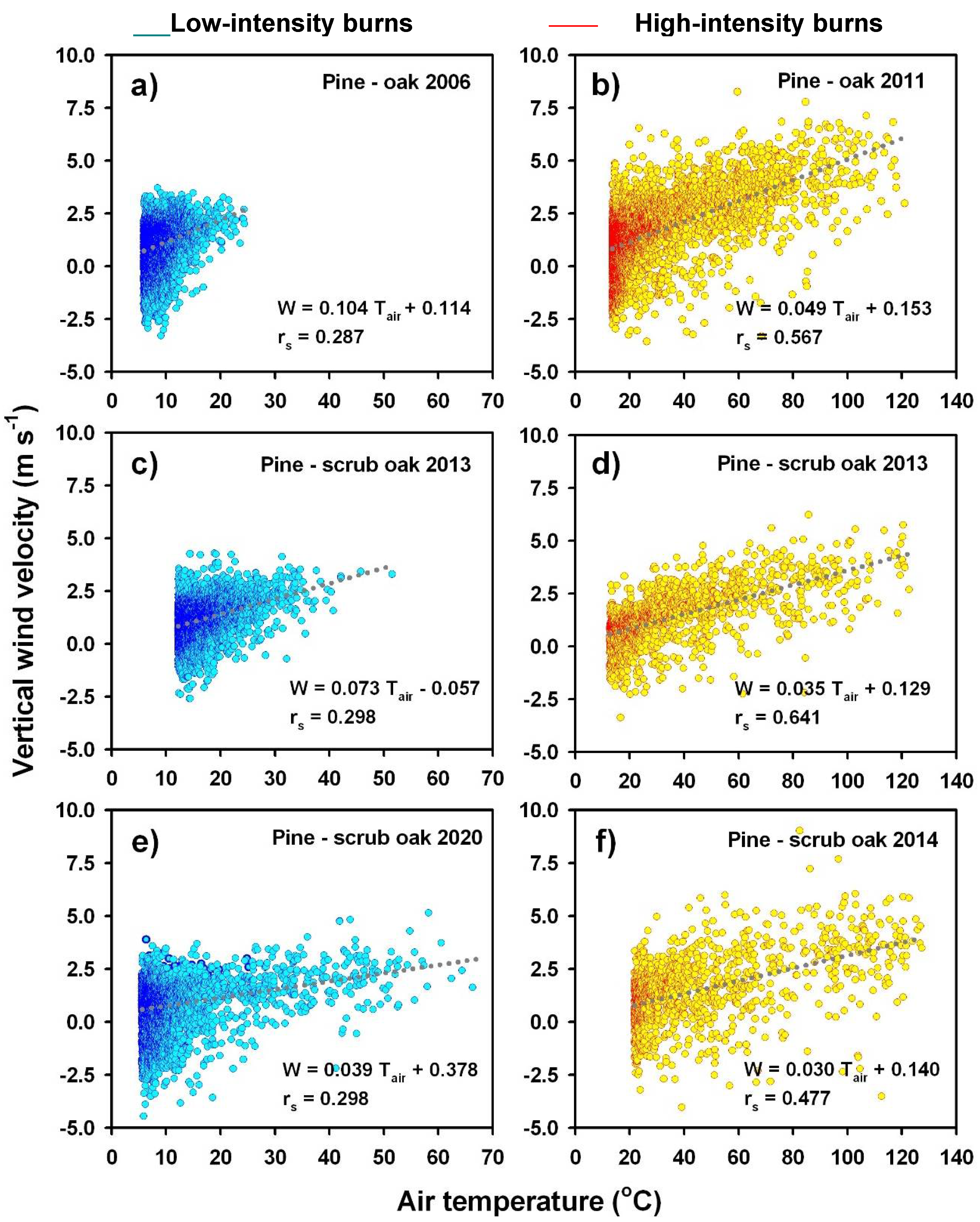

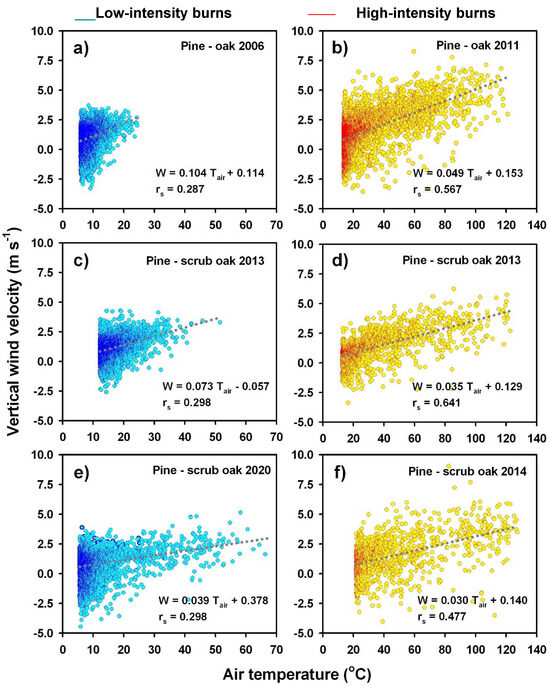

Figure 6.
Relationships between above-canopy air temperature and vertical wind velocity measured at 10 Hz during low- and high-intensity prescribed burns in pine–oak and pine–scrub oak stands. Shown are (a) a backing fire at JBMDL in 2006 and (b) a flanking fire in Brendan Byrne SF in 2011, (c) a backing fire at Cedar Bridge in 2013 and (d) a head fire near Warren Grove in 2013, and (e) a mixed-behavior fire at Cedar Bridge in 2020 and (f) a head fire near Warren Grove in 2014. Blue dots indicate low-intensity burns and yellow dots indicate high-intensity burns.
Figure 6.
Relationships between above-canopy air temperature and vertical wind velocity measured at 10 Hz during low- and high-intensity prescribed burns in pine–oak and pine–scrub oak stands. Shown are (a) a backing fire at JBMDL in 2006 and (b) a flanking fire in Brendan Byrne SF in 2011, (c) a backing fire at Cedar Bridge in 2013 and (d) a head fire near Warren Grove in 2013, and (e) a mixed-behavior fire at Cedar Bridge in 2020 and (f) a head fire near Warren Grove in 2014. Blue dots indicate low-intensity burns and yellow dots indicate high-intensity burns.

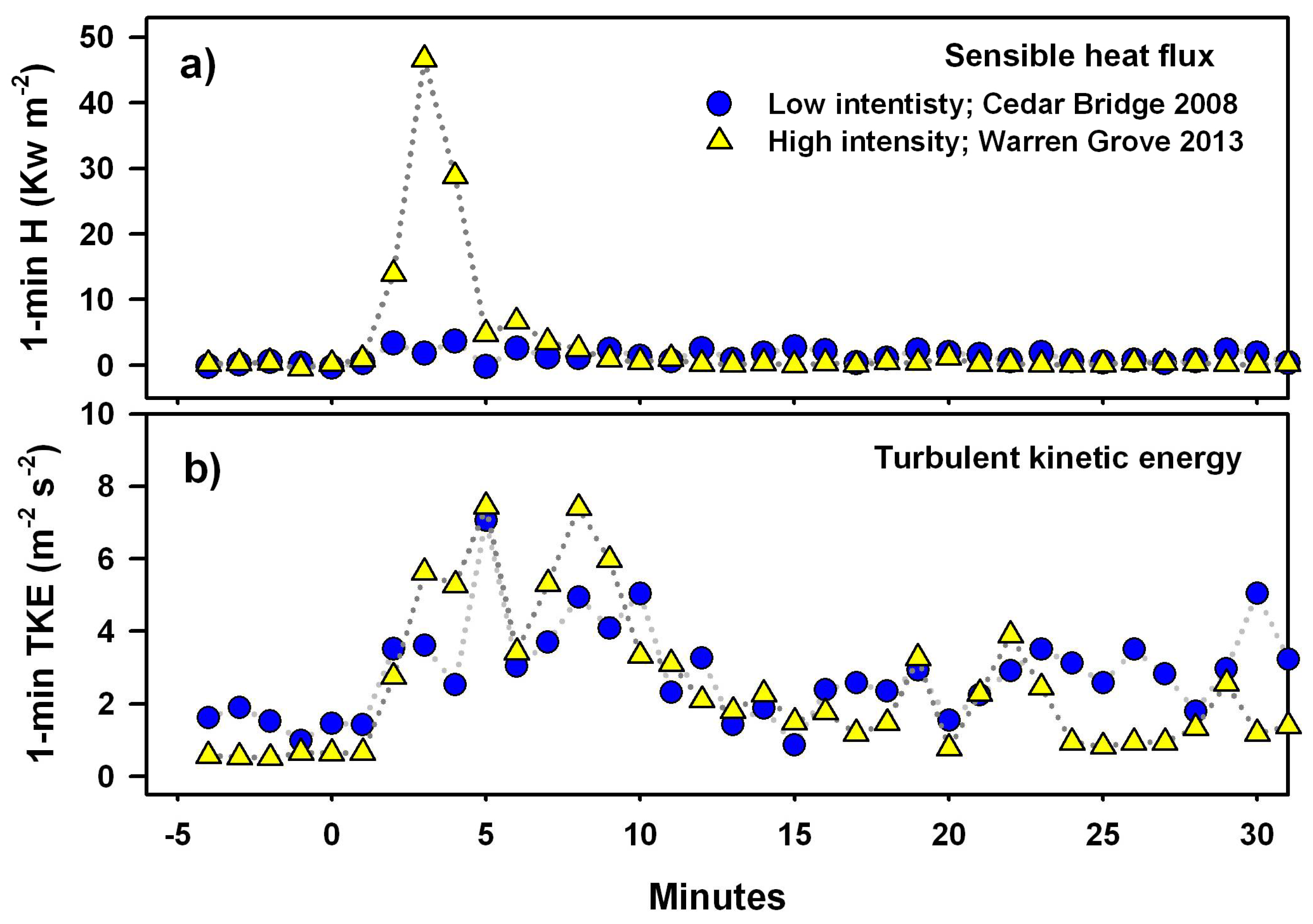

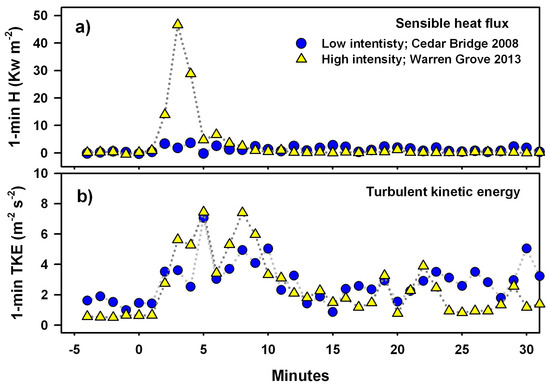

Figure 7.
Time series of above-canopy (a) sensible heat flux calculated at 1 min intervals and (b) turbulent kinetic energy (TKE) at 1 min intervals measured during a low-intensity backing fire in a pitch pine–scrub oak stand at Cedar Bridge in 2008 (blue symbols) and a high-intensity head fire in a pitch pine–scrub oak stand near Warren Grove in 2013 (yellow symbols).
Figure 7.
Time series of above-canopy (a) sensible heat flux calculated at 1 min intervals and (b) turbulent kinetic energy (TKE) at 1 min intervals measured during a low-intensity backing fire in a pitch pine–scrub oak stand at Cedar Bridge in 2008 (blue symbols) and a high-intensity head fire in a pitch pine–scrub oak stand near Warren Grove in 2013 (yellow symbols).

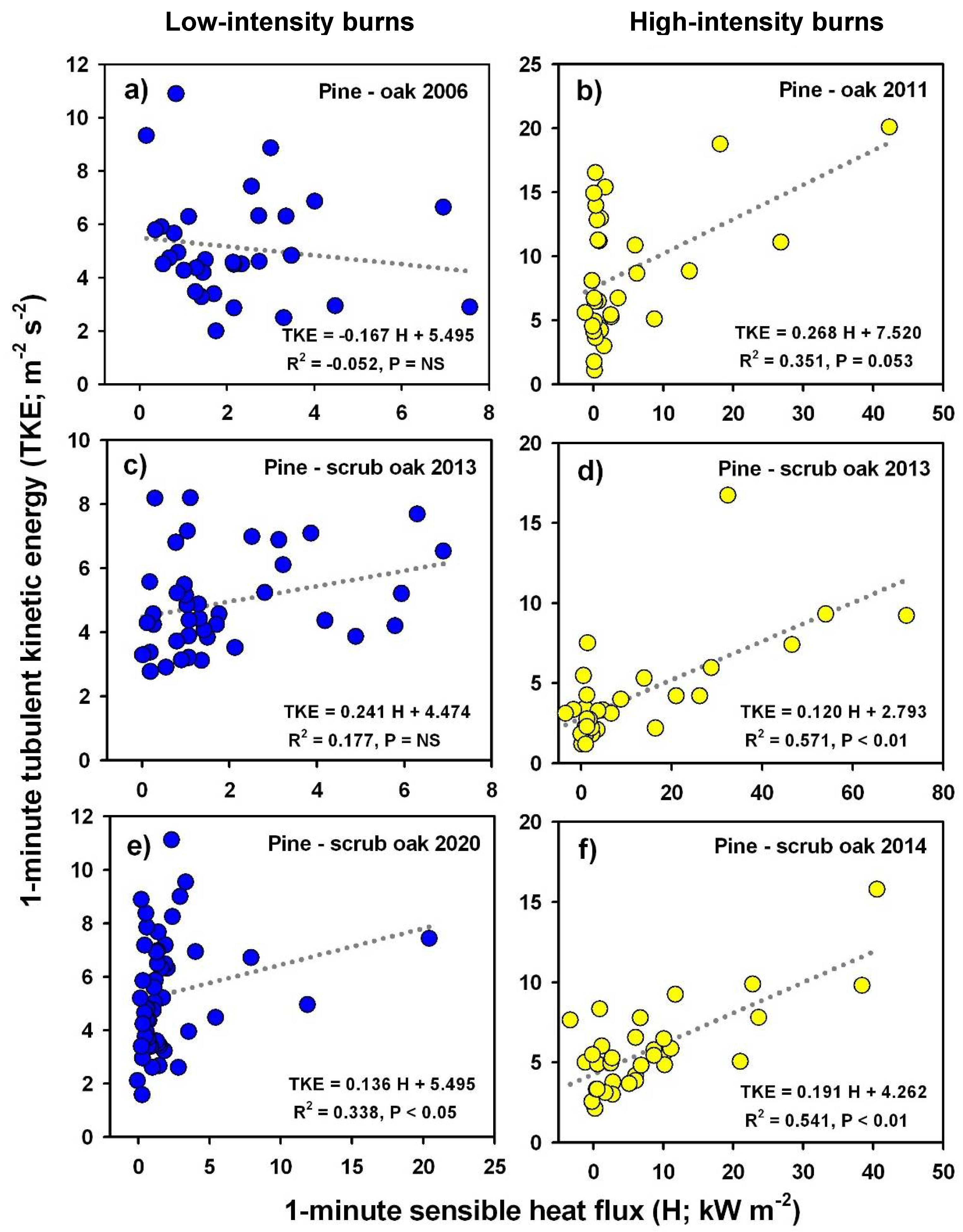

Figure 8.
Examples of the relationship between 1 min values of sensible heat flux (kW m
−2 min
−1) and TKE (m
−2 s
−2) at the top of the canopy during fire front passage during low- and high-intensity prescribed burns in the same pine–oak and pitch pine–scrub oak stands shown in
Figure 6. Panels represent (
a) a low-intensity backing fire at Fort Dix in 2006 and (
b) a high-intensity flanking fire in Brendan Byrne State Forest in 2011, (
c) a backing fire at Cedar Bridge in 2013 and a (
d) head fire at Warren Grove in 2013, and (
e) a mixed-behavior fire at Cedar Bridge in 2020 and (
f) a head fire near Warren Grove in 2014. Slopes and intercepts of the linear relationship between H and TKE are shown, along with values of Spearman’s rank correlation coefficients and significance levels.
Figure 8.
Examples of the relationship between 1 min values of sensible heat flux (kW m
−2 min
−1) and TKE (m
−2 s
−2) at the top of the canopy during fire front passage during low- and high-intensity prescribed burns in the same pine–oak and pitch pine–scrub oak stands shown in
Figure 6. Panels represent (
a) a low-intensity backing fire at Fort Dix in 2006 and (
b) a high-intensity flanking fire in Brendan Byrne State Forest in 2011, (
c) a backing fire at Cedar Bridge in 2013 and a (
d) head fire at Warren Grove in 2013, and (
e) a mixed-behavior fire at Cedar Bridge in 2020 and (
f) a head fire near Warren Grove in 2014. Slopes and intercepts of the linear relationship between H and TKE are shown, along with values of Spearman’s rank correlation coefficients and significance levels.

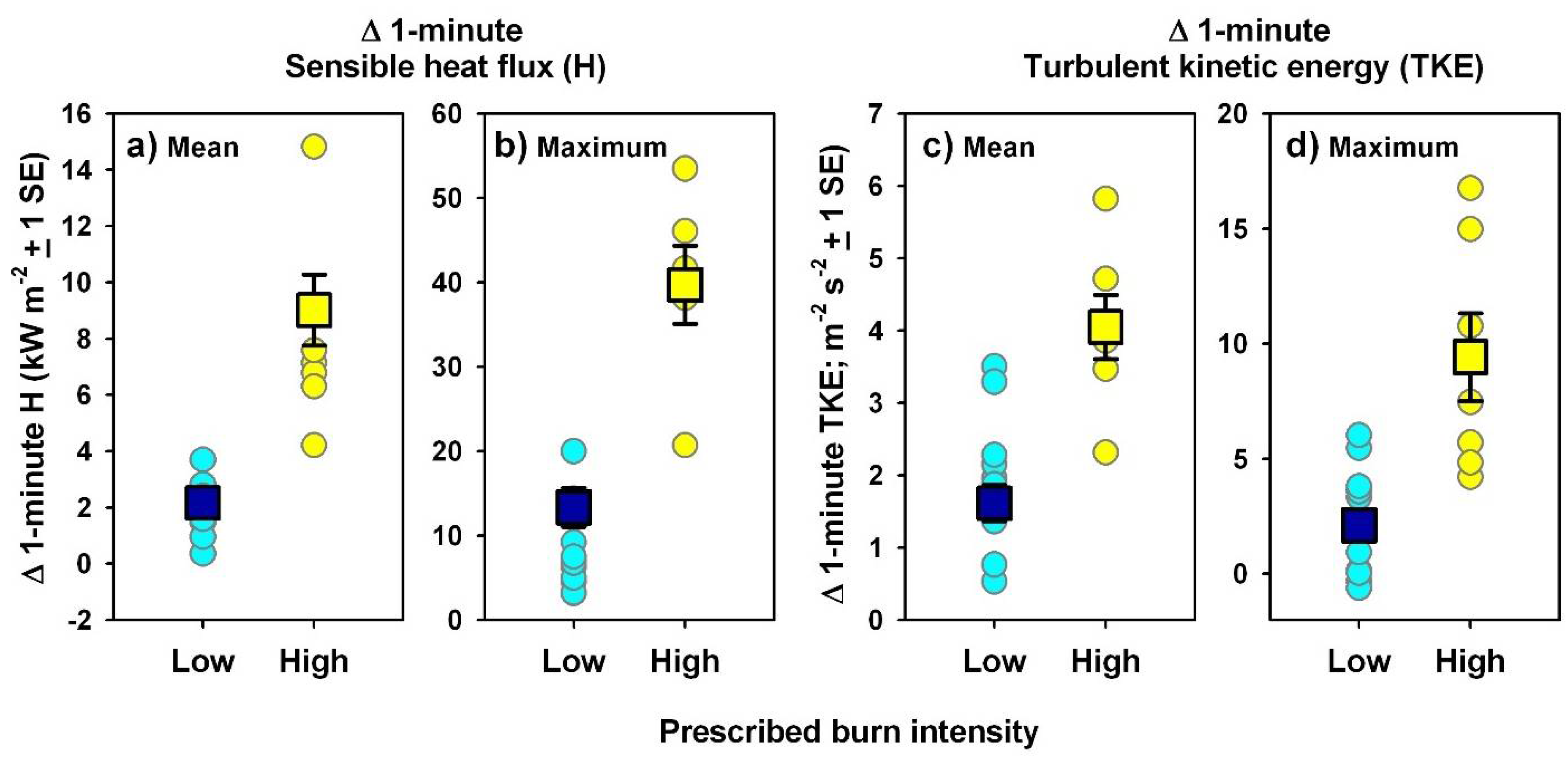

Figure 9.
Mean and maximum 1 min Δ values of sensible heat flux (kW m−2) and turbulent kinetic energy (m2 s−2) measured at the top of the canopy during fire front passage. Values are (a) mean and (b) maximum 1 min Δ sensible heat flux, and (c) mean and (d) maximum 1 min Δ turbulent kinetic energy. Colored squares and error bars are average Δ values ± 1 standard error, and colored circles are Δ values from individual towers in burn areas.
Figure 9.
Mean and maximum 1 min Δ values of sensible heat flux (kW m−2) and turbulent kinetic energy (m2 s−2) measured at the top of the canopy during fire front passage. Values are (a) mean and (b) maximum 1 min Δ sensible heat flux, and (c) mean and (d) maximum 1 min Δ turbulent kinetic energy. Colored squares and error bars are average Δ values ± 1 standard error, and colored circles are Δ values from individual towers in burn areas.

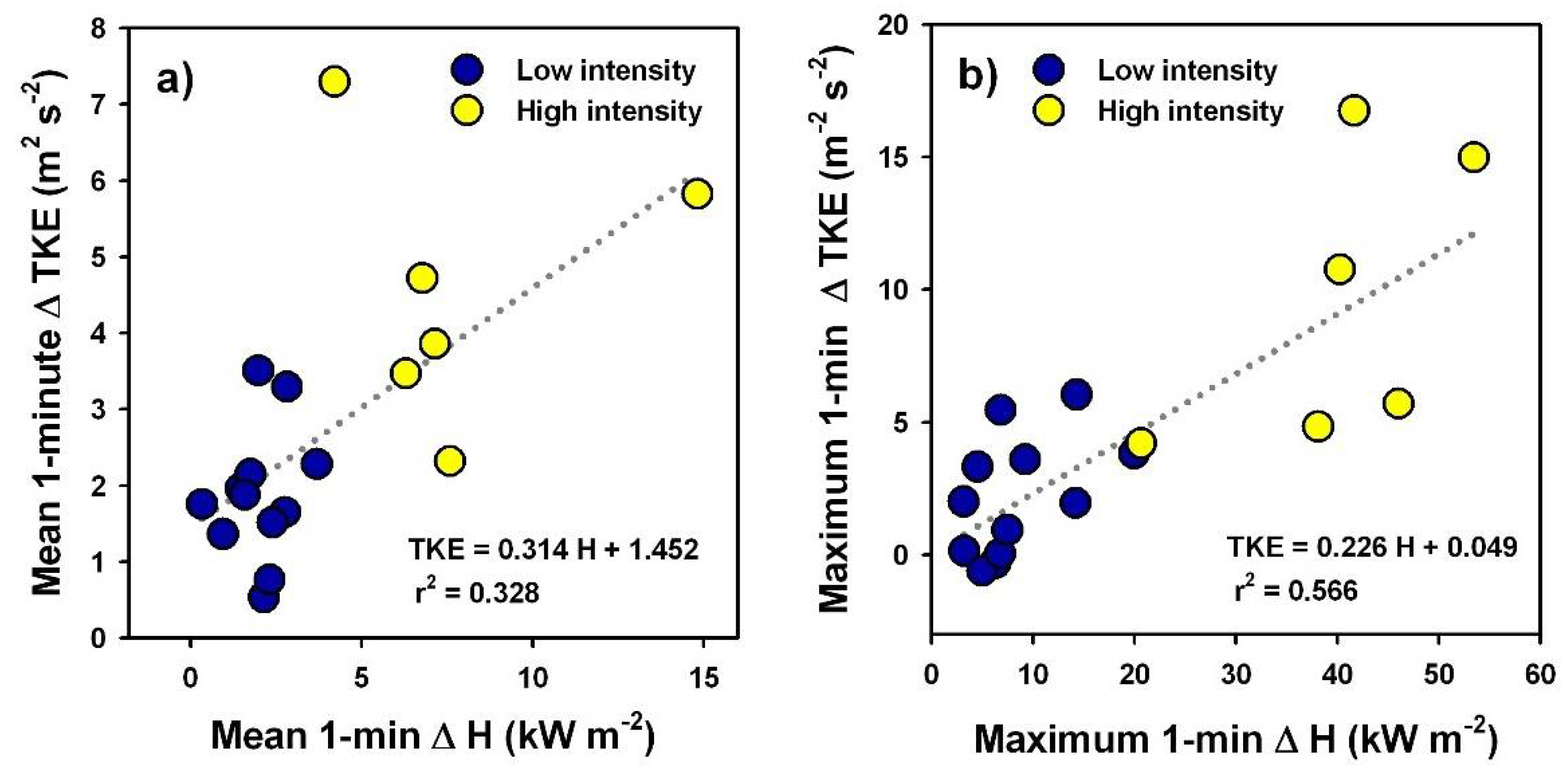

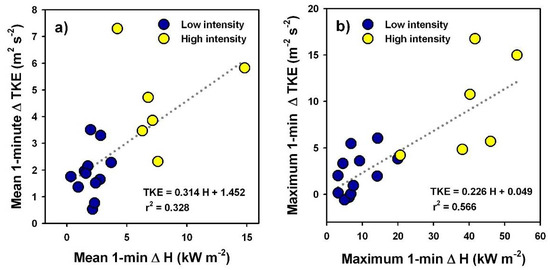

Figure 10.
Relationships between Δ 1 min sensible heat flux (kW m−2) and Δ 1 min turbulent kinetic energy (m2 s−2) measured above the canopy during fire front passage for all burn area towers. Values are (a) mean 1 min values of ΔH and ΔTKE, and (b) maximum 1 min values of ΔH and ΔTKE.
Figure 10.
Relationships between Δ 1 min sensible heat flux (kW m−2) and Δ 1 min turbulent kinetic energy (m2 s−2) measured above the canopy during fire front passage for all burn area towers. Values are (a) mean 1 min values of ΔH and ΔTKE, and (b) maximum 1 min values of ΔH and ΔTKE.
Table 1.
Mean emissions of fine particulates (PM
2.5), carbon dioxide (CO
2), and carbon monoxide (CO) during prescribed burns for flaming and smoldering combustion in conifer, mixed, and deciduous forests in the Eastern US. Data are summarized from the Smoke Emissions Repository Application (SERA; [
51]).
Table 1.
Mean emissions of fine particulates (PM
2.5), carbon dioxide (CO
2), and carbon monoxide (CO) during prescribed burns for flaming and smoldering combustion in conifer, mixed, and deciduous forests in the Eastern US. Data are summarized from the Smoke Emissions Repository Application (SERA; [
51]).
Combustion Type | PM2.5 | CO2 | CO |
---|
| kg Emitted per Ton Fuel Consumed (kg ton−1 ± 1 SD) |
Flaming | 20.9 ± 11.0 | 1691.8 ± 51.8 | 78.9 ± 21.5 |
Smoldering | 29.4 ± 18.2 | 1462.0 ± 170.1 | 165.9 ± 38.1 |
Combined values | 25.3 ± 16.0 | 1576.0 ± 248.0 | 122.4 ± 43.1 |
Table 2.
Location, forest type, date of burn, predominant ignition pattern and fire behavior, and number of towers in burn (B) and control (C) areas for the 11 instrumented prescribed burns conducted with above-canopy flux towers in the Pinelands National Reserve.
Table 2.
Location, forest type, date of burn, predominant ignition pattern and fire behavior, and number of towers in burn (B) and control (C) areas for the 11 instrumented prescribed burns conducted with above-canopy flux towers in the Pinelands National Reserve.
Location | Forest Type | Date | Ignition/ | Towers | Reference |
---|
| | | Behavior | (B,C) | |
---|
Low-intensity prescribed burns |
Cedar Bridge 1 | Pine–scrub oak | 03/22/2008 | Backing | 1, 2 | [30] |
Cedar Bridge 2 | Pine–scrub oak | 03/15/2013 | Backing | 1, 2 | [30] |
Warren Grove 1 | Pine–scrub oak | 03/09/2015 | Mixed | 3, 1 | [30] |
Cedar Bridge 3 | Pine–scrub oak | 02/29/2020 | Backing | 1, 1 | This study |
Cedar Bridge 4 | Pine–scrub oak | 02/29/2020 | Mixed | 1, 1 | This study |
Joint Base MDL | Pine–oak | 02/09/2006 | Backing | 1, 2 | [30] |
Silas Little EF 1 | Oak–pine | 03/06/2012 | Backing | 1, 2 | [22] |
Silas Little EF 2 | Oak–pine | 03/13/2019 | Mixed | 5, 1 | [21] |
High-intensity prescribed burns |
Warren Grove 2 | Pine–scrub oak | 03/05/2013 | Head | 3, 1 | [39] |
Warren Grove 3 | Pine–scrub oak | 03/11/2014 | Head | 3, 1 | [39] |
Brendan Byrne 1 | Pine–oak | 03/20/2011 | Mixed | 1, 2 | [22] |
Table 3.
Statistics for pre-burn loading and consumption of surface fuels composed of fine litter, 1 h + 10 h woody fuels, and understory vegetation in 48 upland forest stands sampled between 2004 and 2020 in the New Jersey Pinelands. PSO = pine–scrub oak, PO = pine–oak, OP = oak–pine.
Table 3.
Statistics for pre-burn loading and consumption of surface fuels composed of fine litter, 1 h + 10 h woody fuels, and understory vegetation in 48 upland forest stands sampled between 2004 and 2020 in the New Jersey Pinelands. PSO = pine–scrub oak, PO = pine–oak, OP = oak–pine.
Fuel Type | F Statistic | Significance | Contrasts |
---|
Pre-burn |
Fine litter | F2,47 = 1.525 | p = 0.229 | NS |
1 + 10 h wood | F2,47 = 2.870 | p = 0.067 | PSO > OP |
Understory vegetation | F2,34 = 3.126 | p = 0.057 | PSO > OP |
All fuels | F2,34 = 6.087 | p < 0.01 | PSO > PO = OP |
Consumption |
Fine litter | F2,47 = 4.033 | p < 0.05 | PSO > OP |
1 + 10 h wood | F2,47 = 3.992 | p < 0.05 | PSO > OP |
Understory vegetation | F2,34 = 3.298 | p < 0.05 | PSO > OP |
All fuels | F2,34 = 7.362 | p < 0.01 | PSO > PO = OP |

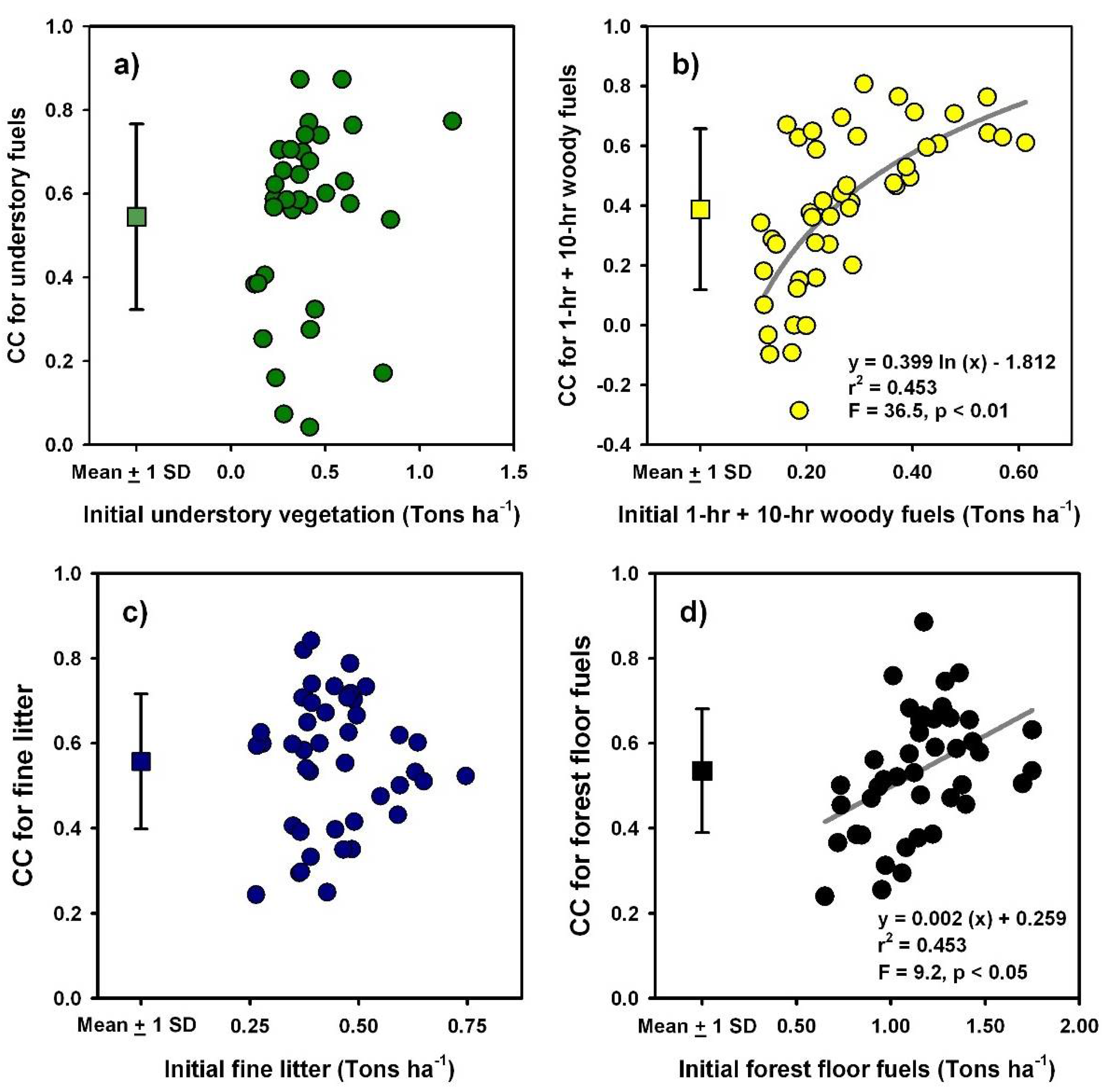

Table 4.
Combustion completeness factors (CC) by forest and fuel type, calculated from biometric pre- and post-burn loading measurements of shrubs and scrub oaks in the understory, 1 h + 10 h woody fuels, and fine litter during prescribed burns in the Pinelands from 2004 to 2020. Values are means ± 1 standard error. “All fuels” is weighted by the amount of each fuel type consumed. Values with different superscripts are significantly different at p < 0.05.
Table 4.
Combustion completeness factors (CC) by forest and fuel type, calculated from biometric pre- and post-burn loading measurements of shrubs and scrub oaks in the understory, 1 h + 10 h woody fuels, and fine litter during prescribed burns in the Pinelands from 2004 to 2020. Values are means ± 1 standard error. “All fuels” is weighted by the amount of each fuel type consumed. Values with different superscripts are significantly different at p < 0.05.
Fuel Type | Pine–Scrub Oak | Pine–Oak | Oak–Pine |
---|
| (Mean ± 1 SE) |
Fine litter | 0.618 ± 0.029 | 0.530 ± 0.036 | 0.457 ± 0.068 |
1 + 10 h wood | 0.474 ± 0.047 a | 0.394 ± 0.059 a | 0.131 ± 0.127 b |
Understory | 0.534 ± 0.057 a | 0.555 ± 0.040 a | 0.205 ± 0.067 b |
All fuels | 0.567 | 0.511 | 0.369 |
Table 5.
Ambient meteorological conditions during prescribed burns conducted in stands with overstory flux towers in the Pinelands. Data are presented by predominant fire behavior, including the site location, forest type, date of prescribed burn, and mean ± 1 standard deviation half-hourly air temperature, relative humidity, and wind speed 2 m to 4 m above the mean canopy height at control towers during each burn. PSO = pine–scrub oak, PO = pine–oak, OP = oak–pine.
Table 5.
Ambient meteorological conditions during prescribed burns conducted in stands with overstory flux towers in the Pinelands. Data are presented by predominant fire behavior, including the site location, forest type, date of prescribed burn, and mean ± 1 standard deviation half-hourly air temperature, relative humidity, and wind speed 2 m to 4 m above the mean canopy height at control towers during each burn. PSO = pine–scrub oak, PO = pine–oak, OP = oak–pine.
Fire Behavior/Location | Date | Air Temperature (°C) | RH (%) | Wind Speed (m s−1) |
---|
Low-intensity prescribed burns |
Cedar Bridge 1 | PSO | 03/22/2008 | 9.0 ± 1.3 | 34.9 ± 7.1 | 2.2 ± 0.4 |
Cedar Bridge 2 | PSO | 03/15/2013 | 7.2 ± 1.2 | 34.3 ± 2.0 | 4.3 ± 0.6 |
Warren Grove 1 | PSO | 03/09/2015 | 3.7 ± 0.9 | 20.2 ± 1.1 | 2.7 ± 0.4 |
Cedar Bridge 3,4 | PSO | 02/29/2020 | 0.6 ± 0.5 | 33.1 ± 2.3 | 3.9 ± 0.3 |
Joint Base MDL 1 | PO | 02/09/2006 | 0.9 ± 0.9 | 31.1 ± 3.0 | 3.0 ± 0.3 |
Silas Little EF 1 | OP | 03/06/2012 | 5.8 ± 1.4 | 21.6 ± 2.2 | 2.2 ± 0.3 |
Silas Little EF 2 | OP | 03/13/2019 | 10.2 ± 2.2 | 32.2 ± 9.0 | 2.4 ± 0.5 |
High-intensity prescribed burns |
Warren Grove 2 | PSO | 03/05/2013 | 7.6 ± 1.0 | 38.6 ± 3.6 | 1.5 ± 0.3 |
Warren Grove 3 | PSO | 03/11/2014 | 16.7 ± 1.1 | 33.1 ± 4.5 | 2.9 ± 0.4 |
Brendan Byrne 1 | PO | 03/20/2011 | 8.6 ± 1.9 | 37.1 ± 8.4 | 2.1 ± 0.6 |
Table 6.
Slopes and Spearman’s rank correlation coefficients for the relationship between air temperature ≥5 °C above ambient and vertical wind velocity (w) measured at 10 Hz at the top of the canopy for all burn area towers during low- and high-intensity fires. Values are means ± 1 standard deviation, and values with different superscripts are significantly different at p < 0.05.
Table 6.
Slopes and Spearman’s rank correlation coefficients for the relationship between air temperature ≥5 °C above ambient and vertical wind velocity (w) measured at 10 Hz at the top of the canopy for all burn area towers during low- and high-intensity fires. Values are means ± 1 standard deviation, and values with different superscripts are significantly different at p < 0.05.
Fire Intensity | N | Slope | Intercept | Spearman’s Rs |
---|
| | (Mean ± 1 SD) |
---|
Low intensity | 13 | 0.072 ± 0.020 a | 0.148 ± 0.081 | 0.362 ± 0.096 |
High intensity | 7 | 0.036 ± 0.006 b | 0.263 ± 0.104 | 0.472 ± 0.120 |
Table 7.
Relationships between 1 min values of sensible heat flux (kW m−2 min−1) and turbulent kinetic energy (m−2 s−2) measured at the top of the canopy during fire front passage for low-intensity and high-intensity prescribed burns. Values are slopes and intercepts, Spearman’s rank correlation coefficients (Rs), Student’s T and degrees of freedom (n-2), and significance levels for the linear relationship between sensible heat flux and TKE. Data from prescribed burns with multiple burn area towers were pooled.
Table 7.
Relationships between 1 min values of sensible heat flux (kW m−2 min−1) and turbulent kinetic energy (m−2 s−2) measured at the top of the canopy during fire front passage for low-intensity and high-intensity prescribed burns. Values are slopes and intercepts, Spearman’s rank correlation coefficients (Rs), Student’s T and degrees of freedom (n-2), and significance levels for the linear relationship between sensible heat flux and TKE. Data from prescribed burns with multiple burn area towers were pooled.
Fire Behavior/Location | Slope | Intercept | Rs | T (n-2) | p-Value |
---|
Low-intensity burns |
Cedar Bridge 1 | 0.053 | 2.535 | 0.081 | 0.436 (29) | NS |
Cedar Bridge 2 | 0.241 | 4.474 | 0.177 | 1.106 (38) | NS |
Warren Grove 1 | 0.105 | 2.747 | 0.223 | 2.203 (78) | <0.05 |
Cedar Bridge 3,4 | 0.136 | 5.093 | 0.338 | 2.512 (49) | <0.05 |
Joint Base MDL | −0.167 | 5.495 | −0.052 | 0.279 (29) | NS |
Silas Little EF 1 | −0.347 | 2.833 | −0.071 | 0.383 (29) | NS |
Silas Little EF 2 | 0.045 | 2.174 | 0.091 | 0.841 (81) | NS |
High-intensity burns |
Warren Grove 2 | 0.120 | 2.793 | 0.571 | 3.745 (29) | <0.001 |
Warren Grove 3 | 0.191 | 4.262 | 0.541 | 3.468 (31) | <0.01 |
Brendan Byrne 1 | 0.268 | 7.520 | 0.351 | 2.017 (29) | 0.053 |
Table 8.
Convective heat flux and storage in the canopy airspace, calculated from fuel consumption estimates and integrated sensible heat flux at the top of the canopy during fire front passage for the 11 instrumented prescribed burns, separated by burn intensity. Values are the mean MJ m−2 ± 1 standard error, sample sizes, T statistics, and significance levels.
Table 8.
Convective heat flux and storage in the canopy airspace, calculated from fuel consumption estimates and integrated sensible heat flux at the top of the canopy during fire front passage for the 11 instrumented prescribed burns, separated by burn intensity. Values are the mean MJ m−2 ± 1 standard error, sample sizes, T statistics, and significance levels.
Low Intensity | High Intensity | n | T1,9 | p-Value |
---|
(Mean MJ m−2 ± 1 SE) | |
---|
Convective heat flux + heat storage |
8.356 ± 1.175 | 13.732 ± 2.398 | 11 | 2.290 | 0.051 |
Integrated Δ sensible heat flux |
3.784 ± 0.617 | 8.470 ± 1.243 | 11 | 3.819 | 0.005 |
Table 9.
Relationships between maximum values of Δ air temperature, Δ vertical and horizontal wind velocities, Δ 1 min mean and peak sensible heat fluxes, Δ 1 min mean and peak turbulent kinetic energy, and estimated PM2.5 emissions during instrumented prescribed burns.
Table 9.
Relationships between maximum values of Δ air temperature, Δ vertical and horizontal wind velocities, Δ 1 min mean and peak sensible heat fluxes, Δ 1 min mean and peak turbulent kinetic energy, and estimated PM2.5 emissions during instrumented prescribed burns.
Fire Behavior/Location | Slope | Intercept | Rs | T1,9 | p-Value |
---|
Δ 10 Hz air temperature (°C) | 0.498 | 154.3 | 0.378 | 1.225 | 0.252 |
Δ 1 s air temperature (°C) | 0.608 | 157.7 | 0.424 | 1.404 | 0.194 |
Δ 1 min air temperature (°C) | 1.169 | 170.8 | 0.032 | 0.096 | 0.926 |
Δ 10 Hz vertical wind speed (m s−1) | 9.551 | 172.4 | 0.287 | 0.899 | 0.392 |
Δ 10 Hz horizontal wind speed (m s−1) | 8.243 | 153.8 | −0.005 | 0.000 | 0.989 |
Δ 1 min mean H (W m−2) | 8.196 | 159.0 | 0.228 | 0.703 | 0.501 |
Δ 1 min peak H (W m−2) | 0.957 | 170.7 | 0.055 | 0.165 | 0.873 |
Δ Total sensible heat (MJ m−2) | 9.942 | 138.3 | 0.358 | 1.150 | 0.310 |
Δ 1 min mean TKE (m2 s−2) | 8.800 | 163.5 | 0.465 | 1.576 | 0.150 |
Δ 1 min peak TKE (m2 s−2) | 1.818 | 179.1 | 0.223 | 0.686 | 0.509 |
