Essential Oil Content of Baccharis crispa Spreng. Regulated by Water Stress and Seasonal Variation

Abstract

Carqueja (Baccharis crispa Spreng.) has been primarily used as a medicinal plant around the world. Commercially, the essential oil content of carqueja leaves is the most valuable crop productivity variable. We evaluated the effect of irrigation management in different growing seasons on the essential oil content of carqueja leaves using gas chromatography coupled with mass spectrometry. The experiment was conducted in a greenhouse located in Southern Brazil, where the crop was cultivated for two years in different growing seasons under six irrigation regimes: 25%, 50%, 75%, 100%, 125%, and 150% of the reference crop evapotranspiration (T25, T50, T75, T100, T125, and T150, respectively). A seasonal pattern was observed in the number of metabolites of sesquiterpenes and phenolics in the essential oil extracted from the biomass; this outcome was correlated with irrigation regimes and air temperature. Principal component and hierarchical cluster analyses were used to discriminate the influence of abiotic conditions on secondary metabolite profiles. Spathulenol was the most abundant compound in the essential oils (95.43%) collected during the summer (December–March) season during the third harvest (H3) at T150. The essential oil content was 8.84% ± 0.05% and 10.52% ± 0.10% in summer and winter (June–September), respectively, with T100 at 45 and 46 days after planting.

1. Introduction

Baccharis species have been extensively used for industrial purposes as well as in food and beverages, mainly in South America and Japan [1]. The literature shows that Baccharis species have also been useful for human health and in preventing heart disease and cancer, treating rheumatism and rheumatoid arthritis, and to ameliorate gastrointestinal, hepatic, and renal diseases, in addition to inflammatory disorders [2,3,4,5,6,7,8,9].

These properties have led to attention being focused on the oil components of Baccharis species. Earlier investigations reported the presence of bitter sesquiterpenoids [8], and that soil and weather conditions can influence the chemical composition of wild and cultivated Baccharis species [6].

The water status of plants affects their functions and metabolic processes, and their essential oil yields are responsive to the severity and duration of water stress [10]. High water stress levels affect oil yield in many aromatic plants [11,12]. Metabolites and essential oil yields in different medicinal and aromatic plants decrease under water-stress conditions [10,13,14,15,16] and reduced irrigation frequency [11,12,17]. B. crispa is popularly recognized as carqueja in Brazil, and grows spontaneously in a wide range of soils and ecosystems in different Brazilian bioclimatic zones [18]. It is currently used as a medicinal plant and requires strict irrigation management to ensure a high yield and optimal quality in commercial farming systems [12].

Optimal irrigation management requires working knowledge. To provide such knowledge on the quality of B. crispa (carqueja), grown in tropical environment for medicinal purposes to farmers and companies, we aimed to identify all the essential oil components (EOC) in carqueja using gas chromatography coupled with mass spectrometry (GC–MS), as well as to compare the essential oil yields and dry matter production of B. crispa (carqueja) from a wide range of irrigation regimes with different crop growing seasons.

2. Materials and Methods

2.1. Plant Material

Two experiments were conducted with B. crispa, cultivated from 28 September 2015 to 7 November 2016 in a greenhouse at the Department of Biosystems Engineering of ESALQ/USP in Piracicaba, SP (22°42′ S, 47°38′ W, 546 m above sea level). We prepared the botanical material collection and exsiccate production for further inclusion into the collection of the Herbarium at the Botany Department of the Federal University of Paraná (registered as UPCB 86437). The material in the first experiment (summer: December–March) was harvested at 45, 95, and 205 days after planting (DAP) by cutting from the plant shoot (15 cm above the ground). The plant shoots were harvested at 46, 119, and 182 DAP, and the dry biomass was determined in the second experiment (winter: June–September). The soil used in the experiments was classified as typical eutrophic red latosol in Brazil [19] and as typic hapludox in the United States [20].

2.2. Water Deficit Treatments

A completely randomized block design was used to simulate the different soil and climate conditions. This design consisted of six treatments with six repetitions, totaling 36 plots. Each 11 L pot with one carqueja plant corresponded to one plot. Treatments consisted of six irrigation regimes based on the reference crop’s evapotranspiration (ETo) (the FAO Penman–Monteith approach [21]) values: T100 optimal irrigation regime (applying 100% ETo); T75, T50, and T25 sustained deficit irrigation regimes (applying 75%, 50%, and 25% ETo, respectively); and T125 and T150 excessive irrigation regimes (applying 125% and 150% ETo, respectively). A Campbell Scientific CR23X data logger was used for controlling the meteorological station installed in the center of the greenhouse.

2.3. Extraction of the Essential Oil (EO)

Leaves of B. crispa were oven dried at 40 ± 3 °C under air circulation for 48 h. The essential oil was extracted from the dried shoot samples (100 ± 0.1 g). Extraction was carried out in 2 L of distilled water through hydrodistillation in a Clevenger-type apparatus for 3 h (until all the essential oil was extracted) [22,23]. The extracted essential oils were then collected, placed in clean and sealed brown glass vials, and stored in a cool (4 °C) and dry place for further tests [24,25]. The essential oil yield (%) was calculated as the essential oil mass (g) divided by the dry shoot mass (g) [26,27].

2.4. Gas Chromatography–Mass Spectrometry (GC–MS) Analysis

GC–MS analyses of the EO were performed using a gas chromatograph GC 2010 (Shimadzu Corp., Kyoto, Japan) coupled to a mass spectrometer QP 2010 Plus (Shimadzu Corp., Kyoto, Japan). A 0.5 µL aliquot of non-diluted EO was injected in splitless mode. Separation was achieved on a Rtx^®-5MS (5% diphenyl/95% dimethyl polysiloxane, 30 m × 0.25 mm with a 0.25 μm film thickness (Teknokroma Analitica, SA, Barcelona, Spain) fused silica capillary column, using helium as a carrier gas at a constant flow rate of 36.8 cm/s). The initial oven temperature of 40 °C (held for 5 min) was increased to 250 °C at 5 °C/min and then up to 290 °C at 10 °C/min, and held at that temperature for 15 min for a total run time of 47 min. The quadrupole mass spectrometer was operated in the electron ionization mode at 70 eV with a source temperature of 230 °C and in the quadrupole mode at 200 °C with a scan range m/z 20–550. Oil components were identified by the comparison of their mass spectra and retention times with those of the C9–C20 n-alkanes and MS data deposited in the Wiley Spectroteca (Wiley 07) and the Flavors and Fragrances of Natural and Synthetic Compounds (FFNSC 1.3) databases. The samples were injected in triplicate [28].

2.5. Statistical Analysis

Principal component analysis (PCA) was performed using R software [29] to assess the interrelations between the environmental conditions and the essential oil compounds of leaves according to their harvest collection time and different irrigation regimes [30]. Hierarchical cluster analysis (HCA) was applied to investigate sample similarity based on the distribution of essential oil constituents. HCA was used to validate the PCA analysis. Pearson’s correlation analysis was used to verify the possible linear association between the essential oil compounds and weather variables.

3. Results and Discussion

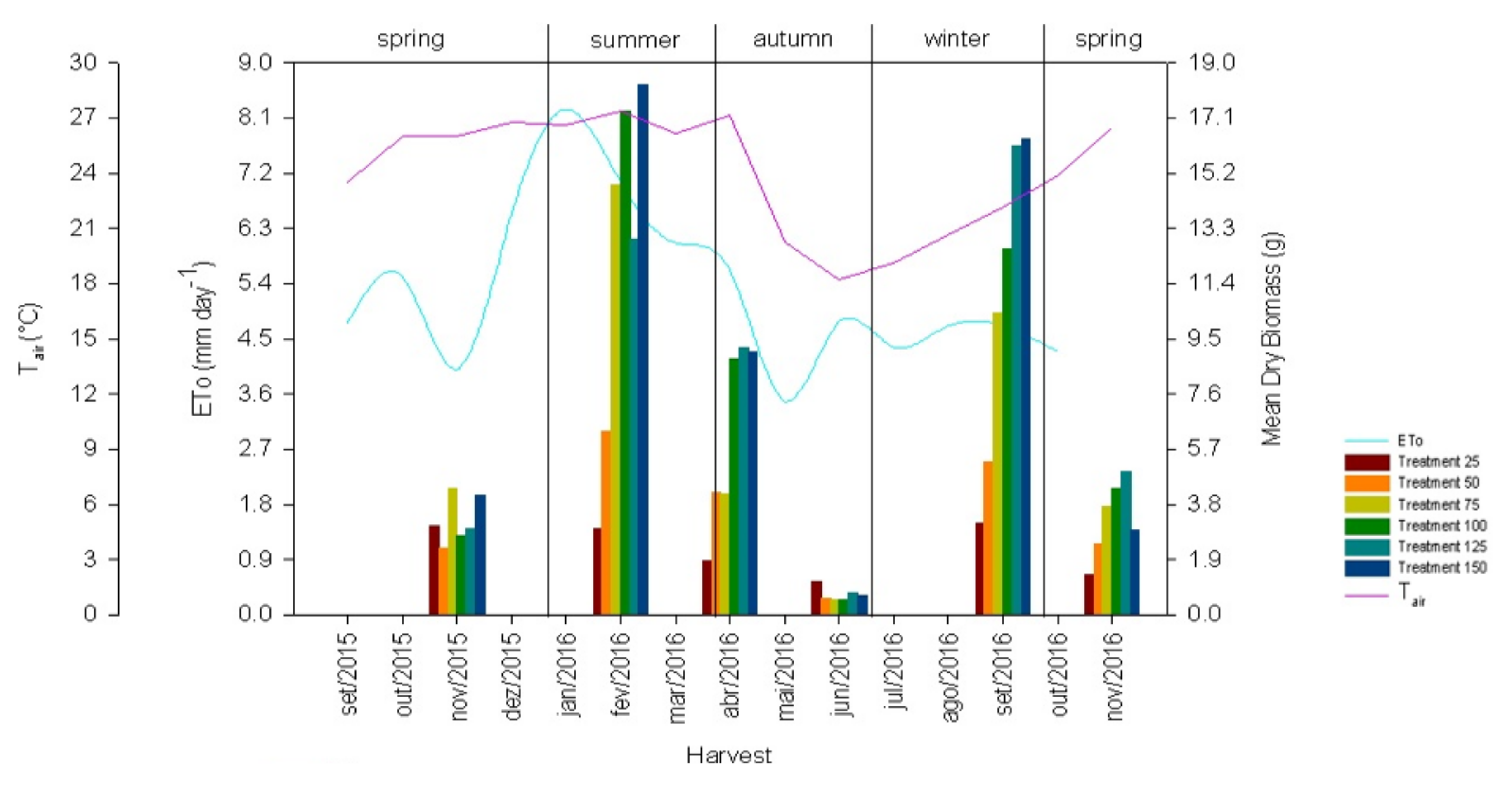

3.1. Environmental Data

According to de Bona et al., and Fachinello et al. [9,31], increasing temperature facilitates cell division; however, it may also cause excessive sweating on herbaceous and semi-evergreen cuttings as well as budding without rooting, which is an undesirable outcome for B. crispa. The literature review showed a lack of information on the basal temperature of this crop. The minimum and maximum air temperatures at the end of the autumn (March–June) and winter (June–September) experimental periods were 2.38 and 41.13 °C, respectively, while the mean relative humidity reached 74.94%.

However, the recorded minimum temperature values, mainly those recorded in June and July 2016, reached the lower limit set in Andrião [32] for the desired thermal amplitude of this crop. Burmeister and Guttenberg [33] reported that the production of essential oils in medicinal plants is an exothermic process; thus, the ambient air temperature is a variable that regulates this secondary metabolic process. Dos Santos et al. and García [1,34] noted a reduction in the B. trimera essential oil content as the temperature decreased while the content increased with temperature. Figure 1 shows the response of the mean dry biomass production of B. crispa (carqueja) to a wide range of six irrigation regimes based on the reference crop evapotranspiration (ETo) values.

3.2. Essential Oil Components

Essential oil components (EOC) (expressed as dry weight) were equal to 8.84% ± 0.05% and 10.52% ± 0.10% in summer (December–March) and winter (June–September), respectively, and 100% ETo (fully irrigated condition) at 45 and 46 DAP. These results are not in agreement with those reported earlier for the EOC of B. trimera leaves (3.00%) in winter (June–September) in Paraná State, Brazil [35], in which a 0.05% essential oil yield was reported for the leaves of B. trimera cultivar CPQBA 1 [5]. In another study, B. dracunculifolia DC was reported to have the highest essential oil content (0.8% ± 0.1%), followed by B. cylindrica (Less.) DC (0.6% ± 0.0%), B. articulata (Lam.) Pers. (0.5% ± 0.0%), and B. gaudichaudiana DC (0.1% ± 0.0%) [36]. Variations in the content of essential oils have been related to the genetic patterns of species as well as seasonal conditions and environmental factors that influence plant development [37]. Some compounds are unique to these species, and hence, can be used as chemical markers for species identification and authentication. β-Pinene and limonene were shown to be major compounds in B. pauciflosculosa. α-Bisabolol was found only in B. punctulata. B. reticularioides was shown to contain α-pinene, while α-pinene, β-pinene, limonene, and spathulenol were the major compounds in B. sphenophylla [38]. Another study reported lower essential oil yield (1.0%) at the full flowering stage in Paraná State (Southern Brazil) [39,40] and 0.0591% yield under 100% solar radiation in Minas Gerais State (Southeastern Brazil) [9]. Using the grinding method, a 0.56% yield of the essential oil of B. articulata (Lam.) Pers. was obtained in the analysis [41]. According to Zribi et al. [42], the differences in essential oil yield can be attributed to environmental conditions and different maturity and growth stages. Essential oil content and the composition of essential oils in aromatic plants are affected by environmental conditions [12]. Water deficit decreased the growth, water potential, and plant biomass of S. officinalis shoots, as well as its fatty acid content, but such deficits increased the essential oil yield [11]. Moderate irrigation regimes resulted in higher EOC content in rose-scented geranium (Pelargonium graveolens L.), whereas water deficit was more favorable for essential oil biosynthesis in plants compared to thorough watering treatments [43]. To the authors’ best knowledge, this is the first report on the yield of essential oil extracted from Brazilian B. crispa shoots.

3.3. Differences in Content and Composition of Essential Oils between the Three Harvest Times

Forty-eight (48) components were identified during the two assessed seasons under the six irrigation replacement levels. A number of volatiles identified in the current study have not previously been reported for this Baccharis species. The identified volatiles accounted for 97.10%, 93.09%, 96.04%, 96.46%, 90.02%, and 83.22 % of the total volatile constituents in essential oils at 25%, 50%, 75%, 100%, 125%, and 150% ETo of the reference treatments, respectively (Tables S1–S3, Supplementary Materials). There were differences in the number of identified volatile compounds in comparison to the values in the literature. In a study carried out in Southern Brazil [18], 85.1% of the primary components of the B. articulate volatile profile were identified, with 93.8% of them in B. cultrate, 59.5% in B. genistifolia, and 95.3% in B. gibertii. In some cases, the compounds were identified for the first time using an experiment conducted under various abiotic and hydric conditions.

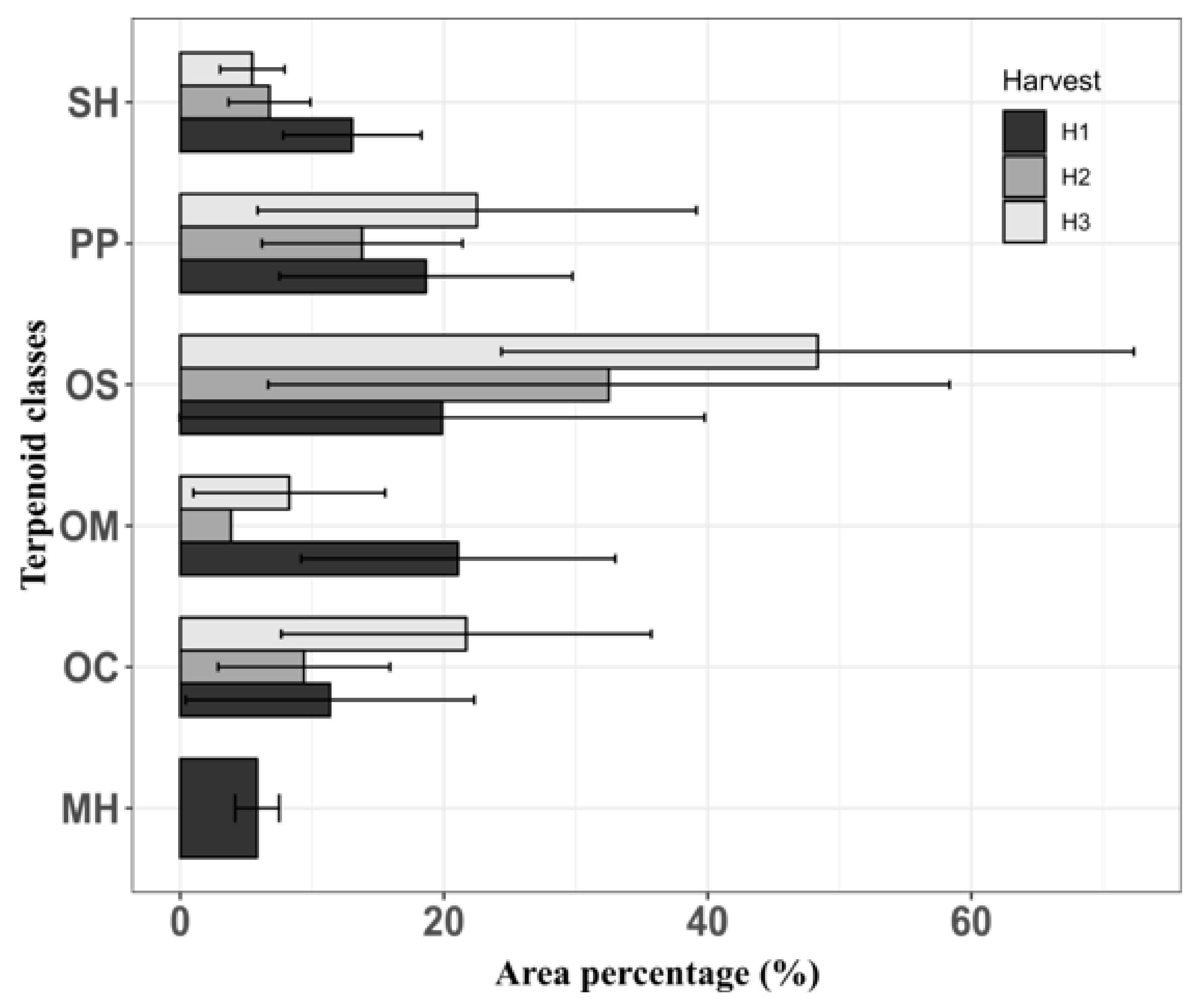

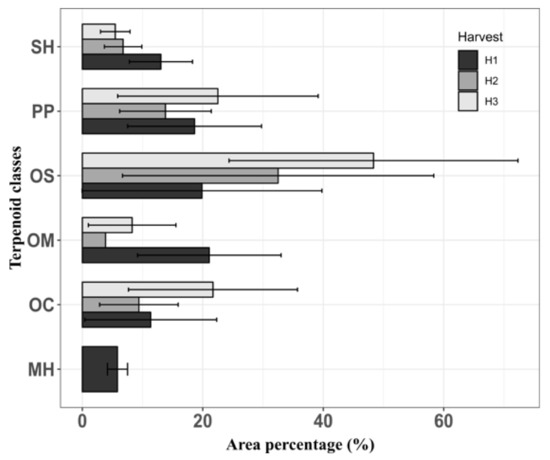

Clear differences in the qualitative and quantitative compositions among the three harvest times were observed through a comparison of EOC. The Oxygenated sesquiterpenes (OS) were more abundant in harvest 3 (Figure 2).

For simplicity, the identified volatiles were grouped into six chemical classes: sesquiterpene hydrocarbons (SH), phenylpropanoids (PP), oxygenated sesquiterpenes (OS), oxygenated monoterpenes (OM), others (OC), and monoterpene hydrocarbons (MH). The essential oils of B. crispa were characterized by an abundance of oxygenated sesquiterpenes (OS), which were major essential oil component (EOC) in all three harvests (48.34% at H3, followed by 32.51% at H2), as shown in Figure 2. In total, 22.51% phenylpropanoids (PP) and 21.69% of the other compounds (OC) were detected at H3. Sesquiterpene hydrocarbons (SH) peaked at H1 (13.05%), and monoterpene hydrocarbons (MH) were only detected at H1 (5.84%). Other studies have revealed that essential oil can be extracted from the fresh leaves of B. trimera (Less) DC via steam distillation, yielding 0.05%. The analyses carried out using GC–MS showed that this oil contained 4.40% monoterpenes and 80.40% sesquiterpenes [35].

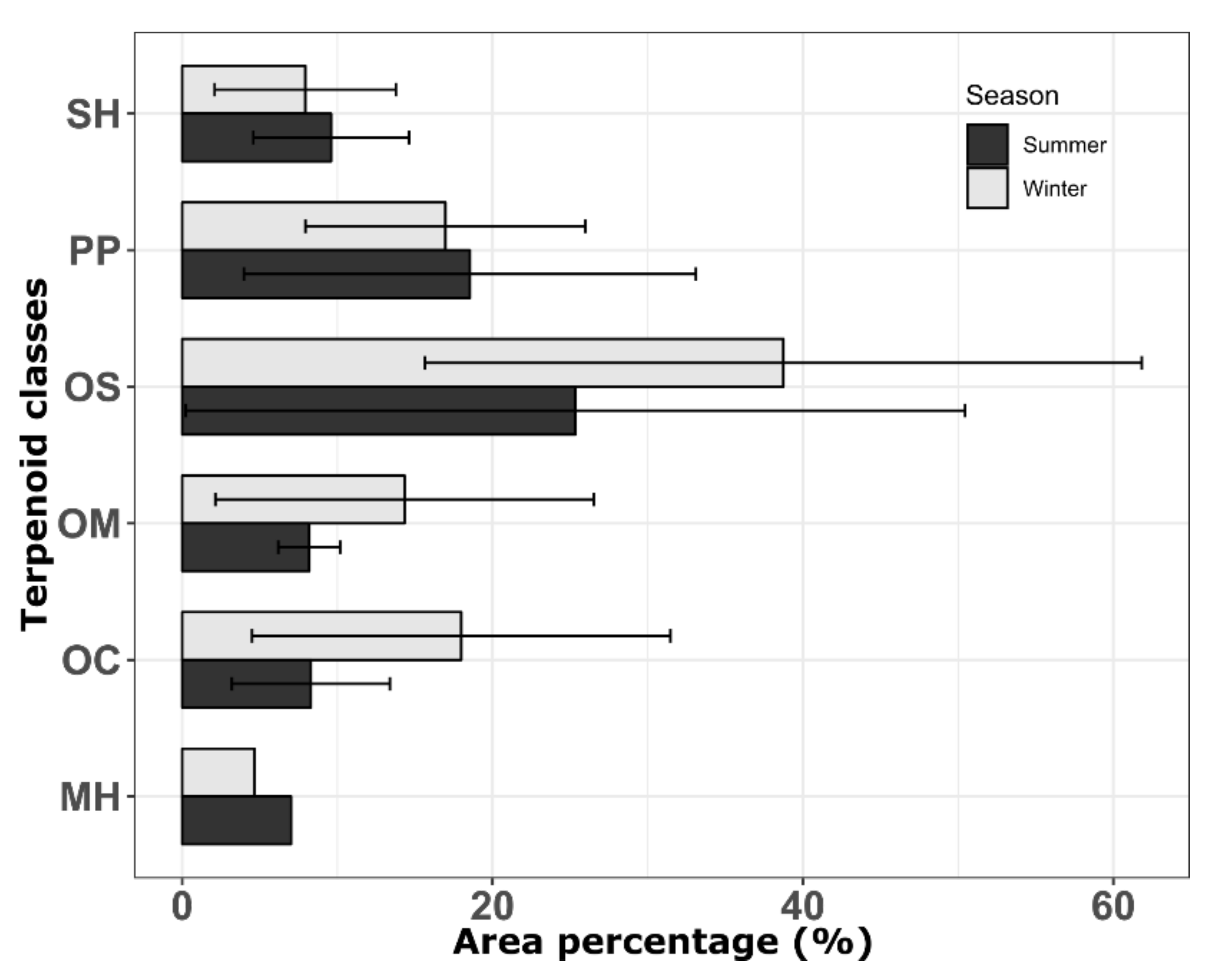

Spathulenol was the first compound recorded at the highest level, and was the only oxygenated sesquiterpene found in the essential oils from all experiments—it was recorded in high levels (95.43%) during summer (December–March) at H3 and T150 (Figure 3). The authors of [44] extracted 29.69% of B. articulata (Lam.) Pers. essential oil without grinding [41] and 16.41% B. unicella, 14.49% B. anomala, and 6.84% B. dendata essential oil in autumn through steam distillation. Oxygenated monoterpenes were recorded at 21.08%, 3.86%, and 8.27% at H1, H2, and H3, respectively. They were dominated by 1.8-cineole (41.96%), which was detected in winter (June–September) at H1 and T25. This value was higher than that reported in earlier analyses applied to three Baccharis species: 0.34% for B. unicella, 0.38% for B. anomala, and 0.32% for B. dendata in winter (June–September) when the essential oil was extracted through steam distillation in an experiment carried out in Southern Brazil [44]. Other compounds, such as methyl-d3 1-dideuterio-2-propenyl ether (41.36%), were detected in winter (June–September) at H3 and T125.

Eugenol (30.19%) was the main phenylpropanoid detected in winter (June–September) at H1 and T125. This outcome is in stark contrast to the value recorded for eugenol content (6.69%) in the essential oil of P. integrifolia in [45]. There was also an important difference between the ledol content at H1 and at T75 (10.63%) detected during summer. The authors of [46] found a concentration of ledol equal to 13.7% in plants collected in Rio de Janeiro, Brazil, whereas the study in [5] reported a value of 1.30% in the essential oil of B. trimera (Less) DC.

Based on these results, the EOC at H1 showed 20.53% oxygenated sesquiterpenes, such as caryophyllene, in winter (June–September) at T150. Costa et al. [47] found 4.0% ± 1.6% caryophyllene oxide in the essential oils of Eugenia uniflora leaves collected during the dry months (April–September) in the Brazilian Cerrado. Some specific compounds were only detected when the highest rates of monoterpene hydrocarbons were obtained, for example, ascaridole (7.02%), which was detected during summer at H1 and T150. The results of Rahman et al. [45] indicated that Premna integrifolia Linn EO featured 12.12% spathulenol, 8.21% 1-oc-ten-3-ol, 6.69% eugenol, 5.81% phenylethyl alcohol, and 2.6% caryophyllene oxide. These compounds can play key roles in antibacterial activity [48,49].

Differences between our results and the lower levels observed for other samples in the literature of less than or equal to 1.50% could be linked to the environmental conditions and time of harvest, as well as to water deficits and irrigation management [11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42]. Several studies based on Eugenia uniflora leaves show that the prevalence of factors, such as seasons, influences the prevalence of oxygenated sesquiterpenes in plants collected during all sampling months and under all chemical variations among the oils [46]. Additionally, the influence of factors such as elevation above sea level, soil type, longitude, and latitude was reflected in the prevalence of sesquiterpenes (83.66%) in Cordia verbanacea and Cordia leucocephala leaves [49]. Another study has also demonstrated the influence of climatic and environmental conditions on plant volatile emissions [42].

Earlier investigations also demonstrated the influence of rainfall, temperature, seasonal stress, and evapotranspiration. Harvest time may also determine the composition of essential oils [11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,47].

3.4. Volatile Profiles under Different Irrigation Conditions

The volatile profiles corresponding to the six irrigation management treatments of B. crispa during the three harvest seasons are characterized by variations, as shown in Table S1. Table S1 (Supplementary Materials) contains details of all the identified volatile organic compounds, their retention indices, and the relative compositions of the compounds found in each sample.

In total, 21 peaks were obtained through hydrodistillation, and 48 compounds were identified. Volatile compounds ranged from 93.52% to 66.97% of the total area analyzed. These results were not in agreement with those of previous studies using Baccharis sp. leaves in which only 19 EOCs were described [7]. Spathulenol was the main compound in leaves (95.43%) at H3 and T150 in winter (June–September), with 78.38% at H1 and T50, and 72.79% at H2 and T75, both corresponding to summer. Phthalic acid (56.82%) at H3 and T75 was the second main compound; it was also recorded in 30.39% at H1 and T100 (winter: June–September) and 28.52% at T100 (summer: December–March). This compound is followed by 1.8-cineole, which was the most abundant (41.96%) in winter at H1 and T25; it was also recorded in 14.53% in winter (June–September) at H1 and T125 and 8.36% at H3 and T125 in summer. Eugenol was present in 30.19% at H1 and T125 in winter and 4.05% at H3 and T125 in summer, and linalool was recorded in 27.22% at H1 and T25, 8.28% at H1 and T125 (both in winter: June–September), and 10.09% at H3 and T125 in summer. According to the literature, the main compounds identified in the essential oil of B. trimera under different nitrogen sources and levels formed 30 peaks: (E) caryophyllene, bicyclogermacrene, and germacrene D [35] and, common among all treatments, α-pinene, D-limonene, caryophyllene, spathulenol, ledol, and globulol [35]. α-Pinene, β-pinene, and spathulenol (B. uncinella); spathulenol, β-caryophyllene, and β-selinene (B. anomala); and germacrene-D, caryophyllene oxide, and spathulenol (B. dentata) were the main compounds identified via GC–MS [44].

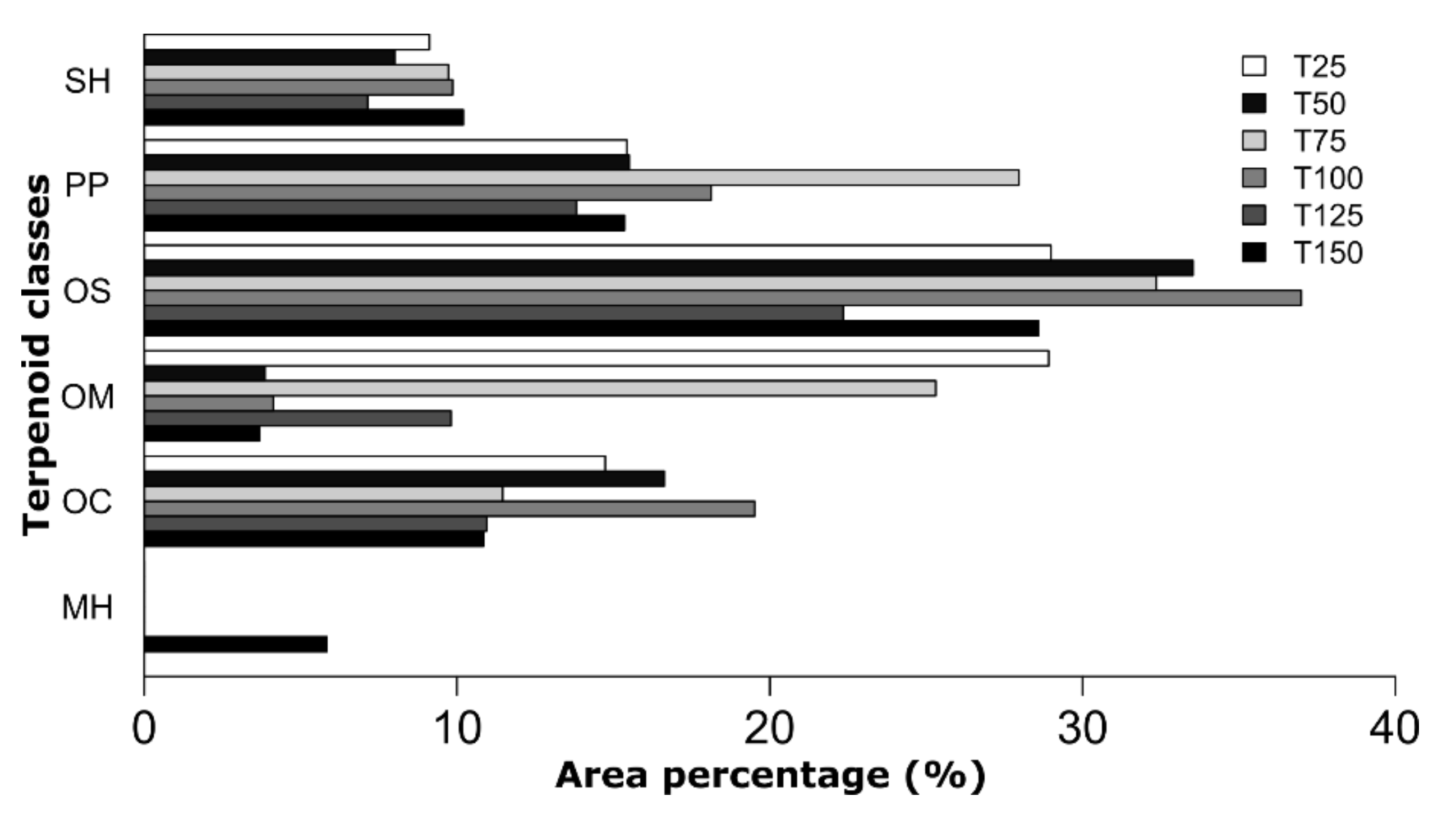

Based on Figure 4, B. crispa leaves were rich in oxygenated sesquiterpenes (37.00%) at T100, followed by T150 and T75. Variations in the levels of chemical volatiles, such as oxygenated sesquiterpenes (OS), were found in most treatments, with 22.35% at T125 and 37% at T100. Moreover, phenylpropanoid (PP) compounds were mostly detected at T75 (27.97%) and were lower at T125 (13.82%). Oxygenated monoterpenes (OM) represented around 26% in some cases. They were detected at T75 (25.31%) and T125 (9.81%). Sesquiterpene hydrocarbons (SH) were detected at T150 (10.20%) and T125 (7.14%). Notably, monoterpene hydrocarbons were only observed at T150. This outcome demonstrates that increased water replacement levels can transform the presence of these compounds in the response to water excess and low oxygen content in the soil profile. The authors of [50] reported increased monoterpene concentrations under drought conditions, and the authors of [11] demonstrated that a water deficit can affect Salvia officinalis, which was shown in early investigations to contain 1.8-cineole as its main constituent (17.86%). The water deficit increased the content of compounds such as linalool, menthone, and rose oxide in the EOs of Pelargonium graveolens L. and decreased geraniol and geranyl formate [43].

3.5. Multivariate Analysis

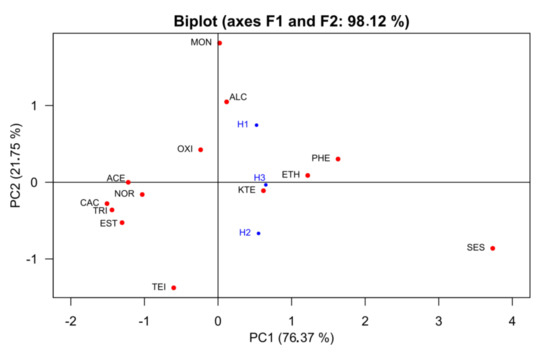

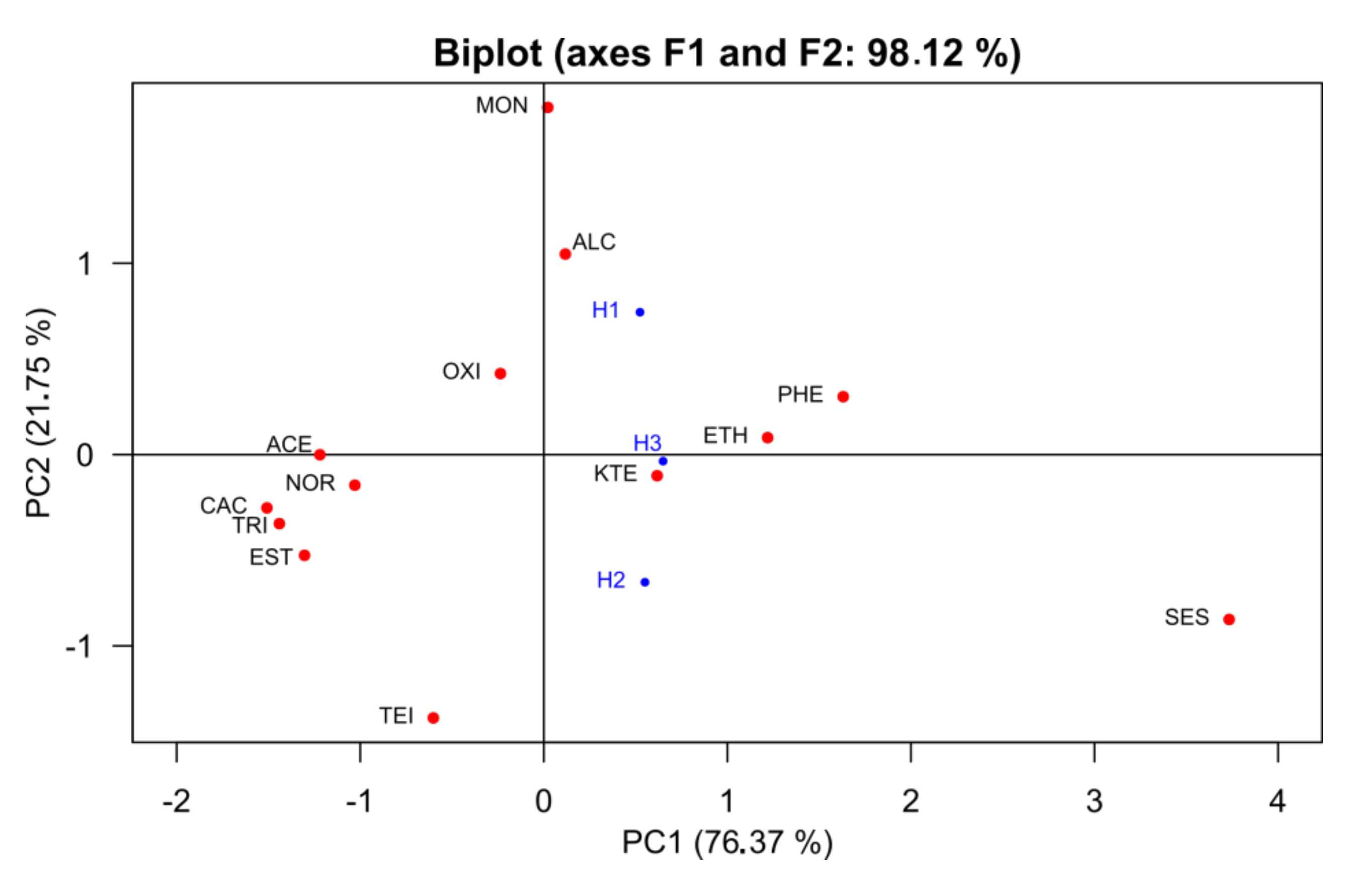

The volatile profile of the EOC of B. crispa showed clear differences between harvest seasons and irrigation depth treatments. HCA and PCA were carried out to analyze the differences between harvest seasons and irrigation treatments. Figure 5 shows the PCA score plot used to explore the relative variability of B crispa based on the harvest season.

The PCA accounted for 98.12% of the total variance—PC1 accounted for 76.37% and PC2 for 21.75% of the variance. The PCA results separated the harvest seasons, as shown by the formation of four well defined and clustered subgroups referring to the harvest seasons H1, H1, and H3. According to the score chart, H1, H2, and H3 lie along the positive PC1 axis. H1 is characterized by high rates of monoterpenes (MO) and alcohols (ALC), which have positive values along PC1. On the other hand, this area is positively associated with H3; the ketones (KTE), phenols (PHE), and ether (ETH), along with significant levels of sesquiterpenes (SES). PC2 showed positive associations with oxides (OXI) and acetate (ACE). Norisoprenoids (NOR), triterpene (TRI), carboxylic acid (CAC), esters (EST), and terpenoids (TEI) had negative associations with PC1 and PC2. These segregations could be due to the productivity of these chemical classes during the three harvest seasons.

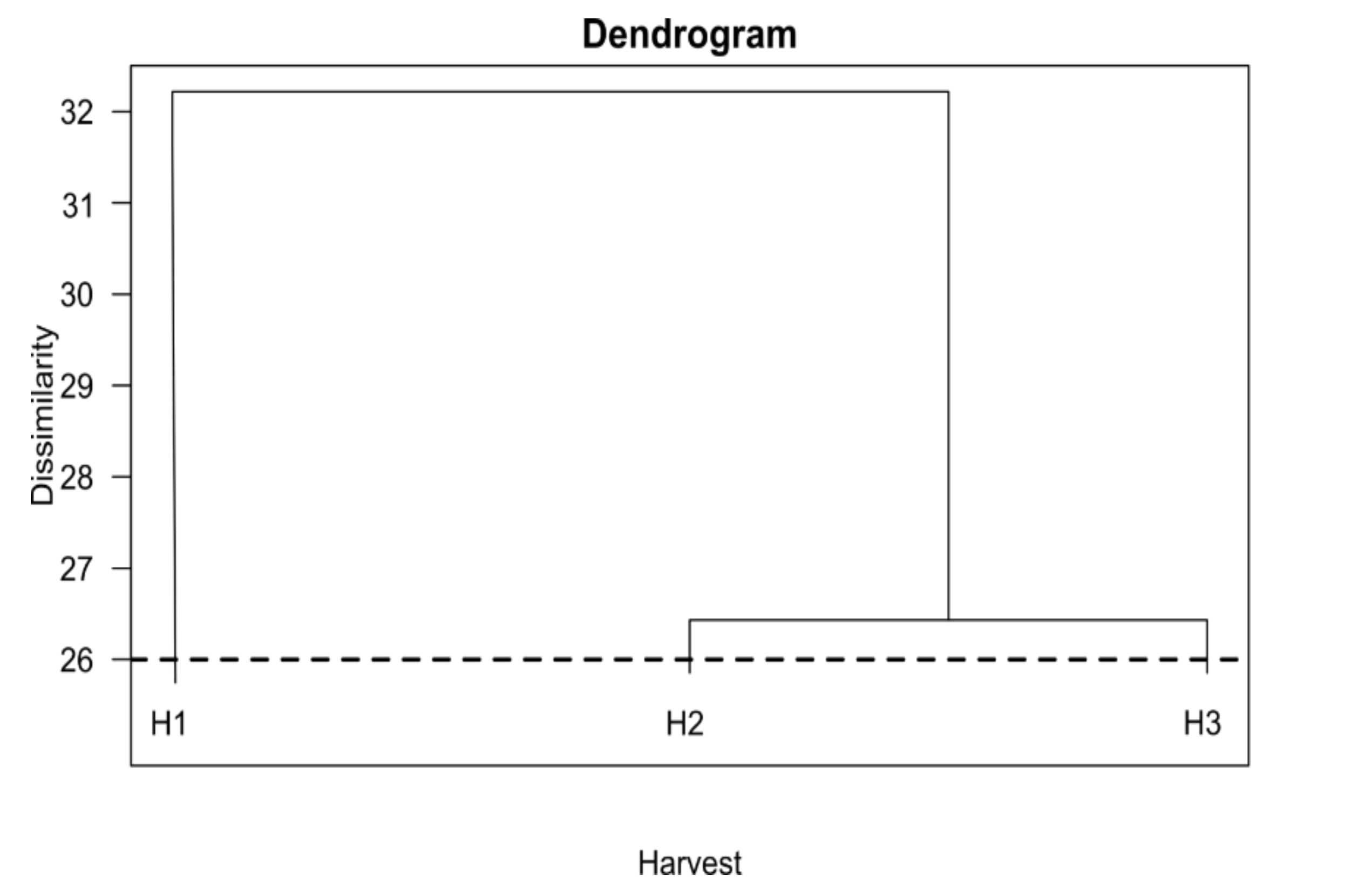

The PCA chemical differences were confirmed through HCA (Figure 6). The dendrogram represents the partition hierarchies whose samples were grouped based on similarities. Group H1 was clearly and visibly separated from the groups H2 and H3. Clusters from the H1 groups consisted of higher-level classes of MO, ALC, and PHE than those of groups H2 and H3. The dendrograms also revealed that the samples from H2 and H3 were mixed to form a cluster because the profiles of their essential oils were similar.

Regarding the behavior of the irrigation depth treatments, PCA accounted for 88.26% of the total variance, PC1 accounted for 74.87%, and PC2 accounted for 13.39%. The PCA results showed separation according to the harvest season. This outcome was revealed by the formation of four well defined and clustered subgroups with respect to T25, T50, T75, T100, T125, and T150. The score chart shows that T25, T50, T75, T100, T125, and T150 were aligned with the positive PC1 axis. T100 and T50 were characterized by high percentages of ether (ETH), phenols (PHE), and oxides (OXI), and significant sesquiterpene (SES) levels at T75, T150, T25, and T125. OXI had a negative association with PC2. PC2, in turn, was positively associated with monoterpenes (MO), alcohols (ALC), ketones (KTEs), and terpenoids (TEIs). Acetates (ACE), norisoprenoids (NOR), triterpenes (TRI), carboxylic acids (CAC), and esters (EST) were negatively associated with PC1 and PC2 (Figure 7).

Figure 6 exhibits a dendrogram obtained from the cluster analysis based on the relative dissimilarity in compounds according to the chemical classes of B. crispa. T100 was clearly and visibly separated from the groups H2 and H3. The clusters from group H1 consisted of higher-level classes of MO, ALC, and PHE compared to groups H2 and H3. This figure also shows that the samples from H2 and H3 were mixed to form a cluster because the profiles of their essential oils were similar.

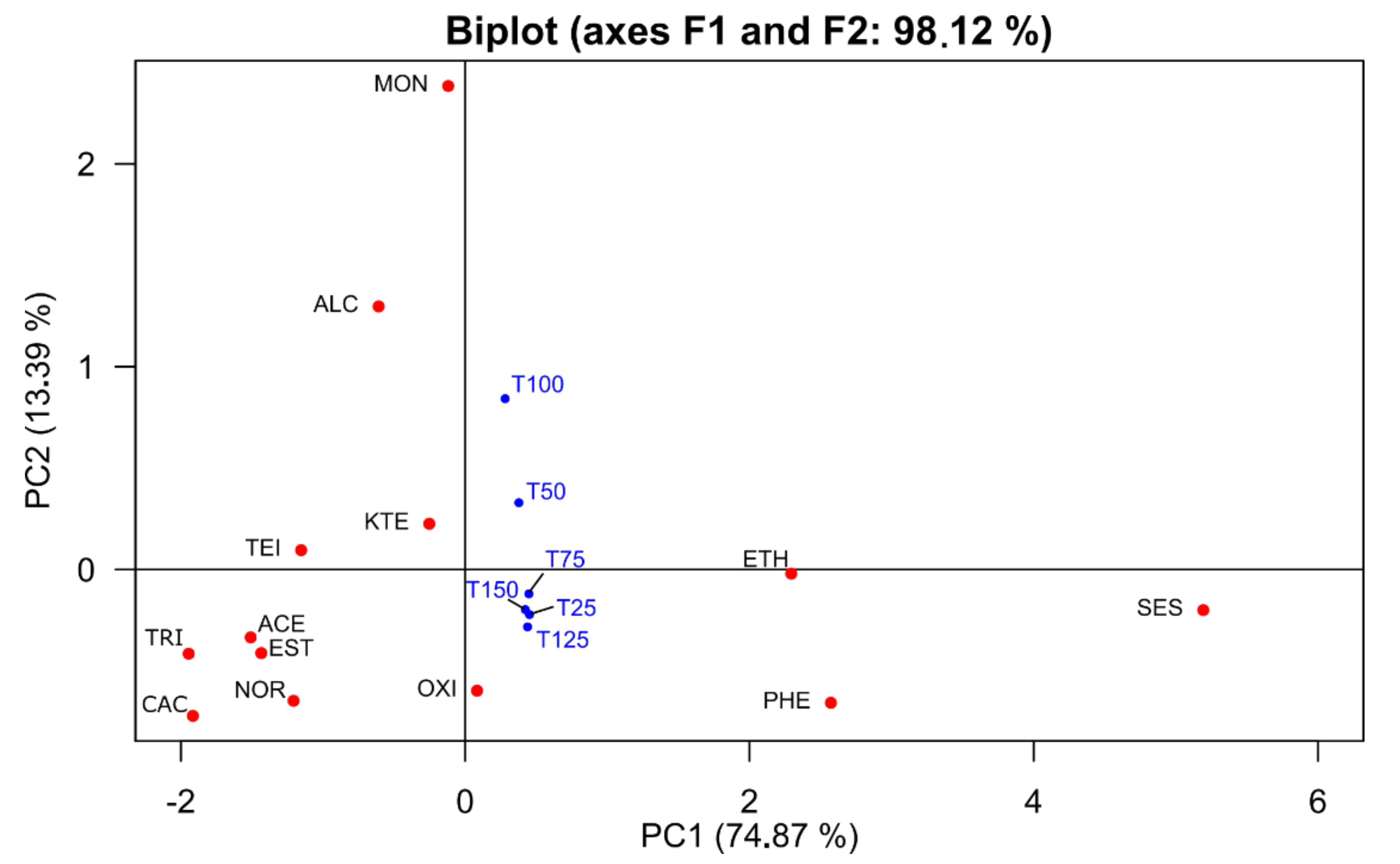

Figure 7 shows that T25 and T125 were combined to form a cluster. Regardless of the irrigation regimes based on ETo, the clusters linked to T75, T150, and T50 did not show major differences between their chemical classes (Figure 6). These results established an obvious difference in the quality and number of secondary metabolites controlled by the harvest season and irrigation regimes.

4. Conclusions

We found an abundance of sesquiterpenes in the leaf oils extracted via hydrodistillation from a Baccharis species. To the best of our knowledge, we are the first to discover the presence of the following compounds in B. crispa: allyl α-ionone, retinol, naphthalenyl, linalool, camphor, ascaridole, 9.10-dimethyl-tricyclo[4.2.1.1 2.5]decane-9.10-diol, eugenol, butanoic-acid, 2-heptanone, phtalicacid, 3-hydroxy-3.6-dimethyl-6-[3-(1-methylethenyl)-1-cyclopropen-1-yl], ethanone, naphthalenol, 9-(3,3-dimethyl-2-oxiranyl)-2,7-dimethyl-2,6-nonadien-1-ol, ergostane, methyl-propenyl-ether, tricyclo[5.1.0.0(2,4)]octane-5-carboxylic acid, 3,3,8,8-tetramethyl, acetone, 1.8-cineole, linalool, camphor, carotol, hinesol, and oxabicyclo. These compounds have demonstrated activities against gastrointestinal inflammation in addition to antioxidant, antimalarial activity, anticancer, and analgesic properties. The environment and soil water availability can change the essential oil content of B. crispa. Harvest seasons were clearly differentiable due to their qualitative chemistry. The volatile profiles and the specific features needed to separate the essential oil components (EOCs) from the leaves of B. crispa were achieved using GC–MS. The chemical classes featuring EOCs separated from leaves were different between harvest seasons and irrigation regimes (treatments). Oxygenated sesquiterpenes, phenylpropanoids (PP), and oxygenated monoterpenes were the primary chemical classes and are commonly known as preservative and antifungal agents. Based on these results, cultivation under the applied conditions in a greenhouse in Piracicaba, SP, Brazil could maximize the production of spathulenol, 1.8-cineole, and eugenol under irrigation and harvest time management. Spathulenol was the main compound in leaf EOs in all treatments. Phthalic acid and 1.8-cineole were the second most important compounds at early harvest (H1) and T50 and at H2 and T75 (deficit irrigation regime), respectively. Eugenol was the primary compound at H1 and T125 in winter (June–September) and at late harvest (H3) and T125 (excess irrigation regimes) in summer (December–March); linalool was the main compound at H1 and T25 and H1 and T125 in winter and at H3 and T125 in summer. These results will be useful for defining the conditions ultimately influencing the essential oil profile of cultivated B. crispa and to achieve better agronomic management for commercial purposes.
