Mixotrophic Cultivation of Microalgae in Cassava Processing Wastewater for Simultaneous Treatment and Production of Lipid-Rich Biomass

Abstract

Cassava processing wastewater (CPW) is a highly polluting, liquid residue of cassava processing, usually discarded or treated anaerobically. However, it can serve as a low-cost culture medium for microalgae. After a preliminary evaluation of the growth of 10 microalgal strains in diluted CPW, the microalgae Haematococcus pluvialis SAG 34−1b and Neochloris (Ettlia) oleoabundans UTEX 1185 were selected for cultivation in CPW without a supply of additional nutrients and evaluated for their growth, lipid production, and nutrients removal. Maximal biomass concentrations of 1.79 g·L⁻¹ for H. pluvialis and 3.18 g·L⁻¹ for N. oleoabundans were achieved with 25% CPW medium on the 13th day of growth. The algae H. pluvialis and N. oleoabundans removed 60.80 and 69.16% of the chemical oxygen demand, 51.06 and 58.19% of total nitrate, and 54.68 and 69.84% of phosphate, respectively. On average, lipid productivities reached 0.018 and 0.041 g·L⁻¹ day⁻¹ for H. pluvialis and N. oleoabundans, respectively. Therefore, cultivating these microalgae in diluted CPW is a promising treatment for cassava wastewater with simultaneous valuable biomass production.

1. Introduction

Microalgal biomass can be used for many applications, from feed to biofuels [1,2,3], but its large-scale production requires large amounts of water and nutrients [4]. On the other side, there is a growing effort in the biotechnological valorization of agro-industry residues [5,6]. The use of agro-industrial residues in bioprocesses provides many new possibilities of nutrient-rich substrates while reducing pollution problems [7].

Cassava (Manihot esculenta L.) is a root cultivated in more than 100 countries, with an annual production of around 300 million tons (2018–2019), making it the 5th most important staple crop in the world, ahead of barley, sweet potatoes, and apples [8,9]. The top 10 producer countries are in Africa, Asia, and South America, and cassava is used for direct human consumption and processed into starch products.

Cassava processing wastewater (CPW) is a carbohydrate-rich residue generated in large amounts during cassava flour and starch production. It has been estimated that the volume of cassava wastewater generated by beneficiation of 1 ton of roots ranges from 300 to 3000 L [8,10,11] due to different dilutions during processing.

This residue from the cassava industry is considered a “harmful” pollutant waste due to its high organic content and the presence of cyanide [8,12]. However, from the biotechnological point of view, it can be considered a substrate rich in nutrients, which is suitable for several bioprocesses, including microalgae production (

Table 1. Microbial strains cultivated on cassava wastewater for various bioprocesses, the microalgae are presented in bold text.

Microorganism	Products	References
Rhodospirillum rubrum	Biohydrogen	[13]
Fusarium oxysporum	R-(+)-α-terpineol	[14]
Pseudomonas aeruginosa	Rhamnolipid surfactants	[15]
Clostridium acetobutylicum	Biohydrogen	[16]
Mixed bacteria	Biohydrogen	[17]
Chlorella minutissima	Biomass, proteins and lipids, effluent treatment	[8]
Chlorella minutissima	Biomass, bioremediation	[18]
Phormidium autumnale	Biomass, lipids	[3]
Haematococcus pluvialis	Astaxanthin	[19]
Desmodesmus armatus	Biomass, bioremediation	[20]
Arthrospira platensis	Biomass, nutrient removal	[21]

).

Water and nutrient requirements are bottlenecks of large-scale microalgal cultivation. Several researchers have explored microalgae cultivation combined with wastewater treatment [6,22,23] due to the microalgal capacity of removing pollutants, while growing hetero- or mixotrophically and producing potentially valuable biomass. The use of residues can contribute to sustainable economic growth, both due to the circularity in nutrient recovery and the fixation of CO₂ [4,24,25]. Since CPW contains many nutrients, it is inherently low-cost and preliminarily shown to support the growth of microalgae. In addition, CPW-based media could be used to reduce the cost of algae-based bioproducts.

Few literature reports describe specifically the use of CPW (see Table 1), and two describe the use of glucose from hydrolyzed cassava [26,27,28]—a process that could be coupled with the use of CPW evaluated in this paper. In particular, the starch-degrading capability was observed in Phormidium autumnale [29] and green microalgae [8].

However, the residue’s high COD and mild toxicity make microalgae production contingent to strain selection and adaptation. Therefore, the main goal of this study was to investigate growth and lipid production by two industrially important microalgal strains, Haematococcus pluvialis and Neochloris oleoabundans [30,31] selected for cultivation in CPW after a preliminary screening to verify their potential for combining the wastewater treatment with algae culturing and biodiesel production. To our knowledge, it is the first report that successfully used CPW diluted solely in water, without nutrient amendment, to cultivate these microalgae.

2. Materials and Methods

2.1. Microorganisms

Preliminary evaluation of microalgal strains was conducted to identify strains tolerant to 10% CPW-based media (

Table 2. Biomass productivities of 10 microalgae cultivated in diluted cassava wastewater (10%). The lipid content is estimated from the C/N mass ratio.

Microalgae	Average Biomass Productivity (g·L−1·day−1)
Amphiprora paludosa SAG 15.83	0.18 ± 0.04
Aphanothece clathrata SAG 23.99	0.13 ± 0.02
Botryococcus braunii SAG 30.81	0.15 ± 0.05
Chlorella protothecoides SAG 211−7b	0.09 ± 0.02
Chlorella vulgaris SAG 2.80	0.10 ± 0.04
Chlorococcum oleofaciens SAG 213−11	0.06 ± 0.04
Dunaliella parva SAG 19−1	0.08 ± 0.03
Haematococcus pluvialis SAG 34−1b	0.08 ± 0.02
Neochloris oleoabundans UTEX 1 185	0.21 ± 0.03
Scenedesmus obliquus SAG 276−10	0.08 ± 0.04

). According to the results of biomass productivity, all of the species evaluated are capable of growing at about 0.11 g·L⁻¹ day⁻¹, and two accumulated more than 15% lipids. These two freshwater microalgae were selected, one due to its astaxanthin production capacity, Haematococcus pluvialis SAG 34−1b (purchased from SAG—Sammlung von Algenkulturen der Universität Göttingen—Göttingen, Germany) and one due to its higher biomass productivity (Neochloris oleoabundans UTEX 1185, purchased from the culture collections UTEX at University of Texas—Austin, TX, USA). The possibility of co-producing astaxanthin may be advantageous in a biorefinery process.

2.2. Cassava Wastewater

Cassava processing wastewater obtained from the manufacturing of cassava flour (Podium Alimentos Ltd., Paranavaí, Brazil) was collected, filtered through a qualitative filter of 11 μm pore-size (Whatman Ltd., Maidstone, UK) to remove large solid particles before use, and stored at −18 ± 1 °C until needed. A wastewater sample was analyzed in the laboratory for its overall composition (

Table 3. Composition of CPW used in this work.

Components	Raw CPW	Sterilized CPW
pH	5.4 ± 0.02	5.4 ± 0.02
Total solids (g·L−1)	38.5 ± 0.13	39.1 ± 0.11
Volatile solids (g·L−1)	32.0 ± 0.08	32.7 ± 0.08
Total carbohydrates (g·L−1)	39.5 ± 1.10	40.1 ± 1.04
Reducing sugars (g·L−1)	15.3 ± 0.30	15.8 ± 0.46
Total nitrate (g·L−1)	1.90 ± 0.05	1.92 ± 0.04
Total phosphate (mg·L−1)	246 ± 1.23	258 ± 1.41
Potassium (g·L−1)	2.02 ± 0.03	2.09 ± 0.07
Magnesium (mg·L−1)	165 ± 0.02	164 ± 0.02
COD (g·L−1)	46.8 ± 0.26	46.8 ± 0.29
BOD (g·L−1)	16.7 ± 0.12	16.9 ± 0.10

) following standard methods [32]. The natural pH of CPW was not adjusted. The same cassava wastewater was used for all of the experiments.

2.3. Cultivation Conditions

To determine the suitable CPW concentration for microalgae growth, an inoculum of each microalga was prepared in a modified ES Basal Medium containing (per liter): 0.2 g KNO₃, 0.02 g K₂HPO₄, 0.02 g MgSO₄·7H₂O, and 0.005 L micronutrient stock solution (77 µM ZnSO₄·7H₂O; 18 µM MnCl₂·4H₂O; 462 µM H₃BO₃; 4.2 µM Co(NO₃)₂·6H₂0; 12 µM Na₂MoO₄·2H₂O; 16 µM CuSO₄·5H₂O; 45 µM FeSO₄·7 H₂O; 428 µM Na₂EDTA). After cultivation, inocula were transferred to 2 L Erlenmeyer flasks containing 1 L of medium with different concentrations (25, 50, 75, and 100%) of CPW, and the culture was monitored for 15 days.

The most favorable concentration (25%) of CPW for algal growth was taken for comparison with a synthetic mixotrophic medium. Cultures suspension of H. pluvialis and N. oleoabundans were used to inoculate each flask. The strains were grown in 2 L Erlenmeyer flasks with 1 L of synthetic mixotrophic medium (ES Basal Medium supplemented with 10 g·L⁻¹ of glucose) and 2 L Erlenmeyer flasks containing 1 L of medium with 25% of filtered CPW.

All of the media were sterilized at 1 atm, 121 °C for 15 min, and inoculated with 10% (v/v) of homogeneous algal suspension. The cultures were maintained for 15 days at 25 ± 1 °C, with occasional manual shaking, and lighted with cool fluorescent lights under light:dark cycle of 12 h at an irradiance of 48 μmol photons m⁻² s⁻¹.

2.4. Analytical Methods

2.4.1. Determination of Cell Concentration

The biomass concentration was determined gravimetrically by collecting 5 mL of microalgae suspension, centrifugation at 5000 rpm, 5 °C for 10 min (Sorvall Legend Mach 1.6R), and drying the pellet to constant weight at 45 °C in a vacuum drying cabinet. Samples without algae were used as blank.

2.4.2. Characterization of Cassava Processing Wastewater

The wastewater quality parameters were analyzed in the raw and sterilized wastewater by the standard methods described below. To evaluate the potential of pollutant reduction, after finishing cultivation (15th day of microalgae culture), the incubation was stopped, and the total culture medium volume was centrifuged at 5000 rpm, 5 °C for 10 min. The cell pellets were collected and processed for lipid analyses, while the supernatants were analyzed to determine the parameters COD, BOD, total nitrate, and total phosphate according to the standard methods for the examination of water and wastewater [32].

Removal ratios (%) for those nutrients were calculated by dividing the difference between the first day and the last day concentrations by the first day concentration and then multiplied by 100.

The pH value:The pH was measured using a pH meter (MS Tecnopon mPA2010).

Carbohydrates analyses: Total carbohydrates were estimated using the colorimetric method based on the Phenol–sulfuric assay [33]. Measurements of reducing sugars were estimated according to [34].

Total Phosphate and Nitrate contents were determined according to the procedures SM 4500-P E and SM 4500-NO3 B, respectively, used in standard methods [32].

Total Potassium and Magnesium were determined according to the procedure SM 3120 B [32].

Chemical Oxygen Demand (COD) was determined using the Closed Reflux Colorimetric Method in accordance with the procedure SM 5220 D [32].

Biochemical Oxygen Demand (BOD) was determined using the manometric method in accordance with the procedure SM5210 B [32].

Total and Volatile Solids were analyzed by gravimetric analysis, according to Method 1684 described by the US Environmental Protection Agency’s (EPA’s) Office of Water [35].

2.4.3. Lipid Analysis

The wet paste collected by centrifugation was dried at 45 °C for 24 h under a vacuum oven and grounded in a mortar. The lipids were extracted using a gravimetric method adapted from Folch [36]. Approximately 1 g of dry biomass settled in a cellulose cartridge was immersed in a 100 mL mixture of chloroform:methanol (2:1, v/v) in a Soxhlet apparatus for 4 h with reflux at 53 °C. At the end of extraction, the extracting solvent was distilled to recycle the chloroform:methanol mixture followed by drying the lipid fraction at 45 °C under a vacuum for 6 h and weighing after cooling to room temperature. The lipid content was calculated by dividing the residue weight by the DCW.

2.4.4. FAME Analysis by Gas Chromatography

Fatty acids were methylated by the direct transesterification method described by Liu and Zhao [37], with reaction conditions of 70 °C, under ambient pressure for 20 h, and biomass:methanol ratio 1:20 (w/v) catalyzed by 0.2 mol·L⁻¹ H₂SO₄.

The FAME was analyzed by gas chromatography using a Shimadzu GC 2010 instrument equipped with a Restek RTX-Wax column and a flame ionization detector. Operating conditions were as follows: Injector temperature 250 °C; oven temperature initially 130 °C, holding 2 min, then heating to 230 °C at 15 °C min⁻¹; holding for 8 min; finally, heating to 240 °C at 20 °C min⁻¹, then holding for 2 min. The detector temperature was 250 °C. Fatty acids were identified by comparing their retention times and areas with a mixed fatty acid methyl ester standard (Supelco 37 FAME mix).

2.4.5. Data Analysis

The present results are the mean of the values obtained for each sample. The average values are reported. The differences in mean values (n = 3) as well as between the mean percentages (n = 3) were assessed with a simple statistical analysis using Microsoft Excel, by the analysis of variance ANOVA, and Student’s t-test, and were statistically different at a significance level of 5%.

3. Results and Discussion

3.1. Microalgae Growth in CPW

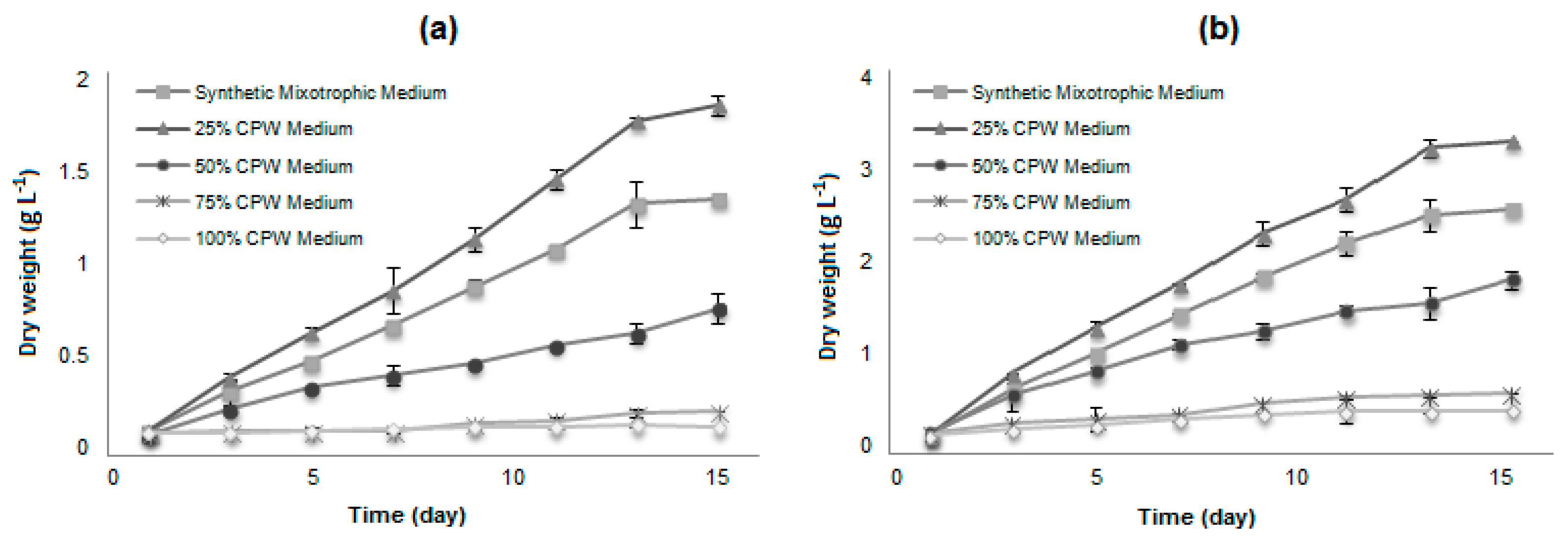

The growth kinetics of the selected strains for cultivation in CPW were evaluated at four concentrations (25, 50, 75, and 100%) and compared with a culture in the synthetic mixotrophic medium. Both microalgae are relatively tolerant to the cassava wastewater conditions. The better performance for the growth of both microalgae strains was at 25% diluted CPW medium (Figure 1), since the use of high concentrations of CPW (50, 75, and 100%) resulted in significantly less biomass, although the cells remained viable.

Various factors upon which algal growth depends may be responsible for the results: (1) Substrate inhibition where the low concentration of substrate stimulates cell growth, whereas the high concentration has an inhibitory effect; (2) the turbidity in the high concentrations of wastewater decreasing the light penetration and reducing the photosynthetic efficiency; (3) increase of osmolarity; or (4) toxic compounds remain present in the high concentrated CPW media.

The microalgae H. pluvialis and N. oleoabundans also showed better biomass growth and productivity in 25% CPW compared with the synthetic mixotrophic medium (ES basal medium + 10% glucose), and no apparent lag phase was observed. In CPW-based media, the biomass concentration of H. pluvialis and N. oleoabundans reached a maximum of 1.79 ± 0.03 g and 3.18 ± 0.05 g of dry biomass per liter of culture, respectively on the 13th day of cultivation. The average specific growth rates observed were 0.24 and 0.29 d⁻¹ for H. pluvialis and N. oleoabundans, respectively. In comparison, in the synthetic mixotrophic medium, the microalgae reached maximal cellular concentrations of 1.30 ± 0.10 g and 2.49 ± 0.08 g of dry biomass per liter of culture and an average growth rate of 0.21 and 0.24 d⁻¹, respectively, indicating that both microalgae have a satisfactory growth in CPW medium, comparable with the previously reported literature for these microalgae [31,38,39]. Other species cultivated in CPW presented a comparable biomass production: 0.85 g·L⁻¹ in 12 days (or a productivity of 0.071 g·L⁻¹·d⁻¹) for Desmodesmus armatus in Bold’s Basal Medium-enriched CPW [20], 0.936 g·L⁻¹ in 7 days (or a productivity of 0.124 g·L⁻¹·d⁻¹) for Chlorella minutissima in 1% CPW [18], (nutrient addition, perhaps carried from the 15% inoculum volume, is not disclosed). The biomass production was lower than observed in heterotrophic batch production of Phormidium autumnale in CPW added of NH₄NO₃ [3], which reached 5.2 g/L in 5 days (or a productivity of 1.02 g·L⁻¹·d⁻¹).

Figure 1 also clearly shows that the growth rate is inversely proportional to the CPW concentration in the range of concentrations tested. However, there is a limit to how much biomass can be produced from the diluted CPW since dilution implies that fewer nutrients are available. Assuming that with 0% CPW (pure water), the net biomass growth would be zero, then the approximate final biomass concentration, X_f, after 13 days can be predicted by polynomial regression equations, Equations (1) and (2), in the range 0–50% CPW concentration:

H. pluvialis X_f, g·L⁻¹ = 0.1 −22 [CPW]² + 12.2 [CPW]

(1)

N. oleoabundans X_f, g·L⁻¹ = 0.1 −36 [CPW]² + 21.4 [CPW]

(2)

These equations are only valid for the CPW batch used, probably varying with season and processing but conserving its parabolic shape. The equations allow one to ponder the biomass concentration, biomass production, and pond area for treating a given amount of CPW. In this analysis, it is essential to differentiate between CPW and biomass amounts and concentrations. The nutrients in a given amount of CPW can support a maximum amount of biomass irrespective of how much the residue will be diluted (the maximal biomass amount depends on the concentration of nitrogen, phosphate, microelements, and the species of alga). However, the CPW concentration affects the biomass growth rate, final concentration, and the production area—the concentrated CPW requires less land area than the diluted CPW. Figure 2 presents projected values for biomass concentration, pond area, total biomass production per batch, and areal productivity as a function of CPW concentration.

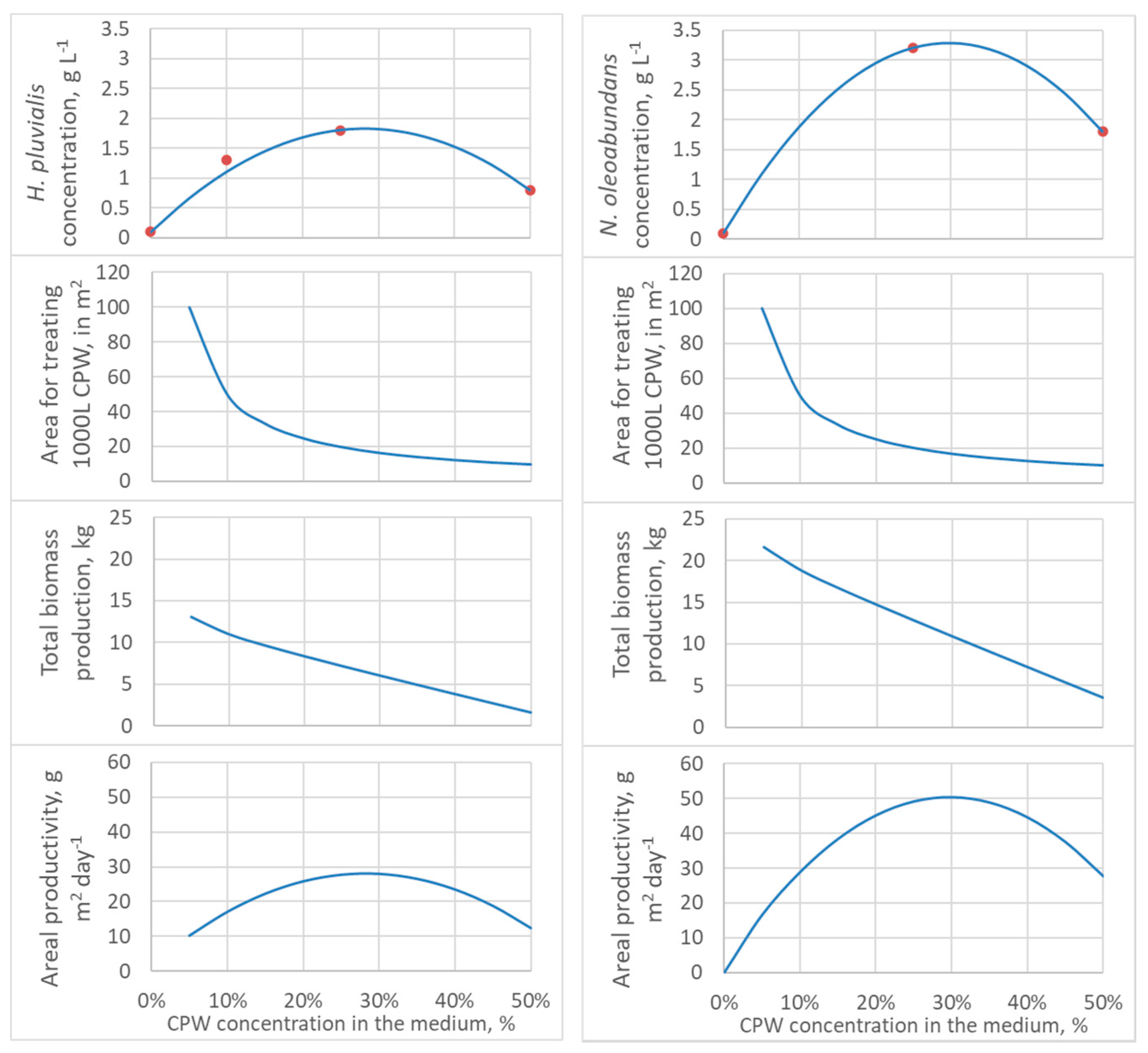

In Figure 2, biomass concentration was estimated using Equations (1) and (2). The pond area for treating a volume of residue V_CPW, in liters, with a concentration [CPW], in percentage, and depth h, in cm, can be calculated by Equation (3):

Pond area, m² = (V_CPW/[CPW])/(10 h)

(3)

The total biomass production is the product of biomass concentration and effective culture medium volume, given by Equation (4):

Total biomass production, kg = X_f (V_CPW/[CPW])/1000

(4)

And finally, the areal productivity is simply the quotient of total biomass by area and time or Equation (4) divided by Equation (3) and the batch duration in days, to give:

Areal biomass productivity, kg m⁻² = X_f h/(100 t)

(5)

In Figure 2, a calculation basis of V_CPW = 1000 L, and ponds with 20 cm depth were considered. While the CPW concentration that gives the maximal biomass concentration and most intensive land use is about 20−30% for both microalgae (Figure 2), the maximum biomass production occurs with lower CPW concentrations. The maximal biomass concentration and minimal land use are best for economical processing, facilitating downstream, and managing due to the lower processing volumes, while aiming at maximum biomass production is interesting for biomasses with high added-value, as it would be the case for H. pluvialis after carotenogenesis induction.

However, while higher dilutions lead to higher biomass production, there must be a point where limiting nutrients becomes too diluted. For example, 1% CPW, with 19 mg·L⁻¹ of nitrate or 4.2 mg·L⁻¹ elemental nitrogen, could support the synthesis of only 27 mg·L⁻¹ of protein (considering protein = 6.25 × N, an average conversion factor) [40], and therefore 38 to 67 mg·L⁻¹ of biomass with 40 to 70% protein, a content range typical for microalgae [41]. Therefore, optimization is necessary for each specific system (CPW composition and microalgal species).

3.2. Characteristics of Cassava Wastewater

The typical cassava wastewater is known as a complex mixture of natural organic and inorganic compounds with variable COD [5,10,13], from 6 to 56 g·L⁻¹ depending on the process [8]. The composition of CPW used in this study is presented in Table 3.

The CPW used in this experiment showed an average elemental N:P ratio of 12:1, not so far from the Redfield ratio of 16:1 as some typical culture media [4,42], explaining how CPW can support the growth of both freshwater microalgae without supplementation, at a concentration of 25%. The C:N:P ratio is not meaningful since the microalgae can use both organic and inorganic (CO₂) carbon sources.

3.3. Removal of Pollutants from CPW by Microalgae

3.3.1. Nitrate and Phosphate Reduction

One of the main requirements of wastewater treatment is the removal of nutrients as nitrogen and phosphorous, which otherwise can lead to risks of eutrophication if these nutrients accumulate in the aquatic environment [43]. The results concerning nitrate and phosphate removal from the CPW (

Table 4. Removal of nitrate and phosphate from the CPW after 15 days of cultivation.

Components	Sterilized Raw CPW	Sterilized Filtered CPW	25% Filtered CPW	H. pluvialis Culture	N. oleoabundans Culture
Total nitrate (g·L−1)	1.92 ± 0.04	1.86 ± 0.05	0.47 ± 0.01	0.23 ± 0.01	0.20 ± 0.01
Total phosphate (mg·L−1)	258 ± 1.41	250 ± 1.37	62.55 ± 0.35	28.10 ± 1.27	18.70 ± 1.13

) show a slight reduction of 3 ± 0.29% by the filtration process for both components. At the same time, the H. pluvialis and N. oleoabundans cultivation presented a reduction of 51.06 ± 3.01% and 58.19 ± 2.56% in total nitrate content and 54.68 ± 2.05% and 69.84 ± 1.82% in total phosphate content, respectively.

The present study provides evidence of efficient remediation by consumption of nitrogen and phosphorus by both microalgae without an adverse effect on the growth rate. A remarkable reduction in nitrogen and phosphorus contents was also reported in earlier studies, with the elimination of nitrogen ranging from 50.2 to 89.1% and phosphorus from 33.0 to 83.0%, in industrial, domestic, and agricultural wastewaters, treated by different microalgae strains, such as Chlorella pyrenoidosa [44], Scenedesmus obliquus [22], and Chlamydomonas sp. [7].

Several factors have been reported to explain the incomplete nitrate and phosphate assimilation since algal growth and nutrient uptake are clearly not only affected by the availability of nutrients, but also depend on complex interactions among physical, chemical, and biotic factors [1,45,46].

Considering the previously reported data of wastewater treatments, these results could be improved with the use of more concentrated cultures of algal biomass, since on a small scale, experiments with hyper-concentrated algal biomass >1.5 g·L⁻¹ cultures have shown that these can accelerate the removal of nutrients compared with typical cultures [23].

3.3.2. Chemical and Biochemical Oxygen Demand Reduction

The CPW presents a high value of COD and BOD, representing high environmental impact, but it was reduced to a lower value due to the absorption of organic compounds and production of oxygen by microalgae under mixotrophic growth. The pretreatment by filtration presented a reduction of 30.0 ± 1.20% in COD and 14.7 ± 0.83% in BOD content of CPW, by the partial removal of suspended solids when the medium was prepared. This process increases the biodegradability of the residue by increasing the BOD/COD ratio (

Table 5. COD and BOD removal efficiency by H. pluvialis and N. oleoabundans cultures.

Components	Sterilized Raw CPW	Sterilized Filtered CPW	25% Filtered CPW	H. pluvialis Culture	N. oleoabundans Culture
COD (g·L−1)	46.84 ± 0.29	32.78 ± 0.20	8.19 ± 0.05	3.21 ± 0.03	2.52 ± 0.05
BOD (g·L−1)	16.89 ± 0.10	14.41± 0.08	3.60 ± 0.02	0.42 ± 0.02	0.34 ± 0.01
BOD/COD ratio	0.36 ± 0.004	0.44 ± 0.005	0.44 ± 0.005	0.13 ± 0.01	0.13 ± 0.007

), a parameter of wastewater characterization [47].

The COD and BOD removal efficiencies in the H. pluvialis culture were 60.80 ± 0.34% and 88.32 ± 0.69%, respectively, and in the N. oleoabundans culture were 69.16 ± 0.60% and 90.56 ± 0.39%, respectively, indicating that both microalgae efficiently used organic carbon as a source of energy and substrate for cell growth.

The low BOD/COD ratio (0.13) obtained at the end of both cultures indicates the presence of organic products resistant to biodegradation or products toxic to microorganisms in the final liquid residue.

Previous wastewater treatment studies by different microalgae species report COD removal varying from 55.4 to 90.8% [6,22,44]. This study reports a satisfactory removal by both tested microalgae considering that the culture aeration did not influence the results. It was purposely not provided to avoid false results of COD and BOD reduction by introducing oxygen that contributes to the organic matter oxidation [22].

3.4. Lipid Content

The lipid contents (percentage dry weight = % dw) of H. pluvialis and N. oleoabundans grown on the CPW medium and synthetic mixotrophic medium were analyzed using samples obtained at the end of the experiments. The corresponding results are shown in

Table 6. Total lipid content (% dw) and lipid productivity (g·L⁻¹·day⁻¹) in H. pluvialis and N. oleoabundans, cultured in the synthetic mixotrophic medium and 25% CPW medium. Values are the mean ± standard error of three replicates.

Microalgae Species	Synthetic Mixotrophic Medium		25% CPW Medium
	Lipids (% dw)	Lipid Productivity (g·L−1·day−1)	Lipids (% dw)	Lipid Productivity (g·L−1·day−1)
H. pluvialis	18.5 ± 0.71	0.017 ± 0.001	15.2 ± 1.06	0.019 ± 0.001
N. oleoabundans	21.0 ± 1.41	0.036 ± 0.002	19.2 ± 1.13	0.042 ± 0.002

. Considering the lipid production, an analysis of variance showed no significant difference (p-value = 0.142) between the synthetic mixotrophic medium and CPW medium.

The results agree with the other reports that do not use physical or chemical stressing strategies to increase lipid production [31,48] and suggest a convenient way to reduce the cost of algal lipids.

3.5. Fatty Acid Composition of Biodiesel Produced from Microbial Lipids

Table 7. Major fatty acid profile (percentage of total fatty acids) from microalgae culture after transesterification. Values are the mean of three replicates (n = 3). SFA: Saturated fatty acids; MUFA: Monounsaturated fatty acids; PUFA: Polyunsaturated fatty acids; nd: Not detected.

Fatty Acids	H. pluvialis		N. oleoabundans
	Synthetic Mixotrophic Medium	25% CPW Medium	Synthetic Mixotrophic Medium	25% CPW Medium
C14:0—Miristic acid (%)	0.80 ± 0.02	0.8 ± 0.03	1.1 ± 0.02	0.97 ± 0.07
C16:0—Palmitic acid (%)	21.60 ± 0.40	21.23 ± 0.31	21.10 ± 0.46	21.77 ± 0.32
C16:1 Palmitoleic acid (%)	0.51 ± 0.02	0.50 ± 0.02	1.81 ± 0.04	1.80 ± 0.02
C16:2,3,4 (%)	2.57 ± 0.21	2.33 ± 0.21	9.40 ± 0.08	9.32 ± 0.07
C18:0—Stearic acid (%)	4.50 ± 0.50	4.42 ± 0.09	6.03 ± 0.40	6.02 ± 0.28
C18:1—Oleic acid (%)	16.03 ± 0.32	16.13 ± 0.35	20.30 ± 0.53	20.33 ± 0.24
C18:2—Linoleic acid (%)	29.87 ± 0.80	29.80 ± 0.72	12.97± 0.61	13.28 ± 0.33
C18:3—Linolenic acid (%)	17.40 ± 0.20	17.53 ± 0.12	15.65 ± 0.10	15.65 ± 0.11
C20:0—Arachidic acid (%)	0.35 ± 0.02	0.35 ± 0.01	nd	nd
C20:4n6—Arachidonic acid (%)	1.18 ± 0.04	1.18 ± 0.02	nd	nd
Total (%)	94.80 ± 1.40	94.29 ± 0.80	88.36 ± 1.28	89.13 ± 0.78
SFA (%) *	27.25 ± 0.90	26.80 ± 0.36	28.24 ± 0.84	28.75 ± 0.30
MUFA (%) *	16.54 ± 0.30	16.64 ± 0.34	22.11 ± 0.53	22.13 ± 0.25
PUFA (%) *	51.02 ± 0.77	50.85 ± 0.69	38.02 ± 0.62	38.25 ± 0.30

* Percentage calculated based on the total known fatty acids; nd: Not detected. SFA, MUFA and PUFA stand for saturated, monounsaturated, and polyunsaturated totals, respectively.

shows the fatty acid composition of the lipid fraction extracted from each microalgae culture, determined using GC after conversion to fatty acid methyl esters. The estimated average conversion was 89.8 ± 2%.

The profiles of fatty acids in the microalgal lipids were similar after cultivation in CPW medium compared with a synthetic mixotrophic medium, and no significant differences (p > 0.05) were found between the cultures. Both microalgal oils were dominated by the presence of saturated fatty acid C16:0 (palmitic acid) and the mono and polyunsaturated fatty acids C18:1 (oleic acid), C18:2 (linoleic acid), and C18:3 (linolenic acid). The predominant lipid classes and content agree with the previous observations for H. pluvialis accumulating about 16% lipids [38,49] and N. oleoabundans accumulating 15 to 36% lipids [50,51] when cultivated without a starvation phase and producing primarily unsaturated fatty acids.

The microalgae H. pluvialis and N. oleoabundans offer an advantage in biodiesel application since they have been related to the formation of carotenoids in the lipid bodies [52,53] under certain growth conditions. The stress conditions at the end of culture or longer cultivations could be a strategy to reduce the oxidation of microalgae lipids.

4. Conclusions

To conclude, microalgae cultivation on cassava processing wastewater could be economically valuable for the production of biomass rich in lipids. Despite the variations in its composition, cassava wastewater remains a viable alternative for use as a microalgae medium without any supplementation, including the cultivation of H. pluvialis and N. oleoabundans.

The result of this study shows that microalgae strains H. pluvialis and N. oleoabundans are not only capable of growing in a CPW-based medium, but they are also agents for the mitigation of pollutant load improving the water quality, including BOD, COD, nitrate, and phosphate reduction. In addition, they can be used as a potential pathway for biofuel production. In the CPW culture, the microalgae grew faster, and the lipid production was similar to the synthetic mixotrophic cultures.

Regression models showed that the diluted CPW can sustain a larger production of biomass, but requires more land area for cultivation in ponds or raceways. While the treatment can be achieved with higher CPW concentrations and less production area, but leads to a lower biomass production overall. Therefore, an evaluation of the processing conditions, similar to that used in this research must be done in a species-based approach.
