Characterization of Heterogeneous Polysaccharides from the Aerial Parts of Clinopodium bolivianum (Benth.) with Neutralizing Activity Against HIV-1 Infection

Abstract

Medicinal plants are widely used in Bolivian folk medicine for the treatment of infectious diseases. We have selected one, Clinopodium bolivianum (Benth.) Kuntze, known as “Khoa”, to investigate its potential anti-HIV activity since, traditionally, it has been used to treat other viral infectious diseases. We have carried out an antiviral bioassay-guided fractionation of different extracts of the aerial parts of C. bolivianum. An antiviral crude polysaccharide was obtained, (SBA_S), which is rich in glucose, galactose, mannose, arabinose, xylose, and rhamnose and only has traces of galacturonic acid. SBA_S exhibited antiviral activity with a mechanism of action unrelated to the mannose–lectin DC-SIGN receptors but with a strong viral neutralization activity. In summary, a purified polysaccharide from C. bolivianum has been identified as the main compound responsible for its antiviral activity. SBAs proved to be a neutralizing agent with high antiviral capacity in vitro, so they could be part of new microbicide formulations to prevent HIV transmission.

1. Introduction

Polysaccharides isolated from natural resources, e.g., plants, animals, fungi, or seaweed, are gaining attention due to their wide variety of pharmacological activities, including antitumor, immunomodulatory, antioxidant, antiviral, or anti-inflammatory effects [1]. As bioactive molecules, polysaccharides display several advantages compared to other chemical types of natural products, such as easy-to-find available sources and low toxicity and side effects.

As antiviral compounds, the first report involving high-molecular-weight polysaccharides was published more than 70 years ago [2]. Currently, research is focused on immune booster applications and anti-infective activity. Numerous studies show that natural and chemically modified polysaccharides have a significant inhibitory effect against human immunodeficiency virus (HIV) [3,4], herpes simplex virus (HSV) [5], and other viruses like influenza A virus (IAV) and hepatitis B virus (HBV) [6], displaying a variety of mechanisms.

HIV antiretroviral therapy involves the combination of several drugs that must be administered throughout life. This life-long therapy with side effects and viral resistance emergence led to the search for preventive HIV infection therapies, including topical microbicides. Microbicides act through several mechanisms, such as neutralizing agents, disrupting the viral particle integrity before it can reach the target cell. Another type of microbicides includes DC-SIGN trans-infection inhibitors, which prevent the presentation of the virus to CD4+ T cells. Finally, antiretroviral drugs targeting viral proteins, such as tenofovir or cabotegravir, are among the most studied microbicides [7]. In all cases, the aim is to avoid viral DNA integration into the cell host genome since, when this occurs, it leads to the establishment of viral reservoirs and lifelong infections.

Clinopodium bolivianum (Benth.) Kuntze (syn. Satureja boliviana (Benth.) Briq.) is native to Bolivia, Perú, and Argentina [8]. Popularly known as khoa, muña, or inca muña, it belongs to the Lamiaceae family, and it is used in Bolivian folk medicine to treat influenza and as an antiseptic, anthelmintic, insecticide, and anti-inflammatory drug [9,10]. Other species of Clinopodium have previously shown a variety of biological activities [11,12,13,14,15,16,17], and one of them, S. montana, showed antiviral activity due to water-soluble polar substances [18].

On the other side, the major constituents identified in C. bolivianum were phenolic compounds, such as kaempferol 3-O-glucoside, kaempferol 3-O-xylosylglucoside, kaempferol 7-O-rhamnoside, and quercetin 3-O-sophoroside [19]. There are also reports about the isolation of essential oils [20] and diterpenoid-like compounds [21]. These reports hearten the chemical investigation of the active components of this plant species.

As part of a screening program to investigate the pharmacological activity of higher plants, traditional medicinal plants from the Bolivian tropical forest that were used for the treatment of viral diseases were submitted for antiviral evaluation. Aqueous or ethanolic extracts of seven species, including C. bolivianum, were assayed for the inhibition of HSV-1, vesicular stomatitis virus (VSV), and poliovirus type 1 replication in vitro, revealing that the aqueous extract of this plant displayed antiviral activity, possibly due to polysaccharide substances [22].

The present paper describes the isolation of a highly purified polysaccharide from the water-soluble extract of the aerial parts of C. bolivianum, the identification and quantification of their major constituents, and the evaluation of its antiviral activity and mechanism of action.

2. Materials and Methods

2.1. Plant Material and Chemicals

The aerial parts of Clinopodium bolivianum (Benth.) Kuntze (syn. Satureja boliviana (Benth) Briq). ‘WFO (2024): Clinopodium bolivianum (Benth.) Kuntze. Published on the Internet at http://www.worldfloraonline.org/taxon/wfo-0000890868 accessed on 9 October 2024. Plant specimens were collected by Eduardo Gonzales Dávalos in Huarina municipality, Omasuyos province, La Paz, Bolivia (latitude 16°11′39.81″ S and longitude 68°36′16.43″ W) and identified and certified by the Herbario Nacional de Bolivia, Universidad Mayor de San Andrés. A voucher specimen (No. EG-1, Labiatae) was identified by the Herbario Nacional de Bolivia and has been deposited at the Department of Pharmacology at the Instituto de Investigaciones Fármaco Bioquímicas, UMSA, La Paz, Bolivia.

Most of the chemicals used in the experiments, including glucose, saccharose, cellobiose, trehalose, galactose, mannose, arabinose, maltose, xylose, rhamnose, galacturonic acid, glucuronic acid, trifluoroacetic acid (TFA), and dimethyl sulfoxide (DMSO) were purchased from Merck (Lyon, France). Other chemicals used in this study were of analytical grade and were purchased from Panreac (Barcelona, Spain).

2.2. Fractionation of C. bolivianum Aerial Parts

A bioassay-guided fractionation was carried out with 20 g of aerial parts of C. bolivianum. A total of 10 g was decocted (30 min at 100 °C) to half volume and lyophilized to obtain a hot water extract denominated SBA (yield: 24.2%). Another 10 g was extracted with 95% ethanol (100 mL, 30 min at room temperature) and concentrated to obtain an ethanol extract (SBB, yield: 12.1%). The antiviral activity of both extracts was evaluated, and SBA was selected as the more active one. Thus, SBB was discarded for further analysis, and SBA was selected for additional fractionation. SBA was subsequently treated with a mixture of water/EtOH (1:3) and centrifuged to separate the ethanol-soluble material (SBA-0) from the precipitate (SBA-1), which was lyophilized.

Fraction SBA-1 was then treated with 1 M NaOH, and the soluble material was recovered and treated with one volume of 96% ethanol (room temperature, overnight), recovering the resulting precipitate by centrifugation. To eliminate sodium hydroxide and other impurities, this material was resuspended in distilled water and dialyzed against water for 4 days using Visking membranes with a molecular cut-off of 12–14 kDa (Medicell International Ltd.^®, Islington, London, UK). The retentate was then centrifuged to separate an insoluble fraction (SBA_I) from a soluble fraction (SBA_S), whose antiviral activity and composition were studied.

2.3. Determination of Total Neutral Sugars

Total carbohydrates were calorimetrically determined by the previously described phenol–sulfuric acid method [23].

2.4. Analysis of the Polysaccharides

2.4.1. Monosaccharide Composition Analysis

A sample of the SBA fraction (1 mg) was hydrolyzed with 1 mL of 3 M trifluoroacetic acid (TFA) at 120 °C for 1 h. Immediately, 1 mg of myo-inositol was added as internal standard to each hydrolysate, and the mixture was dried in a rotary evaporator. Prior to GC-MS analysis, the monosaccharides released were derivatized as trimethylsilylated oximes. To do so, 250 µL of a solution of hydroxylamine chloride in 2.5% pyridine was first added to each sample and kept at 70 °C for 30 min, and then 150 µL of bis-trimethylsilyl trifluoroacetamide (BSTFA) were incorporated to the previous mixture and maintained at 80 °C for 10 min [24]. The analysis of the samples was performed by gas chromatography–mass spectrometry (GC-MS) in an Agilent 7980A-5975C instrument (Agilent Technologies, CA, USA), with a column HP-5MS (30 m × 0.25 mm, 0.2 µm), a temperature program from 180 °C to 280 °C, a temperature ramp of 2 °C/min, and 1 min at the final temperature. Monosaccharides were identified and quantified using mixtures of commercial monosaccharides with 1 mg of myo-inositol, derivatized, and analyzed in identical conditions.

2.4.2. Fourier Transform Infrared (FT-IR) Spectrometry

The alpha or beta configuration of the monomers, as well as the presence of organic functional groups, was assessed by FT-IR. The samples were acidified with hydrochloric acid, dialyzed, dried, and used to prepare a solid pellet for FT-IR measurement. Briefly, 1–2 mg of dry sample was mixed with 300 mg of KBr, ground to fine powder, and then pressed to obtain the solid pellet, which was analyzed in an FTIR 4200 spectrometer (Jasco Corporation^®, Tokyo, Japan) in the range of 400–4000 cm⁻¹, using a detector TGS with a resolution of 4 cm⁻¹.

2.4.3. Determination of Linkage Types in SBA_S by Methylation Analysis

The fraction of SBA_S was permethylated as previously reported [25,26] and then treated with deuterated sodium borohydride in 75% ethanol to reduce the acid groups of uronic acids to their corresponding neutral monosaccharide before hydrolysis since, otherwise, they are not detected [27]. The monomers sensitive to this treatment carry a mass tag of 2 Da due to the deuterated reagent, which allows them to be differentiated by mass spectrometry. The product was next hydrolyzed with 2 M TFA, reduced again with deuterated sodium borohydride, and acetylated to obtain a mixture of partially methylated alditol acetates. The final products were analyzed by GC-MS in an Agilent 7980A-5975C (Agilent Technologies, Santa Clara, CA, USA), with an HP-5MS column (30 m × 0.25 mm, 0.2 µm) and using a temperature program: 170 °C (1 min) and 2 °C/min from 170 to 210 °C (1 min). The injector and transfer line were kept at 250 °C. The partially methylated alditol acetates were identified by their retention time and mass spectrum.

2.5. Antiviral Activity

2.5.1. Cell Culture Reagents

MT-2 (obtained from American Type Culture Collection, Manassas, VA, USA; Ref: CRL-2560) and RAJI DC-SIGN cells (kindly provided by Dr. Fernando Arenzana-Seisdedos, Institut Pasteur, Paris, France) were cultured in RPMI-1640 medium, while 293T cells (obtained from American Type Culture Collection, Manassas, VA, USA; Ref: CRL-3216) were cultured in DMEM medium, containing 10% (v/v) fetal bovine serum, 2 mmol/L l-glutamine, penicillin (50 IU/mL), and streptomycin (50 μg/mL) (all Whittaker M.A. Bio-Products, Walkerville, MD, USA). Cells were maintained at 37 °C in a 5% CO₂ humidified atmosphere and split twice a week. Buffy Coats from anonymous healthy blood donors were obtained from the Centro de Transfusiones de la Comunidad de Madrid. Proper informed consent was obtained from each subject in accordance with the Spanish legislation on blood donor regulations. Confidentiality and privacy were assured. Sex- and gender-based analyses were not performed since the gender of the donor was not disclosed. PBMCs (peripheral blood mononuclear cells) were isolated from Buffy Coats by centrifugation through a Ficoll-Hypaque gradient (Pharmacia Corporation, North Peapack, NJ, USA) and resuspended in RPMI 1640 medium supplemented with 10% fetal bovine serum, 2 mM L-glutamine, and antibiotics (100 mg/L streptomycin and 100 U/mL penicillin) (all Whittaker M.A. Bio-Products, Walkerville, MD, USA) before culturing at a concentration of 2 × 10⁶ cells/mL. PBMC viability was maintained by the addition of Interleukin-2 (IL-2) (Emeryville, CA, USA) every 48 h.

2.5.2. Plasmids and Virus

Plasmid pNL4.3-Ren has been previously described by our group [28]. Viral supernatants were obtained from 293T cell transfection using the calcium phosphate method using the plasmid mentioned above. These supernatants were titrated in serial dilution infections of the same cells used for the experiments by RLUs obtained in a luminometer (Berthold Detection Systems, Pforzheim, Germany).

2.5.3. Anti-HIV Assays

Infectious supernatants were used to infect cells in the presence or absence of different concentrations of the fractions or the polysaccharides obtained. The evaluation of the anti-HIV activity was performed using two different methods: neutralization assay and trans-infection assays.

Neutralization Assay

Neutralization assays were performed using recombinant HIV supernatants treated with different concentrations of polysaccharides or controls prior to infection. This assay is useful for detecting those compounds acting through the inactivation of viral particles. Briefly, recombinant HIV-1 supernatants (NL4.3-Ren) were incubated with active concentrations of the samples for 1 h prior to the infection of MT-2 cells. The neutralization process of the HIV particle was developed at four different concentrations (500, 50, 5, and 0.5 μg/mL) to allow the calculation of neutralizing IC₅₀. Then, treated supernatants were diluted to the final infection concentration and added to the MT-2 cell culture. A dilution with the same concentration of the diluted remnant polysaccharides in the viral supernatants was used as control. After 48 h, cells were lysed with 100 μL of Renilla lysis buffer system (Promega, Madison, WI, USA), and relative luminescence units (RLUs) were obtained in a luminometer (Berthold Detection Systems, Pforzheim, Germany) after the addition of substrate to cell extracts following the specifications of the manufacturer (Promega, Madison, WI, USA).

Transinfection Assays

Antigen-presenting cells (APCs) mediated trans-infection, which was tested using a cell line expressing the DC-SIGN receptor (RAJI DC-SIGN), one of the main receptors used by APCs to deliver the virus to CD4+ T cells in lymph nodes. Primary CD4+ T cells from PBMCs obtained from healthy patients were used as target cells. Briefly, RAJI or RAJI-DC-SIGN cells were incubated with polysaccharides and mannan (inhibition control) at final concentrations of 10 or 100 μg/mL or PBS as vehicle control (100%). An hour later, viral supernatants (NL4.3-Renilla) were added to the culture, and cell adsorption was allowed in rotation for two hours. Afterward, cells were collected, washed thoroughly, and cultured in RPMI, with IL-2 pre-activated PBMCs, to assess the inhibition of viral transfer by RAJI-DC-SIGN cells [29]. After 48 h in culture, cells were lysed with 100 μL of Renilla lysis buffer system (Promega, Madison, WI, USA), and relative luminescence units (RLUs) were obtained in a luminometer (Berthold Detection Systems, Pforzheim, Germany). RAJI cells were used as DC-SIGN negative trans-infection control.

2.5.4. Cell Viability

Cell viability in treated mock-infected cells was measured in parallel with the same conditions as in the antiviral assays following the manufacturer instructions of CellTiter Glo assay system (Promega, Madison, WI, USA).

2.5.5. Statistics

Inhibitory concentrations (50%) (CI₅₀), cytotoxic concentrations (50%) (CC₅₀) calculations, and ANOVA analysis were performed using GraphPad Prism software v 8.0 (La Jolla, CA, USA).

3. Results and Discussion

3.1. Bioguided Assay Fractionation of C. bolivianum Aerial Parts

C. bolivianum aerial parts were extracted with hot water, obtaining the SBA fraction, which represented 24.2% of the starting dry material, with anti-HIV activity. The total carbohydrates of the water extract (SBA), determined by the phenol-sulfuric acid, amounted to 141 mg/L. To obtain the purest fractions with enhanced antiviral activity, the water extract SBA was sequentially fractionated based on its anti-HIV activity. First, treatment with ethanol gave an ethanol-soluble fraction (SBA-0, yield: 15.7%) and an abundant precipitate (SBA-1, yield: 84.3%) that kept the antiviral activity. Then, SBA-1 was recovered and treated with 1 M NaOH to solubilize polysaccharides, simultaneously inducing the degradation of proteins and esters to smaller components. The alkali-soluble extract was recovered, and the polysaccharides were precipitated from this solution by adding one volume of 96% ethanol. The precipitate was dialyzed against water, and during dialysis, some water-insoluble polysaccharides precipitated inside the membrane, which were separated from hydrosoluble polysaccharides by centrifugation. At the end of the fractionation process, a minor insoluble fraction (SBA_I, yield: 0.9%) was separated from a fourfold more abundant soluble fraction (SBA_S, yield: 4.6%), highly enriched in polysaccharides.

3.2. Antiviral Activity and Cell Viability Assay

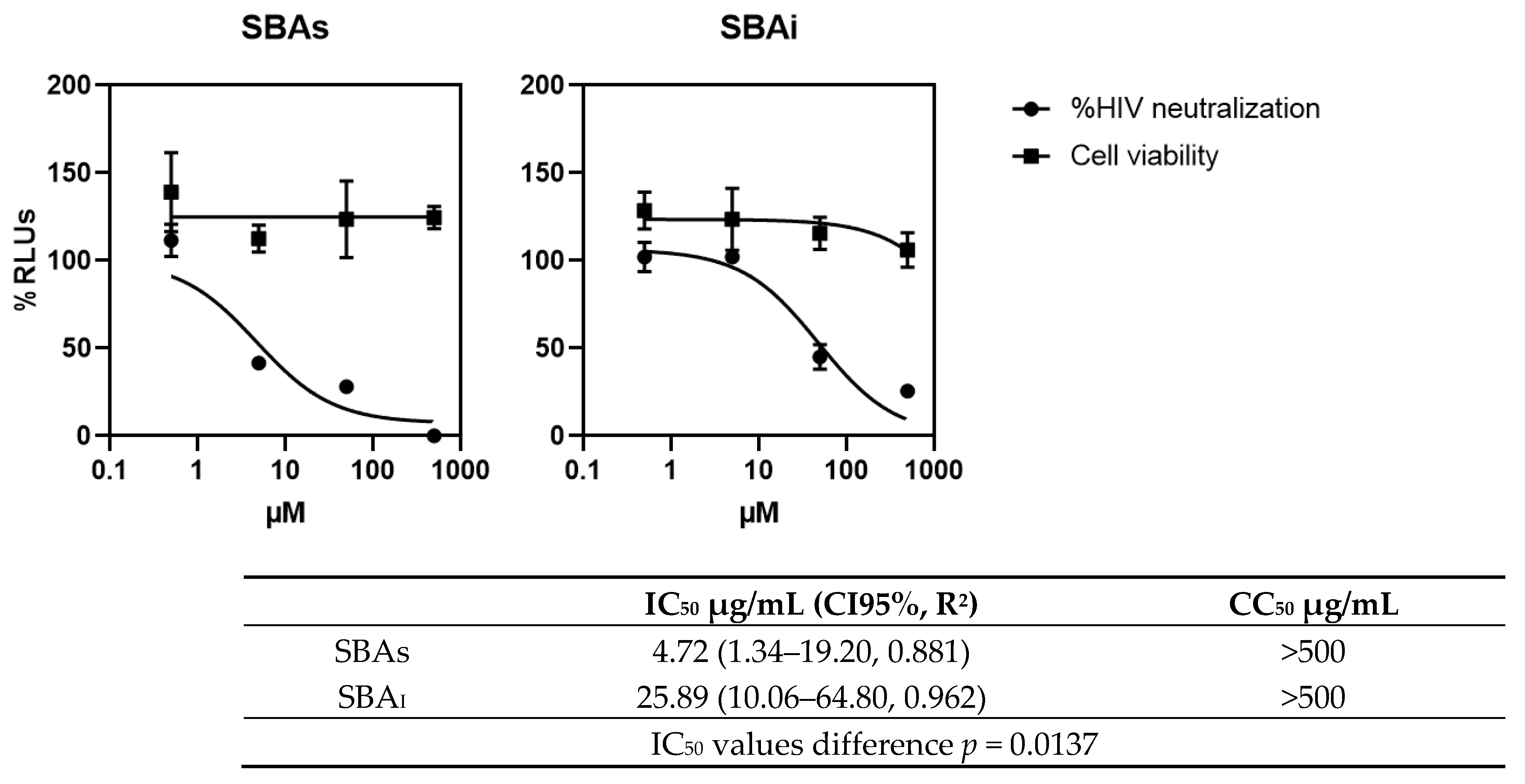

Purified polysaccharides SBA_S and SBA_I were submitted to antiviral activity evaluation. The experimental approach chosen was a neutralization assay since polysaccharides are high-molecular-weight molecules, and their activity is more likely to be produced in an extracellular environment. Actually, the antiviral activity of polysaccharides is thought to be due to glycan–glycan interactions with the more external surface of the virus. HIV is an enveloped virus with a glycan shield known to be crucial for immune evasion and attachment to target cells (CD4+ T cells). In fact, it is highly improbable that the first contact between HIV and CD4+ T cells would occur via gp120 viral protein (Env) and cellular receptors (CD4, CXCR4, or CCR5) since viral infection could depend on glycan-to-glycan interactions [28]. Therefore, a known strategy to inhibit HIV infection intends to coat the gp120 viral protein with compounds that turn the viral particle ineffective in infecting new cells. This strategy is especially important for the development of microbicides and drug formulations used to prevent infections through sexual intercourse. Polysaccharide-based microbicides will inactivate viral particles before the interaction with target cells occurs in a process called neutralization.

Consequently, the purified polysaccharides were tested in a neutralization assay, in which HIV supernatants were treated for 1 h with different concentrations of the compounds. These treated supernatants were then used to infect target cells, and neutralization activity was measured. In Figure 1, the activity of the purified SBA_S and SBA_I is shown. Both fractions inhibited HIV infection and showed no toxicity even at the maximum concentration tested (500 µg/mL). However, SBAs were more powerful, displaying an IC₅₀ of 4.72 µg/mL. Thus, this fraction was selected to deepen into its chemical features.

3.3. Carbohydrate Analysis of the Fraction SBA_S

To identify and quantify the main sugars in SBAs, the sample was first hydrolyzed with acid and then converted into a derivative appropriate for GC-MS analysis. Here, the monomers released were transformed into their corresponding trimethylsilyl oximes to allow for the detection of uronic acids, if present.

The molar ratio of the monosaccharides identified is given in

Table 1. Monosaccharide composition of SBA_S.

Monosaccharide	Molar Ratio
Rhamnose	0.4
Arabinose	0.6
Mannose	0.1
Glucose	1.0
Galactose	0.6
Galacturonic acid	tr.

, showing a pool of neutral monosaccharides, as well as traces of galacturonic acid. Glucose is the most abundant monosaccharide, which in addition to arabinose, galactose, rhamnose, and mannose, represents the typical components of hemicelluloses and, for some of them, the carbohydrate component of arabinogalactan proteins [30].

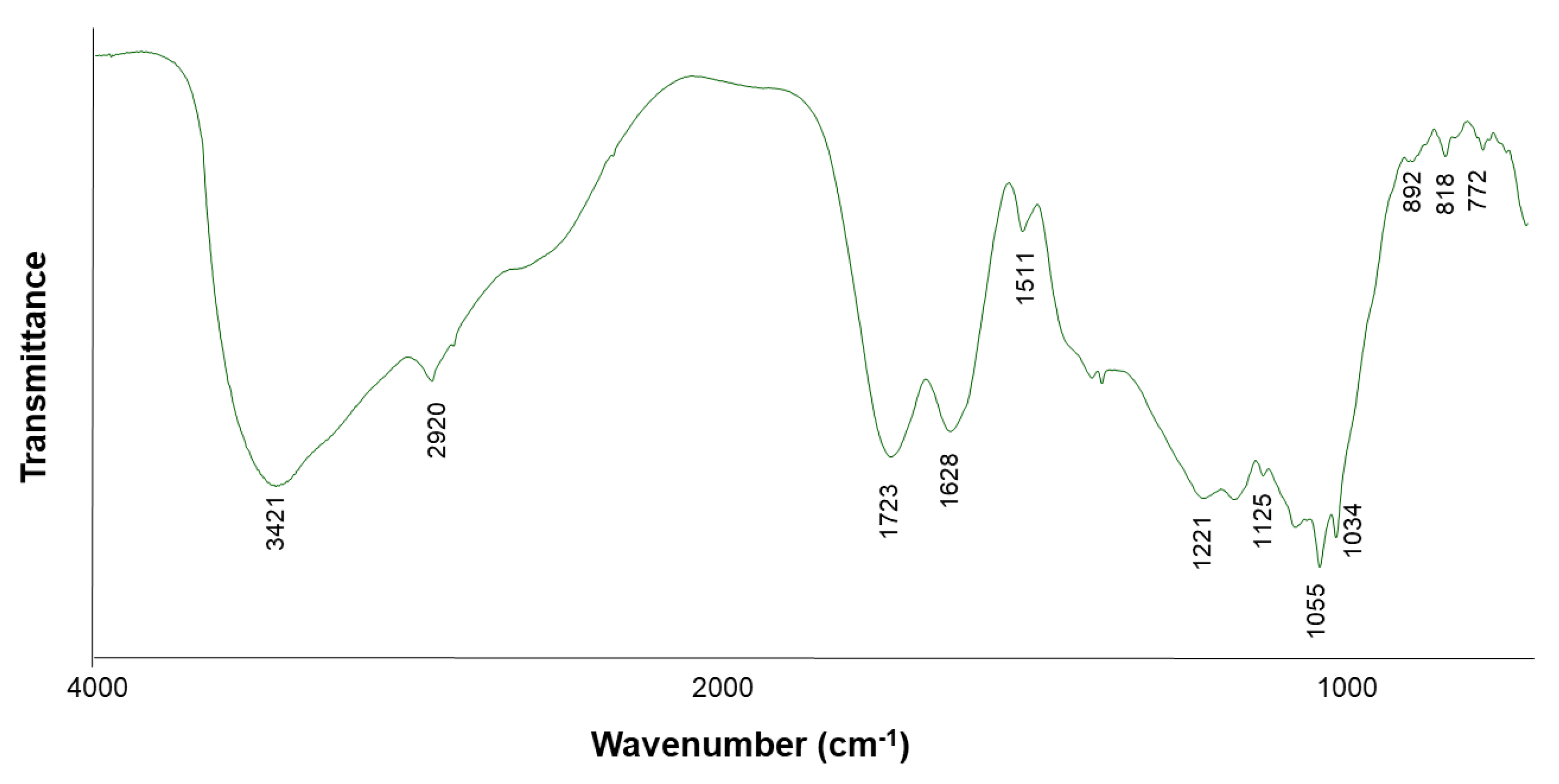

In order to obtain information about the configuration α or β of glycosidic bonds, as well as the presence of N-acetyl, carboxyl, phosphate, or sulfate substituents, the FT-IR analysis was carried out (Figure 2). The spectrum showed bands at 3100–3600 cm⁻¹ (stretching of hydroxyl groups of alcohols), bands at 800 and 1430 cm⁻¹ due to the stretching of monosaccharides (pyranoses or furanoses), and a band at 1723 cm⁻¹, which was characteristic of C=O stretching. However, the lack of bands around 1017 and 1100 cm⁻¹, characteristic of stretching vibration of the C-O single bond in carboxylic acids [31], pointed to a low abundance of uronic acids. The band detected at 892 cm⁻¹ is a clear indication of the presence of β-linkages, and that observed at 818 cm⁻¹ is related to α-glycosidic linkages, indicating that both anomeric forms coexist in SBAs) [30].

3.4. Methylation/GC-MS Analysis

The type of glycosidic linkages of SBA_S were analyzed by methylation analysis (

Table 2. Linkage types deduced from methylation analysis of SBA_S.

Linkage	Rt 1 (min)	Major Mass Fragments (m/z)	Molar Ratio 2 %
Araf-(1→	4.0	87, 101, 118, 129, 161	5.7
→3)-Araf-(1→	5.2	118, 173, 233	6.5
→5)-Araf-(1→	5.7	87, 88, 102, 118, 129, 130, 162, 173, 189	7.9
→3,5)-Araf-(1→	7.2	85, 118, 127, 159, 201, 261	3.8
→2,5)-Araf-(1→	7.5	87, 88, 129, 130, 190	4.0
Galp-(1→	7.0	88, 101, 102, 118, 129, 130, 205, 206	5.9
→4)-Galp-(1→	8.5	88, 102, 113, 118, 130, 162, 173, 233	4.5
→3)-Galp-(1→	8.9	87, 101, 118, 129, 161, 174, 234, 277	4.0
→6)-Galp-(1→	9.9	88, 102, 118, 129, 130, 162, 189, 233	8.5
→3,6)-Galp-(1→	12.5	87, 118, 129, 174, 189, 234, 305	14.4
Glcp-(1→	6.5	88, 101, 102, 118, 129, 130, 205, 206	3.6
→4)-Glcp-(1→	8.7	88, 102, 113, 118, 130, 162, 173, 233	19.3
→4,6)-Glcp-(1→	11.3	87, 102, 118, 127, 129, 201, 261	4.5
→4)-GalAcp-(1→	11.5	87, 102, 118, 127, 129, 203, 263	3.6
→4)-Rhap-(1→	4.3	88, 101, 102, 131, 162	1.9
→2)-Manp-(1→	8.3	87, 88, 101, 129, 130, 161, 190, 205	1.0
→4,6)-Manp-(1→	8.3	102, 118, 162, 201, 261	0.9

¹ Retention time. ² Relative molar ratios calculated from peak areas.

). The results showed a high complexity in this sample (17 different units were identified). Arabinose units are all found in furanose configuration and linked at positions O-3, O-5, O-3,5, and O-2,5 or as non-reducing terminal units. The rest of the detected monosaccharides are in pyranose configuration. Galactose is substituted at its O-3,6, O-6, and O-3 positions and as non-reducing terminals. This suggests a (1→3)-linked Galp backbone with (1→6)-linked Galp side chains.

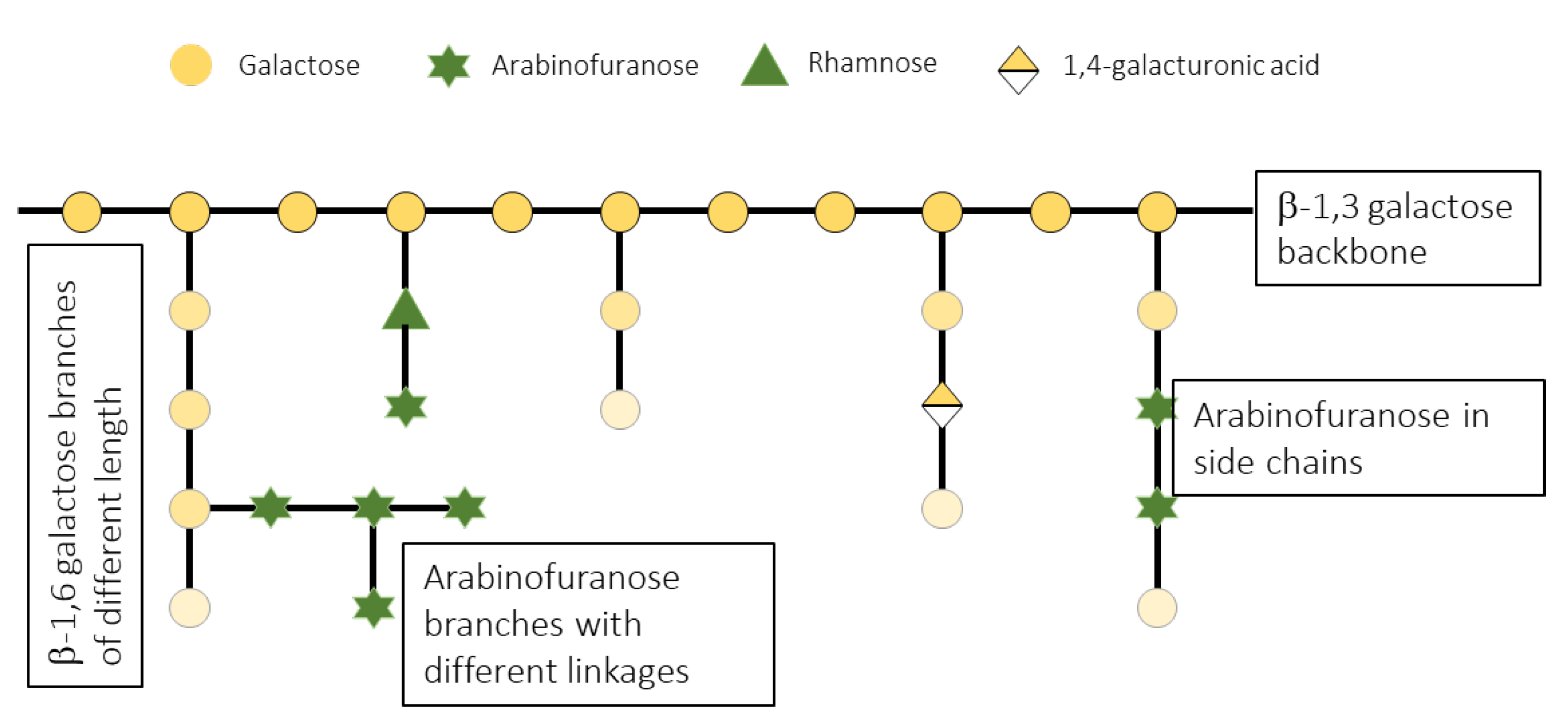

Dissecting this intricate pattern, the linkages deduced for galactose and arabinose units revealed branched chains and structures compatible with type II arabinogalactans, recognized as extremely complex polysaccharides [32]. The degree of branching and the specific sugar residues present in type II arabinogalactans can vary widely depending on the plant species, developmental stage, and tissue. However, they share the backbone of β-1,3-linked galactopyranose, decorated with side chains of β-1,6-linked galactopyranose residues. These side chains can vary in length, and the galactan core can also be substituted by short α-arabinofuranose chains (mostly 1,5- and 1,3-linked, as detected in SBAs), rhamnose, glucose, mannose, and uronic acids [33]. All these monosaccharides have also been identified in SBAs. On the other hand, the (1,4)-linked glucose detected by methylation analysis probably belongs to a different polysaccharide. Starch, an α-(1,4)-glucan, has been described as a component of aqueous plant extracts. However, no starch was observed under the microscope in a preliminary assay after iodine staining powdered aerial parts of C. bolivianum. Recent publications describe these units in a complex polysaccharide purified from the infusion of aerial parts from Artemisia absinthium [34] and from another one from leaves of Penthorum chinense Pursh [35].

In summary, the analysis of SBAs fits with the presence of the polysaccharide part of arabinogalactan proteins. It is probably accompanied by a branched (1,4)-glucan since these structurally complex molecules are sometimes part of larger complexes with other polysaccharides, to which they can be cross-linked. Due to their structural variability, several structures have been described for type II arabinogalactans, and more structural studies are required to determine the fine structure of the one found in the leaves of C. bolivianum. However, based on the linkage types deduced from methylation analysis, a hypothetical simplified model of this arabinogalactan is presented in Figure 3.

3.5. Inhibition of Trans Infection Mediated by Raji DC-SIGN Cells

HIV can infect CD4+ T cells directly via the interaction of viral and cellular receptors, as in the neutralization assay, or might be presented to target cells by antigen-presenting cells (APCs), such as dendritic cells (DCs) in lymph nodes. This pathway of viral infection, called trans-infection, depends on lectin-type receptors, such as DC-SIGN receptors, expressed in the membrane of dendritic cells. Thus, the interference in HIV transmission in the DC–lymphocyte synapse is a potential target for the identification of new compounds with anti-HIV activity. The HIV–DC interaction is mediated by the glycans of gp120 and the C-type lectin DC-SIGN (dendritic cell-specific ICAM 3-grabbing nonintegrin) expressed on DCs. DC-SIGN is tetrameric and specifically recognizes N-linked high-mannose oligosaccharides (Man9GlcNAc2) through multivalent and Ca²⁺-dependent protein–carbohydrate interactions [36]. Therefore, the DC-SIGN receptor has been described as recognizing and binding to mannose-rich glycans with relatively high affinity. Moreover, the inhibition of trans-infection has been described for mannan-rich polysaccharides [37]. In this sense, our group has previously described the antiviral activity of new glyconanoparticles (GNPs) coated with sets of different structural motifs of the N-linked high-mannose undecasaccharide Man9(GlcNAc)2 [37]. Therefore, the potential activity of purified polysaccharides from C. bolivianum has been tested in this context, using RAJI DC-SIGN cells as APCs and primary PBMCs as target cells (Figure 4).

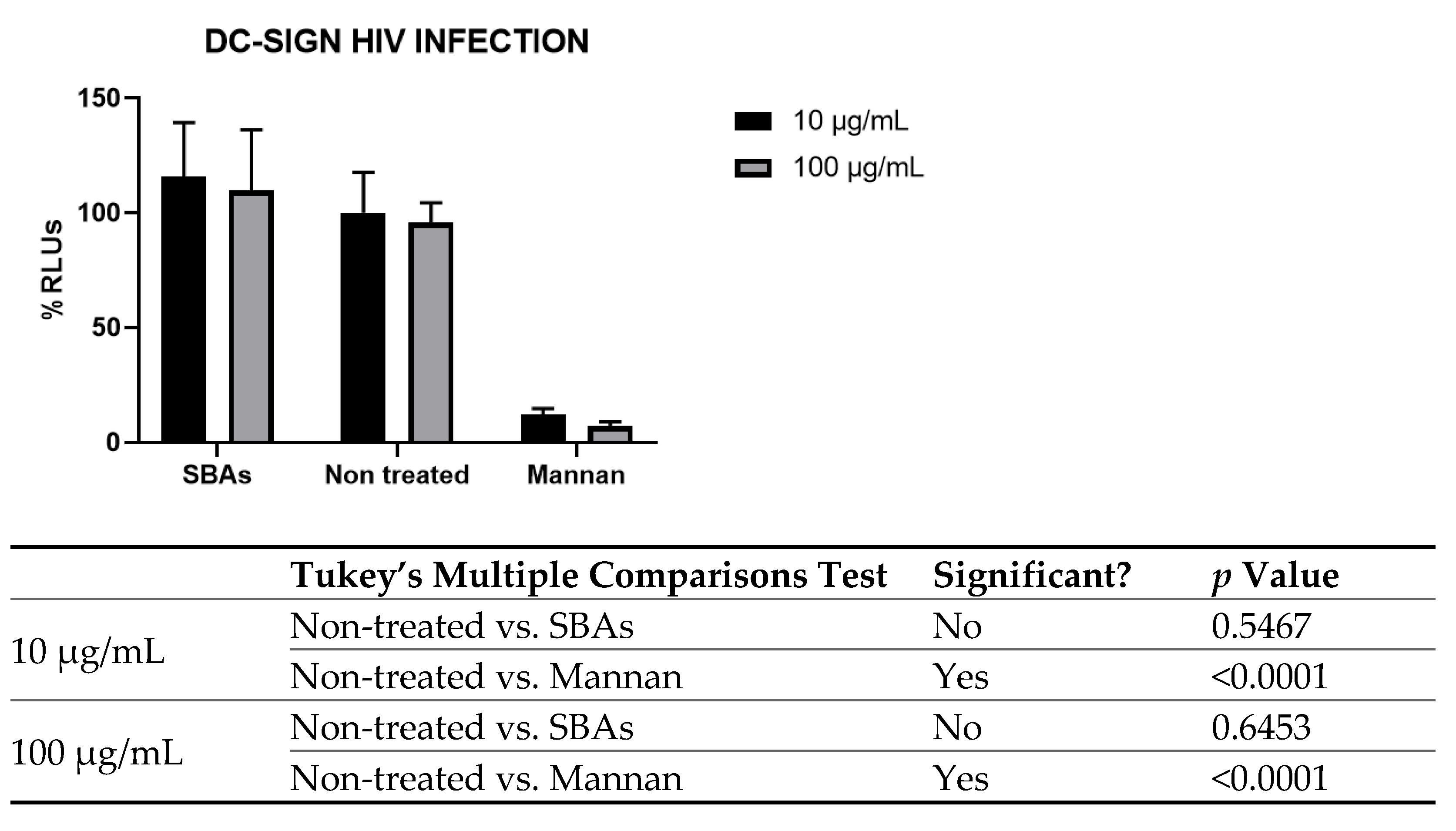

As shown in Figure 4, SBAs did not inhibit DC-SIGN-mediated trans-infection of HIV, suggesting the lectin-gp120 interaction was not blocked by this compound. The few mannose residues in the SBAs could be related to the lack of activity in this assay.

In summary, this work suggests a dose-dependent antiviral activity, where a mechanism of action is described in the phases prior to infection, that is, before the virus comes into contact with the cell, generating a blockade at the level of some receptor of the viral membrane.

4. Conclusions

In this study, the antiviral activity of a purified heterogeneous polysaccharide from the aerial parts of Clinopodium bolivianum, SBA_S, not previously described in this species, has been evaluated. After adequate extraction and subsequent analysis (FTIR, methylation, GC-MS), its structure was partially deduced, finding a polysaccharide fraction rich in galactose, rhamnose, and arabinose but poor in mannoses and uronic acids. The mechanisms of action of polysaccharides as antivirals include their interaction with the glycoprotein gp120 via acidic interactions or the block of antigen-presenting cells (APS) mediated infection through interaction of mannan-rich regions with DC-SIGN receptors. Our experiments rule out the involvement of DC-SIGN and acidic interactions as mechanisms of action due to the low mannose and uronic acid residues found in the polysaccharide structure. However, our results show that SBA_S targets the viral membrane, turning the viral particles non-infective and, thus, displaying a powerful neutralizing activity. This activity could be a result of the interaction between the glycan shield of the viral glycoprotein gp120 and the neutral structure of SBA_S, disrupting the viral particle or inactivating its infectivity by a polymer-to-polymer interaction. In summary, we have purified a heterogeneous polysaccharide from C. bolivianum, SBAs, that inhibit HIV-1 infection in vitro through a neutralizing mechanism independent of DC-SIGN receptors or acidic interactions, which could explain, at least partially, the antiviral activity of C. bolivianum. Further in vivo and clinical experimentation would be needed to explore a new potential use as a topical microbicide to prevent HIV infection.
